Products Covered by This Manual:
TURBO-Pro Blower w/ 2-Bag Soft Top Collector (9 cubic feet)
5600611 IS500Z, IS1500Z 44” s/n: all
5600648 IS600Z 44” s/n: all
5600609 F160Z 48” s/n: all
S50XT 48” s/n: 2014749760 & above
S150XT 48” s/n: 2014644055 & above
5600649 IS600Z 48” s/n: all
5600802 IS1500Z 48” s/n: 2014644055 & above
5601094 IS600Z 52” s/n: 2017942587 & above
5600601 IS700Z, F160Z, S125XT, S150XT 52” s/n: 2013818908 & above
5600602 IS2100Z 52” s/n: 2013818908 & above
5600803 IS500Z 52” s/n: 2013818908 & above
5600804 IS1500ZX, IS2000Z 52” s/n: 2013818908 & above
IS2500Z-Y20, S175X-Y20 52” s/n: 2014128342 & above
TURBO-Pro Blower w/ 3-Bag Soft Top Collector (12.5 cubic feet)
5600605 IS2100Z 52” s/n: 2013818908 & above
5600608 IS700Z, F160Z 52” s/n: all
S125XT, S150XT 52” s/n: 2013818908 & above
5600805 IS1500ZX, IS2000Z 52” s/n: 2013818908 & above
IS2500Z-Y20, S175X-Y20 52” s/n: 2014128342 & above
5600641 IS700Z, S125XT, S150XT 61” s/n: all
TURBO-Pro Blower w/ Electric Dump From Seat Collector (12.5 cubic feet)
5600624 S125XT, S150XT 52” s/n: 2013818908 & above
IS700Z, F160Z 52” s/n: all
5600623 IS1500ZX 52” s/n: 2013818908 & above
5600621 IS2100Z 52” s/n: 2013818908 & above
5600657 S125XT, IS700Z 61” s/n: all
TURBO-Pro MAX Blower w/ 2-Bag Soft Top Collector (9 cubic feet)
5601136 ISX2200 52” s/n: all
TURBO-Pro MAX Blower w/ 3-Bag Soft Top Collector (12.5 cubic feet)
5600747 IS2100Z, ISX2200 52” s/n: 2016497836 & above
5600748 S150XT 52” s/n: 2013818908 & above
F160X 52” s/n: all
5600749 S200XT 61” s/n: 2013383849 & above
IS2100Z, F210Z, ISX2200 61” s/n: 2016497836 & above
5600750 IS3100Z 61” s/n: 2016497836 & above
5600864 IS3200Z, F320Z, ISX3300 61” s/n: all
5601146 IS3200 Midnight 61” s/n: all
TURBO-Pro MAX Blower w/ Electric Dump From Seat Collector (12.5 cubic feet)
5600762 S150XT 52” s/n: 2013818908 & above
F160Z 52” s/n: all
5900761 IS2100Z, ISX2200 52” s/n: 2016497836 & above
5600760 S200XT 61” s/n: 2013383849 & above
IS2100Z, F210Z, ISX2200 61” s/n: 2016497836 & above
5600759 IS3100Z 61” s/n: 2016497836 & above
5600866 IS3200Z, F320Z 61” s/n: all

Not for
Reproduction
3
www.ferrismowers.com
www.snapper.com
Table of Contents
General Information....................................................3
Operator Safety ...........................................................4
General Operating Instructions.................................7
Installation ...................................................................9
Collection System Removal.................................... 34
Maintenance ............................................................. 36
Unplugging a Clogged Unit ...................................39
Troubleshooting....................................................... 41
Product Identification Tag
When contacting your authorized dealer for
replacement parts, service, or information you MUST
have these number.
Record your model number in the space provided for
easy access. The model number can be found in the
location shown.
Identification Numbers
Model
Number:
SAMPLE
SAMPLE
Product
Identification Tag
General Information
Thank you for purchasing this quality-built grass
collection system. When operated and maintained
according to the instructions in this manual, your
grass collection system will provide many years of
dependable service.
This manual contains safety information to make
you aware of the hazards and risks associated with
this product and how to avoid them. This product is
designed and intended to be used and maintained
according to the manual for grass collection from
established lawns and is not intended for any other
purpose. It is important that you read and understand
these instructions thoroughly before attempting
to operate this equipment. Save these original
instructions for future reference.
The illustrations in this manual are representative and
may not exactly match your unit.
Assembly
This manual includes the setup instructions for
installing either a Turbo Pro or Turbo-Pro Max blower
with either a 2-bag or 3-bag Soft Top grass collection
system.
For units that are being setup with an EZ-Dump
Hopper, EZ-Dump XL Hopper or a 2-Bag / 3-Bag Hard
Top collection system, consult the manual included
with the collection system for setup instructions.
For units that are being setup with an EZ Dump from
Seat collector, consult the manual included with the
collector for setup instructions.
Sample Product ID Tag - Turbo-Pro Blower
Sample Product ID Tag - Turbo-Pro Max Blower
SAMPLE
SAMPLE

Not for
Reproduction
4
Operator Safety
Operator Safety
Safety Rules & Information
Read these safety rules and follow them
closely. Failure to obey these rules
could result in loss of control of unit,
severe personal injury or death to you, or
bystanders, or damage to property or equipment.
This mowing deck is capable of amputating
hands and feet and throwing objects.
The triangle in text signifies important cautions
or warnings which must be followed.
WARNING
• Check the collection system to make sure it is
bolted tightly to the rider.
WARNING
• When blower assembly is removed from the
mower deck, the deflector must be properly
installed.
NOTICE
• Collector bags are subject to deterioration
and wear during normal use. Inspect the bag
periodically for tears, holes, or weak spots,
and replace with a new bag that meets the
manufacturer’s durability standards.
WARNING
Amputation and thrown objects hazard
If the mower stalls or the turbo blower chute
plugs:
1. Disengage the blower (blades) and remove
the ignition key, wait for all parts to stop;
before disconnecting or unlatching any
parts attached to the blower or the collection
system.
2. Remove the foreign object or clear the chute
with a suitable tool, such as a broom handle,
before restarting the engine. NEVER place
hands into the blower housing to clear
jammed object. Blower may rotate when
object is removed.
WARNING
For added rider stability and to prevent tipping
or loss of control:
• Use reduced speed on uneven ground and
when turning corners.
• Reduce loads on hillsides. It is recommended
that the collection system be kept no more
than half full when negotiating any slopes.
Start mowing on slopes when the collection
system is empty.

Not for
Reproduction
5
Operator Safety
Safety Decals
Before operating your unit, read the safety decals. The
cautions and warnings are for your safety. To avoid a
personal injury or damage to the unit, understand and
follow all the safety decals.
WARNING
If any safety decals become worn or damaged,
and cannot be read, order replacement decals
from your dealer.
A
B
C
Previous Units with Text Decals
A. Part Number: 5103518 - “Decal, Danger,
Rollover Hazard / Amputation and Thrown
Objects Hazard”
B. Part Number: 5103184 - “Decal, Warning,
Amputation and Pitch Point Hazard”
C. Part Number: 7101665 - “Decal, Danger,
Amputation and Thrown Objects Hazard”
DANGER
Amputation and thrown objects hazard
Keep hands and feet
away from deck.
Do not operate mower
unless discharge chute
or entire grass catcher
is in its proper place.
7101665
Current Units with Icon Decals
A
B
A. Part Number: 5104313 - Decal, Blower,
Small, Icons
B. Part Number: 5104314 - Decal, Blower,
Main, Large, Icons

Not for
Reproduction
6
Operator Safety
2-Bag & 3-Bag Collector Hood
A
A. Decal, Container, Icons (Sewn into fabric of
collector hood).
Safety Icons
Danger - Rollover hazard:
• Do not operate up or down slopes or without the
front counter balance weights.
• Operate on slopes only if under 10 degrees.
• Always use front counterbalance weights while
operating on slopes.
Warning - Amputation and thrown objects hazard:
• To avoid injury from rotating parts (of the blower).
• Stay clear of parts and keep all shields and guards
in place.
• Operate blower only with entire collection system
installed and latched closed.
Warning - Amputation and thrown objects hazard:
• Disengage the blower (blades) and remove
the ignition key, wait for all parts to stop before
disconnecting or unlatching any parts attached to
blower or collection system.
Warning - Read the Operator’s Manual.
Caution - Always wear hearing protection when
operating.
Warning - Loss of traction and control hazard:
• Do not operate with only the collection system
installed.
• Do not operate with only the front counter balance
weights installed.
• Operate only with both the entire collection system
and front counter balance weights installed and the
collection system closed and latched.
Danger - Dismemberment:
• This machine can crush and cut. Keep hands away
from belts and pulleys.

Not for
Reproduction
7
General Operating Instructions
Danger - Amputation and thrown objects hazard:
• To avoid injury from rotating blades, stay clear of
deck edge and keep others away.
Danger - Thrown objects hazard:
• Do not mow without discharge chute or entire grass
catcher in place.
Warning - Thrown objects hazard:
• Do not open collection system container with
engine running.
• Do not operate with blower or collection system
tube unlatched or missing.
• Operate only with both the entire collection system
and front counterbalance weights installed and the
collection system closed and latched.
Warning - Loss of traction and control hazard:
• Do not operate with only the collection system
installed.
• Do not operate with only the front counter balance
weights installed.
• Operate only with both the entire collection system
and front counter balance weights installed and the
collection system closed and latched.
General Operating Instructions
Before Operation
Clear the lawn of all sticks, stones, wire and other debris
which may be caught or thrown by the mower blades.
Check grass condition. If wet, wait until later in the day.
If grass is wet, the grass catcher is likely to become
plugged.
For efficient bagging, air circulation under the
mower deck, through the chute and into the bag
is very important.
For this reason, BEFORE YOU BEGIN MOWING you
should make certain the underside of the mower and
the underside of the catcher lid are free from grass and
debris.
Make sure that there is a snug fit between mower
deck, blower housing, discharge tube, and grass
catcher cover.
Mowing with the Double / Triple Catcher
Always operate with throttle at full speed when
mowing.
Grass should be cut often, and not too short. If grass
is too long or lush it may be necessary to keep ground
speed to a minimum or to cut only half the width of the
mower to prevent clogging. If grass is long, operate
with mower in high cutting position for first pass,
cutting again in a lower position on a second pass.
Do not open the cover with mower engaged.
If a large amount of cut grass is spilling out from
under deck, the discharge tube may be plugged or the
bags may be full — Disengage the blower (blades)
and remove the ignition key, wait for all parts to stop
and then empty the catcher or clear the discharge
tube.

Not for
Reproduction
8
General Operating Instructions
After Operation
For the blower:
1. The blower housing and discharge tube should be
removed for cleaning.
For the collection system:
1. Remove any accumulated debris from the inside of
the collection unit.
2. Remove any debris from the screen on the
underside of the lid.
NOTE: The lid screen can be partially removed for
easier cleaning and should be cleaned regularly.
3. Inspect the grass bags for wear or damage. Make
sure that there is a snug fit between mower deck,
blower housing, discharge tube, and grass catcher
cover.
WARNING
Disengage the blower (blades) and remove the
ignition key, wait for all parts to stop before
disconnecting or unlatching any parts attached
to blower or collection system.
To reduce fire hazard, keep the engine, rider
and mower free of grass, leaves and excess
grease. Do not stop or park rider over dry
leaves, grass or combustible materials.
CAUTION
Always wear hearing protection when
operating.
Storing the Grass Catcher
Clean the grass catcher thoroughly using a mild
detergent (other products may damage the discharge
tube). Remove any debris from the screen on the
underside of the lid. The screen can be partially
removed for easier cleaning.
If paint has been scratched on metal parts, touch
up with paint, or apply a thin film of oil to prevent
corrosion.
Store in a dry area. Hang the catcher and catcher
bags to dry thoroughly before storing for a long period
of time. Always store away from moisture.
Mowing Without the Collection System
To remove the blower, see the instructions in
Collector System Removal. All of the instructions
must be followed in Collector System Removal to
remove the collector, blower, collector hose, and front
weights, and the discharge chute properly installed
and and adjusted in the down position.
NOTICE
Be careful when turning away
from objects. The bagger may
collide with objects causing
damage.
NOTICE
Collector bags are subject to deterioration
and wear during normal use. Inspect the bag
periodically for tears, holes, or weak spots,
and replace with a new bag that meets the
manufacturer’s durability standards.
WARNING
Warning - Loss of traction and control hazard:
• Do not operate with only the collection system
installed.
• Do not operate with only the front counter
balance weights installed.
• Operate only with both the entire collection
system and front counter balance weights
installed and the collection system closed and
latched.
DANGER
Thrown Objects Hazard
• Do not mow without discharge chute or entire
grass catcher in place.

Not for
Reproduction
9
Installation
Figure 1. Upper Shock Mounting Positions
Installation
Rear Suspension Adjustment (Models
Equipped with Rear Suspension)
Many units equipped with rear suspension have
multiple upper mounting positions for the rear shock
assembly (A, Figure 1). If the unit that you are
installing the collection system on is equipped with
rear suspension, the upper mounting position of
the rear shock assembly must be re-positioned to
accommodate the additional weight of the collection
system.
Some units are equipped with two (2) upper shock
mounting positions and some units are equipped
with three (3) upper shock mounting positions. To
accommodate the additional weight of the collection
system the upper end of the shock mount assembly
must re-positioned so that the shock is in its most
vertical orientation.
If the unit that you are installing the collection system
on does not have additional upper mounting positions,
the spring’s pre-load must be adjusted. For unit’s with
additional upper mounting positions: if a stiffer ride
is desired after the rear shock is re-positioned to it’s
most vertical position, it can be achieved by adjusting
the spring’s pre-load.
To adjust the upper shock mounting position:
1. Park the machine on a flat, level surface. Engage
the parking brake, disengage the PTO, turn the
ignition switch to OFF, and remove the key from the
ignition.
2. Chock the front wheels of the unit to prevent the
machine from rolling.
3. Raise the rear of the machine and secure with jack
stands. The jack stands must be positioned under
the bumper of the unit.
4. Position the jack under the suspension cradle (or
the cross member that ties the suspension arms
together, depending on your unit) and slowly raise
the rear suspension to relieve the pressure on the
upper shock mounting bolts.
NOTE: This will require small adjustments to the
jacks position. The shock should move freely on the
mounting bolt when the pressure is relieved.
5. Remove the upper shock mounting hardware and
pivot the shock to the position that orients the
shock most vertically (position #2 for units with two
(2) upper mounting positions; position #3 for units
with three (3) upper mounting positions). Adjust
the jack to align the shock assembly to the shock
mounting hole.
6. Re-install the upper shock mounting hardware and
tighten securely.
1
2
A
3
C
B
A
Figure 2. Shock Pre-Load Adjuster

Not for
Reproduction
10
Installation
7. Remove the jack from underneath the suspension
cradle (or suspension cross member, depending on
your unit).
8. Remove the jack stands from underneath the
machine.
To adjust the spring pre-load:
1. Park the machine on a flat, level surface. Engage
the parking brake, disengage the PTO, turn the
ignition switch to OFF, and remove the ignition key.
2. Chock the front wheels of the machine to prevent
the machine from rolling.
3. Raise the rear of the machine and secure with jack
stands.
4. Remove the rear drive tires.
5. To adjust the spring pre-load of the shock
assembly (A, Figure 2) insert the tip of the spanner
wrench (p/n 5022853) (B), that came with the zero-
turn riding mower, into the notch of the pre-load
adjuster (C). While holding the spanner wrench
in place with one hand, turn counter-clockwise
to increase the amount of pre-load. (Turning
clockwise will decrease the amount of pre-load.)
Make sure that both rear shock assemblies are
adjusted to the same pre-load position.
6. Re-install the rear drive tires. Torque the lug bolts
to 85-91 ft. lbs. (115-129 Nm). Remove the jack
stands from under the machine.
NOTE: If the spanner wrench is not located in a clamp
under the seat plate of your unit, it was included with
the publication packet for the zero-turn riding mower.

Not for
Reproduction
11
Installation
Installing the Collector Assist Spring
(IS600Z Models Only)
Due to the extra weight of the collection system, it is
necessary to install the collector assist springs (A,
Figure 3) on the IS600Z models.
1. Park the machine on a flat, level surface.
Disengage the PTO, stop the engine and engage
the parking brake.
2. Chock the front wheels to prevent the machine from
rolling. Raise the rear of the machine and secure
with jack stands. The jack stands must be under
the bumper.
This will allow the shock to be relaxed and will
allow maximum space for the installation of the
collector assist spring.
3. Install the collector assist spring to the frame of the
machine and secure using the two (2) 3/8-16 X 1”
bolts (B), 3/8 washers (C), and 3/8 nylock flange
nuts (D).
4. Repeat the process for the other side of the unit.
5. Remove the jack stands from under the machine.
6. Remove the jack from under the suspension cross
member.
A
B
C
D
Figure 3. Collector Assist Spring Installation

Not for
Reproduction
12
Operator Safety
Ball Joint Hardware Replacement (Ferris
IS2000Z, IS2100Z & IS2500Z Models w/
52” Mower Decks Only)
The hardware and spacers that secure the rear ball
joint (A, Figure 4) on the right hand front suspension
arm has to be replaced with the hardware and spacer
included with this kit. This change is necessary to
provide clearance for the blower unit and must be
completed before blower unit installation.
To replace the ball joint spacers and hardware:
1. Lower the front of the mower deck down onto
wooden blocks to relieve the tension on the front
deck hanger chains. Jack up the front of the tractor
frame until the weight is lifted off the front caster
wheels.
2. Remove the 3/4”-10 X 3-1/2” bolt (A, Figure 5) and
3/4-16 nylon lock nut (B) that attaches the ball joint
(C) to the frame (D). Discard the bolt, and .75 X
1.75 X 1.00 spacer (E). Retain the .75 X 1.00 X .25
spacer (F) and 3/4-16 nylon lock nut.
3. Install the new 3/4”-16 X 2-1/2” thin-headed bolt
(G), through the new .76 X 1.06 X .07 spacer
(H), the ball joint, the .75 X 1.00 X .25 spacer (F)
retained in step #2, the frame and secure using the
3/4-16 nylon lock nut (B) previously removed.
Figure 4. Location of Ball Joint
A. Ball Joint to be Replaced
A
A
F
C
E
B
D
G
H
C
F
B
D
Figure 5. Replacing the Ball Joint Hardware
A. 3/4-16 X 3-1/2” Bolt
B. 3/6-16 Nylon Lock Nut
C. Ball Joint
D. Frame
E. .75 x 1.75 x 1.00 Spacer
F. .75 x 1.00 x .25 Spacer
G. 3/4-10 X 2-1/2” Thin Headed Bolt
H. .76 X 1.06 X .07 Spacer

Not for
Reproduction
13
Installation
Figure 6. Remove Chute & Deck Guard
A. Discharge Chute
B. Chute Mount Rod
C. Chute Lock Bolt
D. Deck Guard
E. Deflector Plate Mount Hardware
F. Deflector Plate
G. Mower Deck
H. Discharge Chute Rod Mount Hardware
Remove the Discharge Chute, Deck
Guard, and Deflector Plate
1. Remove the discharge chute (A, Figure 6), chute
mount rod (B) and mounting hardware (H).
Retain the discharge chute, chute mount rod,
and mounting hardware. The discharge chute will
need to be reinstalled for operation if the collection
system is removed.
2. Remove the chute lock bolt (C) and nut. Retain this
hardware.
3. Remove the deck guard (D). Save the bolts and
washers, as they will be required in a later step.
4. Loosen and remove the hardware (E) that secures
the deflector plate (F) to the mower deck (G).
5. Remove the deflector plate.
6. Save the deflector plate and hardware.
When operating the unit without the collection
system installed, the user will experience a better
cutting quality if the deflector plate in reinstalled
A
B
C
D
F
E
H
G

Not for
Reproduction
14
Installation

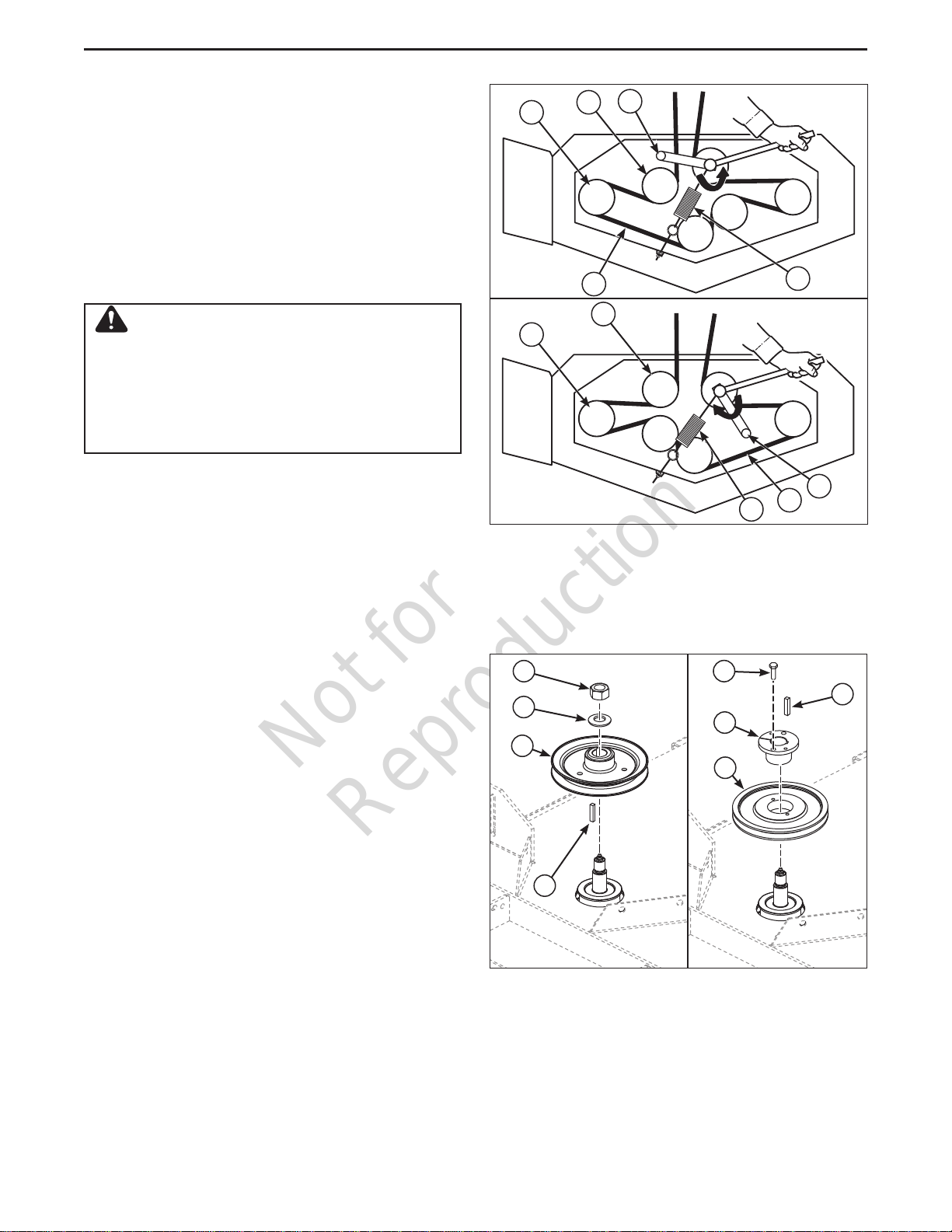

Prepare the Mower Deck - Models with
Single Belt Drive Systems
Remove the Spindle Belt
The mower deck is equipped with an idler arm (A,
Figure 7) which is fastened to a spring (B). Rotating
the idler arm in a direction that lengthens the spring
will relieve the tension on the spindle belt (C). This will
allow you to remove the belt from the spindle pulley.
1. Using a 1/2” breaker bar, place the square end in
the opening located in the end of the idler arm.
2. Carefully rotate the idler arm either clockwise
or counter-clockwise so that it lengths the idler
spring.
3. Slide the drive belt over the edge of the stationary
idler pulley (D). Carefully release the tension on the
breaker bar.
4. Remove the belt from the right-hand (discharge
side) spindle pulley (E).
WARNING
Use extreme caution when rotating the idler
arm with the breaker bar, due to the increased
tension in the spring as the idler arm is being
rotated. Injury may result if the breaker bar is
prematurely released while the spring is under
tension.
Figure 7. Removing the Spindle Belt
A. Idler Arm
B. Spring
C. Spindle Belt
D. Stationary Idler Pulley
E. Right-Hand (Discharge Side) Spindle Pulley
A
A
B
B
D
D
C
C
E
E
Remove the Mower Deck Spindle Pulley (for
Pulleys with Hex Nut and Spring Washer)
1. Remove the 3/4-16 hex nut & 3/4” spring washer
(A & B, Figure 8) securing the spindle pulley (C)
to the spindle shaft. Use a 1” wrench on the flats
of the blade end of the spindle shaft to prevent the
shaft from spinning. Save the 1/4” key (D).
Removing the Mower Deck Spindle Pulley (for
Pulleys with Bolt-In Tapered Hub)
1. Measure and record the distance between the
bottom of the spindle pulley and the top of the
mower deck. This will be required when installing
the new pulley.
2. Remove the 1/4-20 X 1” bolts (E) securing the
tapered hub (F) to the spindle pulley (G) and shaft.
3. Reinstall the bolts in the tapped holes of the
tapered hub and tighten evenly to remove the hub
from the pulley and shaft. Use a 1” wrench on the
flats of the blade end of the spindle shaft to prevent
the shaft from spinning. Save the 1/4” key (D).
Figure 8. Remove Spindle Pulley
A. 3/4-16 Hex Nut
B. 3/4” Spring Washer
C. Spindle Pulley
D. 1/4” Key
E. 1/4-20 x 1” Bolts
F. Tapered Hub
G. Spindle Pulley (tapered bore)
A
D
CG
F
ED
B

Not for
Reproduction
15
Installation
Install the Double Spindle Pulley (for Pulleys with
Hex Nut and Spring Washer)
1. Install the double spindle pulley (C, Figure 9) and
1/4” key (D) onto the spindle shaft.
2. Install the 3/4” spring washer (B) with the cone
facing up (see insert, Figure 9). Install the 3/4-
16 hex nut (A) and torque to 85-90 ft. lbs (115-122
Nm). Use a 1” wrench on the flats of the blade
end of the spindle shaft to prevent the shaft from
spinning.
Install the Double Spindle Pulley (for Pulleys with
Bolt-In Tapered Hub)
1. Remove the 1/4-20 X 1” bolts (E) from the tapered
hub (F). Install the bolts through the clearance
holes in the hub and into the new double spindle
pulley (G).
2. Install the pulley, hub, and 1/4” key (D) onto the
spindle shaft.
3. Hold the pulley at the height measured previously
and tighten the 1/4” bolts evenly. Torque the 1/4”
bolts to 8 ft. lbs. (10.9 Nm). Use a 1” wrench on the
flats of the blade end of the spindle shaft to prevent
the shaft from spinning.
Reinstall the Spindle Belt
1. Refer to Figure 10 for proper spindle belt (A,
Figure 10) alignment. Make sure the belt is
installed correctly on all pulleys except for the
stationary idler pulley (B).
The V-side of the belt should run in the pulley
grooves of the spindle pulleys (C) and the PTO
clutch pulley of the unit. The flat side of the belt
should contact the grooves of the stationary idler
pulley (D) and the adjustable idler pulley (E).
2. Using a 1/2” breaker bar, place the square end in
the square hole located in the end of the idler arm
(F).
3. Carefully rotate the idler arm either clockwise or
counter-clockwise so that it lengthens the idler
spring (G).
4. Install the spindle belt on the stationary idler pulley
(B) so that the flat side of the belt contacts the
pulley groove. F
F
G
G
B
B
A
A
C
C
Figure 10. Reinstalling the Spindle Belt
A. Spindle Belt
B. Stationary Idler Pulley
C. Spindle Pulleys
D. Stationary Idler Pulley
E. Adjustable Idler Pulley
F. Idler Arm
G. Idler Spring
C
C
C
C
D
D
E
E
Figure 9. Install Double Spindle Pulley
A. 3/4-16 Hex Nut
B. 3/4” Spring Washer
C. Double Spindle Pulley
D. 1/4” Key
E. 1/4-20 x 1” Bolts
F. Tapered Hub
G. Double Spindle Pulley (tapered bore)
A
B
C
D
E
F
G
D

Not for
Reproduction
16
Installation
Figure 11. Install Guard
Install the Deck Guard
1. Install the new lower deck guard (A, Figure 11)
onto the mower deck and secure with the hardware
previously removed.
Note: IS3200Z models use a guard that features a
pvoting top plate. Install the guard in the same in the
same manner as above. Remove the knob and rotate
the top plate to access the pulleys.
A
Prepare the Mower Deck - Models with
Two Belt Drive System on a 52” Mower
Deck
Removing the Mower Deck Spindle Belt
This mower deck design features two belts. The short
right hand deck belt (A, Figure 12) must be removed
in order to replace the right hand spindle pulley. The
long left hand belt (B) is not affected and does not
need to be removed.
1. Lower the mower deck to it’s lowest cutting
position. Remove the floor pan to gain access to
the mower deck belts.
2. Using a 1/2” breaker bar (C) place the square
end in the opening in the spindle drive idler arm
(D) and rotate the idler arm clockwise, which will
relieve tension on the belt exerted from the idler
arm. Remove the belt from the rear idler pulley (E)
and then the right hand spindle pulley (F). Carefully
release the tension on the breaker bar.
Installing the Spindle Pulley for the Blower
1. Remove the 3/4-16 hex nut (A, Figure 13) and 3/4
spring washer (B) that secures the spacers (C &
D) and spindle pulley (E) to the spindle shaft (F).
Use a 1” wrench on the flats of the blade end of
the spindle shaft to prevent the spindle shaft from
spinning.
2. Remove the .70” spacer (C), the 1.14” spacer (D),
the spindle pulley (E), and 1/4 key (G) from the
spindle shaft.
3. Install the new double spindle pulley (A, Figure
14) and 1/4” key (B) onto the spindle shaft (C). The
larger diameter pulley of the double spindle pulley
is installed so that it is facing down towards the
mower deck.
C
F
E
A
B
H
G
D
Figure 12. Removing the Short Right Hand Deck Belt
WARNING
Use extreme caution when rotating the idler
arm with the breaker bar, due to the increased
tension in the spring as the idler arm is being
rotated. Injury may result if the breaker bar is
prematurely released while the spring is under
tension.
G
B
A
E
F
D
C
Figure 13. Removing the Existing Spindle Components

Not for
Reproduction
17
Installation
4. Install the 1.00 X 1.50 X 1.50 spacer (D) onto the
spindle shaft. It fits into the upper opening of the
double spindle pulley.
5. Install the 3/4” spring washer (E) with the cone
facing up (see insert, Figure 14). Install the 3/4-
16 hex nut (F) and torque to 85-90 ft. lbs. (115-122
Nm). Use a 1” wrench on the flats of the blade end
of the spindle shaft to prevent the spindle shaft
from spinning.
Installing the Mower Deck Spindle Belt
1. Refer to Figure 12 for proper spindle belt
alignment. Make sure that the V-side of the belt (A,
Figure 12) is in the grooves of the center spindle
pulley (G) and the front idler pulley (H).
2. Loosen the jam nut (A, Figure 15) on the carriage
bolt (B) and the 3/8” nut (C) that secures the rear
idler pulley (D) to the deck. This will allow the rear
idler pulley to move in it’s adjustment slot.
3. Turn the adjustment nut (E) so that the pulley
moves closer to the front of the mower deck. This
will make it easier to install the short right hand
deck belt (A, Figure 12).
4. Using a 1/2” breaker bar (C) place the square end
in the opening in the spindle drive idler arm (D) and
rotate the idler arm clockwise, which will relieve
tension on the belt exerted from the idler arm.
Install the belt on the lower groove of the double
spindle pulley (A, Figure 14) and then the rear idler
pulley (D, Figure 15). Make sure that the V-side of
the belt runs in grooves of all four pulleys. Carefully
release the tension on the breaker bar.
5. Measure the coil-to-coil length (F, Figure 15) of
the short right hand belt tensioning spring (G).
The measurement should equal the measurement
as indicated in the Short Right Hand Belt
Tensioning Spring Length chart. If not, turn
the adjustment nut (E) until the measurement is
achieved. Tighten the jam nut (A) and the 3/8”
nut (C) that secures the rear idler pulley (D) to the
deck.
6. Install the floor pan.
Installing the Spindle Pulley Guard
1. Install the lower spindle guard (A, Figure 16) to the
mower deck using the 5/16 bolts (B) and washers
(C) previously removed.
2. Install the two (2) body clips (D) to the lower
spindle guard.
3. Install the top plate (E) to the spindle guard and
secure using the two (2) knobs (F). To access the
pulleys, remove the front knob and loosen the back
knob then the top plate can be pivoted out of the way.
F
E
D
CB
A
G
B
D
C
F
B
A
E
A
C
B
C
B
E
F
D
Figure 14. Installing the New Spindle Components
Figure 15. Installing the Short Right Hand Deck Belt
Figure 16. Install the Right Hand Spindle Guard
Short Right Hand Belt Tensioning Spring Length
Serial Number Measurement
2017702695 &
below
6-1/8” (15,6 cm) ± 1/8 (0,32 cm)
2017702696 &
above
6-3/8” (16,2 cm) ± 1/8 (0,32 cm)

Not for
Reproduction
18
Installation
Prepare the Mower Deck - Models with a
Two Belt Drive System on a 61” Mower
Deck (For Pulleys with Hex Nut and
Spring Washer)
Removing the Mower Deck Spindle Belt
It is not necessary to remove either spindle belt on the
mower deck to install the collection system.
Installing the Spindle Pulley for the Blower
1. Lower the mower deck to it’s lowest cutting
position.
2. Remove the 3/4-16 hex nut (A, Figure 17), the
3/4 spring washer (B), the .70” spacer (C) and the
1.14” spacer (D) that secures the spindle pulley to
the spindle shaft of the right hand side spindle (E).
Use a 1” wrench on the flats of the blade end of
the spindle shaft to prevent the spindle shaft from
spinning.
3. Install the second spindle pulley (A, Figure 18) and
the 1/4” key (B) onto the spindle shaft. The second
spindle pulley is installed with the wider hub facing
down towards the right hand spindle pulley.
4. Install the 3/4” spring washer (C) with the cone
facing up (see insert, Figure 18). Install the 3/4-16
hex nut (D) and torque to 85-90 ft. lbs. (115-122
Nm). Use a 1” wrench on the flats of the blade end
of the spindle shaft to prevent the spindle shaft
from spinning.
Installing the Spindle Pulley Guard
1. Install the lower spindle guard (A, Figure 19) to the
mower deck using the 5/16 bolts (B) and washers
(C) previously removed.
2. Install the two (2) body clips (D) to the lower
spindle guard.
3. Install the top plate (E) to the spindle guard and
secure using the two (2) knobs (F).
To access the pulleys, remove the front knob and
loosen the back knob then the top plate can be pivoted
out of the way.
A
B
C
D
E
D
C
A
B
A
C
B
C
B
E
F
D
Figure 17. Remove the Existing Spindle Components
Figure 18. Install the New Spindle Pulley for the Blower
Figure 19. Install the Right Hand Spindle Guard

Not for
Reproduction
19
Installation
Preparing the Mower Deck - Models with
a Two Belt Drive System on a 61” Mower
Deck (Pulleys with Tapered Hub)
Removing the Mower Deck Spindle Belt
This mower deck design features two belts. The short
right hand deck belt (A, Figure 20) must be removed
in order to replace the right hand spindle pulley. The
long left hand belt (B) is not affected and does not
need to be removed.
1. Lower the mower deck to it’s lowest cutting
position. Remove the floor pan to gain access to
the mower deck belts.
2. Using a 1/2” breaker bar (C) place the square
end in the opening in the spindle drive idler arm
(D) and rotate the idler arm clockwise, which will
relieve tension on the belt exerted from the idler
arm. Remove the belt from the rear idler pulley (E)
and then the right hand spindle pulley (F). Carefully
release the tension on the breaker bar.
Installing the Spindle Pulley for the Blower
1. Measure and record the distance between the
bottom of the spindle pulley (A, Figure 21) and the
top of the mower deck. This will be required when
installing the new pulley.
2. Remove the 1/4-20 X 1” bolts (B) that secure the
tapered hub (C) to the spindle pulley and spindle
shaft (D).
3. Install the bolts in the tapped holes of the tapered
hub and tighten evenly to remove the hub from the
spindle pulley and spindle shaft. Use a 1” wrench
on the flats of the blade end of the spindle shaft to
prevent the spindle shaft from spinning. Save the
1/4” key (E).
4. Remove the 1/4-20 X 1” bolts (A, Figure 22) from
the tapered hub (B). Install the bolts through the
clearance holes in the hub and into the new double
spindle pulley (C).
5. Install the double spindle pulley, tapered hub, and
1/4” key (D) onto the spindle shaft (E).
6. Hold the double spindle pulley at the height
previously measured and tighten the 1/4” bolts
evenly. Torque the 1/4” bolts to 8 ft. lbs. (10,9 Nm).
Use a 1” wrench on the flats of the blade end of
the of the spindle shaft to prevent the shaft from
spinning.
C
F
E
A
B
H
G
D
B
C
AE
D
A
B
CD
E
Figure 20. Remove the Short Right Hand Deck Belt
Figure 21. Remove the Existing Spindle Components
Figure 22. Installing the New Spindle Components
WARNING
Use extreme caution when rotating the idler
arm with the breaker bar, due to the increased
tension in the spring as the idler arm is being
rotated. Injury may result if the breaker bar is
prematurely released while the spring is under
tension.

Not for
Reproduction
20
Installation
Installing the Mower Deck Spindle Belt
1. Refer to Figure 20 for proper spindle belt
alignment. Make sure that the V-side of the belt (A,
Figure 20) is in the grooves of the center spindle
pulley (G) and the front idler pulley (H).
2. Loosen the jam nut (A, Figure 23) on the carriage
bolt (B) and the 3/8” nut (C) that secures the rear
idler pulley (D) to the deck. This will allow the rear
idler pulley to move in it’s adjustment slot.
3. Turn the adjustment nut (E) so that the pulley
moves closer to the front of the mower deck. This
will make it easier to re-install the short right hand
deck belt (A, Figure 20).
4. Using a 1/2” breaker bar (C) place the square end
in the opening in the spindle drive idler arm (D) and
rotate the idler arm clockwise, which will relieve
tension on the belt exerted from the idler arm.
Install the belt on the lower groove of the double
spindle pulley (A, Figure 22) and then the rear idler
pulley (D, Figure 23). Make sure that the V-side of
the belt runs in grooves of all four pulleys. Carefully
release the tension on the breaker bar.
5. Measure the coil-to-coil length (F, Figure 23) of
the short right hand belt tensioning spring (G).
The measurement should equal the measurement
as indicated in the Short Right Hand Belt
Tensioning Spring Length chart. If not, turn
the adjustment nut (E) until the measurement is
achieved. Tighten the jam nut (A) and the 3/8”
nut (C) that secures the rear idler pulley (D) to the
deck.
6. Install the floor pan.
Installing the Spindle Pulley Guard
1. Install the lower spindle guard (A, Figure 24) to the
mower deck using the 5/16 bolts (B) and washers
(C) previously removed.
2. Install the body clip (D) into the back hole of the
lower spindle guard.
3. Install a 1/4-20 X 3/4” bolt (E) down through a 1/4”
fender washer (F), the top plate (G), the second
1/4” fender washer, the lower spindle guard, and
secure with a 1/4” nylock flange nut (H). Do not
over-tighten the hardware. The top plate should be
able to pivot on the hardware just installed.
4. Install the top plate to the spindle guard and secure
using the knob (I).
To access the pulleys, remove the knob and then the
top plate can be pivoted out of the way.
G
B
D
C
F
B
A
E
I
E
G
B
C
D
H
A
C
B
F
Figure 23. Installing the Short Right Hand Deck Belt
Figure 24. Installing the Right Hand Spindle Guard
Short Right Hand Belt Tensioning Spring Length
Serial Number Measurement
2017702695 &
below
6-1/8” (15,6 cm) ± 1/8” (0,32 cm)
2017702696 &
above
6-3/4 (17,1 cm) ± 1/8” (0,32 cm)
