Minuteman Orbit 20 Pro Parts list manual

Orbit 20 Pro
Floor Finisher
Parts and Instruction Manual
Minuteman International, Inc.
A Member of the Hako Group
988777 Rev A 09/21
+$:.
(17(535,6(6

Page 2 Orbit 20 Pro Floor Finisher 988777 Rev A 09/21
PREFACE
Thank you for your purchase of the new industry standard for scrubbers. Minuteman International
takes great pride in off ering the most dependable, reliable and best value in industrial power
sweepers and sweeper / scrubbers. We set the standard.
Our Customer Service Department would like to hear from you. If you see any errors, omissions
or something that needs clarifi cation in this Parts Catalog please let us know. We are working hard
towards continually improving our processes to bring you the best you deserve. Please copy the form
below, fi ll out and comment on how you found our catalog.
Thank you!
The Minuteman International Team
Name: ______________________________________________________________________
Title: ______________________________________________________________________
Company Name: _____________________________________________________________
Address: ____________________________________________________________________
Country: ____________________________________________________________________
Type of equipment or model number: ______________________________________________
Comments: __________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
Please return to:
Customer Service Manager
Minuteman International, Inc.
14N845 U.S. Route 20
Pingree Grove, Illinois 60140 USA
Phone: [phone]
Email: [email protected]

Page 3
• Stop on level surface.
• Unplug the machine.
• Avoid moving parts. Do not wear loose jackets, shirts, or sleeves when working on machine.
• Do not clean machine with a pressure washer.
• Authorized personnel must perform repairs and maintenance. Use Minuteman supplied replacement parts.
For Safety When Servicing or Maintaining Machine
Orbit 20 Pro Floor Finisher 988777 Rev A 09/21
Model Orbit 20 Pro
Model: R20
Technical Specifi cations
^W/&/d/KE^ ZϮϬ
W^/ ϮϬΗyϭϰΗ
WZ/sZdzW
KD/Ed/KEW
,K>Z/DKEWZ/sZ
WKtZ^KhZ ϭϭϱsϲϬ,
DKdKZ,W
ϭϬ,Wd&
ϭϳϰϬZWD
DWZt ϳϴ
s/Zd/KEKDWE^dKZ ϭϮϱ
KZ ϱϬΖϭϰͲϯ^:
d
WWZ^^hZ;ůďƐŝŶϸͿΎΎΎ ϰϬ
dKd>t/',dΎΎ ϭϲϮ
^,/WW/E't/',
d
ϭϵϴ
ΎΎt/',d/^>h>dt/d,Khdd,WKtZKZ
ΎΎΎWWZ^^hZK^EKd/E>hd,t/',dK&d,WKtZKZ

Page 4 Orbit 20 Pro Floor Finisher 988777 Rev A 09/21
Table of Contents
Technical Specifi cations .......................................................................... 3
For Safety When Servicing or Maintaining Machine ................................ 3
Service Information .................................................................................. 6
Features .................................................................................................. 7
Important Safety Instructions ................................................................... 8
Grounding Instructions ............................................................................ 9
Basic Operation ..................................................................................... 10
Guidelines for Operation ........................................................................ 11
Handle Adjustment ................................................................................ 12
Cord Storage ......................................................................................... 13
Cleanup and Storage ............................................................................. 13
Main Frame ........................................................................................... 14
Wheel Assembly .................................................................................... 16
Handle Assembly ................................................................................... 17
Handle Assembly (Continued) ............................................................... 18
Parts List ................................................................................................ 20
Handle Wiring ........................................................................................ 24
Warranty ................................................................................................ 26

Page 5
Orbit 20 Pro Floor Finisher 988777 Rev A 09/21

Page 6 Orbit 20 Pro Floor Finisher 988777 Rev A 09/21
Service Information
To obtain consistent performance over the life of your equipment, read though these instructions and save them
for future reference. If you require service, contact the dealer from which the machine was purchased or an
authorized Minuteman representative. Always refer to your limited Warranty for complete service information.
The model, type, and serial number are indicated on the data plate on the side of the handle. From prompt and
complete service, refer to these numbers when inquiring about service
6(5,$/12 02'(/
92/76
02725
3+$6(
$036
+=
+3
:ULWHWKHPRGHODQGVHULDOQXPEHURI\RXU
XQLWLQWKHVSDFHSURYLGHG5HIHUWRWKH
GDWDSODWHRQXQLW
6(5,$/ 02'(/
5HWDLQWKLVRZQHUVPDQXDOIRUIXWXUHUHIHUHQFH

Page 7
Orbit 20 Pro Floor Finisher 988777 Rev A 09/21
Features
• Twin (dual) capacitor 56-frame TEFC (totally enclosed fan cooled) motor keeps out dirt and dust for longer
motor life.
• Extra heavy duty spring steel cord strain relief with a 50’ 14-3 power cord
• Low current draw
• Thumb-operated safety switch
• Negative pressure on/off switch
• Dual steel operating triggers for left- or right-hand operation
• One-piece industrial powder coated heavy duty steel handle for optimum durability
• Welded frame for rugged, reliable performance
• Non-marking, 2x6” ball bearing wheels
• Multiple position handle adjustment for operator comfort and safety Comfortable vinyl handle grips for ease
of use
• Full wraparound dust skirt

Page 8 Orbit 20 Pro Floor Finisher 988777 Rev A 09/21
Important Safety Instructions
When using an electrical appliance, basic precautions should always be followed, including the following:
• Your Orbit 20 Pro Floor Finisher is equipped with a safety switch lock and power switch triggers designed
for your safety. Do not attempt to bypass or defeat the safety switch lock. Never use any device to lock the
power switch triggers in the “ON” position.
• Do not leave the machine plugged in. Turn off the switch and unplug the electrical cord when not in use and
before servicing or changing the brushes or pads.
• Do not allow the machine to be used as a toy. Close attention is necessary when used near children. Do not
leave the machine connected to an electrical outlet unattended.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with a damaged cord or plug. If the machine is not working as it should, has been dropped, dam-
aged, or left outdoors, return it to a service center before using.
• Use care to keep the electrical supply cord around sharp edges or corners. Keep the cord away from the
heated surfaces.
• Connect to properly grounded (3-wire) outlet only. Refer to Grounding Instructions.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Turn off all controls before unplugging.
• Do not unplug by pulling on the cord. To unplug, grasp the plug and pull.
• Do not handle the plug or the machine with wet hands.
• Wind the cord no tighter than is necessary to retain it during storage. Refer to Cord Storage.
• Use extra care when working on or near stairs.
• Do not use in conjunction with fl ammable or combustible liquids such as gasoline, or use in areas where
explosive vapor or dust may be present.
• Store your Orbit 20 Pro Floor Finisher indoors in a cool, dry area.
• Keep your work area well lighted.
• WARNING: To avoid electrical shock, use indoor only.
:$51,1*
(/(&75,&6+2&.&$1&$86(6(5,286
,1-85<25%()$7$/3/($6(5($'7+(
)2//2:,1*,16758&7,216217+(86(
$1'23(5$7,2162))/225),1,6+,1*
0$&+,1(6

Page 9
Orbit 20 Pro Floor Finisher 988777 Rev A 09/21
Grounding Instructions
This appliance must be grounded. If it should malfunction or break down, grounding provides a path of least re-
sistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord that has
an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with all local codes and ordinances.
Improper connection of an equipment grounding conductor can result in risk of electric shock. Check
with a qualifi ed electrician or service person if you are in doubt as to whether the outlet is properly grounded.
Do not modify the plug provided with the appliance. If it will not fi t the outlet, have a proper outlet installed
by a qualifi ed electrician. This appliance is for use on a nominal 120 volt circuit and has a grounding plug that
looks like the plug illustrated in Figure 1.
:$51,1*
5,6.2)(;3/26,21)/2256$1',1*
0$&+,1(&$15(68/7,1$1(;3/26,9(
0,;785(2)),1('867$1'$,586()/225
6$1',1*0$&+,1(21/<,1$
:(//9(17,/$7('$5($)5(()520$1<
)/$0(250$7&+

Page 10 Orbit 20 Pro Floor Finisher 988777 Rev A 09/21

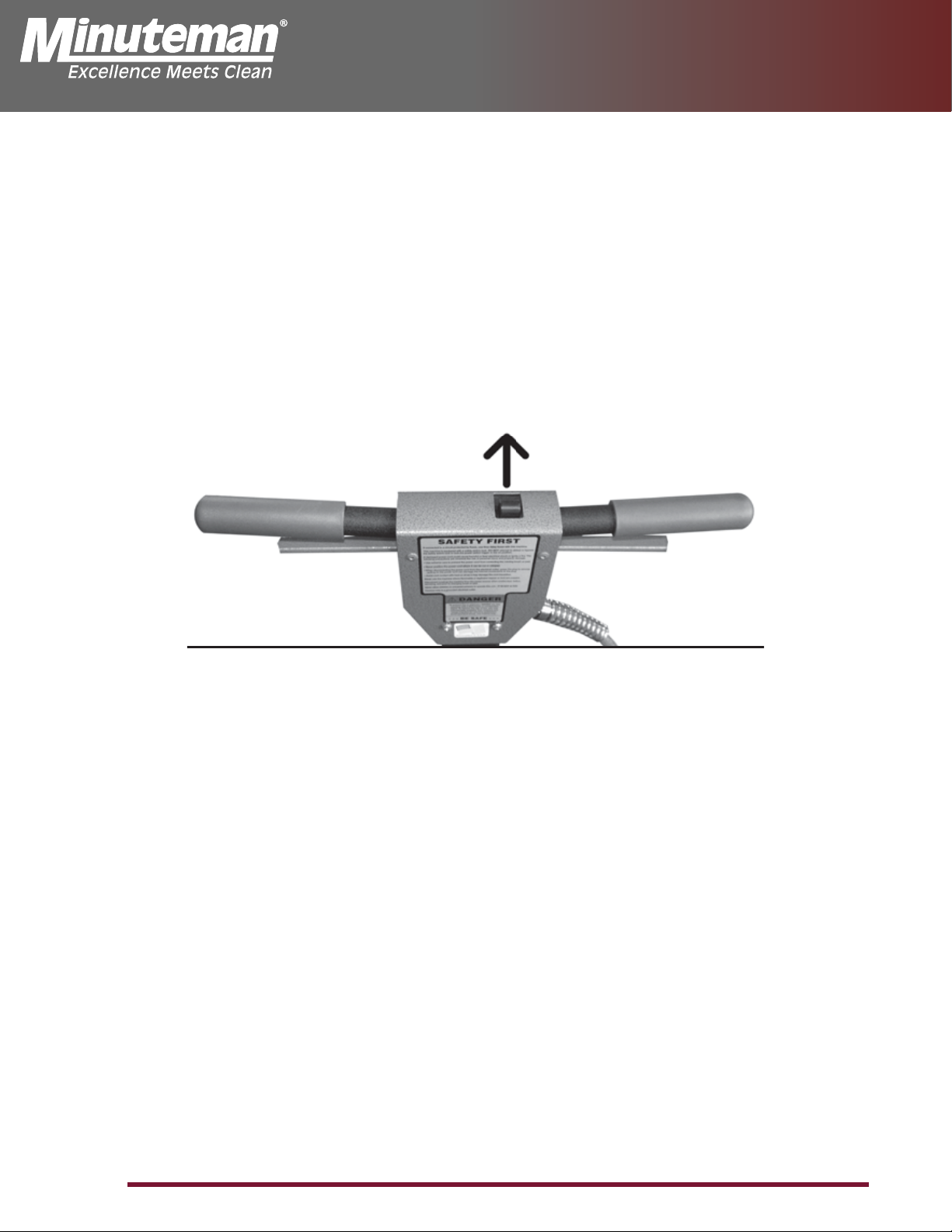

Basic Operation
To turn the machine on, the operating handle must be lowered and locked to the proper operating position be-
fore switching the machine ON. Place both hands fi rmly on the handle grips with your fi ngers around the power
triggers. Do NOT apply pressure on the triggers before the safety switch lock is disengaged.
Disengage the safety switch lock by pushing it forward with one thumb. Then, while holding the safety switch
lock in the disengaged position, squeeze the power triggers toward the handle grips and return your thumb to
the handle grip.
To stop the machine, simply release the triggers. The safety switch lock will automatically return to the engaged
position
3XVKIRUZDUGWRGLVHQ
JDJHVDIHW\VZLWFKORFN

Page 11
Orbit 20 Pro Floor Finisher 988777 Rev A 09/21
Guidelines for Operation
• Your Orbit 20 Pro Floor Finisher is a very sensitive, powerful unit. When in operation, it should be guided
gradually and smoothly without sudden or rough motions. You will want to practice with your machine on a
smooth surface until you have experience in operating it.
• For ease of operation, always keep the brush or pad surface level, balanced, and fl at on the fl oor at all
times.
• Always adjust the operating handle to a comfortable height at which the brush or pad surface is balanced
before starting the machine. (See Handle Adjustment Page 4)
• Your machine will operate diff erently on various surfaces. For example, there will be much more resistance
when the machine is used on a rough surface, than when it is used on a smooth surface. The operator should
be prepared to adjust for these diff erences.
• Begin operating the machine with the pad surface level, balanced, and fl at on the fl oor.
• To move the machine to the right, turn the unit to the right.
• To move the machine to the left, turn the unit to the left.
• To move the machine forward or backward, keep the brush or pad fl at on the fl oor and push or pull the ma-
chine in the desired direction.

Page 12 Orbit 20 Pro Floor Finisher 988777 Rev A 09/21

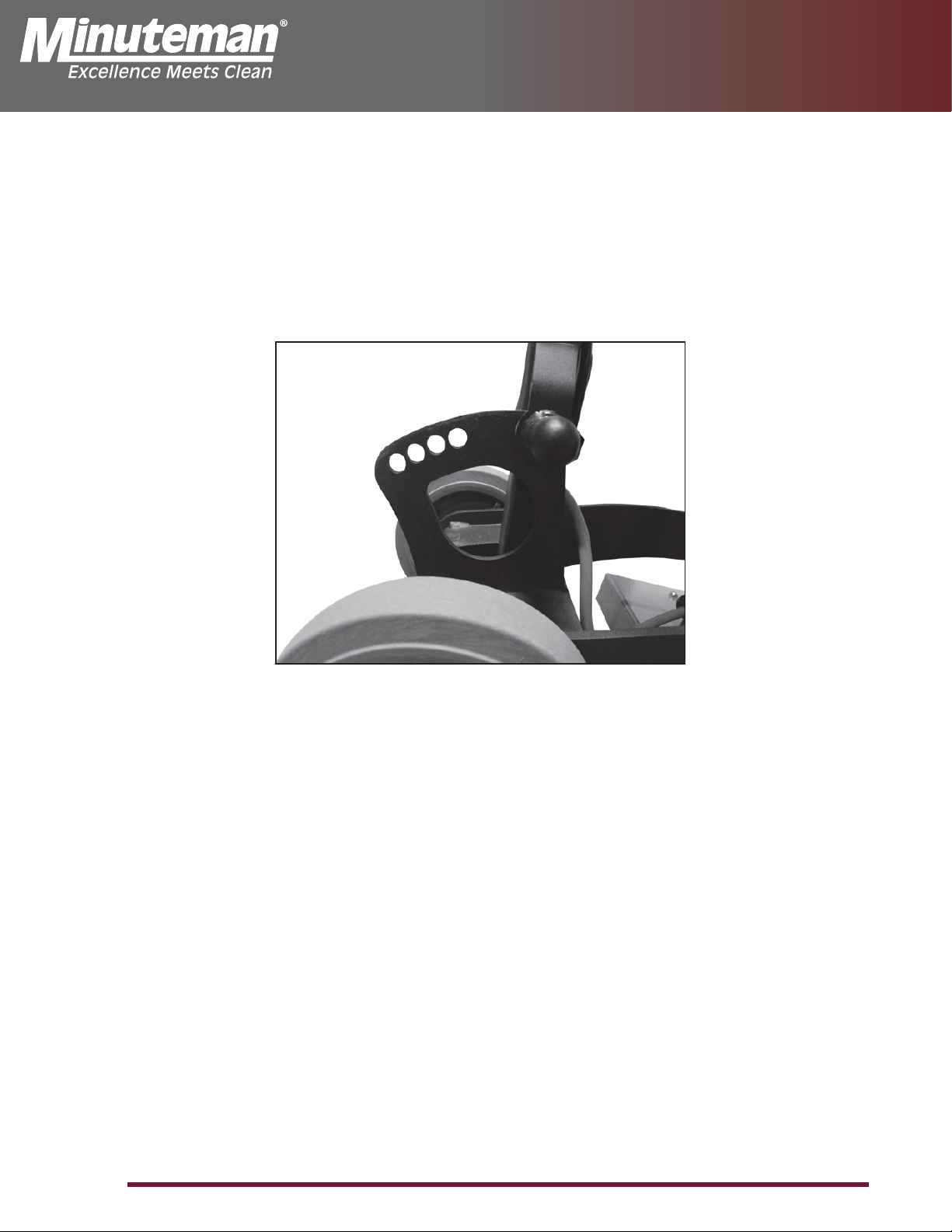

Handle Adjustment
The handle can be adjusted to any desired work position by simply pulling on the pull pin and move the handle
to the desired position. Firmly push the pull pin back into the adjustment holes. This will lock the handle in
position.
)LJXUH
3XOO.QRE

Page 13
Orbit 20 Pro Floor Finisher 988777 Rev A 09/21
Cord Storage
When not in use, loosely coil the power cord
and hang on the handle.
Cleanup and Storage
After being used, your Orbit 20 Pro Floor Finisher can be wiped clean with a soft damp cloth and should be
stored in a clean, dry place.

Page 14 Orbit 20 Pro Floor Finisher 988777 Rev A 09/21

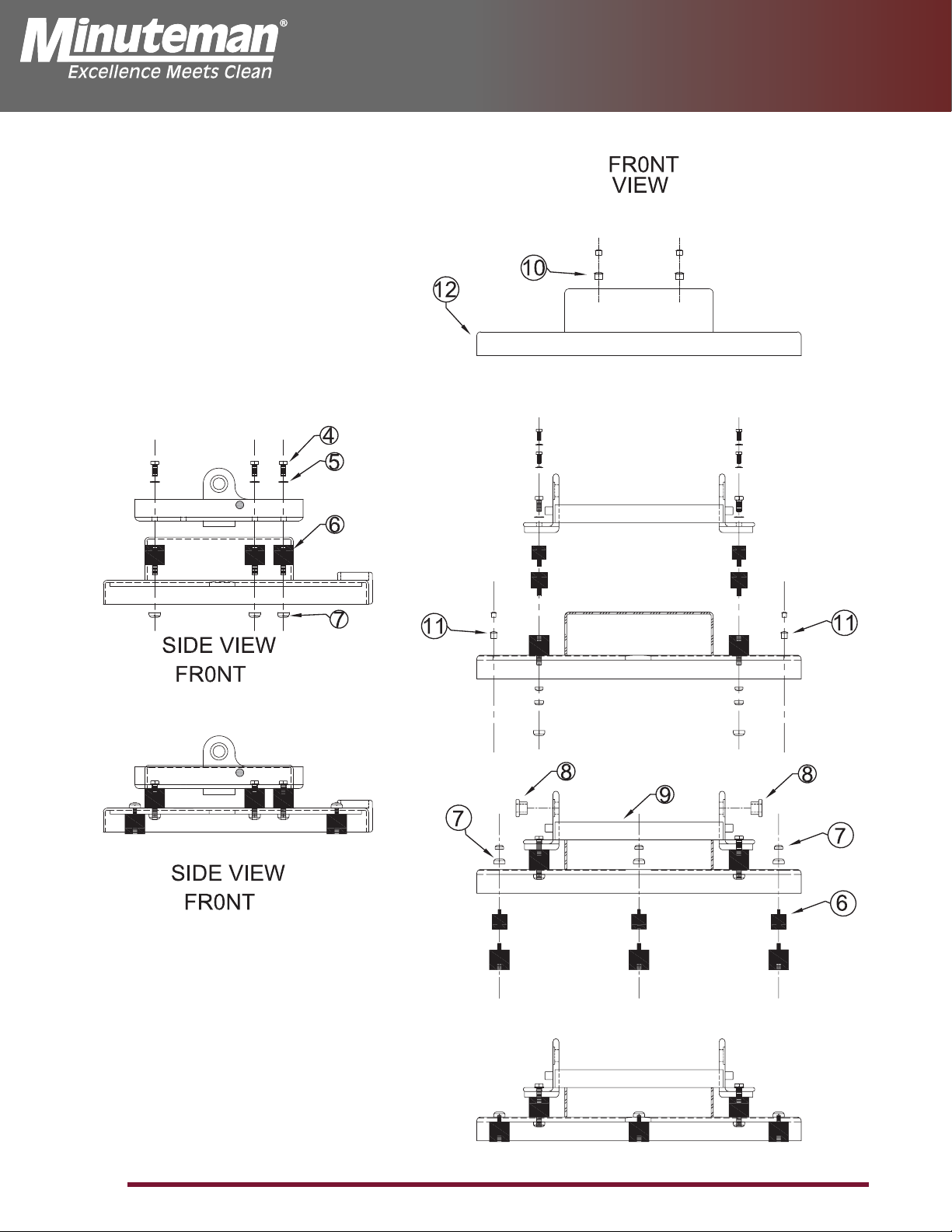

Main Frame

Page 15
Orbit 20 Pro Floor Finisher 988777 Rev A 09/21


Page 16 Orbit 20 Pro Floor Finisher 988777 Rev A 09/21

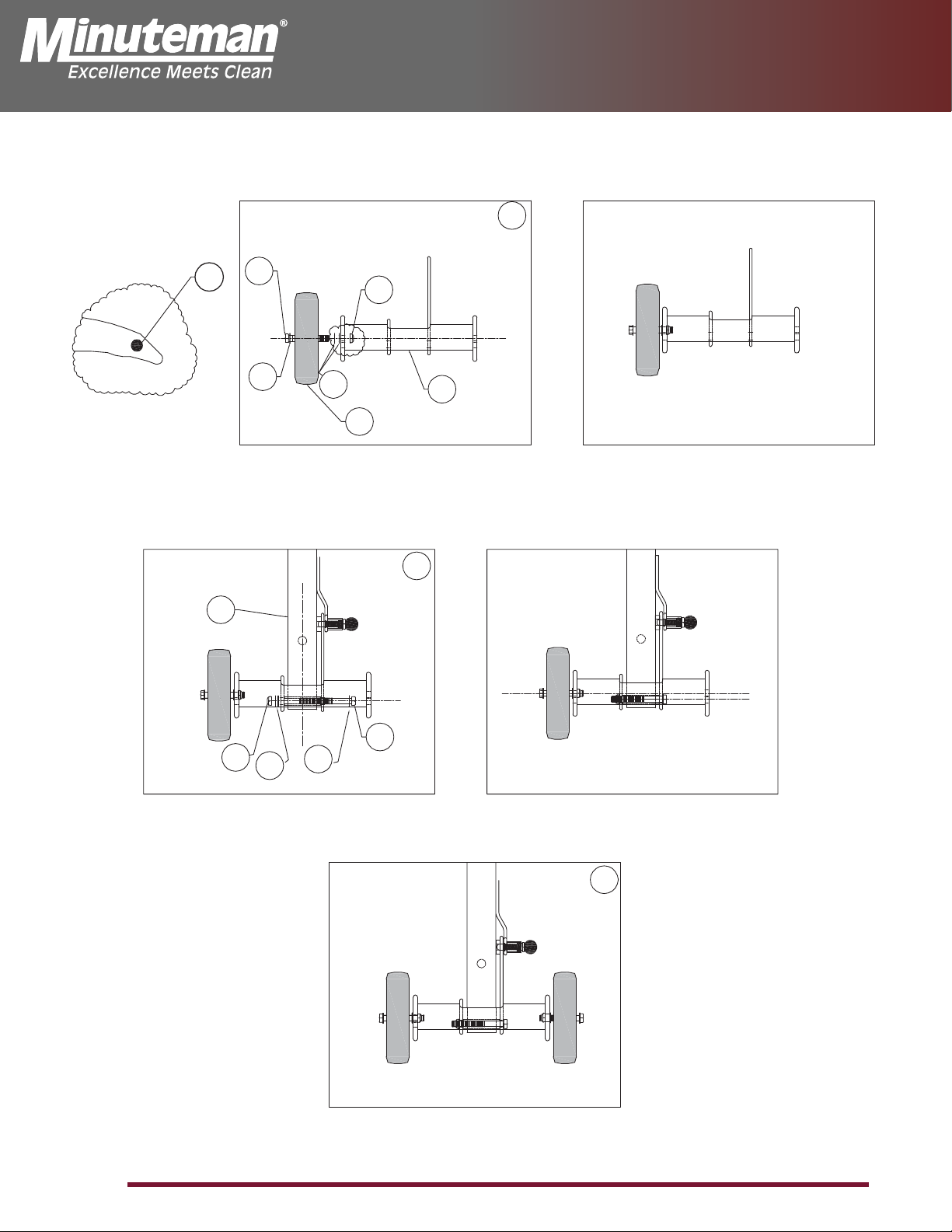

Wheel Assembly










 



5(3($76(48(1&(

Page 17
Orbit 20 Pro Floor Finisher 988777 Rev A 09/21
Handle Assembly

Page 18 Orbit 20 Pro Floor Finisher 988777 Rev A 09/21

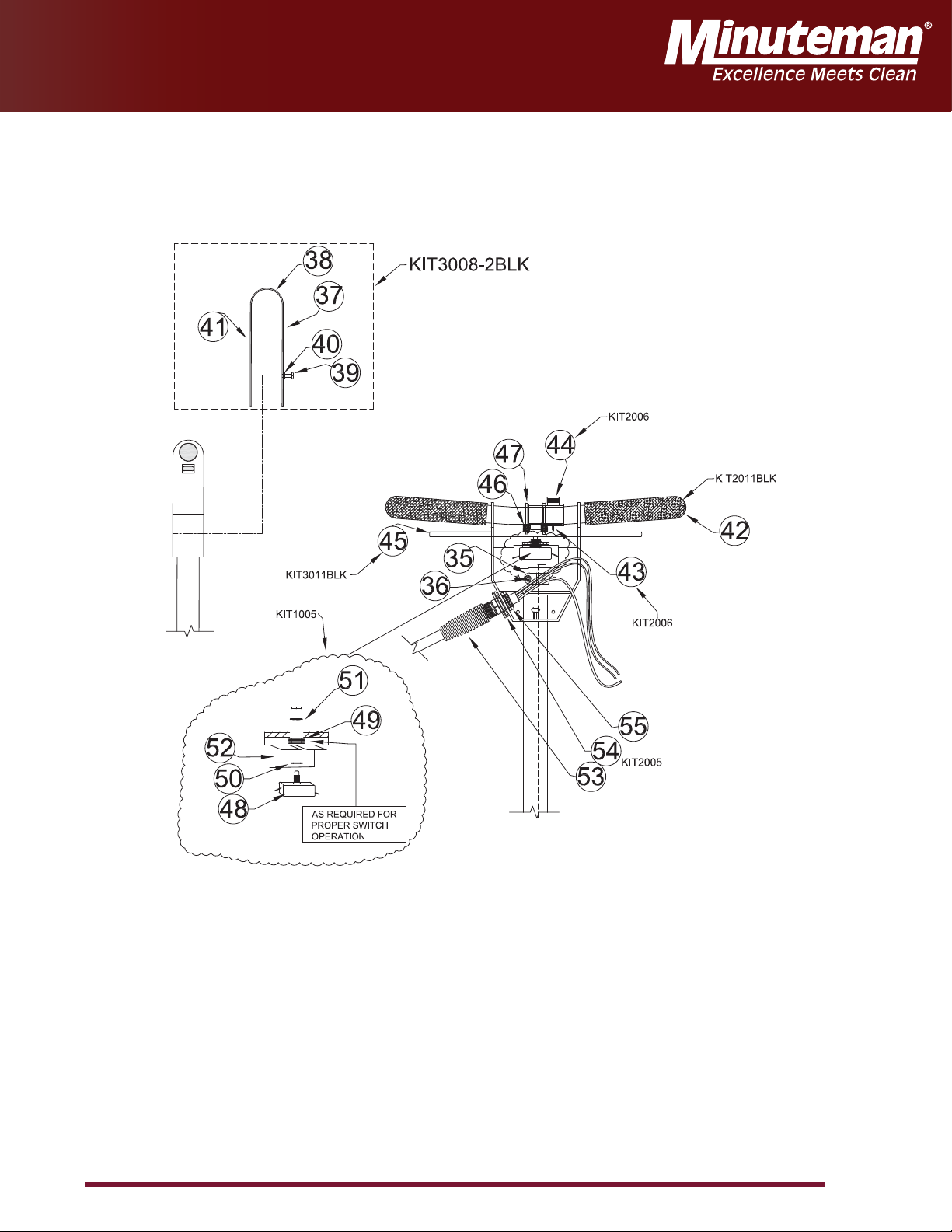

Handle Assembly (Continued)
6+2:1)25
5()(5(1&(21/<
,1&/8'(',1.,7%/.

Page 19
Orbit 20 Pro Floor Finisher 988777 Rev A 09/21

Page 20 Orbit 20 Pro Floor Finisher 988777 Rev A 09/21
Parts List
Parts list
ITEM PART NO. QTY DESCRIPTION
KIT1042 MOTOR KIT
1 INC IN KIT1042 1 MOTOR
2 INC IN KIT1042 4 BOLT
3 INC IN KIT1042 4 LOCKWASHER
KIT2037 SECONDARY ISOLATOR KIT
4 INC IN KIT2037 6 BOLT
5 INC IN KIT2037 6 LOCKWASHER
6 INC IN KIT2037 6 ISOLATOR
7 INC IN KIT2037 6 NUT
KIT2036 SECONDARY ISOLATOR BRACKET KIT
8 INC IN KIT2036 1 PIVOT BUSHING KIT (KIT2023)
9 INC IN KIT2036 1 SECONDARY ISOLATOR BRACKET
KIT2023 PIVOT BUSHING KIT
8 INC IN KIT2023 2 BUSHINGS PIVOT NYLON
KIT2040 BUTTON PLUG KIT
10 INC IN KIT2040 4 BUTTON PLUG 1/2 INCH
11 INC IN KIT2040 4 BUTTON PLUG
KIT3034RED FRAME KIT MAIN
10 INC IN KIT3034 1 BUTTON PLUG KIT 1/2 INCH
11 INC IN KIT3034 1 BUTTON PLUG KIT
12 INC IN KIT3034 1 MAIN FRAME
KIT2039 PRIMARY ISOLATOR KIT
7 INC IN KIT2039 6 NUT
6 INC IN KIT2039 6 ISOLATOR
13 INC IN KIT2039 6 SCREW
14 INC IN KIT2039 6 ECCENTRIC SCREW
KIT2041 ECCENTRIC KIT
15 INC IN KIT2041 1 ECCENTRIC -
16 INC IN KIT2041 1 SET SCREW
14 INC IN KIT2041 6 ECCENTRIC PAD DRIVER SCREWS
13 INC IN KIT2041 6 PAD DRIVER SCREWS
17 INC IN KIT2041 1 MOTOR KEY
