Mio MiVue C540 Series User manual

User Manual
MiVue™C540 Series

1
Revision: R00
(3/2019)
Disclaimer
The screenshots in this manual may differ between different operating systems and
software versions. You can download the latest User Manual of your product from
Mio™ website (www.mio.com).
Specications and documents are subject to change without notice. MiTAC does not
warrant this document is error-free. MiTAC assumes no liability for damage incurred
directly or indirectly from errors, omissions or discrepancies between the device and
the documents.
Note
Not all models are available in all regions.
Depending on the specic model purchased, the colour and look of your device and
accessories may not exactly match the graphics shown in this document.
MiTAC Europe Ltd.
Spectrum House, Beehive Ring Road,
London Gatwick Airport, RH6 0LG,
UNITED KINGDOM

2
Getting to know your dash cam............................................................................ 4
Using your dash cam in a vehicle......................................................................... 5
Precautions and notices.................................................................................. 5
Mounting the dash cam................................................................................... 5
MiVue rear camera.......................................................................................... 8
Using a memory card ........................................................................................... 8
Formatting a card ............................................................................................ 9
Turning the dash cam on...................................................................................... 9
Shutting down the dash cam........................................................................... 9
System icons ...................................................................................................... 10
Function keys ..................................................................................................... 10
Switching screens ..........................................................................................11
Setting the date and time ....................................................................................11
Recording in driving mode...................................................................................11
Continuous recording .....................................................................................11
Event recording ............................................................................................. 12
Parking mode ..................................................................................................... 12
Camera mode..................................................................................................... 13
Playback mode................................................................................................... 14
System settings .................................................................................................. 15
File Playback ................................................................................................ 15
Activate Parking Mode .................................................................................. 15
Camera.......................................................................................................... 15
Table of Contents

3
Sound Recording........................................................................................... 15
Parking mode ................................................................................................ 15
Video Recording............................................................................................ 16
System .......................................................................................................... 16
Format........................................................................................................... 17
MiVue Manager .................................................................................................. 17
Installing MiVue Manager.............................................................................. 17
Playing the recording les ............................................................................. 17
For more information .......................................................................................... 20
Caring for your device ................................................................................... 20
Safety precautions......................................................................................... 21
About charging ......................................................................................... 21
About the charger..................................................................................... 21
About the battery...................................................................................... 21
Regulatory information .................................................................................. 22
Declaration of conformity ......................................................................... 23
WEEE............................................................................................................ 23

4
Getting to know your dash cam
Note: The screenshots and other presentations shown in this manual may differ from the ones
generated by the actual product.
1 Device mount socket
2Mini-USB connector
3Memory card slot
4Microphone
5System indicator
6 LCD screen
7 Camera lens
8 Speaker
9Power button ( ) / Function keys
10
Shutdown button
7
1
4
5
6
2
3
8
9
10

5
Using your dash cam in a vehicle
Precautions and notices
lDo not operate the device while driving. Using this product does not change the
requirement for a driver to take full responsibility for his or her behavior. This
responsibility includes observing all trafc rules and regulations in order to avoid
accidents, personal injury or property damage.
lA window mount is needed when using the dash cam in a car. Make sure that you
place the dash cam in an appropriate place, so as not to obstruct the driver’s view
or deployment of airbags.
lMake sure that no object is blocking the camera lens and no reective material is
placed near the lens. Please keep the lens clean.
lIf the car’s windscreen is tinted with a coating, it may impact the recording quality.
lTo ensure the highest quality recordings, you are advised to place the dash cam
near the rear view mirror.
lSelect an appropriate location for mounting the device in a vehicle. Never place
the device where the driver’s eld of vision is blocked.
lThe system will automatically calibrate the G sensor of the device during start-up.
To avoid G sensor malfunction, always turn the device on AFTER you mount it in
the vehicle properly.
Mounting the dash cam
Make sure that your car is parked on level ground. Follow the instructions to mount
your dash cam in a vehicle securely.
1. Before attaching the device mount to the windscreen, it is recommended to clean
the windscreen with rubbing alcohol and make sure that the installation area is
free of dust, oil and grease.

6
2. The provided mount may vary by models:
lSuction cup mount
Attach the mount to the windscreen ( 1), and press the tab ( 2) to lock the
suction cup in place.
1
2
lAdhesive tape mount
Attach the static cling lm to the windscreen ( 1), and then install the mount
over the static cling lm ( 2).
1
2

7
Note:
l Whenattachingthestaticclinglmtothewindscreen,youmayneedasmoothingtool(suchas
a plastic card) to remove out any air bubbles from the centre outward.
l Theprovidedstaticclinglmisreusableifitisnotdamaged.Whenyouneedtomoveyourdash
camandmountassembly,simplymovetheassemblybydetachingthelmfromthewindscreen
and then reposition it.
l Iftheadhesionoftheadhesivetapedoesnotperformwell,replacethetapewithanewone.
3. When adjusting the angle of mounting, make sure that the camera’s view is
parallel with the level ground and the ground/sky ratio is close to 6/4.

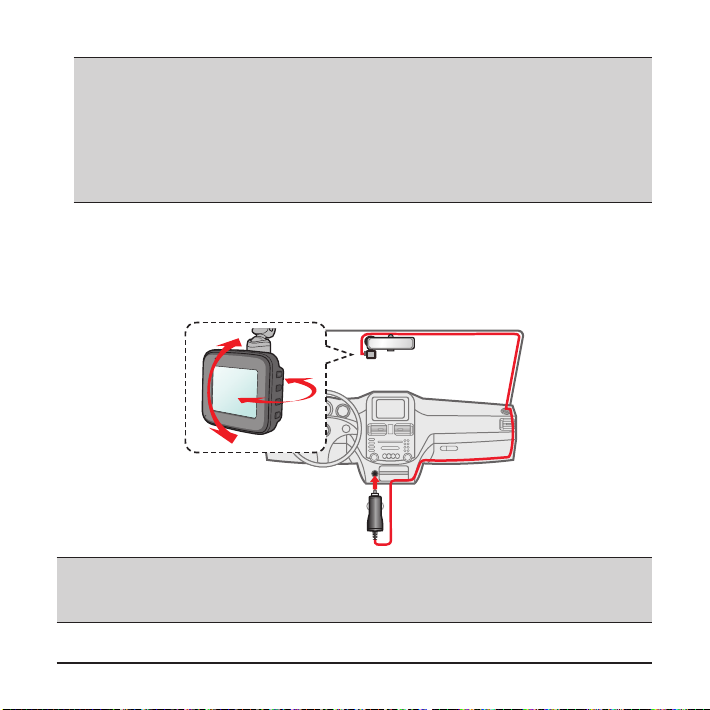

4. Route the cable through the top ceiling and the A-pillar so that it does not interfere
with driving. Make sure that the cable installation does not interfere with the
vehicle's airbags or other safety features.
Note: The installation illustrations are for your reference only. The placement of the devices and
cablesmayvarydependingonthevehiclemodel.Ifyouencounteranyproblemsduringinstallation,
contactaskilledinstaller(suchastheservicepersonnelofthevehicle)forassistance.

8
MiVue rear camera
Depending on your model, your device may support a rear camera (may be sold
separately).
1Mounting pad
2 Camera lens
3 Adjustment bolt
4Micro-USB connector
16
1
2
34
Follow the illustration to connect the rear camera to the dash cam.
Y cable Rear camera cable
Car charger
Using a memory card
Note:
lDO NOT apply pressure to the centre of the memory card.
lMiTAC does not guarantee the product’s compatibility with memory cards from all manufacturers.
l Beforeyoustartrecording,pleaseformatthememorycardtoavoidmalfunctioncausedbylesnot
created by the dash cam.
lTurn the device off before removing the memory card.

9
You must insert a memory card (not supplied) before you can start recording. The
dash cam supports the Class 10 memory cards with 8 GB – 128 GB capacity. You
should use separate MicroSD cards for recording and for regular data storage.
Hold the card (MicroSD) by the edges and gently insert it into
the slot as shown in the illustration.
To remove a card, gently push the top edge of the card inwards
to release it and pull it out of the slot.
Formatting a card
To format a memory card (all data will be erased), press > Format.
Turning the dash cam on
Complete the installation according to the instructions in the “Using your dash cam
in a vehicle” section. Once the vehicle engine is started, the dash cam automatically
turns on.
Note: Press and hold the Power button for 2 seconds to manually turn the dash cam on and off.
Shutting down the dash cam
Occasionally, you may need to perform a hardware reset when the dash cam stops
responding or if it appears to be “frozen” or unresponsive. To turn off the dash cam,
press and hold the Power button until the system shuts down.
If the system does not turn off by keeping the Power button pressed, you can force
it to shut down by inserting a small rod (such as a straightened paper clip) into the
Shutdown button of the device.
