1 UAP-1783 Eight Channel Universal Audio Processor
1.1 Introduction
The UAP-1783 is an eight-channel high quality audio processor designed to work alone or with a wide
range of video converters, frame synchronizer proc/amps of the Densité series.
The card features two distinct processing blocks: Input and Output. The input processing includes Dolby
detection, Tone generator, delay adjustments, level controls and phase correction. Delay components
include a fixed delay of up to 2 seconds as well as a video tracking delay that will automatically track the
varying saw tooth delay introduced by an associated video frame synchronizer.
The output processing block includes full channel shuffling, an additional gain/attenuation stage and
mixing. Each odd output channel is a mix of any two input channels, and a 4-channel mixing is available
on the even output channels. Additional audio functions such as dynamic processing (compressor/limiter
and expander) and/or Down and Up mixing are available as options.
With a card-to-card Audio bus, the UAP-1783 provides processing for 8 channels originating from a video
card. Once processed, the signals are sent back to be embedded, and are also available at the analog and
digital outputs.
Along with the audio channels, the Audio bus carries the timing, delay signaling and Dolby Metadata.
When combining cards together all audio processing is synchronous and in phase, ensuring proper
alignment and matched delay. The UAP-1783 can work with one video card and/or one other audio
processor card.
User-defined channel identification data may be encoded in the AES status bits. An input audio signal
status is also available indicating the input signal presence or overload.
The card is housed in a (DENSITÉ) frame, with a single or double width rear connector panel. Based on
the rear module installed, the UAP-1783 is compatible with the AES3 or AES-3id digital audio standard.
.
1.2 Features
•8 channel processing of embedded audio signals.
•Stand-alone 8 channel audio processor and delay.
•Fixed delay and up to 8 video frames tracking delay
•Full channel shuffling on the outputs
•2 and 4 channel mix-down
•Audio metering data for audio levels and phase over IP.
•Dolby E compatibility
•Analog and digital audio inputs and outputs
•Full quality 24 bit audio converters
•Balanced AES3 or unbalanced AES3-id I/Os
•-96 to +12 dB of input and output level adjustments (0.5 dB steps)
•Separate input and output 0 dBFS adjustments (0 to +24 dBu, 1 dB steps)
•Locks to video card, frame reference or AES input
•Internal digital EBU tone generator
•Absence signal delay and threshold adjustable /channel

GUIDE TO INSTALLATION AND OPERATION
2| UAP-1783
•Overload detection
•All settings through frame control panel or remotely
•Status LED and alarms remote reporting
1.3 Applications
•With a DEC-1xxx in Incoming feeds applications as an A to D converter and audio processor.
•Companion to an ENC-1xxx as an audio proc and a final D to A converter.
•Stand-alone or associated with an FRS-1xxx as an audio processor with analog and digital inputs
and outputs.
1.4 Functional Block diagram
1.5 Card front-edge layout
STATUS
D1
SELECT
SW1
Select
Button
Status Led
UAP-1783
ABUS connector
UAP 1783 BLOCK DIAGRAMM
Remote
Control
Select
Status
L1
Monitor
OUT
AES
Outputs
Analog
Inputs
2 x
DIR
SRC
(110/75 Ω)
R1
L2
R2
8
16
L1
R1
L2
R2
48 x 16 Schuffler
48 16
Microcontroller
1
2
1
2
Reference
From DIR1
16 x Overload 8 x Peak meters, 4 x Phase meters
ABUS
VIDEO
Video card / audio cards link
Analog
Outputs
Intra Frame
OUTPUT PROCESSOR
INPUT PROCESSOR
L & R Swap
16 x No Signal
4 x
ADC
4 x Overload
Ref. IN
(110/75 Ω)
ABUS Select
Tone
Dolby Detection
AES
Inputs
Fixed & Variable Delay
Phase & Level
Compressor - Limiter - Expander
Up or Down Mixer
16
16x Level
4 x
DAC
2 x
DIT
ABUS IN
ABUS OUT

GUIDE TO INSTALLATION AND OPERATION
UAP-1783 | 3
2 Installation
2.1 Unpacking
Make sure you have ordered and received the UAP-1783 and its associated rear panel. If any of the
following items are missing, contact your distributor or Miranda Technologies Inc.
•UAP-1783 8-Channel Universal Audio Processor
•One of the UAP-1783 Rear Panels (see figure)
•An ABUS flat cable
2.2 Installation in the Densité frame
The UAP-1783 must be mounted in a DENSITÉ frame. The installation includes both the UAP-1783
module, and the rear panel module. It is not necessary to switch off the frame’s power when installing or
removing the card.
When the UAP-1783 is used in conjunction with a video module such as FRS-1101 and/or another UAP-
1783, the ABUS flat cable must be installed between the ABUS connectors.
•Note: for a two card installation, use the two end connectors of the flat cable and leave the
middle one unplugged.
Detailed instructions for installing cards and their associated rear panels in the Densité frame are given in
the Densité Frame manual.
2.2.1 Rear Panel Options
Single rear panels AES3 or AES3-id compatible
UAP-1783-DA110-SRP
+ G - + G -
ANALOG OUT
AES IN
1A
+ G -
1R
+ G -
1L
2R
2L
+ G - + G -
1/
2
UAP-1783-DA75-SRP
+ G - + G -
ANALOG OUT
AES IN
1A
+ G -
1R
+ G -
1L
2R
2L
1/DARS
2
DARS
UAP-1783-AD110-SRP
+ G - + G -
ANALOG IN
AES OUT
1A
+ G -
1R
+ G -
1L
2R
2L
+ G - + G -
1
2
UAP-1783-AD75-SRP
+ G - + G -
ANALOG IN
1A
+ G -
1R
+ G -
1L
2R
2L
1
2
AES OUT

GUIDE TO INSTALLATION AND OPERATION
4| UAP-1783
Dual rear panels AES3 or AES3-id compatible
UAP-1783-AADD110-DRP
ANALOG OUT
+ G - + G - + G - + G -
2 RIGHT
2A
ANALOG IN AES IN
1A
+ G -
1R
+ G -
1L 2R
2L
+ G - + G -
1/DARS
2
AES OUT
+ G - + G -
+ G -
UAP-1783-AADD75-DRP
ANALOG OUT
+ G - + G - + G - + G -
2 RIGHT
2A
ANALOG IN AES IN
1A
+ G -
1R
+ G -
1L 2R
2L
1/DARS
2
AES OUT
+ G - + G -
2
1
2
1
+ G -

GUIDE TO INSTALLATION AND OPERATION
UAP-1783 | 5
3 Operation
3.1 Control options
The UAP-1783 has two primary control interfaces:
•The local control panel attached to the Densité frame’s controller
•Remote control using Miranda’s iControl system
These will be explained in detail in the following sections.
3.2 Local control using the Densité frame control panel
Push the SELECT button on UAP-1783 card edge (see Section 1.5) to assign the local control panel to
operate the UAP-1783. Use the control panel buttons to navigate through the menu, as described below.
All of the cards installed in a Densité frame are connected to the frame’s controller card, which handles all
interaction between the cards and the outside world. There are no operating controls located on the cards
themselves. The controller supports remote operation via its Ethernet ports, and local operation using its
integrated control panel.
The local control panel is fastened to the controller
card by a hinged connector, and when installed is
located in the front center of the frame, positioned in
front of the power supplies. The panel consists of a
display unit capable of displaying two lines of text,
each 16 characters in length, and five pushbuttons.
The panel is assigned to operate any card in the frame
by pushing the SELECT button on the front edge of
that card. Pushing the CONTROLLER button on the
control panel selects the Controller card itself. The
STATUS LED on the selected card flashes yellow.
The local control panel displays a menu that can be navigated using the four pushbuttons located beneath
the display. The functionality of the pushbuttons is as follows:
[+] [–] Used for menu navigation and value modification
[SELECT] Gives access to the next menu level. When a parameter value is shown, pushing this button
once enables modification of the value using the [+] and [–] buttons; a second push confirms the
new value
[ESC] Cancels the effect of parameter value changes that have not been confirmed; pushing [ESC]
causes the parameter to revert to its former value.
Pushing [ESC] moves the user back up to the previous menu level. At the main menu, [ESC]
does not exit the menu system. To exit, re-push the [SELECT] button for the card being
controlled.
If no controls are operated for 30 seconds, the controller reverts to its normal standby status, and the
selected card’s STATUS LED reverts to its normal operating mode.
SELECT
ESC
+
-
CONTROLLER

GUIDE TO INSTALLATION AND OPERATION
6| UAP-1783
3.2.1 Status LED
The status monitor LED is located on the front card-edge of the UAP-1783, and is visible through the front
access door of the DENSITÉ frame. This multi-color LED indicates module status by color, and by
flashing/steady illumination, according to the chart. The chart also indicates fault reporting for this card on the
DENSITÉ frame’s serial and GPI interfaces.
Serial
Report GPI Report Green Yellow Red Flashing Red Flashing
Yellow
Card system error 
-
Not expected reference Error 
-
Reference error 

AES carrier no lock 
-
AES carrier biphase 
-
AES carrier parity 
-
AES carrier CRCC 
-
AES carrier invalid sample 
-
AES PCM presence 
AES Non-PCM presence 
AES Dolby E presence 
AES AC-3 presence 
NSD CH 1 to 4 Analog input 
-
NSD CH 5 to 8 Digital input 
-
NSD CH 9 to 16 (Ext.CH 1/8 or 9/16) 
-
OVERLOAD CH 1 to 4 analog inputs 

OVERLOAD CH 1 to 16 processing 
-
OVERLOAD analog outputs 1 to 4 
OVERLOAD digital outputs 5 to 8 
Any TONE activated 
-
Any output Mute 
-
User attention - - - - - - Yes
Rear panel error - - - - - Yes -
FPGA error - - - - - Yes
: Factory default.
Note: The non-requested message posting to an alarm status can only be accessed by the
communication protocol (serial port)
NOTE: A “Flashing Yellow” Status LED indicates that the SELECT button on the front panel has been
pushed.

GUIDE TO INSTALLATION AND OPERATION
UAP-1783 | 7
3.2.2 Menu for local control
The UAP-1783 has operating parameters which may be adjusted locally at the controller card interface. After
pressing the SELECT button on the UAP-1783 module, use the keys on the local control panel (described
above) to step through the displayed menu and adjust the parameters. The menus are shown below.
STATUS HARDWARE FAILURE | [REF: parameter1, [REAR: parameter2 |
REAR PANEL ERROR]]
parameter1 = OK | VALIDITY | CRCC | PARITY | BIPHASE | NO
LOCK
parameter2 = UNKNOWN | 192kHz | 96kHz | 88.2kHz | 48kHz |
44.1kHz | 32kHz
GENERAL
A/D CONVERSION
AES1 parameter1, AES1 FRQ parameter2, AES2 parameter1,
AES2 FRQ parameter2
AES IN
OK | [OVERLOAD 1L, OVERLOAD 1R, OVERLOAD 2L,
OVERLOAD 2R]
parameter1 = A-BUS (V) | A-BUS (A) | FRAME (10) | FRAME
(20) | AES1 | FREE-RUN (depends on rear, cards present on A-
BUS and reference distribution cards in frame)
AES OUT
ANALOG OUT OK | [MUTE 1L, MUTE 1R, MUTE 2L, MUTE 2R]
OK | [SILENCE CH1, ..., SILENCE CH16, OVERLOAD CH1, ...,
OVERLOAD CH16, MUTE CH1, ..., MUTE CH16, TONE CH1, ...,
TONE CH16]
CHANNEL STATUS AES 1L
AES 1R
AES 2L
AES 2R
CHANNEL USE, PCM SAMPLES, EMPHASIS, FREQ MODE,
SAMPLING FREQ, CHANNEL MODE, USER-BIT, AUX.BITS,
WORD LENGTH, REFERENCE, SOURCE ID, DESTINATION ID.
Each item will be placed on the first line and it’s corresponding
status on the second line.
OK | [MUTE 1L, MUTE 1R, MUTE 2L, MUTE 2R]
DATA TYPE CH1 parameter, ..., CH16 parameter
parameter = PCM | NON-PCM | DOLBY E | AC-3
INPUT PROCESSING
INPUT PROCESSING
LEVEL
PHASE INVERT
FIXED DELAY COARSE
CUT, -95.5, ..., -1.0, -0.5, 0, +0.5, +1.0, ..., +12.0 dB
OFF, ON
0, 1, ..., 2400 ms
0, 1, ..., 47 samples
CH2 (ANALOG 1R)
CH3 (ANALOG 2L)
CH4 (ANALOG 2R)
CH5 (AES 1L)
CH6 (AES 1R)
CH7 (AES 2L)
CH8 (AES 2R)
CH9 [EXT CH1/9]
CH10 [EXT CH2/10]
CH11 [EXT CH3/11]
CH12 [EXT CH4/12]
CH13 [EXT CH5/13]
CH14 [EXT CH6/14]
CH15 [EXT CH7/15]
CH16 [EXT CH8/16]
OFF, ON
FINE
SWAP (lock, CH1,3,5,7) OFF, X&Y (locked channels)
OFF, ON
1, 10, 40, 160
48, 24, 12, 6
ms
dB/s
-20, -19, ..., -1, 0dBFS
RELEASE TIME
THRESHOLD
RATIO
-60, -59, ..., -1, 0dBFS
1/1 (OFF), 1/1.25, 1/1.5, 1/1.75, 1/2, 1/3, 1/4, 1/8, 1/16
THRESHOLD
RATIO 1/1 (OFF), 1.125/1, 1.25/1, 1.375/1, 1.5/1, 1.625/1, 1.75/1, 1.875/1,
2/1
-80, -79, ..., -41, -40 dBFS
0, +1, ..., +24 dB
MUTE
EXPANDER
DYNAMIC GAIN
DYN GROUP MODE
TONE OFF, EBU ENABLE
LOCKCH1 (ANALOG 1L)
MONO, STEREO, GROUP 1, GROUP 2
LIMITER THRESHOLD
COMPRESSOR ATTACK TIME
parameter2 = UNSUPPORTED | AD110-SRP | DA75-SRP |
DA110-SRP | AD75-SRP | AA-SRP | AADD110-DRP | AADD75-
DRP
LOAD USER 1, USER 2, USER 3, USER 4, USER 5PROFILES
SAVE

GUIDE TO INSTALLATION AND OPERATION
8| UAP-1783
OFF, UPMIX, DOWNMIX
AUTO, MANUAL
CUT, -6, -4.5, -3, -1.5, 0, +1.5, +3.0, +4.5, +6 dB
OPERATION MODE
CUT, -6, -4.5, -3, -1.5, 0, +1.5, +3.0, +4.5, +6
LFE
SURROUND
LEVELS
DOWNMIX MODE
dB
UPMIX TYPE
0, 1, ..., 7, ..., 10
dB
CENTER LEVEL
CUSTOM SETTINGS
dB
OFF, 80 Hz, 120 Hz
OFF, UPMIX, DOWNMIXOPERATION MODE
OFF, UPMIX, DOWNMIXOPERATION MODE
or
or
UPMIX/DOWNMIX
UPMIX SOURCE CH1, CH2, …, CH16LEFT INPUT
RIGHT INPUT CH1, CH2, …, CH16
LFE LEVEL
dB
DOWNMIX SOURCE CH1, ..., CH9, ..., CH16
OUTPUT MIXERS ANALOG 1L
ANALOG 1R
ANALOG 2L
ANALOG 2R
SOURCE A
OFF, A, SUM A+B, 2 INPUT MIX [, 4 INPUT MIX (even CH) ]
1, 2, ..., 16
A1, V, A2A-BUS SELECT
CHANNEL SELECTSOURCE B (SUM,MIX)
MODE
LEVEL (A,MIX)
LEVEL (SUM)
MUTE OFF, ON
CUT, -95.5, ..., -0.5, 0, +0.5, ..., +12.0 dB
OFF, ON XXXX
DESTINATION
SOURCECH STATUS ID (AES)
-6.0, -3.0, 0.0
AES 2L
AES 2R
AES 1L
AES 1R
dB
0 dBFS SETTING INPUT (A/D) parameter dBu = 0 dBFS
OUTPUT (D/A)
parameter = 0, 1, ..., 24
0 dBFS = parameter dBu
dB
LtRt, LoRoTYPE
SPEECH, MUSIC, MOVIE, CUSTOM
CONTROL
dB
LEFT/RIGHT LEVEL
LFE FILTER
CUT, -24, -23, ..., 0, ..., +5, +6
SRND LEVEL
EFFECT INTENSITY
CUT, -6, -4.5, -3, -1.5, 0, +1.5, +3.0, +4.5, +6
CUT, -6, -4.5, -3, -1.5, 0, +1.5, +3.0, +4.5, +6
OUTPUT
LEFT/RIGHT
NORMALIZED, DIRECT
CENTER
LEFT INPUT
CH1, ..., CH10, ..., CH16
CH1, ..., CH11, ..., CH16
CH1, ..., CH12, ..., CH16
CH1, ..., CH13, ..., CH16
CH1, ..., CH14, ..., CH16
RIGHT INPUT
CENTER INPUT
LFE INPUT
SRND LEFT INPUT
SRND RIGHT INPUT
available if custom
type is selected
SRND TYPE
SRND DELAY
SRND 90' FILTER
LEFT/RIGHT WIDTH
SPEECH, MUSIC, MOVIE
0, 1, ..., 20 ms
OFF, ON
0, 1, ..., 32
CUT, -24, -23, ..., 0, ..., +5, +6
CUT, -24, -23, ..., 0, ..., +5, +6
CUT, -24, -23, ..., 0, ..., +5, +6
1, 2, ..., 15, ..., 255 s
-72, -66, -60, -54, -48 dBFS
MONITORING
NSD
NSD DELAY
NSD THRESHOLDCH1
...
CH16
ANALOG OUT 1L, ANALOG OUT 1R, ANALOG OUT 2L, ANALOG
OUT 2R, AES OUT 1L, AES OUT 1R, AES OUT 2L, AES OUT 2R
(list depends on rear)
LEFT
RIGHT ANALOG OUT 1L, ANALOG OUT 1R, ANALOG OUT 2L, ANALOG
OUT 2R, AES OUT 1L, AES OUT 1R, AES OUT 2L, AES OUT 2R
(list depends on rear)

GUIDE TO INSTALLATION AND OPERATION
UAP-1783 | 9
CONFIGURE ALARMS
YELLOW, RED, FLASH RED (default depends on alarm)
NONE, GPI
ALARM LEVEL
ALARM REPORT
CARD SYSTEM OFF, ON (default depends on alarm)ALARM MODE
REFERENCE
TEST
AES INPUTS IN1 NO LOCK
IN1 BIPHASE
IN1 PARITY
IN1 CRCC
IN1 VALIDITY
IN2 NO LOCK
IN2 BIPHASE
IN2 PARITY
IN2 CRCC
IN2 VALIDITY
IN1 AC-3
IN1 PCM
IN1 DOLBY E
IN1 NON-PCM
IN2 AC-3
IN2 DOLBY E
IN2 NON-PCM
IN2 PCM
NSD PROC CH1
PROC CH8
...
PROC CH9 [EXT CH1/9]
...
PROC CH 16 [EXT CH8/16]
OVERLOAD
ANALOG IN4 (A/D)
ANALOG IN1 (A/D)
...
AES OUT 2R
ANALOG OUT 1L
...
PROC CH1
PROC CH8
...
PROC CH9 [EXT CH1/9]
...
PROC CH 16 [EXT CH8/16]
OUT MIXER 1, IN A
OUT MIXER 1, IN B
OUT MIXER 8, IN A
OUT MIXER 8, IN B
...
...
AES OUT 2R
ANALOG OUT 1LOUTPUT MUTE
ADV PROC parameter, UP/DOWNMIX parameterOPTIONS
UAP-1783: xyzVERSION
RESTOREFACTORY DEFAULT
parameter = OFF | ON
EXT CH1 - CH8, EXT CH9 - CH16
CARD SYSTEM NONE, V + >A1<, V + >A1< + A2, V + A1 + >A2<, >A1< + A2, A1 +
>A2<
A-BUS CONFIG
A-BUS IN SELECT
REFERENCE FREE-RUN, AES1, FRAME (20), FRAME (10), A-BUS, AUTO

GUIDE TO INSTALLATION AND OPERATION
10 | UAP-1783
3.3 Remote control using iControl
The operation of the UAP-1783 may be
controlled using Miranda’s iControl system.
•This manual describes the control
panels associated with the UAP-1783
and their use.
•Please consult the iControl User’s
Guide for information about setting up
and operating iControl.

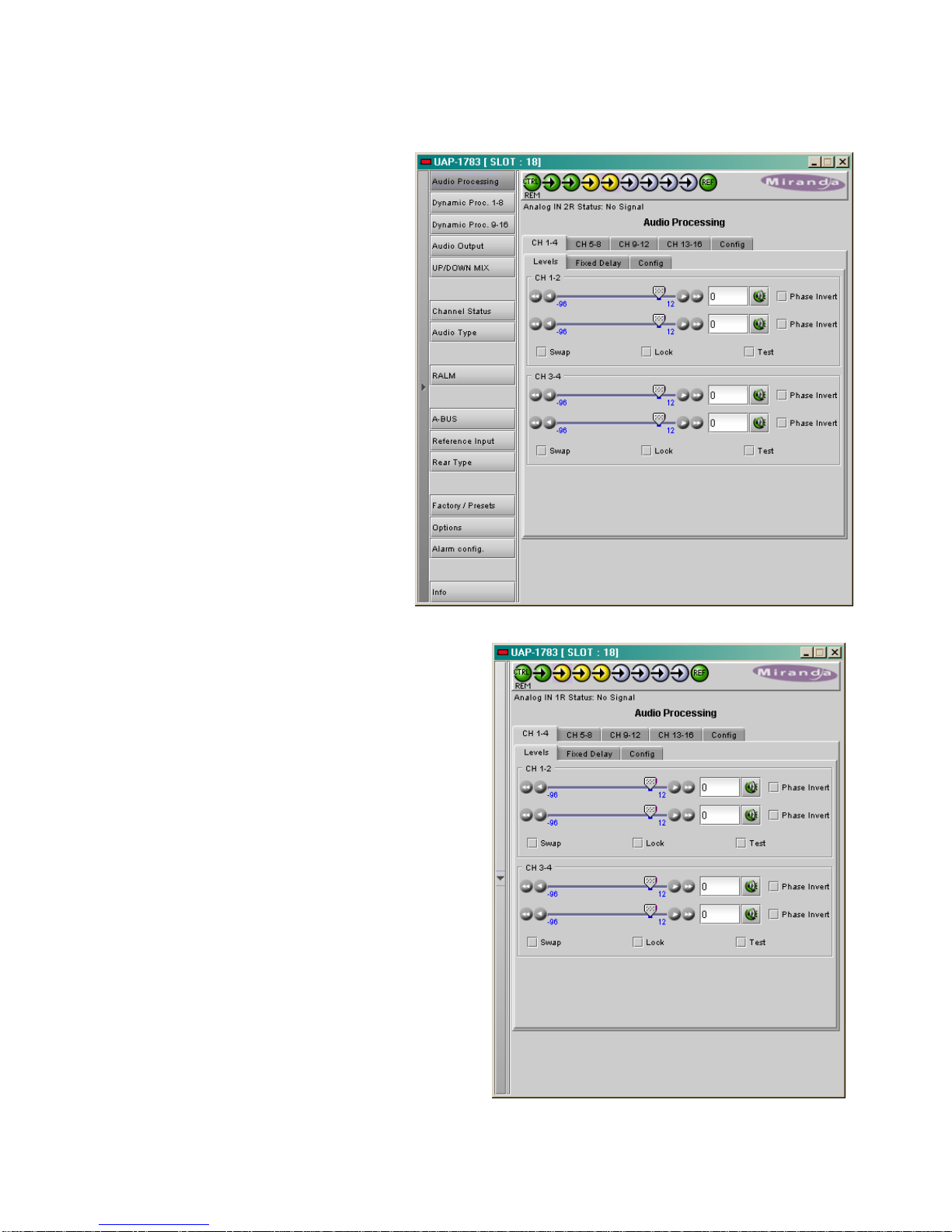

In iControl Navigator or iControl Websites,
double-click on the UAP-1783 icon to open
the control panel.
Note the following features of this panel:
Panel selection buttons
The buttons on the left side of the panel are
used to select the contents of the right
portion of the screen.
•The selected button is highlighted, and
the main screen heading matches the
button name.
The column of buttons can be hidden or
revealed by clicking the arrow icon at the
left-hand side (compare the two figures on
the right).
All of the individual control panels are
described in detail below.
Panel See Page
Audio Processing 12
Dynamic Proc. 1-8 14
Dynamic Proc. 9-16 15
Audio Output 16
UP/DOWN MIX 18
Channel Status 21
Audio Type 22
RALM 23
A-BUS 24
Reference Input 25
Rear Type 26
Factory / Presets 26
Options 28
Alarm Config. 28
Info 29

GUIDE TO INSTALLATION AND OPERATION
UAP-1783 | 11
Status Icons
At the top, to the left of the Miranda logo, are ten status icons that report various aspects of the card’s
operation.
Icon # Indicates appearance interpretation
1 Card control
status
Green if the card is controlled remotely
Yellow when locally controlled
2 - 9 Input status
Green if OK,
Yellow if warning detected
Red if error detected
Grey if detection is disabled
Note: Each input error can be masked
independently
10 Reference status
Green if OK,
Red if an error has been detected or there is no
reference connected
Grey if reference error reporting is disabled
Move the cursor over an icon to see its current status in the message area below the icons. If there is an
error status, the message will appear automatically. If there are multiple error messages, the display will
cycle through them

GUIDE TO INSTALLATION AND OPERATION
12 | UAP-1783
3.3.1 Audio Processing
3.3.1.1 Audio Processing - CH 1-4 to CH 13-16 tabs
The channels 1 to 4 are the analog inputs, channels
5 to 8 are the digital inputs. When a video card is
present, 8 extracted audio channels are available
as Channel 9 to Channel 16, see ABUS Input
Section (page 24).
Each of these tabs controls the input processing:
Levels, Fixed Delays and configuration for the
absence signal detection for two pairs of channels;
each channel is provided with a set of controls.
Levels sub-tab: grouped by pair of channels, each
channel has the following controls: a Level slider
(from -96 to 12 dB), an input box where the desired
level may be input directly, a Mute icon button and a
Phase Invert checkbox.
At the bottom are three checkboxes:
•Swap – allows channel swapping inside a
pair.
•Lock – locks both channel sliders together for
levels and delay, so that moving one slider
moves the other one as well.
•Test – replaces the input signal with a stereo
test tone.
Fixed Delay sub-tab: adds an audio delay to the
signal. For each channel, two sliders allow delay to
be adjusted.
•Coarse – adjusts the delay in ms, from -100
ms to 2400 ms
•Fine – adjusts the delay in sample
increments, from -47 to 47.
Input data boxes are available to enter numerical
values directly.
The displayed value gives the delay between a card
input and a digital output.
•The negative values will be applied only when
the UAP-1783 is slave of a video card via
ABUS.
•The positive small values desired have to be
larger than the minimum processing delay to
be effective.
For the digital inputs, if only one channel is non-
PCM, the input sample rate converter is bypassed
for both channels together, the audio channel will
pass with its original sample rate, and possibly not
synchronized to the reference.

GUIDE TO INSTALLATION AND OPERATION
UAP-1783 | 13
Config sub-tab: this tab sets the card’s behaviour in
the event of a loss or absence of audio signal.
•A signal absence is declared when the signal
level is lower than the signal threshold
during the selected period. The threshold
can be set through the pull-down box to –72, -
66, -60, -54 or -48 dBFS, the default value is
–60 dBFS.
Delay: the amount of time for which the signal must
be below the threshold before a signal absence
error is reported can be adjusted from 0 to 255
seconds. The default value is set to 15 s, and an
input box is available to enter a numerical value
directly
3.3.1.2 Audio Processing - CONFIG tab
Audio Proc input selection: when a video card is
present, up to 16 extracted audio channels may be
present. The pull-down box allows the feed for the 8
internal processing audio channels 9 to 16 to be
selected, either the extracted audio channels 1 to 8
or 9 to 16.
Input 0 dBFS: the analog to digital conversion ratio
is adjusted with a pull-down box. The possible
values are from 0 to +24 dBu for 0 dBFS (digital full
scale).

GUIDE TO INSTALLATION AND OPERATION
14 | UAP-1783
3.3.2 Dynamic Processing
This process is part of the input processor, refer to
the block diagram on page 2.
3.3.2.1 CH 1 to CH 8 tabs:
Each of these tabs controls the dynamic
processing for one channel. The available
functions are Limiter, Compressor, and Downward
Expander. A Gain trim allows compensation of the
loudness attenuation that follows compression.
A graphic of the input to output transfer function,
VU and PEAK meters for the program, and
compression meter will facilitate the adjustments
for each channel. Eight channel metering is active
for one minute only after any setting modification
on the current tab, or after a click on Dynamics
for 1 min box.
At any time a Bypass Settings checkbox allows
immediate comparison between processing ON or
OFF.
The Mode pull-down menu is used to link two or
more channels, so they can share the same
dynamic controls to keep a coherent stereo or
multi channel image. The stereo choice links an
odd channel with (odd + 1) channel.
The Dynamic Gain is adjusted from 0 to +24 dB
gain with the slider or a direct keyboard entry.
The Limiter Threshold is adjusted from 0 to -20 dBFS with the slider or a direct keyboard entry. 0 is the
default value and corresponds to Limiter OFF. For analog inputs, the correspondence between the dBFS and
the dBu values depends on the Input 0 dBFS setting (Audio Processing Tab - Config sub-tab).
The adjustable parameters for the Compressor are the Attack Time, Release Time, Threshold and Ratio.
The Threshold is adjustable with a slider between -60 and 0 dBFS, 0 is the default value and corresponds to
an OFF position. The other parameter values are accessible via pull-down boxes.
The adjustable parameters for the downward Expander are Threshold and Ratio. The output-to-input ratio of
1/1 is the default value and corresponds to the OFF position. The Threshold is accessible via a pull-down
box.
At the bottom of the tab, from left to right, appear the dynamic meters and the VU and PEAK meters.
The dynamic meter moves downward and indicates the attenuation applied to the audio channel, the
Dynamic Gain effect is not displayed. The scale goes from 0dB at the top to -31 dB at the bottom.
The VU meter is displayed with a bar and the PEAK meter with a dot.

GUIDE TO INSTALLATION AND OPERATION
UAP-1783 | 15
3.3.2.2 CH 9 to CH 16 tabs:
The functions are same as above but for the
channels 9 to 16.

GUIDE TO INSTALLATION AND OPERATION
16 | UAP-1783
3.3.3 Audio Output
3.3.3.1 Audio Output - CH 1-2 to CH 7-8 tabs:
Each of these tabs controls the output processing for two output channels – source selectors, level controls
and mixers for each output.
A coloured box indicates the audio type for each output of the card.
•Detected audio types can be PCM, AC3 (Dolby Digital), Dolby E or N-PCM (other non-PCM).
The Operation Mode pulldown establishes the configuration of the controls for an output channel. There are
four options:
A(see CH 1 in the figure on the right)
The source is selected using the Source A
ABUS Select and Channel pulldowns, and its
level is adjusted using the slider or data box.
•The ABUS select options are:
oVselect one of the 16 channels from
the video card.
oA1 select one of the 16 channels from
an audio card. A1 is always Local,
Slave 1 or Master
oA2 select one of the 16 channels from
an audio card. A2 is always Slave2
or Slave.
•The output Level is adjustable from -96 to
+12 dB with the slider or a direct keyboard
entry.
SUM (A+B) (see CH 2 in the figure on the right)
Two sources are selected using the Source A
and Source B ABUS Select and Channel
pulldowns. The two sources are added, and the
level of the combined signal is attenuated by
the amount selected in the Sum (A+B) LEVEL
pulldown.
•The ABUS select options are:
oVselect one of the 16 channels from the video card.
oA1 select one of the 16 channels from an audio card. A1 is always Local, Slave 1 or Master
oA2 select one of the 16 channels from an audio card. A2 is always Slave2 or Slave.
•The Sum (A+B) Level pulldown offers attenuations of 0 dB, -3 dB and -6 dB.
NOTE: If you attempt to mix two different audio types to an output, only the Source A signal will be
routed to this output and the Source A audio type will be displayed. The Source B signal will be
ignored.
