MISURA P23QG25DFA01B User manual

USER MANUAL ENGLISH
Model: P23QG25DFA01B – 250 Hz
MISURA MONITOR 25” FLAT
178°
Ultra Wide
Viewing Angle
HDR
High Dynamic
Range
VA
Moving Picture
Response Time
1 ms
Low Blue Eyes
Technology
VA
Curved panel
Full HD resolution
1920x1080
240 Hz refresh
frequency
FreeSync & G-Sync
Technology
1080 240
Hz

Dear Customer,
Thank you for having purchased this product. This document describes how
to install and usethe LED backlit LCD color monitor. Read this manual which
contains information for correct, safe use. Keep this manual at hand so that
you can refer to it when needed.
General features
 DC 12V Power Input
 Display area
 Wall mounting VESA standard 100*100mm (Not included bracket)
 DP Input video input Interface
 HDMI Input video input Interface
 Audio Onput Interface
 Multilingual OSD menu for easy setting and optimization of the display
Opening the box
Check that the packing and the contents are not visibly damaged.
Contact the reseller immediately if parts are either missing or damaged.
Do not attempt to use the device in this case. Send the product back
in its original packing if it is damaged.
Contents of the box
 Monitor
 Power Adapter
 HDMI cable
 User’s manual
 Table stand
Important Note: Accessories may be changed without prior notice.
GENERAL INFORMATION

Power
 Only use the power unit provided to power the device.
Check mains rating before plugging the power unit in.
 Do not pull the cable to unplug the device.
Safety precautions
 Keep the device away from rain and humidity to prevent risk of fire and
electrocution. Do not introduce material (solid or liquid) inside. If this
should accidentally occur, disconnect the device from the mains and
have it inspected by qualified personnel.
 Never open the device. In all cases, contact the qualified personnel
or authorized service center for repairs.
 Keep the device away from children, to prevent accidental damage.
 Do not touch the device with wet hands to prevent electrical shock
or mechanical damage.
 Do not use the device if it should fall or the external casing is damaged.
Risk of electrocution if the device is used in such conditions. Contact the
reseller or your installer.
 It is advisable to disconnect the power wire if the monitor is not used
for an extended period.
Installation precautions
 To prevent overheating the device, arrange it in a position allowing the
flow of air through the slots in the casing. Ensure at least 5 cm of free
space when installing inside a rack. For the same reason, do not install
sources of heat, such as radiators or hot air ducts. Keep away from direct
sunlight. Do not install in areas subject to excessive dust, mechanical
vibrations or shocks.
 Do not arrange this device on an unstable surface, such as a tottering or
slanted table. The device could fall causing injury or mechanical failures.
 Do not install the device in a place where it could be exposed to
humidity or water. Do not direct a jet of water onto the device: risk of fire,
electrocution or mechanical failure.
 Stop using the device if water or other material should penetrate inside:
risk of fire and electrocution. Contact the retailer or authorized installer.
 Slots and openings in the cabinet are provided for ventilation.
These openings must not be blocked or covered.
WARNINGS

 Do not place heavy or heat generating objects on top of the device: this
could damage the casing and/or increase internal temperature causing
faults.
 Do not cover the device with a cloth while it is running to prevent
deforming the external casing and overheating the internal parts: risk
of fire, electrocution and mechanical failure.
 Keep magnets and magnetized objects away from the device
to prevent faults.
 Do not use the device in presence of smoke, vapor, humidity,
dust or intense vibrations.
 Wait for a while before operating a device immediately after transporting
it from a cold place to a warm place and vice versa. Wait on average
for three hours: this will allow the device to adapt to the new ambient
(temperature, humidity, etc.).
 The monitor is provided with a plastic base and rubber feet. It can be
positioned on a horizontal surface, such as a desk or a table. Make sure
that the device is fastened firmly and that it is not resting on unstable
supports or surfaces. Dropping could cause severe injury and damage
the device.
 Remember to adjust the brightness and contrast to obtain
a perfect image.
 The monitor can also be installed on the wall by means of a bracket
(not provided).
Cleaning the device
 Rub delicately with a dry cloth to remove dust and dirt.
 Dip the cloth in neutral detergent if dirt cannot be eliminated with a dry
cloth alone.
 Do not use volatile liquids (such a petrol, alcohol, solvents, etc.) or
chemically treated clothes to clean the device to prevent deformation,
deterioration or scratches to the paint finish.
Privacy and copyright
 The monitor is a device for Computer systems. Recording of images
is subject to the laws in force in your country. Recording of images
protected by copyright is forbidden.
 Product users shall be responsible for checking and respecting all local
rules and regulations concerning monitoring and recording video signals.
The manufacturer SHALL NOT BE LIABLE for use of this product not in
compliance with the laws in force.

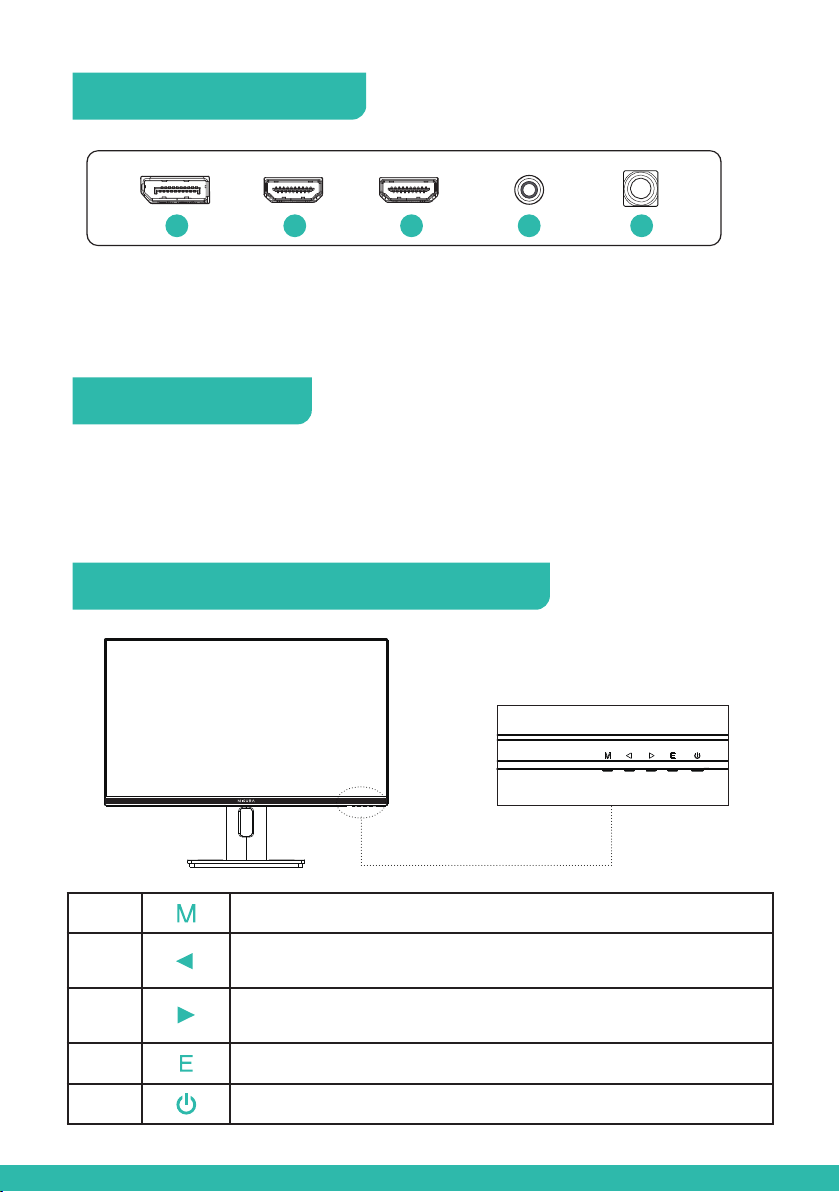

MONITOR INPUTS
MONITOR CONTROL BUTTONS
12345
1|DP
2|HDMI 1
3|HDMI 2
4|AUDIO OUT
5|DV 12V
ACCESSORIES
1|25 Inch Monitor
2|Stand
3|HDMI Cable
4|Power Adaptor and Power Cable
5|User manual
1 2 3 54
1Open the Main OSD Menu and Select submenu
2Go Down on the Main OSD Menu Decrease the value
of a selected item
3Go Up on the Main OSD Menu Increase the value
of a selected item
4Select signal source or Exit OSD
5Turn the monitor on or Off

Connect the monitor to a power outlet.
1.
Press the POWER button on the monitor or to turn it on (The indicator
will be blue).
2. Connect the relevant cable to the corresponding input on the monitor.
The source will be automatically detected.
3. To change between inputs, press the “EXIT” button to enter the source
menu. Use the “◀” and“▶” buttons to choose the input source between
DP and HDMI 1, HDMI 2.
INITIAL SETUP
HDMI1
HDMI2
DP

FreeSync: Allows FreeSync to be turned ON and OFF.
MPRT: Allows MPRT to be turned ON and OFF.
FreeSync ON
MPRT OFF
Brightness
Brightness: Allows the adjustment of the image brightness, according to
ambient light in the room. Value “0-100” |Contrast: Allows the adjustment of
the contrast between white and black areas of the image. Value “0-100”
Black Level: Allows adjustment of the Black Level of the OSD, value “0-100”.
ECO: Allows selection of image settings between the following: Standard, Text,
Movie, Game, etc. HDR: Allows the HDR Mode to be turned ON and OFF.

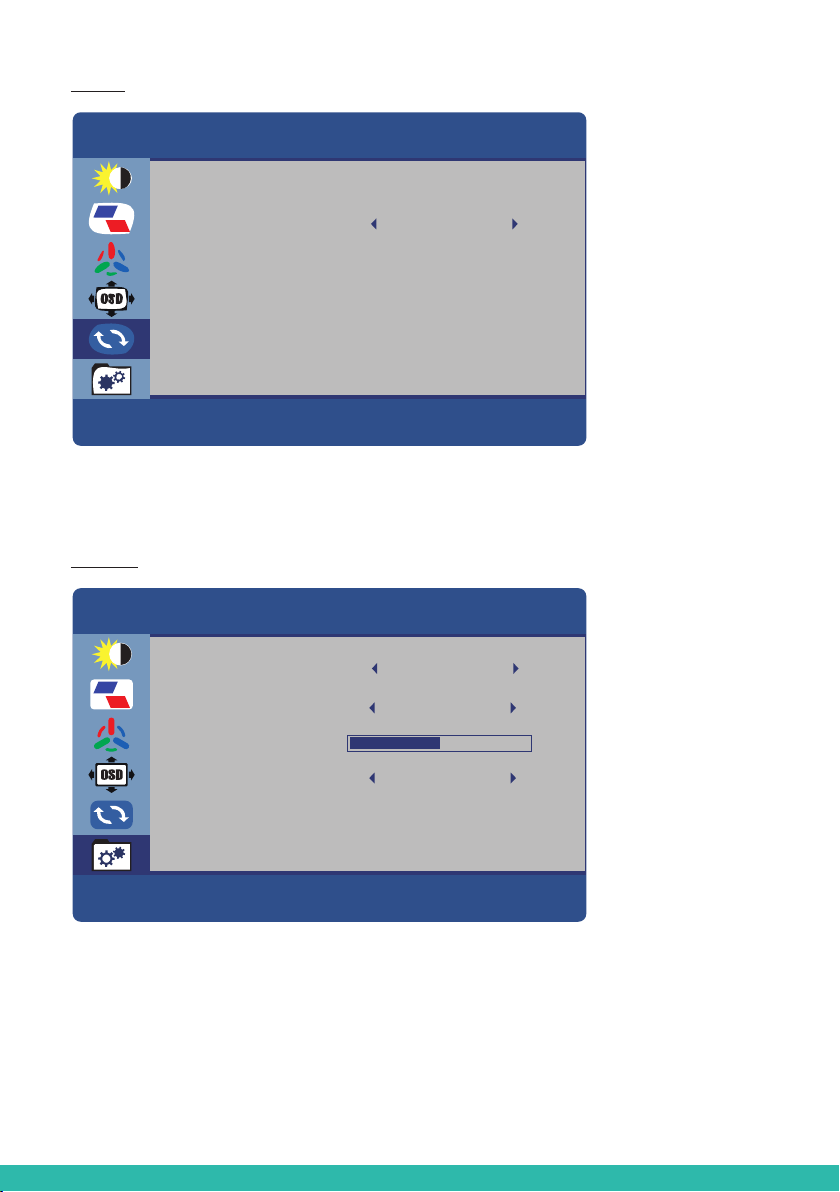

OSD MENU CONTROLS
ECO Standard
HDR OFF
Brightness
Brightness
Contrast
Black Level
80

OSD Setting
DP1
Language: Allows selection of desired language: “ENGLISH,
FRENCH, TURKISH, ITALIAN, SPANISH, PORTUGUESE, CHINESE,
DUTCH, JAPANESE, GERMAN, POLISH, AND KOREAN.”
OSD H. Pos: Allows adjustment of the horizontal position of the OSD
OSD V. Pos: Allows adjustment of the vertical position of the OSD
OSD Timer: Allows adjustment of the duration of the OSD, value “10-60”
Transparency: Allows adjustment of the transparency of the OSD, value “0-100”.
10
OSD Setting
Language
OSD H.Pos.
OSD V.Pos.
OSD Timer
Trans
Color Temperature: Allows adjustment of the color temperature between
the following options: 6500 – 7500 - 9300 - User. |Red: Allows adjustment
of the red element of the image. |Green: Allows adjustment of the green
element of the image. |Blue: Allows adjustment of the blue element of the
image. |Low blue light: Allows adjustment of the Low blue light of the OSD,
value “0-100”.
Color Setting
43
4
0
8
47
Color Setting
Color Temperature
Red
Rreen
Blue
Low blue light
6500

F.Extra
Source: Allows user to choose the signal source from “HDMI 1,
HDMI 2 and DP ”.
Mute: Allows Mute to be turned ON and OFF.
Volume: Allows adjustment the Volume of the monitor, value “0-10”.
OD: Allows the Overdrive function to be turned ON and OFF.
Extra
1920 X 1080 75Hz
Source HDMI1
OFFMute
Volume
OFFOD
5
Reset
RESET: Returns the monitor to its factory default settings.
LED effect:Allows LED effect to be turned ON and OFF.
Reset
Reset
LED effect OFF

TECHNICAL SPECIFICATION
Model
Size & Type
Panel Type
Brightness (Max)
Contrast Ratio
Display Color
Viewing Angle
Response Time
Resolution
Aspect Ratio
INTERFACE
Electrical Ratings
Power Consumption
P23QG25DFA01B – 250 Hz
24.5”
VA
350 cd/m2
5000:1 (Typ.)
16.7 Million Colors
178° (H) / 178° (V)
MPRT 1 ms
1920 x 1080
16:9
HDMI*2
DP*1
12V DC, 4A (AC 100-240V, 50/ 60 Hz)
Typical 32W
