MISURA P23QM24DFI01B User manual

USER MANUAL ENGLISH
MISURA MONITOR 24″ FLAT
Model: P23QM24DFI01B – 75 Hz
178°
Ultra Wide
Viewing Angle
1080
Full HD resolution
1920×1080
Low Blue Eyes
Technology
Super TFT
display
3 Side Bezeless
Design
GtG
Grey to Grey

Dear Customer,
Thank you for having purchased this product. This document describes
how to install and use the LCD colour monitor. Read this manual which
contains information for correct, safe use carefully. Keep this manual at
hand so that you can refer to it when needed.
Product description and type of use.
The LED backlit LCD color monitor presents avery rugged structure. It is
designed for continuous operation and can be used in closed circuit TV
systems without risk of excessive fatigue. The Flat Panel Display has an
active matrix, thin-film transistor (TFT), liquid crystal display (LCD).
General features
 DC 12V Power Input
 Display area
 Wall mounting VESA standard 75*75mm (Not included bracket)
 VGA Input video input Interface
 HDMI Input video input Interface
 Audio Input Interface
 Multilingual OSD menu for easy setting and optimization of the display
Opening the box
Check that the packing and the contents are not visibly damaged. Contact
the reseller immediately if parts are either missing or damaged. Do not
attempt to use the device in this case. Send the product back in its original
packing if it is damaged.
Contents of the box
 Monitor
 Power Adapter
 HDMI cable
 User’smanual
 Table stand
Important Note: Accessories may be changed without prior notice.
GENERAL INFORMATION

EN
Power
 Only use the power unit provided to power the device. Check mains
rating before plugging the power unit in.
 Do not pull the cable to unplug the device.
Safety precautions
 Keep the device away from rain and humidity to prevent risk of fire
and electrocution. Do not introduce material (solid or liquid) inside. If this
should accidentally occur, disconnect the device from the mains and have
it inspected by qualified personnel.
 Never open the device. In all cases, contact the qualified personnel
or authorized service center for repairs.
 Keep the device away from children, to prevent accidental damage.
 Do not touch the device with wet hands to prevent electrical shock
or mechanical damage.
 Do not use the device if it should fall or the external casing is damaged.
Risk of electrocution if the device is used in such conditions. Contact the
reseller or your installer.
 It is advisable to disconnect the power wire if the monitor is not used for
an extended period.
Installation precautions
 To prevent overheating the device, arrange it in aposition allowing the
flow of air through the slots in the casing. Ensure at least 5 cm of free
space when installing inside arack. For the same reason, do not install
near sources of heat, such as radiators or hot air ducts. Keep away
from direct sunlight. Do not install in areas subject to excessive dust,
mechanical vibrations or shocks.
 Do not arrange this device on an unstable surface, such as atottering or
slanted table. The device could fall causing injury or mechanical failures.
 Do not install the device in aplace where it could be exposed to
humidity or water. Do not direct ajet of water onto the device: risk of fire,
electrocution or mechanical failure.
 Stop using the device if water or other material should penetrate inside:
risk of fire and electrocution. Contact the retailer or authorized installer.
 Slots and openings in the cabinet are provided for ventilation. These
openings must not be blocked or covered.
WARNINGS

 Do not place heavy or heat generating objects on top of the device: this
could damage the casing and/or increase internal temperature causing
faults.
 Do not cover the device with acloth while it is running to prevent
deforming the external casing and overheating the internal parts:
risk of fire, electrocution and mechanical failure.
 Keep magnets and magnetized objects away from the device
to prevent faults.
 Do not use the device in the presence of smoke, vapor, humidity, dust or
intense vibrations.
 Wait for awhile before operating adevice immediately after transporting
it from acold place to awarm place and vice versa. Wait on average
for three hours: this will allow the device to adapt to the new ambient
temperature and/or humidity, etc.
 The monitor is provided with aplastic base and rubber feet. It can be
positioned on ahorizontal surface, such as adesk or atable. Make sure
that the device is fastened firmly and that it is not resting on unstable
supports or surfaces. Dropping could cause severe injury and damage
the device.
 Remember to adjust the brightness and contrast to obtain aperfect image.
 The monitor can also be installed on the wall by means of abracket
(not provided).
1.3.4 Cleaning the device
 Rub delicately with adry cloth to remove dust and dirt.
 Dip the cloth in neutral detergent if dirt cannot be eliminated with adry
cloth alone.
 Do not use volatile liquids (such petrol, alcohol, solvents, etc.) or
chemically treated cloths to clean the device to prevent deformation,
deterioration or scratches to the paint finish.
1.3.5 Privacy and copyright
 The monitor is adevice for CCTV systems. Recording of images is subject
to the laws in force in your country. Recording of images protected by
copyright is forbidden.
 Product users shall be responsible for checking and respecting all local
rules and regulations concerning monitoring and recording video signals.
The manufacturer SHALL NOT BE LIABLE for use of this product not in
compliance with the laws in force.

EN
MONITOR INPUTS
1 | HDMI port: Used to connect acompatible device.
Supports HDMI 1.4 & 2.0
2 | VGA: Used to connect acompatible VGA device
3 | Audio Out: The Audio Out Input Source
4 | DC input port: Connect the supplied power supply to power
the monitor
MONITOR CONTROL BUTTONS
Power Button
OSD Control Buttons

1Open the Main OSD Menu and Select submenu
2Go Up on the Main OSD Menu Increase the value
of aselected itemI
3Go Down on the Main OSD Menu Decrease the value
of aselected item
4Select signal source or Exit OSD
5Turn the monitor on or Off
All picture setup can be adjusted in OSD (On Screen Display) menu.
To adjust the OSD screen:
1 | Press the MENU button to enter the OSD MENU.
2 | Press the + / - buttons to select the desired main-MENU.
The selected main-MENU is highlighted.
3 | Press the + / - buttons to select the desired sub-MENU.
The selected sub-MENU is highlighted.
4 | Change the value you wish to adjust by using the + / - buttons.
5 | Press the MENU button to confirm the adjustment on sub-MENU.
6 | Press the AUTO button to exit the sub-MENU and go back
to the main-MENU.
MONITOR BUTTON FUNCTION

EN
OSD MENU CONTROLS
Luminance
Option Function Value
Brightness It allows changing of image
brightness, according to ambient
light.
0 ~100
Contrast It allows changing of contrast
between white and black areas
of the image.
0 ~100
Eco Mode Energy Saving Mode Standard/Internet/
Game/Movie
DCR It means Dynamic Contras Ratio,
provide enhanced contrast and
sharpness
ON/OFF

Color Setup
OSD Setup
Option Function Value
Language Set the language of the OSD menu English, Chinese etc.
H.positon Move the menu position horizontally 0 ~100
V.positon Move the menu position vertically 0 ~100
Timeout Adjust the standing time of the menu 0 ~100
Transparency Adjust the transparency of the menu 0~7
Option Function Value
Color Temp Adjust color temperature User/Cool/Normal/Warm
Red Red Adjust red color effect 0~100 0 ~100
Green Green Adjust green color effect 0 ~100
Blue Adjust blue color effect 0 ~100
LowBlue Mode Set the LowBlue Mode ON / OFF

EN

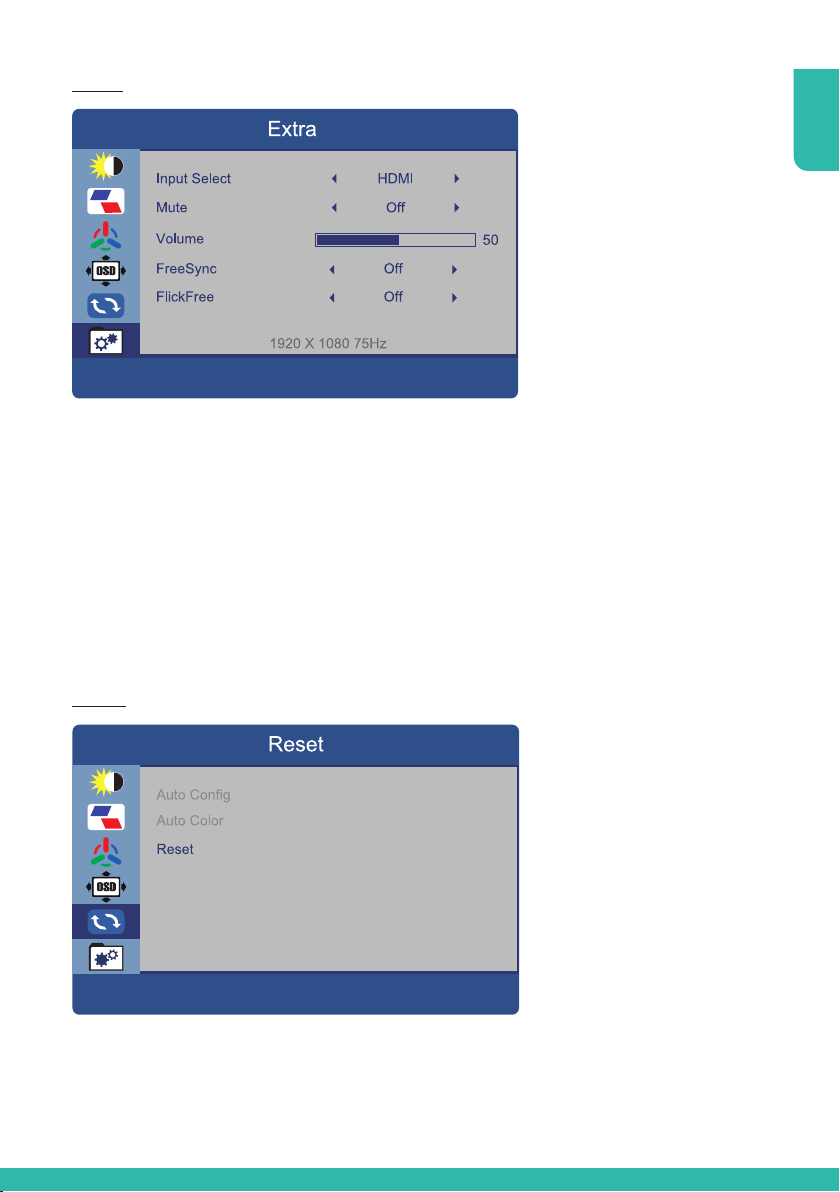

Reset
Extra
Option Function Value
Auto Config Auto restore the picture setting
Auto Color Auto restore the color setting
Reset Restore the factory settings
Option Function Value
Input Select Select Input HDMI and VGA
Mute Restore the factory settings ON / OFF
Volume Allows adjustment of the volume
of the monitor from
0~100
FreeSync Allows FreeSync to be turned ON / OFF
FlickFree Allows FlickFree to be turned ON / OFF
Option Function Value
Color Temp Adjust color temperature User/Cool/Normal/Warm
Red Red Adjust red color effect 0~100 0 ~100
Green Green Adjust green color effect 0 ~100
Blue Adjust blue color effect 0 ~100
LowBlue Mode Set the LowBlue Mode ON / OFF

EN
TECHNICAL SPECIFICATION
LCD
P23QM24DFI01B – 75 HzModel
Important Note: The specification may be changed without prior notice.
Size
Panel Type
INTERFACE
23.8”
23.8” LED Backlight Monitor
0.2745 (H) × 0.2745 (V) mm
250 cd/m2
1000:1 (Typ.)
16.7 Million Colors
178° (H) / 178° (V)
5 ms (GtG)
1920 × 1080
Black Plastic
16:9
HDMI*1
VGA*1
CE / FCC / RoHS
12V DC, 3A (AC 100–240V, 50/60 Hz)
Typical 13W
Pixel Pitch
Brightness (Max)
Contrast Ratio
Display Color
Viewing Angle
Response Time
Resolution
Case Type
Aspect Ratio
Safety & EMC Certification
Electrical Ratings
Power Consumption
