MISURA P23GW24DFI01B User manual

USER MANUAL ENGLISH
MISURA MONITOR 24″ CURVED
Model: P23GW24DFI01B – 75 Hz
24” LED MONITOR
Please read this manual thoroughly before use and keep it handy for future reference.
Instruction Manual
178°
Ultra Wide
Viewing Angle
1080
Full HD resolution
1920 × 1080
VA Flat
panel
VA
Low Blue Eyes
Technology
OD
Overdrive Time
Power Delivery
Technology

Dear Customer,
Thank you for having purchased this product. This document describes
how to install and use the LED backlit LCD color monitor. Read this manual
which contains information for correct, safe use. Keep this manual at hand
so that you can refer to it when needed.
Product description and type of use.
The LED backlit LCD color monitor presents avery rugged structure. It is
designed for continuous operation and can be used in closed circuit TV
systems without risk of excessive fatigue. The Flat Panel Display has an
active matrix, thin-film transistor (TFT), liquid crystal display (LCD).
General features
 DC 12V Power Input
 Display area
 Wall mounting VESA standard 100*100mm (Not included bracket)
 DP Input video input Interface
 HDMI Input video input Interface
 USB-C Input video input Interface
 Audio Input Interface
 Multilingual OSD menu for easy setting and optimization of the display
Opening the box
Check that the packing and the contents are not visibly damaged. Contact
the reseller immediately if parts are either missing or damaged. Do not
attempt to use the device in this case. Send the product back in its original
packing if it is damaged.
Contents of the box
 Monitor
 Power Adapter
 HDMI cable
 User’smanual
 Table stand
Important Note: Accessories may be changed without prior notice.
GENERAL INFORMATION

EN
Power
 Only use the power unit provided to power the device. Check mains
rating before plugging the power unit in.
 Do not pull the cable to unplug the device.
Safety precautions
 Keep the device away from rain and humidity to prevent risk of fire and
electrocution. Do not introduce material (solid or liquid) inside. If this
should accidentally occur, disconnect the device from the mains and have
it inspected by qualified personnel.
 Never open the device. In all cases, contact the qualified personnel or
authorized service center for repairs.
 Keep the device away from children, to prevent accidental damage.
 Do not touch the device with wet hands to prevent electrical shock or
mechanical damage.
 Do not use the device if it should fall or the external casing is damaged.
Risk of electrocution if the device is used in such conditions. Contact the
reseller or your installer.
 It is advisable to disconnect the power wire if the monitor is not used for
an extended period.
Installation precautions
 To prevent overheating the device, arrange it in aposition allowing the
flow of air through the slots in the casing. Ensure at least 5 cm of free spa-
ce when installing inside arack. For the same reason, do not install near
sources of heat, such as radiators or hot air ducts. Keep away from direct
sunlight. Do not install in areas subject to excessive dust, mechanical
vibrations or shocks.
 Do not arrange this device on an unstable surface, such as atottering or
slanted table.
 The device could fall causing injury or mechanical failures.
 Do not install the device in aplace where it could be exposed to humidity
or water. Do not direct ajet of water onto the device: risk of fire, electrocu-
tion or mechanical failure.
 Stop using the device if water or other material should penetrate inside:
risk of fire and electrocution. Contact the retailer or authorized installer.
 Slots and openings in the cabinet are provided for ventilation. These ope-
WARNINGS

nings must not be blocked or covered.
 Do not place heavy or heat generating objects on top of the device: this cou-
ld damage the casing and/or increase internal temperature causing faults.
 Do not cover the device with acloth while it is running to prevent defor-
ming the external casing and overheating the internal parts: risk of fire,
electrocution and mechanical failure.
 Keep magnets and magnetized objects away from the device to prevent
faults.
 Do not use the device in the presence of smoke, vapor, humidity, dust or
intense vibrations.
 Wait for awhile before operating adevice immediately after transporting
it from acold place to awarm place and vice versa. Wait on average for
three hours: this will allow the device to adapt to the new ambient tempe-
rature and/or humidity, etc.
 The monitor is provided with aplastic base and rubber feet. It can be posi-
tioned on ahorizontal surface, such as adesk or atable. Make sure that the
device is fastened firmly and that it is not resting on unstable supports or
surfaces. Dropping could cause severe injury and damage the device.
 Remember to adjust the brightness and contrast to obtain aperfect
image.
 The monitor can also be installed on the wall by means of abracket
(not provided).
1.3.4 Cleaning the device
 Rub delicately with adry cloth to remove dust and dirt.
 Dip the cloth in neutral detergent if dirt cannot be eliminated with adry
cloth alone.
 Do not use volatile liquids (such petrol, alcohol, solvents, etc.) or
chemically treated cloths to clean the device to prevent deformation,
deterioration or scratches to the paint finish.
1.3.5 Privacy and copyright
 The monitor is adevice for CCTV systems. Recording of images is subject
to the laws in force in your country. Recording of images protected by
copyright is forbidden.
 Product users shall be responsible for checking and respecting all local
rules and regulations concerning monitoring and recording video signals.
The manufacturer SHALL NOT BE LIABLE for use of this product not in
compliance with the laws in force.

EN

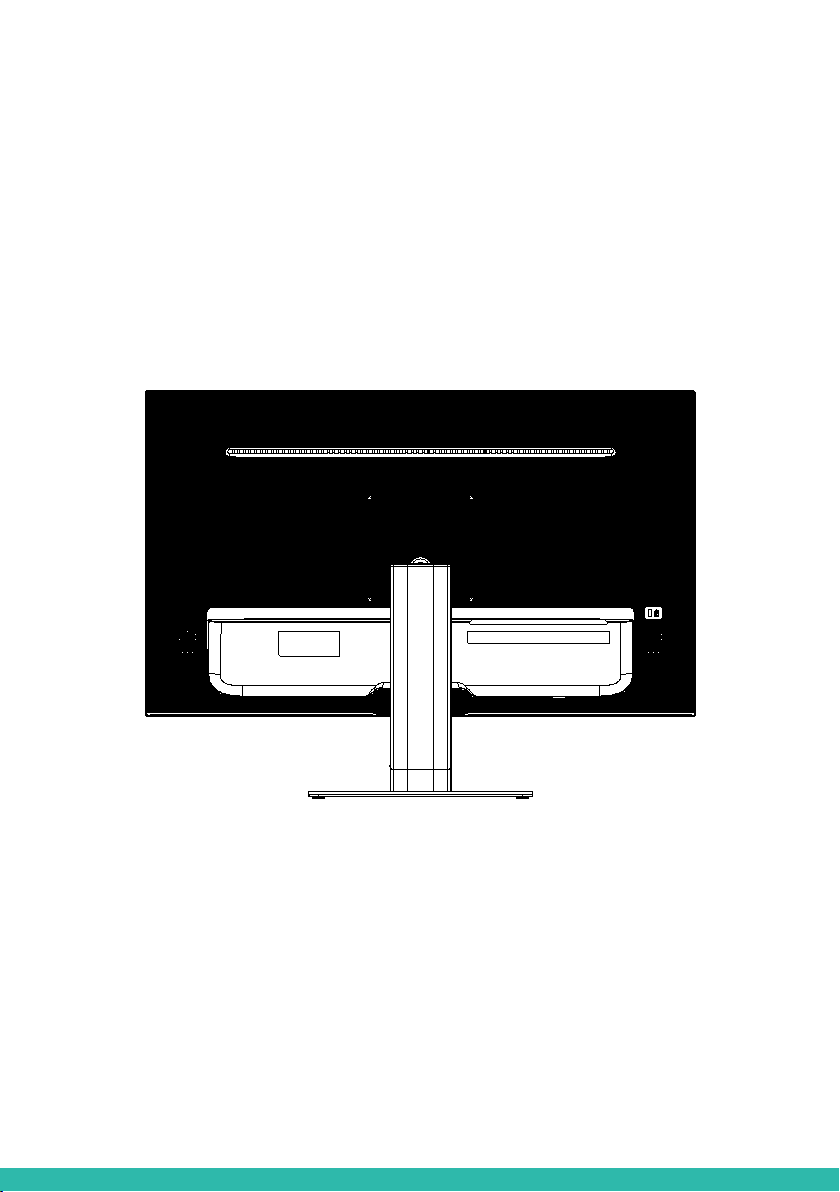

MONITOR INPUTS
MONITOR CONTROL BUTTONS
1 | HDMI port: Used to connect
acompatible device.
2 | DP: Used to connect acompatible
DP device
3 | USB-C: Used to connect
acompatible device.
4 | Audio Out: The Audio Out
Input Source
5 | DC input port: Connect the
supplied power supply to power
the monitor
5
INTERFACES, CONTROLS & SETTINGS
1. HDMI port: Used to connect a compatible device.
2. DP: Used to connect a compatible device.
4. Audio Out: The Audio Out Input Source
3. USB-C: Used to connect a compatible device.
5. DC input port: Connect the supplied power supply to power the monitor
HDMI DP USB-C AUDIO DC12V
Monitor Control Buttons
1
2
3
4
5
Select signal source or Exit OSD
Go Up on the Main OSD Menu Increase the value of a selected itemI
Go Down on the Main OSD Menu Decrease the value of a selected item
Open the Main OSD Menu and Select submenu
Turn the monitor on or Off
1Open the Main OSD Menu and Select submenu
2Select signal source or Exit OSD
3Go Up on the Main OSD Menu Increase the value
of aselected itemI
4Go Down on the Main OSD Menu Decrease the value
of aselected item
5Turn the monitor on or Of f

OSD MENU CONTROLS
Luminance
Option Function Value
Brightness It allows changing of image brightness,
according to ambient light.
0~100
Contrast It allows changing of contrast between
white and black areas of the image.
0~100
LowBlue It allows changing of image lowblue,
according to ambient light.
0~100
Eco Mode Energy Saving Mode Standard/Internet/
Game/Movie
DCR It means Dynamic Contras Ratio,
provide enhanced contrast and
sharpness
ON/OFF
Over drive It means Over drive, provideenhanced
contrast and sharpness
ON/OFF

EN
Option Function Value
Image Ratio Adjust the aspect ratio Auto/Wide/4:3
Flicker Free Set the Flicker Free Mode ON/OFF
Option Function Value
Color Temp Adjust color temperature User/Cool/
Normal/Warm
Image Setup
Color Setup

Option Function Value
Reset Restore the factory settings

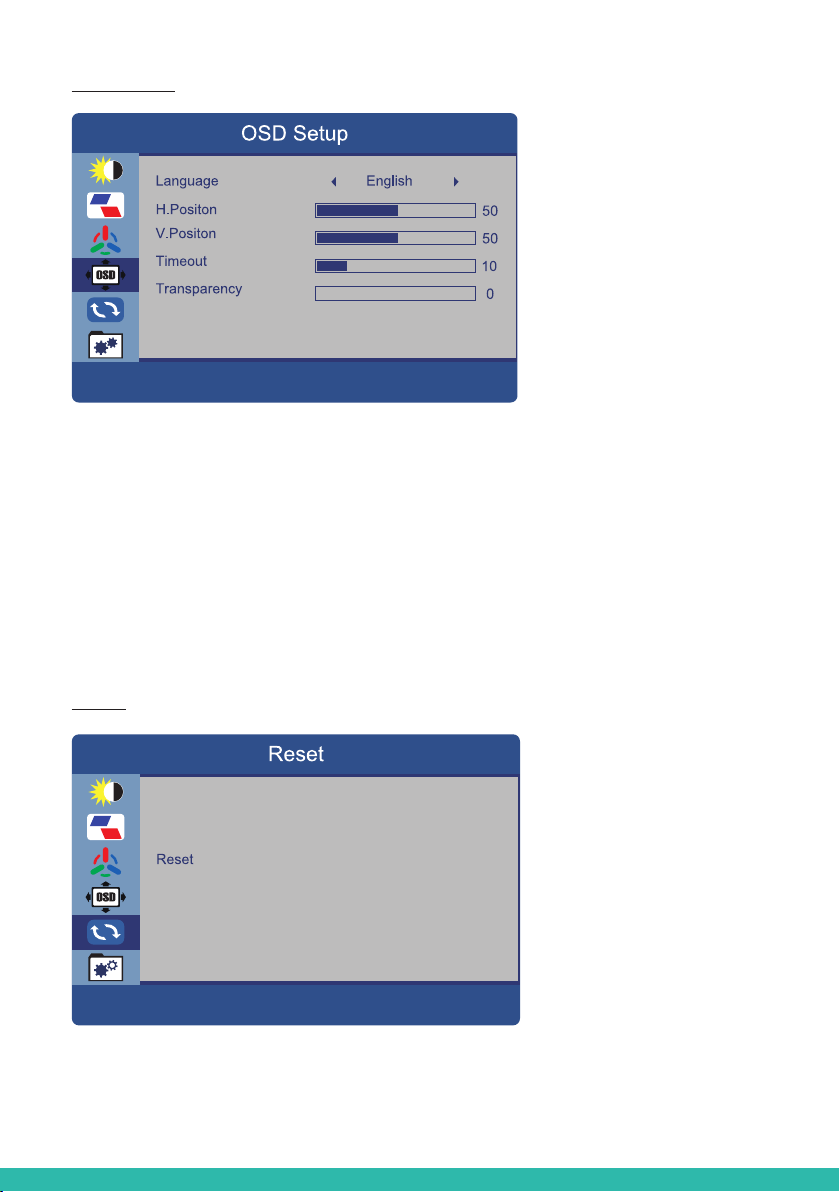

OSD Setup
Reset
Option Function Value
Language Set the language of the OSD menu English, Chinese etc.
H.positon Move the menu position horizontally 0 ~100
V.positon Move the menu position vertically 0 ~100
Timeout Adjust the standing time of the menu 5~100
Transparency Adjust the transparency of the menu 0 ~100

EN
Extra
Option Function Value
Input Select Select Input HDMI and VGA
Osd Mute Restore the factory settings ON / OFF
Volume Allows adjustment of the volume of the
monitor from
0~100
FreeSync Allows FreeSync to be turned ON / OFF
HDR Allows HDR to be turned ON / OFF

EN
TECHNICAL SPECIFICATION
LCD
P23GW24DFI01B – 75 Hz
Model
Important Note: The specification may be changed without prior notice.
Size
Panel Type
INTERFACE
24”
24” LED Backlight Monitor
0.2745 (H) × 0.2745 (V) mm
250 cd/m2
3000:1 (Typ.)
16.7 Million Colors
178° (H) / 178° (V)
4 ms (with OD)
1920 × 1080
Black Plastic
16:9
HDMI*1/DP*1/USB-C*1
CE / FCC / RoHS
12V DC, 4A (AC 100–240V, 50/60 Hz)
Typical 18W
Pixel Pitch
Brightness (Max)
Contrast Ratio
Display Color
Viewing Angle
Response Time
Resolution
Case Type
Aspect Ratio
Safety & EMC Certification
Electrical Ratings
Power Consumption
