SERVICE MANUAL No.OCH451
REVISED EDITION-A
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
R410A
January 2010
Outdoor unit
[model name]
PUHZ-RP35VHA4
PUHZ-RP50VHA4
PUHZ-RP60VHA4
PUHZ-RP71VHA4
PUHZ-RP100VKA
PUHZ-RP125VKA
PUHZ-RP140VKA
PUHZ-RP100YKA
PUHZ-RP125YKA
PUHZ-RP140YKA
PUHZ-RP200YKA
PUHZ-RP250YKA
[Service Ref.]
PUHZ-RP35VHA4
PUHZ-RP50VHA4
PUHZ-RP60VHA4
PUHZ-RP71VHA4
PUHZ-RP100VKA
PUHZ-RP125VKA
PUHZ-RP140VKA
PUHZ-RP100YKA
PUHZ-RP125YKA
PUHZ-RP140YKA
PUHZ-RP200YKA
PUHZ-RP200YKAR1
PUHZ-RP250YKA
PUHZ-RP60VHA4
PUHZ-RP71VHA4
Revision:
•PUHZ-RP200YKAR1 is added in
REVISED EDITION-A.
•Some descriptions have been
modified.
PARTS CATALOG (OCB451)
CONTENTS
1 TECHNICAL CHANGE····································2
2 REFERENCE MANUAL··································2
3 SAFETY PRECAUTION··································2
4 FEATURES······················································6
5 SPECIFICATIONS···········································7
6 DATA······························································10
7 OUTLINES AND DIMENSIONS····················16
8 WIRING DIAGRAM ·······································20
9 WIRING SPECIFICATIONS···························26
10 REFRIGERANT SYSTEM DIAGRAM ··············31
11 TROUBLESHOOTING···································35
12 FUNCTION SETTING····································94
13 MONITORING THE OPERATION DATA BY THE REMOTE CONTROLLER ···101
14 EASY MAINTENANCE FUNCTION·············111
15 DISASSEMBLY PROCEDURE···················· 116
Note:
•This manual does not cover the
outdoor units. When serving out-
door units, please refer to the serv-
ice manual of outdoor unit and this
manual in a set.
• RoHS compliant products have <G>
mark on the spec name plate.
• Please void OCH451.

2
3-1. ALWAYS OBSERVE FOR SAFETY
Before obtaining access to terminal, all supply circuits must be disconnected.
2-1. INDOOR UNIT SERVICE MANUAL
Model name Service Ref. Service
Manual No.
PLA-RP35/50/60/71/100/125BA
PLA-RP71/125/140BA2 PLA-RP35/50/60/71/100/125BA#2.UK PLA-RP71/125/140BA2.UK OCH412 OCB412
PLA-RP100BA3 PLA-RP100BA3 OCH459
OCB459
PCA-RP50/60/71/100/125/140KA PCA-RP50/60/71/100/125/140KA OCH454
OCB454
PCA-RP71/125HA PCA-RP71/125HA#1 OC329
PKA-RP35/50HAL PKA-RP35/50HAL OCH453
OCB453
PKA-RP60/71/100KAL PKA-RP60/71/100KAL OCH452
OCB452
PSA-RP71/100/125/140GA PSA-RP71/100/125/140GA#1 OC332
PEAD-RP35/50/60/71/100/125/140JA(L) PEAD-RP35/50/60/71/100/125/140JA(L)(R1).UK HWE08130 BWE08240
BWE09220
PEA-RP200/250/400/500GA PEA-RP200/250/400/500GA.TH-AF
PEA-RP200/250GA.TH-AFMF HWE0708A
3SAFETY PRECAUTION
3-2. CAUTIONS RELATED TO NEW REFRIGERANT
Cautions for units utilizing refrigerant R410A
Preparation before the repair service.
• Prepare the proper tools.
• Prepare the proper protectors.
• Provide adequate ventilation.
• After stopping the operation of the air conditioner, turn off the power-supply beaker.
• Discharge the condenser before the work involving the electric parts.
Precautions during the repair service.
• Do not perform the work involving the electric parts with wet hands.
• Do not pour water into the electric parts.
• Do not touch the refrigerant.
• Do not touch the hot or cold areas in the refrigerating cycle.
• When the repair or the inspection of the circuit needs to be done without turning off the power,
exercise great caution not to touch the live parts.
2REFERENCE MANUAL
1TECHNICAL CHANGE
PUHZ-RP200YKA PUHZ-RP200YKAR1
• Power board (P.B.) has been changed.
• Controller board (C.B.) has been changed. (S/W version up)

3
[1] Cautions for service
(1) Perform service after recovering the refrigerant left in unit completely.
(2) Do not release refrigerant in the air.
(3) After completing service, charge the cycle with specified amount of refrigerant.
(4) When performing service, install a filter drier simultaneously.
Be sure to use a filter drier for new refrigerant.
[2] Additional refrigerant charge
When charging directly from cylinder
· Check that cylinder for R410A on the market is syphon type.
· Charging should be performed with the cylinder of syphon stood vertically. (Refrigerant is charged from liquid phase.)
Gravimeter
Unit
Use new refrigerant pipes.
Make sure that the inside and outside of refrige-
rant piping is clean and it has no contaminants
such as sulfur, oxides, dirt, shaving particles, etc,
which are hazard to refrigerant cycle.
In addition, use pipes with specified thickness.
Store the piping to be used indoors during
installation and both ends of the piping sealed
until just before brazing. (Leave elbow joints, etc.
in their packaging.)
The refrigerant oil applied to flare and flange
connections must be ester oil, ether oil or
alkylbenzene oil in a small amount.
In case of using the existing pipes for R22, be careful with
the followings.
· Be sure to clean the pipes and make sure that the insides
of the pipes are clean.
· Change flare nut to the one provided with this product.
Use a newly flared pipe.
· Avoid using thin pipes.
Charge refrigerant from liquid phase of gas
cylinder.
If the refrigerant is charged from gas phase, composition change
may occur in refrigerant and the efficiency will be lowered.
Do not use refrigerant other than R410A.
If other refrigerant (R22 etc.) is used, chlorine in refrige-
rant can cause deterioration of refrigerant oil etc.
Use a vacuum pump with a reverse flow check
valve.
Vacuum pump oil may flow back into refrigerant cycle and
that can cause deterioration of refrigerant oil etc.
Use the following tools specifically designed for
use with R410A refrigerant.
The following tools are necessary to use R410A refrigerant.
Handle tools with care.
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
Do not use a charging cylinder.
If a charging cylinder is used, the composition of refrigera-
nt will change and the efficiency will be lowered.
Flare tool
Electronic refrigerant
charging scale
Vacuum pump adaptor
Size adjustment gauge
Gauge manifold
Torque wrench
Gas leak detector
Charge hose
Tools for R410A
Contamination inside refrigerant piping can cause deterio-
ration of refrigerant oil etc.
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
If large amount of mineral oil enters, that can cause deterio-
ration of refrigerant oil etc.
Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.

4
3-3. PRECAUTIONS WHEN REUSING EXISTING R22 REFRIGERANT PIPES
(1) Flowchart
[4] Refrigerant leakage detection function
This air conditioner (outdoor unit PUHZ-RP35~140, except PUHZ-RP200/250) can detect refrigerant leakage which may
happen during a long period of use. In order to enable the leakage detection, settings are required to let the unit memo-
rize the initial conditions (initial learning). Refer to 14-3. INITIAL SETTINGS FOR REFRIGERANT LEAKAGE DETECTION
FUNCTION.
[3] Service tools
Use the below service tools as exclusive tools for R410A refrigerant.
No. Tool name Specifications
1Gauge manifold · Only for R410A
· Use the existing fitting specifications. (UNF1/2)
· Use high-tension side pressure of 5.3MPa·G or over.
2Charge hose · Only for R410A
· Use pressure performance of 5.09MPa·G or over.
3Electronic scale
4Gas leak detector · Use the detector for R134a, R407C or R410A.
5Adaptor for reverse flow check · Attach on vacuum pump.
6Refrigerant charge base
7Refrigerant cylinder · Only for R410A · Top of cylinder (Pink)
· Cylinder with syphon
8Refrigerant recovery equipment
Perform the airtight test, vacuum air purging,
additional refrigerant charging (if necessary),
and gas leak check.
• Refer to the flowchart below to determine if the existing pipes can be used and if it is necessary to use a filter dryer.
• If the diameter of the existing pipes is different from the specified diameter, refer to technological data materials to confirm if
the pipes can be used.
▼
▼
▼
▼
▼
▼▼
Measure the existing pipe thickness and
check for damage.
The existing pipe thickness meets specifica-
tions and the pipes are not damaged.
Check if the existing air conditioner can operate.
After operating the cooling system for about 30
minutes, do a pump down work.
Disconnect the existing air conditioner from the
pipes.
Attach the new air conditioner
Test run The existing pipes cannot be reused.
Use new pipes.
* If the existing air conditioner cannot operate, use
a refrigerant recovery device to collect the refrigerant.
* In case existing pipes were used for gas or oil
heat pump systems, be sure to clean the pipes
for RP100-250 models.
Use new pipes for RP35-71 models.
The existing pipe thickness does not meet
specifications or the pipes are damaged.

5
(2) Cautions for refrigerant piping work
New refrigerant R410A is adopted for replacement inverter series. Although the refrigerant piping work for R410A is same
as for R22, exclusive tools are necessary so as not to mix with different kind of refrigerant. Furthermore as the working
pressure of R410A is 1.6 times higher than that of R22, their sizes of flared sections and flare nuts are different.
1Thickness of pipes
Because the working pressure of R410A is higher compared to R22, be sure to use refrigerant piping with thickness
shown below. (Never use pipes of 0.7 mm or below.)
2Dimensions of flare cutting and flare nut
The component molecules in HFC refrigerant are smaller compared to conventional refrigerants. In addition to that,
R410A is a refrigerant, which has higher risk of leakage because its working pressure is higher than that of other refriger-
ants. Therefore, to enhance airtightness and intensity, flare cutting dimension of copper pipe for R410A has been speci-
fied separately from the dimensions for other refrigerants as shown below. The dimension B of flare nut for R410A also
has partly been changed to increase intensity as shown below. Set copper pipe correctly referring to copper pipe flaring
dimensions for R410A below. For 1/2 and 5/8 inch, the dimension B changes.
Use torque wrench corresponding to each dimension.
3Tools for R410A (The following table shows whether conventional tools can be used or not.)
1/4
3/8
1/2
5/8
3/4
6.35
9.52
12.70
15.88
19.05
0.8
0.8
0.8
1.0
—
0.8
0.8
0.8
1.0
1.0
Nominal
dimensions(inch)
Diagram below: Piping diameter and thickness
Outside
diameter (mm)
Thickness (mm)
R410A R22
1/4
3/8
1/2
5/8
3/4
6.35
9.52
12.70
15.88
19.05
9.1
13.2
16.6
19.7
—
9.0
13.0
16.2
19.4
23.3
Nominal
dimensions(inch)
Flare cutting dimensions
Outside
diameter Dimension A ( )
+0
-0.4
(mm)
R410A R22 1/4
3/8
1/2
5/8
3/4
6.35
9.52
12.70
15.88
19.05
17.0
22.0
26.0
29.0
—
17.0
22.0
24.0
27.0
36.0
Nominal
dimensions(inch)
Flare nut dimensions Outside
diameter Dimension B (mm)
R410A
+
+36.0mm for
indoor unit
of RP100,
125 and 140
R22
Gauge manifold
Charge hose
Gas leak detector
Refrigerant recovery equipment
Refrigerant cylinder
Applied oil
Safety charger
Charge valve
Vacuum pump
Flare tool
Bender
Pipe cutter
Welder and nitrogen gas cylinder
Refrigerant charging scale
Vacuum gauge or thermis-
tor vacuum gauge and
vacuum valve
Charging cylinder
Air purge, refrigerant charge
and operation check
Gas leak check
Refrigerant recovery
Refrigerant charge
Apply to flared section
Prevent compressor malfunction
when charging refrigerant by
spraying liquid refrigerant
Prevent gas from blowing out
when detaching charge hose
Vacuum drying and air
purge
Flaring work of piping
Bend the pipes
Cut the pipes
Weld the pipes
Refrigerant charge
Check the degree of vacuum. (Vacuum
valve prevents back flow of oil and refri-
gerant to thermistor vacuum gauge)
Refrigerant charge
Tool exclusive for R410A
Tool exclusive for R410A
Tool for HFC refrigerant
Tool exclusive for R410A
Tool exclusive for R410A
Ester oil and alkylbenzene
oil (minimum amount)
Tool exclusive for R410A
Tool exclusive for R410A
Tools for other refrigerants can
be used if equipped with adop-
ter for reverse flow check
Tools for other refrigerants
can be used by adjusting
flaring dimension
Tools for other refrigerants can be used
Tools for other refrigerants can be used
Tools for other refrigerants can be used
Tools for other refrigerants can be used
Tools for other refrigerants
can be used
Tool exclusive for R410A
Tools and materials Use R410A tools Can R22 tools be used?
(Usable if equipped
with adopter for rever-
se flow)
(Usable by adjusting
flaring dimension)
Can R407C tools be used?
Ester oil:
Alkylbenzene oil: minimum amount
(Usable if equipped
with adopter for rever-
se flow)
(Usable by adjusting
flaring dimension)
: Prepare a new tool. (Use the new tool as the tool exclusive for R410A.)
: Tools for other refrigerants can be used under certain conditions.
: Tools for other refrigerants can be used.
Dimension A
Dimension B

6
4 FEATURES
CHARGELESS SYSTEM
PRE-CHARGED REFRIGERANT IS SUPPLIED FOR PIPING LENGTH AT SHIPMENT.
Max. 30m (PUHZ-RP35-250)
The refrigerant circuit with LEV (Linear Expansion Valve) and power receiver always control the optimal refrigerant level
regardless of the length (30 m max. and 5 m min.) of piping. The additional refrigerant charging work during installation
often causes problems. It is completely eliminated by chargeless system. This unique system improves the quality and reli-
ability of the work done. It also helps to speed up the installation time.
REFRIGERANT LEAKAGE DETECTION FUNCTION (except for RP200/250)
PUHZ-RP35-140 can detect refrigerant leakage which may happen during a long period of use.
PUHZ-RP60VAH4
PUHZ-RP71VHA4
PUHZ-RP100VKA
PUHZ-RP125VKA
PUHZ-RP140VKA
PUHZ-RP100YKA
PUHZ-RP125YKA
PUHZ-RP140YKA
PUHZ-RP200YKA
PUHZ-RP200YKAR1
PUHZ-RP250YKA
PUHZ-RP35VHA4
PUHZ-RP50VHA4

7
5 SPECIFICATIONS
A
kW
W
kW
*
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Power supply (phase, cycle, voltage)
Max. current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) %No.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
Mode
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref. PUHZ-RP35VHA4 PUHZ-RP50VHA4
Cooling
13
0.9
Munsell 3Y 7.8/1.1
Linear Expansion Valve
Hermetic
SNB130FGCH
Inverter
—
Plate fin coil
Propeller fan %1
0.040
35(1,240)
Reverse cycle
44
46
800(31-1/2)
300+23(11-13/16+7/8)
600(23-5/8)
42(93)
R410A
2.5(5.5)
0.45(NEO22)
6.35(1/4)
12.7(1/2)
Flared
Flared
Max. 30m
Max. 50m
Heating Cooling
13
1.1
Heating
HP switch
Comp.shell thermo
Discharge thermo
Single, 50Hz, 230V
OUTDOOR UNIT
REFRIGERANT PIPING
A
kW
W
kW
*
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Power supply (phase, cycle, voltage)
Max. current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) %No.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
Mode
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref. PUHZ-RP71VHA4
PUHZ-RP60VHA4 Cooling
SNB172FDHM1
Propeller fan %1
0.086
55(1,940)
47
48
943(37-1/8)
67(148)
3.5(7.7)
0.70(FV50S)
Max. 50m
Munsell 3Y 7.8/1.1
Linear Expansion Valve
Hermetic
Inverter
—
Plate fin coil
Reverse cycle
950(37-3/8)
330+30(13+1-3/16)
R410A
9.52(3/8)
15.88(5/8)
Flared
Flared
Max. 30m
HeatingCooling Heating
HP switch
Comp.shell thermo
Discharge thermo
Single, 50Hz, 230V
OUTDOOR UNIT
REFRIGERANT PIPING
1.61.4
19

8
A
kW
W
kW
*
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Power supply (phase, cycle, voltage)
Max. current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) %No.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
Mode
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref. PUHZ-RP140VKAPUHZ-RP125VKA
PUHZ-RP100VKA Cooling
49
51
Munsell 3Y 7.8/1.1
Linear Expansion Valve
Hermetic
Inverter
—
Plate fin coil
Propeller fan %2
0.060+0.060
Reverse cycle
1,050(41-5/16)
330+30(13+1-3/16)
1,338(52-11/16)
R410A
5.0(11.0)
1.40(FV50S)
9.52(3/8)
15.88(5/8)
Flared
Flared
Max. 30m
Max. 75m
HeatingCooling Heating Cooling
28
2.9
Heating
HP switch
Comp.shell thermo
Discharge thermo
Single 50Hz, 230V
OUTDOOR UNIT
REFRIGERANT PIPING
2.4
1.9
26.5
ANB33FDUMT ANB42FDWMT
50
52
116(256) 119(262)
110(3,880) 120(4,230)
A
kW
W
kW
*
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Power supply (phase, cycle, voltage)
Max. current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) %No.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
Mode
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref. PUHZ-RP140YKAPUHZ-RP125YKA
PUHZ-RP100YKA Cooling
49
51
9.5
Munsell 3Y 7.8/1.1
Linear Expansion Valve
Hermetic
Inverter
—
Plate fin coil
Propeller fan %2
0.060+0.060
Reverse cycle
1,050(41-5/16)
330+30(13+1-3/16)
1,338(52-11/16)
R410A
5.0(11.0)
1.40(FV50S)
9.52(3/8)
15.88(5/8)
Flared
Flared
Max. 30m
Max. 75m
HeatingCooling Heating Cooling
2.9
Heating
HP switch
Comp.shell thermo
Discharge thermo
3phase, 50Hz, 400V
OUTDOOR UNIT
REFRIGERANT PIPING
2.41.9
110(3,880) 120(4,230)
813
ANB33FDVMT
50
52
ANB42FDXMT
124(273) 126(278) 132(291)

9
A
kW
W
kW
*
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Power supply (phase, cycle, voltage)
Max. current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) %No.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
Mode
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref. PUHZ-RP250YKA
PUHZ-RP200YKA
PUHZ-RP200YKAR1
Cooling
Munsell 3Y 7.8/1.1
Linear Expansion Valve
Hermetic
Inverter
—
Plate fin coil
Propeller fan %2
0.150 + 0.150
140(4,940)
Reverse cycle
1,050(41-5/16)
330 + 30(13+1-3/16)
1,338(52-11/16)
R410A
Flared
Flared & Brazing
Max. 30m
Max. 120m
Heating Cooling
21
ANB66FFRMT
5.5
Heating
HP switch
Comp.shell thermo
Discharge thermo
3 phase 50Hz, 400V
OUTDOOR UNIT
REFRIGERANT PIPING
ANB52FFQMT
4.7
19
58
59
135(297)
7.1(15.7)
1.70(FV50S)
9.52(3/8)
25.4(1)
58
59
141(311)
7.7(17.0)
1.70(FV50S)
12.7(1/2)
25.4(1)

10
6DATA
6-1. REFILLING REFRIGERANT CHARGE (R410A : kg) PUHZ-RP35~140
U-V
U-W
W-V
Service Ref.
Compressor model
Winding
Resistance
()
ANB33FDUMT
(at 20°C)
0.466
0.466
0.466
SNB130FGCH
0.64
0.64
0.64
PUHZ-RP100/125VKA
ANB33FDVMT
1.20
1.20
1.20
ANB42FDXMTANB42FDWMT
1.20
1.20
1.20
0.302
0.302
0.302
PUHZ-RP100/125YKA
PUHZ-RP35/50VHA4
SNB172FDHM1
1.34
1.34
1.34
PUHZ-RP60/71VHA4
PUHZ-RP140YKA
PUHZ-RP140VKA
U-V
U-W
W-V
Service Ref.
Compressor model
Winding
Resistance
()
ANB52FFQMT
(at 20°C)
0.30
0.30
0.30
PUHZ-RP200YKA(R1)
ANB66FFRMT
0.37
0.37
0.37
PUHZ-RP250YKA
Longer pipe than 30 m, additional charge is
required.
Service Ref. Piping length (one way) Initial
charged
10m 20m 30m 40m 50m 60m 75m
PUHZ-RP35VHA4 2.1 2.3 2.5 2.7 2.9 — — 2.5
PUHZ-RP50VHA4 2.1 2.3 2.5 2.7 2.9 — — 2.5
PUHZ-RP60VHA4 3.1 3.3 3.5 4.1 4.7 — — 3.5
PUHZ-RP71VHA4 3.1 3.3 3.5 4.1 4.7 — — 3.5
PUHZ-RP100VKA
PUHZ-RP100YKA 4.6 4.8 5.0 5.6 6.2 6.8 7.5 5.0
PUHZ-RP125VKA
PUHZ-RP125YKA 4.6 4.8 5.0 5.6 6.2 6.8 7.5 5.0
PUHZ-RP140VKA
PUHZ-RP140YKA 4.6 4.8 5.0 5.6 6.2 6.8 7.5 5.0
6-3. COMPRESSOR TECHNICAL DATA
6-2. ADJUSTING THE AMOUNT OF REFRIGERANT PUHZ-RP200/250
Amount of additional refrigerant charge (kg)
30 m and less 31-40 m and less 41-50 m and less 51-60 m and less 61-70 m and less 71-120 m and less
0.9 kg 1.8 kg 2.7 kg 3.6 kg
1.2 kg 2.4 kg 3.6 kg 4.8 kg
Service Ref.
Permitted
pipe length
PUHZ-RP200YKA
PUHZ-RP200YKAR1
PUHZ-RP250YKA
120m or less
Initial charge
(kg)
7.1
7.7
No additional
charge necessary
The additional charge
amount is obtained by
the following formula.
Main piping:
Liquid line size
:9.52overalllength [m]
%
0.09 [kg/m]
Branch piping:Liquid
line size
:9.52 overall length[m]
%0.06[kg/m]
Branch piping:Liquid
line size
:6.35 overall length[m]
%0.02[kg/m]
3.6 (kg)
Amount of additional
charge [kg]
Main piping:
Liquid line size
:12.7overall length[m]
%0.11 [kg/m]
=
Additional charge amount
for 70 m RP200 3.6 kg
RP250 4.8 kg
+++–
Calculate the additional charge amount based on the following procedure.
If the calculation results in an amount that is smaller than the "Additional charge amount for 70m," perform the additional charge using the amount shown
in "Additional charge amount for 70m."

11

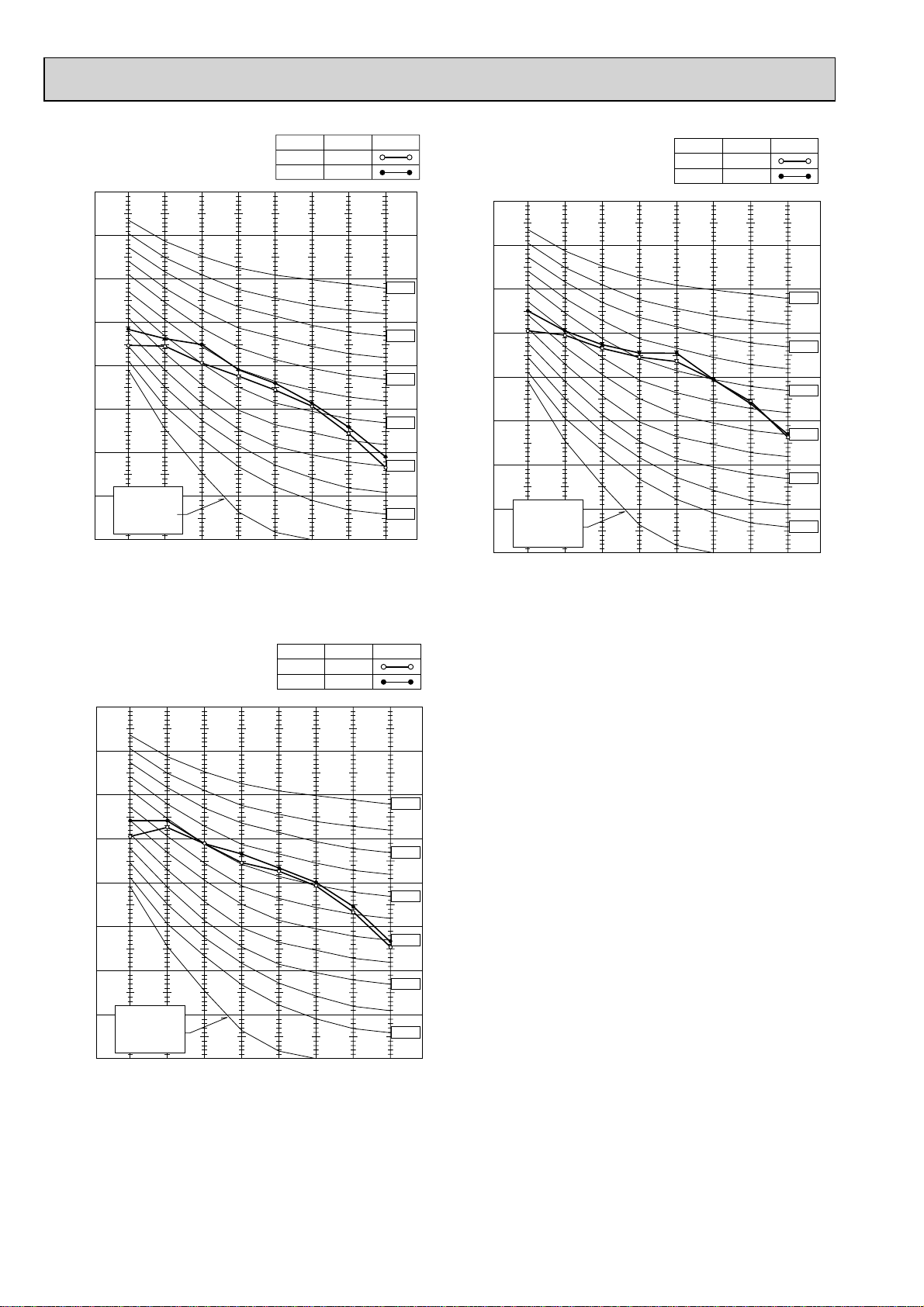

6-4. NOISE CRITERION CURVES
1.5m
1m
MICROPHONE
UNIT
GROUND
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
PUHZ-RP35/50VHA4
COOLING
MODE
HEATING
44
SPL(dB)
46
LINE
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 μbar)
BAND CENTER FREQUENCIES, Hz
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 μbar)
BAND CENTER FREQUENCIES, Hz
PUHZ-RP60VHA4
PUHZ-RP71VHA4
COOLING
MODE
HEATING
47
SPL(dB)
48
LINE
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 μbar)
BAND CENTER FREQUENCIES, Hz
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
PUHZ-RP100VKA
PUHZ-RP100YKA
COOLING
MODE
HEATING
49
SPL(dB)
51
LINE
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 μbar)
BAND CENTER FREQUENCIES, Hz
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
PUHZ-RP125VKA
PUHZ-RP125YKA
COOLING
MODE
HEATING
50
SPL(dB)
52
LINE

12
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 μbar)
BAND CENTER FREQUENCIES, Hz
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
PUHZ-RP140VKA
PUHZ-RP140YKA
COOLING
MODE
HEATING
50
SPL(dB)
52
LINE
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 μbar)
BAND CENTER FREQUENCIES, Hz
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
PUHZ-RP200YKA
PUHZ-RP200YKAR1
COOLING
MODE
HEATING
58
SPL(dB)
59
LINE
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 μbar)
BAND CENTER FREQUENCIES, Hz
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
PUHZ-RP250YKA
COOLING
MODE
HEATING
58
SPL(dB)
59
LINE

13
TotalElectrical circuitRefrigerant circuitIndoor side
Outdoor
side
Representative matching
SHF
BF
W
kW
Mode
Capacity
Input
PLA-RP71BA2
PLA-RP71BA2
Cooling
7,100
1.90
Heating
8,000
1.90
8.20
2.73
0.95
69
45
12
5
27
19
14.5
35
24
0.73
0.21
8.25
2.65
0.71
72
43
3
5
20
15
38.8
7
6
—
—
1 , 50
230
PUHZ-RP71VHA4
1 , 50
230
Phase , Hz
Voltage
Current
Outdoor unit
Phase , Hz
Voltage
Current
Discharge pressure
Suction pressure
Discharge temperature
Condensing temperature
Suction temperature
Ref. pipe length
Intake air temperature
Discharge air temperature
Intake air temperature
V
A
V
A
MPa
MPa
°C
°C
°C
m
°C
°C
°C
°C
°C
Indoor unit
D.B.
W.B.
D.B.
D.B.
W.B.
PLA-RP35BA PLA-RP50BA PLA-RP60BA
PLA-RP35BA PLA-RP50BA PLA-RP60BA
Cooling
3,600
1.07
Heating
4,100
1.12
Cooling
5,000
1.55
Heating
6,000
1.62
Cooling
6,000
1.60
Heating
7,000
1.82
4.66
2.70
1.01
70
46
15
5
27
19
15.8
35
24
0.84
0.28
4.93
2.69
0.74
71
41
2
5
20
15
34.6
7
6
—
—
6.72
2.91
0.99
73
49
11
5
27
19
15.3
35
24
0.81
0.24
7.08
2.76
0.67
77
44
-1
5
20
15
37.8
7
6
—
—
6.95
2.64
0.96
67
44
11
5
27
19
14.2
35
24
0.76
0.21
7.98
2.90
0.74
80
46
3
5
20
15
39.2
7
6
—
—
1 , 50
230
PUHZ-RP35VHA4
1 , 50
230
1 , 50
230
PUHZ-RP50VHA4
1 , 50
230
1 , 50
230
PUHZ-RP60VHA4
1 , 50
230
0.22 0.14 0.36 0.29 0.36 0.29 0.51 0.43
6-5. STANDARD OPERATION DATA
The unit of pressure has been changed to MPa based on international SI system.
The conversion factor is : 1(MPa)=10.2(kgf/cm²)

14
The unit of pressure has been changed to MPa based on international SI system.
The conversion factor is : 1(MPa)=10.2(kgf/cm²)
TotalElectrical circuitRefrigerant circuitIndoor side
Outdoor
side
Representative matching
SHF
BF
W
kW
Mode
Capacity
Input
PLA-RP100BA3 PLA-RP125BA2 PLA-RP140BA2
PLA-RP100BA3 PLA-RP125BA2 PLA-RP140BA2
Cooling
10,000
2.39
Heating
11,200
2.43
Cooling
12,500
3.67
Heating
14,000
3.50
Cooling
14,000
4.36
Heating
16,000
4.32
10.4/3.51
2.61
0.99
67
44
15
5
27
19
14.5
35
24
0.74
0.21
10.26/3.59
2.39
0.72
66
38
4
5
20
15
38.5
7
6
—
—
15.73/5.51
2.75
0.85
72
46
8
5
27
19
12.5
35
24
0.71
0.18
15.20/5.26
2.81
0.69
81
46
5
5
20
15
42.3
7
6
—
—
18.83/6.59
2.78
0.83
71
46
7
5
27
19
11.3
35
24
0.71
0.14
18.69/6.54
2.89
0.66
83
47
5
5
20
15
44.7
7
6
—
—
1 , 50
230
1/3, 50
230/400
1 , 50
230
1/3, 50
230/400
1 , 50
230
1/3, 50
230/400
Phase , Hz
Voltage
Current
Outdoor unit
Phase , Hz
Voltage
Current
Discharge pressure
Suction pressure
Discharge temperature
Condensing temperature
Suction temperature
Ref. pipe length
Intake air temperature
Discharge air temperature
Intake air temperature
V
A
V
A
MPa
MPa
°C
°C
°C
m
°C
°C
°C
°C
°C
Indoor unit
D.B.
W.B.
D.B.
D.B.
W.B.
PUHZ-RP100VKA/
PUHZ-RP100YKA PUHZ-RP125VKA/ PUHZ-RP125YKA PUHZ-RP140VKA/ PUHZ-RP140YKA
1.00 0.94 1.07 1.00 1.07 1.00

15
The unit of pressure has been changed to MPa based on international SI system.
The conversion factor is : 1(MPa)=10.2(kgf/cm²)
Electrical circuitRefrigerant circuitIndoor side
Outdoor
side
Representative matching
SHF
BF
Mode
Capacity
Input
Total
Phase , Hz
Voltage
Current
Outdoor unit
Phase , Hz
Voltage
Current
Discharge pressure
Suction pressure
Discharge temperature
Condensing temperature
Suction temperature
Ref. pipe length
Intake air temperature
Discharge air temperature
Intake air temperature
V
A
V
A
Mpa
Mpa
˚C
˚C
˚C
m
˚C
˚C
˚C
˚C
˚C
Indoor unit
D.B.
W.B.
D.B.
D.B.
W.B.
W
kW
PUHZ-RP250YKA
PUHZ-RP200YKA
PUHZ-RP200YKAR1
PLA-RP125BA2 ×2PLA-RP100BA3 ×2
PLA-RP125BA2PLA-RP100BA3
3, 503, 50
1, 501, 50
230230
400
400
HeatingCooling
HeatingCooling
11.26
2.67
0.61
77
44
3
7.5
20
15
41.5
7
6
–
–
10.24
2.96
0.88
72
49
11
7.5
27
19
13.2
35
24
0.77
0.10
8.50
2.30
0.64
70
38
2
7.5
20
15
38.5
7
6
–
–
8.19
2.72
0.95
72
46
16
7.5
27
19
14.4
35
24
0.79
0.13
1.00 × 2 0.94 × 2 1.07 x 2 1.00 × 2
19,000 22,400 22,000 27,000
5.50 5.70 6.83 7.48

16
7OUTLINES AND DIMENSIONS
PUHZ-RP35VHA4
PUHZ-RP50VHA4 Unit : mm
Service panel
for charge plug
+1 In the place where short cycle tends to occur, cooling and heating
capacity and power consumption might get lowered 10%. Air outlet
guide (optional PAC-SG58SG) will help them improve.
+2 If air discharges to the wall, the surface might get stained.
Minimum installation space for outdoor unit
100 mm or more as long as
no obstacle is placed on the
rear and right-and-left sides
of the unit.
2 sides should be open in
the right, left and rear side.
+2
+1
100 mm or more
500 mm or more
Basically open
100 mm or more
Free space around the outdoor unit
(basic example)
350 mm or more
+1
Air intake
Air discharge
Air intake
Connection for
gas pipe
Service port
Connection for
liquid pipe
Service panel
4-10 %21 oval hole
(M10 foundation bolt)
:33 drain hole
:33 drain hole
43.6
152
155
400
347.5
45.4
365
330
300
40
Handle for
moving
600
10
300
150
287.5
Installation bolt pitch: 500
800
69
35
43
183
90
155
23
32.5
18
1. FOUNDATION BOLTS 2. PIPING-WIRING DIRECTION
Piping and wiring connection can
be made from the rear direction only.
3. ATTACHING THE CONDUIT
In order to attach the conduit, it is
necessary to fix the metal plate with
2 screws to the back panel. Procure
the metal plate and make screw holes
locally. It is recommended to use the
metal plate shown below. Align the
metal plate to the marks on the unit
and attach it.
<Foundation bolt height>
Please secure the unit firmly
with 4 foundation (M10) bolts.
(Bolts, washer and nut must
be purchased locally.)
18 or below
40
20
60
80
+Conduit hole
+The position and the size of
conduit hole depend on the
conduit to be used.
Holes for metal plate fixing screw
+The size of hole depends on the
screw to be used.
FOUNDATION

17
Unit : mm
PUHZ-RP60VHA4
PUHZ-RP71VHA4
Air Intake
Rear Air Intake
Handle for moving
Handle for moving
322
950
473 943
23
*1 447
*1 431
673
2
1
Handle for moving
Handle for moving Service panel
Earth terminal
Left···Power supply wiring Right···Indoor/Outdoor wiring
Terminal Connections
Rear piping cover
Front piping cover
Side Air Intake
Handle for moving
40
54
28 370 19
417
53
57 41
600 175175
330
Rear Air Intake
Air Discharge
Side Air Intake Installation Feet
2-U Shaped notched holes (Foundation Bolt M10)
2-12 %36 oval holes (Foundation Bolt M10)
30
220 145 145 14530
81 219
71
71
Bottom piping hole (Knockout)
Drain hole (5-:33)
Piping Knockout Hole Details
19 55
23 27 92
92
4075
73 63
Right piping hole (Knockout) Right trunking hole
(Knockout)
Power supply wiring hole (2-:27Knockout)
:92
27 55
7323 63
40
92 65
45
Front piping hole (Knockout)
Front trunking hole (Knockout)
Power supply wiring hole (2-:27Knockout)
:92
4045
65
92
27 55
23 73 63
Rear piping hole (Knockout)
Rear trunking hole (Knockout)
Power supply wiring hole (2-:27Knockout)
:92
Example of Notes
Refrigerant GAS pipe connection (FLARE):15.88(5/8 inch) Refrigerant LIQUID pipe connection (FLARE):9.52(3/8 inch) *1...Indication of STOP VALVE connection location.
Over
Over
Less than
Piping and wiring connections can be made from 4 directions: front, right, rear and below.
4 PIPING-WIRING DIRECTIONS
3 FOUNDATION BOLTS2 SERVICE SPACE
1 FREE SPACE (Around the unit)
The diagram below shows a basic example. Explanation of particular details is given in the installation manuals etc.
Over10
500
500
Over100
Dimensions of space needed for service access are shown in the below diagram.
Service space
30
Please secure the unit firmly with 4 foundation (M10) bolts. (Bolts and washers must be purchased locally.)
<Foundation bolt height>
FOUNDATION
over 100mm
over 500mm
over 10mm
FREE
over 10mm

18
Unit : mm
PUHZ-RP100VKA
PUHZ-RP125VKA
PUHZ-RP140VKA
PUHZ-RP100YKA
PUHZ-RP125YKA
PUHZ-RP140YKA
FOUNDATION
30
Service space
150
500
500
10
The diagram below shows a basic example. Explanation of particular details are given in the installation manuals etc.
Dimensions of space needed
for service access are
shown in the below diagram.
<Foundation bolt height>
Please secure the unit firmly with 4 foundation (M10) bolts. (Bolts and washers must be purchased locally.)
1 FREE SPACE (Around the unit) 2 SERVICE SPACE 3 FOUNDATION BOLTS
4 PIPING-WIRING DIRECTIONS
Piping and wiring connections can be made from 4 directions: FRONT,Right,Rear and Below.
Piping Knockout Hole Details
PUHZ-RP100~140VKA
PUHZ-RP100~140YKA
Model
919
1067
A
···Refrigerant GAS pipe connection (FLARE)ø15.88(5/8F) ···Refrigerant LIQUID pipe connection (FLARE)ø 9.52(3/8F) *1···Indication of STOP VALVE connection location.
Less than
1
2
Over
Over
Over
Over
Example of Notes
Side Air Intake
Rear Air Intake
Handle for moving
Handle for moving
Power supply wiring hole (ø27Knockout)
Front piping hole (Knockout)
Front trunking hole (Knockout)
Power supply wiring hole (ø40Knockout)
60 55
6373
55
27
26
75
92
60
ø92
Power supply wiring hole (ø27Knockout)
Right piping hole (Knockout)
Right trunking hole (Knockout)
Power supply wiring hole (ø40Knockout)
75 50
26 27 63
73
29 92
55
92
60
ø92
Power supply wiring hole (ø27Knockout)
Rear piping hole (Knockout)
Rear trunking hole (Knockout)
Power supply wiring hole (ø40Knockout)
75
6055
6373
26 55
27
60
92
ø92
Over 10mm
Over 10mm
FREE
Over 150mm
Over 1000mm
Handle for moving
Earth terminal
Service panel
21
Handle for moving
Terminal connection
Left···Power supply wiring Right···Indoor/Outdoor wiring
632
*1 450 A
369
362
26
1338
1050
*1 442
Air intake
Front piping cover
Rear piping cover
Drain hole (5-ø33)
Bottom piping hole (Knockout)
81
45
154136
110 160 160 160
86
Rear Air Intake
Air Discharge
Side Air Intake
Installation Feet
2-U Shaped notched holes (Foundation Bolt M10)
2-12×36 Oval holes (Foundation Bolt M10)
28
370
60
30
225
225
330
600
417 19
70
42
40 53
56
0

19
Unit : mm
PUHZ-RP200YKA
PUHZ-RP200YKAR1
PUHZ-RP250YKA
FOUNDATION
30
Service space
150
500
500
10
The diagram below shows a basic example. Explanation of particular details are given in the installation manuals etc.
Dimensions of space needed
for service access are
shown in the below diagram.
<Foundation bolt height>
Please secure the unit firmly with 4 foundation (M10) bolts. (Bolts and washers must be purchased locally.)
1 FREE SPACE (Around the unit) 2 SERVICE SPACE 3 FOUNDATION BOLTS
4 PIPING-WIRING DIRECTIONS
Piping and wiring connections can be made from 4 directions: FRONT,Right,Rear and Below.
Less than
Over
Over
Over
Over
Over 10mm
Over 10mm
FREE
Over 150mm
Over 1000mm
PUHZ-RP200YKA
PUHZ-RP250YKA
Model
424
450
Aconnection
ø9.52(3/8F) ø12.7(1/2F)
···Refrigerant GAS pipe connection (attached JOINT)ø25.4(Brazing locally) ···Refrigerant LIQUID pipe connection (FLARE) *1···Indication of STOP VALVE connection location. *2···(FLARE)ø 19.05(3/4F)
1
2
2
Example of Notes
Piping Knockout Hole Details
Power supply wiring hole (ø27Knockout)
Front piping hole (Knockout)
Front trunking hole (Knockout)
Power supply wiring hole (ø40Knockout)
60 55
6373
55
27
26
75
92
60
ø92
Power supply wiring hole (ø27Knockout)
Right piping hole (Knockout)
Right trunking hole (Knockout)
Power supply wiring hole (ø40Knockout)
75 50
26 27 63
73
29 92
55
92
60
ø92
Power supply wiring hole (ø27Knockout)
Rear piping hole (Knockout)
Rear trunking hole (Knockout)
Power supply wiring hole (ø40Knockout)
75
6055
6373
26 55
27
60
92
ø92
Drain hole (5-ø33)
Bottom piping hole (Knockout)
81
45
154136
110 160 160 160
86
1050
Rear Air Intake
Air Discharge
Side Air Intake
Installation Feet
2-U Shaped notched holes (Foundation Bolt M10)
2-12×36 Oval holes (Foundation Bolt M10)
28
370
60
30
225
225
330
600
417 19
70
42
40 53 56 0
Handle for moving
Rear Air Intake
Side Air Intake
Handle for moving
632
369
26
1338
Handle for moving
Handle for moving
Earth terminal
362
Brazing
Service panel
Terminal connection
Left···Power supply wiring Right···Indoor/Outdoor wiring
*1,*2 : 442
982
986
*1 A
342
Air intake
2
1
Front piping cover
Rear piping cover

20
8WIRING DIAGRAM
PUHZ-RP35VHA4 PUHZ-RP50VHA4
12345678
12345678
OFF
ON
35V
MODEL SW6
*1MODEL SELECT SW5-6 *2
OFF
ON
OFF
ON
50V
OFF
ON
123456
123456
*2. SW5 -1 to 5 : Function Switch
The black square (■) indicates a switch position.
P. B.
C. B.
CNF1
(WHT)
MF1
MS
3~
7
1
TRANS
CNDC
(PNK)
3
1
TH7/6
(RED
)
63H
(YLW
)
TH3
(WHT )
TH4
(WHT )
TH7 TH6 TH3 TH4
4121
TH33
(YLW )
TH33
13 21
31
t°t°t°t°t° t°
TH32
(BLK )
TH32
21
63H
LEV-A
(WHT)
LEV-A
LEV-B
(RED)
LEV-B
61
MM
LED1
LED2
61
CNVMNT
(WHT)
31
CNDM
(WHT
)
CN51
(WHT
)
3
1
5
1
CNMNT
(WHT)
CNM
(WHT)
51
35
SW7
SW6SW1
SW9
CN31
1
*1*1
SW5SW8SW4 SWP
14
X51
CNS
(WHT)
CNAC
(WHT)
SS
(WHT)
21S4
(GRN)
X52
F1
F2
F4
F3
21
43
21S4
31
13 13
CN4
(WHT)
12
2
CN52C
(RED
)
2
2
1
CN2
(WHT) 71
5
CN5
(WHT)
31
LED2
SW1
SW11
SW12
LED3
LED4
TB7
LED1 LED5
2
1
CND
(WHT)
CN2M
(WHT)
M-NET ADAPTER
M-NET
ABS
When M-NET adapter is connected
5
3
5
1
WHT
UU
LI
EI
NI
LO NO
E2 E3
N. F.
12
2
3
1
3
1
1
22
CN5
(RED)
CNAC1
(WHT) CNAC2
(RED)
CN52C
(BLK)
BLK
BLK
52C
RED
POWER SUPPLY
~/N 230V 50Hz
INDOOR
UNIT
TB1
L N S1 S2 S3
RED
BLU
BLK
YLW
GRN/YLW
ORN BRN
CY2
CY1
CB1 CB2 CB3
TABU
TABV TH8
IPM
TABW
TABR
TABS
CN3
(WHT)
CN2
(WHT)
CN4
(WHT)
CN5
(RED)
1
7
1
2
1
2
1
2
2
2
5
t°
WHT
RED
PFC
RED
WHT
RED
WHT
ACL
MS
3~
BLK
WHT
RED
U
V
W
MC
TB1
MC
MF1
21S4
63H
TH3, TH33
TH4
TH6
TH7
TH8
LEV-A, LEV-B
ACL
Terminal Block<Power Supply, Indoor/Outdoor >
Motor for Compressor
Fan Motor
Solenoid Valve (Four-Way Valve)
High Pressure Switch
Thermistor<Outdoor Pipe>
Thermistor<Discharge >
Thermistor<Outdoor 2-Phase Pipe >
Thermistor<Outdoor >
Thermistor<Heat Sink >
TH32 Thermistor<Shell >
Electronic Expansion Valve
Reactor
CY1,CY2 Reactor
Power Circuit Board
Connection Terminal<U/V/W-Phase>
P.B.
TABU/V/W
Noise Filter Circuit Board
Connection Terminal<L-Phase>
Connection Terminal<Ground>
N.F.
LI/LO
Connection Terminal<N-Phase>
NI/NO
EI,E2,E3
Controller Circuit Board
Switch<Forced Defrost, Defect History
Record Reset, Refrigerant Address>
Switch<Test Operation>
Switch<Function Switch>
Switch<Function Setup>
Switch<Pump Down>
SW1
SW4
SW5
SW7
Switch<Function Setup>
SW8
SWP
CN51
CNM
CNVMNT
CNDM
LED1,LED2
LED
<Operation Inspection Indicators>
Connector<A-Control Service Inspection Kit>
Connector
<Connected to Optional M-NET Adapter Board>
Connector
< Connected for Option (Contact Input)>
C.B.
Converter PFC
Power Module IPM
Main Smoothing Capacitor CB1~CB3
52C Relay
52C
SYMBOL NAME SYMBOL NAME SYMBOL NAME
Connection Terminal<L/N-Phase>
TABR/S
CNMNT
Connector
<Connected to Optional M-NET Adapter Board>
Switch<Model Select>
SW6
Connector<Emergency Operation>
CN31
Switch
SW9
Fuse<T6.3AL250V>
F1~4
X51,X52
Relay
SS
Connector<Connection for Option>
Connector<Connection for Option>
SYMBOL
M-NET ADAPTER
NAME
TB7
CN5
CND
CN2M
SW1
SW11
Terminal Block<M-net connection>
Connector<Transmission>
Connector<Power Supply>
Connector<M-NET communication>
Switch<Status of communication>
Switch<Address setting : 1s digit>
SYMBOL NAME
SW12
LED1
LED2
LED3
LED4
LED5
Switch<Address setting : 10s digit>
LED<Power Supply : DC5V>
LED<Connection to Outdoor Unit>
LED<Transmission : Sending>
LED<Transmission : Receiving>
LED<Power Supply : DC12V>
