Cooling Capacity*............................12,000 Btu/h
Heating Capacity*............................14,400 Btu/h
* Rating Conditions (Cooling) - Indoor: 80ºF (27ºC) DB, 67ºF (19ºC) WB; Outdoor: 95ºF
(35ºC) DB, 75ºF (24ºC) WB.
(Heating at 47ºF) - Indoor: 70ºF (21ºC) DB, 60ºF (16ºC) WB; Outdoor: 47ºF (8ºC) DB, 43ºF (6ºC) WB.
(For data on specic indoor units [all ducted, all non-ducted, and both ducted
and non-ducted] combinations, see the MXZ-B Technical and Service Manual.)
Electrical Requirements
Power Supply ....................208 / 230V, 1-Phase, 60 Hz
MCA .............................................. 1 A
.

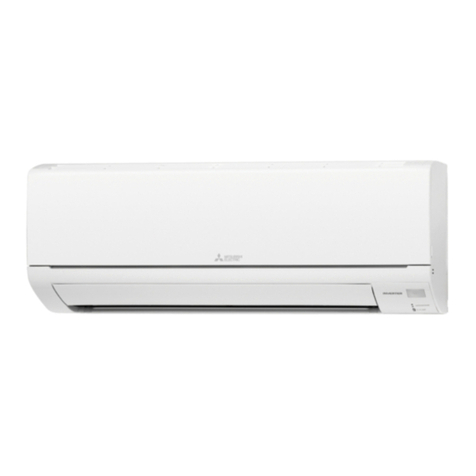

SUBMITTAL DATA: MSZ-GE12NA-8. . . . . . . 12,000 BTU/H WALL-MOUNTED INDOOR UNIT FOR MXZ-B MULTI-ZONE HEAT-PUMP SYSTEMS
Indoor Unit: MSZ-GE12NA-8
MXZ-B SERIES HEAT-PUMP OUTDOOR UNITS
SEZ and PEAD-A24AA4
MSZ-GE
MXZ-B MULTI-ZONE SYSTEMS CAN INCLUDE:
• Ducted Indoor Units:
SEZ-KD09,12,15,18NA4, PEAD-A24AA4
• Nonducted Indoor Units:
MSZ-GE06,09,12,15NA,18NA-8,24NA,
MSZ-FE09,12NA-8,18NA, MFZ-KA09,12,18NA,
PCA-A24KA4, SLZ-KA09,12,15NA, and
PLA-A12,18,24BA4
• A combination of both Ducted and Nonducted
Indoor Units
Refer to the separate submittal forms for the
MSZ-GE, MSZ-FE, MFZ-KA, SEZ-KD, SLZ-KA,
PEAD, PCA, PLA Indoor Units, and MXZ Outdoor
Units.
MULTI-ZONE OUTDOOR UNIT
MSZ-FE
MFZ-KA PCA-A24KA4 SLZ and PLA-A12,18,24BA4
OPTIONAL ACCESSORIES
Indoor Unit
□Condensate Pump (230V; SI3100-230)
Controller Options
□Wireless Remote Controller Kit (MHK1) with Remote Controller
(MRCH1), Wireless Receiver (MIFH1), and cable (MRC1)*
□Setback down to 50°F when used with MRCH1 Remote
□Portable Central Controller (MCCH1; for use with Wireless Remote
Controller Kit MHK1)*
□Outdoor Air Sensor (MOS1; for use with Remote Controller (MRCH1),
Wireless Remote Controller Kit (MHK1) and Portable Central
Controller (MCCH1)*Controller (MCCH1)*
*See Submittal for information on each option.
□Wall-mounted Wired Remote Controller
(PAR-21MAA requires MAC-397IF)
□MA Contact Terminal Interface (MAC-397IF)
□M-NET Control Adapter (MAC-399IF)
□Remote Temperature Sensor (M21-JKO-307)
□Lockdown Bracket for Hand-held Controller (RCMKP1CB)
GENERAL FEATURES
• Wall-mounted indoor unit
• Standard Hybrid Catechin Prelter is included with indoor unit
• Quiet operation
• Choice of fan speeds: Quiet, Low, Medium, High, and Super High
Auto fan speed control also included
• Hand-held Wireless Remote Controller
• Indoor unit powered from outdoor unit using A-Control
• Auto restart following a power outage
• Base heater is available as an option
• Anti-allergy Enzyme Filter
• Limited warranty: ve years on parts and defects and seven years
on the compressor
Voltage
Indoor - Outdoor S1-S2 ........................AC 208 / 230V
Indoor - Outdoor S2-S3 ...........................DC 12-24V
Fan Motor .......................................0.76 F.L.A
Airow (Quiet - Lo - Med - Hi - Super Hi)
Cooling .......................145 - 170 - 237 - 321 - 399 Dry CFM
109 - 134 - 201 - 286 - 364 Wet CFM
Heating .....................145 - 170 - 237 - 321 - 406 CFM
Sound Pressure Level (Quiet - Lo - Med - Hi - Super Hi)
Cooling ......................... 19 - 22 - 30 - 37 - 45 dB(A)
Heating ......................... 19 - 22 - 30 - 37 - 43 dB(A)
DIMENSIONS UNIT INCHES / MM
W 31-7/16 / 799
D 9-1/8 / 232
H 11-5/8 / 295
Weight. ......................................22 lbs. / 10 kg
External Finish ...................... Munsell No. 1.0Y 9.2 / 0.2
Field Drainpipe Size O.D....................... 5/8" / 15.88 mm
Refrigerant Type .....................................R410A
Refrigerant Pipe Size O.D.
Gas Side .................................. 3/8" / 9.52 mm
Liquid Side................................. 1/4" / 6.35 mm
Connection Method ..................................Flared

3400 Lawrenceville Suwanee Rd
Suwanee, GA 30024
Tele: 678-376-2900 • Fax: [phone]
Toll Free: 800-433-4822 (#3)
www.mehvac.com
Specications are subject to change without notice.
© 2011 MITSUBISHI ELECTRIC & ELECTRONICS, INC.
FORM# MSZ-GE12NA-8 FOR MXZ MULTI-ZONE SYSTEMS - 201108
DIMENSIONS: MSZ-GE12NA-8
