Mitsubishi Electric PAC-AK32-53BC Operating manual

TECHNICAL & SERVICE MANUAL
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
CONTENTS
1. SAFETY PRECAUTION ······································· 2
2. OVERVIEW OF UNIT ··········································· 5
3. SPECIFICATIONS ················································ 8
4. OUTLINES AND DIMENSIONS ··························· 9

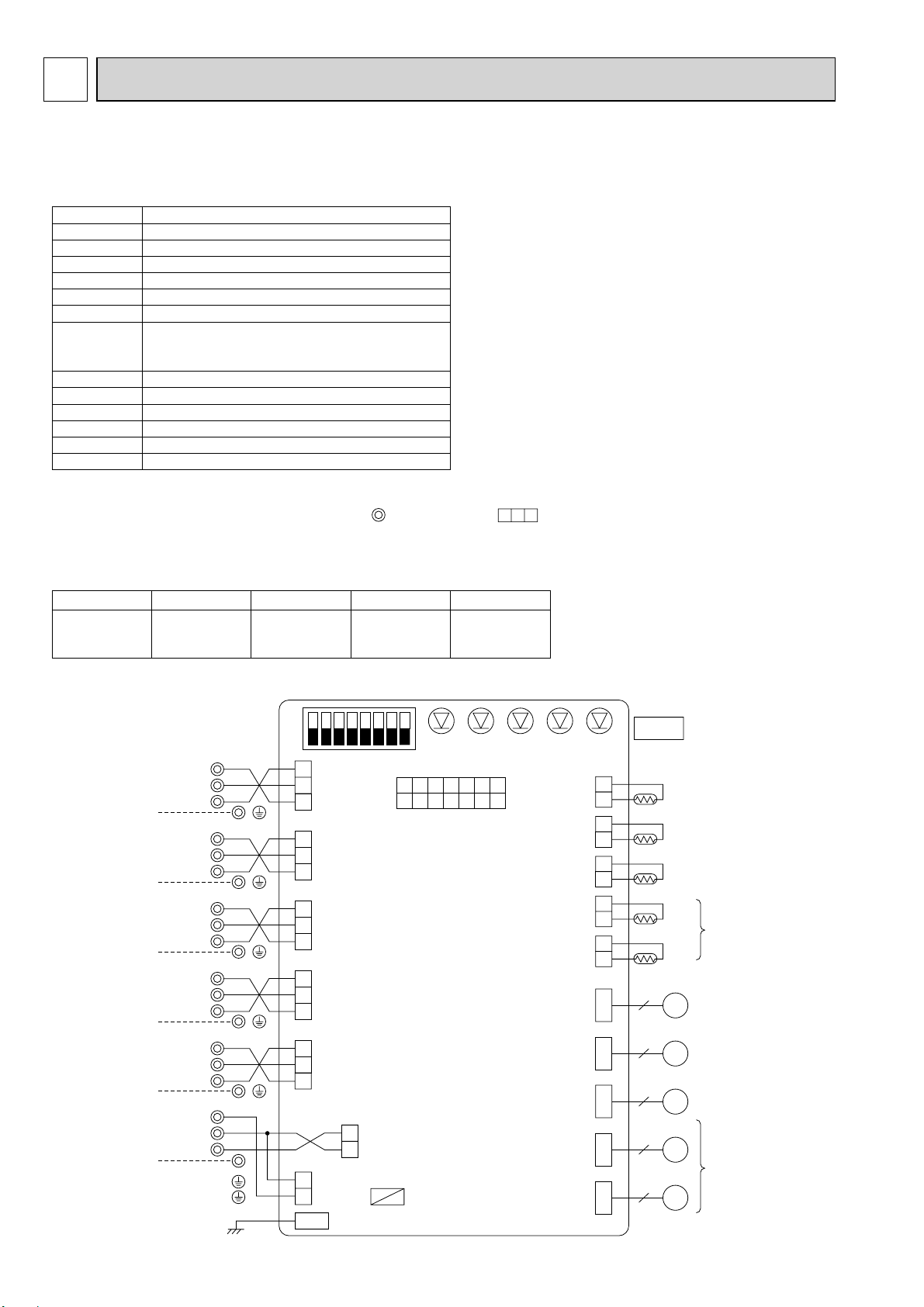

5. WIRING DIAGRAM ············································· 10
6. REFRIGERANT SYSTEM DIAGRAM ················· 11
7. TROUBLESHOOTING ········································ 12
8. DISASSEMBLY PROCEDURE ··························· 23
BRANCH BOX
No. OCH508
REVISED EDITION-A
HFC
utilized
R410A
April 2013
NOTE:
• This service manual
describes technical data of
branch box. As for indoor
units and outdoor unit,
refer to its service manual.
PARTS CATALOG (OCB508)
[Service Ref.]
PAC-AK50BC
PAC-AK51BC
PAC-AK52BC
PAC-AK53BC
PAC-AK30BC
PAC-AK31BC
PAC-AK32BC
Revision:
• PAC-AK53BC and PAC-
AK32BC have been added
in REVISED EDITION-A.
• Some descriptions have
been modified.
• Please void OCH508.
[Model name]
<Branch box>
PAC-AK50BC
PAC-AK51BC
PAC-AK52BC
PAC-AK53BC
PAC-AK30BC
PAC-AK31BC
PAC-AK32BC
(Indispensable optional parts for MXZ-8A series and MXZ-8B series. )

2
1 SAFETY PRECAUTION
Cautions for units utilizing refrigerant R410A
1-1. ALWAYS OBSERVE FOR SAFETY
Use new refrigerant pipes.
Charge refrigerant from liquid phase of gas
cylinder.
If the refrigerant is charged from gas phase, composition
change may occur in refrigerant and the efficiency will be
lowered.
Do not use refrigerant other than R410A.
If other refrigerant (R22 etc.) is used, chlorine in refrige-
rant can cause deterioration of refrigerant oil etc.
Use a vacuum pump with a reverse flow check
valve.
Vacuum pump oil may flow back into refrigerant cycle and
that can cause deterioration of refrigerant oil etc.
Use the following tools specifically designed for
use with R410A refrigerant.
The following tools are necessary to use R410A refrigerant.
Handle tools with care.
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
Do not use a charging cylinder.
If a charging cylinder is used, the composition of refrigera-
nt will change and the efficiency will be lowered.
Flare tool
Electronic refrigerant
charging scale
Vacuum pump adaptor
Size adjustment gauge
Gauge manifold
Torque wrench
Gas leak detector
Charge hose
Tools for R410A
Contamination inside refrigerant piping can cause deterio-
ration of refrigerant oil etc.
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
If large amount of mineral oil enters, that can cause deterio-
ration of refrigerant oil etc.
Store the piping indoors, and both ends of the
piping sealed until just before brazing.
(Leave elbow joints, etc. in their packaging.)
Make sure that the inside and outside of refrige-
rant piping is clean and it has no contaminants
such as sulfur, oxides, dirt, shaving particles, etc,
which are hazard to refrigerant cycle.
In addition, use pipes with specified thickness.
The refrigerant oil applied to flare and flange
connections must be ester oil, ether oil or
alkylbenzene oil in a smalll amount.
Never use any refrigerant other than that specified.
Doing so may cause a burst, an explosion, or fire when the
unit is being used, serviced, or disposed of.
Correct refrigerant is specified in the manuals and on the
spec labels provided with our products.
We will not be held responsible for mechanical failure,
system malfunction, unit breakdown or accidents caused
by failure to follow the instructions.
Use the specified refrigerant only. Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.
1-2. CAUTIONS RELATED TO NEW REFRIGERANT
Before obtaining access to terminal, all supply
circuit must be disconnected.
OCH508A

3
Gravimeter
Unit
[3] Service tools
(1) Use the below service tools as exclusive tools for R410A refrigerant.
[2] Additional refrigerant charge
When charging directly from cylinder
· Check that cylinder for R410A on the market is syphon type.
· Charging should be performed with the cylinder of syphon stood vertically. (Refrigerant is charged from liquid phase.)
[1] Cautions for service
(1) Perform service after recovering the refrigerant left in unit completely.
(2) Do not release refrigerant in the air.
(3) After completing service, charge the cycle with specified amount of refrigerant.
(4) When performing service, install a filter drier simultaneously.
Be sure to use a filter drier for new refrigerant.
No. Tool name Specifications
1Gauge manifold · Only for R410A
· Use the existing fitting specifications. (UNF1/2)
· Use high-tension side pressure of 5.3MPa·G or over.
2Charge hose · Only for R410A
· Use pressure performance of 5.09MPa·G or over.
3Electronic scale
4Gas leak detector · Use the detector for R134a, R407C or R410A.
5Adaptor for reverse flow check · Attach on vacuum pump.
6Refrigerant charge base
7Refrigerant cylinder · Only for R410A · Top of cylinder (Pink)
· Cylinder with syphon
8Refrigerant recovery equipment
OCH508A

4

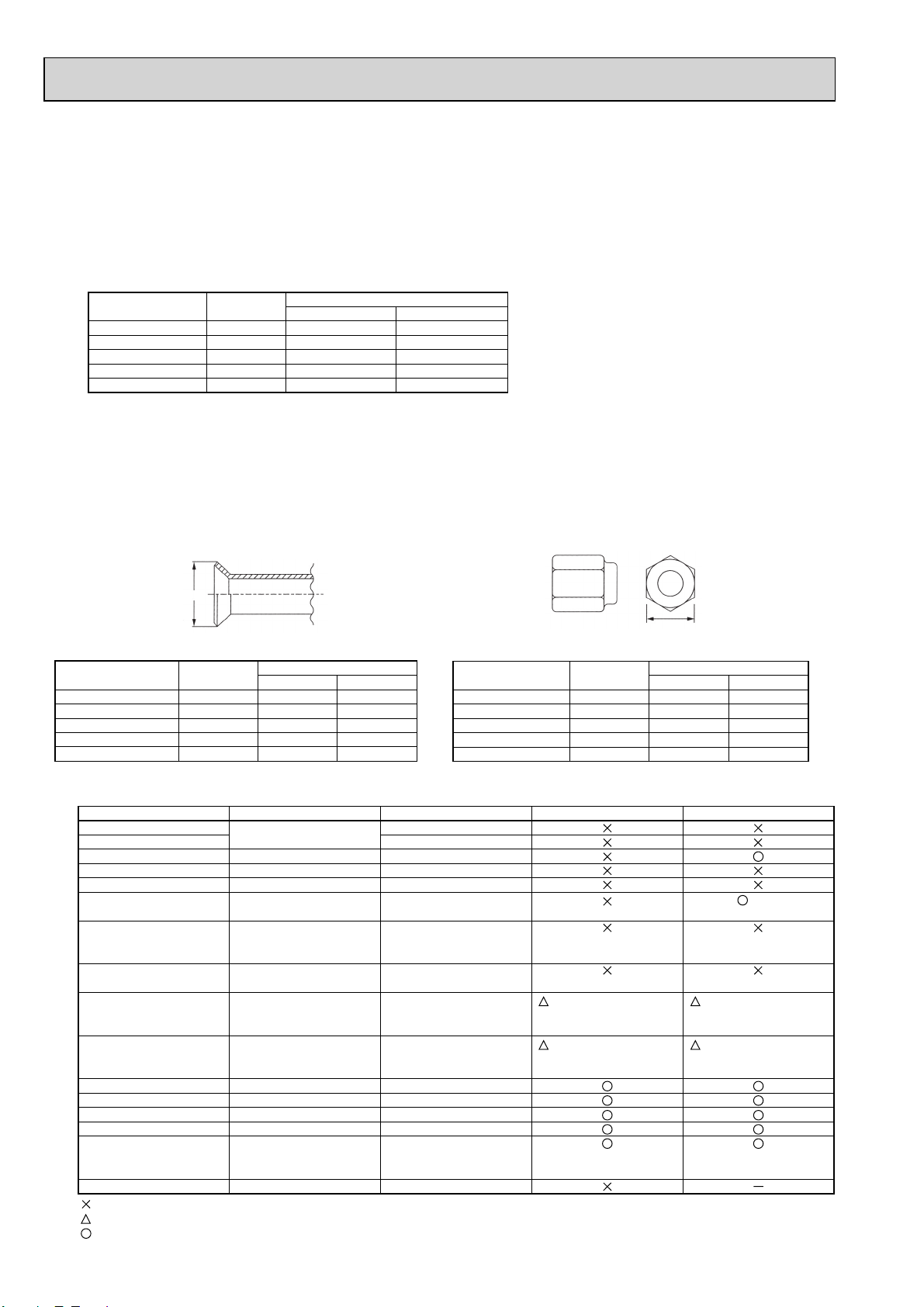

(2) Cautions for refrigerant piping work
New refrigerant R410A is adopted for replacement inverter series. Although the refrigerant piping work for R410A is same
as for R22, exclusive tools are necessary so as not to mix with different kind of refrigerant. Furthermore as the working
pressure of R410A is 1.6 times higher than that of R22, their sizes of flared sections and flare nuts are different.
1Thickness of pipes
Because the working pressure of R410A is higher compared to R22, be sure to use refrigerant piping with thickness
shown below. (Never use pipes of 0.7 mm or below.)
2Dimensions of flare cutting and flare nut
The component molecules in HFC refrigerant are smaller compared to conventional refrigerants. In addition to that,
R410A is a refrigerant, which has higher risk of leakage because of its working pressure higher than that of other refriger-
ants. Therefore, to enhance airtightness and intensity, flare cutting dimension of copper pipe for R410A has been speci-
fied separately from the dimensions for other refrigerants as shown below. The dimension B of flare nut for R410A also
has partly been changed to increase intensity as shown below. Set copper pipe correctly referring to copper pipe flaring
dimensions for R410A below. For 1/2” and 5/8”, the dimension B changes.
Use torque wrench corresponding to each dimension.
3Tools for R410A (The following table shows whether conventional tools can be used or not.)
1/4
3/8
1/2
5/8
3/4
6.35
9.52
12.70
15.88
19.05
0.8
0.8
0.8
1.0
—
0.8
0.8
0.8
1.0
1.0
Nominal
dimensions(inch)
Diagram below: Piping diameter and thickness
Outside
diameter (mm)
Thickness (mm)
R410A R22
1/4
3/8
1/2
5/8
3/4
6.35
9.52
12.70
15.88
19.05
9.1
13.2
16.6
19.7
—
9.0
13.0
16.2
19.4
23.3
Nominal
dimensions(inch)
Flare cutting dimensions Outside
diameter Dimension A ( )
+0
-0.4
(mm)
R410A R22 1/4
3/8
1/2
5/8
3/4
6.35
9.52
12.70
15.88
19.05
17.0
22.0
26.0
29.0
—
17.0
22.0
24.0
27.0
36.0
Nominal
dimensions(inch)
Flare nut dimensions Outside
diameter Dimension B (mm)
R410A R22
Gauge manifold
Charge hose
Gas leak detector
Refrigerant recovery equipment
Refrigerant cylinder
Applied oil
Safety charger
Charge valve
Vacuum pump
Flare tool
Bender
Pipe cutter
Welder and nitrogen gas cylinder
Refrigerant charging scale
Vacuum gauge or thermis-
tor vacuum gauge and
vacuum valve
Charging cylinder
Air purge, refrigerant charge
and operation check
Gas leak check
Refrigerant recovery
Refrigerant charge
Apply to flared section
Prevent compressor malfunction
when charging refrigerant by
spraying liquid refrigerant
Prevent gas from blowing out
when detaching charge hose
Vacuum drying and air
purge
Flaring work of piping
Bend the pipes
Cut the pipes
Weld the pipes
Refrigerant charge
Check the degree of vacuum. (Vacuum
valve prevents back flow of oil and refri-
gerant to thermistor vacuum gauge)
Refrigerant charge
Tool exclusive for R410A
Tool exclusive for R410A
Tool for HFC refrigerant
Tool exclusive for R410A
Tool exclusive for R410A
Ester oil and alkylbenzene
oil (minimum amount)
Tool exclusive for R410A
Tool exclusive for R410A
Tools for other refrigerants can
be used if equipped with adop-
ter for reverse flow check
Tools for other refrigerants
can be used by adjusting
flaring dimension
Tools for other refrigerants can be used
Tools for other refrigerants can be used
Tools for other refrigerants can be used
Tools for other refrigerants can be used
Tools for other refrigerants
can be used
Tool exclusive for R410A
Tools and materials Use R410A tools Can R22 tools be used?
(Usable if equipped
with adopter for rever-
se flow)
(Usable by adjusting
flaring dimension)
Can R407C tools be used?
Ester oil:
Alkylbenzene oil: minimum amount
(Usable if equipped
with adopter for rever-
se flow)
(Usable by adjusting
flaring dimension)
: Prepare a new tool. (Use the new tool as the tool exclusive for R410A.)
: Tools for other refrigerants can be used under certain conditions.
: Tools for other refrigerants can be used.
Dimension A
Dimension B
OCH508A

5

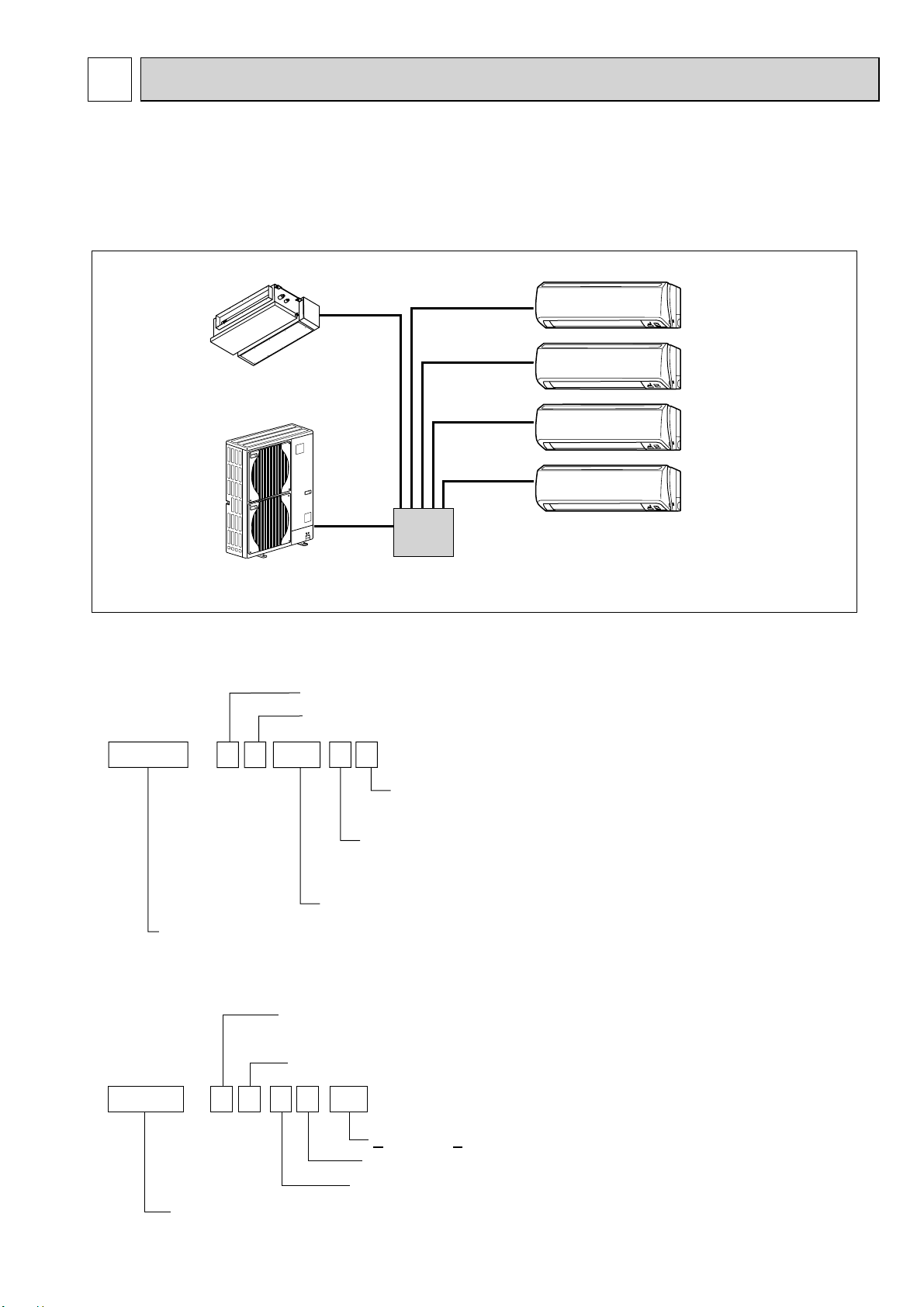

2 OVERVIEW OF UNIT
Indoor unit (Ceiling concealed type)
Indoor unit
(Wall mounted type)
Outdoor unit Branch Box
2-1. SYSTEM OUTLINE
The additional connection of the Branch Box together with employment of the compact trunk-looking outdoor unit can
successfully realizes a long distance piping for big houses. Equipped with a microprocessor, the Branch Box can trans-
late the transmission signal of indoor units to achieve the optimum control.
2-1-1. System example
2-1-2. Method for identifying
■Outdoor unit
M XZ – 8 B 140 V A
Model type
Power supply
V: Single phase 220/230/240V 50Hz
Y: 3-Phase 380/400/450V 50Hz
Multi type heat pump
inverter outdoor unit
Indicates equivalent to rated cooling capacity.
(0.1kW)
Number of connectable indoor units (MAX.)
Control and refrigerant
A : New A control and R410A
Branch box (Controller)
Number of branches
5 : 5 branches
3 : 3 branches
Model type
Symbol of factory
Applicable refrigerant
A : R410A
PAC – A K 5 2 BC
(Indispensable)
Optional parts
■Branch box
OCH508A

6

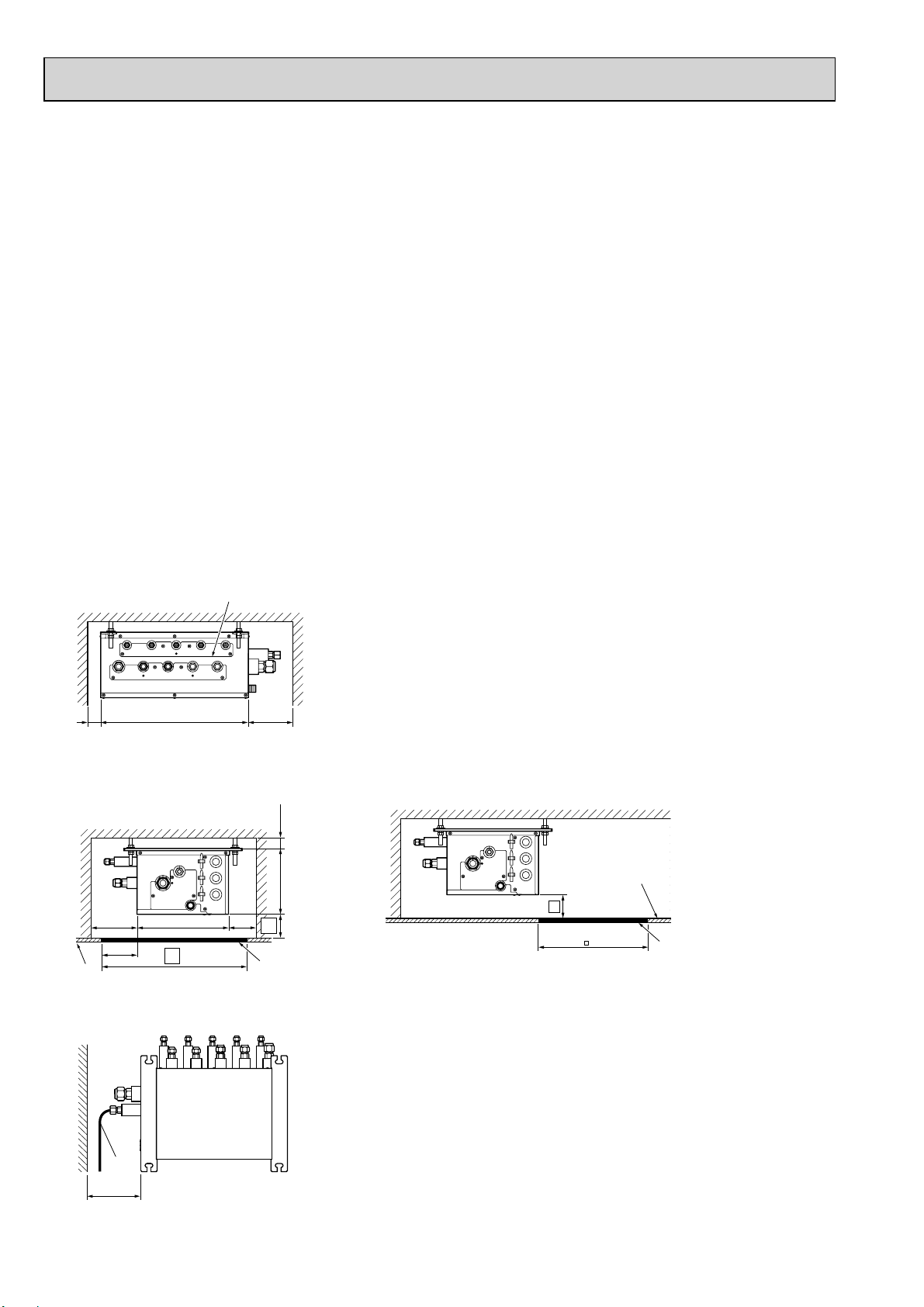

2-2. INSTALLATION
2-2-1. Space required for Installation and servicing for Branch box.
(1) Front View (Fig. 2-1)
A Branch box
B On the side of piping
(2) Side View (Fig. 2-2, Fig. 2-3)
C For indoor installations
D Ceiling board
E Maintenance hole
F PCB side
*1: A minimum 350 mm is required for 90° bends in refrigerant piping.
*2: Ais “Min. 200 mm”.
(Premise: The slope of drain piping is securable 1/100 or more. Required 200 mm or more, when not securable.)
In the case of less than 200 mm (for example Ais 100 mm), the exchange work of Branch box from a maintenance hole
becomes difficult (Only exchange work of a PCB, linear expansion valve coils, sensors and drain pan is possible).
*3: Bis “ □600”.
In the case of “ □450”, prepare a maintenance hole at a PCB side as it is shown in Fig. 2-3, and “Min. 300 mm” is needed
as distance A.
In the case of less than 300 mm (for example Ais 100 mm), the exchange work of Branch box, linear expansion
valve coils, sensors, and drain pan from a maintenance hole becomes difficult. Only exchange work of a PCB is possible.
(3) Top View (Fig. 2-4)
G Refrigerant piping
H When facing in the opposite direction to the refrigerant piping.
NOTE1: The branch box is only for indoor use.
NOTE2: Please attach the special optional cover (PAC-AK350CVR-E) to install branch box in the outdoors.


450 Min. 250
Min.
50
(1)


(3)
Min. 250
450 


A
280
Min.
250
*1
Min.
250
198 Min. 30
180-200 *3
*2


B
A
(2)
Fig. 2-4
Fig. 2-3Fig. 2-2
Fig. 2-1
unit : mm
OCH508A

7
A
BB BBB
Branch box
■In case of using 1-branch box
Flare connection employed (No brazing)
AA
A
BB BBB
2 branches pipe (joint)
: optional parts
Branch box #1
Branch box #2
■In case of using 2-branch boxes
■Installation procedure (2 branch pipe (joint))
Refer to the installation manuals of MSDD-50AR-E and MSDD-50BR-E.
2-3. SIMPLIFIED PIPING SYSTEM
Piping connection size
Liquid (mm)
Gas (mm)
W9.52
W15.88
The piping connection size differs according to the type and capacity of indoor units.
Match the piping connection size of branch box with indoor unit.
If the piping connection size of branch box does not match the piping connection size of
indoor unit, use optional different-diameter (deformed) joints to the branch box side.
(Connect deformed joint directly to the branch box side.)
AB
Flare connection employed. (No brazing!)
OCH508A

8
3 SPECIFICATIONS
kW
A
mm
mm
mm
mm
kg
mm
mm
mm
mm
Model name
Connectable number of indoor units
Power supply (from outdoor unit)
Input
Running current
External finish
Drain hose size (on site)
Dimensions
Weight
Piping
connection
(Flare)
Wiring
Width
Depth
Height
Branch (indoor side)*
Main (outdoor side)
To indoor unit
To outdoor unit
Liquid
Gas
Liquid
Gas
MAX. 3
8.1
:6.35 3 {A,B,C}
:9.52 3 {A,B,C}
MAX. 5
9.3
:6.35 5 {A,B,C,D,E}
:9.52 4 {A,B,C,D}, :12.7 %1{E}
PAC-AK50BC
PAC-AK51BC
PAC-AK52BC
PAC-AK53BC
PAC-AK30BC
PAC-AK31BC
PAC-AK32BC
Single phase, 220/230/240V, 50Hz, Single phase, 220V, 60Hz
0.003
0.05
Galvanized sheets
O.D.20 (VP-16)
450
280
198
:9.52
:15.88
Each 3-wire, plus earth wire
3-wire, plus earth wire
PAC-AK50BC PAC-AK51BC PAC-AK52BC PAC-AK53BC
PAC-AK30BC PAC-AK31BC PAC-AK32BC
* The piping connection size differs according to the type and capacity of indoor units. Match the piping connection size for indoor
and branch box. If the piping connection size of branch box does not match the piping connection size of indoor units, use
optional different-diameter (deformed) joints to the branch box side. (Connect deformed joint directly to the branch box side.)
OCH508A

9
4 OUTLINES AND DIMENSIONS
unit: mm
PAC-AK50BC PAC-AK51BC PAC-AK52BC PAC-AK53BC
TB2B
TB3D
TB3E
TB3ATB3B
TB3C
SUSPENSION BOLT : W3/8 (M10)
REFRIGERANT PIPE FLARED CONNECTION (inch)
DRAIN HOSE SIZE : O.D. 20 (VP-16)
LIQUID PIPE
GAS PIPE
ABCDE
TO OUTDOOR UNIT
1/4 1/4 1/4 1/4 1/4 3/8
1/2 5/8
3/8 3/8 3/8 3/8
SUSPENSION BOLT PITCH
320
402
24 SUSPENSION BOLT PITCH
12
95 280 39
61 79 50 34
3-ELECTRIC WIRE INLET
70
35
68
3-WIRE BAND
ELECTRIC COVER
TO OUTDOOR UNIT
SERVICE PANEL
(for LEV, THERMISTOR)
TERMINAL BLOCK
TO INDOOR UNIT
TERMINAL BLOCK
TO OUTDOOR UNIT
TO INDOOR UNIT
55
198
65 39
25 25 25 25 25 21
75 75 75 75
EDCBA
EDCBA
91
73
200 23
:20
DRAIN PIPE CONNECTION
(VP-16)
FLEXIBLE DRAIN HOSE
(ACCESSORY)
450
SUSPENSION BOLT : W3/8 (M10)
REFRIGERANT PIPE FLARED CONNECTION (inch)
DRAIN HOSE SIZE : O.D. 20 (VP-16)
LIQUID PIPE
GAS PIPE
ABC
TO OUTDOOR UNIT
1/4 1/4 1/4 3/8
5/8
3/8 3/8 3/8
3-ELECTRIC WIRE INLET
3-WIRE BAND
ELECTRIC COVER
TO OUTDOOR UNIT
SERVICE PANEL
(for LEV, THERMISTOR)
TERMINAL BLOCK
TO INDOOR UNIT
TERMINAL BLOCK
TO OUTDOOR UNIT
TO INDOOR UNIT
DRAIN PIPE CONNECTION
(VP-16)
FLEXIBLE DRAIN HOSE
(ACCESSORY)
SUSPENSION BOLT PITCH
SUSPENSION BOLT PITCH
320
402
24
12
TB3C
TB2B
TB3B TB3A
95
61 79 50 34
39
280
703568
205
198
65 39
25 25 25 21
75 75
91
73
200 23
:20
CBA
CBA
450
Type A
:20
Type B
200
DRAIN PIPE CONNECTION
(VP-16)
FLEXIBLE DRAIN HOSE
(ACCESSORY)
Type A
:20
Type B
200
DRAIN PIPE CONNECTION
(VP-16)
FLEXIBLE DRAIN HOSE
(ACCESSORY)
PAC-AK30BC PAC-AK31BC PAC-AK32BC
OCH508A

10
5
3
1
YLW
TB3E (PAC -AK50/51/52/53BC only)
* Setup of SW1
Make it the same setup as former
when exchanging PCB.
TO INDOOR
UNIT -E
(PAC -AK50/51/52/53BC only)
(PAC -AK50/51/52/53BC only)
TO INDOOR
UNIT -D
TO INDOOR
UNIT -C
TO INDOOR
UNIT -B
TO INDOOR
UNIT -A
TO OUTDOOR
UNIT
ORN
BRN
TB3E
(GRN)
5
3
1
YLW
ORN
BRN
TB3D
(BLK)
5
3
1
YLW
ORN
BRN
TB3C
(BLU)
5
3
1
YLW
ORN
BRN
TB3B
(RED) LEV-A
(WHT)
5
3
1
1
2
1
6
YLW
ORN
BRN
TB3A
(WHT)
1
3
YLW
F1
TB1
ORN
BRN
CN3C
(BLU)
3
1CND
(ORN)
1 2 34567
89
1011 1213 14
CNM
SW1 * LED1 LED2 LED3 LED4 LED5
1
2
1
2
1
2
1
2
6LEV-A
LEV-B
(RED) 1
66LEV-B
LEV-C
(BLU) 1
66LEV-C
LEV-D
(BLK) 1
66LEV-D
LEV-E
(GRN)
TH-A
(WHT)
TH-B
(RED)
TH-C
(BLU)
TH-D
(BLK)
TH-E
(GRN)
1
66LEV-E
TH-A
TH-B
TH-C
TH-D
TH-E
S1
S2
S3
TB3D
S1
S2
S3
TB3C
S1
S2
S3
TB3B
S1
S2
S3
TB3A
S1
S2
S3
TB2B
S1
S2
S3
Note : " PAC -AK30 .50BC, PAC -AK31 .51BC, PAC-AK32 .52BC, PAC-AK53BC " is only for R410A.
Note
1. At servicing for outdoor unit, always follow the wiring diagram of Outdoor unit.
2. Symbols used in wiring diagram above are, : terminal block, : connector.
(Combination of indoor units)
Enter the location of combined indoor units with model name in each
blank below because it is necessary for service and maintenance.
SYMBOL
B.C
F1
< B.C >
SW1 < B.C >
CNM < B.C >
LED1~5< B.C>
TB3A
TB3B
TB3C
TB3D
TB3E
LEV-A~E
TH-A~E
TB2B
Branch box controller board
Fuse 250V 6.3A
Switch for service
Connector
Light emitting diode
Terminal block / To indoor unit -A
Terminal block / To indoor unit -B
Terminal block / To indoor unit -C
Terminal block / To indoor unit -D
Terminal block / To indoor unit -E
Linear expansion valve
Thermistor
Pipe temp.detection / Gas
( 0/ 15k, 25 / 5.4k )
Terminal block / To outdoor unit
NAME
Indoor unit -A Indoor unit -B Indoor unit -C Indoor unit -D Indoor unit -E
B.C
(PAC - AK50/51/52/53BC only)
ON
OFF
The black square (■) indicates a switch position.
5 WIRING DIAGRAM
PAC-AK50BC PAC-AK51BC PAC-AK52BC PAC-AK53BC
PAC-AK30BC PAC-AK31BC PAC-AK32BC
OCH508A

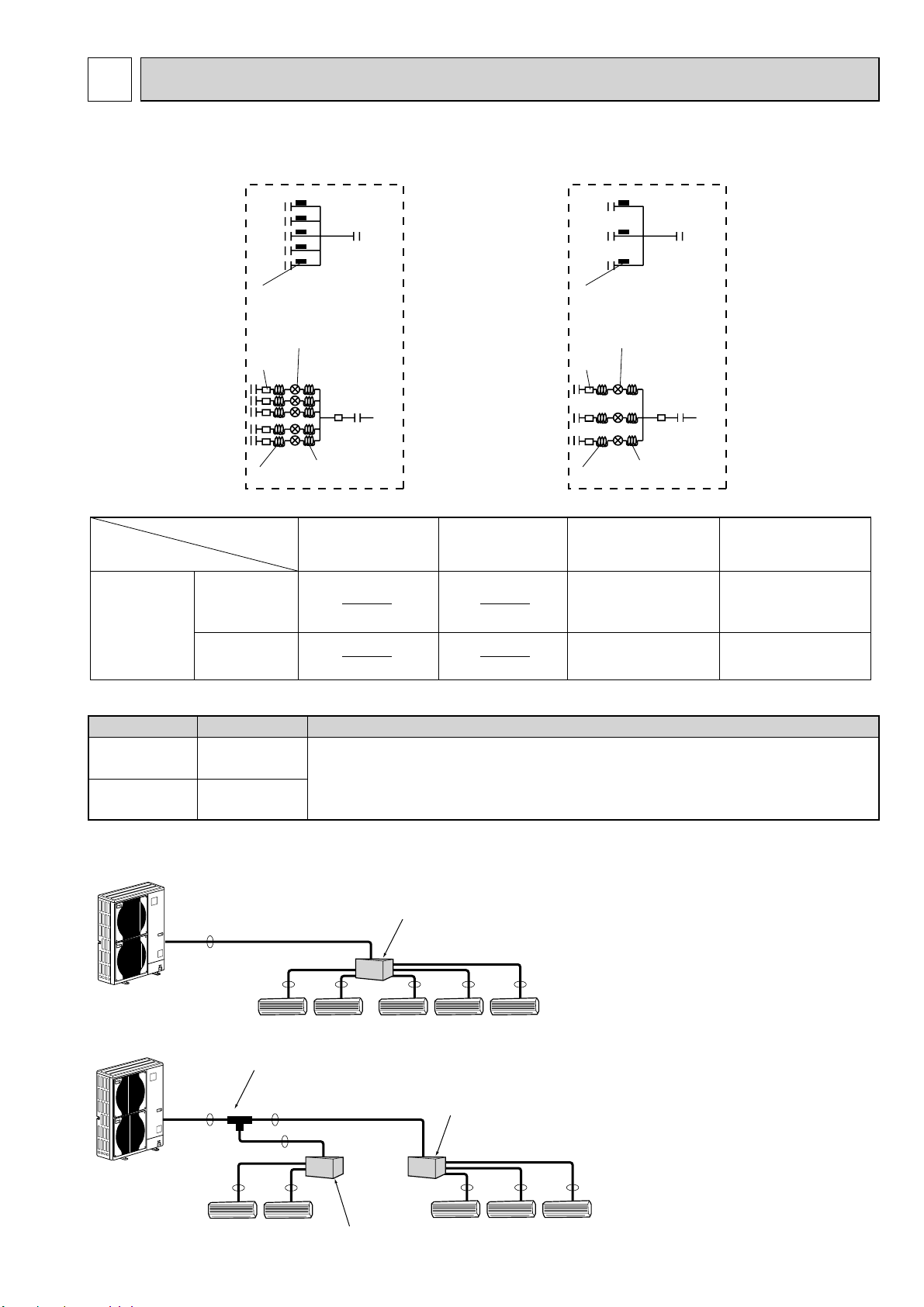

11
Piping connection size
■In case of using 2-branch boxes
A
BB BBB
Branch box
AA
A
BB BBB
2 branches pipe (joint)
: optional parts
Branch box #1
Branch box #2
■In case of using 1-branch box
Flare connection employed (No brazing)
AB
Liquid (mm) {9.52
Gas (mm) {15.88
The pipe connection size differs according to the type and capacity of indoor units.
Match the piping connection size of branch box with indoor unit.
If the piping connection size of branch box does not match the piping connection size
of indoor unit, use optional different-diameter (deformed) joints to the branch box side.
(Connect deformed joint directly to the branch box side.)
■installation procedure (2 branch pipe (joint))
Refer to the installation manuals of
MSDD-50AR-E and MSDD-50BR-E.
6 REFRIGERANT SYSTEM DIAGRAM
Capillary
tube3
Capillary
tube4 Capillary
tube3
Capillary
tube4
E
D
C
B
A
Strainer
#100
Strainer
#100
Thermistor (TH-A~E)
(Gas pipe temperature)
LEV A~E
(Linear expansion valve)
C
B
A
Strainer
#100
Strainer
#100
Thermistor (TH-A~C)
(Gas pipe temperature)
LEV A~C
(Linear expansion valve)
PAC-AK50BC
PAC-AK51BC
PAC-AK52BC
PAC-AK53BC
PAC-AK30BC
PAC-AK31BC
PAC-AK32BC
Branch box
Capillary tube 1
(For return of oil
from oil separator) Capillary tube 2
(For SV2) Capillary tube 3
ahead of LEV
(in cooling mode)
Capillary tube 4
behind LEV
(in cooling mode)
(:4%:2.4 %L140) %5(:4%:2.2 %L130) %5
(:4%:2.4 %L140) %3(:4%:2.2 %L130) %3
unit : mm
■PAC-AK50BC PAC-AK51BC
PAC-AK52BC PAC-AK53BC
■PAC-AK30BC PAC-AK31BC
PAC-AK32BC
OCH508A

12
7 TROUBLESHOOTING
7-1. HOW TO CHECK THE PARTS
BRANCH BOX : PAC-AK50BC PAC-AK51BC PAC-AK52BC PAC-AK53BC
PAC-AK30BC PAC-AK31BC PAC-AK32BC
1
2
3
4
5
6
M
Blue
Brown
Yellow
Orange
Red
White
Parts name Check points
Disconnect the connector then measure the resistance with a tester.
(At the ambient temperature 10~30)
Disconnect the connector then measure the resistance with a tester.
( Winding temperature 20 )
Thermistor (TH-A~E)
<Gas pipe> Normal
4.3k~ 9.6k
Abnormal
Open or short
Normal
Red - White
Red - Orange Brown - Yellow Brown - Blue
Abnormal
46 ± 4
Linear expansion valve
( LEV-A~E )
Open or short
OCH508A

13
<Output pulse signal and the valve operation>
(2) Linear expansion valve operation



Open
Extra tightening (about 32 pulse)
Pulse number
500 pulse
Opening a valve
all the way
Close
Valve position (capacity)
Opening a valve : 8 →7 →6 →5 →4 →3 →2 →1 →8
Closing a valve : 1 →2 →3 →4 →5 →6 →7 →8 →1
The output pulse shifts in above order.
• When linear expansion valve operation stops, all output phase
become OFF.
• When the switch is turned on, 700 pulse closing valve signal will be
sent till it goes to Apoint in order to define the valve position.
(The pulse signal is being sent for about 20 seconds.)
• When the valve moves smoothly, there is no sound or vibration
occurring from the linear expansion valve : however, when the pulse
number moves from Bto Aor when the valve is locked, sound can
be heard.
No sound is heard when the pulse number moves from Bto Ain
case coil is burnt out or motor is locked by open-phase.
• Sound can be detected by placing the ear against the screw driver
handle while putting the screw driver to the linear expansion valve.
LEV
M
1
6
:4
:4
:3
:2
:1
2
1
Red
Brown
Blue
Orange
Yellow
White
3
4
5
6
Connector LEV-A
LEV-B
LEV-C
LEV-D
LEV-E
DC12V
branch box controller board
Drive circuit
:3
:2
:1
3
2
5
4
Linear expansion valve

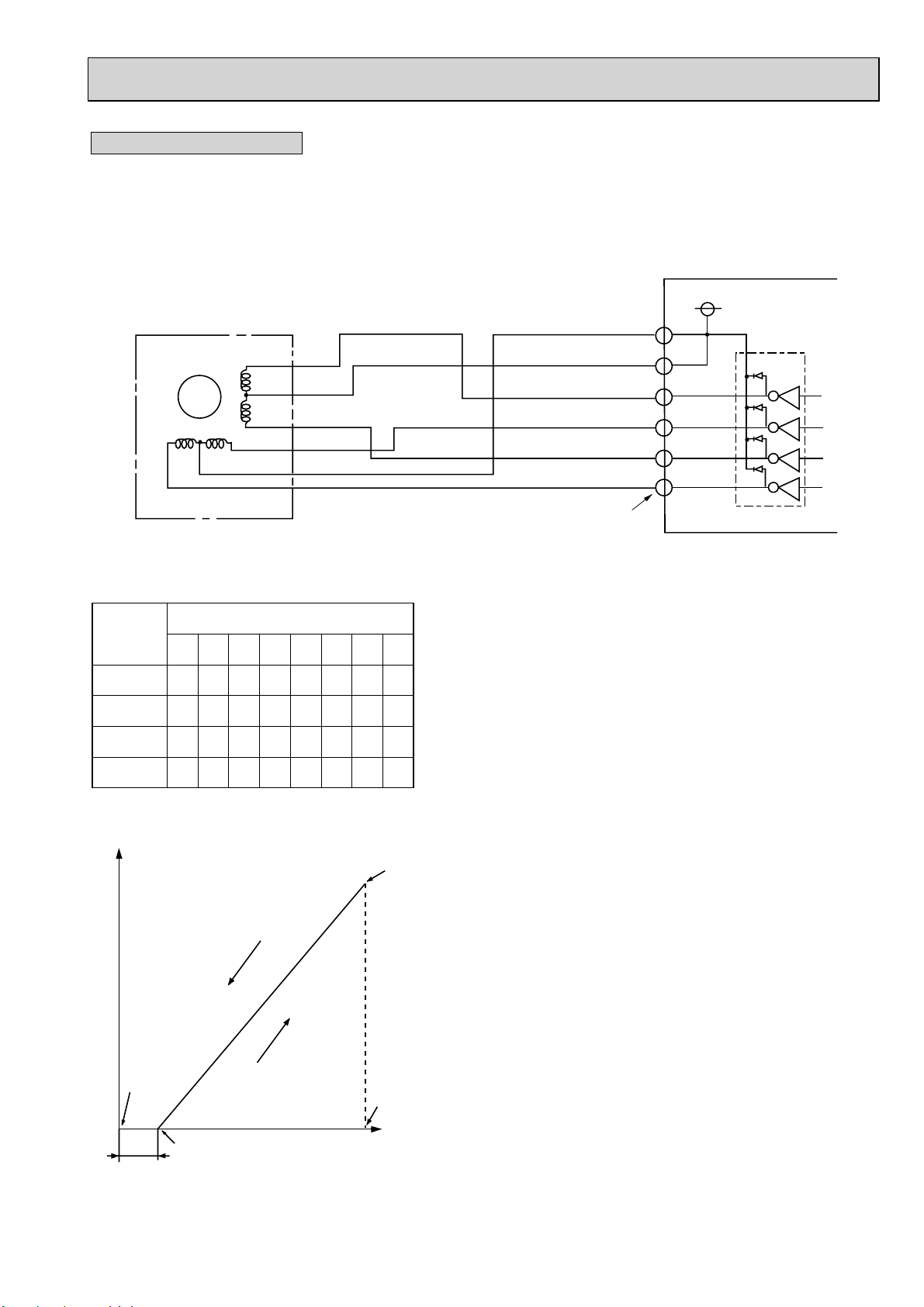

(1) Operation summary of the linear expansion valve
• Linear expansion valve open/close through stepping motor after receiving the pulse signal from the branch box controller
board.
• Valve position can be changed in proportion to the number of pulse signal.
<Connection between the branch box controller board and the linear expansion valve>
1
ON
OFF
OFF
OFF
ON
ON
OFF
OFF
OFF
ON
OFF
OFF
OFF
ON
ON
OFF
:1
Output
(Phase)
Output
:2
:3
:4
2345678
OFF
OFF
ON
OFF
OFF
OFF
ON
ON
OFF
OFF
OFF
ON
ON
OFF
OFF
ON
(LEV) in Branch box
OCH508A

14
Main body
Lead wire Stopper
Coil
(3) How to attach and detach the coil of linear expansion valve
<Composition>
Linear expansion valve is separable into the main body and the coil as shown in the diagram below.
A
<How to detach the coil>
Hold the lower part of the main body (shown as A) firmly so that
the main body does not move and detach the coil by pulling it
upward.
Be sure to detach the coil holding main body firmly. Otherwise
pipes can bend due to pressure.
Be sure to attach the
stopper to pipe B.
BA
<How to attach the coil>
Hold the lower part of the main body (shown as A) firmly so that
the main body does not move and attach the coil by inserting it
downward into the main body. Then securely attach the coil stop-
per to pipe B. (At this time, be careful that stress is not added to
lead wire and main body is not wound by lead wire.) If the stopper
is not firmly attached to pipe B, coil may be detached from the
main body and that can cause defective operation of linear expan-
sion valve.
To prevent piping stress, be sure to attach the coil holding the
main body of linear expansion valve firmly. Otherwise pipe may
break.
OCH508A

15
Troubleshooting
Problem Check point Corrective measure
If the linear expansion valve becomes locked and the motor is still operating,
the motor will emit a clicking noise and will not function. This clicking noise
indicates an abnormality.
Use an all-purpose electrical meter to measure the resistance between the
different coils (red-white, red-orange, brown-yellow, brown-blue). Normal
resistance is within a range of 46± 4%.
In order to check the linear expansion valve, operate 1 indoor unit in the
fan mode and another in the cooling mode. Then, use the outdoor multi
controller board to operate the monitor and check the pipe temperature of
the indoor unit. The linear expansion valve should be fully closed when the
fan is operating. The temperature measured by the temperature sensor
will drop if there is any leakage.
If the measured temperature is significantly lower than that on the remote
controller, this indicates that the valve is not closed. It is not necessary to
replace the linear expansion valve if the leak of refrigerant is small and does
not cause a malfunction.
Check improperly connected connector terminals and the wire colors.
Remove the connector on the controller board side and check electrical
conductance.
Locked expansion
valve
Short circuit or broken
circuit in expansion
valve motor coil
Valve does not close
completely.
Incorrect connection
or connection failure
Replace the linear
expansion valve.
Replace the linear
expansion valve.
Replace the linear
expansion valve if there
is a major leak of
refrigerant.
Continuity check of
wrong part
OCH508A

16

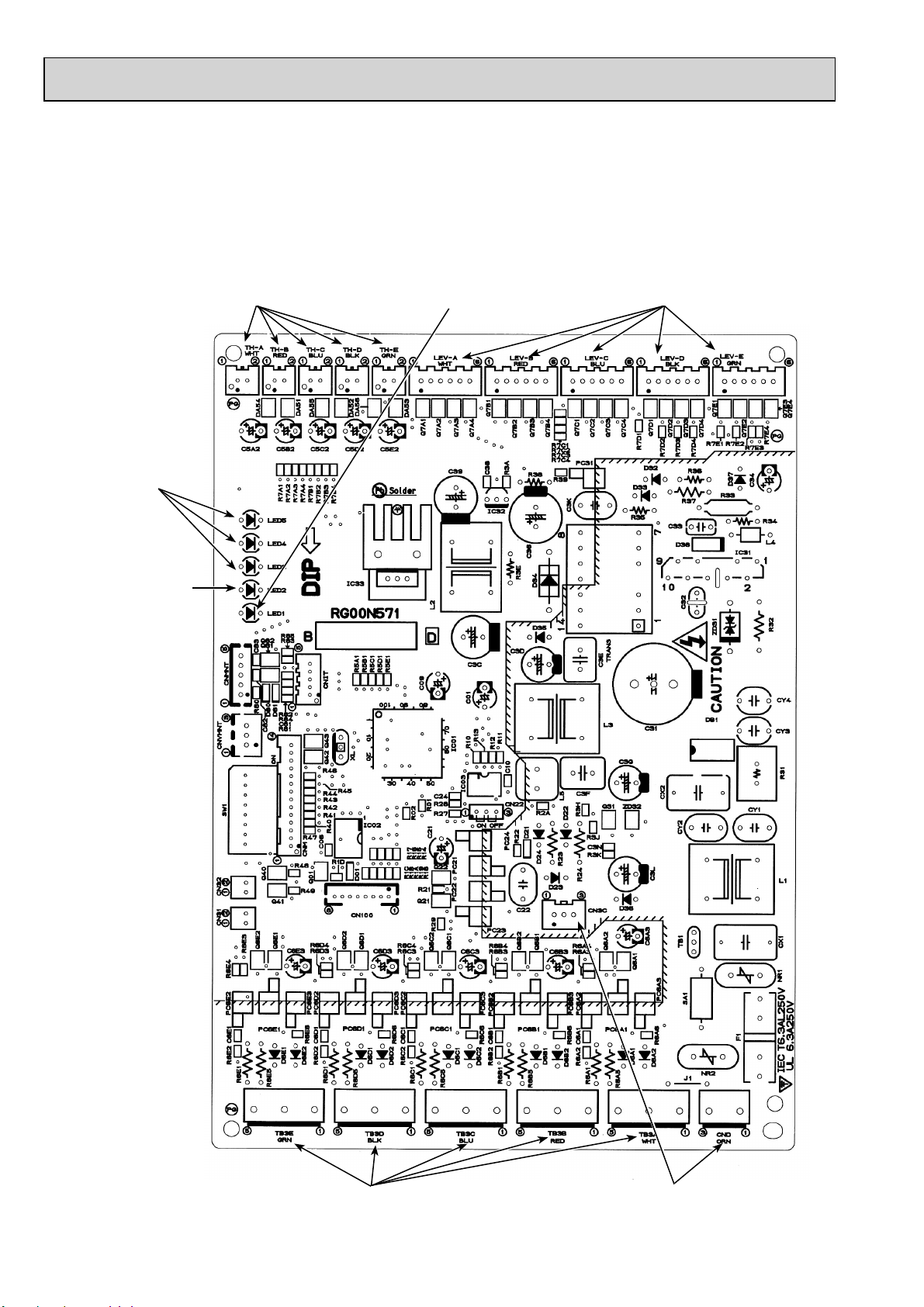

7-2. TEST POINT DIAGRAM
Branch box controller board
PAC-AK50BC PAC-AK51BC PAC-AK52BC PAC-AK53BC
PAC-AK30BC PAC-AK31BC PAC-AK32BC
LEV-A to E
Connect to LEV-A to E
LEV-A to C for PAC-AK30/31/32BC
TH-A to E Connect to
Thermistor-A to E
TH-A to C for PAC-AK30/31/32BC
LED1
Transmission start-up state display
Start-up : LED1 blinks
(0.5sec. : ON, 0.5sec. : OFF)
Start-up completion: LED1 lights
CN3C, CND
Connect to TB2B
(Branch box/Outdoor unit
connecting wire)
TB3A to TB3E
Connect to TB3A to TB3E
(Branch box/Indoor unit connecting wire)
TB3A to TB3C for PAC-AK30/31/32BC
LED3~5
Not used
LED2
Transmission
(Branch box/outdoor)
Reception state display
on branch box side
Branch box No.1
LED2 blinks once.
(0.1sec. : ON,
0.9sec. : OFF)
Branch box No.2
LED2 blinks twice.
(0.1sec. : ON,
0.1sec. : OFF
0.1sec. : ON,
0.7sec. : OFF)
*The blinking interval
might change when
there are changes in
states of indoor units.
OCH508A

17
7-3. FUNCTION OF SWITCHES
<Branch box unit operation monitor function>
[When option part ‘A-Control Service Tool (PAC-SK52ST)’ is connected to branch box controller board (CNM)]
Digital indicator LED1 displays 2 digit number or code to inform operation condition and the meaning of error code by
controlling DIP SW2 on ‘A-Control Service Tool’.
Operation indicator SW2 : Indicator change of self diagnosis
SW2 setting
1
ON
23456
Display detail Explanation for display Unit
<Digital indicator LED1 working details>
(Be sure that 1 to 6 in the SW2 are set to OFF.)
(1) Display when the power supply is ON.
When the power supply is ON, blinking displays by turns.
Wait for 2 minutes at the longest.
(2) When the display lights (Normal operation)
1The number of connected indoor units to this branch box (0 - 5)
1
ON
23456
(Initial setting)
SW2
1 second
interval
LED1 (Lighting)
1
ON
23456
Pipe temperature / Liquid (TH3)
– 40 - 90 – 40 - 90 (When the coil thermistor detects 0:or below, “–”
and temperature are displayed by turns.)
(Example)
When –10:; 0.5 secs. 0.5 secs. 2 secs.
:
10
1
ON
23456
Discharge temperature (TH4)
3 - 217 3 - 217 (When the discharge thermistor detects 100:or
more, hundreds digit, tens digit and ones digit are
displayed by turns.)
(Example)
When 105:; 0.5 secs. 0.5 secs. 2 secs.
:
105
1
ON
23456
Output step of outdoor FAN
0 - 15 Step
0 - 15
Unit number of this branch box
1 - 2 1 or 2 * Omit the figures after the decimal fractions. code
display
1
ON
23456
Compressor operating frequency
0 - 225 0 - 255 (When it is 100Hz or more, hundreds digit, tens
digit and ones digit are displayed by turns.
(Example)
When 125Hz; 0.5 secs. 0.5 secs. 2 secs. .Hz
125
1
ON
23456
1
ON
23456
LEV-A opening pulse
0 - 500 0 - 500 (When it is 100 pulse or more, hundreds digit, tens
digit and ones digit are displayed by turns.
(Example)
When 150 pulse; 0.5 secs. 0.5 secs. 2 secs. Pulse
150
The black square (■) indicates a switch position.
OCH508A

18
SW2 setting Display detail Explanation for display Unit
1
ON
23456
1
ON
23456
LEV-B opening pulse
0 - 500 0 - 500 (When it is 100 pulse or more, hundreds digit, tens
digit and ones digit are displayed by turns.
(Example)
When 150 pulse; 0.5 secs. 0.5 secs. 2 secs. Pulse
150
LEV-C opening pulse
0 - 500 0 - 500 (When it is 100 pulse or more, hundreds digit, tens
digit and ones digit are displayed by turns.
(Example)
When 150 pulse; 0.5 secs. 0.5 secs. 2 secs. Pulse
150
1
ON
23456
1
ON
23456
1
ON
23456
1
ON
23456
Capacity setting indoor-A
0 - 14
Capacity setting indoor-B
0 - 14
Capacity setting indoor-C
0 - 14
Code
display
Code
display
Code
display
1
ON
23456
1
ON
23456
Capacity setting indoor-D
0 - 14 Code
display
LEV-D opening pulse
0 - 500 0 - 500 (When it is 100 pulse or more, hundreds digit, tens
digit and ones digit are displayed by turns.
(Example)
When 150 pulse; 0.5 secs. 0.5 secs. 2 secs. Pulse
150
LEV-E opening pulse
0 - 500 0 - 500 (When it is 100 pulse or more, hundreds digit, tens
digit and ones digit are displayed by turns.
(Example)
When 150 pulse; 0.5 secs. 0.5 secs. 2 secs. Pulse
150
1
ON
23456
Capacity setting indoor-E
0 - 14 Code
display
1
ON
23456
Indoor pipe temperature / Liquid
TH2
Indoor-A
– 39 - 88
– 39 - 88
(When the temperature is 0:or less, “–” and
temperature are displayed by turns.) :
The black square (■) indicates a switch position.
Code display
(Not Qj) Rated capacity
015
120
222
325
428
532
635
740
845
950
10 56
11 60
12 71
13 80
15 100
OCH508A

19
SW2 setting Display detail Explanation for display Unit
1
ON
23456
1
ON
23456
Indoor pipe temperature / Liquid
TH2
Indoor-B
– 35 - 88
Indoor pipe temperature / Liquid
TH2
Indoor-C
– 39 - 88
:
:
– 39 - 88
(When the temperature is 0:or less, “–” and
temperature are displayed by turns.)
1
ON
23456
1
ON
23456
LEV-2 opening pulse
0 - 500
– 35 - 88
(When the temperature is 0:or less, “–” and
temperature are displayed by turns.)
1
ON
23456
1
ON
23456
Indoor pipe temperature / Liquid
TH2
Indoor-D
– 39 - 88
– 39 - 88
(When the temperature is 0:or less, “–” and
temperature are displayed by turns.) :
– 39 - 88
(When the temperature is 0:or less, “–” and
temperature are displayed by turns.)
0 - 500
:
Pulse
Pulse
0 - 500
Indoor pipe temperature / Liquid
TH2
Indoor-E
– 39 - 88
LEV-1 opening pulse
0 - 500
1
ON
23456
Pulse
1
ON
23456
1
ON
23456
LEV-3 opening pulse
0 - 500
LEV-4 opening pulse
0 - 500
0 - 500
Pulse
Pulse
0 - 500
LEV-5 opening pulse
0 - 500 0 - 500
1
ON
23456
Outdoor pipe temperature / 2-phase
(TH6)
– 39 - 88 :
– 39 - 88
(When the temperature is 0:or less, “–” and
temperature are displayed by turns.)
:
– 39 - 88
(When the temperature is 0:or less, “–” and
temperature are displayed by turns.)
1
ON
23456
Outdoor outside temperature (TH7)
– 39 - 88
The black square (■) indicates a switch position.
OCH508A

20
1
ON
23456 Pulse
LEV-6 opening pulse
0 - 500 0 - 500
Pulse
LEV-7 opening pulse
0 - 500 0 - 500
Pulse
LEV-8 opening pulse
0 - 500 0 - 500
of/f
High pressure o10 (63HS)
0 - 500 0 - 500
(When it is 100 or more, hundreds digit, tens
digit and ones digit are displayed by turns.)
Input current
0 - 50 0 - 50
A
1
ON
23456
1
ON
23456
1
ON
23456
1
ON
23456
SW2 setting Display detail Explanation for display Unit
1
ON
23456
:
Indoor pipe temperature / Cond. / Eva.
TH5 Indoor-A – 39 - 88
:
Indoor pipe temperature / Cond. / Eva.
TH5 Indoor-B – 39 - 88
1
ON
23456
:
Indoor pipe temperature / Cond. / Eva.
TH5 Indoor-C – 39 - 88
1
ON
23456
:
Indoor pipe temperature / Cond. / Eva.
TH5 Indoor-D – 39 - 88
Indoor pipe temperature / Cond. / Eva.
TH5 Indoor-E – 39 - 88
1
ON
23456
1
ON
23456
:
1
ON
23456
Outdoor heatsink temperature (TH8)
– 40 - 200
:
– 40 - 200
(When the temperature is 0:or less, “–” and
temperature are displayed by turns.)
(When the thermistor detects 100:or more,
hundreds digit, tens digit and ones digit are
displayed by turns.)
The black square (■) indicates a switch position.
OCH508A
