Mitsubishi Electric PCA-P3HA Operating manual

TECHNICAL & SERVICE MANUAL
No. OC289
2003
• Refer to the OCT03
REVISED EDITION-E as
regarding control relation.
• This manual does not cover
outdoor units.When serving
them, please refer to the
service manual No.OC261
REVISED EDITION-B and
this manual in a set.
INDOOR UNIT
Ceiling Suspended
Series PCA
REMOTE CONTROLLER
R407C
Indoor unit
[Model names] [Service Ref.]
PCA-P3HA PCA-P3HA
PCA-P5HA PCA-P5HA
CONTENTS
1. SAFETY PRECAUTION···································2
2. PART NAMES AND FUNCTIONS····················4
3. SPECIFICATIONS············································6
4. DATA·······························································10
5. OUTLINES AND DIMENSIONS·····················21
6. WIRING DIAGRAM ············································23
7. REFRIGERANT SYSTEM DIAGRAM ··················24
8. TROUBLESHOOTING ···································25
9. DISASSEMBLY PROCEDURE······················26
10. PARTS LIST···················································30
11. OPTIONAL PARTS·········································33
ON/OFF
CENTRALLY CONTROLLED
ERROR CODE
CLOCK
ON OFF
˚C
CHECK
CHECK MODE
FILTER
TEST RUN
FUNCTION
˚C
1Hr.
NOT AVAILABLE
STAND BY
DEFROST
TEMP.
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
SPLIT-TYPE, AIR CONDITIONERS
OC289--1.qxp 03.3.19 10:50 AM Page 1

2
1SAFETY PRECAUTION
Cautions for using with the outdoor unit which adopts R407C refrigerant.
· Do not use the existing refrigerant piping.
-The old refrigerant and refrigerant oil in the existing piping contains a large amount of chlorine which may cause the refriger-
ant oil of the new unit to deteriorate.
· Do not use copper pipes which are broken, deformed or discolour .
In addition, be sure that the inner surfaces of the pipes are clean, free of hazardous sulphur and oxides, or have no dust /
dirt, shaving particles, oils, moisture or any other contamination.
-If there is a large amount of residual oil (hydraulic oil, etc.) inside the piping and joints, deterioration of the refrigerant oil will
result.
· Store the piping to be used during installation indoors and keep both ends of the piping sealed until just before
brazing. (Store elbows and other joints in a plastic bag.)
-If dust, dirt, or water enters the refrigerant cycle, deterioration of the oil and compressor trouble may result.
· Use ester oil, ether oil or alkyl benzene (small amount) as the refrigerant oil to coat flares and flange connections.
-The refrigerant oil will degrade if it is mixed with a large amount of mineral oil.
Use liquid refrigerant to fill the system.
-If gas refrigerant is used to fill the system, the composition of the refrigerant in the cylinder will change and performance
may drop.
· Do not use a refrigerant other than R407C.
-If another refrigerant (R22, etc.) is used, the chlorine in the refrigerant may cause the refrigerant oil to deteriorate.
· Use a vacuum pump with a reverse flow check valve.
-The vacuum pump oil may flow back into the refrigerant cycle and cause the refrigerant oil to deteriorate.
· Do not use the following tools that are used with conventional refrigerant.
(Gauge manifold , charge hose, gas leak detector, reverse flow check valve, refrigerant charge base, vacuum gauge,
refrigerant recovery equipment)
-If the conventional refrigerant and refrigerant oil are mixed in the R407C, the refrigerant may deteriorated.
-If water is mixed in the R407C, the refrigerant oil may deteriorate.
-Since R407C does not contain any chlorine, gas leak detectors for conventional refrigerant will not react to it.
· Do not use a charging cylinder.
-Using a charging cylinder may cause the refrigerant to deteriorate.
· Be especially careful when managing the tools.
-if dust, dirt, or water gets in the refrigerant cycle, the refrigerant may deteriorate.
· Do not use the drier which is sold in the field.
-The drier for R407C refrigerant is per-attached to outdoor unit refrigerant circuit.
-Some drier in the field are not in conformity with R407C refrigerant .
OC289--1.qxp 03.3.19 10:50 AM Page 2

3
[3] Refrigerant recharging
(1) Refrigerant recharging process
1Direct charging from the cylinder.
·R407C cylinder are available on the market has a syphon pipe.
·Leave the syphon pipe cylinder standing and recharge it.
(By liquid refrigerant)
(2) Recharge in refrigerant leakage case
·After recovering the all refrigerant in the unit, proceed to working.
·Do not release the refrigerant in the air.
·After completing the repair service, recharge the cycle with the specified amount of
liquid refrigerant.
Gravimeter
Unit
[1] Service tools
Use the below service tools as exclusive tools for R407C refrigerant.
No. Tool name Specifications
1Gauge manifold ·Only for R407C.
·Use the existing fitting SPECIFICATIONS. (UNF7/16)
·Use high-tension side pressure of 3.43MPa or over.
2Charge hose ·Only for R407C.
·Use pressure performance of 5.10MPa or over.
3Electronic scale
4Gas leak detector ·Use the detector for R407C.
5Adapter for reverse flow check. ·Attach on vacuum pump.
6Refrigerant charge base.
7Refrigerant cylinder. ·For R407C ·Top of cylinder (Brown)
·Cylinder with syphon
8Refrigerant recovery equipment.
[2] Notice on repair service
·After recovering the all refrigerant in the unit, proceed to working.
·Do not release refrigerant in the air.
·After completing the repair service, recharge the cycle with the specified amount of
liquid refrigerant.
OC289--1.qxp 03.3.19 10:50 AM Page 3

4
2PART NAMES AND FUNCTIONS
● Indoor (Main) Unit
Air outlet
Air intake
Oil filter (Air intake)
wIt prevents oil from
getting into the unit.
Left/right guide vanes
Change the direction of airflow
from the horizontal blower.
Up/down guide vanes
Change the direction of airflow from the
vartical blower.
● Operation buttons

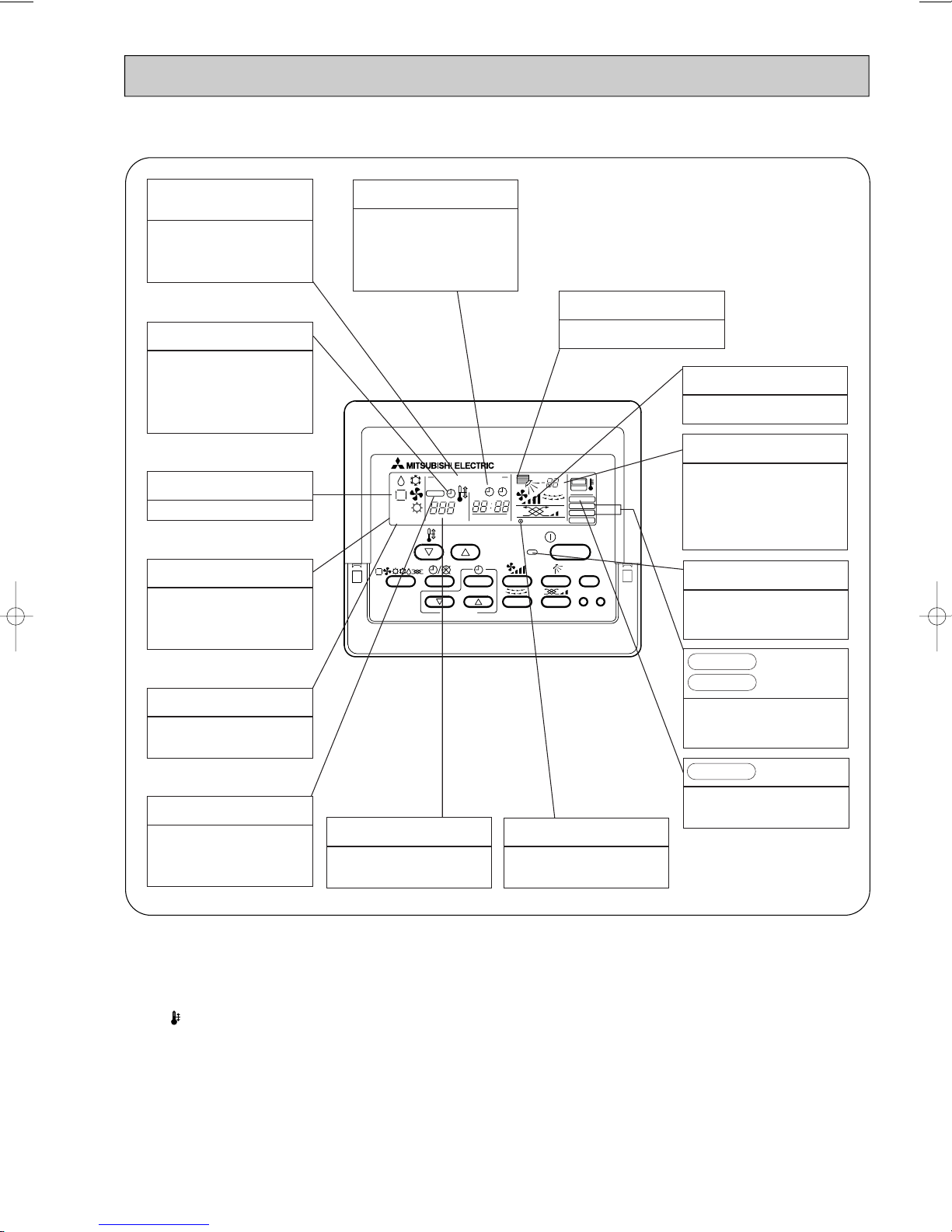

● Remote controller
Once the controls are set, the same operation mode can be repeated by simply pressing the ON/OFF button.
PAR-20MAA
ON/OFF
CENTRALLY CONTROLLED
ERROR CODE
CLOCK
ON OFF
˚C
CHECK
CHECK MODE
FILTER
TEST RUN
FUNCTION
˚C
1Hr.
NOT AVAILABLE
STAND BY
DEFROST
FILTER
CHECK TEST
TEMP.
TIMER SET
Press this button to switch the cooler,
electronic dry (dehumidify), automatic
and heater modes.
OPERATION SWITCH button
This sets the room temperature. The
temperature setting can be performed
in 1:units
Setting range
Cooler 19:to 30:
Heater 17:to 28:
TEMP. ADJUSTMENT button
This switches between continuous
operation and the timer operation.
TIMER button
This switches between the operation
and stop modes each time it is pressed.
The lamp on this button lights during
operation.
ON/OFF button
Only press this button to perform an
inspection check or test operation.
Do not use it for normal operation.
CHECK-TEST RUN button
This switch the horizontal fan motion
ON and OFF.
(Not available for this model.)
LOUVER button
This sets the ventilation fan speed.
VENTILATION button
This adjusts the vertical angle of the
ventilation.
AIR DIRECTION button
This resets the filter service indication
display
FILTER button
This sets the current time, start time
and stop time.
TIME SETTING button
This sets the ventilation fan speed.
AIR SPEED button
OC289--1.qxp 03.3.19 10:50 AM Page 4

5
Caution
●Only the Power display lights when the unit is stopped and power supplied to the unit.
●When power is turned ON for the first time the (CENTRAL CTRL) display appears to go off momentarily but this is not a
malfunction.
●When the central control remote control unit, which is sold separately, is used the ON-OFF button, operation switch button
and TEMP. adjustment button do not operate.
●“NOT AVAILABLE” is displayed when the Air speed button are pressed.This indicates that this room unit is not equipped
with the fan direction adjustment function and the louver function.
●When power is turned ON for the first time, it is normal that “H0” is displayed on the room temperature indication (For max.
2minutes). Please wait until this “H0” indication disappear then start the operation.
PAR-20MAA
ON/OFF
CENTRALLY CONTROLLED
ERROR CODE
CLOCK
ON OFF
˚C
CHECK
CHECK MODE
FILTER
TEST RUN
FUNCTION
˚C
1Hr.
NOT AVAILABLE
STAND BY
DEFROST
FILTER
CHECK TEST
TEMP.
TIMER SET
CENTRALLY
CONTROLLED display
This indicates when the unit is con-
trolled by optional features such as
central control type remote controller.
TIMER display
This indicates when the continuous
operation and time operation modes
are set.
It also display the time for the timer
operation at the same time as when
it is set.
OPERATION MODE display
This indicates the operation mode.
STANDBY display
This indicates when the standby
mode is set from the time the sleep
operation starts until the heating air
is discharged.
DEFROST display
This indicates when the defrost oper-
ation is performed.
CHECK display
This indicates when a malfunction
has occurred in the unit which should
be checked.
CLOCK display
The current time , start time and stop
time can be displayed in ten second
intervals by pressing the time switch
button. The start time or stop time is
always displayed during the timer
operation.
●Display
In this display example on the bot-
tom left, a condition where all dis-
play lamps light is shown for expla-
nation purposes although this differs
from actual operation.
Operation lamp
This lamp lights during operation,
goes off when the unit stops and
flashes when a malfunction occurs.
POWER display
This lamp lights when electricity is
supplied to the unit.
SET TEMPERATURE display
This displays the selected setting
temperature.
FAN SPEED display
The selected fan speed is displayed.
ROOM TEMPERATURE display
The temperature of the suction air is
displayed during operation. The dis-
play range is 8° to 39°C. The display
flashes 8°C when the actual temper-
ature is less than 8° and flashes
39°C when the actual temperature is
greater than 39°C.
display
This display lights in the check mode
or when a test operation is per-
formed.
CHECK MODE
TEST RUN
FILTER display
This lamp lights when the filter need
to be cleaned.
AIR DIRECTION display
This displays the air direction.
OC289--1.qxp 03.3.19 10:50 AM Page 5

6
3SPECIFICATIONS
1. Heat pump type Rating Conditions (ISO T1)
Service Ref.
Item
Btu/h
W
kW
kW
A
A
kW
K/min(CFM)
Pa(mmAq)
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
A
A
kW
W
kW
K
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Capacity
Total input
Service Ref.
Power supply
Input
Running current
Starting current
External finish
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow(Lo-Hi)
External static pressure
Operation control & Thermostat
Noise level(Lo-Hi)
Unit drain pipe I.D.
Dimensions
Weight
Service Ref.
Power supply
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
PCA-P3HA
Cooling
25,600
7,500
3.36
0.09
0.43
0.86
14.83 / 4.96
Heating
31,400
9,200
3.41
0.09
0.43
0.86
14.85/ 5.04
W
D
H
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
PCA-P3HA
Single phase, 50Hz, 220-230-240V
Stainless steel
Plate fin coil
Sirocco (direct) x 2
0.04
17-19 <600-670>
0 (direct blow)
Remote controller & built-in
34-38
26(1)
1,136(44-3/4)
650(25-5/8)
280(11)
41(90)
PUH-P3VGAA1.UK / PUH-P3YGAA1.UK
Single phase, 50Hz, 220-230-240V / 3 phase, 50Hz, 380-400-415V (4wires)
93 / 47
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
NE52VNJMT / NE52YDKMT
2.5
Line start
38
Plate fin coil
Propeller (direct) x 1
0.070
50(1,770)
Reverse cycle
49
51
900(35-7/16)
330+20(13+3/4)
855(33-5/8)
79(174)
R407C
3.3(7.3)
1.3 (Ester) MEL56
9.52(3/8)
15.88(5/8)
Flared
Flared
Max. 50m
Max. 50m
Inner thermostat,
HP switch, Discharge thermo. Anti-phase protector, Thermal relay, HP switch, Discharge thermo.
Notes1. Rating Conditions (ISO T1)
Cooling : Indoor : D.B. 27˚C(80˚F), W.B. 19˚C (66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C (75˚F)
Heating : Indoor : D.B. 20˚C(68˚F) Outdoor : D.B. 7˚C(45˚F), W.B. 6˚C (43˚F)
Refrigerant piping length (one way) : 5m (16ft)
2. Guaranteed operating range
3. Above data based on indicated voltage
Indoor Unit Single phase 230V 50Hz
Outdoor Unit Single phase 230V 50Hz / 3 phase 400V 50Hz
Upper limit
Lower limit
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
D.B. 28˚C
D.B. 17˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
D.B. 24˚C, W.B. 18˚C
D.B. -11˚C, W.B. -12˚C
Cooling
Heating
OUTDOOR UNIT INDOOR UNIT
REFRIGERANT PIPING
OC289--1.qxp 03.3.19 10:50 AM Page 6

7
Rating Conditions (ISO T1)
Service Ref.
Item
Btu/h
W
kW
kW
A
A
kW
K/min(CFM)
Pa(mmAq)
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
A
A
kW
W
kW
K
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Function
Capacity
Total input
Service Ref.
Power supply
Input
Running current
Starting current
External finish
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow(Lo-Hi)
External static pressure
Operation control & Thermostat
Noise level(Lo-Hi)
Unit drain pipe I.D.
Dimensions
Weight
Service Ref.
Power supply
Running current
Starting current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) x No.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
PCA-P5HA
Cooling
44,400
13,000
4.90
0.26
1.19
2.38
6.85
Heating
54,600
16,000
4,98
0.26
1.19
2.38
7.07
W
D
H
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
PCA-P5HA
Single phase, 50Hz, 220-230-240V
Stainless steel
Plate fin coil
Sirocco (direct) x 4
0.08+0.08
30-38 <1,060-1,350>
0 (direct blow)
Remote controller & built-in
44-50
26(1)
1,520(59-7/8)
650(25-5/8)
280(11)
56(124)
PUH-P5YGAA1.UK
3 phase, 50Hz, 380-400-415V (4wires)
65.5
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
ZR61KCW-TFD
3.5
Line start
Anti-phase protector, Internal thermostat, HP switch,Thermal relay, Discharge thermo
38
Plate fin coil
Propeller (direct) x 2
0.070+0.070
95(3,360)
Reverse cycle
55
56
1,050(41-5/16)
330+20(13+3/4)
1,260(49-5/8)
112(247)
R407C
4.6(10.1)
1.690 (Ester) 3MAW-POE
9.52(3/8)
19.05(3/4)
Flared
Flared
Max. 50m
Max. 50m
Notes1. Rating Conditions (ISO T1)
Cooling : Indoor : D.B. 27˚C(80˚F), W.B. 19˚C (66˚F) Outdoor : D.B. 35˚C(95˚F), W.B. 24˚C (75˚F)
Heating : Indoor : D.B. 20˚C(68˚F) Outdoor : D.B. 7˚C(45˚F), W.B. 6˚C (43˚F)
Refrigerant piping length (one way) : 5m (16ft)
2. Guaranteed operating range
3. Above data based on indicated voltage
Indoor Unit Single phase 230V 50Hz
Outdoor Unit 3 phase 400V 50Hz
Upper limit
Lower limit
Upper limit
Lower limit
Indoor
D.B. 35˚C, W.B. 22.5˚C
D.B. 19˚C, W.B. 15˚C
D.B. 28˚C
D.B. 17˚C
Outdoor
D.B. 46˚C
D.B. -5˚C
D.B. 24˚C, W.B. 18˚C
D.B. -11˚C, W.B. -12˚C
Cooling
Heating
OUTDOOR UNIT INDOOR UNIT
REFRIGERANT PIPING
OC289--1.qxp 03.3.19 10:50 AM Page 7

8
OUTDOOR UNIT
REFRIGERANT
PIPING
Service Ref.
Power supply
External finish
Heat exchanger
Fan
Operation control & Thermostat
Noise level(Lo-Hi)
Unit drain pipe I.D.
Dimensions
Weight
Service Ref.
Power supply
External finish
Refrigerant control
Compressor
Crankcase heater
Heat exchanger
Fan
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Pipe size O.D.
Connection method
Between the indoor & outdoor unit
Indoor side
Outdoor side
Height difference
Piping length
Liquid
Gas
Cooling
W
D
H
Input
Running current
Starting current
Fan(drive))No.
Fan motor output
Airflow(Lo-Hi)
External static pressure
Running current
Starting current
Model
Motor output
Starter type
Protection devices
Fan(drive))No.
Fan motor output
Airflow
Charge
Compressor oil (Model)
W
D
H
Item Service Ref. PCA-P3HA
Function
Total input
2. Guaranteed operating range
Upper limit
Lower limit
Indoor
D.B. 35:, D.B. 22.5:
D.B. 19:, D.B. 15:
Outdoor
D.B. 46:
D.B. -5:
Cooling
INDOOR UNIT
Cooling
25,600
7,500
3.36
PCA-P3HA
Single phase, 50Hz, 220-230-240V
0.09
0.41
0.86
Stainless steel
Plate fin coil
Sirocco (direct) ✕ 2
0.04
17-19 <600-670>
0 (direct blow)
Remote controller & built-in
34-38
26(1)
1,136(44-3/4)
650(25-5/8)
280(11)
41(90)
PU-P3VGAA1.UK / PU-P3YGAA1.UK
Single-phase, 50Hz, 220-230-240V / 3-phase, 50Hz, 380-400-415V (4wires)
14.02 / 4.78
93 / 47
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
NE52VNJMT / NE52YDKMT
2.5
Line start
38
Plate fin coil
Propeller (direct) ✕1
0.070
50(1,770)
—
49
900(35-7/16)
330+20(13+3/4)
855(33-5/8)
79(174)
R407C
3.3(7.3)
1.3 (Ester) MEL56
9.52(3/8)
15.88(5/8)
Flared
Flared
Max. 50m
Max. 50m
Btu/h
W
kW
kW
A
A
kW
K/min <CFM>
Pa(mmAq)
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
A
A
KW
W
kW
K/min <CFM>
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Anti-phase protector, Thermal relay,
HP switch, Discharge thermo
Inner thermostat,
HP switch, Discharge thermo
Capacity
Rating Conditions (ISO T1)
Notes1. Rating Conditions (ISO T1)
Cooling : Indoor : D.B. 27:(80°F), W.B. 19:(66°F)
Outdoor : D.B. 35:(95°F), W.B. 24:(75°F)
Refrigerant piping length (one way) : 5m(16ft)
3. Above data based on indicated voltage
Indoor Unit Single phase 230V 50Hz
Outdoor Unit Single phase 230V 50Hz / 3 phase 400V 50Hz
OC289--1.qxp 03.3.19 10:50 AM Page 8

9
Rating Conditions (ISO T1)
OUTDOOR UNIT
REFRIGERANT
PIPING
Service Ref.
Power supply
External finish
Heat exchanger
Fan
Operation control & Thermostat
Noise level(Lo-Hi)
Unit drain pipe I.D.
Dimensions
Weight
Service Ref.
Power supply
External finish
Refrigerant control
Compressor
Crankcase heater
Heat exchanger
Fan
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Pipe size O.D.
Connection method
Between the indoor & outdoor unit
Indoor side
Outdoor side
Height difference
Piping length
Liquid
Gas
Cooling
W
D
H
Input
Running current
Starting current
Fan(drive))No.
Fan motor output
Airflow(Lo-Hi)
External static pressure
Running current
Starting current
Model
Motor output
Starter type
Protection devices
Fan(drive))No.
Fan motor output
Airflow
Charge
Compressor oil (Model)
W
D
H
Item Service Ref. PCA-P5HA
Function
Total input
Upper limit
Lower limit
Indoor
D.B. 35:, D.B. 22.5:
D.B. 19:, D.B. 15:
Outdoor
D.B. 46:
D.B. -5:
Cooling
INDOOR UNIT
Cooling
44,400
13,000
4.90
PCA-P5HA
Single phase, 50Hz, 220-230-240V
0.26
1.19
2.38
Stainless steel
Plate fin coil
Sirocco (direct) ✕ 4
0.08+0.08
30-38 <1,060-1,350>
0 (direct blow)
Remote controller & built-in
44-50
26(1)
1,520(59-7/8)
650(25-5/8)
280(11)
56(124)
PU-P5YGAA1.UK
3-phase, 50Hz, 380-400-415V (4wires)
6.85
65.5
Munsell 5Y 7/1
Linear Expansion Valve
Hermetic
ZR61KCW-TFD
3.5
Line start
Anti-phase protector, Internal thermostat, HP switch, Thermal relay, Discharge thermo
38
Plate fin coil
Propeller (direct) ✕2
0.070+0.070
95(3,360)
—
55
1,050(41-5/16)
330+20(13+3/4)
1,260(49-5/8)
112(247)
R407C
4.6(10.1)
1.690 (Ester) 3MAW-POE
9.52(3/8)
19.05(3/4)
Flared
Flared
Max. 50m
Max. 50m
Btu/h
W
kW
kW
A
A
kW
K/min <CFM>
Pa(mmAq)
dB
mm(in.)
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
A
A
KW
W
kW
K/min <CFM>
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
2. Guaranteed operating range
Capacity
Notes1. Rating Conditions (ISO T1)
Cooling : Indoor : D.B. 27:(80°F), W.B. 19:(66°F)
Outdoor : D.B. 35:(95°F), W.B. 24:(75°F)
Refrigerant piping length (one way) : 5m(16ft)
3. Above data based on indicated voltage
Indoor Unit Single phase 230V 50Hz
Outdoor Unit 3 phase 400V 50Hz
OC289--1.qxp 03.3.19 10:50 AM Page 9

10
4 DATA
Outdoor intake air D.B.(°C)
20 25 30
Indoor
Intake air
D.B.(°C)
Indoor
Intake air
W.B.(°C)
20
20
20
22
22
22
24
24
24
26
26
26
28
28
28
30
30
30
32
32
32
34
34
34
16
18
20
16
18
20
16
18
20
16
18
20
16
18
20
16
18
20
16
18
20
16
18
20
CA
7,425
7,950
8,550
7,425
7,950
8,550
7,425
7,950
8,550
7,425
7,950
8,550
7,425
7,950
8,550
7,425
7,950
8,550
7,425
7,950
8,550
7,425
7,950
8,550
SHC(W)
4,604
3,975
3,249
5,198
4,611
3,933
5,792
5,247
4,617
6,386
5,883
5,301
6,980
6,519
5,985
7,425
7,155
6,669
7,425
7,791
7,353
7,425
7,950
8,037
SHF
0.62
0.50
0.38
0.70
0.58
0.46
0.78
0.66
0.54
0.86
0.74
0.62
0.94
0.82
0.70
1.00
0.90
0.78
1.00
0.98
0.86
1.00
1.00
0.94
P.C.
2.69
2.74
2.82
2.69
2.74
2.82
2.69
2.74
2.82
2.69
2.74
2.82
2.69
2.74
2.82
2.69
2.74
2.82
2.69
2.74
2.82
2.69
2.74
2.82
CA
7,200
7,725
8,363
7,200
7,725
8,363
7,200
7,725
8,363
7,200
7,725
8,363
7,200
7,725
8,363
7,200
7,725
8,363
7,200
7,725
8,363
7,200
7,725
8,363
SHC(W)
4,464
3,863
3,178
5,040
4,481
3,847
5,616
5,099
4,516
6,192
5,717
5,185
6,768
6,335
5,854
7,200
6,953
6,523
7,200
7,571
7,192
7,200
7,725
7,861
SHF
0.62
0.50
0.38
0.70
0.58
0.46
0.78
0.66
0.54
0.86
0.74
0.62
0.94
0.82
0.70
1.00
0.90
0.78
1.00
0.98
0.86
1.00
1.00
0.94
P.C.
2.84
2.89
2.96
2.84
2.89
2.96
2.84
2.89
2.96
2.84
2.89
2.96
2.84
2.89
2.96
2.84
2.89
2.96
2.84
2.89
2.96
2.84
2.89
2.96
CA
6,975
7,463
8,138
6,975
7,463
8,138
6,975
7,463
8,138
6,975
7,463
8,138
6,975
7,463
8,138
6,975
7,463
8,138
6,975
7,463
8,138
6,975
7,463
8,138
SHC(W)
4,325
3,731
3,092
4,883
4,328
3,743
5,441
4,925
4,394
5,999
5,522
5,045
6,557
6,119
5,696
6,975
6,716
6,347
6,975
7,313
6,998
6,975
7,463
7,649
SHF
0.62
0.50
0.38
0.70
0.58
0.46
0.78
0.66
0.54
0.86
0.74
0.62
0.94
0.82
0.70
1.00
0.90
0.78
1.00
0.98
0.86
1.00
1.00
0.94
P.C.
3.01
3.09
3.16
3.01
3.09
3.16
3.01
3.09
3.16
3.01
3.09
3.16
3.01
3.09
3.16
3.01
3.09
3.16
3.01
3.09
3.16
3.01
3.09
3.16
Notes CA : Capacity (W) SHC(W) : Sensible heat capacity
P.C.: Power consumption (kW) SHF : Sensible heat factor
1. PERFORMANCE DATA (240V)
1) COOLING CAPACITY<1>
PCA-P3HA
OC289--1.qxp 03.3.19 10:50 AM Page 10

11
Outdoor intake air D.B.(°C)
35 40 45
Indoor
Intake air
D.B.(°C)
Indoor
Intake air
W.B.(°C)
20
20
20
22
22
22
24
24
24
26
26
26
28
28
28
30
30
30
32
32
32
34
34
34
16
18
20
16
18
20
16
18
20
16
18
20
16
18
20
16
18
20
16
18
20
16
18
20
CA
6,675
7,200
7,800
6,675
7,200
7,800
6,675
7,200
7,800
6,675
7,200
7,800
6,675
7,200
7,800
6,675
7,200
7,800
6,675
7,200
7,800
6,675
7,200
7,800
SHC(W)
4,139
3,600
2,964
4,673
4,176
3,588
5,207
4,752
4,212
5,741
5,328
4,836
6,275
5,904
5,460
6,675
6,480
6,084
6,675
7,056
6,708
6,675
7,200
7,332
SHF
0.62
0.50
0.38
0.70
0.58
0.46
0.78
0.66
0.54
0.86
0.74
0.62
0.94
0.82
0.70
1.00
0.90
0.78
1.00
0.98
0.86
1.00
1.00
0.94
P.C.
3.23
3.31
3.39
3.23
3.31
3.39
3.23
3.31
3.39
3.23
3.31
3.39
3.23
3.31
3.39
3.23
3.31
3.39
3.23
3.31
3.39
3.23
3.31
3.39
CA
6,375
6,975
7,500
6,375
6,975
7,500
6,375
6,975
7,500
6,375
6,975
7,500
6,375
6,975
7,500
6,375
6,975
7,500
6,375
6,975
7,500
6,375
6,975
7,500
SHC(W)
3,953
3,488
2,850
4,463
4,046
3,450
4,973
4,604
4,050
5,483
5,162
4,650
5,993
5,720
5,250
6,375
6,278
5,850
6,375
6,836
6,450
6,375
6,975
7,050
SHF
0.62
0.50
0.38
0.70
0.58
0.46
0.78
0.66
0.54
0.86
0.74
0.62
0.94
0.82
0.70
1.00
0.90
0.78
1.00
0.98
0.86
1.00
1.00
0.94
P.C.
3.46
3.56
3.63
3.46
3.56
3.63
3.46
3.56
3.63
3.46
3.56
3.63
3.46
3.56
3.63
3.46
3.56
3.63
3.46
3.56
3.63
3.46
3.56
3.63
CA
6,075
6,525
7,050
6,075
6,525
7,050
6,075
6,525
7,050
6,075
6,525
7,050
6,075
6,525
7,050
6,075
6,525
7,050
6,075
6,525
7,050
6,075
6,525
7,050
SHC(W)
3,767
3,263
2,679
4,253
3,785
3,243
4,739
4,307
3,807
5,225
4,829
4,371
5,711
5,351
4,935
6,075
5,873
5,499
6,075
6,395
6,063
6,075
6,525
6,627
SHF
0.62
0.50
0.38
0.70
0.58
0.46
0.78
0.66
0.54
0.86
0.74
0.62
0.94
0.82
0.70
1.00
0.90
0.78
1.00
0.98
0.86
1.00
1.00
0.94
P.C.
3.75
3.83
3.90
3.75
3.83
3.90
3.75
3.83
3.90
3.75
3.83
3.90
3.75
3.83
3.90
3.75
3.83
3.90
3.75
3.83
3.90
3.75
3.83
3.90
COOLING CAPACITY<2>
PCA-P3HA
Notes CA : Capacity (W) SHC(W) : Sensible heat capacity
P.C.: Power consumption (kW) SHF : Sensible heat factor
OC289--1.qxp 03.3.19 10:50 AM Page 11

12
Outdoor intake air D.B.(°C)
20 25 30
Indoor
Intake air
D.B.(°C)
Indoor
Intake air
W.B.(°C)
20
20
20
22
22
22
24
24
24
26
26
26
28
28
28
30
30
30
32
32
32
34
34
34
16
18
20
16
18
20
16
18
20
16
18
20
16
18
20
16
18
20
16
18
20
16
18
20
CA
12,870
13,780
14,820
12,870
13,780
14,820
12,870
13,780
14,820
12,870
13,780
14,820
12,870
13,780
14,820
12,870
13,780
14,820
12,870
13,780
14,820
12,870
13,780
14,820
SHC(W)
8,366
7,303
6,076
9,395
8,406
7,262
10,425
9,508
8,447
11,454
10,611
9,633
12,484
11,713
10,819
12,870
12,815
12,004
12,870
13,780
13,190
12,870
13,780
14,375
SHF
0.65
0.53
0.41
0.73
0.61
0.49
0.81
0.69
0.57
0.89
0.77
0.65
0.97
0.85
0.73
1.00
0.93
0.81
1.00
1.00
0.89
1.00
1.00
0.97
P.C.
3.92
3.99
4.12
3.92
3.99
4.12
3.92
3.99
4.12
3.92
3.99
4.12
3.92
3.99
4.12
3.92
3.99
4.12
3.92
3.99
4.12
3.92
3.99
4.12
CA
12,480
13,390
14,495
12,480
13,390
14,495
12,480
13,390
14,495
12,480
13,390
14,495
12,480
13,390
14,495
12,480
13,390
14,495
12,480
13,390
14,495
12,480
13,390
14,495
SHC(W)
8,112
7,097
5,943
9,110
8,168
7,103
10,109
9,239
8,262
11,107
10,310
9,422
12,106
11,382
10,581
12,480
12,453
11,741
12,480
13,390
12,901
12,480
13,390
14,060
SHF
0.65
0.53
0.41
0.73
0.61
0.49
0.81
0.69
0.57
0.89
0.77
0.65
0.97
0.85
0.73
1.00
0.93
0.81
1.00
1.00
0.89
1.00
1.00
0.97
P.C.
4.14
4.21
4.31
4.14
4.21
4.31
4.14
4.21
4.31
4.14
4.21
4.31
4.14
4.21
4.31
4.14
4.21
4.31
4.14
4.21
4.31
4.14
4.21
4.31
CA
12,090
12,935
14,105
12,090
12,935
14,105
12,090
12,935
14,105
12,090
12,935
14,105
12,090
12,935
14,105
12,090
12,935
14,105
12,090
12,935
14,105
12,090
12,935
14,105
SHC(W)
7,859
6,856
5,783
8,826
7,890
6,911
9,793
8,925
8,040
10,760
9,960
9,168
11,727
10,995
10,297
12,090
12,030
11,425
12,090
12,935
12,553
12,090
12,935
13,682
SHF
0.65
0.53
0.41
0.73
0.61
0.49
0.81
0.69
0.57
0.89
0.77
0.65
0.97
0.85
0.73
1.00
0.93
0.81
1.00
1.00
0.89
1.00
1.00
0.97
P.C.
4.39
4.51
4.61
4.39
4.51
4.61
4.39
4.51
4.61
4.39
4.51
4.61
4.39
4.51
4.61
4.39
4.51
4.61
4.39
4.51
4.61
4.39
4.51
4.61
Notes CA : Capacity (W) SHC(W) : Sensible heat capacity
P.C.: Power consumption (kW) SHF : Sensible heat factor
COOLING CAPACITY<3>
PCA-P5HA
OC289--1.qxp 03.3.19 10:50 AM Page 12

13
Outdoor intake air D.B.(°C)
35 40 45
Indoor
Intake air
D.B.(°C)
Indoor
Intake air
W.B.(°C)
20
20
20
22
22
22
24
24
24
26
26
26
28
28
28
30
30
30
32
32
32
34
34
34
16
18
20
16
18
20
16
18
20
16
18
20
16
18
20
16
18
20
16
18
20
16
18
20
CA
11,570
12,480
13,520
11,570
12,480
13,520
11,570
12,480
13,520
11,570
12,480
13,520
11,570
12,480
13,520
11,570
12,480
13,520
11,570
12,480
13,520
11,570
12,480
13,520
SHC(W)
7,521
6,614
5,543
8,446
7,613
6,625
9,372
8,611
7,706
10,297
9,610
8,788
11,223
10,608
9,870
11,570
11,606
10,951
11,570
12,480
12,033
11,570
12,480
13,114
SHF
0.65
0.53
0.41
0.73
0.61
0.49
0.81
0.69
0.57
0.89
0.77
0.65
0.97
0.85
0.73
1.00
0.93
0.81
1.00
1.00
0.89
1.00
1.00
0.97
P.C.
4.70
4.83
4.95
4.70
4.83
4.95
4.70
4.83
4.95
4.70
4.83
4.95
4.70
4.83
4.95
4.70
4.83
4.95
4.70
4.83
4.95
4.70
4.83
4.95
CA
11,050
12,090
13,000
11,050
12,090
13,000
11,050
12,090
13,000
11,050
12,090
13,000
11,050
12,090
13,000
11,050
12,090
13,000
11,050
12,090
13,000
11,050
12,090
13,000
SHC(W)
7,183
6,408
5,330
8,067
7,375
6,370
8,951
8,342
7,410
9,835
9,309
8,450
10,719
10,277
9,490
11,050
11,244
10,530
11,050
12,090
11,570
11,050
12,090
12,610
SHF
0.65
0.53
0.41
0.73
0.61
0.49
0.81
0.69
0.57
0.89
0.77
0.65
0.97
0.85
0.73
1.00
0.93
0.81
1.00
1.00
0.89
1.00
1.00
0.97
P.C.
5.05
5.19
5.29
5.05
5.19
5.29
5.05
5.19
5.29
5.05
5.19
5.29
5.05
5.19
5.29
5.05
5.19
5.29
5.05
5.19
5.29
5.05
5.19
5.29
CA
10,530
11,310
12,220
10,530
11,310
12,220
10,530
11,310
12,220
10,530
11,310
12,220
10,530
11,310
12,220
10,530
11,310
12,220
10,530
11,310
12,220
10,530
11,310
12,220
SHC(W)
6,845
5,994
5,010
7,687
6,899
5,988
8,529
7,804
6,965
9,372
8,709
7,943
10,214
9,614
8,921
10,530
10,518
9,898
10,530
11,310
10,876
10,530
11,310
11,853
SHF
0.65
0.53
0.41
0.73
0.61
0.49
0.81
0.69
0.57
0.89
0.77
0.65
0.97
0.85
0.73
1.00
0.93
0.81
1.00
1.00
0.89
1.00
1.00
0.97
P.C.
5.46
5.59
5.68
5.46
5.59
5.68
5.46
5.59
5.68
5.46
5.59
5.68
5.46
5.59
5.68
5.46
5.59
5.68
5.46
5.59
5.68
5.46
5.59
5.68
Notes CA : Capacity (W) SHC(W) : Sensible heat capacity
P.C.: Power consumption (kW) SHF : Sensible heat factor
COOLING CAPACITY<4>
PCA-P5HA
OC289--1.qxp 03.3.19 10:50 AM Page 13

14
Refrigerant piping length (one way)
Service Ref. 5m 10m 15m 20m 25m 30m 35m 40m 45m 50m
PCA-P3HA
PCA-P5HA
1.00
1.00
0.981
0.981
0.968
0.968
0.952
0.952
0.940
0.940
0.925
0.925
0.913
0.913
0.900
0.900
0.886
0.886
0.874
0.874

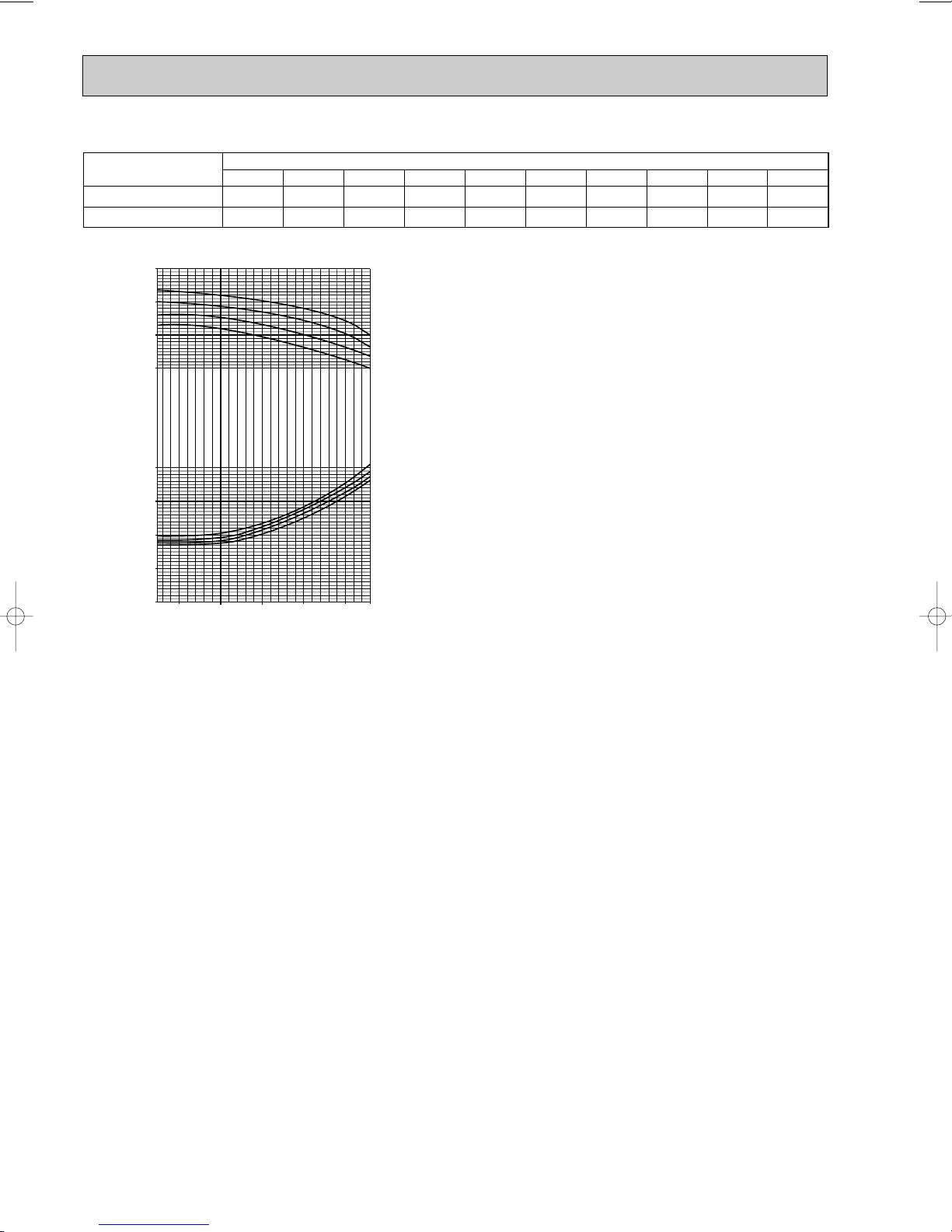

Cooling capacity correction factors
OUTDOOR D.B.(°C)
TOTAL INPUT (RATIO) CAPACITY (RATIO)
INDOOR W.B.(°C)
INDOOR W.B.(°C)
1.4
1.2
1.0
0.8
10
22
20
18
16
22
20
18
16
20 30 46400-5
1.2
1.0
0.8
0.6
0.4
Cooling
OC289--1.qxp 03.3.19 10:50 AM Page 14

15
OUTDOOR W.B. (°C)
INDOOR D.B. (°C)
INDOOR D.B. (°C)
TOTAL INPUT (RATIO) CAPACITY (RATIO)
1.4
1.2
1.0
15
20
25
25
20
15
0.8
0.6
0.4
1.4
1.2
1.0
0.8
0.6
0.4
-12 -10 -5 0 5 10 15
Correcting the capacity line influenced by frosting.
Not correcting the capacity line influenced by frosting.
Heating

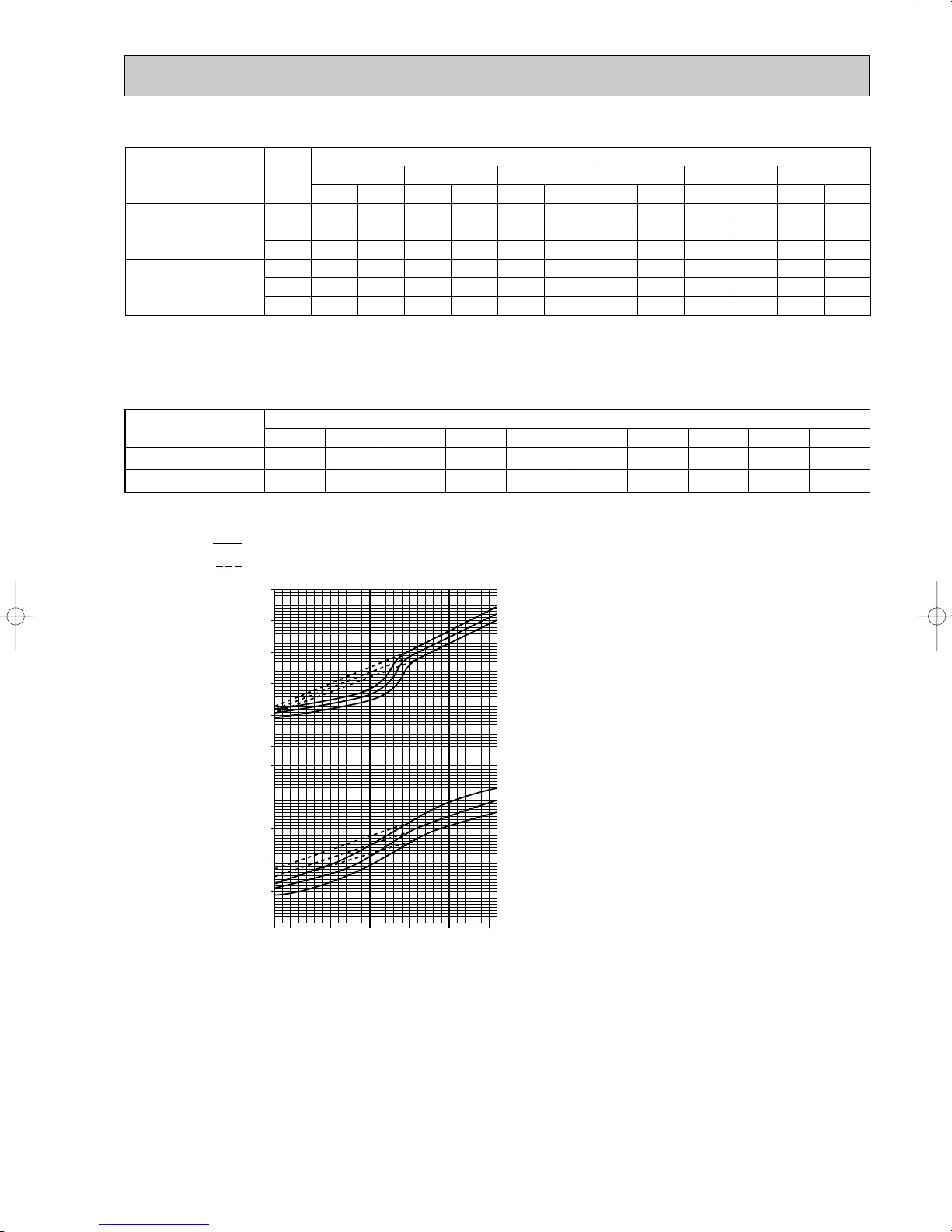

Heating capacity correction factors
Refrigerant piping length (one way)
Service Ref. 5m 10m 15m 20m 25m 30m 35m 40m 45m 50m
PCA-P3HA
PCA-P5HA
1.00
1.00
0.998
0.998
0.995
0.995
0.993
0.993
0.990
0.990
0.988
0.988
0.985
0.985
0.983
0.983
0.980
0.980
0.978
0.978
2) HEATING CAPACITY
Notes CA : Capacity (W)
P.C.: Power consumption (kW)
Service Ref.
15
20
25
15
20
25
CA -10 -5 0 5 10 15
Outdoor intake air W.B.(°C)Indoor
Intake
air
D.B.(°C)
P.C.
2.01
2.18
2.32
2.94
3.19
3.39
CA P.C. CA P.C. CA P.C. CA P.C. CA P.C.
5,842
5,612
5,428
10,160
9,760
9,440
2.22
2.39
2.59
3.24
3.49
3.78
6,348
6,072
5,888
11,040
10,560
10,240
2.56
2.76
3.00
3.74
4.03
4.38
7,084
6,716
6,440
12,320
11,680
11,200
3.07
3.31
3.51
4.48
4.83
5.13
9,292
8,970
8,464
16,160
15,600
14,720
3.41
3.68
3.94
4.98
5.38
5.75
10,488
10,120
9,752
18,240
17,600
16,960
3.68
3.96
4.25
5.38
5.78
6.20
11,684
11,270
10,856
20,320
19,600
18,880
PCA-P3HA
PCA-P5HA
OC289--1.qxp 03.3.19 10:50 AM Page 15

16
2. ELECTRICAL DATA
2.1. Heat pump type
Rating Conditions (ISO T1)
Indoor
Outdoor
Input (kW)
Current (A)
Current (A)
Starting current (A)
Mode
Capacity (W)
Total Input (kW) (In + Out)
Service
Ref.
Indoor unit
Outdoor unit Cooling
7,500
3.36
0.09
0.44
15.31
85
Heating
9,200
3.41
0.09
0.44
15.54
85
Cooling
7,500
3.36
0.09
0.44
5.23
43
Heating
9,200
3.41
0.09
0.44
5.32
43
Cooling
13,000
4.90
0.26
1.24
7.22
65.5
Heating
16,000
4.98
0.26
1.24
7.46
65.5
PUH-P3VGAA1.UK PUH-P3YGAA1.UK PUH-P5YGAA1.UK
PCA-P3HA PCA-P5HA
Cooling
13,000
4.90
0.26
1.19
6.85
65.5
Heating
16,000
4.98
0.26
1.19
7.07
65.5
PUH-P5YGAA1.UK
PCA-P5HA
Cooling
13,000
4.90
0.27
1.14
6.61
65.5
Heating
16,000
4.98
0.27
1.14
6.82
65.5
PUH-P5YGAA1.UK
PCA-P5HA
Indoor
Outdoor
Input (kW)
Current (A)
Current (A)
Starting current (A)
Mode
Capacity (W)
Total Input (kW) (In + Out)
Service
Ref.
Indoor unit
Outdoor unit Cooling
7,500
3.36
0.09
0.43
14.63
89
Heating
9,200
3.41
0.09
0.43
14.85
89
Cooling
7,500
3.36
0.09
0.43
4.96
45
Heating
9,200
3.41
0.09
0.43
5.04
45
PUH-P3VGAA1.UK PUH-P3YGAA1.UK
PCA-P3HA
Indoor
Outdoor
Input (kW)
Current (A)
Current (A)
Starting current (A)
Mode
Capacity (W)
Total Input (kW) (In + Out)
Service
Ref.
Indoor unit
Outdoor unit Cooling
7,500
3.36
0.09
0.41
14.02
93
Heating
9,200
3.41
0.09
0.41
14.24
93
Cooling
7,500
3.36
0.09
0.41
4.78
47
Heating
9,200
3.41
0.09
0.41
4.86
47
PUH-P3VGAA1.UK PUH-P3YGAA1.UK
PCA-P3HA
Indoor·······220V 50Hz Single phase
Outdoor····220V 50Hz Singel phase / 380V 50Hz 3 phase
Indoor·······230V 50Hz Single phase
Outdoor····230V 50Hz Singel phase / 400V 50Hz 3 phase
Indoor·······240V 50Hz Single phase
Outdoor····240V 50Hz Singel phase / 415V 50Hz 3 phase
OC289--1.qxp 03.3.19 10:50 AM Page 16

17
2.2. Cooling only type
Rating Conditions (ISO T1)
Indoor
Outdoor
Input (kW)
Current (A)
Current (A)
Starting current (A)
Mode
Capacity (W)
Total Input (kW) (In + Out)
Service
Ref.
Indoor unit
Outdoor unit Cooling
7,500
3.36
0.09
0.44
15.31
85
Cooling
7,500
3.36
0.09
0.44
5.23
43
Cooling
13,000
4.90
0.26
1.24
7.22
65.5
PU-P3VGAA1.UK PU-P3YGAA1.UK PU-P5YGAA1.UK
PCA-P3HA PCA-P5HA
Indoor
Outdoor
Input (kW)
Current (A)
Current (A)
Starting current (A)
Mode
Capacity (W)
Total Input (kW) (In + Out)
Service
Ref.
Indoor unit
Outdoor unit Cooling
7,500
3.36
0.09
0.43
14.63
89
Cooling
7,500
3.36
0.09
0.43
4.96
45
Cooling
13,000
4.90
0.26
1.19
6.85
65.5
PU-P3VGAA1.UK PU-P3YGAA1.UK PU-P5YGAA1.UK
PCA-P3HA PCA-P5HA
Indoor
Outdoor
Input (kW)
Current (A)
Current (A)
Starting current (A)
Mode
Capacity (W)
Total Input (kW) (In + Out)
Service
Ref.
Indoor unit
Outdoor unit Cooling
7,500
3.36
0.09
0.41
14.02
93
Cooling
7,500
3.36
0.09
0.41
4.78
47
Cooling
13,000
4.90
0.26
1.14
6.61
65.5
PU-P3VGAA1.UK PU-P3YGAA1.UK PU-P5YGAA1.UK
PCA-P3HA PCA-P5HA
Indoor·······220V 50Hz Single phase
Outdoor····220V 50Hz Singel phase / 380V 50Hz 3 phase
Indoor·······230V 50Hz Single phase
Outdoor····230V 50Hz Singel phase / 400V 50Hz 3 phase
Indoor·······240V 50Hz Single phase
Outdoor····240V 50Hz Singel phase / 415V 50Hz 3 phase
OC289--1.qxp 03.3.19 10:50 AM Page 17

18
3. STANDARD OPERATION DATA
3.1 Heat pump type
Rating Conditions (ISO T1)
Electrical circuit TotalRefrigerant circuitIndoor side
Outdoor
side
Capacity
Input
Indoor unit Service Ref.
Phase, Hz
Volts
Amperes
Outdoor unit Service Ref.
Phase, Hz
Volts
Amperes
Discharge pressure
Suction pressure
Discharge temperature
Condensing temperature
Suction temperature
Ref. pipe length
Intake air temperature
Discharge air temperature
Intake air temperature
Mode
Service Ref.
SHF
BF
W
KW
V
A
V
A
°C
°C
°C
m
°C
°C
°C
°C
°C
Cooling
7,500
3.36
0.43
14.63/4.96
84
59
2.9
5
27
19
13
35
24
0.72
0.14
Heating
9,200
3.41
0.43
14.85/5.04
89
62
-0.7
5
20
15
47
7
6
—
—
PCA-P3HA
1, 50
230
PUH-P3VGAA1.UK
/PUH-P3YGAA1.UK
1, 50/3, 50
230/400
2.31
(23.5)
0.45
(4.6)
2.43
(24.8)
0.39
(4.0)
MPa
(Of/F)
MPa
(Of/F)
D.B.
W.B.
D.B.
D.B.
W.B.
PCA-P3HA
Cooling
13,000
4.90
1.19
6.85
73
54
4.8
5
27
19
15
35
24
0.72
0.19
Heating
16,000
4.98
1.19
7.07
73
55
-0.3
5
20
15
43
7
6
—
—
PCA-P5HA
1, 50
230
PUH-P5YGAA1.UK
3, 50
400
2.01
(20.5)
0.46
(4.6)
2.07
(21.1)
0.38
(3.8)
PCA-P5HA
The unit of pressure has been changed to Mpa on the international system of unit (SI unit system).
The converted score against the traditional unit system can be gotten according to the formula below.
1(Mpa)=10.2(OOf/FF)
OC289--1.qxp 03.3.19 10:50 AM Page 18

19
Air flow
Air speed
Coverage range
m3/min
m/sec
m
19
2.9
7.9
38
4.2
13.2
PCA-P3HA PCA-P5HA
4. OUTLET AIR SPEED AND COVERAGE RANGE
3.2 Cooling only type
Rating Conditions (ISO T1)
The unit of pressure has been changed to Mpa on the international system of unit (SI unit system).
The converted score against the traditional unit system can be gotten according to the formula below.
1(Mpa)=10.2(OOf/FF)
Electrical circuit TotalRefrigerant circuitIndoor side
Outdoor
side
Capacity
Input
Indoor unit Service Ref.
Phase, Hz
Volts
Amperes
Outdoor unit Service Ref.
Phase, Hz
Volts
Amperes
Discharge pressure
Suction pressure
Discharge temperature
Condensing temperature
Suction temperature
Ref. pipe length
Intake air temperature
Discharge air temperature
Intake air temperature
Mode
Service Ref.
SHF
BF
W
KW
V
A
V
A
°C
°C
°C
m
°C
°C
°C
°C
°C
Cooling
7,500
3.36
PCA-P3HA
1, 50
230
0.43
PU-P3VGAA1.UK
/PU-P3YGAA1.UK
1, 50/3, 50
230/400
14.63/4.96
84
59
2.9
5
27
19
13
35
24
0.72
0.14
2.31
(23.5)
0.45
(4.6)
MPa
(Of/F)
MPa
(Of/F)
D.B.
W.B.
D.B.
D.B.
W.B.
PCA-P3HA
Cooling
13,000
4.90
PCA-P5HA
1, 50
230
1.19
PU-P5YGAA1.UK
3, 50
400
6.85
73
54
4.8
5
27
19
15
35
24
0.75
0.19
2.01
(20.5)
0.46
(4.6)
PCA-P5HA
OC289--1.qxp 03.3.19 10:50 AM Page 19

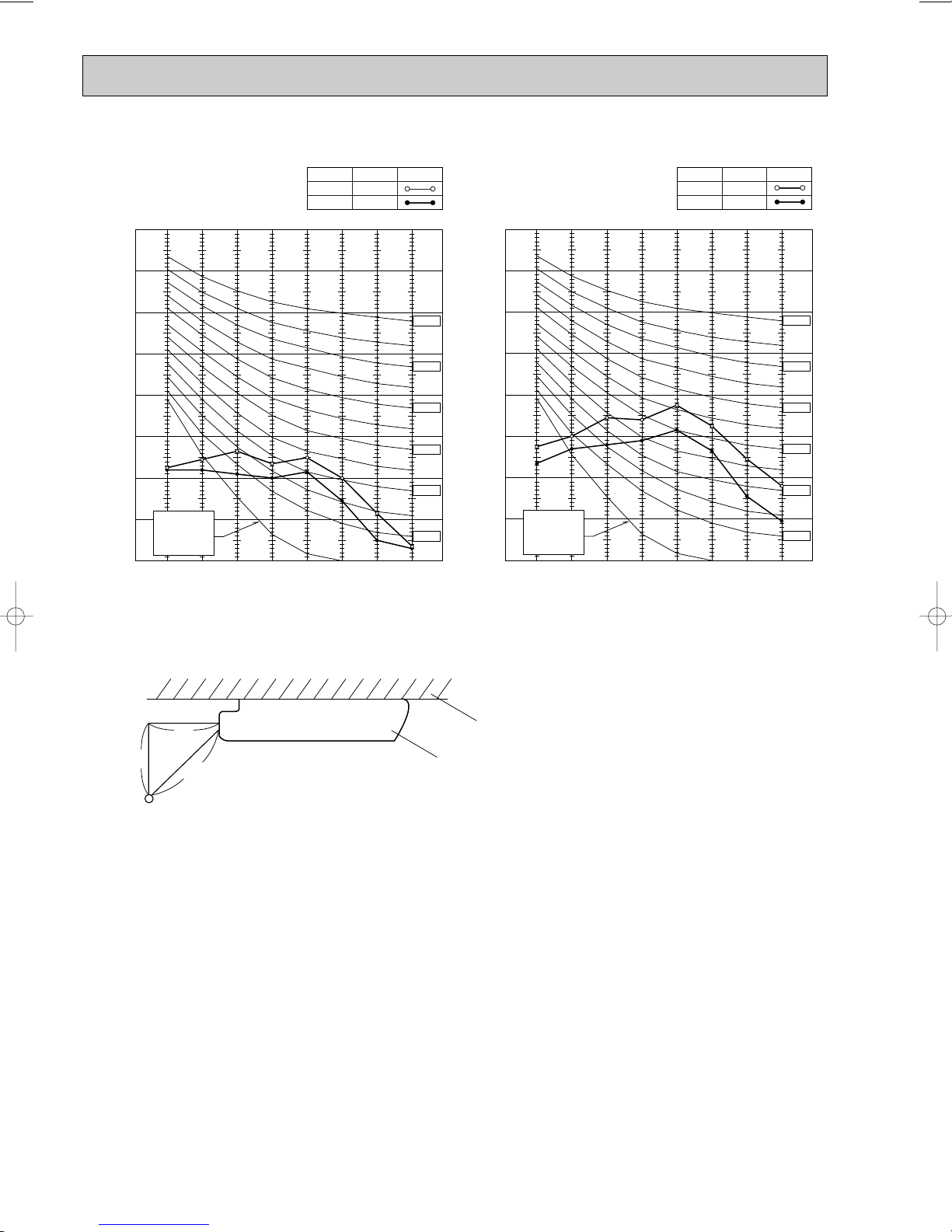

20
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
TERESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
PCA-P3HA NOTCH
Hi
Lo
SPL(dB)
38
34
LINE
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
TERESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
PCA-P5HA NOTCH
Hi
Lo
SPL(dB)
50
44
LINE
5. NOISE CRITERION CURVES
1m
1m unit
about 1.4m
MICROPHONE
ceiling
OC289--1.qxp 03.3.19 10:50 AM Page 20
