TECHNICAL & SERVICE MANUAL
HEAT PUMP PEH-P8MY
PEH-P16MYA, PEH-P20MYA
A, PEH-P10MYA
Models
AIR-COOLED SPLIT-TYPE
PACKAGED AIR CONDITIONERS
<Indoor unit>
2003
For use with the R407C

Page
Contents
1 PRECAUTIONS FOR DEVICES THAT USE R407C REFRIGERANT .................................... 1
[1] Storage of Piping Material .................................................................................................. 2
[2] Piping Machining ................................................................................................................ 3
[3] Necessary Apparatus and Materials and Notes on Their Handling .................................... 4
[4] Brazing ................................................................................................................................ 5
[5] Airtightness Test.................................................................................................................. 6
[6] Vacuuming .......................................................................................................................... 6
[7] Charging of Refrigerant ......................................................................................................7
2PART NAMES AND FUNCTIONS ............................................................................................ 8
3 SPECIFICATIONS .................................................................................................................. 10
4PART NAMES AND FUNCTIONS .......................................................................................... 14
5ELECTRICAL WIRING DIAGRAM ......................................................................................... 19
6TECHNICAL DATA TO MEET LVD ........................................................................................ 21
[1] Capacity/Input Ratio against Changes in Room Airflow Rate ........................................... 21
[2] Bypass Factor Curves ...................................................................................................... 23
[3] Cooling Sensible Heating Capacity Table ......................................................................... 24
[4] Airflow Characteristic Curves ............................................................................................ 25
[5] Center of Gravity (Indoor unit) .......................................................................................... 25
[6] NC Curve (Indoor unit)...................................................................................................... 27
7SERVICE DATA ...................................................................................................................... 29
[1] Appearance of Equipment ................................................................................................ 29
[2] Internal Construction ......................................................................................................... 30
[3] Refrigerant Circuit ............................................................................................................. 30
8FUNCTION OF SWITCH ON INDOOR CIRCUIT BOARD ..................................................... 31
[1] DIP SW1 for model Selection (DIP SW1 has been set at factory) .................................... 31
[2] DIP SW2 for Capacity Setting (DIP SW2 has been set at factory) ................................... 31
[3] DIP SWE for Emergency Operation.................................................................................. 31
9 TEST RUN .............................................................................................................................. 32
[1] Before test run .................................................................................................................. 32
[2] Test run procedures ..........................................................................................................32
[3] Self-diagnosis ................................................................................................................... 34
[4] Remote controller diagnosis ............................................................................................. 36

–1–
¡PRECAUTIONS FOR DEVICES THAT USE R407C REFRIGERANT
Caution
Do not use the existing refrigerant piping.
•The old refrigerant and refrigerator oil in the existing
piping contains a large amount of chlorine which may
cause the refrigerator oil of the new unit to deterio-
rate.
Use refrigerant piping made of phosphorus deoxi-
dized copper and copper alloy seamless pipes and
tubes”. In addition, be sure that the inner and outer
surfaces of the pipes are clean and free of hazardous
sulphur, oxides, dust/dirt, shaving particles, oils,
moisture, or any other contaminant.
• Contaminants on the inside of the refrigerant piping
may cause the refrigerant residual oil to deteriorate.
Store the piping to be used during installation indoors
and keep both ends of the piping sealed until just
before brazing. (Store elbows and other joints in a
plastic bag.)
• If dust, dirt, or water enters the refrigerant cycle,
deterioration of the oil and compressor trouble may
result.
Use ester oil, ether oil or alkylbenzene (small
amount) as the refrigerator oil to coat flares and
flange connections.
•The refrigerator oil will degrade if it is mixed with a
large amount of mineral oil.
Use liquid refrigerant to seal the system.
•If gas refrigerant is used to seal the system, the com-
position of the refrigerant in the cylinder will change
and performance may drop.
Do not use a refrigerant other than R407C.
•If another refrigerant (R22, etc.) is used, the chlorine
in the refrigerant may cause the refrigerator oil to de-
teriorate.
Use a vacuum pump with a reverse flow check valve.
•The vacuum pump oil may flow back into the refriger-
ant cycle and cause the refrigerator oil to deteriorate.
Do not use the following tools that have been used
with conventional refrigerants.
(Gauge manifold, charge hose, gas leak detector, re-
verse flow check valve, refrigerant charge base,
vacuum gauge, refrigerant recovery equipment)
• If the conventional refrigerant and refrigerator oil are
mixed in the R407C, the refrigerant may deterio-
rated.
• If water is mixed in the R407C, the refrigerator oil
may deteriorate.
•Since R407C does not contain any chlorine, gas
leak detectors for conventional refrigerants will not
react to it.
Do not use a charging cylinder.
•Using a charging cylinder may cause the refrigerant
to deteriorate.
Be especially careful when managing the tools.
• If dust, dirt, or water gets in the refrigerant cycle, the
refrigerant may deteriorate.
If the refrigerant leaks, recover the refrigerant in the
refrigerant cycle, then recharge the cycle with the
specified amount of the liquid refrigerant indicated
on the air conditioner.
•Since R407C is a nonazeotropic refrigerant, if addi-
tionally charged when the refrigerant leaked, the com-
position of the refrigerant in the refrigerant cycle will
change and result in a drop in performance or abnor-
mal stopping.

–2–
[1] Storage of Piping Material
(1) Storage location
Store the pipes to be used indoors. (Warehouse at site or owner’s warehouse)
Storing them outdoors may cause dirt, waste, or water to infiltrate.
(2) Pipe sealing before storage
Both ends of the pipes should be sealed until immediately before brazing.
Wrap elbows and T’s in plastic bags for storage.
*The new refrigerator oil is 10 times more hygroscopic than the conventional refrigerator oil (such as Suniso). Water
infiltration in the refrigerant circuit may deteriorate the oil or cause a compressor failure. Piping materials must be stored
with more care than with the conventional refrigerant pipes.
OK
OK
NG
NG

[2] Piping Machining
Use ester oil, ether oil or alkylbenzene (small amount) as the refrigerator oil to coat flares and flange connections.
Use only the necessary minimum quantity of oil.
Reason:
1. The refrigerator oil used for the equipment is highly hygroscopic and may introduce water inside.
Notes:
•Introducing a great quantity of mineral oil into the refrigerant circuit may also cause a compressor failure.
•Do not use oils other than ester oil, ether oil or alkylbenzene.

–4–
[3] Necessary Apparatus and Materials and Notes on Their Handling
The following tools should be marked as dedicated tools for R407C.
<<Comparison of apparatus and materials used for R407C and for R22>>
Apparatus Used Use R22 R407C
Gauge manifold Evacuating, refrigerant filling Current product
Charging hose Operation check Current product
Charging cylinder Refrigerant charging Current product Do not use
Gas leakage detector Gas leakage check Current product Shared with R134a
Refrigerant collector Refrigerant collection R22 For R407C use only
Refrigerant cylinder Refrigerant filling R22 Identification of dedi-
cated use for R407C:
Record refrigerant
name and put brown
belt on upper part of
cylinder.
Vacuum pump Vacuum drying Current product Can be used by attach-
ing an adapter with a
check valve.
Vacuum pump with a check valve Current product
Flare tool Flaring of pipes Current product
Bender Bending of pipes Current product
Application oil Applied to flared parts Current product Ester oil or Ether oil or
Alkybenzene (Small
amount)
Torque wrench Tightening of flare nuts Current product
Pipe cutter Cutting of pipes Current product
Welder and nitrogen cylinder Welding of pipes Current product
Refrigerant charging meter Refrigerant charging Current product
Vacuum gauge Checking the vacuum degree Current product
Symbols: To be used for R407C only. Can also be used for conventional refrigerants.
Tools for R407C must be handled with more care than those for conventional refrigerants. They must not come into contact
with any water or dirt.

–5–

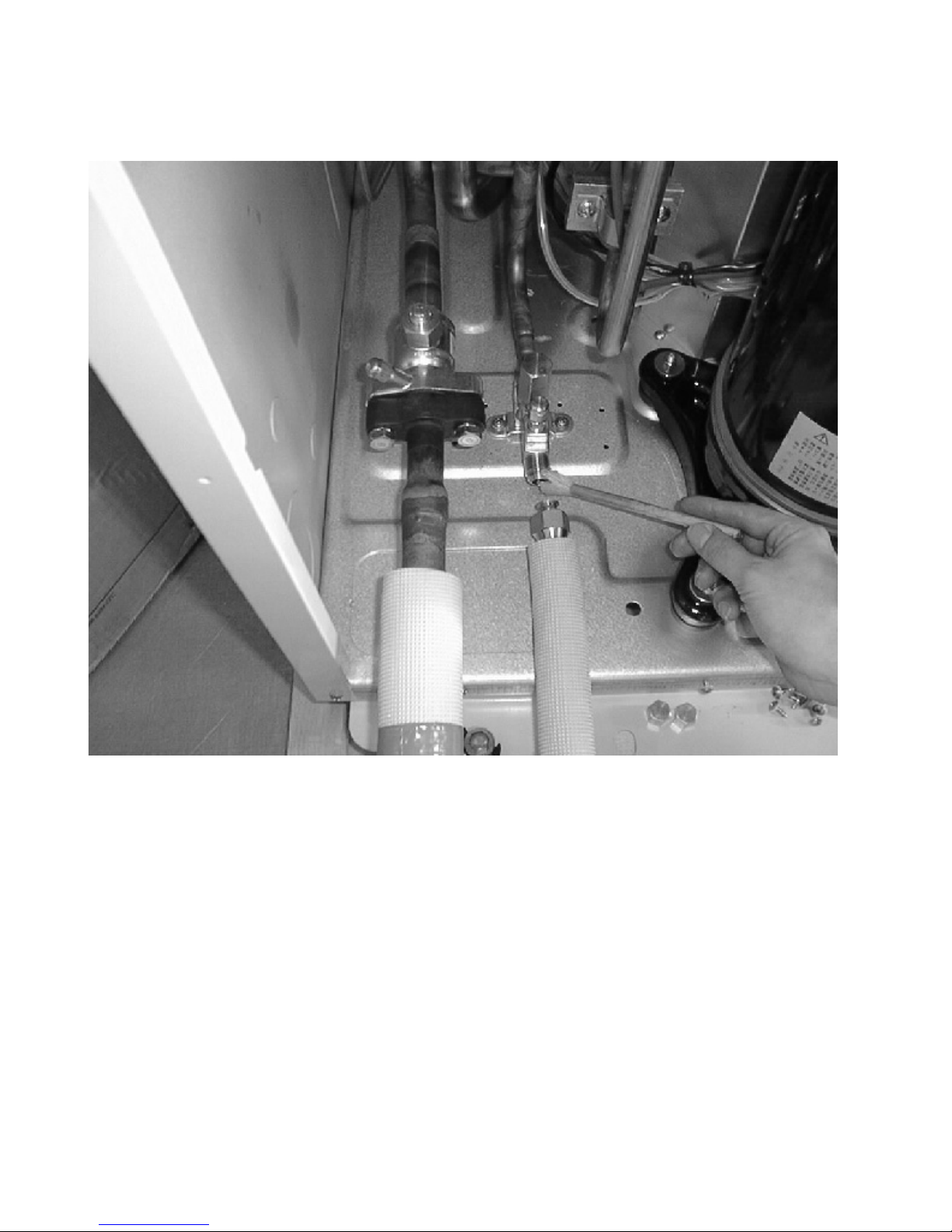

[4] Brazing
No changes from the conventional method, but special care is required so that foreign matter (ie. oxide scale, water, dirt,
etc.) does not enter the refrigerant circuit.
Example: Inner state of brazed section
When non-oxide brazing was not used When non-oxide brazing was used
Items to be strictly observed:
1. Do not conduct refrigerant piping work outdoors on a rainy day.
2. Apply non-oxide brazing.
3. Use a brazing material (BCuP-3) which requires no flux when brazing between copper pipes or between a copper
pipe and copper coupling.
4. If installed refrigerant pipes are not immediately connected to the equipment, then braze and seal both ends of them.
Reasons:
1. The new refrigerant oil is 10 times more hygroscopic than the conventional oil. The probability of a machine failure if
water infiltrates is higher than with conventional refrigerant oil.
2. A flux generally contains chlorine. A residual flux in the refrigerant circuit may generate sludge.
Note:
•Commercially available antioxidants may have adverse effects on the equipment due to its residue, etc. When
applying non-oxide brazing, use nitrogen.

–6–

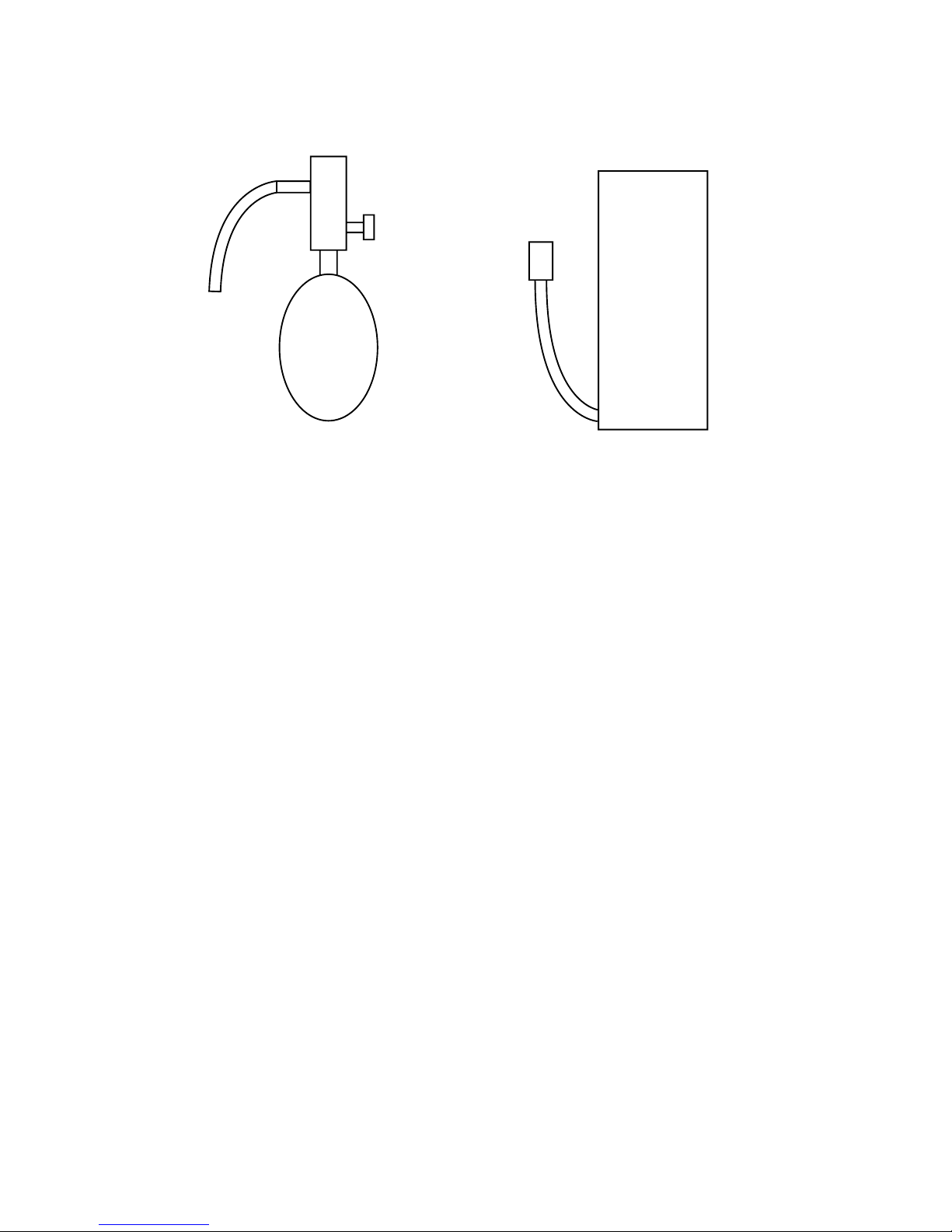

[5] Airtightness Test
No changes from the conventional method. Note that a refrigerant leakage detector for R22 cannot detect R407C leakage.
Halide torch R22 leakage detector
Items to be strictly observed:
1. Pressurize the equipment with nitrogen up to the design pressure and then judge the equipment’s airtightness, taking
temperature variations into account.
2. When investigating leakage locations using a refrigerant, be sure to use R407C.
3. Ensure that R407C is in a liquid state when charging.
Reasons:
1. Use of oxygen as the pressurized gas may cause an explosion.
2. Charging with R407C gas will lead the composition of the remaining refrigerant in the cylinder to change and this
refrigerant can then not be used.
Note:
•Aleakage detector for R407C is sold commercially and it should be purchased.
[6] Vacuuming
1. Vacuum pump with check valve
A vacuum pump with a check valve is required to prevent the vacuum pump oil from flowing back into the refrigerant
circuit when the vacuum pump power is turned off (power failure).
It is also possible to attach a check valve to the actual vacuum pump afterwards.
2. Standard degree of vacuum for the vacuum pump
Use a pump which reaches 0.5 Torr (500 MICRON) or below after 5 minutes of operation.
In addition, be sure to use a vacuum pump that has been properly maintained and oiled using the specified oil. If the
vacuum pump is not properly maintained, the degree of vacuum may be too low.
3. Required accuracy of the vacuum gauge
Use a vacuum gauge that can measure up to 5 Torr. Do not use a general gauge manifold since it cannot measure a
vacuum of 5 Torr.
4. Evacuating time
•Evacuate the equipment for 1 hour after –755 mmHg (5 Torr) has been reached.
•After envacuating, leave the equipment for 1 hour and make sure the that vacuum is not lost.
5. Operating procedure when the vacuum pump is stopped
In order to prevent a backflow of the vacuum pump oil, open the relief valve on the vacuum pump side or loosen the
charge hose to drawn in air before stopping operation.
The same operating procedure should be used when using a vacuum pump with a check valve.
NG NG

–7–
[7] Charging of Refrigerant
R407C must be in a liquid state when charging, because it is a non-azeotropic refrigerant.
For a cylinder with a syphon attached For a cylinder without a syphon attached
Cylinder color identification R407C-Gray Charged with liquid refrigerant
R410A-Pink
Reasons:
1. R407C is a mixture of 3 refrigerants, each with a different evaporation temperature. Therefore, if the equipment is
charged with R407C gas, then the refrigerant whose evaporation temperature is closest to the outside temperature is
charged first while the rest of refrigerants remain in the cylinder.
Note:
•In the case of a cylinder with a syphon, liquid R407C is charged without turning the cylinder up side down. Check the
type of cylinder before charging.
Cylin-
der
Cylin-
der
Valve Valve
Liquid Liquid

–8–
Air inlet
Air outlet
Filter

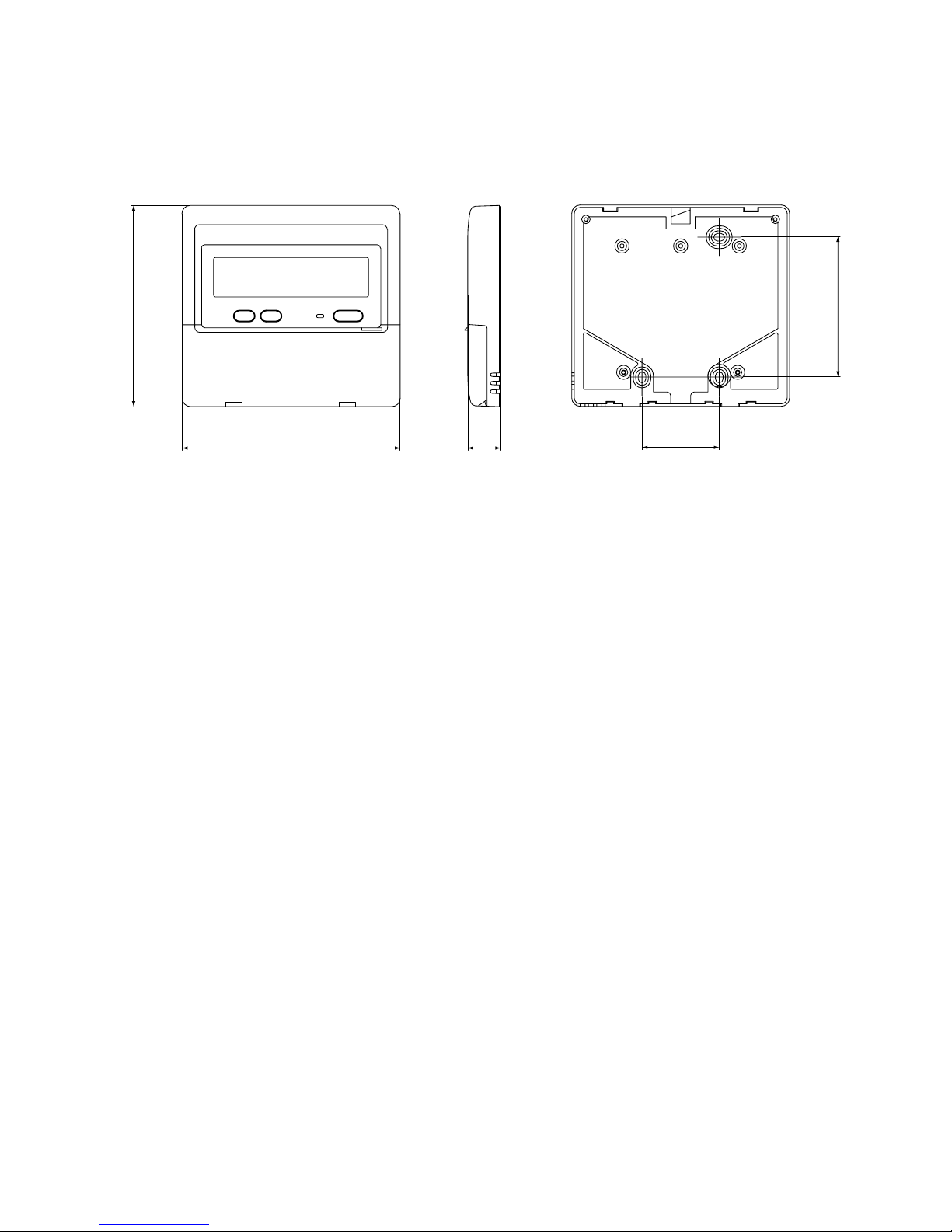

PAR-20MAA
ON/OFF
CENTRALLY CONTROLLED
ERROR CODE
CLOCK
ON OFF
ßC
CHECK
CHECK MODE
FILTER
TEST RUN
FUNCTION
ßC
1Hr.
NOT AVAILABLE
STAND BY
DEFROST
FILTER
CHECK TEST
TEMP.
TIMER SET
456 879
10
13
11
12
1
2
3
2 PART NAMES AND FUNCTIONS
Indoor unit
• Air inlet : Sucks the ambient air in.
• Filter : The filter bruit into the unit as standard is a
simple filter to remove visible dust and dirt. If
air pulification is one of the conditions required
for use, consult with your dealer.
• Air outlet : Blows the air back out into the room.
Remote controller (PAR-20MAA)
• Once the controls are set, the same operation mode can be repeated by simply pressing the ON/OFF button.
Operation buttons
1[Room temperature adjustment] Button
2[Timer/continuous] Button
3[Selecting operation] Button
4Time selection] Button
[Time-setting] Button
5[Louver] Button (This button does not operate in this model)
6[Fan speed adjustment] Button
7[Up/down airflow direction] Button (This button does not operate in this model)
8[Ventilation] Button
9[Checking/built-in] Button
10 [Test run] Button
11 [Filter] Button (This button does not operate in this model)
12 [ON/OFF] Button
13 Position of built-in room temperature
•Never expose the remote controller to direct sunlight. Doing so can result in the erroneous measurement of room tem-
perature.
•Never place any obstacle around the lower right-hand section of the remote controller. Doing so can result in the errone-
ous measurement of room temperature.

–9–
ON/OFF
CENTRALLY CONTROLLED
ERROR CODE
CLOCK
ON OFF
ßC
CHECK
CHECK MODE
FILTER
TEST RUN
FUNCTION
ßC
1Hr.
NOT AVAILABLE
STAND BY
DEFROST
TEMP.
D U T SQ
C
GH JKL
I
BA
R
P
O
N
M
E
F
Display
Caution:
• Only the Power display lights when the unit is stopped and power supplied to the unit.
•When power is turned ON for the first time the (CENTRAL CTRL) display appears to go off momentarily but this is not
a malfunction.
•When the central control remote control unit, which is sold separately, is used the ON-OFF button, operation switch
button and TEMP. adjustment button do not operate.
•“NOT AVAILABLE” is displayed when the Airflow direction button or Louver button are pressed. This indicates that
this room unit is not equipped with the fan direction adjustment function and the louver function.
•When power is turned ON for the first time, it is normal that “H0” is displayed on the room temperature indication (For
max. 2 minutes). Please wait until this “H0” indication disappear then start the operation.
ACurrent time/Timer
CCentralized control
DAbnormality control
EOperation mode: COOL, DRY, AUTO,
FAN, HEAT
FPreparing for Heating mode
GDefrost mode
HSet temperature
IPower ON
J Louver
KNot available function
LVentilation
M Function setting mode
NTest run mode
OError check mode
PFilter sign
QSet effective for 1 hr.
RSensor position
SRoom temperature
T Airflow
UFan speed

–10–
Specifications of air-source heat pump type packaged air conditioner
(Ceiling concealed type indoor unit)
Model name PEH-P8MYA Quantity Symbol
Capacity kcal/h
kW
Indoor side Dry bulb temperature/wet bulb temperature
Outdoor side Dry bulb temperature/wet bulb temperature
Power source
Power consumption kW
Operating current A
Remote controller temperature setting range °C
Airflow direction control
Type ×Quantity
Airflow rate m3/min
External static pressure Pa
Motor output kW
External finish
Unit (H ×W ×D) mm
Panel (H ×W ×D) mm
Heat exchanger type
Air filter
Insulation material
Refrigerant piping dimension Liquid/Gas φ mm
Drain piping dimension φ mm
Noise level dB (A)
Net weight kg
Minimum wire thickness
Circuit breaker
Operation control device (provided)
Decoration panel (Option)
Other mountable major options
Accessories
Special note, Non-standard specifications, etc.
1. The cooling and heating capacities are the maximum capacities that were obtained by operating in the above
air conditions and with a refrigerant pipe of about 7.5 m.
2. The actual capacity characteristics vary with the combination of indoor and outdoor units. See the technical
informaition.
3. The operating noise is the data that was obtained by measuring it 1.5 m from the unit’s bottom in an anechoic
room. (Noise meter A-scale value)
4. The figure of Electrical characteristic, Airflow rate, Noise level, indicates, at 50 Pa setting.
Cooling Heating
18,000 20,400
20.9 23.7
27 °C/19 °C 20 °C/–
35 °C/24 °C7°C/6 ˚C
3N~ 380/400/415V 50Hz
0.65/0.65/0.65 0.65/0.65/0.65
1.12/1.12/1.12 1.12/1.12/1.12
19 ~ 30 17 ~ 28
–
Sirrocco fan ×2
60
50/150
0.75
Galvanizing
428 ×1380 ×650
–
Cross fin
Saran net
Polyethylene foam
12.7/25.4
25.4 (RC1)
49 (at 50 Pa)
70
1.6 mm
15 A
Remote controller: PAR-20MAA
–
–
Electrical characteristics
Fan
External dimension
External wiring
Composing parts
Notes:
Installation manual, Operation manual,
Remote controller
–
Air con-
dition
3 SPECIFICATIONS

–11–
Specifications of air-source heat pump type packaged air conditioner
(Ceiling concealed type indoor unit)
Model name PEH-P10MYA Quantity Symbol
Capacity kcal/h
kW
Indoor side Dry bulb temperature/wet bulb temperature
Outdoor side Dry bulb temperature/wet bulb temperature
Power source
Power consumption kW
Operating current A
Remote controller temperature setting range °C
Airflow direction control Vertical
Type ×Quantity
Airflow rate m3/min
External static pressure Pa
Motor output kW
External finish
Unit (H ×W ×D) mm
Panel (H ×W ×D) mm
Heat exchanger type
Air filter
Insulation material
Refrigerant piping size Liquid/Gas φ mm
Drain piping size φ mm
Noise level dB (A)
Net weight kg
Minimum wire thickness
Circuit breaker
Operation control device (provided)
Decoration panel (Option)
Other mountable major options
Accessories
Special note, Non-standard specifications, etc.
1. The cooling and heating capacities are the maximum capacities that were obtained by operating in the above
air conditions and with a refrigerant pipe of about 7.5 m.
2. The actual capacity characteristics vary with the combination of indoor and outdoor units. See the technical
informaition.
3. The operating noise is the data that was obtained by measuring it 1.5 m from the unit’s bottom in an anechoic
room. (Noise meter A-scale value)
4. The figure of Electrical characteristic, Airflow rate, Noise level, indicates, at 50 Pa setting.
Cooling Heating
22,400 26,200
26.0 30.5
27 °C/19 °C 20 °C/–
35 °C/24 °C7°C/ 6 °C
3N~ 380/400/415V 50 Hz
0.94/0.94/0.94 0.94/0.94/0.94
1.64/1.64/1.64 1.64/1.64/1.64
19 ~ 30 17 ~ 28
–
Sirrocco fan ×2
80
50/150
1.23
Galvanizing
428 ×1,580 ×650
–
Cross fin
Saran net
Polyethyene foam
12.7/28.58
25.4 (RC1)
53 (at 50 Pa)
80
1.6 mm
15 A
Remote controller: PAR-20MAA
–
–
Electrical characteristics
Fan
External dimension
External wiring
Composing parts
Notes:
Installation manual, Operation manual,
Remote controller
–
Air con-
dition

–12–
Specifications of air-source heat pump type packaged air conditioner
(Ceiling concealed type indoor unit)
Model name PEH-P16MYA Quantity Symbol
Capacity kcal/h
kW
Indoor side Dry bulb temperature/wet bulb temperature
Outdoor side Dry bulb temperature/wet bulb temperature
Power source
Power consumption kW
Operating current A
Remote controller temperature setting range °C
Airflow direction control
Type ×Quantity
Airflow rate m3/min
External static pressure Pa
Motor output kW
External finish
Unit (H ×W ×D) mm
Panel (H ×W ×D) mm
Heat exchanger type
Air filter
Insulation material
Refrigerant piping dimension Liquid/Gas φ mm
Drain piping dimension φ mm
Noise level dB (A)
Net
Control capacity
weight kg
%
Minimum wire thickness
Circuit breaker
Operation control device (provided)
Decoration panel (Option)
Other mountable major options
Accessories
Special note, Non-standard specifications, etc.
1. The cooling and heating capacities are the maximum capacities that were obtained by operating in the above
air conditions and with a refrigerant pipe of about 7.5 m.
2. The actual capacity characteristics vary with the combination of indoor and outdoor units. See the technical
informaition.
3. The operating noise is the data that was obtained by measuring it 1.5 m from the unit’s bottom in an anechoic
room. (Noise meter A-scale value)
Cooling Heating
36,000 40,800
41.8 47.4
27 °C/19 °C 20 °C/–
35 °C/24 °C7°C/6 ˚C
3N~ 380/415V 50Hz
2.3/2.3 2.3/2.3
4.5/4.1 4.5/4.1
19 ~ 30 17 ~ 28
–
Sirrocco fan ×2
140
150
1.5
Galvanizing
706 ×1,690 ×865
–
Cross fin
Saran net
Polyethylene foam
(12.7/25.4) ×2
25.4 (RC1)
55
180
0–50–100
1.6 mm
15 A
Remote controller: PAR-20MAA
–
–
Electrical characteristics
Fan
External dimension
External wiring
Composing parts
Notes:
Installation manual, Operation manual,
Remote controller
–
Air con-
dition

–13–
Specifications of air-source heat pump type packaged air conditioner
(Ceiling concealed type indoor unit)
Model name PEH-P20MYA Quantity Symbol
Capacity kcal/h
kW
Indoor side Dry bulb temperature/wet bulb temperature
Outdoor side Dry bulb temperature/wet bulb temperature
Power source
Power consumption kW
Operating current A
Remote controller temperature setting range °C
Airflow direction control Vertical
Type ×Quantity
Airflow rate m3/min
External static pressure Pa
Motor output kW
External finish
Unit (H ×W ×D) mm
Panel (H ×W ×D) mm
Heat exchanger type
Air filter
Insulation material
Refrigerant piping size Liquid/Gas φ mm
Drain piping size φ mm
Noise level dB (A)
Net
Control capacity
weight kg
%
Minimum wire thickness
Circuit breaker
Operation control device (provided)
Decoration panel (Option)
Other mountable major options
Accessories
Special note, Non-standard specifications, etc.
1. The cooling and heating capacities are the maximum capacities that were obtained by operating in the above
air conditions and with a refrigerant pipe of about 7.5 m.
2. The actual capacity characteristics vary with the combination of indoor and outdoor units. See the technical
informaition.
3. The operating noise is the data that was obtained by measuring it 1.5 m from the unit’s bottom in an anechoic
room. (Noise meter A-scale value)
Cooling Heating
44,800 52,400
52.0 61.0
27 °C/19 °C 20 °C/–
35 °C/24 °C7°C/ 6 °C
3N~ 380/415V 50 Hz
2.5/2.5 2.5/2.5
5.1/4.7 5.1/4.7
19 ~ 30 17 ~ 28
–
Sirrocco fan ×2
170
150
2.0
Galvanizing
706 ×1,993 ×865
–
Cross fin
Saran net
Polyethyene foam
(12.7/28.58) ×2
25.4 (RC1)
60
212
0–50–100
1.6 mm
15 A
Remote controller: PAR-20MAA
–
–
Electrical characteristics
Fan
External dimension
External wiring
Composing parts
Notes:
Installation manual, Operation manual,
Remote controller
–
Air con-
dition

–14–

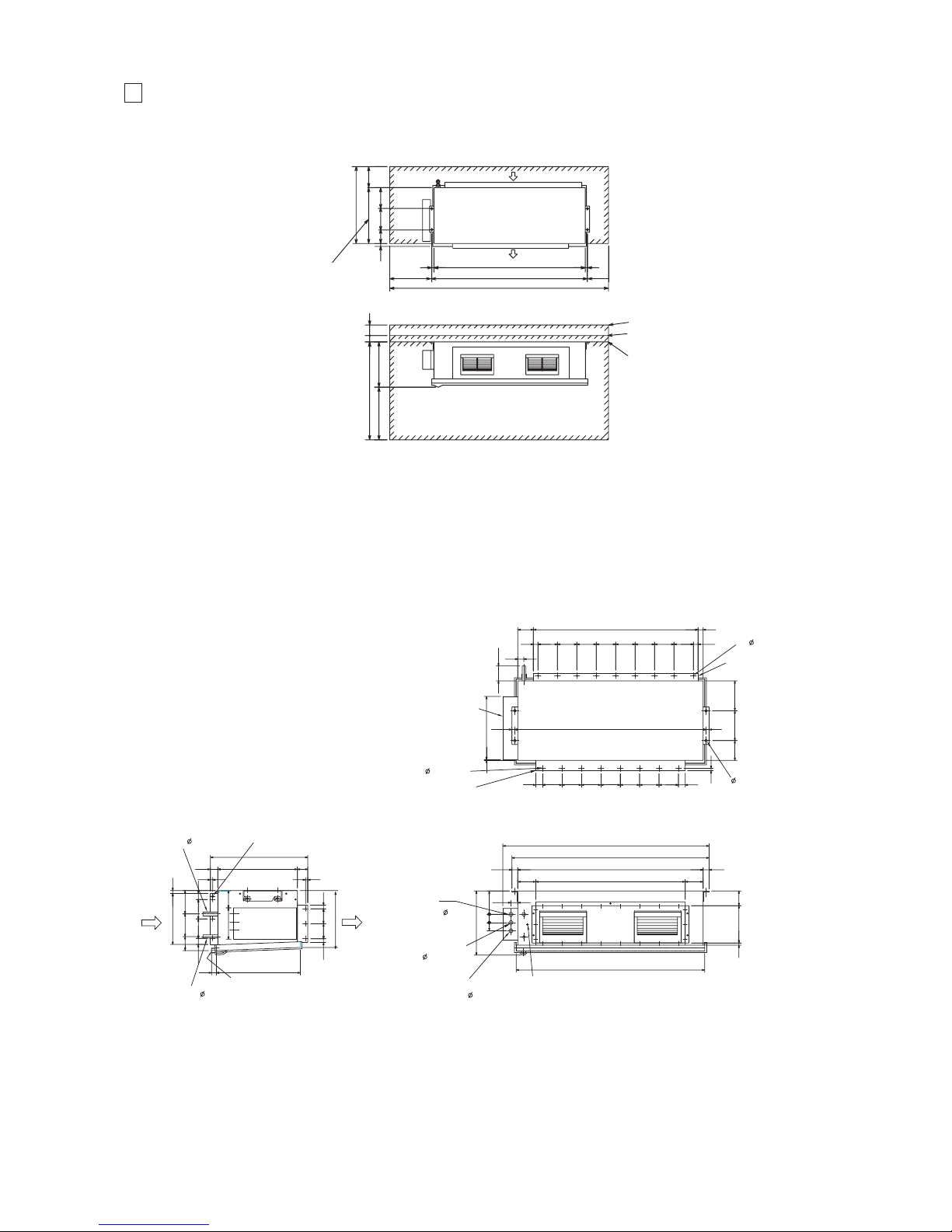

4 PART NAMES AND FUNCTIONS
(1) Indoor Unit
• Models PEH-P8MYA
Note: When connecting duct to the inlet side, remove the air filter attached to the unit body, and mount
an air filter onto the inlet duct side separately
AIR INLET SENSOR
REFRIGERANT PIPE 12.7
(1/2 BRAZE)
REFRIGERANT PIPE 25.4
(1 BRAZE)
AIR INLET AIR OUTLET
POWER SUPPLY
WIRING HOLE 27
(AIR INLET SIDE)
CONTROLLER
WIRING HOLE 27
(AIR INLET SIDE)
CONNECT WIRE (PEH-PUH)
WIRING HOLE 27
(AIR INLET SIDE)
DUCT EARTH POINT
(BOTH DUCT SIDE)
152
650
428
95 156
AIR INLET DUCT
FLANGE
24- 3.1 HOLES
34
31
1102
104
130130130130130130130130
31
344 20
15
7053050
130
130 42
42
DRAIN: Rc 1
CONTROL BOX
4- 12 HOLES
22- 3.1 HOLES
AIR OUTLET DUCT
FLANGE
33 562
382
25 100 100 25
1240
20 20
1280
15
40
120
4513013013013013013013045
40
1320
1000
120
1264
98250
14
(FOR HUNGING
BOLT M10)
<FIELD SUPPLY>
15
100
40
210 116
4235
46
55 55 156
1380
131 200 199
928
1240
20
530
13132 200 199
400
730
200
1280
1880
200
20
428500
25 75
(1)
(2)
(3)
(1) When connecting air inlet
(2) When installing the suspension fixtures prior to installation of the indoor unit without inlet duct
(3) When hanging the indoor unit directly without inlet duct
(A) Service space
(B) Suspension bolt pitch
(C) Air inlet
(D) Air outlet
(A)
(A)
(C)
(B) (B)
(D)

–15–
POWER SUPPLY
WIRING HOLE 27
(AIR INLET SIDE)
CONTROLLER
WIRING HOLE 27
(AIR INLET SIDE)
CONNECT WIRE
(PEH-PUH)
WIRING HOLE 27
(AIR INLET SIDE)
DUCT EARTH POINT
(BOTH DUCT SIDE)
428
1440 40
220
40
1520
1000
220
1464
98
250
14
46
55 55 156
1580
AIR INLET DUCT
FLANGE
26- 3.1 HOLES
34
66
1302
104
130130130130130130130130
66
CONTROL BOX
4- 12 HOLES
22- 3.1 HOLES
AIR OUTLET DUCT
FLANGE
20 20 1480
15
45130130130130
130
130
45
(FOR HUNGING
BOLT M10)
<FIELD SUPPLY>
100
40
423
5
131 200 199
130
130
(1) When connecting air inlet
(2) When installing the suspension fixtures prior to installation of the indoor unit without inlet duct
(3) When hanging the indoor unit directly without inlet duct
(A) Service space
(B) Suspension bolt pitch
(C) Air inlet
(D) Air outlet
1440
20
530
13132 200 199
400
730
200
1480
2080
200
20
(A) (C)
(B) (B)
(D)
AIR INLET SENSOR
REFRIGERANT PIPE 12.7
(1/2 BRAZE)
REFRIGERANT PIPE
28.6 (1-1/8 BRAZE)
AIR INLET AIR OUTLET
152
650
95 156
344 20
15
7053050
130
130 42
42
DRAIN: Rc 1
33 562
382
25 100 100 25
15
210 116
928
428500
25 75
(1)
(2)
(3)
(A)
• Models PEH-P10MYA
Note: When connecting duct to the inlet side, remove the air filter attached to the unit body, and mount
an air filter onto the inlet duct side separately

–16–
• Models PEH-P16MYA
(1) When connecting air inlet
(2) When installing the suspension fixtures prior to installation of the
indoor unit without inlet duct
(3) When hanging the indoor unit directly without inlet duct
(A) Service space (B) Suspension bolt pitch
(C) Air inlet (D) Air outlet
400 1587
1637
2187
200
200
746700
620
63
946
706
500
1206 25 75
*1
*1 When there is not 500mm of service space on top of the unit, there must be 700mm
of service space at the air outlet side.
(1)
(3)
(A)
(A) (C)
(B)
(B)
(D)
(2)
(BOTTOM SIDE)
CONNECT WIRE
(PEH-PUH)
WIRING HOLE ø27
REFRIGERANT PIPE
ø 12.7(1/2 BRAZE)
HOLES:4-ø12
CONTROL BOX
DRAIN:R 1
POWER SUPPLY
WIRING HOLE ø27
CONTROLLER
WIRING HOLE ø27
AIR OUTLET AIR INLET
HOLES:34-ø3
AIR INLET DUCT
FLANGE
REFRIGERANT PIPE
ø 12.7(1/2 BRAZE)
REFRIGERANT PIPE
ø 25.4(1 BRAZE)
HOLES:26-ø3
AIR OUTLET DUCT
FLANGE
A
VIEW A
AIR OUTLET
AIR INLET
REFRIGERANT PIPE
ø 25.4(1 BRAZE)
(BOTTOM SIDE)
(BOTTOM SIDE)
160
207
1637 2525
130
29.5 130X8(=1040)
42
606060
40
1690
425
1099
24
208
29.5
15
15
44
620
130
6363
44
81
74
211
50
130130130
600
280
15
100
91
87
36
15
462207
36
706
69
37
19
51
745
50
1587
50
23
49
1388
74
150
130X10(=1300)
256
110110110110
865
11027

–17–
• Models PEH-P20MYA
(1) When connecting air inlet
(1)
(2)
(3)
(2)
When installing the suspension fixtures prior to installation of the
indoor unit without inlet duct
(3) When hanging the indoor unit directly without inlet duct
(A) Service space
(A)
(A)
(B)
(B)
(C)
(D)
(B)
Suspension bolt pitch
(C) Air inlet (D) Air outlet
400 1890
1940
2490
200
200
746700
620
63
946
706
500
1206 25 75
*1
*1 When there is not 500mm of service space on top of the unit, there must be 700mm
of service space at the air outlet side.
HOLES:26- ø 3
REFRIGERANT PIPE
ø 12.7(1/2 BRAZE)
REFRIGERANT PIPE
ø 28.6(1-1/8 BRAZE)
REFRIGERANT PIPE
ø 12.7(1/2 BRAZE)
VIEW A
REFRIGERANT PIPE
ø 28.6(1-1/8 BRAZE)
HOLES:4- ø 12
AIR OUTLET AIR INLET
HOLES:38- ø 3
AIR INLET DUCT
FLANGE
AIR OUTLET DUCT
FLANGE
CONTROL BOX
DRAIN:R 1
POWER SUPPLY
WIRING HOLE ø 27
CONTROLLER
WIRING HOLE ø 27
A
AIR OUTLET
AIR INLET
(BOTTOM SIDE)
(BOTTOM SIDE)
(BOTTOM SIDE)
CONNECT WIRE
(PEH-PUH)
WIRING HOLE ø 27
91
54
468 323
160
207
25194025
1099
29.529.5 130X8(=1040)
15
130
42
1993
44 130X12(=1560)
100
44
15
620 6363
130130130
600
15
87
36
15
462207
36
706
69
37
19
51745
50
1890
50
23
491648193
110110110
865
11027
130
110
24
60
40
90190 8590
425
60
251
60
81

–18–
(2) Remote Controller
• Models PAR-20MAA
120
130 19 46
83.5
(Front view) (Side view) (Rear view)
