Mitsubishi Electric PLFY-P32VBM-E Operating manual

TECHNICAL & SERVICE MANUAL
Indoor unit
[Model names] [Service Ref.]
PLFY-P32VBM-E
PLFY-P40VBM-E
PLFY-P50VBM-E
PLFY-P63VBM-E
PLFY-P80VBM-E
PLFY-P100VBM-E
PLFY-P125VBM-E
No. OCH413
REVISED EDITION-D
CONTENTS
1. TECHNICAL CHANGES.........................2
2. SAFETY PRECAUTION.......................... 3
3. PART NAMES AND FUNCTIONS..........5
4. SPECIFICATIONS.................................13
5. 4-WAY AIR FLOW SYSTEM................. 18
6. OUTLINES AND DIMENSIONS............21
7. WIRING DIAGRAM...............................22
8.
REFRIGERANT SYSTEM DIAGRAM...... 24
9. TROUBLESHOOTING..........................25
10. SPECIAL FUNCTION...........................34
11. DISASSEMBLY PROCEDURE.............41
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
PLFY-P32VBM-E.UK
PLFY-P32VBM-ER2.UK
PLFY-P40VBM-E.UK
PLFY-P40VBM-ER2.UK
PLFY-P50VBM-E.UK
PLFY-P50VBM-ER2.UK
PLFY-P63VBM-E.UK
PLFY-P63VBM-ER2.UK
PLFY-P80VBM-E.UK
PLFY-P80VBM-ER2.UK
PLFY-P100VBM-E.UK
PLFY-P100VBM-ER3.UK
PLFY-P125VBM-E.UK
PLFY-P125VBM-ER3.UK
Note:
• This manual does not cover
outdoor units.
When servicing them, please
refer to the outdoor unit’s
service manual.
• RoHS compliant products
have <G> mark on the spec
name plate.
December 2012
INDOOR UNIT
Model name
indication
PARTS CATALOG (OCB413)
Revision:
• PLFY-P32/40/50/63/80/
100/125VBM-ER3 have
been added in REVISED
EDITION-D.
• Some descriptions have
been modified.
• Please void OCH413
REVISED EDITION-C.
PLFY-P32VBM-E1.UK
PLFY-P32VBM-ER3.UK
PLFY-P40VBM-E1.UK
PLFY-P40VBM-ER3.UK
PLFY-P50VBM-E1.UK
PLFY-P50VBM-ER3.UK
PLFY-P63VBM-E1.UK
PLFY-P63VBM-ER3.UK
PLFY-P80VBM-E1.UK
PLFY-P80VBM-ER3.UK
PLFY-P100VBM-ER2.UK
PLFY-P125VBM-ER2.UK

2
1TECHNICAL CHANGES
PLFY-P32VBM-E.UK PLFY-P32VBM-E1.UK
PLFY-P40VBM-E.UK PLFY-P40VBM-E1.UK
PLFY-P50VBM-E.UK PLFY-P50VBM-E1.UK
PLFY-P63VBM-E.UK PLFY-P63VBM-E1.UK
PLFY-P80VBM-E.UK PLFY-P80VBM-E1.UK
FAN MOTOR (MF) has been changed.
TURBO FAN, NUT and WASHER have been changed.
PLFY-P32VBM-E1.UK PLFY-P32VBM-ER2.UK
PLFY-P40VBM-E1.UK PLFY-P40VBM-ER2.UK
PLFY-P50VBM-E1.UK PLFY-P50VBM-ER2.UK
PLFY-P63VBM-E1.UK PLFY-P63VBM-ER2.UK
PLFY-P80VBM-E1.UK PLFY-P80VBM-ER2.UK
PLFY-P100VBM-E.UK PLFY-P100VBM-ER2.UK
PLFY-P125VBM-E.UK PLFY-P125VBM-ER2.UK
INDOOR CONTROLLER BOARD (I.B) has been changed. (S/W version up)
PLP-6BAJ (Automatic filter elevation panel, option)
The controller board (U.B) has been changed. (only for the panel but not for the service part)
PLFY-P32VBM-ER2.UK PLFY-P32VBM-ER3.UK
PLFY-P40VBM-ER2.UK PLFY-P40VBM-ER3.UK
PLFY-P50VBM-ER2.UK PLFY-P50VBM-ER3.UK
PLFY-P63VBM-ER2.UK PLFY-P63VBM-ER3.UK
PLFY-P80VBM-ER2.UK PLFY-P80VBM-ER3.UK
PLFY-P100VBM-ER2.UK PLFY-P100VBM-ER3.UK
PLFY-P125VBM-ER2.UK PLFY-P125VBM-ER3.UK
INDOOR CONTROLLER BOARD (I.B) has been changed. (S/W version up)
OCH413D

3
Cautions for units utilizing refrigerant R410A
Charge refrigerant from liquid phase of gas
cylinder.
If the refrigerant is charged from gas phase, composition
change may occur in refrigerant and the efficiency will be
lowered.
Do not use refrigerant other than R410A.
If other refrigerant (R22 etc.) is used, chlorine in refrige-
rant can cause deterioration of refrigerant oil etc.
Use a vacuum pump with a reverse flow check
valve.
Vacuum pump oil may flow back into refrigerant cycle and
that can cause deterioration of refrigerant oil etc.
Use the following tools specifically designed for
use with R410A refrigerant.
The following tools are necessary to use R410A refrigerant.
Handle tools with care.
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
Do not use a charging cylinder.
If a charging cylinder is used, the composition of refrigera-
nt will change and the efficiency will be lowered.
Flare tool
Electronic refrigerant
charging scale
Vacuum pump adaptor
Size adjustment gauge
Gauge manifold
Torque wrench
Gas leak detector
Charge hose
Tools for R410A
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
If large amount of mineral oil enters, that can cause deterio-
ration of refrigerant oil etc.
Do not use the existing refrigerant piping.
The old refrigerant and lubricant in the existing piping
contains a large amount of chlorine which may cause the
lubricant deterioration of the new unit.
Use “low residual oil piping”
If there is a large amount of residual oil (hydraulic oil, etc.)
inside the piping and joints, deterioration of the lubricant
will result.
Store the piping indoors, and both ends of the
piping sealed until just before brazing.
(Leave elbow joints, etc. in their packaging.)
The refrigerant oil applied to flare and flange
connections must be ester oil, ether oil or
alkylbenzene oil in a small amount.
Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.
Never use any refrigerant other than that specified.
Doing so may cause a burst, an explosion, or fire when the
unit is being used, serviced, or disposed of.
Correct refrigerant is specified in the manuals and on the
spec labels provided with our products.
We will not be held responsible for mechanical failure,
system malfunction, unit breakdown or accidents caused
by failure to follow the instructions.
Use the specified refrigerant only.
2SAFETY PRECAUTION
OCH413D

4
[1] Cautions for service
(1) Perform service after recovering the refrigerant left in unit completely.
(2) Do not release refrigerant in the air.
(3) After completing service, charge the cycle with specified amount of refrigerant.
(4) When performing service, install a filter drier simultaneously.
Be sure to use a filter drier for new refrigerant.
[2] Additional refrigerant charge
When charging directly from cylinder
· Check that cylinder for R410A on the market is syphon type.
· Charging should be performed with the cylinder of syphon stood vertically. (Refrigerant is charged from liquid phase.)
Gravimeter
Unit
[3] Service tools
Use the below service tools as exclusive tools for R410A refrigerant.
No. Tool name Specifications
1Gauge manifold · Only for R410A
· Use the existing fitting specifications. (UNF1/2)
· Use high-tension side pressure of 5.3MPa·G or over.
2Charge hose · Only for R410A
· Use pressure performance of 5.09MPa·G or over.
3Electronic scale —
4Gas leak detector · Use the detector for R134a, R407C or R410A.
5Adaptor for reverse flow check · Attach on vacuum pump.
6Refrigerant charge base —
7Refrigerant cylinder · Only for R410A · Top of cylinder (Pink)
· Cylinder with syphon
8Refrigerant recovery equipment —
OCH413D

55
3PART NAMES AND FUNCTIONS

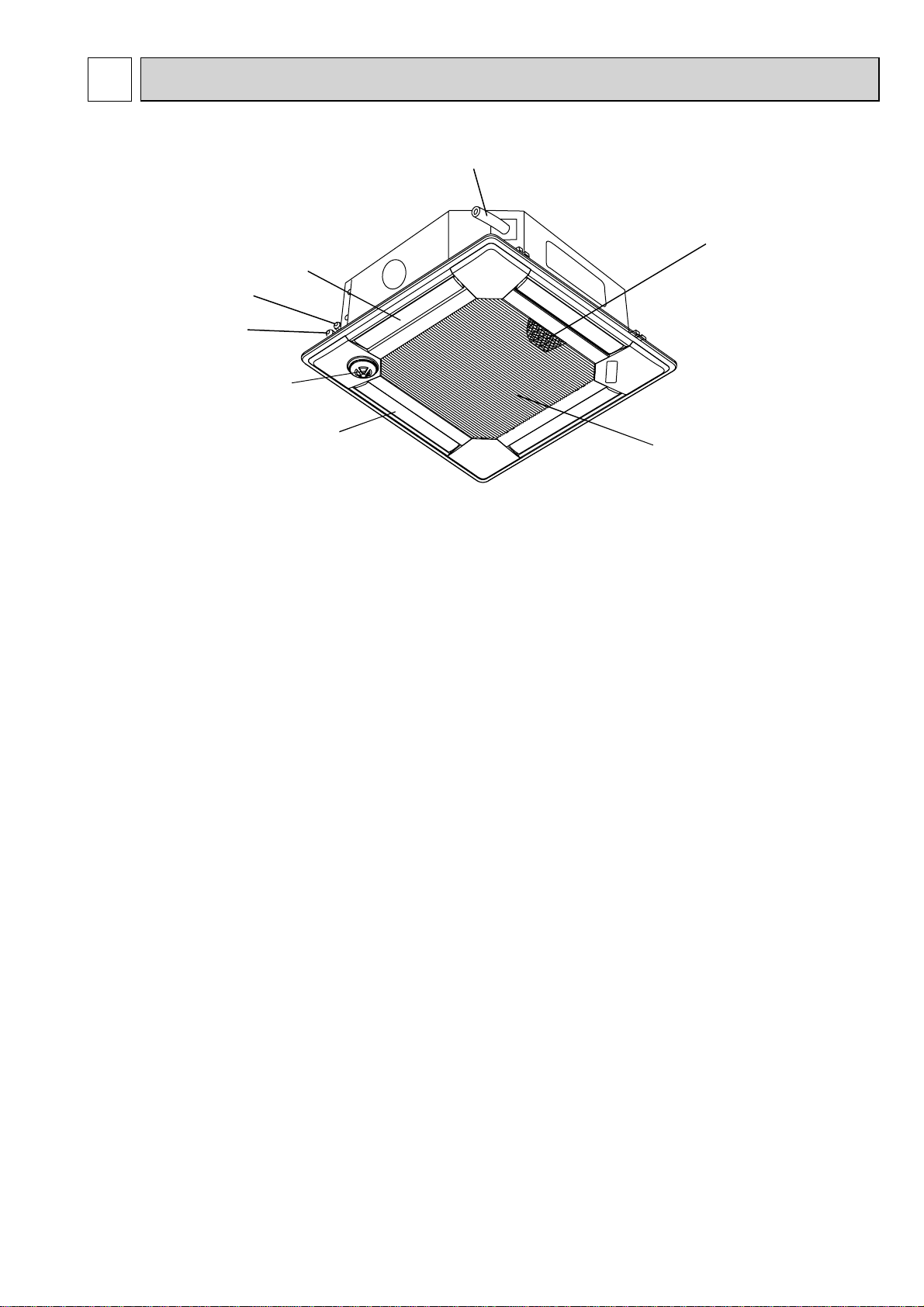

Drain pipe
Filter
Vane
Gas pipe
Liquid pipe
Air outlet
i-see sensor
(option)
Air intake
(Intake grille)
3-1. INDOOR UNIT
OCH413D

6
ON/OFF TEMP
FAN
VANE
TEST RUN
AUTO STOP
AUTO START
h
min
LOUVER
MODE
CHECK
RESETSET CLOCK
MODEL SELECT
NOTAVAILABLE
CHECK TEST RUN
°C
AMPM
AMPM
VANE CONTROL button
Used to change the air flow direction.
CLOCK button
RESET button
SET button
ON/OFF button
The unit is turned ON and OFF alternately
each time the button is pressed.
MODE SELECT button
Used to switch the operation mode between
cooling, drying, heating, auto and fan mode.
CHECK-TEST RUN buttons
Only press this button to perform an
inspection check or test operation.
Do not use it for normal operation.
FAN SPEED SELECT button
Used to change the fan speed.
TIMER display
Displays when in timer operation or when
setting timer.
buttons
SET TEMPERATURE button sets any desired
room temperature.
CLOCK display
Displays the current time.
“ ” “ ” display
Displays the order of timer operation.
“ ” “ ” display
Displays whether timer is on or off.
Buttons used to set the “hour and minute” of
the current time and timer settings.
h and min buttons
display
display
FAN SPEED display indicates which fan
speed has been selected.
display
The vertical direction of air flow is indicated.
display
Blinks when model is selected.
display
display
CHECK and TEST RUN display indicate that
the unit is being checked or test-run.
display
OPERATION MODE display
Operation mode display indicates which
operation mode is in effect.
AUTO STOP (OFF timer): when this switch
is set, the air conditioner will be
automatically stopped at the preset time.
AUTO START (ON timer): when this switch is
set, the air conditioner will be automatically
started at the preset time.
MODEL SELECT
CHECK TEST RUN
LOUVER button
Changes left/right airflow direction.
(Not available for this model.)
SET TEMP. display indicates the desired
temperature which is set.
Lights up while the signal is transmitted to
the indoor unit when the button is pressed.
TIMER CONTROL buttons

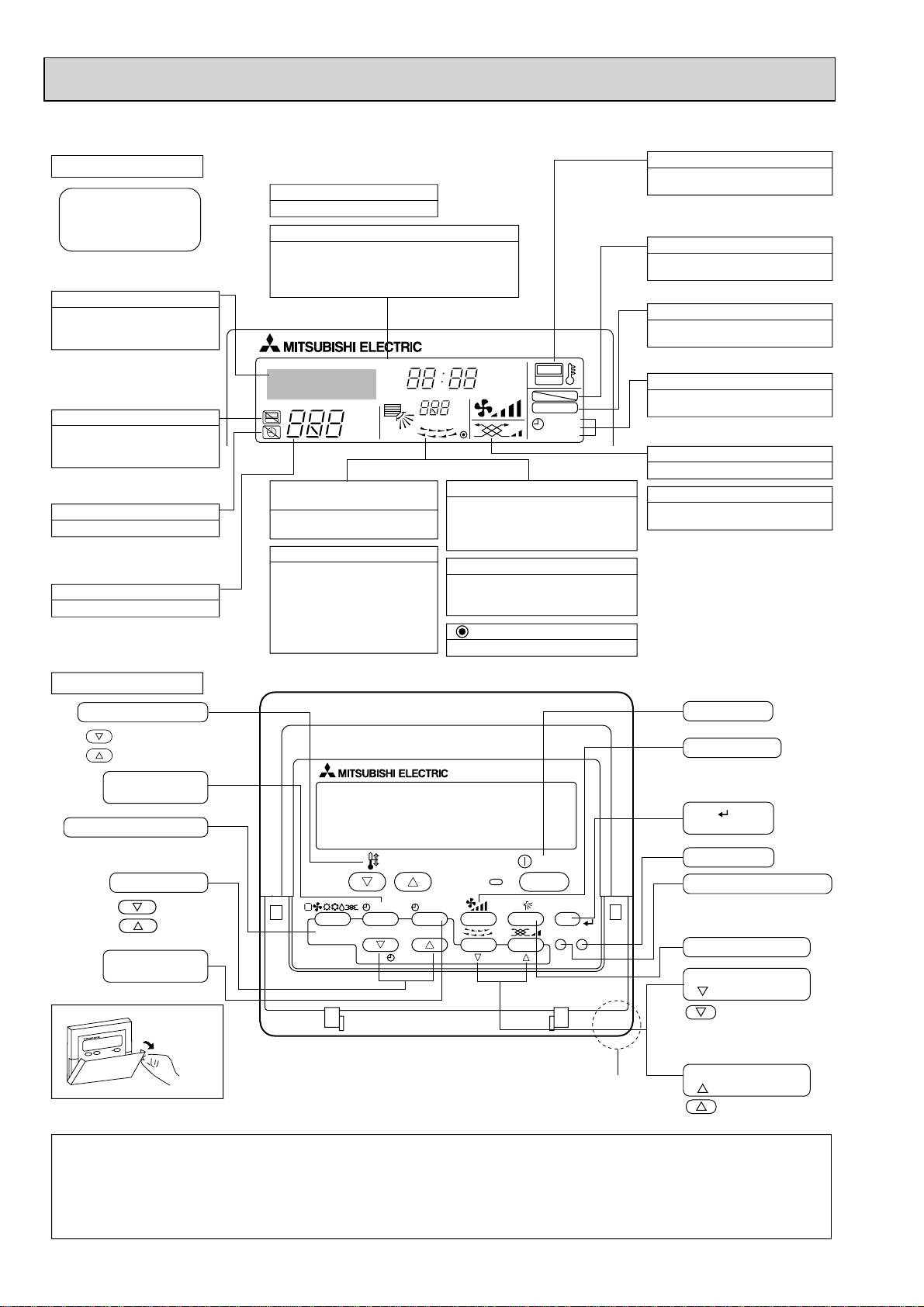

3-2. WIRELESS REMOTE CONTROLLER
OCH413D

7
Function buttons
F1 F2 F3 F4
Press to turn ON/OFF the indoor unit.
ON / OFF button
When the backlight is off, pressing any button turns
the backlight on and does not perform its function.
(except for the (ON / OFF) button)
The functions of the function buttons change depending on
the screen. Refer to the button function guide that appears
at the bottom of the LCD for the functions they serve on a
given screen.
When the system is centrally controlled, the button function
guide that corresponds to the locked button will not appear.
Press to save the setting.
SELECT button
Press to return to the previous screen.
RETURN button
Press to bring up the Main menu.
MENU button
Operation settings will appear.
When the backlight is off, pressing any button turns the
backlight on and it will stay lit for a certain period of time
depending on the screen.
Backlit LCD
This lamp lights up in green while the unit is in operation.
It blinks while the remote controller is starting up or when
there is an error.
ON / OFF lamp
Main display : Press to change the operation mode.
Main menu : Press to move the cursor down.
Function button F1
Main display : Press to decrease temperature.
Main menu : Press to move the cursor up.
Function button F2
Main display : Press to increase temperature.
Main menu : Press to go to the previous page.
Function button F3
Main display : Press to change the fan speed.
Main menu : Press to go to the next page.
Function button F4

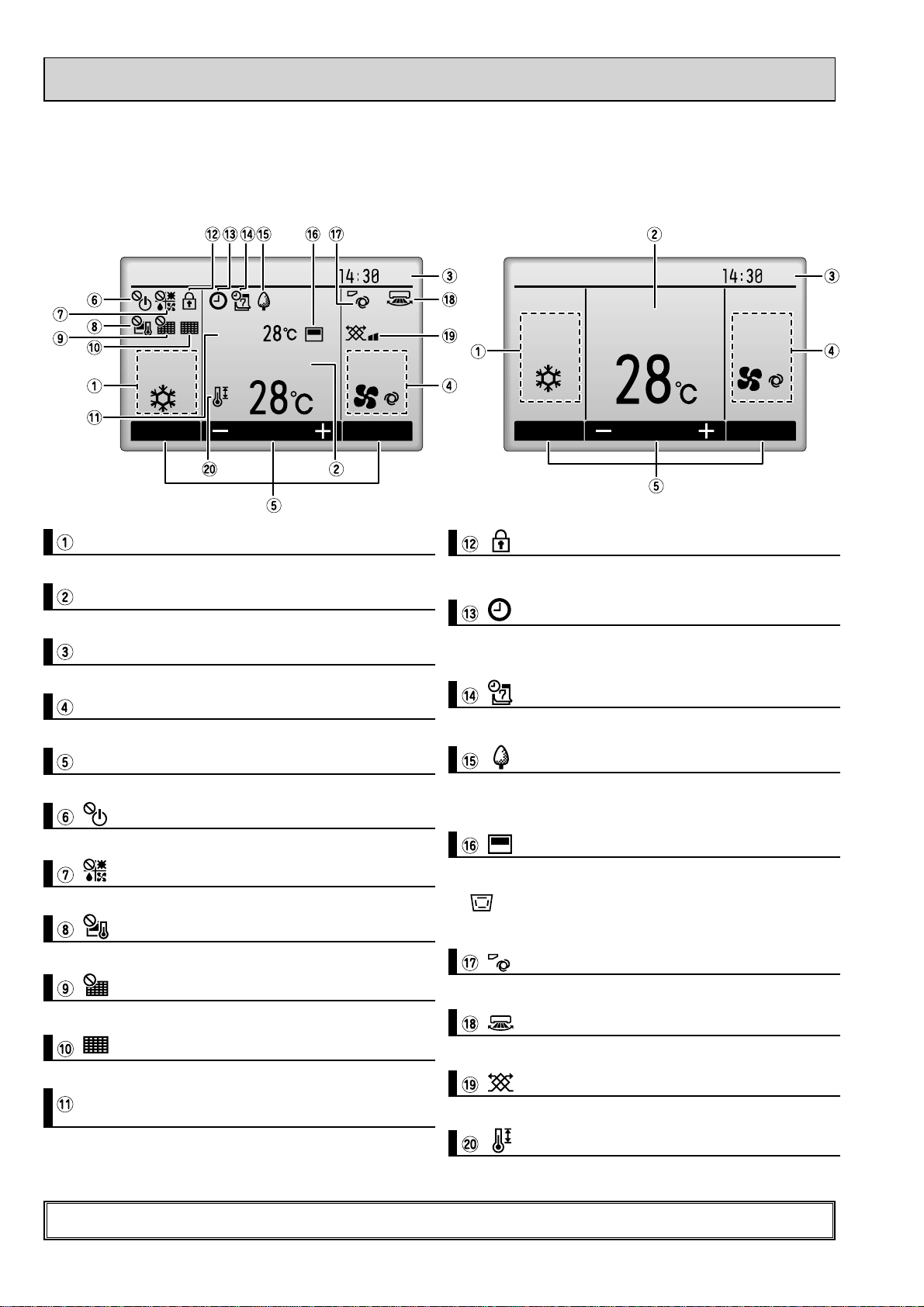

Fri
Room
Set temp.
Mode Temp. Fan
Cool Auto
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
<Main display> <Main menu>
Function guide

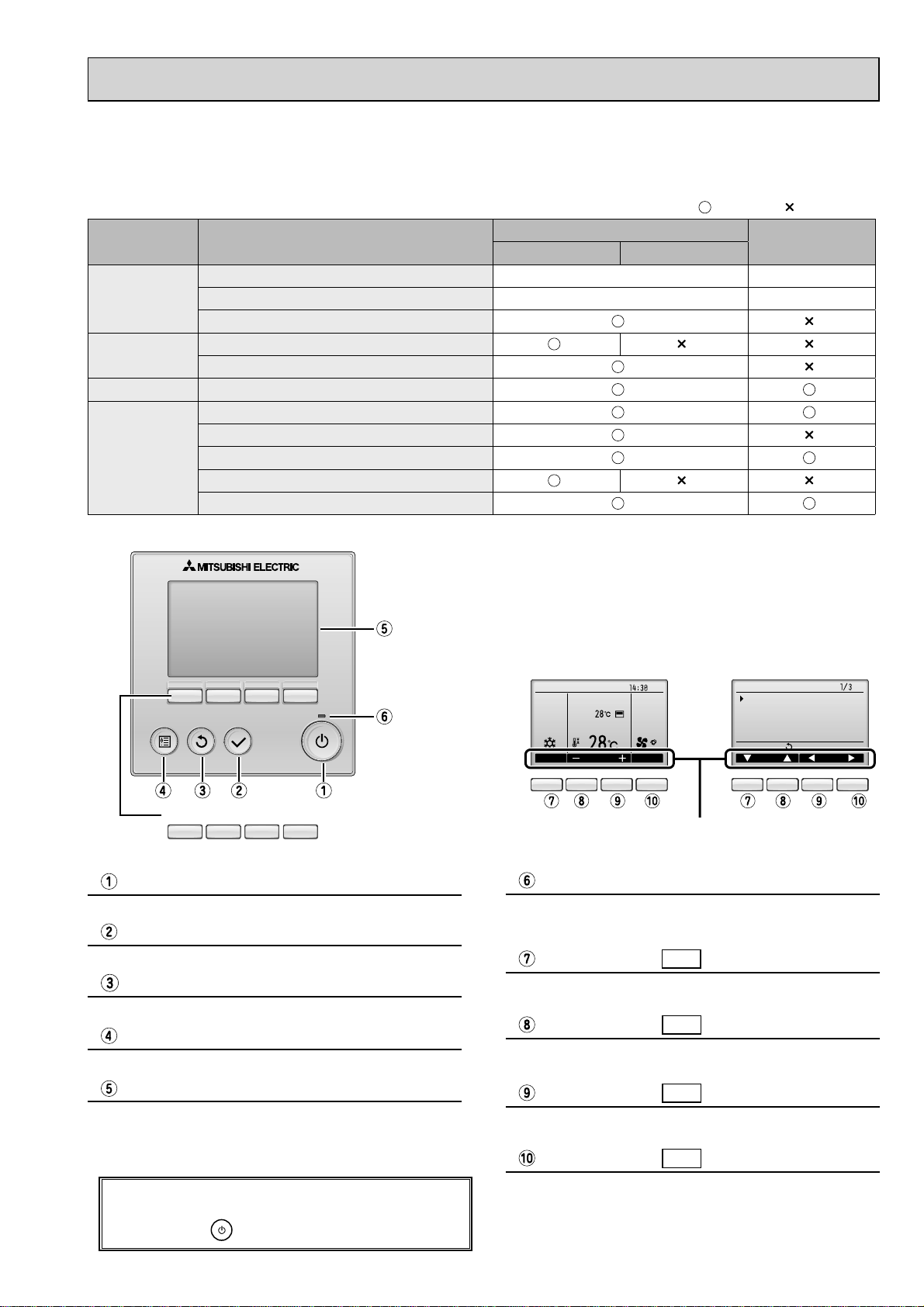

3-3. WIRED REMOTE CONTROLLER <PAR-30MAA/PAR-31MAA>
* The functions which can be used are restricted according to the model. : Supported : Unsupported
Function PAR-30MAA/PAR-31MAA PAR-21MAA
Slim City multi
Body Product size H × W × D (mm) 120 × 120 × 19 120 × 130 × 19
LCD Full Dot LCD Partial Dot LCD
Backlight
Energy-saving Energy-saving operation schedule
Automatic return to the preset temperature
Restriction Setting the temperature range restriction
Function Operation lock function
Weekly timer
On / Off timer
High Power
Manual vane angle
Wired remote controller function
OCH413D

8
Fri
Mode Temp. Fan
Room
Cool Auto
Set temp.
Fri
Cool
Mode Temp. Fan
AutoSet temp.
The main display can be displayed in two different modes: "Full" and "Basic".
T
he factory setting is "Full". To switch to the "Basic" mode, change the setting on the Main display setting.
<Full mode> <Basic mode>
* All icons are displayed for explanation.
Most settings (except ON / OFF, mode, fan speed, temperature) can be made from the Menu screen.
Indoor unit operation mode appears here.
Operation mode
Preset temperature appears here.
Preset temperature
Current time appears here.
Clock (See the Installation Manual.)
Fan speed
Fan speed setting appears here.
Functions of the corresponding buttons appear here.
Button function guide
Appears when the ON/OFF operation is centrally controlled.
Appears when the operation mode is centrally controlled.
Appears when the preset temperature is centrally controlled.
Appears when the filter reset function is centrally controlled.
Indicates when filter needs maintenance.
Current room temperature appears here.
Room temperature
(See the Installation Manual.)
Appears when the buttons are locked.
Appears when the On/Off timer or Night setback function is
enabled.
Appears when the Weekly timer is enabled.
Appears while the units are operated in the energy-save
mode.
Appears when the built-in thermistor on the remote control-
ler is activated to monitor the room temperature (a).
appears when the thermistor on the indoor unit is acti-
vated to monitor the room temperature.
Indicates the vane setting.
Indicates the louver setting.
Indicates the ventilation setting.
Appears when the preset temperature range is restricted.
OCH413D

9
Not all functions are available on all models of indoor units.
Filter information
Error information
Energy saving
Auto return
Schedule
Night setback
Main menu Press the MENU button.
Move the cursor to the desired item with the F1 and F2 buttons, and press the SELECT button.
Vane · Louver · Vent. (Lossnay)
High power
Weekly timer
Restriction
Maintenance
Initial setting
On / Off timer
Auto-Off timer
Temp. range
Operation lock
Manual vane angle
Main / Sub
Timer
Main display
Contrast
Display details
Auto mode
Administrator password
Language selection
Service
Service menu
Input maintenance info.
Function setting
Lossnay (City Multi only)
Check
Self check
Maintenance password
Remote controller check
Test run
Clock
Drain pump test run
Auto descending panel
Menu structure
OCH413D

10
Setting and display items Setting details
Vane · Louver · Vent.
(Lossnay) Use to set the vane angle. • Select a desired vane setting from five different settings.
Use to turn ON / OFF the louver.
• Select a desired setting from "ON" and "OFF."
Use to set the amount of ventilation.
• Select a desired setting from "Off," "Low," and "High."
High power Use to reach the comfortable room temperature quickly.
• Units can be operated in the High-power mode for up to 30 minutes.
Timer On/Off timer Use to set the operation On/Off times.
• Time can be set in 5-minute increments.
* Clock setting is required.
Auto-Off
timer Use to set the Auto-Off time. • Time can be set to a value from 30 to 240 in 10-minute increments.
Filter information Use to check the filter status.
• The filter sign can be reset.
Error information Use to check error information when an error occurs.
• Error code, error source, refrigerant address, unit model, manufacturing number, contact
information (dealer's phone number) can be displayed.
* The unit model, manufacturing number, and contact information need to be registered in
advance to be displayed.
Weekly timer Use to set the weekly operation On / Off times.
• Up to eight operation patterns can be set for each day.
* Clock setting is required.
* Not valid when the On/Off timer is enabled.
Energy
saving Auto return Use to get the units to operate at the preset temperature after performing energy-save operation for a specified time period.
• Time can be set to a value from 30 and 120 in 10-minute increments.
* This function will not be valid when the preset temperature ranges are restricted.
Schedule Set the start/stop times to operate the units in the energy-save mode for each day of the
week, and set the energy-saving rate.
• Up to four energy-save operation patterns can be set for each day.
• Time can be set in 5-minute increments.
• Energy-saving rate can be set to a value from 0% or 50 to 90% in 10% increments.
* Clock setting is required.
Night setback Use to make Night setback settings.
• Select "Yes" to enable the setting, and "No" to disable the setting. The temperature range and
the start/stop times can be set.
* Clock setting is required.
Restriction Temp. range Use to restrict the preset temperature range.
• Different temperature ranges can be set for different operation modes.
Operation
lock Use to lock selected functions. • The locked functions cannot be operated.
Maintenance Auto
descending
panel
Auto descending panel (Optional parts) Up / Down you can do.
Manual
vane angle Use to set the vane angle for each vane to a fixed position.
Initial setting Main/Sub When connecting two remote controllers, one of them needs to be designated as a sub
controller.
Clock Use to set the current time.
Main display Use to switch between "Full" and "Basic" modes for the Main display.
• The default setting is "Full."
Contrast Use to adjust screen contrast.
Main menu list
OCH413D

11
Setting and display items Setting details
Initial setting Display
details Make the settings for the remote controller related items as necessary. Clock: The factory settings are "Yes" and "24h" format.
Temperature: Set either Celsius (°C) or Fahrenheit (°F).
Room temp. : Set Show or Hide.
Auto mode: Set the Auto mode display or Only Auto display.
Auto mode Whether or not to use the AUTO mode can be selected by using the button.
This setting is valid only when indoor units with the AUTO mode function are connected.
Administrator
password
The administrator password is required to make the settings for the following items.
• Timer setting • Energy-save setting • Weekly timer setting
• Restriction setting • Outdoor unit silent mode setting • Night set back
Language
selection Use to select the desired language.
Service Test run Select "Test run" from the Service menu to bring up the Test run menu.
• Test run • Drain pump test run
Input
maintenance Select "Input maintenance Info." from the Service menu to bring up the Maintenance information screen.
The following settings can be made from the Maintenance Information screen.
• Model name input • Serial No. input • Dealer information input
Function
setting Make the settings for the indoor unit functions via the remote controller as necessary.
LOSSNAY
setting
(City Multi only)
This setting is required only when the operation of City Multi units is interlocked with
LOSSNAY units.
Check Error history: Display the error history and execute delete error history.
Refrigerant leak check: Refrigerant leaks can be judged.
Smooth maintenance: The indoor and outdoor maintenance data can be displayed.
Request cord: Details of the operation data including each thermistor temperature and error
history can be checked.
Self check Error history of each unit can be checked via the remote controller.
Maintenance
password Take the following steps to change the maintenance password.
Remote
controller
check
When the remote controller does not work properly, use the remote controller checking
function to troublushoot the problem.
OCH413D

12
°F°C
°F°C
ERROR CODE
AFTER
TIMER
TIME SUN MON TUE WED THU FRI SAT
ON
OFF
Hr
AFTER
FILTER
FUNCTION
ONLY1Hr.
WEEKLY
SIMPLE
AUTO OFF
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION
CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
●
●
Display Section
For purposes of this explanation,
all parts of the display are shown.
During actual operation, only
the relevant items will be lit.
Identifies the current operation
Shows the operating mode, etc.
*Multilanguage display is available.
“Centrally Controlled” indicator
Indicates that operation from the
remote controller has been prohib-
ited by a master controller.
“Timer is Off” indicator
Indicates that the timer is off.
Temperature Setting
Shows the target temperature.
Day-of-Week
Shows the current day of the week.
Time/Timer Display
Shows the current time, unless the simple or Auto Off
timer is set.
If the simple or Auto Off timer is set, the time to be
switched off is shown.
“Sensor” indication
Displayed when the remote controller
sensor is used.
“Locked” indicator
Indicates that remote controller but-
tons have been locked.
“Clean The Filter” indicator
To be displayed on when it is time to
clean the filter.
Timer indicators
The indicator comes on if the corre-
sponding timer is set.
Up/Down Air Direction indica-
tor
The indicator shows the direc-
tion of the outcoming airflow.
“One Hour Only” indicator
Room Temperature display
Shows the room temperature. The room
temperature display range is 8 - 39.
The display blinks if the temperature
is less than 8or 39or more.
Louver display
Indicates the action of the swing louver.
Does not appear if the louver is not
running
(Power On indicator)
Indicates that the power is on.
Fan Speed indicator
Shows the selected fan speed.
Ventilation indicator
Appears when the unit is running in
Ventilation mode.
Operation Section
Temperature setting buttons
Down
Up
Timer Menu button
(Monitor/Set button)
Mode button (Return button)
Set Time buttons
Back
Ahead
Timer On/Off button
(Set Day button)
Opening the
cover
ON/OFF button
Fan Speed button
Filter button
(<Enter> button)
Test Run button
Check button (Clear button)
Airflow Up/Down button
Louver button
( Operation button)
To return operation
number
Ventilation button
( Operation button)
To go to next operation
number
Note:
“PLEASE WAIT” message
This message is displayed for approximately 3 minutes when power is supplied to the indoor unit or when the unit is recovering from a power failure.
“NOTAVAILABLE” message
This message is displayed if an invalid button is pressed (to operate a function that the indoor unit does not have).
If a single remote controller is used to operate multiple indoor units simultaneously that are different types, this message will not be displayed as
far as any of the indoor units is equipped with the function.
Built-in temperature sensor
Displayed if the airflow is set to
low or downward during COOL
or DRY mode. (Operation varies
according to model.)
The indicator goes off in 1 hour,
when the airflow direction
also changes.
3-4. WIRED REMOTE CONTROLLER <PAR-21MAA>
OCH413D

1313
4-1. SPECIFICATIONS
4SPECIFICATIONS
Details on foundation work, duct work, insulation work, electrical wiring, power source switch, and other items shall be referred to
the Installation Manual.
1-phase 220-240V 50Hz, 1-phase 220V 60Hz
Galvanized steel sheet
MUNSELL (6.4Y 8.9/0.4)
35 x 950 x 950
1-3/8 x 37-7/16 x 37-7/16
6 (13)
Cross fin (Aluminum fin and copper tube)
DC motor
Direct-drive
PS
PP honeycomb
Fuse
LEV
R410A CITY MULTI
O.D. :32 (VP-25)
Installation Manual, Instruction Book
PLFY-P32VBM-E
258 x 840 x 840
10-3/16 x 33-1/8 x 33-1/8
3.6
3,100
12,300
3,150
0.03
0.22
4.0
3,400
13,600
0.02
0.14
22 (49)
PLP-6BA
Turbo fan × 1
0
0
0.050
11 - 12 - 13 - 14
183 - 200 - 217 - 233
388 - 424 - 459 - 494
27 - 28 - 29 - 31
PLP-6BA
PAC-SH51SP-E
PAC-SH59KF-E
PAC-SH53TM-E
:6.35 (:1/4)
:12.7 (:1/2) Flare Flare
PLFY-P40VBM-E
4.5
3,900
15,400
4,000
0.04
0.29
5.0
4,300
17,100
0.03
0.22
22 (49)
PLP-6BA
Turbo fan × 1
0
0
0.050
12 - 13 - 14 - 16
200 - 217 - 233 - 267
424 - 459 - 494 - 565
27 - 28 - 30 - 31
PLP-6BA
PAC-SH51SP-E
PAC-SH59KF-E
PAC-SH53TM-E
:6.35 (:1/4)
:12.7 (:1/2) Flare Flare
PLFY-P50VBM-E
5.6
4,800
19,100
5,000
0.04
0.29
6.3
5,400
21,500
0.03
0.22
22 (49)
PLP-6BA
Turbo fan × 1
0
0
0.050
12 - 13 - 14 - 16
200 - 217 - 233 - 267
424 - 459 - 494 - 565
27 - 28 - 30 - 31
PLP-6BA
PAC-SH51SP-E
PAC-SH59KF-E
PAC-SH53TM-E
:6.35 (:1/4)
:12.7 (:1/2) Flare
Flare Flare Flare
PLFY-P63VBM-E
7.1
6,100
24,200
6,300
0.05
0.36
8.0
6,900
27,300
0.04
0.29
23 (51)
PLP-6BA
Turbo fan × 1
0
0
0.050
14 - 15 - 16 - 18
233 - 250 - 267 - 300
494 - 530 - 565 - 636
28 - 29 - 30 - 32
PLP-6BA
PAC-SH51SP-E
PAC-SH59KF-E
PAC-SH53TM-E
:9.52 (:3/8)
:15.88 (:5/8)
Decoration panel **1
Air outlet shutter plate
High efficiency filter
element **2
Multi-function casement
**1. PLFY-P-VBM-E should use together with PLP-6BA.
**2. PAC-SH53TM-E is necessary to use with filter PAC-SH59KF-E.
1 Nominal cooling conditions
Note : Indoor :
Outdoor :
Pipe length :
Level difference :
27DB/19WB (81°FDB/66°FWB)
35DB (95°FDB)
7.5 m (24-9/16 ft)
0 m (0 ft)
2 Nominal cooling conditions 3 Nominal heating conditions
27DB/19.5WB (81°FDB/67°FWB)
35DB (95°FDB)
5 m (16-3/8 ft)
0 m (0 ft)
Unit converter
20DB (68°FDB)
7DB/6WB (45°FDB/43°FWB)
7.5 m (24-9/16 ft)
0 m (0 ft)
* Due to continuing improvement, above specification may be subject to change without notice.
* Nominal conditions 1, 3 are subject to JIS B8615-1.
kcal/h = kW ×860
Btu/h = kW ×3,412
cfm = m3/min ×35.31
lb = kg / 0.4536
*Above specification data is
subject to rounding variation.
Model
Power source
Cooling capacity
(Nominal)
Heating capacity
(Nominal )
External finish
External dimension H × W × D
Net weight
Decoration panel
Heat exchanger
FAN
Noise level (Low-Mid2-Mid1-High)
(measured in anechoic room)
Insulation material
Air filter
Protection device
Refrigerant control device
Connectable outdoor unit
Diameter of
refrigerant pipe
Field drain pipe size
Standard
attachment
Remark
Power input
Current input
Power input
Current input
Type × Quantity
External
static press.
Motor type
Motor output
Driving mechanism
Airflow rate
(Low-Mid2-
Mid1-High)
Liquid
Gas
Document
Accessory
Optional parts
Installation
Model
External finish
Dimension
H × W × D
Net weight
kW
kcal / h
Btu / h
kcal / h
kW
A
kW
kcal / h
Btu / h
kW
A
mm
in.
kg (lb)
mm
in.
kg (lb)
Pa
mmH2O
kW
m3/ min
L / s
cfm
dB <A>
mm (in.)
mm (in.)
mm (in.)
1
1
1
2
3
3
3
OCH413D

14
9.0
7,700
30,700
8,000
0.07
0.51
10.0
8,600
34,100
0.06
0.43
258 x 840 x 840
10-3/16 x 33-1/8 x 33-1/8
Turbo fan x 1
0
0
0.050
16 - 18 - 20 - 22
267 - 300 - 333 - 367
565 - 636 - 706 - 777
30 - 32 - 35 - 37
PLP-6BA
PAC-SH51SP-E
PAC-SH59KF-E
PAC-SH53TM-E
11.2
9,600
38,200
10,000
0.15
1.00
12.5
10,800
42,700
0.14
0.94
Turbo fan x 1
0
0
0.120
21 - 24 - 27 - 29
350 - 400 - 450 - 483
742 - 848 - 953 - 1024
34 - 37 - 39- 41
PLP-6BA
PAC-SH51SP-E
PAC-SH59KF-E
PAC-SH53TM-E
14.0
12,000
47,800
12,500
0.16
1.07
16.0
13,800
54,600
0.15
1.00
Turbo fan x 1
0
0
0.120
22 - 25 - 28 - 30
367 - 417 - 467 - 500
777 - 883 - 989 - 1059
35 - 38 - 41 - 43
PLP-6BA
PAC-SH51SP-E
PAC-SH59KF-E
PAC-SH53TM-E
Details on foundation work, duct work, insulation work, electrical wiring, power source switch, and other items shall be referred to
the Installation Manual.
Installation Manual, Instruction Book
1-phase 220-240V 50Hz, 1-phase 220V 60Hz
Galvanized steel sheet
MUNSELL (6.4Y 8.9/0.4)
35 x 950 x 950
1-3/8 x 37-7/16 x 37-7/16
6(13)
Cross fin (Aluminum fin and copper tube)
DC motor
Direct-drive
PS
PP honeycomb
Fuse
LEV
R410A CITY MULTI
O.D. :32 (VP-25)
PLFY-P80VBM-E
298 x 840 x 840
11-3/4 x 33-1/8 x 33-1/8
23(51)
PLP-6BA
:9.52 (:3/8)
:15.88 (:5/8) Flare Flare
PLFY-P100VBM-E
27(60)
PLP-6BA
:9.52 (:3/8)
:15.88 (:5/8) Flare Flare
PLFY-P125VBM-E
27(60)
PLP-6BA
:9.52 (:3/8)
:15.88 (:5/8) Flare
Flare
Air outlet shutter plate
High efficiency filter
element **2
Multi-function casement
1 Nominal cooling conditions
Note : Indoor :
Outdoor :
Pipe length :
Level difference :
27DB/19WB (81°FDB/66°FWB)
35DB (95°FDB)
7.5 m (24-9/16 ft)
0 m (0 ft)
2 Nominal cooling conditions
27DB/19.5WB (81°FDB/67°FWB)
35DB (95°FDB)
5 m (16-3/8 ft)
0 m (0 ft)
3 Nominal heating conditions Unit converter
20DB (68°FDB)
7DB/6CWB (45°FDB/43°FWB)
7.5 m (24-9/16 ft)
0 m (0 ft)
* Due to continuing improvement, above specification may be subject to change without notice.
* Nominal conditions 1, 3 are subject to JIS B8615-1.
kcal/h = kW ×860
Btu/h = kW ×3,412
cfm = m3/min ×35.31
lb = kg / 0.4536
*Above specification data is
subject to rounding variation.
Model
Power source
Cooling capacity
(Nominal)
Heating capacity
(Nominal )
External finish
External dimension H × W × D
Net weight
Decoration panel
Heat exchanger
FAN
Noise level (Low-Mid2-Mid1-High)
(measured in anechoic room)
Insulation material
Air filter
Protection device
Refrigerant control device
Connectable outdoor unit
Diameter of
refrigerant pipe
Field drain pipe size
Standard
attachment
Remark
Power input
Current input
Power input
Current input
Type × Quantity
External
static press.
Motor type
Motor output
Driving mechanism
Airflow rate
(Low-Mid2-
Mid1-High)
Liquid
Gas
Document
Accessory
Decoration panel **1
Optional parts
Installation
Model
External finish
Dimension
H × W × D
Net weight
kW
kcal / h
Btu / h
kcal / h
kW
A
kW
kcal / h
Btu / h
kW
A
mm
in.
kg (lb)
mm
in.
kg (lb)
Pa
mmH2O
kW
m3/ min
L / s
cfm
dB <A>
mm (in.)
mm (in.)
mm (in.)
1
1
1
2
3
3
3
**1. PLFY-P-VBM-E should use together with PLP-6BA.
**2. PAC-SH53TM-E is necessary to use with filter PAC-SH59KF-E.
OCH413D

15
4-2. ELECTRICAL PARTS SPECIFICATIONS
Parts name
Service Ref. Symbol
TH21
TH22
TH23
FUSE
MF
MV
DP
FS
LEV
TB2
TB5
TB15
Resistance 0/15k, 10/9.6k, 20/6.3k, 25/5.4k, 30/4.3k, 40/3.0k
Resistance 0/15k, 10/9.6k, 20/6.3k, 25/5.4k, 30/4.3k, 40/3.0k
Resistance 0/15k, 10/9.6k, 20/6.3k, 25/5.4k, 30/4.3k, 40/3.0k
250V 6.3A
(L, N, ) Rated to 330V 30A *
(M1, M2, S) Rated to 250V 20A *
(1, 2) Rated to 250V 10A *
Liquid pipe thermistor
Gas pipe thermistor
Vane motor
Drain pump
Drain float switch
Linear expansion valve
PLFY-P40VBM-E.UK
PLFY-P40VBM-E1.UK
PLFY-P40VBM-ER2.UK
PLFY-P40VBM-ER3.UK
PLFY-P32VBM-E.UK
PLFY-P32VBM-E1.UK
PLFY-P32VBM-ER2.UK
PLFY-P32VBM-ER3.UK
PLFY-P50VBM-E.UK
PLFY-P50VBM-E1.UK
PLFY-P50VBM-ER2.UK
PLFY-P50VBM-ER3.UK
PLFY-P63VBM-E.UK
PLFY-P63VBM-E1.UK
PLFY-P63VBM-ER2.UK
PLFY-P63VBM-ER3.UK
Room temperature
thermistor
Fuse
(Indoor controller board)
Fan motor
Power supply terminal
block
Transmission terminal
block
MA remote controller
terminal block
8-pole OUTPUT 50W
MSBPC20M04
DC12V 300
 /phase
PLD-12230ME-1
INPUT 12/10.8W 241/Hr
DC12V Stepping motor drive port dimension
: 5.2 (0~2000pulse)
EDM-40YGME
* Note: Refer to WIRING DIAGRAM for the supplied voltage.
open/short detection
OCH413D

16
Parts name
Service Ref. Symbol
TH21
TH22
TH23
FUSE
MF
MV
DP
FS
LEV
TB2
TB5
TB15
Resistance 0/15k, 10/9.6k, 20/6.3k, 25/5.4k, 30/4.3k, 40/3.0k
Resistance 0/15k, 10/9.6k, 20/6.3k, 25/5.4k, 30/4.3k, 40/3.0k
Resistance 0/15k, 10/9.6k, 20/6.3k, 25/5.4k, 30/4.3k, 40/3.0k
250V 6.3A
(L, N, ) Rated to 330V 30A *
(M1, M2, S) Rated to 250V 20A *
(1, 2) Rated to 250V 10A *
Liquid pipe thermistor
Gas pipe thermistor
Vane motor
Drain pump
Drain float switch
Linear expansion valve
PLFY-P100VBM-E.UK
PLFY-P100VBM-ER2.UK
PLFY-P100VBM-ER3.UK
PLFY-P80VBM-E.UK
PLFY-P80VBM-E1.UK
PLFY-P80VBM-ER2.UK
PLFY-P80VBM-ER3.UK
PLFY-P125VBM-E.UK
PLFY-P125VBM-ER2.UK
PLFY-P125VBM-ER3.UK
Room temperature
thermistor
Fuse
(Indoor controller board)
Fan motor
Power supply terminal
block
Transmission terminal
block
MA remote controller
terminal block
8-pole OUTPUT 50W 8-pole OUTPUT 120W
MSBPC20M04
DC12V 300
 /phase
PLD-12230ME-1
INPUT 12/10.8W 241/Hr
open/short detection
DC12V Stepping motor drive port dimension
: 5.2 (0~2000pulse)
EDM-80YGME
* Note: Refer to WIRING DIAGRAM for the supplied voltage.
4-3. SOUND LEVEL
* Measured in anechoic room.
PLFY-P·VBM-E
PLFY-P32VBM-E(1).UK
PLFY-P32VBM-ER2.UK
PLFY-P32VBM-ER3.UK
Service Ref.
PLFY-P50VBM-E(1).UK
PLFY-P50VBM-ER2.UK
PLFY-P50VBM-ER3.UK
PLFY-P40VBM-E(1).UK
PLFY-P40VBM-ER2.UK
PLFY-P40VBM-ER3.UK
PLFY-P63VBM-E(1).UK
PLFY-P63VBM-ER2.UK
PLFY-P63VBM-ER3.UK
PLFY-P80VBM-E(1).UK
PLFY-P80VBM-ER2.UK
PLFY-P80VBM-ER3.UK
PLFY-P100VBM-E.UK
PLFY-P100VBM-ER2.UK
PLFY-P100VBM-ER3.UK
PLFY-P125VBM-E.UK
PLFY-P125VBM-ER2.UK
PLFY-P125VBM-ER3.UK
27-28-29-31
27-28-30-31
28-29-30-32
30-32-35-37
34-37-39-41
35-38-41-43
Sound level dB (A)
Sound level at anechoic room : Low-Mid2-Mid1-High
1.5m
Measurement location
OCH413D

17
PLFY-P32VBM-E(1).UK
PLFY-P32VBM-ER2.UK
PLFY-P32VBM-ER3.UK
External static pressure : 0Pa
Power source :
220,230,240V, 50Hz / 220V, 60Hz
PLFY-P40VBM-E(1).UK
PLFY-P40VBM-ER2.UK
PLFY-P40VBM-ER3.UK
External static pressure : 0Pa
Power source :
220,230,240V, 50Hz / 220V, 60Hz
PLFY-P50VBM-E(1).UK
PLFY-P50VBM-ER2.UK
PLFY-P50VBM-ER3.UK
External static pressure : 0Pa
Power source :
220,230,240V, 50Hz / 220V, 60Hz
PLFY-P63VBM-E(1).UK
PLFY-P63VBM-ER2.UK
PLFY-P63VBM-ER3.UK
External static pressure : 0Pa
Power source :
220,230,240V, 50Hz / 220V, 60Hz
PLFY-P125VBM-E.UK
PLFY-P125VBM-ER2.UK
PLFY-P125VBM-ER3.UK
External static pressure : 0Pa
Power source :
220,230,240V, 50Hz / 220V, 60Hz
PLFY-P80VBM-E(1).UK
PLFY-P80VBM-ER2.UK
PLFY-P80VBM-ER3.UK
External static pressure : 0Pa
Power source :
220,230,240V, 50Hz / 220V, 60Hz
PLFY-P100VBM-E.UK
PLFY-P100VBM-ER2.UK
PLFY-P100VBM-ER3.UK
External static pressure : 0Pa
Power source :
220,230,240V, 50Hz / 220V, 60Hz
High 50/60Hz Middle1 50/60Hz
Low 50/60Hz Middle2 50/60Hz High 50/60Hz Middle1 50/60Hz Low 50/60Hz Middle2 50/60Hz High 50/60Hz Middle1 50/60Hz Low 50/60Hz Middle2 50/60Hz
High 50/60Hz Middle1 50/60Hz
Low 50/60Hz Middle2 50/60Hz
High 50/60Hz Middle1 50/60Hz
Low 50/60Hz Middle2 50/60Hz
High 50/60Hz Middle1 50/60Hz
Low 50/60Hz Middle2 50/60Hz High 50/60Hz Middle1 50/60Hz Low 50/60Hz Middle2 50/60Hz
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
NC-60
NC-50
NC-40
NC-20
NC-30
Octave band pressure level (dB) 0dB=20Pa
Octave band center frequencies (Hz)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
NC-60
NC-50
NC-40
NC-20
NC-30
Octave band pressure level (dB) 0dB=20Pa
Octave band center frequencies (Hz)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
NC-60
NC-50
NC-40
NC-20
NC-30
Octave band pressure level (dB) 0dB=20Pa
Octave band center frequencies (Hz)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
NC-60
NC-50
NC-40
NC-20
NC-30
Octave band pressure level (dB) 0dB=20Pa
Octave band center frequencies (Hz)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
NC-60
NC-50
NC-40
NC-20
NC-30
Octave band pressure level (dB) 0dB=20Pa
Octave band center frequencies (Hz)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
NC-60
NC-50
NC-40
NC-20
NC-30
Octave band pressure level (dB) 0dB=20Pa
Octave band center frequencies (Hz)
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
63 125 250 500 1k 2k 4k 8k
NC-60
NC-50
NC-40
NC-20
NC-30
Octave band pressure level (dB) 0dB=20Pa
Octave band center frequencies (Hz)
Approximate minimum
audible limit on
continuous noise
Approximate minimum
audible limit on
continuous noise
Approximate minimum
audible limit on
continuous noise
Approximate minimum
audible limit on
continuous noise
Approximate minimum
audible limit on
continuous noise
Approximate minimum
audible limit on
continuous noise
Approximate minimum
audible limit on
continuous noise

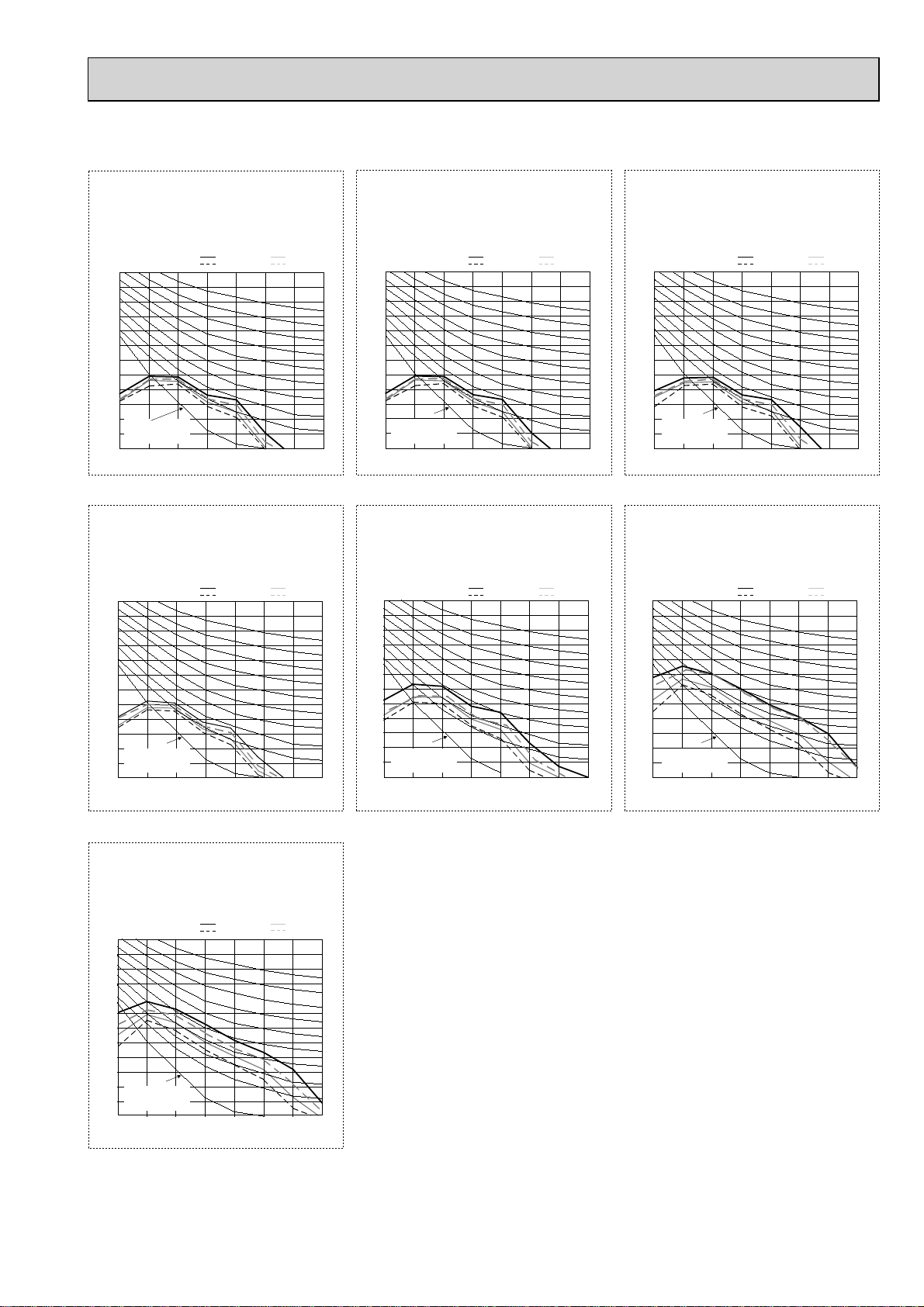

4-4. NC CURVES
OCH413D

18
54-WAY AIR FLOW SYSTEM

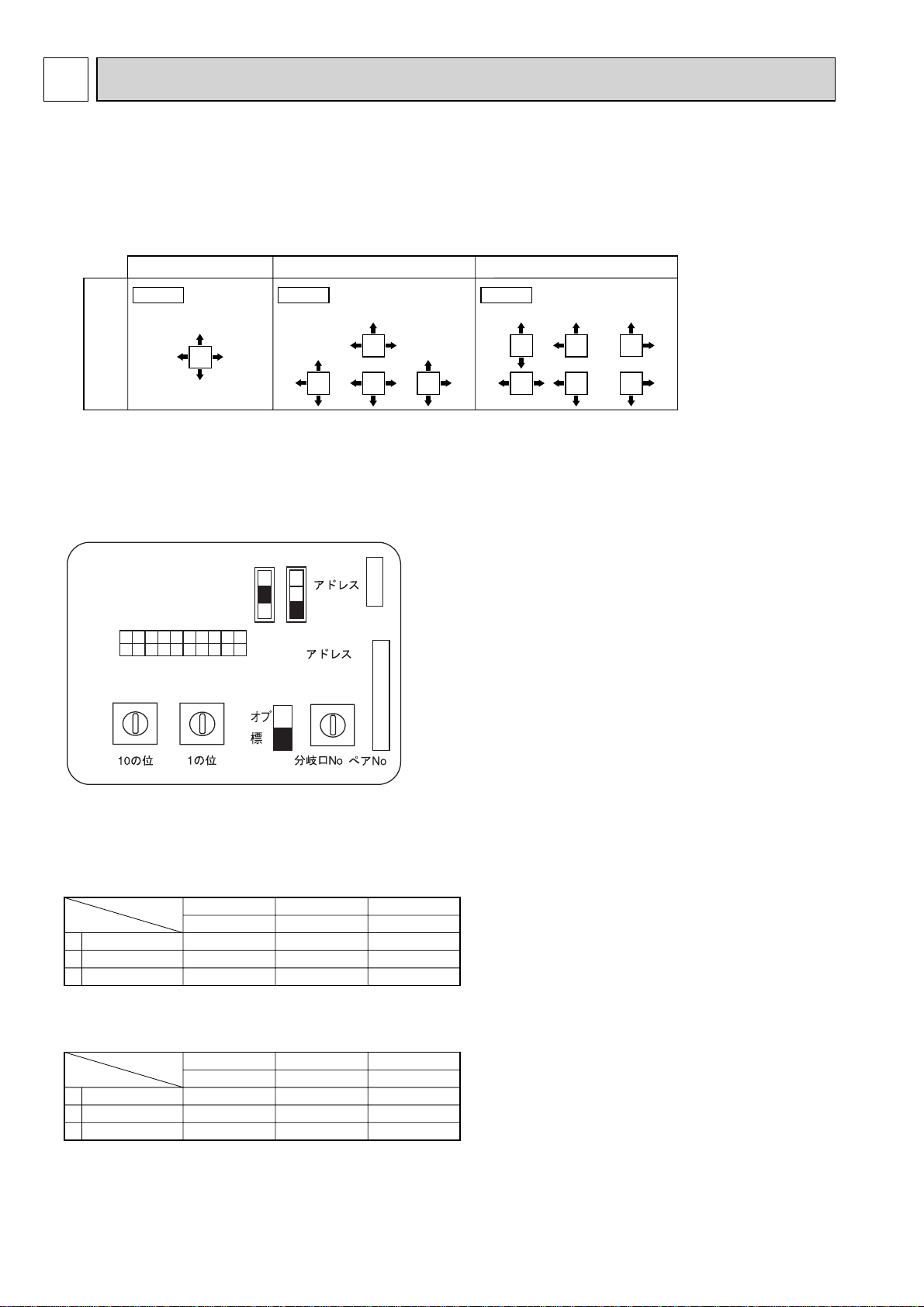

5-1. PLACEMENT OF THE AIR OUTLETS
• For this grille, the blowout direction comes in 11 patterns.
Also, by setting the remote controller to the appropriate settings, you can adjust the airflow and speed. Select the settings
from Table1 according to the location in which you want to install the unit.
1) Decide on the pattern of the airflow direction.
Blowout direction
pattern
4-direction<Table 1> 3-direction 2-direction Note1.
For 3 and 2-direction
settings, please use
the air outlet shutter
plate (option).
Pattern 1 Initial setting Pattern 4 1 air outlet
fully closed Pattern 6 2 air outlet fully closed

Silent
2.5m
2.7m
3.0m

Standard
2.7m
3.0m
3.3m

High ceiling
3.5m
3.5m
3.5m
4 direction
3 direction
2 direction
SWA
SWB
PLFY-P32/40/50/63/80VBM-E.UK
PLFY-P32/40/50/63/80VBM-E1.UK
PLFY-P32/40/50/63/80VBM-ER2.UK
PLFY-P32/40/50/63/80VBM-ER3.UK
PLFY-P100/125VBM-E.UK
PLFY-P100/125VBM-ER2.UK
PLFY-P100/125VBM-ER3.UK




Silent
2.7m
3.0m
3.3m

Standard
3.2m
3.6m
4.0m

High ceiling
4.5m
4.5m
4.5m
4 direction
3 direction
2 direction
SWA
SWB



2) According to the number of air outlets and height of the ceiling to install the unit, be sure to set up the switches
(SWA, SWB) on the circuit board to the appropriate setting.
• Correspondence of ceiling heights to numbers of air outlets
SW14
SW11
SW12
12345678910
ON
OFF
SW1
SWC
CN82
CN43
3
2
SWA
1
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
(10ths DIGIT) (1s DIGIT)
. /.
(BRANCH No.)
2
3
SWB
4
OCH413D

1919
CN51
Multiple remote
controller adapter
PAC-SA88HA-E
Indoor controller board
Distance between indoor
controller board and relay
must be within 10m.
Be sure to secure insulation
material by tape, etc
5Green
Yellow
Orange
Connector (5P)
Indoor unit side Multiple remote
controller adapter
PAC-SA88HA-E Be sure to secure insulatio
n
material by tape, etc
Installation at site
CN51
on
indoor
controller
board Red
Brown
1
~
CN51
MB
5-3. OPERATION IN CONJUNCTION WITH
DUCT FAN (Booster fan)
• Whenever the indoor unit is operating, the duct fun also
operates.
(1) Connect the optional multiple remote controller adapter
(PAC-SA88HA-E) to the connector CN51 on the indoor
controller board.
(2) Drive the relay after connecting the 12V DC relay
between the Yellow and Orange connector wires.
MB: Electromagnetic switch power relay for duct fan.
X: Auxiliary relay (For DC 12V, coil rating : 1.0W or below)
Branch duct hole



14-:2.8 burring hole
Indoor unit
:150 cut out hole
Fresh air intake hole
:175 burring hole pitch
Drain pipe
Fresh air intake hole diagram
Refrigerant pipe
3-:2.8 burring hole
Branch duct hole diagram
(view from either side)
:125 burring
hole pitch
:100 cut
out hole
Ceiling
*158
120
120
350
90
70°
100 100 90
100 130
*155 *167
5-2. BRANCH DUCT HOLE AND FRESH AIR INTAKE HOLE
At the time of installation, use the duct holes (cut out) located at the positions shown in following diagram, as and when
required.
• A fresh air intake hole for the optional multi function casement can also be made.
Note:
The figures marked with * in the drawing below represent the dimensions of the main unit excluding those of the optional multi
function casement.
When installing the optional multi function casement, add 135 mm to the dimensions marked on the figure.
When installing the branch ducts, be sure to insulate adequately.
Otherwise, condensation and dripping may occur.
OCH413D

20
-200
-150
-100
-50
0
50
0123456
Static pressure[Pa]
Airflow rate [m3/min]
-200
-150
-100
-50
0
50
02468
Static pressure[Pa]
Airflow rate [m3/min]
Static pressure[Pa]
Static pressure[Pa]
-200
-150
-100
-50
0
50
02468
2 - inlet
1 - inlet -200
-150
-100
-50
0
50
02468
2 - inlet
1 - inlet
Airflow rate [m3/min] Airflow rate [m3/min]
-200
-150
-100
-50
0
50
0123456
2 - inlet
1 - inlet
Static pressure[Pa]
-200
-150
-100
-50
0
50
0123456
2 - inlet
1 - inlet
Airflow rate [m3/min] Airflow rate [m3/min]
Static pressure[Pa]
lPLFY-P32/40/50/63/80VBM-E.UK
PLFY-P32/40/50/63/80VBM-E1.UK
PLFY-P32/40/50/63/80VBM-ER2.UK
PLFY-P32/40/50/63/80VBM-ER3.UK
Multi function casement + Standard filter
2PLFY-P100/125VBM-E.UK
PLFY-P100/125VBM-ER2.UK
PLFY-P100/125VBM-ER3.UK
Multi function casement + High efficiency filter
Taking air into the unit
Multi function casement + Standard filter Multi function casement + High efficiency filter
Taking air into the unit

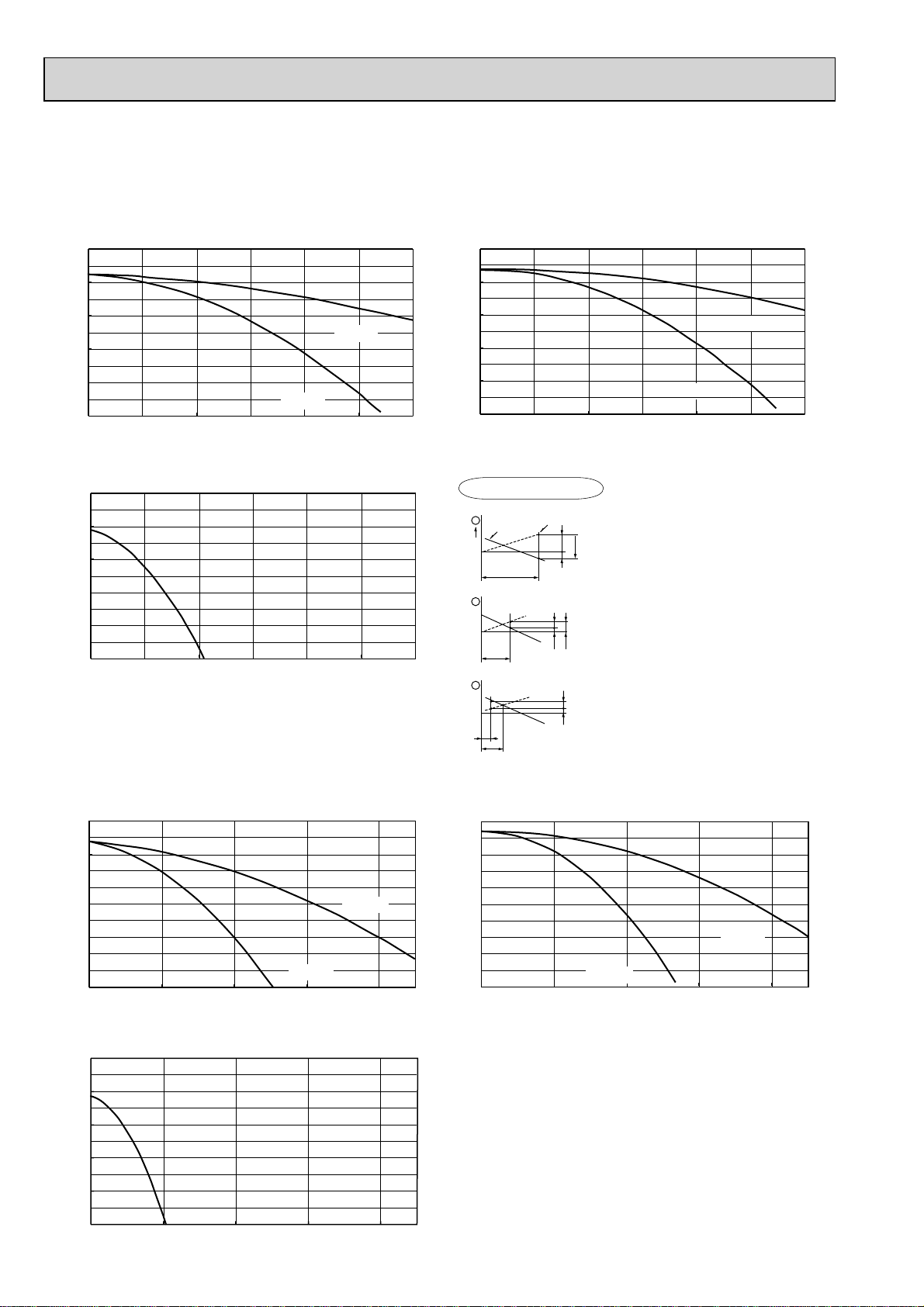

5-4. FRESH AIR INTAKE AMOUNT & STATIC PRESSURE CHARACTERISTICS
Q
0
BA
C
1Curve in the
graphs
Duct characteristics
at site
Q
A
EC
2
Q
Qa
AD
3
Q…Planned amount of fresh air intake
<m3/min>
A…Static pressure loss of fresh air
intake duct system with airflow
amount Q <Pa>
B…Forced static pressure at air condi-
tioner inlet with airflow amount Q
<Pa>
C…Static pressure of booster fan with
airflow amount Q <Pa>
D…Static pressure loss increase
amount of fresh air intake duct sys-
tem for airflow amount Q <Pa>
E…Static pressure of indoor unit with
airflow amount Q <Pa>
Qa…Estimated amount of fresh air
intake without D <m3/min>
How to read curves
OCH413D
