SERVICE MANUAL
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
CONTENTS
1. REFERENCE MANUAL··································2
2. SAFETY PRECAUTION··································3
3. FEATURES ·····················································7
4. SPECIFICATIONS···········································8
5. DATA·····························································10
6. OUTLINES AND DIMENSIONS····················15
7. WIRING DIAGRAM·······································18
8. WIRING SPECIFICATIONS··························21
9. REFRIGERANT SYSTEM DIAGRAM ··············26
10. TROUBLESHOOTING ··································29
11. FUNCTION SETTING····································86
12. MONITORING THE OPERATION DATA BY THE REMOTE CONTROLLER ············92
13. EASY MAINTENANCE FUNCTION············102
14. DISASSEMBLY PROCEDURE ···················107
15. PARTS LIST················································129
16. RoHS PARTS LIST ·····································140
No.OC374
REVISED EDITION-A
R410A
July 2006
Outdoor unit
[model names]
PUHZ-RP35VHA2
PUHZ-RP50VHA2
PUHZ-RP60VHA2
PUHZ-RP71VHA2
PUHZ-RP100VHA2
PUHZ-RP125VHA2
PUHZ-RP140VHA2
PUHZ-RP100YHA2
PUHZ-RP125YHA2
PUHZ-RP140YHA2
[Service Ref.]
PUHZ-RP35VHA2
PUHZ-RP50VHA2
PUHZ-RP60VHA2
PUHZ-RP71VHA2
PUHZ-RP100VHA2
PUHZ-RP125VHA2
PUHZ-RP140VHA2
PUHZ-RP100YHA2
PUHZ-RP125YHA2
PUHZ-RP140YHA2
PUHZ-RP60VHA2
PUHZ-RP71VHA2
NOTE:
• This manual describes only
service data of the outdoor
units.
• RoHS compliant products have
<G> mark on the spec name
plate.
• For servicing of RoHS compli-
ant products, refer to the RoHS
PARTS LIST.
Revision:
• RoHS PARTS LIST is added.
• Some descriptions have been
modified.
• Please void OC374.
OC374A--1.qxp 06.7.26 5:07 PM Page 1

2
1REFERENCE MANUAL
1-1. INDOOR UNIT SERVICE MANUAL
Model name Service Ref. Service
Manual No.
PLA-RP35/50/60/71AA PLA-RP35/50/60/71AA.UK OC335
PLA-RP35/50/60/71AA OC327
OC328
PLA-RP100/125/140AA2 PLA-RP100/125/140AA2.UK
PCA-RP50/60/71/100/125/140GA
PCA-RP50GA2 PCA-RP50/60/71/100/125/140GA PCA-RP50GA2
OC329
PCA-RP71/125HA PCA-RP71/125HA
OC330
PKA-RP35/50GAL PKA-RP35/50GAL
OC331
PKA-RP60/71/100FAL
PKA-RP50FAL2 PKA-RP60/71/100FAL PKA-RP50FA2
OC332
PSA-RP71/100/125/140GA PSA-RP71/100/125/140GA
PEAD-RP50/60/71/125/140EA PEAD-RP50/60/71/125/140EA.UK
PEAD-RP35/100EA2 PEAD-RP35/100EA2.UK
PEAD-RP60/71/100GA PEAD-RP60/71/100GA.UK
1-2.TECHNICAL DATA BOOK
Manual No. OCS05
OC357
HWE05210
HWE05060
OC374A--1.qxp 06.7.26 5:07 PM Page 2

3
2SAFETY PRECAUTION
Cautions for units utilizing refrigerant R410A
2-1. CAUTIONS RELATED TO NEW REFRIGERANT
Use new refrigerant pipes.
Make sure that the inside and outside of refrige-
rant piping is clean and it has no contamination
such as sulfur hazardous for use, oxides, dirt,
shaving particles, etc.
In addition, use pipes with specified thickness.
Store the piping to be used during installation
indoors and keep both ends of the piping sealed
until just before brazing. (Leave elbow joints, etc.
in their packaging.)
Use ester oil, ether oil or alkylbenzene oil (small
amount) as the refrigerant oil applied to flares
and flange connections.
In case of using the existing pipes for R22, be careful with
the followings.
· For RP100, 125 and 140, be sure to perform replacement
operation before test run.
· Change flare nut to the one provided with this product.
Use a newly flared pipe.
· Avoid using thin pipes.
Charge refrigerant from liquid phase of gas
cylinder.
If the refrigerant is charged from gas phase, composition
change may occur in refrigerant and the efficiency will be
lowered.
Do not use refrigerant other than R410A.
If other refrigerant (R22 etc.) is used, chlorine in refrige-
rant can cause deterioration of refrigerant oil etc.
Use a vacuum pump with a reverse flow check
valve.
Vacuum pump oil may flow back into refrigerant cycle and
that can cause deterioration of refrigerant oil etc.
Use the following tools specifically designed for
use with R410A refrigerant.
The following tools are necessary to use R410A refrigerant.
Keep the tools with care.
If dirt, dust or moisture enter into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
Do not use a charging cylinder.
If a charging cylinder is used, the composition of refrigera-
nt will change and the efficiency will be lowered.
Flare tool
Electronic refrigerant
charging scale
Vacuum pump adaptor
Size adjustment gauge
Gauge manifold
Torque wrench
Gas leak detector
Charge hose
Tools for R410A
Contamination inside refrigerant piping can cause deterio-
ration of refrigerant oil etc.
If dirt, dust or moisture enter into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
If large amount of mineral oil enter, that can cause deterio-
ration of refrigerant oil etc.
Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.
[1] Cautions for service
(1) Perform service after collecting the refrigerant left in unit completely.
(2) Do not release refrigerant in the air.
(3) After completing service, charge the cycle with specified amount of refrigerant.
(4) When performing service, install a filter drier simultaneously.
Be sure to use a filter drier for new refrigerant.
[2] Additional refrigerant charge
When charging directly from cylinder
· Check that cylinder for R410A on the market is syphon type.
· Charging should be performed with the cylinder of syphon stood vertically. (Refrigerant is charged from liquid phase.)
OC374A--1.qxp 06.7.26 5:07 PM Page 3

4
Gravimeter
Unit
[3] Service tools
Use the below service tools as exclusive tools for R410A refrigerant.
No. Specifications
1Gauge manifold ·Only for R410A
·Use the existing fitting specifications. (UNF1/2)
·Use high-tension side pressure of 5.3MPa·G or over.
2Charge hose ·Only for R410A
·Use pressure performance of 5.09MPa·G or over.
3Electronic scale
4Gas leak detector ·Use the detector for R134a, R407C or R410A.
5Adaptor for reverse flow check ·Attach on vacuum pump.
6Refrigerant charge base
7Refrigerant cylinder ·Only for R410A Top of cylinder (Pink)
Cylinder with syphon
8Refrigerant recovery equipment
[4] Refrigerant leakage detection function
This air conditioner (outdoor unit PUHZ-RP•HA2) can detect refrigerant leakage which may happen during a long period of
use. In order to enable the leakage detection, settings are required to let the unit memorize the initial conditions(initial
learning). Refer to 13-3 INITIAL SETTINGS FOR REFRIGERANT LEAKAGE DETECTION FUNCTION.
OC374A--1.qxp 06.7.26 5:07 PM Page 4

5
2-2. PRECAUTIONS WHEN REUSING EXISTING R22 REFRIGERANT PIPES
(1) Flowchart
Connecting a new air conditioner
1Flaring work should be done so that flare meets the dimension for R410A.
Use flare nut provided with indoor and outdoor unit.
2When using gas piping of [19.05mm for RP100, 125 or 140.
Make sure that DIP SW8-1 on outdoor unit controller board is set to ON.
WThis is to keep the pressure on pipes within permissible range.
●Use different diameter joint or adjust the piping size by brazing.
3When using pipes larger than specified size for RP35, 50, 60 or 71.
Make sure that DIP SW8-1 on outdoor unit controller board is set to ON.
W This is to prevent oil flow ratio from lowering due to the decrease in flowing refrigerant.
●Use different diameter joint or adjust the piping size by brazing.
4When existing pipes are specified size.
The pipes can be reused referring to TECHNICALDATA BOOK (OCS05).
●Use different diameter joint or adjust the piping size by brazing.
★When using existing pipes for RP100, 125 and 140.
Make sure that DIP SW8-2 on outdoor unit controller board is set to ON and perform
replacement operation.
wChemical compounds containing chlorine left in existing pipes are collected by replace filter.
●The air conditioner automatically performs cooling operation through replace filter for about 2 hours.
Measure the existing pipe thickness and check for damage.
Check if existing air conditioner can operate.
Existing air conditioner can
operate.
Disconnect existing air con-
ditioner from piping.
Existing pipes can be reused.
In case the unit is RP35, 50,
60 or 71 which utilizes AB oil.
In case the unit is RP100, 125
or 140 which utilize ester oil.
Perform cooling operation
for about 30 minutes and
then do a pump down work.
Use a refrigerant recovery
equipment to collect the re-
frigerant.
Existing air conditioner
cannot operate.
The existing pipe thickness meets speci-
fications and the pipes are not damaged.
The existing pipe thickness does not meet
specifications or the pipes are damaged.
Connect a new air conditioner. Connect a new air conditioner.
Perform replacement operation.
·When performing replacement operation, make sure that DIP SW8-2 on outdoor unit controller board is
set to ON.
wChemical compounds containing chlorine left in existing pipes are collected by replace filter.
●The air conditioner automatically performs cooling operation through replace filter for about 2 hours.
Existing pipes cannot be
reused. Use new pipes.
wIn case existing pipes were used
for gas or oil heat pump system,
be sure to clean the pipes for RP100-140 models.
Use new pipes for RP35-71 models.
OC374A--1.qxp 06.7.26 5:07 PM Page 5

6
(2) Cautions for refrigerant piping work
New refrigerant R410A is adopted for replacement inverter series. Although the refrigerant piping work for R410A is same
as for R22, exclusive tools are necessary so as not to mix with different kind of refrigerant. Furthermore as the working
pressure of R410A is 1.6 time higher than that of R22, their sizes of flared sections and flare nuts are different.
1Thickness of pipes
Because the working pressure of R410A is higher compared to R22, be sure to use refrigerant piping with thickness
shown below. (Never use pipes of 0.7mm or below.)
2Dimensions of flare cutting and flare nut
The component molecules in HFC refrigerant are smaller compared to conventional refrigerants. In addition to that,
R410A is a refrigerant, which has higher risk of leakage because of its working pressure higher than that of other refriger-
ants. Therefore, to enhance airtightness and intensity, flare cutting dimension of copper pipe for R410A have been speci-
fied separately from the dimensions for other refrigerants as shown below. The dimension B of flare nut for R410A also
have partly been changed to increase intensity as shown below. Set copper pipe correctly referring to copper pipe flaring
dimensions for R410A below. For 1/2” and 5/8”, the dimension B changes.
Use torque wrench corresponding to each dimension.
3Tools for R410A (The following table shows whether conventional tools can be used or not.)
1/4”
3/8”
1/2”
5/8”
3/4”
6.35
9.52
12.70
15.88
19.05
0.8
0.8
0.8
1.0
—
0.8
0.8
0.8
1.0
1.0
Nominal
dimensions
Diagram below: Piping diameter and thickness
Outside
diameter (mm)
Thickness (mm)
R410A R22
1/4”
3/8”
1/2”
5/8”
3/4”
6.35
9.52
12.70
15.88
19.05
9.1
13.2
16.6
19.7
—
9.0
13.0
16.2
19.4
23.3
Nominal
dimensions
Flare cutting dimensions
Outside
diameter Dimension A ( )
+0
-0.4
(mm)
R410A R22
1/4”
3/8”
1/2”
5/8”
3/4”
6.35
9.52
12.70
15.88
19.05
17.0
22.0
26.0
29.0
—
17.0
22.0
24.0
27.0
36.0
Nominal
dimensions
Flare nut dimensions
Outside
diameter Dimension B (mm)
R410A
w
w36.0mm for
indoor unit
of RP100,
125 and 140
R22
Gauge manifold
Charge hose
Gas leak detector
Refrigerant recovery equipment
Refrigerant cylinder
Applied oil
Safety charger
Charge valve
Vacuum pump
Flare tool
Bender
Pipe cutter
Welder and nitrogen gas cylinder
Refrigerant charging scale
Vacuum gauge or thermis-
tor vacuum gauge and
vacuum valve
Charging cylinder
Air purge and refrigerant charge
Operation check and the two above
Gas leak check
Collection of refrigerant
Refrigerant charge
Apply to flared section
Prevent compressor malfunction
when charging refrigerant by
spraying liquid refrigerant
Prevent gas from blowing out
when detaching charge hose
Vacuum drying and air
purge
Flaring work of piping
Bend the pipes
Cut the pipes
Weld the pipes
Charge refrigerant
Check the degree of vacuum. (Vacuum
valve prevents back flow of oil and refri-
gerant to thermistor vacuum gauge)
Charge refrigerant
Tool exclusive for R410A
Tool exclusive for R410A
Tool for HFC refrigerant
Tool exclusive for R410A
Tool exclusive for R410A
Ester oil and alkylbenzene
oil (minimum amount)
Tool exclusive for R410A
Tool exclusive for R410A
Tools for other refrigerants can
be used if equipped with adop-
ter for reverse flow check
Tools for other refrigerants
can be used by adjusting
flaring dimension
Tools for other refrigerants can be used
Tools for other refrigerants can be used
Tools for other refrigerants can be used
Tools for other refrigerants can be used
Tools for other refrigerants
can be used
Tool exclusive for R410A
Tools and materials Use R410A tools Can R22 tools be used?
(Usable if equipped
with adopter for rever-
se flow)
(Usable by adjusting
flaring dimension)
Can R407C tools be used?
Ester oil:
Alkylbenzene oil: minimum amount
(Usable if equipped
with adopter for rever-
se flow)
(Usable by adjusting
flaring dimension)
: Prepare a new tool. (Use the new tool as the tool exclusive for R410A.)
: Tools for other refrigerants can be used under certain conditions.
: Tools for other refrigerants can be used.
Dimension A
Dimension B
OC374A--1.qxp 06.7.26 5:07 PM Page 6

7
3 FEATURES
CHARGELESS SYSTEM
PRE-CHARGED REFRIGERANT IS SUPPLIED FOR PIPING LENGTH AT SHIPMENT.
Max.30m(PUHZ-RP35/50/60/71/100/125/140)
The refrigerant circuit with LEV(Linear Expansion Valve) and power receiver always control the optimal refrigerant
level regardless of the length (30m max. and 5m min.) of piping. The additional refrigerant charging work during
installation often causes problems. Heretofore it is completely eliminated. This unique system improves the quality
and reliability of the work done. It also helps to speed up the installation time.
REFRIGERANT LEAKAGE DETECTION FUNCTION
PUHZ-RP•HA2 can detect refrigerant leakage which may happen during a long period of use.
PUHZ-RP60/ 71VHA2
PUHZ-RP100/ 125/ 140VHA2
PUHZ-RP100/ 125/ 140YHA2
PUHZ-RP35/ 50VHA2
OC374A--1.qxp 06.7.26 5:07 PM Page 7

8
4SPECIFICATIONS
A
A
kW
W
kW
K
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Power supply (phase, cycle, voltage)
Running current
Max. current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
Mode
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref. PUHZ-RP35VHA2 PUHZ-RP50VHA2
Cooling
4.01 13
0.9
Munsell 3Y 7.8/1.1
Linear Expansion Valve
Hermetic
SNB130FLBH
Line start
—
Plate fin coil
Propeller fan o1
0.043
35(1,240)
Reverse cycle
44
46
800(31-1/2)
300+23(11-13/16+7/8)
600(23-5/8)
45(99)
R410A
2.5(5.5)
0.45(NEO22)
6.35(1/4)
12.7(1/2)
Flared
Flared
Max. 30m
Max. 50m
Heating
4.23
Cooling
6.16 13
1.1
Heating
6.47
HP switch
Discharge thermo HP switch Discharge thermo
Single, 50Hz, 230V
OUTDOOR UNIT
REFRIGERANT PIPING
A
A
kW
W
kW
K
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Power supply (phase, cycle, voltage)
Running current
Max. current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
Mode
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref. PUHZ-RP71VHA2
PUHZ-RP60VHA2 Cooling
8.04
TNB220FMBH
Propeller fan o1
0.060
55(1,940)
47
48
943(37-1/8)
75(165)
3.5(7.7)
0.87(NEO22)
Max. 50m
Munsell 3Y 7.8/1.1
Linear Expansion Valve
Hermetic
Line start
—
Plate fin coil
Reverse cycle
950(37-3/8)
330+30(13+1-3/16)
R410A
9.52(3/8)
15.88(5/8)
Flared
Flared
Max. 30m
Heating
9.74
Cooling
6.61
Heating
7.50
HP switch
Discharge thermo
Single, 50Hz, 230V
OUTDOOR UNIT
REFRIGERANT PIPING
1.61.4
19
OC374A--1.qxp 06.7.26 5:07 PM Page 8

9
A
A
kW
W
kW
K
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Power supply (phase, cycle, voltage)
Running current
Max. current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
Mode
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref. PUHZ-RP140VHA2PUHZ-RP125VHA2
PUHZ-RP100VHA2 Cooling
15.53
49
51
Munsell 3Y 7.8/1.1
Linear Expansion Valve
Hermetic
Line start
—
Plate fin coil
Propeller fan o2
0.060+0.060
100(3,530)
Reverse cycle
950(37-3/8)
330+30(13+1-3/16)
1,350(53-1/8)
R410A
5.0(11.0)
1.40(MEL56)
9.52(3/8)
15.88(5/8)
Flared
Flared
Max. 30m
Max. 75m
Heating
15.98
Cooling
12.53
Heating
12.39
Cooling
19.65 29.5
2.9
Heating
19.92
HP switch
Discharge thermo
Single 50Hz, 230V
OUTDOOR UNIT
REFRIGERANT PIPING
2.41.9
28
ANV33FDDMT
50
52
ANB33FCKMT
121(267) 116(256)
A
A
kW
W
kW
K
/min(CFM )
dB
dB
mm(in.)
mm(in.)
mm(in.)
kg(lbs)
kg(lbs)
L
mm(in.)
mm(in.)
Power supply (phase, cycle, voltage)
Running current
Max. current
External finish
Refrigerant control
Compressor
Model
Motor output
Starter type
Protection devices
Crankcase heater
Heat exchanger
Fan Fan(drive) oNo.
Fan motor output
Airflow
Defrost method
Noise level
Dimensions
Weight
Refrigerant
Charge
Oil (Model)
Pipe size O.D.
Connection method
Between the indoor &
outdoor unit
Mode
Cooling
Heating
W
D
H
Liquid
Gas
Indoor side
Outdoor side
Height difference
Piping length
Service Ref. PUHZ-RP140YHA2PUHZ-RP125YHA2
PUHZ-RP100YHA2 Cooling
5.04
49
51
13
Munsell 3Y 7.8/1.1
Linear Expansion Valve
Hermetic
Line start
—
Plate fin coil
Propeller fan o2
0.060+0.060
100(3,530)
Reverse cycle
950(37-3/8)
330+30(13+1-3/16)
1,350(53-1/8)
R410A
5.0(11.0)
1.40(MEL56)
9.52(3/8)
15.88(5/8)
Flared
Flared
Max. 30m
Max. 75m
Heating
5.20
Cooling
4.08
Heating
4.03
Cooling
6.37
2.9
Heating
6.46
HP switch
Discharge thermo
3phase, 50Hz, 400V
OUTDOOR UNIT
REFRIGERANT PIPING
2.41.9
ANV33FDBMT
50
52
ANB33FDFMT
135(298) 130(287)
OC374A--1.qxp 06.7.26 5:07 PM Page 9

10
5DATA
5-1. REFILLING REFRIGERANT CHARGE (R410A : kg)
5-2. COMPRESSOR TECHNICAL DATA
Piping length (one way)
10m 20m 30m 40m 50m Factory
charged
2.1
2.1
3.1
3.1
4.6
4.6
4.6
2.3
2.3
3.3
3.3
4.8
4.8
4.8
2.5
2.5
3.5
3.5
5.0
5.0
5.0
2.7
2.7
4.1
4.1
5.6
5.6
5.6
2.9
2.9
4.7
4.7
6.2
6.2
6.2
60m
—
—
—
—
6.8
6.8
6.8
75m
—
—
—
—
7.4
7.4
7.4
2.5
2.5
3.5
3.5
5.0
5.0
5.0
Service Ref.
PUHZ-RP35VHA2
PUHZ-RP100VHA2
PUHZ-RP125VHA2
PUHZ-RP125YHA2
PUHZ-RP140VHA2
PUHZ-RP140YHA2
PUHZ-RP50VHA2
PUHZ-RP60VHA2
PUHZ-RP71VHA2
U-V
U-W
W-V
Unit
Compressor model
Winding
Resistance
( ")
ANV33FDDMT
(at 20°C)
0.266
0.266
0.266
SNB130FLBH
0.300 ~ 0.340
0.300 ~ 0.340
0.300 ~ 0.340
PUHZ-RP100VHA2
ANV33FDBMT
1.064
1.064
1.064
ANB33FDFMTANB33FCKMT
0.302
0.302
0.302
0.188
0.188
0.188
PUHZ-RP100YHA2
PUHZ-RP35/50VHA2
TNB220FMBH
0.865 ~ 0.895
0.865 ~ 0.895
0.865 ~ 0.895
PUHZ-RP60/71VHA2 PUHZ-RP125/140YHA2
PUHZ-RP125/140VHA2
Longer pipe than 30m, additional charge is
required.
OC374A--1.qxp 06.7.26 5:07 PM Page 10

11
5-3. NOISE CRITERION CURVES
1.5m
1m
MICROPHONE
UNIT
GROUND
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
PUHZ-RP35VHA2
PUHZ-RP50VHA2
COOLING
MODE
HEATING
44
SPL(dB)
46
LINE
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
BAND CENTER FREQUENCIES, Hz
PUHZ-RP60VHA2
PUHZ-RP71VHA2
COOLING
MODE
HEATING
47
SPL(dB)
48
LINE
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
BAND CENTER FREQUENCIES, Hz
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
PUHZ-RP100VHA2
PUHZ-RP100YHA2
COOLING
MODE
HEATING
49
SPL(dB)
51
LINE
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
BAND CENTER FREQUENCIES, Hz
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
PUHZ-RP125/140VHA2
PUHZ-RP125/140YHA2
COOLING
MODE
HEATING
50
SPL(dB)
52
LINE
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
BAND CENTER FREQUENCIES, Hz
OC374A--1.qxp 06.7.26 5:07 PM Page 11

12
5-4. STANDARD OPERATION DATA
TotalElectrical circuitRefrigerant circuitIndoor side
Outdoor
side
Representative matching
SHF
BF
W
kW
Mode
Capacity
Input
PLA-RP71AA
PLA-RP71AA
Cooling
7,100
1.97
Heating
8,000
2.34
8.04
2.68
0.94
70
46
10
5
27
19
14.2
35
24
0.74
0.18
9.74
2.87
0.73
74
48
1
5
20
15
41.6
7
6
—
—
1 , 50
230
0.79
PUHZ-RP71VHA2
1 , 50
230
Phase , Hz
Volts
Amperes
Outdoor unit
Phase , Hz
Volts
Current
Discharge pressure
Suction pressure
Discharge temperature
Condensing temperature
Suction temperature
Ref. pipe length
Intake air temperature
Discharge air temperature
Intake air temperature
V
A
V
A
MPa
MPa
°C
°C
°C
m
°C
°C
°C
°C
°C
Indoor unit
D.B.
W.B.
D.B.
D.B.
W.B.
PLA-RP35AA PLA-RP50AA PLA-RP60AA
PLA-RP35AA PLA-RP50AA PLA-RP60AA
Cooling
3,600
1.07
Heating
4,100
1.12
Cooling
5,000
1.55
Heating
6,000
1.62
Cooling
6,000
1.65
Heating
7,000
1.85
4.01
2.70
1.01
70
46
15
5
27
19
15.6
35
24
0.89
0.11
4.23
2.69
0.74
71
41
2
5
20
15
35.5
7
6
—
—
6.16
2.91
0.99
73
49
11
5
27
19
15.4
35
24
0.86
0.14
6.47
2.76
0.67
77
44
-1
5
20
15
37.8
7
6
—
—
6.61
2.60
0.99
65
44
12
5
27
19
14.3
35
24
0.78
0.14
7.50
2.63
0.70
81
44
8
5
20
15
40.9
7
6
—
—
1 , 50
230
0.79
PUHZ-RP35VHA2
1 , 50
230
1 , 50
230
0.79
PUHZ-RP50VHA2
1 , 50
230
1 , 50
230
0.79
PUHZ-RP60VHA2
1 , 50
230
The unit of pressure has been changed to MPa based on international SI system.
The conversion factor is : 1(MPa)=10.2(kgf/ff)
OC374A--1.qxp 06.7.26 5:07 PM Page 12

13
TotalElectrical circuitRefrigerant circuitIndoor side
Outdoor
side
Representative matching
SHF
BF
W
kW
Mode
Capacity
Input
Phase , Hz
Volts
Amperes
Outdoor unit
Phase , Hz
Volts
Current
Discharge pressure
Suction pressure
Discharge temperature
Condensing temperature
Suction temperature
Ref. pipe length
Intake air temperature
Discharge air temperature
Intake air temperature
V
A
V
A
MPa
MPa
°C
°C
°C
m
°C
°C
°C
°C
°C
Indoor unit
D.B.
W.B.
D.B.
D.B.
W.B.
PLA-RP100AA2 PLA-RP125AA2 PLA-RP140AA2
PLA-RP100AA2 PLA-RP125AA2 PLA-RP140AA2
Cooling
10,000
3.02
Heating
11,200
3.02
Cooling
12,500
3.87
Heating
14,000
3.88
Cooling
14,000
4.65
Heating
16,000
4.69
12.53
2.55
0.94
63
44
11
5
27
19
13.0
35
24
0.78
0.04
12.39
2.46
0.70
70
42
3
5
20
15
42.5
7
6
—
—
15.53
2.72
0.88
69
46
9
5
27
19
12.2
35
24
0.74
0.05
15.98
2.73
0.66
76
47
2
5
20
15
45.5
7
6
—
—
19.65
2.86
0.81
76
48
8
5
27
19
11.2
35
24
0.71
0.05
19.92
2.90
0.64
83
50
1
5
20
15
49.6
7
6
—
—
1 , 50
230
0.92
1 , 50
230
1 , 50
230
0.92
1 , 50
230
1 , 50
230
0.92
1 , 50
230
PUHZ-RP100VHA2 PUHZ-RP125VHA2 PUHZ-RP140VHA2
The unit of pressure has been changed to MPa based on international SI system.
The conversion factor is : 1(MPa)=10.2(kgf/ff)
OC374A--1.qxp 06.7.26 5:07 PM Page 13

14
TotalElectrical circuitRefrigerant circuitIndoor side
Outdoor
side
Representative matching
SHF
BF
W
kW
Mode
Capacity
Input
PLA-RP100AA2 PLA-RP125AA2 PLA-RP140AA2
PLA-RP100AA2 PLA-RP125AA2 PLA-RP140AA2
Cooling
10,000
3.02
Heating
11,200
3.02
Cooling
12,500
3.87
Heating
14,000
3.88
Cooling
14,000
4.65
Heating
16,000
4.69
4.08
2.55
0.94
63
44
11
5
27
19
13.0
35
24
0.78
0.04
4.03
2.46
0.70
70
42
3
5
20
15
42.5
7
6
—
—
5.04
2.72
0.88
69
46
9
5
27
19
12.2
35
24
0.74
0.05
5.20
2.73
0.66
76
47
2
5
20
15
45.5
7
6
—
—
6.37
2.86
0.81
76
48
8
5
27
19
11.2
35
24
0.71
0.05
6.46
2.90
0.64
83
50
1
5
20
15
49.6
7
6
—
—
1 , 50
230
0.92
3 , 50
400
1 , 50
230
0.92
3 , 50
400
1 , 50
230
0.92
3 , 50
400
Phase , Hz
Volts
Amperes
Outdoor unit
Phase , Hz
Volts
Current
Discharge pressure
Suction pressure
Discharge temperature
Condensing temperature
Suction temperature
Ref. pipe length
Intake air temperature
Discharge air temperature
Intake air temperature
V
A
V
A
MPa
MPa
°C
°C
°C
m
°C
°C
°C
°C
°C
Indoor unit
D.B.
W.B.
D.B.
D.B.
W.B.
PUHZ-RP100YHA2 PUHZ-RP125YHA2 PUHZ-RP140YHA2
The unit of pressure has been changed to MPa based on international SI system.
The conversion factor is : 1(MPa)=10.2(kgf/ff)
OC374A--1.qxp 06.7.26 5:07 PM Page 14

15

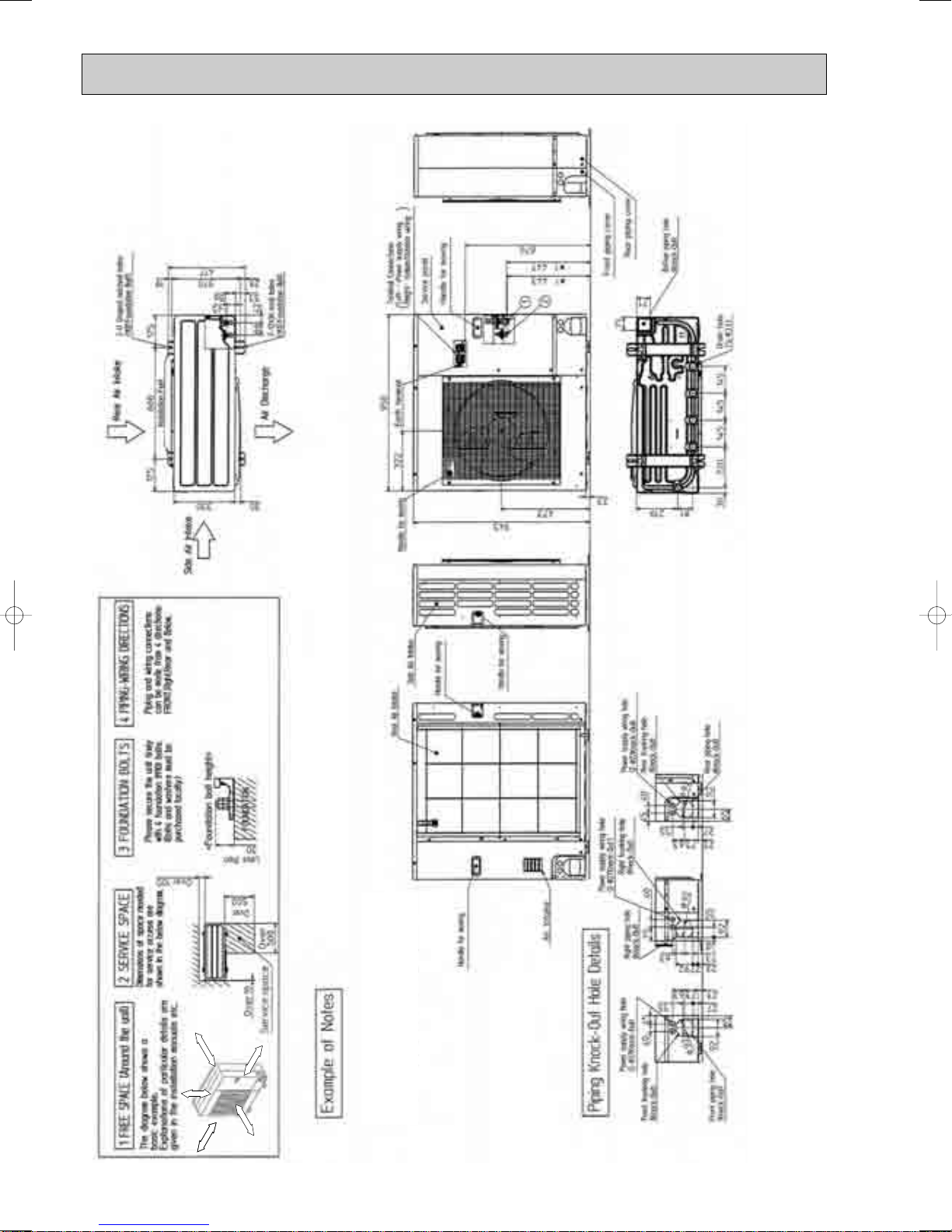

6OUTLINES AND DIMENSIONS
Service panel
for charge plug
w1 In the place where short cycle tends to occur, cooling and heating
capacity and power consumption might get lowered 10%. Air outlet
guide (optional PAC-SG58SG) will help them improve.
w2 If air discharges to the wall, the surface might get stained.
Minimum installation space for outdoor unit
100 mm or more as long as
no obstacle is placed on the
rear and light-and-left sides
of the unit.
2 sides should be open in
the right, left and rear side.
w2
w1
100 mm or more
500 mm or more
Basically open
100 mm or more
Free space around the outdoor unit
(basic example)
350 mm or more
w1
Air intake
Air discharge
Air intake
Connection for
gas pipe
Service port
Connection for
liquid pipe
Service panel
4-10 o21 oval hole
(M10 foundation bolt)
[33 drain hole
[33 drain hole
43.6
152
155
400
347.5
45.4
365
330
300
40
Handle for
moving
600
10
300
150
287.5
Installation bolt pitch: 500
800
69
35
43
183
90
155
23
32.5
18
1. FOUNDATION BOLTS 2. PIPING-WIRING DIRECTION
Piping and wiring connection can
be made from the rear direction only.
3. ATTACHING THE CONDUIT
In order to attach the conduit, it is
necessary to fix the metal plate with
2 screws to the back panel. Procure
the metal plate and make screw holes
locally. It is recommended to use the
metal plate shown below. Align the
metal plate to the marks on the unit
and attach it.
<Foundation bolt height>
Please secure the unit firmly
with 4 foundation (M10) bolts.
(Bolts, washer and nut must
be purchased locally.)
18 or below
40
20
60
80
wConduit hole
wThe position and the size of
conduit hole depend on the
conduit to be used.
Holes for metal plate fixing screw
wThe size of hole depends on the
screw to be used.
FOUNDATION
PUHZ-RP35VHA2 PUHZ-RP50VHA2 Unit : mm
OC374A--1.qxp 06.7.26 5:07 PM Page 15

16
Unit : mm
PUHZ-RP60VHA2
PUHZ-RP71VHA2
Over 10mm
F R E E
Over 500mmOver 100mm
Over 10mm
1••Refrigerant GAS pipe connection (FLARE)[15.88 (5/8F) 2••Refrigerant LIQUID pipe connection (FLARE)[9.52 (3/8F) w1••Indication of STOP VALVE connection location.
OC374A--1.qxp 06.7.26 5:07 PM Page 16

17
2
1
Handle for moving
Service panel
Handle for moving
Handle for moving
Rear Air Intake
Air intake
Rear piping cover
Front piping cover
Side Air Intake
Handle for moving
Piping Knock-Out Hole Details
Example of Notes
• • •
Refrigerant GAS pipe connction (FLARE)[15.88 (5/8F)
• • •
Refrigerant LIQUID pipe connection (FLARE)[9.52 (3/8F)
w1
• • •
Indication of STOP VALVE connection location.
1
2
Side Air Intake
Rear Air Intake
Air Discharge
600175 175
37028 19
45
5653
66 42
417
330
Installation Feet
2-12o36 Oval holes (Foundation Bolt M10)
2-U Shaped notched holes (Foundation Bolt M10)
30
637323 5527
92
65
4045
Power supply wiring hole (2-[27Knock-Out)
Rear trunking hole (Knock-Out)
Rear piping hole (Knock-Out)
[92
922723
6373
4075
92
5519
Power supply wiring hole (2-[27Knock-Out)
Right trunking hole (Knock-Out)
Right piping hole (Knock-Out)
[92
637323 5527
40 45
65
92
Power supply wiring hole (2-[27Knock-Out)
Front trunking hole (Knock-Out)
Front piping hole (Knock-Out)
[92
81 219
14514522030 145
71
71
Drain hole (5-[33)
Bottom piping hole (Knock-Out)
A
322
635371
w1 443
w1 447
950
23
1350
Handle for moving
Earth terminal
Terminal connection
Left • • • Power supply wiring Right • • Indoor/Outdoor wiring
A
1,076
930
RP·VHA2 RP·YHA2
PUHZ-RP100VHA2
PUHZ-RP125VHA2
PUHZ-RP140VHA2
PUHZ-RP100YHA2
PUHZ-RP125YHA2
PUHZ-RP140YHA2
Unit : mm
Over
Over
Over
Over
Less than
Piping and wiring connections can be made from 4 directions: FRONT,Right,Rear and Below.
4 PIPING-WIRING DIRECTIONS
3 FOUNDATION BOLTS2 SERVICE SPACE
1 FREE SPACE (Around the unit)
Please secure the unit firmly with 4 foundation (M10) bolts. (Bolts and washers must be purchased locally.)
<Foundation bolt height>
Dimensions of space needed for service access are shown in the below diagram.
The diagram below shows a basic example. Explantion of particular details are given in the installation manuals etc.
FREE
Over10mmOver10mm
Over150mm
Over150mm
30
FOUNDATION
10
500
500 150
Service space
OC374A--1.qxp 06.7.26 5:07 PM Page 17

18

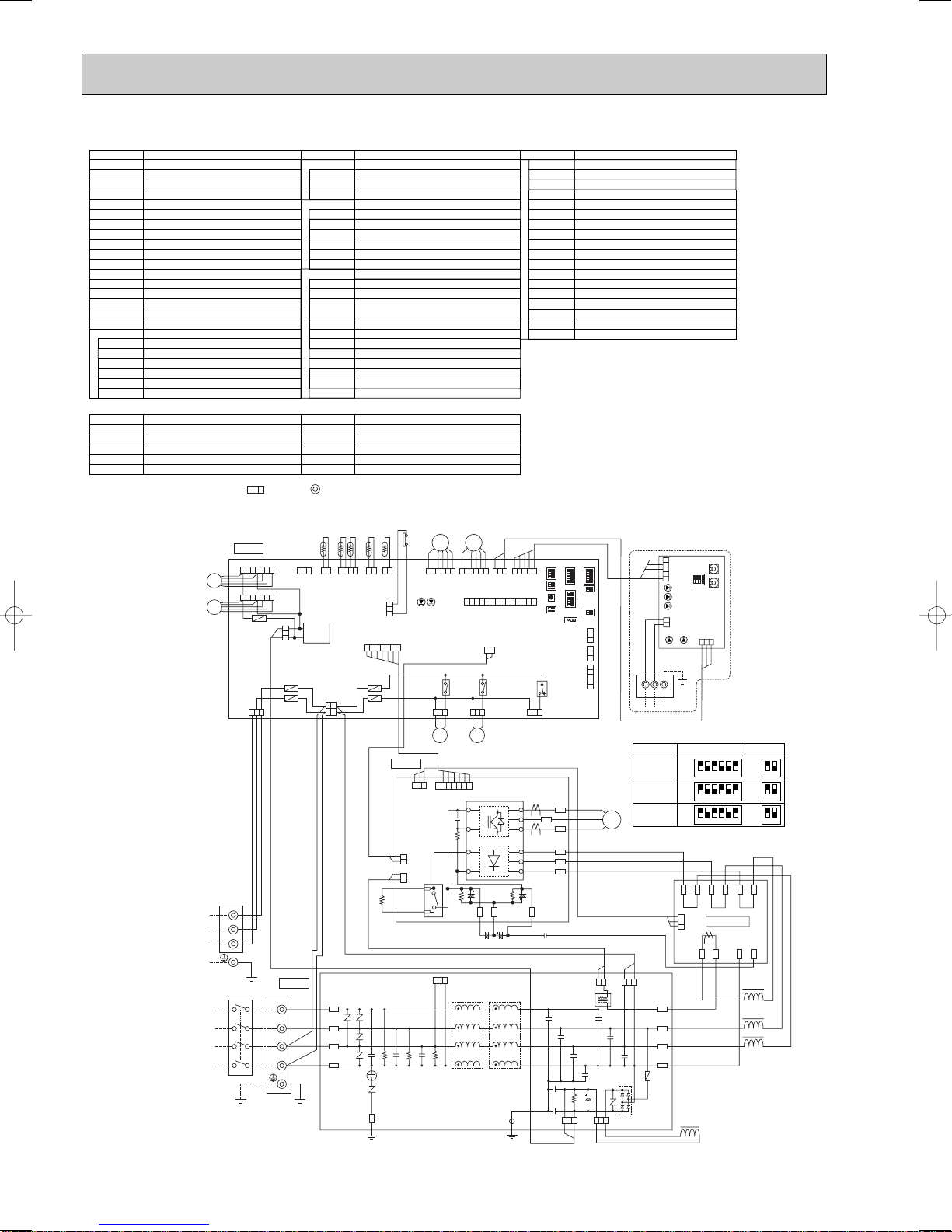

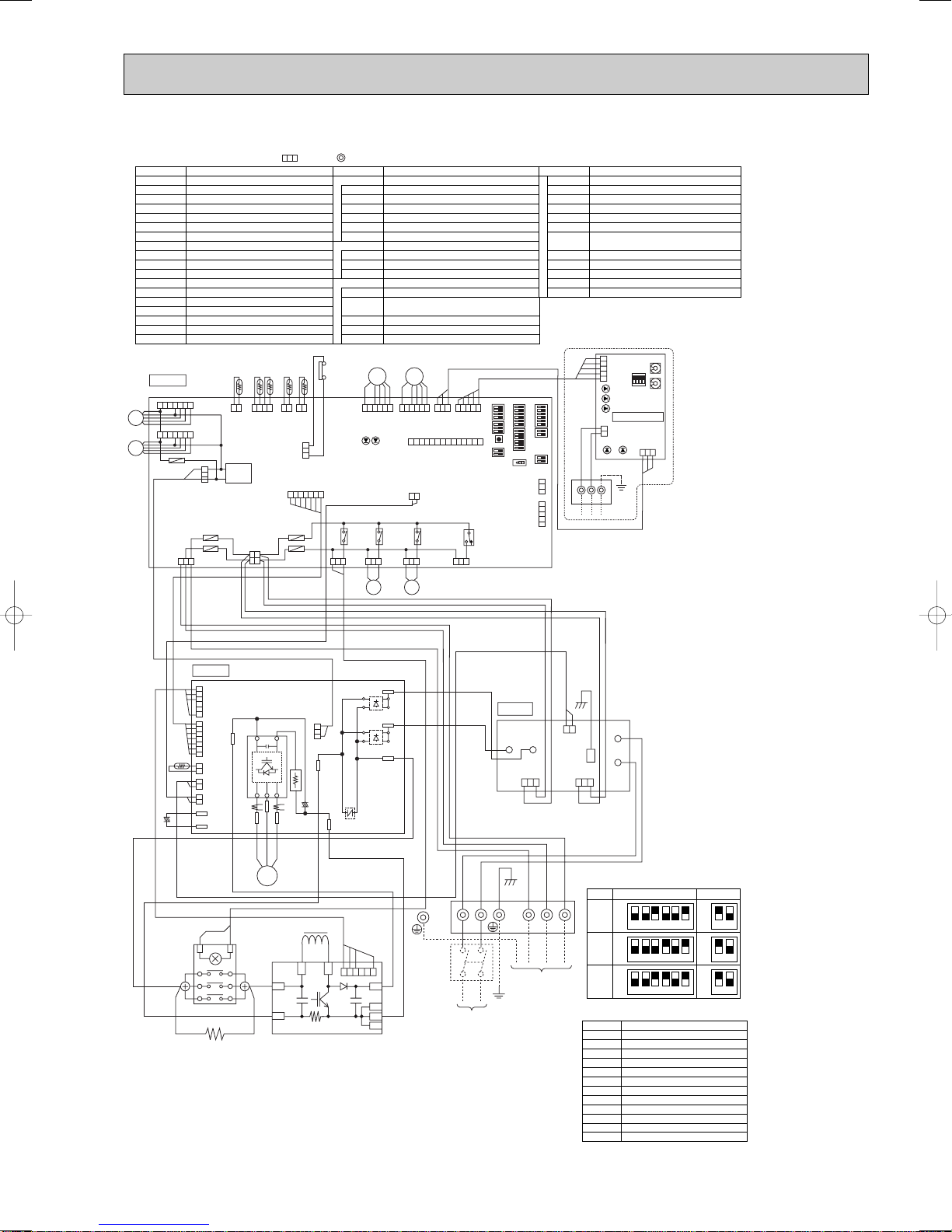

7WIRING DIAGRAM
PUHZ-RP35VHA2 PUHZ-RP50VHA2 PUHZ-RP60VHA2 PUHZ-RP71VHA2
SYMBOL
M-NET ADAPTER
NAME
TB7
CN5
CND
CN2M
SW1
SW11
Terminal Block<M-net connection>
Connector<Transmission>
Connector<Power Supply>
Connector<M-NET communication>
Switch<Status of communication>
Switch<Address setting : 1st digit>
SYMBOL NAME
SW12
LED1
LED2
LED3
LED4
LED5
Switch<Address setting : 2nd digit>
LED<Power Supply : DC5V>
LED<Connection to Outdoor Unit>
LED<Transmission : Sending>
LED<Transmission : Recelving>
LED<Power Supply : DC12V>
123456
OFF
ON
35V
MODEL SW6
w1 MODEL SELECT
w2 RP60/71V only
SW10
12
OFF
ON
123456
OFF
ON
50V 12
OFF
ON
123456
OFF
ON
60V 12
OFF
ON
123456
OFF
ON
71V 12
OFF
ON
CN3
(WHT)
CN5
(RED)
CN2
(WHT)
CN4
(WHT)
21
12
CN52C
(BLK)
52C
21
TH8
w2
12
1672345
N.F.
LO
NO
CNAC2
(RED)
13
CNAC1
(WHT)
13
12
(RED)
CN5
NI
E
LI
L N S1 S2 S3
NO FUSE
BREAKER
POWER SUPPLY
~/N
230V 50Hz
INDOOR
UNIT
TB1
ACL
MC
U
V
W
R
S
PFC
CB1 CB2 CB3
IPM
P.B.
CN5
(WHT)
123
LED2
SW1 SW11
SW12
LED3
LED4
TB7
LED1 LED5
45321
21
CND
(WHT)
CN2M
(WHT)
M-NET SUBSTRATE
M-NET
ABS
When M-NET adaptor is connected
CNVMNT
(WHT)
321
13
CNDM
(WHT)
CN51
(WHT)
321
54213
CNMNT
(WHT)
CNM
(WHT)
45321
LEV-A
(WHT)
LEV-A
C.B.
456321
LEV-B
(RED)
LEV-B
456321
TH7/6
(RED)
63H
(YLW)
TRANS
X55
X51
TH3
(WHT)
CNDC
(PNK)
CNF1
(WHT) TH4
(WHT)
TH7 TH6 TH3 TH4
432121
TH33
(YLW)
TH33
2121
SW7 SW6SW1
SW9SW10
CN31
1110 12 13 14 657891234
MF1
65714
CN2
(WHT)
CNS
(WHT)
CNAC
(WHT)
CN4
(WHT)
SV2
(BLU)
13
SS
(WHT)
21S4
(GRN)
432 2 11
CN52C
(RED)
12
567
LED1
LED2
3
13
X52
F1
F2
F5
F4
F3
w1
wh 1
132 21 43
SW5SW8SW4 SWP
13
SV21S4
1
BLK RED WHT
WVU
TB1
MC
MF1
21S4
63H
TH3, TH33
TH4
TH6
TH7
TH8
LEV(A),LEV(B)
ACL
Terminal Block<Power Supply, Indoor/Outdoor>
Motor for Compressor
Fan Motors
Solenoid Valve (Four-Way Valve)
High Pressure Switch
SV Solenoid Valve (Bypass Valve)
Thermistor<Outdoor Pipe>
Thermistor<Discharge>
Thermistor<Outdoor 2-Phase Pipe>
Thermistor<Outdoor>
Thermistor<Radiator Panel>
Electronic Expansion Valve
Reactor
Power Circuit Board
Connection Terminal<U/V/W-Phase>
P.B.
U/V/W
Noise Filter Circuit Board
Connection Terminal<L-Phase>
Connection Terminal<Ground>
N.F.
LI/LO
Connection Terminal<N-Phase>
NI/NO
E
Controller Circuit Board
Switch<Forced Defrost, Defect History
Record Reset, Refrigerant Address>
Switch<Test Operation>
Switch<Function Switch>
Switch<Function Setup>
Switch<Pump Down>
Connector<Emergency Operation>
SW1
SW4
SW5
SW7
Switch
SW8
SWP
CN31
CNM
CNVMNT
CNDM
LED1,LED2
Light Emitting Diodes
<Operation Inspection Indicators>
Connector<A-Control Service Inspection Kit>
Connector
<Connected to Optional M-NET Adapter Board>
Connector
< Connected for Option (Contact Input)>
C.B.
Inverter IPM
Main Smoothing Capacitor CB1~CB3
52C Relay
52C
SYMBOL NAME SYMBOL NAME SYMBOL NAME
Connection Terminal<L/N-Phase>
R/S
CNMNT
Connector
<Connected to Optional M-NET Adapter Board>
Switch<Model Select>
SW6
Switch
SW9
Switch<Model Select>
SW10
Fuse<T6.3AL250V>
F1~4
X51,X52,X55
Reray
SS
Connector<Connection for Option>
Symbols used in wiring diagram above are, :Connector, :Terminal(block)
OC374A--1.qxp 06.7.26 5:07 PM Page 18

19
PUHZ-RP100VHA2 PUHZ-RP125VHA2 PUHZ-RP140VHA2
123456
OFF
ON
100V
MODEL SW6
w1MODEL SELECT SW10
12
OFF
ON
123456
OFF
ON
125V 12
OFF
ON
123456
OFF
ON
140V 12
OFF
ON
NO FUSE
BREAKER
POWER SUPPLY
~/N
230V 50Hz
INDOOR
UNIT
12
123456
(RED)
CNAC2
CN5
(RED)
(WHT)
CNAC1
LO
LI
NI
NO
EI
-
+
N.F.
DCL
52C
TB1 L N S1 S2 S3
RS ACTM
31 31
L1 L2
P
N1
N2
I
CN5
(WHT)
123
LED2
SW1 SW11
SW12
LED3
LED4
TB7
LED1 LED5
45321
21
CND
(WHT)
CN2M
(WHT)
M-NET SUBSTRATE
M-NET
ABS
When M-NET adaptor is connected
CNVMNT
(WHT)
321
13
CNDM
(WHT)
CN51
(WHT)
321
54213
CNMNT
(WHT)
CNM
(WHT)
45321
LEV-A
(WHT)
LEV-A
C.B.
456321
LEV-B
(RED)
LEV-B
456321
TH7/6
(RED)
63H
(YLW)
TRANS
F5
X55
X51
TH3
(WHT)
CNDC
(PNK)
CNF1
(WHT)
CNF2
(WHT)
TH4
(WHT)
TH7 TH6 TH3 TH4
432121
TH33
(YLW)
TH33
2121
SW7 SW6SW1
SW9SW10
CN31
1110 1213 14 657891234
65714
MF1
MF2
65714
CN2
(WHT)
CNS
(WHT)
CNAC
(WHT)
CN4
(WHT)
SV2
(BLU)
13
SS
(WHT)
21S4
(GRN)
52C
(BLK)
432 2 11 567
LED1
LED2
13
13
X52 X53
F1
F2
F4
F3
w1
w1
132 21 43
SW5SW8SW4 SWP
13
P.B.
13
MC
CNDC
(PNK)
+
+
-~
~
+
-~
~
+
+
-
IPM
TABU
TABN
TABP
TABV
TABW
BLK
RED
WHT
TABS
DS3
DS2
TABT
TABP1
TABN2
TABN1
TABP2
432156
CN3
(WHT)
CNAF
(WHT)
4321567
CN2
(WHT)
CN4
(WHT)
CN5
(RED)
TH8
212121
U
CB
VW
SV21S4
13
TB1
MC
MF1,MF2
21S4
63H
TH3
TH4
TH6
TH7
TH8
LEV-A,B
DCL
52C
Terminal Block<Power Supply, Indoor/Outdoor >
Motor for Compressor
Fan Motors
Solenoid Valve (Four-Way Valve)
High Pressure Switch
SV Solenoid Valve (Bypass Valve)
Thermistor<Outdoor Pipe>
TH33 Thermistor<Outdoor Pipe>
Thermistor<Discharge>
Thermistor<Outdoor 2-Phase Pipe>
Thermistor<Outdoor>
Thermistor<Heat Sink>
Electronic Expansion Valve
Reactor
52C Relay
RS
Rush Current Protect Resistor
ACTM
Active Filter Module
CB
Main Smoothing Capacitor
Power Circuit Board
Connection Terminal<U/V/W-Phase>
Diode Bridge
P.B.
TABU/V/W
Noise Filter Circuit Board
Connection Lead<L-Phase>
Connection Terminal<Ground>
N.F.
LI/LO
Connection Lead<N-Phase>
NI/NO
EI
Controller Circuit Board
C.B.
DS2,3
Power Module IPM
SYMBOL NAME SYMBOL NAME SYMBOL NAME
Connection Terminal<L/N-Phase>
Connection Terminal<DC Voltage>
TABS/T
TABP1/P2/P
Connection Terminal< DC Voltage>
TABN1/N2/N
Fuse<T6.3AL250V>
Switch<Forced Defrost, Defect History Record
Reset, Refrigerant Address>
Switch<Test Operation>
Switch<Function Switch>
Switch<Model Select>
F1~4
SW1
SW4
SW5
SW6
Switch<Function Setup>
SW7
Switch
SW8
Switch
SW9
Switch<Model Select>
SW10
Switch<Pump Down>
SWP
Connector<Emergency Operation>
CN31
LED1,LED2
Light Emitting Diodes
<Operation Inspection Indicators>
CNM
CNMNT
CNVMNT
CNDM
Connector<A-Control Service Inspection Kit>
Connector<Connected to Optional M-NET Adapter Board>
Connector<Connected to Optional M-NET Adapter Board>
Connector< Connected for Option (Contact Input)>
SS
Connector<Connection for Option>
Symbols used in wiring diagram above are, :Connector, :Terminal(block)
SYMBOL
M-NET ADAPTER
NAME
TB7
CN5
CND
CN2M
SW1
SW11
SW12
LED1
LED2
LED3
LED4
LED5
Terminal Block<M-net connection>
Connector<Transmission>
Connector<Power Supply>
Connector<M-NET communication>
Switch<Status of communication>
Switch<Address setting : 1st digit>
Switch<Address setting : 2nd digit>
LED<Power Supply : DC5V>
LED<Connection to Outdoor Unit>
LED<Transmission : Sending>
LED<Transmission : Recelving>
LED<Power Supply : DC12V>
OC374A--1.qxp 06.7.26 5:07 PM Page 19

20
PUHZ-RP100YHA2 PUHZ-RP125YHA2 PUHZ-RP140YHA2
LEV-A
(WHT)
LEV
456321
321
3
321
321
31
31
2121
21
13
LEV-B
(RED)
LEV
456321
CNVMNT
(WHT)
CN4
(WHT)
CNMNT
(WHT)
CNM
CN3S
(WHT)
CNDM
(WHT)
CN51
(WHT)
321
321321
45321
45321
CN5
(WHT)
123
LED2
SW1SW11
SW12
LED3
LED4
TB7
LED1 LED5
45321
21
CND
(WHT)
CN2M
(WHT)
M-NET
ABS
M-NET ADAPTER (OPTION)
SW7 SW6
SW1
SW9
SW4
SW10
SWP SW5SW8
CN31
w1
w1
1110 12 13 14 657891234
6571234
6571234
12
34
21
LED1
LED2
TH7/6
(RED)
CN3N
63H
(YLW)
TH3
(WHT)
CNS
(WHT)
13
21S4
(GRN)
TH4
(WHT)
TH7 TH6 TH3 TH4 63H
432121
TH33
(YLW)
TH33
2121
45671
45671
MF1
TRANS
MF2
CNF1
(WHT)
CNF2
(WHT)
13
CNDC
(PNK)
CN2
(WHT)
CNAC
(WHT)
21S4
13
SV2
(BLU)
X55 X51 X52
13
SS
(WHT)
SV
+
-
-
+
ACL1
ACL2
ACL3
ACL4
CN7
(WHT) CN2 (WHT) CT2
TB-P2
CB1 CB2 CK
TB-C1
L3-OU
L2-OU
L1-OU
L3-A2
L2-A2 L1-A2
L1-A1
L1-IN
N-IN
CK-OU
TB-N1
TB-W BLK
WHT
RED
BLK
WHT
RED
BLK
BLU
WHT
RED
BLK
BLU
WHT
RED
TB-V
TB-U
TB-L3
TB-L2
TB-L1
CT1
W
V
U
MC
CN4
(WHT)
BLK
BLU
CNAC1
(WHT)
CN7
(WHT)
CN5
(RED)
CNCT
(RED) CNAC2
(RED)
CNL
(BLU)
31
CNDC
(PNK)
RS
P.B.
C.B.
N.F.
CONV.B.
LO1
GD1 GD2
LO2
LO3
NO
LI1
LI2
LI3
NI
L1
L2
L3
N
TB1
NO FUSE
BREAKER
TB2
S1
S2
S3
POWER SUPPLY
3N~
400V
50Hz
INDOOR
UNIT
12
F2
F5
F1
F3
F4
31
MODELS
100Y
SW6 SW10
125Y
140Y
(w1 MODEL SELECT)
ON
OFF 123456 ON OFF 12
ON
OFF 12
ON
OFF 12
ON
OFF 123456
ON
OFF 123456
Symbols used in wiring diagram above are, : Connector, : Terminal(block)
TB1
MC
MF1,MF2
21S4
63H
TH3
TH4
TH6
TH7
LEV
ACL1~ACL4
Terminal Block(Power Supply )
TB7 Terminal Block(M-NET connection )
CN5 Connector( Transmission)
CND Connector( Power Supply)
CN2M Connector( M-NET communication)
SW1 Switch( Status of communication)
SW11 Switch( Address setting: 1st digit)
SW12 Switch(Address setting. 2nd digit )
LED1 LED( Power Supply: DC5V)
LED2 LED( Connection to Outdoor Unit)
LED3 LED( Transmission: Sending)
LED4 LED( Transmission: Receiving)
LED5 LED( Power Supply: DC12V)
TB2 Terminal Block(Indoor/Outdoor )
Motor for Compressor
Fan Motor
Solenoid Valve (Four-Way Valve)
High Pressure Switch
SV Solenoid Valve (Bypass Valve)
Thermistor(Outdoor Pipe)
TH33 Thermistor(Outdoor Pipe)
Thermistor(Discharge)
Thermistor(Outdoor 2-Phase Pipe)
Thermistor(Outdoor)
Linear Expansion Valve
Reactor
RS
Rush Current Protect Resistor
CB1,CB2
Main Smoothing Capacitor
CK
Capacitor
Power Circuit Board
Connection Terminal(U/V/W-Phase)
P.B.
TB-U/V/W
Noise Filter Circuit Board
Connection Terminal(
L1/L2/L3/N-Power Supply)
N.F.
LI1/LI2/LI3/NI
Connection Terminal( L1/L2/L3/N-Power Supply)
LO1/LO2/LO3/NO
Controller Circuit Board
Connector(Emergency Operation)
Switch(Function Switch)
SW8
CN31
C.B.
Connection Terminal N-IN
Connection Terminal CK-OU
Connection Terminal(Ground) GD1
Connection Terminal(L1-Power Supply) L1-A1/IN
SYMBOL
M-NET ADAPTER
NAME SYMBOL NAME SYMBOL NAME
Connection Terminal
TB-P2
Connection Terminal
TB-C1
Connection Terminal
TB-N1
Current Trans
CT1, CT2
Connection Terminal( L1/L2/L3-Power Supply)
TB-L1/L2/L3
Switch(Function Switch)
SW9
Switch(Model Select)
SW10
Switch(Pump Down)
SWP
Connection Terminal(L1-Power Supply) L1-A2/OU
Connection Terminal(L2-Power Supply) L2-A2/OU
Connection Terminal(L3-Power Supply) L3-A2/OU
Converter Circuit Board
CONV.B
FUSE(T6.3AL250V)
Switch(Forced Defrost, Defect History Record
Reset, Refrigerant Adress)
Switch(Function Switch)
Switch(Function Switch)
F1,F2
SW1
SW5
Switch(Model Select)
SW6
SW7
FUSE(T6.3AL250V)
F3,F4
Switch(Test Operation)
SW4
LEV-A/LEV-B
Connector(LEV)
63H
Connector(High Pressure Switch)
TH3
Connector(Thermistor)
TH33
Connector(Thermistor)
TH4
Connector(Thermistor)
TH7/6
Connector(Thermistor)
CNF1/CNF2
Connector(Fan Motor Operation)
LED1/LED2
LED(Operatiion Inspection Indicators)
21S4
Connector(Four-Way Valve)
CNM
SV2
CNMNT
CNVMNT
Connector(A-Control Service Inspection Kit)
Connector(Bypass Valve)
Connector(Connect to Optional M-NET Adapter Board)
Connector(Connect to Optional M-NET Adapter Board)
CN3S
Connector( Connection for Option)
CNDM
Connector( Connection for Option)
CN51
Connector( Connection for Option)
SS
Connector Connection for Option)
OC374A--1.qxp 06.7.26 5:07 PM Page 20
