Mitsubishi Electric PUMY-P200YKM Operating manual

<Outdoor unit>
[Model Name]
PUMY-P200YKM PUMY-P200YKM
PUMY-P200YKM-BS
[Service Ref.]
Salt proof model
PUMY-P200YKM-BS
TECHNICAL & SERVICE MANUAL
OUTDOOR UNIT
HFC
utilized
R410A
Model name
indication PARTS CATALOG (OCB575)
CONTENTS
1. SAFETY PRECAUTION....................................2
2. OVERVIEW OF UNITS......................................5
3. SPECIFICATIONS............................................. 7
4. DATA..................................................................8

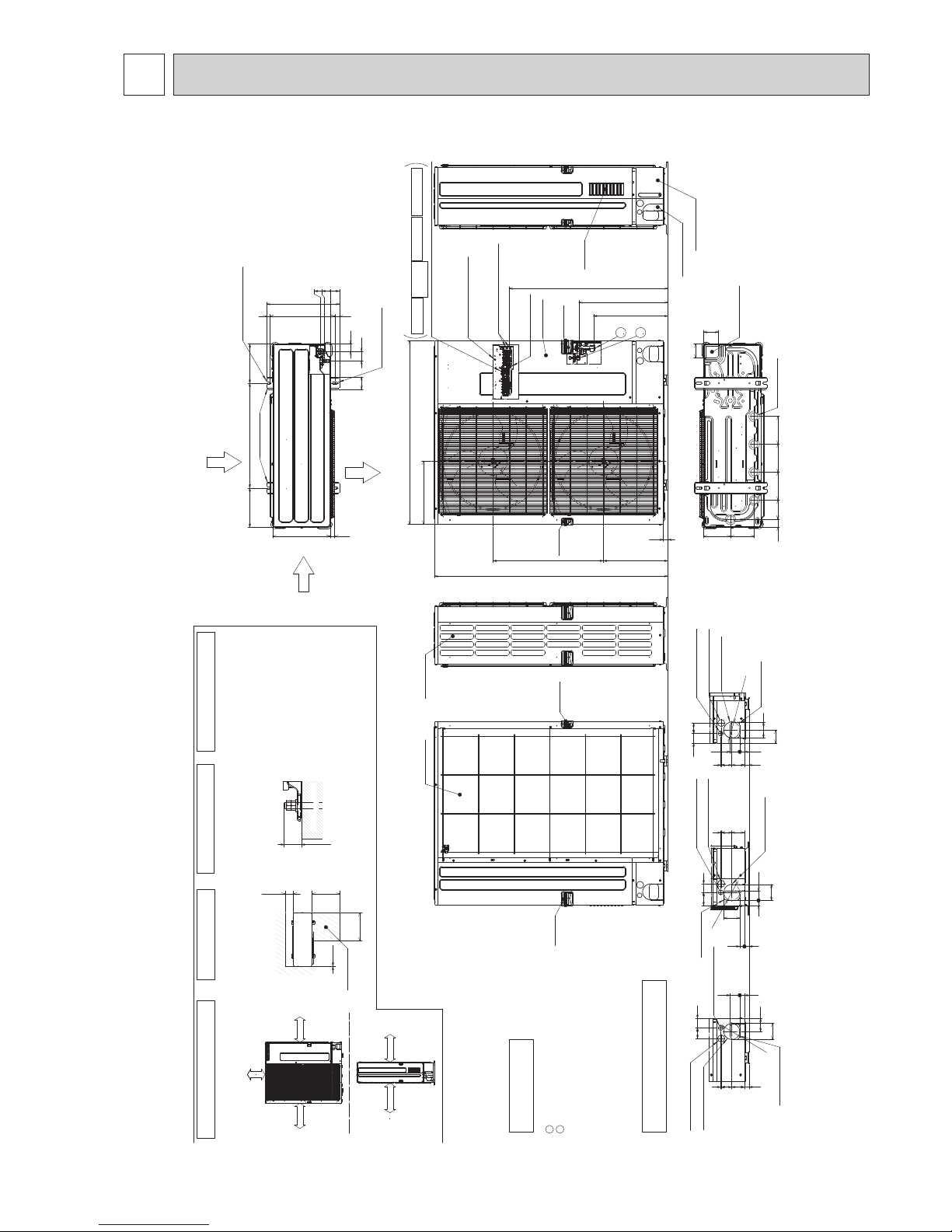

5. OUTLINES AND DIMENSIONS...................... 15

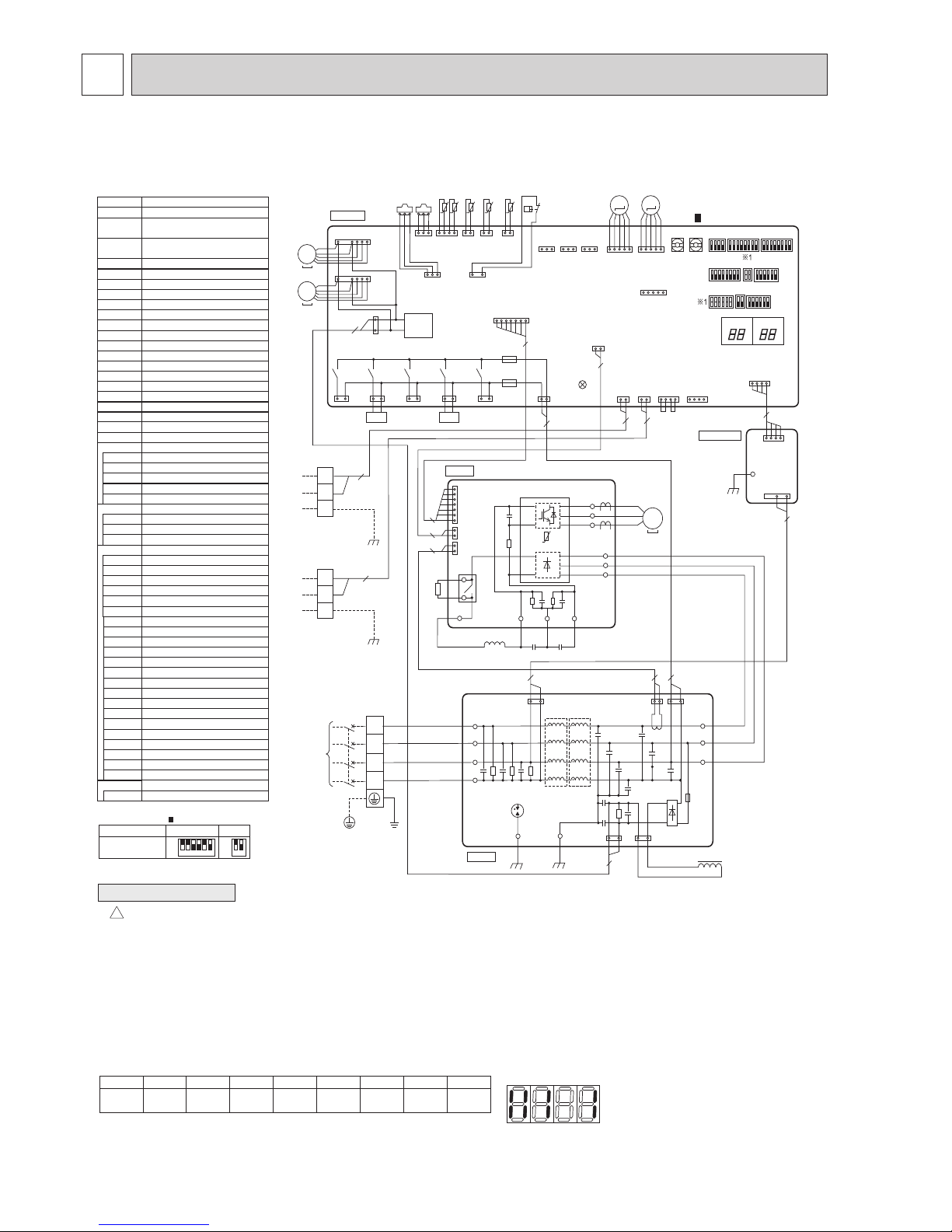

6. WIRING DIAGRAM......................................... 16
7. NECESSARY CONDITIONS FOR SYSTEM CONSTRUCTION..... 17
8. TROUBLESHOOTING.....................................27
9. ELECTRICAL WIRING...................................111
10. REFRIGERANT PIPING TASKS....................115
11. DISASSEMBLY PROCEDURE.......................119
Note:
•This service manual
describes technical data of
the outdoor units only.
No. OCH575
SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
October 2014

2
Cautions for units utilizing refrigerant R410A
1-1. CAUTIONS RELATED TO NEW REFRIGERANT
Use new refrigerant pipes.
Store the piping indoors, and both ends of the
piping sealed until just before brazing.
(Leave elbow joints, etc. in their packaging.)
Avoid using thin pipes.
Charge refrigerant from liquid phase of gas
cylinder.
If the refrigerant is charged from gas phase, composition
change may occur in refrigerant and the efficiency will be
lowered.
Do not use refrigerant other than R410A.
If other refrigerant (R22, etc.) is used, chlorine in refrige-
rant can cause deterioration of refrigerant oil, etc.
Use a vacuum pump with a reverse flow check
valve.
Vacuum pump oil may flow back into refrigerant cycle and
that can cause deterioration of refrigerant oil, etc.
Use the following tools specifically designed for
use with R410A refrigerant.
The following tools are necessary to use R410A refrigerant.
Handle tools with care.
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
Do not use a charging cylinder.
If a charging cylinder is used, the composition of refrigera-
nt will change and the efficiency will be lowered.
Flare tool
Electronic refrigerant
charging scale
Vacuum pump adaptor
Size adjustment gauge
Gauge manifold
Torque wrench
Gas leak detector
Charge hose
Tools for R410A
Contamination inside refrigerant piping can cause deterio-
ration of refrigerant oil, etc.
If dirt, dust or moisture enters into refrigerant cycle, that can
cause deterioration of refrigerant oil or malfunction of com-
pressor.
If large amount of mineral oil enters, that can cause deterio-
ration of refrigerant oil, etc.
Make sure that the inside and outside of refrige-
rant piping is clean and it has no contaminants
such as sulfur, oxides, dirt, shaving particles, etc,
which are hazard to refrigerant cycle.
In addition, use pipes with specified thickness.
The refrigerant oil applied to flare and flange
connections must be ester oil, ether oil or
alkylbenzene oil in a small amount.
Ventilate the room if refrigerant leaks during
operation. If refrigerant comes into contact with
a flame, poisonous gases will be released.
Use the specified refrigerant only.
Never use any refrigerant other than that specified.
Doing so may cause a burst, an explosion, or fire when the
unit is being used, serviced, or disposed of.
Correct refrigerant is specified in the manuals and on the
spec labels provided with our products.
We will not be held responsible for mechanical failure,
system malfunction, unit breakdown or accidents caused
by failure to follow the instructions.
1SAFETY PRECAUTION
OCH575

3

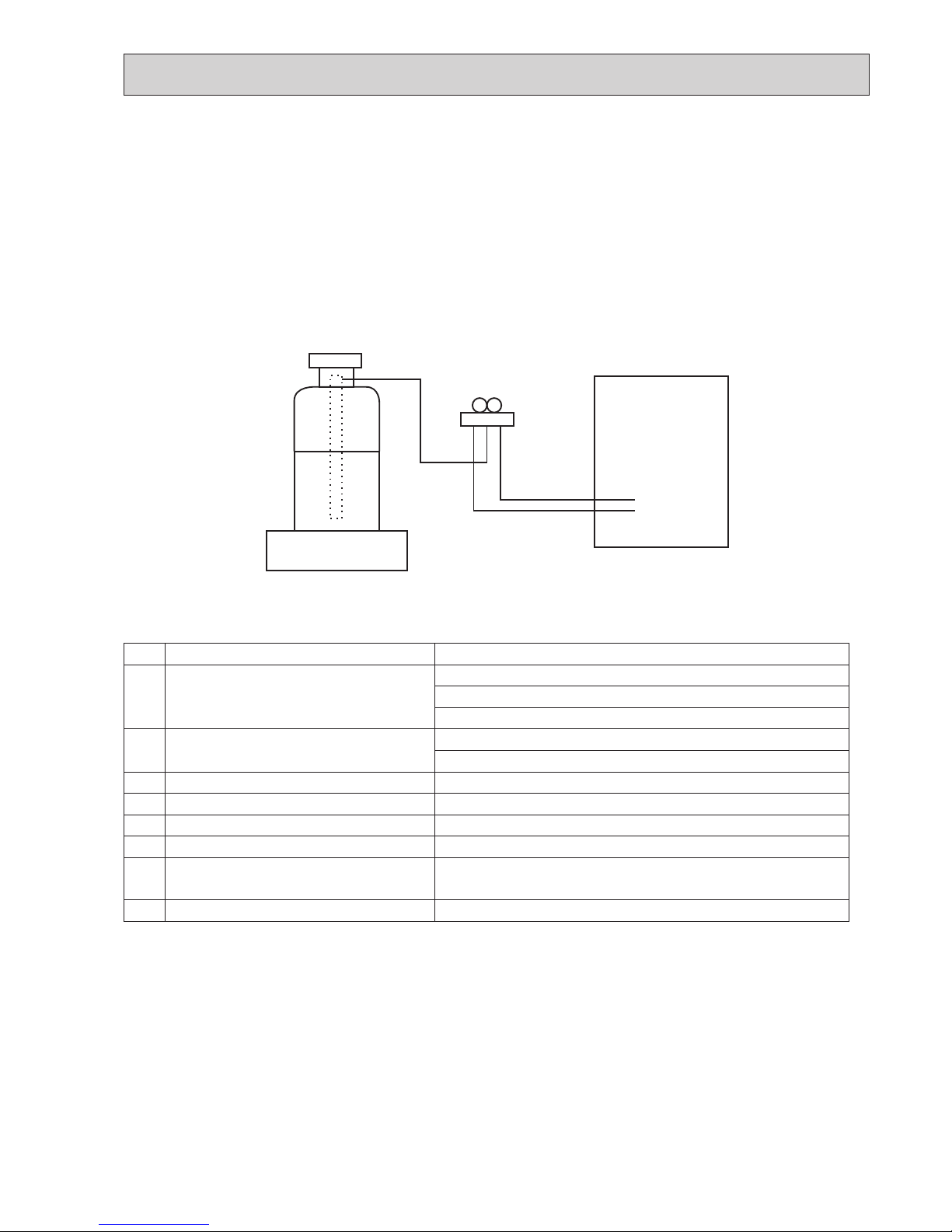

Gravimeter
Unit
[3] Service tools
Use the below service tools as exclusive tools for R410A refrigerant.
[1] Cautions for service
(1) Perform service after recovering the refrigerant left in unit completely.
(2) Do not release refrigerant in the air.
(3) After completing service, charge the cycle with specified amount of refrigerant.
(4) When performing service, install a filter drier simultaneously.
Be sure to use a filter drier for new refrigerant.
[2] Additional refrigerant charge
When charging directly from cylinder
· Check that cylinder for R410A on the market is a syphon type.
· Charging should be performed with the cylinder of syphon stood vertically. (Refrigerant is charged from liquid phase.)
Although "-BS" model has been designed to be resistant to salt damage, observe the following precautions to maintain the
performance of the unit.
1. Avoid installing the unit in a location where it will be exposed directly to seawater or sea breeze.
2. If the cover panel may become covered with salt, be sure to install the unit in a location where the salt will be washed away by
rainwater. (If a sunshade is installed, rainwater may not clean the panel.)
3. To ensure that water does not collect in the base of the outdoor unit, make sure that the base is level, not at angle. Water
collecting in the base of the outdoor unit could cause rust.
4. If the unit is installed in a coastal area, clean the unit with water regularly to remove any salt build-up.
5. If the unit is damaged during installation or maintenance, be sure to repair it.
6. Be sure to check the condition of the unit regularly.
7. Be sure to install the unit in a location with good drainage.
1-2. PRECAUTIONS FOR SALT PROOF TYPE "-BS" MODEL
No. Tool name Specifications
1Gauge manifold · Only for R410A
· Use the existing fitting specifications. (UNF1/2)
· Use high-tension side pressure of 5.3MPa·G or over.
2Charge hose · Only for R410A
· Use pressure performance of 5.09MPa·G or over.
3Electronic scale —
4Gas leak detector · Use the detector for R134a, R407C or R410A.
5Adaptor for reverse flow check · Attach on vacuum pump.
6Refrigerant charge base —
7Refrigerant cylinder · Only for R410A · Top of cylinder (Pink)
· Cylinder with syphon
8Refrigerant recovery equipment —
OCH575

4

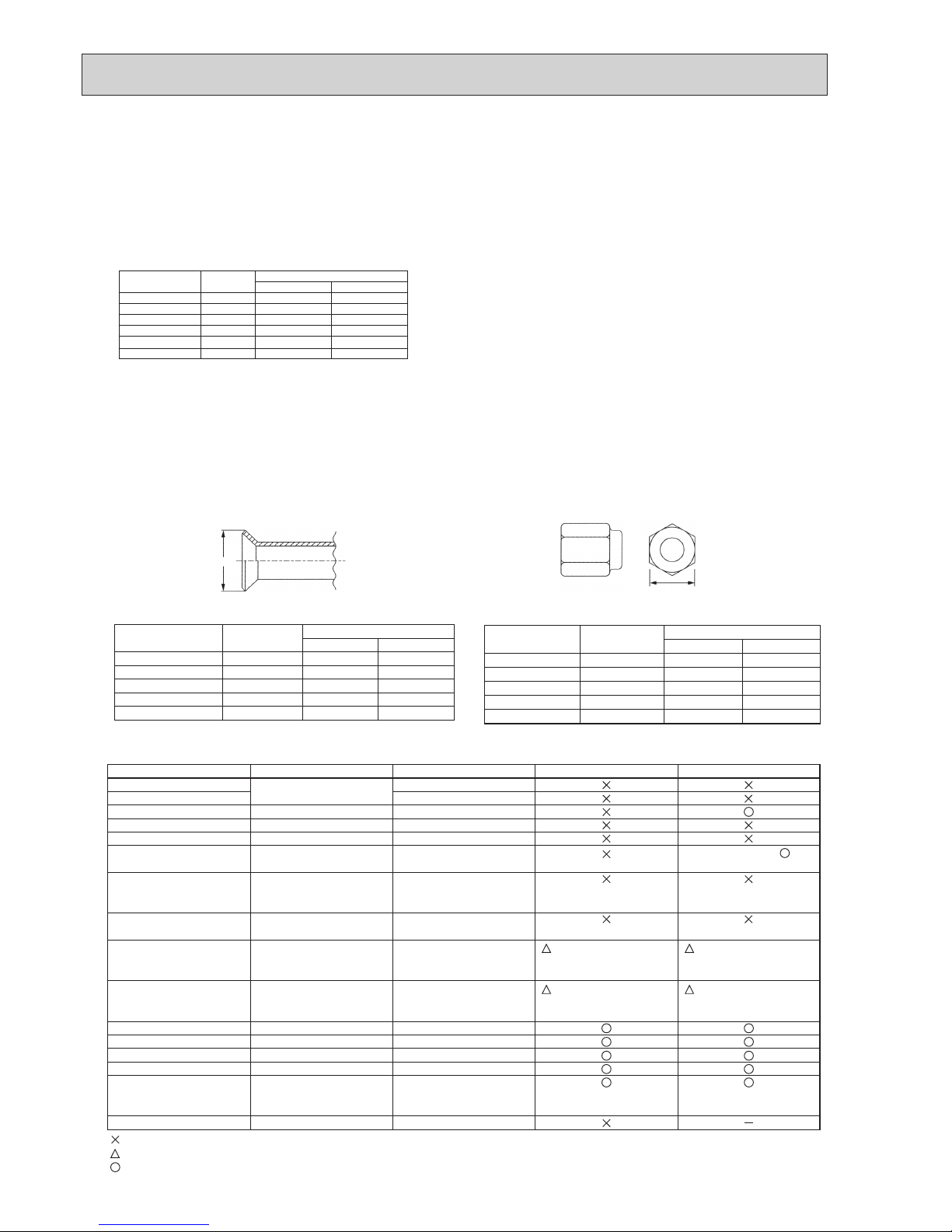

Cautions for refrigerant piping work
New refrigerant R410A is adopted for replacement inverter series. Although the refrigerant piping work for R410A is same
as for R22, exclusive tools are necessary so as not to mix with different kind of refrigerant. Furthermore as the working
pressure of R410A is 1.6 times higher than that of R22, their sizes of flared sections and flare nuts are different.
1Thickness of pipes
Because the working pressure of R410A is higher compared to R22, be sure to use refrigerant piping with thickness
shown below. (Never use pipes of 0.7 mm or below.)
2Dimensions of flare cutting and flare nut
The component molecules in HFC refrigerant are smaller compared to conventional refrigerants. In addition to that,
R410A is a refrigerant, which has higher risk of leakage because its working pressure is higher than that of other refrig-
erants. Therefore, to enhance airtightness and strength, flare cutting dimension of copper pipe for R410A has been
specified separately from the dimensions for other refrigerants as shown below. The dimension B of flare nut for R410A
also has partly been changed to increase strength as shown below. Set copper pipe correctly referring to copper pipe
flaring dimensions for R410A below. For 1/2 and 5/8 inch pipes, the dimension B changes.
Use torque wrench corresponding to each dimension.
3Tools for R410A (The following table shows whether conventional tools can be used or not.)
1/4
3/8
1/2
5/8
3/4
7/8
6.35
9.52
12.70
15.88
19.05
22.22
0.8
0.8
0.8
1.0
1.0*
1.0*
0.8
0.8
0.8
1.0
1.0
1.0
Nominal
dimensions (in)
Diagram below: Piping diameter and thickness
Outside
diameter (mm)
Thickness (mm)
R410A R22
* Use 1/2 H or H pipes.
1/4
3/8
1/2
5/8
3/4
6.35
9.52
12.70
15.88
19.05
9.1
13.2
16.6
19.7
—
9.0
13.0
16.2
19.4
23.3
Nominal
dimensions (in)
Flare cutting dimensions
Outside
diameter
Dimension A ( )
+0
-0.4 (mm)
R410A R22
(mm)
1/4
3/8
1/2
5/8
3/4
6.35
9.52
12.70
15.88
19.05
17.0
22.0
26.0
29.0
—
17.0
22.0
24.0
27.0
36.0
Nominal
dimensions (in)
Flare nut dimensions
Outside
diameter
Dimension B (mm)
R410A R22
(mm)
Gauge manifold
Charge hose
Gas leak detector
Refrigerant recovery equipment
Refrigerant cylinder
Applied oil
Safety charger
Charge valve
Vacuum pump
Flare tool
Bender
Pipe cutter
Welder and nitrogen gas cylinder
Refrigerant charging scale
Vacuum gauge or thermis-
tor vacuum gauge and
vacuum valve
Charging cylinder
Air purge, refrigerant charge
and operation check
Gas leak check
Refrigerant recovery
Refrigerant charge
Apply to flared section
Prevent compressor malfunction
when charging refrigerant by
spraying liquid refrigerant
Prevent gas from blowing out
when detaching charge hose
Vacuum drying and air
purge
Flaring work of piping
Bend the pipes
Cut the pipes
Weld the pipes
Refrigerant charge
Check the degree of vacuum. (Vacuum
valve prevents back flow of oil and refri-
gerant to thermistor vacuum gauge)
Refrigerant charge
Tool exclusive for R410A
Tool exclusive for R410A
Tool for HFC refrigerant
Tool exclusive for R410A
Tool exclusive for R410A
Ester oil, ether oil and
alkylbenzene oil (minimum amount)
Tool exclusive for R410A
Tool exclusive for R410A
Tools for other refrigerants can
be used if equipped with adop-
ter for reverse flow check
Tools for other refrigerants
can be used by adjusting
flaring dimension
Tools for other refrigerants can be used
Tools for other refrigerants can be used
Tools for other refrigerants can be used
Tools for other refrigerants can be used
Tools for other refrigerants
can be used
Tool exclusive for R410A
Tools and materials Use R410A tools Can R22 tools be used?
(Usable if equipped
with adopter for rever-
se flow)
(Usable by adjusting
flaring dimension)
Can R407C tools be used?
Ester oil, ether oil:
Alkylbenzene oil: minimum amount
(Usable if equipped
with adopter for rever-
se flow)
(Usable by adjusting
flaring dimension)
: Prepare a new tool. (Use the new tool as the tool exclusive for R410A.)
: Tools for other refrigerants can be used under certain conditions.
: Tools for other refrigerants can be used.
Dimension A
Dimension B
OCH575

5
2
2-1. UNIT CONSTRUCTION
Remote
controller
Name
Model number
Functions
M-NET remote controller
PAR-F27MEA-E
• A handy remote controller for use in
conjunction
with the Melans centralized
management system.
• Addresses must be set.
• Addresses setting is not
necessary.
MA remote controller
PAR-21MAA, PAR-30/31MAA
Outdoor unit
Capacity
50 to 130% of outdoor unit capacity *
2
Type 15 to Type 250
1 to 12 unit
Applicable
indoor unit
Number of units
Total system wide capacity
8HP
PUMY-P200YKM
PUMY-P200YKM-BS
Branching pipe
components
Branch header
(2 branches)
Branch header
(4 branches)
Branch header
(8 branches)
CMY-Y62-G-E CMY-Y64-G-E CMY-Y68-G-E
*1PUMY is connectable to Fresh Air type indoor unit.
It is possible to connect 1 Fresh Air type indoor unit to 1 outdoor unit. (1:1 system)
Operating temperature range (outdoor temperature) for fresh air type indoor units differ from other indoor units.
Refer to "2-2-(3). Operating temperature range".
*2When the indoor unit of Fresh Air type is connected with the outdoor unit, the maximum connectable total indoor unit capacity is 110% (100%
 incaseofheatingbelow−5: [23˚F]).
*3 When connecting the CONNECTION KIT (PAC-LV11M-J) and an M-series indoor unit, refer to the installation manual for the CONNECTION KIT.
Decorative panel
OVERVIEW OF UNITS
Model
Capacity
Cassette Ceiling Ceiling
Concealed Wall Mounted Ceiling Suspended
Floor standing
Ceiling
Concealed
(Fresh Air) *1
CONNECTION KIT
4-way ow 2-way ow 1-way ow Exposed Concealed
PAC-LV11M-J
PLFY-P PLFY-P PMFY-P PEFY-P PKFY-P PCFY-P PFFY-P PFFY-P
PEFY-P
15 15VCM-E - - 15VMS1(L)-E 15VBM-E –
– – –
20
20VCM-E(2)
20VBM-E 20VLMD-E 20VBM-E
20VMS1(L)-E
/ VMA(L)-E 20VBM-E – 20VLEM-E
VKM-E(2) 20VLRM-E –
25
25VCM-E(2)
25VBM-E 25VLMD-E 25VBM-E
25VMS1(L)-E
/ VMA(L)-E 25VBM-E – 25VLEM-E
VKM-E(2) 25VLRM-E –
32
32VCM-E(2)
32VBM-E 32VLMD-E 32VBM-E
32VMS1(L)-E
/ VMA(L)-E 32VHM-E – 32VLEM-E
VKM-E(2) 32VLRM-E –
40
40VCM-E(2)
40VBM-E 40VLMD-E 40VBM-E
40VMS1(L)-E
/ VMA(L)-E/ VMH-E
40VHM-E 40VKM-E 40VLEM-E
VKM-E(2) 40VLRM-E –
M series indoor unit *3
MSZ-GF Series
MSZ-EF Series
MSZ-SF Series
MSZ-FH Series
MFZ-KJ Series
50 50VBM-E
50VLMD-E –50VMS1(L)-E
/ VMA(L)-E/ VMH-E
50VHM-E – 50VLEM-E 50VLRM-E –
63 63VBM-E
63VLMD-E –63VMS1(L)-E
/ VMA(L)-E/ VMH-E
63VKM-E 63VKM-E 63VLEM-E 63VLRM-E –
71 –
–
–71VMA(L)-E
/ VMH – – –– –
80 80VBM-E
80VLMD-E –80VMH-E
/ VMA(L)-E – – –––
100 100VBM-E
100VLMD-E –100VMH-E
/ VMA(L)-E 100VKM-E 100VKM-E –
– –
125 125VBM-E
125VLMD-E –125VMH-E
/ VMA(L)-E –125VKM-E –
– –
140 – – – 140VMH-E
/ VMA(L)-E –––
– –
200 – – – 200VMH-E
/ VMHS-E ––––
200VMH-E-F
250 – – – 250VMH-E
/ VMHS-E ––––
–
M series remote controller
OCH575

6
2-2. UNIT SPECIFICATIONS
(2) Method for identifying MULTI-S model
(1) Outdoor Unit
Indoor unit < When using Model 80 > Outdoor unit <When using model 125 >
P L F Y - P 80 V BM - E PU M Y - P 200 Y K M - BS
PAC type
BM
CM
KM
M
KM
LMD
Frequency
conversion
controller
Refrigerant
R407C/R22
R410A
commonness
Refrigerant
R410A
NEW frequency converter
one-to-many air conditioners
(flexible design type)
Indicates equivalent
to Cooling capacity
Indicates equivalent
to Cooling capacity
Power supply
V: Single phase
220/230/240 V, 50 Hz
Power supply
Y: 3-phase
380/400/415 V, 50/60 Hz
L : Ceiling cassette
K : Wall-mounted type
E : Hidden skylight type
C : Ceiling suspended type
M: Ceiling cassette type
F : Floor standing type
W: Air to Water Unit
M-NET
control
Outdoor unit
model type
Sub-number
M-NET control
Frequency
conversion
controller
Outdoor unit
MULTI-S
(k cal/ h)
(k cal / h)
Salt proof
type
Service Ref.
Capacity Cooling (kW)
Heating (kW)
22.4
25.0
5.4
Compressor (kW)
PUMY-P200YKM
PUMY-P200YKM-BS
Cooling/Heating capacity indicates the maximum value at operation under the following condition.
*Cooling Indoor : D.B. 27°C/ W.B. 19.0°C
Outdoor : D.B. 35°C
Heating Indoor : D.B. 20°C
Outdoor : D.B. 7°C/ W.B. 6°C
(3) Operating temperature range
Notes: D.B. : Dry Bulb Temperature
W.B. : Wet Bulb Temperature
*10 to 46 °C D.B. : When connecting PKFY-P15/P20/P25VBM, PFFY-P20/25/32VKM, PFFY-P20/25/32 VLE(R)M type indoor unit; and MSZ-GF
series, MSZ-EF series and MSZ-SF series, MSZ-FH series and MFZ-KJ series indoor unit.
Cooling
W.B. 15 to 24°C
D.B. −5 to 46°C*
Heating
D.B. 15 to 27°C
W.B. −20 to 15°C
Indoor-side intake air temperature
Outdoor-side intake air temperature
■
When connecting fresh air type indoor unit
air type indoor
Capacity of Fresh
Cooling Heating
Indoor-side and Outdoor-side P200 D.B. 21 to 43:*
W.B. 15.5 to 35:D.B. −10 to 20:**
intake air temperature
*Thermo-OFF (FAN-mode) automatically starts if the outdoor temp. is lower than 21: D.B.
**Thermo-OFF (FAN-mode) automatically starts if the outdoor temp. is higher than 20: D.B.
OCH575

7
3SPECIFICATIONS
Service Ref. PUMY-P200YKM
PUMY-P200YKM-BS
Power source 380/400/415 V, 50 Hz
Cooling capacity
(Nominal)
kW *1 22.4
kcal/h *1 19,300
BTU/h *1 76,400
Power input kW 6.05
Current input A 9.88, 9.39, 9.05
COP kW/kW 3.70
Temp. range of
cooling
Indoor temp. W.B. 15 to 24°C
Outdoor temp. D.B. −5to46°C
Heating capacity
(Nominal)
kW *2 25.0
kcal/h *2 21,500
BTU/h *2 85,300
Power input kW 5.84
Current input A 9.54, 9.06, 8.74
COP kW/kW 4.28
Temp. range of
heating
Indoor temp. D.B. 15 to 27°C
Outdoor temp. W.B. −20to15°C
Indoor unit
connectable
Total capacity 50 to 130% of outdoor unit capacity
Model / Quantity 15 - 250 / 12
Sound pressure level
(measured in anechoic room)
dB <A> 56/ 61
Power pressure level
(measured in anechoic room)
dB <A> -
Refrigerant
piping diameter
Liquid pipe mm (in) 9.52 (3/8)*3
Gas pipe mm (in) 19.05 (3/4)
FAN *2 Type x Quantity Propeller Fan x 2
Airowrate m3/min 139
L/s 2,316
cfm 4,908
Control, Driving mechanism DC control
Motor output kW 0.20 + 0.20
External static press. 0
Compressor Type x Quantity Scroll hermetic compressor x 1
Manufacturer Siam Compressor Industory Co., Ltd.
Starting method Inverter
Capacity control % Cooling 25 to100
Heating 17 to 100
Motor output kW 5.3
Case heater kW 0
Lubricant FV50S(2.3litter)
Externalnish Galvanized Steel Sheet
Munsell No. 3Y 7.8/1.1
External dimension HxWxD mm 1338 x 1050 x 330(+25)
in 52-11/16 x 41-11/32 x 13 (+1)
Protection devices High pressure protection High pressure Switch
Inverter circuit (COMP./FAN) Overcurrent detection, Overheat detection(Heat sink thermistor)
Compressor Compressor thermistor, Over current detection
Fan motor Overheating, Voltage protection
Refrigerant Type x original charge R410A 7.3 kg
Control Electronic Expansion Valve
Net weight kg (lb) 138 (305)
Heat exchanger Cross Fin and Copper tube
HIC circuit (HIC: Heat Inter-Changer) HIC circuit
Defrosting method Reversed refrigerant circuit
Drawing External BK01N339
Wiring BH79J199
Standard
attachment
Document Installation Manual
Accessory Joint pipe x 1, Grounded lead wire x2
Optional parts Joint: CMY-Y62-G-E
Header: CMY-Y64/68-G-E
* 1 Nominal cooling conditions * 2 Nominal heating conditions
Indoor :
27°C D.B./19°C W.B. [81°F D.B/66°FW.B.] 20°C D.B. [68°FD.B.]
Outdoor : 35°C D.B. [95°FD.B.]
7°C DB/6°C W.B. [45 °F D.B./43 °FW.B.]
Pipe length : 7.5m[24-9/16ft] 7.5m[24-9/16ft]
Level difference : 0m[0ft] 0m[0ft]
Note : 1. Nominal conditions * 1, * 2 are subject to ISO 15042.
 2.Duetocontinuingimprovement,abovespecicationsmaybesubjecttochangewithoutnotice.
*3 Liquid pipe diameter: 12.7 mm, in case of further piping length is longer than 60 m.
Unit converter
kcal/h = kW × 860
BTU/h = kW × 3,412
cfm = m3/min x 35.31
lb = kg/0.4536
Abovespecicationdatais
subject to rounding variation
.
OCH575

8
4
4-1. COOLING AND HEATING CAPACITY AND CHARACTERISTICS
4-1-1. Method for obtaining system cooling and heating capacity:
To obtain the system cooling and heating capacity and the electrical characteristics of the outdoor unit, first add up the ratings
of all the indoor units connected to the outdoor unit (see table below), and then use this total to find the standard capacity with
the help of the tables on "4-3. STANDARD CAPACITY DIAGRAM".
(1) Capacity of indoor unit
4-1-2. Method for obtaining the heating and cooling capacity of an indoor unit:
(1) The capacity of each indoor unit (kW) = the capacity A (or B) o
(2) Sample calculation (using the system described above in 4-1-1. (2) ):
model capacity
total model capacity of all indoor units
During cooling: During heating:
•Thetotalmodelcapacityoftheindoorunitis:
2.8 + 5.6 o4 = 25.2 kW
Therefore, the capacity of PKFY-P25VBM-E and
PLFY-P50VLMD-E will be calculated as follows
by using the formula in 4-1-2. (1):
Model 25 = 22.75 o= 2.53 kW
Model 50 = 22.75 o= 5.06 kW
•Thetotalmodelcapacityofindoorunitis:
3.2 + 6.3 o4 = 28.4
Therefore, the capacity of PKFY-P25VBM-E and
PLFY-P50VLMD-E will be calculated as follows by
using the formula in 4-1-2. (1):
Model 25 = 25.19 o= 2.84 kW
Model 50 = 25.19 o= 5.59 kW
2.8
25.2
5.6
25.2
6.3
28.4
3.2
28.4
(2) Sample calculation
1 System assembled from indoor and outdoor unit (in this example the total capacity of the indoor units is greater than that of
the outdoor unit)
 •Outdoorunit PUMY-P200YKM(-BS)
 •IndoorunitPKFY-P25VBM-Eo1 , PLFY-P50VLMD-E o4
2 According to the conditions in 1, the total capacity of the indoor unit will be: 2.8 + 5.6 o4 = 25.2
3 The following figures are obtained from the 25.2 total capacity of indoor units, referring the standard capacity diagram in
"4-3-1. PUMY-P200YKM PUMY-P200YKM-BS <cooling>" and "4-3-2. PUMY-P200YKM PUMY-P200YKM-BS <heating>" :
Model
20
Model Number
for indoor unit
Model
Capacity
2.2
Model
15
1.7
Model
25
2.8
Model
32
3.6
Model
40
4.5
Model
50
5.6
Model
63
7.1
Model
71
8.0
Model
80
9.0
Model
100
11.2
Model
125
14.0
Model
140
16.0
Model
Capacity
2.01.5 2.2 2.5 3.5 4.2 5.0 6.0 7.1
P•FY Series
M Series
Model
20
Model Number
for indoor unit
Model
15
Model
22
Model
25
Mod
35
Model
42
Model
50
Model
60
Model
71
_ _ _
_ _ _
Model
200
Model
250
22.4 28.0
__
__
DATA
Capacity (kW) Outdoor unit power consumption (kW) Outdoor unit current (A)/400V
Cooling Heating Cooling Heating Cooling Heating
A 22.75 B 25.19 7.04 7.01 10.92 10.88
OCH575

9
Operation PUMY-P200YKM
PUMY-P200YKM-BS
Operating
conditions
Ambient
temperature
Indoor DB/WB 27°C/ 19°C 20°C/ —
Outdoor 35°C 7°C/ 6°C
Indoor unit
No. of connected units Unit 8
No. of units in operation 8
Model — 25 × 7/ 50 × 1
Piping
Main pipe
m
5
Branch pipe 2.5
Total pipe length 25
Fan speed — Hi
Amount of refrigerant kg 10.9
Outdoor unit
Electric current A 9.28 8.96
Voltage V 230/ 400
Compressor frequency Hz 71 86
LEV
opening Indoor unit Pulse 219 283
Pressure High pressure/Low pressure MPa 2.98/0.93 2.18/0.60
Temp. of each
section
Outdoor unit
Discharge
°C
65.2 53.8
Heat exchanger outlet 39.6 −1.4
Accumulator inlet 10.1 −1.7
Compressor inlet 9.0 −3.4
Indoor unit LEV inlet 28.8 22.6
Heat exchanger inlet 14.2 49.9
4-2. STANDARD OPERATION DATA (REFERENCE DATA)
OCH575

10
4-3. STANDARD CAPACITY DIAGRAM
Before calculating the sum of total capacity of indoor units, please convert the value into the kW model capacity following the formula on
"4-1-1. Method for obtaining system cooling and heating capacity".
4-3-1. PUMY-P200YKM PUMY-P200YKM-BS <Cooling>
0.0
5.0
10.0
15.0
20.0
25.0
2.0 4.0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0 22.0 24.0 26.0 28.0 30.0
2.0 4.0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0 22.0 24.0 26.0 28.0 30.0
2.0 4.0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0 22.0 24.0 26.0 28.0 30.0
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
0.0
2.0
4.0
6.0
8.0
10.0
12.0
380V
400V
415V
Capacity(kW)
Total capacity of indoor units(kW)
Total capacity of indoor units(kW)
Input(kW)Current(A)
Total capacity of indoor units(kW)
OCH575

11
4-3-2. PUMY-P200YKM PUMY-P200YKM-BS <Heating>
2.0 4.0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0 22.0 24.0 26.0 28.0 30.0
2.0 4.0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0 22.0 24.0 26.0 28.0 30.0
2.0 4.0 6.0 8.0 10.0 12.0 14.0 16.0 18.0 20.0 22.0 24.0 26.0 28.0 30.0
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
0.0
2.0
4.0
6.0
8.0
10.0
12.0
0.0
5.0
10.0
15.0
20.0
25.0
30.0
380V
400V
415V
Capacity(kW)
Total capacity of indoor units(kW)
Total capacity of indoor units(kW)
Input(kW)Current(A)
Total capacity of indoor units(kW)
OCH575

12
4-4. CORRECTING COOLING AND HEATING CAPACITY
4-4-1. Correcting Changes in Air Conditions
(1) The performance curve charts (Figure 1, 2) show the change ratio of capacity and input (power consumption) according to the
indoor and outdoor temperature condition when defining the rated capacity (total capacity) and rated input under the standard
condition in standard piping length (7.5 m) as “1.0”.
•Standardconditions:
•Usetheratedcapacityandratedinputgivenin“4-3.Standardcapacitydiagram”.
•Theinputisthesinglevalueonthesideoftheoutdoorunit;theinputonthesidesofeachindoorunitmustbeaddedto
obtain the total input.
(2) The capacity of each indoor unit may be obtained by multiplying the total capacity obtained in (1) by the ratio between the
individual capacity at the rated time and the total capacity at the rated time.
individual capacity at the rated time
Individual capacity under stated conditions = total capacity under the stated conditions ototal capacity at the rated time
Rated cooling capacity
Rated heating capacity
Indoor D.B. 27˚C / W.B. 19˚C
Outdoor D.B. 35˚C
Indoor D.B. 20˚C
Outdoor D.B. 7˚C / W.B. 6˚C
24
22
Cooling performance curve
0.6
0.6
0.8
1.0
1.2
1.4
-20 40 5020 30100-10
0.8
1.0
1.2
1.4
0.2
0.2
0.4
0.4
20
18
16
24
22
20
18
16
0.6
0.6
0.8
1.0
1.2
1.4
−25 5 1510−5 0−10−15−20
0.8
1.0
1.2
1.4
0.2
0.2
0.4
0.4
15
20
25
15
20
25
Heating performance curve
Cooling
Capacity
(ratio)
Cooling
Power
consumption
(ratio)
Heating
Power
consumption
(ratio)
Heating
Capacity
(ratio)
INDOOR
<D.B. :>
INDOOR
<W.B. :>
INDOOR
<W.B. :>
INDOOR
<D.B. :>
Outdoor <D.B. :>Outdoor <W.B. :>
Figure 2
(3) Capacity correction factor curve
PUMY-P200YKM PUMY-P200YKM-BS
Figure 1
OCH575

13
4-4-2. Correcting Capacity for Changes in the Length of Refrigerant Piping
(1) During cooling, obtain the ratio (and the equivalent piping length) of the outdoor units rated capacity and the total in-use
indoor capacity, and find the capacity ratio corresponding to the standard piping length from Figure 3. Then multiply by
the cooling capacity from Figure 1 to obtain the actual capacity.
(2) During heating, find the equivalent piping length, and find the capacity ratio corresponding to standard piping length from
Figure 3. Then multiply by the heating capacity from Figure 2 to obtain the actual capacity.
(2) Method for Obtaining the Equivalent Piping Length
Equivalent length for type P200 = (length of piping to farthest indoor unit) + (0.3 × number of bends in the piping) (m)
Length of piping to farthest indoor unit: type P200.....80 m
4-4-3. Correction of Heating Capacity for Frost and Defrosting
If heating capacity has been reduced due to frost formation or defrosting, multiply the capacity by the appropriate correction
factor from the following table to obtain the actual heating capacity.
Correction factor diagram
(1) Capacity Correction Curve
Outdoor Intake temperature (W.B.°C)
6420−2 −4 −6 −8 −10 −15 −20
Correction factor 1.0 0.98 0.89 0.88 0.89 0.9 0.95 0.95 0.95 0.95 0.95
Cooling
Heating
Heating P200 model
Cooling P200 model
Capacity ratio [%]
Corrected pipe length
100
95
90
85
80
75
70
5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80
Figure 3
OCH575

14
1.5m
1m
MICROPHONE
UNIT
GROUND

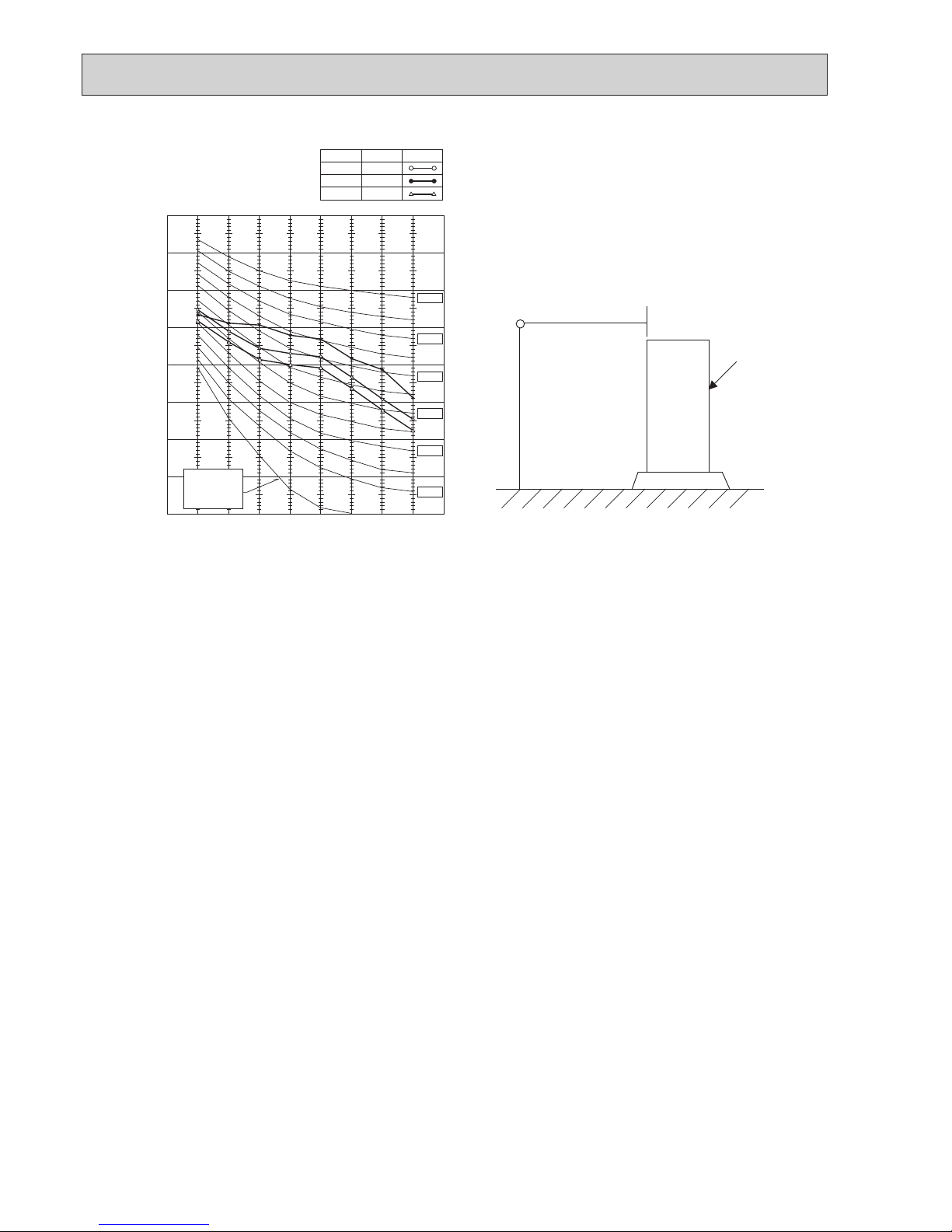

4-5. NOISE CRITERION CURVES
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
OCTAVE BAND SOUND PRESSURE LEVEL, dB (0 dB = 0.0002 µbar)
BAND CENTER FREQUENCIES, Hz
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
PUMY-P200YKM
PUMY-P200YKM-BS
COOLING
MODE
HEATING
COOLING
SILENT MODE
56
SPL(dB)
61
53
LINE
OCH575

15
5OUTLINES AND DIMENSIONS
Unit : mm
Right piping hole (Knock-Out)
Right trunking hole (Knock-Out)
Power supply wiring hole
(
{40Knock-Out)
Power supply wiring hole
(
{27Knock-Out)
92
26 27
92
75 50
373 60
29 55
{
92
Front trunking hole (Knock-Out)
Front piping hole (Knock-Out)
Power supply wiring hole ({40Knock-Out)
Power supply wiring hole
(
{27Knock-Out)
360
7326
92
75
27 55
5560
{
92
Rear piping hole (Knock-Out)
Rear trunking hole (Knock-Out)
Power supply wiring hole ({27Knock-Out)
Power supply wiring hole ({40Knock-Out)
75
92
326 73 60
5527
55 60
{
92
Rear piping cover
Front piping cover
Air Intake
2 1
From left to right
For concentration
control
For the
transmission line
For the branch box power supply
For the power supply
Terminal connection
Ground for
the branch box
power supply
Ground for the transmission line Ground for concentration control
Ground for the power supply
Handle for moving Handle for
moving
Service panel
909
*1 426
*1 510
1050
1338
26
362
369 632
Side Air Intake
Installation Feet
2-U Shaped notched holes
(Foundation Bolt M10)
2-12×36 Oval holes
(Foundation Bolt M10)
Rear Air Intake
Side Air Intake
Air Discharge
417
33025
70
42
56
37028
225 225600
19
33
53 56
0
Rear Air Intake
Handle for moving
Handle for moving
Drain hole(5-{33)
Bottom piping hole (Knock-Out)
81
86
154136
45 160160160110
Example of Notes
•••
Refrigerant GAS pipe connection (FLARE)
{
15.88(5/8F)
•••
Refrigerant LIQUID pipe connection (FLARE)
{
9.52(3/8F)
*1 •••Indication of STOP VALVE connection location.
1 2
Min. 15mm
Min. 1000mm Min. 150mm
Min. 15mm
FREE
Piping and wiring connections can be made from 4 directions: FRONT, Right, Rear and Below.
4 PIPING-WIRING DIRECTIONS
3 FOUNDATION BOLTS
2 SERVICE SPACE
1 FREE SPACE (Around the unit)
Please secure the unit firmly with 4 foundation (M10<W3/8>) bolts. (Bolts and washers must be purchased locally.)
Dimensions of space needed for service access are shown in the below diagram.
The diagram below shows a basic example. Explantion of particular details are given in the installation manuals etc.
<Foundation bolt height>
FOUNDATION
Service space
Min.500
Min.500 Min.150
Max.30
Min.15
Piping Knock-Out Hole Details
PUMY-P200YKM PUMY-P200YKM-BS
OCH575

16
6
ACL4
CNCT
(RED)
CNAC2
(RED)
CNAC1
(WHT)
GD2
BLK
WHT
WHT
CNDC
(PNK)
CNL
(BLU)
1 3 1 3
13
2
1
3
12
+
-
+
BLK
BLU
WHT
RED
BLK
WHT
RED
LI1
POWER
SUPPLY
3N~
400V 50Hz
LI2
LI3
NI
TB1
L1
L2
L3
N
GD1
BLK
LO1
LO2
LO3
GRN/YLW
RED
RED
YLW
YLW
P. B.
N. F.
WHT
U
V
W
SC-U
SC-V
SC-W
RED
MS
3~
TB-L1
TB-L2
TB-L3
M1
M2
S
TB3
TO INDOOR UNIT
CONNECTING WIRES
DC 30V(Non-polar)
FOR CENTRALIZED
CONTROL
DC 30V(Non-polar)
M1
M2
S
TB7
2
2
22 2
CN51
(WHT)
SW2SW8SW1
SW7SW3SW4
SWU2 SWU1
TRANS LED1
CN2
(RED)
CN4
(WHT)
LED3
CN3D
(WHT)
CN3S
(RED)
CN3N
(BLU)
CN1
(WHT)
TB1
CNDC
(PNK)
t°t°t°t°
MF1
MS
3~
LEV-B
M
1 41
3
17
3
1 3 1 3 1 3
31
1
2
2 21 11 2
12
2
2121
2
31 21
TH7 TH6 TH3 TH4
63HS 63H
CNF1
(WHT)
MF2
MS
3~
17
1
7
7
15
15
CNF2
(WHT)
TH7/6
(RED)
CNLVB
(RED)
TH3
(WHT)
TH4
(WHT)
1
CN5
(RED)
t°
TH2
TH2
(BLK)
63HS
(WHT)
1313
63LS
63LS
(BLU)
63H
(YLW)
MULTI. B.
LED2
M-NET P.B.
52C
(BLK)
3
13
13
1
X505
21S4
(GRN)
SV1
(GRY)
SV2
(BLU) SS
(WHT)
21S4 SV1
CNAC
(RED)
CNS1
(RED)
CNS2
(YLW)
F1
F2
X504
X503
X502
X501
CN102
(WHT)
CN2
(WHT)
4
4
1
1
CN40
(WHT)
41
5 3 1
CN41
(WHT)
41
4
2
RED
RS
BLK
WHT
WHT
RED
RED
BLK
BLK
BLK
BLK
TB-P2 TB-C1 TB-N1
TH8
CB1 CB2
TB-P1
CN4
(WHT)
CN2
(WHT)
1
2
7
7
2
1
2
2
2
2
-
-
+
+
+
++
is the switch position.
LEV-A
M
15
CNLVA
(WHT)
DCL
MC
SW6SW5
SW9
X52A
+
t°
MODELS
PUMY-P200YKM
SW4 SW8
*1 MODEL SELECTION
The black square ( ) indicates a switch position.
ON
OFF
123456
ON
OFF
1 2
1 2 3 4 5 6 7 8
[Example]
When the compressor and
SV1 are turned during cooling
operation.
RS Rush Current Protect Resistor
ConnectionTerminal<Electrical Parts Box>
GD1,GD2
N.F.
Connection Terminal<L1/L2/L3-Power Supply>
Noise Filter Circuit Board
LI1/LI2/LI3/NI
Connection Terminal<L1/L2/L3-Power Supply>
LO1/LO2/LO3
SYMBOL NAME
TB1 Terminal Block <Power Supply>
TB3
TB7 Terminal Block
<Centralized Control Transmission Line>
Terminal Block
<Indoor/Outdoor Transmission Line
>
MC Motor For Compressor
MF1,MF2 Fan Motor
CB1,CB2 Main Smoothing Capacitor
LEV-A,LEV-B Electronic Expansion Valve
21S4 Solenoid Valve<Four-Way Valve>
SV1 Solenoid Valve<Bypass valve>
TH3
Thermistor<Outdoor Liquid Pipe>
TH2 Thermistor<Hic Pipe>
TH4 Thermistor<Compressor>
TH6 Thermistor<Suction Pipe>
TH7
TH8
Thermistor<Ambient>
Thermistor<Heat Sink>
63H High Pressure Switch
63HS High Pressure Sensor
63LS Low Pressure Sensor
ACL4 Reactor
DCL
P.B. Power Circuit Board
Connection Terminal<U/V/W-Phase>
TB-U/V/W
MULTI.B.
Fuse<T6,3AL250V>
F1,F2
Switch<Display Selection>
SW1
Switch<Function Selection>
SW2
Switch<Test Run>
SW3
Switch<Model Selection>
SW4
Switch<Function Selection>
SW5
Switch<Function Selection>
SW6
Switch<Function Selection>
SW7
Switch<Model Selection>
SW8
Switch<Function Selection>
SW9
Switch<Unit Address Selection, unit digit>
SWU1
Switch<Unit Address Selection, tens digit>
SWU2
LED<Operation Inspection Display>
LED1,LED2
LED<Power Supply to Main Microcomputer>
LED3
Multi Controller Circuit Board
Connector<Connection For Option>
SS
Connector<Connection For Option>
CN3D
Connector<Connection For Option>
CN3S
Connector<Connection For Option>
CN3N
Connector<Connection For Option>
CN51
Relay
X501~505
M-NET P.B.
ConnectionTerminal<Electrical Parts Box>
M-NET Power Circuit Board
TB1
Connection Terminal<L1/L2/L3-Power Supply>
TB-L1/L2/L3
Connection Terminal
TB-P1/P2/C1/N1
Connection Terminal
SC-W/V/U
52C Relay
X52A
Reactor
Connector <Indoor/Outdoor Transmission Line >
CNS1
Connector <Centralized Control Transmission Line >
CNS2
Bit
Indication
1
Compressor
operated
2
52C
3
21S4
4
SV1
5
(SV2)
- -
6 7 8
Always lit
● During normal operation
The LED indicates the drive state of the controller in the outdoor unit.
● When fault requiring inspection has occurred
The LED alternately indicates the inspection code and the location of the unit in which
the fault has occurred.
NOTES:
1.Refer to the wiring diagrams of the indoor units for details on wiring of each indoor unit.
Self-diagnosis function
The indoor and outdoor units can be diagnosed automatically using the self-diagnosis switch
(SW1) and LED1, LED2 (LED indication) found on the multi-controller of the outdoor unit.
LED indication : Set all contacts of SW1 to OFF.
Cautions when Servicing
!
● WARNING: When the main supply is turned off, the voltage [570 V] in the main capacitor will drop to 20 V in approx. 5
minutes (input voltage: 400 V). When servicing, make sure that LED1, LED2 on the outdoor circuit board goes out, and then
wait for at least 5 minute.
● Components other than the outdoor board may be faulty: Check and take corrective action, referring to the service manual.
Do not replace the outdoor board without checking.
WIRING DIAGRAM
PUMY-P200YKM PUMY-P200YKM-BS
OCH575

17
7NECESSARY CONDITIONS FOR SYSTEM CONSTRUCTION
7-1. TRANSMISSION SYSTEM SETUP
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
051
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
056
001
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
010
101
10
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
002
102 104 154
1 1 1 1
11
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
009
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
008
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
003
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
007
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
006
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
004
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
005
1A transmission wire must be
connected to each refrigerant system (outdoor and indoor).
2Set addresses:
Outdoor unit ..............051-100 Indoor unit .................001-050 Remote controller .....101-200
3PUMY has no 100ths digit switch.
The address automatically become "100" if it is set as "01~50".
Remote controller
Remote controller
Remote controller
Remote controller 105
Remote controller
157
Remote controller
107
Remote controller
For centralized management
For remote controller
Address SW Address SW Address SW Address SW Address SW
Piping
Outdoor unit Outdoor unit
Indoor unit Indoor unit Indoor unit Indoor unit Indoor unit
Indoor unitIndoor unitIndoor unitIndoor unitIndoor unit
Address SW Address SW Address SW Address SW Address SW
Address SWAddress SWAddress SWAddress SWAddress SW
Address SWAddress SW
For centralized management
For remote controller
Transmission wire
2
1
OCH575

18
7-2. REFRIGERANT SYSTEM DIAGRAM
PUMY-P200YKM PUMY-P200YKM-BS
Thermistor(TH7)
<Ambient>
Check valve
<Low pressure>
Ball valve
Strainer 4-way valve
Accumulator
High pressure
switch(63H)
Check valve
<High pressure>
Compressor
Distributor
Thermistor(TH3)
<Outdoor liquid pipe>
LEV-1
HIC
Oil separator
Solenoid
Valve(SV1)
Service port
High pressure
sensor(63HS)
Low pressure
sensor(63LS)
Capillary
tube Thermistor(TH4)
<Compressor>
Thermistor(TH6)
<Suction pipe>
Thermistor(TH2)
<HIC pipe>
Refrigerant gas pipe
Strainer
Strainer
Strainer
Capillary
tube
LEV-2
Strainer
Strainer
Service port
Refrigerant liquid pipe
Stop valve
Strainer
Strainer
Note:
When connecting the CONNECTION KIT (PAC-LV11M-J) and an M-series indoor unit, refer to the
installation manual for the CONNECTION KIT.
Refrigerantpipingspecications<dimensionsofaredconnector>
Item
Capacity Liquid piping Gas piping
Indoor unit
P15, 20, 25, 32, 40, 50 {6.35 <1/4> {12.7 <1/2>
P63, 80, 100, 125, 140 {9.52 <3/8> {15.88 <5/8>
P200 {9.52 <3/8> {19.05 <3/4>
P250 {9.52 <3/8> {22.22 <7/8>
Outdoor unit P200 {9.52 <3/8> * {19.05 <3/4>
* Use {12.7 in case of farthest piping length is longer than 60m.
Capillary tube for oil separator : {2.5×{0.8×L800
Capillary tube for solenoid valve : {4.0×{3.0×L500
Unit: mm
OCH575

19
7-3. SYSTEM CONTROL
7-3-1. Example for the System
•Exampleforwiringcontrolcables,wiringmethodandaddresssetting,permissiblelengths,andtheprohibiteditemsarelisted
in the standard system with detailed explanation.
A. Example of a M-NET remote controller system (address setting is necessary.)
Example of wiring control cables Wiring Method and Address Setting
•1remotecontrollerforeach
indoor unit.
•Thereisnoneedforsetting
the 100 position on the remote
controller.
1. Standard operation
2. Operation using 2 remote controllers
•Using2remotecontrollers
for each indoor unit.
a. Use feed wiring to connect terminals M1 and M2 on
transmission cable block (TB3) for the outdoor unit
(OC) to terminals M1 and M2 on the transmission
cable block (TB5) of each indoor unit (IC). Use non-
polarized 2-core wire.
b. Connect terminals M1 and M2 on transmission cable
terminal block (TB5) for each indoor unit with the
terminal block (TB6) for the remote controller (RC).
c. Set the address setting switch (on outdoor unit P.C.B)
as shown below.
3. Group operation
•Multipleindoorunitsoperated
together by 1 remote controller
Unit
Indoor unit (IC)
Outdoor unit
(OC)
Remote
controller (RC)
Range
001 to 050
051 to 100
101 to 150
Setting Method
—
Use the smallest
address of all the indoor
unit plus 50.
Indoor unit address plus
100.
a. Same as above.
b. Same as above.
c. Set address switch (on outdoor unit P.C.B) as
shown below.
Unit
Indoor Unit (IC)
Outdoor unit
(OC)
Range
001 to 050
051 to 100
101 to 150
151 to 200
Setting Method
—
Use the smallest
address of all the indoor
units plus 50.
Indoor unit address plus
100.
Indoor unit address plus
150.
a. Same as above.
b. Connect terminals M1 and M2 on transmission cable
terminal block (TB5) of the IC main unit with the most
recent address within the same indoor unit (IC) group
to terminal block (TB6) on the remote controller.
c. Set the address setting switch (on outdoor unit P.C.B)
as shown below.
Unit
IC (Main)
IC (Sub)
Outdoor Unit
Main Remote
Controller
Sub Remote
Controller
Range
001 to 050
001 to 050
051 to 100
101 to 150
151 to 200
Setting Method
Use the smallest address within the
same group of indoor units.
Use an address, other than that of
the IC (Main) from among the units
within the same group of indoor
units. This must be in sequence with
the IC (Main).
Use the smallest address of all the
indoor units plus 50.
Set at an IC (Main) address within
the same group plus 100.
Set at an IC (Main) address within
the same group plus 150.
d. Use the indoor unit (IC) within the group with the
most functions as the IC (Main) unit.
Combinations of 1 through 3 above are possible.
Main Remote
Controller (RC)
Sub Remote
Controller (RC)
TB5 TB15
01
101
IC(Main)
TB3 TB7
51
OC
TB5 TB15
02
IC(Sub)
RC
1 2
A B
M1 M2 S M1 M2 S M1 M2 S1 2 M1 M2 S
TB5 TB15
01
101
RC
(Main)
151
IC
TB3 TB7
51
OC
TB5 TB15
02
IC
RC
(Sub)
102
RC
(Main)
152
RC
(Sub)
1 2
M1 M2 S M1 M2 S M1 M2 S1 2 M1 M2 S
A B A B A B A B
TB5
1 2
TB15
01
101
IC
A B
M1 M2
TB3
S
TB7
51
OC
L1
L3
L2
TB5 TB15
02
IC
RC
102
RC
l1
l2
M1 M2 S M1 M2 S1 2 M1 M2 S
A B
OCH575

20
• Name, Symbol and the Maximum Remote controller Units for Connection
Permissible Lengths Prohibited items
Longest transmission cable length
(1.25 mm²)
L1+ L2, L2+ L3, L3+ L1[200 m
Remote controller cable length
1. If 0.5 to 1.25 mm²
R1, R2[10 m
2. If the length exceeds 10 meters,
the exceeding section should be
1.25 mm² and that section should
be a value within the total exten-
sion length of the transmission
cable and maximum transmis-
sion cable length. (L3)
Same as above
Same as above
•Usetheindoorunit(IC)
address plus 150 as the
sub remote controller
address. In this case, it
should be 152.
•3ormoreremotecon-
troller (RC) cannot be
connected to 1 indoor
unit.
•Theremotecontroller
address is the indoor
unit main address plus
100. In this case, it
should be 101.
• M-NET remote controller (RC) and MA remote controller (MA) cannot be used together.
•DonotconnectanythingwithTB15ofindoorunit(IC).
Name Symbol Maximum units for connection
Outdoor unit OC —
Indoor unit IC 1 OC unit can be connected to 1 to 12(P175)/1 to 12 (P200)/1 to 12 (P225) IC units
M-NET remote
controller RC
Maximum 2 RC for 1 indoor unit, Maximum 12 RC for 1 OC
NO
TB5 TB15
01
102
IC(Main)
TB3 TB7
51
OC
TB5 TB15
02
IC(Sub)
RC
1 2
A B
M1 M2 S M1 M2 S M1 M2 S1 2 M1 M2 S
NO
TB5 TB15
01
101
RC
(Main)
151
IC
TB3 TB7
51
OC
TB5 TB15
02
IC
RC
(Sub)
102
RC
(Main)
104
RC
1 2
A B
M1 M2 S M1 M2 S M1 M2 S1 2 M1 M2 S
A B A B A BA B
NO
103
RC
(Sub)
NO
TB5 TB15
01
101
IC
TB3 TB7
51
OC
TB5 TB15
02
IC
RC
TB15
MA
1 2
A B
M1 M2 S M1 M2 S M1 M2 S1 2 M1 M2 S
A B
OCH575
