Mitsubishi Electric AE-200A User manual

Contents
Safety precautions..............................................................................2
1. Introduction ..................................................................................4
2. Parts to be used ...........................................................................5
3. Apportioned electricity billing function in the BACnet®function....7
3-1. Change timing of the apportioned electricity billing
function objects in the BACnet®function...............................7
4. Apportioned electricity billing function trial run procedure
in the BACnet®function................................................................9
4-1. Entire trial run flow ................................................................9
4-2. BACnet®(checking before a billing trial run) .......................10
4-3. BACnet®(1st run check (after air conditioning unit
continuous operation)..........................................................15
4-4. BACnet®(2nd run check (at least 10 days after the 1st
billing function trial run) .......................................................22
4-5. BACnet®(3rd run check (at least 1 month after the 2nd
billing function trial run) .......................................................22
Air Conditioning Control System
Centralized Controller
AE-200A/AE-50A/EW-50A
AE-200E/AE-50E/EW-50E
Instruction Book
– BACnet
®
Apportioned Electricity Billing Function Trial Run –
<ORIGINAL>
Before using the controller,
please read this Instruction
Book carefully to ensure proper
operation.
Retain this manual for future
reference.
BACnet®is a registered
trademark of ASHRAE (American
Society of Heating, Refrigerating
and Air-Conditioning Engineers,
INC.).

2
WT08246X03
Safety precautions
►Observe these precautions carefully to ensure safety.
►After reading this manual, pass the manual on to the end user to retain for future
reference.
►The user should keep this manual for future reference and refer to it as necessary. This
manual should be made available to those who repair or relocate the units. Make sure
that the manual is passed on to any future air conditioning system user.
: indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
: indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
: addresses practices not related to personal injury, such as product
and/or property damage.
General precautions
Do not install the controller in areas where large amounts of oil, steam, organic solvents,
or corrosive gases (such as ammonia, sulfuric compounds, or acids), or areas where
acidic/alkaline solutions or special chemical sprays are used frequently. These substances
may significantly reduce the performance and corrode the internal parts, resulting in
electric shock, malfunction, smoke, or fire.
To reduce the risk of short circuits, current leakage, electric shock, malfunction, smoke, or
fire, do not wash the controller with water or any other liquid.
To reduce the risk of electric shock, malfunction, smoke, or fire, do not touch the electrical
parts, USB memory, or touch panel with wet fingers.
To reduce the risk of injury or electric shock, before spraying a chemical around the
controller, stop the operation and cover the controller.
To reduce the risk of injury, keep children away while installing, inspecting, or repairing the
controller.
If you notice any abnormality (e.g., burning smell), stop the operation, turn off the
controller, and consult your dealer. Continuing the operation may result in electric shock,
malfunction, or fire.
Properly install all required covers to keep moisture and dust out of the controller. Dust
accumulation and the presence of water may result in electric shock, smoke, or fire.
To reduce the risk of fire or explosion, do not place flammable materials or use flammable
sprays around the controller.
To reduce the risk of electric shock or malfunction, do not touch the touch panel, switches,
or buttons with a sharp object.
To avoid injury from broken glass, do not apply excessive force to the glass parts.

3
WT08246X03
To reduce the risk of injury, electric shock, or malfunction, avoid contact with the sharp
edges of certain parts.
Consult your dealer for the proper disposal of the controller. Improper disposal will pose a
risk of environmental pollution.
Precautions for relocating or repairing the unit
The controller must be repaired or moved only by qualified personnel. Do not disassemble
or modify the controller. Improper installation or repair may result in injury, electric shock,
or fire.
Additional precautions
To avoid discoloration, do not use benzene, thinner, or chemical rag to clean the controller.
When the controller is heavily soiled, wipe the controller with a well-wrung cloth that has
been soaked in water with mild detergent, and then wipe off with a dry cloth.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not play
with the appliance.
Terms used in this manual
- “Centralized Controller AE-200A/AE-200E” is referred to as “AE-200”.
- “Centralized Controller AE-50A/AE-50E” is referred to as “AE-50”.
- “Centralized Controller EW-50A/EW-50E” is referred to as “EW-50”.

4
WT08246X03
1. Introduction
To use the billing information objects (accumulator objects and trend log objects (excluding Trend Log Room
Temp)) for the BACnet®function in the apportioned electricity billing function of the AE-200/AE-50/EW-50, follow
the procedure in this document, in addition to the procedure described in “7. Billing function trial run” in the
AE-200/AE-50/EW-50 Instruction Book –Apportioned Electricity Billing Function–.
To perform a trial run, you need to obtain this document and the AE-200/AE-50/EW-50 Instruction Book
–Apportioned Electricity Billing Function–.
To use the billing information objects for the BACnet®function, you need to register the “Charge” license with the
AE-200/AE-50/EW-50. For the license registration procedure, refer to the AE-200/AE-50/EW-50 Instruction Book
–Initial Settings–.
Entire flow diagram of initial settings and trial run for the AE-200/AE-50/EW-50 (when using the apportioned
electricity billing function and BACnet®function)
*1 Before performing a trial run for the apportioned electricity billing function (BACnet®), perform a trial run for the air conditioning system
and check that the group settings/interlocked unit settings are correct (the correspondence of the actual air conditioning units/interlocked
units with the group numbers is correct) from the AE-200/AE-50’s LCD or from the Integrated Centralized Control Web.
*2 When using the billing information objects for the BACnet®function, set a single group in a single block when setting the energy
management block. If there are OA processing units registered as interlocked LOSSNAY, register a single OA processing unit in a single
block. (because this operation is required in 4-3-3 “Checking the match with the CSV data (apportioned results) of the AE-200”.
*3 Enable accumulator objects and trend log objects.
*4 Perform a continuous operation for each indoor unit for at least 2 hours before performing the check after 00:00 on the day of the 1st
check (after air conditioning unit continuous operation).
Normal initial settings and trial run
for all AE-200 systems *1
When using the apportioned electricity billing
function only from BACnet®, the settings are not
required.
AE-200 settings
Settings on the Initial Setting Tool
(with apportioned electricity
billing function) *2
Settings
on the Charge Calculation Tool
Initial Settings
for BACnet®function *3
When changing the “Log_interval” property of the
trend log object to 180000 (30 minutes), change it
after performing the initial settings for the BACnet®
function.
Scope covered by this document
The order of this and “Billing function trial run”
may be changed.
To a test with the building management system
BACnet®function trial run
Billing function trial run
Apportioned electricity billing
function (AE-200 system)
trial run
Apportioned electricity
billing function
(BACnet®) trial run *4
Initial settings
for apportioned
electricity billing
function

5
WT08246X03
2. Parts to be used
Prepare the following when performing a trial run.
Item Qty Remarks
Material
Diagram of air conditioning control
system for building 1 Group configuration, IP address etc.
Apportioned electricity billing function
setting information and metering
device connection information
1
AE-200/AE-50/EW-50 Instruction
Book –Apportioned Electricity Billing
Function–
1*1
AE-200/AE-50/EW-50 Instruction
Book –BACnet®function– 1*1
AE-200/AE-50/EW-50 Instruction
Book –BACnet®Apportioned
Electricity Billing Function Trial Run–
1 This document
AE-200/AE-50/EW-50 Instruction
Book –BACnet®Trial Run Tool– 1*1
Instruction books for each air
conditioning unit, controller, and
metering device
1
Equipment,
device
PC *2 1–2 *3
Used for running Microsoft Excel, Initial
Setting Tool, BACnet®Trial Run Tool, and
Integrated Centralized Control Web
Microsoft Excel 1 Microsoft Excel 2007 or later
BACnet®Trial Run Tool 1*1
Initial Setting Tool (with apportioned
electricity billing function) 1*1
USB memory device 1
Used for retrieving CSV data (apportioned
results).
For manufacturers and models of
USB memory devices for which
operation has been verified, refer to the
AE-200/AE-50/EW-50 Instruction Book
–Initial Settings–.
Switching HUB 1–2 *3 Used for connecting a PC.
LAN cable (Category 5 or above
straight cable) 2–4 *3 Used for connecting a PC.
L-shaped driver (hexagonal wrench) 1 Included with AE-200, used for removing or
attaching the AE-200 cover.
General tool such as a driver -
*1 Contact your dealer to obtain this.
*2 For the necessary specifications and other information, refer to the AE-200/AE-50/EW-50 Instruction Book –Apportioned Electricity Billing
Function–, AE-200/AE-50/EW-50 Instruction Book –Initial Settings–, and AE-200/AE-50/EW-50 Instruction Book –BACnet®Trial Run
Tool–.
*3 You just need the minimum number only for a trial run, but the maximum number is more efficient for a combination of the settings and
trial run.

6
WT08246X03
Connection diagram for a trial run
*1 If a trial run is performed with a single PC, connect it as a trial run PC. Furthermore, if the settings need to be checked or changed, it can
also be used as a setting PC by changing the network connection settings and switching the LAN connection.
Trial run PC *1
(BACnet® Trial Run Tool)
LAN1
M-NET
BACnet®
AE-200
“Charge” license
LAN2 (BACnet®)
LAN1
M-NET
LAN2 (BACnet®)
LAN1
M-NET
Indoor unit,
outdoor unit
LAN2 (BACnet®)
LAN1
M-NET
LAN2 cannot be connected.
LAN2 (BACnet®)
HUB HUB
Indoor unit,
outdoor unit
Indoor unit,
outdoor unit
Indoor unit,
outdoor unit
Setting PC *1
(Initial Setting Tool,
BACnet®Setting
Tool, Integrated
Centralized Control
Web)
LAN1
M-NET cannot be connected.
AE-50/EW-50
“BACnet connection” license
“Charge” license
AE-50/EW-50
“BACnet connection” license
“Charge” license
AE-50/EW-50
“BACnet connection” license
“Charge” license
AE-50/EW-50
“BACnet connection” license
“Charge” license

7
WT08246X03
3. Apportioned electricity billing function in the
BACnet®function
The apportioned results calculated by the apportioned electricity billing function of the AE-200/AE-50/EW-50
are retrieved from the building management system via BACnet®by using the billing information objects of the
BACnet®function.
3-1. Change timing of the apportioned electricity billing function objects in
the BACnet®function
The billing information objects of the BACnet®function change according to the following specifications and
timing.
•The apportioned result (cumulative value) is calculated every 30 minutes from the electric energy
consumption for the period between XX:00 and XX:30 minutes or between XX:30 and XX:00 minutes every
hour and the cumulative value is stored. (The apportioned result (cumulative value) is a value for internal
calculation and cannot be referred to from the outside.)
•The electric energy value stored in the accumulator object is updated at XX:15 and XX:45 minutes every
hour.
•The update of the electric energy value stored in the accumulator object is performed by adding the
difference between the last two apportioned results (cumulative values) to the value in the “Present_Value”
property.
(For the “PI controller Electric Energy 1–4” or “Pulse Input Electric Energy 1–4” objects, the update is
performed by adding the difference between the last two measurement results to the value in the “Present_
Value” property.)
•The trend log object is updated at each interval set in the “Log_interval” property from the reference point
(1970/1/1 00:00).
In the test run procedure explained in this manual, the “Log_interval” property needs to be set to 180000 (1800
seconds = 30 minutes).
(For the procedure for setting the “Log_interval” property of the trend log object, refer to the AE-200/AE-50/
EW-50 Instruction Book –BACnet®Trial Run Tool–. Furthermore, the “Log_interval” property needs to be
specified in 1/100 seconds. The initial value of the “Log_interval” property is 8640000 (24 hours) in versions
earlier than AE-200/AE-50/EW-50 Version 7.45, and 180000 (30 minutes) in AE-200/AE-50/EW-50 Version
7.45 and later.)
When comparing the display value of the metering device or the [Monitor/Operation] - [Measurement] display of
the AE-200 with the billing information object in the BACnet ®function, or when checking the billing information
object after changing the settings, make sure to consider the time lag in order not to refer to the data before the
change.

8
WT08246X03
The following shows an operation example of the apportioned electricity billing function of the AE-200 (when it is
started at 10:00).
The example assumes that there are no apportioned results in the past (at the default settings) and that 180000
(1800 seconds = 30 minutes) is set in the “Log_interval” property.
The time when the apportioned result is stored for the first time is indicated by bold characters.
Accumulator and trend log object update timing
Time
10:00
10:15
10:30
10:45
11:00
11:15
0
11:30
11:45
12:00
Apportioned calculation
(cumulative value)
<> indicates the cumulation
range.
(Unit [0.1 kWh])
“Present_Value” of the
accumulator object
(Unit [0.1 kWh])
”Log_Buffer” of the trend
log object
Apportioned result [1]
(Example: 20)
<10:00–10:30>
Update (+ 0) = 0
(0 because of the
shortage of calculation target)
Store (0)
Apportioned result [2]
(Example: 50)
<10:00–11:00>
Update (+ 0) = 0
(0 because of the
shortage of calculation target)
Store (0)
Apportioned result [3]
(Example: 90)
<10:00–11:30>
Apportioned result [4]
<10:00–12:00>
Update (+ Apportioned result
[3] - [2])
= 30 + (90 - 50) = 70
Store (Apportioned result
[3] - [1])
(70)
Store (Apportioned result
[2] - [1])
(30)
Update (+ Apportioned result
[2] - [1])
= 0 + (50 - 20) = 30

9
WT08246X03
4. Apportioned electricity billing function trial run
procedure in the BACnet®function
4-1. Entire trial run flow
Perform a trial run according to the following procedure.
Check timing Step
Procedure explained in the
AE-200/AE-50/EW-50 Instruction Book
–Apportioned Electricity Billing Function–
Procedure explained in this manual
Before billing function
trial run
1 7-1. “Flow of the billing function trial run” ←
2 4-2-1 “BACnet®metered value correction”
37-2. “Checking the billing function settings
(check before billing function trial run)” ←
4 7-2-1. “Billing-related item sheet” ←
5 7-2-2. “Unit-related item sheet” ←
6 7-2-3. “Entering the electric energy” ←
7 4-2-2 “Billing-related item sheet (BACnet®)”
8 4-2-3 “Unit-related item sheet (BACnet®)”
1st run check (after
air conditioning unit
continuous operation
for more than 2
hours)
Run each indoor unit continuously for at least 2 hours as explained in the AE-200/AE-50/
EW-50 Instruction Book –Apportioned Electricity Billing Function–
At 00:00 or later on the day of the 1st run check (after air conditioning unit continuous
operation), run each indoor unit continuously for at least 2 hours.
9 7-3. “Billing function trial run checks” ←
10
7-3-1. “1st run check (after air
conditioning unit continuous operation)”
[1] “Billing-related item sheet”
←
11 4-3-1 “Billing-related item sheet (BACnet®)”
12
7-3-1. “1st run check (after air
conditioning unit continuous operation)”
[2] “Unit-related item sheet”
←
13 4-3-2 “Unit-related item sheet (BACnet®)”
14 4-3-3 “Checking the match with the CSV data
(apportioned results) of the AE-200”
2nd run check
(at least 10 days
after the 1st billing
function trial run)
15 7-3-2. “2nd run check (at least 10 days
after 1st billing function trial run)” ←
16 4-4 “BACnet®(2nd run check (at least 10
days after the 1st billing function trial run)”
3rd run check (at
least 1 month after
the 2nd billing
function trial run)
17 7-3-3. “3rd run check (at least 1 month
after the 2nd billing function trial run)” ←
18 4-5 “BACnet®(3rd run check (at least 1 month
after the 2nd billing function trial run)”
19 7-4. “Final checks” ←
20 7-4-1. “Final checks for the operation
settings” ←
21 7-4-2. “Final report” ←

10
WT08246X03
4-2. BACnet®(checking before a billing trial run)
Before performing the procedure in this section, make sure to perform the procedure described in “7-1. Flow
of the billing function trial run” in the AE-200/AE-50/EW-50 Instruction Book –Apportioned Electricity Billing
Function–.
4-2-1. BACnet®metered value correction
Check that the metering device values used for the apportioned electricity billing function and the “Present_
Value” property values of the BACnet®objects “PI controller Electric Energy 1–4” (AC_41mm40–43: mm = PI
controller address (01–50)) or “Pulse Input Electric Energy 1–4” (AC_410040–43) match. If they do not match,
change the “Present_Value” property values.
However, as described in 3-1 “Change timing of the apportioned electricity billing function objects in the BACnet®
function”, there is a time lag until the “Present_Value” property values are reflected so they do not match the
metering device display values at the same time (which does not matter for the apportion calculation).
Furthermore, the apportion calculation results are not influenced by changes in the “Present_Value”
property values of “PI controller Electric Energy 1–4” (AC_41mm40–43) or “Pulse Input Electric Energy 1–4”
(AC_410040–43).
Procedures
1. After starting the AE-200, record the display value of the metering device at the time when the internal clock
of the AE-200 shows the XX:00 or XX:30 minutes of every hour.
2. Use BACnet®Trial Run Tool and enter the electric energy value in a unit of 0.1 [kWh] (for example, 1234 for
123.4 kWh) recorded at the time when 20 to 45 minutes have passed since step 1 (for example, between
10:20 and 10:45 if the value was recorded at 10:00, or between 10:50 and 11:15 if the value was recorded
at 10:30) in the “Value_Set” property for the object corresponding to the metering device.
(If you failed to enter the value during the entry period, perform the procedure again from step 1.)
3. Immediately read the “Present_Value” property value of the same object and make sure that the entered
value is reflected.
The following shows the objects corresponding to the metering device.
Connect metering device to Object name Object ID
PI controller
Ch.1 PI controller Electric Energy 1 AC_41mm40
Ch.2 PI controller Electric Energy 2 AC_41mm41
Ch.3 PI controller Electric Energy 3 AC_41mm42
Ch.4 PI controller Electric Energy 4 AC_41mm43
AE-50/EW-50
Pulse Input
Ch.1 Pulse Input Electric Energy 1 AC_410040
Ch.2 Pulse Input Electric Energy 2 AC_410041
Ch.3 Pulse Input Electric Energy 3 AC_410042
Ch.4 Pulse Input Electric Energy 4 AC_410043
* mm: PI controller address (01–50)
Note
For how to operate BACnet®Trial Run Tool, refer to the AE-200/AE-50/EW-50 Instruction Book –BACnet®
Trial Run Tool–.

11
WT08246X03
The following shows an example of correcting the metered value in BACnet®(when it is started at 10:00).
The example supposes that there is an apportioned result in the past (500 [0.1 kWh]).
BACnet®metered value correction example
Time
10:00
10:15
10:30
10:45
11:00
11:15
11:30
11:45
10
11
14
19
23
25
33
39
500 500
500 (Update + 0) 500 (Update + 0)
540 (Update + (140 - 100)) 540 (Update + (140 - 100))
140 (Value_Set)
230 (Update + (230 - 140)) 630 (Update + (230 - 140))
730 (Update + (330 - 230))330 (Update + (330 - 230))
The values match.
Apportioned calculation
(3rd time)
The values match.
Apportioned calculation
(2nd time)
“Present_Value” of the accumulator object
(Unit [0.1 kWh])
When corrected When not corrected
Metering device display
value [kWh] example
(The value actually
changes continuously.)
Enter the value recorded
at 10:30 between 10:50
and 11:15.
Apportioned calculation
(1st time)

12
WT08246X03

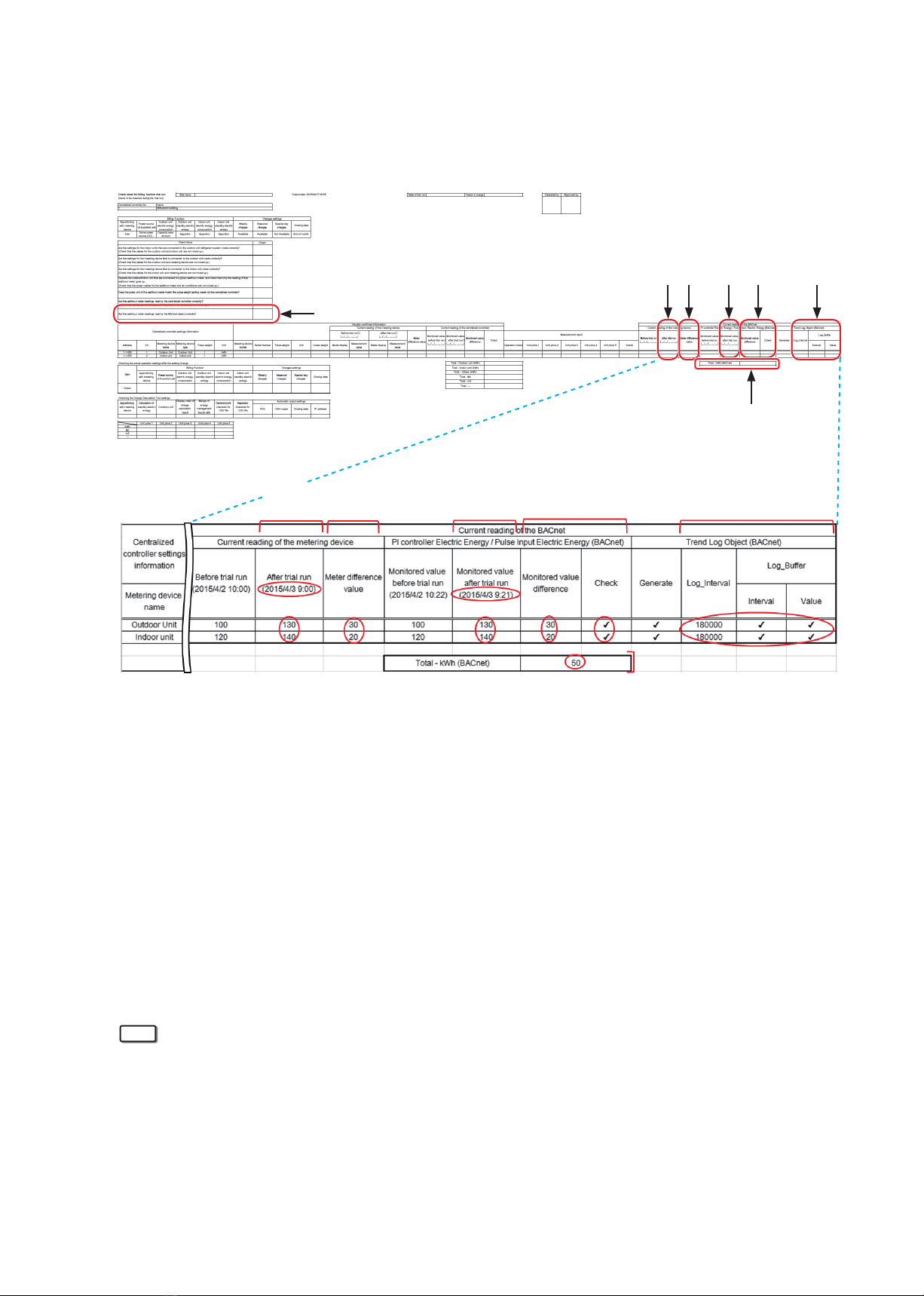

4-2-2. Billing-related item sheet (BACnet®)
Billing-related item sheet (entire view)
Billing-related item sheet (enlarged view)
[1] Entering the metering device electric energy value
Read the metering device electric energy value at XX:00 or XX:30 minutes of any hour.
①Enter the checked date and time. (XX:00 or XX:30 minutes)
②Enter the meter display value of the metering device.
[2] BACnet®function: Entering the metering device electric energy value
Enter the metering device electric energy value in the AE-200 BACnet®function in the billing-related item sheet
after 20 to 40 minutes have passed since [1] (for example, between 10:20 and 10:40 if the metering device value
was read at 10:00, or between 10:50 and 11:10 if the value was read at 10:30).
③Enter the checked date and time.
④Use BACnet®Trial Run Tool and read the “Present_Value” property values of the “PI controller Electric
Energy 1–4” (AC_41mm40–AC_41mm43) or “Pulse Input Electric Energy 1–4” (AC_410040–AC_410043)
objects and enter the monitored electric energy values before the trial run.
“Present_Value” property value × 0.1 = Electric energy [kWh]
Note
For how to operate BACnet®Trial Run Tool, refer to the AE-200/AE-50/EW-50 Instruction Book –BACnet®
Trial Run Tool–.
[1] [2] [3]
[1]
①
②
[2]
③
④
[3]
⑤

13
WT08246X03
[3] Checking the generation of trend log object
Check that the BACnet®trend log object has been generated. If the trend log object is disabled from the
BACnet®Setting Tool, refer to the AE-200/AE-50/EW-50 Instruction Book –BACnet®Setting Tool– and enable
the trend log object.
⑤Use BACnet®Trial Run Tool and check that the “Trend Log PI controller Electric Energy 1–4”
(LOG_41mm84–LOG_41mm87: mm = PI controller address (01–50)) or “Trend Log Pulse Input Electric
Energy 1–4” (LOG_410084–LOG_410087) objects exist, and if they exist, insert a check mark.
Note
If it takes time to perform the operation in [3] “Checking the generation of trend log object”, first perform the
operation in [1] “BACnet®function: Entering the apportioned electric energy value” in 4-2-3 “Unit-related
item sheet (BACnet®)”.
For details on the procedures for operating BACnet®Trial Run Tool and checking the trend log object, refer
to the AE-200/AE-50/EW-50 Instruction Book –BACnet®Trial Run Tool–.

14
WT08246X03

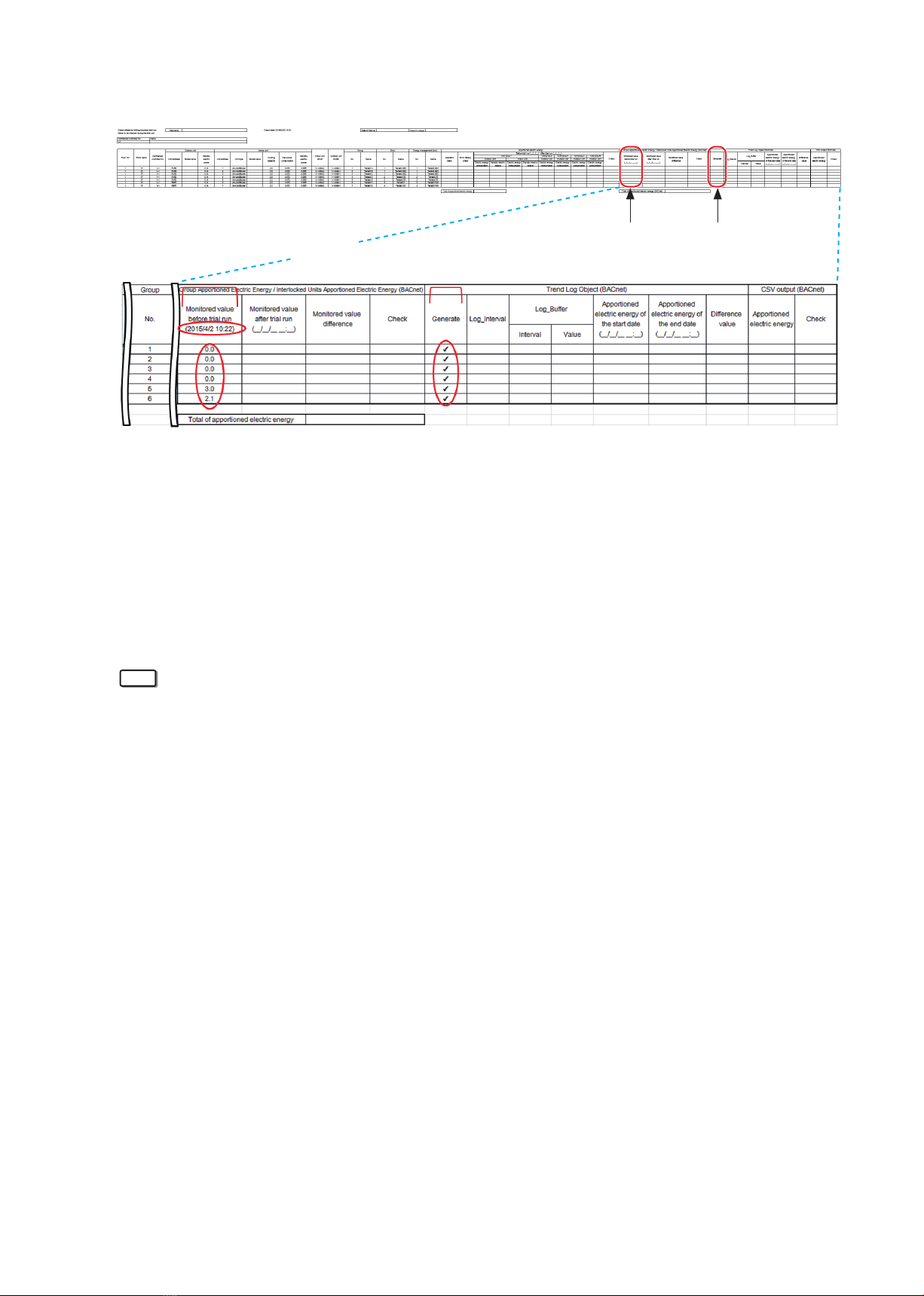

4-2-3. Unit-related item sheet (BACnet®)
Unit-related item sheet (entire view)
Unit-related item sheet (enlarged view)
[1] BACnet®function: Entering the apportioned electric energy value
Enter the apportioned electric energy values in the AE-200 BACnet®function in the unit-related item sheet at the
same timing as that in 4-2-2 [2].
①Enter the first checked date and time.
②Use BACnet®Trial Run Tool and read the “Present_Value” property values of the “Group Apportioned
Electric Energy” (AC_01xx39: xx = Group number (01–50)) or “Interlocked Units Apportioned Electric
Energy” (AC_61aa39: aa = Interlocked unit address (01–50)) objects and enter the electric energy values
before the trial run.
“Present_Value” property value × 0.1 = Electric energy [kWh]
Note
For how to operate BACnet®Trial Run Tool, refer to the AE-200/AE-50/EW-50 Instruction Book –BACnet®
Trial Run Tool–.
Enter the electric energy value for the representative single air conditioning unit if the group consists of
multiple units. Enter “-” for the air conditioning units other than the representative unit.
[2] Checking the generation of trend log object
Check that the BACnet®trend log object has been generated. If the trend log object is disabled, refer to the
AE-200/AE-50/EW-50 Instruction Book –BACnet®Setting Tool– and enable the trend log object.
③
Use BACnet®Trial Run Tool and check whether the “Trend Log Group Apportioned Electric Energy”
(LOG_01xx83) or “Trend Log Interlocked Units Apportioned Electric Energy” (LOG_61aa83: aa =
Interlocked unit address (01–50)) objects exist, and when they exist, insert a check mark.
[1] [2]
[1]
①
②
[2]
③

15
WT08246X03
4-3. BACnet®(1st run check (after air conditioning unit continuous
operation)
4-3-1. Billing-related item sheet (BACnet®)
Billing-related item sheet (entire view)
Billing-related item sheet (enlarged view)
[1] Entering the metering device electric energy value (after a trial run)
Read the metering device electric energy value at XX:00 or XX:30 minutes of any hour after at least 2 hours
have passed since the start of the billing trial run.
①Enter the checked date and time. (XX:00 or XX:30 minutes)
②Enter the meter display value of the metering device.
[2] BACnet®function: Entering the metering device electric energy value (after a trial run)
Enter the electric energy value after the trial run in the AE-200 BACnet®function in the billing-related item sheet
after 20 to 40 minutes have passed since [1] (for example, between 10:20 and 10:40 if the metering device value
was read at 10:00, or between 10:50 and 11:10 if the value was read at 10:30).
③Enter the checked date and time.
④Use BACnet®Trial Run Tool and read the “Present_Value” property values of the “PI controller Electric
Energy 1–4” (AC_41mm40–AC_41mm43) or “Pulse Input Electric Energy 1–4” (AC_410040–AC_410043)
objects and enter the electric energy values after the trial run.
“Present_Value” property value × 0.1 = Electric energy [kWh]
Note
For how to operate BACnet®Trial Run Tool, refer to the AE-200/AE-50/EW-50 Instruction Book –BACnet®
Trial Run Tool–.
[4]
[2]
[6]
[1] [3] [3] [5]
[1]
①
②
[2]
③
④
[3]
⑤⑥
[3]
⑧
⑦
[5]
⑨
[4]

16
WT08246X03
[3] Checking the difference value
⑤Calculate the meter difference value from the current values of the metering device before and after the
trial run and enter it.
⑥Calculate the monitor difference value from the PI controller electric energy/pulse input electric energy
values before and after the trial run and enter it.
Check whether there is a value of “0” among the monitor difference values.
If there is a value of “0”, check that the settings are correctly set. If there is a wrong setting, correct it and
perform a billing trial run check again.
⑦Make sure that the meter difference value matches the monitor difference value.
Check that the values in ⑤and ⑥match, and if there is no problem, insert a check mark in the check
box.
Note
The actual meter difference value may not match the actual monitor difference value completely because of
a time difference for visually checking the metering device.
Up to the following difference value [kWh] will be produced.
Total rated electric power [kW] of the equipment connected to the given metering device × Time
difference [h]
[4] Checking the electric energy total data
⑧Total the electric energy values in ⑥and enter the total value.
[5] Checking the trend log object
⑨Use BACnet®Trial Run Tool and read the “Log_Buffer” property values of the “Trend Log PI controller
Electric Energy 1–4” (LOG_41mm84–LOG_41mm87) or “Trend Log Pulse Input Electric Energy 1–4”
(LOG_410084–LOG_410087) objects. Check that the “Present_Value” property values of the “PI controller
Electric Energy 1–4” (AC_41mm40–AC_41mm43) or ”Pulse Input Electric Energy 1–4” (AC_410040–
AC_410043) objects are stored in the “Log_Buffer” property at the interval set in the “Log_Interval”
property, and that there is no abnormal data, such as a decrease in the value.
Note
If it takes time to perform the operation in [5] “Checking the trend log object”, first perform the operation in [1]
“BACnet®function: Entering the apportioned electric energy values (after a trial run)” in 4-3-2 “Unit-related
item sheet (BACnet®)”. For details on the procedures for operating BACnet®Trial Run Tool and checking
the trend log object, refer to the AE-200/AE-50/EW-50 Instruction Book –BACnet®Trial Run Tool–.
[6] Check
Check the content again and if there is no error, insert a check mark in the check box.
Check item Check
Are the watthour meter readings read by the BACnet®object correctly?

17
WT08246X03
4-3-2. Unit-related item sheet (BACnet®)
Enter the apportioned electric energy value in the AE-200 BACnet®function in the unit-related item sheet.
(entire view)
Unit-related item sheet (enlarged view)
[1] BACnet®function: Entering the apportioned electric energy values (after a trial run)
Enter the apportioned electric energy values in the AE-200 BACnet®function in the unit-related item sheet at the
same timing as that in 4-3-1 [2].
①Enter the checked date and time.
②Use BACnet®Trial Run Tool and read the “Present_Value” property values of the “Group Apportioned
Electric Energy” (AC_01xx39: xx = Group number (01–50)) or “Interlocked Units Apportioned Electric
Energy” (AC_61aa39: aa = Interlocked unit address (01–50)) objects and enter the electric energy values
after the trial run.
“Present_Value” property value × 0.1 = Electric energy [kWh]
Note
For how to operate BACnet®Trial Run Tool, refer to the AE-200/AE-50/EW-50 Instruction Book –BACnet®
Trial Run Tool–.
Enter the electric energy value for the representative single air conditioning unit if the group consists of
multiple units. Enter “-” for the air conditioning units other than the representative unit.
[2] Checking the difference value
③
Calculate the monitor difference value from the Group Apportioned Electric Energy/Interlocked Units
Apportioned Electric Energy values before and after the trial run and enter it.
Check whether there is a value of “0” among the monitor difference values.
If there is a value of “0,” check that the settings are correctly set. For details, refer to 9-6 (3) “If there is a
unit with “0” amount of operating electric energy” and 9-6 (4) “If there is a unit with “0” amount of standby
electric energy” in the AE-200/AE-50/EW-50 Instruction Book –Apportioned Electricity Billing Function–. If
there is a wrong setting, correct it and perform a billing trial run check again.
Even if there is a unit with “0,” the unit may not run or the electric energy consumption may be small, so
check the apportionment parameter if the settings are correct.
④Check that the monitor value is larger than before the trial run. If there is no problem, insert a check mark
in the check box.
[3] Checking whether the total electric energy value is correct
⑤Total the monitor difference values of all groups/interlocked units connected to the metering device and
enter the total value. Furthermore, check that the total value almost matches the total value calculated in [4]
“Checking the electric energy total data” in 4-3-1 “Billing-related item sheet (BACnet®)”.
•The total values may not match completely because the electric energy value is rounded off to one decimal
place.
[1]
[3]
[2] [4]
[1]
①
②
[2]
③④
⑤
[3] ⑥
[4]

18
WT08246X03
[4] Checking the trend log object
⑥Use BACnet®Trial Run Tool and read the “Log_Buffer” property values of the “Trend Log Group
Apportioned Electric Energy” (LOG_01xx83) or ”Trend Log Interlocked Units Apportioned Electric Energy”
(LOG_61aa83) objects. Check that the “Present_Value” property values of the “Group Apportioned Electric
Energy” (AC_01xx39) or “Interlocked Units Apportioned Electric Energy” (AC_61aa39)” objects are stored
in the “Log_Buffer” property at the interval set in the “Log_Interval” property, and that there is no abnormal
data, such as a decrease in the value.
Note
For details on the procedures for operating BACnet®Trial Run Tool and checking the trend log object, refer
to the AE-200/AE-50/EW-50 Instruction Book –BACnet®Trial Run Tool–.

19
WT08246X03
4-3-3. Checking the match with the CSV data (apportioned results) of the AE-200
This procedure is performed only for the 1st check (after the air conditioning unit continuous operation).
Unit-related item sheet (entire view)
Unit-related item sheet (enlarged view)
[1][2] [4][3][1]
[1] [2]
⑧
[3]
③⑦⑤ ⑥
[4]
CSV data (apportioned results) - Energy management block unit When group 1 is set to energy
management block 1 and group 2 is set
to energy management block 2
[1]
④

20
WT08246X03
[1] Entering the apportioned electricity energy value from the CSV data at 30-minute intervals
in the energy management block of the AE-200
①Remove the AE-200 cover, and connect an USB memory device.
②Click [Energy Mgmt] - [Energy management list], and select [CSV output].
③In [Date Range], set the period from the following day of the billing run start or 3 days prior to the current
date, whichever is later (hereinafter referred to as the “start date”) to the current date (hereinafter referred
to as the “end date”) and touch [CSV output] while [Energy management block] and [30-minute intervals]
are selected.
Open the output CSV file in Microsoft Excel and enter the “apportioned electricity energy” value in the
energy management block unit in the check sheet.
④Enter the date and time in “Time period” in the CSV file in the start date and end date.
[2] Entering the apportioned electric energy values in the BACnet®function
⑤Use BACnet®Trial Run Tool and read the “Log_Buffer” property values of the “Trend Log Group
Apportioned Electric Energy” (LOG_01xx83) or “Trend Log Interlocked Units Apportioned Electric Energy”
(LOG_61aa83) objects, and enter the apportioned electricity value at the time 30 minutes after the date/
time entered in the start date column.
“Log_Buffer” value × 0.1 = Apportioned electric energy [kWh]
⑥Use BACnet®Trial Run Tool and read the “Log_Buffer” property values of the “Trend Log Group
Apportioned Electric Energy” (LOG_01xx83) or “Trend Log Interlocked Units Apportioned Electric Energy”
(LOG_61aa83) objects, and enter the apportioned electricity value at the time 30 minutes after the date/
time entered in the end date column. (If the log at the date/time of the end date is not stored, wait for at
least 30 minutes and check again.)
“Log_Buffer” value × 0.1 = Apportioned electric energy [kWh]
[3] Checking the difference value
⑦Calculate the difference value from the apportioned electric energy values of the start date and the end
date and enter it.
[4] Checking whether the electric energy value is correct
⑧Check that the difference value of the trend log object matches the apportioned electric energy value of
the CSV output. If there is no problem, insert a check mark in the check box.
