CITY MULTI Control System
Smart ME Controller PAR-U02MEDA
Simple Operation Manual
Prior to use, thoroughly read the instructions in this manual to use the product correctly.
Retain this manual for future reference.
Make sure that the CD-ROM, this manual, and Installation Manual are passed on to any
future users.
To ensure safety and proper operation of the remote controller, the remote controller should
only be installed by qualified personnel.
English
Türkçe
Italiano
Română
Français
Slovenščina
Português
Español
Hrvatski
Ελληνικά

2

Contents
Safety precautions..................................................4
Names and functions of controller components......7
Controller interface..................................................................7
Screen configuration ...............................................................8
Display...................................................................................10
Basic operations...................................................12
Troubleshooting....................................................15
Timer, Schedule, and Auto return .........................16
Maintenance.........................................................17
Product features ...................................................18
3

Safety precautions
• Thoroughly read the following safety precautions before using the unit.
• Observe these precautions carefully to ensure safety.
WARNING Indicates a risk of death or serious injury.
CAUTION Indicates a risk of serious injury or structural damage.
• After reading this manual, pass it on to the end user to retain for future reference.
• Keep this manual for future reference and refer to it as necessary. This manual should be made available
to those who repair or relocate the controller. Make sure that the manual is passed on to any future users.
• For information not contained in this booklet, please refer to the Instruction Book on the CD-ROM that is
supplied with the Remote Controller.
General precautions
WARNING
Do not install the unit in a place where large
amounts of oil, steam, organic solvents, or
corrosive gases, such as sulfuric gas, are present
or where acidic/alkaline solutions or sprays
are used frequently. These substances can
compromise the performance of the unit or cause
certain components of the unit to corrode, which
can result in electric shock, malfunctions, smoke,
or fire.
To reduce the risk of shorting, current leakage,
electric shock, malfunctions, smoke, or fire, do
not wash the controller with water or any other
liquid.
To reduce the risk of electric shock, malfunctions,
smoke or fire, do not operate the touch panel or
touch other electrical parts with wet hands.
When disinfecting the unit using alcohol, ventilate
the room adequately. The fumes of the alcohol
around the unit may cause a fire or explosion
when the unit is turned on.
To reduce the risk of injury or electric shock,
before spraying a chemical around the controller,
stop the operation and cover the controller.
To reduce the risk of injury or electric shock, stop
the operation and switch off the power supply
before cleaning, maintaining, or inspecting the
controller.
If any abnormality (e.g., burning smell) is noticed,
stop the operation, turn off the power switch, and
consult your dealer. Continued use of the product
may result in electric shock, malfunctions, or fire.
Properly install all required covers to keep
moisture and dust out of the controller. Dust
accumulation and water can cause electric shock,
smoke, or fire.
4

CAUTION
To reduce the risk of fire or explosion, do not
place flammable materials or use flammable
sprays around the controller.
To reduce the risk of damage to the controller, do
not directly spray insecticide or other flammable
sprays on the controller.
To reduce the risk of environmental pollution,
consult an authorized agency for proper disposal
of remote controller.
To reduce the risk of electric shock or
malfunctions, do not touch the touch panel with a
pointy or sharp object.
To reduce the risk of injury and electric shock,
avoid contact with sharp edges of certain parts.
To avoid injury from broken glass, do not apply
excessive force on the glass parts.
To reduce the risk of injury, wear protective gear
when working on the controller.
Relocation and repairs
WARNING CAUTION
The controller should be repaired or moved only
by qualified personnel. Do not disassemble or
modify the controller.
Improper installation or repair may cause injury,
electric shock, or fire.
To reduce the risk of shorting, electric shock, fire,
or malfunction, do not touch the circuit board with
tools or with your hands, and do not allow dust to
accumulate on the circuit board.
Additional precautions
To avoid damage to the controller, use
appropriate tools to install, inspect, or repair the
controller.
This controller is designed for exclusive use with
the Building Management System by Mitsubishi
Electric. The use of this controller for with other
systems or for other purposes may cause
malfunctions.
To avoid discoloration, do not use benzene,
thinner, or chemical rag to clean the controller.
To clean the controller, wipe with a soft cloth
soaked in water with mild detergent, wipe off the
detergent with a wet cloth, and wipe off water with
a dry cloth.
To avoid damage to the controller, provide
protection against static electricity.
Properly dispose of the packing materials. Plastic
bags pose suffocation hazard to children.
To avoid damage to the controller, do not
overtighten the screws.
5
Safety precautions

The CD-ROM that is supplied with Smart ME Controller
WARNING The CD-ROM can only be played on a CD-drive or a DVD-drive. Do not attempt
to play the CD-ROM on an audio CD player as this may damage your ears and/
or speakers.
The CD-ROM that is supplied with the Smart ME Controller contains an Installation Manual and Instruction
Book.
Each document is in PDF format.
Viewing documents requires a computer with Adobe®Reader®or Adobe®Acrobat®installed.
“Adobe®Reader®” and “Adobe®Acrobat®” are registered trademarks of Adobe Systems Incorporated.
6
Safety precautions

Names and functions of controller components

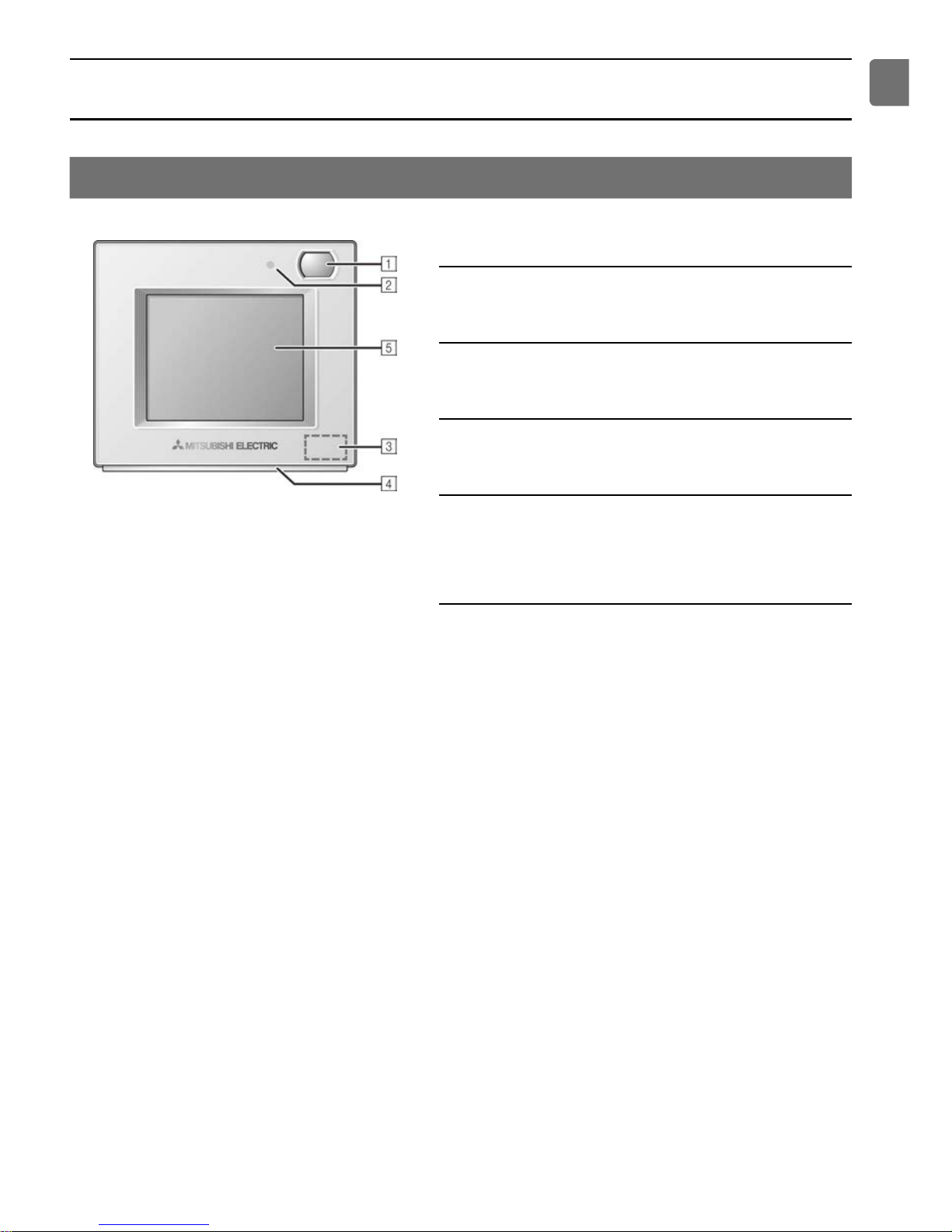

Controller interface
▌
1Occupancy Sensor
The occupancy sensor detects vacancy for energy-save
control.
▌
2Brightness Sensor
The brightness sensor detects the brightness of the room for
energy-save control.
▌
3Temperature & Humidity Sensor
The sensor detects the room temperature and the relative
humidity.
▌
4LED Indicator
The LED indicator indicates the operation status in different
colors.
The LED indicator lights up during normal operation, lights off
when units are stopped, and blinks when an error occurs.
▌
5Touch panel & Backlit LCD
The touch panel shows the operation settings screen.
When the backlight is off, touching the panel turns the
backlight on, and it will stay lit for a predetermined period of
time.
7

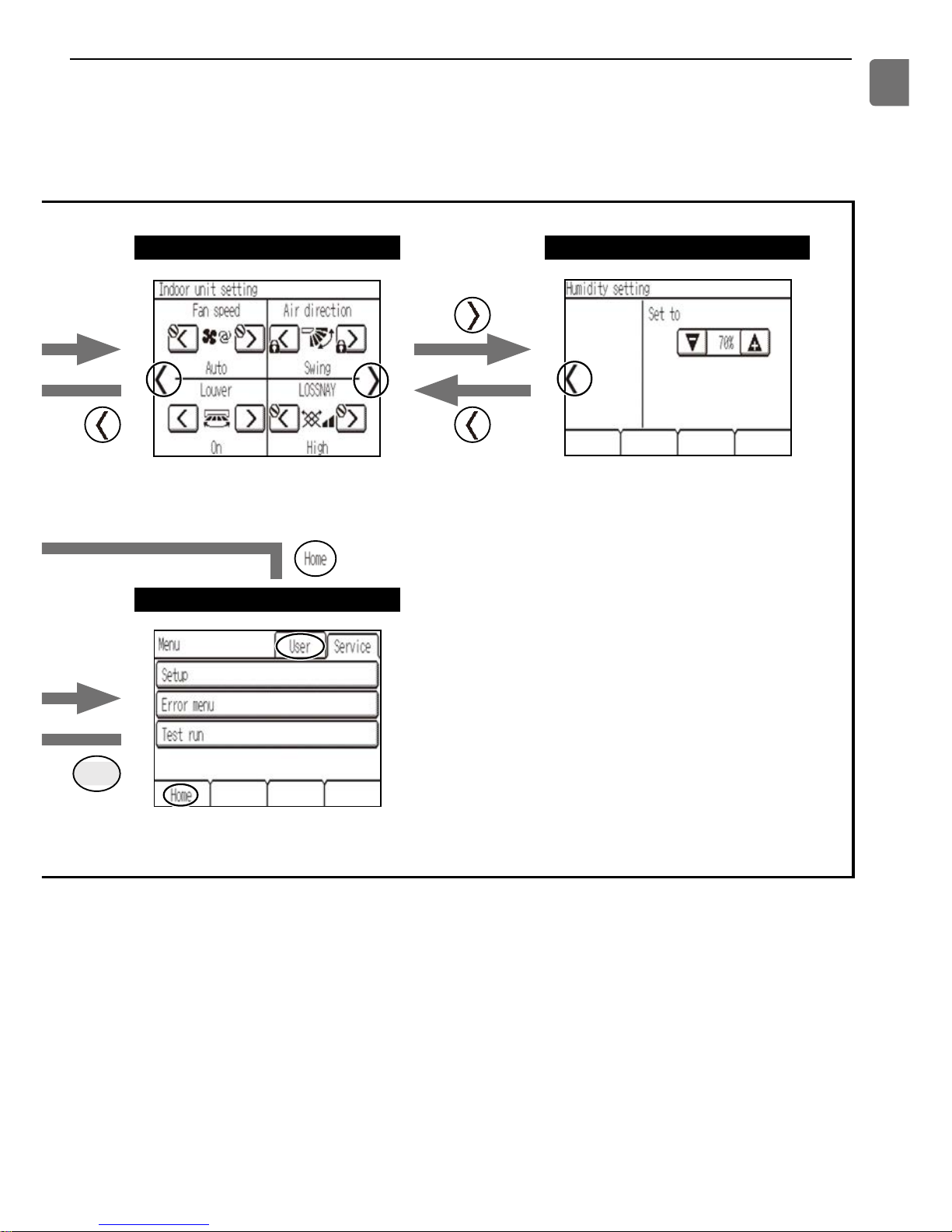

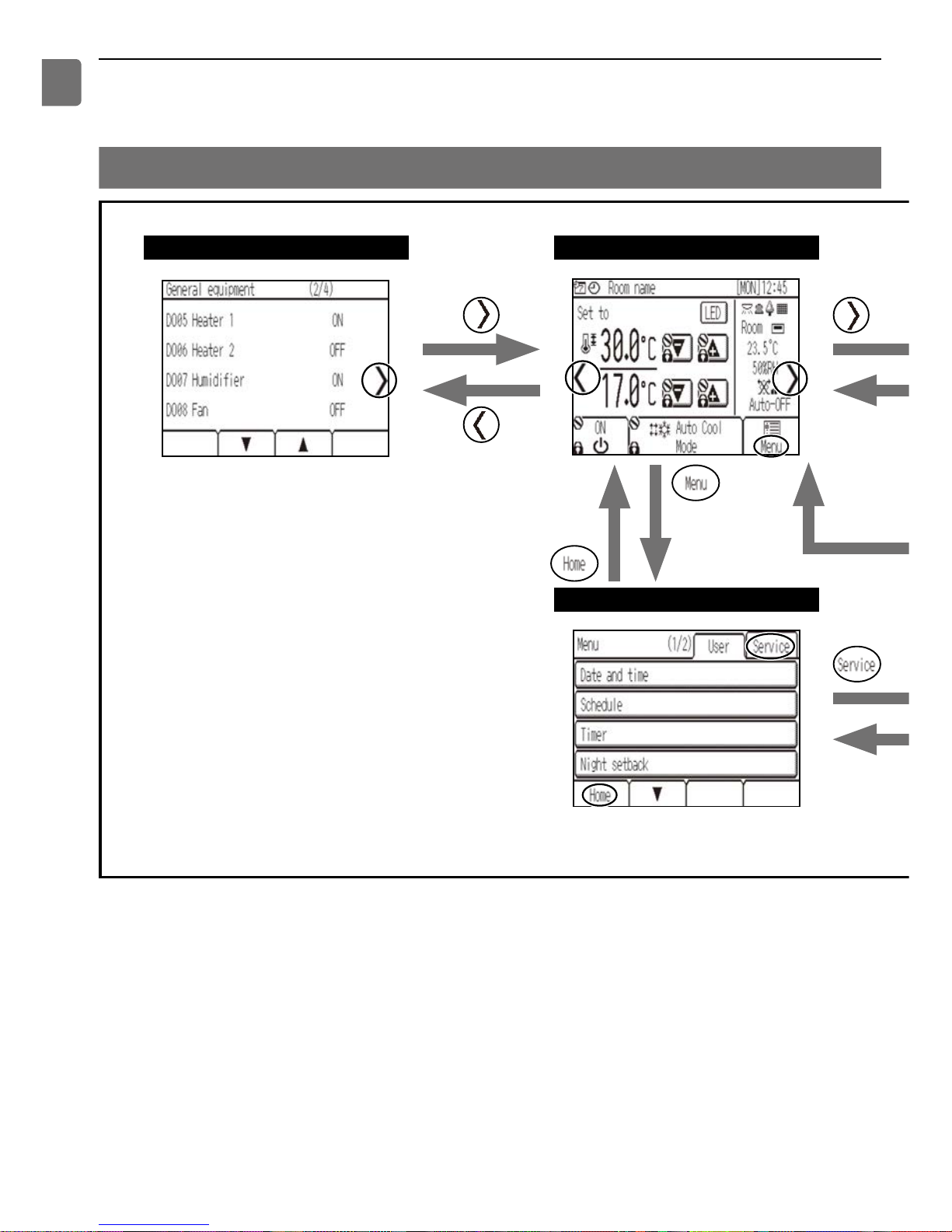

Screen configuration
General equipment screen Home screen Indoor unit setting screen Humidity setting screen
This screen will not appear if no
Advanced HVAC CONTROLLERs
(AHC) are connected.
The setting items that are not available
for the connected indoor unit will not
appear on the display.
This screen will not appear if no
Advanced HVAC CONTROLLERs
(AHC) are connected.
Menu (User) screen Menu (Service) screen
A password is required to access the
Menu (Service) screen.
8
Names and functions of controller components

Screen configuration
General equipment screen Home screen Indoor unit setting screen Humidity setting screen
This screen will not appear if no
Advanced HVAC CONTROLLERs
(AHC) are connected.
The setting items that are not available
for the connected indoor unit will not
appear on the display.
This screen will not appear if no
Advanced HVAC CONTROLLERs
(AHC) are connected.
Menu (User) screen Menu (Service) screen
A password is required to access the
Menu (Service) screen.
9
Names and functions of controller components

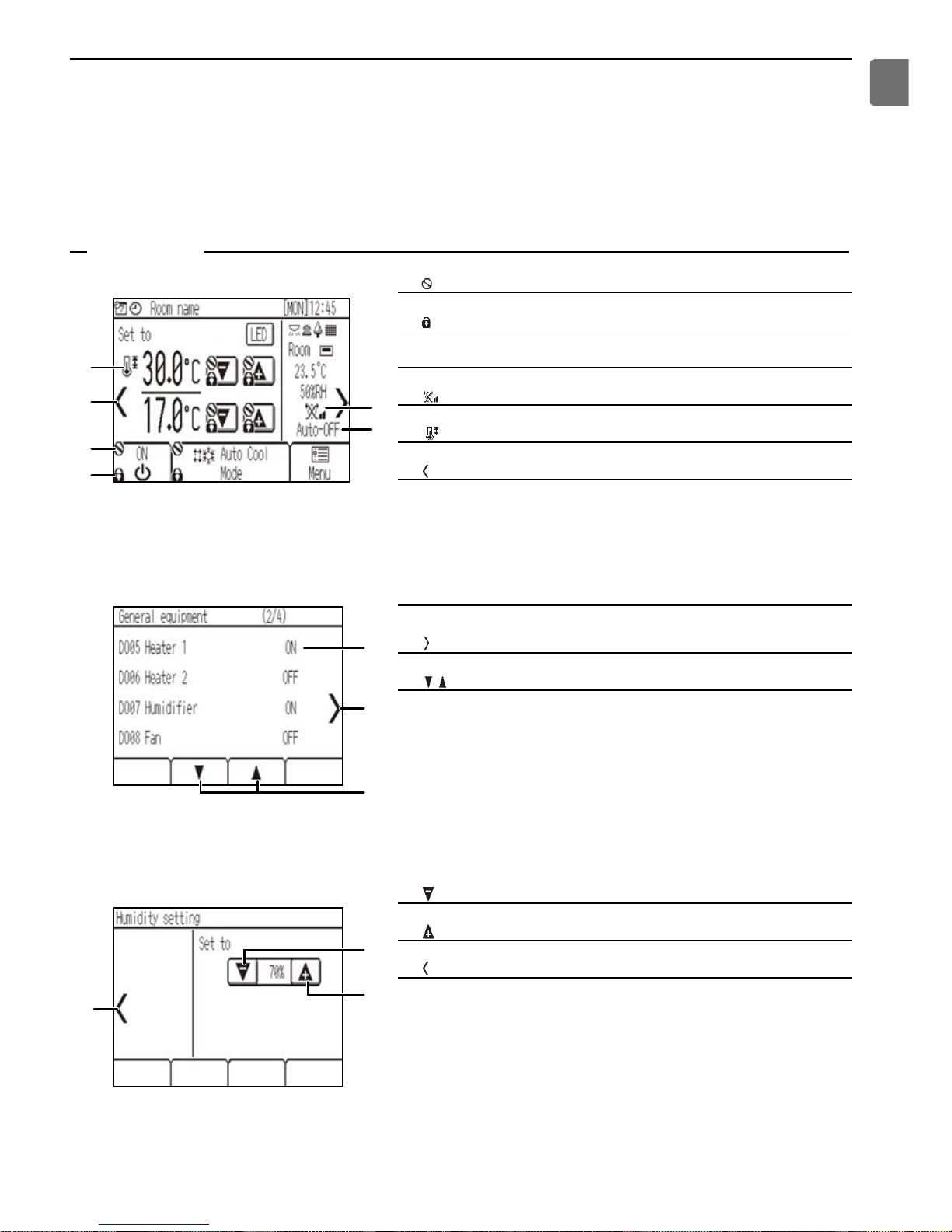

Display
▌

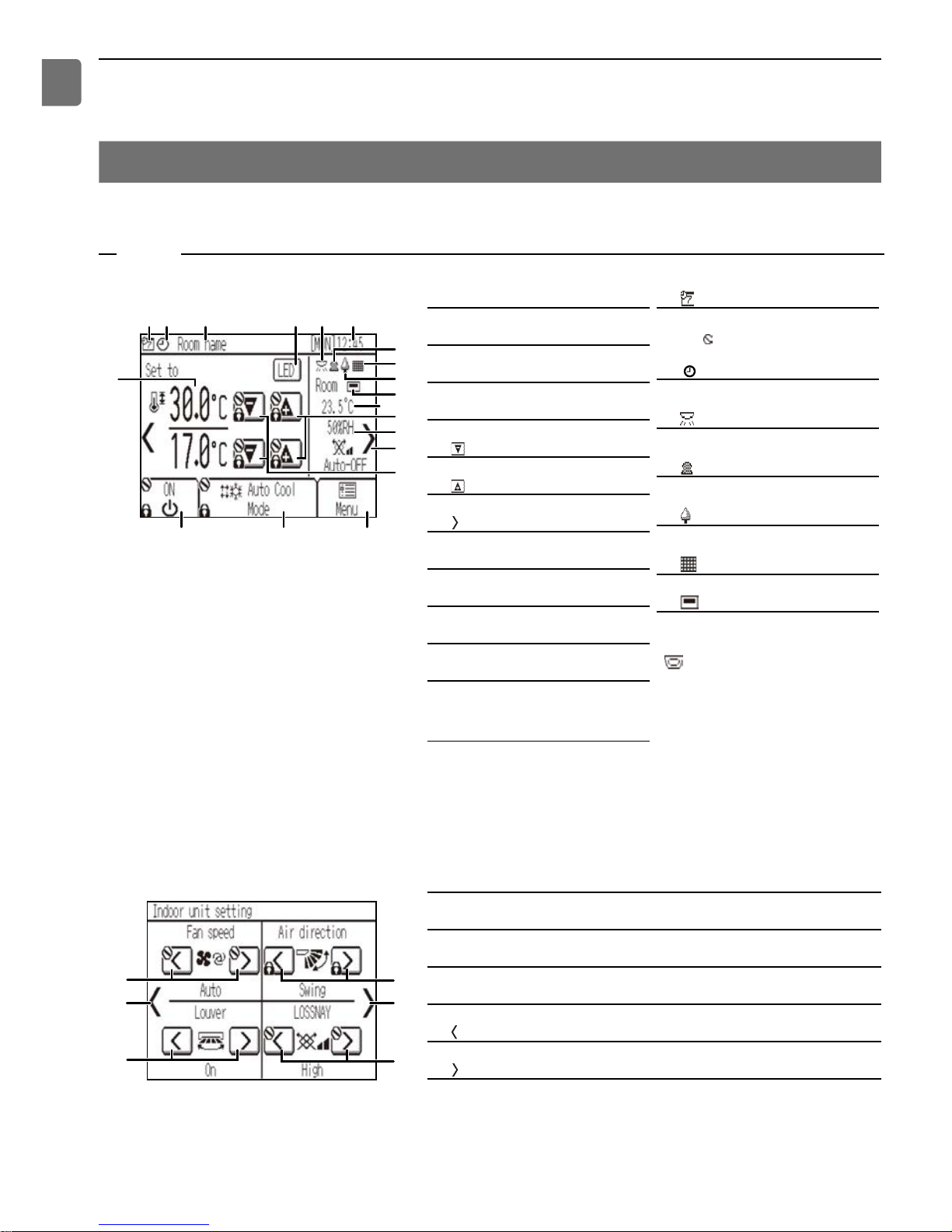

Home screen
Basic
* All icons are displayed for explanation.
1
8 e b4cd
a
2 3
7
h
g
f
5
i
96
0
▌
1[ON/OFF] button
Touch to turn ON/OFF the indoor unit.
▌
2[Operation mode] button
Touch to change the operation mode.
▌
3[Menu] button
Touch to bring up the Menu screen.
▌
4LED Indicator ON/OFF button
Touch to turn ON/OFF the LED indicator.
▌
5
Touch to decrease the set temperature.
▌
6
Touch to increase the set temperature.
▌
7
Touch to go to the Indoor unit setting screen.
▌
8Room name
Room name appears here.
▌
9Room temperature
Current room temperature appears here.
▌
0Humidity
Current room humidity appears here.
▌
aSet temperature
The set temperature appears here.
The display varies with the selected operation
mode.
▌
bDay and time
Current day and time appear here.
▌
c
Appears when the scheduled operation is being
performed.
The icon appears when the timer operation is
prohibited.
▌
d
Appears when the ON/OFF timer is activated or
when the Night setback function is enabled.
▌
e
Appears when the brightness sensor detects light
brighter than a predetermined level.
▌
f
Appears when the occupancy sensor senses an
occupant.
▌
g
Appears during the energy-save control (depending
on the indoor unit model).
▌
h
Appears when the filter needs maintenance.
▌
i
Appears when the built-in thermistor on the
remote controller is activated to monitor the room
temperature.
appears when the thermistor on the indoor unit
is activated to monitor the room temperature.
▌
Indoor unit setting screen
* All icons are displayed for explanation.
u
r
s
q
t
p
▌
pFan speed
Touch to change the fan speed.
▌
qLouver
Touch to turn ON/OFF the louver.
▌
rAir direction
Touch to change the air direction.
▌

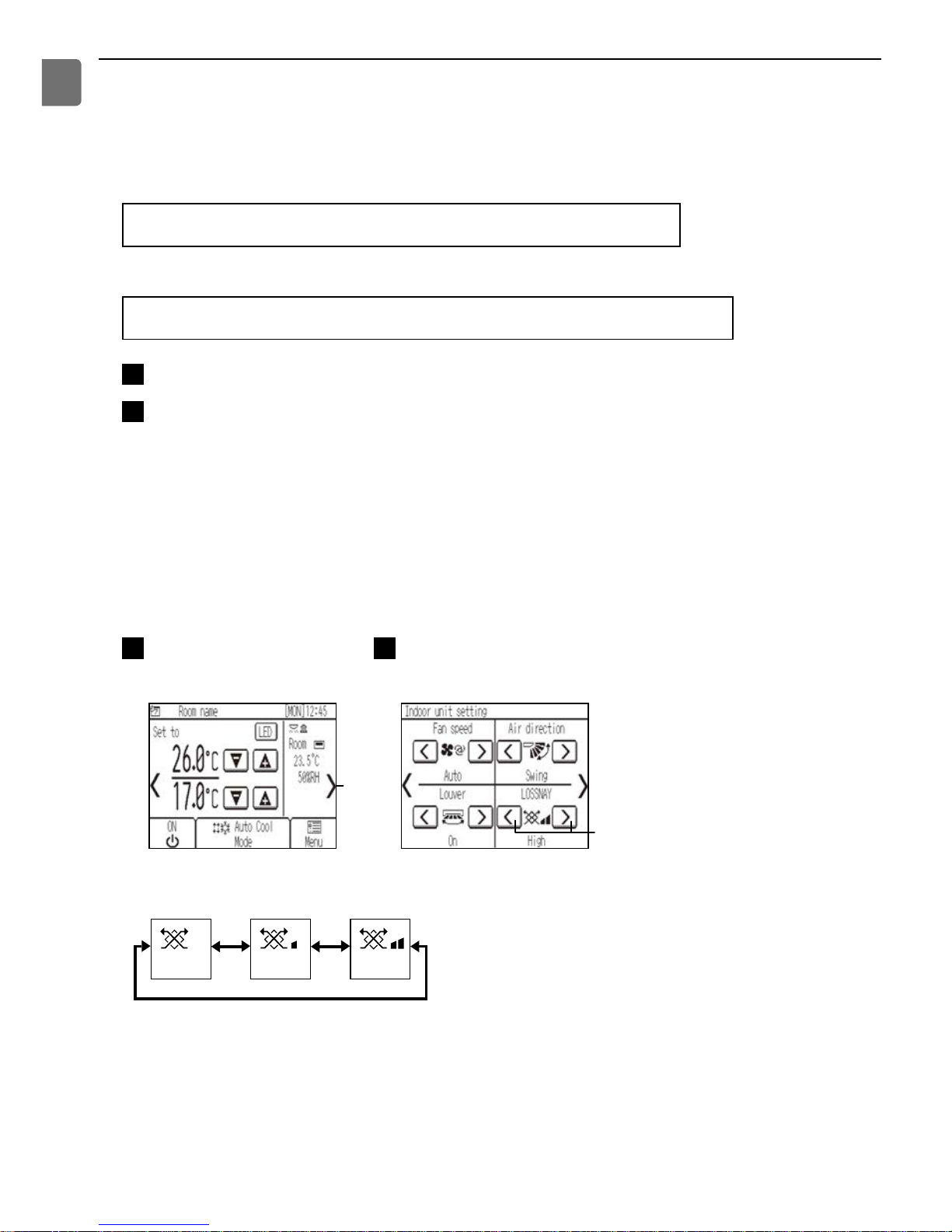

sLOSSNAY
Touch to change the fan speed of the LOSSNAY unit.
▌
t
Touch to return to the Home screen.
▌
u
Touch to go to the Humidity setting screen.
10
Names and functions of controller components

Advanced
o
n
j
k
l
m
▌
j
Appears when the operation is centrally controlled.
▌
k
Appears when the operation is locked.
▌
lAuto-OFF display
Appears when the Auto-OFF timer is activated.
▌
m
Indicates the interlocked LOSSNAY unit (ventilator) setting.
▌
n
Appears when the set temperature range is restricted.
▌
o
Touch to go to the General equipment screen.
▌
General equipment screen
w
v
x
▌
vAHC input/output status
The input and output status of the general equipments connected to Advanced HVAC CONTROLLER (AHC)
appear.
▌
w
Touch to go to the Home screen.
▌
x
Touch to go through the General equipment screen pages.
▌
Humidity setting screen
z
y
A
▌
y
Touch to decrease the set humidity. (20%–80% (RH))
▌
z
Touch to increase the set humidity. (20%–80% (RH))
▌
A
Touch to go to the Indoor unit setting screen.
11
Names and functions of controller components

Basic operations
▌
Operation mode icons
: Cool : Dry : Fan : Auto
: Heat : Auto_Cool : Auto_Heat
▌

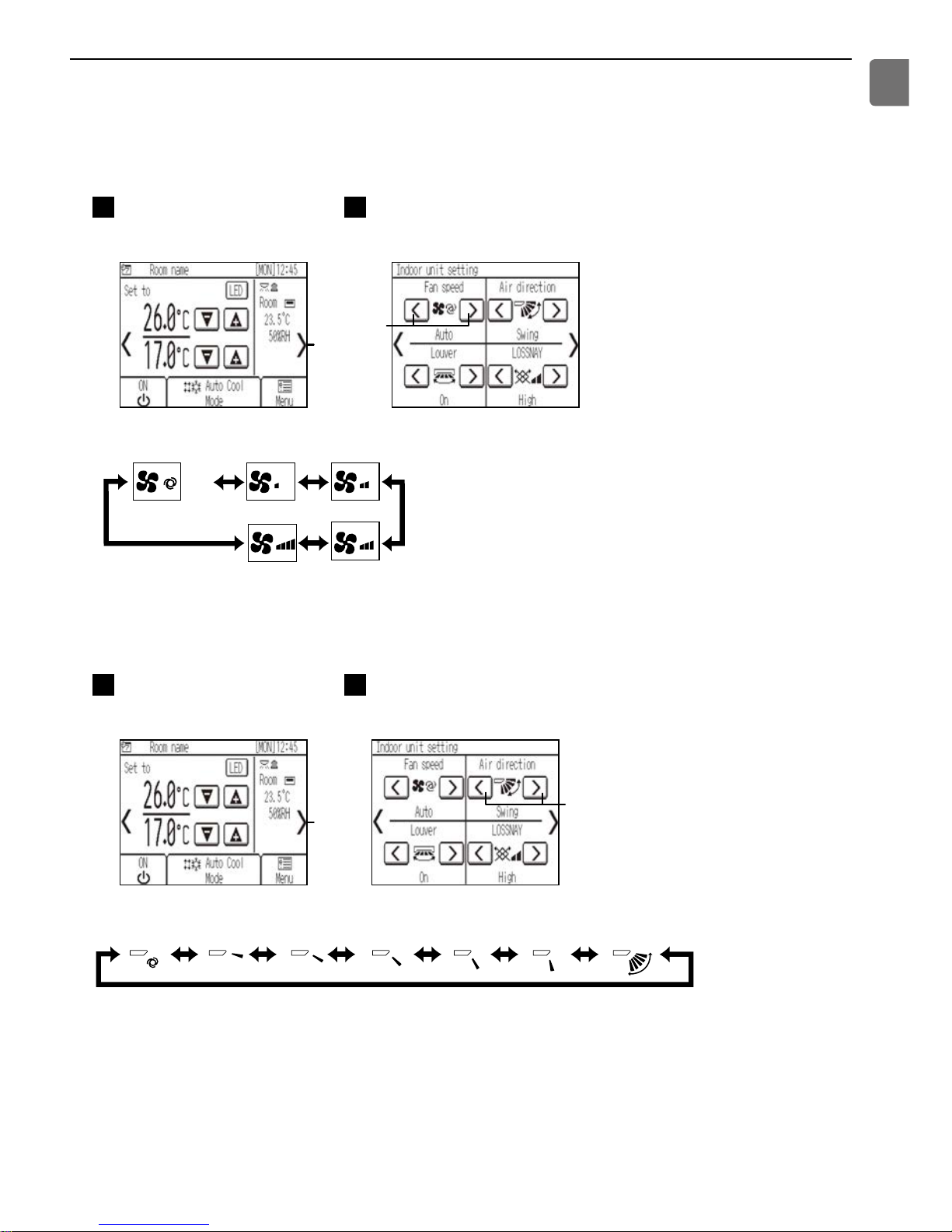

Turning on and selecting operation mode
1Touch the 1[ON/OFF] button.
The LED indicator will light up. LOSSNAY units that are interlocked with indoor units will also turn on.
2Touch the 2[Operation mode] button to go through the operation modes.
Cool FanDry
*1 Auto *1*2 Heat *1
*1 Operation modes that are not available for the connected indoor unit will not appear on the display.
*2 Depending on the indoor unit model, either one or two set temperatures (single or dual set point(s)) can be set for Auto
mode.
▌
Set temperature
Touch the 5or 6button to decrease or increase the set temperature.
* Touching the button once will change the set temperature by 0.5ºC, 1.0ºC, 1ºF, or 2ºF, depending on the indoor unit model and
the display format setting on the remote controller.
Operation mode Set temperature range
Cool/Dry 19ºC–35ºC/67ºF–95ºF *1
Heat 4.5ºC–28ºC/40ºF–83ºF *1
Auto (single set point) 19ºC–28ºC/67ºF–83ºF *1*2
Auto (dual set points) Cool: Same as the set temperature range for Cool mode
Heat: Same as the set temperature range for Heat mode *2*3*4
Fan Not settable
*1 The settable temperature ranges vary, depending on the indoor unit model.
*2 The set temperature for Auto mode (either single or dual set point(s)) will appear depending on the indoor unit model.
*3 The same values are used for the set temperature for Cool/Dry mode and the cooling set temperature for Auto mode (dual
set points). Likewise, the same values are used for the set temperature for Heat mode and the heating set temperature for
Auto mode (dual set points).
*4 The cooling and heating set temperatures can be set under the following conditions.
• The cooling set temperature is greater than the heating set temperature.
• The difference between the cooling and heating set temperatures is equal or greater than the minimum temperature
difference that varies with the indoor unit model.
*5 Restrictions for the set temperature range will apply, if any. If the setting value is outside of the range, a message “Temp.
range locked” will appear. Refer to the remote controller Instruction Book for details.
<Cool, Dry, Auto (single set point), Heat> <Auto (dual set points)>
Set temperature
Cooling set temperature
Heating set temperature
For information on Auto (dual set points) control, refer to the
Instruction Book.
12

▌
Fan speed
1Touch the button labeled 7to
display the Indoor unit setting
screen.
2Touch the button labeled pto
go through the fan speeds.
7
p
* The number of available fan speeds depends on the indoor unit model.
Auto
<Note>
The actual fan speed will differ from the fan speed displayed on the
LCD when one of the following conditions is met.
• While “Standby” or “Defrost” is displayed
• When the room temperature is higher than the set temperature during
the heating mode
• Immediately after the heating operation (during stand by for switching
the operation mode)
• During the Dry mode
▌
Air direction
1Touch the button labeled 7to
display the Indoor unit setting
screen.
2Touch the button labeled rto
change the air direction.
7
r
* The settable air directions depend on the indoor unit model.
Step 1
Auto Step 2 Step 3 Step 4 Step 5 Swing
<Note>
The actual air direction will differ from the air direction displayed on the LCD when one of the following conditions is met.
• While “Standby” or “Defrost” is displayed
• When the room temperature is higher than the set temperature during the heating mode
• Immediately after the heating operation (during stand by for switching the operation mode)
13
Basic operations

▌
Automatic cooling/heating operation
<Auto (single set point)>
When the room temperature rises above the set temperature, cooling operation starts.
When the room temperature drops below the set temperature, heating operation starts.
<Auto (dual set points)>
When the room temperature rises above the cooling set temperature, cooling operation starts.
When the room temperature drops below the heating set temperature, heating operation starts.
1Touch the 1[ON/OFF] button.
2Touch the 2[Operation mode] button to display the “Auto” mode.
* If “Cool/Heat display” in the initial settings is set to “Show,” the current operation mode “Cool” or “Heat” will be
displayed in the area labeled 2. Refer to the Installation Manual for details about initial settings.
▌
LOSSNAY unit (ventilator) operation
<When performing an interlocked operation of the LOSSNAY unit with the indoor unit>
Touch the 1[ON/OFF] button to turn both the indoor unit and the LOSSNAY unit on.
<When operating the LOSSNAY unit individually>
1Touch the button labeled 7to
display the Indoor unit setting
screen.
2Touch the button labeled sto
change the fan speed of the
LOSSNAY unit.
7
s
* Indoor unit fan may operate even when the LOSSNAY unit is operated individually, depending on the models of the indoor unit
and the LOSSNAY unit.
Off Low High
14
Basic operations

Troubleshooting
When an error occurs, the [Error information] screen will appear.
Check the error status, stop the operation, and consult your dealer.
Error code, error unit, M-NET address, and your dealer’s phone number
will appear.
The phone number will appear only if the information has been
registered.
The indicator blinks in the color it is illuminated in at the time.
If a type of error occurs that allows the units to continue their operation,
only an error code will appear in the schedule display area (enclosed in
dotted line) on the Home screen.
When this type of error occurs, the LED indicator will not blink.
To reset the error, touch the 1[ON/OFF] button.
15

Timer, Schedule, and Auto return
The settings for Timer, Schedule, and Auto return can be made.

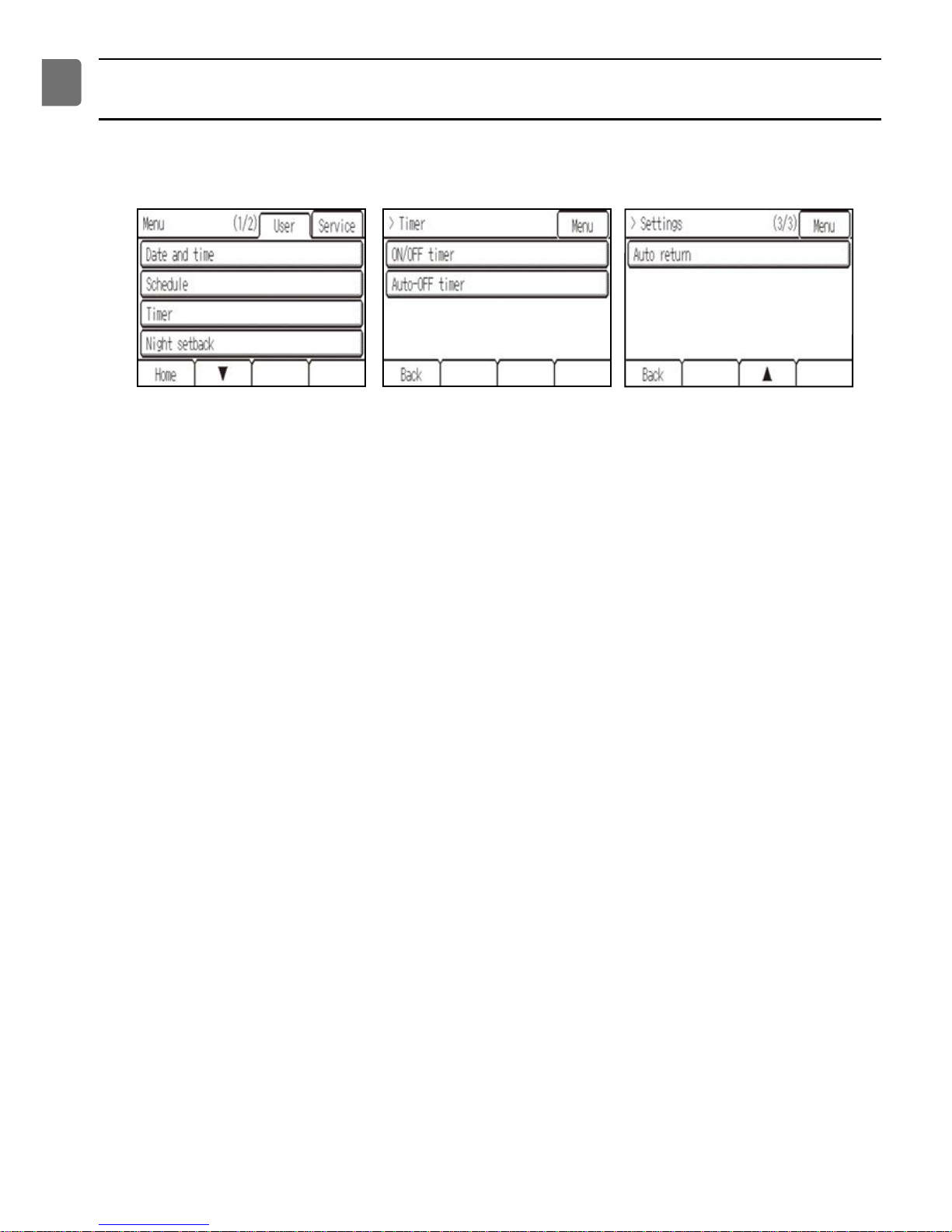

Touch the 3[Menu] button to go to the Menu screen, and select the desired setting item.
Refer to the remote controller Instruction Book for further information.
▌
Timer
• ON/OFF timer
Operation ON/OFF times can be set in 5-minute increments.
• Auto-OFF timer
Auto-OFF timer is a type of timer used to stop the operation of units in a set amount of time.
Auto-OFF time can be set to a value from 30 to 240 minutes in 10-minute increments.
▌
Schedule
Operation ON/OFF times, operation modes, and set temperatures for a week can be scheduled.
Up to eight operation patterns can be scheduled for each day.
▌
Auto return
The set temperature will return to the specified temperature after the specified time period.
The time period can be set to a value from 10 to 120 minutes in 10-minute increments.
16

Maintenance
▌
Filter information
will appear on the Home screen when it is time to clean the filters on
indoor units.
▌
Resetting the filter sign
1Select [Filter
information] from the
Menu screen.
2Touch [Reset] to reset
the filter sign. 3Touch [OK].4A confirmation screen will appear.
<Note>
• Make sure to clean the filters before resetting filter sign.
• When the filter sign is reset, the cumulative operation time of all the connected units will be reset.
• If two or more indoor units of different models are connected, the filter sign will appear when a filter on one of the indoor units
is due for cleaning. (long-life filter: 2500 hours; general filter: 100 hours)
• The filter sign is scheduled to appear after a certain duration of operation, based on the premise that the indoor units are
installed in a space with standard air quality. Depending on the air quality, the filter may require more frequent cleaning.
17

Product features
▌
Energy-save control with the use of the built-in occupancy sensor
Occupancy sensor
Brightness sensor
• Energy-save control will be performed when the occupancy sensor detects vacancy.
• When the occupancy sensor detects no human movement for a certain period of time, this will be regarded as the
vacancy.
• One of the following energy-save controls can be used at a time.
Energy-save control Control when vacancy is detected
Non-use –
ON/OFF The unit will be turned off.
Set temperature offset The set temperature will be offset.
Fan speed down The fan speed will be set to “Low.”
Thermo-off The unit will go into the Thermo-off state.
• Energy-save control can be stopped according to the brightness level detected by the brightness sensor.
(Example: While the occupants are sleeping at night)
18

▌
LED Indicator
LED Indicator
• The LED indicator indicates the operation status by lighting and
blinking with different colors and brightness (High/Low), or by turning
off.
• Indicator colors: Blue, Light blue, Purple, Red, Pink, Orange, Yellow,
Green, Lime, and White
Operation status LED indicator
The unit is in operation. Lights up in different colors according to the operation mode or the room temperature
(three different levels). *1
The unit is stopped. Turns off.
An error is occurring. Blinks in the color it is illuminated in at the time.
Energy-save control is being
performed. Lights up in the predetermined color. *1
The occupancy sensor has
sensed an occupant. Inverts the brightness (High/Low) twice. *1
A button is touched on the Home
screen. Inverts the brightness (High/Low). *1
*1 The settings can be made on the LED Indicator setting screen.
Default color setting
Color Operation mode setting (default) Room temperature
Blue Cool (Auto_Cool) 0ºC–21ºC (32ºF–69ºF)
Light blue Dry Not used
Yellow Fan 21.5ºC–26ºC (70ºF–79ºF)
White Auto Not used
Red Heat (Auto_Heat) 26.5ºC–40ºC (80ºF–104ºF)
Green Night setback Not used
Lime Energy-save control is in effect that has been performed when the occupancy sensor
detected vacancy.
* Purple, pink, and orange are not used by default.
Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
19
Product features

This product is designed and intended for use in the residential,
commercial and light-industrial environment.
The product at hand is based on the following EU regulations:
• Electromagnetic Compatibility Directive 2004/108/EC
• Restriction of Hazardous Substances 2011/65/EU
HEAD OFFICE: TOKYO BLDG. , 2-7-3, MARUNOUCHI, CHIYODA-KU, TOKYO 100-8310, JAPAN
Authorized representative in EU: MITSUBISHI ELECTRIC EUROPE B.V.
HARMAN HOUSE, 1 GEORGE STREET, UXBRIDGE, MIDDLESEX UB8 1QQ, U.K.
