Mitsubishi Electric AE-200A User manual

Air Conditioning Control System
Centralized Controller
AE-200A/AE-50A
AE-200E/AE-50E
Before installing the controller, please read this Installation Manual carefully to ensure proper operation.
Retain this manual for future reference.
Installation Manual
Safety notes are marked with WARNING
or CAUTION, depending on the severity
of possible consequences that may result
when the instructions are not followed
exactly as stated.
Proper installation is important for your
safety and proper functioning of the units.
Thoroughly read the following safety
precautions prior to installation.
Contents
1. Safety precautions ..................................................... 2
1-1. General precautions..............................................................2
1-2. Precautions for unit installation.............................................3
1-3. Precautions for electrical wiring ............................................3
1-4. Precautions for relocating or repairing the unit .....................4
1-5. Additional precautions...........................................................4
2. Introduction ................................................................ 6
2-1. Part names............................................................................7
3. Package contents....................................................... 9
4. Specifications........................................................... 10
4-1. Product specifications.........................................................10
4-2. External dimensions............................................................11
5. Installation................................................................ 12
5-1. Installation methods............................................................12
5-2. Items not included...............................................................13
5-3. Items sold separately..........................................................14

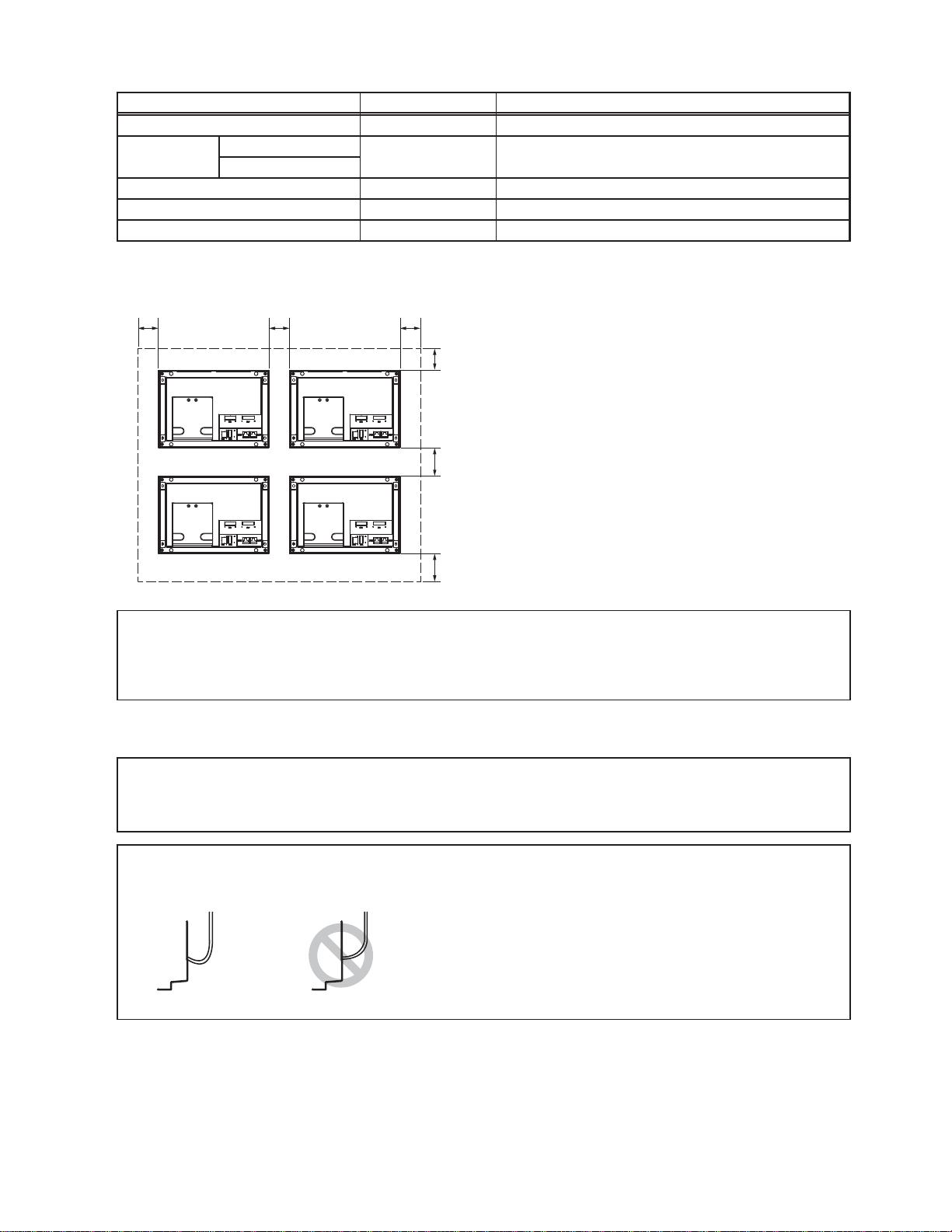

5-4. Installation space ................................................................14
5-5. Installation procedures........................................................14
6. Wiring connections................................................... 17
6-1. Removing/reinstalling the service cover..............................17
6-2. Connecting AC power cables and M-NET transmission
cables..................................................................................18
6-3. Connecting the LAN cable ..................................................20
6-4. Confirming the LAN transmission delay time......................20
7. Initial settings ........................................................... 22
8. Test run .................................................................... 24
8-1. Collective operation ON/OFF..............................................24
9. External input/output................................................ 25
9-1. External signal input/output function...................................25
9-2. Pulse signal input function ..................................................27
10.Maintenance............................................................. 28
10-1. Inspection and maintenance.............................................28
10-2. Software update................................................................29
10-3. Software information.........................................................34
<ORIGINAL>

2
WT07935X04
1. Safety precautions
ŹThoroughly read the following safety precautions prior to installation.
ŹObserve these precautions carefully to ensure safety.
ŹAfter reading this manual, pass the manual on to the end user to retain for future
reference.
ŹThe user should keep this manual for future reference and refer to it as necessary. This
manual should be made available to those who repair or relocate the units. Make sure
that the manual is passed on to any future air conditioning system user.
ŹAll electrical work must be performed by qualified personnel.
: indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
: indicates a hazardous situation which, if not avoided, could result in
minor or moderate injury.
: addresses practices not related to personal injury, such as product
and/or property damage.
1-1. General precautions
Do not install the controller in areas where large amounts of oil, steam, organic solvents,
or corrosive gases (such as ammonia, sulfuric compounds, or acids), or areas where
acidic/alkaline solutions or special chemical sprays are used frequently. These substances
may significantly reduce the performance and corrode the internal parts, resulting in
electric shock, malfunction, smoke, or fire.
To reduce the risk of injury, electric shock, or fire, do not alter or modify the controller.
To reduce the risk of short circuits, current leakage, electric shock, malfunction, smoke, or
fire, do not wash the controller with water or any other liquid.
To reduce the risk of electric shock, malfunction, smoke, or fire, do not touch the electrical
parts, USB memory, or touch panel with wet fingers.
To reduce the risk of injury or electric shock, before spraying a chemical around the
controller, stop the operation and cover the controller.
To reduce the risk of burns, do not touch the electrical parts with bare hands during and
immediately after operation.
To reduce the risk of injury, keep children away while installing, inspecting, or repairing the
controller.
Test runs, inspection, and service must be performed by qualified personnel in accordance
with this manual. Incorrect use may result in injury, electric shock, malfunction, or fire.
If you notice any abnormality, stop the operation and turn off the controller. Continuing the
operation may result in electric shock, malfunction, or fire.
Properly install all required covers to keep moisture and dust out of the controller. Dust
accumulation and the presence of water may result in electric shock, smoke, or fire.
To reduce the risk of frostbite, burns, injury, or electric shock, keep the equipment out of
the reach of children.

3
WT07935X04
To reduce the risk of fire or explosion, do not place flammable materials or use flammable
sprays around the controller.
To reduce the risk of electric shock or malfunction, do not touch the touch panel, switches,
or buttons with a sharp object.
To avoid injury from broken glass, do not apply excessive force to the glass parts.
To reduce the risk of injury, electric shock, or malfunction, avoid contact with the sharp
edges of certain parts.
To reduce the risk of injury, wear protective gear when working on the controller.
Wear protective gear when working on the controller. High-voltage parts pose a risk of
electric shock, and high-temperature parts pose a risk of burns.
1-2. Precautions for unit installation
Do not install the controller where there is a risk of flammable gas leaks. If flammable gas
accumulates around the controller, it may ignite and cause a fire or explosion.
Properly dispose of the packing materials. Plastic bags pose a suffocation hazard to
children.
Take appropriate safety measures against earthquakes to prevent the controller from
causing injury.
To prevent injury, install the controller on a flat surface strong enough to support its
weight.
To reduce the risk of short circuits, current leakage, electric shock, malfunction, smoke, or
fire, do not install the controller in a place exposed to water or in a condensing
environment.
The controller must be installed by qualified personnel according to the instructions
detailed in this manual. Improper installation may result in electric shock or fire.
1-3. Precautions for electrical wiring
To reduce the risk of malfunction, smoke, fire, or damage to the controller, do not connect
the power cable to the signal terminal block.
To reduce the risk of malfunction, smoke, fire, or damage to the controller, do not apply a
power supply voltage in excess of that specified.
Properly secure the cables in place and provide adequate slack in the cables so as not to
stress the terminals. Improperly connected cables may break, overheat, and cause smoke
or fire.
To reduce the risk of injury or electric shock, switch off the main power before performing
electrical work.

4
WT07935X04
Electrical work must be performed by qualified personnel in accordance with local
regulations and the instructions provided in this manual. Only use specified cables and
dedicated circuits. Inadequate power source capacity or improper electrical work will
result in electric shock, malfunction, or fire.
To reduce the risk of electric shock, install an overcurrent breaker and an earth leakage
breaker on the power supply. To reduce the risk of electric shock, smoke, or fire, install an
overcurrent breaker for each controller.
Only use properly rated breakers (earth leakage breaker, local switch <switch + fuse that
meets local electrical codes>, moulded case circuit breaker, or overcurrent breaker). The
use of improperly rated breakers or the substitution of fuses with steel or copper wire may
result in electric shock, malfunction, smoke, or fire.
To reduce the risk of current leakage, overheating, smoke, or fire, use properly rated
cables with adequate current carrying capacity.
Proper grounding must be provided by qualified personnel. Do not connect the protective
ground wire to a gas pipe, water pipe, lightning rod, or telephone wire. Improper grounding
may result in electric shock, smoke, fire, or malfunction due to electrical noise
interference.
To reduce the risk of short circuits, electric shock, or malfunction, keep wire pieces and
sheath shavings out of the terminal block.
To reduce the risk of short circuits, current leakage, electric shock, or malfunction, keep
the cables out of contact with controller edges.
To reduce the risk of electric shock, malfunction, or fire, seal the gap between the cable
and the end of the conduit tube with putty.
To reduce the risk of injury, do not touch the burrs of the knockout holes.
1-4. Precautions for relocating or repairing the unit
The controller must be repaired or moved only by qualified personnel. Do not disassemble
or modify the controller. Improper installation or repair may result in injury, electric shock,
or fire.
To reduce the risk of short circuits, electric shock, malfunction, or fire, do not touch the
circuit board with tools or with your hands, and do not allow dust to accumulate on the
circuit board.
1-5. Additional precautions
To avoid damage to the controller, use appropriate tools to install, inspect, or repair the
controller.
To prevent unauthorized access, always use a security device such as a VPN router when
connecting to the Internet.

5
WT07935X04
Take appropriate measures against electrical noise interference when installing the
controller in hospitals or radio communication facilities. Inverter, high-frequency medical,
or wireless communication equipment as well as power generators may cause the air
conditioning system to malfunction. The air conditioning system may also adversely affect
the operation of these types of equipment by creating electrical noise.
To avoid malfunction, do not bundle power cables and signal cables together or place
them in the same metallic conduit.
To avoid damage to the controller, do not overtighten the screws.
To avoid deformation and malfunction, do not install the controller in direct sunlight or
where the ambient temperature may exceed 40°C (104°F) or drop below 0°C (32°F).
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not play
with the appliance.

6
WT07935X04
2. Introduction
AE-200A/AE-50A/AE-200E/AE-50E is a centralized controller.
EW-50A/EW-50E is an LCD-less total management system.
Any connected air conditioning systems can be operated or monitored on the AE-200A/AE-50A/AE-200E/AE-50E’s
LCD or the Web browser.
By using a PI controller that is built-in on the AE-200A/AE-50A/EW-50A/AE-200E/AE-50E/EW-50E, the energy-
control-related status can be displayed and Peak Cut control can be performed without a use of a PI controller
(PAC-YG60MCA).
Each AE-200A/AE-50A/AE-200E/AE-50E can control up to a total of 50 indoor units and other equipment. By
connecting AE-200A/AE-200E (main controller) andAE-50A/AE-50E/EW-50A/EW-50E (expansion controllers), up
to 200 indoor units and other equipment can be controlled.
AE-50A/AE-50E is not designed to be used alone.
Hereafter, AE-200Aand AE-200E, unless otherwise specified, will be called “AE-200.”
Hereafter, AE-50Aand AE-50E, unless otherwise specified, will be called “AE-50.”
Hereafter, EW-50Aand EW-50E, unless otherwise specified, will be called “EW-50.”
Note: Instead of AE-50A/AE-50E, LCD-less EW-50A/EW-50E can be used as an expansion controller.

7
WT07935X04
2-1. Part names
Item Description
LED
Power Lit in green Power ON
Unlit Power OFF
ON/OFF
Lit in green One or more air conditioning units are ON.
Blink in green One or more air conditioning units or other related equipment
are in error.
Unlit All air conditioning units are OFF.
Status Blink in orange Startup failed Blink in blue Software update in progress
Blink in pink Software update failed
LINK/ACT1 Blink in orange Data transmission in progress (LAN1)
LINK/ACT2 Blink in orange BACnet®data transmission in progress (LAN2)
Push switch ON/OFF Used to turn the connected air conditioning units ON and OFF
all at once.
Reset Used to reboot the AE-200/AE-50. (This will not affect the
operation status of the air conditioning units.)
USB port
Used when the settings data is backed up to or imported from
a USB memory device, when the energy management data is
output in a CSV format to a USB memory device, and when the
software needs to be updated.
USB port
Power
LINK/ACT1
ON/OFF
LINK/ACT2
Status
Push switch
Display/Touch panel

8
WT07935X04
TB3TB1
AL/L1 N/L2 B S
Item Description
LAN1 Connects to other units of equipment over the LAN via a HUB.
LAN2 Connects to the Building Management System over the LAN (BACnet®) via a
HUB.
CN7 (External I/O - Pulse signal input) Connects to metering devices using the supplied connector.
CN6 Unused
CN4 Unused
CN5 (External I/O - External signal input/
output)
Connects to an external input/output adapter PAC-YG10HA-E.
(When connecting an external input/output adapter PAC-YG10HA-E, cut out
the knockout hole.)
CN21 (M-NET power jumper)
Connects to the M-NET power jumper to supply power (default).
* If another system controller is connected to the same M-NET system and the power
consumption coefficient is 0.75 or above, disconnect the M-NET power jumper to
supply power from the separately-sold power supply unit.
TB3 (M-NETA, B, S) (M3.5) M-NET transmission terminal block Connects to M-NET transmission cables from the outdoor unit.
(A, B: Non-polarized, S: Shield)
TB1 (Power source AC L/L1, N/L2) (M3.5) Connects to the power cable.
Ground (M4) Connects to the protective ground wire.
* Back side with the service cover removed
TB1
CN21
Ground
TB3
CN5
CN4
CN6
CN7
LAN2
LAN1

9
WT07935X04
3. Package contents
The following items are included in the package.
Package contents Qty.
(1) Centralized controller (AE-200 or AE-50)
* A screw is attached at the bottom. 1
(2) Connector (CN6)
(Unused) 1
(3) Connector (CN7)
(Used for pulse input) 1
(4) Plate A 1
(5) Plate B 1
(6) Countersunk screw (M4 × 40)*1, 2 4
(7) Roundhead screw (M4 × 10)*1 4
(8) Wood screw (M4.1 × 25)*1
(used only when installing the AE-200/AE-50 on a wall that is strong
enough to be fixed with the wood screws) 4
(9) Cable tie 4
(Two are spare.)
(10) Rubber bushing 2
(11) L-shaped driver (width across flat: 2.5)*1 1
(12) Installation Manual (this manual) 1
(13) Instruction Book 1
(14) About Installation Manual and Instruction Book 1
(15)
CD-ROM
Installation Manual
Instruction Book
License Classification List
Note
ƔThe CD-ROM can only be played on a CD-drive or a DVD-drive. Do not attempt to play the
CD-ROM on an audio CD player as this may damage your ears and/or speakers.
ƔEach document is in PDF format. Viewing documents requires a computer withAdobe®
Reader®or Adobe®Acrobat®installed. “Adobe®Reader®” and “Adobe®Acrobat®” are
registered trademarks of Adobe Systems Incorporated.
1
*1 ISO metric screw thread
*2 If the screws cannot be used because the wall is too thick, obtain longer M4 countersunk screws.
Notes on the SD card installed on the AE-200/AE-50
ƔDo not use the SD card installed on the AE-200/AE-50 for any other equipment.

10
WT07935X04
4. Specifications
4-1. Product specifications
Item Specifications
Power supply Rated input 100–240 VAC ± 10%; 0.3–0.2 A50/60 Hz Single-phase
M-NET power feeding coefficient 0.75
Network interface 100BASE-TX
Ambient
conditions Temperature
Operating temperature
range 0°C – +40°C (+32°F – +104°F)
Storage temperature
range -20°C – +60°C (-4°F – +140°F)
Humidity 30%–90% RH (Non-condensing)
Dimensions (W × H × D)
284 × 200 × 65 mm
(11-5/32 × 7-55/64 × 2-17/32 in)
* When installed, AE-200/AE-50 will protrude 25.0 mm (31/32 in) from the
wall or the metal control box.
Weight 2.3 kg (5-5/64 lbs)
Installation conditions Indoor only
* To be used in a business office or similar environment

11
WT07935X04
4-2. External dimensions
* The dimensions of AE-200 and AE-50 are the same.
40 (1-9/16)25 (31/32)
163 (6-13/32)
284 (11-5/32)
200 (7-27/32)
202.1 (7-61/64)
180.4 (7-7/64)
180.4 (7-7/64)
246 (9-11/16)
169.2 (6-21/32)
148 (5-53/64)
148 (5-53/64)
261.2 (10-9/32)
217 (8-35/64)
282.7 (11-1/8)
261.2 (10-9/32)
252.2 (9-59/64)
217 (8-35/64)
Plate B
ø4
ø6
188.9 (7-7/16)
180.4 (7-7/64)
164 (6-29/64) 148 (5-53/64)
272.7 (10-47/64)
261.2 (10-9/32)
247 (9-23/32)
217 (8-35/64)
Plate A
ø6
ø4
Screw: M4 × 6
Hexagonal hole: 2.5 (width across flat)
Unit: mm (in)

12
WT07935X04
5. Installation
To reduce the risk of injury or electric shock, switch off the main power before performing
electrical work.
To avoid malfunction, do not bundle power cables and signal cables together or place
them in the same metallic conduit.
5-1. Installation methods
The AE-200/AE-50 can be installed by any of the following installation methods.
Method 1 Wall-embedded installation
(Refer to section 5-5-1 and 5-5-2 for installation
procedures.)
Method 2 Wall-embedded installation with an electrical box
(Refer to section 5-5-1 and 5-5-3 for installation
procedures.)
Method 3 Installation on a metal control box
(Refer to section 5-5-4 for installation procedures.)
Method 4 Installation inside a metal control box
* Separately-sold mounting kit (PAC-YG86TK-J) is required.
(The kit includes DIN rail attachments and L-fittings). Refer
to the kit’s Installation Manual for installation procedures.
Method 5 Installation on the wall
* Separately-sold Mounting Attachment (PAC-YG82TB-J) is
required. Refer to the attachment’s Installation Manual for
installation procedures.
AE-200/AE-50
Wall
AE-200/AE-50 Electrical box PAC-
YG84UTB-J (sold
separately)
Wall
AE-200/AE-50
Metal control box Wall
AE-200/AE-50
Metal control box
DIN rail
Wall
AE-200/AE-50 Mounting Attachment
PAC-YG82TB-J (sold
separately)
Wall

13
WT07935X04
5-2. Items not included
The following items are required to install the AE-200/AE-50.
Items not included Specifications
Electrical box
(required only for installation
method 2) Model: PAC-YG84UTB-J
Metal control box
(required only for installation
methods 3 and 4)
Must be suitable for the AE-200/AE-50 installation.
Minimum metal thickness when using installation method 4: 200 mm (7-7/8 in)
Locknuts and bushing Must be suitable for the conduit tube to be used.
Sleeved ring terminal M3.5 ring terminal (for AC power cables (L/L1, N/L2) and M-NET transmission cables (A, B, S))
M4 ring terminal (for protective ground wire)
AC power cable/Protective
ground wire
Type: Sheathed vinyl wire (should not be lighter than ordinary PVC sheathed flexible cord
IEC 60227.)
(designation 60227 IEC 53)*1
Size: 0.75 to 2 mm² (ø1.0 to ø1.6 mm), AWG 18 to 14
Protective ground wire color: green/yellow
* Use a wire with an appropriate diameter so that the wire can be fixed with the cable tie below the
terminal block. A diameter of 10 mm (25/64 in) is recommended.
Transmission cable
Type: Sheathed vinyl cable
ƔCPEVS ø1.2 mm
ƔCVVS Min. 1.25 to 2 mm²
* CPEVS: PE*2 insulated PVC*2 jacketed shielded communication cable
* CVVS: PVC*2 insulated PVC*2 jacketed shielded control cable
Relay (for external input)
Contact rating
Rated voltage: 12 or 24 VDC
Rated current: 10 mA or above
Minimum applied load: DC 1 mA
Relay (for external output) Operation coil Rated voltage: 12 or 24 VDC
Power consumption: Max. 0.9 W
Electrical wire for pulse input
Type: Copper wire that is suitable for the terminal block
Size
ƔSingle wire: ø0.65 to ø1.2 mm, AWG 21 to 16
ƔTwisted wire: 0.75 to 1.25 mm², AWG 18 to 16
Watt-hour meter
Must output dry voltage contact pulse for each unit pulse.
Output pulse type: Semiconductor relay
Pulse width: 100 to 300 ms (Resting interval: Min. 100 ms)
Output pulse unit: 0.1/1.0/10/100 kWh/pulse
* An output pulse unit of 1 kWh/pulse or below is recommended.
LAN cable Category 5 or above straight cable (Max. 100 m (328 ft))
Switching HUB A communication speed of 100 Mbps or faster is recommended.
Overcurrent
breaker (fuse or
circuit breaker)
Fuse Rated current: 3 A
* When using a fuse, use it in combination with a switch (rated current: 3 A).
Circuit breaker Type: Bipolar (2P2E)
Rated current: 3 A
Earth leakage breaker
Type: Bipolar (2P2E)
Rated current: 3 A or above
Rated current sensitivity: 30 mA
Operation time: Max. 0.1 sec
*1 For the U.S. and Canada: designation NEC (NEPA70) or CEC
*2 PE: Polyethylene, PVC: Polyvinyl chloride
Min. 100 ms
100 to 300 ms

14
WT07935X04
5-3. Items sold separately
Items sold separately Model name Remarks
Electrical box PAC-YG84UTB-J Required only for installation method 2
Mounting kit L-fittings PAC-YG86TK-J Required only for installation method 4
DIN rail attachments
Mounting Attachment PAC-YG82TB-J Required only for installation method 5
Surface cover with USB port PAC-YG72CWL-J Required when using a cover with USB port
External input/output adapter PAC-YG10HA-E Required when using the external input/output function
5-4. Installation space
Leave a space around the AE-200/AE-50 as shown in the figure below.
Note
ƔWhen installing two or more AE-200/AE-50 controllers side-by-side, leave a space of at least 30 mm (1-3/16 in) between
them.
ƔWhen installing two or more AE-200/AE-50 controllers vertically, leave a space of at least 40 mm (1-37/64 in) between them.
ƔFor the installation space for installation method 4, refer to the separately-sold mounting kit’s Installation Manual .
5-5. Installation procedures
Note
ƔConnect the necessary cables and wires before installing AE-200/AE-50, referring to chapters 6 and 9.
ƔDo not install the unit where the unit may continuously receive vibration. The continuous vibration may cause the connector
pins to disconnect.
Important
ƔWhen routing the cable from above, let the cable hang loose behind the controller as shown in the figure below to prevent
water from running down the cable into the connectors.
30 (1-3/16) 30 (1-3/16) 30 (1-3/16)
30 (1-3/16)
40 (1-37/64)
Unit: mm (in)
40 (1-37/64)
Good example Bad example

15
WT07935X04
5-5-1. Cutting an installation hole and mounting holes in the wall (Methods 1 and 2)
Cut an installation hole (169 × 252 mm (6-21/32 × 9-59/64 in)) and mounting holes in the wall as shown in the figure
below.
5-5-2. Wall-embedded installation (Method 1)
Unit: mm (in)
180.4 (7-7/64)
252 (9-59/64)
ø6 (ø15/64)
217 (8-35/64)
169 (6-21/32)
Roundhead screw (M4 × 10)
(supplied)
L-shaped driver
(supplied)
Plate B
(supplied)
* Not used when installing on a wall that is strong enough to
be fixed with the wood screws.
Plate A
(supplied)
Countersunk screw (M4 × 40)
(supplied)
* Use the supplied wood screws when installing on a wall that is strong enough to
be fixed with the wood screws.
Wall

16
WT07935X04
5-5-3. Wall-embedded installation with an electrical box (Method 2)
5-5-4. Installation on a metal control box (Method 3)
Roundhead screw (M4 × 10)
(supplied)
Bushing
Wall
L-shaped driver
(supplied)
Seal the gap with putty.
M-NET transmission cable or
AC power cable
Electrical box (PAC-YG84UTB-J)
(sold-separately)
Plate A
(supplied)
Conduit tube
Locknut
Wire access hole
Electrical box
Countersunk screw (M4 × 40)
(supplied)
Wall
* Adjust the cable length so that they will fit in
the electrical box.
Metal control box
(not supplied)
Plate B
(supplied)
Plate A
(supplied)
Countersunk screw (M4 × 40)
(supplied)
Roundhead screw (M4 × 10)
(supplied)
L-shaped driver
(supplied)

17
WT07935X04
6. Wiring connections
6-1. Removing/reinstalling the service cover
Unscrew the fixing screw on the service cover and unhook the hooks to remove it as shown in the figure below.
To replace the service cover, hook the hooks and screw the fixing screw back in.
Note
ƔWhen routing the cables from the bottom, cut out the knockout holes, cut a slit in the supplied rubber bushings to insert the
cables without the gap, and attach the bushings to the knockout holes.
ƔIf the wall is 10 mm (13/32 in) or thicker, route the cables from the cable holes on the back.
Knockout hole for
power cables
Service cover
Hook
Fixing screw (M3 × 6)
Knockout hole for M-NET transmission
cables
Cable hole for power cables Cable hole for M-NET transmission cables

18
WT07935X04
6-2. Connecting AC power cables and M-NET transmission cables
TB7
6-2-1. AC power cables and protective ground wire
1. Attach M3.5 sleeved ring terminals to the AC power cables, and attach an M4.0 sleeved ring terminal to the protective ground
wire.
2. Connect the AC power cables to the power supply terminal block, and connect the protective ground wire to the ground
terminal.
Note: Thread the protective ground wire through the guides to prevent the wire from moving when it is retightened to the ground terminal.
3. Fix the cables in place with the supplied cable tie.
Note
ƔMake the protective ground wire 25 mm (1 in) longer than the AC power cables (L/L1, N/L2).
Ɣ 7LJKWHQWKHWHUPLQDOVFUHZVWRDWRUTXHRIWR1P
ƔProperly fix the cable sheaths in place with the supplied cable ties. The distance between the sheath end and the ring
terminal must be 30 mm (1-3/16 in) or less.
AE-200/AE-50
M-NET transmission cables
for centralized control
Outdoor unit
Overcurrent breaker
Earth leakage breaker
100–240 VAC
AC power cables
30 mm
(1-3/16 in)
or less
Sheath
100–240 VAC
AC power cable
Cable tie (supplied)
Protective
ground wire
Cable sheath
Cable tie (supplied)

19
WT07935X04
6-2-2. M-NET transmission cables (Centralized control transmission cables)
1. Attach M3.5 sleeved ring terminals to the M-NET transmission cables (A, B, Shield).
2. Connect the M-NET transmission cables to the M-NET terminal block.
3. Fix the cables in place with the supplied cable tie.
4. When the power is supplied from the unit other than the AE-200 and AE-50, disconnect the M-NET power jumper from CN21.
Note
ƔProvide a single point ground for the shield of the centralized control transmission cable. (Provide the appropriate grounding
according to local standards.)
ƔWhen leaving the M-NET power jumper connected to CN21 on theAE-200/AE-50/EW-50, the M-NET S (shield) terminal of
TB3 is connected to the ground terminal block on the unit, and the ground is supplied via the protective ground wire.
ƔWhen disconnecting the M-NET power jumper from CN21 on theAE-200/AE-50/EW-50, provide a ground point at a power
supply unit (PAC-SC51KUA).
Ɣ 7LJKWHQWKHWHUPLQDOVFUHZVWRDWRUTXHRIWR1P
ƔProperly fix the cable sheaths in place with the supplied cable ties. The distance between the sheath end and the ring
terminal must be 30 mm (1-3/16 in) or less.
30 mm (1-3/16 in) or less
Sheath To outdoor unit
M-NET transmission cablesAand B (Non-polarized)
Cable tie (supplied)
M-NET transmission cable S (Shield)
CN21
Cable sheath
Cable tie (supplied)

20
WT07935X04
6-3. Connecting the LAN cable
Connect the LAN cable to the LAN1 port on the AE-200/AE-50. (The LAN2 port is exclusively used for BACnet®
function.)
ƔThe LAN cable is not supplied. Use a category 5 or above straight LAN cable.
ƔUse a switching HUB compatible with 100 BASE.
ƔThe maximum distance between the switching HUB and AE-200/AE-50/EW-50 is 100 m (328 ft).
ƔThe recommended number of connected devices such as gateway, router, layer 3 switch, or HUB between the
AE-200/AE-50/EW-50 is four or less. (Transmission round-trip delay time must not exceed one second. If the transmission
delay time is long, a communication error may be detected. Check the transmission delay time, referring to section 6-4.)
Note
ƔLAN must be installed before the unit installation. Route the LAN cable to the AE-200/AE-50 in the same way as the M-NET
transmission cables.
ƔWhen connecting the AE-200/AE-50 to an existing LAN, consult the system administrator to decide the IP address. Change
the IP address setting before connecting the LAN cable to the LAN1 port.
ƔTo prevent unauthorized access, always use a security device such as a VPN router when connecting the AE-200/AE-50 to
the Internet.
6-4. Confirming the LAN transmission delay time
Connect a monitoring PC to a device such as HUB that is connected to the AE-200. Send a command from the PC
to the AE-50, and receive the response from theAE-50. Check the time between sending and receiving on the PC
display.
[1] Sample system connection
AE-200 EW-50
LAN2
(exclusive use
for BACnet®)LAN1
Monitoring PC
Switching HUB
Max.
100 m (328 ft)
Max. 100 m (328 ft)
Max.
100 m (328 ft)
