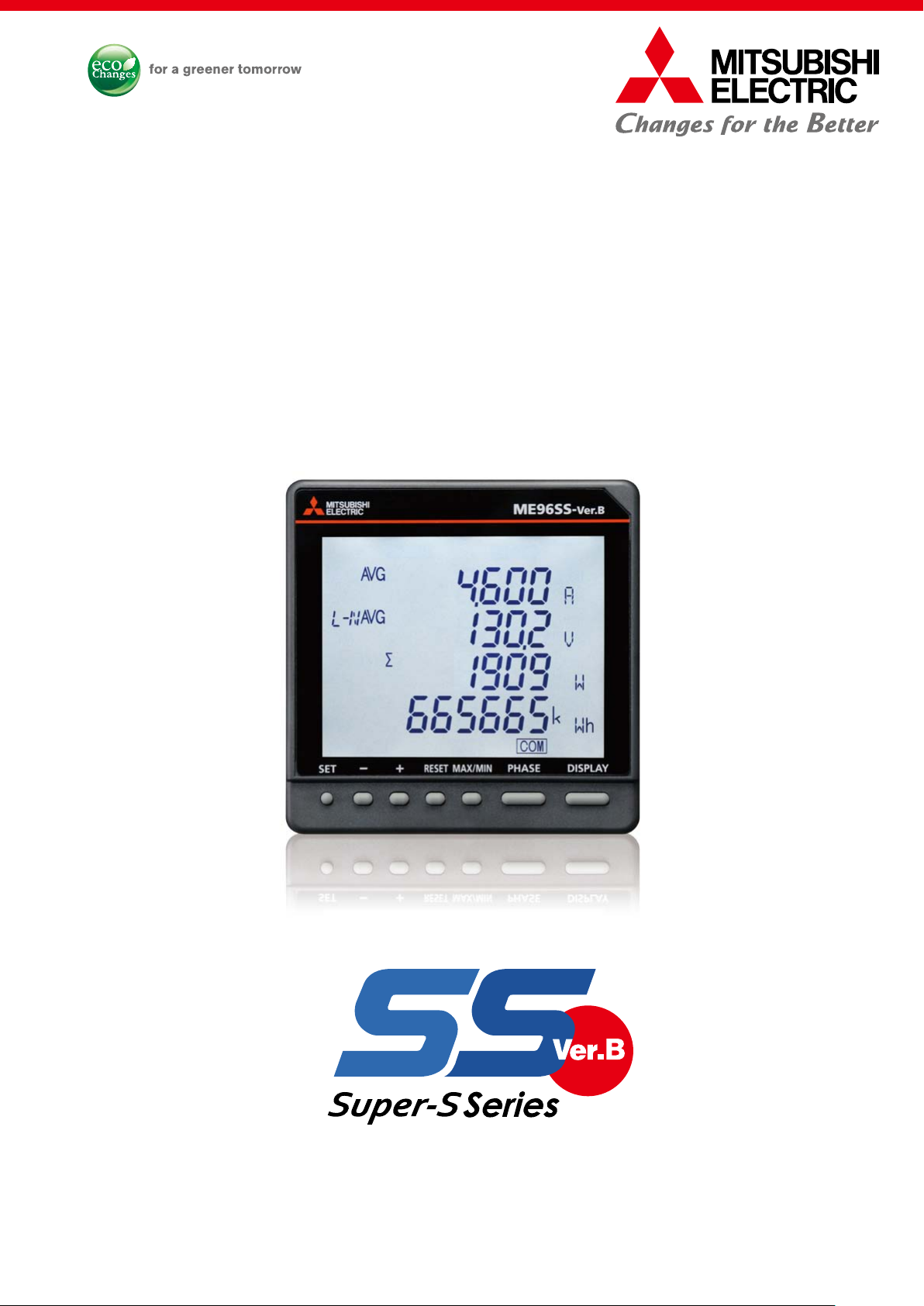

Mitsubishi Electric ME96 Series User manual

Revised publication, effective Sep. 2020.
Specifications subject to change without notice.
Y-0758C 2009 printed in Japan(IP)
ELECTRONIC MULTI-MEASURING INSTRUMENT
Safety Tips: Be sure to read the instruction manual fully before using this product.
Precautions Before Use
• Please consult with a Mitsubishi Electric representative when considering the application of products presented in this catalogue with machinery or systems designed for
specialized use such as nuclear power, electrical power, aerospace/outer space, medical, or passenger transportation vehicles.
• Mitsubishi Electric Corporation shall not be liable, to the customer or equipment user, for:
1) Any damege found not to be attributable to a Mitsubishi Electric product.
2) The loss of opportunity or profits for the customer or user caused by any fault in a Mitsubishi Electric product.
3) Damege, secondary damege or accident compensation resulting from special factors regardless of whether or not such factors could be predicted by Mitsubishi Electric.
4) Damege to products of other companies and/or guarantees relating to other services.
FACTORY AUTOMATION
ELECTRONIC
MULTI-MEASURING
INSTRUMENT
ME96SS
Service Network for Fukuyama Products
Country/Region Corporation Name Address Telephone
Australia Mitsubishi Electric Australia Pty. Ltd. 348 Victoria Road, Rydalmere, N.S.W. 2116, Australia [phone]
Algeria Mec Casa Rue i N 125 Hay-Es-Salem, 02000, W-Chlef, Algeria [phone]
Bangladesh
PROGRESSIVE TRADING CORPORATION HAQUE TOWER,2ND FLOOR,610/11,JUBILEE ROAD, CHITTAGONG, BANGLADESH [phone]
ELECTRO MECH AUTOMATION& ENGINEERING LTD. SHATABDI CENTER, 12TH FLOOR, SUITES: 12-B, 292, INNER CIRCULAR ROAD,
FAKIRA POOL, MOTIJHEEL, DHAKA-1000, BANGLADESH [phone]
Belarus Tehnikon Oktyabrskaya 19, Off. 705, BY-220030 Minsk, Belarus +375 (0)17 / 210 46 26
Belgium Koning & Hartman B.V. Woluwelaan 31, BE-1800 Vilvoorde, Belgium +32 (0)2 / 2570240
Brazil Mitsubishi Electric do Brasil Comércio e Serviços Ltda. Avenida Adelino Cardana, 293 21 andar Bethaville, Barueri SP, Brasil [phone]
Cambodia DHINIMEX CO.,LTD #245, St. Tep Phan, Phnom Penh, Cambodia [phone]
Central America Automation International LLC 7050 W. Palmetto Park Road Suite #15 PMB #555, Boca Raton, FL 33433 [phone]
Chile Rhona S.A. (Main office) Vte. Agua Santa 4211 Casilla 30-D (P.O. Box) Vina del Mar, Chile [phone]
China
Mitsubishi Electric Automation (China) Ltd. Mitsubishi Electric Automation Building, No.1386 Hongqiao Road, Shanghai, China 200336 [phone]
Mitsubishi Electric Automation (China) Ltd.
BeiJing 5/F,ONE INDIGO,20 Jiuxianqiao Road Chaoyang District,Beijing, China 100016 [phone]
Mitsubishi Electric Automation (China) Ltd.
ShenZhen Level 8, Galaxy World Tower B, 1 Yabao Road, Longgang District, Shenzhen, China 518129 [phone]
Mitsubishi Electric Automation (China) Ltd.
GuangZhou Rm.1006, A1 Times E-Park, No.276-282, Hanxi Road East, Zhongcun Street, Panyu Distric, Guangzhou, China 510030 [phone]
Mitsubishi Electric Automation (China) Ltd.
ChengDu 1501-1503,15F, Guang-hua Centre Building-C, No.98 North Guang Hua 3th Rd Chengdu, China 610000 [phone]
Mitsubishi Electric Automation (Hong Kong) Ltd. 20/F., Cityplaza One, 1111 king's Road, Taikoo shing, Hong Kong [phone]
Colombia Proelectrico Representaciones S.A. Carrera 42 Nº 75 – 367 Bodega 109, Itagüi, Medellín, Antioquia, Colombia [phone]
Czech Republic AUTOCONT CONTROL SYSTEMS S.R.O Technologická 374/6, CZ-708 00 Ostrava - Pustkovec [phone]
Denmark BEIJER ELECTRONICS A/S LYKKEGARDSVEJ 17, DK-4000 ROSKILDE, Denmark +45 (0)46/ 75 76 66
Egypt Cairo Electrical Group 9, Rostoum St. Garden City P.O. Box 165-11516 Maglis El-Shaab,Cairo - Egypt [phone]
France Mitsubishi Electric Europe B.V. French Branch FR-92741 Nanterre Cedex [phone]
Germany Mitsubishi Electric Europe B.V. Mitsubishi-Electric-Platz 1, 40882 Ratingen, Germany [phone]
Greece KALAMARAKIS - SAPOUNAS S.A. IONIAS & NEROMILOU STR., CHAMOMILOS ACHARNES, ATHENS, 13678 Greece [phone]
UTECO 5, MAVROGENOUS STR., 18542 PIRAEUS, Greece [phone]
Hungary Meltrade Ltd. Fertö utca 14. HU-1107 Budapest, Hungary [phone]
India
Mitsubishi Electric India Private Limited 2nd Floor, Tower A&B, Cyber Greens, DLF Cyber City, DLF Phase-III, Gurgaon - 122 022 Haryana, India [phone]
Mitsubishi Electric India Private Limited Pune Sales Office ICC-Devi Gaurav Technology Park, Unit no. 402, Fourth Floor, Survey no. 191-192 (P), Opp. Vallabh Nagar Bus Depot,
Pune – 411018, Maharashtra, India [phone]
Mitsubishi Electric India Private Limited FA Center 204-209, 2nd Floor, 31FIVE, Corporate Road, Prahladnagar, Ahmedabad 380015,Gujarat. India [phone]
Indonesia PT.Mitsubishi Electric Indonesia Gedung Jaya 8th floor, JL.MH. Thamrin No.12 Jakarta Pusat 10340, Indonesia [phone]
P.T. Sahabat Indonesia P.O.Box 5045 Kawasan Industri Pergudangan, Jakarta, Indonesia [phone]
Ireland Mitsubishi Electric Europe B.V. Westgate Business Park, Ballymount, IRL-Dublin 24, Ireland [phone]
Israel Gino Industries Ltd. 26, Ophir Street IL-32235 Haifa, Israel [phone]
Italy Mitsubishi Electric Europe B.V. Viale Colleoni 7, I-20041 Agrate Brianza (MI), Italy [phone]
Kazakhstan Kazpromavtomatika Ul. Zhambyla 28, KAZ - 100017 Karaganda [phone]
Korea Mitsubishi Electric Automation Korea Co., Ltd 9F Gangseo Hangang xi-tower A, 401 Yangcheon-ro, Gangseo-gu, Seoul 07528 Korea [phone]
Laos AROUNKIT CORPORATION IMPORT- EXPORT SOLE CO.,LTD SAPHANMO VILLAGE. SAYSETHA DISTRICT, VIENTIANE CAPITAL, LAOS [phone]
Lebanon Comptoir d'Electricite Generale-Liban Cebaco Center - Block A Autostrade Dora, P.O. Box 11-2597 Beirut - Lebanon [phone]
Lithuania Rifas UAB Tinklu 29A, LT-5300 Panevezys, Lithuania [phone]
Malaysia Mittric Sdn Bhd No. 5 Jalan Pemberita U1/49, Temasya Industrial Park, Glenmarie 40150 Shah Alam,Selangor, Malaysia [phone]
Flexible Automation System Sdn Bhd 60, Jalan USJ 10/1B,UEP Subang Jaya,47620 Selangor Darul Ehsan,Malaysia [phone]
Malta ALFATRADE LTD 99 PAOLA HILL, PAOLA PLA 1702, Malta [phone]
Maroco SCHIELE MAROC KM 7,2 NOUVELLE ROUTE DE RABAT AIN SEBAA, 20600 Casablanca, Maroco [phone]
Myanmar Peace Myanmar Electric Co.,Ltd. NO137/139 Botahtaung Pagoda Road, Botahtaung Town Ship 11161,Yangon,Myanmar [phone]
Nepal Watt&Volt House KHA 2-65,Volt House Dillibazar Post Box:2108,Kathmandu,Nepal [phone]
Netherlands Imtech Marine & Offshore B.V. Sluisjesdijk 155, NL-3087 AG Rotterdam, Netherlands [phone]
North America Mitsubishi Electric Automation, Inc. 500 Corporate Woods Parkway, Vernon Hills, IL 60061 USA [phone]
Norway Scanelec AS Leirvikasen 43B, NO-5179 Godvik, Norway [phone]
Mexico Mitsubishi Electric Automation, Inc. Mexico Branch Blvd. Miguel de Cervantes Saavedra 301, Torre Norte Piso 5, Col. Ampliación Granada,
Miguel Hidalgo, Ciudad de México, CP 11520, México [phone]
Middle East
Arab Countries & Cyprus Comptoir d'Electricite Generale-International-S.A.L. Cebaco Center - Block A Autostrade Dora P.O. Box 11-1314 Beirut - Lebanon [phone]
Pakistan Prince Electric Co. 2-P GULBERG II, LAHORE, 54600, PAKISTAN [phone], 5753373
Peru Rhona S.A. (Branch office) Avenida Argentina 2201, Cercado de Lima [phone]
Philippines MELCO Factory Automation Philippines Inc. 128, Lopez Rizal St., Brgy. Highway Hills, Mandaluyong City, Metro Manila, Phillippines [phone]
Edison Electric Integrated, Inc. 24th Fl. Galleria Corporate Center, Edsa Cr. Ortigas Ave., Quezon City Metro Manila, Philippines [phone]
Poland Mitsubishi Electric Europe B.V. Polish Branch Krakowska 48, 32-083 Balice, Poland [phone]
Republic of Moldova Intehsis SRL bld. Traian 23/1, MD-2060 Kishinev, Moldova [phone]
Romania Sirius Trading & Services SRL RO-060841 Bucuresti, Sector 6 Aleea Lacul Morii Nr. 3 [phone]
Russia Mitsubishi Electric (Russia) LLC 2 bld.1, Letnikovskaya street, Moscow, 115114, Russia [phone]
Saudi Arabia Center of Electrical Goods Al-Shuwayer St. Side way of Salahuddin Al-Ayoubi St. P.O. Box 15955 Riyadh 11454 - Saudi Arabia [phone]
Singapore Mitsubishi Electric Asia Pte. Ltd. 307 Alexandra Road, Mitsubishi Electric Building, Singapore 159943 [phone]
Slovakia PROCONT, Presov Kupelna 1/, SK - 08001 Presov, Slovakia +421 (0)51 - 7580 611
SIMAP Jana Derku 1671, SK - 91101 Trencin, Slovakia [phone]
Slovenia Inea RBT d.o.o. Stegne 11, SI-1000 Ljubljana, Slovenia [phone]
South Africa CBI-electric: low voltage Private Bag 2016, ZA-1600 Isando Gauteng, South Africa [phone]
Spain Mitsubishi Electric Europe B.V. Spanish Branch Carretera de Rubí 76-80, E-08190 Sant Cugat del Vallés (Barcelona), Spain [phone]
Sweden Mitsubishi Electric Europe B.V. (Scandinavia) Hedvig Möllers gata 6, 223 55 Lund, Sweden [phone]
Sweden Euro Energy Components AB Järnvägsgatan 36, S-434 24 Kungsbacka, Sweden [phone]
Switzerland TriElec AG Muehlentalstrasse 136, CH-8201 Schaffhausen, Switzerland [phone]
Taiwan Setsuyo Enterprise Co., Ltd 5th Fl., No.105, Wu Kung 3rd, Wu-Ku Hsiang, Taipei, Taiwan, R.O.C. [phone]
Thailand
United Trading & Import Co., Ltd. 77/12 Bamrungmuang Road,Klong Mahanak Pomprab Bangkok Thailand [phone]
MITSUBISHI ELECTRIC FACTORY AUTOMATION (THAILAND)
CO.,LTD 101, True Digital Park Office, 5th Floor, Sukhumvit Road, Bangchak, Phara Khanong, Bangkok, 10260 Thailand [phone]
Tunisia MOTRA Electric 3, Résidence Imen, Avenue des Martyrs Mourouj III, 2074 - El Mourouj III Ben Arous, Tunisia [phone]
Turkey Mitsubishi Electric Turkey A.Ş. Şerifali Mahallesi Kale Sokak No: 41, 34775 Ümraniye, İstanbul, Turkey [phone]
United Kingdom Mitsubishi Electric Europe B.V. Travellers Lane, UK-Hatfield, Herts. AL10 8XB, United Kingdom [phone]
Uruguay Fierro Vignoli S.A. Avda. Uruguay 1274 Montevideo Uruguay [phone]
Vietnam Mitsubishi Electric Vietnam Co.,Ltd. Head Office 11th & 12th Floor, Viettel Tower B, 285 Cach Mang Thang 8 Street, Ward 12, District 10, Ho Chi Minh City, Vietnam [phone]
Mitsubishi Electric Vietnam Co.,Ltd. Hanoi Branch 24th Floor, Handico Tower, Pham Hung Road, khu do thi moi Me Tri Ha, Nam Tu Liem District, Hanoi City, Vietnam [phone]

Highly appreciated ME96SS Series Electronic Multi-Measuring Instruments have been remodeled, and ME96 Super-S Series with enhanced
measuring functions and network capability has been released.
Contents
ME96SSRB-MB (standard model)
Optional plug-in modules
‡Outline and Features .......................................................... 3
‡ME96 Super-S Series Ver.B Features ................................ 4
‡Specifications ...................................................................... 9
‡Operating Instructions ..................................................... 14
‡External Dimensions, Installation and Connections ..... 29
‡Related Products .............................................................. 33
‡Safety Precautions ............................................................ 35
[1]Compact size
[2]Incorrect wiring determination support function
[3]Display 4 items at the sametime
Major features
[1]Incorrect wiring determination support function
[2]Wide viewing angle LCD
[3]Built-in logging function
[4]Display 4 items at the sametime
Major features
[1]Analog, pulse and alarm output unit (Model:ME-4210-SS96B)
[2]CC-Link communication unit (Model:ME-0040C-SS96)
[3]Digital input and output unit (Model:ME-0052-SS96)
[4]Data logging unit (Model:ME-0000BU-SS96)
[5]
MODBUS TCP communication unit
(Model:ME-0000MT-SS96)
[6]
MODBUS TCP communication 2-port unit
(Model:ME-0040MT2-SS96)
Major features
Remarks
MODBUS RTU communication function provided as standard
wME96SSRB-MB (standard model)
rOptional plug-in modules
ME96SSEB-MB (economy model)eME96SSEB-MB (economy model)
ME96SSHB-MB (high-performance model)
[1] Supports highly accurate measurement (accuracy of
current/voltage: 0.1%, active energy: class 0.5S) and
high-order harmonic measurement (1st to 31st).
[2]Incorrect wiring determination support function
[3]Wide viewing angle LCD
[4]Built-in logging function
[5]Display 4 items at the sametime
Major features
q ME96SSHB-MB (high-performance model)
ME96 Super-S Series
Electronic Indicating Instruments with enhanced measuring
functions and optional units
ME96 Super-S Series
Electronic Indicating Instruments with enhanced measuring
functions and optional units
1 2

Highly appreciated ME96SS Series Electronic Multi-Measuring Instruments have been remodeled, and ME96 Super-S Series with enhanced
measuring functions and network capability has been released.
Contents
ME96SSRB-MB (standard model)
Optional plug-in modules
‡Outline and Features .......................................................... 3
‡ME96 Super-S Series Ver.B Features ................................ 4
‡Specifications ...................................................................... 9
‡Operating Instructions ..................................................... 14
‡External Dimensions, Installation and Connections ..... 29
‡Related Products .............................................................. 33
‡Safety Precautions ............................................................ 35
[1]Compact size
[2]Incorrect wiring determination support function
[3]Display 4 items at the sametime
Major features
[1]Incorrect wiring determination support function
[2]Wide viewing angle LCD
[3]Built-in logging function
[4]Display 4 items at the sametime
Major features
[1]Analog, pulse and alarm output unit (Model:ME-4210-SS96B)
[2]CC-Link communication unit (Model:ME-0040C-SS96)
[3]Digital input and output unit (Model:ME-0052-SS96)
[4]Data logging unit (Model:ME-0000BU-SS96)
[5]
MODBUS TCP communication unit
(Model:ME-0000MT-SS96)
[6]
MODBUS TCP communication 2-port unit
(Model:ME-0040MT2-SS96)
Major features
Remarks
MODBUS RTU communication function provided as standard
wME96SSRB-MB (standard model)
rOptional plug-in modules
ME96SSEB-MB (economy model)eME96SSEB-MB (economy model)
ME96SSHB-MB (high-performance model)
[1] Supports highly accurate measurement (accuracy of
current/voltage: 0.1%, active energy: class 0.5S) and
high-order harmonic measurement (1st to 31st).
[2]Incorrect wiring determination support function
[3]Wide viewing angle LCD
[4]Built-in logging function
[5]Display 4 items at the sametime
Major features
q ME96SSHB-MB (high-performance model)
ME96 Super-S Series
Electronic Indicating Instruments with enhanced measuring
functions and optional units
ME96 Super-S Series
Electronic Indicating Instruments with enhanced measuring
functions and optional units
1 2

*1 : ME-0040MT2-SS96 is only applicable to ME96SSHB-MB with firmware
version 01.01 or later.
CC-Link System (With optional plug-in module (ME-0040C-SS96))
MODBUS TCP System (With optional plug-in module (ME-0000MT-SS96/ME-0040MT2-SS96 *1))
Data Logging (Built-in logging function and optional plug-in module (ME-0000BU-SS96))
Analog/Pulse/Alarm Output System (With optional plug-in module (ME-4210-SS96B))
»Applicable to analog output, pulse output and alarm output with the aid of the optional module
ME-4210-SS96B.
»Remote monitoring of A, DA, V, W, var, VA, PF, Hz, Harmonics Current RMS value and
Harmonics voltage RMS value at 4 mA to 20 mA output (max. 4 outputs).
»Active energy, reactive energy, apparent power and periodic energy can be monitored by
pulse output (max. 2 pulses).
»Can remotely monitor upper/lower limit alarm by digital output (max. 2 points).
»This is a MODBUS TCP communication unit that can be used in the Ethernet system. The number of
network system selection methods is increased, and Ethernet and MODBUS RTU communication can
be duplicated.
»The optional plug-in module ME-0040MT2-SS96 has 2 Ethernet ports, so straight-line topology is
possible without using Ethernet SWITCH/HUB.
»The optional plug-in module ME-0040MT2-SS96 has 4 digital inputs, so remote monitoring of status
signals is possible without a PLC.
»Digital input signal can be latched for over 30ms,
and there is no need for external latch circuits.
»The ME96SSHB-MB/ME96SSRB-MB has a built-in logging function stores measurement data as logging data in the internal non-volatile
memory. The data to be stored as events occurred in this instrument are alarm data, the recorded time of the Max/Min value, and system log
data. The stored data can be read from MODBUS RTU communication.
»
Optional module ME-0000BU-SS96 can memorize the data of various quantities related to electricity measured by ME96SS-Ver.B for a certain
period. Therefore, measurement data can be backup even when the MODBUS RTU communication of ME96SS-Ver.B fails.
Memorized measurement data can be output to an SD memory card in CSV format. You can check the data files output to the SD memory
card by Microsoft Excel.
<Analog output specifications>
• 4 mA to 20 mA
• 4 outputs
• Resistance load 600 Ωor less
<Pulse output specifications>
• No-voltage a contact point
• 35 V DC, 0.1 A
• Select output from pulse widths of 0.125 s, 0.5 s or 1 s
<MODBUS TCP Communication Specifications>
• Ethernet port : 10BASE-T/100BASE-TX
• Maximum segment length : 100 m
<Optional Plug-in Module ME-0000MT-SS96>
• Number of ports : 1
• Digital Input : non
<Optional Plug-in Module ME-0040MT2-SS96 *1>
• Number of ports : 2
• Digital Input : 4 points (24 V DC)
<Alarm output specifications>
• No-voltage a contact point
• 35 V DC, 0.1 A
<Digital input specifications>
• 1 point (24 V DC)
Outline and Features
ME96 Super-S Series Ver.B Features
ME96SSHB-MB
(
High-performance model )
ME96SSRB-MB
(Standard model)
ME96SSEB-MB
(Economy model)
MODBUS RTU communication
Plug-in module (options)
• Analog/Pulse/Digital output/input
• CC-Link communication
•
Digital input/output (for MODBUS RTU communication)
• Backup (on SD card)
• MODBUS TCP communication
MODBUS RTU communication
Plug-in module (options)
• Analog/Pulse/Digital output/input
• CC-Link communication
•
Digital input/output (for MODBUS RTU communication)
• Backup (on SD card)
• MODBUS TCP communication
MODBUS RTU communication
A, DA, V, Hz = ±0.1%
W, var, VA, PF = ±0.2%
VAh = ±2.0%
Wh = class 0.5S (IEC62053-22)
varh = class 1S (IEC62053-24)
Harmonics = 31st-deg (max)
Rolling demand = W, var, VA
A, DA, V = ±0.2%
Hz = ±0.1%
W, var, VA, PF = ±0.5%
VAh = ±2.0%
Wh = class 0.5S (IEC62053-22)
varh = class 1S (IEC62053-24)
Harmonics = 19th-deg (max)
Rolling demand = W, var, VA
A, DA, V = ±0.5%
Hz = ±0.2%
W, var, VA, PF = ±0.5%
VAh = ±2.0%
Wh = class 0.5S (IEC62053-22)
varh = class 1S (IEC62053-24)
Harmonics = Only total
Optional Plug-in Modules
Note 1: Optional Plug-in Module can not be used with ME96SSEB-MB.
Note 2: For details of each characteristic, refer to the specifications section.
*1: 2 ports for daisy chain, one IP address.
*2: Applicable only to firmware version 01.01 or later.
»Optimum transmission system for remote monitoring using Mitsubishi PLC.
»Contact signals can be remotely monitored by installing the optional module ME-0040C-SS96. This is
helpful in wiring and space saving.
»Digital input signals can be latched for over 30 ms, and there is no need for external latch circuits.
Abnormal Signal (Facility)
Abnormal Signal (Earth Leakage)
Abnormal Signal (Temperature)
Circuit Breaker Status Signal, etc.
Abnormal Signal (Facility)
Abnormal Signal (Earth Leakage)
Abnormal Signal (Temperature)
Circuit Breaker Status Signal, etc.
<CC-Link Interface>
• Max. Baud rate: 10 Mbps
• Max. Connection Distance: 100 m (10 Mbps)-
1,200 m (156 kbps)
• Max. Connection Units: 42
• Digital Input: 4 points (24 V DC)
CC-Link
Ethernet
MELSEC Series
MODBUS RTU System
Central monitor
RS485/USB
converter
RS485 (MODBUS RTU)
USB
»MODBUS RTU communication system optimizes computer monitoring operations.
»In addition, when ME-0052-SS96 is installed, remote monitoring of digital input signals and on/off
control of digital output signals are possible. Therefore, no other DI/DO terminals are required.
»Digital input signals can be latched for over 30 ms, and there is no need for external latch circuits.
ME-0052-SS96
optional unit
Tripping
Closing
AL
PAL
TAL
Turning on/off breaker, etc.
<MODBUS RTU Interface Specifications>
• Max. Baud rate: 38.4 kbps
• Max. Connection Distance: 1,200 m
• Max. Connection Units: 31
<Optional Plug-in Module ME-0052-SS96>
• Digital Input: 5 points (24 V DC)
• Digital Output: 2 points (35 V DC)
Model name Transmission/Option specifications Main measurement items
»Added measurement function, reactive energy, apparent energy, reactive power and apparent power for ME96SSEB-MB.
»Realized downsizing for ME96SSEB-MB.
Improved Measurement Functions
It contributes to
space saving!
ME96SSEA-MB
(Conventional type)
ME96SSEB-MB
(New type)
36.0 mm
13.0 mm
Compact size
Central monitor
For ME96SSHB-MB with ME-0040MT2-SS96
Ethernet
90.2mm
(110.9 mm)
20.7 mm
Model name Characteristics
Analog output Pulse/Alarm output Digital input Digital output Communication Logging function Used with
ME-4210-SS96B 4 2 1
ME96SSHB-MB
ME96SSRB-MB
ME-0040C-SS96 4 CC-Link
ME-0052-SS96 52
ME-0000BU-SS96 6 items
ME-0000MT-SS96 MODBUS TCP 1 port
ME-0040MT2-SS96 4 MODBUS TCP 2 ports *1ME96SSHB-MB *2
—
—
—
—
—
—
— — —
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Ethernet
Analog output
Pulse output
Alarm output
3 4

*1 : ME-0040MT2-SS96 is only applicable to ME96SSHB-MB with firmware
version 01.01 or later.
CC-Link System (With optional plug-in module (ME-0040C-SS96))
MODBUS TCP System (With optional plug-in module (ME-0000MT-SS96/ME-0040MT2-SS96 *1))
Data Logging (Built-in logging function and optional plug-in module (ME-0000BU-SS96))
Analog/Pulse/Alarm Output System (With optional plug-in module (ME-4210-SS96B))
»Applicable to analog output, pulse output and alarm output with the aid of the optional module
ME-4210-SS96B.
»Remote monitoring of A, DA, V, W, var, VA, PF, Hz, Harmonics Current RMS value and
Harmonics voltage RMS value at 4 mA to 20 mA output (max. 4 outputs).
»Active energy, reactive energy, apparent power and periodic energy can be monitored by
pulse output (max. 2 pulses).
»Can remotely monitor upper/lower limit alarm by digital output (max. 2 points).
»This is a MODBUS TCP communication unit that can be used in the Ethernet system. The number of
network system selection methods is increased, and Ethernet and MODBUS RTU communication can
be duplicated.
»The optional plug-in module ME-0040MT2-SS96 has 2 Ethernet ports, so straight-line topology is
possible without using Ethernet SWITCH/HUB.
»The optional plug-in module ME-0040MT2-SS96 has 4 digital inputs, so remote monitoring of status
signals is possible without a PLC.
»Digital input signal can be latched for over 30ms,
and there is no need for external latch circuits.
»The ME96SSHB-MB/ME96SSRB-MB has a built-in logging function stores measurement data as logging data in the internal non-volatile
memory. The data to be stored as events occurred in this instrument are alarm data, the recorded time of the Max/Min value, and system log
data. The stored data can be read from MODBUS RTU communication.
»
Optional module ME-0000BU-SS96 can memorize the data of various quantities related to electricity measured by ME96SS-Ver.B for a certain
period. Therefore, measurement data can be backup even when the MODBUS RTU communication of ME96SS-Ver.B fails.
Memorized measurement data can be output to an SD memory card in CSV format. You can check the data files output to the SD memory
card by Microsoft Excel.
<Analog output specifications>
• 4 mA to 20 mA
• 4 outputs
• Resistance load 600 Ωor less
<Pulse output specifications>
• No-voltage a contact point
• 35 V DC, 0.1 A
• Select output from pulse widths of 0.125 s, 0.5 s or 1 s
<MODBUS TCP Communication Specifications>
• Ethernet port : 10BASE-T/100BASE-TX
• Maximum segment length : 100 m
<Optional Plug-in Module ME-0000MT-SS96>
• Number of ports : 1
• Digital Input : non
<Optional Plug-in Module ME-0040MT2-SS96 *1>
• Number of ports : 2
• Digital Input : 4 points (24 V DC)
<Alarm output specifications>
• No-voltage a contact point
• 35 V DC, 0.1 A
<Digital input specifications>
• 1 point (24 V DC)
Outline and Features
ME96 Super-S Series Ver.B Features
ME96SSHB-MB
(
High-performance model )
ME96SSRB-MB
(Standard model)
ME96SSEB-MB
(Economy model)
MODBUS RTU communication
Plug-in module (options)
• Analog/Pulse/Digital output/input
• CC-Link communication
•
Digital input/output (for MODBUS RTU communication)
• Backup (on SD card)
• MODBUS TCP communication
MODBUS RTU communication
Plug-in module (options)
• Analog/Pulse/Digital output/input
• CC-Link communication
•
Digital input/output (for MODBUS RTU communication)
• Backup (on SD card)
• MODBUS TCP communication
MODBUS RTU communication
A, DA, V, Hz = ±0.1%
W, var, VA, PF = ±0.2%
VAh = ±2.0%
Wh = class 0.5S (IEC62053-22)
varh = class 1S (IEC62053-24)
Harmonics = 31st-deg (max)
Rolling demand = W, var, VA
A, DA, V = ±0.2%
Hz = ±0.1%
W, var, VA, PF = ±0.5%
VAh = ±2.0%
Wh = class 0.5S (IEC62053-22)
varh = class 1S (IEC62053-24)
Harmonics = 19th-deg (max)
Rolling demand = W, var, VA
A, DA, V = ±0.5%
Hz = ±0.2%
W, var, VA, PF = ±0.5%
VAh = ±2.0%
Wh = class 0.5S (IEC62053-22)
varh = class 1S (IEC62053-24)
Harmonics = Only total
Optional Plug-in Modules
Note 1: Optional Plug-in Module can not be used with ME96SSEB-MB.
Note 2: For details of each characteristic, refer to the specifications section.
*1: 2 ports for daisy chain, one IP address.
*2: Applicable only to firmware version 01.01 or later.
»Optimum transmission system for remote monitoring using Mitsubishi PLC.
»Contact signals can be remotely monitored by installing the optional module ME-0040C-SS96. This is
helpful in wiring and space saving.
»Digital input signals can be latched for over 30 ms, and there is no need for external latch circuits.
Abnormal Signal (Facility)
Abnormal Signal (Earth Leakage)
Abnormal Signal (Temperature)
Circuit Breaker Status Signal, etc.
Abnormal Signal (Facility)
Abnormal Signal (Earth Leakage)
Abnormal Signal (Temperature)
Circuit Breaker Status Signal, etc.
<CC-Link Interface>
• Max. Baud rate: 10 Mbps
• Max. Connection Distance: 100 m (10 Mbps)-
1,200 m (156 kbps)
• Max. Connection Units: 42
• Digital Input: 4 points (24 V DC)
CC-Link
Ethernet
MELSEC Series
MODBUS RTU System
Central monitor
RS485/USB
converter
RS485 (MODBUS RTU)
USB
»MODBUS RTU communication system optimizes computer monitoring operations.
»In addition, when ME-0052-SS96 is installed, remote monitoring of digital input signals and on/off
control of digital output signals are possible. Therefore, no other DI/DO terminals are required.
»Digital input signals can be latched for over 30 ms, and there is no need for external latch circuits.
ME-0052-SS96
optional unit
Tripping
Closing
AL
PAL
TAL
Turning on/off breaker, etc.
<MODBUS RTU Interface Specifications>
• Max. Baud rate: 38.4 kbps
• Max. Connection Distance: 1,200 m
• Max. Connection Units: 31
<Optional Plug-in Module ME-0052-SS96>
• Digital Input: 5 points (24 V DC)
• Digital Output: 2 points (35 V DC)
Model name Transmission/Option specifications Main measurement items
»Added measurement function, reactive energy, apparent energy, reactive power and apparent power for ME96SSEB-MB.
»Realized downsizing for ME96SSEB-MB.
Improved Measurement Functions
It contributes to
space saving!
ME96SSEA-MB
(Conventional type)
ME96SSEB-MB
(New type)
36.0 mm
13.0 mm
Compact size
Central monitor
For ME96SSHB-MB with ME-0040MT2-SS96
Ethernet
90.2mm
(110.9 mm)
20.7 mm
Model name Characteristics
Analog output Pulse/Alarm output Digital input Digital output Communication Logging function Used with
ME-4210-SS96B 4 2 1
ME96SSHB-MB
ME96SSRB-MB
ME-0040C-SS96 4 CC-Link
ME-0052-SS96 52
ME-0000BU-SS96 6 items
ME-0000MT-SS96 MODBUS TCP 1 port
ME-0040MT2-SS96 4 MODBUS TCP 2 ports *1ME96SSHB-MB *2
—
—
—
—
—
—
— — —
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
Ethernet
Analog output
Pulse output
Alarm output
3 4

ME96 Super-S Series Ver.B Features
Motor Starting Current Mask Function
Succeeded Display Functions
Concurrent Display of 4 items
Special Display Function
Max/Min Display Function
Wide-viewing-angle (ME96SSHB-MB, ME96SSRB-MB)
The 4 measured values can be digitally confirmed on one screen.
»Concurrent Display of Each Phase Measured Values
In Display Pattern P02, measured values of each phase can be concurrently displayed.
»Cyclic Display Function
In the cyclic display function, the display screen can be changed over in every 5 seconds without [DISPLAY] button operation.
»Maximum/Minimum Value Display
The maximum and minimum value of each measuring items can be displayed. Since the max/min display shows the current value as well
as max/min values, the display can be used for monitoring.
DISPLAY DISPLAY DISPLAY
»Special Display by Display Pattern P00
Display can be selected as desired Display Pattern P00.
As the wide-viewing-angle LCD is mounted, good visibility is obtained even when the instrument is mounted at a level lower than the
eye line.
1st to 3rd line: Select from A, DA, V, W, var, VA, PF, Hz
4th line: Select from Wh, -Wh, varh, VAh
Maximum of four displays can be set
(1) A function to blink the backlight upon occurrence of an alarm is provided.
The product has a setting function to blink the backlight upon occurrence of an alarm.
(2) The automatic or manual alarm cancel mode can be selected.
(3) Up to four points of upper and lower limits can be monitored.
(4) The alarm output delay time (alarm mask time) can be set.
Time of alarm output after the maximum value and minimum value is reached can be set.
With this function, alarm output caused by frequency change at start-up current of a motor and start-up of private power
generating facility can be avoided.
Current value
Time
Upper limit
value
Lower limit
value
Motor
starting
current
Motor
starting current
mask time
Alarm mask
time
No alarm output and
maximum/minimum
value update during
alarm delay time Alarm generation
No lower limit alarm on 0 A, 0 V
The use of the motor starting current mask
function for monitoring the motor current can
prevent updating of the maximum value and
alarm output caused by the motor starting
current.
Although the maximum value is not updated,
the current value is displayed.
The starting current mask time can be set in
the range from 1 s to 5 min.
<Starting current mask>
The maximum values for current and
power are not updated during the
starting current mask time.
Furthermore, the alarm is not
activated even if the upper limit alarm
value is exceeded.
<Starting current detection>
The starting current mask time
starts when the current exceeds the
starting current threshold value.
Starting current mask time
Starting current
Current upper limit alarm value
Starting current threshold value
Time
Note: Set the starting current threshold to a value lower than the lower limit value in consideration of
fluctuations in load current during operation.
Bar graph display
4 lines of digital display
3 lines of digital display
Conventional type New type
DISPLAY DISPLAY DISPLAY DISPLAY
Note: ME96SSEB-MB has the same viewing angle as the conventional type.
ME96SSHB-MB
ME96SSRB-MB 60°
ME96SSHA-MB
ME96SSRA-MB 10°
60°
60°
60°
60°
60°
60°
Type
New type
Conventional type
Model name
When viewed from the side
Up Down Left Right
When viewed from the above
(Overhead view)
(Side view)
60°
60°
60°
60°
Impressive Monitoring Functions
Advanced Alarm Display
5 6

ME96 Super-S Series Ver.B Features
Motor Starting Current Mask Function
Succeeded Display Functions
Concurrent Display of 4 items
Special Display Function
Max/Min Display Function
Wide-viewing-angle (ME96SSHB-MB, ME96SSRB-MB)
The 4 measured values can be digitally confirmed on one screen.
»Concurrent Display of Each Phase Measured Values
In Display Pattern P02, measured values of each phase can be concurrently displayed.
»Cyclic Display Function
In the cyclic display function, the display screen can be changed over in every 5 seconds without [DISPLAY] button operation.
»Maximum/Minimum Value Display
The maximum and minimum value of each measuring items can be displayed. Since the max/min display shows the current value as well
as max/min values, the display can be used for monitoring.
DISPLAY DISPLAY DISPLAY
»Special Display by Display Pattern P00
Display can be selected as desired Display Pattern P00.
As the wide-viewing-angle LCD is mounted, good visibility is obtained even when the instrument is mounted at a level lower than the
eye line.
1st to 3rd line: Select from A, DA, V, W, var, VA, PF, Hz
4th line: Select from Wh, -Wh, varh, VAh
Maximum of four displays can be set
(1) A function to blink the backlight upon occurrence of an alarm is provided.
The product has a setting function to blink the backlight upon occurrence of an alarm.
(2) The automatic or manual alarm cancel mode can be selected.
(3) Up to four points of upper and lower limits can be monitored.
(4) The alarm output delay time (alarm mask time) can be set.
Time of alarm output after the maximum value and minimum value is reached can be set.
With this function, alarm output caused by frequency change at start-up current of a motor and start-up of private power
generating facility can be avoided.
Current value
Time
Upper limit
value
Lower limit
value
Motor
starting
current
Motor
starting current
mask time
Alarm mask
time
No alarm output and
maximum/minimum
value update during
alarm delay time Alarm generation
No lower limit alarm on 0 A, 0 V
The use of the motor starting current mask
function for monitoring the motor current can
prevent updating of the maximum value and
alarm output caused by the motor starting
current.
Although the maximum value is not updated,
the current value is displayed.
The starting current mask time can be set in
the range from 1 s to 5 min.
<Starting current mask>
The maximum values for current and
power are not updated during the
starting current mask time.
Furthermore, the alarm is not
activated even if the upper limit alarm
value is exceeded.
<Starting current detection>
The starting current mask time
starts when the current exceeds the
starting current threshold value.
Starting current mask time
Starting current
Current upper limit alarm value
Starting current threshold value
Time
Note: Set the starting current threshold to a value lower than the lower limit value in consideration of
fluctuations in load current during operation.
Bar graph display
4 lines of digital display
3 lines of digital display
Conventional type New type
DISPLAY DISPLAY DISPLAY DISPLAY
Note: ME96SSEB-MB has the same viewing angle as the conventional type.
ME96SSHB-MB
ME96SSRB-MB 60°
ME96SSHA-MB
ME96SSRA-MB 10°
60°
60°
60°
60°
60°
60°
Type
New type
Conventional type
Model name
When viewed from the side
Up Down Left Right
When viewed from the above
(Overhead view)
(Side view)
60°
60°
60°
60°
Impressive Monitoring Functions
Advanced Alarm Display
5 6

ME96 Super-S Series Ver.B Features
Variety of Complementary Features
Password Function
Special Primary Voltage/Current and Special Secondary Voltage are settable
With the password function, the following items can be protected from an accidental execution.
No.
1
2
3
4
Shift to the setting mode
Reset the max./min. values
Reset the value of active energy, reactive energy and apparent energy
Reset the value of periodic active energy
Adjust the time limit of rolling demand
Reset the peak value of rolling demand
Reset the value of operating time
Password-protected item No.
5
6
7
Password-protected item
Time (min) Time (min)
0 5 10 15
15min
5 min
20 25 0 15 30
15min 15 min
(1) Communications Test
qDisplays current alarm and contact status.
w
Press the Reset button for 2 sec, and regardless if there is an alarm
or not, the display and digital output will operate as follows.
(2) Alarm/Digital Output Operation Test
(3) Analog Output Operation Test
Press the Reset button one time to output one pulse.
Note: After reaching 50, count will return to 1.
(4) Pulse Output Operation Test
Standards
All products are compliant with CE Marking, UL Standards, KC mark and FCC/IC.
0%
25%
4 mA
8 mA
Output 4 mA to 20 mA
Output specs
50% 12 mA
75% 16 mA
100% 20 mA
0%
25%
50%
75%
100%
(1) Special primary current
1 A to 30 kA
(2) Special primary voltage
60 V to 750 kV
3-phase 4-wire system
63.5 V, 100 V, 110 V, 115 V, 120 V
3-phase 3-wire, 1-phase 2-wire system
100 V, 110 V, 220 V
(3) Special secondary voltage
Periodic Monitoring Function
Power consumption can be measured in three individual intervals
(e.g., peak, off- peak and shoulder, etc.).
The time segments can be switched according to the setting via
communication or the digital input (DI).
(The time segments cannot be switched manually (button operation).) Power consumption
(period 1)
Power consumption
(period 2)
Power consumption
(period 3)
Rolling Demand Function
Rolling demand is the estimated power consumption in a specified period (interval).
For the block interval demand, select the duration (interval) of the block to be used for demand calculation.
qRolling block
Use rolling block to set the interval and sub-intervals from
1 min to 60 min (1 min interval). Rolling demand is
calculated and updated at the end of each sub-interval.
However, Present and predictive values are always
calculated.
wFixed block
Use fixed block to set the interval from 1 min to 60 min
(1 min interval). Rolling demand is calculated and updated
at the end of each interval. However, Present and predictive
values are always calculated.
(For fixed block, use the same time limits both of interval
and sub-interval).
<Example: Interval, 15 min; Sub-interval, 5 min>
<Rolling demand calculation>
Rolling demand is calculated when
the sub-interval has been
completed.
<Rolling demand display>
When an interval has been completed,
the rolling demand displayed is the
newest time limit value.
<Rolling demand calculation>
Rolling demand is calculated
when the sub-interval has been
completed.
<Rolling demand display>
When an interval has been completed,
the rolling demand displayed is the
newest time limit value.
<Example: Interval, 15 min; Sub-interval, 15 min>
Test Function
» A test function is provided to check the wiring for communication, alarm output/digital output, analog output and pulse output without input of voltage or current.
»
At the time of wiring test before shipment of the board and counter test for system validation on site, test signals can be output only by applying the auxiliary power.
Note: Depending on the optional unit and settings, the test function may not be available (may not be displayed).
qDisplay
»The same as for the operating mode, display patterns and other data are shown as set.
»Both maximum and minimum values can be displayed.
wCommunication data
»
Communication items and value are the same one on the display. The items value that are not displayed is 0 (zero).
»Measuring items set for alarm will be displayed at the time of an alarm.
»Digital input/output status can be monitored.
(1) Incorrect wiring pattern display function
Checking Input Wiring Support Function
(2) Incorrect Wiring Identification Support Display Function
ON
OFF
Output terminalStatus
Alarm
No alarm
Display
Closed
Open
Low voltage
Low current
Display
01
02
Content
Voltage unbalance
Incorrect connections
at multiple spots
Display
03
04
Content
qDisplay the output items.
wPress the +or –button to change the
analog output.
Note: Default value is 0%.
0 1 2 …49 50[pulse]
Note: Default value is 0 pulses.
Normal state When incorrect wiring
pattern cannot be detected
When phase 1 CT is
connected in reverse
Incorrectly connected spot is
displayed in blinking.
Incorrect wiring pattern No. is
displayed.
Note 1: When wiring of either one of the current/voltage terminals is
not correct, the incorrectly connected spot is easily
identified.
Note 2: Not all incorrect wirings can be identified. When the voltage
input is incorrectly connected and the current input is also
incorrectly connected, a different pattern of incorrect wiring
may be displayed.
Check by using the incorrect wiring
identification support display function.
»This function displays each phase angle (voltage phase 1 standard) of voltage and current, power values (W1, W2, W3) of each phase,
voltage value & current values to support identifying incorrect wirings. By knowing abnormality in the phase angle of voltage/current and
by comparing it with the normal value, you can more easily identify an incorrectly wired spot.
»Examples of screen displays of incorrect wiring identification support function.
»
Whether the voltage/current input wirings are correct or not is displayed.
As for the incorrect wiring display pattern, see the instruction manual.
Incorrectly wired
Display of phase angle (voltage) Display of phase angle (current) Display of electric power
Display of current Display of voltage
Normal wiring (in the case of 3-phase 4-wire system with power factor 1.0)
Display of phase angle (voltage) Display of phase angle (current) Display of electric power
Display of current Display of voltage
In the above cases,
①The current phase angle is 240° for Phase 1 and 0° for Phase 3.
②As electric power (W1/W3) is in negative value, it is judged based on the examples of
screen displays of incorrect wiring identification support function (See the instruction
manual) that phase 1 CT and phase 3 CT are connected in reverse.
7 8

ME96 Super-S Series Ver.B Features
Variety of Complementary Features
Password Function
Special Primary Voltage/Current and Special Secondary Voltage are settable
With the password function, the following items can be protected from an accidental execution.
No.
1
2
3
4
Shift to the setting mode
Reset the max./min. values
Reset the value of active energy, reactive energy and apparent energy
Reset the value of periodic active energy
Adjust the time limit of rolling demand
Reset the peak value of rolling demand
Reset the value of operating time
Password-protected item No.
5
6
7
Password-protected item
Time (min) Time (min)
0 5 10 15
15min
5 min
20 25 0 15 30
15min 15 min
(1) Communications Test
qDisplays current alarm and contact status.
w
Press the Reset button for 2 sec, and regardless if there is an alarm
or not, the display and digital output will operate as follows.
(2) Alarm/Digital Output Operation Test
(3) Analog Output Operation Test
Press the Reset button one time to output one pulse.
Note: After reaching 50, count will return to 1.
(4) Pulse Output Operation Test
Standards
All products are compliant with CE Marking, UL Standards, KC mark and FCC/IC.
0%
25%
4 mA
8 mA
Output 4 mA to 20 mA
Output specs
50% 12 mA
75% 16 mA
100% 20 mA
0%
25%
50%
75%
100%
(1) Special primary current
1 A to 30 kA
(2) Special primary voltage
60 V to 750 kV
3-phase 4-wire system
63.5 V, 100 V, 110 V, 115 V, 120 V
3-phase 3-wire, 1-phase 2-wire system
100 V, 110 V, 220 V
(3) Special secondary voltage
Periodic Monitoring Function
Power consumption can be measured in three individual intervals
(e.g., peak, off- peak and shoulder, etc.).
The time segments can be switched according to the setting via
communication or the digital input (DI).
(The time segments cannot be switched manually (button operation).) Power consumption
(period 1)
Power consumption
(period 2)
Power consumption
(period 3)
Rolling Demand Function
Rolling demand is the estimated power consumption in a specified period (interval).
For the block interval demand, select the duration (interval) of the block to be used for demand calculation.
qRolling block
Use rolling block to set the interval and sub-intervals from
1 min to 60 min (1 min interval). Rolling demand is
calculated and updated at the end of each sub-interval.
However, Present and predictive values are always
calculated.
wFixed block
Use fixed block to set the interval from 1 min to 60 min
(1 min interval). Rolling demand is calculated and updated
at the end of each interval. However, Present and predictive
values are always calculated.
(For fixed block, use the same time limits both of interval
and sub-interval).
<Example: Interval, 15 min; Sub-interval, 5 min>
<Rolling demand calculation>
Rolling demand is calculated when
the sub-interval has been
completed.
<Rolling demand display>
When an interval has been completed,
the rolling demand displayed is the
newest time limit value.
<Rolling demand calculation>
Rolling demand is calculated
when the sub-interval has been
completed.
<Rolling demand display>
When an interval has been completed,
the rolling demand displayed is the
newest time limit value.
<Example: Interval, 15 min; Sub-interval, 15 min>
Test Function
» A test function is provided to check the wiring for communication, alarm output/digital output, analog output and pulse output without input of voltage or current.
»
At the time of wiring test before shipment of the board and counter test for system validation on site, test signals can be output only by applying the auxiliary power.
Note: Depending on the optional unit and settings, the test function may not be available (may not be displayed).
qDisplay
»The same as for the operating mode, display patterns and other data are shown as set.
»Both maximum and minimum values can be displayed.
wCommunication data
»
Communication items and value are the same one on the display. The items value that are not displayed is 0 (zero).
»Measuring items set for alarm will be displayed at the time of an alarm.
»Digital input/output status can be monitored.
(1) Incorrect wiring pattern display function
Checking Input Wiring Support Function
(2) Incorrect Wiring Identification Support Display Function
ON
OFF
Output terminalStatus
Alarm
No alarm
Display
Closed
Open
Low voltage
Low current
Display
01
02
Content
Voltage unbalance
Incorrect connections
at multiple spots
Display
03
04
Content
qDisplay the output items.
wPress the +or –button to change the
analog output.
Note: Default value is 0%.
0 1 2 …49 50[pulse]
Note: Default value is 0 pulses.
Normal state When incorrect wiring
pattern cannot be detected
When phase 1 CT is
connected in reverse
Incorrectly connected spot is
displayed in blinking.
Incorrect wiring pattern No. is
displayed.
Note 1: When wiring of either one of the current/voltage terminals is
not correct, the incorrectly connected spot is easily
identified.
Note 2: Not all incorrect wirings can be identified. When the voltage
input is incorrectly connected and the current input is also
incorrectly connected, a different pattern of incorrect wiring
may be displayed.
Check by using the incorrect wiring
identification support display function.
»This function displays each phase angle (voltage phase 1 standard) of voltage and current, power values (W1, W2, W3) of each phase,
voltage value & current values to support identifying incorrect wirings. By knowing abnormality in the phase angle of voltage/current and
by comparing it with the normal value, you can more easily identify an incorrectly wired spot.
»Examples of screen displays of incorrect wiring identification support function.
»
Whether the voltage/current input wirings are correct or not is displayed.
As for the incorrect wiring display pattern, see the instruction manual.
Incorrectly wired
Display of phase angle (voltage) Display of phase angle (current) Display of electric power
Display of current Display of voltage
Normal wiring (in the case of 3-phase 4-wire system with power factor 1.0)
Display of phase angle (voltage) Display of phase angle (current) Display of electric power
Display of current Display of voltage
In the above cases,
①The current phase angle is 240° for Phase 1 and 0° for Phase 3.
②As electric power (W1/W3) is in negative value, it is judged based on the examples of
screen displays of incorrect wiring identification support function (See the instruction
manual) that phase 1 CT and phase 3 CT are connected in reverse.
7 8

Specifications
‡ME96SSHB-MB
Model name ME96SSHB-MB
Phase wire system 3-phase 4-wire, 3-phase 3-wire (3CT, 2CT), 1-phase 3-wire, 1-phase 2-wire (common use)
Rating
Current 5 A AC, 1 A AC (common use)
Voltage
3-phase 4-wire: max 277/480 V AC
3-phase 3-wire: (DELTA) max 220 V AC, (STAR) max 440 V AC
1-phase 3-wire: max 220/440 V AC
1-phase 2-wire: (DELTA) max 220 V AC, (STAR) max 440 V AC
Frequency 50/60 Hz (common use)
Item Measuring Item Class
Measuring
element
Current (A) A1, A2, A3, AN, AAVG
±0.1%Current demand (DA) DA1, DA2, DA3, DAN, DAAVG
Voltage (V) V12, V23, V31, VAVG (L-L), V1N, V2N, V3N, VAVG (L-N)
Active power (W) W1, W2, W3, ∑W
±0.2%
Reactive power (var) var1, var2,var3, ∑var
Apparent power (VA) VA1, VA2, VA3, ∑VA
Power factor (PF) PF1, PF2, PF3, ∑PF
Frequency (Hz) Hz ±0.1%
Active energy (Wh) Imported, Exported Class 0.5S (IEC62053-22)
Reactive energy (varh) Imported lag, Imported lead, Exported lag, Exported lead Class 1S (IEC62053-24)
Apparent energy (VAh) Imported + Exported ±2.0%
Harmonic current (HI) Total, 1st to 31st (Odd degree only) ±1.0%
Harmonic voltage (HV) Total, 1
st
to 31
st
(Odd degree only)
Rolling demand active power (DW)
Rolling block, Fixing block (Select either of them according to the settings.) ±0.2%
Rolling demand reactive power (Dvar)
Rolling block, Fixing block (Select either of them according to the settings.)
±1.0%
Rolling demand apparent power (DVA)
Rolling block, Fixing block (Select either of them according to the settings.)
Periodic active energy (Wh) Periodic active energy 1, Periodic active energy 2, Periodic active energy 3 Class 0.5S
Operating time (h) Operating time 1, Operating time 2 (Reference)
Current unbalance rate (Aunb) Aunb (Reference)
Voltage unbalance rate (Vunb) Vunb (Reference)
CO2equivalent kg (Reference)
Item Specifications
Measuring
Method
Instantaneous Value A, V: RMS value calculation; W, var, VA, Wh, varh, VAh: Digital multiplication;
PF: Power ratio calculation; Hz: Zero-cross; HI, HV: FFT
Demand Value DA: Thermal type calculation, DW, Dvar, DVA: Rolling demand calculation
Display
Display type LCD with LED backlight
Number of display digits or
segments Digital section
First to third line indication: 4 digits, Fourth line indication: 6 digits
A, DA, V, W, var, VA, PF, DW, Dvar, DVA: 4 digits; Hz: 3 digits;
Wh, varh, VAh: 9 digits (6-digit or 12-digit is also available.);
Harmonic distortion ratio/content rate: 4 digits; Harmonic RMS value: 4 digits;
Operating time: 6 digits; Digital input/output: I/O
Display update time interval 0.5 s, 1 s (selectable)
Communication MODBUS RTU communication
Built-in
logging
Logging mode Automatic overwrite update
Logging data type
Measuring data *1 Measuring data and time data are logged at the interval set at the data logging period. (15 min, 30 min,
60 min)
Alarm log Time data at alarm generating/cancellation and at waiting for alarm cancellation
The recorded time of the
Max/Min value Max/Min value data and time data
Number of logging items
Measuring data Integrated value data: 5 items, Data other than integrated value: 15 items, Total: A maximum of 20 items
Alarm log The number of the set alarms
The recorded time of the
Max/Min value
The total is 19 items: Current Max/Min (AVG), Line voltage Max/Min (AVG), Phase voltage Max/Min
(AVG), Total active power Max/Min (AVG), Total power factor Max/Min (AVG), Frequency Max/Min (AVG),
Total reactive power Max/Min, Total apparent power Max/Min, Total harmonic current RMS Max value,
Harmonic line voltage distortion ratio Max total, Harmonic phase voltage distortion ratio Max total
Internal memory logging period
Measuring data 30 days (Logging period: 15 minutes), 60 days (Logging period: 30 minutes), 120 days (Logging period:
60 minutes),
Alarm log 100 records
The recorded time of the
Max/Min value 1 record for every Max/Min value factor
System log data 100 records
Saving logging data Use of nonvolatile memory
How to acquire logging data Acquire the logging data via MODBUS®RTU Communication
Clock accuracy ± 1 minute per month, typical
Connectable Optional Plug-in Module ME-4210-SS96B, ME-0040C-SS96, ME-0052-SS96, ME-0000BU-SS96,
ME-0000MT-SS96, ME-0040MT2-SS96 *2
Power interruption backup
Use of nonvolatile memory (Items: settings, MAX/MIN value, active energy, reactive energy, apparent
energy, periodic active energy, rolling demand, operating time)
Built-in logging Use of nonvolatile memory (Logging data, System log data)
VA Consumption
Voltage circuit Each phase: 0.1 VA (at 110 V AC), 0.2 VA (at 220 V AC), 0.4 VA (at 440 V AC)
Current circuit Each phase: 0.1 VA
Auxiliary power circuit 13 VA (at 110 V AC), 14 VA (at 220 V AC), 9 W (at 100 V DC)
Auxiliary power 100 V to 240 V AC (±15%), 100 V to 240 V DC (-30% +15%)
Weight 0.5 kg
Dimensions 96 (H) × 96 (W) × 90 (D) mm
Mounting method Embedded
Operating temperature/humidity -5°C to +55°C (Daily average temperature: 35°C or less), 0% to 85% RH, Non condensing
Storage temperature/ humidity -25°C to +75°C (Daily average temperature: 35°C or less), 0% to 85% RH, Non condensing
Note 1. The class value represents the ratio to the rated value (100%).
Note 2. For measurement where the harmonic distortion ratio (content rate) is 100% or more, the class can exceed ±1.0%.
Note 3. Harmonic current cannot be measured without voltage input.
Note 4. Using the conventional ME-4210-SS96 (Optional Plug-in Module), the CE marking and UL standards safety certification requirements cannot be met.
*1: Integrated values (Wh, varh, and VAh) are measured values of ME96SS. They are not differential values by logging period.
*2: ME-0040MT2-SS96 is only applicable to ME96SSHB-MB with firmware version 01.01 or later.
9 10

Specifications
Model name ME96SSRB-MB
Phase wire system 3-phase 4-wire, 3-phase 3-wire (3CT, 2CT), 1-phase 3-wire, 1-phase 2-wire (common use)
Rating
Current 5 A AC, 1 A AC (common use)
Voltage
3-phase 4-wire: max 277/480 V AC
3-phase 3-wire: (DELTA) max 220 V AC, (STAR) max 440 V AC
1-phase 3-wire: max 220/440 V AC
1-phase 2-wire: (DELTA) max 220 V AC, (STAR) max 440 V AC
Frequency 50/60 Hz (common use)
Item Measurement items Class
Measuring
element
Current (A) A1, A2, A3, AN, AAVG
±0.2%Current demand (DA) DA1, DA2, DA3, DAN, DAAVG
Voltage (V) V12, V23, V31, VAVG (L-L), V1N, V2N, V3N, VAVG (L-N)
Active power (W) W1, W2, W3, ∑W
±0.5%
Reactive power (var) var1, var2,var3, ∑var
Apparent power (VA) VA1, VA2, VA3, ∑VA
Power factor (PF) PF1, PF2, PF3, ∑PF
Frequency (Hz) Hz ±0.1%
Active energy (Wh) Imported, Exported Class 0.5S (IEC62053-22)
Reactive energy (varh) Imported lag, Imported lead, Exported lag, Exported lead Class 1S (IEC62053-24)
Apparent energy (VAh) Imported + Exported ±2.0%
Harmonic current (HI) Total, 1
st
to 19
st
(Odd degree only) ±1.0%
Harmonic voltage (HV) Total, 1
st
to 19
st
(Odd degree only)
Rolling demand active power (DW)
Rolling block, Fixing block (Select either of them according to the settings.) ±0.5%
Rolling demand reactive power (Dvar)
Rolling block, Fixing block (Select either of them according to the settings.)
±1.0%
Rolling demand apparent power (DVA)
Rolling block, Fixing block (Select either of them according to the settings.)
Periodic active energy (Wh) Periodic active energy 1, Periodic active energy 2, Periodic active energy 3 Class 0.5S
Operating time (h) Operating time 1, Operating time 2 (Reference)
Current unbalance rate (Aunb) Aunb (Reference)
Voltage unbalance rate (Vunb) Vunb (Reference)
CO2equivalent kg (Reference)
Item Specifications
Measuring
Method
Instantaneous Value A, V: RMS value calculation; W, var, VA, Wh, varh, VAh: Digital multiplication;
PF: Power ratio calculation; Hz: Zero-cross; HI, HV: FFT
Demand Value DA: Thermal type calculation, DW, Dvar, DVA: Rolling demand calculation
Display
Display type LCD with LED backlight
Number of display digits or
segments Digital section
First to third line indication: 4 digits, Fourth line indication: 6 digits
A, DA, V, W, var, VA, PF, DW, Dvar, DVA: 4 digits; Hz: 3 digits;
Wh, varh, VAh: 9 digits (6-digit or 12-digit is also available.);
Harmonic distortion ratio/content rate: 4 digits; Harmonic RMS value: 4 digits;
Operating time: 6 digits; Digital input/output: I/O
Display update time interval 0.5 s, 1 s (selectable)
Communication MODBUS RTU communication
Built-in
logging
Logging mode Automatic overwrite update
Logging data type
Measuring data *1 Measuring data and time data are logged at the interval set at the data logging period. (15 min, 30 min,
60 min)
Alarm log Time data at alarm generating/cancellation and at waiting for alarm cancellation
The recorded time of the
Max/Min value Max/Min value data and time data
Number of logging items
Measuring data Integrated value data: 5 items, Data other than integrated value: 15 items, Total: A maximum of 20 items
Alarm log The number of the set alarms
The recorded time of the
Max/Min value
The total is 19 items: Current Max/Min (AVG), Line voltage Max/Min (AVG), Phase voltage Max/Min
(AVG), Total active power Max/Min (AVG), Total power factor Max/Min (AVG), Frequency Max/Min (AVG),
Total reactive power Max/Min, Total apparent power Max/Min, Total harmonic current RMS Max value,
Harmonic line voltage distortion ratio Max total, Harmonic phase voltage distortion ratio Max total
Internal memory logging period
Measuring data 30 days (Logging period: 15 minutes), 60 days (Logging period: 30 minutes), 120 days (Logging period:
60 minutes),
Alarm log 100 records
The recorded time of the
Max/Min value 1 record for every Max/Min value factor
System log data 100 records
Saving logging data Use of nonvolatile memory
How to acquire logging data Acquire the logging data via MODBUS®RTU Communication
Clock accuracy ± 1 minute per month, typical
Connectable Optional Plug-in Module ME-4210-SS96B, ME-0040C-SS96, ME-0052-SS96, ME-0000MT-SS96, ME-0000BU-SS96
Power interruption backup
Use of nonvolatile memory (Items: settings, MAX/MIN value, active energy, reactive energy, apparent
energy, periodic active energy, rolling demand, operating time)
Built-in logging Use of nonvolatile memory (Logging data, System log data)
VA Consumption
Voltage circuit Each phase: 0.1 VA (at 110 V AC), 0.2 VA (at 220 V AC), 0.4 VA (at 440 V AC)
Current circuit Each phase: 0.1 VA
Auxiliary power circuit 13 VA (at 110 V AC), 14 VA (at 220 V AC), 9 W (at 100 V DC)
Auxiliary power 100 V to 240 V AC (±15%), 100 V to 240 V DC (-30% +15%)
Weight 0.5 kg
Dimensions 96 (H) × 96 (W) × 90 (D) mm
Mounting method Embedded
Operating temperature/humidity -5°C to +55°C (Daily average temperature: 35°C or less), 0% to 85% RH, Non condensing
Storage temperature/ humidity -25°C to +75°C (Daily average temperature: 35°C or less), 0% to 85% RH, Non condensing
Note 1. The class value represents the ratio to the rated value (100%).
Note 2. For measurement where the harmonic distortion ratio (content rate) is 100% or more, the class can exceed ±1.0%.
Note 3. Harmonic current cannot be measured without voltage input.
Note 4. Using the conventional ME-4210-SS96 (Optional Plug-in Module), the CE marking and UL standards safety certification requirements cannot be met.
*1: Integrated values (Wh, varh, and VAh) are measured values of ME96SS. They are not differential values by logging period.
‡ME96SSRB-MB
9 10

Specifications
Model name ME96SSEB-MB
Phase wire system 3-phase 4-wire, 3-phase 3-wire (3CT, 2CT), 1-phase 3-wire, 1-phase 2-wire (common use)
Rating
Current 5 A AC, 1 A AC (common use)
Voltage
3-phase 4-wire: max 277/480 V AC
3-phase 3-wire: (DELTA) max 220 V AC, (STAR) max 440 V AC
1-phase 3-wire: max 220/440 V AC
1-phase 2-wire: (DELTA) max 220 V AC, (STAR) max 440 V AC
Frequency 50/60 Hz (common use)
Item Measuring Item Class
Measuring
element
Current (A) A1, A2, A3, AN, AAVG
±0.5%
Current demand (DA) DA1, DA2, DA3, DAN, DAAVG
Voltage (V) V12, V23, V31, VAVG (L-L), V1N, V2N, V3N, VAVG (L-N)
Active power (W) W1, W2, W3, ∑W
Reactive power (var) var1, var2,var3, ∑var
Apparent power (VA) VA1, VA2, VA3, ∑VA
Power factor (PF) PF1, PF2, PF3, ∑PF ±0.5%
Frequency (Hz) Hz ±0.2%
Active energy (Wh) Imported, Exported Class 0.5S (IEC62053-22)
Reactive energy (varh) Imported lag, Imported lead, Exported lag, Exported lead Class 1S (IEC62053-24)
Apparent energy (VAh) Imported + Exported ±2.0%
Harmonic current (HI) Total ±2.0%
Harmonic voltage (HV) Total
Operating time (h) Operating time 1, Operating time 2 (Reference)
Measuring
method
Instantaneous value A, V: RMS value calculation; W, var, VA, Wh, varh, VAh: Digital multiplication;
PF: Power ratio calculation; Hz: Zero-cross; HI, HV: FFT
Demand value DA: Thermal type calculation
Display
Display type LCD with LED backlight
The number of display digits or
The number of segments Digital section
First to Third line display: 4 digits, Fourth line display: 6 digits
A, DA, V, W, var, VA, PF: 4 digits; Hz: 3 digits;
Wh, varh, VAh: 9 digits (6-digit or 12-digit is also available.);
Harmonic distortion ratio/content rate: 4 digits; Harmonic RMS value: 4 digits;
Operating time: 6 digits
Display update time interval 0.5 s, 1 s (selectable)
Communication MODBUS RTU communication
Connectable Optional Plug-in Module Cannot connect optional module
Power interruption backup Use of nonvolatile memory (Items: settings, MAX/MIN value, active energy, reactive energy, apparent
energy, operating time)
VA consumption
Voltage circuit Each phase: 0.1 VA (at 110 V AC), 0.2 VA (at 220 V AC), 0.4 VA (at 440 V AC)
Current circuit Each phase: 0.1 VA
Auxiliary power circuit 4 VA (at 110 V AC), 5 VA (at 220 V AC), 3 W (at 100 V DC)
Auxiliary power 100 V to 240 V AC (±15%), 100 V to 240 V DC (-30% +15%)
Weight 0.3 kg
Dimensions 96 (H) × 96 (W) × 36 (D) mm
Mounting method Embedded
Operating temperature/humidity -5°C to +55°C (Daily average temperature: 35°C or less), 0% to 85% RH, Non condensing
Storage temperature/ humidity -25°C to +75°C (Daily average temperature: 35°C or less), 0% to 85% RH, Non condensing
Note 1. The class value is a percentage of rated value (100%).
Note 2. For harmonics measurement where distortion ratio (content rate) is 100% or more, it can exceed ±2.0%.
Note 3. When there is no voltage input, harmonic current cannot be measured.
‡ME96SSEB-MB
11 12

Specifications
‡Standards Compliance
Electromagnetic Compatibility
Emissions
Radiated Emission EN 61326-1 / EN 55011, CISPR 11
FCC Part15 Subpart B Class A
Conducted Emission EN 61326-1 / EN 55011, CISPR 11
FCC Part15 Subpart B Class A
Harmonics Measurement EN 61000-3-2
Flicker Meter Measurement EN 61000-3-3
Immunity
Electrostatic discharge Immunity EN 61326-1, EN IEC 61000-6-2 / EN 61000-4-2
Radio Frequency Electromagnetic field Immunity EN 61326-1, EN IEC 61000-6-2 / EN 61000-4-3
Electrical Fast Transient/Burst Immunity EN 61326-1, EN IEC 61000-6-2 / EN 61000-4-4
Surge Immunity EN 61326-1, EN IEC 61000-6-2 / EN 61000-4-5
Conducted Disturbances, Induced By Radio Frequency Fields Immunity EN 61326-1, EN IEC 61000-6-2 / EN 61000-4-6
Power Frequency Magnetic Field Immunity EN 61326-1, EN IEC 61000-6-2 / EN 61000-4-8
Voltage Dips and Short Interruptions EN 61326-1, EN IEC 61000-6-2 / EN 61000-4-11
Safety
Europe CE, as per EN 61010-1: 2010 (3rd Edition)
U.S. and Canada UL Recognized Component as per UL 61010-1, IEC 61010-1
Installation Category III
Measuring Category III
Pollution Degree 2
‡MODBUS RTU Communication Specifications
Item Specification
Interface RS-485 2-wire half-duplex transmission
Protocol RTU (binary data transfer)
Transmission method Asynchronous
Connection type Multi-point bus
Baud rate 2400, 4800, 9600, 19200, 38400 bps
Data bit 8
Stop bit 1, 2
Parity ODD, EVEN, NONE
Address 1 to 255 (0: for broadcast mode)
Distance 1,200 m (max)
Max. connectable units 31 units
Terminal Resistance 120 Ω1/2 W
Recommended Cable Shielded twisted-pair AWG 24 to 14
 For more information on data, please refer to the following document.
· Electronic Multi-Measuring Instrument ME series MODBUS Interface specifications…LSPM-0075
‡CC-Link Communication Specifications for optional plug-in module
Item Specification
No. of occupied stations 1 Station Remote device station
CC-Link version CC-Link Ver 1.10 / Ver 2.00
Baud rate 10 Mbps / 5 Mbps / 2.5 Mbps / 625 kbps / 156 kbps
Transmission method Broadcast polling system
Synchronous method Frame synchronous system
Encoding method NRZI
Transmission path format Bus format (EIA RS485)
Transmission format HDLC
Error control system CRC (X16 + X12 + X5+ 1)
Number of connectable units 42 units (max, remote device station)
Remote station numbers (station numbers) 1 to 64
 For CC-Link connection cables, please use the dedicated cables.
For information regarding dedicated cables, please refer to the CC-Link Partner Product Catalog published by the CC-Link Partner Association or CC-Link Partner Product
Information on the CC-Link Partner Association website (http://www.cc-link.org).
Notes 1. Dedicated CC-Link cables compatible with Ver. 1.00 cannot be used in tandem with dedicated CC-Link high-performance cables compatible with Ver. 1.00.
Notes 2. In the case of systems consisting of units compatible with Ver. 1.00, 1.10 or 2.00 used in tandem with Ver. 1.00 or 1.10 cables, Ver. 1.00 specifications will
apply for the maximum total cable length and length of cables between stations.
Notes 3. For terminal resistance, be sure to use 110 Ω±5% (1/2 W product) when using dedicated CC-Link cables or 130 Ω±5% (1/2 W product) when using dedicated
CC-Link high-performance cables.

For more information on data, please refer to the following document.
· Electronic Multi-Measuring Instrument programming manual (CC-Link)……………………………………………LEN080334
· Electronic Multi-Measuring Instrument programming manual (CC-Link)(For ver. 2 remote device station)…LEN130391
‡Input/Output Specifications for optional plug-in module
Item Specifications Optional Plug-in Module type
Analog output
Output specifications 4 mA to 20 mA
ME-4210-SS96B
Load resistance 600 Ωor less
Response time 1 second or less
(Hz: 2 seconds or less, HI, HV: 5 seconds or less)
Pulse/Alarm output
Switch type No-voltage a-contact
ME-4210-SS96BContact capacity 35 V DC, 0.1 A or less
Pulse width 0.125 s, 0.5 s, 1.0 s
Digital input (DI) Contact capacity 24 V DC (19 V DC to 30 V DC), 7 mA or less ME-4210-SS96B, ME-0040C-SS96,
ME-0052-SS96, ME-0040MT2-SS96B
Signal width 30 ms or more
Digital output (DO) Switch type No-voltage a-contact ME-0052-SS96
Contact capacity 35 V DC, 0.2 A or less
11 12

Specifications Operating Instructions
‡Functions
»LCD Functions
‡Set-up
»Set-up workflow (Example for ME96SSHB-MB)
»Button Functions
For correct measurement, it is necessary to set the primary voltage/current in the set-up mode.
Enter the setting mode from the operating mode and set the necessary items. Any items not set remain in the factory default.
Set-up menu End
Display
pattern
Phase wire
system
VT/direct
voltage
CT current
Frequency
Rolling demand
time limit
Curent demand
time limit
Set-up menu 1
MODBUS RTU
address
Communication
setting selection
MODBUS RTU
baud rate
MODBUS RTU
parity
MODBUS RTU
stop bit
Set-up menu 2
Active/Reactive
energy measurement
method
Harmonic
display
Unbalance
rate display
Set-up menu 3
Model
display
Version
display
Backlight
brightness
Backlight On/
auto Off
Display
update time
Analog
output 1
Analog
output 2
Analog
output 3
Analog
output 4
Output
limit
CC-Link
station No
CC-Link
baud rate
CC-Link version
setting
CC-Link
reset
Set-up menu 4
Upper/lower
limit alarm
element
Upper/lower
limit alarm
value
Alarm delay
time
Alarm reset
method
Motor starting
current delay
time
Backlight
blinking at
alarm
Pulse/alarm
output function
Pulse output
Set-up menu 5 Set-up menu 6
Periodic
active energy
display
Periodic active
energy changeover
setting
Rolling
demand
display
Rolling demand
time limit adj.
setting
Digital I/O
display
Digital input
reset method
Set-up menu 7
Operating time
display
Test mode
Operating time
count target
Operating time
threshold value
IEC mode
setting
CO
2
equivalent
display
CO
2
conversion
rate
Set-up menu 8 Setting value confirmation menu 9
End display
Cancel
display
<When ME-0040C-SS96 is installed>
<When ME-0000MT-SS96 or ME-0040MT2-SS96 is installed>
Optional
selection
Built-in
logging data
Clear
Built-in
logging
Use/nonuse
Built-in logging
item pattern
Built-in
logging period
interval
Logging ID
Logging data
Clear
Logging
item pattern
Detail data
logging period
interval
<When ME-4210-SS96B is installed>
<When ME-4210-SS96B, ME-0052-SS96,
ME-0040C-SS96 or ME-0040MT2-SS96 is installed>
<When ME-4210-SS96B is installed>
<When ME-0000BU-SS96 is installed>
MODBUS TCP
IP address
MODBUS TCP
subnet mask
MODBUS TCP
use/nonuse of
default gateway
MODBUS TCP
default gateway
MODBUS TCP
reset
1 2 3
4
6
13
121110987
5
Functions Button operation Functions
Basic performance
Button operation
Used to set items such as primary voltage and
current, and to choose setting items
Push for
2 seconds
Push for
2 seconds
Push for
2 seconds
Push for
2 seconds
Push for
1 seconds
Used to reset Wh, varh, and VAh to zero by
concurrently pushing for 2 seconds
Used to perform fast-forward or fast-return of
numerical values in numerical value setting
Used to perform batch reset of all the
max/min values
Used to change Wh, etc. to another unit and
to low order zoom display
Used to switch display between setting
Used to switch display between max/min values and
instantaneous value
Used to change over phase
Used to change over the display screen
Used to switch display between manual
phase change ⇔cyclic phase change
Used to switch display between manual
display change ⇔cyclic display change
or
MAX/MIN
PHASE
DISPLAY
DISPLAY
PHASE
RESET
SET RESET PHASE
+
or
+ +
+
SET
Special performance
Note. An example. For details, refer to the user’s manual.
Change/
Confirm
values set
Enter
set-up
mode
Enter setting value
confirmation mode
Measurement screen
Notes 1. Basic measurements are possible by adjusting settings in the menu 1
( area enclosed by dotted line).
Notes 2. Item settings vary depending on the model.
Notes 3. Setting confirmation menu 9 (test mode) is not displayed in the setting mode.
Operation (function) details
Access set-up mode from operating mode
Access setting value confirmation
mode from operating mode
Save settings and return to operating mode
Select set-up menu
Move to next screen
Return to previous setting item
Skip remaining settings
Select cancel
Button operation
Simultaneously press for 2 s
Press for 2 s
Press for 1 s
Symbol
+
or
or
DISPLAY
SET
SET
RESET
SET
SET
SET
‡MODBUS TCP Communication Specifications for optional plug-in module
Item Specification
Ethernet port 10BASE-T/100BASE-TX
Transmission method Base band
Maximum segment length 100 m
Connector applicable for external wiring RJ45
Cable
10BASE-T Cable compliant with IEEE802.3 10BASE-T standard
(Unshielded twisted pair cable (UTP cable), category 3 or higher)
100BASE-TX Cable compliant with IEEE802.3 100BASE-TX standard
(Shielded twisted pair cable (STP cable), category 5 or higher)
Protocol MODBUS TCP (Port No.502)
Number of simultaneously connection *1 Max. 4
Support functions Auto-negotiation function (automatic recognition of 10BASE-T/100BASE-TX)
Auto-MDIX function (automatic recognition of straight cable/cross cable)
*1: Indicates the number of TCP connections that can be established simultaneously.

For more information on data, please refer to the following document.
Electronic Multi-Measuring Instrument ME series MODBUS Interface specifications…LSPM-0075
‡Logging Specifications for optional plug-in module
Item Specification
Logging mode Automatic updating by overwriting (not provided with a function to automatically start according to the start time
setting)
Kinds of logging data
Detailed data
Measurement data is stored at the specified “detailed data logging interval” (1 min, 5 min, 10 min, 15 min or
30 min).
Note: The data will be output as a detailed data file.
Note: As the integrated values, not the difference values, but the values displayed on the multi indicating
instrument will be output.
1-hour data
Measurement data is stored at a one-hour interval.
Note: The data will be output as a one-hour data file or a one-day data file.
Note: As the integrated values, not the difference values, but the values displayed on the multi indicating
instrument will be output.
Number of logging
items
Detailed data Max. 6 items
1-hour data Max. 6 items
Internal memory
logging period
Detailed data
Detailed data logging interval: 1 min for 2 days
Detailed data logging interval: 5 min for 10 days
Detailed data logging interval: 10 min for 20 days
Detailed data logging interval: 15 min for 30 days
Detailed data logging interval: 30 min for 60 days
1-hour data 400 days (about 13 months)
SD memory card (2 GB) logging period 10 years or more
System log data 1200 records
Logging data / system log data output
format CSV format (ASCII code)
Power failure compensation
Backup by built-in lithium battery
Total power interruption backup time: 5 years (at daily average temperature of 35°C or less)
(The life of the lithium battery is 10 years (at a daily average temperature of 35°C or less).)
The battery cannot be replaced by the customer. Please consider updating the module.
Set
values
(
logging ID, logging items and
detailed data logging interval
)
Stored in FRAM (non-volatile memory)
Note: The data will not be deleted even if power interruption is caused by battery voltage drop (BAT. LED is on).
Logging data and system log data Stored in SRAM (volatile memory)
Note: The data will be deleted if power interruption is caused by battery voltage drop (BAT. LED is on).
Clock operation Note: The clock operation will stop if power interruption is caused by battery voltage drop (BAT. LED is on).
After power restoration, the clock operation will start from 00:00 on Jan. 1, 2016.
Clock accuracy ± 1 minute per month, typical
Output data storage medium SD memory card (SD or SDHC)
Optional accessory SD memory card (EMU4-SD2GB) *1
*1: Be sure to use a SD memory card, EMU4-SD2GB, manufactured by Mitsubishi Electric Corporation. Using a SD memory card not manufactured by Mitsubishi Electric
Corporation may cause a trouble such as data corruption in the card or system stop. Regarding the use of commercially available SD memory cards, access our FA website.
Note that the customer is responsible for verifying safe use of those SD memory cards.

For more information on data, please refer to the following document.
Logging specifications…LSPM-0092
Model: EMU4-SD2GB
13 14

Specifications Operating Instructions
‡Functions
»LCD Functions
‡Set-up
»Set-up workflow (Example for ME96SSHB-MB)
»Button Functions
For correct measurement, it is necessary to set the primary voltage/current in the set-up mode.
Enter the setting mode from the operating mode and set the necessary items. Any items not set remain in the factory default.
Set-up menu End
Display
pattern
Phase wire
system
VT/direct
voltage
CT current
Frequency
Rolling demand
time limit
Curent demand
time limit
Set-up menu 1
MODBUS RTU
address
Communication
setting selection
MODBUS RTU
baud rate
MODBUS RTU
parity
MODBUS RTU
stop bit
Set-up menu 2
Active/Reactive
energy measurement
method
Harmonic
display
Unbalance
rate display
Set-up menu 3
Model
display
Version
display
Backlight
brightness
Backlight On/
auto Off
Display
update time
Analog
output 1
Analog
output 2
Analog
output 3
Analog
output 4
Output
limit
CC-Link
station No
CC-Link
baud rate
CC-Link version
setting
CC-Link
reset
Set-up menu 4
Upper/lower
limit alarm
element
Upper/lower
limit alarm
value
Alarm delay
time
Alarm reset
method
Motor starting
current delay
time
Backlight
blinking at
alarm
Pulse/alarm
output function
Pulse output
Set-up menu 5 Set-up menu 6
Periodic
active energy
display
Periodic active
energy changeover
setting
Rolling
demand
display
Rolling demand
time limit adj.
setting
Digital I/O
display
Digital input
reset method
Set-up menu 7
Operating time
display
Test mode
Operating time
count target
Operating time
threshold value
IEC mode
setting
CO
2
equivalent
display
CO
2
conversion
rate
Set-up menu 8 Setting value confirmation menu 9
End display
Cancel
display
<When ME-0040C-SS96 is installed>
<When ME-0000MT-SS96 or ME-0040MT2-SS96 is installed>
Optional
selection
Built-in
logging data
Clear
Built-in
logging
Use/nonuse
Built-in logging
item pattern
Built-in
logging period
interval
Logging ID
Logging data
Clear
Logging
item pattern
Detail data
logging period
interval
<When ME-4210-SS96B is installed>
<When ME-4210-SS96B, ME-0052-SS96,
ME-0040C-SS96 or ME-0040MT2-SS96 is installed>
<When ME-4210-SS96B is installed>
<When ME-0000BU-SS96 is installed>
MODBUS TCP
IP address
MODBUS TCP
subnet mask
MODBUS TCP
use/nonuse of
default gateway
MODBUS TCP
default gateway
MODBUS TCP
reset
1 2 3
4
6
13
121110987
5
Functions Button operation Functions
Basic performance
Button operation
Used to set items such as primary voltage and
current, and to choose setting items
Push for
2 seconds
Push for
2 seconds
Push for
2 seconds
Push for
2 seconds
Push for
1 seconds
Used to reset Wh, varh, and VAh to zero by
concurrently pushing for 2 seconds
Used to perform fast-forward or fast-return of
numerical values in numerical value setting
Used to perform batch reset of all the
max/min values
Used to change Wh, etc. to another unit and
to low order zoom display
Used to switch display between setting
Used to switch display between max/min values and
instantaneous value
Used to change over phase
Used to change over the display screen
Used to switch display between manual
phase change ⇔cyclic phase change
Used to switch display between manual
display change ⇔cyclic display change
or
MAX/MIN
PHASE
DISPLAY
DISPLAY
PHASE
RESET
SET RESET PHASE
+
or
+ +
+
SET
Special performance
Note. An example. For details, refer to the user’s manual.
Change/
Confirm
values set
Enter
set-up
mode
Enter setting value
confirmation mode
Measurement screen
Notes 1. Basic measurements are possible by adjusting settings in the menu 1
( area enclosed by dotted line).
Notes 2. Item settings vary depending on the model.
Notes 3. Setting confirmation menu 9 (test mode) is not displayed in the setting mode.
Operation (function) details
Access set-up mode from operating mode
Access setting value confirmation
mode from operating mode
Save settings and return to operating mode
Select set-up menu
Move to next screen
Return to previous setting item
Skip remaining settings
Select cancel
Button operation
Simultaneously press for 2 s
Press for 2 s
Press for 1 s
Symbol
+
or
or
DISPLAY
SET
SET
RESET
SET
SET
SET
No. Name of each part Function
1 LEAD status Light up when leading reactive energy is measured
2 LAG status Light up when lagging reactive energy is measured
3 Built-in logging status Light up when the built-in logging function is operating
4 Digital element display Display measuring elements expressed in digital numbers
5 Digital display Display measured values in digital numbers
6 Unit Display the units of measured values
7 Setup status Light up in the setting mode
Blink in the setting confirmation mode
8 Test mode status Light up in the test mode
9 Clock status Light up when the date and time are set
10 Upper/lower limit alarm status Blink when the upper/lower limit alarm is generating
11 Communication/
Option logging status
Specification ON Blink OFF
CC-Link
communication Normal CC-Link version mismatches,
Hardware abnormality
Hardware
abnormality
MODBUS RTU communication
MODBUS TCP communication
Normal Communication error such as
wrong address *1
Hardware
abnormality
Logging function Normal
Error occurrence such as
setting abnormality, SD
memory card error, or battery
voltage drop *1
Hardware
abnormality
*1. For details, refer to User’s Manual.
12 Harmonics status Light up when harmonic is displayed
13 Metering status Blink when Imported active energy is measured *Note 1
*It appears on the imported active energy display screen only
Note 1. The blinking cycle is constant regardless of measuring input size.
13 14

Operating Instructions
»Basic Set-up Operations
(1) When set to 3-phase 4-wire system
Set-up menu 1: Basic settings (set phase wire system, display pattern, Using VT/direct input, CT primary current, etc.)
(2) When set to other than 3-phase 4-wire system
*For 1-phase 2-wire system, P02 is not selectable.
Set-up menu
qPhase/Wire system
wDisplay pattern
eVT/Direct voltage
DISPLAY SET
DISPLAY
SET
DISPLAY SET
DISPLAY SET
Adjust the set-up menu No. to “1”.
qSet the phase/wire system according to the number
of measurement circuits targeted.
wSet the display pattern
: Can be displayed with this setting only
: Other settings are required to display data
: Select P00 and set display order and position
Set-up menu 2: MODBUS RTU Communication settings
(When ME-0040C-SS96, ME-0000MT-SS96 and ME-0040MT2-SS96 are not installed)
To access the setting mode, press and hold the and buttons down at the same
time for 2 s. Press the button to display the items to be set, and the and buttons,
set the details. To save setting for each setting menu, press the button when the End
screen is displayed.
SET
SET
RESET
SET
The underlined setting parameters are
the initial value.
3P4: 3-phase 4-wire system
3P3. 2Ct: 3-phase 3-wire system (2CT)
3P3. 3Ct: 3-phase 3-wire system (3CT)
1P3. 1n2: 1-phase 3-wire system (1N2 display)
1P3. 1n3: 1-phase 3-wire system (1N3 display)
1P2: 1-phase 2-wire system
eSet VT
For direct measurement (without VT) => To select no, press and see (1) below.
For measurement with VT => To select yES, press and see (2) below.
·To set 3-phase 4-wire
·To set 3-phase 3-wire or 1-phase 2-wire
(1) For direct measurement (without VT)
(a) 3-phase 4-wire setting (phase voltage/line voltage)
(b) 3-phase 3-wire (2CT, 3CT) or 1-phase 2-wire setting (line voltage)
(c) 1-phase 3-wire setting (1N2, 1N3) (phase voltage/line voltage)
SET
SET
63.5/110 V 100/173 V 110/190 V 220/380 V 230/400 V 240/415 V 254/440 V 277/480 V
no yES
yES no
110 V 220 V 440 V
110/220 V 220/440 V
<For 1-phase 3-wire setting for qPhase/Wire system >
Only used for direct measurements.
Skipped for this setting.
e
e(1)
u
y
t
r
e(2)
eVT/Direct voltage
rCT current
DISPLAY SET
DISPLAY SET
tFrequency
DISPLAY SET
yRolling demand time
limit
DISPLAY SET
uCurrent demand time
limit
SET
Set-up menu
(2) For measurement with VT
<Secondary voltage settings>
(a) 3-phase 4-wire setting (phase voltage)
(b) 3-phase 3-wire (2CT, 3CT) or 1-phase 2-wire setting (line voltage)
<Set primary voltage>
The setting ranges from 60 V to 750,000 V (setting unit: V)
rSet CT.
Set the primary and secondary currents of the CT to be combined.
<Set secondary current>
1 A 5 A
<Set primary current>
The setting ranges from 1.0 A to 30,000.0A (setting unit: A)
tSet frequency.
50 Hz 60 Hz
Notes1. Analog output scale will also change.
ySet the rolling demand interval time limit (Only ME96SSHB-MB and ME96SSRB-MB).
(1) Interval time limit
(2) Sub-interval time limit
uSet the current demand time limit.
Select another set-up menu or finish set-up.
63.5 V 100 V 110 V 115 V 120 V
100V 110 V 220 V
Factory default settings
3-phase 4-wire: 200 V (phase voltage)
3-phase 3-wire; 1-phase 2-wire: 10,000 V (line voltage)
Factory default setting: 5.0 A
Setting range
1 - 15 - 60 (min)
Setting interval
1 min
Setting range
1 - 60 (min)
Setting interval
1 min
0 s
10 s
20 s
30 s
40 s
50 s
1 min
2 min
3 min
4 min
5 min
6 min
7 min
8 min
9 min
10 min
15 min
20 min
25 min
30 min
‡To continue to set-up
Select the menu No.
using the or button.
‡To finish set-up
Press the or button
to display the End screen,
then press the button
to save the settings.
SET
Set-up menu
DISPLAY SET
DISPLAY SET
DISPLAY SET
wMODBUS RTU
Baud rate
qMODBUS RTU
communication address
Adjust the set-up menu No. to “2”.
qSet MODBUS RTU communication address
Possible address settings: 1-255
wSet the MODBUS RTU communication baud rate.
2400 bps
4800 bps
9600 bps
19.2 kbps
38.4 kbps
w
q
w
q
Refer to “■Display Pattern Contents” on page 26 for the detailed
elements to be displayed.
P01
P02
P00
CO2Equivalent
Operating Time Digital Input/output status Unbalance Rate Harmonic Current/Voltage Rolling Demand Periodic Active Energy Apparent Energy Reactive Energy (Special) Active Energy (Exported) Active Energy (Imported)
Apparent Energy Reactive Energy (Imported lag) Active Energy (Exported) Active Energy (Imported) Frequency Apparent Power Reactive Power Power Factor Active Power Voltage N Phase Current demand Current demand N Phase Current Current
Additional Screen
Display Pattern
P01
P02
P00
Additional Screen
Display Pattern
CO2Equivalent
Operating Time Digital Input/output Status Unbalance Rate Harmonic Current/Voltage Rolling Demand Periodic Active Energy Apparent Energy Reactive Energy (Special) Active Energy (Exported) Active Energy (Imported)
Apparent Energy Reactive Energy (Imported lag) Active Energy (Exported) Active Energy (Imported) Frequency Apparent Power Reactive Power Power Factor Active Power Voltage Current demand Current
15 16

Operating Instructions
»Basic Set-up Operations
(1) When set to 3-phase 4-wire system
Set-up menu 1: Basic settings (set phase wire system, display pattern, Using VT/direct input, CT primary current, etc.)
(2) When set to other than 3-phase 4-wire system
*For 1-phase 2-wire system, P02 is not selectable.
Set-up menu
qPhase/Wire system
wDisplay pattern
eVT/Direct voltage
DISPLAY SET
DISPLAY
SET
DISPLAY SET
DISPLAY SET
Adjust the set-up menu No. to “1”.
qSet the phase/wire system according to the number
of measurement circuits targeted.
wSet the display pattern
: Can be displayed with this setting only
: Other settings are required to display data
: Select P00 and set display order and position
Set-up menu 2: MODBUS RTU Communication settings
(When ME-0040C-SS96, ME-0000MT-SS96 and ME-0040MT2-SS96 are not installed)
To access the setting mode, press and hold the and buttons down at the same
time for 2 s. Press the button to display the items to be set, and the and buttons,
set the details. To save setting for each setting menu, press the button when the End
screen is displayed.
SET
SET
RESET
SET
The underlined setting parameters are
the initial value.
3P4: 3-phase 4-wire system
3P3. 2Ct: 3-phase 3-wire system (2CT)
3P3. 3Ct: 3-phase 3-wire system (3CT)
1P3. 1n2: 1-phase 3-wire system (1N2 display)
1P3. 1n3: 1-phase 3-wire system (1N3 display)
1P2: 1-phase 2-wire system
eSet VT
For direct measurement (without VT) => To select no, press and see (1) below.
For measurement with VT => To select yES, press and see (2) below.
·To set 3-phase 4-wire
·To set 3-phase 3-wire or 1-phase 2-wire
(1) For direct measurement (without VT)
(a) 3-phase 4-wire setting (phase voltage/line voltage)
(b) 3-phase 3-wire (2CT, 3CT) or 1-phase 2-wire setting (line voltage)
(c) 1-phase 3-wire setting (1N2, 1N3) (phase voltage/line voltage)
SET
SET
63.5/110 V 100/173 V 110/190 V 220/380 V 230/400 V 240/415 V 254/440 V 277/480 V
no yES
yES no
110 V 220 V 440 V
110/220 V 220/440 V
<For 1-phase 3-wire setting for qPhase/Wire system >
Only used for direct measurements.
Skipped for this setting.
e
e(1)
u
y
t
r
e(2)
eVT/Direct voltage
rCT current
DISPLAY SET
DISPLAY SET
tFrequency
DISPLAY SET
yRolling demand time
limit
DISPLAY SET
uCurrent demand time
limit
SET
Set-up menu
(2) For measurement with VT
<Secondary voltage settings>
(a) 3-phase 4-wire setting (phase voltage)
(b) 3-phase 3-wire (2CT, 3CT) or 1-phase 2-wire setting (line voltage)
<Set primary voltage>
The setting ranges from 60 V to 750,000 V (setting unit: V)
rSet CT.
Set the primary and secondary currents of the CT to be combined.
<Set secondary current>
1 A 5 A
<Set primary current>
The setting ranges from 1.0 A to 30,000.0A (setting unit: A)
tSet frequency.
50 Hz 60 Hz
Notes1. Analog output scale will also change.
ySet the rolling demand interval time limit (Only ME96SSHB-MB and ME96SSRB-MB).
(1) Interval time limit
(2) Sub-interval time limit
uSet the current demand time limit.
Select another set-up menu or finish set-up.
63.5 V 100 V 110 V 115 V 120 V
100V 110 V 220 V
Factory default settings
3-phase 4-wire: 200 V (phase voltage)
3-phase 3-wire; 1-phase 2-wire: 10,000 V (line voltage)
Factory default setting: 5.0 A
Setting range
1 - 15 - 60 (min)
Setting interval
1 min
Setting range
1 - 60 (min)
Setting interval
1 min
0 s
10 s
20 s
30 s
40 s
50 s
1 min
2 min
3 min
4 min
5 min
6 min
7 min
8 min
9 min
10 min
15 min
20 min
25 min
30 min
‡To continue to set-up
Select the menu No.
using the or button.
‡To finish set-up
Press the or button
to display the End screen,
then press the button
to save the settings.
SET
Set-up menu
DISPLAY SET
DISPLAY SET
DISPLAY SET
wMODBUS RTU
Baud rate
qMODBUS RTU
communication address
Adjust the set-up menu No. to “2”.
qSet MODBUS RTU communication address
Possible address settings: 1-255
wSet the MODBUS RTU communication baud rate.
2400 bps
4800 bps
9600 bps
19.2 kbps
38.4 kbps
w
q
w
q
Refer to “■Display Pattern Contents” on page 26 for the detailed
elements to be displayed.
P01
P02
P00
CO2Equivalent
Operating Time Digital Input/output status Unbalance Rate Harmonic Current/Voltage Rolling Demand Periodic Active Energy Apparent Energy Reactive Energy (Special) Active Energy (Exported) Active Energy (Imported)
Apparent Energy Reactive Energy (Imported lag) Active Energy (Exported) Active Energy (Imported) Frequency Apparent Power Reactive Power Power Factor Active Power Voltage N Phase Current demand Current demand N Phase Current Current
Additional Screen
Display Pattern
P01
P02
P00
Additional Screen
Display Pattern
CO2Equivalent
Operating Time Digital Input/output Status Unbalance Rate Harmonic Current/Voltage Rolling Demand Periodic Active Energy Apparent Energy Reactive Energy (Special) Active Energy (Exported) Active Energy (Imported)
Apparent Energy Reactive Energy (Imported lag) Active Energy (Exported) Active Energy (Imported) Frequency Apparent Power Reactive Power Power Factor Active Power Voltage Current demand Current
15 16

Operating Instructions
Set-up menu 2: CC-Link Communication settings (when ME-0040C-SS96 is installed)
* Only for ME96SSHB-MB or ME96SSRB-MB, it is applicable.
Set-up menu
DISPLAY SET
DISPLAY SET
q Communication setting
selection
Adjust the set-up menu No. to “2”.
Set-up menu 2: MODBUS TCP Communication settings (when ME-0000MT-SS96 *1 or ME-0040MT2-SS96 *2 is installed)
*1 Only for ME96SSHB-MB or ME96SSRB-MB, it is applicable.
*2 Only for ME96SSHB-MB, it is applicable.
DISPLAY
SET
SET
Set-up menu
tReset communication
rSet CC-Link
communication version
yReset communication
DISPLAY
SET
DISPLAY SET
wCC-Link communication
station number
eCC-Link communication
baud rate eSet the CC-Link communication speed.
w
DISPLAY SET
Set-up menu
eMODBUS RTU
communication parity
DISPLAY SET
rMODBUS RTU
communication stop bit
eSet the MODBUS RTU communication parity.
rSet the MODBUS RTU communication stop bit.
Stop bit 1 Stop bit 2
Select another set-up menu or end set-up.
non
odd
even (EVEn)
<Continued from previous page>
DISPLAY SET
DISPLAY SET
DISPLAY SET
w MODBUS TCP
communication IP address
r Use/non-use of MODBUS
TCP communication default
gateway
DISPLAY SET
e MODBUS TCP
communication subnet mask
DISPLAY SET
DISPLAY SET
SET
t MODBUS TCP
communication default gateway
‡To continue to set-up
Select the menu
No. using the or
button.
‡To finish set-up
Press the or button
to display the End screen,
then press the
button to save settings.
SET
Select another set-up menu or end set-up.
‡To continue to set-up
Select the menu
No. using the or
button.
‡To finish set-up
Press the or button
to display the End screen,
then press the
button to save settings.
SET
When “MODBUS RTU communication” is selected, set the communication conditions
as stated in and after qMODBUS RTU communication address on page 16.
wSet the CC-Link communication station number.
156 kbps
625 kbps
2.5 Mbps
5 Mbps
10 Mbps
rSet the CC-Link communication version.
Version 1.10 Version 2.00
tSet to “on” if changes have been made to the CC-Link settings.
(If not set to “on,” changes will not be effective.)
e
r
e
q
r
t
qSelect CC-Link or MODBUS RTU communication.
CC : CC-Link communication
Mb. rtu : MODBUS RTU communication
Set-up menu Adjust the set-up menu No. to “2”.
q
Communication setting
selection
When “MODBUS RTU communication” is selected, set the communication conditions
as stated in and after qMODBUS RTU communication address on page 16.
qSelect MODBUS TCP communication or MODBUS RTU communication.
Mb.tcp : MODBUS TCP communication
Mb.rtu : MODBUS RTU communication
wSet the IP address of MODBUS TCP communication.
eSet the sub-net mask of MODBUS TCP communication.
Select one of the sub-net masks shown in the following table.
(Non-use) (Use)
Allowable IP addresses:
000.000.000.000 - 192.168.3.10 - 255.255.255.255
rDetermine whether or not to use the default gateway of MODBUS TCP communication.
tSet the default gateway of MODBUS TCP communication.
When the default gateway is not used, this window is not displayed.
Allowable default gateways:
000.000.000.000 - 127.0.0.1 - 255.255.255.255
yIf settings relating to MODBUS TCP communication have been changed,
turn on this item.
(If it is not turned on, the changes will not be enabled.)
oFF on
oFF on
Set-up menu Select another set-up menu or end set-up.
‡To continue to set-up
Select the menu
No. using the or
button.
‡To finish set-up
Press the or button
to display the End screen,
then press the
button to save settings.
SET
oFF on
Possible station number settings: 1-64
w
e
q
r
t
y
17 18

Operating Instructions
Set-up menu 2: CC-Link Communication settings (when ME-0040C-SS96 is installed)
* Only for ME96SSHB-MB or ME96SSRB-MB, it is applicable.
Set-up menu
DISPLAY SET
DISPLAY SET
q Communication setting
selection
Adjust the set-up menu No. to “2”.
Set-up menu 2: MODBUS TCP Communication settings (when ME-0000MT-SS96 *1 or ME-0040MT2-SS96 *2 is installed)
*1 Only for ME96SSHB-MB or ME96SSRB-MB, it is applicable.
*2 Only for ME96SSHB-MB, it is applicable.
DISPLAY
SET
SET
Set-up menu
tReset communication
rSet CC-Link
communication version
yReset communication
DISPLAY
SET
DISPLAY SET
wCC-Link communication
station number
eCC-Link communication
baud rate eSet the CC-Link communication speed.
w
DISPLAY SET
Set-up menu
eMODBUS RTU
communication parity
DISPLAY SET
rMODBUS RTU
communication stop bit
eSet the MODBUS RTU communication parity.
rSet the MODBUS RTU communication stop bit.
Stop bit 1 Stop bit 2
Select another set-up menu or end set-up.
non
odd
even (EVEn)
<Continued from previous page>
DISPLAY SET
DISPLAY SET
DISPLAY SET
w MODBUS TCP
communication IP address
r Use/non-use of MODBUS
TCP communication default
gateway
DISPLAY SET
e MODBUS TCP
communication subnet mask
DISPLAY SET
DISPLAY SET
SET
t MODBUS TCP
communication default gateway
‡To continue to set-up
Select the menu
No. using the or
button.
‡To finish set-up
Press the or button
to display the End screen,
then press the
button to save settings.
SET
Select another set-up menu or end set-up.
‡To continue to set-up
Select the menu
No. using the or
button.
‡To finish set-up
Press the or button
to display the End screen,
then press the
button to save settings.
SET
When “MODBUS RTU communication” is selected, set the communication conditions
as stated in and after qMODBUS RTU communication address on page 16.
wSet the CC-Link communication station number.
156 kbps
625 kbps
2.5 Mbps
5 Mbps
10 Mbps
rSet the CC-Link communication version.
Version 1.10 Version 2.00
tSet to “on” if changes have been made to the CC-Link settings.
(If not set to “on,” changes will not be effective.)
e
r
e
q
r
t
qSelect CC-Link or MODBUS RTU communication.
CC : CC-Link communication
Mb. rtu : MODBUS RTU communication
Set-up menu Adjust the set-up menu No. to “2”.
q Communication setting
selection
When “MODBUS RTU communication” is selected, set the communication conditions
as stated in and after qMODBUS RTU communication address on page 16.
qSelect MODBUS TCP communication or MODBUS RTU communication.
Mb.tcp : MODBUS TCP communication
Mb.rtu : MODBUS RTU communication
wSet the IP address of MODBUS TCP communication.
eSet the sub-net mask of MODBUS TCP communication.
Select one of the sub-net masks shown in the following table.
(Non-use) (Use)
Allowable IP addresses:
000.000.000.000 - 192.168.3.10 - 255.255.255.255
rDetermine whether or not to use the default gateway of MODBUS TCP communication.
tSet the default gateway of MODBUS TCP communication.
When the default gateway is not used, this window is not displayed.
Allowable default gateways:
000.000.000.000 - 127.0.0.1 - 255.255.255.255
yIf settings relating to MODBUS TCP communication have been changed,
turn on this item.
(If it is not turned on, the changes will not be enabled.)
oFF on
oFF on
Set-up menu Select another set-up menu or end set-up.
‡To continue to set-up
Select the menu
No. using the or
button.
‡To finish set-up
Press the or button
to display the End screen,
then press the
button to save settings.
SET
oFF on
Possible station number settings: 1-64
w
e
q
r
t
y
(1) 128.0.0.0 (9) 255.128.0.0 (17) 255.255.128.0 (25) 255.255.255.128
(2) 192.0.0.0 (10) 255.192.0.0 (18) 255.255.192.0 (26) 255.255.255.192
(3) 224.0.0.0 (11) 255.224.0.0 (19) 255.255.224.0 (27) 255.255.255.224
(4) 240.0.0.0 (12) 255.240.0.0 (20) 255.255.240.0 (28) 255.255.255.240
(5) 248.0.0.0 (13) 255.248.0.0 (21) 255.255.248.0 (29) 255.255.255.248
(6) 252.0.0.0 (14) 255.252.0.0 (22) 255.255.252.0 (30) 255.255.255.252
(7) 254.0.0.0 (15) 255.254.0.0 (23) 255.255.254.0
(8) 255.0.0.0 (16) 255.255.0.0 (24) 255.255.255.0
17 18

Operating Instructions
Set-up menu 3: Display settings (active energy, harmonics measurement, etc.)
DISPLAY
SET
Set-up menu
SET
Set-up menu
wHarmonic display
w
DISPLAY SET
eUnbalance rate display
DISPLAY SET
<Example display screens>
Combination I
: Imported : Exported : varh (lead) : varh (lag)
Combination II Combination III Combination IV
qActive/Reactive energy
measurement method
Set-up menu 6: Built-in logging settings
* Only for ME96SSHB-MB, ME96SSRB-MB, it is applicable.
Adjust the set-up menu No. to “3”.
qSet the display combination for imported/exported and lag/lead of active/reactive energy and
the measurement method for reactive energy.
Combinations I, II => Suitable for measurement in facilities not equipped with in-house generators,
and measuring reactive power of capacitor load, where power factor is around zero generally.
Combinations III, IV => Suitable for measurements in facilities equipped with in-house generators.
Imported Exported Lag Lead Lag Lead
Reactive energy
measurement
method
2 Quadrants Measurement
4 Quadrants Measurement
Combinations
(set value)
I
II
III
IV
Display combinations
Wh varh
Imported Exported
wSet whether to display the harmonic measured value.
on oFF
(Display) (Not display)
When you set to “on (Display)”, harmonic measured values are displayed on
the additional screen of display pattern.
Select another set-up menu or end set-up
Adjust the set-up menu No. to “6”. (See the drawing on the right)
Clears logging data stored in the main body
‡To continue to set-up
Select the menu
No. using the or button.
‡To finish set-up
Press the or button
to display the End screen,
then press the button
to save settings.
SET
DISPLAY
SET
DISPLAY
SET
Set-up menu
no yES
(Not clear) (Clear)
When yES (Clear) is selected above, the confirmation screen appears to ask whether or not to clear data.
DISPLAY SET
DISPLAY SET
Sets whether or not to use the built-in logging function.
Sets a logging item pattern to choose data that are internally logged.
Patterns usable for setting:
By selecting LP00, you can freely choose logging items.
Logging item patterns for LP01 & LP02 are defined as in the table below.
Detailed data are recorded in an interval that is shorter than that of 1-hour data.
Logging cycle of the detailed data is set in [ tBuilt-in logging period].
on
LP00 LP01 LP02
oFF
(Use) (Non-use)
Logging item pattern LP01 LP02
Data 1 (integrated value)
Data 2 (integrated value)
Data 3 (integrated value)
Data 4 (integrated value)
Data 5 (integrated value)
Data 1
Data 2
Data 3
Data 4
Data 5
Data 6
Data 7
Data 8
Data 9
Data 10
Data 11
Data 12
Data 13
Data 14
Data 15
Wh imported
Wh exported
varh imported (LAG)
varh imported (LEAD)
VAh
W (total) present value
PF (total) present value
Hz (present value)
var (total) present value
VA (total) present value
A (avg) present value
V (line voltage) (avg) present value
DW (last value)
Dvar (last value)
DVA (last value)
DW (peak value)
Dvar (peak value)
DVA (peak value)
A1 Harmonic present value (total)
V1N Harmonic voltage phase voltage distortion ratio (total)
Wh imported
Wh exported
varh imported (LAG)
varh imported (LEAD)
VAh
W (total) present value
PF (total) present value
Hz (present value)
A (avg) present value
V (line voltage) (avg) present value
A1 present value
A2 present value
A3 present value
AN present value
V12 present value
V23 present value
V31 present value
V1N present value
V2N present value
V3N present value
Phase wiring type setting: 3-phase 4-wire system
Logging item pattern LP01 LP02
Data 1 (integrated value)
Data 2 (integrated value)
Data 3 (integrated value)
Data 4 (integrated value)
Data 5 (integrated value)
Data 1
Data 2
Data 3
Data 4
Data 5
Data 6
Data 7
Data 8
Data 9
Data 10
Data 11
Data 12
Data 13
Data 14
Data 15
Wh imported
Wh exported
varh imported (LAG)
varh imported (LEAD)
VAh
W (total) present value
PF (total) present value
Hz (present value)
var (total) present value
VA (total) present value
A (avg) present value
V (line voltage) (avg) present value
DW (last value)
Dvar (last value)
DVA (last value)
DW (peak value)
Dvar (peak value)
DVA (peak value)
A1 Harmonic present value (total)
V12 Harmonic voltage phase voltage distortion ratio (total)
Wh imported
Wh exported
varh imported (LAG)
varh imported (LEAD)
VAh
W (total) present value
PF (total) present value
Hz (present value)
A (avg) present value
V (line voltage) (avg) present value
A1 present value
A2 present value
A3 present value
—
V12 present value
V23 present value
V31 present value
—
—
—
Setting of phase wiring system: 3-phase 3-wire_2CT, 3-phase 3-wire_3CT, 1-phase 3-wire system
Logging item pattern LP01 LP02
Data 1 (integrated value)
Data 2 (integrated value)
Data 3 (integrated value)
Data 4 (integrated value)
Data 5 (integrated value)
Data 1
Data 2
Data 3
Data 4
Data 5
Data 6
Data 7
Data 8
Data 9
Data 10
Data 11
Data 12
Data 13
Data 14
Data 15
Wh imported
Wh exported
varh imported (LAG)
varh imported (LEAD)
VAh
W (total) present value
PF (total) present value
Hz (present value)
var (total) present value
VA (total) present value
A (avg) present value
V (line voltage) (avg) present value
DW (last value)
Dvar (last value)
DVA (last value)
DW (peak value)
Dvar (peak value)
DVA (peak value)
A1 Harmonic present value (total)
V12 Harmonic voltage phase voltage distortion ratio (total)
Wh imported
Wh exported
varh imported (LAG)
varh imported (LEAD)
VAh
W (total) present value
PF (total) present value
Hz (present value)
A (avg) present value
V (line voltage) (avg) present value
A1 present value
—
—
—
V12 present value
—
—
—
—
—
Setting of phase wiring system: 1-phase 2-wire system
wBuilt-in logging
Data clear
no yES
(Not clear) (Clear)
eBuilt-in logging
Use/non-use
rBuilt-in logging
item patterns
qOptional selection
DISPLAY SET
Select analog output, built-in logging, or optional logging.
Ao PLUG buiLt
(Analog output) (Optional logging) (Built-in logging)
The explanation here is about built-in logging settings.
For the analog output settings, refer to Set-up menu 6: Analog output setting.
For the optional logging settings, refer to Set-up menu 6: Logging setting.
Note. When ME-4210-SS96B or ME-0000BU-SS96 of optional module is not installed, this setting is skipped.
e
eSet whether to display unbalance rate.
on oFF
(Display) (Not display)
When you set to “on (Display)”, voltage/current unbalance rate
can be displayed on the additional screen of display pattern.
Note. For 1-phase 2-wire system, this setting is skipped.
19 20
