Mitsubishi Electric RFID ECL2-V680D1 User manual

RFIDInterfaceModule
RFID

Interface

ModuleECL2
-
V680D1

User '
s

Manual
User'sManual
ECL2-V680D1
Model
ECL2-V680D1
ECL2-V680D1
Model ECL2-V680D1-MAN-E
50CM-D180160-C(1412)MEE
New publication,effective Dec. 2014
Specifications subject to change without notice.
1-13-5, Kudankita Chiyoda-ku, Tokyo 102-0073, Japan Phone [phone] Fax [phone] URL:http://www.mee.co.jp/

A - 1 A - 1
SAFETY PRECAUTIONS 
(Always read these precautions prior to use.)
Before using this product, please read this manual and the relevant manuals introduced in this manual
carefully and pay full attention to safety to ensure that the product is used correctly.
The precautions presented in this manual are concerned with this product only. For programmable
controller system safety precautions, refer to the user’s manual of the master module used.
In this manual, the safety precautions are ranked as “WARNING” and “CAUTION.”
WARNING Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
CAUTION Indicates that incorrect handling may cause hazardous
conditions, resulting in medium or minor injury and/or property
damage.
Note that failure to observe the CAUTION level instructions may lead to a serious consequence
according to the circumstances. Always follow the precautions of both levels because they are important
to personal safety.
Please keep this manual in an easy-to-access location for future reference, and be sure to deliver the
manual to the end user.
[DESIGN PRECAUTIONS]
WARNING
If a data link communication error occurs, the data of the master module will be retained. Using
the communication status information, configure an interlock circuit in the sequence program to
ensure that the system will operate safely.
Any of the remote I/O signals marked "Use prohibited" are used by the system. Do not use these
signals. In the unlikely event such a signal is used (ON/OFF), the function of the module cannot
be guaranteed.

A - 2 A - 2
CAUTION
When installing the RFID interface module and amplifier/antenna cables, do not bundle the
cables with or install the cables close to the main circuit, power lines, or the like. Be sure to
separate the cables and lines by about 100mm or more. Failure to do so will cause noise,
resulting in malfunction.
When storing the product, be sure to observe the defined storage ambient temperature and
humidity. Failure to do so will lead to module malfunction and failure.
Look the control panel so that only those who are trained and have acquired enough knowledge
of electric facilities can open control panel.
Install the emergency stop switch outside the control panel so that workers can operate it easily.
[INSTALLATION PRECAUTIONS]
CAUTION
Use the module in an environment that reflects the general specifications stated in the manual.
Using the module in an environment out of the general specification range results in the risk of
electric shock, fire, malfunction, and product damage or deterioration.
Fully secure the module using a DIN rail or installation screws, and fully tighten the screws within
the specified torque range. If a screw is too loose, a dropped module, short circuit, or malfunction
may result. If a screw is too tight, screw and/or module damage may occur, resulting in a
dropped module, short circuit, or malfunction.
Do not directly touch a powered section of the module. Doing so results in the risk of module
malfunction and failure.
[WIRING PRECAUTIONS]
WARNING
Be sure to shut off all phases of the external power supply used by the system before performing
work such as wiring. Failure to do so results in the risk of product damage, and malfunction.
CAUTION
Be sure to ground the FG terminal using programmable controller dedicated class D (type 3)
grounding or greater. Failure to do so results in the risk of electric shock and malfunction.
Be sure to tighten any open terminal screws within the specified torque range. Failure to do so
causes a short circuit.
Use the appropriate crimp terminals, and tighten the terminals to the specified torque. If a crimp
terminal with an open end is used, the terminal screw will fall off if loose, causing failure.

A - 3 A - 3
CAUTION
Fully mount the antenna cable to the module connector. After mounting, check for separation.
Insufficient contact results in the risk of erroneous input and output.
Be sure to place the communication cables and power cables connected to the module in a duct,
or secure them with clamps. Failure to do so results in the risk of cable movement and drift, module
or cable damage caused by careless pulling, and malfunction caused by insufficient cable contact.
When connecting a cable, first verify the connection interface type and then connect the cable
properly. Connecting a cable to a wrong interface or miswiring a cable results in the risk of
module and external device malfunction.
Tighten the screws within the specified torque range. If a screw is too loose, a short circuit or
malfunction may result. If a screw is too tight, screw and/or module damage may occur, resulting
in a short circuit or malfunction.
When removing a communication cable or power cable connected to the module, do not pull the
cable section. For cables with connectors, hold the connector of the section connected to the
module during removal. For terminal block cables, loosen the screws of the terminal block and
then remove the cable. Pulling a cable while it is connected to the module results in the risk of
module and cable damage as well as malfunction due to a poor cable connection.
Do not insert or remove an antenna cable with the power ON. Doing so results in the risk of failure.
Prevent foreign matter such as dust or wire chips from entering the module. Such foreign matter
may cause fire, failure, or malfunction.
Do not bunch the control wires and communication cables with the main circuit, power lines, or
the like, or install them close to each other. Keep a distance of 100mm or more between them.
Failure to do so may result in malfunction due to noise.
Do not invert the external power supply polarities +24V and 24G. The RFID interface module will
not operate.
[STARTUP AND MAINTENANCE PRECAUTIONS]
WARNING
Do not touch the terminals while the module is powered. Doing so results in the risk of malfunction.
CAUTION
Do not disassemble or modify the module. Doing so results in the risk of failure, malfunction,
injury, and fire.
Be sure to shut off all phases of the external power supply used by the system before module
installation to or removal from the panel. Failure to do so results in the risk of module failure and
malfunction.

A - 4 A - 4
CAUTION
After product use begins, be sure the number of times the terminal block is installed and removed
does not exceed 50 (JIS B 3502 compliant). Exceeding 50 results in the risk of malfunction.
Be sure to shut off all phases of the external power supply used in the system before cleaning or
tightening terminal screws or module screws. Failure to do so results in the risk of module failure
and malfunction. If a screw is too loose, a dropped module, short circuit, or malfunction may
result. If a screw is too tight, screw and/or module damage may occur, resulting in a dropped
module, short circuit, or malfunction.
The module case is made of plastic. Do not drop the case or expose the case to strong impact.
Doing so results in the risk of module damage.
Before touching the module, be sure to touch grounded metal or the like to release the static
electricity from your body. Failure to do so results in the risk of module failure or malfunction.
When cleaning, do not use thinner, benzene, acetone, or kerosene. Doing so results in the risk of
module damage.
Do not insert water or wire through the gaps in the case. Doing so results in the risk of fire or
electric shock.
This product cannot be used as a detector for physical protection. Erroneous output or
malfunction may result in an accident.
When installing or removing the antenna from the amplifier, first turn OFF the module power
supply. Failure to do so results in the risk of module failure and malfunction.
Installation of multiple antennas may result in a decrease in communication performance due to
mutual interference. Refer to the description of mutual interference between antennas in the
antenna user’s manual.
In the unlikely event that you feel something is wrong with the product, stop using the product
immediately, turn OFF the power supply, and consult with your local Mitsubishi service center or
representative. Continued use as is results in the risk of module failure and malfunction.
Do not use the product in locations where chemical products and oil are scattered. Doing so
results in the risk of module failure and malfunction.
When using the product, be sure to observe the defined ambient temperature and humidity.
Failure to do so results in the risk of module failure and malfunction.
Do not touch any connectors when the module is powered. Doing so results in the risk of module
malfunction caused by the static electricity in your body.
[DISPOSAL PRECAUTIONS]
CAUTION
At the time of disposal, treat the product as industrial waste.

A - 5 A - 5
REVISIONS
*The manual number is given on the bottom left of the back cover.
Print Date *Manual Number Revision
Jan. 2014 50CM-D180160-A First edition
Oct. 2014 50CM-D180160-B Partial correction
Product Portfolio, Section 2.4, Section 3.2, Section 3.6.1,
Section 5.2, APPENDIX 1, APPENDIX 2
Dec. 2014 50CM-D180160-C Change the Model name.
Before: ECL2-V680D-MAN-E
Feb. 2016 50CM-D180160-D Partial correction
Section 1.1, Section 2.2, Section 2.3, Section 3.7.1, Section 4.5,
Section 4.7.2, Section 5.1.3, APPENDIX 4
Jul. 2016 50CM-D180160-E Partial correction
APPENDIX 4.1.1
This manual confers no industrial property rights or any rights of any other kind, nor does it confer any
patent licenses. Mitsubishi Electric Engineering cannot be held responsible for any problems involving
industrial property rights which may occur as a result of using the contents noted in this manual.
Reproduction or duplication of the contents of this document in whole or in part by any means without
permission is strictly prohibited.
2014 MITSUBISHI ELECTRIC ENGINEERING COMPANY LIMITED

A - 6 A - 6
INTRODUCTION
Thank you for purchasing the RFID interface module manufactured by Mitsubishi Electric Engineering
Company, Ltd.
Prior to use, please read this manual carefully to develop full familiarity with the functions and performance of
the programmable controller to ensure correct use.
CONTENTS
SAFETY PRECAUTIONS ······································································································ A- 1
REVISIONS ························································································································ A- 5
INTRODUCTION·················································································································· A- 6
CONTENTS ························································································································ A- 6
Manuals ····························································································································· A- 9
Generic Terms and Abbreviations ····························································································A-11
Product Portfolio···················································································································A-12
Chapter 1 OVERVIEW 1- 1 to 1- 2
1.1 RFID Interface Module Overview ·························································································1- 1
1.2 RFID Interface Module Features··························································································1- 2
Chapter 2 SYSTEM CONFIGURATION 2- 1 to 2- 5
2.1 Application System ···········································································································2- 1
2.2 Verifying the Version ·········································································································2- 2
2.3 Overall Configuration·········································································································2- 3
2.4 Component List················································································································2- 4
Chapter 3 SPECIFICATIONS 3- 1 to 3-29
3.1 General Specifications·······································································································3- 1
3.2 Performance Specifications ································································································3- 2
3.3 Functions························································································································3- 4
3.3.1 RUN mode ················································································································3- 4
3.3.2 TEST mode ···············································································································3- 4
3.4 Remote I/O Signals···········································································································3- 5
3.4.1 Remote I/O signal list··································································································· 3- 5
3.4.2 Remote I/O signal details······························································································3- 6
3.5 Remote Registers············································································································ 3-11
3.6 Remote Register Details ··································································································· 3-13
3.6.1 Initial data setting ······································································································· 3-13
3.6.2 RUN mode ··············································································································· 3-18
3.6.3 TEST mode ·············································································································· 3-22
3.7 CC-Link Family System Profile Plus (CSP+) ········································································· 3-23
3.7.1 CSP+ applicable systems ···························································································· 3-24

A - 7 A - 7
3.8 iQ Sensor Solution(iQSS)·································································································· 3-25
3.8.1 iQSS function list ······································································································· 3-25
3.8.2 iQSS applicable systems ····························································································· 3-25
3.8.3 Simple startup ··········································································································· 3-26
3.8.4 Sensor monitor ·········································································································· 3-27
3.8.5 Simple programming ·································································································· 3-28
3.9 Function Blocks (FBs) ······································································································ 3-29
Chapter 4 SETUP AND PROCEDURES PRIOR TO OPERATION 4- 1 to 4-14
4.1 Usage Precautions ··········································································································· 4- 1
4.2 Setting the Station Number·································································································4- 2
4.3 Module Installation Environment and Installation Location·························································4- 2
4.3.1 Installation environment ·······························································································4- 2
4.3.2 Installation location······································································································4 -2
4.3.3 Module installation orientation ·······················································································4- 3
4.3.4 Installing the module to a DIN rail ··················································································· 4- 4
4.4 Setup and Procedures Prior to Operation ··············································································4- 6
4.5 Names of Parts ················································································································4- 7
4.6 Wiring the Data Link Cable ································································································ 4-11
4.6.1 Wiring the CC-Link dedicated cable ··············································································· 4-11
4.7 Wiring ··························································································································· 4-12
4.7.1 Wiring precautions ····································································································· 4-12
4.7.2 Wiring the external power supply terminal ······································································· 4-13
4.7.3 Inserting and removing the antenna cable······································································· 4-14
Chapter 5 THINGS YOU NEED TO KNOW BEFORE PROGRAMMING 5- 1 to 5-13
5.1 Operation Mode ···············································································································5- 1
5.1.1 Switching the operation mode························································································5- 1
5.1.2 RUN mode ················································································································5- 1
5.1.3 TEST mode ···············································································································5- 1
5.2 ID Tag Memory ················································································································5- 6
5.3 Write Protect Function ·······································································································5- 8
5.3.1 How to set write protect································································································5- 8
5.3.2 How to cancel write protect ·························································································· 5-13
Chapter 6 HOW TO COMMUNICATE WITH ID TAGS 6- 1 to 6-39
6.1 Programming Precautions ··································································································6- 1
6.2 Command/Specification List ·······························································································6- 2
6.2.1 Read ························································································································6- 3
6.2.2 Write ························································································································6- 3
6.2.3 Fill data·····················································································································6- 3
6.2.4 Read UID ··················································································································6- 3
6.2.5 Measure noise ···········································································································6- 3
6.2.6 Read Initial Data Settings ····························································································· 6- 3

A - 8 A - 8
6.3 Control Methods According to Communication Specification ····················································· 6- 4
6.3.1 Trigger······················································································································6- 4
6.3.2 Auto ·························································································································6- 5
6.3.3 Repeat auto ···············································································································6- 6
6.3.4 FIFO trigger ···············································································································6- 7
6.3.5 FIFO repeat ···············································································································6- 8
6.4 Sample Programs············································································································· 6- 9
6.4.1 Programming procedure·······························································································6- 9
6.4.2 Program example conditions ························································································ 6-10
6.4.3 Program example with QCPU (Q mode) use ··································································· 6-13
6.4.4 Program example with LCPU use·················································································· 6-19
6.4.5 Program example with QnACPU use ············································································· 6-22
6.4.6 Program example (dedicated instructions) with ACPU/QCPU (A mode) use ·························· 6-27
6.4.7 Program example (FROM/TO instructions) with ACPU/QCPU (A mode) use ························· 6-32
6.4.8 Program example of FXCPU use ·················································································· 6-36
Chapter 7 TROUBLESHOOTING 7- 1 to 7- 9
7.1 Verifying Errors Using LED Displays·····················································································7- 1
7.2 Checking the System when Reading and Writing Cannot Be Performed with Remote I/O Signals and
Remote Registers ············································································································7- 4
7.3 Error Details List··············································································································· 7- 4
7.4 Flow when the "ERR." LED of the master module flashes ························································· 7- 8
APPENDICES App- 1 to App-12
APPENDIX 1 COMMUNICATION TIME (REFERENCE) ··························································· App- 1
APPENDIX 2 PROCESSING TIME (REFERENCE) ································································· App- 3
APPENDIX 3 EXTERNAL DIMENSIONS ··············································································· App- 7
APPENDIX 4 EMC AND LOW VOLTAGE DIRECTIVES ··························································· App- 8
Appendix 4.1 Measures to comply with the EMC Directive ······················································ App- 8
Appendix 4.1.1 Installation instructions for EMC Directive ···················································· App- 8
Appendix 4.2 Requirements to compliance with the Low Voltage Directive ································ App-11
INDEX Ind- 1 to Ind- 2

A - 9 A - 9
Manuals
The manuals related to this product include the following.
Direct any inquiries to your local sales store, Mitsubishi Electric Engineering service
office, or any Mitsubishi Electric product dealer, as necessary.
Detailed manuals
Included manual
Manual Title Manual Number
ELC2-V680D1 RFID Interface Module User's Manual (Hardware) 50CM-D180159
Mitsubishi Electric Engineering CC-Link master/local interface board manuals
Manual Title Manual Number
ECP-CL2BD Compact PCI Compatible CC-Link Interface Board User's Manual (Hardware) 50CM-D180011
ECP-CL2BD Compact PCI Compatible CC-Link Interface Board User's Manual
(Driver and Utility Software Package ECP-CL2CUTW Compatible) 50CM-D180001
Mitsubishi Electric CPU module manuals
Manual Title Manual Number
(Model Code)
QCPU User's Manual (Hardware Design, Maintenance, and Inspection) SH-080483ENG
(13JR73)
MELSEC-L CPU Module User's Manual (Hardware Design, Maintenance, and Inspection) SH-080890ENG
(13JZ36)
Type A1N/A2N (S1) /A3NCPU User's Manual IB-66543
(13JE83)
Type A2U (S1) /A3U/A4UCPU User's Manual IB-66436
(13JE25)
Type A2A (S1) /A3ACPU User's Manual IB-66544
(13JE84)
Type A2USHCPU-S1/A2USCPU (S1)/A2ASCPU (S1/S30) User's Manual (Advanced) IB-66789
(13JL30)
Type A2USCPU (S1) User's Manual IB-66536
(13JE78)
Type A1S/A1SC24-R2/A2SCPU (S1) User's Manual IB-66320
(13J672)
Type A1SJCPU (S3) User's Manual IB-66446
(13J791)
Type A1SJH (S8)/A1SH/A2SHCPU (S1) User's Manual (Advanced) IB-66779
(13JL22)
A0J2HCPU (P21/R21) User's Manual IB-66268
(13J788)
Q2ACPU (S1) /Q3ACPU/Q4ACPU User's Manual IB-66608
(13J821)
Model Q2AS (H) CPU (S1) User's Manual SH-3599
(13J858)

A - 10 A - 10
Manual Title Manual Number
(Model Code)
FX3G SERIES USER’S MANUAL - Hardware Edition JY997D31301
(09R521)
FX3U SERIES USER’S MANUAL - Hardware Edition JY997D16501
(09R516)
FX3GC SERIES USER’S MANUAL - Hardware Edition JY997D45401
(09R533)
FX3UC SERIES USER’S MANUAL - Hardware Edition JY997D28701
(09R519)
Mitsubishi Electric CC-Link master/local module manuals
Manual Title Manual Number
(Model Code)
CC-Link System Master/Local Module Type AJ61BT11/A1SJ61BT11 User's Manual IB-66721
(13J872)
CC-Link System Master/Local Module Type AJ61QBT11/A1SJ61QBT11 User's Manual IB-66722
(13J873)
Type AnSHCPU/AnACPU/AnUCPU/QCPU-A (A Mode) Programming Manual (Dedicated Instructions) IB-66251
(13J742)
MELSEC-Q CC-Link System Master/Local Module User's Manual SH-080394E
(13JR64)
MELSEC-L CC-Link System Master/Local Module User's Manual SH-080895ENG
(13JZ41)
FX3U-16CCL-M USER’S MANUAL JY997D43601
(09R724)
Type Q80BD-J61BT11N/Q81BD-J61BT11 CC-Link System Master/Local Interface Board User's Manual
(For SW1DNC-CCBD2-B)
SH-080527ENG
(13JR77)

A - 11 A - 11
Generic Terms and Abbreviations
This manual uses the following generic terms and abbreviations in product
explanations, unless otherwise specified.
Generic Term / Abbreviation Description
RFID interface module A generic term for an ECL2-V680D1 CC-Link OMRON V680 series compatible RFID
interface module.
V680 series A generic term for the OMRON RFID system V680 series.
Amplifier An amplifier section connected to the RFID interface module for performing non-contact
communication.
Antenna An antenna section connected to the RFID interface module for performing non-contact
communication.
ID tag A generic term for the responder side of non-contact communication.
UID A unique number for identifying the ID tag.
GX Developer
A product name for a MELSEC programmable controller software package.
GX Works2
Programming tool A generic term for GX Works2 and GX Developer.
ACPU
A generic term for A0J2HCPU, A1CPU, A2CPU, A2CPU-S1, A3CPU, A1SCPU,
A1SCPUC24-R2, A1SHCPU, A1SJCPU, A1SJCPU-S3, A1SJHCPU, A1NCPU, A2NCPU,
A2NCPU-S1, A3NCPU, A2SCPU, A2SHCPU, A2ACPU, A2ACPU-S1, A3ACPU, A2UCPU,
A2UCPU-S1, A2USCPU, A2USCPU-S1, A2USHCPU-S1, A3UCPU, and A4UCPU.
QnACPU A generic term for Q2ACPU, Q2ACPU-S1, Q2ASCPU, Q2ASCPU-S1, Q2ASHCPU,
Q2ASHCPU-S1, Q3ACPU, and Q4ACPU.
QCPU (A mode) A generic term for Q02CPU-A, Q02HCPU-A, and Q06HCPU-A.
QCPU (Q mode)
A generic term for Q00JCPU, Q00CPU, Q01CPU, Q02CPU, Q02HCPU, Q06HCPU,
Q12HCPU, Q25HCPU, Q02PHCPU, Q06PHCPU, Q12PHCPU, Q25PHCPU, Q12PRHCPU,
Q25PRHCPU, Q00UJCPU, Q00UCPU, Q01UCPU, Q02UCPU, Q03UDCPU, Q04UDHCPU,
Q06UDHCPU, Q10UDHCPU, Q13UDHCPU, Q20UDHCPU, Q26UDHCPU, Q03UDECPU,
Q04UDEHCPU, Q06UDEHCPU, Q10UDEHCPU, Q13UDEHCPU, Q20UDEHCPU,
Q26UDEHCPU, Q50UDEHCPU, Q100UDEHCPU, Q03UDVCPU, Q04UDVCPU,
Q04UDPVCPU, Q06UDVCPU, Q06UDPVCPU, Q13UDVCPU, Q13UDPVCPU,
Q26UDVCPU, and Q26UDPVCPU.
LCPU A generic term for L02SCPU, L02SCPU-P, L02CPU, L02CPU-P, L06CPU, L06CPU-P,
L26CPU, L26CPU-P, L26CPU-BT, and L26CPU-PBT.
Master station A station that controls the data link system. One required per system.
Local station A station that has a CPU module and can communicate with the master station and other
local stations.
Remote I/O station A station that handles bit data only (performs input/output with external devices).
Remote device station A station that handles bit data and word data (performs input/output with external devices and
analog data conversion).
Remote station A generic term for a remote I/O station and a remote device station.
Intelligent device station A station that can perform transient transmission. (Including local stations)
Master module A generic term for a module that can be used as a master station.

A - 12 A - 12
Generic Term / Abbreviation Description
SB Link special relay (for CC-Link).
Bit data that indicates the master/local station module operating status and data link status.
SW Link special register (for CC-Link).
16-bit data that indicates the master/local station module operating status and data link status.
RX Remote input (for CC-Link)
Data input in bits from a remote station to the master station.
RY Remote output (for CC-Link)
Data output in bits from the master station to a remote station.
RWw Remote register (CC-Link write area)
Data output in 16 bits from the master station to a remote device station.
RWr Remote register (CC-link read area)
Data input in 16 bits from a remote device station to the master station.
Product Portfolio
The following indicates the product portfolio of this product.
Model Product Name Quantity
ECL2-V680D1
ECL2-V680D1 RFID interface module 1
User’s Manual (Hardware) (Included with module) 1
Ferrite core (Included with module) 1
Crimp terminals (Red) (Included with module)
[compatible wire size : 0.3 to 1.25mm2(AWG20 to 16)]
13
Crimp terminals (Blue) (Included with module)
[compatible wire size : 1.25 to 2.0mm2(AWG16 to 14)]
13

1 - 1 1 - 1
1. OVERVIEW
Chapter 1 OVERVIEW
This user’s manual describes the specifications, use, programming method, and other
information related to the ECL2-V680D1 RFID interface module used as a remote
device station of a CC-Link system.
The RFID interface module connects to the CC-Link master station of a Mitsubishi
general-purpose programmable controller (MELSEC-Q series, MELSEC-L series,
MELSEC-F series, MELSEC-AnS/QnAS series, and MELSEC-A/QnA series), enabling
reading and writing with OMRON RFID system V680 series ID tags as a remote device
station of a CC-Link system.
When utilizing the program examples introduced in this manual in an actual system, be
sure to fully verify that use will not be problematic in the control of the target system.
1.1 RFID Interface Module Overview
The RFID interface module has a channel that connects to a V680 series antenna, and
fulfills the role as an interface for V680 series ID tag reading and writing and the
programmable controller CPU via CC-Link.
1
ID tag
Antenna
Amplifier
Data reading and
writing with ID tag
by electromagnetic
induction (non-contact)
ECL2-V680D1
(Remote device station)
CC-Link master/local module (master station) CC-Link master/local module (local station)
CC-Link dedicated cable
Terminating
resistor
Terminating
resistor
(Remote I/O station)
(Remote device station)
(Intelligent device station)

1 - 2 1 - 2
1. OVERVIEW
1.2 RFID Interface Module Features
The following describes the features of the RFID interface module.
(1) The RFID interface module enables OMRON RFID system V680 series connection
to CC-Link.
This product can connect the OMRON RFID system V680 series to CC-Link,
achieving distributed control at the distance up to 1200 m (at the 156-kbps
transmission speed). Furthermore, it is possible to construct an RFID sensor
system architecture that uses a rich group of CC-Link products.
(2) The module can read and write a maximum of 122 bytes*1 of data at one time.
*1. In the case of remote net Ver.2 mode, two occupied stations, and an octuple
expanded cyclic setting.
(3) The module permits usage of both OMRON RFID system V680 series separate-type
and amplifier built-in type antennas.
(4) The module is provided with various test functions as standard.
The communication test function allows you to check whether or not communication
with an ID tag is possible without operating the sequence program.
The distance level measurement function measures the distance (level) between
the antenna and ID tag with respect to the communication area. The function
allows you to check the measurement results in seven stages, 00 to 06.
The noise level measurement function measures the noise level in the area
surrounding the antenna installation location.
(5) The module allows you to select a mode in accordance with a variety of systems.
Remote net Ver.2 mode: Select this mode when you want to construct a new
system. The mode allows you to combine the module with an applicable master
module and increase the number of connected remote device stations to 42,
maximum.
Remote net Ver.1 mode: This mode is fully compatible with conventional remote
network modes. Select this mode when system expansion is not required.
Remote net additional mode: Select this mode when you want to add a version 2
compatible slave station to the conventional version 1 system.
(6) The module allows you to simply develop programs by downloading an FB (function
block) library that can be used with Mitsubishi Electric MELSOFT GX Works2 from
the Mitsubishi Electric Corporation FA site and FA related product site (MEEFAN).
(Supported by GX Works2 Japanese version only)
(7) The Mitsubishi Electric iQ Sensor Solution (iQSS) makes it possible to further
strengthen the linkage with the programmable controller, graphic operation terminal,
and engineering software, and achieve simple startup, sensor monitoring, and
simple programming.
(Supported by GX Works2 Japanese version only)
1

2 - 1 2 - 1
2. SYSTEM CONFIGURATION
Chapter 2 SYSTEM CONFIGURATION
The following describes the system configuration of the RFID interface module.
2.1 Application System
The following describes the application system.
(1) Applicable combinations
The following master module, GX Works2 network parameter mode setting / station
information (station type), and module mode switch setting combinations can be
used.
Table 2.1 Application System
○: Applicable ×: Not applicable
Master Module
GX Works2 Network Parameter Setting RFID Interface Module Mode Switch Setting*1
Mode Setting Station Information
(Station Type)
0, 4
(Version 1 Remote
Device Station)
(Version 1 Compatible
Slave Station)
5, 6, 7
(Version 2 Remote
Device Station)
(Version 2 Compatible
Slave Station)
QJ61BT11
AJ61BT11
A1SJ61BT11
AJ61QBT11
A1SJ61QBT11
Remote net Ver.1
mode Remote device station ○×
QJ61BT11N
L26CPU-BT
LJ61BT11
FX3U-16CCL-M
ECP-CL2BD
Q81BD-J61BT11
Q80BD-J61BT11N
Remote net Ver.1
mode Remote device station ○×
Remote net Ver.2
mode
Version 1 remote
device station ○×
Version 1 remote
device station × ○
Remote net additional
mode
Version 1 remote
device station ○*2 ×
Version 1 remote
device station × ○*3
*1. For details, refer to Section 4.5.
*2. If there is a station number that is used as a version 2 remote device station
in the existing system, set the station number of the version 1 remote
device station to be added before this station.
*3. Set the station number of the version 2 remote device station to be added
after the station number used in the existing system.
2

2 - 2 2 - 2
2. SYSTEM CONFIGURATION

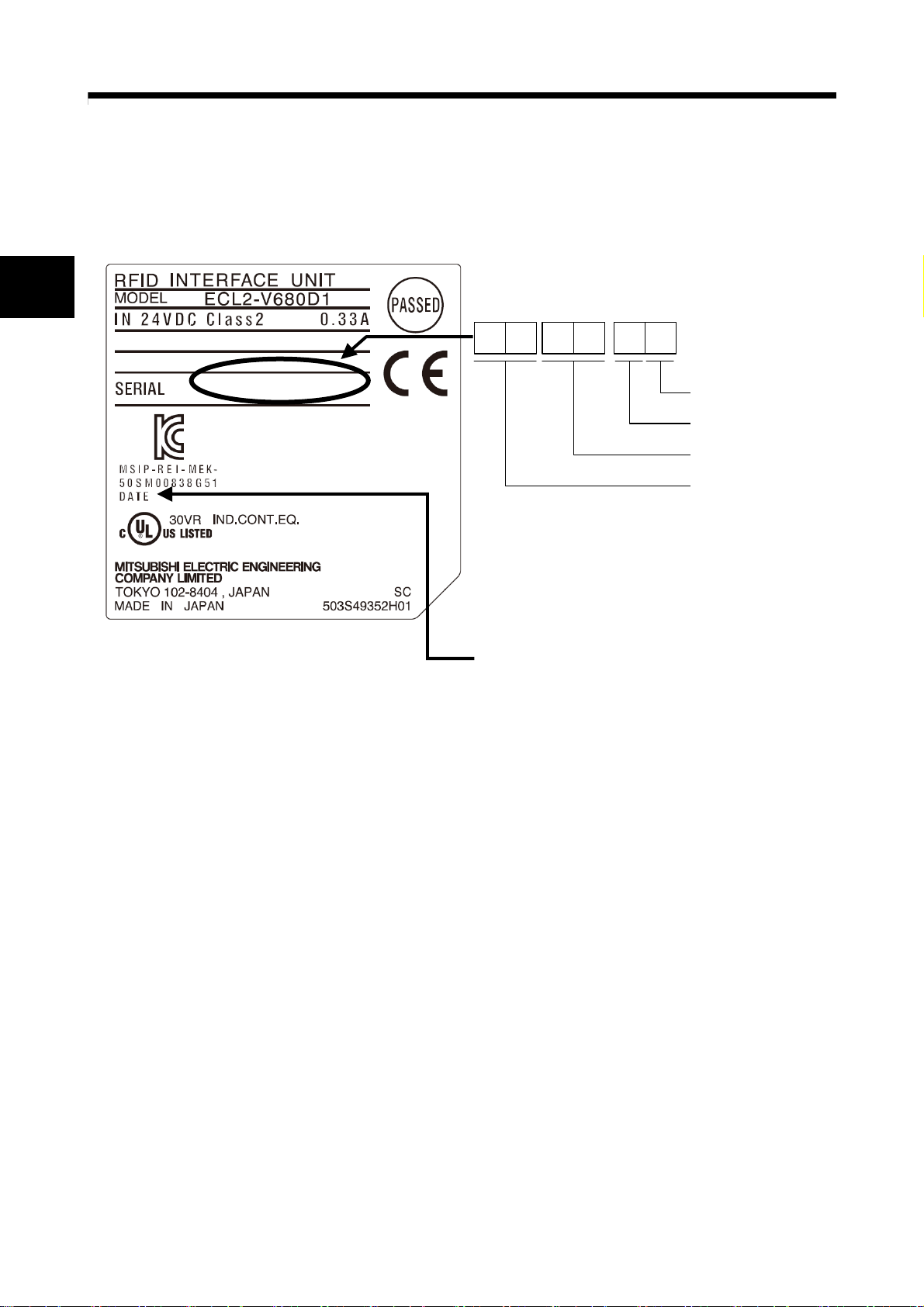

2.2 Verifying the Version
The following describes the method used to verify the version of the RFID interface
module.
2
Example: When manufactured in September 2014 and both the
hardware and software versions are "B":
1409BB
S/W version
H/W version (circuit board)
Manufactured month
(01 to 12)
Last two digits of
manufactured year
Indicates the year and month.
Example:2014‐09

2 - 3 2 - 3
2. SYSTEM CONFIGURATION
2.3 Overall Configuration
The following indicates the overall configuration of the RFID system.
The antennas, amplifier and ID tags can be used in certain combinations. Refer to the
OMRON RFID system V680 series catalog.
Amplifier
Antennas
ID tags
Extension cable Extension cable
Amplifier built-in type antenna
Q series L series FX series AnS/QnAS A/QnA
CC-Link master module
RFID interface module
24V DC external
power supply
CC-Link cable

2 - 4 2 - 4
2. SYSTEM CONFIGURATION
2.4 Component List
The component lists the required equipment for using the RFID interface module.
Table 2.2 Component List
Product Name Model Remarks
RFID interface module ECL2-V680D1 V680 series RFID interface module; one antenna connected
Amplifier V680-HA63A For EEPROM type ID tags (V680-D1KP□□)
V680-HA63B For FRAM type ID tags (V680-D2KF□□/V680-D8KF□□/V680-D32KF□□)
Antenna
(separate amplifier
type)
V680-HS51 For ID tag communication; Φ18mm type; cable length: 2m/12.5m
V680-HS52 For ID tag communication; Φ22mm type; cable length: 2m/12.5m
V680-HS63 For ID tag communication; 40x53mm type; cable length: 2m/12.5m
V680-HS65 For ID tag communication; 100x100mm type; cable length: 2m/12.5m
Antenna
(amplifier built-in type) V680-H01-V2 For ID tag communication; 250x200mm type; cable length: 0.5m
EEPROM type ID tag
V680-D1KP52MT Memory capacity: 1kbyte (1,000 bytes); Φ8mm type; metal embedding permitted
V680-D1KP53M Memory capacity: 1kbyte (1,000 bytes); Φ10mm type; metal embedding permitted
V680-D1KP54T Memory capacity: 1kbyte (1,000 bytes); Φ20mm type
V680-D1KP66MT Memory capacity: 1kbyte (1,000 bytes); 34x34mm type; metal embedding permitted
V680-D1KP66T Memory capacity: 1kbyte (1,000 bytes); 34x34mm type
V680-D1KP66T-SP Memory capacity: 1kbyte (1,000 bytes); oil-proof and chemical resistant specifications
V680-D1KP58HTN Memory capacity: 1kbyte (1,000 bytes); Φ80mm type; heat resistant specifications
V680-D1KP52M-BT01 Memory capacity: 1kbyte (1,000 bytes); M10 bolt installation
V680-D1KP52M-BT11 Memory capacity: 1kbyte (1,000 bytes); M8 bolt installation
FRAM type ID tag
V680-D2KF52M Memory capacity: 2kbytes (2,000 bytes); Φ8mm type; metal embedding permitted
V680-D2KF67M Memory capacity: 2kbytes (2,000 bytes); 40x40mm type; metal installation permitted
V680-D2KF67 Memory capacity: 2kbytes (2,000 bytes); 40x40mm type
V680S-D2KF67M Memory capacity: 2kbytes (2,000 bytes); 40x40mm type; metal installation permitted
V680S-D2KF67 Memory capacity: 2kbytes (2,000 bytes); 40x40mm type
V680S-D2KF68M Memory capacity: 2kbytes (2,000 bytes); 86x54mm type; metal installation permitted
V680S-D2KF68 Memory capacity: 2kbytes (2,000 bytes); 86x54mm type
V680-D2KF52M-BT01 Memory capacity: 2kbytes (2,000 bytes); M10 bolt installation
V680-D2KF52M-BT11 Memory capacity: 2kbytes (2,000 bytes); M8 bolt installation
V680-D8KF67M Memory capacity: 8kbytes (8,192 bytes); 40x40mm type; metal installation permitted
V680-D8KF67 Memory capacity: 8kbytes (8,192 bytes); 40x40mm type
V680S-D8KF67M Memory capacity: 8kbytes (8,192 bytes); 40x40mm type; metal installation permitted
V680S-D8KF67 Memory capacity: 8kbytes (8,192 bytes); 40x40mm type
V680-D8KF68 Memory capacity: 8kbytes (8,192 bytes); 86x54mm type
V680S-D8KF68M Memory capacity: 8kbytes (8,192 bytes); 86x54mm type; metal installation permitted
V680S-D8KF68 Memory capacity: 8kbytes (8,192 bytes); 86x54mm type
V680-D32KF68 Memory capacity: 32kbytes (32,744 bytes); 86x54mm type

2 - 5 2 - 5
2. SYSTEM CONFIGURATION
Product Name Model Remarks
Extension cable
V700-A40 For amplifier V680-HA63A/63B connection; cable length: 2m
V700-A41 For amplifier V680-HA63A/63B connection; cable length: 3m
V700-A42 For amplifier V680-HA63A/63B connection; cable length: 5m
V700-A43 For amplifier V680-HA63A/63B connection; cable length: 10m
V700-A44 For amplifier V680-HA63A/63B connection; cable length: 20m
V700-A45 For amplifier V680-HA63A/63B connection; cable length: 30m
V700-A40-W For amplifier built-in type antenna V680-H01-V2 connection; cable length:
cable length: 2m/5m/10m/20m/30m
* Configurations as of October 2014. For the latest V680 series configurations and
amplifier, antenna, and ID tag combinations, refer to the OMRON RFID system V680
series catalog.
* For V680S-D8KF□□, use an RFID interface module of S/W version B or later as stated
on the rating nameplate. For information on how to verify the S/W number, refer to
Section 2.2.
