1. Summary
Technical manual detailing the control and operation of commercial-type Lossnay units (LGH-RX5-E Series).
Possible System Configurations
(1) When using only the Lossnay remote controller.
(2)Linking Lossnay and City Multi units.
(3)Linking Mr. Slim.
(4)Lossnay central control systems.
(5)Linking with external equipment (BMS).
2. Applicable Models
●Lossnay (LGH-RX type)
These models have temperature sensors at return stale indoor air (RA) and outside air intake (OA) sides and can automati-
cally switch to ventilation (Lossnay/By-pass) mode.
●Lossnay Remote Controller (PZ-60DR-E)
It is possible to control all of the function of LGH-RX5-E, such as, Extra-Low-fan speed, weekly timer.
Use when operating from 1 to 15 Lossnay units together at the same time.
PZ-60DR-E is not M-NET control, however, LGH-RX5-E can be use with PZ-60DR-E in the M-NET system. (Refer to page
C-78).
●Lossnay Remote Controller (PZ-41SLB-E)
Use when operating from 1 to 15 Lossnay units together at the same time. When using M-NET transmission to operate from
a centralized remote controller, use the PZ-60DR-E OR PZ-52SF-E.
It can start and stop the unit, change fan speed, and switch the ventilation mode. It also includes indicators that show errors
and when filter maintenance is required Function is limited in case of LGH-RX5-E (Refer to page C-91).
●Lossnay M-NET Remote Controller (PZ-52SF-E)
Use with Mitsubishi Electric Air conditioner Network system (MELANS)(Refer to page C-92). Because the remote controller
is power-supplied using the M-NET transmission line, it cannot be linked with Mr. Slim and other such systems that do not
use M-NET. It can start and stop the unit, change fan speed, and switch the ventilation mode. It also includes indicators that
show errors and when filter maintenance is required Function is limited in case of LGH-RX5-E (Refer to page C-92).
Please refer to the technical documentation for City Multi, Mr. Slim systems and the cen-
tral controller (MELANS).
LGH-15RX5 -E LGH-25RX5-E LGH-35RX5-E LGH-50RX5 -E LGH-65RX5-E
LGH-80RX5-E LGH-100RX5 -E LGH-150RX5-E LGH-200RX5-E

C-4
3. Terminology
●Interlocked Lossnay
A Lossnay linked to City Multi or Mr. Slim indoor units that has been set to interlocked group setting to receive signals and
operate via indoor unit’s remote controller. (Remote controller to indoor unit to Lossnay.)
●Non interlocked Lossnay
A Lossnay that is not set to interlocked group setting with City Multi or Mr. Slim indoor units. It operates using direct operat-
ing signals from the Lossnay remote controller and/or centralized remote controller.
●Ventilation Mode
Controls the Lossnay damper and permits selection of heat recovery (heat exchange), By-pass or auto modes.
●Timer control. (PZ-60DR-E)
PZ-60DR-E has weekly timer and simple timer.
•weekly timer : The operation pattern for each day of the week and the air-volume by time zone can be set (up to eight
zones per day).
• simple timer : Three setting is available , start-timer only, stop time only or start & stop.
●Delayed Operation
A Lossnay that has been set to interlocked group setting with the indoor unit will have its operation delayed for 30 minutes
after the operation of the indoor unit. When using PZ-41SLB-E, delayed operation can be set for 10, 20, 30, 40, 50 and 60
minutes.
●External Control Input
• An input signal from an external device used to operate Lossnay. It is compatible with 12V-24V DC or uncharged a-contact
signal.
• Switching High Low or Extra-Low fan speed is available by external input (CO2sensor or other equipment is connected).
• Switching By-pass is available by external input.
●Operation Mode
Used for selecting enabling/disabling of the on/off control signal from an external device, and for setting interlocked operation
of the external device and Lossnay.
Please Refer to page C-23 for details.
ON/OFF interlock: Enables both “ON →OFF” and “OFF →ON” external signals.
ON interlock: Enables “OFF →ON” external signal. Disables “ON →OFF” external signal.
OFF interlock: Enables “ON →OFF” external signal. Disables “OFF →ON” external signal.
External control priority: Same as on/off interlock but the OFF signal from the remote controller is ignored when the
external control signal is ON.
●Setting Pulse Input
When the control signal from the external device outputs a pulse such as the one shown below, pulse input setting is per-
formed by Lossnay. (Optional setting DIP switch 2-2 ON)
200 ms or more
●Operation in Cold Areas
When the outdoor air is less than -10°C, continuous fan operation for drawing in supply air is cancelled and intermittent oper-
ation is started.
●RA (Return Air)
Abbreviation for return air, which is the air drawn in from inside.
●OA (Outdoor Air)
Abbreviation for outdoor air, which is the air drawn in from outside.
(

C-5
Classification
Control
Function
Installation
Maintenance
Item
•Multiple unit operation
•Remote controller operation
•External device operation and external
pulse control
•External monitor signal output and sup-
ply air fan monitor output
•External control operation mode setting
•Timer control
•Delayed start
•Automatic recovery following power sup-
ply interruption (*1)
•Power supply start/stop function
•High/low/Extra-Low change input
•Remote/local control change
•M-NET air conditioning operation.
•System controller by Mitsubishi building
air control management system
•Interlocked with Mr. Slim
•Lossnay (heat recovery) ventilation/auto-
matic By-pass ventilation switch
•For cold area operation
•Two non polar wires for remote controller
•Address setting unnecessary
•Test operation switch
•Filter maintenance display
(remote controller display)
•Inspection display
(remote controller, control board LED)
•M-NET power supply display
(control board LED)
Notes/Cautions
Maximum 15 units with PZ-60DR-E & PZ-41SLB-E; 16
units with PZ-52SF-E or other M-NET controllers.
Last condition priority before turning off the unit.
Signal : 12VDC, 24VDC, uncharged a-contact.
Uncharged a-contact (external monitor/supply air fan
monitor change).
ON/OFF, ON, OFF and external control priority ON/OFF
mode.
Weekly timer & simple timer available for PZ-60DR-E.
Delayed time can be varied only when the PZ-41SLB-E is
connected.
Automatic power recovery is fixed when PZ-60DR-E or
PZ-41SLB-E is connected.
Function cannot be performed when PZ-41SLB-E is con-
nected.
Uncharged a-contact (Remote display adaptor (PAC-SA88HA-E) is required.)
Uncharged a-contact (Remote ON/OFF adaptor (PAC-SE55RAE) is
required.)(Function cannot be performed when using PZ-41SLB-E.)
Only when M-NET transmission cable is connected.
Only when M-NET transmission cable is connected.
Function cannot be performed with PZ-41SLB-E.
Also external By-pass switcing is available(Remote dis-
play adaptor (PAC-SA88HA-E) is required).
For PZ-60DR-E, PZ-41SLB-E connection: ø 0.65 to 1.2
PVC cable or 0.3 mm2to 1.25 mm2 strand wire.
For M-NET connection: 1.25 mm2to 2.00 m2 shielded
wire or equivalent.
Excluding central controller system (except automatic
address).
For Lossnay single unit test operation.
Filter, core maintenance display for PZ-60DR-E.
Error code indication for PZ-60DR-E.
4. System Features and Examples
4.1 Features
*1 The operation condition is saved, and when the power is turned off and then back on, the operation condition returns to the
previous requested condition. (When using PZ-60DR-E, PZ-41SLB-E, the start/stop condition from an external device is not
saved.)

C-6

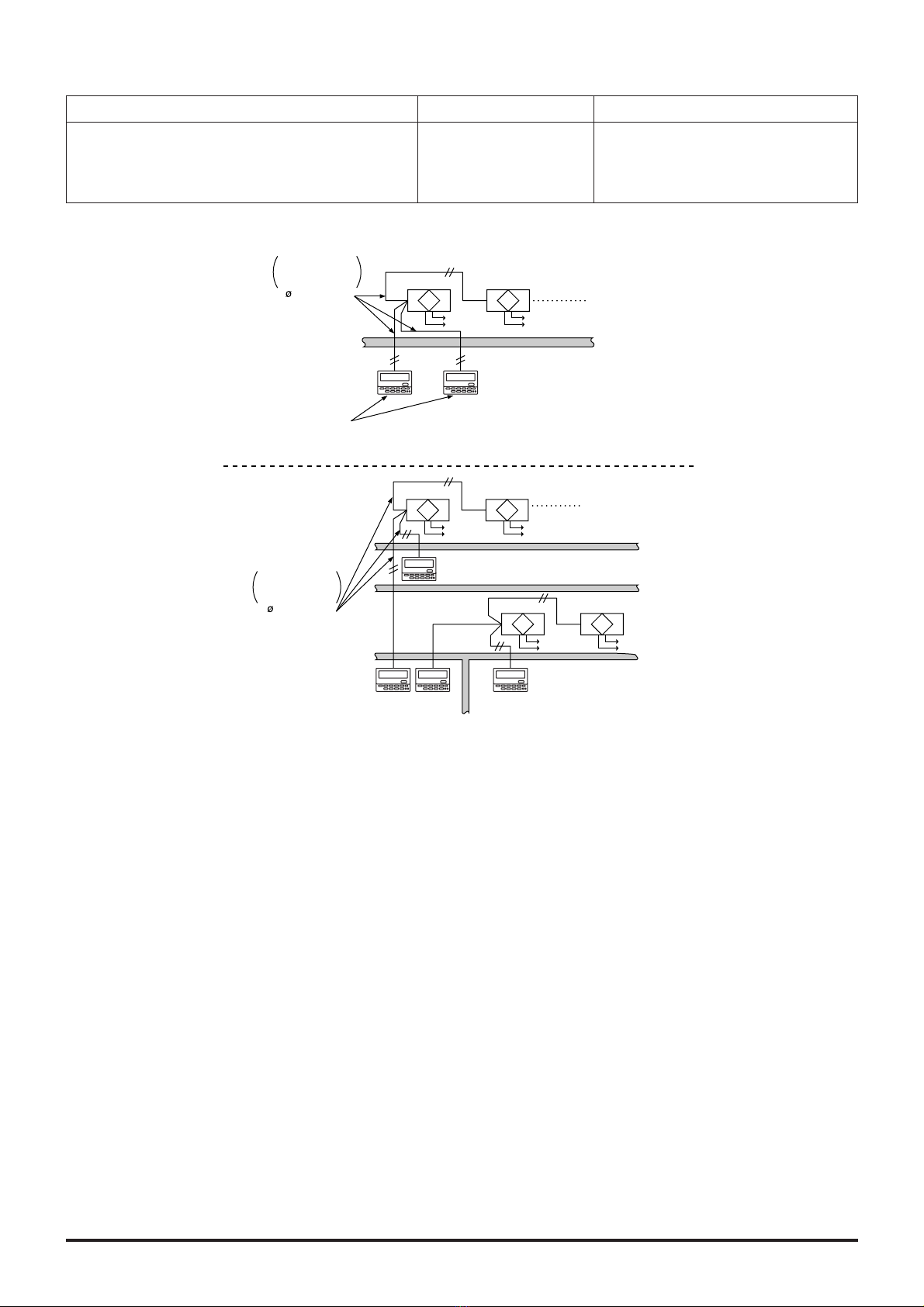

M-NET System
4.2 System Examples
Operating with an external device
●Lossnay operation will be performed via the external device.
●Level signal or pulse signal input (12V DC, 24V DC, uncharged a-con-
tact) is possible.
One Lossnay with one remote controller
●A simple system in which Lossnay is operated
independently with one remote controller.
Multiple Lossnay units with one remote controller
●Up to 15 Lossnay units can be controlled at
one time with one remote controller.
Two remote controller system with one Lossnay
●Lossnay can be controlled from two remote
locations.
●The remote controller gives priority to the last
operation function request.
Operating with Mr. Slim
●The Lossnay remote controller (PZ-60DR-E, PZ-41SLB-E) cannot be
used with this system.
●
Use MA remote controller of Mr.Slim for switching Lossnay ON/OFF or
the fan speed.
● The ventilation mode is “automatic ventilation”.
Basic System (Refer to page C-11)
Operation with an Air Conditioning Unit
(Refer to page C-13)
Operating with an External Device
(Refer to page C-22)
Lossnay
Remote controller
PZ-60DR-E or PZ-41SLB-E
Power supply
Non-polar
Two wires
Lossnay
Power supply
(Sub)
(Main)
Lossnay
Power supply
Non-polar
Two wires
Remote
controller
PZ-60DR-E or
PZ-41SLB-E
Lossnay
Power supply
Non-polar
Two wires
Remote controller
PZ-60DR-E or PZ-41SLB-E
Air conditioning device and system control
●One Lossnay can be interlocked with 16 indoor units. In addition, PZ-60DR-E (non M-NET) can be connected for each Lossnay units.
Indoor
unit
MA remote controller
Outdoor unit
Indoor
unit
MA remote controller
Lossnay Indoor
unit
MA remote controller
Lossnay
Indoor
unit Indoor
unit
MA remote controller
Indoor
unit
MA remotecontroller
Lossnay Indoor
unit
MA remote controller
Indoor
unit
MA remote controller
Lossnay
Indoor unit Indoor
unit
Interlock-Group 1 Interlock-Group 5Interlock-Group 3 Interlock-Group 4Interlock-Group 2
Outdoor unit Outdoor unit
Indoor
unit
MA remote
controller
Lossnay Lossnay
Interlock-Group 1
Lossnay
Interlock-Group 2 Interlock-Group 3
Refrigerant 1 Refrigerant 2
・・・ Group setting
・・・ Interlocked
operation setting
●Detailed control such as start/stop, fan speed Extra-Low and ventilation mode control is possible from the Lossnay remote controller PZ-60DR-E.
●PZ-52SF-E (M-NET remote controller) can be used instead of PZ-60DR-E. However, function is limited and connecting position is different.
●Start/stop, fan speed and ventilation mode control is possible from the centralized controller.
●Controller can set up the group including maximum of 16 indoor or Lossnay units.
Lossnay
remote controller
PZ-60DR-E
Lossnay Lossnay
Group 1
Lossnay
remote controller
PZ-60DR-E
Lossnay Lossnay LossnayLossnay
Group 3
Lossnay
remote controller
PZ-60DR-E
Lossnay
Group 4Group 2
Centralized controller
Power
supply
unit
Lossnay
remote controller
PZ-60DR-E
Lossnay
Group 5
Lossnay
Power supply
Power supply
Remote
controller
Mr. Slim
(indoor unit)
Lossnay
Power supply
Power supply
Remote controller
Indoor unit
Non-polar
Two wires
Remote controller
PZ-60DR-E or
PZ-41SLB-E
City Multi and Lossnay Interlocked SystemCentralized Management System
●Selection of inter-
locked operation
mode is possible.
●Delayed start inter-
locked operation is
possible.

C-7
Use Lossnay remote controller PZ-60DR-E .
(Do not use PZ-41SLB-E).
Lossnay transmission connection terminal
Two remote controller system with multiple Lossnay units
●It is also possible to operate two remote controller units when using mul-
tiple Lossnay units.
Power supply
Power supply
Remote controller
PZ-60DR-E or
PZ-41SLB-E
Interlocking multiple units
When the operation signal is an uncharged a-contact signal
Interlocking/individual combined systems
Interlock settings are possible with the inclusion of a group setting.
(Joint use of the air conditioner remote controller and Lossnay remote
controller is possible.)
●Interlocking is possible from multiple air conditioning units, etc.
(excluding pulse input)
(Separately sold parts are necessary depending on the operation signal).
●Applicable indoor units are C type or later (for use with MA remote con-
troller) models
●Set the different groups of indoor unit of air conditioner and Lossnay unit. ●When the address number has been changed, the data in the memory is
automatically reset.
Power supply Power supply Power supply Power supply
Lossnay
A/C A/C A/C
Air conditioning
unit side remote
controller
Air conditioning
unit side remote
controller
Air conditioning
unit side remote
controller
Remote controller
PZ-60DR-E or
PZ-41SLB-E
Indoor unit of
air conditioner
(01)
Centralized
controller
(000)
Outdoor
unit (51)
Operation settings
MA remote
controller
Lossnay (02)
Lossnay remote
controller
(PZ-60DR-E)
Group 1 Group 2
Use Lossnay remote controller PZ-60DR-E or PZ-41SLB-E .
(Do not use PZ-52SF-E).
Lossnay transmission connection terminal
TM4
2
1PZ-60DR-E
Remote controller input terminal
Transmission wires
Lossnay
(Main) Remote controller
(PZ-60DR-E or PZ-41SLB-E)
Power
supply External
device
Operating switch
for external device
Lossnay (Sub)
MAX 15 units
Power
supply
Lossnay (Sub)
Power
supply
Power
supply
Connect to
remote
controller
(PZ-60DR-E)
Connect
to third
Lossnay
Main/Sub selection
switch
(SW1)
Main Sub
21
21
Transmission cable
First Lossnay
Second
Lossnay
TM4
(Factory setting: main)
TM4
S
BA
TB5
M-NET
transmission cable
and PZ-52SF-E
Shielded wire
M-NET transmission cable
input terminal block
TM4
2
1
PZ-60DR-E
Remote controller
input terminal
Transmission wires
SA1 SA2
10 digit 1 digit
Address setting switch
Setting
Change the setting on the main/sub switch (SW1) on the second
and subsequent Lossnay units to “Sub”.
Address Setting
( ) address

C-8
4.3 System Selection
Interlocked with City Multi (Refer to page C-14)
Lossnay operation when indoor unit is stopped ●●
Lossnay stopping when indoor unit is operating ●●
Switching Lossnay fan speed
When interlocked with indoor unit for compatibility with both R22, R407C and R410A High/Low
When interlocked with indoor unit for other than the above Fixed to high
Ventilation mode Fixed to automatic
Filter maintenance indicator ●●
Lossnay error indicator ●●
Delayed operation ●●
External control operating mode selection ×
Number of indoor units for interlocked group setting with one Lossnay unit 16 units
Number of Lossnay units for interlocked group setting with one indoor unit One unit
Interlocked with external device (BMS)(Refer to page C-22)
Start/Stop ●●
Fan speed switching
Fixed to high
Ventilation mode switching Fixed to automatic
Filter maintenance indicator ×
Lossnay error indicator ×
Delayed operation ●●
External control operating mode selection ●●
Incase of PZ-60DR-E
M-NET transmission cable
Lossnay
M-NET transmission cable
Air
conditioner
Air
conditioner
MA remote
controller
Lossnay
Incase of PZ-52SF-E
Air
conditioner
Air
conditioner
PZ-60DR-E can be used
PZ-52SF-E can be used
MA remote
controller
Interlocked with Mr. Slim (Refer to page C-13)
When using A-control remote controller
Lossnay operation when indoor unit is stopped ●●
Lossnay stopping when indoor unit is operating ×
Lossnay fan speed switching High/Low
Other common items
Lossnay error indicator ×
Ventilation mode
Fixed to automatic
Filter maintenance indicator ×
Delayed operation ●●
External control operating mode selection ×
Number of indoor units for interlocked group setting with one Lossnay unit One unit
Number of Lossnay units for interlocked group setting with one indoor unit One unit
Slim-Lossnay connecting cable
(Enclosed accessory with Lossnay unit)
Remote controller
Mr.Slim (A-control)
indoor unit
Lossnay remote
controller
PZ-60DR-E,
PZ-41SLB-E
cannot be used.
Lossnay unit
LGH-RX type
Independent Lossnay Unit (Not interlocked with
City Multi or Mr. Slim systems.)
(Refer to page C-11)
Start/Stop ●●
Fan speed switching
High/Low/Extra Low
Ventilation mode Heat ex. /
By-pass/ Auto
Filter maintenance indicator ●●
Lossnay error indicator ●●
Delayed operation ●●
External control operating mode selection ●●
Number of Lossnay units 15 units
Number of remote controllers Two units
Lossnay remote controller
(PZ-60DR-E, PZ41SLB-E)
External signal source
for interlocking
to the Lossnay
Lossnay unit
LGH-RX type
External signal source
for interlocking
to the Lossnay
Lossnay unit
LGH-RX type
* All Lossnay functions including Extra-Low fan speed can be controlled from PZ-60DR-E.
* All Lossnay functions including Extra-Low fan speed can be controlled from PZ-60DR-E.
* ●●: Available
×: Not Available

C-9
Central Con-
troller Sys-
tem
Centralized Controller System
Centralized controller
AG-150A
Power supply unit
(PAC-SC51KUA)
Outdoor unit
M-NET remote
controller
Mr.Slim
remote controller
LOSSNAY remote
controller
PZ-60DR-E
LOSSNAY remote
controller
PZ-60DR-E
Mr.Slim
outdoor unit Mr.Slim
indoor unit
M-NET remote
controller
LOSSNAY RX5
LOSSNAY RX5
LOSSNAY RX5LOSSNAY RX5
LOSSNAY remote
controller
PZ-60DR-E
LOSSNAY RX5Ext. signal source
LOSSNAY remote
controller
PZ-60DR-E
Interlocked with
City Multi indoor units
Interlocked with
Mr. Slim indoor units
LOSSNAY units only
Interlocked with
external devices
Indoor unit Indoor unit

C-10
Reference: Remote controller for the Lossnay and indoor unit
Refer to the technical documentation related to the Remote controller for the indoor unit.
Remote controllers for City Multi indoor unit
MA remote controller (PAR-21MAA)ME remote controller (PAR-F27MEA)
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
ERROR CODE
AFTER
TIMER
TIME SUN MON TUE WED THU FRI SAT
ON
OFF
Hr
AFTER
FILTER
FUNCTION
ONLY1Hr.
WEEKLY
SIMPLE
AUTO OFF
With Lossnay interlock switches and indicators.
PAR-F27MEA
ON/OFF
CENTRALLY CONTROLLED
DAILY
AUTO OFF REMAINDER
ERROR CODE
CLOCK
ON OFF
CHECK MODE
FILTER
TEST RUN
1Hr.
NOT AVAILABLE
STAND BY
DEFROST
FILTER
CHECK TEST
TEMP.
TIMER SET
CLOCK→ON→OFF
LIMIT TEMP.
Without Lossnay interlock switches and indicators.
Remote controllers for Mr. Slim indoor unit
PAR-21MAA
PAR-21MAA
ON/OFF
FILTER
CHECK
OPERATION CLEAR
TEST
TEMP.
MENU
BACK DAY
MONITOR/SET
CLOCK
ON/OFF
ERROR CODE
AFTER
TIMER
TIME SUN MON TUE WED THU FRI SAT
ON
OFF
Hr
AFTER
FILTER
FUNCTION
ONLY1Hr.
WEEKLY
SIMPLE
AUTO OFF
Remote controllers for Lossnay unit
Lossnay remote controller
(PZ-41SLB-E)
Lossnay M-NET remote controller
(PZ-52SF-E)
DELAY START FILTER
PZ-41SLB-E
2CONTROLLERS
BY-PASS
CHECK
SETTING FILTER
MIN. DELAYED
AUTO
HEAT EX.
INTERLOCKED
With Lossnay interlock switches
and indicators.
CENTRAL
HEAT EX.
BY-PASS
AUTO
CHECK
INTERLOCKED
FILTER
ON/OFF
NOT AVAILABLE FILTER
Without Lossnay interlock switches
and indicators.
*non M-NET protocol
*non M-NET protocol
Lossnay remote controller
(PZ-60DR-E)
Advanced Lossnay remote controller.
*non M-NET protocol

C-11
Feature One remote controller can operate from one to 15 Lossnay units. PZ-60DR-E has many functions.such
as Extra-Low fan speed, however, PZ-41SLB has limited function.
Ordered part Remote controller
PZ-60DR-E, PZ-41SLB-E
•Also connect the power to the second and following Lossnay units.
Notes •The maximum extension of the transmission cable is 500 m or less (between Lossnay and remote
controller switch, between Lossnay and Lossnay).
•The main or Sub setting on the Lossnay is necessary.
4.4 Basic System
4.4.1 System Summary
4.4.2 Operation of Multiple Units
Design Example 1 Basic system
●This is a simple system.
A Lossnay is operated independently
with one remote controller.
Lossnay
Remote controller
PZ-60DR-E or PZ-41SLB-E
Power supply
Non-polar
Two wires
Design Example 2 Lossnay control of multiple units
●Up to 15 Lossnay units can be
controlled at one time with one
remote controller switch.
Lossnay
Power supply
(Sub)
(Main)
Lossnay
Power supply
Non-polar
Two wires
Remote
controller
PZ-60DR-E or
PZ-41SLB-E
Design Example 3 Two remote controllers system
●The Lossnay can be controlled
from two remote locations.
●The remote controller gives pri-
ority to the last touch.
Lossnay
Power supply
Non-polar
Two wires
Remote controller
PZ-60DR-E or PZ-41SLB-E
(1) Connect from Lossnay Unit 1 to Lossnay Unit 2, and from
Unit 2 to Unit 3 and so on up to a maximum of 15 units
using a transmission cable (PVC insulated PVC jacketed
and either between 0.65 and 1.2, or between 0.3 mm2and
1.25 mm2in cross section).
(2) Change the setting on the main/sub switch (SW1) on the
second and subsequent Lossnay units to “Sub”.
CAUTION:
Don’t tighten screws of terminal block with a torque larger than
0.5 Nm. It could damage the PCB.
Note:
●Up to four 0.3 mm2stranded wires or 0.65 PVC wires can
be connected to one input terminal.
●For other types of wire, up to two can be connected.
●The operation signal and pulse signal can be connected to
the external device of the main Lossnay only.
●Connect the power to each respective Lossnay unit.
●When the LGH-150RX5and LGH-200RX5types are connect-
ed, they operate at low fan speed even if extra low fan speed
is selected.
Lossnay
(Main) Remote controller
(PZ-60DR-E or PZ-41SLB-E)
Power
supply External
device
Operating switch
for external device
Lossnay (Sub)
MAX 15 units
Power
supply
Lossnay (Sub)
Power
supply
Power
supply
Connect to
remote
controller
(PZ-60DR-E)
Connect
to third
Lossnay
Main/Sub selection
switch
(SW1)
Main Sub
21
21
Transmission cable
First Lossnay
Second
Lossnay
TM4
(Factory setting: main)
TM4
When operating multiple Lossnay units

C-12
4.4.3 Operation with two Remote controllers
System Example
Operation Method
The operation is the same with each remote controller. In this case, the Lossnay gives operating priority to the last button push.
Characteristics Remote controller Note
•Lossnay can be operated from two remote locations. • Use only up to two remote controllers
•Lossnay conditions can be checked from two remote Lossnay remote controller
(Operation will not go normally if three
locations. PZ-60DR-E, PZ-41SLB-E remote controller switches are con-
•The remote controller gives priority to the last touch. nected.)
Lossnay
Power supply
Lossnay
Power supply
Transmission
cable extension
is 500 m or less
0.65 to 1.2
PVC cable or
0.3 mm2to 1.25 mm2
strand wire.
MAX 15 units.
Remote controller
PZ-60DR-E or PZ-41SLB-E
Transmission
cable extension
is 500 m or less
0.65 to 1.2
PVC cable or
0.3 mm2to 1.25 mm2
strand wire.
Lossnay
Power supply
Lossnay
Power supply
Lossnay
Power supply
Lossnay
Power supply
MAX 15 units.
Remote controller
PZ-60DR-E or PZ-41SLB-E
Remote controller
PZ-60DR-E or
PZ-41SLB-E
Remote controller
PZ-60DR-E or
PZ-41SLB-E

C-13
4.5 Interlocking with Mr. Slim
4.5.1 Interlocked Mr. Slim and Lossnay System
Features
●It is possible to Interlock Mr. Slim indoor units with Lossnay operation.
System Example
Slim-Lossnay
connection cable
(Enclosed accessory with Lossnay unit)
Mr.Slim indoor unit
Mr. Slim outdoor unit
Remote controller
Lossnay unit
LGH-RX type
Lossnay Function Table (Interlocked settings)
Item
Number of indoor units that can be set to interlocked opera-
tion with one Lossnay unit in each group
Number of Lossnay units that can be set to interlocked oper-
ation with one indoor unit
Operation of Lossnay unit only
(When indoor unit is stopped)
Independent Lossnay unit start and stop
(When indoor unit is operating)
Delayed operation
(Optional setting)
Switching fan speed
Ventilation mode
Filter indicator
Error
Restrictions and precautions
Details
One unit
One unit
Possible
Not possible
30 minutes delayed operation of Lossnay when indoor unit
cooling/heating operation is started (Lossnay Dip-SW setting).
High/Low
Fixed to automatic
Not possible
Not possible
*The Lossnay remote controller (PZ-60DR-E, PZ-41SLB-E)
cannot be used on systems interlocked with Mr. Slim.

C-14
4.6 Combining with City Multi
4.6.1 Independent Lossnay System with Lossnay M-NET Remote
Controller and MELANS
Features
●The Mitsubishi Electric air-conditioner network system (MELANS)can operate and monitor each group of Lossnay units and
City Multi indoor units.
●Can also use the Lossnay M-NET remote controller to operate.
System Examples: 1 (Lossnay Non M-NET Remote Controller PZ-60DR-E)
The following groups can be configured.
Lossnay
(001)
Power
supply
unit
M-NET
( ) address
Group1
Group6
Group2 Group3 Group4 Group5
Lossnay
(013)
Group8
Lossnay
(014) Lossnay (015)
Lossnay
(002) Lossnay (004) Lossnay (005) Lossnay (006)
Lossnay
(003)
Lossnay
(010)
Lossnay
(008)
Lossnay
(007)
Indoor
unit
(009)
MA Remote
controller
Group7
Indoor
unit
(011)
Indoor
unit
(012)
MA Remote
controller
Group9
Indoor
unit
(016)
MA Remote
controller
Outdoor unit
(059)
M-NET
Lossnay remote
controller PZ-60DR-E
Lossnay remote
controller PZ-60DR-E Lossnay remote controller PZ-60DR-E
Lossnay remote
controller PZ-60DR-E
Lossnay remote
controller PZ-60DR-E Lossnay remote controller PZ-60DR-E Lossnay remote controller PZ-60DR-E
Centralized controller (000)
Group 1 : One Lossnay unit and one Lossnay remote controller.
Group 2 : Without a Lossnay remote controller.
Group 3 : Multiple Lossnay units and one Lossnay remote controller.
Group 4 : One Lossnay unit and two Lossnay remote controllers.
Group 5 : Multiple Lossnay units and two Lossnay remote controllers.
Group 6 : One Lossnay unit is interlocked to one indoor unit(PZ-60DR-E is not
necesally).
Group 7 : One Lossnay unit is interlocked to multiple indoor units(PZ-60DR-E is
not neccesally).
Group 8 : Multiple Lossnay units connected to indoor unit transmission cable
side and one Lossnay remote controller.
Group 9 : Without Lossnay units.
Caution:
●Hard wire connection from PZ-60DR-E is required independent from M-NET line. If change the Group setting in the future, it
is required to change the wiring of PZ-60DR-E.
●In this application, Lossnay remote controller PZ-41SLB-E cannot be used.
・・・ Group setting
・・・ Interlocked
operation setting

C-15
System Examples: 2 (Lossnay M-NET Remote Controller PZ-52SF-E)
The following groups can be configured.
●Further information please refer LGH-RX4Technical Manual.
Lossnay
(001)
Power
supply
unit
Lossnay M-NET remote
controller PZ-52SF-E
(106)
(103)
( ) address
Group1
Group6
Group2 Group3 Group4 Group5
Lossnay M-NET remote
controller PZ-52SF-E
(156)
(101)
Lossnay
(013)
Group8
Lossnay M-NET remote
controller PZ-52SF-E (114)
Lossnay
(014) Lossnay (015)
Lossnay
(002) Lossnay (004) Lossnay (005) Lossnay (006)
Lossnay
(003)
Lossnay
(010)
Lossnay
(008)
Lossnay M-NET remote
controller PZ-52SF-E
(107) (157)
Lossnay
(007)
Lossnay M-NET remote
controller PZ-52SF-E
Indoor
unit
(009)
MA Remote
controller
Group7
Indoor
unit
(011)
Indoor
unit
(012)
MA Remote
controller
Group9
Indoor
unit
(016)
MA Remote
controller
Outdoor unit
(059)
Centralized controller (000)
Group 1 : One Lossnay unit and one Lossnay M-NET remote controller.
Group 2 : Without a Lossnay M-NET remote controller.
Group 3 : Multiple Lossnay units and one Lossnay M-NET remote controller.
Group 4 : One Lossnay unit and two Lossnay M-NET remote controllers.
Group 5 : Multiple Lossnay units and two Lossnay M-NET remote controllers.
Group 6 : One Lossnay unit is interlocked to one indoor unit.(PZ-60DR-E is not
necesally)
Group 7 : One Lossnay unit is interlocked to multiple indoor units.(PZ-60DR-E is
not neccesally)
Group 8 : Multiple Lossnay units connected to indoor unit transmission cable
side and one Lossnay M-NET remote controller.
Group 9 : Without Lossnay units.
Caution:
●If change the Group setting in the future, no need to change the M-NET wiring, Just change the address setting from central-
ized controller.
●In this application, Lossnay remote controller PZ-41SLB-E cannot be used.
・・・ Group setting
・・・ Interlocked
operation setting

C-16
Lossnay Function Table (Group Setting)
Item
Number of Lossnay remote controllers and/or MELANS
remote controllers that can be connected to one Lossnay unit
Operation of two remote controllers in one group
Switching fan speed
Ventilation mode
Filter maintenance indicator
Error
Details
Five units
(Number of Lossnay remote controller(PZ-60DR-E or PZ-
52SF-E) is two units max.)
Possible
High/Low (Extra-Low from PZ-60DR-E)
Heat exchange / By-pass / Automatic
3000 hours / No display
Display
Controller Function Table
Switches and display n: Group/batch «: Group only (or function available)
: Available under some condition ×: Not available
*1 Available as a scheduled operation
*2
You can set a schedule for the year and a weekly schedule for individual seasons.
●For details about the operation and display of the Lossnay remote controller (PZ-60DR-E), Refer to page C-78.
●For details about the operation and display of the Lossnay M-NET remote controller (PZ-52SF-E), Refer to page C-92.
●For details about the operation and display of the centralized controller (AG-150A), Refer to page C-93.
No. of controllable (Groups/Units)
Model
Local Remote MELANS Series
Start/Stop
Switching air volume
Switching Ventilation mode
Priority instructions to local remote
controller (Local permitted)
Status (Operation/Stop)
Switching air volume
Ventilation mode
Error
Error information
Filter maintenance indicator
Local permitted
Weekly
Stop/Starts per day
Stop/Starts per week
Minimum setting (minutes)
Error record
Scheduling/
Recording Monitoring Operation
Lossnay
remote
controller
Remote
controller
Simple
remote
controller
Group
remote
controller
System
remote
controller
ON/OFF
remote
controller
Centralized
controller
Schedule
timer
«« nnnn
«« n××n
«« n××n
×× n*1 ×n
«« nnnn
«« «×׫
«« «×׫
«« nn«n
«« nn ×n
«« «×׫
«« «×׫
׫׫׫
×16 ×16 ×24
×112 ×112 ×24x7*2
×1×5×1
׫«×׫
Not applicable with non-interlocked
Lossnay units
PZ-52SF-E PZ-60DR-E
PAR-21MAA PAC-SE51CRA
PAC-SC30GRA PAC-SF44SRA PAC-YT34STA PAC-YT40ANRA AG-150A
(M-NET) PAR-F27MEA PAC-YT51CRA
1 Group/16 Units 1 Group/15 Units 50 Group/50 Units 50 Group/50 Units 16 Group/50 Units 50 Group/50 Units
Lossnay
remote
controller

C-17
4.6.2 City Multi and Lossnay Interlocked System
Characteristics
●It is possible to interlock City Multi indoor units with Lossnay operation.
●Independent Lossnay operation can also be performed using MA remote controller or ME remote controller.
●Non M-NET Lossnay remote controller PZ-60DR-E can be used with any Lossnay units in this application.
System Examples
The following groups can be configured.
Single Refrigerant System
Group1
Lossnay
(005)
Group3
Lossnay
(007) Lossnay (009)
Lossnay
(002)
Indoor
unit
(001)
MA Remote
controller
Indoor
unit
(010)
MA Remote
controller
Group2
Indoor
unit
(003)
Indoor
unit
(004)
MA Remote
controller
Group4 Group5
Indoor
unit
(006)
Indoor
unit
(008)
MA Remote
controller
MA Remote
controller
Outdoor unit (051)
( ) address
Non M-NET Lossnay remote controller PZ-41SLB-E
cannot be used with any group in this application.
Multiple Refrigerant Systems
Group1
Lossnay
(004)
Group3
Lossnay
(008)
Lossnay
(002)
Indoor
unit
(001)
MA Remote
controller Group2
Indoor
unit
(003)
Indoor
unit
(005)
Indoor
unit
(007)
MA Remote
controller
Indoor
unit
(006)
MA Remote
controller
Outdoor unit (051) Outdoor unit (055)
( ) address
Refrigerant 1 Refrigerant 2
Group 1 : One Lossnay unit is interlocked to one indoor unit.
Group 2 : One Lossnay unit is interlocked to multiple indoor units.
Group 3 : One indoor unit with two remote controllers is interlocked to one Lossnay unit.
Group 4, 5 : Multiple groups are interlocked to one Lossnay unit.
Group 1 : One Lossnay unit is interlocked to one indoor unit.
Group 2 : One Lossnay unit is interlocked to multiple indoor units (with different refrigerants).
Group 3 : One Lossnay unit is interlocked to multiple indoor units (with same refrigerant).
・・・ Group setting
・・・ Interlocked
operation setting
・・・ Group setting
・・・ Interlocked
operation setting

C-18
Lossnay Function Table (Interlocked Settings)
Item
Number of indoor units that can be set to interlocked opera-
tion with one Lossnay unit in each group
Number of Lossnay units that can be set to interlocked oper-
ation with one indoor unit
Independent Lossnay start/stop operation
Delayed operation
(Optional setting by Lossnay PCB)
Fan speed switching Indoor unit compatible with both R22,
R407C and R410A
Units other than the above
Ventilation mode
Filter maintenance indicator
Error
Restrictions and precautions
Details
16 units per group
one unit
Possible
30-minutes delayed operation when indoor unit cooling/heat-
ing operation is started
High/Low
Fixed to high
Fixed to automatic
3000 hours / No display
Display
*Lossnays cannot be interlocked to the indoor units using
K-transmission converter.
Lossnay Controller Function Table
Switches and display n: Group/batch «: Group only (or function available)
: Available under some condition ×: Not available
*1 Does not display which interlocked Lossnay unit is operating in which group
*2 Available as schedule operation
*3
You can set a schedule for the year and a weekly schedule for individual seasons.
● For details about the operation or display of the remote controller (PAR-F27MEA, PAR-21MAA), please refer to the specific
remote controller manuals.
No. of controllable (Groups (G)/Units)
Model
Local Remote MELANS Series
Start/Stop
Switching air volume
Switching ventilation mode
Prohibit Local
Status (Operation/Stop)
Switching air volume
Ventilation mode
Error
Error information
Filter maintenance indicator
Permit/Prohibit for remote control
Weekly
Stop/Starts per day
Stop/Starts per week
Minimum setting (minutes)
Error record
Scheduling/
Recording Monitoring Operation
Lossnay
remote
controller
Remote
controller
Simple
remote
controller
Group
remote
controller
System
remote
controller
ON/OFF
remote
controller
Centralized
controller
Schedule
timer
««««
nnnnn
«««×««×׫
««×××××××
×××××
n*2 ×n
«««×«*1 nnn
«««×«××׫
««×××××××
««««
nnnnn
««««
nnn ×n
«««×««×׫
׫«« «« ×׫
׫×××׫׫
×16 2 ×××16 ×24
×112 ××××112 ×24x7*3
×110×××5×1
׫××׫×׫
PZ-52SF-E PZ-60DR-E
PAR-21MAA
PAC-SE51CRA
PAC-SC30GRA PAC-SF44SRA PAC-YT34STA PAC-YT40ANRA AG-150A
PAR-F27MEA PAC-YT51CRA
1 Group/16 Units 1 Group/15 Units 1 Group/16 Units 1 Group/16 Units 8 Group/16 Units 50 Group/50 Units 50 Group/50 Units 16 Group/50 Units 50 Group/50 Units
Note:
●In case of PZ-60DR-E is installed, additional function is available.
Lossnay
remote
controller

C-19
4.6.3 MA Remote Controller/ME Remote Controller in Combination
with Lossnay Non-M-NET Remote Controller (PZ-60DR-E)
System
Combining MA, ME and Lossnay Non M-NET remote controllers is permitted.
●In case of combination with Lossnay
M-NET remote controller (PZ-52SF-E) please refer LGH-RX 4 Technical Manual.
Combining Indoor Unit of Air Conditioner Remote Control and Lossnay Remote Control
Indoor unit of
air conditioner
(001)
Lossnay
(002)
MA remote
controller
(101)
Outdoor unit
(051)
Power
supply
unit
GG
Interlocked operation setting
( ) address
Centralized controller (000)
Lossnay remote
controller
PZ-60DR-E
Indoor Unit Lossnay LGH-RX5type
Model for MA remote control (Type C or later) «
Model for other than MA remote control (Type B or earlier) ×
«: Compatible ×: Incompatible
System Examples: 1
Setting Method
(1) Make the Group setting for the indoor unit.
(2) Make the Group setting for the Lossnay unit.
(3) Set the indoor unit and Lossnay unit for interlocked operation.
When using the centralized controller, make both the Group setting and operation setting with centralized controller.
Characteristics
(1) When the indoor unit is set for interlocked operation in one group:
Interlocked Lossnay operation is possible with indoor unit remote controller. In this case, operation can switch between
High/Low/Off. It is possible to switch Lossnay operation only between High/Low/Off with the indoor unit remote controller.
It is possible to controll the Lossnay unit from Lossnay remote controller PZ-60DR-E. More additional function such as Extra
Low fan speed is available.
(2) When two or more indoor units in different groups are set for interlocked operation, the Lossnay will operate if at least one
group operates. The Lossnay will stop operation if all groups stop operation.
It is possible to switch the Lossnay only between High/Low when other groups are operating with indoor unit remote con-
troller.
It is possible to controll the Lossnay unit from Lossnay remote controller PZ-60DR-E. More additional function such as Extra
Low fan speed is available.
Note:
●If the display on the MA, ME or other indoor unit remote controllers is cancelled, the indoor unit remote controller will not
show the ventilation display even if Lossnay is operating via the Lossnay remote controller PZ-60DR-E.
Note:
Power supply limitation of transmission cable for indoor unit.
●Indoor units + ME remote controllers (compact remote controllers) is less than or equal to 40 units.
●Indoor units are less than or equal to 20 units.
(MA remote controllers and Lossnay units are not included in the 20 units, listed above.)

C-20
System Examples: 2
A sophisticated system including City Multi can also be configured.
Note:
●Hard wire connection from PZ-60DR-E is required independent from M-NET line. If change the Group setting in the future, it
is required to change the wiring of PZ-60DR-E.
●Do not use Lossnay remote controller PZ-41SLB-E.
(109)(111)(
116)
Indoor unit
(011)
Group1 Group2
Group6 Group7 Group8 Group9
Group3 Group4 Group5
Outdoor unit
(059)
ME
remote controller
ME
remote controller
ME
remote controller
( ) address
Lossnay
(001)
Lossnay
(010) Lossnay (013) Lossnay (014) Lossnay (015)
Lossnay
(002) Lossnay (003) Lossnay (004) Lossnay (005) Lossnay (006) Lossnay (007)
Lossnay(008)
Indoor unit
(009)
Indoor unit
(012)
Indoor unit
(016)
M-MET
M-MET
Power
supply
unit
Centralized controller (000)
Lossnay remote
controller PZ-60DR-E
Lossnay remote
controller PZ-60DR-E Lossnay remote controller PZ-60DR-E Lossnay remote controller PZ-60DR-E
Lossnay remote
controller PZ-60DR-E Lossnay remote controller PZ-60DR-E
Lossnay remote
controller PZ-60DR-E
Group 1 : One Lossnay unit and one Lossnay remote controller.
Group 2 : Without Lossnay remote controller.
Group 3 : Multiple Lossnay units and one Lossnay remote controller.
Group 4 : One Lossnay unit and two Lossnay remote controllers.
Group 5 : Multiple Lossnay units and two Lossnay remote controllers.
Group 6 : One Lossnay unit is interlocked to one indoor unit. (PZ-60DR-E is not necessary)
Group 7 : One Lossnay unit is interlocked to multiple indoor units. (PZ-60DR-E is not necessary)
Group 8 : Multiple Lossnay units connected to an indoor unit transmission cable
and one Lossnay remote controller.
Group 9 : Without Lossnay units.
・・・ Group setting
・・・ Interlocked
operation setting
