Mitsubishi Electric MAC-102CRC-E Mr. Slim User manual

REMOTE CONTROLLER
OPERATING INSTRUCTIONS
ADVANCED AND EVER ADVANCING
MAC-102CRC-E
CONTENTS
SAFETY PRECAUTIONS .................................................................................... 2
NAME OF EACH PART FOR R/C ........................................................................ 3
MANUAL OPERATION (COOL) ........................................................................... 3
AIR FLOW VELOCITY AND DIRECTION ADJUSTMENT .................................. 4
NAME OF EACH PART FOR UNIT ...................................................................... 5
FOR OWNERS .................................................................................................... 5
•This remote controller is for the exclusive use of the following models:
MS09NW, MS12NN, MS15NN, MS17NN
MS09NW2, MS12NN2, MS15NN2, MS17NN2
MS09TW, MS12TN, MS15TN, MS17TN
•To use this remote controller correctly and safely, be sure to read this operating instructions before use. Keep
this manual carefully for later reference.

REMOTE CONTROLLER
OPERATING INSTRUCTIONS
ADVANCED AND EVER ADVANCING
MAC-102CRC-E
CONTENTS
SAFETY PRECAUTIONS .................................................................................... 2
NAME OF EACH PART FOR R/C ........................................................................ 3
MANUAL OPERATION (COOL) ........................................................................... 3
AIR FLOW VELOCITY AND DIRECTION ADJUSTMENT .................................. 4
NAME OF EACH PART FOR UNIT ...................................................................... 5
FOR OWNERS .................................................................................................... 5
•This remote controller is for the exclusive use of the following models:
MS09NW, MS12NN, MS15NN, MS17NN
MS09NW2, MS12NN2, MS15NN2, MS17NN2
MS09TW, MS12TN, MS15TN, MS17TN
•To use this remote controller correctly and safely, be sure to read this operating instructions before use. Keep
this manual carefully for later reference.

2
SAFETY PRECAUTIONS
CAUTION
CAUTION
Replace the 2 batteries
with new ones of same
type.
•Using an old battery together
with a new one may result in
heat generation, leakage or an
explosion.
Do not charge or dis-
assemble the batteries
and do not throw them
into a fire.
•This may result in leakage, fire
or an explosion.
If liquid from the alka-
line batteries gets onto
your skin or clothes,
wash it well with clean
water.
•If liquid from the alkaline bat-
teries gets into your eyes,
wash them well with clean wa-
ter and consult a doctor at
once.
Handling of the remote controller
•The range that the signal can reach is about 20 feet when the remote controller is pointed at the front of
the indoor unit.
•When a button is pressed, one or two beeps will be heard from the indoor unit. If no sound is heard,
operate again.
•Use the remote controller carefully.
If it is dropped, thrown or it gets wet, the remote controller may not operate.
•Since the cautionary items shown here are important for safety, be sure to observe them.
Marks and their meanings are as shown below.
Incorrect handling could cause a serious hazard depending on the condi-
tions.
Meanings of symbols used in this manual are as shown below.
Be sure not to do.
Be sure to follow the instruction.

2
SAFETY PRECAUTIONS
CAUTION
CAUTION
Replace the 2 batteries
with new ones of same
type.
•Using an old battery together
with a new one may result in
heat generation, leakage or an
explosion.
Do not charge or dis-
assemble the batteries
and do not throw them
into a fire.
•This may result in leakage, fire
or an explosion.
If liquid from the alka-
line batteries gets onto
your skin or clothes,
wash it well with clean
water.
•If liquid from the alkaline bat-
teries gets into your eyes,
wash them well with clean wa-
ter and consult a doctor at
once.
Handling of the remote controller
•The range that the signal can reach is about 20 feet when the remote controller is pointed at the front of
the indoor unit.
•When a button is pressed, one or two beeps will be heard from the indoor unit. If no sound is heard,
operate again.
•Use the remote controller carefully.
If it is dropped, thrown or it gets wet, the remote controller may not operate.
•Since the cautionary items shown here are important for safety, be sure to observe them.
Marks and their meanings are as shown below.
Incorrect handling could cause a serious hazard depending on the condi-
tions.
Meanings of symbols used in this manual are as shown below.
Be sure not to do.
Be sure to follow the instruction.

3
AUTO
COOL HEAT
AUTO
FAN VANE
RESET
TEMPERATURE
DOWN
F
UP
ON/OFF
ON/OFF
AUTO
COOL
AUTO
FAN VANE
RESET
TEMPERATURE
DOWN
F
UP
Signal transmitting section
Operation display section
ON/OFF (operate/
stop) button
Fan speed control button
Temperature buttons
Vane control button
RESET button
(This diagram shows an overall view.)
NAME OF EACH PART FOR R/C MANUAL OPERATION(COOL)
To select the COOL mode
1Press the
ON/OFF
button.
To stop operation:
■Press the
ON/OFF
button again.
■When the set temperature is to be changed:
■Press the
DOWN
button to lower the tempera-
ture. One press lowers the temperature by
about 2 °F.
■Press the
UP
button to raise the temperature.
One press raises the temperature by about
2 °F.
NOTE
When the ambient temperature is too high, the room
temperature may not reach the set temperature since
the unit operates to cool under high load.
Remote controller

3
AUTO
COOL HEAT
AUTO
FAN VANE
RESET
TEMPERATURE
DOWN
F
UP
ON/OFF
ON/OFF
AUTO
COOL
AUTO
FAN VANE
RESET
TEMPERATURE
DOWN
F
UP
Signal transmitting section
Operation display section
ON/OFF (operate/
stop) button
Fan speed control button
Temperature buttons
Vane control button
RESET button
(This diagram shows an overall view.)
NAME OF EACH PART FOR R/C MANUAL OPERATION(COOL)
To select the COOL mode
1Press the
ON/OFF
button.
To stop operation:
■Press the
ON/OFF
button again.
■When the set temperature is to be changed:
■Press the
DOWN
button to lower the tempera-
ture. One press lowers the temperature by
about 2 °F.
■Press the
UP
button to raise the temperature.
One press raises the temperature by about
2 °F.
NOTE
When the ambient temperature is too high, the room
temperature may not reach the set temperature since
the unit operates to cool under high load.
Remote controller

4

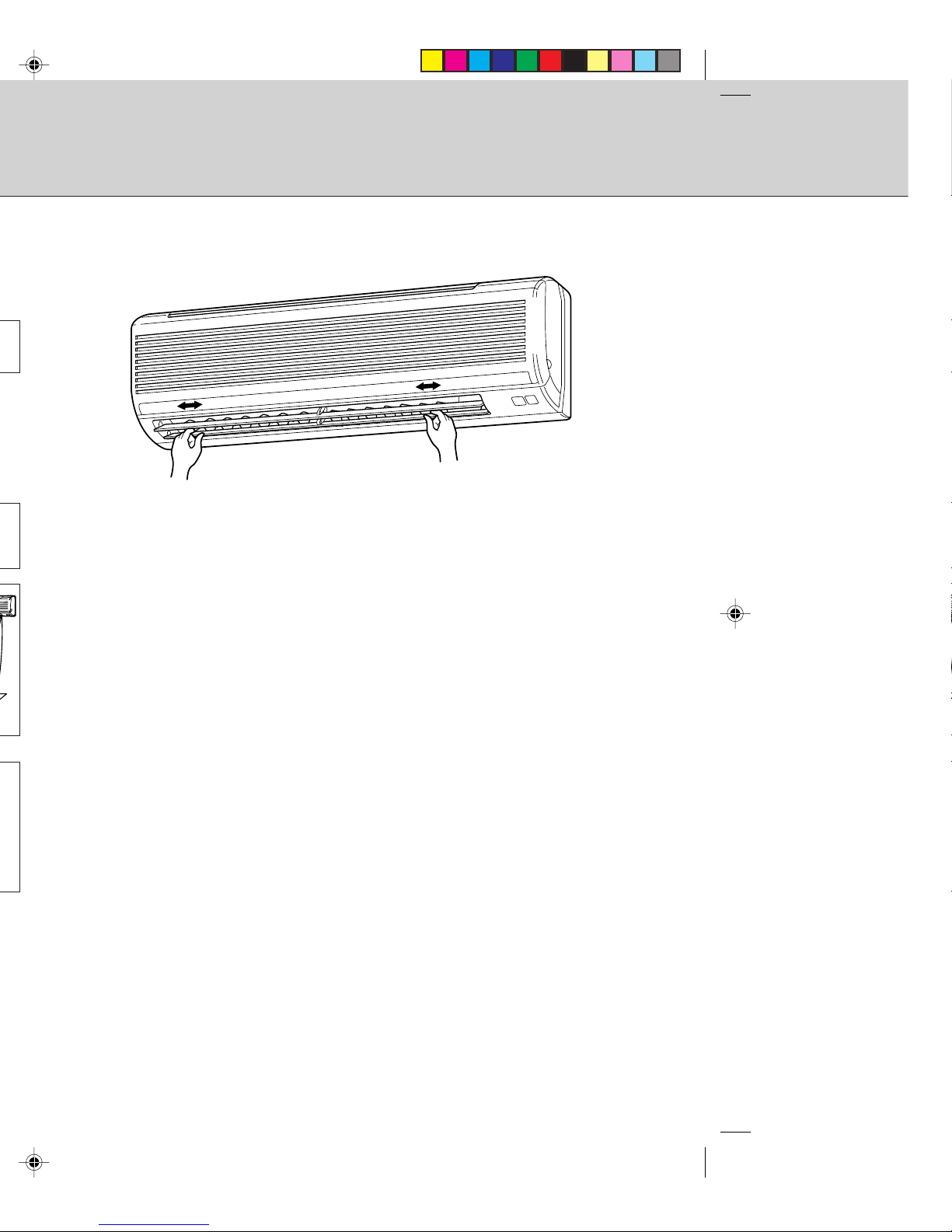

■To change the horizontal direction of the air flow, move the vertical vane manu- ally.
Adjust the vane before operation starts.
Since the horizontal vane moves automatically, your fingers may be caught.
1
2
3
4
5
AIR FLOW VELOCITY AND DIRECTION ADJUSTMENT
AIR FLOW velocity and direction can be se-
lected as required.
■To change the AIR FLOW velocity, press the
FAN
button.
Each time the button is pressed, the fan speed is
changed in sequence: (Low) →(Med.) →
(High) →AUTO
•Use the (High) notch to cool the room more.
•If the operating sound of the air conditioner disturbs
your sleep, use the (Low) notch.
■To change the AIR FLOW blowing di- rection vertically, press the
VANE
button.
Each time the button is pressed, the angle of the
horizontal vane is changed in sequence: (1) →
(2) → (3) →(4) →(5) →(SWING) →AUTO
SWING OPERATION
Use the swing operation for the air flow to reach all cor-
ners of the room.
Recommended horizontal
vane range
Use the AUTO position usually.
Use position (1) or (2) in the
COOL mode when adjusting to
your requirements.
NOTE
■In the cooling operation, when the air conditioner is
operated with setting the horizontal vane to (4) or
(5) for 1 hour, the AIR FLOW direction is automati-
cally set to horizontal to prevent condensed water
from dropping.
■Adjust the vertical AIR FLOW direction using the re-
mote controller. If the horizontal vane is moved manu-
ally, it may cause trouble.
COOL
AUTO
COOL
AUTO
FAN VANE
RESET
TEMPERATURE
DOWN
F
UP
ON/OFF

4
■To change the horizontal direction of the air flow, move the vertical vane manu- ally.
Adjust the vane before operation starts.
Since the horizontal vane moves automatically, your fingers may be caught.
1
2
3
4
5
AIR FLOW VELOCITY AND DIRECTION ADJUSTMENT
AIR FLOW velocity and direction can be se-
lected as required.
■To change the AIR FLOW velocity, press the
FAN
button.
Each time the button is pressed, the fan speed is
changed in sequence: (Low) →(Med.) →
(High) →AUTO
•Use the (High) notch to cool the room more.
•If the operating sound of the air conditioner disturbs
your sleep, use the (Low) notch.
■To change the AIR FLOW blowing di- rection vertically, press the
VANE
button.
Each time the button is pressed, the angle of the
horizontal vane is changed in sequence: (1) →
(2) → (3) →(4) →(5) →(SWING) →AUTO
SWING OPERATION
Use the swing operation for the air flow to reach all cor-
ners of the room.
Recommended horizontal
vane range
Use the AUTO position usually.
Use position (1) or (2) in the
COOL mode when adjusting to
your requirements.
NOTE
■In the cooling operation, when the air conditioner is
operated with setting the horizontal vane to (4) or
(5) for 1 hour, the AIR FLOW direction is automati-
cally set to horizontal to prevent condensed water
from dropping.
■Adjust the vertical AIR FLOW direction using the re-
mote controller. If the horizontal vane is moved manu-
ally, it may cause trouble.
COOL
AUTO
COOL
AUTO
FAN VANE
RESET
TEMPERATURE
DOWN
F
UP
ON/OFF

5
NAME OF EACH PART FOR UNIT
Air cleaning filter
(White bellows
type) (OPTION)
Deodorizing filter
(Gray sponge
type) (OPTION)
Air filter
Vertical vane
Display section
Front panel
Air inlet
Remote control
receiving section
MS09NW
MS09NW2
MS09TW
MS12NN, MS15NN, MS17NN
MS12NN2, MS15NN2, MS17NN2
MS12TN, MS15TN, MS17TN
Horizontal vane
Operation
Indicator lamp Receiving section
Operation Indicator
Operation
Indicator lamp
Receiving
section
Outdoor unit
MU09NW MU09TW MU12NN, MU15NN,
MU09NW2 MU12TN MU17NN
MU12NN2, MU15NN2,
MU17NN2
MU15TN, MU17TN
Air inlet
(back and side)
Drain outlet
Piping
Drainage hose
Air outlet
Indoor unit
FOR OWNERS

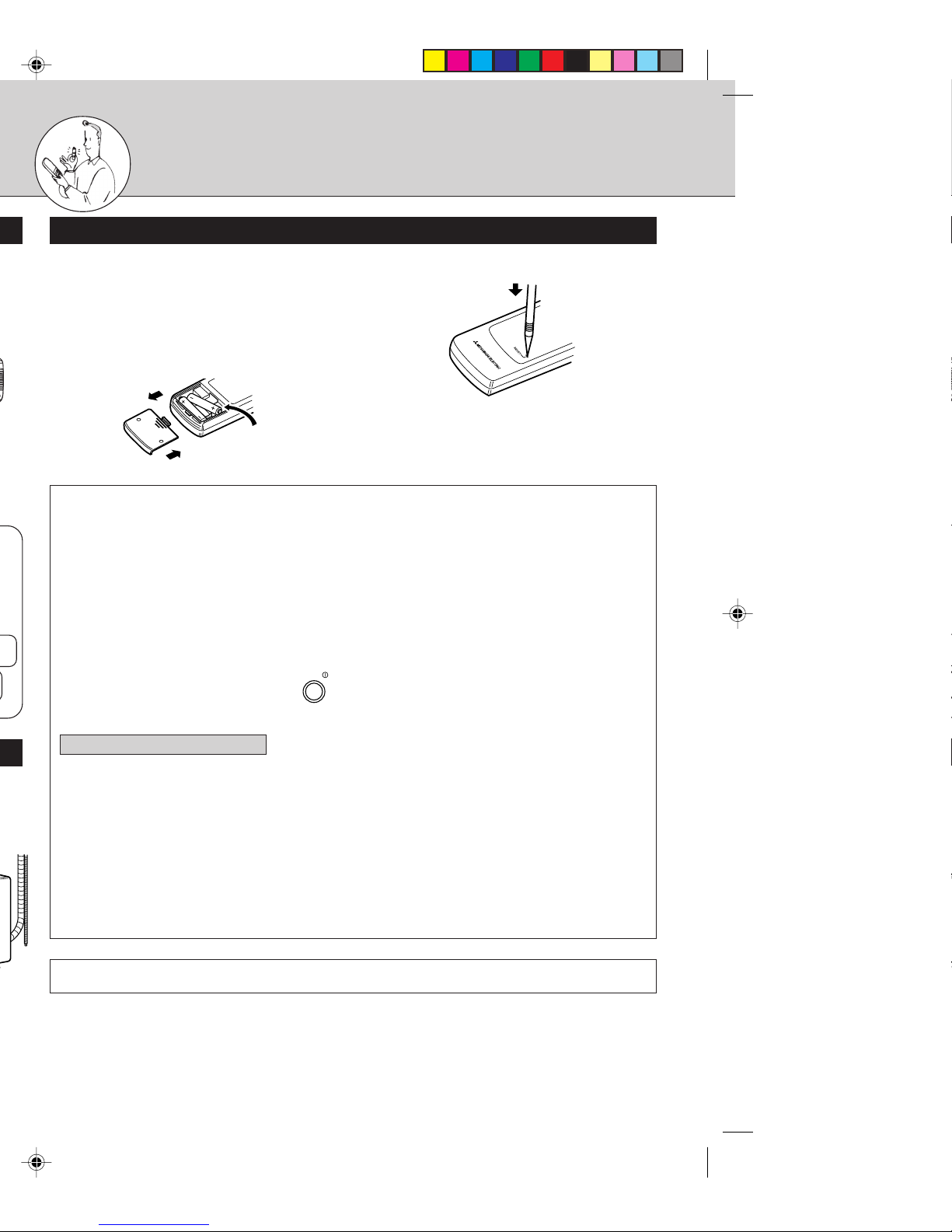

Remote controller (How to set the batteries)
1Remove the back lid and insert
batteries. Then reattach the back
lid.
Insert the minus pole of the batteries first.
Check if the polarity of the batteries is cor-
rect.
2Press the RESET button.
■If the RESET button is not pressed, the remote con-
troller may not operate correctly.
Press using
a thin stick.
Insert the minus pole
of the batteries first.
Handling of the remote controller
•The range that the signal can reach is about 20 feet when the remote controller is pointed at the front of
the indoor unit.
•When a button is pressed, one or two beeps will be heard from the indoor unit. If no sound is heard,
operate again.
•Use the remote controller carefully.
If it is dropped, thrown or it gets wet, the remote controller may not operate.
When installing on a wall, etc.
•Install the remote controller installation case in a position where the signal reception sound (beep) can
be heard from the indoor unit when the
ON/OFF
button is pressed.
Dry-cell batteries
Reference for replacing batteries
When the indoor unit does not respond to the signal from the remote controller, or the display becomes
dim, replace the batteries with new ones (size AAA).
•Though both alkaline batteries and manganese batteries can be used, alkaline batteries are recom-
mended because their service life is longer than that of manganese batteries.
•The service life of an alkaline battery is about 1 year.
However, a battery which the time limit is approaching may be exhausted soon. The recommended
usable time limit is indicated (month/year) on the bottom of the battery.
•Replace the 2 batteries with new ones of the same type.
•Do not use rechargeable batteries.
•To prevent liquid leakage, take out all batteries when the remote controller is not going to be used for a
long time.
•Dispose of exhausted batteries in the correct manner.
Refer to OPERATING INSTRUCTIONS attached to the air conditioner for details.
MS12NN, MS15NN,
MS17NN
MS12NN2, MS15NN2,
MS17NN2
MS12TN, MS15TN,
MS17TN
MS09NW, MS09NW2, MS09TW

5
NAME OF EACH PART FOR UNIT
Air cleaning filter
(White bellows
type) (OPTION)
Deodorizing filter
(Gray sponge
type) (OPTION)
Air filter
Vertical vane
Display section
Front panel
Air inlet
Remote control
receiving section
MS09NW
MS09NW2
MS09TW
MS12NN, MS15NN, MS17NN
MS12NN2, MS15NN2, MS17NN2
MS12TN, MS15TN, MS17TN
Horizontal vane
Operation
Indicator lamp Receiving section
Operation Indicator
Operation
Indicator lamp
Receiving
section
Outdoor unit
MU09NW MU09TW MU12NN, MU15NN,
MU09NW2 MU12TN MU17NN
MU12NN2, MU15NN2,
MU17NN2
MU15TN, MU17TN
Air inlet
(back and side)
Drain outlet
Piping
Drainage hose
Air outlet
Indoor unit
FOR OWNERS
Remote controller (How to set the batteries)
1Remove the back lid and insert
batteries. Then reattach the back
lid.
Insert the minus pole of the batteries first.
Check if the polarity of the batteries is cor-
rect.
2Press the RESET button.
■If the RESET button is not pressed, the remote con-
troller may not operate correctly.
Press using
a thin stick.
Insert the minus pole
of the batteries first.
Handling of the remote controller
•The range that the signal can reach is about 20 feet when the remote controller is pointed at the front of
the indoor unit.
•When a button is pressed, one or two beeps will be heard from the indoor unit. If no sound is heard,
operate again.
•Use the remote controller carefully.
If it is dropped, thrown or it gets wet, the remote controller may not operate.
When installing on a wall, etc.
•Install the remote controller installation case in a position where the signal reception sound (beep) can
be heard from the indoor unit when the
ON/OFF
button is pressed.
Dry-cell batteries
Reference for replacing batteries
When the indoor unit does not respond to the signal from the remote controller, or the display becomes
dim, replace the batteries with new ones (size AAA).
•Though both alkaline batteries and manganese batteries can be used, alkaline batteries are recom-
mended because their service life is longer than that of manganese batteries.
•The service life of an alkaline battery is about 1 year.
However, a battery which the time limit is approaching may be exhausted soon. The recommended
usable time limit is indicated (month/year) on the bottom of the battery.
•Replace the 2 batteries with new ones of the same type.
•Do not use rechargeable batteries.
•To prevent liquid leakage, take out all batteries when the remote controller is not going to be used for a
long time.
•Dispose of exhausted batteries in the correct manner.
Refer to OPERATING INSTRUCTIONS attached to the air conditioner for details.
MS12NN, MS15NN,
MS17NN
MS12NN2, MS15NN2,
MS17NN2
MS12TN, MS15TN,
MS17TN
MS09NW, MS09NW2, MS09TW

3400 Lawrenceville Suwanee Road ●Suwanee, Georgia 30024
Toll Free: 800-433-4822 ●Toll Free Fax: [phone]
www.mrslim.com
Specifications are subject to change without notice.
