Mitsubishi Electric PZ-62DR-E User manual

English
Prior to use, thoroughly read the instructions in this manual to use the product correctly.
Retain for future reference.
Make sure to hand this manual to any future users.
To ensure safety and proper operation of the remote controller, the remote controller should only be
installed by qualified personnel.
Lossnay Remote Controller
MODEL
PZ-62DR-E
Instruction Book
2105875H16901

Eng-2
Lossnay
Product features
Feature 1
Large, easy-to-see display
Full-dot LCD display with large characters
for easy viewing
Feature 2
Simple button arrangement
Feature 3
Large, easy-to-press buttons
Buttons are arranged according
to usage to allow for intuitive
navigation.
Frequently used buttons are larger
than other buttons to prevent
unintended pressing of other
buttons.

Eng-3
Contents
Safety precautions .................................... 4
Names and functions of controller components ......... 6
Controller interface ....................................................6
Display.......................................................................8
Basic operations .......................................... 12
Power ON/OFF........................................................12
Power ON/OFF during Night-purge operation.........12

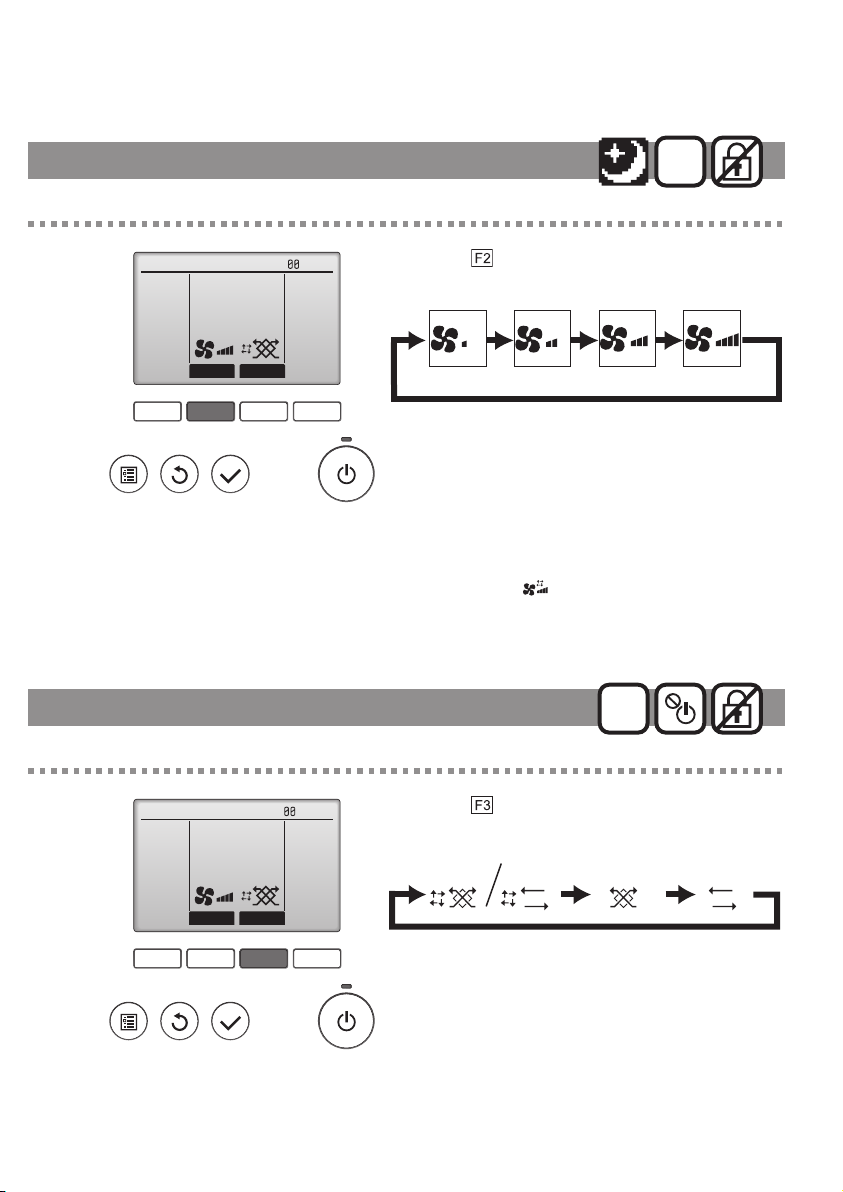

Fan speed................................................................13
Ventilation mode......................................................13
Maintenance ................................................. 50
Troubleshooting ............................................ 45
Specifications ................................................ 53
Read before operating the controller ......... 10

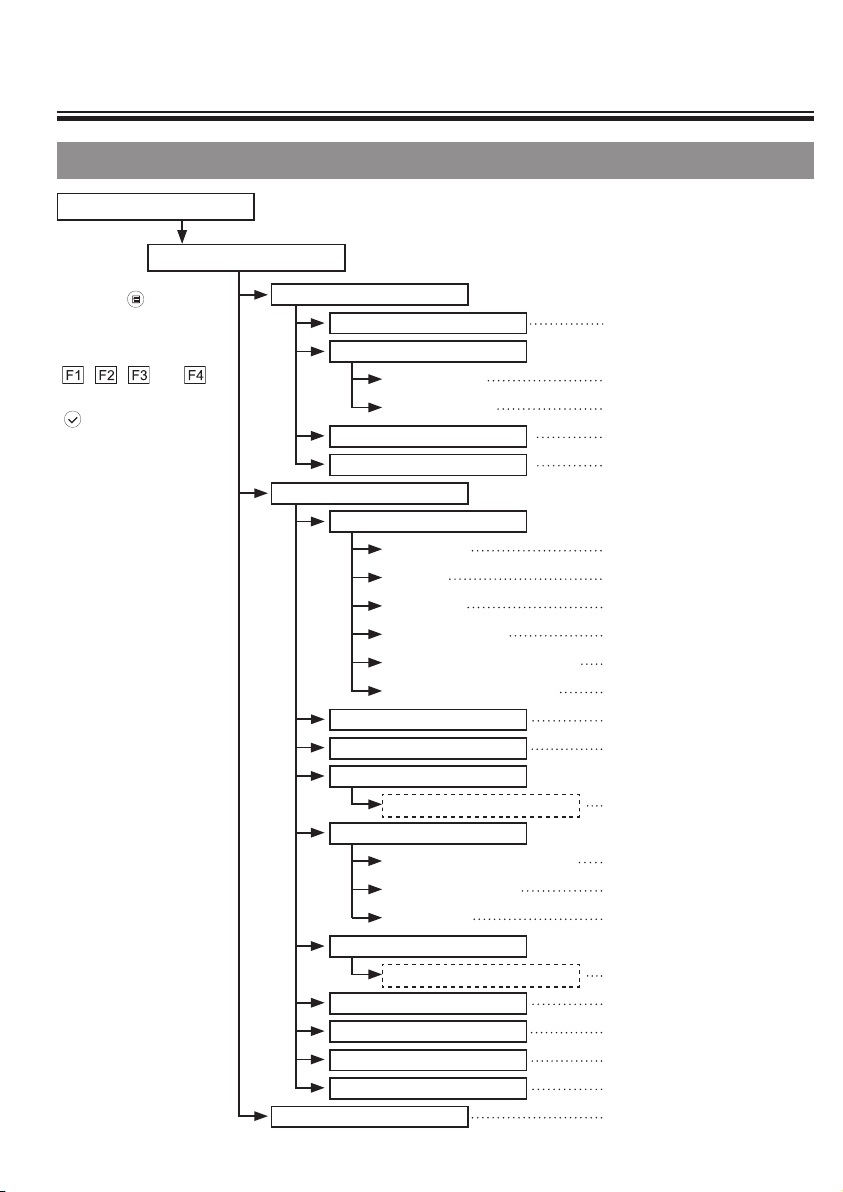

Menu structure.........................................................10

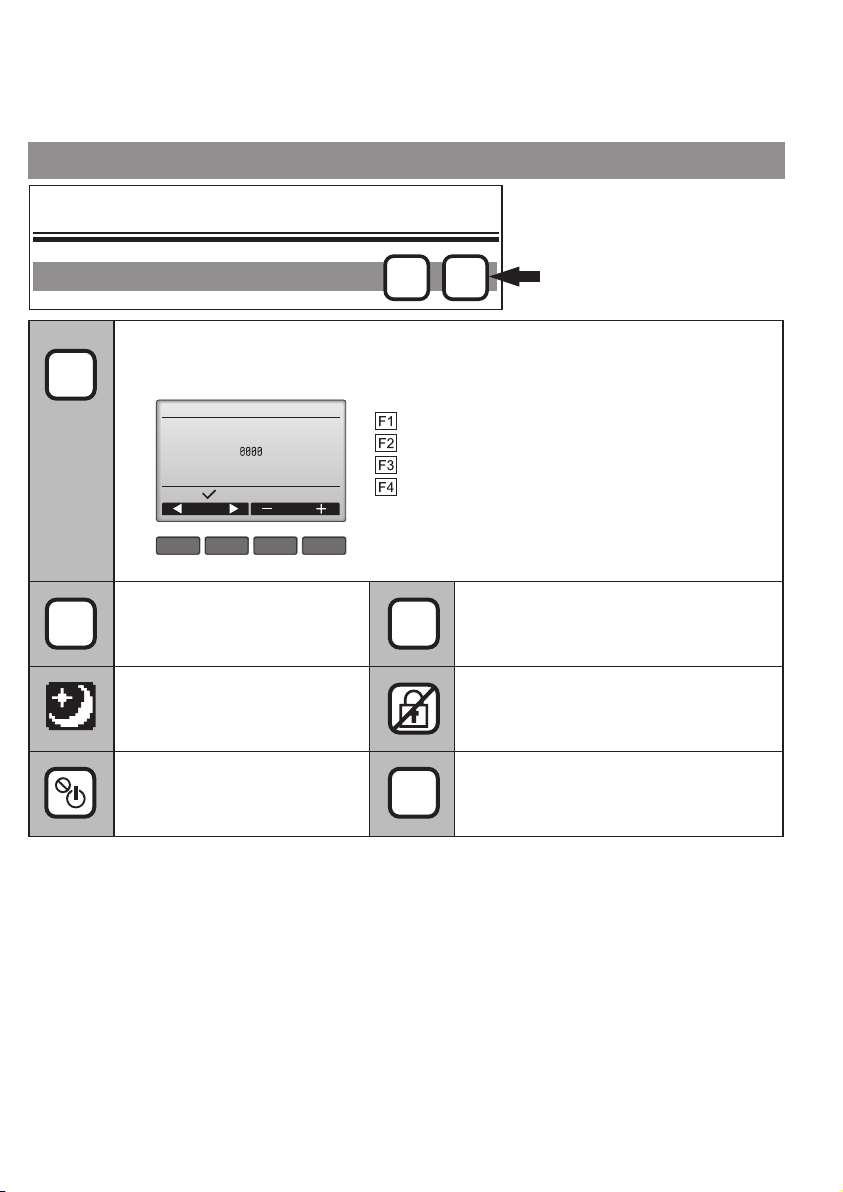

Icon explanations..................................................... 11

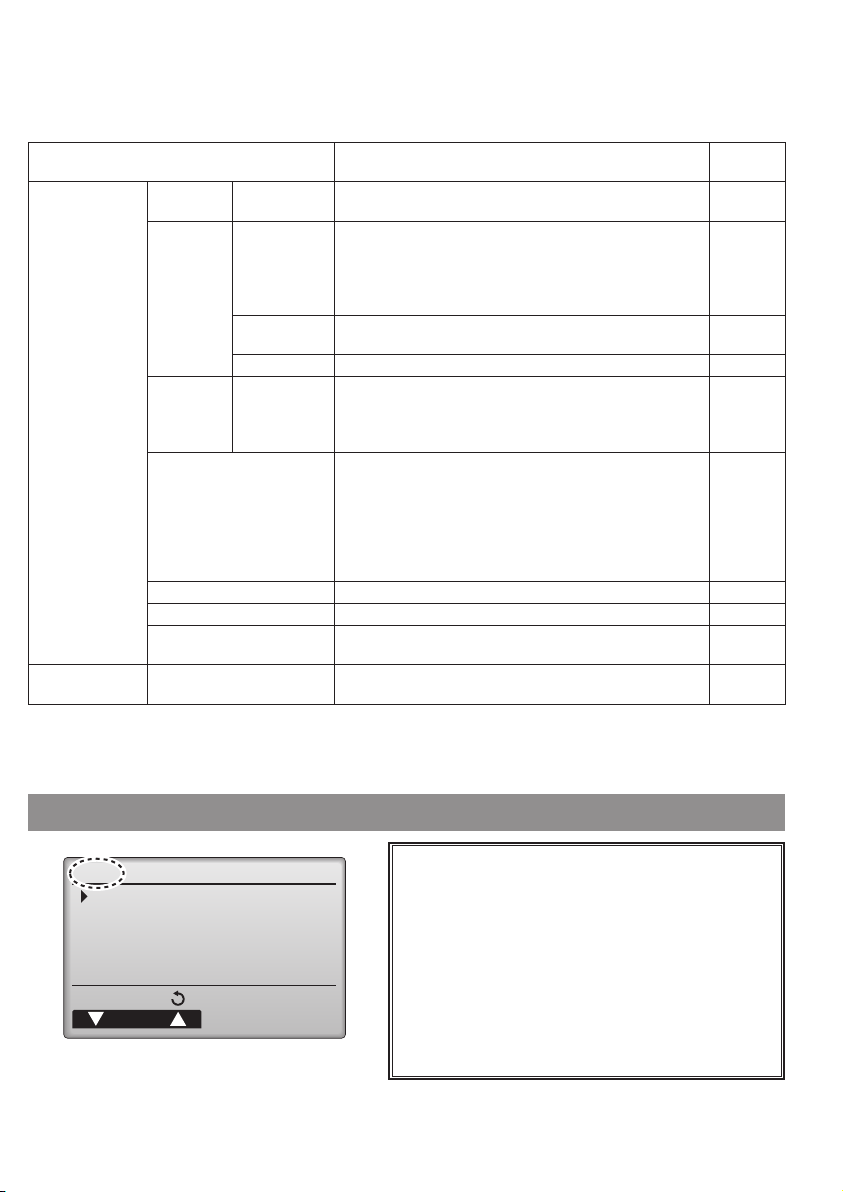

Main menu list .........................................................14
Restrictions for the sub remote controller................ 15

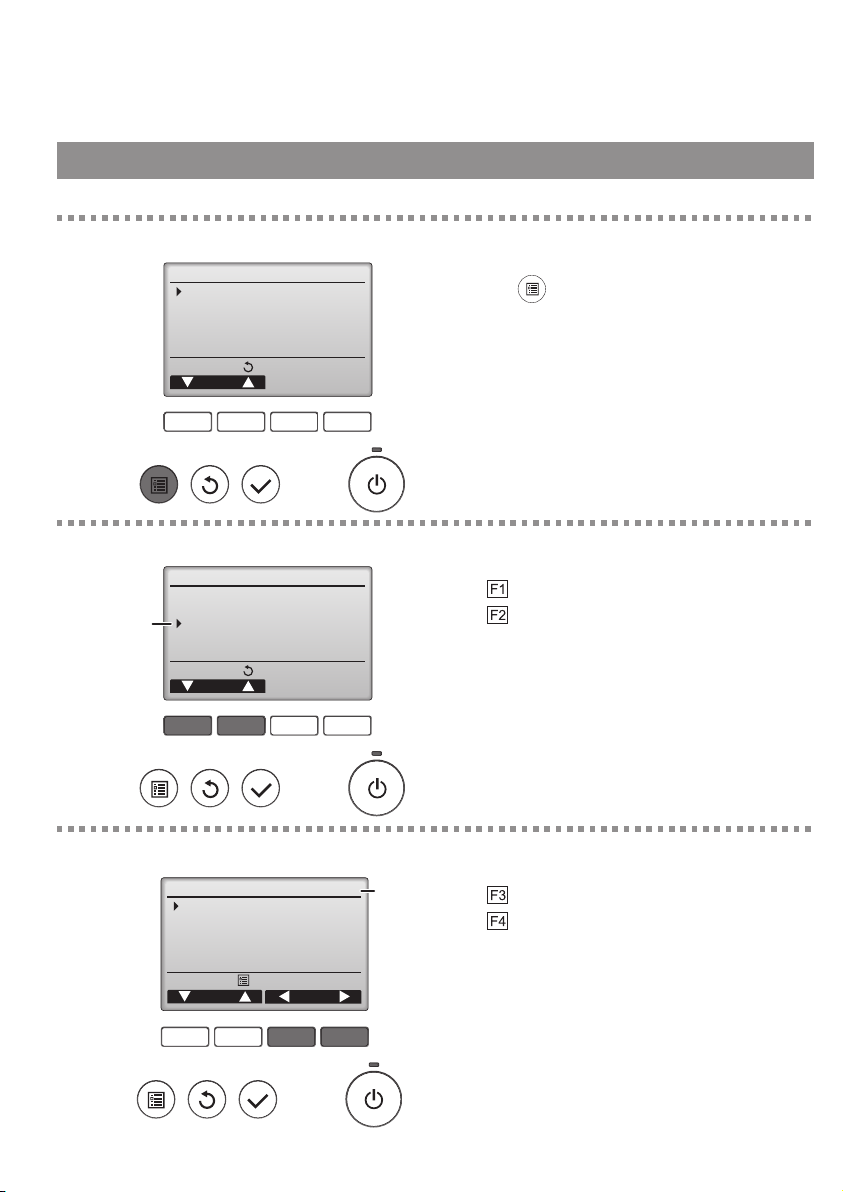

Navigating through the Main menu..........................16
Clock........................................................................18
Contrast...................................................................19
Language selection .................................................20
Fan speed timer.......................................................22
Timer .......................................................................24
Weekly timer............................................................28
Night purge setting ..................................................30
Airflow......................................................................32
Auto bypass.............................................................35
External input...........................................................36
Function setting .......................................................37
Initializing.................................................................39
Restriction................................................................41
Maintenance interval ...............................................43
Navigating through the menu ...................... 14
Initial setting .................................................. 18
User options .................................................. 22
Detailed function setting .............................. 32

Eng-4
WARNING
• Thoroughly read the following safety precautions before using the unit.
• Observe these precautions carefully to ensure safety.
CAUTION
Indicates a risk of death or serious injury.
Indicates a risk of serious injury or structural damage.
WARNING
Safety precautions
• After reading this manual, pass it on to the end user to retain for future reference.
• Keep this manual for future reference and refer to it as necessary. This manual should be made available
to those who repair or relocate the controller. Make sure that the manual is passed on to any future
users.
General precautions
To reduce the risk of electric shock, malfunctions,
smoke or fire, do not operate the switches/buttons or
touch other electrical parts with wet hands.
To reduce the risk of shorting, current leakage,
electric shock, malfunctions, smoke, or fire, do not
wash the controller with water or any other liquid.
Do not install the unit in a place where large
amounts of oil, steam, organic solvents, or corrosive
gases, such as sulfuric gas, are present or where
acidic/alkaline solutions or sprays are used
frequently. These substances can compromise
the performance of the unit or cause certain
components of the unit to corrode, which can result
in electric shock, malfunctions, smoke, or fire.
When disinfecting the unit using alcohol, ventilate
the room adequately. The fumes of the alcohol
around the unit may cause a fire or explosion when
the unit is turned on.
To reduce the risk of injury or electric shock, before
spraying a chemical around the controller, stop the
operation and cover the controller.
To reduce the risk of injury or electric shock, stop
the operation and switch off the power supply before
cleaning, maintaining, or inspecting the controller.
If any abnormality (e.g., burning smell) is noticed,
stop the operation, turn off the power switch, and
consult your dealer. Continued use of the product
may result in electric shock, malfunctions, or fire.
Properly install all required covers to keep moisture
and dust out of the controller. Dust accumulation and
water can cause electric shock, smoke, or fire.
CAUTION
To reduce the risk of fire or explosion, do not place
flammable materials or use flammable sprays
around the controller.
To reduce the risk of damage to the controller, do not
directly spray insecticide or other flammable sprays
on the controller.
To reduce the risk of environmental pollution, consult
an authorized agency for proper disposal of remote
controller.
To reduce the risk of electric shock or malfunctions,
do not touch the touch display or buttons with a
pointy or sharp object.

Eng-5
To reduce the risk of injury and electric shock, avoid
contact with sharp edges of certain parts.
To avoid injury from broken glass, do not apply
excessive force on the glass parts.
To reduce the risk of injury, wear protective gear
when working on the controller.
Precautions for moving or repairing the controller
WARNING CAUTION
The controller should be repaired or moved only by
qualified personnel. Do not disassemble or modify
the controller.
Improper installation or repair may cause injury,
electric shock, or fire.
To reduce the risk of shorting, electric shock, fire,
or malfunction, do not touch the circuit board with
tools or with your hands, and do not allow dust to
accumulate on the circuit board.
Additional precautions
To avoid damage to the controller, use appropriate
tools to install, inspect, or repair the controller.
Do not pull or twist the communication cables.
Pulling or twisting a cable may result in fire or
equipment failure.
To avoid discoloration, do not use benzene, thinner,
ethanol,hypochlorous acid or chemical rag to clean
the controller. To clean the controller, wipe with a
soft cloth soaked in water with mild detergent, wipe
off the detergent with a wet cloth, and wipe off water
with a dry cloth.
This controller is designed for exclusive use with
the Lossnay by Mitsubishi Electric. The use of this
controller for other systems or for other purposes
may cause malfunctions.
To avoid damage to the controller, provide protection
against static electricity.

Eng-6

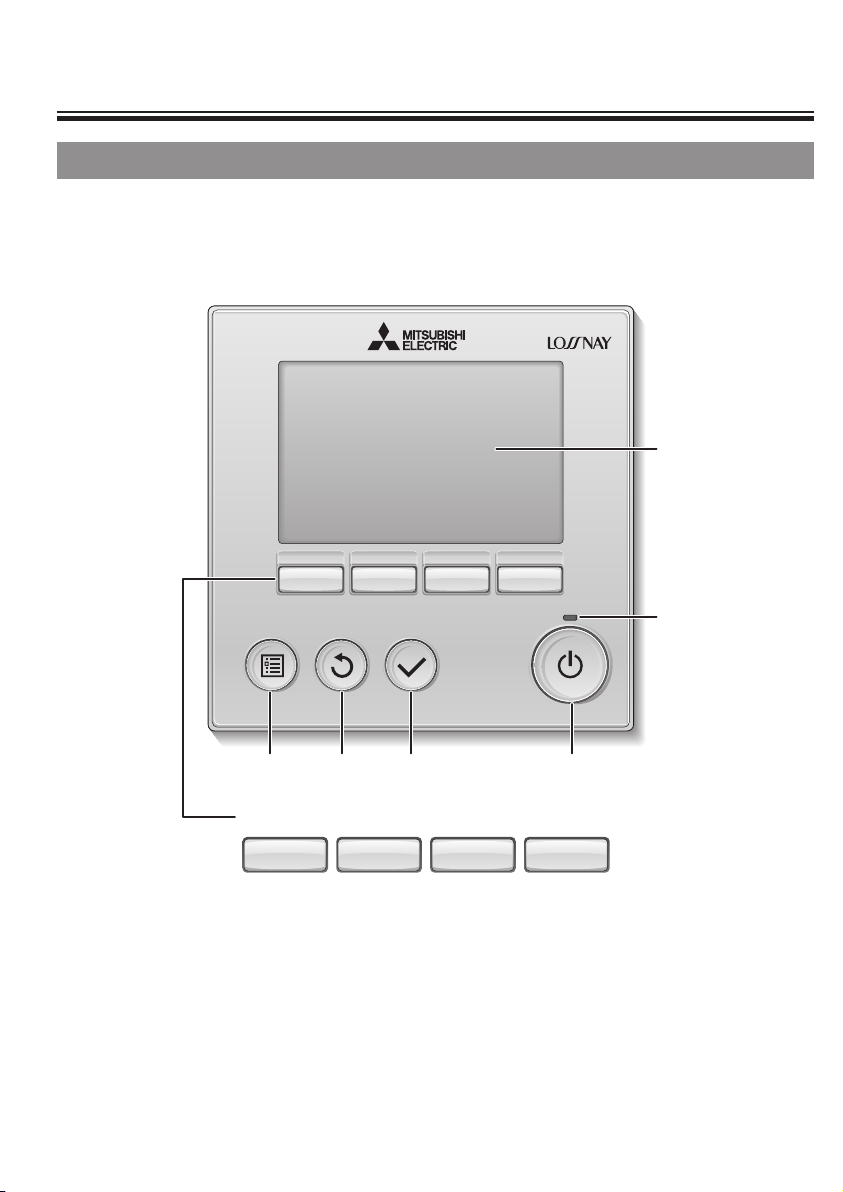

Names and functions of controller components
Controller interface
Function buttons
5
6
1234
7 8 9 0

Eng-7
Press to turn ON/OFF the Lossnay unit.
1ON/OFF button
This lamp lights up in green while the unit
is in operation. It blinks while the remote
controller is starting up or when there is
an error.
Press to save the setting.
Main menu: Press to move the cursor down.
Press to return to the previous screen.
Main display: Press to change the fan speed.
Main menu: Press to move the cursor up.
Press to bring up the Main menu.
Main display: Press to change the ventilation mode
Main menu: Press to go to the previous page.
Operation settings will appear.
When the backlight is off, pressing any
button turns the backlight on and it
will stay lit for a certain period of time
depending on the screen.
Main menu: Press to go to the next page.
6ON/OFF lamp
2SELECT button
7Function button F1
3RETURN button
8Function button F2
4MENU button Page 16
9Function button F3
5Backlit LCD
0Function button F4
When the backlight is off, pressing any
button turns the backlight on and does
not perform its function. (except for the
ON/OFF button)
Main
Main display:
Cursor
Main menu
User options
Commissioning
Maintenance
Lossnay 12: Sun
Outdoor
2°C
Return
2 °C
Supply
15°C
Fan Mode
Auto

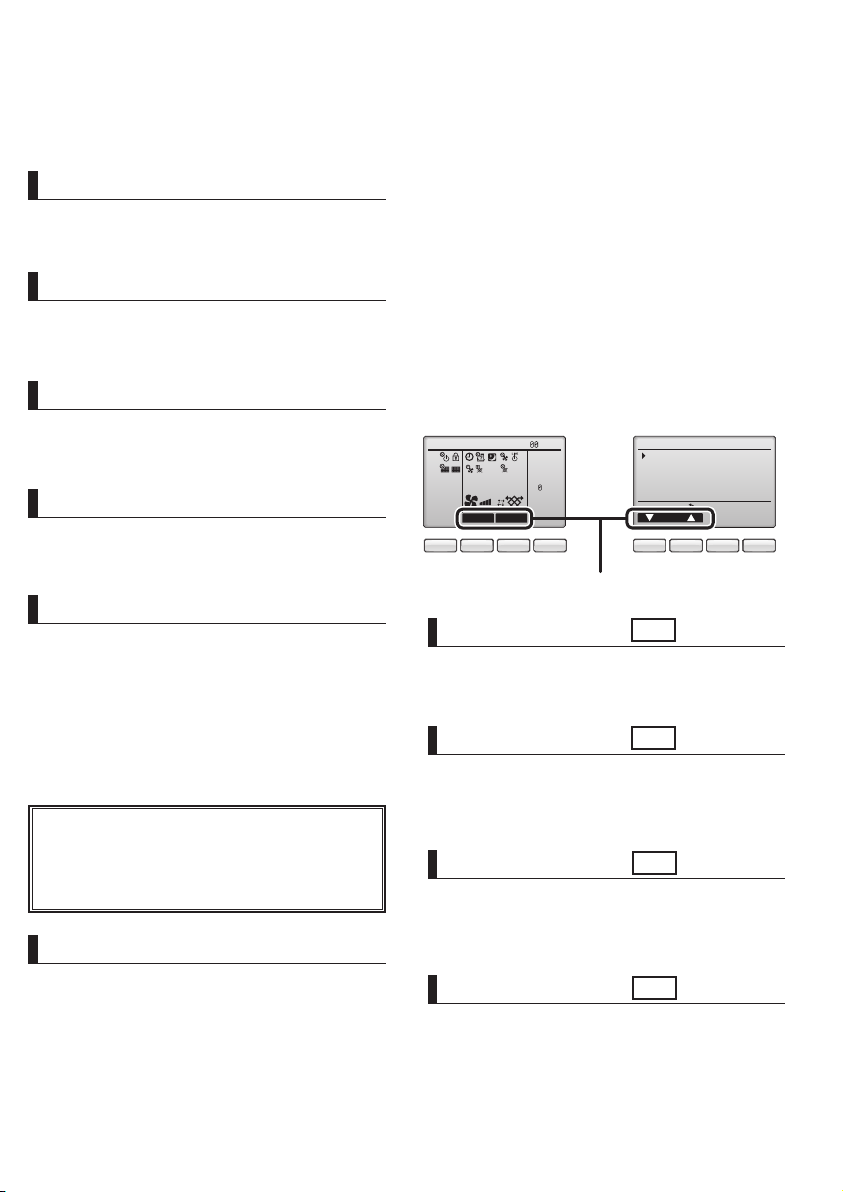

The functions of the function buttons
change depending on the screen.
Refer to the button function guide that
appears at the bottom of the LCD for
the functions they serve on a given
screen.
When the system is centrally
controlled or button is locked,
the button function guide that
corresponds to the locked button will
not appear.
Main display Main menu
Function guide
7 8 9 0 7 8 9 0

Eng-8
Lossnay 12: Sun
Outdoor
2°C
Return
2°C
Supply
15°C
Fan Mode
Auto
1
5
6
9b a0 e f
7
8
c
3d g
4
2
h

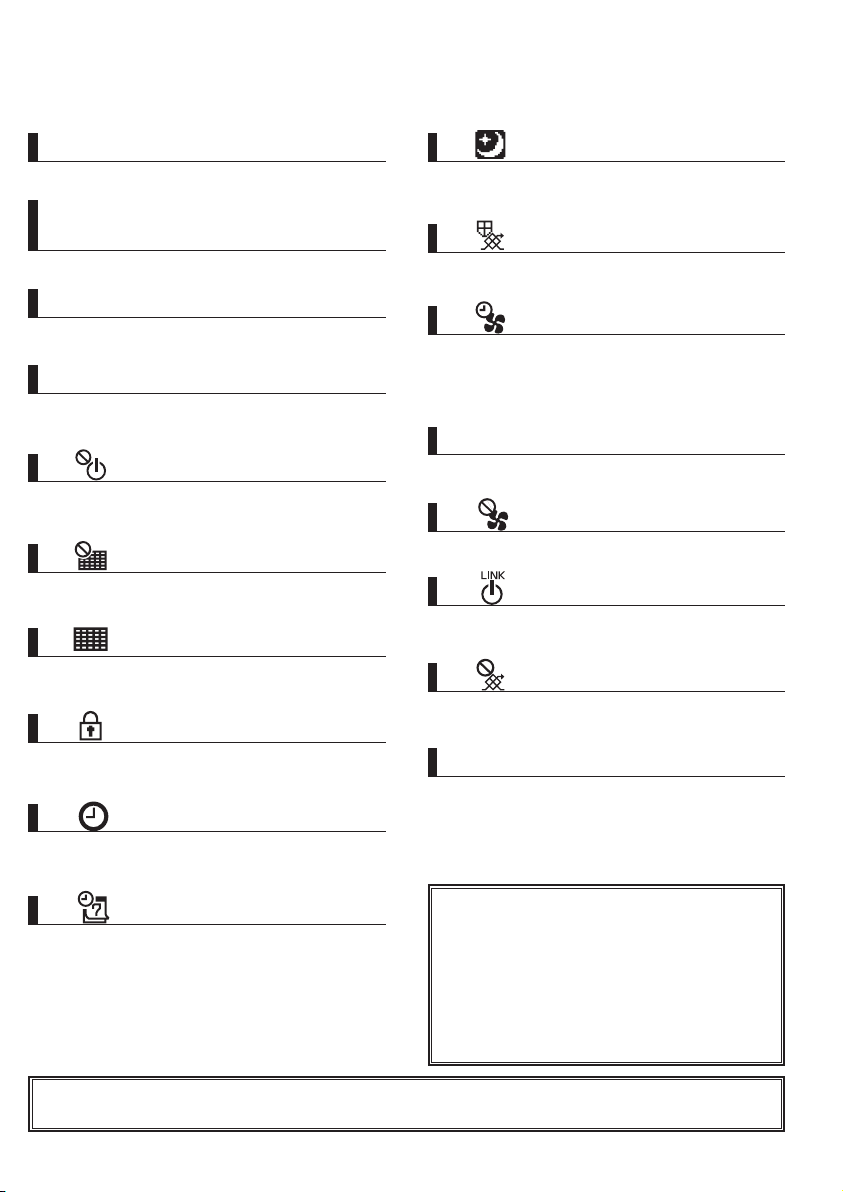

Names and functions of controller components
Display
* All icons are displayed for explanation.

Eng-9
Fan speed setting appears here.
3 Fan speed Page 13
Appears when the night-purge function is
available.
Appears when performing operation to protect
the equipment.
Appears when the ON/OFF operation is centrally
controlled.
Current time appears here.
Appears when the buttons are locked and/or a
fan speed is skipped.
Lossnay is always displayed.
aPage 30
b
5
8Page 41
1 Remote controller name
Indicates the ventilation mode setting.
d Ventilation mode Page 13
Appears when external fan speed operation.
Appears when operation interlocked with external
unit.
Appears when the On/Off timer (Page 24), or
Auto-off timer (Page 26) function is enabled.
e
f
9Page 24, 26
Indicates when filter and/or Lossnay core needs
maintenance.
Appears when the filter reset function is centrally
controlled.
7Page 50
6
Appears when the Weekly timer is enabled.
0Page 28
Appears when external ventilation mode
operation.
The indicated values are detected value by the
sensor installed in the Lossnay unit.
It could be different from the actual indoor or
outdoor temperature.
Set the display in Display details.
g
h
Temperature or CO2concentration
Functions of the corresponding buttons appear
here.
4 Button function guide
Appears when performing the power supply/
exhaust function, the delay operation at the start
of operation, or fan speed timer.
c
Most settings (EXCEPT ON/OFF, fan speed, ventilation mode) can be made from the Menu
screen. (Refer to page 16)
Sensor value indicates in the following
display ranges.
- Outdoor temperature: 2 to 36 ºC
- Return temperature: 9 to 37 ºC
- Supply temperature (calculated value):
9 to 37 ºC
- CO2concentration:400 to 2000 ppm
“LO” or “HI” indicates when other than
these conditions.
2 Clock Page 18
(See the Installation Manual.)

Eng-10
Read before operating the controller
Menu structure
Main menu
Main display
User options
Commissioning
Maintenance
Fan speed timer
Timer
Weekly timer
Night-purge setting
Auto bypass
External input
Restriction
Service
Error information
Error history
Run time
Maintenance interval
On/Off timer
Auto-Off timer
Main/Sub
Clock
Contrast
Display details
Administrator password
Language selection
Airflow
Initial setting
CO2control
Operation locked
Page 22
Page 24
Page 26
Page 28
Page 30
Refer to the Installation Manual.
Page 18
Page 19
Refer to the Installation Manual.
Refer to the Installation Manual.
Page 20
Page 32
Page 35
Page 36
Refer to the Installation Manual.
Page 37
Page 39
Page 41
Page 45
Page 48
Page 49
Page 43
Page 50
Press the button.
Move the cursor to the
desired item with the
, , ,and
buttons, and press the
button.
Input maintenance info.
Initializing
Function setting

Eng-11
Icon explanations
F1 F2 F3 F4
Timer
Enter administrator password
Select:
Cursor
Controller operation
Timer P
The table below
summarizes the square
icons used in this manual.
The administrator password must be entered on the password input screen to
change settings. There is no settings that can skip this process.
: Press to move the cursor left.
: Press to move the cursor right.
: Press to decrease the value by 1.
: Press to increase the value by 1.
*Changes cannot be made unless the correct password
is entered.
Indicates settings that can be
changed only while the units
are in operation.
Indicates setting that can be changed
only while the units are not in operation
Indicates settings that can be
changed while the units are in
night-purge operation.
Indicates functions that are not
available when the buttons are locked.
Indicates functions that are
not available when system is
centrally controlled.
Indicates settings that can be made
only from the main remote controller.
ON
Main
P
OFF
Main

Eng-12
Power ON/OFF
Power ON/OFF during Night-purge operation
Basic operations
Press the button.
The ON/OFF lamp will light up in green, and the
operation will start.
Button operation
Button operation
Press the button again.
The ON/OFF lamp will go out, and the operation will
stop.
Press the button during the night-purge
operation.
The night-purge operation screen changes to the
normal operation screen.
If you want to stop the operation, press the
button again.
The ON/OFF lamp will go out, and the operation
will stop.
ON
OFF
The night-purge operation starts automatically
when the set condition is met.
For details, refer to the Installation Manual for
the Lossnay unit.
F1 F2 F3 F4
Lossnay 12: Sun
Night-
purge
Fan

Eng-13
Fan speed
Ventilation mode
Button operation
Button operation
ON
ON
F1 F2 F3 F4
Lossnay
Fan Mode
Auto
12: Sun
F1 F2 F3 F4
Lossnay
Auto
Fan Mode
12: Sun
Press the button to go through the fan speeds
in the following order.
Operation is not possible during external fan
speed operation.
A fan speed that is skipped because of a fan skip
setting is not displayed (refer to page 41).
When external fan speed input setting is used,
Auto fan speed
Auto
appears between fan
speed 4 and 1.
Press the button to go through the Ventilation
mode in the following order.
Operation is not possible during night-purge
operation and external ventilation mode
operation.
Auto Auto

Eng-14
Navigating through the menu
Main menu list
Setting and display items Setting details
Reference
page
User options Fan speed timer Use to set the operation at pre-set fan speed and
time period.
After pre-set operation, the unit goes back to the
fan speed that was set before the pre-set operation.
* Clock setting is required.
22
Timer On/Off timer Use to set the operation On/O󰀨 times.
• Time can be set in 5-minute increments.
* Clock setting is required.
24
Auto-Off
timer
Use to set the Auto-O󰀨 time.
• Time can be set to a value from 30 to 240 in
10-minute increments.
26
Weekly timer Use to set the weekly operation On/O󰀨 times.
• Up to eight operation patterns can be set for each
day.
* Clock setting is required.
* Not valid when the On/O󰀨 timer is enabled.
28
Night purge setting Use to set the night-purge operation to drow cooler
outside air into the room at night.
30
Commissioning Initial
setting
Main/sub Use to change the Main/sub setting when
connecting two remote controllers, one of them
needs to be designated as a sub controller.
* Refer to the Installation manual.
—
Clock Use to set the current time. 18
Contrast Use to adjust screen contrast. 19
Display
details
Use to set the remote-controller-related items as
necessary.
• Clock display
• Temperature unit setting
• Sensor Value display
* Refer to the Installation manual.
—
Administrator
password
Use to change the Administrator password.
* Refer to the Installation manual.
—
Language
selection
Use to select the desired language. 20
Airflow Use to adjust the fan speed output of Fan speed 1
to Fan speed 4. The function is available for both
Supply and Exhaust fan separately. Each fan speed
can be set 25% to 100% by 5% pitches.
32
Auto bypass Use to adjust the automatic ventilation mode. Mode
switches between heat recovery mode and bypass
mode in accordance with room temperature and
outdoor temperature. The temperature range of the
bypass ventilation can be set.
35

Eng-15
Setting and display items Setting details
Reference
page
Commissioning External
input
CO2control Set the “Auto” fan speed to operate according to the
input from the CO2sensor.
36
Service Input
maintenance
info.
Use to register the maintenance information.
• Model names and serial numbers
• Dealer information
• Initializing maintenance information
* Refer to the Installation manual.
—
Function
setting
Use to set functions for each Lossnay. 37
Initializing Use to intialize the remote controller. 39
Restriction Operation
lock and fan
speed skip
Use to lock selected functions and to skip selected
fan speed.
• The locked functions cannot be operated.
• The skipped fan speed cannot be operated.
41
Error information
Use to check error information when an error occurs.
• Error code, error source, unit model, manufacturing
number, contact information (dealer's phone
number) can be displayed.
* The unit model, manufacturing number, and
contact information need to be registered in
advance to be displayed.
45
Error history Use to check the error history of the Lossnay unit. 48
Run time Use to check the run time of the Lossnay unit. 49
Maintenance interval Use to set the maintenance interval of the filter and
Lossnay core.
43
Maintenance Filter information Use to check the filter and Lossnay core status.
• The cleaning sign can be reset.
50
Restrictions for the sub remote controller
Main
Main display:
Cursor
Main menu
User options
Commissioning
Maintenance
The following settings cannot be made
from the sub remote controller. Make these
settings from the main remote controller.
“Main” is displayed in the title of the Main
menu on the main remote controller.
• Fan speed timer
• Timer (On/Off timer, Auto-Off timer)
• Weekly timer
• Night-purge setting
• Airow
• External input (CO2control)

Eng-16
F1 F2 F3 F4
Commissioning menu 1/2
Initial setting
Airflow
Auto bypass
External input
Service
Cursor Page
Main menu:
Press to go to the previous page.
Press to go to the next page.
Navigating through the Main menu
F1 F2 F3 F4
Main
Main display:
Cursor
Main menu
User options
Commissioning
Maintenance
Press the button.
The Main menu will appear.
F1 F2 F3 F4
Main
Main display:
Cursor
Main menu
User options
Commissioning
Maintenance
Press to move the cursor down.
Press to move the cursor up.
Button operation
Accessing the Main menu
Item selection
Navigating through the pages
Cursor
Page

Eng-17
F1 F2 F3 F4
Lossnay
Auto
Fan Mode

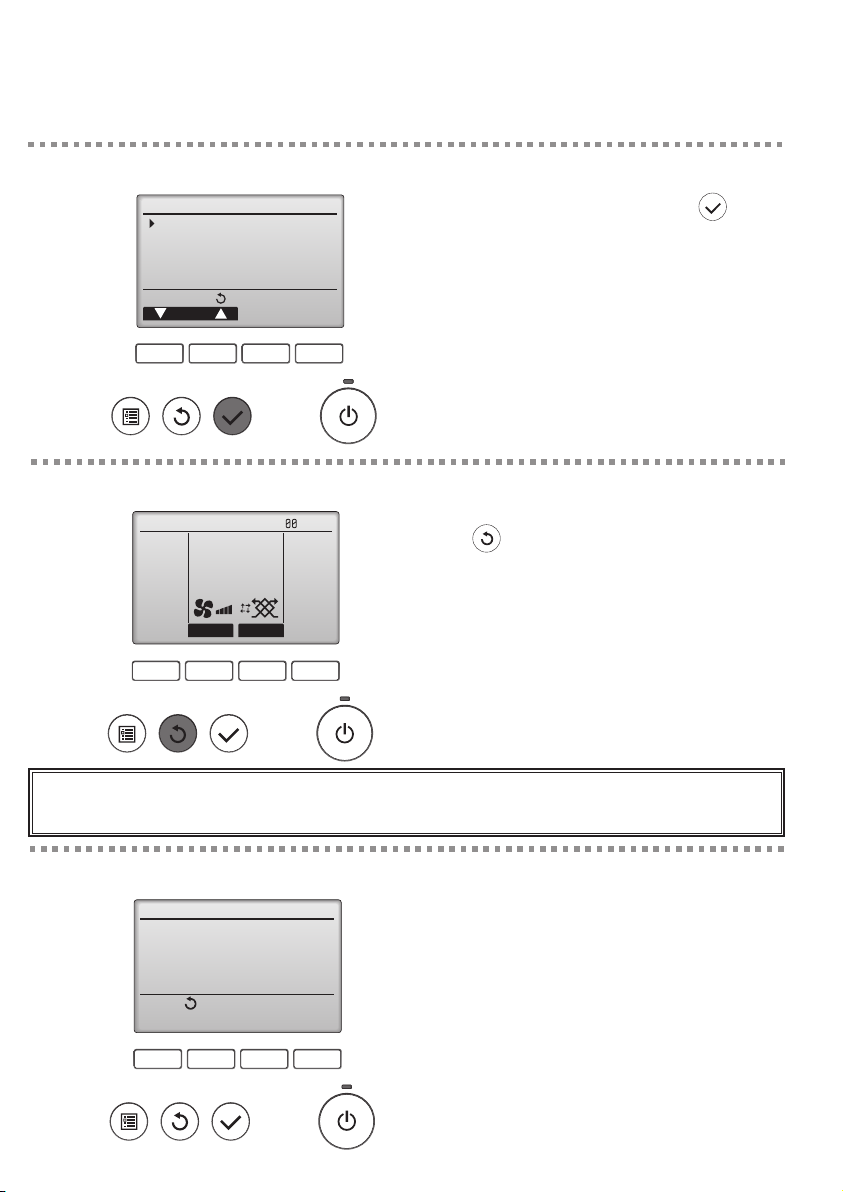

12: Sun Press the button to exit the Main menu and
return to the Main display.
Main
Main display:
Cursor
Main menu
User options
Commissioning
Maintenance
F1 F2 F3 F4
Select the desired item, and press the
button.
The screen to set the selected item will appear.
If no buttons are touched for 10 minutes, the screen will automatically return to the
Main display. Any settings that have not been saved will be lost.
F1 F2 F3 F4
Not available
Unsupported function
Return:
The message at left will appear if the user
selects a function not supported by the
corresponding Lossnay unit model.
Saving the settings
Exiting the Main menu screen
Display of unsupported functions

Eng-18
Clock
1
F1 F2 F3 F4
Commissioning menu 1/2
Initial setting
Airflow
Auto bypass
External input
Service
Cursor Page
Main menu:
Select “Initial setting” from the Main menu (refer
to page 16), and press the button.
2
F1 F2 F3 F4
Initial setting menu 1/2
Main/Sub
Clock
Contrast
Display details
Administrator password
CursorPage
Main menu:
Move the cursor to the “Clock” with the or
button, and press the button.
Clock setting is required before making the
following settings.
• Fan speed timer
• On/Off timer
• Weekly timer
• Night purge setting
3
F1 F2 F3 F4
Clock
Select:
Cursor
2 21 / 1/ 1:
yyyy / mm/ dd hh: mm
Move the cursor to the desired item with the
or button out of year, month, date, hour, or
minute.
Increase or decrease the value for the selected
item with the or button, and press the
button.
A confirmation screen will appear.
Button operation
Navigating through the screens
• To go back to the Main menu .......... button
• To return to the previous screen ...... button
P
Initial setting

Eng-19

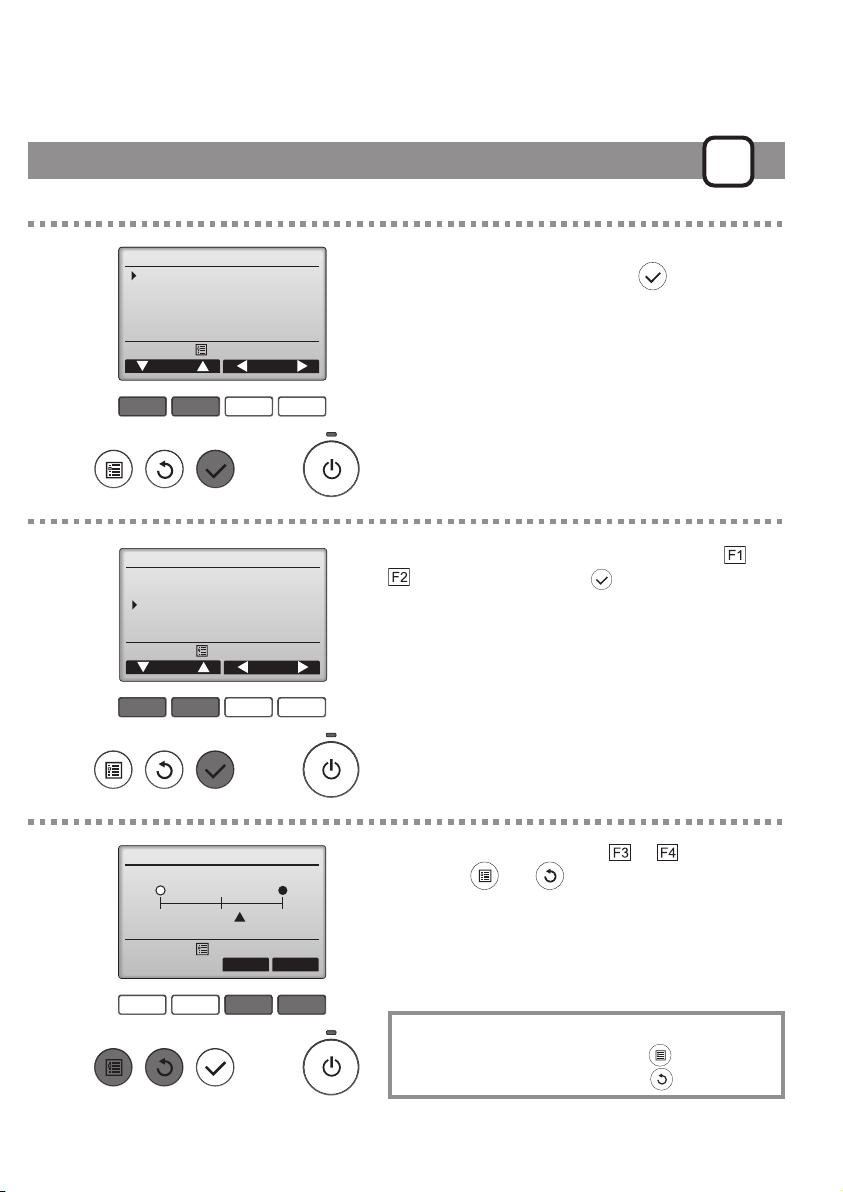

Contrast
1
3
F1 F2 F3 F4
Main menu:
Contrast
DarkLight
Adjust the contrast with the or button, and
press the or button.
F1 F2 F3 F4
Commissioning menu 1/2
Initial setting
Airflow
Auto bypass
External input
Service
Cursor Page
Main menu:
Select “Initial setting” from the Main menu >
Commissioning, and press the button.
2
F1 F2 F3 F4
Initial setting menu 1/2
Main/Sub
Clock
Contrast
Display details
Administrator password
CursorPage
Main menu:
Move the cursor to the “Contrast” with the or
button, and press the button.
Button operation
Navigating through the screens
• To go back to the Main menu .......... button
• To return to the previous screen ...... button
P

Eng-20

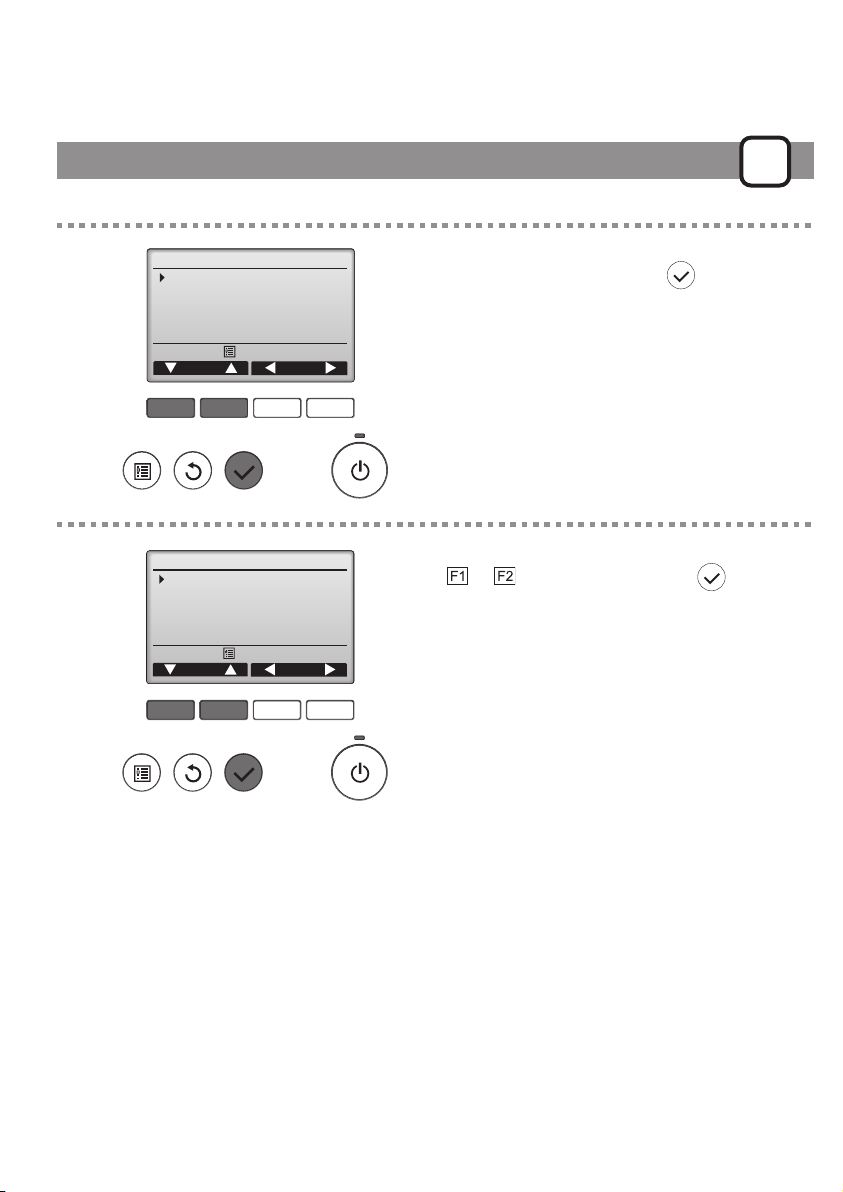

Language selection
1
2
F1 F2 F3 F4
Initial setting menu 2/2
Language selection
CursorPage
Main menu:
Move the cursor to the “Language selection” with
the or button, and press the button.
F1 F2 F3 F4
Commissioning menu 1/2
Initial setting
Airflow
Auto bypass
External input
Service
Cursor Page
Main menu:
Button operation
Select “Initial setting” from the Main menu >
Commissioning, and press the button.
P
