Mitsubishi Mr.Slim MS17NN User manual

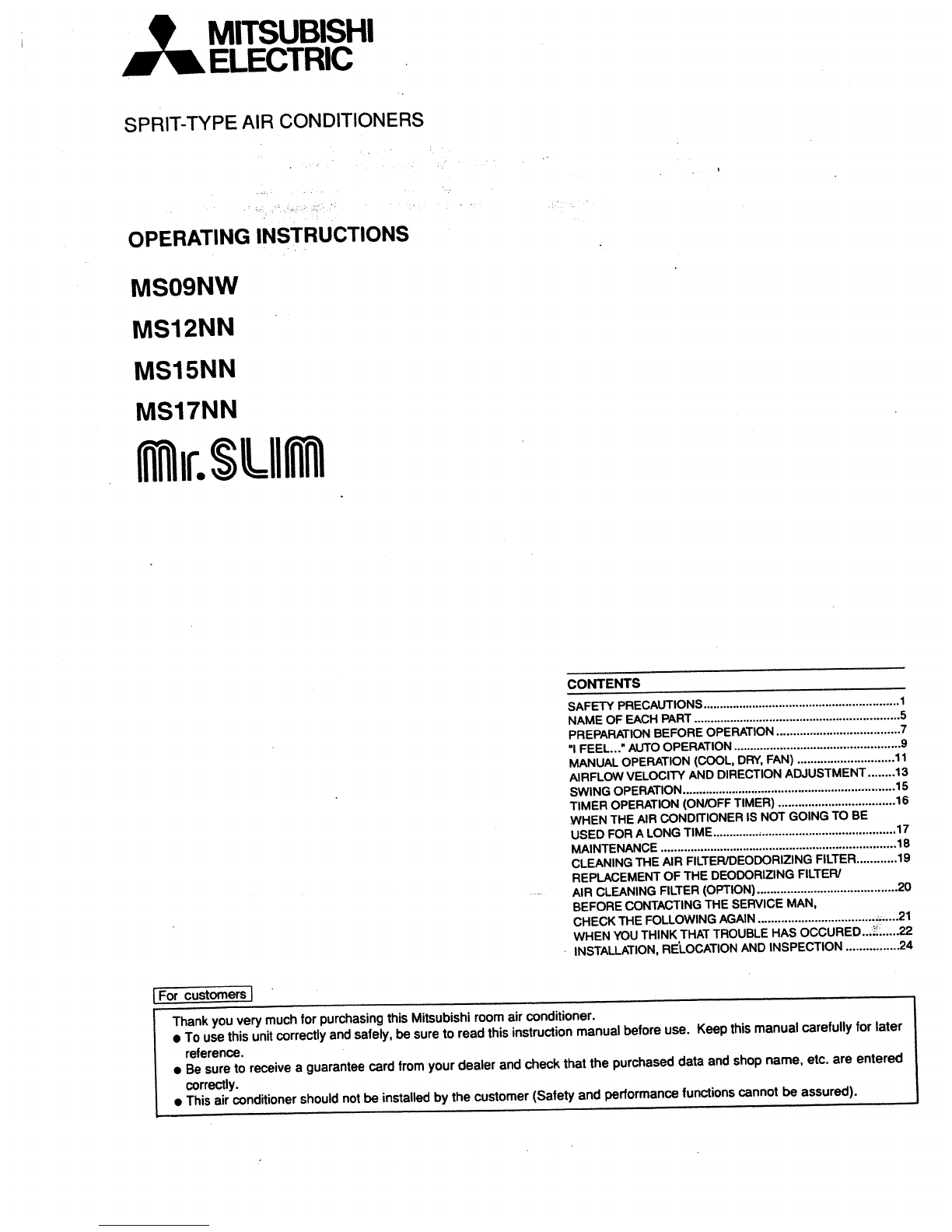

MITSUBISHI
ELECTRIC
SPRIT-TYPE AIR CONDITIONERS
OPERATING INSTRUCTIONS
MS09NW
MS12NN
MS15NN
MS17NN
I lr.$LIIM
CONTENTS
SAFETY PRECAUTIONS ........................................................... 1
NAME OF EACH PART .............................................................. 5
PREPARATION BEFORE OPERATION ..................................... 7
"I FEEL..." AUTO OPERATION .................................................. 9
MANUAL OPERATION (COOL, DRY, FAN) ............................. 11

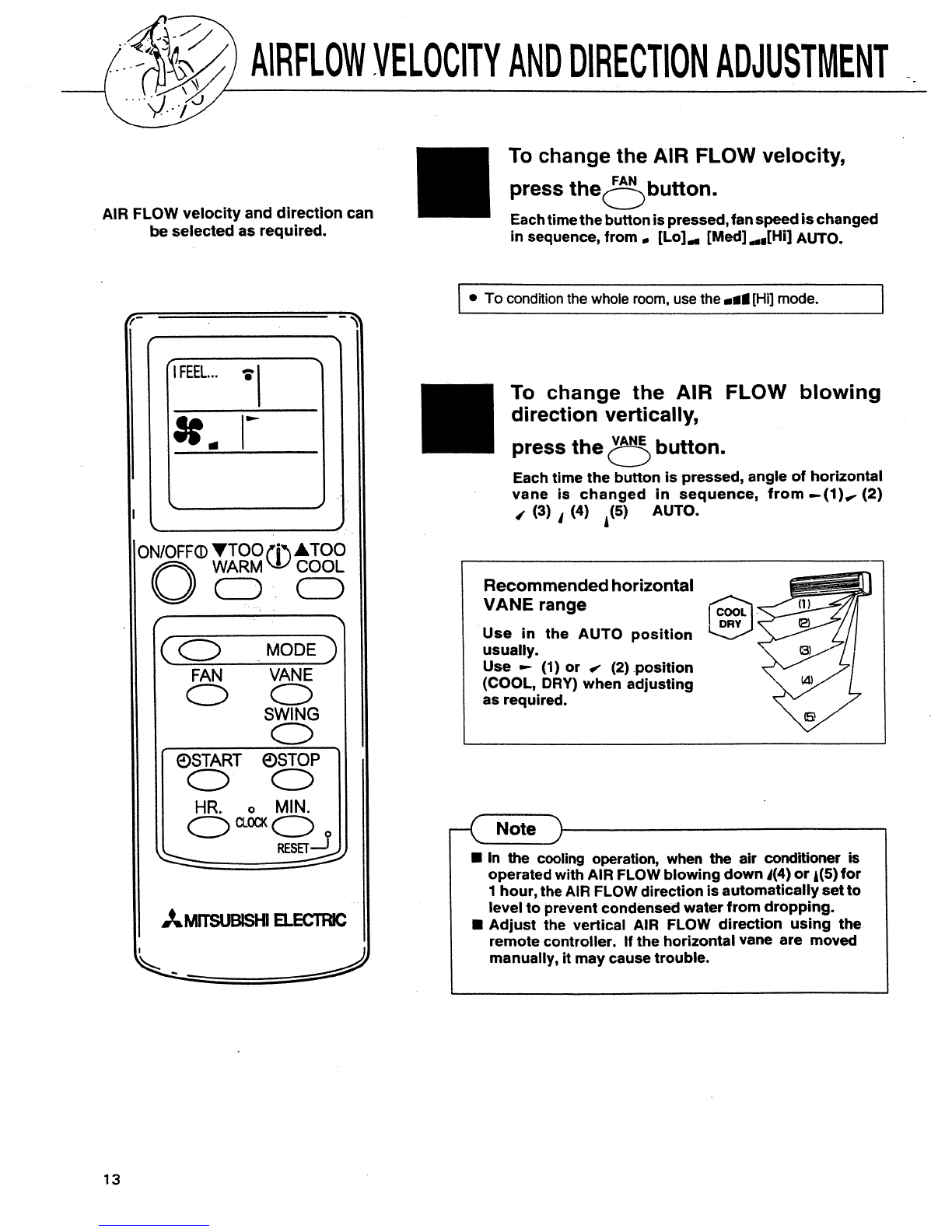

AIRFLOW VELOCITY AND DIRECTION ADJUSTMENT ........ 13
SWING OPERATION ................................................................ 15

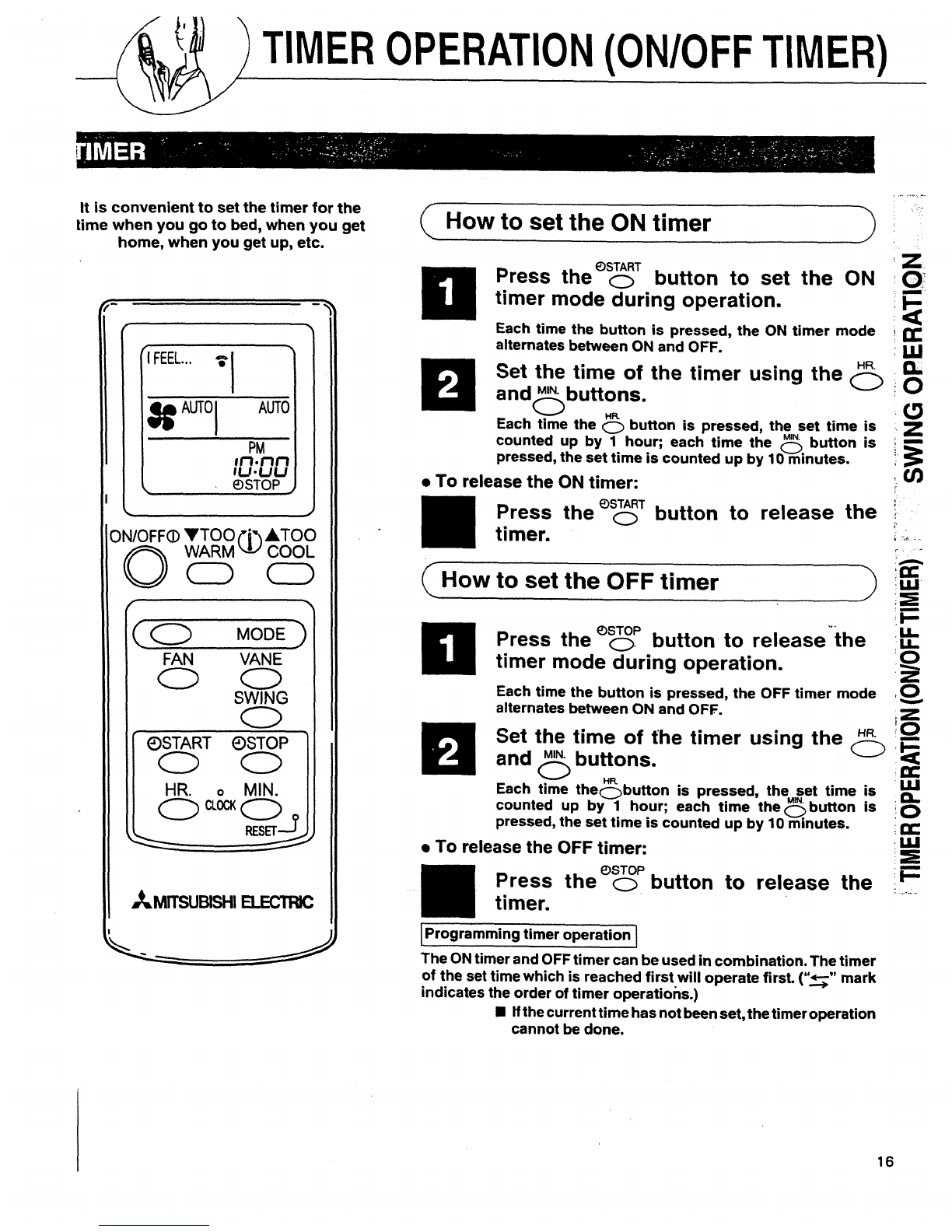

TIMER OPERATION (ON/OFF TIMER) ................................... 16

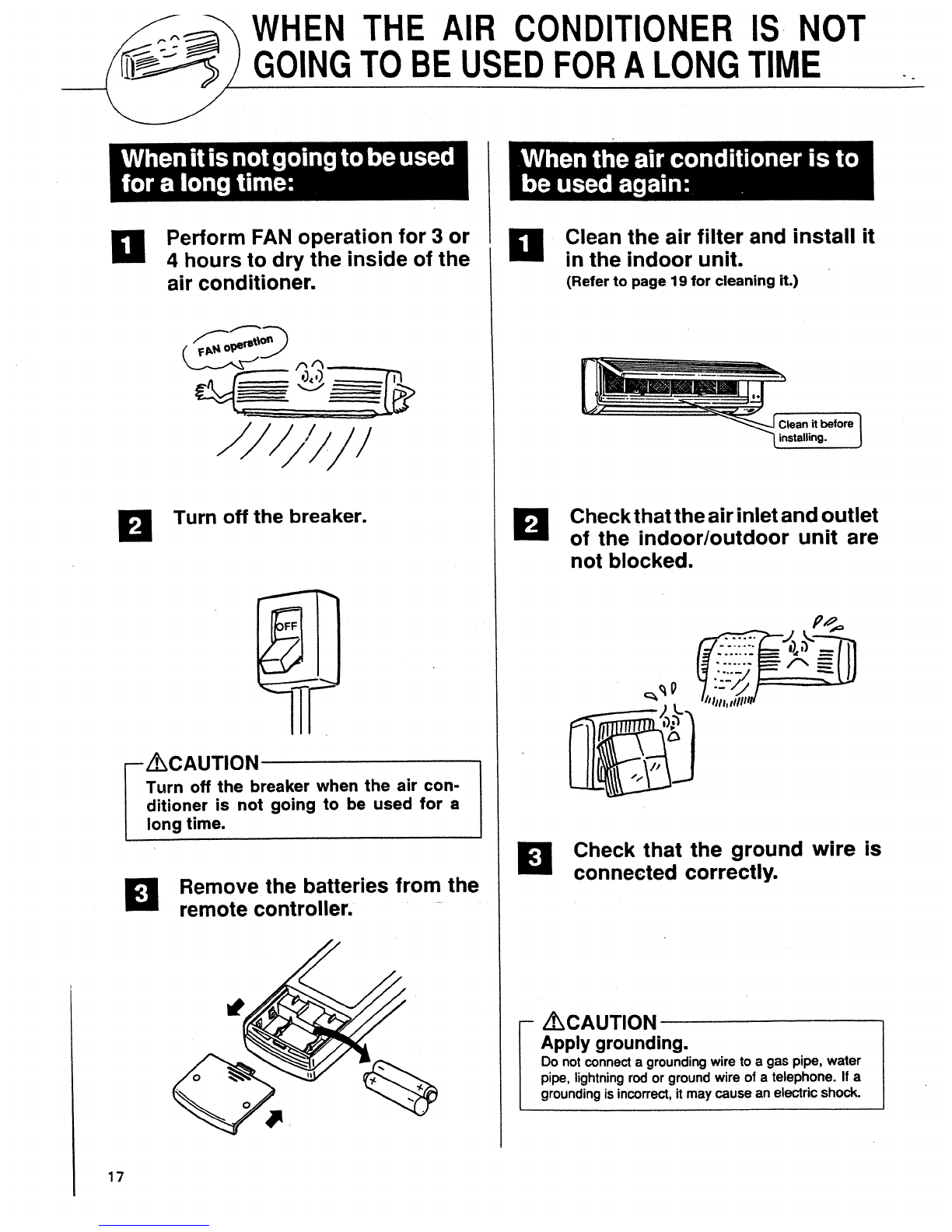

WHEN THE AIR CONDITIONER IS NOT GOING TO BE
USED FOR ALONG TIME ....................................................... 17

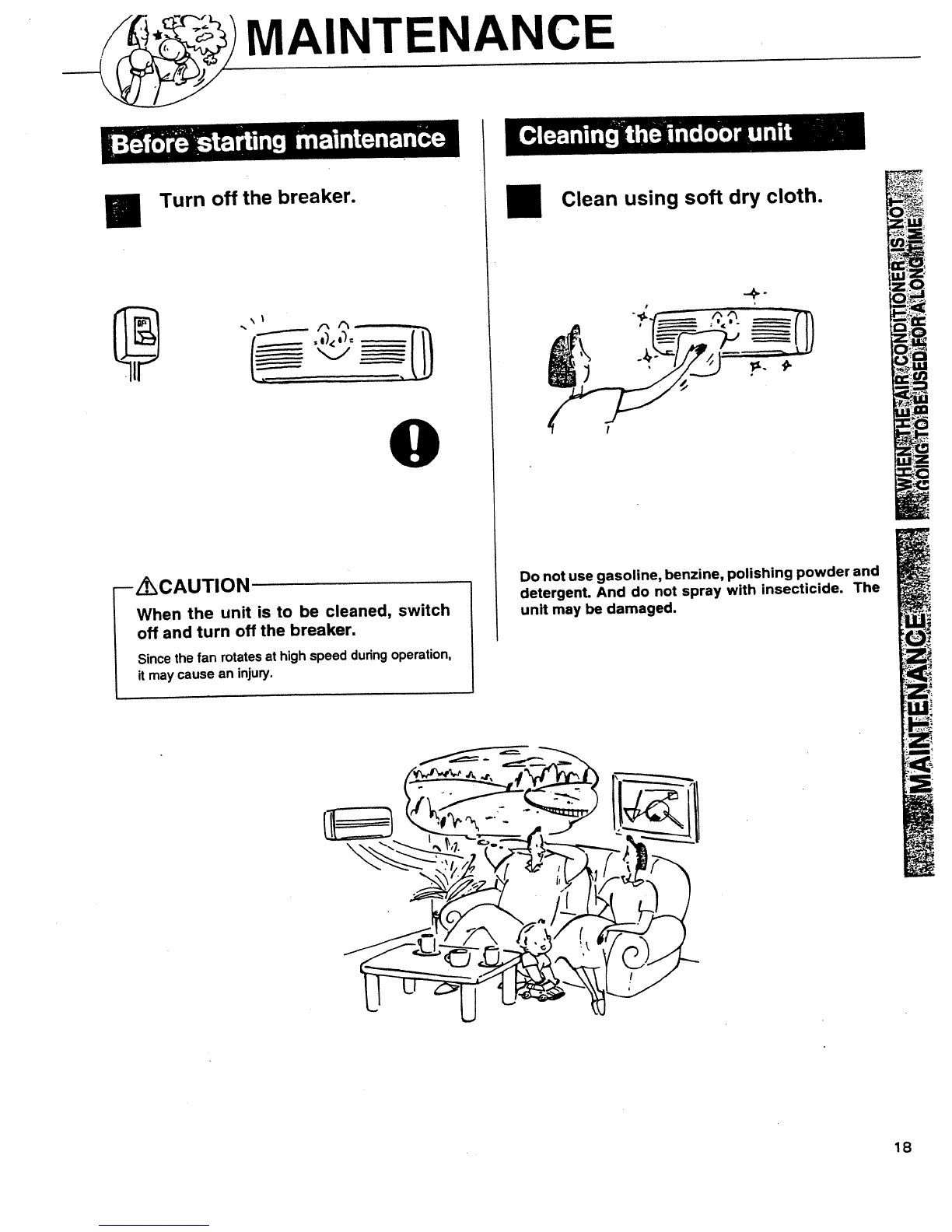

MAINTENANCE ....................................................................... 18
CLEANING THE AIR FILTER/DEODORIZING FILTER ............ 19
REPLACEMENT OF THE DEODORIZING FILTER/
AIR CLEANING FILTER (O_ION) .......................................... 20
BEFORE CONTACTING THE SERVICE MAN,
CHECK THE FOLLOWING AGAIN ................................... _,....21
WHEN YOU THINK THAT TROUBLE HAS OCCURED_,;_:.....22
INSTALLATION, RE'LOCATION AND INSPECTION .......*........ 24
For customers I
Thankyou verymuch forpurchasing this Mitsubishi room air conditioner.
• To use this unitcorrectlyand safely, be sureto read this instructionmanual before use. Keepthis manual carefullyfor later
reference.
•Be sure toreceive a guarantee card fromyour dealer and check thatthe purchaseddata and shopname, etc. are entered
correctly.
• Thisair conditioner shouldnotbe installedby the customer (Safety and performance functionscannot be assured).

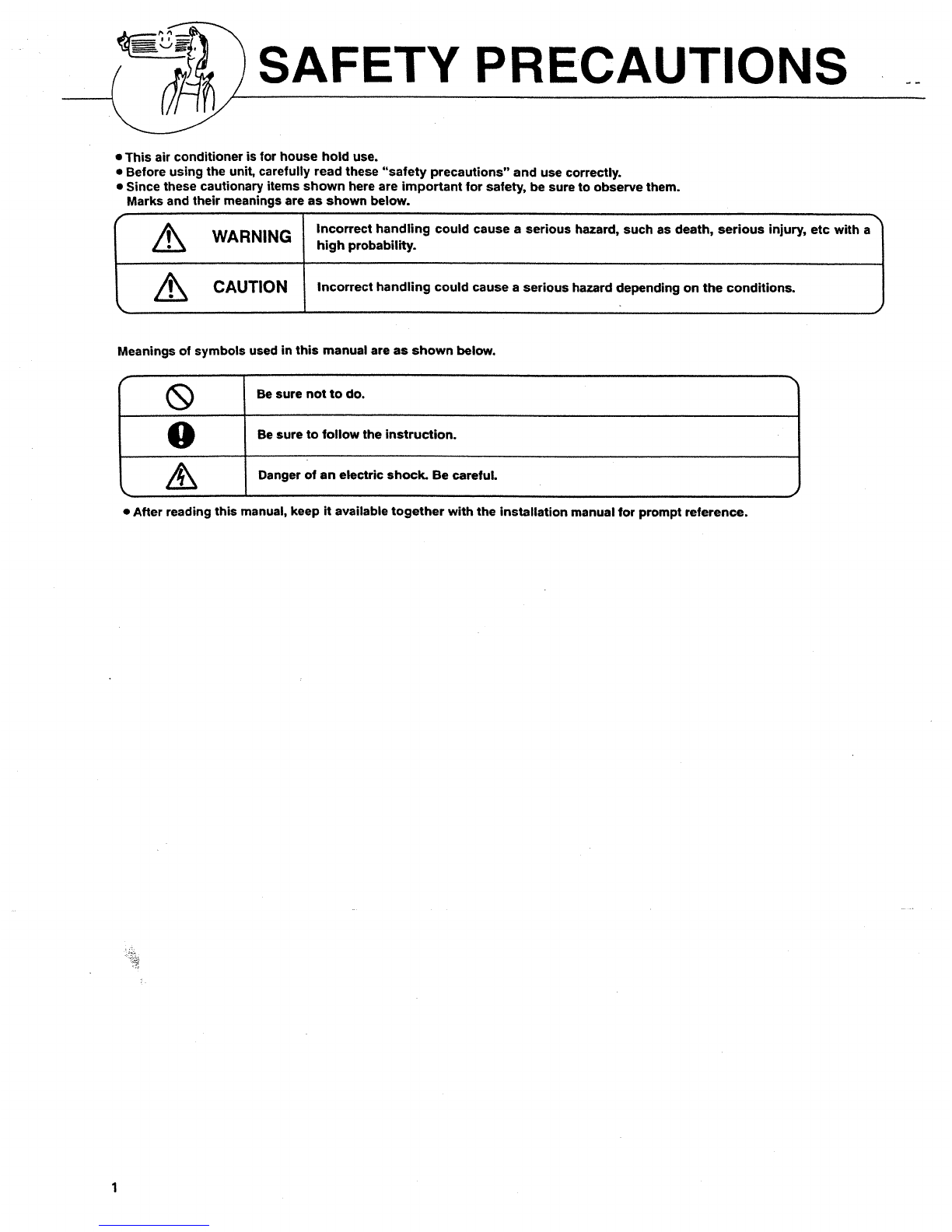

SAFETY PRECAUTIONS
• This air conditioner is for house hold use.
•Before using the unit, carefully read these "safety precautions" and use correctly.
•Since these cautionary items shown here are important for safety, be sure to observe them.
Marks and their meanings are as shown below.
WARNING
CAUTION
Meanings of symbols used in this manual are as shown below.
ur 1
(_ Be sure not to do.
OBe to follow the instruction.
Danger of an electric shock. Be careful.
•After reading this manual, keep it available together with the installation manual for prompt reference.
Incorrect handling could cause a serious hazard, such as death, serious injury, etc with a|
high probability. J
Incorrect handling could cause a serious hazard depending on the conditions.
';IL.

WARNING !
• Since the fan rotatesat high speed, this may
cause an injury.
•This could damage your health.
_.t^._..: ".',_J
•If this is done incorrectly, it may cause a fire,
electric shock, injury by dropping of the unit,
water leakage, etc.
Consult your dealer.
• If this is done incorrectly, it may cause a fire,
electric shock, injury by dropping of the unit,
water leakage, etc.
Consult your dealer.

SAFETY PRECAUTIONS
•It may cause an injury.
//K CAUTION
• Sincethefan rotates athigh speed
during operation, itmay cause an
injury.
------------
•It may cause an electricshock.
•Water may enter the unit and
degrade the insulation. It may
cause an electricshock.
•This couldinjure the pet or plant.
• It may cause a fire or deformation
ofthe cabinet.
•An oxygen shortage may occur.
•Do not use this air conditioner to
preserve precision devices, food,
animal, plantsand art objects.
It may cause deterioration of
quality,etc.
• It may cause+imperfectcombustion.
eThe heat may deform the front
panel and remote controller.
3

II WARNING I
O
• It may cause an injury through
dropping orfalling down.
])
• The unit may drop orfalldown and
cause an injury.
• Inthe coolingmode, ifitis operatedin
aroomwith high humidity (80%r.h. or
more)fora longtime,watercondensed
in the air conditioner may drop and
may wet and spoil furniture, etc.
• Itmay case an injury, etc. by falling
down.
• Consult your dealer for installing
the air conditioner.
CAUTION
• Do notconnectagroundingwire
toagaspipe,waterpipe,lightning
rodorgroundwireofatelephone.
Ifa groundingisincorrect,itmay
causean electricshock.@
@
• If_ _ andoonect_our_:l tt'_
unit,itmaycauseanexplosion.
• If thedrainagerouteis_,
watermaydropfromtheuniLItmay
wetand sp_lfumilure.
4

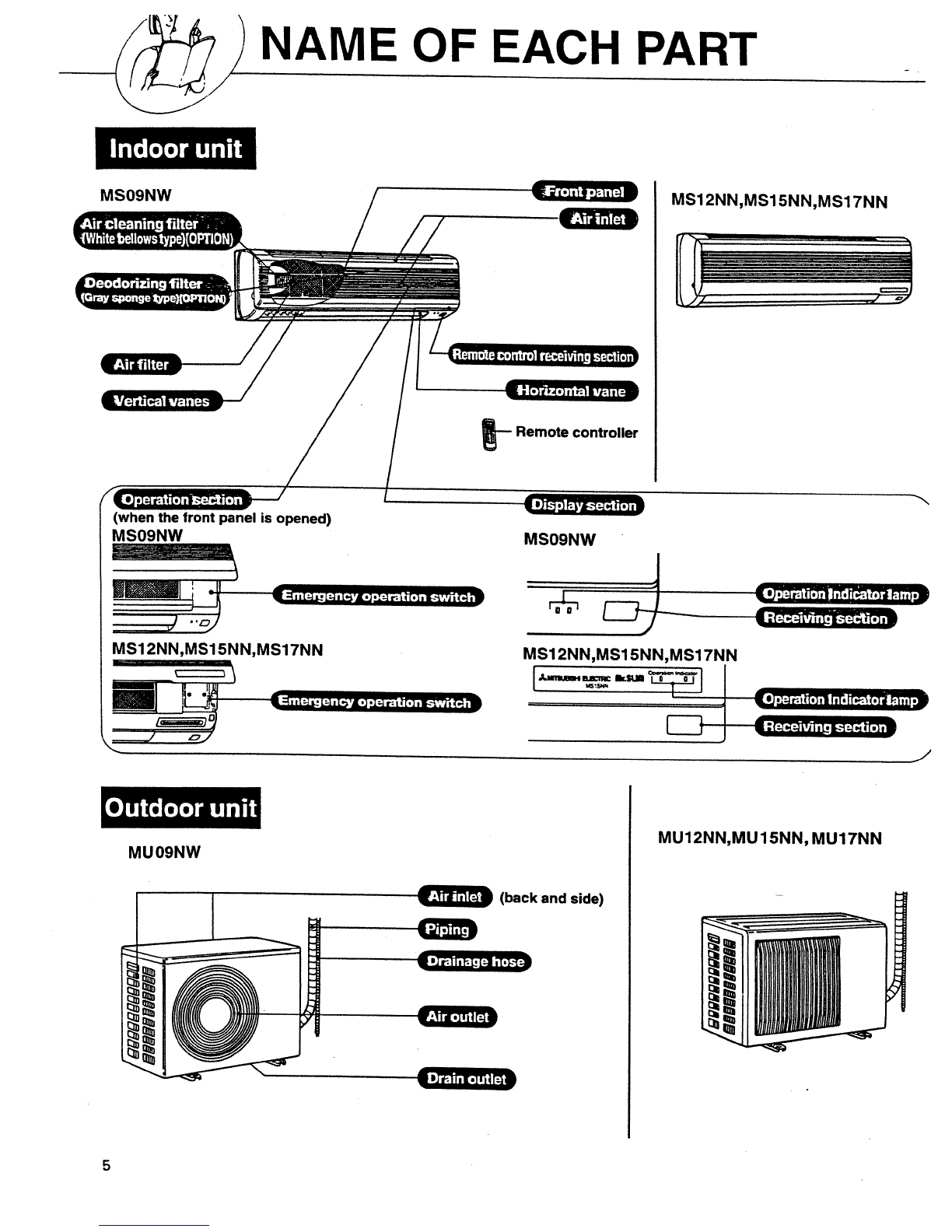

NAME OF EACH PART
_r_ _
MS09NW
(when the front panel is opened)
MS09NW
MS12NN,MS15NN,MS17NN
_Remote controller
MS09NW
MS12NN,MS15NN,MS17NN
MS12NN,MS15NN,MS17NN
J
MUO9NW
(back and side)
Gin)
MU12NN,MU15NN, MU17NN

I
ONIOFFO YTO0 _'j_ A,TO0
WARM _ COOL
MODE )
FAN VANE
SWING
OSTOP
MIN.
(This diagram shows an overall view.)

PREPARATIONBEFOREOPERATION
Turn the breaker ON.
Remove the back lid and insert
batteries. And then reattach the
back lid.
Do notconfuse
(+) and (-). J
Press the RESET button.
+1 Press it using a
thin stick.
i After batteriesare replaced, pressthe resetbutton.
•Ifthe reset buttonis not pressed, the remote controller
may not operatecorrectly.
Press the CLOCK SET button.
Press it using a
thin stick.
_Press the _and _button
(TIME SET button) to set the
current time.
ONIOFF(DYTOO {'i_ ATOO
OWARM_v COOL
CD GD
f
MODE
FAN VANE
CD (_
SWING
_)START E)STOP
Q
HR. o MIN.
<:_ =0c,C>
_-TJ
• Each time the Qbutton is pressed, the set time is
counted up by 1 hour, and each time the _button
is pressed,the set time iscounted up by 1 minute.
Press the CLOCK SET button
again.

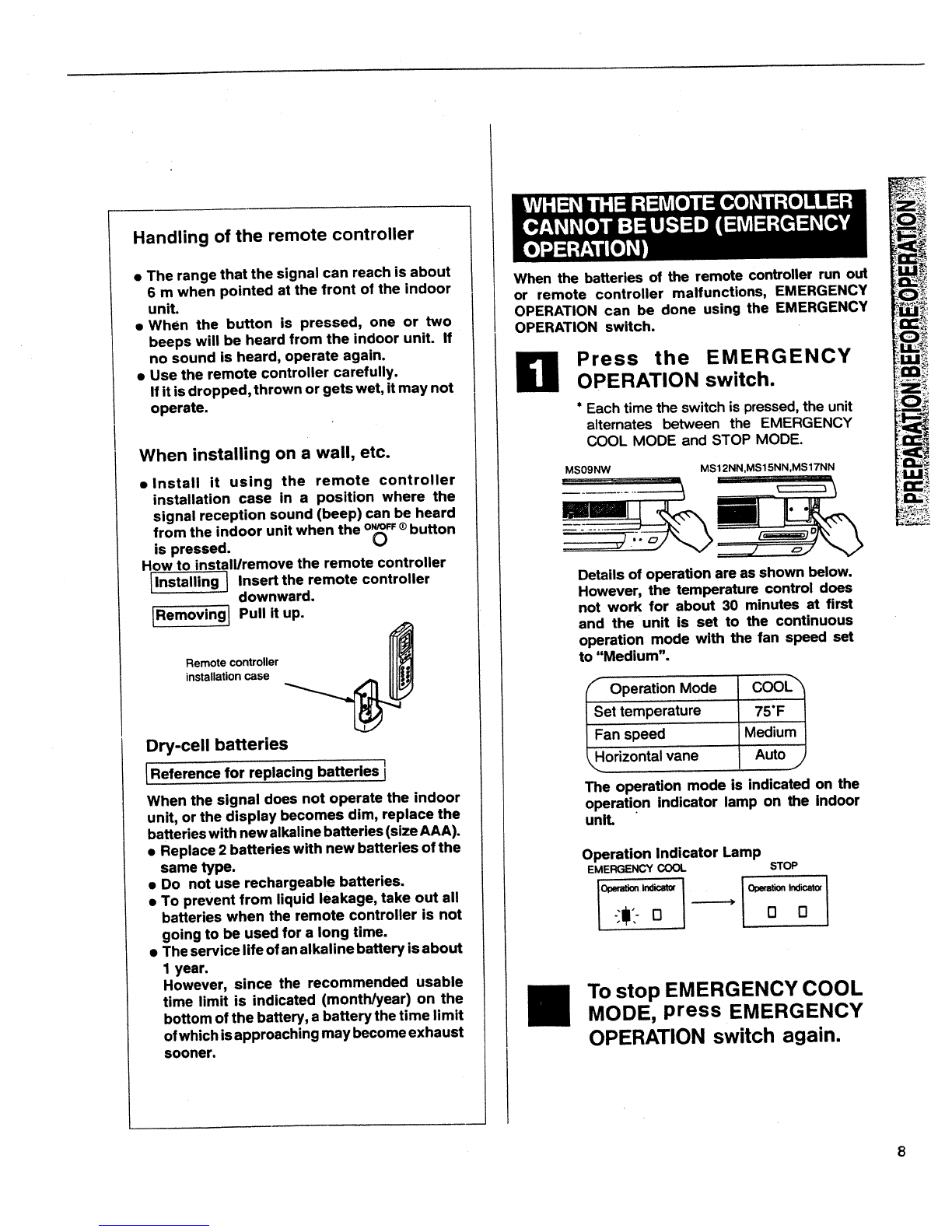

Handling of the remote controller
•The range that the signal can reach is about
6mwhen pointed at the front of the indoor
unit.
• When the button is pressed, one or two
beeps will be heard from the indoor unit. If
no sound is heard, operate again.
•Use the remote controller carefully.
If it is dropped, thrown or gets wet, it may not
operate.
When installing on a wall, etc.
•Install it using the remote controller
installation case in a position where the
signal reception sound (beep) can be heard
from the indoor unit when the o_o_ ®button
is pressed, i,j
How to install/remove the remote controller
Ilnstalling IInsert the remote controller
Idownward.
LlrRem°vingl Pull it up.
Remote controller
installationcase
Dry-cell batteries
IReference for replacing batteries i
When the signal does not operate the indoor
unit, or the display becomes dim, replace the
batteries with new alkaline batteries (size AAA).
•Replace 2 batteries with new batteries of the
same type.
•Do not use rechargeable batteries.
•To prevent from liquid leakage, take out all
batteries when the remote controller is not
going to be used for a long time.
•The service life ofan alkaline battery is about
1 year.
However, since the recommended usable
time limit is indicated (month/year) on the
bottom of the battery, a battery the time limit
of which isapproaching may become exhaust
sooner.
When the batteries of the remote controller run out
or remote controller malfunctions, EMERGENCY
OPERATION can be done using the EMERGENCY
OPERATION switch.
Press the EMERGENCY
OPERATION switch.
* Each time the switch is pressed, the unit
alternates between the EMERGENCY
COOL MODE and STOP MODE.
MS09NW MS12NN,MS15NN,MS17NN
Details of operation are as shown below.
However, the temperature control does
not work for about 30 minutes at first
and the unit is set to the continuous
operation mode with the fan speed set
to "Medium".
FOperation Mode COOL_
Set temperature...... 75"F
........Fan speed .......... Medium
_.Horizontal vane Auto j
The operation mode is indicated on the
operation indicator lamp on the indoor
unit.
Operation Indicator Lamp
EMERGENCY COOL STOP
To stop EMERGENCY COOL
MODE, press EMERGENCY
OPERATION switch again.
8

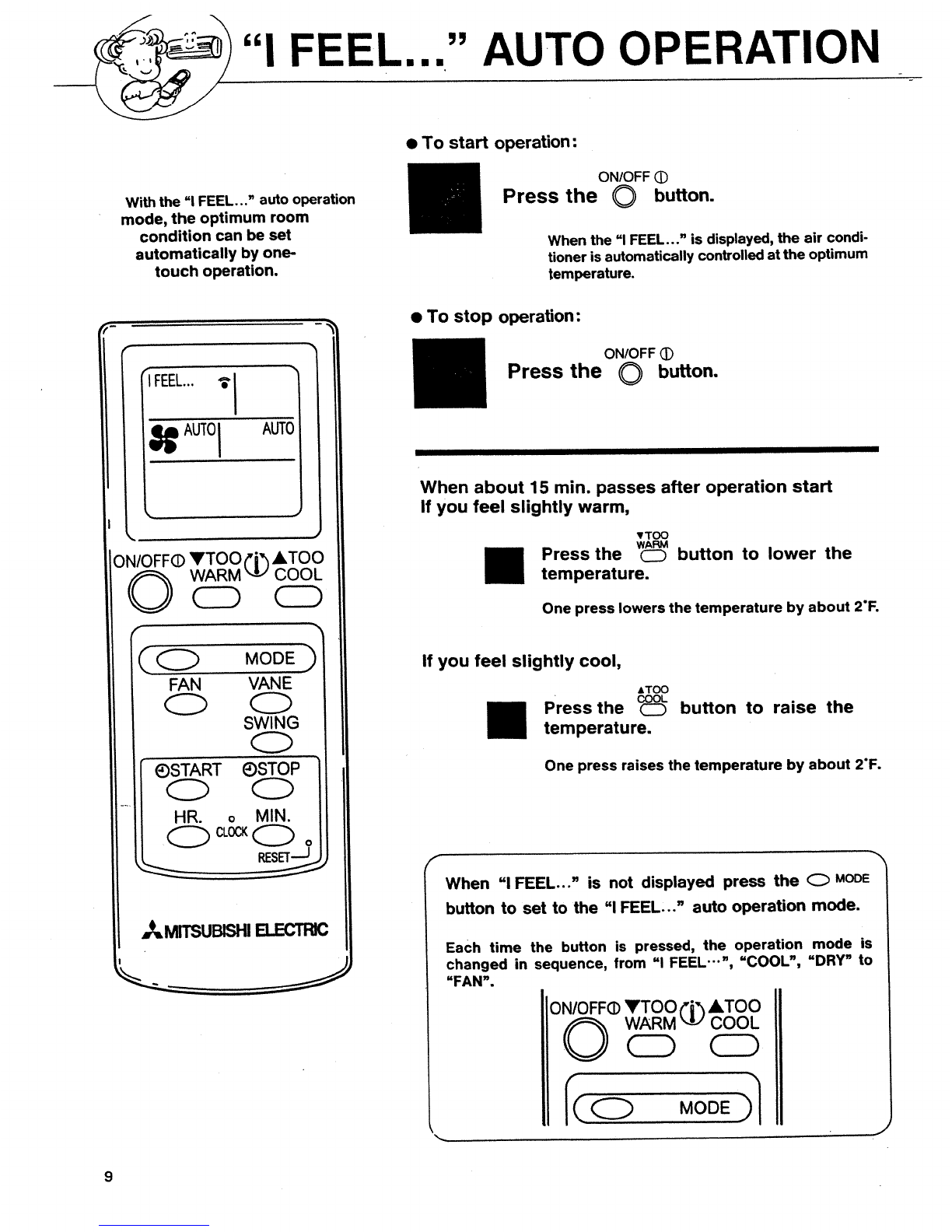

"1FEEL..." AUTO OPERATION
Withthe "1FEEL..." auto operation
mode, the optimum room
condition can be set
automatically by one-
touch operation.
• To start operation:
ON/OFF (I)
Press the Obutton.
When the "1FEEL..." is displayed, the air condi-
tioner isautomatically controlledat the optimum
temperature.
f
_AUTO !
AUTO
ON/OFF(D YTOO ('i_ ,&.TOO
O WARM _ COOL
CD CD
MODE )
FAN VANE
OSWING
E)START E)STOP
HR. oMIN.
OCLOCK0o
RESET--J
_MITSUBISHI B.ECTRIC
• To stop operation:
ON/OFF (D
Press the Obutton.
III IIIIII
When about 15 min. passes after operation start
If you feel slightly warm,
vTOO
Press the _button to lower the
temperature.
One press lowers the temperature by about 2"F.
If you feel slightly cool,
&TOO
COOL
Press the CD
temperature.
button to raise the
One press raises the temperature by about 2"F.
When =1FEEL..." is not displayed press the QMODE
button to set to the "1FEEL,.." auto operation mode.
Each time the button is pressed, the operation mode is
changed in sequence, from =1 FEEL "-'n, =COOL", =DRY" to
=FAN".
ON/OFF(I) VTO0 _i_ ATOO
9

Details of operation r-_
According to the room temperature when the operation
starts, the operation mode isautomatically selected between ../
COOL and DRY. However, when operation is started again 1__.....__
within 2 hours after the operation is stopped, the same "1 --
operation mode before it is stopped is selected.
operation mode selected first is not changed even if the Roomtemperature:
room temperature changes.If the operation mode does not About77_For higher --_ COOL
match the room condition, select the required operation
mode by pressing the OMOOE button.
Details of "I FEEL..." auto operation
Room temperature Operation mode
when started
About77[F or higher ...... COOL ,
About77°Forlower DRY
Target temperature
(!n, lttal state)
About 75"F
I
Whentheroomtemperatureis 4"F higher than the set temperature, t.he set temperature may not be decreased I
since the unit operates at high power. In this case, wait until the room temperature drops to within 4"F of set
temperature.
Display details on the indoor unit
The operation indicator at the right side of
the indoor unit indicate the operation state.
IOperation Indicator I
11-n
Operation Indicator lamp
Difference between set
Indication Operation state temperatureandroom
temperature
This shows that the air conditioner is operating to reach the
"i[" "i'." target temperature. Wait for some time until the target About 4"F or more
temperature is obtained.
_i_" DThis shows that the roomtemperature is approaching the About 4"F or less
target temperature.
• This unit is equipped with the auto restart function. When the main power is turned on, the air conditioner will start
•operation automatically in the same mode as set with the remote controller before the shutoff of main power.
Iif the unit was set to off with the remote controller before the shutoff of main power, it will remain stopped
even after the main power is turned on.
[] If the unit was in the emergency operation before the shutoff of main power, it will start operation, at main
power on, in the same mode as set with the remote controller before the emergency operation.
[] Since the air conditioner has been shipped from the factory with the cooling mode saved in the memory for auto
restart function, it starts cooling operation when the user turns on the main power for the first time after installation.
10

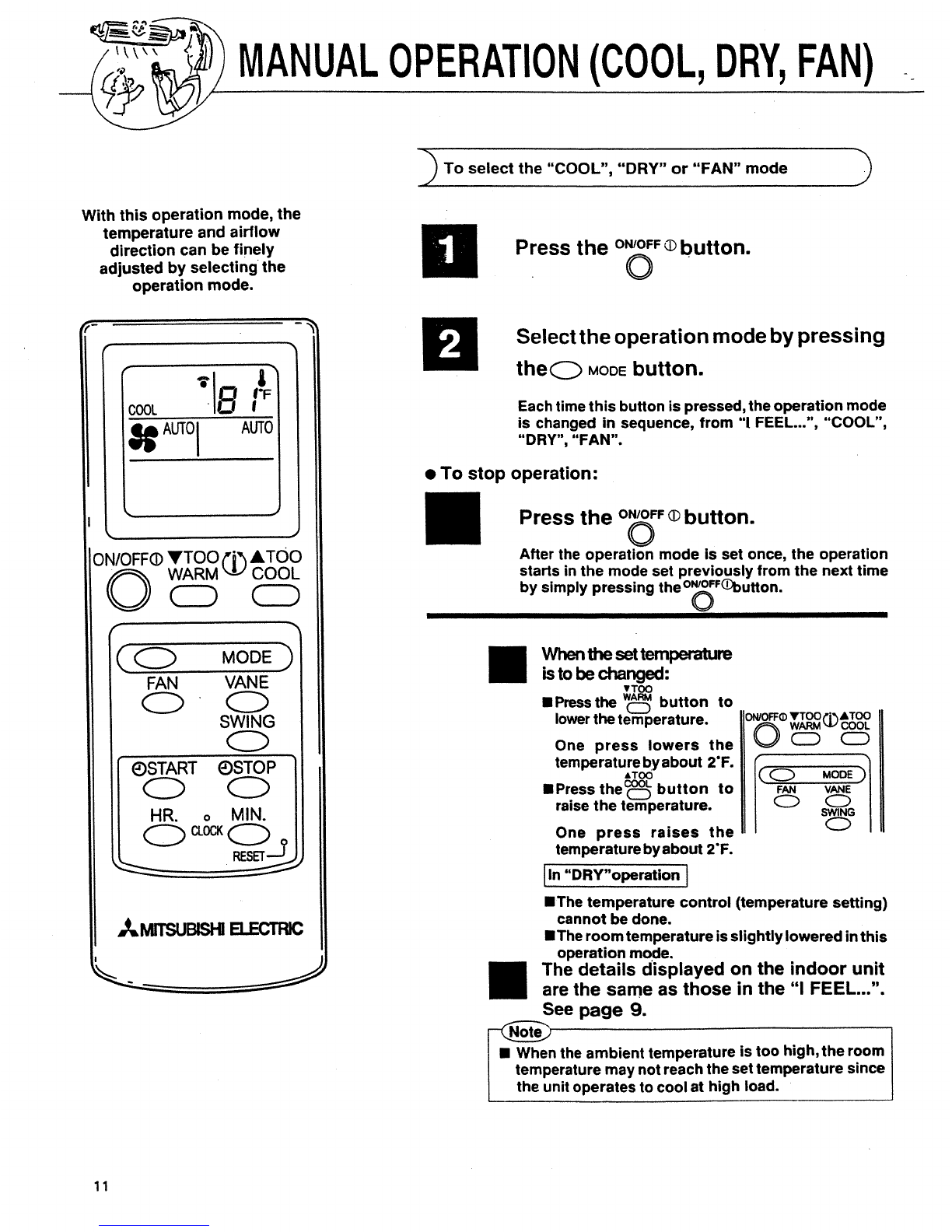

MANUALOPERATION(COOL,DRY,FAN)
With this operation mode, the
temperature and airflow
direction can be finely
adjusted by selecting the
operation mode.
To select the "COOL", "DRY" or "FAN" mode
Press the ON/OFFL_ button.
O
)
AUTOI
ONIOFF(]) YTO0 ('T%ATO0
WARM _COOL
C_ (ZE)
((_) MODE )
FAN VANE
O O
SWING
O
_)START OSTOP
HR. oMIN.
O c_°c_C_s_J
ml_NITSUNSl'i N..ECr_
Select the operation mode by pressing
theO MODEbutton.
Each time this button is pressed, the operation mode
is changed in sequence, from "! FEEL...", "COOL",
"DRY", "FAN".
• To stop operation:
Press the O___FF®button.
After the operation mode is set once, the operation
starts in the mode set previously from the next time
by simply pressing the°_r(_button.
II
When the set temperature
istobechanged:
VTOO
liPressthe _ button to
lower the temperature. ON_OFF_YTOOt'i_&TO0
WARM _COOL
One press lowers the V _
==Press the_ button to VANE
raise the temperature.
One press raises the O
temperature by about 2°F.
[In "DRY"operation I
liThe temperature control (temperature setting)
cannot be done.
liThe room temperature is slightly lowered in this
operation mode.
The details displayed on the indoor unit
are the same as those in the "1 FEEL...",
See page 9.
li When the ambient temperature is too high, the room
temperature may not reach the set temperature since
the unit operates to cool at high load.
11

CONVENIENT INFORMATION t
For effective cooling
QClose the windows and pull
down blinds. Sunshine is
reduced and cooling
efficiency increases.
(_) Paste a heat shield film
(generallyavailable) onthe
window. Heat entering the
roomis reduced.
_) Blockthe outdoor unitfrom
direct sunlight. This saves
energy.
I
_The humidity at humans feel comfortable
which
When air contains too much moisture, humans feel clammy. Humidity is related with temperature
and wind. The humidity at which humans feel comfortable is 60%~75%RH in summer, 55% ~
70%RH in winter.
URefer to page 10.
12

IAIRFLOWVELOCITYANDDIRECTIONADJUSTMENT
AIR FLOW velocity and direction can
be selected as required.
To change the AIR FLOW velocity,
press the(_button.
Each time the button is pressed, fan speed is changed
in sequence, from =[Lo],= [Med] ,,re[Hi] AUTO.
ON/OFF_ YTOO ("i'_ATOO
0
(0 FAN MODE
VANE
O O
SWING
O
{o_T o_P
II HR. o MIN.
_0_
,,_M_ ELECTRIC
le To condition the whole room, use the -all [Hi] mode. I
To change the AIR FLOW blowing
direction vertically,
press the _button.
V
Each time the button is pressed, angle of horizontal
vane is changed in sequence, from--(1)q (2)
4(3) A(4) A(5) AUTO.
Recommended horizontal
VANE range
Use in the AUTO position
usually.
Use ..- (1)or 4(2)position
(COOL, DRY) when adjusting
as required.
--_ Note
•In the cooling operation, when the air conditioner is
operated with AIR FLOW blowing down _(4) or A(5) for
1 hour, the AIR FLOW direction is automatically setto
level to prevent condensed water from dropping.
•Adjust the vertical AIR FLOW direction using the
remote controller. If the horizontal vane are moved
manually, it may cause trouble.
13

VANE
• When the AUTO mode is selected with the (_ button, the position of the horizontal vane
are automatically set to correspond to the operation mode to perform effective operation.
(1) COOL, DRY
The air flow blows level. (2) FAN The air flow blowsdown
To change the horizontal direction of the AIR FLOW
move the vertical vanes manually.
Adjust the vanes before starting operation starts.
Since the horizontal vane move automatically, your fingers may be caughL
14

SWING OPERATION
Perform the following operations whilethe unit is running. )
For AIR FLOW to reach all
corners of the room or to
strike a point directly, use
the swing operation. Press the s_ button.
w, ,,,w
ONIOFF(]) YTO01"1'3 ATO0
O '-s
( O MODE )
FAN VANE
CD (_
SWING
CD
E)START E)STOP
CD .C_
HR. oMIN.
O cLiO_e.SE.r_1'
•To release the SWING operation mode;
Press the SWINGbutton again.
0
IVANE
[] If the 0button is pressed during swing operation, swing
operation is released.
15

TIMEROPERATION(ON/OFFTIMER)
It is convenient to set the timer for the
time when you go to bed, when you get
home, when you get up, etc.
_1FEEL... _'1
_AUTOI AUTO
PM
_t'l.rlr'l
lu.l.Ju
E)STOP ,,
ONIOFF(D YTO0 ('i_ ATO0
O WARM =,,,._COOL
CD (Z)
(,,Q .... MODE)
FAN VANE
SWING
Q
_)START E)STOP
CD
HR. oMIN.
RESET
_How to set the ON timer
_)START
Press the Obutton to set the ON
timer mode during operation.
Each time the button is pressed, the ON timer mode
alternates between ON and OFF. HFL
Set the time of the timer using the Q
and(_buttons.
Each time the _button is pressed, the set time is
counted up by 1 hour; each time the ._. button is
pressed, the set time is counted up by 10 minutes.
•To release the ON timer:
ZL
uJ
O
z
u)
Press the eSTARTbutton to release the :
i'
timer. _
( )-"
How to set the OFF timer !,,m,
........... i=E
:m
_i"
_)STOP
Press the C>. button to release_the !_..
timer mode during operation.
Each time the button is pressed, the OFF timer mode .O
alternates between ON and OFF. i_
Set the time of the timer using the _ _
and _buttons. ¢z:
HR.
Each time theQbutton is pressed, the set time is M.i
counted up by 1 hour; each time the_button is iO
pressed, the set time is counted up by 10 minutes, in-
•To release the OFF timer: _u.I
Press the
timer.
_STOP ""--"
button to release the _.P"
Programming timer operation J
The ON timer and OFF timer can be used in combination. The timer
of the set time which is reached first will operate first. ("_" mark
indicates the order of timer operatiorts.)
II Ifthecurrenttimehas notbeen set, thetimeroperation
cannot be done.
16

WHEN THE AIR CO ITiONER IS NOT
GOi TOBEUSEDFORA LONG
iI Perform FAN operation for 3 or I_1
4 hours to dry the inside of the ii
air conditioner.
/
Turn off the breaker.
--/_,CAUTION
Turn off the breaker when the air con-
ditioner is not going to be used for a
long time.
Remove the batteries from the
remote controller.
Clean the air filter and install it
in the indoor unit.
(Refer to page 19 for cleaning it,)
;lean it before /
installing. J
Check that the air inlet and outlet
of the indoor/outdoor unit are
not blocked.
Check that the ground wire is
connected correctly.
IAkCAUTION
Apply grounding.
Do not connect a groundingwire to a gas pipe, water
pipe, lightningrod or groundwire of a telephone. If a
groundingisincorrect,itmay cause an electric shock.
17

MAIN rENANCE
Turn off the breaker.
0
--A_CAUTION
When the unit is to be cleaned, switch
off and turn off the breaker.
Since the fan rotates at high speed duringoperation,
it may cause an injury.
Clean using soft dry cloth.
Do not use gasoline, benzine, polishing powder and
detergent. And do not spray with insecticide. The
unit may be damaged.
N
\
18

...T: CLEANING THE AIR .FILTER /
DEODO IZING FILTER
When the front panel is to be opened, do not open it up to the level position. If you do, the front panel may come off.
Remove the air filter.
Open. front panel,
removing/replacing
the filter
Remove It.
i
Air filter
_ _ C AUT_O m
When the air filter is to be removed, do not
touch the metal parts of the indoor unit.
It maycausean injury.
DClean dirt from the air filter using a
vacuum cleaner or by washing with
water.
El
UIf dirt is conspicuous, wash with a solution
of detergent in lukewarm water.
[] If hot water (120"F or more) is used, it may be
deformed.
I
After washing with water, dry well in
the shade.
•Do not expose the air filter to direct sunlight
or heat from a fire when drying it.
Install the air filter.
Install It. ,_
URemove the air filter and then remove
the deodorizing filter (gray sponge
type).
•The deodorizing is harmless to humans.
However, to keep its effect, be sure to hold
the frame and do not touch the surface of
the filter with your hand.
E! Deodorizingfilter
Soak the filter together with frame in
lukewarm water for about 15 minutes.
•If dirt is conspicuous, use a solution of
detergent in lukewarm water.
[] Do not use a scrubbing brush or sponge.
It may damage the surface of the filter.
[] Do not use a chlorine detergent.
After washing with water/lukewarm
water, dry completely in the shade.
Install the deodorizing filter (gray
sponge type) and then install the air
filter.
Install it.
19
