Mitsubishi PK12FK User manual

OC196A-1
CONTENTS
1. TECHNICAL CHANGE ················································································OC196A- 2
2. FEATURES···································································································OC196A- 3
3. PART NAMES AND FUNCTIONS·······························································OC196A- 6
4. SPECIFICATIONS························································································OC196A-10

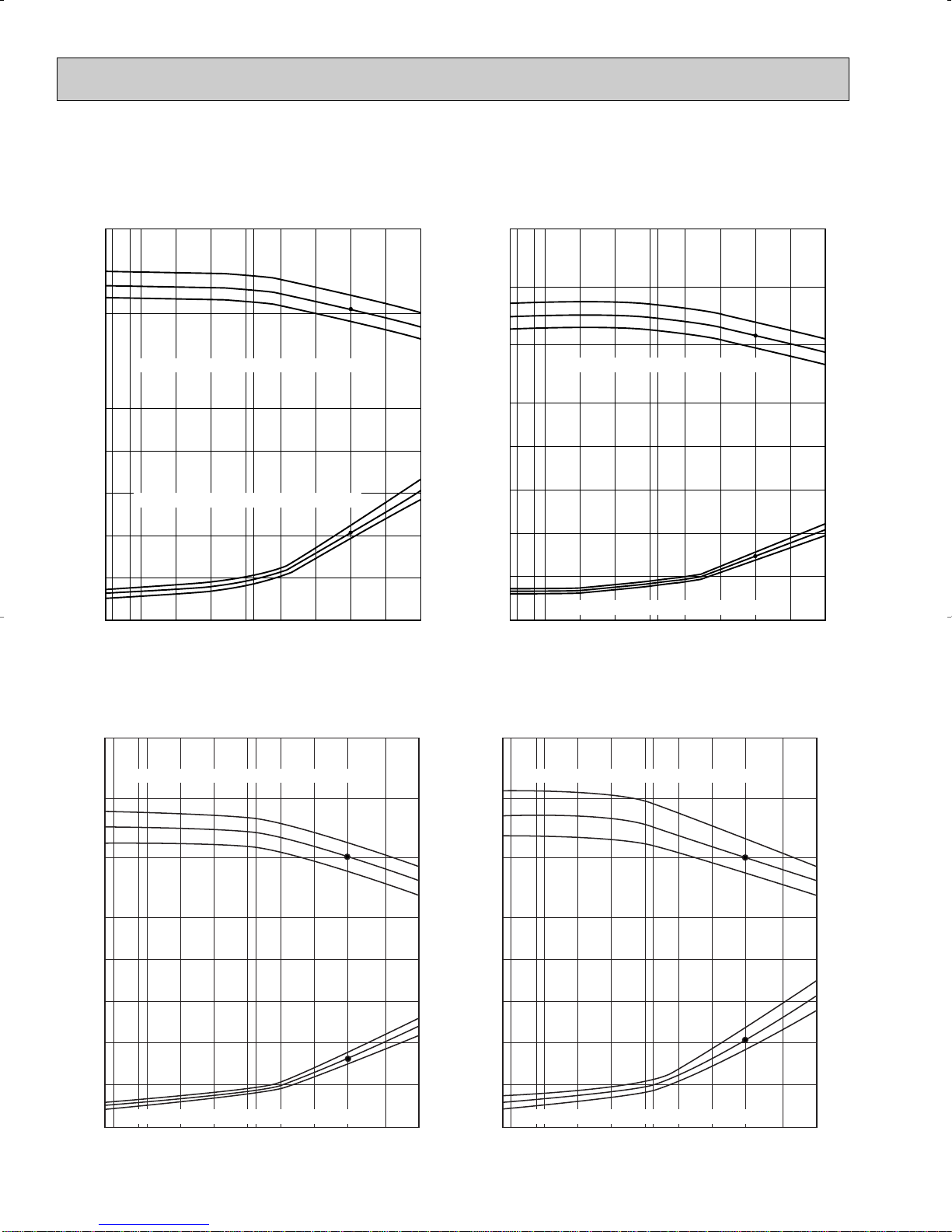

5. DATA ············································································································OC196A-11
6. OUTLINES AND DIMENSIONS···································································OC196A-19
7. REFRIGERANT SYSTEM DIAGRAM··························································OC196A-23
8. WIRING DIAGRAM······················································································OC196A-24
9. OPERATION FLOW-CHART·······································································OC196A-28
10. MICROPROCESSOR CONTROL································································OC196A-31
11. TROUBLESHOOTING ·················································································OC196A-44
12. SYSTEM CONTROL····················································································OC196A-51
13. DISASSEMBLY PROCEDURE····································································OC196A-56
14. PARTS LIST·································································································OC196A-59
15. OPTIONAL PARTS ······················································································OC196A-68
PK12FK, PK12FK1
PK18FK, PK18FK1, PK18FK2
PK24FK, PK24FK1, PK24FK2
PK30FK, PK30FK1, PK30FK2
PK36FK, PK36FK1, PK36FK2
OC196A--1.qxp 1.12.19 10:35 AM Page 1

OC196A-2
1TECHNICAL CHANGE
PK18FK1➔PK18FK2
PK24FK1➔PK24FK2
PK30FK1➔PK30FK2
PK36FK1➔PK36FK2
●DRAIN PAN shape has changed.
●NOSE shape has changed.
●UNDER PLATE shape has changed.
Change points
Optional parts Program timer
FK
Switch for temperature unit
Switch for louvers
—
PAC–SK65PT
Canceled
Canceled
Addition of "Mode selector"
PAC–SC32PTA
FK1
SW17
SW18
SW7
No.9
No.0
No.1
No.2
No.3
No.4
18
OFF
ON
OFF
OFF
24
OFF
ON
OFF
OFF
30
ON
ON
OFF
OFF
36
ON
ON
OFF
OFF
18
OFF
ON
OFF
OFF
24
ON
ON
OFF
OFF
30
OFF
ON
ON
OFF
36
ON
ON
ON
OFF
Dip SW
Dip SW
Appearances
Remote
controller
Indoor controller
(18,24,30,36 only)
4-3/4o2-3/4o5/85-1/8o4-3/4o3/4
REMOTE CONTROLLER
REMOCON COVER
12 18 24 30 36
PART NAME Model
Differences with PK12/18/24/30/36FK which is a basic service manual OC121.
Change of the service parts.
Refer to the parts list on the page OC196A-59 to 67 for the details.
PK12FK ➔PK12FK1
PK18FK ➔PK18FK1
PK24FK ➔PK24FK1
PK30FK ➔PK30FK1
PK36FK ➔PK36FK1
OC196A--1.qxp 1.12.19 10:35 AM Page 2

OC196A-3
FEATURES
2
1. COMPACT DESIGN
The PK series models have been downsized and now require such minimal wall space that they can even be installed
above windows. For the PK12, 11-13/16in of wall space between the ceiling and the window allows “above window”
installation. (13-3/8in for the PK24/30/36)
2. AUTO FLAP SHUTTER
With a simple flick of the OFF switch the air outlet will be closed off with a shutter. The shutter also functions as a flap
during operation to adjust the air flow angle, with “Auto Angle 1” securing a comfortable air flow.
3. INSTALLATION : FAST AND ENDLESSLY ADAPTABLE
(1) Multi-directional piping
Multi directional drain and refrigerant piping radically improves flexibility in selecting installation layouts.
PK12 drain piping can be installed in 5 directions, while PK18/24/30/36 models boast refrigerant piping in 4 directions
and drain piping 2 directions.
(2) Back plate installation guide
The back plate installation guide gives clear instructions on installation positions. The enlarged back plate secures the
unit firmly to the wall, while the support piece which lifts the unit makes left side piping work much easier.
(3) Easily removable filter
The presence of thumbscrews on the filters means that the filters can be quickly and smoothly removed.
FILTER
CHECK MODE
TEST RUN
TIMER OFF TIMER
CHECK SET TEMP.
CLOCK AUTO AUTO
START STOP
SWING
FAN
SPEED AUTO
RETURN
Indoor unit
Models Cooling capacity SEER
PK12FK, PK12FK112,500 Btu/h 11.5
PK18FK, PK18FK1, PK18FK218,500 Btu/h 11.3
PK24FK, PK24FK1, PK24FK224,000 Btu/h 10.6
PK30FK, PK30FK1, PK30FK230,000 Btu/h 10.7
PK36FK, PK36FK1, PK36FK234,200 Btu/h 10.2
MITSUBISHI ELECTRIC
ON
DRY
COOL
FAN
CHECK
SET TEMP
TIMER OFF
AUTO STOP
AUTO START
F
HR
F
LOW HIGH
AUTO RETURN
CHECK TEST RUN
POWER ON/OFF
MODE SELECT
SET
TEMPERATURE
FAN COOL/DRY
COOLERWARMER
TIMER MODE HOURS
FAN SPEED LOW/HIOGH
AIR
DISCHARGEUP/DOWN SWING STOP
CHECK TEST RUN
•CENTRALLY CONTROLLED•
(PK12/18/24/30/36FK) PK12/18/24/30/36FK1
PK18/24/30/36FK2
Remote controller
()
OC196A--1.qxp 1.12.19 10:35 AM Page 3

OC196A-4
4. ADVANCED MICROPROCESSOR
(1) Easy to Use Microprocessor
1) Ultra-Thin Remote Controller
The streamlined, wide controller is designed to
blend with any kind of interior and the adoption of
a sophisticated microprocessor allows you to
carry out a wide range of operations easily.
2) Attractive Liquid Crystal Display (LCD)
Units operation mode, set temperature, room tem-
perature, timer setting, fan speed,
and air flow direction are displayed on the
remote controller with the easily understood visual
Liquid Crystal Display (LCD).
3) Convenient 24-Hour ON-OFF Timer
The timer allows Mr.SLIM to be switched on or
off automatically at the time is shown on the LCD.
4) Self-Diagnostic Feature Indicates Instantly
In the rare case when a problem occurs, the unit stops operating and the set temperature indicator changes to the
self-diagnostic indicator, indicating the location of the fault.
If the check switch is pressed twice, the unit stops operating and the check mode is initiated. The cause of the most
recent problem stored in the memory is displayed on the LCD. This is extremely useful for maintenance purposes.
5) Useful Memory Feature for Storing Instructions
The previous set value is memorised so that constant temperature control can be obtained. This is convenient when,
for example, a power failure occurs.
(2) Non-polar Two-Wire Remote Controller Cables
The non-polar, two-wire type remote controller cable is slim, installation is simple and trouble-free. Remote controller
wire can be extended up to 550 yards.
5. REDI-CHARGED REFRIGERANT SYSTEM
PRE-CHARGE REFRIGERANT REQUIRED FOR LINE LENGTH OF 100ft AT
SHIPMENT. PREVENTING TROUBLES DUE TO SHORTAGE OF REFRIGERANT.
The unique refrigerant circuit and a large accumulator always controls the refrigerant to its optimum condition regardless of
the length of 164ft maximum (PK12/18 130ft maximum). The additional refrigerant charging work at the field which often
caused uncertain problems heretofore is completely eliminated. This unique system serves to improve the quality of work
and reliability, and also helps
to speed up the installation work.
TIMER OFF TIMER
CHECK SET TEMP.
DRY COOL
FAN
CLOCK AUTO AUTO
START STOP
MODE TIMER ON/OFF CLOCK/TIMER FAN SPEED AIR DISCHARGE FILTER
CHECK
TEST RUN
AIR SWEEP
SET TEMP. TIMER SET
F
FAN
SPEED
SWING
AUTO
RETURN
REMOTE CONTROLLER
MITSUBISHI ELECTRIC
ON
DRY
COOL
FAN
CHECK
SET TEMP
TIMER OFF
AUTO STOP
AUTO START
F
HR
F
LOW HIGH
AUTO RETURN
CHECK TEST RUN
POWER ON/OFF
MODE SELECT
SET
TEMPERATURE
FAN COOL/DRY
COOLERWARMER
TIMER MODE HOURS
FAN SPEED LOW/HIGH
AIR
DISCHARGEUP/DOWN SWING STOP
CHECK TEST RUN
•CENTRALLY CONTROLLED•
[Remote controller]
(PK12/18/24/30/36FK) PK12/18/24/30/36FK1
PK18/24/30/36FK2
()
OC196A--1.qxp 1.12.19 10:35 AM Page 4

OC196A-5
6. HIGH RELIABILITY AND EASY SERVICING
In addition to the self-diagnostic function, units are also equipped with a 3-minute time delay mechanism (cooling), an auto
restart function, an emergency operation function, a test run switch, etc., to assure high reliability and easy servicing.

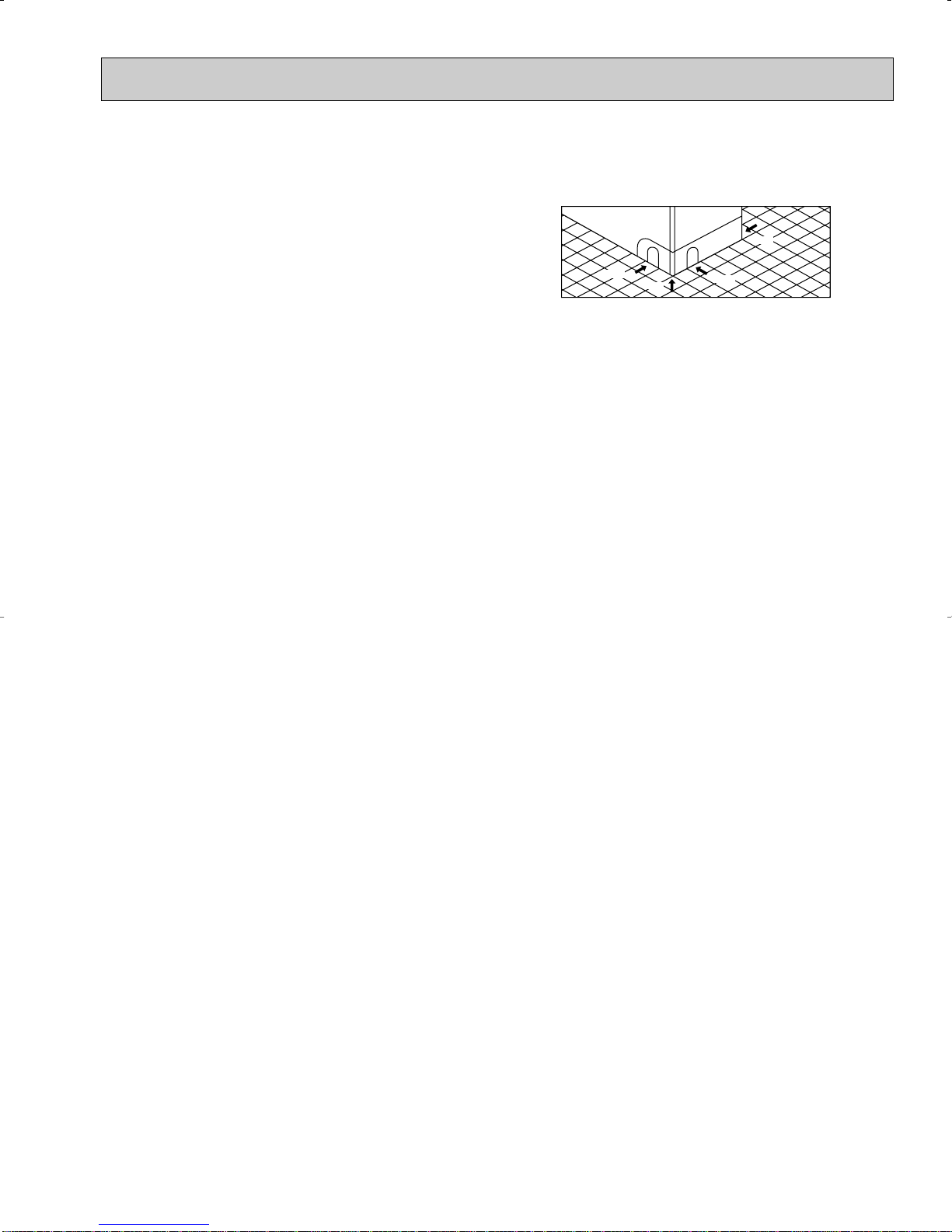

7. FOUR-WAY PIPING ACCESS MAKES
INSTALLATION LAYOUT EASY
Piping on the outdoor unit may be connected from either of
four directions: front, rear, side or beneath the base.
This easy-access design makes it possible to install a
number of units in a compact arrangement at a single site.
The outdoor unit allows for unheard-of flexibility in
determining a piping layout, thus greatly simplifying
installation.
8. FRONT-ACCESS FACILITATES
MAINTENANCE
The outdoor unit has been designed with a front access
service panel that allows easy access to all maintenance
point, regardless of the installation layout. What’s more, this
front panel may be removed by loosening only two screws.
It all adds up to greatly simplified maintenance work.
9. NITROGEN GAS IS CHARGED TO
INDOOR UNIT
Indoor unit and refrigerant pipes are charged with nitrogen
gas (N2) instead of R-22 before shipment from the
factory.
Rear
Right
Base
Front
OC196A--1.qxp 1.12.19 10:35 AM Page 5

OC196A-6

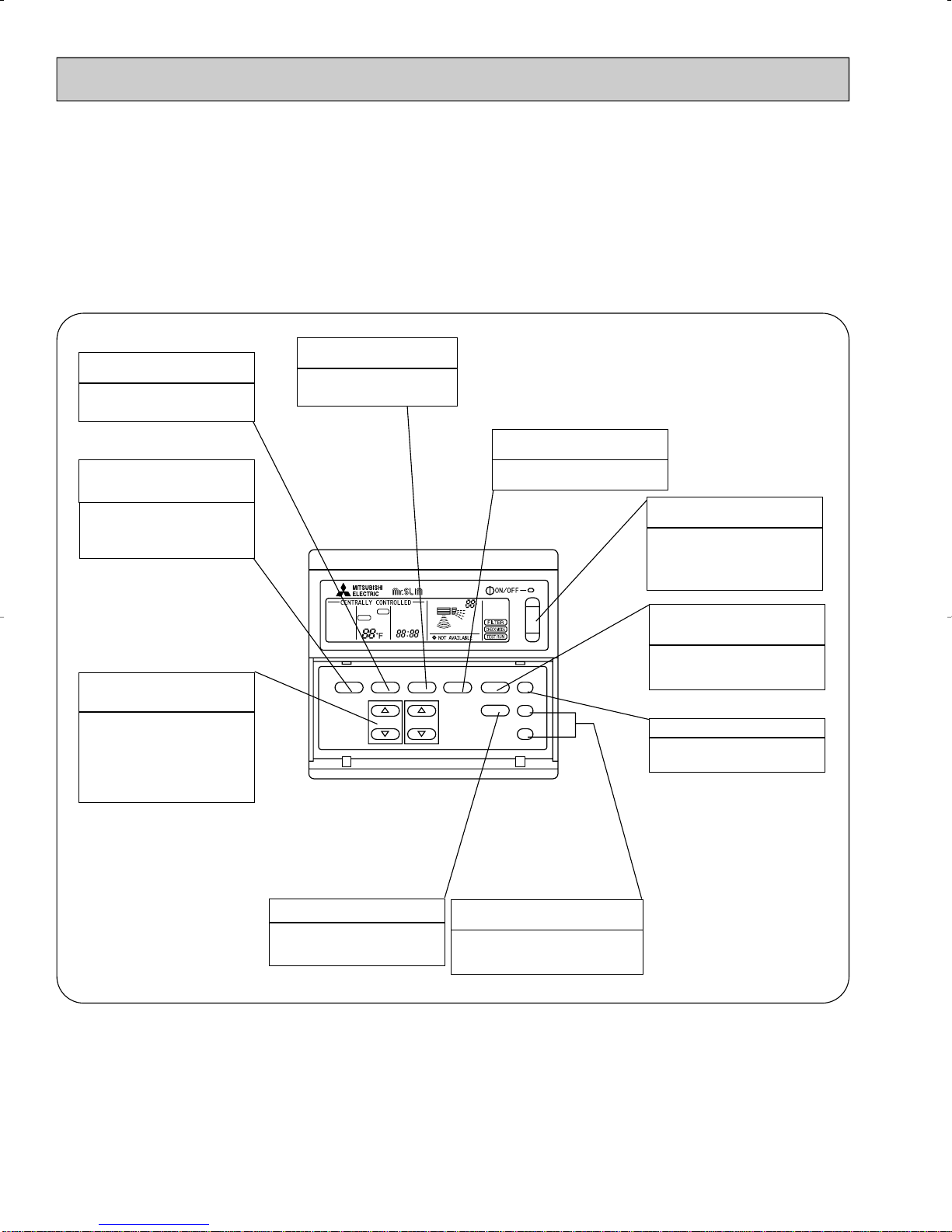

3 PART NAMES AND FUNCTIONS
Remote controller operation buttons
MITSUBISHI ELECTRIC
ON
DRY
COOL
FAN
CHECK
SET TEMP
TIMER OFF
AUTO STOP
AUTO START
F
HR
F
LOW HIGH
AUTO RETURN
CHECK TEST RUN
POWER ON/OFF
MODE SELECT
SET
TEMPERATURE
FAN COOL/DRY
COOLERWARMER
TIMER MODE HOURS
FAN SPEED LOW/HIGH
AIR
DISCHARGEUP/DOWN SWING STOP
CHECK TEST RUN
•CENTRALLY CONTROLLED•
TIMER ON/OFF button
This switches between continuous
operation and the timer operation.
SET TEMPERATURE
button
This sets the room temperature.
The temperature setting can be per-
formed in 2˚F units.
Setting range :
Cooling 65˚F to 87˚F
CHECK-TEST RUN button
Only press this button to perform an
inspection check or test operation.
Do not use it for normal operation.
FAN SPEED button
This sets the ventilation fan speed.
AIR DISCHARGE
button
This adjusts the vertical angle of the
ventilation.
ON/OFF button
This switches between the opera-
tion and stop modes each time it is
press. The lamp on this button
lights during operation.
OPERATION MODE
button
Press this button to switch the cool-
ing,electronic dry (Dehumidify), fan
modes.

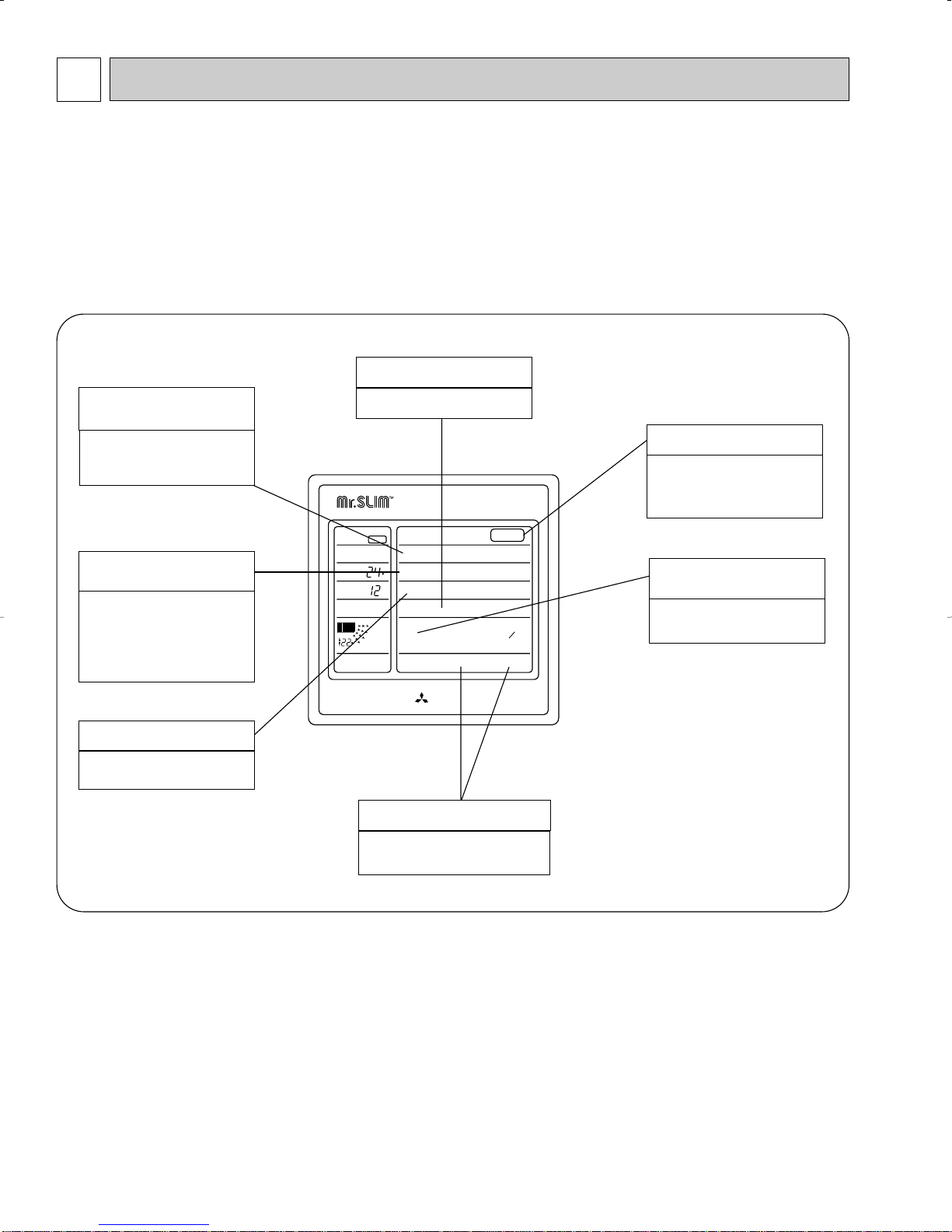

Remote controller (PK12/18/24/30/36FK)
Settings remain in effect until changed.
Air conditioner can be operated by simply pushing ON/OFF button once settings have been
made.
OC196A--1.qxp 1.12.19 10:35 AM Page 6

OC196A-7

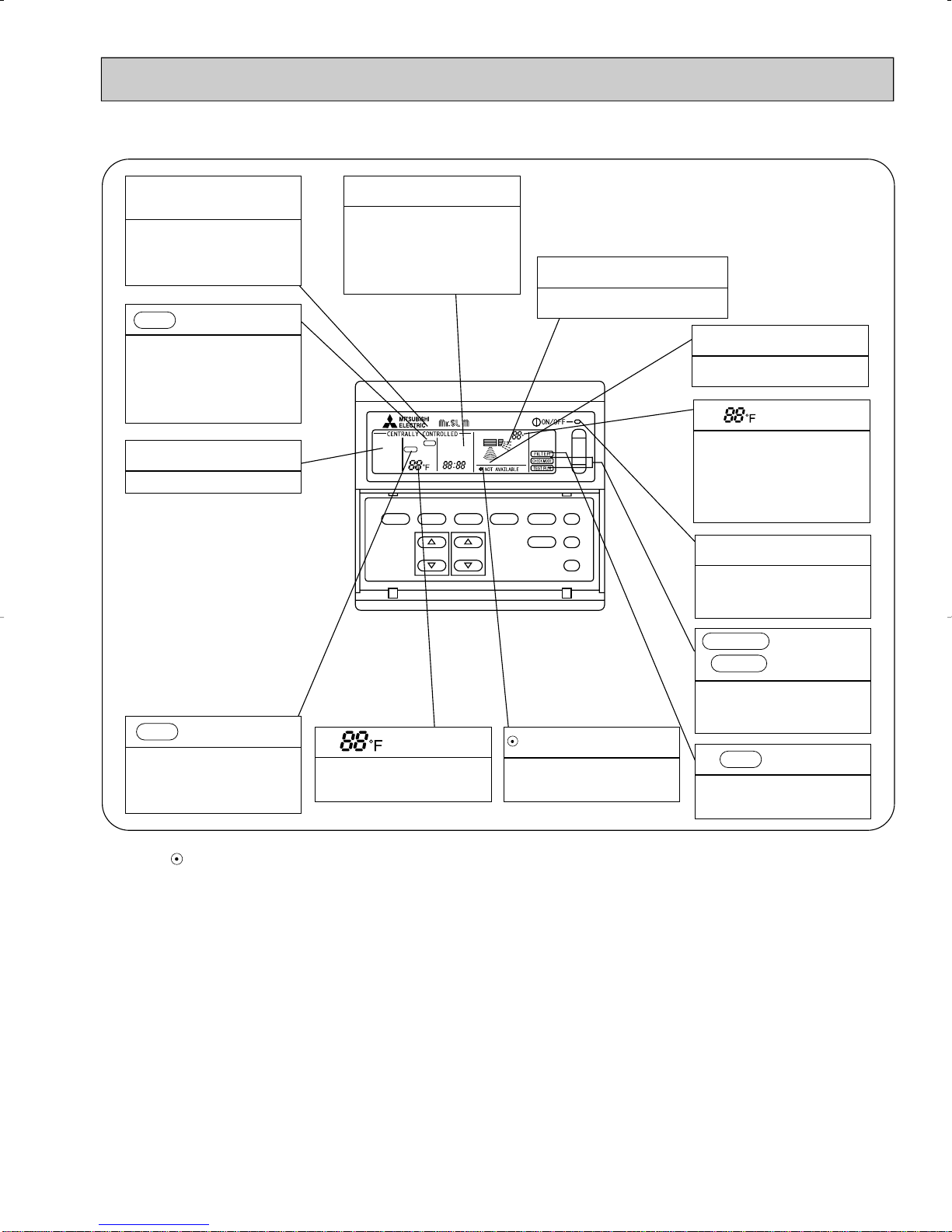

FAN, COOL/DRY
Operation mode is displayed.
TIMER OFF, AUTO STOP, AUTO
START (TIMER MODE)
TIMER OFF (continuous opera-
tion), AUTO STOP, AUTO START
mode are displayed. In AUTO
STOP/AUTO START mode, the
set time is also displayed. Time
setting is in 1 hour units for up to
24 hours.
Louver ON/OFF
operation
Room Temperature
During operation, the room tempera-
ture is displayed (not displayed when
not operating). The room tempera-
ture's display range is 47˚F - 97˚F.
When this range is exceeded, "▼
47˚F" or "▲97˚F" is displayed.
CHECK
Displayed when "self-diagnostic"
functioning occurs, and simulta-
neously the check code is dis-
played in the "set temp."
TEST RUN
Displayed when test run opera-
tion mode is functioning. (Turned
automatically off after 2 hours of
operation).
❈NOTE
1"CENTRALLY CONTROLLED"
is displayed for two seconds
after POWER button is turned
to on. This is not defective.
2All LCD are off during power
OFF.
3When a button on the operat-
ing panel is pressed, a beep
sound is heard.
4Do not operate the buttons with
something sharp-pointed, or
the operating panel will be
damaged.
CENTRALLY CONTROLLED
ON
ON/OFF
DRY
MODE SELECT COOL/DRY FAN
SET
TENPERATURE
WARMER
TIMER
FAN SPEED
LOW/HIGH
UP/DOWN
AIR
DISCHARGE
MODE
CHECK TEST RUN
HOURS
COOLER
FANCOOL
CHECK
SET TEMP
81
88
12
F
AUTO RETURN
HR
F
TIMER OFF
CHECK TEST RUN
AUTO STOP
AUTO START
LOW HIGH
POWER

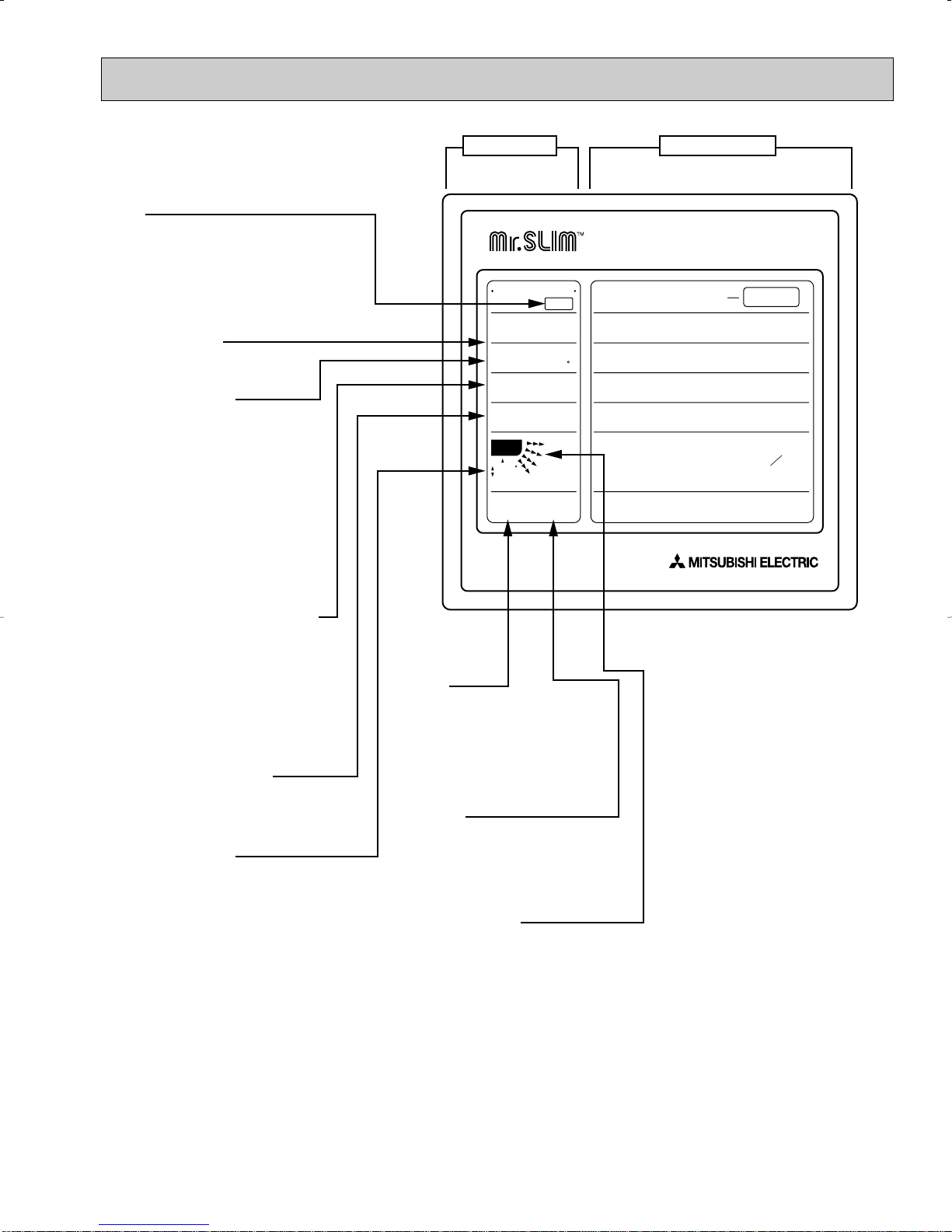

Display panel Operating panel
SWINGSTOP
ON
Displayed during operation (ON).
SET TEMP./CHECK
SET TEMP :
The desired temperature setting
is displayed.
CHECK :
When unit malfunctioning occurs,
this display is activated. At this
time, "Unit address" and "check-
code" are alternately displayed,
indicating the malfunctioning unit
and the cause.
Fan speed (LOW, HIGH)
The fan speed (Low/High) is dis-
played.
OC196A--1.qxp 1.12.19 10:35 AM Page 7

OC196A-8
Remote controller operation buttons
TIMER OFF TIMER
CHECK SET TEMP.
DRY COOL
FAN
CLOCK AUTO AUTO
START STOP
MODE TIMER ON/OFF CLOCK/TIMER FAN SPEED AIR DISCHARGE FILTER
CHECK
TEST RUN
AIR SWEEP
SET TEMP. TIMER SET
F
FAN
SPEED
SWING
AUTO
RETURN
REMOTE CONTROLLER
FILTER button
This resets the filter service indica-
tion display.
TIMER ON/OFF button
This switches between continuous
operation and the timer operation.
SET TEMPERATURE
button
This sets the room temperature.
The temperature setting can be per-
formed in 2˚F units.
Setting range :
Cooling 65˚F to 87˚F
CHECK-TEST RUN button
Only press this button to perform an
inspection check or test operation.
Do not use it for normal operation.
AIR SWEEP button
This switches the horizontal fan
motion ON and OFF.
(This button is not available)
CLOCK/TIMER button
This sets or switches the current
time,start time and stop time.
FAN SPEED button
This sets the ventilation fan speed.
AIR DISCHARGE
button
This adjusts the vertical angle of the
ventilation.
ON/OFF button
This switches between the opera-
tion and stop modes each time it is
press. The lamp on this button
lights during operation.
OPERATION MODE
button
Press this button to switch the cool-
ing,electronic dry (Dehumidify), fan
modes.
Remote controller (PK12/18/24/30/36FK1, PK18/24/30/36FK2)
Settings remain in effect unit changed.
Air conditioner can be operated by simply pushing ON/OFF button once setting have been
mode.
OC196A--1.qxp 1.12.19 10:35 AM Page 8

OC196A-9
TIMER OFF TIMER
CHECK SET TEMP.
DRY COOL
FAN
CLOCK AUTO AUTO
START STOP
MODE TIMER ON/OFF CLOCK/TIMER FAN SPEED AIR DISCHARGE FILTER
CHECK
TEST RUN
AIR SWEEP
SET TEMP. TIMER SET
F
FAN
SPEED
SWING
AUTO
RETURN
REMOTE CONTROLLER
Operation lamp
This lamp lights during operation,
goes off when the unit stops and
flashes when a malfunction occurs.
CENTRALLY
CONTROLLED display
This indicates when the unit is con-
trolled by optional features such as
central control type remote controller.
TIMER display
This indicates when the continuous
operation and time operation modes
are set.
It also display the time for the timer
operation at the same time as when
it is set.
OPERATION MODE display
This indicates the operation mode.
CHECK display
This indicates when a malfunction
has occurred in the unit which should
be checked.
display
This lamp lights when electricity is
supplied to the unit.
display
This displays the selected setting
temperature.
CLOCK display
The current time , start time and stop
time can be displayed in ten second
intervals by pressing the time switch
button. The start time or stop time is
always displayed during the timer
operation.
AIR DISCHARGE display
This displays the air direction.
display
The temperature of the return air is
displayed during operation. The dis-
play range is 47° to 97°F. The dis-
play flashes 47°F when the actual
temperature is less than 47° and
flashes 97°F when the actual tem-
perature is greater than 97°F.
In this display example on the bottom left, a condi-
tion where all display lamps light is shown for
explanation purposes although this differs from
actual operation.
display
This display lights in the check mode
or when a test operation is per-
formed.
CHECK MODE
TEST RUN
display
This lamp lights when the filter needs
to be cleaned.
FAN SPEED display
The selected fan speed is displayed.
Caution
●Only the display lights when the unit is stopped and power supplied to the unit.
●When power is turned ON for the first time the (CENTRAL CTRL) display appears to go off momentarily but this is not a malfunction.
●When the central control remote control unit, which is sold separately, is used the ON-OFF button,OPERATION MODE button and SET
TEMP button do not operate.
●“NOTAVAILABLE” is displayed when the AIR SWEEP button are pressed.
(AIR SWEEP function is not provided for PK series.)
FILTER
Remote controller display
OC196A--1.qxp 1.12.19 10:35 AM Page 9

OC196A-10
4 SPECIFICATIONS
MODELS : PK12/18/24/30/36FK, PK12/18/24/30/36FK1, PK18/24/30/36FK2
Capacity
Power consumption
EER
SEER
INDOOR UNIT MODEL
External finish
Power supply
Max. fuse size (time delay)
Min ampacity
Fan motor
Airflow Hi-Lo
Moisture removal
Sound level Hi-Lo
Cond. drain connection OD
Dimensions
Weight
OUTDOOR UNIT MODEL
External finish
Power supply
Max. fuse size (time delay)
Min. ampacity
Fan motor
Compressor
Crankcase heater
Refrigerant control
Sound level
Dimensions
Weight
REMOTE CONTROLLER
Control voltage (by built-in transformer)
REFRIGERANT PIPING
Pipe size
Connection method
Between the indoor
& outdoor units
❈1
❈1
❈1
Dry
Wet
W
D
H
Model
W
D
H
Liquid
Gas
Indoors
Outdoors
Height
Piping length
Btu/h
kW
V, Phase, Hz
A
A
F.L.A.
CFM
CFM
Pints/h
dB
in.
in.
in.
in.
Ib.
V, Phase, Hz
A
A
F.L.A
R.L.A
L.R.A
A(W)
dB
in.
in.
in.
Ib.
in.
in.
ft
fr
PK12FK
PK12FK1
Model
12,500
1.21
10.3
11.5
PK12FK,PK12FK1
15
1
0.7
490-350
440-320
3.8
45-38
1
49-7/32
7-7/8
11-13/16
37
PU12EK1
15
11
0.65
RH167NAB
8.9
29
0.11/0.12 (23/28)
50
25-9/16
105
130
130
PK18FK
PK18FK1
PK18FK2
18,500
1.75
10.6
11.3
PK18FK, PK18FK1, PK18FK2
15
1
0.7
710-530
640-480
5.3
48-41
1
53
PU18EK1
20
16
0.75
RH247NAB
12.0
37
0.11/0.12 (23/28)
53
33-1/2
154
3/8
5/8
55-1/8
34-1/4
11-5/8
PK24FK
PK24FK1
PK24FK2
24,000
2.34
10.3
10.6
PK24FK, PK24FK1, PK24FK2
Munsell 3.4Y7.7/0.8
115, 1, 60
15
1
0.7
710-530
640-480
7.2
48-41
1
9-1/4
13-3/8
53
PU24EK1
Munsell 5Y7/1
208/230, 1, 60
20
16
0.65+0.65
NH33NBD
11.5
54
0.16/0.17 (33/39)
Capillary tube
55
207
With indoor unit
Indoor unit - remote controller : DC12V, Indoor unit - outdoor unit : DC12V
Not supplied (optional parts)
Flared
Flared
PK30FK
PK30FK1
PK30FK2
30,000
3.06
9.8
10.7
PK30FK, PK30FK1, PK30FK2
15
2
1.0
990-780
890-700
9.6
49-44
1
62
PU30EK1
30
20
0.65+0.65
NH41NAD
14.0
73
0.16/0.17 (33/39)
55
49-9/16
208
164
164
1/2
3/4
PK36FK
PK36FK1
PK36FK2
34,200
3.47
9.9
10.2
PK36FK, PK36FK1, PK36FK2
15
2
1.0
990-780
890-700
10.5
49-44
1
62
PU36EK1
30
22
0.75+0.75
NH47NAD
17.5
87
0.16/0.17 (33/39)
55
38-3/16
13-9/16
220
66-5/32
Item
NOTES : ❈1.Rating conditions —indoor : D.B. 80˚F, W.B. 67˚F outdoor : D.B. 95˚F, W.B. 75˚F.
Operating range
Indoor intake air temperature
D.B. 95˚F, W.B. 71˚F
D.B. 67˚F, W.B. 57˚F
Outdoor intake air temperature
D.B. 115˚F
D.B. 0˚F *
Cooling Maximum
Minimum
*In case of the wind baffle is installed.
(In case of the wind baffle is not installed, the minimum temperature will be D.B. 23˚F.)
OC196A--1.qxp 1.12.19 10:35 AM Page 10

OC196A-11
DATA
5
Notes 1. B.F. : Bypass Factor, IWB : Intake air wet-bulb temperature
TC : Total Capacity (x103 Btu/h), SHC : Sensible Heat Capacity (x103 Btu/h)
TPC : Total Power Consumption (kW)
2. Cooling capacity correction factors and Refrigerant piping length (one way) range.
MODEL Refrigerant piping length (one way)
PK12FK, PK12FK1
PK18FK, PK18FK1, PK18FK2
PK24FK, PK24FK1, PK24FK2
PK30FK, PK30FK1, PK30FK2
PK36FK, PK36FK1, PK36FK2
1.0
1.0
1.0
1.0
1.0
25ft
0.992
0.992
0.981
0.981
0.981
40ft
0.983
0.983
0.968
0.968
0.968
55ft
0.978
0.978
0.952
0.952
0.952
70ft
0.966
0.966
0.940
0.940
0.940
85ft
0.959
0.959
0.925
0.925
0.925
100ft
0.950
0.950
0.913
0.913
0.913
115ft
0.945
0.945
0.900
0.900
0.900
130ft
—
—
0.886
0.886
0.886
150ft
—
—
0.874
0.874
0.874
164ft
TC
14.5
13.6
12.7
12.6
12.0
11.8
21.5
20.1
18.8
18.6
17.8
17.4
27.9
26.1
24.3
24.1
23.0
22.6
34.9
32.6
30.4
30.2
28.8
28.3
39.8
37.1
34.7
34.4
32.8
32.2
IWB
(˚F)
71
67
63
62.5
60
59
71
67
63
62.5
60
59
71
67
63
62.5
60
59
71
67
63
62.5
60
59
71
67
63
62.5
60
59
Indoor air
Airflow
(CFM)
B.F
Models
PK12FK
PK12FK1
PK18FK
PK18FK1
PK18FK2
PK24FK
PK24FK1
PK24FK2
PK30FK
PK30FK1
PK30FK2
PK36FK
PK36FK1
PK36FK2
490
0.18
710
0.14
710
0.14
990
0.15
990
0.15
D.B. 80˚F
D.B.75˚F(50%RH)
D.B.72˚F(50%RH)
D.B.70˚F(50%RH)
D.B. 80˚F
D.B.75˚F(50%RH)
D.B.72˚F(50%RH)
D.B.70˚F(50%RH)
D.B. 80˚F
D.B.75˚F(50%RH)
D.B.72˚F(50%RH)
D.B.70˚F(50%RH)
D.B. 80˚F
D.B.75˚F(50%RH)
D.B.72˚F(50%RH)
D.B.70˚F(50%RH)
D.B. 80˚F
D.B.75˚F(50%RH)
D.B.72˚F(50%RH)
D.B.70˚F(50%RH)
75
SHC
9.8
11.0
12.0
10.7
10.4
10.1
14.8
16.5
17.9
16.0
15.6
15.0
16.4
18.8
20.7
18.3
17.8
17.3
21.5
24.5
26.9
23.8
23.2
22.5
23.0
26.3
29.3
25.8
25.1
24.3
TPC
1.05
1.03
1.01
1.01
0.99
0.99
1.52
1.49
1.46
1.45
1.43
1.43
2.04
1.99
1.95
1.94
1.92
1.91
2.66
2.61
2.55
2.54
2.51
2.49
3.02
2.96
2.89
2.88
2.84
2.83
TC
14.0
13.1
12.2
12.1
11.5
11.3
20.8
19.3
18.0
17.9
17.1
16.7
26.9
25.1
23.4
23.2
22.1
21.7
33.7
31.4
29.2
29.0
27.7
27.1
38.4
35.7
33.3
33.1
31.5
30.9
85
SHC
9.5
10.6
11.5
10.3
10.0
9.7
14.3
15.8
17.2
15.4
15.0
14.4
15.8
18.1
20.0
17.6
17.1
16.6
20.8
23.6
25.8
22.9
22.3
21.5
22.1
25.3
28.1
24.8
24.1
23.3
TPC
1.14
1.12
1.09
1.09
1.07
1.06
1.65
1.61
1.57
1.57
1.55
1.54
2.21
2.16
2.11
2.10
2.07
2.05
2.89
2.82
2.75
2.75
2.70
2.69
3.28
3.20
3.12
3.11
3.07
3.05
TC
13.5
12.5
11.6
11.5
11.0
10.8
19.9
18.5
17.2
17.1
16.3
16.0
25.8
24.0
22.4
22.2
21.1
20.7
32.3
30.0
27.9
27.7
26.4
25.9
36.8
34.2
31.9
31.6
30.1
29.5
Outdoor intake air DB temperature(˚F)
95
SHC
9.1
10.1
10.9
9.8
9.5
9.2
13.7
15.2
16.4
14.7
14.3
13.8
15.1
17.3
19.1
16.8
16.4
15.8
19.9
22.5
24.6
21.9
21.3
20.6
21.2
24.3
26.9
23.7
23.0
22.3
TPC
1.24
1.21
1.18
1.17
1.15
1.15
1.80
1.75
1.70
1.70
1.67
1.66
2.40
2.34
2.28
2.27
2.23
2.22
3.14
3.06
2.98
2.97
2.92
2.90
3.57
3.47
3.38
3.37
3.31
3.29
TC
12.8
11.9
11.1
11.0
10.4
10.2
19.0
17.6
16.4
16.2
15.5
15.1
24.6
22.9
21.3
21.1
20.0
19.6
30.8
28.6
26.6
26.3
25.1
24.6
35.1
32.6
30.3
30.0
28.6
28.0
105
SHC
8.7
9.6
10.5
9.3
9.0
8.7
13.0
14.4
15.6
13.9
13.6
13.1
14.4
16.5
18.2
16.0
15.5
15.0
19.0
21.5
23.5
20.7
20.2
19.5
20.2
23.1
25.6
22.5
21.9
21.1
TPC
1.35
1.31
1.27
1.26
1.24
1.23
1.95
1.89
1.83
1.83
1.79
1.78
2.61
2.53
2.45
2.44
2.40
2.38
3.41
3.30
3.21
3.20
3.14
3.11
3.87
3.74
3.64
3.63
3.56
3.53
TC
12.2
11.3
10.5
10.4
9.9
9.7
18.1
16.7
15.5
15.4
14.6
14.3
23.4
21.7
20.1
19.9
18.9
18.5
29.3
27.1
25.1
24.9
23.7
23.2
33.4
30.9
28.7
28.4
27.0
26.4
115
SHC
8.3
9.2
9.9
8.8
8.6
8.3
12.4
13.7
14.8
13.2
12.8
12.4
13.7
15.6
17.2
15.1
14.7
14.1
18.1
20.3
22.2
19.6
19.1
18.4
19.3
21.9
24.2
21.3
20.7
19.9
TPC
1.45
1.40
1.36
1.35
1.32
1.31
2.10
2.03
1.96
1.96
1.92
1.90
2.81
2.71
2.62
2.62
2.56
2.54
3.68
3.54
3.43
3.42
3.35
3.32
4.17
4.02
3.89
3.88
3.80
3.77
1. PERFORMANCE DATA
1) COOLING CAPACITY
2) COOLING CAPACITY CORRECTIONS
OC196A--1.qxp 1.12.19 10:35 AM Page 11

OC196A-12
2. PERFORMANCE CURVE
NOTE : A point on the curve shows the reference point.
COOLING CAPACITY COOLING CAPACITY
COOLING CAPACITY COOLING CAPACITY
18
71
67
63
71
67
63
12
6
1.6
1.4
1.2
1.0
0.8
023 3235 45 55 65(67) 75 85 95 105 115
Total capacity (✕103Btu/h)Total power consumption (kW)
Outdoor intake air D.B. temperature (°F)
indoor intake air W.B. temperature (°F)
indoor intake air W.B. temperature (°F)
SHF=0.81
30
71
67
63
71
67
63
18
24
12
3.0
2.5
2.0
1.5
1.0
023 3235 45 55 65(67) 75 85 95 105 115
Total capacity (✕103Btu/h)Total power consumption (kW)
Outdoor intake air D.B. temperature (°F)
indoor intake air W.B. temperature (°F)
indoor intake air W.B. temperature (°F)
SHF=0.82
Total capacity (✕103Btu/h)Total power consumption (kW)
Outdoor intake air D.B. temperature (°F)
023 3235 45 65 (67) 75 85 95 105 11555
1.5
2.0
2.5
3.0
3.5
18
36
24
30
71
67
63
71
67
63
023 3235 45 65 (67) 75 85 95 105 11555
2.0
2.5
3.0
3.5
4.0
24
42
30
36
71
67
63
71
67
63
indoor intake air W.B. temperature (°F)
indoor intake air W.B. temperature (°F)
Total capacity (✕103Btu/h)Total power consumption (kW)
Outdoor intake air D.B. temperature (°F)
indoor intake air W.B. temperature (°F)
indoor intake air W.B. temperature (°F)
SHF=0.72 SHF=0.72
PK12FK
PK12FK1PK18FK PK18FK1
PK18FK2
PK24FK
PK24FK1
PK24FK2
PK30FK
PK30FK1
PK30FK2
OC196A--1.qxp 1.12.19 10:35 AM Page 12

OC196A-13
Data is based on the condition of indoor humidity 50%.
Air flow should be set at HI.
A point on the curve shows the reference point.
Outdoor ambient temperature (°F)
indoor intake air W.B. temperature (°F)
[psi. G]
350
340
330
320
310
300
290
280
270
260
250
240
230
220
210
200
190
180
170
160
150
86
80
75
70
PK12FK
PK12FK1
<Cooling mode>
Condensing pressure
30 40 50 60 70 80 90 100 110
D.B.(°F) Outdoor ambient temperature (°F)
indoor intake air W.B. temperature (°F)
[psi. G]
100
90
80
70
60
50
40
30
86
80
75
70
PK12FK
PK12FK1
Suction pressure
30 40 50 60 70 80 90 100 110
D.B.(°F)
COOLING CAPACITY
42
71
67
63
71
67
63
30
36
24
4.5
4.0
3.5
3.0
2.5
023 3235 45 55 65(67) 75 85 95 105 115
Total capacity (✕103Btu/h)Total power consumption (kW)
Outdoor intake air D.B. temperature (°F)
indoor intake air W.B. temperature (°F)
indoor intake air W.B. temperature (°F)
SHF=0.71
PK36FK
PK36FK1
PK36FK2
OC196A--1.qxp 1.12.19 10:35 AM Page 13

OC196A-14
Data is based on the condition of indoor humidity 50%.
Air flow should be set at HI.
A point on the curve shows the reference point.
PK18FK
PK18FK1
PK18FK2
<Cooling mode> PK18FK
PK18FK1
PK18FK2
86
80
75
70 86
80
75
70
Outdoor ambient temperature
30 40 50 60 70 80 90 100 110
360
350
340
330
320
310
300
290
280
270
260
250
240
230
220
210
200
190
180
170
160
[psi.G]
100
90
80
70
60
50
40
30
20 30 40 50 60 70 80 90 100 110
Outdoor ambient temperature D.B.(°F)
D.B.(°F)
[psi.G]
Indoor D.B. temperature (°F)
Indoor D.B. temperature (°F)
Condensing pressure
Suction pressure
PK24FK
PK24FK1
PK24FK2
<Cooling mode> PK24FK
PK24FK1
PK24FK2
Outdoor ambient temperature Outdoor ambient temperature D.B.(°F)
D.B.(°F)
86
80
75
70
86
80
75
70
30 40 50 60 70 80 90 100 110
350
340
330
320
310
300
290
280
270
260
250
240
230
220
210
200
190
180
170
160
150
[psi.G]
100
90
80
70
60
50
40
30
20 30 40 50 60 70 80 90 100 110
[psi.G]
Indoor D.B. temperature (°F)
Indoor D.B. temperature (°F)
Condensing pressure
Suction pressure
OC196A--1.qxp 1.12.19 10:35 AM Page 14

OC196A-15
Data is based on the condition of indoor humidity 50%.
Air flow should be set at HI.
A point on the curve shows the reference point.
Outdoor ambient temperature (°F)
indoor intake air W.B. temperature (°F)
[psi. G]
340
330
320
310
300
290
280
270
260
250
240
230
220
210
200
190
180
170
160
150
140
86
80
75
70
PK30FK
PK30FK1
PK30FK2
<Cooling mode>
Condensing pressure
30 40 50 60 70 80 90 100 110
D.B.(°F) Outdoor ambient temperature (°F)
PK30FK
PK30FK1
PK30FK2
Suction pressure
D.B.(°F)
86
80
75
70
100
90
80
70
60
50
40
30 30 40 50 60 70 80 90 100 110
[psi.G]
indoor intake air W.B. temperature (°F)
Outdoor ambient temperature (°F)
indoor intake air W.B. temperature (°F)
[psi. G]
340
330
320
310
300
290
280
270
260
250
240
230
220
210
200
190
180
170
160
150
140
86
80
75
70
PK36FK
PK36FK1
PK36FK2
<Cooling mode>
Condensing pressure
30 40 50 60 70 80 90 100 110
D.B.(°F) Outdoor ambient temperature (°F)
indoor intake air W.B. temperature (°F)
[psi. G]
90
80
70
60
50
40
30
20
86
80
75
70
PK36FK
PK36FK1
PK36FK2
Suction pressure
30 40 50 60 70 80 90 100 110
D.B.(°F)
OC196A--1.qxp 1.12.19 10:35 AM Page 15

OC196A-16
3. STANDARD OPERATION DATA
750 750 750 750 760 760
Capacity
SHF
Input
INDOOR UNIT MODEL
Power supply (V, phase, Hz)
Input
Fan current
OUTDOOR UNIT MODEL
Power supply (V, phase, Hz)
Input
Comp. current
Fan current
Condensing pressure
Suction pressure
Discharge temp.
Condensing temp.
Suction temp.
Ref. pipe length
Refrigerant charge
Intake air temperature
Discharge air temperature
Fan speed (High)
Airflow (High)
Intake air temperature
Fan speed upper / lower
Airflow
Unit
Btu / t
—
kW
kW
A
kW
A
A
psi-G
psi-G
˚F
˚F
˚F
ft
—
˚F
˚F
˚F
˚F
rpm
CFM
˚F
˚F
rpm
CFM
Cooling
12,500
0.81
1.21
PK12FK, PK12FK1
115, 1, 60
0.07
0.7
PU12EK1
208/230, 1, 60
1.14
8.9
0.65
247
87
155
116
52
25
4 lbs 14oz
80
67
61
59
1,420
490
95
75
790
1,590
Cooling
18,500
0.82
1.75
PK18FK, PK18FK1, PK18FK2
115, 1, 60
0.09
0.7
PU18EK1
208/230, 1, 60
1.66
12.0
0.75
255
82
171
118
51
25
5 lbs 8 oz
80
67
61
59
1,300
710
95
75
790
1,590
Cooling
24,000
0.72
2.34
PK24FK, PK24FK1, PK24FK2
115, 1, 60
0.09
0.7
PU24EK1
208/230, 1, 60
2.25
11.5
0.65+0.65
240
74
155
114
44
25
9 lbs 15 oz
80
67
58
56
1,300
710
95
75
3,170
Cooling
30,000
0.75
3.06
PK30FK, PK30FK1, PK30FK2
115, 1, 60
0.12
1.0
PU30EK1
208/230, 1, 60
2.94
14.0
0.65+0.65
247
77
163
116
46
25
10 lbs 2 oz
80
67
59
58
1,380
990
95
75
3,170
Cooling
34,200
0.71
3.47
PK36FK, PK36FK1, PK36FK2
115, 1, 60
0.12
1.0
PU36EK1
208/230, 1, 60
3.35
17.5
0.75+0.75
247
73
163
116
43
25
10 lbs 9 oz
80
67
58
56
1,380
990
95
75
3,350
PK12FK
PK12FK1
PK18FK
PK18FK1
PK18FK2
PK24FK
PK24FK1
PK24FK2
PK30FK
PK30FK1
PK30FK2
PK36FK
PK36FK1
PK36FK2
D.B.
W.B.
D.B.
W.B.
D.B.
W.B.
Item
Model
TotalRefrigerant circuitIndoor sideOutdoor side Electrical circuit
OC196A--1.qxp 1.12.19 10:35 AM Page 16

OC196A-17
4. OPERATING RANGE
1) POWER SUPPLY
2) OPERATION
5. OUTLET AIR SPEED AND COVERAGE RANGE
●The air coverage range is the value up to the position where the air speed is 0.8ft/sec. when air is blown out
horizontally from the unit at the High fan setting.
The coverage range should be used only as a general guideline since it varies according to the size of the
room and furniture installed inside the room.
6. ADDITIONAL REFRIGERANT CHARGE (R22 (oz))
Indoor unit
Outdoor unit
Rating
115V 1 phase 60Hz
208/230V 1 phase 60Hz
Allowable voltage
Min. 103V — Max. 127V
Min. 198V — Max. 253V
Function
Cooling
D.B.(˚F)
80
95
67
80
Condition
Standard temperature
Maximum temperature
Minimum temperature
Maximum humidity
Indoor
Intake air temperature Outdoor
W.B.(˚F)
67
71
57
75
D.B.(˚F)
95
115
*0
80
* With wind baffle D.B. 23˚F if no wind baffle.
W.B.(˚F)
75
75
—
75
Airflow
Air speed
Coverage range
(CFM)
(ft / sec.)
(ft)
Standard
height
(8.2ft)
490
14.1
32
710
16.1
41
710
16.1
41
990
17.7
50
990
17.7
50
PK12FK
PK12FK1
PK18FK
PK18FK1
PK18FK2
PK24FK
PK24FK1
PK24FK2
PK30FK
PK30FK1
PK30FK2
PK36FK
PK36FK1
PK36FK2
Model
PK12FK, PK12FK1
PK18FK, PK18FK1, PK18FK2
PK24FK, PK24FK1, PK24FK2
PK30FK, PK30FK1, PK30FK2
PK36FK, PK36FK1, PK36FK2
4 lbs 14 oz
5 lbs 8 oz
9 lbs 15 oz
10 lbs 2 oz
10 lbs 9 oz
25ft
0
0
0
0
0
40ft
0
0
0
0
0
55ft
0
0
0
0
0
70ft
0
0
0
0
0
85ft
0
0
0
0
0
Refrigerant piping length (over way)
100ft
0
0
0
0
0
115ft
2
2
2
5
5
130ft
4
4
4
10
10
150ft
—
—
7
16
16
164ft
—
—
9
20
20
Outdoor unit
precharged
(up to 100ft)
OC196A--1.qxp 1.12.19 10:35 AM Page 17

OC196A-18

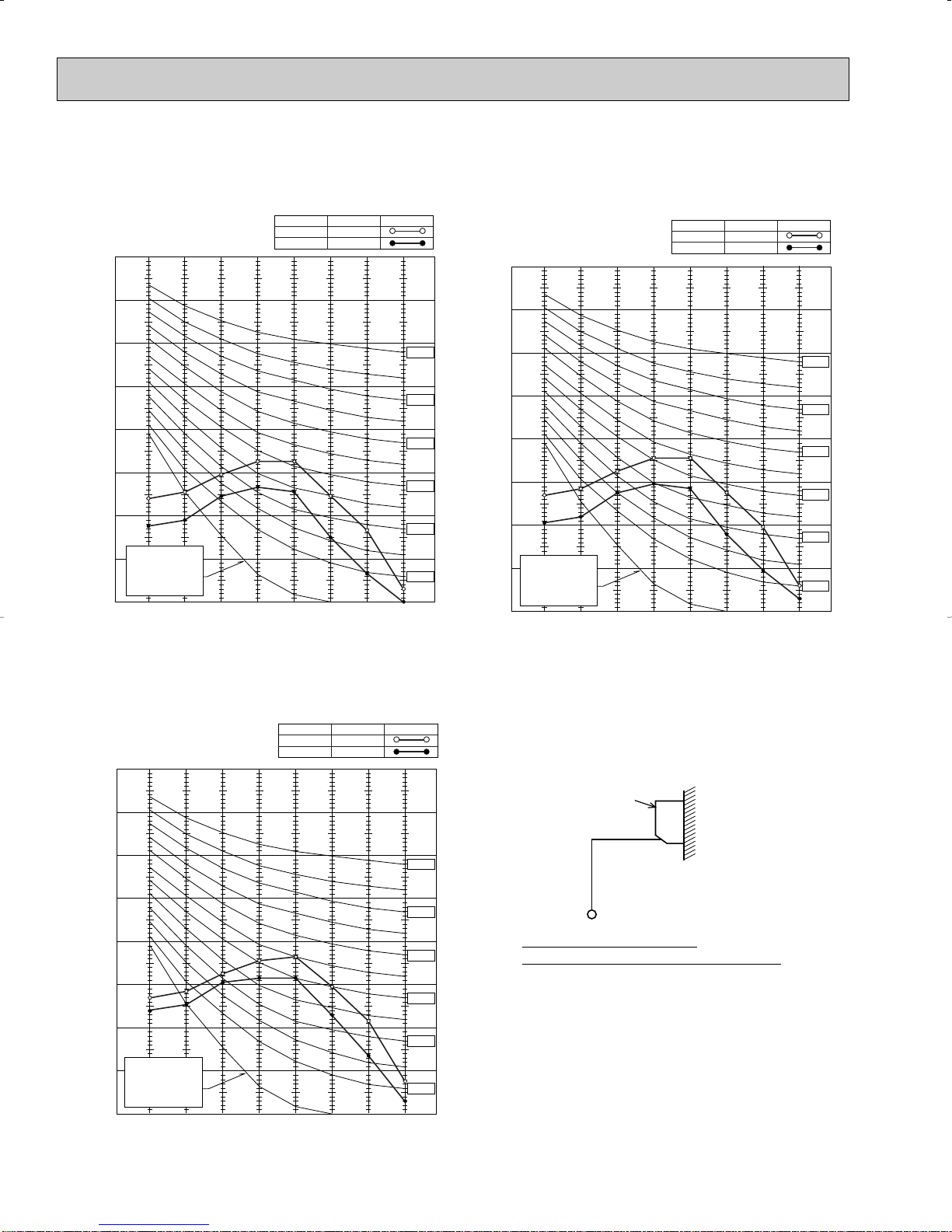

6. NOISE CRITERION CURVES
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
Hi
NOTCH
Lo 49
SPL(dB)
44
LINE
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
Hi
NOTCH
Lo 48
SPL(dB)
41
LINE
Wall
Unit
3.3ft
3.3ft
Ambient temperature 80˚F
Test conditions are based on JIS Z8731
PK18/24FK
PK18/24FK1
PK18/24FK2
90
80
70
60
50
40
30
20
10 63 125 250 500 1000 2000 4000 8000
APPROXIMATE
THRESHOLD OF
HEARING FOR
CONTINUOUS
NOISE
NC-60
NC-50
NC-40
NC-30
NC-20
NC-70
OCTAVE BAND SOUND PRESSURE LEVEL, dB re 0.0002 MICRO BAR
BAND CENTER FREQUENCIES, Hz
Hi
NOTCH
Lo 45
SPL(dB)
38
LINE
PK12FK
PK12FK1
PK30/36FK
PK30/36FK1
PK30/36FK2
OC196A--1.qxp 1.12.19 10:35 AM Page 18

OC196A-19
OUTLINES AND DIMENSIONS
6
Indoor Unit
PK12FK
PK12FK1
0
10-29/32
0
2-3/32
(2:1)
11-13/16
(Hight of unit)
7-1/8
or more
6 or more
17-19/32
49-7/32 (Width of unit) Gas pipe
Liquid pipe
2 1
2
1
Terminal block for control
knock out hole for piping
16-louvers (manual)
Lower side
Air outletAir outlet
(2:1)
Terminal block
Right side
service panel for power supply connection
Front
Air intake
Air intake
Knock out hole for left-rear piping
11-1/4
9-9/32
8-15/16
6-31/32 5-1/8 3-5/32 2-3/32 0
1-3/8
2-unit hangers
Liquid pipe
for installation plate
hole
1-3/16
or more
2O5-{1/8
hole for tapping screw
68-{3/16 hole for tapping screw 5/8F
3/8F
Sleeve
13-{9/16 hole
Air intake
2-3/8
Knock out hole for piping
knock out hole
for piping
W2
end of through hole.
W2 This size shows the lower W1 Sleeves are available
on the market.
3-1/2~{4{3-1/2
W1Through
0
15/16
1/2
25
27
(100 for left-hand side piping)
Pipe position Left side Installation bolt
position
2-3/8
Drain hose(Flexible hose;length 47-1/4)
Drain hose
Terminal block & pipe position
1-25/32
13 2-3/8
7-15/32 14-3/4
(7)
14-23/32
Details of installation plate
(Necessary clearance for Unit installation)
243-5/16(Drain hose) 7-7/8
Rear piping hole
Right side
Lower side
Auto vanes
Service space required around indoor unit
2-tapping screws
Terminal block for power supply
Terminal block for remote controller 5/16
25/32
5/16
2-3/4
Knock out hole for under piping
5/16
25/32
5/16
2-3/4
Knock-out hole for right-hand side piping
R2-1/16
R2-1/16
0
24-19/32
19-1/8
0
19-11/32
18-3/4
17-23/32
15-15/16
12-23/32
10-7/8
9-1/32
7-1/16
5-29/32
2-3/4
0
18-3/4
17-23/32
15-15/16
12-17/32
10-21/32
8-13/16
6-27/32
5-29/32
0
2-3/4
unit center
8-25/32
1
Air intake
Knock out hole for right-hand side piping
Knock out hole for left-hand side piping
Front
Right side
Left side
Drain hose
Gas pipe
5-5/8
3-5/32
7-1/2
6-3/4
Bolt
8-15/16
3-1/8
5-1/8 or less
6-5/8
19/32 or less
2 or more
1-7/8
2-7/8
11/32
3-19/32
1-27/32
9-9/32
1
1-3/8
8-15/32
2-3/8
17-11/16 17-11/16
2-3/4
6-13/16
2-9/16
21-25/32
8-3/8
7-7/8
38-7/16
18-27/32 18-27/32
8-3/4
19-11/16
11-13/16
49-7/32
OC196A--1.qxp 1.12.19 10:35 AM Page 19

OC196A-20
PK18/24FK
PK18/24FK1
PK18/24FK2
9-1/4 1-25/32
9-1/4 1-25/32
9-1/4 9-1/4
1-25/32
1/2
13-3/8
7-3/4
1-21/32
2-9/32
Top
Front Right side
Left side 55-1/8
42-15/16 Air intake 9-1/4
C
Knock out hole for right piping Refrigerant pipe. Drain pipe
Knock out hole for left piping
Drain hose for left-hand side piping Drain hose
Lower side
Auto vane
(Gas pipe)
Drain hose
Bolt
Gas pipe
19/32
Terminal block for power supply
Terminal block for control Terminal block for remote controller
(Liquid pipe)
Liquid pipe Gas pipe
Liquid pipe
A
1-3/16
1-15/32
1-17/32
3-27/32 2-9/16
2-29/32
5/32 3-15/16
1-17/32
1-3/16
1-15/32
2-29/32
5/32
1-5/32
11-1/32
1-3/16
7-1/4
1-3/16
3-5/32
1-3/18
2-3/8
13/32
1-17/32
1-15/32 2-9/16
3-15/16
A
B
C
Knock out hole for piping
31/32
43-11/16 7-7/32
9-7/16
B
44-3/32
21-23/32
4-23/32
2-5/32 4-1/32
4-3/8
Air outlet
21-23/32 Air outlet
Change vane (manual)
Under panel Removable at left-hand side piping Knock out hole for under-piping
Refrigerant pipe. Drain pipe
Rear piping opening
Range for left rear piping opening
12-{1/4 Hole for tapping screw
66-{1/4 hole for tapping screw
Wall fixture
Unit center
32-{15/32 hole for bolt
23/32
3-19/32
35-7/16
38-31/32 17-29/32 11-7/32
9-21/32
3/4
9-7/16 11-1/32 12-3/8
24
Drainage range on left-hand side Drainage range
on right-hand side
10x3-19/32=(35-13/16)
7-3/32
2-15/32
8-27/32 3-17/32
23/32
OC196A--1.qxp 1.12.19 10:35 AM Page 20
