Thank you for purchasing a MITSUBISHI HEAVY INDUSTRIES, LTD. Air-Conditioner. To
get the best long-lasting performance, read and follow this User’s Manual carefully before
using your air-conditioner. After reading, please store the Manual in a safe place and refer
to it for operational questions or in the event of any irregularities.
This air-conditioner is intended for domestic use.
contents
Safety precautions......................................................................................................................... 2
Choice of operations and features ................................................................................................ 4
Name of each part and its function ............................................................................................... 5

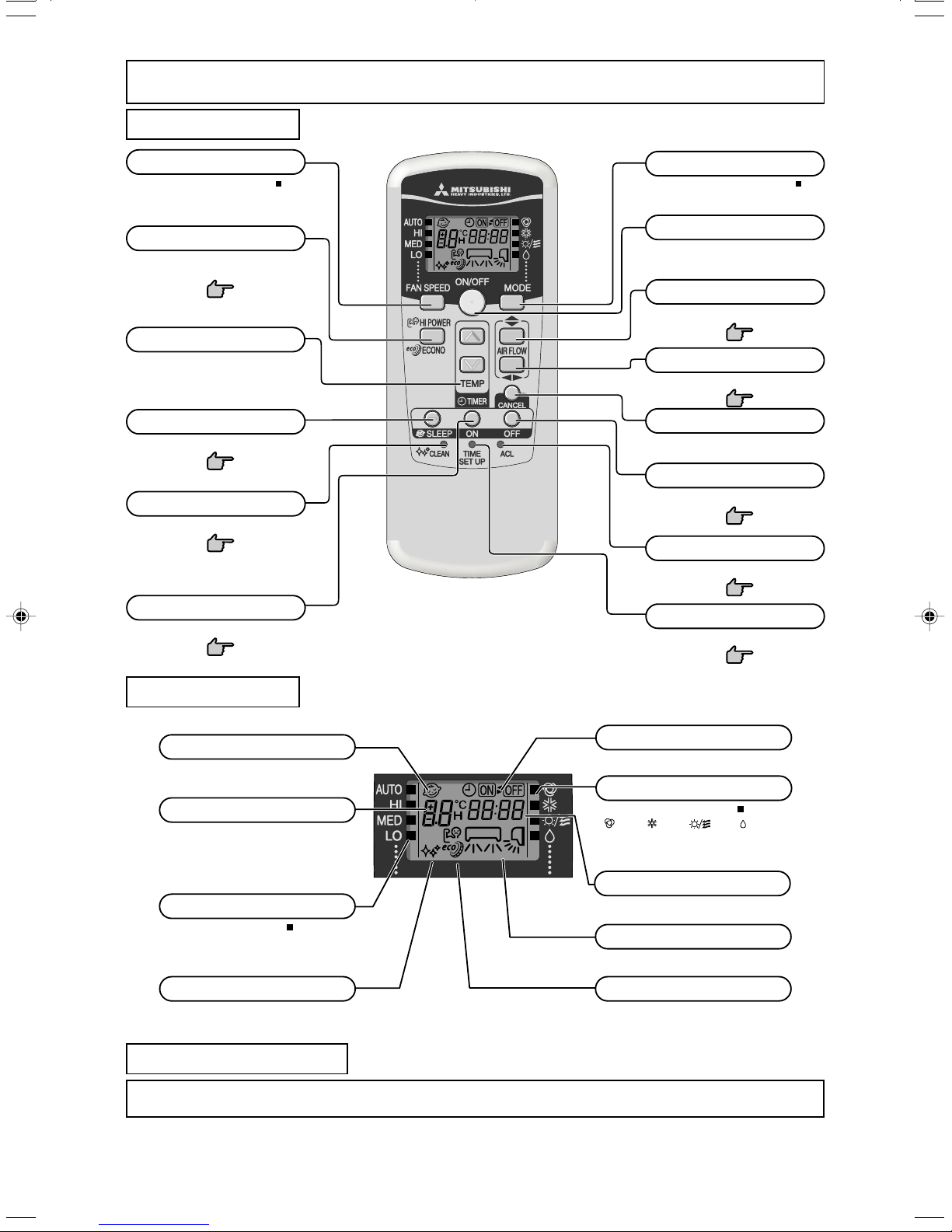

Operation and indication section for remote control .................................................................... 7

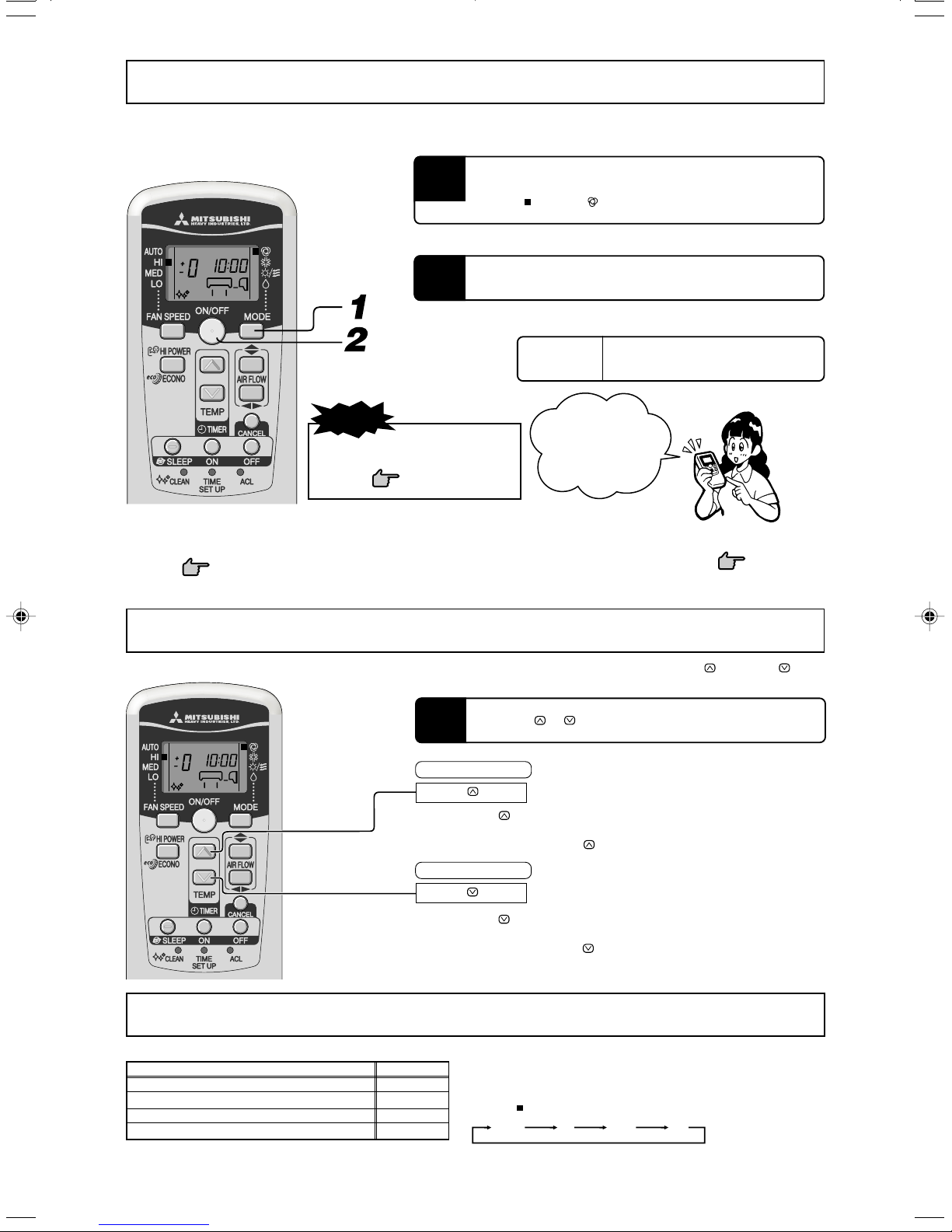

AUTO mode operation procedure ................................................................................................ 8
Temperature adjustment during AUTO ........................................................................................ 8
About FAN SPEED ...................................................................................................................... 8

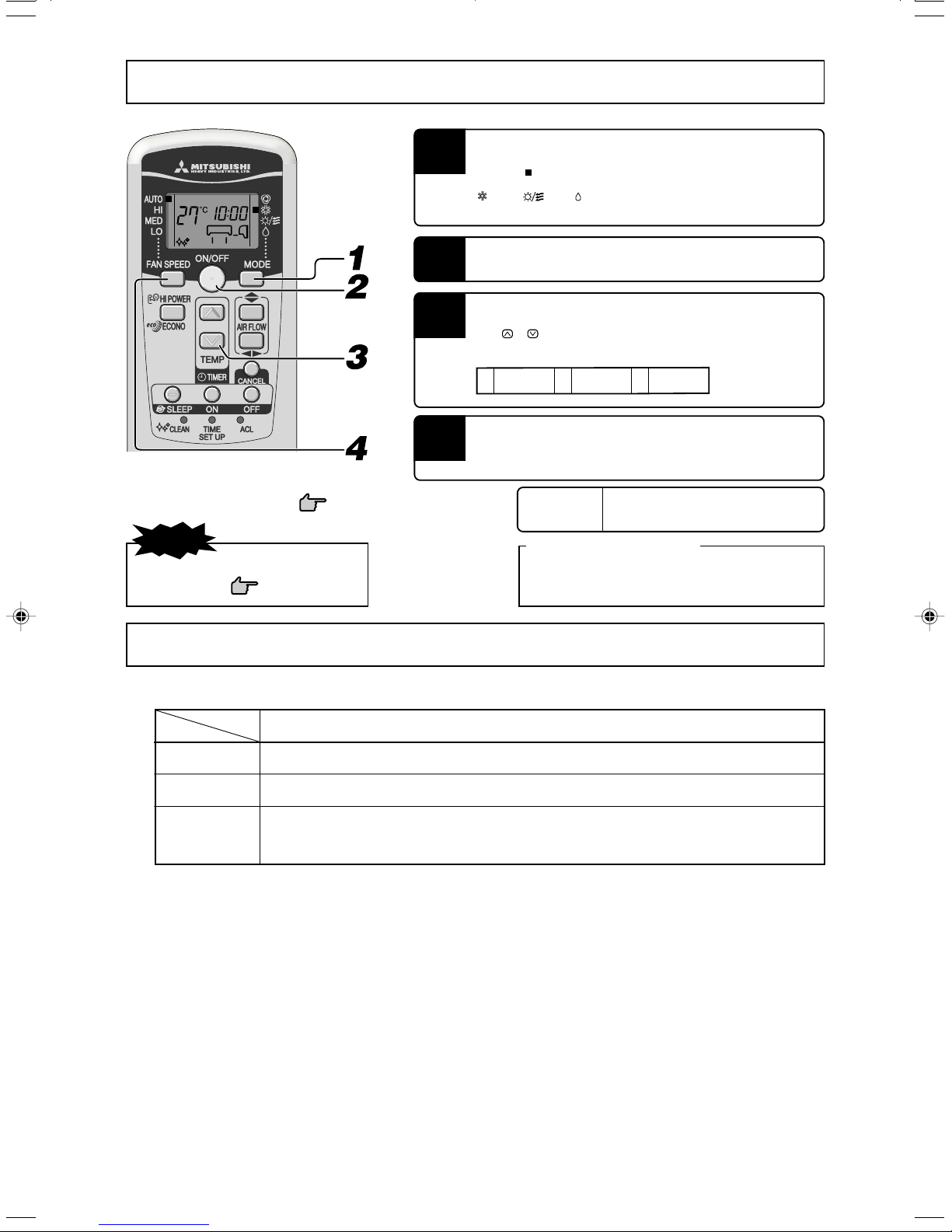

COOL/DRY/FAN mode operation procedure .............................................................................. 9
Air-conditioner operating conditions............................................................................................9
Air flow direction adjustment procedure .................................................................................... 10

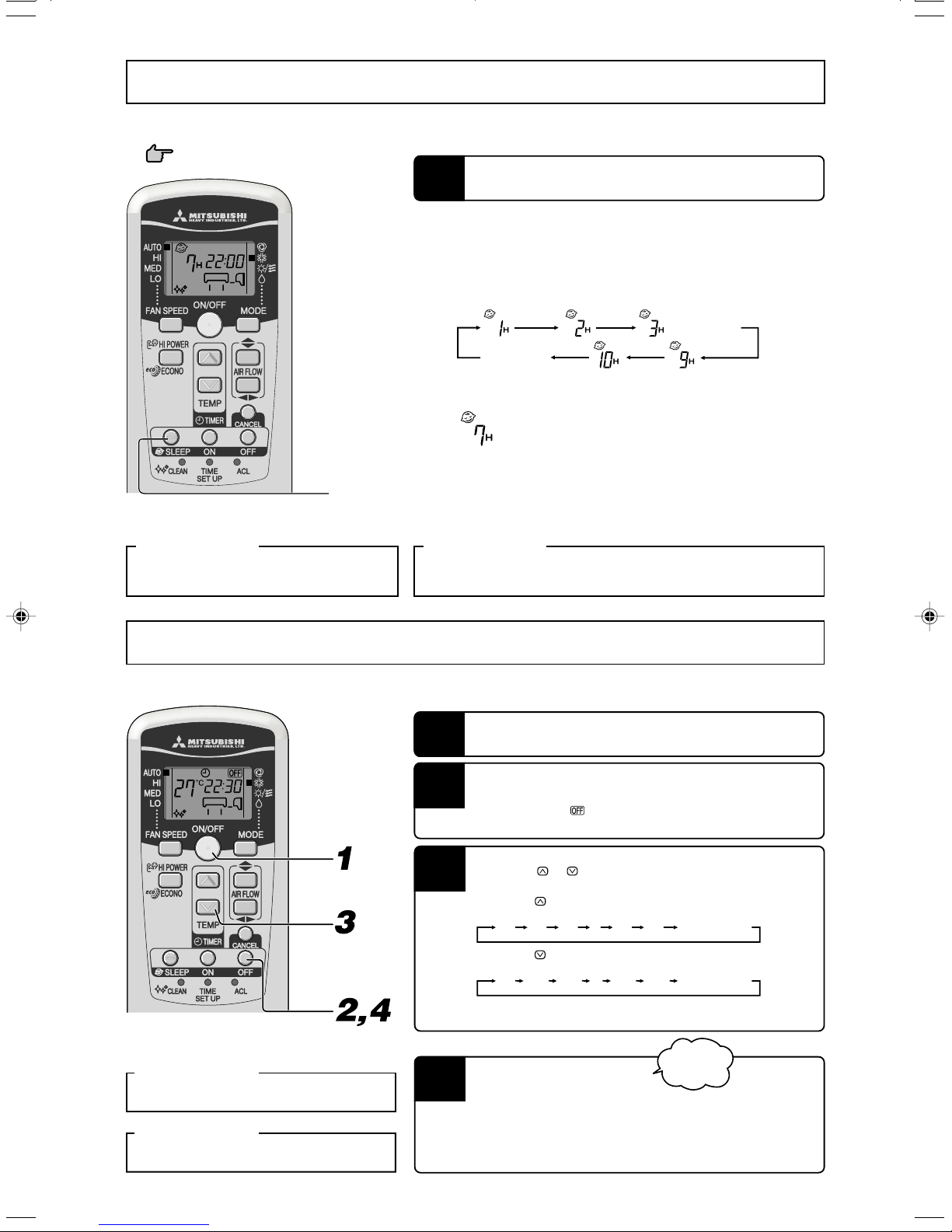

SLEEP operation procedure .......................................................................................................11

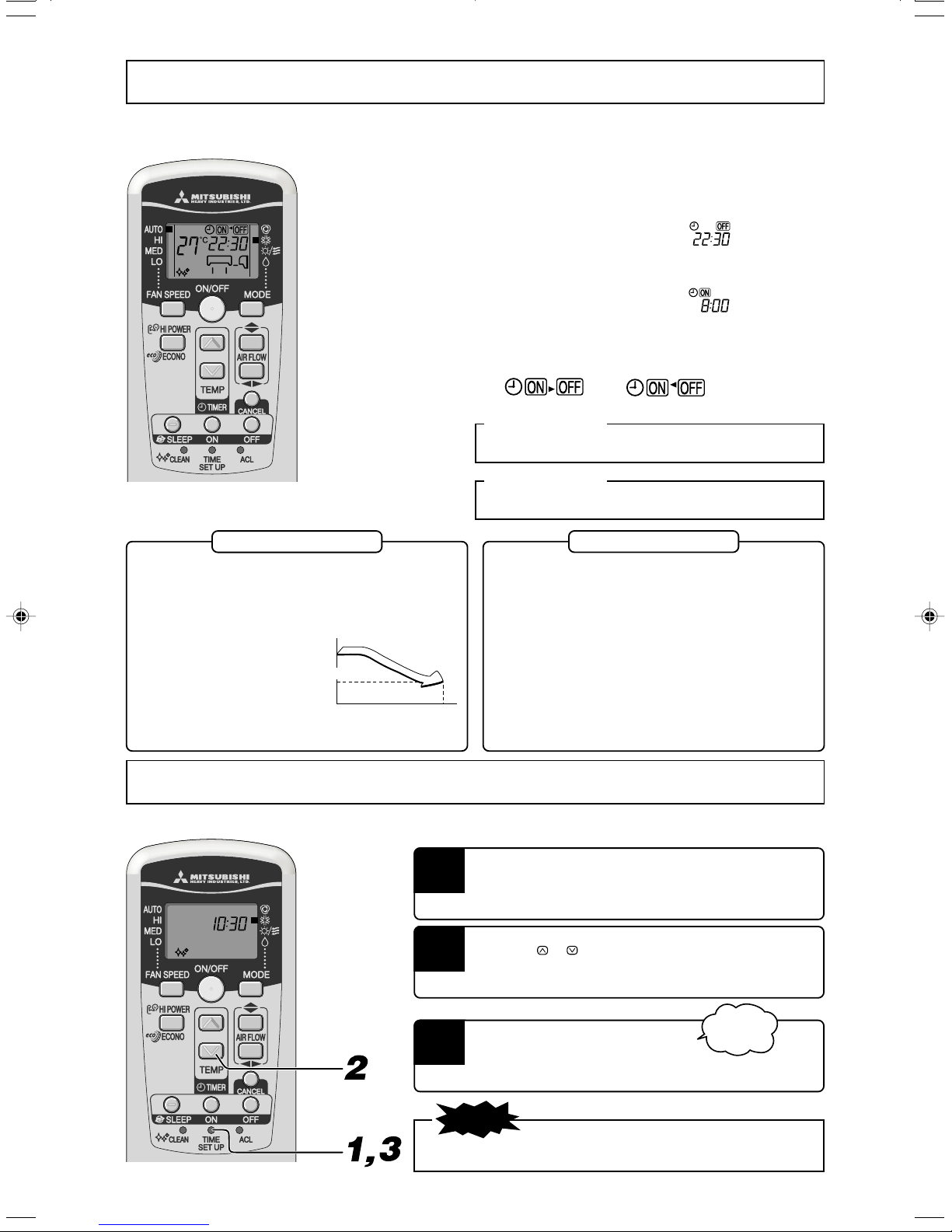

OFF-TIMER operation procedure .............................................................................................. 11
ON-TIMER operation procedure................................................................................................ 12
SLEEP operation + ON-TIMER operation procedure ............................................................... 12
PROGRAM TIMER operation procedure .................................................................................. 13
Present time setting procedure .................................................................................................... 13
HIGH POWER/ECONOMY operation procedure ..................................................................... 14
Concerning CLEAN operation ................................................................................................... 15
Emergency run operation............................................................................................................ 15
Power blackout auto restart function .......................................................................................... 15

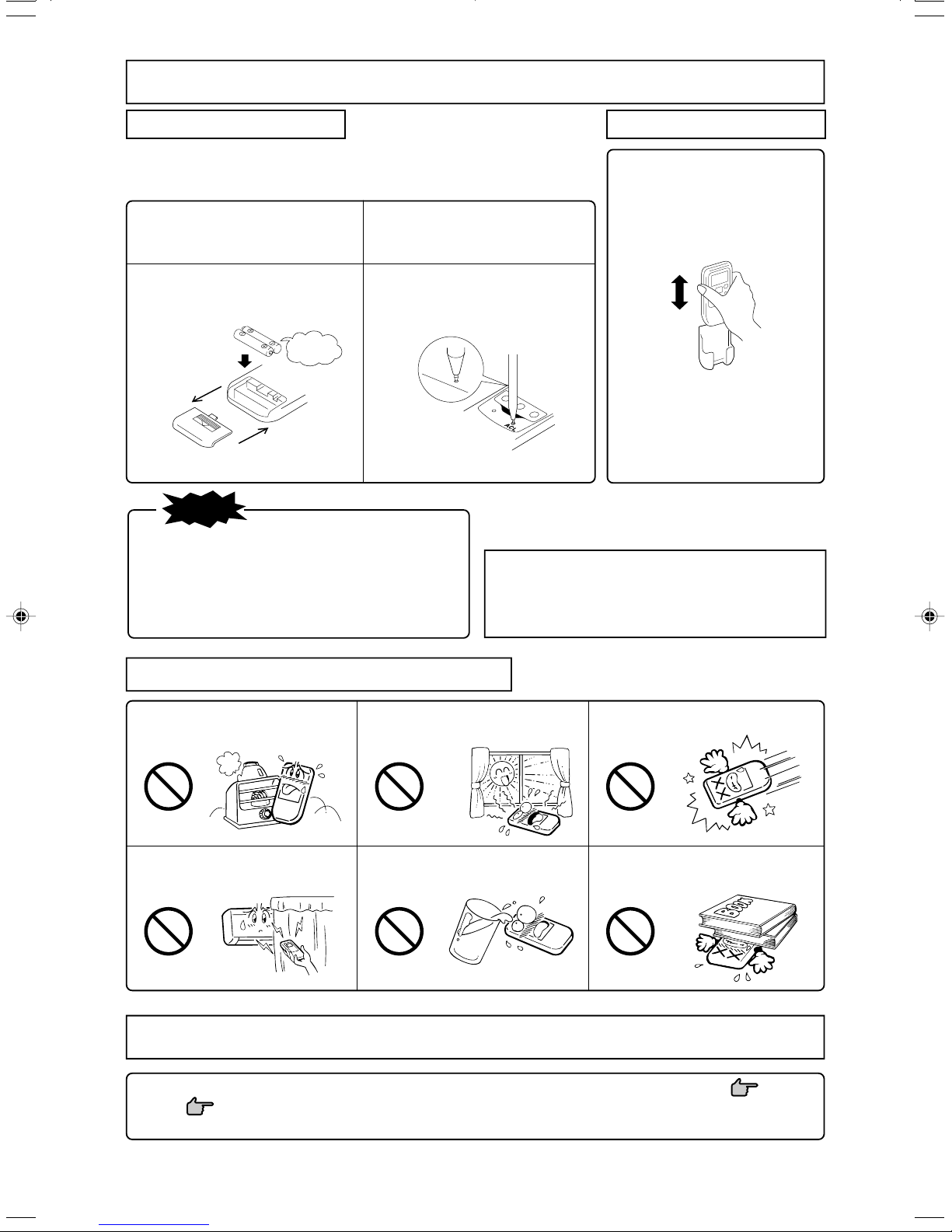

Remote control handling procedure ........................................................................................... 16
When the operation fails with the remote control ...................................................................... 16
Operating hints ........................................................................................................................... 17
Maintenance................................................................................................................................ 17
Has the unit been installed correctly? ......................................................................................... 19
Troubleshooting .......................................................................................................................... 19
Please remember! ....................................................................................................................... 20
When to contact your distributor without delay ......................................................................... 21
Self diagnosis function ............................................................................................................... 21
Specifications ............................................................................................................................. 22
ENGLISH
RKW012A217_En.p65 06.8.3, 1:50 PM1

–2–
Safety precautions
•Before starting to use the system, please read these “Safety precautions” carefully to ensure proper operation of the system.
•The safety precautions are classified as “ DANGER” and “ CAUTION”. Precautions as shown in the column “ DANGER” indicate that
improper handling could have dramatic consequences like death, serious injury, etc. Nevertheless, even precautions as shown in the column
“CAUTION” might pose a serious problem, depending on the circumstances. Please observe these precautions with great care, since they are
essential to your safety.
•Symbols which appear frequently in the text have the following meaning:
•When you have read the instruction manual, please keep it near at hand for consultation. If someone else takes over as operator, make certain that the
manual is also passed on to the new operator.
Strictly prohibited Provide positive earthing
Do not expose yourself to the cooling
air for prolonged periods.
This could affect your physical condition and cause
health problems.
Make sure that the system has been properly earthed.
Earth cables should never be connected to a gas pipe, municipal water pipe, light-
ning conductor or telephone earth cable. Incorrect installation of the earth cable
may produce an electric shock.
Depending on the place of installation, a circuit breaker may
be necessary.
If you don’t fit a circuit breaker, you may cause an electric shock.
Do not install near places where inflammable gas may leak.
Gas leaks may cause fire.
Make sure that you drain the hose properly, so that all the
water has dripped out.
Negligence may cause flooding in the room resulting in wet furniture.
Observe instructions with
great care
❚INSTALLATION PRECAUTIONS
DANGER
CAUTION
❚OPERATION PRECAUTIONS
DANGER
The system is meant for domestic, residential etc. use.
If used in inferior environments, such as an engineering workplace, the equipment
may function poorly.
The system must be installed by your dealer or a qualified pro-
fessional.
It is not advisable to install the system yourself, as faulty handling may cause leak-
age of water, electric shock or fire.
Store the remote control out of reach
of infants.
Failure to observe this may result in the batteries
being swallowed or other accidents.
Don’t swing from the system.
If the system falls down,
you may get injured.
Only use approved fuses.
Use of steel or copper wire instead of an approved
fuse is strictly forbidden, as it may cause a breakdown
or fire.
CAUTION
LPG
Do not handle the switches with wet
hands.
This may cause an electric shock.
Do not insert anything into the air inlet.
This may cause injury, as the internal fan rotates at
high speed.
RKW012A217_En.p65 06.8.3, 1:50 PM2

–3–
Stand firmly on a stepladder or other
stable object when removing the inlet
panel and filters.
Failure to observe this may result in injury through
insecure objects toppling over.
Consult your dealer for repairs to the
system.
Wrong repairs could cause an electric shock, fire, etc.
If you notice anything abnormal (smell of
burning, etc.), stop the system, turn off the
power switch and consult your dealer.
Continued use of the system in abnormal circum-
stances may result in malfunctioning, electric shock,
fire, etc.
If the air-conditioner is moved else-
where, contact your dealer or a pro-
fessional fitter.
Faulty installation may cause water leakage, elec-
tric shock, fire, etc.
❚PRECAUTIONS FOR TRANSFER OR REPAIRS
DANGER
Safety precautions
CAUTION

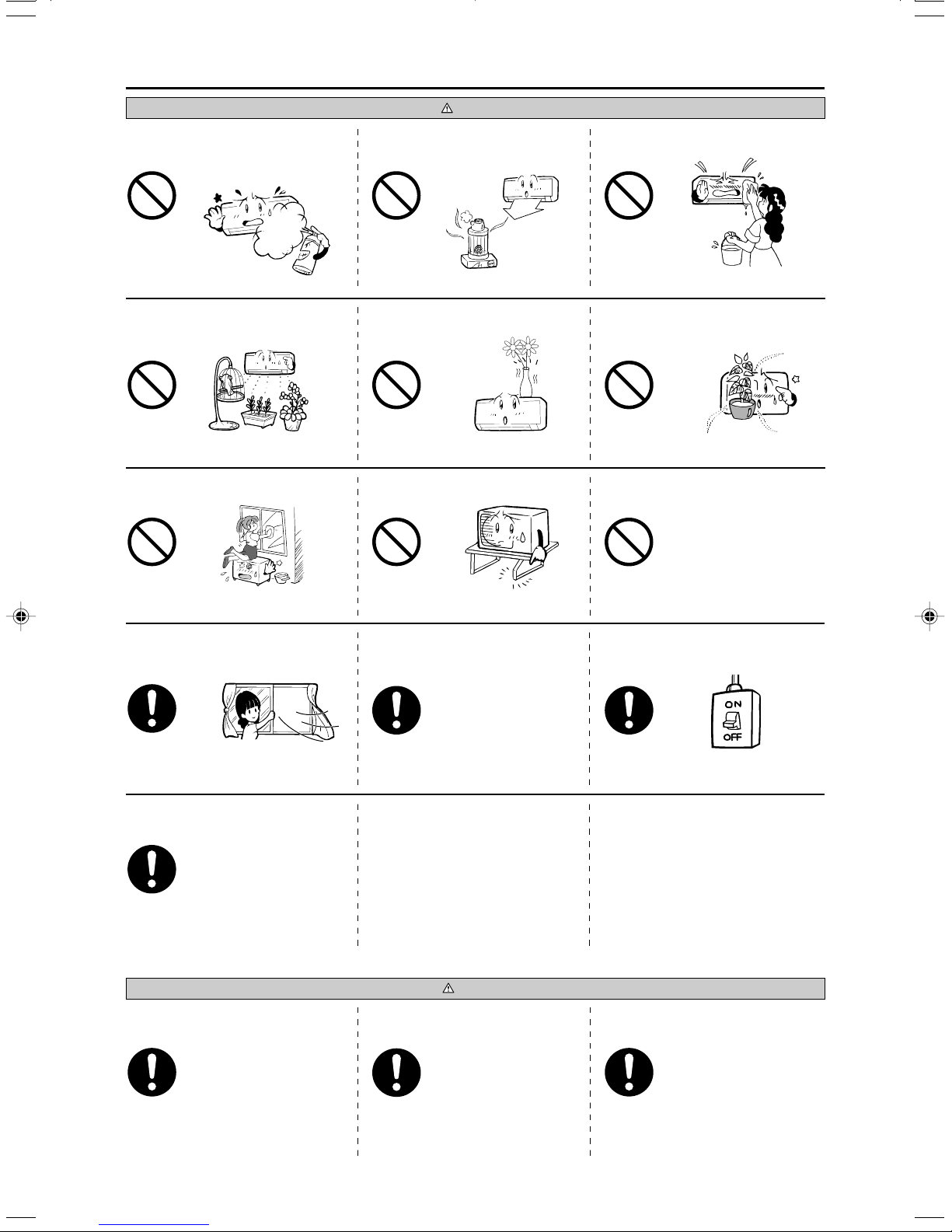

Do not place objects near the outdoor
unit or allow leaves to gather around the
unit.
If there are objects or leaves around the outdoor unit,
small animals may enter unit and contact electrical
parts resulting in break down, emission of smoke or
flame.
Do not wash the air-conditioner with wa-
ter.
This could cause an electric shock.
You should not expose any combus-
tion appliance directly to the air
stream of the air-conditioner.
The appliance may then work inadequately.
Do not place a combustible insecticide
or paint spray near the blower, nor aim it
directly at the system.
This may result in a fire.
Do not place anything containing wa-
ter, like vases, on top of the unit.
Water entering the unit could damage the insula-
tion and therefore cause an electric shock.
The system should only be used for its original purpose
and not for anything else like, for instance, preservation of
food, plants or animals, precision devices or works of art.
The system is only intended for use in ordinary domestic rooms.
Any other use of the system may damage the quality of food, etc.
Do not install the system at a place
where the air stream of the blower is
aimed directly at plants or animals.
This will damage their health.
Do not sit on the outdoor unit nor put
anything on it.
If the unit falls down or things drop off it, people
could get hurt.
After a long period of use, check the unit's
support structure from time to time.
If you don't repair any damage straightaway, the
unit may fall down and cause personal injury.
Do not touch the aluminum fins on the
air heat exchanger.
Failure to observe this may result in injury.
If you operate the system together with
a combustion appliance, you must regu-
larly ventilate the indoor air.
Insufficient ventilation may cause accidents due to
oxygen deficiency.
When you clean the system, stop the
unit and turn off the power switch.
Never clean the unit while the internal fan is rotating.
RKW012A217_En.p65 06.8.3, 1:51 PM3

–4–
Choice of operations and features
Choice of operations
Features
Page 9
Drying by extracting damp from the room.
Page 9
Cooling by extracting heat from the room.
COOL DRY
Functioning of microcomputer depends on setting and room tem-
peratures. It dehumidifies while keeping room temperature almost
constant.
Page 8
Automatic selection of operating mode.
Page 9
Fanning by circulating room air.
The Auto mode automati-
cally selects the operation
mode (COOL or DRY), de-
pending on the room tem-
perature when switched on.
AUTOFAN
Page 10
Page 11, 12
There are three timers, for SLEEP, ON and
OFF. They can be set as desired.
Page 13
When using the timer to switch on, the sys-
tem should become operational shortly be-
fore the set time, depending on the room
temperature so that the desired temperature
should be reached at the set time.
Amenity facility TIMER procedure

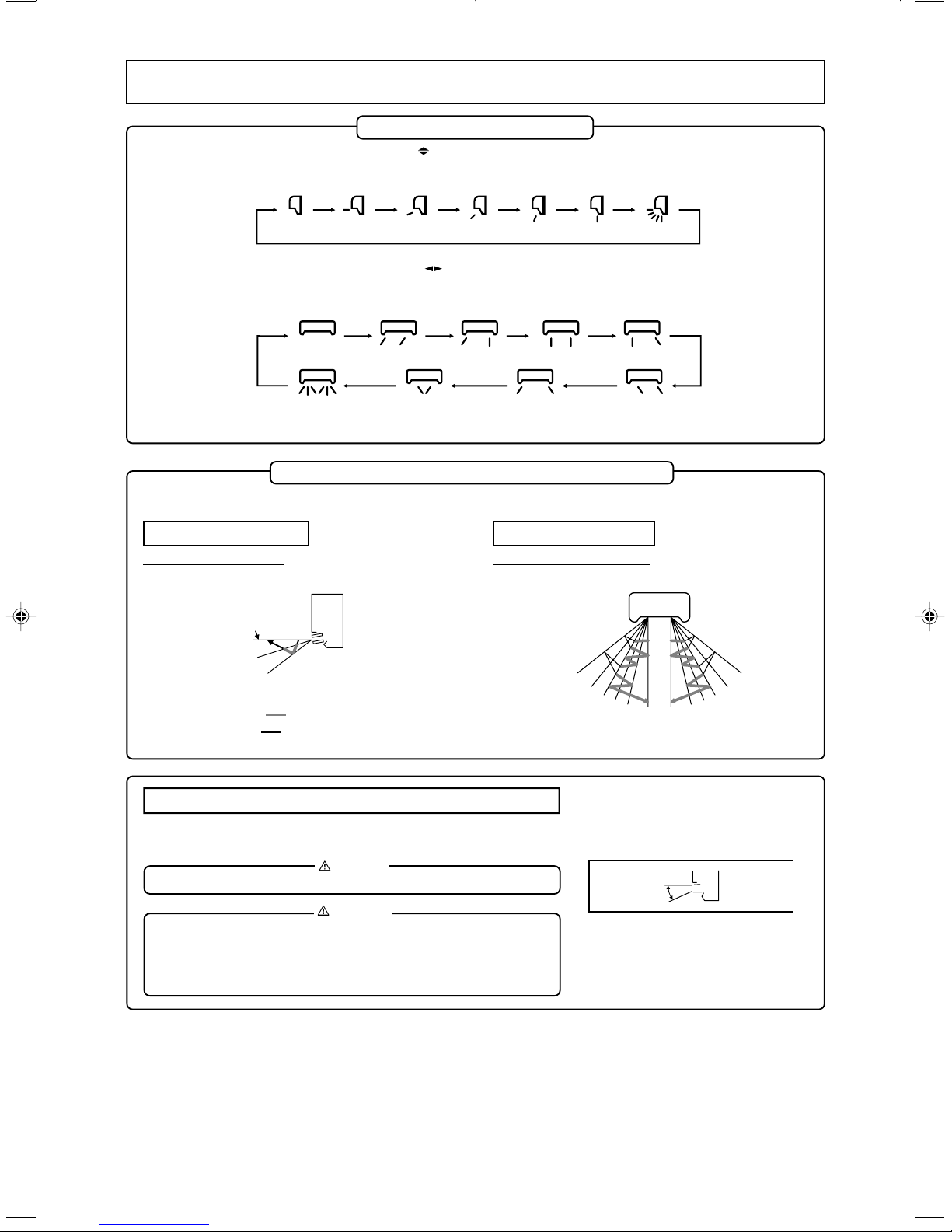

•MULTI-DIRECTIONAL AIR FLOW
This function sets the unit at the most suitable angle
for blowing, imitating a natural breeze.
•SWING FLAP
Flap moves up and down continuously.
•SWING LOUVER
Louver moves left and right continuously.
•MEMORY FLAP (FLAP OR LOUVER STOPPED)
Once the flap or louver position has been set, the unit
will memorise it and continue in the same position
the next time.
Adjustment of
airflow
Page 14
Turning up the power operates the air condi-
tioner in the power cooling mode.
HIGH POWER mode
Page 14
This is an economic level of operation.
ECONOMY mode
RKW012A217_En.p65 06.8.3, 1:51 PM4

–5–
Name of each part and its function
INDOOR UNIT
OUTDOOR UNIT
Air outlet
Air inlet
(on side & rear surface)
Air inlet panel
Draws in the indoor air.
Unit indication section and remote control signal receiver
Photocatalytic washable deodorizing filter
Air filter
Removes dust or dirt from the inlet air.
Page 17
Wireless remote control
Drain hose
Drains water from the dehumidified air.
Left/right air flow adjustment louver
Page 10
Up/down air flow direction adjustment flap
Page 10
Air outlet
Air blows out of here.
Unit operation switch
Room temperature detector
Natural enzyme filter
Accessories
Wireless remote control
Battery (R03(AAA,Micro)×2)
Natural enzyme filter
(green)
Photocatalytic washable deodoriz-
ing filter (orange)
Wood screw (Quantity:2)
(for remote control holder mounting)
Wireless remote
control holder
Refrigerant piping connection electric flex
SRK52CF-BN
SRK71CF-BN
SRC52CF-BN
SRC71CF-BN
*The appearance varies for Models 52 and 71.
SRK52CF-BP
SRK71CF-BP
SRC52CF-BP
SRC71CF-BP
RKW012A217_En.p65 06.8.3, 1:51 PM5

–6–
Unit indication section
How to open the air inlet panel
Push both sides evenly and press further lightly at the center.
Place fingers at the recesses on both sides of the panel and pull up the panel
to this side so that it will be opened by about 60 degrees.
Unit ON/OFF button
Secure either the upper or lower edge of the air inlet panel by lightly pushing it
in, and then close the panel.
When removing the air inlet panel for internal cleaning or others, open the
panel by 80 degrees and then pull it to this side.
In emergencies, this button can be used for turning on/off the unit when re-
mote control is not available. Page 15
Removal, installation of air inlet panel
ECONO light (orange)
Illuminates during ECONOMY operation.
HI POWER light (green)
Illuminates during HIGH POWER operation.
RUN light (green)
•Illuminates during operation.
•Blinks at the ‘CLEAN operation’.
Page 15
TIMER light (yellow)
Illuminates during TIMER operation.
Unit ON/OFF button
CLEAN operation
ON
OFF
3 sec.
1 sec.
How to close the air inlet panel
RKW012A217_En.p65 06.8.3, 1:51 PM6

–7–
Operation and indication section for remote control
Operation section
FAN SPEED button
Each time the button is pushed, the indi-
cator is switched over in turn.
•The above illustration shows all controls, but in practice
only the relevant parts are shown.
OPERATION MODE select button
Each time the button is pushed, the indi-
cator is switched over in turn.
ON/OFF (luminous) button
Press for starting operation, press again for
stopping.
HI POWER/ECONO button
This button changes the HIGH POWER/
ECONOMY mode.
Page 14 AIR FLOW (UP/DOWN) button
This button changes the air flow (up/down) mode.
Page 10
TIME SET UP switch
This switch for setting the time.
Page 13
SLEEP button
This button changes to SLEEP operation.
Page 11
CLEAN switch
This switch changes the CLEAN mode.
Page 15
ON TIMER button
This button selects ON TIMER operation.
Page 12
AIR FLOW (LEFT/RIGHT) button
This button changes the air flow (left/right) mode.
Page 10
CANCEL button
This button cancels the ON timer, OFF
timer, and SLEEP operation.
RESET switch
Switch for resetting microcomputer.
Page 16
Indication section
TEMPERATURE indicator
Indicates set temperature.
(Does not indicate temperature when operation
mode is on AUTO)
FAN SPEED indicator
Indicates set air flow rate with lamp.
SLEEP indicator
Indicates during SLEEP operation.
ON/OFF TIMER indicator
Indicates during ON/OFF TIMER operation.
CLEAN indicator
Indicates during CLEAN operation.
AIR FLOW indicator
Shows selected flap and louver mode.
HI POWER/ECONO MODE indicator
Indicates during HIGH POWER / ECONOMY
mode operation.
Transmission procedure
When each button on the remote control is pressed –with the remote control pointing towards the air-conditioner unit –a signal is transmitted.
When the air-conditioner receives the signal correctly, it will beep.
OPERATION MODE indicator
Indicates selected operation with lamp.
[ (Auto) •(Cool) •(Fan) •(Dry)]
OFF TIMER button
This button selects OFF TIMER operation.
Page 11
TEMPERATURE button
This button sets the room temperature.
(This button changes the present time and
TIMER time.)
TIME indicator
Indicates present time or timer setting time.
RKW012A217_En.p65 06.8.3, 1:52 PM7

–8–
Temperature adjustment during AUTO
■ Air temperature adjustment is possible even during automatic operation. There are 6 levels of adjustment possible with the button or the button.
AUTO mode operation procedure
■ Automatically selects the operation mode (COOL, DRY) depending on the room temperature when switched on.
Air flow direction adjustment
procedure. Page 10
1
When a change in temperature is desired.
Press the or button.
•Air is not blown out during the op-
eration.
Page 20
•If you don’t want the AUTO mode program, change to
COOL, DRY or FAN instead of AUTO.
Page 9
AUTO mode can be
operated by simply
pressing the ON/OFF
button.
To stop: Press the ON/OFF button.
■Each time the button is pressed, the switch over occurs in the following order
–6 →–5 →............ –1 →±0 →+1 ............ +6.
When +6 is indicated, even if the button is pressed, the indicator does not change.
■Each time the button is pressed, the switch over occurs in the following order
+6 →+5 →............ +1 →±0 →–1 ............ –6.
When –6 is indicated, even if the button is pressed, the indicator does not change.
When the unit is not in AUTO mode:
Press MODE button.
Move the [ mark] to the (Auto) position.
Aim the remote control at the air-conditioner.
Press the ON/OFF button.
1
2
When it is a little cold
Press the button.
When it is a little hot
Press the button.
Operation capacity by your choice FAN SPEED
Set automatically by microcomputer AUTO
Powerful operation with high capacity HI
Standard operation MED
Energy-saving operation LO
About FAN SPEED
■You can choose the capacity of your air-conditioner when cooling or fan.
Press the FAN SPEED button.
Move the [ mark] to the desirable fan speed position.
AUTO HI MED LO
NOTE
RKW012A217_En.p65 06.8.3, 1:52 PM8

–9–
COOL/DRY/FAN mode operation procedure
Air flow direction adjustment procedure. Page 10
Program changing procedure
Set the new program.
•The operation program can also be set or changed when
the air-conditioner is not in operation.
Aim the remote control at the air-conditioner.
Press the MODE select button.
Move the [ mark] to the desirable operation position.
(Cool), (Fan), (Dry)
Press the ON/OFF button.
Press the TEMP button.
Press or button for the desired temperature.
Standard
4
3
To stop: Press the ON/OFF button.
•Air is not blown out during the operation.
Page 20
NOTE
2
1
Air-conditioner operating conditions
■Use within the following operational range. Operating outside of this range may result in the protection devices being activated, preventing the
unit from working.
Cooling operation
Outside temperature Approximately 21 to 54 °C
Inside temperature Approximately 21 to 32 °C
Below approximately 80%
The long-term use of the unit with a humidity level exceeding 80% may result in condensation forming on the surface
of the indoor unit, leading to water drips.
Press the FAN SPEED button
Set the fan speed as desired.
COOL
FAN
DRY
26°C~28°C——21°C~24°C
Inside humidity
RKW012A217_En.p65 06.8.3, 1:52 PM9

–10 –
Air flow direction adjustment procedure
Adjusting air flow direction
■Up/down direction can be adjusted with the AIRFLOW (UP/DOWN) button on the remote control. Each time when you press this button
the mode changes as follows:
Change to AIRFLOW (UP/DOWN) mode.
(Swing)
(Flap stopped)
■Left/right direction can be adjusted with the AIRFLOW (LEFT/RIGHT) button on the remote control. Each time when you press this
button the mode changes as follows:
Change to AIRFLOW (LEFT/RIGHT) mode.
(Louver stopped)
(Swing)
Multi-directional Air Flow (up/down air scroll and left/right air scroll)
■Activating both up/down air swing and left/right air swing at the same time results in a multi-directional air flow.
Up/down air scroll Left/right air scroll
Thick line : moves quickly
Thin line : moves slowly
Stops at this position
for 5 seconds.
In COOL, DRY and FAN operation
MEMORY FLAP (FLAP OR LOUVER STOPPED)
When you press the AIRFLOW (UP/DOWN or LEFT/RIGHT) button once while the flap or louver is
operating, it stops swinging at an angle.Since this angle is memorized in the microcomputer, the flap or
louver will automatically be set at this angle when the next operation is started.
DANGER
•Avoid constant airflow to the body for hours on end.
CAUTION
•When in COOL or DRY operation, do not operate for hours on end with the air
flow blowing straight down. Otherwise, condensation may appear on the outlet
grill and drip down.
•Do not try to adjust the flaps and louvers by hand, as the control angle may
change or the flap or louver may not close properly.
(Horizontal
blowing)
COOL, DRY
•Recommended angle of the flap when stopping
In COOL, DRY and FAN operation
Left louver Right louver
RKW012A217_En.p65 06.8.3, 1:53 PM10

–11 –
No indication
(cancelled)
... (Units of one hour)
■If this is pressed while the unit is off
SLEEP operation starts with the previous operation settings, and the air conditioning is
turned off after the time that has been set passes.
■If this is pressed while the unit is running
Each time the button is pressed, the indication changes as follows:
Example: You wish it to stop after 7 hours.
Set to
The timer light (yellow) is on.
h
•The unit stops at the end of the set period of time.
OFF-TIMER operation procedure
2
Changing of set time
Set a new time by using the OFF TIMER button.
Example: You wish it to stop 22:30.
Press the ON/OFF button.
Press the OFF TIMER button.
OFF TIMER indicator is blinking.
Press the “or ”button.
Each time the button is pressed, the indicator is switched in the order of:
0:00 0:10 0:20
...
(Units of ten minutes) 1:00 1:10
Each time the button is pressed, the indicator is switched in the order of:
0:00 23:50 23:40
...
(Units of ten minutes) 23:00 22:50
Set at 22:30.
3
■ The unit stops automatically at the end of the set period of time. If it is stopped, perform the operations starting with STEP 1 and if running start with STEP 2.
Changing of set time
Set to a new time by using SLEEP button.
SLEEP operation procedure
■The unit stops automatically at the end of the set period of time.
The room temperature is automatically controlled when the set time lapses, so that the room does not become too cold during cooling.
Page 13
Press the SLEEP button.
Releasing procedure
Press the CANCEL button to turn off the SLEEP indicator.
1
1
1
Releasing procedure
Press the CANCEL button to turn off the timer indicator.
4Press the OFF TIMER button.
The indication changes from blinking to steady lighting and the setting is complete.
The timer light (yellow) is on.
h
•The unit stops at the end of the set period of time.
Press within
60 sec.!
RKW012A217_En.p65 06.8.3, 1:53 PM11

–12 –
ON-TIMER operation procedure
1
2
Changing of set time
Set a new time by using the ON-TIMER button.
Example: In the case you wish to bring the temperature to nearly set temperature in at 8:00.
Press the ON-TIMER button.
ON TIMER indicator is blinking.
Releasing procedure
Press the CANCEL button to turn off the timer indicator.
3
■ Operation starts 5 to 60 minutes before the time that is set so that the room temperature reaches the optimum temperature at that time. Page 13
ON-TIMER operation can be set regardless of whether the air-conditioner is running or not.
SLEEP operation + ON-TIMER operation procedure
■Combined timer operation of SLEEP operation and ON TIMER.
Example: When it is desired to stop after 3 hours and then start operation at 8:00, near
the set temperature.
■SLEEP operation setting
Set by the procedures on page 11.
Set to
■ON TIMER operation setting
Set by the above mentioned ON TIMER operation procedure.
Set to
The setting of the lighting of the timer light (yellow) of this unit is complete.
h
•After the SLEEP operation set time has elapsed, the operation stops, and it
starts form 5 to 60 minutes before the ON TIMER’s time.
•The timer light is not lit at the ON TIMER’s time.
Changing of set time
Set a new time by using the SLEEP or ON TIMER button.
Releasing procedure
Press the CANCEL button to turn off the timer indicator.
Press the “or ”button.
Each time the button is pressed, the indicator is switched in the order of:
0:00 0:10 0:20
...
(Units of ten minutes) 1:00 1:10
Each time the button is pressed, the indicator is switched in the order of:
0:00 23:50 23:40
...
(Units of ten minutes) 23:00 22:50
Set at 8:00.
Press the ON TIMER button.
The indication changes from blinking to steady lighting and the setting is complete.
The timer light (yellow) is on.
h
•Operation starts 5 to 60 minutes before the set time.
•The TIMER light goes out at the set time.
Press within
60 sec.!
RKW012A217_En.p65 06.8.3, 1:53 PM12

–13 –
PROGRAM TIMER operation procedure
■The timer operations that consist of the combination of the timer being set at both on and off. Once this has been set and operations started,
operations will commence and end at the same time every day as long as the ON/OFF button is not pressed.
Example: When it is desired to stop at 22:30, and then start operation at 8:00, near the set
temperature.
■OFF TIMER operation setting
Set by the procedures on page 11. Set to
■ON TIMER operation setting
Set by the procedures on page 12. Set to
The setting of the lighting of the timer light (yellow) of this unit is complete.
The time will be displayed on the remote control unit. The display will change
depending on the operational status.
(Stopped) (Operating)
Releasing procedure
Press the CANCEL button to turn off the timer indicator.
2
Present time setting procedure
■When inserting the batteries, the present time is automatically set to 13:00.
Example: Set to 10:30.
Press the TIME SET UP switch.
Press with the tip of a ball pen, etc.
The time indicator blinks and can be set to the current time.
Press the “or ”button.
(Set to 10:30)
Press the TIME SET UP switch.
The indication changes from blinking to steady lighting and the setting is complete.
The timer operation is set on the basis of the present time, so please set it correctly.
1
3
Changing of set time
Set a new time by using the OFF TIMER or ON TIMER button.
About Amenity facilities
Amenity facilities enable to start the operation a little earlier, so that the room
should approach optimum temperature at ON time when the operation is
started by ON-TIMER.
•Mechanism
The room temperature is checked
60 minutes before the timer is at
ON. Depending on the tempera-
ture at that time, the operation
starts 5 to 60 minutes before the
timer is at ON.
•The Amenity facility only func-
tions for COOL operation mode
(including AUTO). It does not
work for DRY mode.
About SLEEP operation
In COOL operation
(Stop) Operation starts
▼
Set temperature
Check the room
temp. 60 mins.
in advance.
Set time
▼
When SLEEP operation is selected, the room temperature is automatically
controlled after a while, ensuring that the room is not too cold during cooling.
•During COOL : the preset temperature is lowered by 1°C at the start of
SLEEP operation (when the timer is set). After that, the temperature goes
up by 1°C every an hour to become 2°C higher.
(Operation)
NOTE
Press within
60 sec.!
RKW012A217_En.p65 06.8.3, 1:54 PM13

–14 –
HIGH POWER/ECONOMY operation procedure
2
If the air-conditioner is not operating, aim the remote control at the air-conditioner.
Press the ON/OFF button.
Press the HI POWER/ECONO button.
•When the operating mode is AUTO or COOL
Each time the HI POWER/ECONO button is pressed, the indicator is switched
in the order of:
•When the operating mode is DRY or PROGRAM TIMER
Each time the HI POWER/ECONO button is pressed, the indicator is switched
in the order of:
1
( HIGH POWER )( ECONOMY ) (Normal operation)
(
ECONOMY ) (Normal operation)
Concerning HIGH POWER operation
Pressing the HI POWER/ECONO button intensifies the operating power and initiates powerful cooling operation for 15 minutes continuously. The
remote control indicates but the FAN SPEED indication is erased.
•During the HIGH POWER operation, the room temperature is not
controlled. When it causes an excessive cooling, press the HI
POWER/ECONO button once more to cancel the HIGH POWER
operation.
•HIGH POWER operation is not available during the DRY and the
PROGRAM TIMER operations.
•During ON timer operation, HIGH POWER operation will start
when the ON time is reached.
•When the following operations are conducted HIGH POWER op-
eration will be canceled.
1When the HI POWER/ECONO button is pressed again.
2When the operation mode is changed.
3When it has been 15 min. since HIGH POWER operation
has started.
Concerning ECONOMY operation
Pressing the HI POWER/ECONO button intlates a soft operation with the power suppressed in order to avoid an excessive cooling. The unit
operates 1.5°C higher than the setting temperature for weak wind capacity during cooling. The remote control indicates but the FAN SPEED
indication is eraseed.
NOTE
•It will go into ECONOMY operation the next time the air-condi-
tioner runs in the following instances.
1
When the air-conditioner is stopped using the ON/OFF button.
2 When the air-conditioner is stopped in SLEEP or OFF
TIMER operation.
3When CLEAN operation ends.
•When the following operations are conducted ECONOMY opera-
tion will be canceled.
1When the HI POWER/ECONO button is pressed again.
2When the operation mode is changed DRY to FAN.
NOTE
RKW012A217_En.p65 06.8.3, 1:54 PM14

–15 –
Concerning CLEAN operation
1Press the CLEAN switch with the tip of a ballpoint pen.
Each time the CLEAN switch is pressed, the indicator is switched
in the order of:
No indication
■CLEAN operation should be run after AUTO, COOL and DRY operation to remove the moisture from inside the indoor unit and control the growth
of mold and bacteria.
(CLEAN on) (CLEAN off)
To stop: Press the ON/OFF button.
•CLEAN operation is impossible after Fan and OFF-TIMER have stopped.
•The indoor unit fan runs for about two hours in CLEAN operation.
•The RUN light flashes during CLEAN operation.
Emergency run operation
•The unit ON/OFF button on the unit operates ON/OFF temporarily when the remote control is not used.
Operation program
•OPERATION MODE : AUTO
•FAN SPEED : AUTO
•AIR FLOW : AUTO
•Operation starts by pressing the unit ON/OFF button; it stops if you press
the button again.
Unit ON/OFF button
Power blackout auto restart function
■What is power blackout auto restart function?
•Power blackout auto restart function is a function that records the operational status of the air-conditioner immediately prior to it being switched off
by a power cut, and then automatically resumes operations at that point after the power has been restored.
•The following settings will be cancelled:
1Timer settings
2HIGH POWER operations
•The power blackout auto restart function is set at on when the air-conditioner is shipped from the factory. Consult with your dealer if this
function needs to be switched off.
•When power failure ocurrs, the timer setting is cancelled. Once power is resumed, reset the timer.
NOTE
NOTE
RKW012A217_En.p65 06.8.3, 1:54 PM15

–16 –
Remote control handling procedure
Replacing the batteries
The following cases signify exhausted batteries. Replace old batteries with new ones.
•Receiving beep is not emitted when a signal is transmitted.
•Indicator fades away.
•On the battery is printed its expected life. This may be shorter
than that of the air-conditioner, depending on the date of manu-
facture.
•However, the battery may still be in working order after expiry
of its nominal life.
NOTE
•Don't use old and new batteries together.
•Remove the batteries when the remote control is not used for a
long period.
•The life of a battery conforming to JIS or IEC should be 6 to 12
months with normal use. If used longer, or when an unspecified
battery is used, liquid may leak from the battery, causing the re-
mote control to malfunction.
Remove back lid and take out
old batteries.
Insert new batteries.
(R03(AAA,Micro)X2)
Close back lid.
When the indicator shows any abnormal condition, Press the reset switch
with the tip of a ballpoint pen.
1
2
3
Attention to
the ,and .
marks
Press the reset switch with the
tip of a ballpoint pen.
4
•Are the batteries running down?
"Replacing the batteries" above.
Replace the batteries with new ones and repeat the operation.
•Don’t drop the remote control.
Handle with care.
•Don’t go near high temperature
places, such as an electric carpet
or stove.
•Do not place heavy objects on the
remote control, or step on it.
Warning note for remote control handling
•Don’t put any obstructing obsta-
cles between the remote control
and the unit.
•Don’t spill water etc on the remote
control.
•Don’t leave the remote control ex-
posed to direct sunlight or other
strong lighting.
When the operation fails with the remote control
•If the operation still fails, handle as per emergency
run operation.
Contact your dealer.
Page 15
Using the remote control holder
The remote control can be attached to a
wall or pillar by using a remote control
holder. Before installing the remote con-
trol, check that the air-conditioner re-
ceives the signals properly.
For installing or removing the remote
control, move it up or down in the holder.
RKW012A217_En.p65 06.8.3, 1:55 PM16

–17 –
Operating hints
■Please observe the following for the most economic and comfortable use of your unit.
Set a suitable room temperature.
Excessively low temperatures are not good
for your health and waste electricity.
Avoid direct sunlight and draught.
Cut out direct sunlight by drawing the cur-
tains or blinds when cooling. Keep windows
and doors shut, except when ventilating.
Operate the unit only when needed.
Use the timer properly to operate the unit
only when needed.
Clean the filters frequently.
Clogged filters may block the air flow and
cause less efficient operation.
Adjust the airflow direction properly.
Adjust the up/down and left/right airflow to
ensure a steady room temperature.
Generate little heat when cooling.
Keep heat sources out of the room as much as
possible.
suitable
temperature
Turn off the power switch.
Remove the air filter
1Pull up to this side the air inlet panel.
2
Lightly hold the knobs at both sides and
lift a little to remove the panel to this
side.
Maintenance
Cleaning the air filter Standard interval is once every two week
Don’t use the following articles:
•Hot water (40°C or more)
It may deform or discolour the unit.
•Petrol, paint thinner, benzine or polishing agents,
etc.
They may deform or scratch the unit.
•Don’t spill water.
•Do not touch the aluminum fins on the heat
exchanger.
•
Stand firmly on a stepladder or other stable
object when removing the inlet panel and filter.
Cleaning
If the filter is very dirty, clean it with warm water
(approx. 30°C), and dry it thoroughly.
CAUTION
•Don’t clean the filters with boiling water.
•Don’t dry them over an open flame.
•Pull them out gently.
Cleaning the unit
•Wipe the unit with a soft, dry cloth, or use a vacuum cleaner.
•If the unit is very dirty, wipe it with a cloth soaked in warm water.
1
2
3
Before maintenance During the operational season
Reinstall the air filter
•Holding firmly the filter at both sides as shown at right
and insert securely.
•Operating without putting back the air filters will make
the unit dusty, and may cause damage.
Cleaning the air inlet panel
•Removal, installation of air inlet panel . Page 6
•The panel can be washed with water. After washing with
water, wipe any moisture off the panel and dry out of
direct sunlight.
Wipe the unit with a soft,
dry cloth.
There's a danger
of electric shock.
RKW012A217_En.p65 06.8.3, 1:55 PM17

–18 –
Item Feature Color
Stop the unit and turn off the power switch.
The unit uses appr. 2W even when the power switch has been turned
off during the off-season for safety or for saving energy.
At the beginning of the season
Ensure that nothing has snapped and that the
earthed flex is not disconnected.
Make certain that there are no obstacles blocking the
air flow around the air intake and outlet openings of
the indoor and outdoor units.
NOTE Cooling is affected by an air filter clogged up with dust etc., and the operation noise becomes louder. It may also use extra
electricity. Please clean the air filter at appropriate intervals.
1
2
Remove batteries from the remote control.
Clean both the indoor and outdoor units.
Clean and reinstall the air filters.
Perform the fan operation for a half day.
Dry the inside of the unit.
3
4
5
Check the installation base for corrosion or rust.
Insert batteries in the remote control.
Turn on the power switch.
Ensure that the air filters are clean.
1
2
3
4
5
6
Installing, inspecting, and replacing the natural enzyme filter and the photocatalytic washable deodorizing filter
1. Open the air inlet panel and remove the air filters.
2. Remove the filter holders, with the natural enzyme filter and the photocatalytic washable
deodorizing filter installed in the folders, from the air-conditioner.
3. Remove the natural enzyme filter from filter holder and inspect the filter. Use a vacuum
cleaner to remove any dust or dirt from the natural enzyme filter. Replace the natural enzyme
filter if it cannot be cleaned or if it has been for about 1 year.
(The natural enzyme filter should be replaced after about 1 year of use. However, the actual
replacement period may vary depending on the conditions in which the filter is used.)
Remove the photocatalytic washable deodorizing filter from the filter holder and inspect the
filter. Periodically, remove any dust or dirt from the photocatalytic washable deodorizing
filter. If the photocatalytic washable deodorizing filter is particularly dirt, it may be washed
with water. However, the filter is fragile so be sure to wash it installed in the filter holder to
avoid damaging it. After washing the filter, place it in sunlight to dry. Placing the filter in
sunlight revitalizes the deodorizing effect.
(Do not dispose of the filter holders. They are reused. )
4. Install the natural enzyme filter and the photocatalytic washable deodorizing filter in the filter
holders, and then install the filter holders in the air-conditioner.
5. Install the air filters and closed the air inlet panel.
Filter
Filter holder
NOTE
The natural enzyme filter and the photocatalytic washable deodorizing fil-
ter may be installed on either the right or left side of the air-conditioner.
For replacement natural enzyme filters and photocatalytic washable deodorizing filters, contact your dealer.
By using the work of oxygen, mold and bacteria on the filter
are destroyed and the room air is kept clean.
Sources of odors on the filter are broken up, resulting in a
deodorizing effect.
Photocatalytic washable
deodorizing filter Orange
Natural enzyme filter Green
InstallInstall
At the end of the season
Do not expose natural enzyme filters to direct sunlight for an extended period. The
bacteriolytic effect will be lost.
CAUTION
RKW012A217_En.p65 06.8.3, 1:56 PM18

–19 –
Has the unit been installed correctly?
Pay attention to operating noises!
•When you install the unit, take care to choose a place that can comfortably stand the weight of the unit and does not increase the operating noise
or vibration. If there is any likelihood that vibration may be transmitted through the house, fix the unit with the aid of vibration-proof pads
between the unit and the fittings.
•Select a place where cold or hot air and operation noises from the indoor and outdoor units do not cause any inconvenience to your neighbours.
•Do not leave any obstacles near the outlet and inlet of the outdoor unit. This may cause malfunctioning and increased operating noise.
•If you hear an irregular noise during operation, contact your dealer.
Inspection and maintenance
Dependent upon service conditions and operating environment, the inside of the air-conditioner may become dirty after a number of seasons'
service (3 to 5 years). This will reduce performance. In addition to normal cleaning, we would recommend inspection and maintenance. (The air-
conditioner has a longer life without any trouble.)
•Contact your dealer, or any distributor, for inspection and maintenance. (There will be a charge for this service).
•We would recommend inspection and maintenance to be carried out during the off-season.
•If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special
purpose tools are required.
Suitable installation position
•Is there any obstruction in front of the indoor unit, preventing proper ventilation and functioning?
•Don’t install the unit in any of the following places:
•Where there is a danger of leaking inflammable gases.
•Where there is substantial splashing of oil.
•Malfunctioning due to corrosion may occur if the unit is installed in a spa where sulfide gases are generated, or in a seaside resort exposed to
sea breezes. Contact your dealer.
•The air-conditioner and remote control must be at least 1 metre away from a TV set or radio.
•Drain the dehumidified liquid from the indoor unit into a spot that drains well.
The air-conditioner does not work at all.
Has the timer been set in the
"ON" position?
Has the power switch been
turned off?
Is there a power failure or a
blown fuse?
Troubleshooting
Please carry out the following checks before making a service call.
Poor cooling
Did you leave any doors or
windows open?
Have you set the thermostat at a
suitable temperature?
Is there a heat source in the
room?
Are there too many people in
the room?
Is the air filter clean? (Not
clogged?)
suitable
temperature
Is there any direct sunlight en-
tering the room?
If the air-conditioner does not oper-
ate properly after you have checked
the left points, or if any doubt still
exists after you have consulted page
20, or if things happen as shown on
page 21, switch off the power and
contact your dealer.
Is the outdoor heat exchanger
clean? (Not clogged?)
RKW012A217_En.p65 06.8.3, 1:56 PM19
