SPLIT-TYPE AIR CONDITIONERS
OPERATING INSTRUCTIONS
MS09TW
MS12TN
MS15TN
MS 17TN
Mr.SlLIIM
IFor customers ]
Thank you very much for purchasing this Mitsubishi room air conditioner.
•To use this unit correctly and safely, be sure to read this operating instructions before use. Keep this manual carefully for
later reference.
•Be sure to receive a guarantee card from your dealer and check that the purchased data and shop name, etc. are
entered correctly.
• This air conditioner should not be installed by the customer. (Safety and performance functions cannot be assured.)

MITSUBISHI ELECTRIC
.=pthis manual carefully for
and shop name, etc. are
_nscannot be assured.)
CONTENTS
SAFETY PRECAUTIONS .................................................................... 2
NAME OF EACH PART ........................................................................ 4
PREPARATION BEFORE OPERATION ............................................... 6
I FEEL... AUTO OPERATION ............................................................... 7
MANUAL OPERATION (COOL,DRY, FAN) ........................................... 8
AIR FLOW VELOCITY AND DIRECTION ADJUSTMENT ................... 9
TIMER OPERATION (ON/OFF TIMER) ............................................. 10
WHEN THE AIR CONDITIONER IS NOT GOING TO BE
USED FOR A LONG TIME ................................................................ 10
MAINTENANCE ................................................................................. 11
CLEANING THE AIR FILTER/DEODORIZING FILTER (OPTION) .... 11
REPLACEMENT OF THE DEODORIZING FILTER (OPTION)/
AIR CLEANING FILTER (OPTION) ................................................... 12
BEFORE CONTACTING THE SERVICEMAN,
CHECK THE FOLLOWING AGAIN .................................................... 12
WHEN YOU THINK THAT TROUBLE HAS OCCURRED ................... 13
INSTALLATION, RELOCATION AND INSPECTION .......................... 14

• Since rotating parts and parts which could cause an electric shock are used in this product, be sure
to read these "Safety Precautions" before use.
•Since the cautionary items shown here are important for safety, be sure to observe them.
Marks and their meanings are as shown below.
Incorrect handling could cause a serious hazard, such as death, serious injury,
etc. with a high probability.
Incorrect handling could cause a serious hazard depending on the conditions.
Is used in this manual are as shown below.
Be sure not to do.
Be sure to follow the instruction.
Never insert your finger or stick, etc.
Never step onto the indoor/outdoor unit and do not put anything on them.
Danger of electric shock, be careful.
Be sure to shut off the power.
•After reading this manual, keep it together with the installation manual in a handy place for easy
reference.
(_ ENCLOSURE
FRONT PANEL
AIR OUTLET
ENCLOSURE
2
!f

• This air conditioner is NOT intended for use by children or infirm persons without supervisions.
• This may cause a fire due to spark, etc,
•Be sure to turn off the breaker absolutely after
switching the indoor unit off with the remote con-
troller.
• This could damage your health.
•If the unit continues to be operated in an abnormal
condition, it may cause a fire, trouble, etc. In this
case, consult your dealer.
•Since the fan rotates st high speed, this may cause
an injury.
•Young children should be supervised to ensure that
they do not play with the air conditioner.
• If this is done incorrectly, it may cause a fire, an elec-
tric shock, or injury from the unit falling, water leak-
ing, etc.
Consult your dealer.
•If this is done incorrectly, it may cause a fire, an elec-
tric shock, or injury from the unit falling, water leak-
ing, etc.
Consult your dealer.

• Thismaycauseaninjury.
•Since the fan rotates at high
speed during operation, this may
cause an injury.
0
• This may cause an electric shock.
•Water may enter the unit and de-
grade the insulation. This may
cause an electric shock.
• This could injure the pet or plant.
•This may cause a
tion of the cabinet.fire or deforma-
• An oxygen shortage may occur.
_,_ _._:
-" .... J i
•Do not use this air conditioner t(
preserve precision devices, food
animals, plants and art objects,
This may cause deterioration o
quality, etc.
•This may cause =mperfect corn
bustion.

iiii
• Otherwise, dirt may collect and
this may cause a fire.
0
•This may cause an injury, etc. if
you fall down.
• The unit may fall and this may
cause an injury.
• In the cooling mode, if the unit is
operated in a room with high hu-
midity (80% RH or more) for a long
time, water condensed in the air
conditioner may drop and wet or
damage furniture, etc.
i
•This may cause an injury, etc. if
you fall down.
•This may result in leakage, fire or
an explosion.
•Using an old battery together with
a new one may result in heat gen-
eration, leakage or an explosion.
®
•If liquid from the alkaline batter-
ies gets into your eyes, wash
them well with clean water and
consult a doctor at once.
O

• Consult your dealer for installation of the air conditioner. ]
•Do not connect the ground to a gas pipe,
water pipe, lightning rod or the ground of
a telephone. If the grounding is incorrect, IBr
it may cause an electric shock.
• If gas leak and collect around the unit, it may cause
an explosion.
@
• If the drainage route is incomplete, water may drop
from the unit, This may wet and damage the furni-
ture. @
4
,f

MS09TW
IAir cleaning filter
(White bellows
type) (OPTION)
Ieodorizing filter
(Gray sponge
type) (OPTION)
/
/;/ /
_Vertical vane _-_ / /'
IFront panel I
Remote control
receiving section
MS12/15117TN
_Horizontal vane _ -/
F
_Oparation section )
(When the front panel is opened)
/
/
_Remotecontroller
Display section
MS09TW
_(:_. __ Emergency
operation switch
MS1 2/15/17TN
Emergency switch
MS0gTW
IOberation ___7_
Indicator lamp _ -- Receiving section
MS1 2/15117TN
J
\77
[o_ l!1Tltl
MU09TW, MU12TN
(Or,in
MU15/17TN
J

[;_ E_ I1'_
_Signal transmitting section )
_Operation display section
ON/OFF (operate/stop) button
Temperature buttons )
(This diagram shows an overall view.)

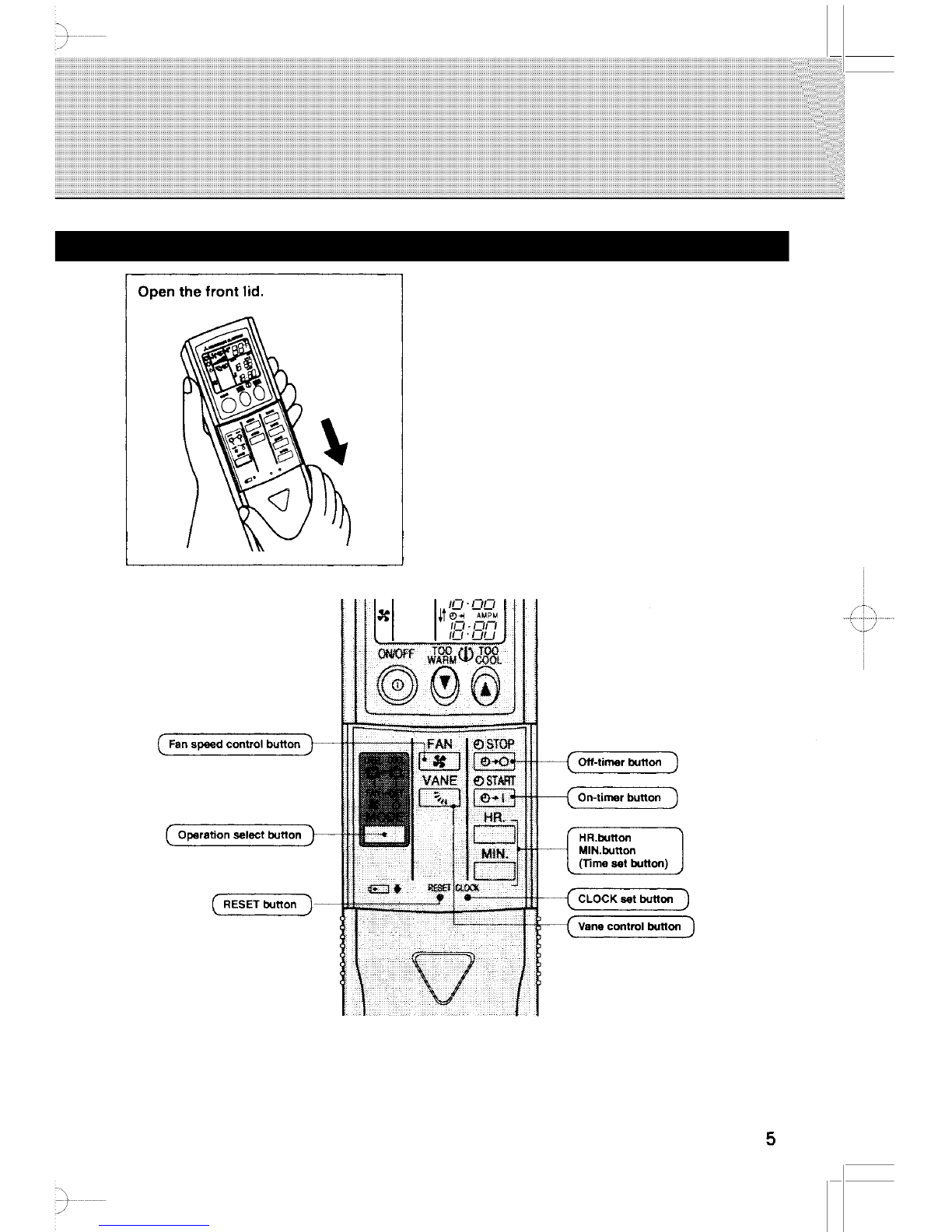

Open the front lid.
Fan speed control button
Operation select button
RESET button
HR.button 1
MIN.button
(Time set button)
button
Vane control button
iY

,AtttJ_ _ [jl_itmj]l'#m
II These models are equipped with an auto restart function. If you do not want to use
this function, please consult the service representative because the setting of the
unit needs to be changed.
iAuto restart function is ...
When the indoor unit is controlled with the remote controller, the operation mode, the set temperature and
the fan speed are stored in the memory. If a power failure occurs or the main power is turned off during
operation, "Auto restart function" sets automatically to start operating inthe same mode as the one set with
the remote controller just before the shutoff of the main power (Refer to page 7 for details.)
Turn the breaker on.
URemove the front lid and insert bat-
teries.Then reattach the front lid.
Insert the minus pole of the batteries first.
Check if the polarity of the batteries is correct.
m
Insert the minus
_1 poleof the
batteries first•
Press the RESET button.
• If the RESET button is not pressed, the remote control-
ler may not operate correctly.
ml Press the CLOCK set button.
HR MIN
H Press the _ and -7 button
(TIME SET button) to set the current
time. l
,,,+++++++
• Each time the [_ button bs pressed, the set time in-
creases by 1 hour, and each time the [_ button is
pressed, the set time increases by 1 minute•
Press the CLOCK set button again
and close the front lid.
6

Handling of the remote controller
• The range that the signal can reach is about 20 feet
when the remote controller is pointed at the front
of the indoor unit.
•When a button Is pressed, one or two beeps will
be heard from the indoor unit. If no sound is heard,
operate again.
•Use the remote controller carefully.
If it is dropped, thrown or it gets wet, the remote
controller may not operate.
When installing on a wall, etc.
•install the remote controller installation case in a
position where the signal reception sound (beep)
can be heard from the indoor unit when the _':
button is pressed. _
How to install/remove the remote controller
Insert the remote controller downward.
Pull it up.
Remote controller
instaJlationcase _____._
Dry-cell batteries
When the indoor unit does not respond to the signal
from the remote controller, or the display becomes
dim, replace the batteries with new ones (size AAA).
•Though both alkaline batteries and manganese
batteries can be used, alkaline batteries are rec-
ommended because their service life is longer than
that of manganese batteries.
•The service life of an alkaline battery is about 1year.
However, a battery which the time limit is ap-
proaching may be exhausted soon. The recom-
mended usable time limit is indicated (month/year)
on the bottom of the battery.
•Replace the 2 batteries with new ones of the same
type.
•Do not use rechargeable batteries.
•To prevent liquid leakage, take out all batteries
when the remote controller is not going to be used
for a long time.
•Dispose of exhausted batteries in the correct man-
ner.
When the batteries of the remote controller run out or
the remote controller malfunctions, the emergency olP
eration can be done using the EMERGENCY OPERA-
TION switch.
II ! Press the EMERGENCY OPERA-
TION switch.
When the EMERGENCY OPERATION switch
is pressed, the unit wilt operate in test run for
30 minutes at first and then the operation mode
shifts to EMERGENCY COOL MODE.
MS09TW MS12/15/17TN
Details of EMERGENCY COOL MODE are as shown
below. However, the temperature control does not work
for 30 minutes in test run and the unit is set to continu-
ous operation. The fan speed is set to Hi in test run
and shifts to Medium after 30 minutes.
Set temperature 75 °F
Fan speed Medium
Horizontal vane Auto
The operation mode is indicated by the Operation Indi-
cator lamp on the indoor unit as following figures.
Operation Indicator lamp
MS09TW EMERGENCY COOL STOP
-'I".... _ _ _pperati_n
nd cator
MS12/15/17"rN
EMERGENCY COOL STOP
I To stop the EMERGENCY COOL
MODE, press the EMERGENCY OP-
ERATION switch again.
* Each time the switch is pressed, the opera-
tion mode alternates between the EMER-
GENCY COOL MODE and STOP MODE.
iY

S ¸

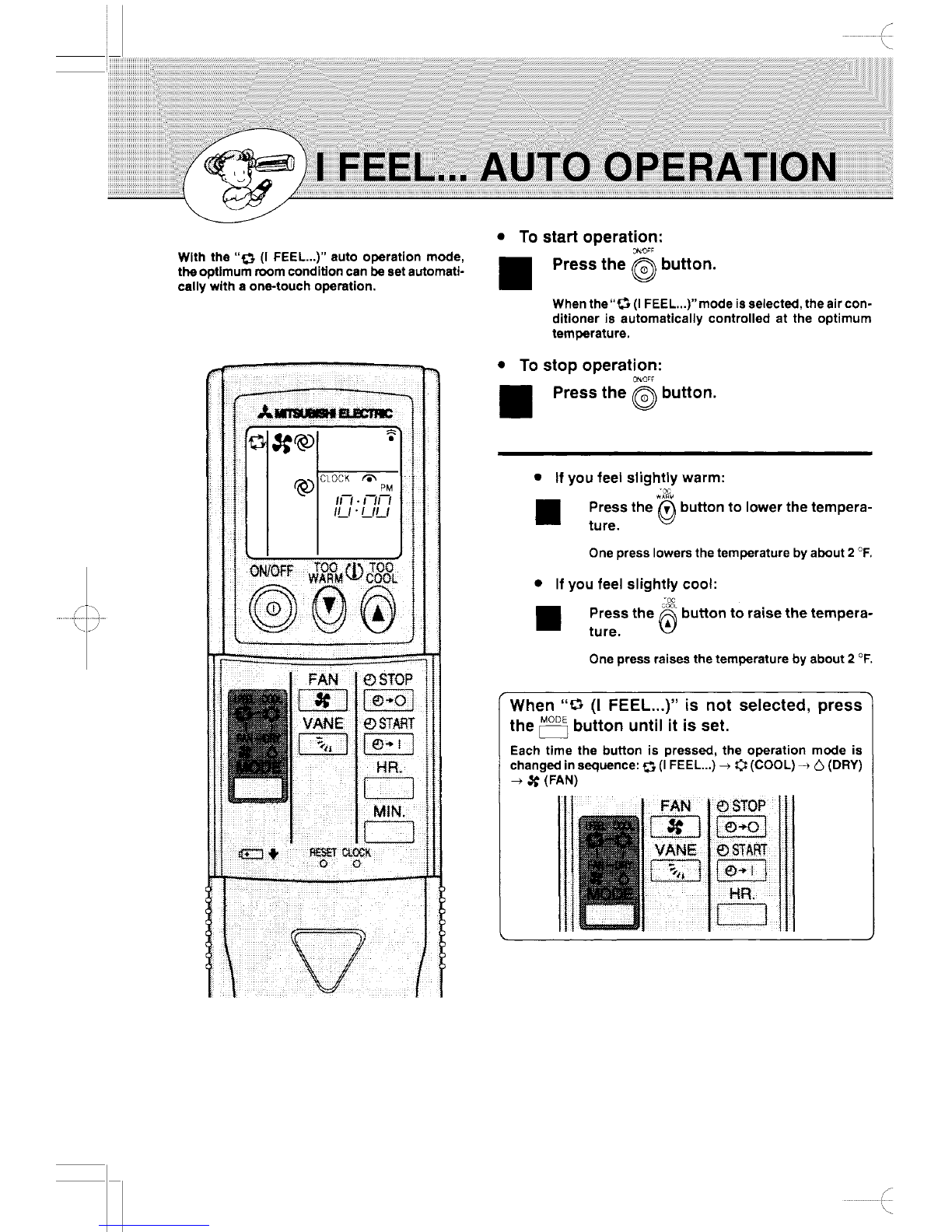

With the "f;_ (I FEEL...)" auto operation mode,
the optimum room condition can be set automati-
cally with aone-touch operation.
•
@STOP
i ¸¸i! !ii iiii!_i¸iii ii
•To start operation:
/ Press the Qbutton.
When the"_ (I FEEL...)" mode isselected, the air con-
ditioner is automatically controlled at the optimum
temperature.
•To stop operation:
/ Press the Gbutt°n"
If you feel slightly warm:
_Rv
Press the 0button to lower the tempera-
ture.
One press lowers the temperature by about 2 °F.
If you feel slightly cool:
cool
Press the 0button to rame the tempera-
ture.
One press raises the temperature by about 2 °F.
When "_ (I FEEL...)" is not selected, press
the _button until it is set.
Each time the button is pressed, the operation mode is
changed in sequence: _(I FEEL...) _ _:_(COOL) -_ 6(DRY)
_(FAN)
F-

Details of operation
According to the rdom temperature when the operation starts, the op-
eration mode is automatically set to either COOL or DRY. However,
when operation is started again within 2 hours after it is stopped, the
same operation mode before the operation is stopped is selected. The
operation mode selected first is not changed even if the room tempera-
ture changes. If the operation mode does not match the room condition,
select the appropriate operation mode by pressing the MOr_DEbutton.

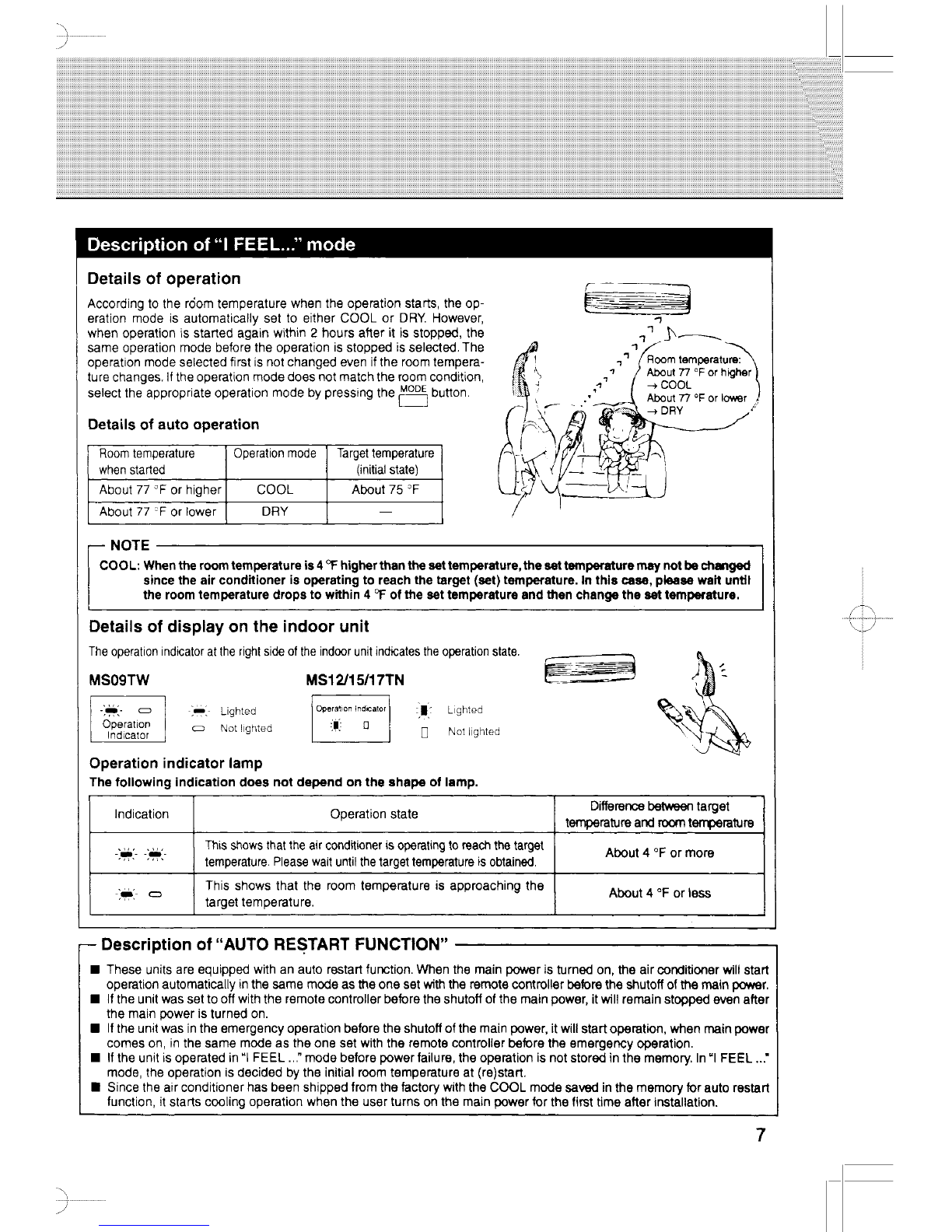

Details of auto operation
Room temperature Operation mode Target temperature
when started (initial state)
About 77 °F or higher COOL About 75 °F
About 77 F or lower DRY
_C NOTE
OOL:Whenthe roomtemperatureis 4°Fhigherthanthe settemperature,the settemperaturemay nothechanged
sincethe air conditioneris operatingto reach the target (set)temperature.In this case, pleasewait until
the roomtemperaturedropsto within4 OFof the set temperatureand thenchangethe set temperature.
Details of display on the indoor unit
The operationindicatorat therightside of the indoorunit indicates the operation state. ,_,
MS12/15/17TN _ J, t
MS09TW
.... 0;]
_,, __on a_or . ,
_pperati_nn _!._ Lighted o_e:!a[. In "B" Lighted
Indicator _ Notlighted [_ Not lighted
Operation indicator lamp
The following indication does not depend on the shape of lamp.
Difference between target
Indication Operation state temperature and room temperature
........ This shows that the air conditioner is operating to reach the target About 4 °F or more
-,W,,- -,,Q,- temperature. Please wait until the target temperature is obtained.
This shows that the room temperature is approaching the
,,==_ _ About 4 °F or less
target temperature.
-- Description of"AUTO RESTART FUNCTION"
• These units are equipped with an auto restart function. When the main power is turned on, the air conditioner wilt start
operation automatically in the same mode as the one set with the remote controller before the shutoff of the main power.
• If the unit was set to off with the remote controller before the shutoff of the main power, it will remain stopped even after
the main power is turned on.
• If the unit was in the emergency operation before the shutoff of the main power, it will start operation, when main power
comes on, in the same mode as the one set with the remote controller before the emergency operation.
• If the unit is operated in "1FEEL ..." mode before power failure, the operation is not stored in the memory. In "1FEEL ..."
mode, the operation is decided by the initial room temperature at (re)start.
• Since the air conditioner has been shipped from the factory with the COOL mode saved in the memory for auto restart
function, it starts cooling operation when the user turns on the main power for the first time after installation.
7
,/-_
\17
J

ON_FF
Press the _button.
Select the operation mode by pressing the
button.
Each time this button is pressed, the operation mode
is changed in sequence: f_ (I FEEL,,.) -_ _(COOL)
6(DRY) __(FAN)
To stop operation:
mOh_3FF
Press the Qbutton.
After the operation mode is set once, the operation
starts in the mode set previously from the next time
by simply pressing the _ button.
®
When the set temperature is to be changed:
,,,%
•Press the _button to lower the temperature, One
press lowers the temperature by about 2 °F.
•Press the _button to raise the temperature. One
press raises the temperature by about 2 °F,
•The temperature control (temperature setting) can-
not be done.
•The room temperature is slightly lowered in this op-
eration mode.
The details of the display on the indoor unit
are explained on page 7.
INOTE
When the ambient temperature is too high, the room tem-
perature may not reach the set temperature since the unit
operates to cool under high load.
8

For effective cooling
0 Close the windows and pull Q Pastea heat shield film (gen- Q Blockthe outdoor unit from di-
down blinds. Sunshine is re-
duced and cooling efficiency
increases.
erally available) on the window.
Heat entering the room is re-
duced.
rect sunlight. This saves en-
ergy.
The humidity at which people feel comfortable
When air contains too much moisture, people feel uncomfortable. Humidity is re!ated to temperature and
wind.The humidity at which people feel comfortable is 60 % - 75 % RH in summer, 55 % -70 % RH in winter.
Description of "AUTO RESTART FUNCTION"
efer to page 7,
iY

AIR FLOW velocity and direction can be selected
as required. II To change the AIR FLOW velocity, press
the _-_ button.
Each time the button is pressed, the fan speed is
changed in sequence: •(Lo) -_ ,,m (Med) -_ •ill (Hi)
-_ _(AUTO)
• Use the tall (HI) notch to cool the room more.
• If the opersting sound of the air conditioner disturbs your
sleep, use the • (Lo) notch.
II To change the AIR FLOW blowing direc-
tion vertically, press the _button.
Each time the button is pressed, the angle of the hori-
zontal vane is changed in sequence: - (1) --_ •(2) --_
•(3) _ s(4) _ j (5) _ _ (SWING) _ _ (AUTO)
SWING OPERATION
Use the swing operation for the air flow to reach all corners
of the room.
Recommended horizontal vane
range
Use the _(AUTO) position usu-
ally.
Use position - (1) or ,, (2) in the
COOL or DRY mode when adjust-
ing to your requirements.
NOTE
In the cooling operation, when the air conditioner is op-
erated with setting the horizontal vane to, (4) or i(5) for
1 hour, the AIR FLOW direction is automatically set to
horizontal to prevent condensed water from dropping.
Adjust the vertical AIR FLOW direction using the remote
controller. If the horizontal vane is moved manually, it
may cause trouble.
!f

•When the AUTO mode is selected with the _button, the position of the horizontal vane is automatically set
to correspond to the operation mode for effectlve operation.
(1) COOL, DRY
The air is blown out horizontally. (2) FAN
The air is blown out downwards.
To change the horizontal direction of the air flow, move the vertical vane manu-
ally. \7_ ......
Adjust the vane before operation starts.
Since the horizontal vane moves automatically, your fingers may be caught.
/

_=1,I]
It Is convenient to set the timer when you go to
bed, when !you get home, when you get up, etc.
.....
ii_iiii iiiii
- -- l
F
I.i._,_ _
WAPIM _uuL
10
Press the _button during operation.
Each time the button is pressed, the ON timer mode
alternates between ON and OFF,
HFL
Set the time of the timer using the
MIN
and _buttons.
Each time the _button is pressed, the set time in-
creases by 1 hour; each time the _--- button is
pressed, the set time increases by 10 minutes,
To release the ON timer:
Press the _button.
_1_ Press the _button during operation.
Each time the button is pressed, the OFF timer mode
alternates between ON and OFF.
mSet the time of the timer using the
and _buttons.
Each time the _button is pressed, the set time in-
_N
creases by 1 hour; each time the _button is
pressed, the set time increases by 10 minutes.
To release the OFF timer:
Press the _button.
The ON timer and the OFF timer can be used in combination.
The timer of the set time that is reached first will operate first,
("_t" mark indicates the order of timer operations.)
•If the current time has not been set, the timer operation can-
not be used.
_t NOTE
the main power Is turned off or a power failure occurs
hlle AUTO START/STOP timer Is active, the timer setting
cancelled. As these models are equipped with the auto
start function, the air conditioner should start operating
the same time that a power has restored.
4

_s
B Perform the FAN operation for 3 or 4 hours
to dry the inside of the air conditioner.
Turn off the breaker.
/_ CAUTION
urn off the breaker when the air conditioner Is not
oing to be used for a long time.
irt may collect and this may cause a fire.
M Remove the batteries from the remote con-
troller.
/_ CAUTION 1
prevent liquid leakage, take out all batteries when
I the remote controller is not going to be used for a
Ilong time.
[] Clean the air filter and install it in the in-
door unit.
(Refer to page 11 for cleaning Instructions.)
Clean the ]
filter before
installing.
Check that the air inlet and outlet of the
indoor/outdoor units are not blocked.
M heckthatthe ground isconnected correctly.
/_k CAUTION
round the unit.
o notconnectthe ground to a gas pipe, water pipe,
htningrodorthe groundofa telephone.Ifthe ground-
ling is incorrect,itmay causeanelectric s_ock.
