ML Accessories WAD12AA Instruction Manual

INSTALLATION & MAINTENANCE MANUAL
WAD12AA / WAD12ABK

These instructions should be read carefully and retained after installation by the
end user for future reference and maintenance.
These instructions should be used to aid installation of the following product(s):
WAD12AA / WAD12ABK
GENERAL INSTRUCTIONS
SAFETY
•This product must be installed in accordance with the latest edition of the IEE Wiring
Regulations (BS7671) and current Building Regulations. If in any doubt, consult a
qualified electrician
•Please isolate mains prior to installation or maintenance
•Check the total load on the circuit (including when this luminaire is fitted) does not exceed
the rating of the circuit cable, fuse, or circuit breaker
•Please note the IP (Ingress Protection) rating of this luminaire when deciding the location
for installation
•This product is IP65 rated
•This product is Class I and must be earthed

INSTALLATION
Note - If this product is being used in conjunction with an external PIR or sensor, please
confirm with the manufacturer of the sensors that they are compatible with LED luminaires.
•Provide power to the required point of installation (refer to BS7671 for correct cabling
methods). Suitable IP rated junction boxes should be used where required
•Round cable should be used for the mains supply. The use of flat cable will cause water
ingress to the fitting
•Using the Allen key provided, unfasten the screws on either side and remove the backplate
•Using the backplate as a template, mark the location for, and drill the fixing holes ensuring
not to infringe with any gas/water pipes or electrical cables
•Feed the mains cable through the rubber grommet to retain IP rating, and secure the
backplate to the surface using the screws provided. Rubber washers or sealant should be
applied around the screw heads to prevent water ingress
•Connect the luminaire to the mains supply ensuring the correct polarity is observed

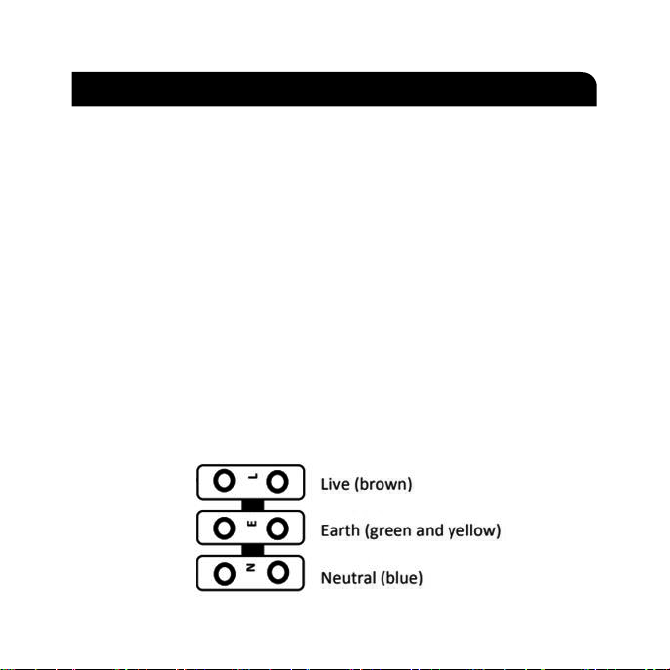

(see Fig. 1): L - Live (brown), E - Earth (green/yellow), N - Neutral (blue)
Fig.1
Fig. 2
•Secure the mains cable under the cable clamp and refit the terminal cover
•Switch on and check for correct operation
WARNING
This luminaire must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.
GENERAL
This luminaire should be recycled in the correct manner when it reaches the end of its life. Check local
authorities for where facilities exist.
The LED lamps fitted in this product are non-replaceable. The luminaire should be recycled in the correct
manner when it reaches the end of its life. Check local authorities for where facilities exist.
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the
luminaire.
This luminaire is non-dimmable.
WARRANTY
This luminaire has a warranty of 3 years from the date of purchase. Failure to install this product in accordance
with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch code will
invalidate the warranty. If this product should fail within its warranty period, it should be returned to the place of
purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML Accessories reserve
the right to alter product specification without prior notice.
KOFEB20_V1

•Refasten the cover
•Switch on and check for correct operation
•Should the protective glass be cracked or damaged it should be replaced immediately
•This fitting must not be used without the protective glass installed
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or
insulation resistance testing. Irreparable damage will occur if this instruction is not followed.
This product is not suitable for installation in or near a coastal or marine environment.

GENERAL
This product contains light sources of energy efficiency class E to Regulation (EU)
No. 2019/2015. This product contains a non-replaceable LED light source and a control
gear which can be replaced by a professional.
Clean the external surfaces with a damp cloth using a mild solution of detergent and warm
water only, do not use aggressive cleaning products or solvents which may damage the
product.
This product is non-dimmable.
This product should be dismantled for disposal when it reaches the end of its life. Please
see website for dismantling instructions.
This product should be recycled in the correct manner when it reaches the end of its life.
Check local authorities for where facilities exist.
WARRANTY
This product has a warranty of 3 years from date of purchase. Failure to install this product
in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper
use, or removal of the batch code will invalidate the warranty. If this product should fail
within its warranty period, it should be returned to the place of purchase for a free of
charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML
Accessories reserve the right to alter product specification without prior notice.
Non-replacable light source
