Mobileye 8 Connect Manual

Technical Installation Guide (4G) v1.7 www.mobileye.com
63 Mobileye 8 Connect
Mobileye 8 Connect
Technical user guide (4G) v1.9
November

Technical Installation Guide (4G) v1.9 www.mobileye.com
1 Mobileye 8 Connect
Table Of Contents
Table Of Contents 1
1. Warnings 4
1.1 General 4
1.2 Installation & Safety Instructions 5
2. Components Overview 6
3. Software download & installation 8
4. Connection Scheme 9
4.1 CAN-bus Installation Scheme 9
4.2 Mixed Installation Scheme (Analog + CAN-bus) 9
Analog Installation Scheme 10
5. Connection Description 11
5.1 Intro 11
5.2 Main unit connections (CAB000400 Rev3.3) 11
5.3 Mobileye 8 Connect signals cable (CAB000371 Rev6.3) 11
5.4 Ferrite 13
5.4.1 Ferrite for Power Sources -Model 1 (ITM000786) 13
5.4.2 Instructions for power sources (CAB000371) 13
5.4.3 Ferrite for Power Sources -Model 1 (ITM000777) 14
5.4.4 Instructions for power sources (CAB000371) 14
5.5 EyeWatch 3 – display and control unit (CAB000087) -OPTION 1 15
5.6 EyeWatch 8 – display and control unit (CAB000401) -OPTION 2 15
5.7 CAN Reader – CAB000302 16
5.8 EyeNET – (EYENET0001 / CAB000613) 16
6. Connection Description 17
6.1 Site preparation 17
6.2 Vehicle signals connections 17
6.3 EyeWatch Installation 18
6.4 Mobileye 8 Connect main unit (camera) installation 19
6.5 Installing the Mobileye 8 Connect 4G modem 21

Technical Installation Guide (4G) v1.9 www.mobileye.com
2 Mobileye 8 Connect
7. 4G Cable Ferrite Installation 22
7.1 Instructions for 4G cable Ferrite installation 22
7.2 Mobileye 8 Connect 4G Connection Scheme 23
8. Installation & Calibration 24
8.1 Back-Cover removal 24
8.2 Communication / Connection phase 25
8.3 System Calibration 26
8.3.1 Login 26
8.3.2 Login 27
8.3.3 Vehicle Selection 29
8.3.4 Connection to SeeQ 30
8.3.5 Vehicle Information 31
8.3.6 Vehicle Information 32
8.3.7 Analog Installation 33
8.3.8 Signal Test 34
8.3.8.1 Signal Test Troubleshooting 35
8.3.9 Calibration 36
8.3.9.1 Step 1 – TAC assembly 36
8.3.9.2 Step 2 – Camera attachment 37
9. GPS attachment 38
9.1 Step 3 – GPS attachment 38
9.2 GPS attachment location allowed areas 39
10. Step 4 – Measurements 40
11. Step 5 – Camera angle adjustment 44
11.1 Step 6 – Car hood 45
11.2 Step 7 – Calibration 45
12. Validation 48
10.1 General 48
10.2 Operation 48
13. Appendix A – 4G Modem 50
13.1 Modem Status 50

Technical Installation Guide (4G) v1.9 www.mobileye.com
3 Mobileye 8 Connect
13.2 Technical Spec 51
14. Appendix A – CAN Reader 52
14.1 General 52
14.2 CAN Reader installation (CAB000302) 52
15. Appendix B – up/down configuration 53
15.1 General 53
16. Appendix C – EyeNET Holder (ASY000451) 56
16.1 Intro 56
16.2 Component Overview 56
16.3 Assembly 56
17. Appendix D – Calibration Tool 58
17.1 Intro 58
17.2 Instructions 58
18. Troubleshooting 60
19. Technical Specification 61
19.1 Mobileye® 8 connect™ – 4G | Technical Specification Sheet 61
19.2 Mobileye® 8 connect™ – 4G | Display unit Specification Sheet 0
19.3 Mobileye® 8 connect™ – 4G | Cellular Module Specification Sheet 1
19.4 Mobileye® 8 connect™ – 4G | GNSS Technical Specification 2
19.5 Mobileye® 8 connect™ – 4G | Certificates 2

Technical Installation Guide (4G) v1.9 www.mobileye.com
4 Mobileye 8 Connect
1. Warnings
1.1 General
Mobileye 8 Connect is Mobileye’s new driver assistance system, containing the latest
iteration in Mobileye’s state-of-the-art machine vision software – the EyeQ®4 system-
on-chip.
Mobileye 8 Connect alerts the driver, aurally and visually, to certain potentially
dangerous situations on the road; the greater the danger, the more ‘urgent’ the
warning.
Mobileye 8 Connect is not an automated driving system. It does not replace the driver
nor allow the driver to be any less vigilant or alert to the road than he/she would
otherwise be. It does not reduce the driver’s responsibility for driving properly, nor
his/her liability for driving improperly or unlawfully. In particular, the driver should
ensure not to be distracted from the road by the Mobileye 8 Connect display unit.
Mobileye 8 Connect works best on paved roads with clear lane markings. Even then,
Mobileye cannot guarantee 100% accuracy nor the absence of false positives
(‘seeing’ something that’s not there) or false negatives (failing to ‘see’ something that
is there), especially in adverse road or weather conditions.
Mobileye 8 Connect is designed to detect only fully visible vehicles and fully visible
pedestrians and bicycles (both in daylight and at night). It is not designed to detect
crossing, oncoming, or passing vehicles.
 Do not connect any system component when vehicle power is On.
 All system components must be connected before turning the system power On.
 Before making the power connections, extract the Fuse from the Fuse holder and add it
back only after all system components and cables are connected and before turning the
vehicle power On.
 DO NOT open the SIM card lid while system is On. Replacing the SIM card is prohibited

Technical Installation Guide (4G) v1.9 www.mobileye.com
5 Mobileye 8 Connect
1.2 Installation & Safety Instructions
 Mobileye 8 Connect installation must be carried out by an authorized Mobileye 8
Connect dealer or Installer.
 Do not transfer Mobileye 8 Connect to another vehicle after installation.
 The Mobileye 8 Connect GSM Nano SIM card will work only with the Mobileye 8
Connect unit with which it is supplied; do not use the SIM for other purposes or with
other Mobileye 8 Connect units.
 Operate Mobileye 8 Connect only with 12VDC~24VDC power.
 Do not cover or obstruct the Camera Unit or Display and Control Unit.
 Use proper tools.
 Use only an LED voltage tester or digital multi meter. Do not use a light bulb voltage
tester.
 Pay attention to unusual color cables, for example: yellow cables belong to air bags;
two twisted wires usually belong to different (digital) sensors.
 Before disconnecting the battery or radio connectors make sure to have the radio
code in hand.
 Do not disconnect any plug or connector in the vehicle while the car’s ignition switch
is on.
 Before making the power connections, extract the Fuse from the Fuse holder and add
it back only after all system components and cables are connected and before turning
the vehicle power On.
 Use protective gloves when handling the camera unit to protect against heat burns.

Technical Installation Guide (4G) v1.9 www.mobileye.com
6 Mobileye 8 Connect
2. Components Overview (* supplied in 2 separate boxes)
Package List Component Mobileye P/N
Master Camera unit ASY0000000000805
4G Modem
PAC0000AJMODEM4G
PAC0000CHMODEM4G
PAC0000EUMODEM4G
PAC0000INMODEM4G
PAC0000NAMODEM4G
PAC0000LAMODEM4G
Display unit –
EyeWatch
EyeWatch 3
EyeWatch 8 (Optional)
ASY000130
PAC0000000000EW8
Main cable CAB000400 Rev3.3
GPS Cable & Module CAB000402
Signals cable CAB000371 Rev6.3
CAN Reader CAB000302 Rev.0.3

Technical Installation Guide (4G) v1.9 www.mobileye.com
7 Mobileye 8 Connect
External fuse holders
with 2A fuses
Fuse - ITM000205
Fuse holder (Red) -
ITM000206
Fuse holder (Blue) -
ITM000207
3M VHB Surface
Cleaner
ITM000024
Ferrite for Power
sources ITM000786 – Ring Ferrite
Ferrite for 4G modem ITM000788
Installer Kit
EyeNET
used for system
installation,
calibration, and
configuration
EyeNET0001
TAC
used for both the
main camera
attachment to
the
windshield
(reference point)
and for
calibration
calculation
TACS00003
The Mobileye EyeNET and TAC are not part of the Mobileye 8 Connect kit and are sold
separately.

Technical Installation Guide (4G) v1.9 www.mobileye.com
8 Mobileye 8 Connect
3. Software download & installation
Mobileye 8 Connect series uses a dedicated applications for configuration and calibration*.
The applications are part of the Mobileye Installation Center.
The software installer is available in our website under "support" tab or in the following direct
link:
https://www.mobileye.com/support/
Please make sure you have Administrator Privileges before installing the Mobileye IC application, if
not, please contact your IT department for further assistance.
To keep the most up to date version of the IC application, login with your login details to enable to
automatic update. If an update is available, follow the on-screen

Technical Installation Guide (4G) v1.9 www.mobileye.com
9 Mobileye 8 Connect

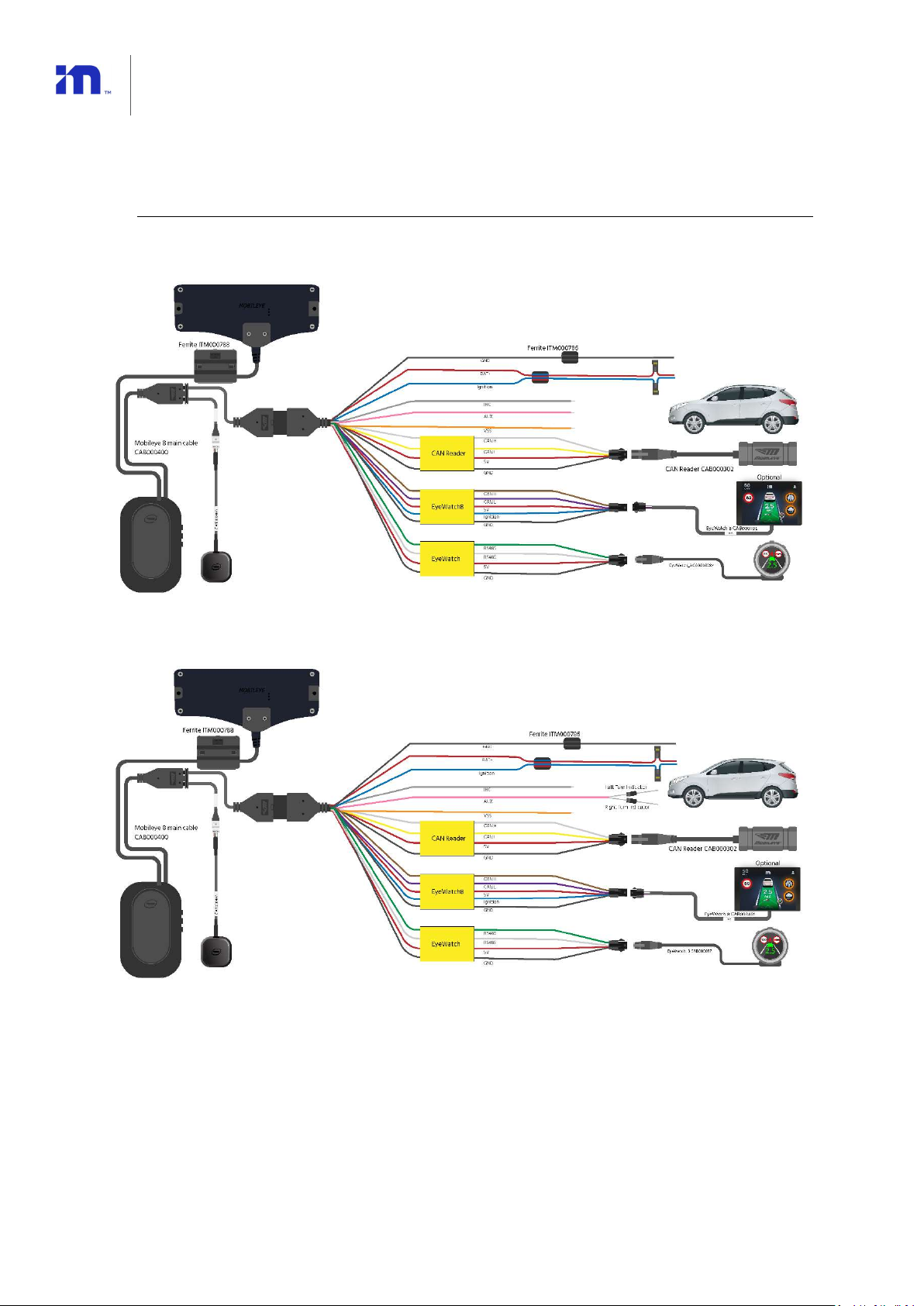

4. Connection Scheme
4.1 CAN-bus Installation Scheme
4.2 Mixed Installation Scheme (Analog + CAN-bus)

Technical Installation Guide (4G) v1.9 www.mobileye.com
10 Mobileye 8 Connect

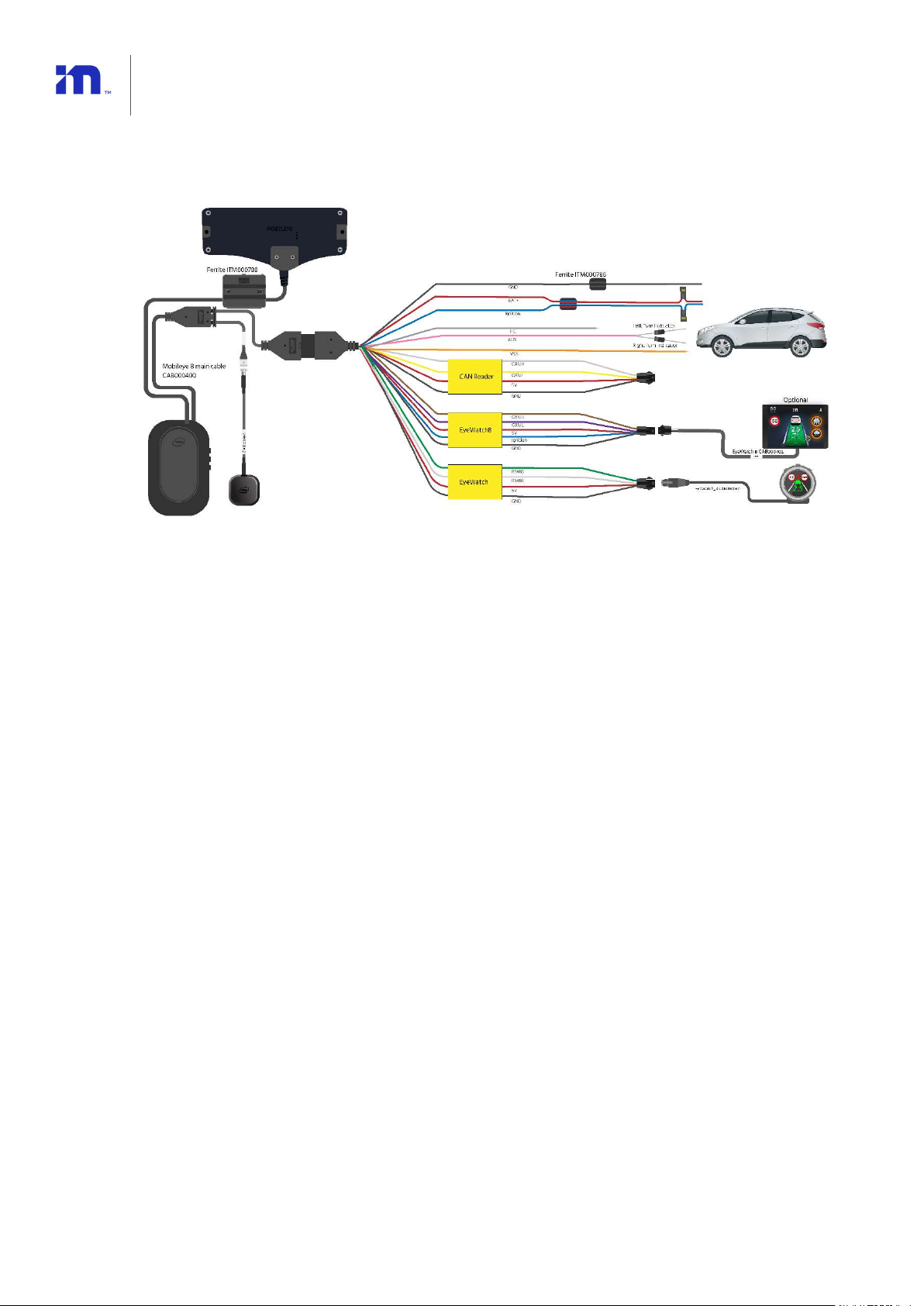

Analog Installation Scheme

Technical Installation Guide (4G) v1.9 www.mobileye.com
11 Mobileye 8 Connect
5. Connection Description
5.1 Intro
The following paragraphs describe in detail the function and connections of the system’s
components.
5.2 Main unit connections (CAB000400 Rev3.3)
Wire Name & Function Wire color Connector Connection To
Signals - (14 pin connector) Black J1 Vehicle signals cable (CAB000371
rev.6.3)
GPS
-
(5 pins White
connector)
Black
P2
GPS Module and extension cable
CAB00402 Rev 1.1
Table 1: Mobileye 8 Connect cable connections

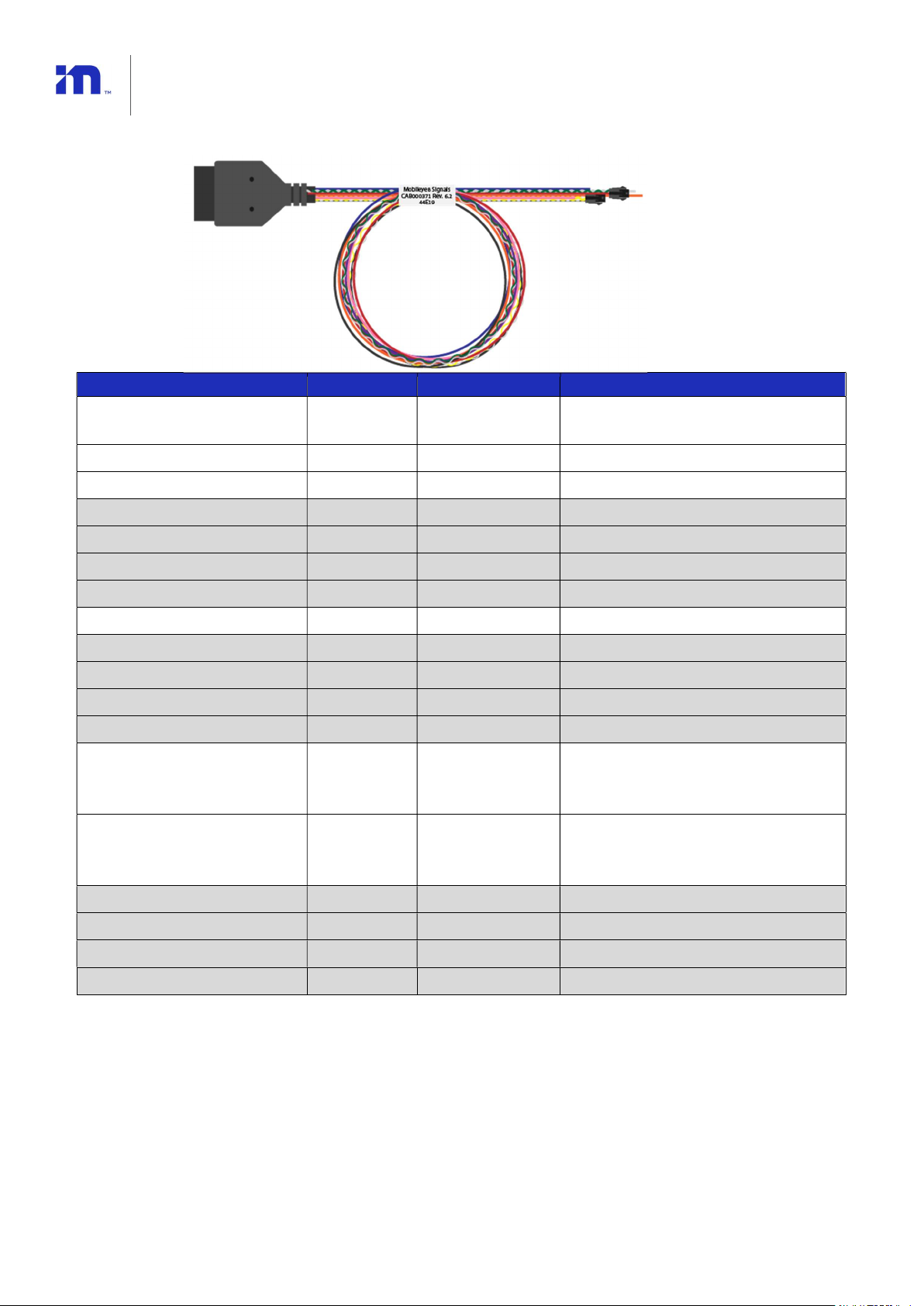

5.3 Mobileye 8 Connect signals cable (CAB000371
Rev6.3)
The Mobileye 8 Connect signals cable splits into a few cables which connect to the
vehicle power source, to the vehicle CAN-bus (Via CAN Reader connector) , to the
vehicle analog speed signal, to the vehicle high-beams (for IHC), to one of the vehicle’s
analog signals if required (or both analog left- and right-turn indicator signals via diode),
to the EyeWatch display unit (via 4 pin male connector labeled as "EyeWatch" and it
contains a 6-pin female connecter labeled “EyeWatch 8” to provide future connection
for new EyeWatch unit.
A detailed description of each of the wires in the analog cable can be found in the
following table below:

Technical Installation Guide (4G) v1.9 www.mobileye.com
12 Mobileye 8 Connect
Wire Name & Function Wire color Connector Connection To
BAT+ (12/24V) Red - Vehicle`s constant power
(Battery)
GND
Black
-
Vehicle`s GND (BAT
-
)
Ignition (12/24V)
Blue
-
Vehicle`s ignition signal
CAN B H White 4pin CAN Reader
CAN B L Yellow 4pin CAN Reader
5V for CAN Reader Red 4pin CAN Reader
GND for CAN Reader Black 4pin CAN Reader
VSS
Orange
-
Vehicle`s Analog speed signal
CAN A High
Purple
6pin
EyeWatch 8
CAN A Low Brown 6pin EyeWatch 8
5V for EyeWatch 8 Red 6pin EyeWatch 8
GND for EyeWatch 8 Black 6pin EyeWatch 8
AUX (Analog Input) Pink - 1 analog signal input (or both Left
and Right Turn indicators analog
input via Diode)
IHC – (Analog Output) Gray - Vehicle`s high beams via
external relay or connection to
any 3rd party device
RS-485 High Green 4pin EyeWatch 3
RS-485 Low White 4pin EyeWatch 3
RS-485 GND Black 4pin EyeWatch 3
RS-485 5V DC Red 4pin EyeWatch 3
Table 2: Mobileye 8 Connect analog signals cable connection

Technical Installation Guide (4G) v1.9 www.mobileye.com
13 Mobileye 8 Connect
5.4 Ferrite
5.4.1 Ferrite for Power Sources -Model 1 (ITM000786)
5.4.2 Instructions for power sources (CAB000371)

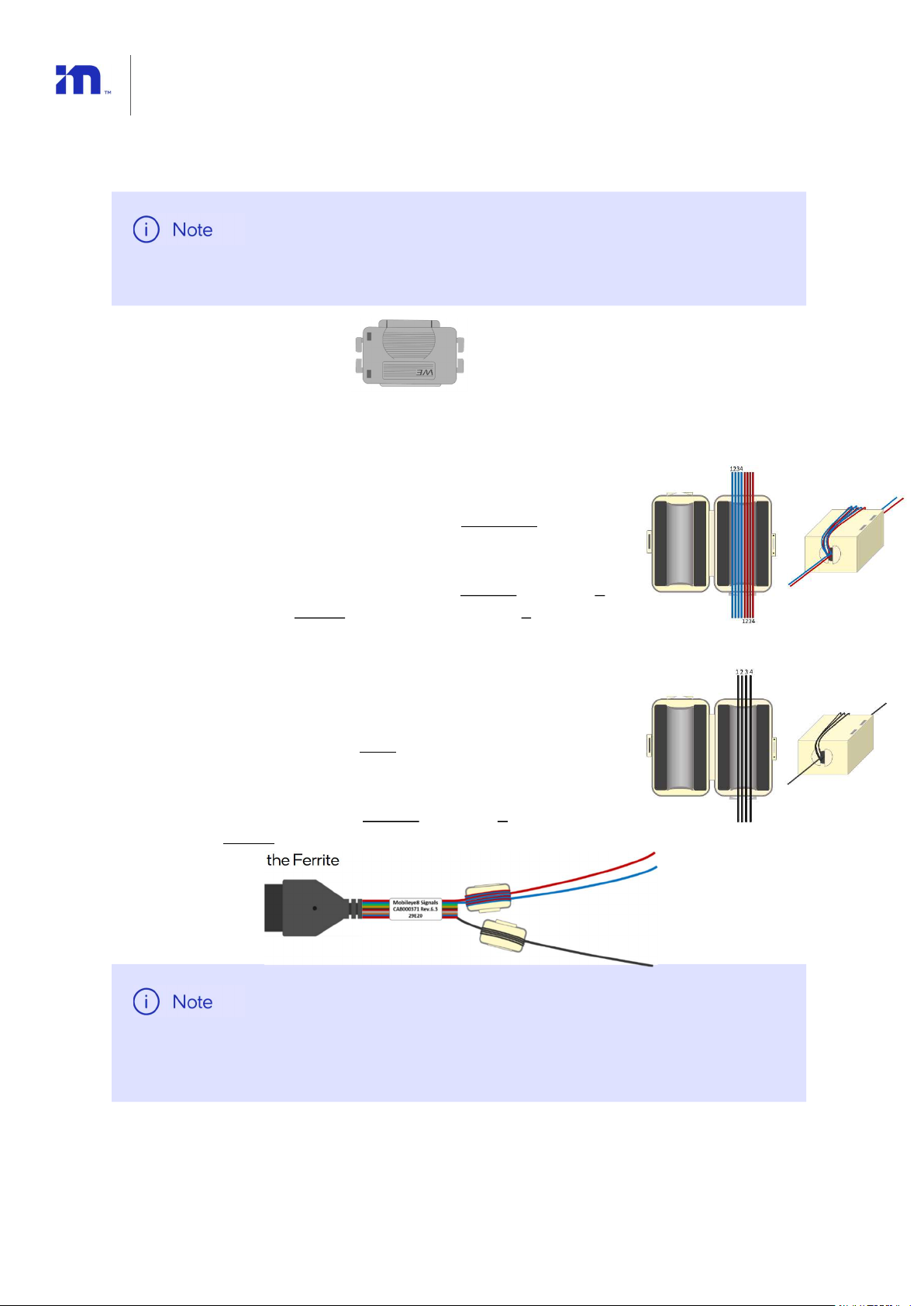

Please follow the instructions bellow for the two ferrites
installation:
1. Place both Mobileye BAT+ wire and Ignition wire (CAB000371)
together inside the first Ferrite.
2. Locate the Ferrite 5cm from the Mobileye CAB000371 label
3. Wrap the BAT+ and Ignition wires through the Ferrite 2 times and around the outside
of the Ferrite 1 times, as shown in the figures
4. Place the Mobileye GND wire in the second Ferrite
(locate the Ferrite filters 5cm from the Mobileye
CAB000371 label).
5. Wrap the GND wire through the Ferrite 2 times and around the outside of the Ferrite
1 times, as shown in the figures
The Ferrite size and shape may vary different between different Ferrite models.
 Ferrite installation on power lines is mandatory in CE marking countries.
 Ferrite installations are not mandatory for FCC and E-Mark certificates.

Technical Installation Guide (4G) v1.9 www.mobileye.com
14 Mobileye 8 Connect
5.4.3 Ferrite for Power Sources -Model 1 (ITM000777)
5.4.4 Instructions for power sources (CAB000371)
Please follow the instructions bellow for the two ferrites installation:
1. Open the Ferrite using a small flat screwdriver.
2. Place both Mobileye BAT+ wire and Ignition wire
(CAB000371) together inside the first Ferrite.
3. Locate the Ferrite 5cm from the Mobileye CAB000371
label
4. Wrap the BAT+ and Ignition wires through the Ferrite 4
times and around the outside of the Ferrite 3 times, as
shown in the figures
5. Lock the Ferrite
6. Open the second Ferrite using the supplied Key or small
flat screwdriver
7. Place the Mobileye GND wire in the second Ferrite (locate
the Ferrite filters 5cm from the Mobileye CAB000371
label).
8. Wrap the GND wire through the Ferrite 4 times and
around the outside of the Ferrite 3 times, as shown in the figures
9. Close the Ferrite
The Ferrite size and shape may vary different between different Ferrite models.
 Ferrite installation on power lines are mandatory in CE marking countries.

Ferrite installations are not mandatory for FCC and E
-
Mark certificates.

Technical Installation Guide (4G) v1.9 www.mobileye.com
15 Mobileye 8 Connect
5.5 EyeWatch 3 – display and control unit (CAB000087) -OPTION 1
The EyeWatch is connected to the Mobileye 8 Connect EyeWatch female connector
(J1) using the EyeWatch connecting cable male connector (J1).
Table 3: EyeWatch connections
Wire name
Wire color
Connector
Connection to
EyeWatch Cable
(CAB000087)
Black J1 - Female EyeWatch 4pin male connector in
CAB000371
EyeWatch (CAB000371) Black J1 – Male ME8 Signals cable 4 Pin connector for
EyeWatch unit
5.6 EyeWatch 8 – display and control unit (CAB000401) -OPTION 2
The EyeWatch 8 is connected to the Mobileye 8 Connect signals cable with the
EyeWatch male connector (P1) to the Signals cable EyeWatch 8 female connector (P2).
Table 3: EyeWatch connections
Wire name Wire color Connector Connection to
EyeWatch 8 Cable
(CAB000401)
Black P1 - Male EyeWatch 6 pin female connector in
CAB000371
EyeWatch (CAB000371) Black P2 – Female ME8 Signals cable 6 Pin male connector
for EyeWatch 8 unit
EyeWatch 8 is compatible only with ME8 units with the following cables:
 CAB000400 Rev3.3 and up.
 CAB000371 Rev6.3 and up.

Technical Installation Guide (4G) v1.9 www.mobileye.com
16 Mobileye 8 Connect

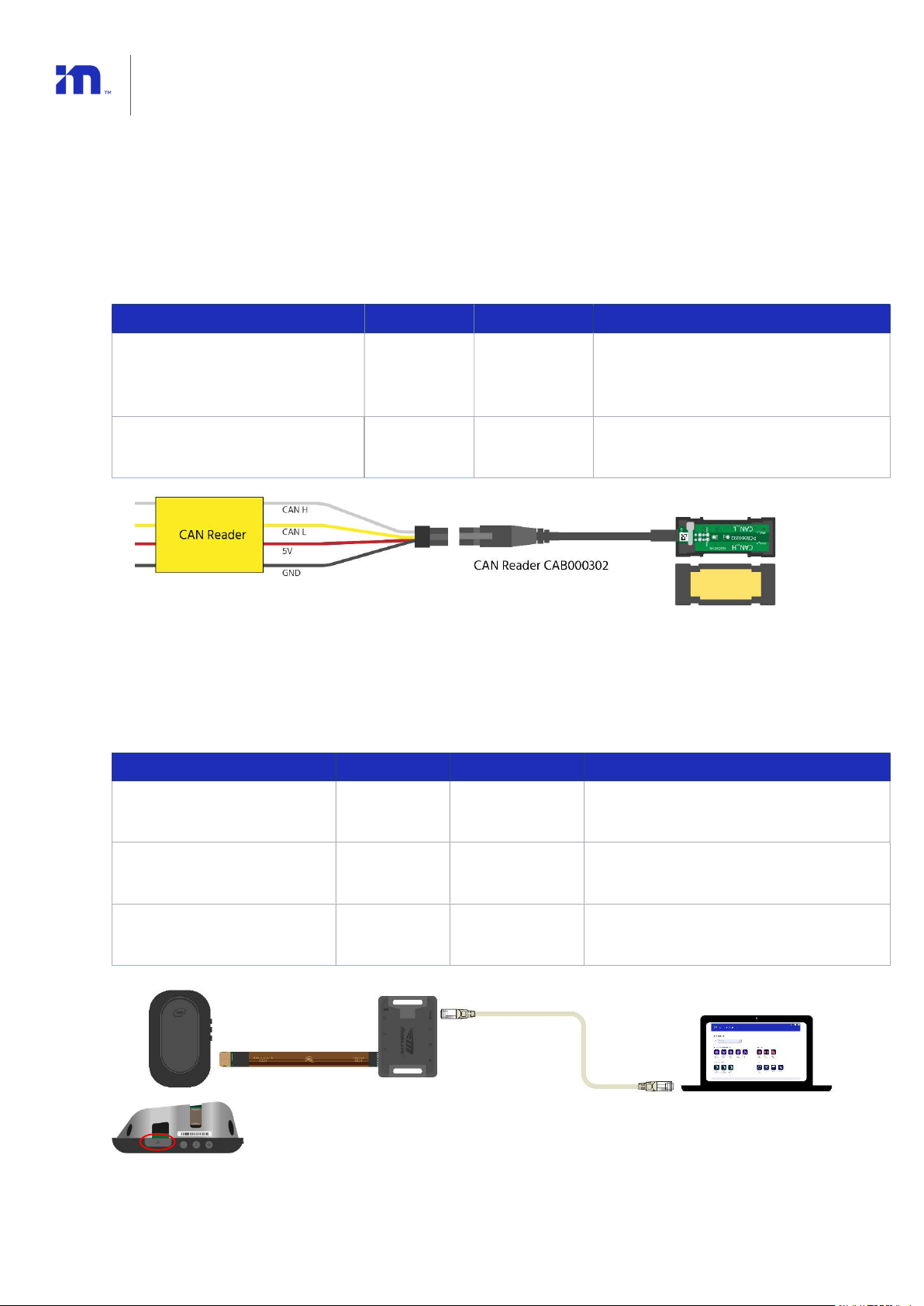

5.7 CAN Reader – CAB000302
The Mobileye CAN-Reader is a non-intrusive solution for CAN-bus connection.
The Mobileye CAN Reader will allow you to better handle a CAN-bus reading by simply
placing the Reader on the vehicle CAN-bus wires without any wire cutting or pinching.
Wire name Wire color Connector Connection to
Power sources and signals cable
(CAB000371)
Red, Black,
Yellow and
White
Male Mobileye CAN Sensor
Mobileye CAN Sensor
(CAB0003002)
Black Female Power sources and signals cable
(CAB000371)
5.8 EyeNET – (EYENET0001 / CAB000613)
The Mobileye 8 Connect service port female connector (P2) is used to connect to the
Mobileye EyeNET short cable male connector labeled “MOBILEYE8 SIDE” (J5).
Wire name Wire color Connector Connection to
EyeNET short cable
(BRD000350)
Brown Male Mobileye 8 Connect service port
EyeNET Ethernet LAN port Female LAN port for Ethernet cable between the
EyeNET and the PC
Mobileye 8 Connect service
port
Female EyeNET cable
Table 4: EyeNET connections

Technical Installation Guide (4G) v1.9 www.mobileye.com
17 Mobileye 8 Connect
6. Connection Description
6.1 Site preparation
 Make sure the vehicle is parked on a flat surface (no slope).
 Check vehicle speed signal availability (either by CAN-bus or by Analog) to
determine which type of installation will be for the Master camera (CAN,
Analog, Mix).
6.2 Vehicle signals connections
Please ensure to identify the Mobileye 8 Connect cables according to table below.
Identified vehicle’s signals Wires label Wires color
Vehicle battery (Constant 12V~24V) via 2A fuse BAT+ Red
Ignition (12V~24V) via 2A fuse Ignition Blue
Vehicle GND GND Black
CAN B High CAN Reader White
CAN B Low CAN Reader Yellow
Identifying the vehicle’s electrical signals requires having the keys in the ignition in the ACC
(Accessory) position or ignition ON. Make sure the car headlights and/or any other power
consuming devices/applications, e.g. air conditioning, are turned off during Mobileye 8 Connect
installation to prevent battery drainage.

Technical Installation Guide (4G) v1.9 www.mobileye.com
18 Mobileye 8 Connect

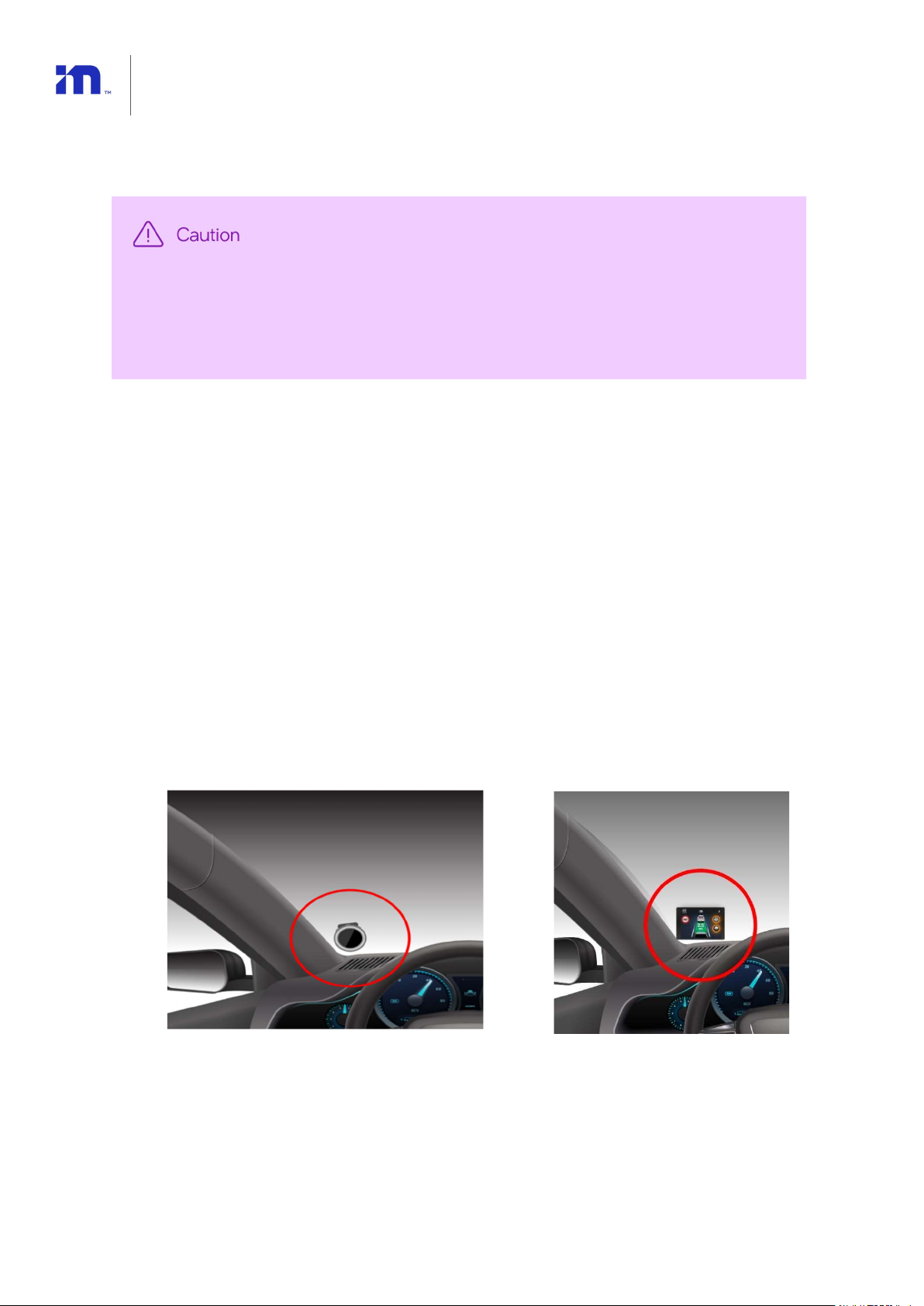

6.3 EyeWatch Installation
Select the optimal location for the EyeWatch attachment:
1. The EyeWatch should be placed on the dashboard or windshield at a location
within the driver’s field of view, conveniently visible while driving, and allowing
access to its controls while sitting comfortably in the driver’s seat (the EyeWatch
mounting angle is adjustable by the installer — a Philips's screwdriver is required)
2. Clean the selected location with the provided 3M VHB Surface cleaner
3. Attach the EyeWatch at the selected place (after removing the protective cover
from the adhesive tape)
4. Remove the transparent protecting covering from the display surface
5. Insert the EyeWatch cable (CAB000087/CAB000401) behind the vehicle
trimmings so that it reaches the EyeWatch connector of the Mobileye 8 Connect
cable (CAB000400)
 The EyeWatch unit should be placed in a location that does not obstruct the driver’s field
of vision
 The EyeWatch should not be placed in front of the air-bags operational space as it may
otherwise prevent the airbag from fully opening or cause injury during air-bag activation

Technical Installation Guide (4G) v1.9 www.mobileye.com
19 Mobileye 8 Connect
6.4 Mobileye 8 Connect main unit (camera) installation
 Minimum height for camera location is 1.2 meters (3.9 feet).
Maximum height for camera location is 1.8 meter (5.9 feet).
 The unit must be in an area of the windshield which the windshield wipers reach.
 The unit should preferably be located at the center of the windshield.
Installing the unit off-center in a convex windshield will result an improper field of
view, which will affect system performance. The camera’s lens should always
face straight ahead.
 Off-center installation is allowed up to 8%
EXAMPLE: if the vehicle width is 200cm (2M), camera can be attached up to 16
cm from the windshield center (200*0.08=16). Vehicle width in cm X 0.08 = MAX
OFFSET
 Camera roll-up is allowed up to 2°; if the camera roll is higher than 2°, the
calibration will fail.
 There should be no obstruction, such as stickers or darkened windshield areas,
in front of the main unit.
 In tall commercial vehicles that do not have an engine hood blocking the
camera’s field of view, the main unit can be placed on the lower part of the
windshield; however, all the above-mentioned requirements must nonetheless
be considered. In this case, you can modify the main unit cable to the "DOWN"
position. “DOWN” means that after the main unit installation, the main cable exits
from downwards instead of upwards (by default the cable exits upward from the
“UP” position).
Selecting the optimal location for the main unit is critical and can affect system performance.
Please ensure to comply with the following guidelines.
In extreme cases and upon approval of Mobileye support team, it is possible to install the
camera above 1.8 meters BUT this will void any REM data which can affect the project
target.
