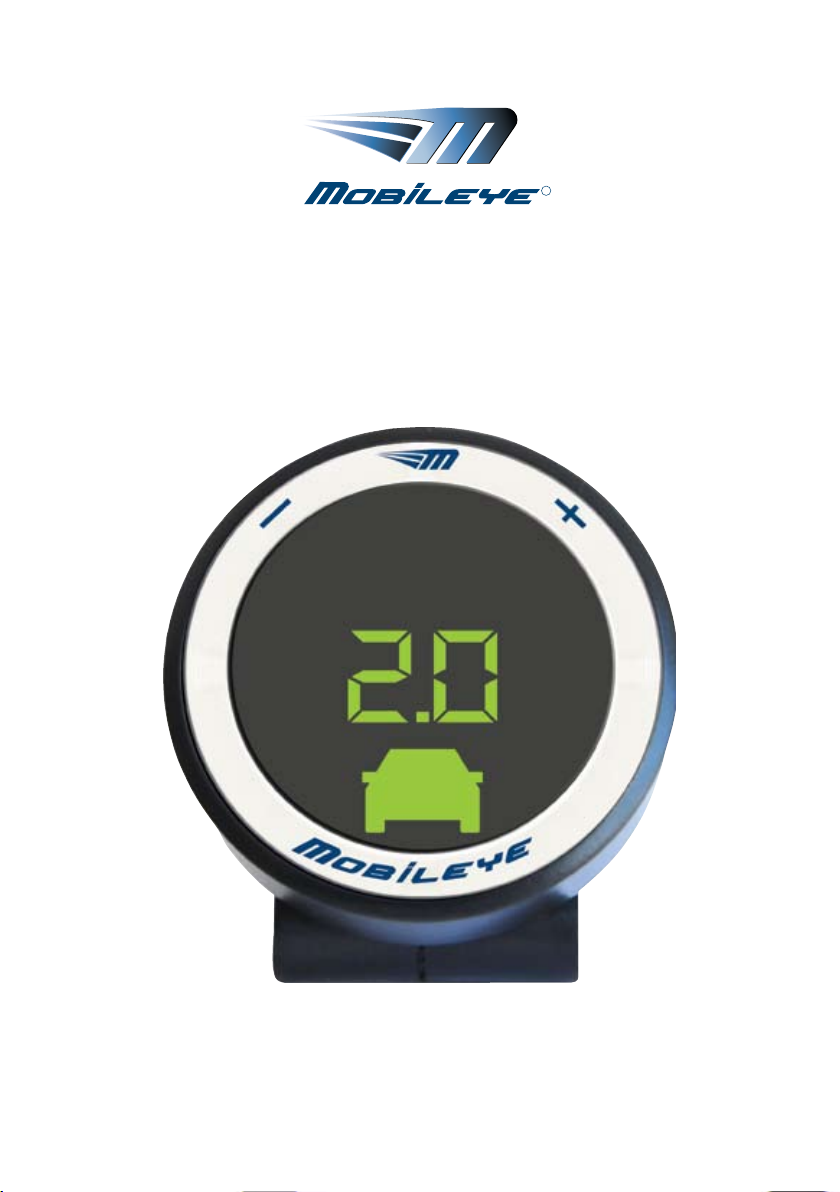

Mobileye C2-270 User manual

R
C2-270
Collision Prevention System
User Manual

2
Before Using MoBileye C2-270
Before installing or using the Mobileye® C2 carefully read this User Manual and the
important safety instructions and warnings it contains.
liCensing and Warranty
Please read Sections 12 in this User Manual for licensing and warranty issues. Please
return the warranty card, located at the end of the manual, to activate your original
purchaser warranty.
Patents
The following patents have been issued and assigned to Mobileye:
US 6,704,621
US 7,113,867
US 7,151,996
US 6,219,444
EP 1236126
EP 1741079
Every effort has been made to ensure the accuracy of all information in this
User Manual. However, Mobileye Technologies Limited makes no expressed or
implied warranty or representation based on the enclosed information. Mobileye
Technologies Limited reserves the rights to alter the equipment specifications and
descriptions in this publication without prior notice. Any errors or omissions may be
reported to Technical Support, Mobileye Technologies Limited.
Email: [e-mail]
© 2007-2010 Mobileye Technologies Limited. All rights reserved. Reproduction in
whole or in part without written permission is prohibited. Mobileye, Mobileye C2,
and the Mobileye logo are registered trademarks of Mobileye Technologies Ltd.
www.mobileye.com

3
Section 1
Warnings
1.1. General
1.2. System Limitations
1.3. Installation and Safety Instructions
Section 2
System Components
2.1. Camera/Buzzer Unit
2.2. Windshield Mount
2.3. Display and Control Unit
Section 3
Getting Started
3.1. Turning on Mobileye C2-270
Section 4
Forward Collision Warning (FCW)
4.1. What is FCW?
4.2. FCW is Generated When…
4.3. FCW Audio Alert
4.4. FCW Activation
4.5. FCW Visual Alert
4.6. When is FCW Not Generated?
Section 5
Pedestrian Collision Warning (PCW)
5.1. What is PCW?
5.2. PCW is Generated When…
5.3. PCW Audio Alert
5.4. PCW Visual Alert
5.5. PCW Activation
Section 6
Lane Departure Warning (LDW)
6.1. What is LDW?
6.2. LDW is Generated When…
6.3. LDW Audio Alert
6.4. LDW Visual Alert
6.5. LDW Activation
6.6. When is LDW not Generated?
Section 7
Intelligent High-beam Control (IHC)
7.1. What is IHC?
7.2. IHC Activation
4
4
4
4
5
6
6
6
6
7
8
8
8
9
9
9
9
9
9
9
9
10
10
10
10
10
10
10
11
11
11
11
11
11
11
11
12
12
12
12
7.3. IHC will not activate the high beams when
7.4. IHC Visual Alert
Section 8
Headway Monitoring and Warning (HMW)
8.1. What is HMW?
8.2. A Headway Warning is Generated When…
8.3. HMW Visual Alert
8.4. HMW Audio Alert
8.5. HMW Activation
8.6. When are HMW Audio Warnings
Not Generated?
8.7. Changing the Timing of the Headway
Audio Alert
Section 9
Display Unit
9.1. Left/Right Deviation Alert
9.2. Pedestrian Forward Collision Alert
9.3. Headway Visual Alert - (Car Icon)
9.4. Headway Distance Meter
9.5. Low Visibility Indication
9.6. IHC Indication
9.7. Mute
9.8. System On
9.9. Zero speed indication
Section 10
Control Buttons
10.1. Mode Selection
( )
10.2. Increase/Decrease Volume (+/-)
10.3. Mute
10.4. Urban FCW Sensitivity
Section 11
Troubleshooting
Section 12
License and Warranties
12.1. Limited Use License
12.2. Limited Warranty
12.3. Warranty Disclaimer
12.4. If Warranty Service Is Needed
Section 13
Technical Support
12
12
13
13
13
13
13
14
14
14
15
16
16
16
16
16
16
17
17
17
17
17
18
18
18
21
22
22
23
23
25
25
25
25
25
26
27
27
TABLE OF CONTENTS

4
Section 1
Warnings
1.1. General
By Installing the Mobileye® C2® Collision Prevention System, you will be
acknowledging and agreeing to operate the Mobileye C2 in accordance with the
Safety Instructions and Warnings set forth below. If you do not agree to these
terms, please return Mobileye C2 to your dealer, in its original packing materials,
within 30 days of purchase, for a full refund.
Mobileye C2 is a Collision Prevention System which is intended to alert drivers to
certain potentially dangerous situations. It does not replace any functions drivers
would ordinarily perform in driving a motor vehicle, nor does it decrease the need
for drivers to stay vigilant and alert in all driving conditions, to conform to all safe
driving standards and practices, and to obey all traffic rules and regulations.
Mobileye C2 is not an automated driving system and it does not act as a substitute
for any aspect of driver vehicle control or safe driving practices. Drivers are strongly
cautioned not to rely on the Mobileye C2 as a substitution, to even the slightest
degree, for the exercise of due caution in assuring that they are driving safely and
avoiding accidents.
While Mobileye C2 represents a state of the art innovation in machine vision
software and other technologies, it cannot and does not guarantee 100% accuracy
in the detection of vehicles, pedestrians or driving lanes, nor in providing warnings
of all potential road hazards. In addition, road, weather and other conditions can
adversely affect the Mobileye C2 system’s recognition and response capabilities.
Accordingly, drivers should not rely on the Mobileye C2 to assure their driving safety,
but rather should continue to rely on safe driving practices.
Drivers should exercise caution in using the Mobileye C2 Display Unit. Always
maintain full concentration on the road at all times including while looking at the
Mobileye C2 display.
1.2 System Limitations
lThe Mobileye C2 is intended for paved roads, with clear lane markings.
lThe Mobileye C2 only detects fully visible rear ends of vehicles. Therefore the
detection of crossing, oncoming, and passing vehicles, is not supported.
lThe Mobileye C2 does not guarantee 100% accuracy in the detection of vehicles,
Warnungen

5
pedestrians or driving lanes, nor in providing warnings of all potential road
hazards. In addition, road, weather and other conditions can adversely affect the
Mobileye C2 system’s recognition and response capabilities.
lAny conditions that form partial or full blockage of the camera’s view will result in
reduced or non-functionality of Mobileye C2. Always ensure clear camera view.
1.3 Installation and Safety Instructions
lMobileye C2 installation must be carried out by an Authorized Mobileye C2
Dealer or Installer.
lThe Mobileye C2 system should not be transferred between vehicles, other than
by an Authorized Mobileye C2 Dealer or Installer.
lThe Mobileye C2 should only be operated with 12VDC~24VDC power.
lDo not cover or obstruct the Camera Unit or Mobileye C2 Display and Control Unit.
lDo not use Mobileye C2 system for any purpose other than described in this User
Manual.

6
Section 2
SysteM CoMPonents
The Mobileye C2-270 includes the following components:
lCamera/Buzzer Unit
lDisplay and Control Unit
2.1 Camera/Buzzer Unit
The Camera/Buzzer Unit contains the camera, the main processor and the warning
buzzer of the Mobileye C2-270 system. The Camera/Buzzer Unit:
lIdentifies lane markings
lIdentifies vehicles and Pedestrians that are ahead of you
lProcesses the video data for potentially dangerous situations
lInstructs the system display unit as to which alert to display
The Camera Unit is attached to the front windshield by a Windshield Mount – a black
plastic element that fastens the Camera Unit to the front windshield. (Please refer to
the following illustration.)
IMPORTANT NOTE: To prevent possible degradation in system accuracy, do not
remove or tamper with the Camera Unit or the Windshield Mount.
CAUTION: The Camera Unit can heat up during operation. Refrain from touching
the Camera Unit during or immediately after operation.
2.2 Windshield Mount
The Windshield Mount is used to attach the Camera Unit to the front windshield. It
also protects the Camera Unit, and ensures a clear, unobstructed view. The Power
Indication Light on the back left side of the Windshield Mount (following illustration)
indicates that the Camera Unit is receiving power.
Back View Front View
Camera/Buzzer Unit and Display & Control Unit
C2-270 system components

7
2.3 Display and Control Unit
The Display and Control Unit provides you with:
lVisual alerts (for example, visual indication of your current driving distance
from the vehicle ahead).
lSystem status indications (for example, a low visibility situation)
lControl buttons for system control and configuration
The Display and Control Unit is attached either to the dashboard or to the front
windshield of the vehicle.
Windshield Mount and Camera Unit attached to the front windshield
Windshield Mount
Power Indication Light
Rear View Mirror

8
Section 3
Getting Started
3.1 Turning on Mobileye C2-270
The system is turned on automatically when the car is started.
NOTE: The Mobileye C2-270 is fully operational and requires no additional setup
by the driver. Should the need arise to change the C2-270 configuration, please
refer to section 8 of this manual before trying to use the Mobileye C2-270 control
panel. Careless changes in system settings may result in undesirable behavior.
Seconds after starting the car, the Mobileye C2-270 display, will show the “System
Ready” screen.
The displayed elements on the “System Ready” screen are:
l“_ ._” A green dot (in the center part of “System Ready” screen) indicates
that Mobileye C2-270 is On (operative)
l“_._” – Zero Speed Indication - this indication (in the center part of
“System Ready” screen) appears whenever the car is at a standstill. It will
disappear when the car starts moving.
Systembestandteile
The “System Ready” screen

9
Section 4
ForWard Collision Warning FCW
4.1. What is FCW?
The Forward Collision Warning alerts you to the danger of an impending collision
with the vehicle ahead. The Mobileye C2-270 calculates the expected Time to Collision
(TTC) with the vehicle in front and when the TTC drops to a dangerous threshold, it
immediately generates an FCW alert.
4.2 FCW is Generated When…
An FCW is generated up to 2.7 seconds before possible collision with the vehicle in
front.
4.3. FCW Audio Alert
An FCW audio alert is a series of loud, high-pitched beeps which effectively draw
your attention to the emergency.
4.4. FCW Activation
The FCW function is always active.
4.5. FCW Visual Alert
When an FCW is emitted, a red, flashing car icon is shown on the Display Unit (please
refer to the following illustration).
4.6. When is FCW Not Generated?
A FCW is always active unless the system has been turned off.
IMPORTANT NOTE: The Forward Collision Warning is a critical alert that cannot
be disabled or muted. However, if the system is turned off, no warnings will
be issued, including FCW.
FCW visual alert

10
Forward Collision Warning (Vorrausschauende Kollisionswarnung (FCW)
Section 5
Pedestrian Collision Warning (PCW)
5.1 What is PCW?
The Pedestrian Collision Warning alerts you to the danger of an impending colli-
sion with a Pedestrian ahead. The Mobileye C2-270 calculates the expected Time to
Collision (TTC) with the Pedestrian in front and when the TTC drops to a dangerous
threshold, it immediately generates an PCW alert.
5.2 PCW is Generated When…
An PCW is generated before possible collision with a pedestrian in front.
5.3 PCW Audio Alert
A PCW audio alert is a series of loud, high-pitched beeps which effectively draw
your attention to the emergency.
5.4 PCW Visual Alert
When an PCW is emitted, a red, flashing pedestrian icon is shown on the Display
Unit (please refer to the following illustration).
5.5 PCW Activation
Day Time - PCW is operational from the moment the system is turned on and up to
speeds of 75 km/h (46 mph).
Night Time – Limited operation
PCW visual alert

11
Left and Right Deviation Alert – visual indication
Section 6
Lane DePartUre Warning LDW
6.1. What is LDW?
The Mobileye C2-270 provides a Lane Departure Warning (LDW) to alert you when
you are about to unintentionally swerve outside of the lane you are driving in.
6.2. LDW is Generated When…
LDW alerts you when the car begins to swerve from the driving lane. The system
generates an LDW alert up to 0.5 seconds before the vehicle crosses the lane marking.
If you use the turn signal prior to moving between lanes, an alert is not generated.
6.3. LDW Audio Alert
The LDW audio alert is emitted for duration of 0.7 seconds.
6.4. LDW Visual Alert
On the Mobileye C2-270 Display Unit, the relevant right or left Lane Departure
indicator flashes, as shown in the following illustration.
6.5. LDW Activation
The LDW is active at speeds above 55 km/h (34 mph).
NOTE: If your wheels touch the inner lane marking on a curve, the warning will
be somewhat delayed, to avoid unnecessary alerts.
6.6. When is LDW not Generated?
An LDW will not issue an audio alert in any of the following circumstances:
lLanes are poorly marked or unmarked.
lYou signal before changing lanes.
lThe LDW is disabled (sensitivity level is set to zero).
lYou make a sharp turn (such as at an exit at a highway interchange).
lThe system has been intentionally muted.
lYou are driving at speeds below 55 km/h (34 mph)

12
Section 7
intelligent HigH-BeaM Control (iHC)
7.1. What is IHC?
The IHC assists the driver in controlling the vehicles high beams and increases their
correct use by automatically switching from low beams to high beams when no
traffic is in close proximity to your vehicle on dark road.
7.2. IHC Activation
The IHC is active at night when no traffic is in close proximity to your vehicle on
dark roads.
7.3. IHC will not activate the high beams when
lWhenever tail lights are recognized in front of the host vehicle up to a distance of
400m and can track the vehicle to well beyond this range.
lWhenever there is an oncoming vehicle up to a distance of 800m.
lWhenever the host vehicle enters a well lit (urban) area or when street lights
are detected.
7.4. IHC Visual Alert
The High-beam indicator will light on the EyeWatch Display.
Lane Departure Warning (Spurverlass -Warnung) (LDW)
IHC visual alert
IHC Indication
IMPORTANT NOTE: This feature is available only on certain Mobileye
C2-270 models.
This feature is available only if activated during the system Installation
This feature is available only on certain geographical areas.

13
Kontrollschalter
Section 8
HeadWay Monitoring and Warning (HMW)
8.1. What is HMW?
The Mobileye C2-270 Headway Monitoring and Warning monitors the driving distance
from the vehicle in front of you (headway) and alerts you when the headway is less
than a pre-defined threshold. Headway is measured in seconds, and not physical
distance. The headway is the number of seconds it would take for your vehicle
to reach the current position of the vehicle ahead. Mobileye C2-270 continuously
calculates your headway and displays it numerically on the Display Unit. A two-
second headway, in clear weather, is usually considered a safe distance.
8.2. A Headway Warning is Generated When…
A headway warning is initiated when the headway value is less than a pre-defined
threshold. This value is configurable by the user.
8.3. HMW Visual Alert
The Headway Meter displays the Headway distance in seconds. As long as there is a
vehicle ahead of you in your lane, the Headway Meter’s displayed value is continuously
updated. If no headway value is displayed, the vehicle in front of you is more than
2.5 seconds away.
Headway Meter (in Seconds)
There are 2 HMW visual alerts, shown in the following illustration, issued according
to the proximity of the two vehicles:
Notice – A green car icon is displayed from the moment the system detects a vehicle
in front of your car and as long as the headway remains greater than 0.6 second.
Warning! – A red car icon is displayed when headway is less than 0.6 seconds. This is
dangerous tailgating, and the distance between the two cars is perilous.

14
8.4. HMW Audio Alert
A single chime is sounded to draw your attention to a dangerous headway situation.
The timing of the warning can be customized by the user. (Please refer to Section
10.1.3 for customization instructions.)
8.5. HMW Activation
The visual indication is displayed whenever a car traveling in front of your vehicle is
detected. The audio alert and numerical display are active when you are driving at
speeds greater than 30 km/h (19 mph).
8.6. When are HMW Audio Warnings Not Generated?
While Headway Monitoring and Warning visual indications cannot be disabled, it
is possible to mute this function’s audio alert. HMW will not issue audio warnings
when:
lYou drive at speeds below 30 km/h (19 mph).
lThe Mobileye C2-270 volume level has been set to "0" or the System has been
‘muted’.
Beseitigung von Problemen und Fehlern
Notice WARNING!
HMW visual alerts
NOTES:
When a passing vehicle cuts in front of you in your lane and drives away,
a HMW alert is not generated.

15
8.7. Changing the Timing of the Headway Audio Alert
The timing of HMW audio warning is set by default to 0.6 seconds. Yo can change
this setting to any value between 0.1 and 2.5 seconds. To learn how to change the
Headway Warning timing, refer to paragraph 10.1.3.
WARNING!
l
Never configure Mobileye C2-270 while driving!
l
Setting the timing of the headway alert to a low value will activate
the alert when vehicles are very close. You are always solely
responsible for maintaining a safe driving distance from vehicles
ahead, regardless of Mobileye C2-270 warnings or lack of them.

16
2
1 1
3
9 9
4 55 4
8 7
6
Section 9
DisPlay Unit
A composite illustration, showing all C2-270 Display Unit icons, is presented in the
following figure.
9.1. Left/Right Deviation Alert
When a Lane Departure Warning is sounded, the Left or Right Deviation Alert
indicator will flash for 0.7 seconds.
9.2. Pedestrian Forward Collision Alert
Displayed only when a pedestrian or bicycle are detected ahead of you in the same
lane.
9.3. Headway Visual Alert - (Car Icon)
Displayed only when a vehicle is detected ahead of you in the same lane.
Colored green or red according to headway alert severity.
9.4. Headway Distance Meter
A two–digit number that displays the headway (in seconds) from the vehicle ahead.
Only values of 2.5 Headway seconds or less are displayed.

17
9.5. Low Visibility Indication
lDimming of the Seven Segment (headway distance meter).
lDisplayed during low visibility conditions (bad weather, direct sunlight, dirt
on windshield, etc.) The Mobileye C2-270 continues to work but there may be
degradation in detection ability. If low visibility persists, check for possible camera
obstructions (dirt, humidity, etc.).
9.6. IHC Indication
Displayed whenever the IHC is operational.
9.7. Mute
Mute mode is indicated by a flashing green dot in the center part of the EyeWatch
Display.
9.8. System On
A green dot indicates that the Mobileye C2-270 is ON (operative).
9.9. Zero speed indication
When the ego speed of the vehicle is zero, the two bottom lines of the two digits
are turned on (thus indicating zero speed).

18
Section 10
Control BUttons
WARNING!
Do not adjust Mobileye C2-270 controls while driving!
10.1.2. Setting the Brightness Level
The Brightness level of the Mobileye C2-270 display unit can be modified by pressing
on the ( ) button once. By pressing the (+) (-) buttons you can decrease or increase
the brightness level. There are 5 available levels (1-5).
Minus
button Plus button
Mode
button
Control buttons
WARNING!
When the Mobileye C2-270 is turned OFF, no warnings will be issued.
10.1. Mode Selection ( )
This button lets you adjust the following functionalities:
lSystem On/OFF
lDisplay Unit Brightness Level
lTiming of HMW audio alerts
lSensitivity of LDW alerts
lSensitivity of PCW alerts
10.1.1. System ON/OFF
To turn OFF the Mobileye C2-270, press and hold the ( ) button for 1.5 seconds
until the system shuts off.
To turn ON the Mobileye C2-270 again, press any button once.

19
NOTE: The Mobileye C2-270 identifies day and night conditions and automatically
switches between ‘Day’ and ‘Night’ modes. Each mode has its own independent
luminance level that can be configured separately. The system saves the latest
luminance settings for both ‘Day’ and ‘Night’ modes until they are changed, or
until reset to factory defaults.
10.1.3. Setting HMW Alert Timing
By default, the HMW audio alert is sounded when headway is less than 0.6 seconds. If
you wish to have the audio warning sounded earlier (at a greater headway distance),
or later (at a shorter headway), the HMW audio alert timing can be changed to a value
between 0.1 and 2.5 seconds.
WARNING!
Do not change Mobileye C2-270 settings while driving.
To set HMW audio alerts timing perform the following steps:
1. Press the ( ) button twice. This will change the system mode to "HMW
Configuration" mode. This mode will be indicated by a very slow flashing red car
icon (dim inn and dim out) and the HW warning level should be displayed by the
seven segments.
2. Press the “+” and “-” buttons to increase or decrease timing.
NOTE: Increasing the timing means the HMW audio alert will be sounded while
your vehicle is at a greater distance from the vehicle ahead than when the default
settings are in effect. If you decrease the timing, the alert will be activated when
your car is relatively close to the vehicle ahead. For example, setting the HMW
audio alert value to 1.2 seconds will cause the system to sound a warning when
headway reaches 1.2 headway seconds or less.
CAUTIONS:
Setting the Headway Monitoring Warning to a low value will generate
an alert only when you are very close to the vehicle ahead

20
10.1.4. Setting LDW Alerts Sensitivity
LDW alerts are issued, by default, up to 0.5 seconds before you swerve out of the lane,
without signaling. You can modify LDW alerts by changing LDW sensitivity. There are
three LDW sensitivity levels: 0, 1, and 2.
Level 2 is the default. Reducing sensitivity to level 1 will delay the LDW alerts, and
setting the system to "0" will turn off LDW alerts.
CAUTIONS:
l
If you set LDW sensitivity to “0”, it will disable LDW alerts.
l
To enable LDW alerts, make sure the LDW sensitivity level is set to
either level 1 or 2.
NOTE: Increasing LDW sensitivity means the LDW alerts will be issued when you
have not yet verged from the lane (either physically, or in terms of time to lane
crossing). Decreasing LDW sensitivity will let you get relatively closer to the lane
marking (either physically, or in terms of time to lane crossing), before the alert is
activated. If you select level 1, the warning line is pushed outwards by 20 cm.
To set the LDW sensitivity level perform the following steps:
1. Press the ( ) button three times. This will change the system mode into “LDW
Sensitivity” configuration mode. The “Right/Left Deviation Alert” icons will flash at
a very slow phase (dim inn and dim out) and the LDW level should be displayed by
the right digit of seven segments.
2. Press the “+” and “-” buttons to increase or decrease sensitivity.
WARNING!
Do not change Mobileye C2-270 settings while driving.
10.1.5. Setting PCW Alerts Sensitivity
You can modify PCW alerts by changing the PCW sensitivity. There are 3 PCW
sensitivity levels: 0, 1 and 2. Level 2 is the default. Reducing sensitivity to level 1 will
delay the PCW alerts. Settign the PCW sensitivity to 0 will disable all PCW warnings.
WARNING!
Do not adjust Mobileye C2-270 controls while driving!
