Preface
The Operator’s Handbook contains product specifications and
accessories, including information about
Fcharging the battery handle.
Floading supplies.
Fusing the keypad.
Fstarting an application and transferring data.
Fcollecting data and printing.
Fusing the optional laser scanner.
Fcaring for and maintaining the printer.
Ftroubleshooting.
Audience –––––––––––––––––––––––––––––––––––––––––––––––––––
The Operator’s Handbook is for both the Operator and System
Administrator.
The Operator is the person who collects data and/or prints and
applies labels or tags. The System Administrator may use
Command mode to set up specific features and functions of
the printer for the operator.
Terms to Know––––––––––––––––––––––––––––––––––––––––––––––
Application Program in the printer that may prompt
you for data, scan bar codes, print labels,
etc. This program is developed by a
programmer with your specific needs in
mind, and then is downloaded to your
printer.
i

Command mode Series of menus on your printer display
from which you can start/resume
applications, transfer data, configure the
printer or use diagnostics.
Continuous
mode Print mode in which a strip of supplies is printed with one press of the trigger.
Download (receive) Transmission of data from the host to your
printer.
Host Any mainframe, minicomputer, or personal
computer (PC).
Lowercase Alpha
mode Data Entry mode that allows you to use lowercase letters. Also enters and exits
the alternate character set for
International models.
Non-Peel mode Supply loading method in which labels are
not peeled from the backing paper during
printing.
Numeric mode Data Entry mode that allows you to use
function and number keys.
On-Demand
mode Print mode in which one label prints each time you remove the previously printed
label.
Peel mode Supply loading method in which the label
peels from the backing paper during
printing.
Special Character
mode Data Entry mode that allows you to enter ANSI characters.
Uppercase Alpha
mode Data Entry mode that allows you to use uppercase letters.
Upload (send) Transmission of data from your printer to
the host.
6030 Operator’s Handbook
ii

Chapter1. Introduction
This printer can be programmed to fit your specific needs.
You can use it to scan data or print labels specially designed
for you. In order to use the printer, an application that
includes your format and printer configuration must be
downloaded. See your System Administrator for details.
The printer features
FAlphanumeric keypad
FOn-Demand and continuous printing
FAdjustable supply width capabilities
FClock/calendar
FRS-232 communications
FGraphic printing capabilities
FDisplay backlight
FLow power shutdown to conserve the battery
FCommand mode
FLaser scanner (factory-installed option)
FAdditional RAM memory (factory-installed option)
FInternational keypad (factory-installed option).
See Appendix B, "Specifications and Accessories," for a list of
available accessories.
1-1

Using Command Mode ––––––––––––––––––––––––––––––––––––––
Command mode contains basic functions and features you can
modify for your specific needs.
nSome features of Command mode may already be set in your
application. See your System Administrator for details about
your application.
Command mode uses a series of menus on your printer to
start an
application An application must be running for you to enter or print data. See Chapter 4,
"Entering and Printing Data," for
information on starting your application.
resume an
application If you exit an application, you may restart it where you left off. See Chapter 4,
"Entering and Printing Data," for
information on resuming your application.
transfer data You must transfer data if an application
file has not already been downloaded to
your printer. See your System
Administrator to see if you need to
transfer data. If so, see Chapter 5,
"Transferring Data."
configure your
printer Your printer should already be configured. See your System Administrator if you need
to change the configuration. See Chapter
6, "Configuring the Printer," for more
information.
perform
diagnostics If you have problems with your printer, your System Administrator may need to
perform diagnostics. Chapter 10, "Using
Diagnostics," includes information for the
System Administrator.
6030 Operator’s Handbook
1-2

Using the Menus ––––––––––––––––––––––––––––––––––––––––––––
The Command mode uses a series of menus you can scroll
through to access the functions you need. The menu names
appear in uppercase letters on line 1. The menu selection(s)
appear with only the first letter capitalized on line 2 of the
display as shown.
MAIN MENU
Resume App.
While in Command mode, use the following keys:
eExecutes the selection displayed on line 2.
bReturns to the current menu or MAIN
MENU.
<>Scrolls through the menu selections.
To select an item from the MAIN MENU:
1. Press the arrow keys until you see the item you want.
2. Press e.
Repeat these steps to select an item from any sub-menu.
Chapter 1. Introduction
1-3

6030 Operator’s Handbook
1-4

Chapter2. GettingStarted
Before using the printer, you must
4charge the battery handle. (See "Charging the Battery
Handle" later in this chapter.)
4attach a fully charged battery handle. (See "Removing
and Attaching the Battery Handle" later in this chapter.)
4load your supplies. (See Chapter 3, "Loading
Supplies.")
4download your application, if necessary.
(See Chapter 5, "Transferring Data.")
nSee your System Administrator for information about the
application.
Using the Battery Handle ––––––––––––––––––––––––––––––––––––
The printer is powered by a 12VDC NiCd battery in the handle.
You can use and recharge the battery handle daily for
approximately two years.
nSee the label on the bottom of the handle about battery
recycling and disposal.
When the battery handle is not in use and not recharging, it
loses 2 to 3% of its charge per day. Extremely hot or cold
environments will increase or decrease the discharge rate.
Keep the battery handle charging when it is not in use. This
way, the printer is ready when you need it.
2-1

The following will increase the battery discharge rate
Fusing the laser scanner
Fenabling the backlight
Fprinting large amounts of data on the supply
Fprinting in On-Demand mode.
cAlways keep a charged handle attached to the printer. Storing
the printer without a handle may erase or alter the memory.
Charge the handles for the time recommended.
When to Charge the Battery Handle
Before operating the printer, charge the battery handle and
attach it to the printer. You can use one of the following
chargers.
Charger Approximate Charging Time
6093-07 115V (fast)
6093-08 230V (fast)
6094 Four Station
1.5-2 hours
1.5-2 hours
1.5 hours
To ensure maximum print quality, charge the battery handle:
Fbefore lengthy printing sessions.
Fwhen loading a new supply roll.
Fbefore transmitting data online.
Fwhen you see RECHARGE on the printer display.
6030 Operator’s Handbook
2-2

Removing and Attaching the Battery Handle
cBefore removing or attaching the battery handle, turn the
printer off.
To change the battery handle:
1. Turn the printer off.

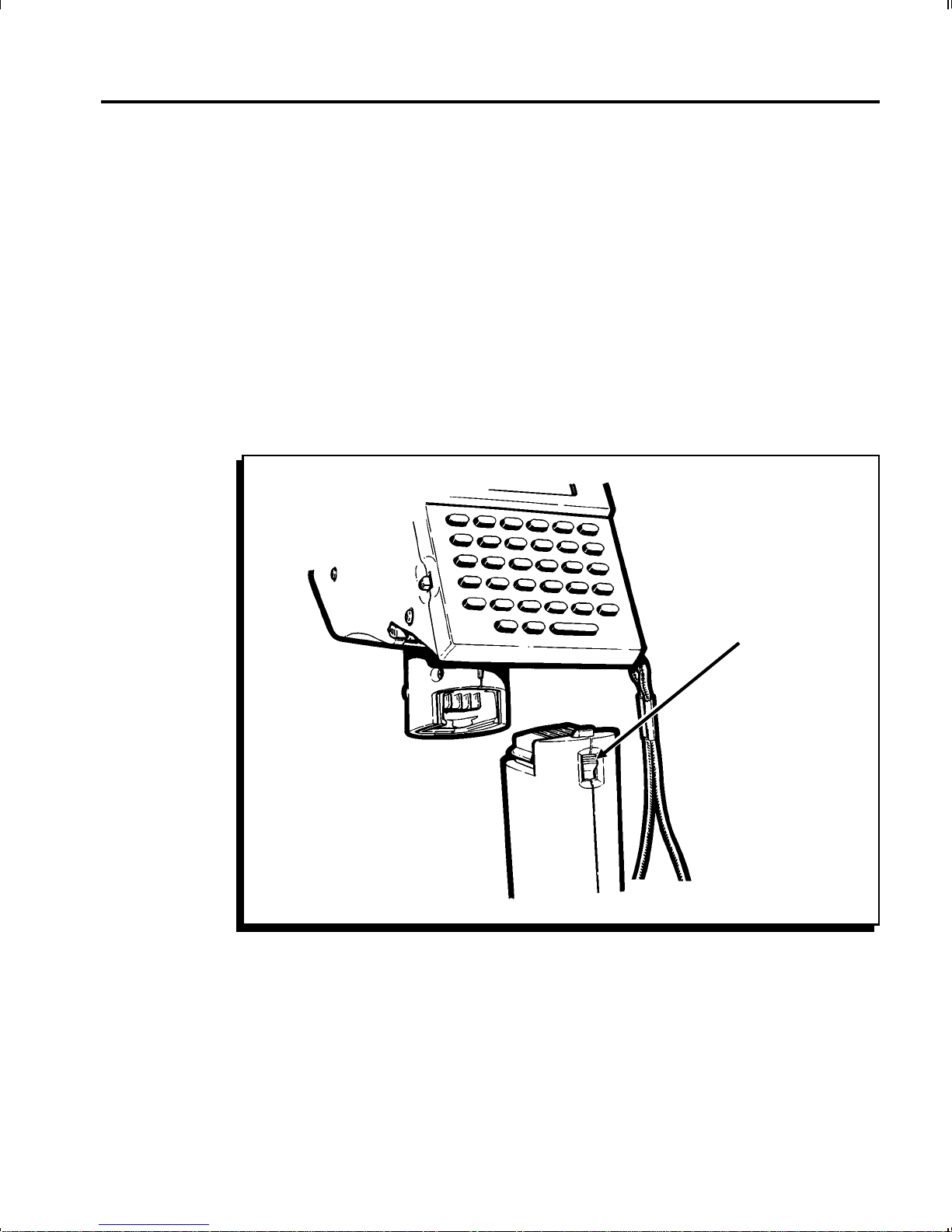

2. Hold the latch down while you slide the battery handle off
towards the back of the printer.
3. Slide a fully charged battery handle onto the printer until
the latch clicks.
nMake sure the latch clicks when you attach the battery handle.
Latch
Chapter 2. Getting Started
2-3

Charging the Battery Handle
When using or storing the wall charger:
FDO NOT wrap the cord around the charger.
FDO NOT pull or put unusual stress on the cord.
wBefore using the charger, inspect the cord for bare wires.
DO NOT use a charger with bare wires. Use only a
manufacturer approved charger.
To charge the battery handle with the wall charger:
1. Turn the printer off.
2. Remove the battery handle.
3. Put another handle on the printer.
4. Plug the round connector of the charger into the battery
handle.
5. Plug the charger into an electrical outlet of the correct
voltage.

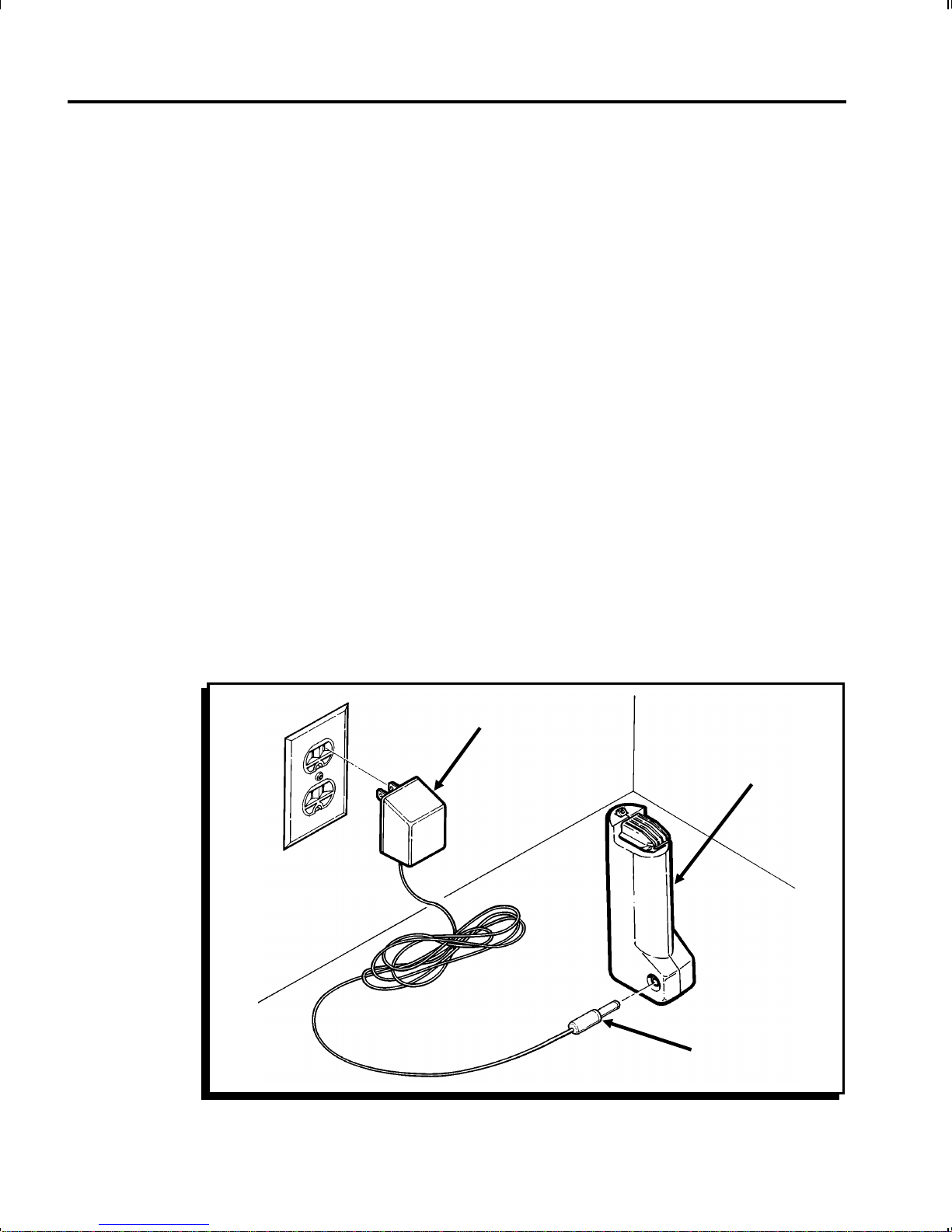

Charger
Battery
Handle
Connector
6030 Operator’s Handbook
2-4

Chapter3. LoadingSupplies
The printer uses thermal supplies:
Fsynthetic labels
Fpaper labels and tags
Fspecialty paper (non-peel mode only)
See Appendix B, "Specifications and Accessories," for
available supply sizes.

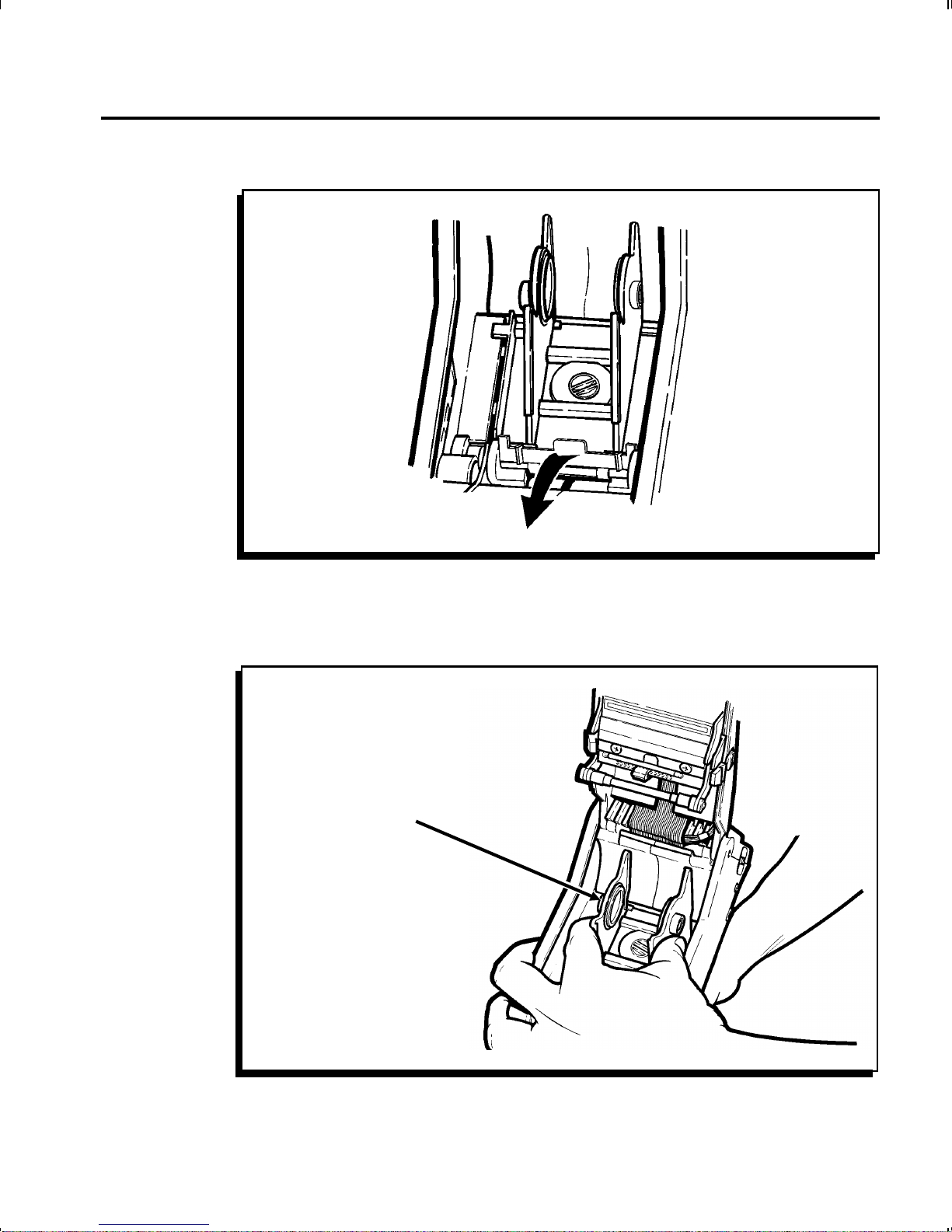

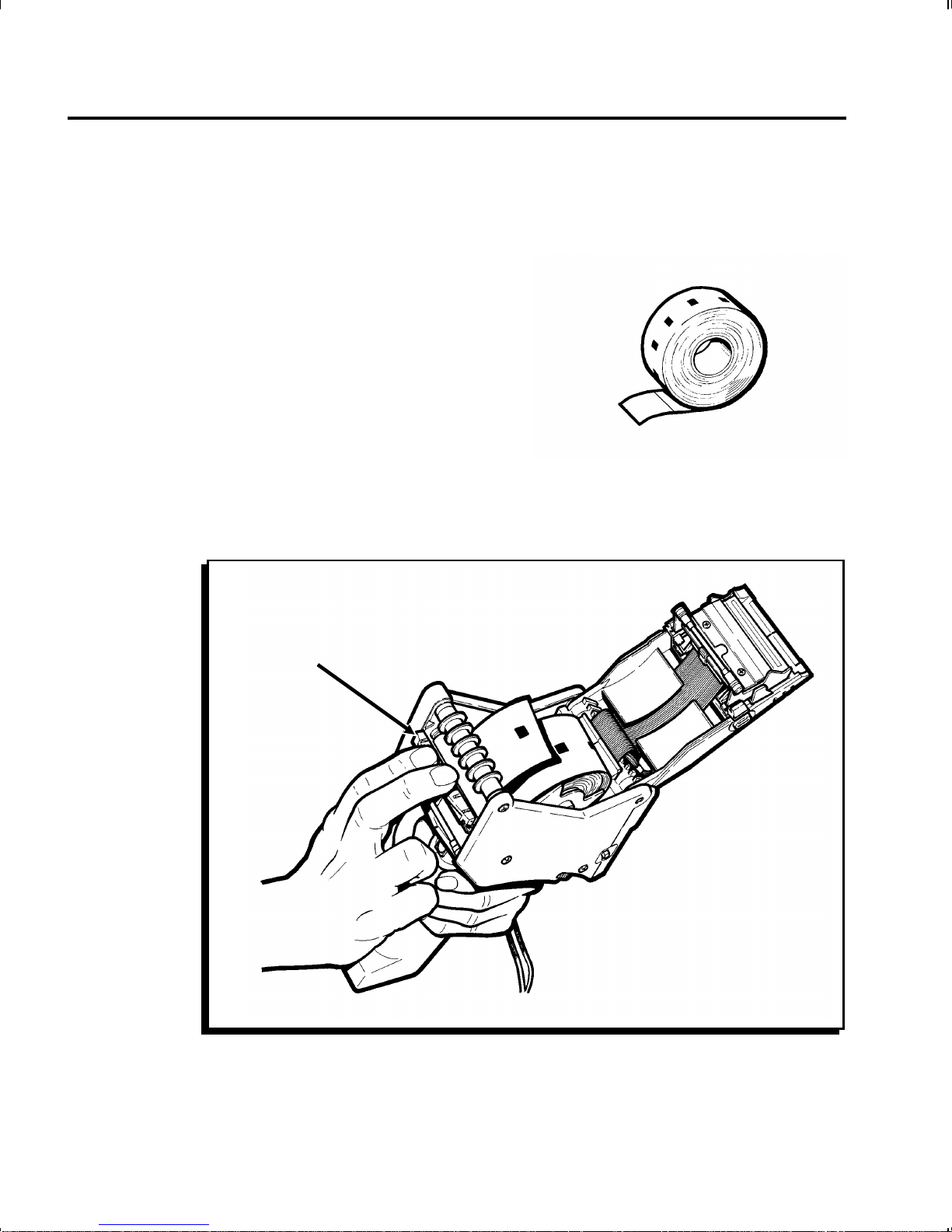

Loading Supplies––––––––––––––––––––––––––––––––––––––––––––
There are two methods for loading supplies:
FPeel mode is for labels only. Labels must be loaded in
Peel mode when the On-Demand sensor is enabled.
FNon-Peel mode is for tags, strips of labels, or specialty
paper. Supply must be loaded in Non-Peel mode when
printing in continuous mode.
3-1

Loading for Peel Mode–––––––––––––––––––––––––––––––––––––––
Peel mode separates labels from the backing paper, allowing
you to print and apply labels immediately. You must load
labels in this mode when the On-Demand sensor is enabled.
To load your supply:
1. Turn the printer on. After the printer initializes, press l.
You will see:
RELOADING_
1 = Exit
2. Press the latch buttons as shown and open the supply
cover completely.
Supply
Cover
Latch
Button
6030 Operator’s Handbook
3-2

3. Pull back the supply lock tab.
4. Squeeze or pull apart the supply holder at its base to
adjust it to the size of your supply roll. It clicks at 1.2",
1.5", and 2.0".
Supply
Holder
Chapter 3. Loading Supplies
3-3

5. Press the supply lock down to lock the supply holder in
place.
6. Remove the seal from the supply roll, peel and discard the
first four inches of labels from the backing paper.
7. Place the supply roll in the
supply holder so that it
feeds labels from the
bottom as shown. (You
may have to adjust the
supply holder.) The black
marks on the labels should
be facing down.
8. Hold the printer upright and gently press down on the label
deflector as shown. (It may be stiff.)
Label
Deflector
6030 Operator’s Handbook
3-4

9. Feed the backing paper under the applicator roller and
under the label deflector.
10. Push the label deflector up until it snaps into place.
11. Partially close the supply cover to the first position (until it
clicks once).
nDo Not close the cover completely at this step or a label jam
may occur.
Applicator
Roller
Label
Deflector
Chapter 3. Loading Supplies
3-5

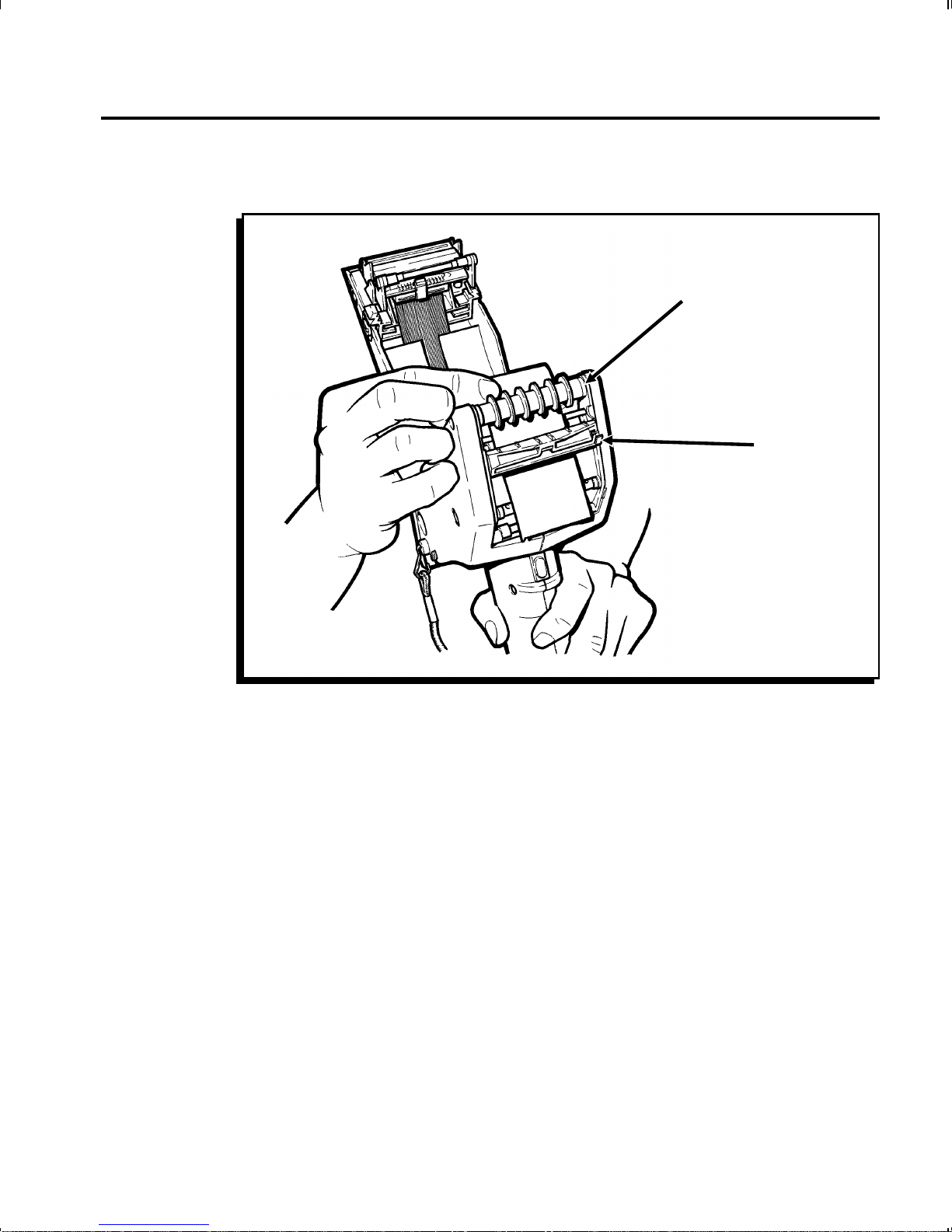

12. Hold the supply edge between the feed and pinch rollers.
Press the trigger to feed the backing paper through the
rollers.
13. Press 1if you are loading the same supply type. Press
e to start your application. Or, press 2to load a
different supply type or size. You will see:
Supply Type?
1 = Synthetic
14. Press eif this is the correct supply type.
To change the supply type, use the arrow keys to scroll to
the correct supply type and then press e.
1 = High (recommended for synthetic supplies)
2 = Low (default - recommended for paper supplies)
nDo not select Supply Types 3 or 4 since they require different
loading methods.
Feed
Roller
Pinch
Roller
6030 Operator’s Handbook
3-6
