Monogram ZXR858 User manual

Monogram.
We bring good things to life.
®
If you have questions,call 800-GE-CARES or visit our website at: www.monogram.com
Installation
Instructions
Monogram
ZXR858, ZXR859 and ZXR8510
Recirculating Accessories
For Model ZV850, Island Vent Hood

Installation Preparation
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRICAL
SHOCK OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
A. Use this unit only in the manner intended by the
manufacturer. If you have any questions, contact the
manufacturer.
B. Before servicing or cleaning unit, switch power off
at the service panel and lock service panel to prevent
power from being switched on accidentally. If the
service panel cannot be locked, fasten a tag or
prominent warning label to the panel.
For general ventilating use only. Do not use to
exhaust hazardous or explosive materials or vapors.
Structural framing, installation work and electrical
wiring must be done by qualified person(s). In
accordance with all applicable codes and standards
including fire-rated construction.
Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of
fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s
guideline and safety standards such as those pub-
lished by the National Fire Protection Association
(NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
Local codes vary. Installation electrical connections
and grounding must comply with applicable codes. In
the absence of local codes, the vent should be
installed in accordance with National Electrical Code
ANSI/NFPA 70-1990 or latest edition.
CONTENTS
Installation Preparation
Required Accessories .................................................. 3
Product Dimensions ................................................... 3
Power Supply .............................................................. 4
Tools and Materials Required .................................... 4
Remove Packaging, Check Contents ......................... 5
Install Ceiling Support ............................................... 6
Installation Instructions
Step 1, Mount Template............................................. 6
Step 2, Install Upper Support Frame ........................ 7
2
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT - Save these instructions for
local inspector’s use.
• IMPORTANT - Observe all governing
codes and ordinances.
• Note to Installer - Be sure to leave these instruc-
tions with the Consumer.
• Note to Consumer - Keep these instructions with
your Owner’s Manual for future reference.
• Skill Level – Installation of this appliance requires
basic mechanical and electrical skills.
• Completion time – 1 to 3 hours.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
For Monogram local service in your area,
1-800-444-1845.
For Monogram service in Canada, call
1-888-880-3030.
For Monogram Parts and Accessories, call
1-800-626-2002.
CAUTION:
Due to the weight and size of this vent hood and to
reduce the risk of personal injury or damage to the
product, TWO PEOPLE ARE REQUIRED FOR
PROPER INSTALLATION.
WARNING: The improper connection of
the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or
service representative if you are in doubt whether the
appliance is properly grounded.
Step 3, Install Lower Support Frame......................... 7
Step 4, Secure Wiring ................................................. 8
Step 5, Size and Install Ductwork .............................. 8
Step 6, Install Decorative Duct Covers ...................... 9
Step 7, Install Hood .................................................. 10
Step 8, Connect Electrical ........................................ 10
Step 9, Slide Duct Covers Down,
Install Utility Bars ....................................... 11
Step 10, Install Filters ............................................... 11
Step 11, Finalize Installation .................................... 11

Installation Preparation
3
REQUIRED ACCESSORIES
This book provides step by step instructions to install the
Monogram ZV850 ceiling mounted hood for recirculat-
ing operation.
• One of the following accessory kits is required for non-
vented ceiling mounted installations of model ZV850.
Choose the correct kit according to ceiling heights:
ZXR858 – For 8 ft. ceiling height.
ZXR859 – For 9 ft. ceiling height
ZXR8510 – For 10 ft. ceiling height.
• Order the required accessory at the same time as the
vent hood and have on site before installation.
• Each kit includes decorative duct covers, a support
frame, air deflector and charcoal filters.

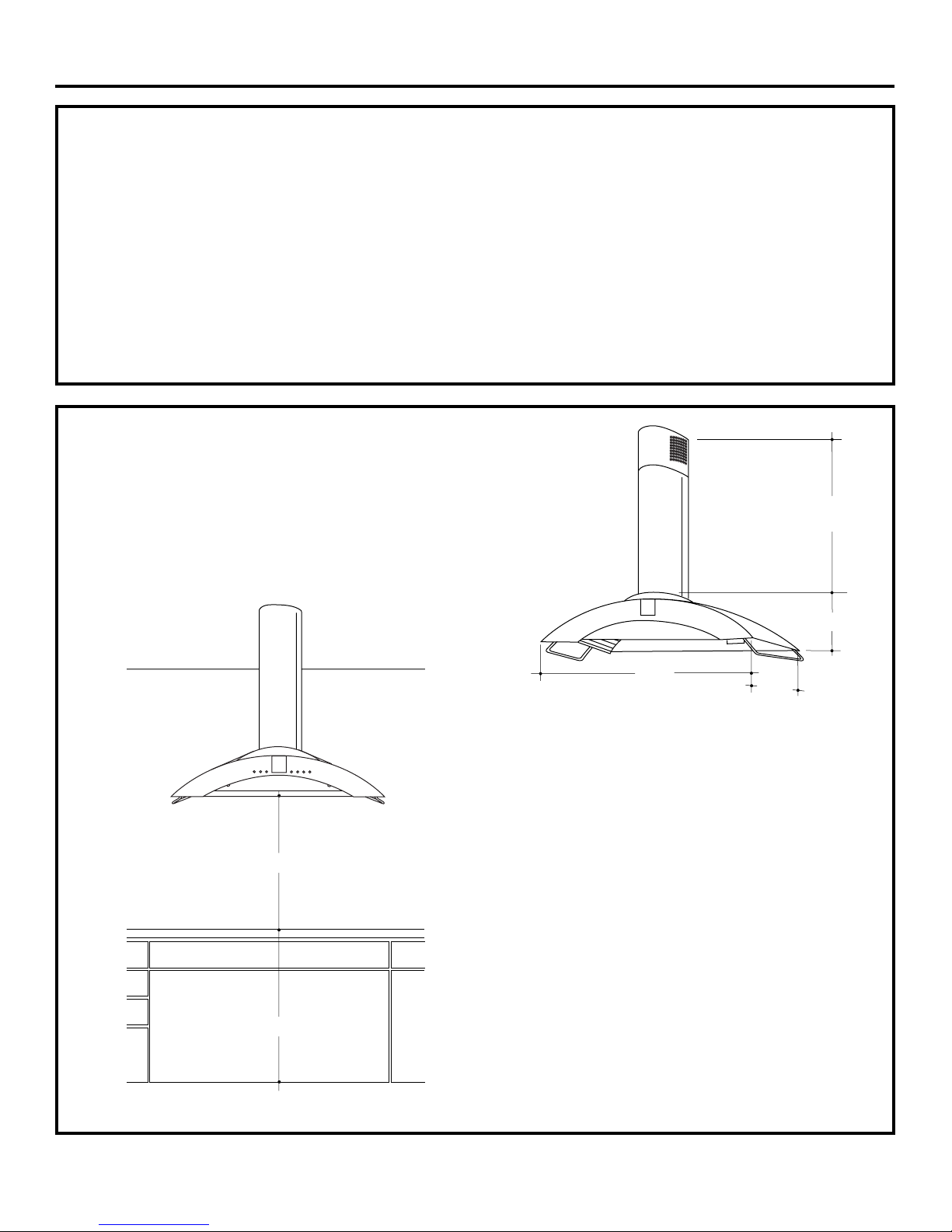

PRODUCT DIMENSIONS
The vent hood must be installed 24” min. and 30” max.
above the cooking surface. 25-1/2” is recommended for
best performance and to insure that the duct cover
meets the ceiling. The cooking surface should be at least
36” above the floor. Installation will be easier if the vent
hood is installed before the cooktop and countertop is
installed.
* 26-1/4" for 8 ft. Ceiling
Using ZXR858 Accessory
38-1/8" for 9 ft. Ceiling
Using ZXR859 Accessory
50-1/8" for 10 ft. Ceiling
Using ZXR8510 Accessory
* The distance between the cooking surface and the bottom of the
hood must be at least 24” and up to 30” The 25-1/2” recommended
installation height, above the standard 36” countertop, will insure
duct cover fit to the ceiling.
*25-1/2" Recommended
36" Reference
*Height
to Ceiling
8-1/4"
35-3/8"
27-1/2"

Installation Preparation
4
POWER SUPPLY
IMPORTANT - (Please read carefully)
WARNING:
FOR PERSONAL SAFETY, THIS APPLIANCE MUST
BE PROPERLY GROUNDED.
Remove house fuse or open circuit breaker before
beginning installation.
Do not use an extension cord or adapter plug with
this appliance. Follow National electrical codes or
prevailing local codes and ordinances.
Electrical supply
This vent hood must be supplied with 120V, 60Hz,
and connected to an individual, properly grounded
branch circuit, and protected by a 15 or 20 amp
circuit breaker or time delay fuse.
• Wiring must be 2 wire with ground.
• If the electrical supply does not meet the above
requirements, call a licensed electrician before
proceeding.
• Route house wiring in the ceiling, as close to the
installation location as possible. Allow an addi-
tional 3 feet length from ceiling joists to reach the
junction box on the hood.
• Connect the wiring to the house wiring in accor-
dance with local codes.
Grounding instructions
The grounding conductor must be connected to a
ground metal, permanent wiring system, or an
equipment-grounding terminal or lead on the hood.
WARNING: The improper connection of
the equipment-grounding conductor can result in a
risk of electric shock. Check with a qualified electri-
cian or service representative if you are in doubt
whether the appliance is properly grounded.
TOOLS AND MATERIALS
REQUIRED (NOT SUPPLIED)
• Tape measure
• Knife
• Spirit level
• Wire cutter/stripper
• Wire nuts
• Electric drill and 5/32” bit
• Phillips and flat blade screwdrivers
• Hammer
• Pliers
• 10 mm Hex wrench/socket
• Safety glasses
• Gloves to protect against sharp edges
• 120V 60Hz. 15 or 20 Amp, 2 wire with ground. Properly grounded
branch circuit.
• Strain relief for junction cover.
• Plumb
• Center punch
• 6" round duct, length to suit installation.

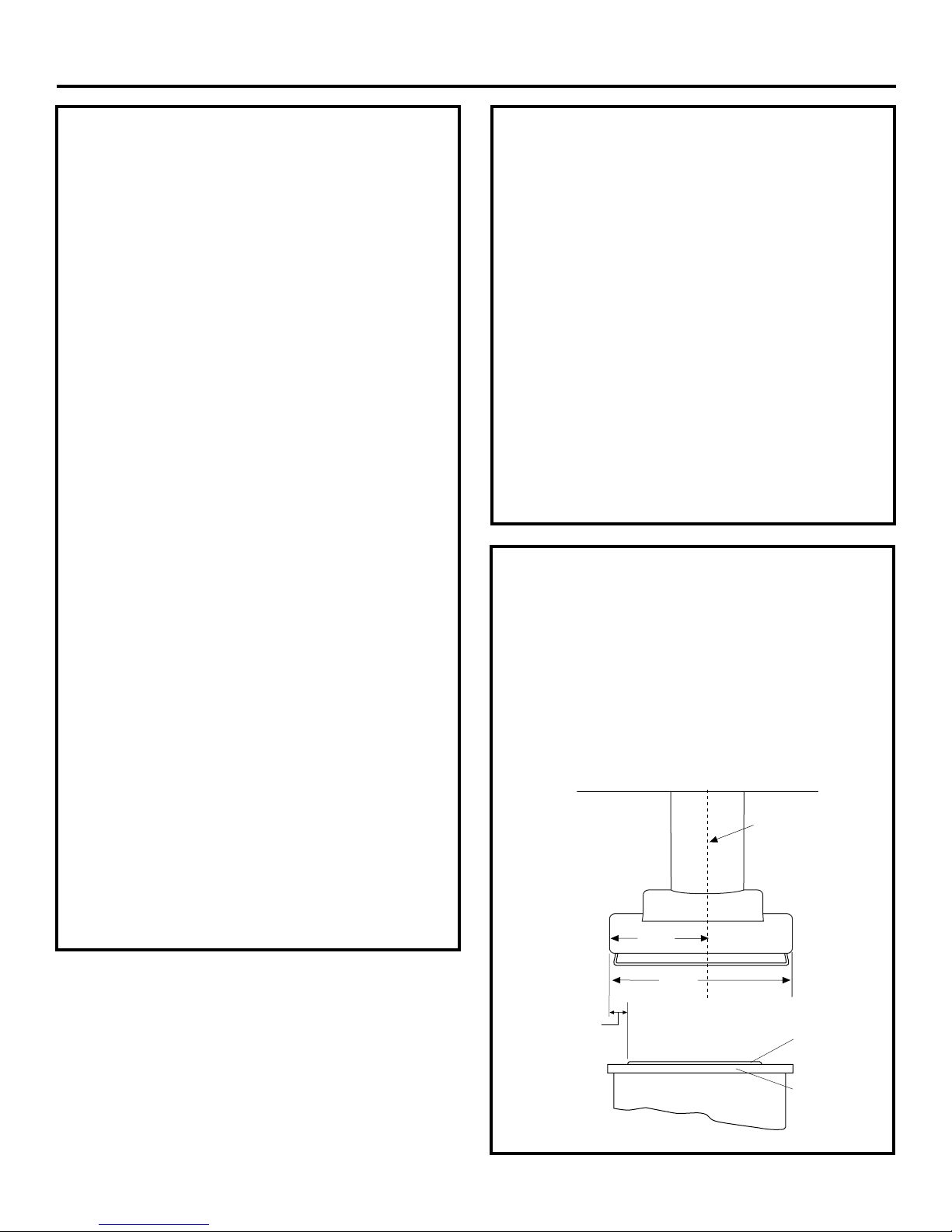

PLAN THE LOCATION
Determine the exact location of the vent hood.
• Use a plumb to check location to be sure
countertop/cooktop location below the hood will
align exactly.
• The hood should project forward 1-1/2” beyond
the front edge of the cooking appliance. See
illustration.
• Observe the recommended space between the
cooking surface and bottom of hood.
Ceiling
Hood
Ducting
Centerline
Side View
Approx. 1-1/2"
Beyond Cooking
Surface
Cooktop
Countertop
27-1/2"
Hood
Front 13-3/4"

Installation Preparation
5
REMOVE THE PACKAGING
The vent hood is packed separate from the required
accessory: ZXR858, ZXR859 or ZXR8510.
• Remove the frame, cover, parts box, side bars and
packaging.
• Remove junction box cover.
• Install strain relief onto junction box cover.
Check Installation Hardware
Locate the hardware accessory box packed with the
hood and check contents.
Mounting Screw Holes
Front of Hood
4 Flat Washers
4 (10mm) Nuts
and Lock Washers
8 Frame Attachment
Screws with Washers
(attached to
accessory
support frames)
2 Phillips Head
Decorative Screws
2 side bars with 4 Machine screws
4 Hex head
wood lag screws
(6mm x 2-1/2”
or
1/4 x 2-1/2")
Template
Check service manual
envelope taped to the front
on the hood to be sure it
contains one stop screw.
Leave this screw in the
envelope.
Check contents of the required accessory,
ZXR858, ZXR859 or ZXR8510.
Decorative Duct Covers
Support Frames
With 8 Screws
And 8 Washers
3 Stainless Steel
Grease Filters
3 Charcoal Filters
Air
Deflector
Plastic Upper
Duct Connector

Installation Preparation
6
– The framing should be spaced 8-5/8" on the sides and 7-5/8" at
the front from centerline to centerline to accept mounting
screws in the vent support frame.
Note: The cross framing must be spaced 8-3/4" on the side from
centerline to centerline in order to accept the hood mounting
screws.
INSTALL CEILING
SUPPORT STRUCTURE
• At the hood location, install 2 x 4 cross framing
between ceiling joists as shown.
• The 2 x 4 cross framing can be installed standing or
flat. See illustration.
Typical Support Frame Mounting
8-3/4"
Cross
Framing
Top View of Support Framing
*7-5/8" 16"
Joist
• The cross framing must be level in all directions.
Check with a spirit level and adjust if necessary.
MPORTANT: The ceiling structure must be capable of supporting
the weight of the hood (approximately 100 pounds) and any
inadvertent user contact loads. It is recommended that the hood
support frame be supported by a minimum of 2 x 4 cross framing.
Finish the Ceiling
Once the ceiling is finished mark the location of the
ceiling joist and cross framing.
• Check to be sure that ceiling is level, use shims if
necessary.
• Arrange cross framing in the ceiling to suit the
existing structure. See examples.
– Secure each 2 x 4 block with at least four (4), #10
wood screws, 3” long (minimum size screws, not
supplied). Use 8 wood screws total for the two
supports.
• The cross framing must be accurately aligned to
assure correct positioning of the hood.
1MOUNT TEMPLATE
• Align the template with the marks on the ceiling
and tape in place.
– Be sure the template is oriented correctly, with the
front of the hood.
• Use a plumb to check to be sure the mounting
holes will provide parallel alignment with the
countertop below.
• Center punch all hole
locations.
• Drill pilot holes in the 4 screw
locations. Use a 5/32” bit and
drill approximately 1-1/2”
deep.
• Cut wire access hole
approximately 1" dia.
Wire Access Hole
Front of Hood
Ceiling
Cross
Framing
Support
Frame
Side
View
8-3/4"
Front of
Hood
Support
Frame
Opening
Upper Half
Of Support
Frame
Ceiling
Joist
Cross Framing
Height
Adjustment
Slot
Front
of
Hood
7-5/8"
8-3/4"

Installation Instructions
7
3INSTALL LOWER SUPPORT
FRAME
• Insert lower support frame (from required acces-
sory ZXR858, ZXR859 or ZXR8510) into the upper
support frame and loosely secure with 8 screws and
washers (4 on the front and 4 on the back sides).
• Adjust the lower support frame up or down to the
desired height above the countertop. Tighten
screws.
2INSTALL UPPER SUPPORT FRAME
• Install the plastic upper duct connector to the
upper support frame by inserting from the bottom
and snapping into the opening of the air deflector
(already installed).
• Secure the upper support frame to the ceiling joists
and/or cross framing with the 4 screws provided.
For maximum rigidity and strength, the screws must
be driven into the center of the joists and/or cross
framing.
• Check to be sure the support frame is level,
vertically and horizontally.
Important: Again, check to be sure the support is
level in both directions. There is no way to level the
hood after the hood is secured to the frame.
25-1/2" Recommended
13-5/8
*39-1/8"
Countertop
Hood
Mounting
Flange
Lower Support
**75-1/8"
to Floor
*Note: 39-1/8" to top of hood flange can be increased up to
42" max.
** 75-1/8" min to floor, 77-7/8" max.
Support
Frame
Opening
Upper
Support
Frame
Lower
Support
Frame
Check Level in
Both Direction
Front
Of
Hood
Air
Deflector
Plastic Upper
Duct Connector

Installation Instructions
8
• Tape the wire to the front of the frame support to
prevent damage during installation and service.
Ceiling
Support
Frames
Tape
House
Wiring
Front Side
5SIZE AND INSTALL DUCTWORK
• Measure from top duct connector (Dim. A) to
bottom of support frame.
– Add at least 1" for duct overlap at the top.
– Subtract 1-3/4" for hood insertion into the bottom
of the frame.
• Cut the 6" dia. duct to the required length.
4SECURE WIRING
• Route house wiring through the ceiling hole and
pull a length to reach the hood junction box,
approximately 6” below the support.
Note: The top and bottom of the duct are external
(female) connections. The bottom end should be
flared slightly, to facilitate installation of the hood.
• Install duct up through support frames onto the top
duct connector. Push duct up until it is 1-3/4" from
the bottom of support frame flange. See illustration.
Ceiling
Duct
Dim. A
Duct Connection
To Hood
Bottom Support
Frame Flange
1-3/4"
Side
View
Support
Frame Required
Duct
Length
Duct Connector

Installation Instructions
9
6INSTALL DECORATIVE DUCT COVERS
• Pretap or drive decorative screw into the screw holes
on the support frame. This will make screw installation
easier.
• Separate the two decorative duct covers.
• Select the inside (top) cover, which has vent hole
pattern at the top.
• Slide the decorative duct cover over the support frame
and push to the ceiling.
• Attach to the hood support at the top with 2 supplied
decorative screws.
• Locate the stop screw in the envelope taped to the
front of the hood. Set aside.
• Slide the lower decorative duct over the installed upper
duct and push up, past the stop screw location.
• Install the supplied temporary stop screw in one of 3
holes in the support frame or the top duct cover to
prevent the bottom decorative duct cover from sliding
down.
CAUTION: The stop screw must be installed.
Failure to do so could result in personal injury or damage
to the duct cover.
Pretap
2 Screw
Holes
Top Duct
Cover
Install Screw on
Each Side
Bottom Duct Cover
Stop Screw
Top Duct
Cover
Bottom Duct
Cover
Top Duct
Cover
Install Stop
Screw in One
of 3 Holes

Installation Instructions
10
7 INSTALL HOOD
Note: TWO PEOPLE ARE REQUIRED TO COMPLETE
THIS INSTALLATION!
• Lift the hood up to the support frame. Carefully align
the hood mounting studs into the support frame holes,
and at the same time, guide the hood duct connector
into the duct.
• Install 4 nuts and lock washers. Tighten with a 10mm
wrench.
• Check hood level in both directions.
• Check to be sure that the duct is positioned over the
hood connector.
• Seal the duct connection with duct tape.
Note: Do not drive screws through this duct connection.
Doing so will prevent proper damper operation.
Align
Mounting
Studs
Align Duct
Connector to
House Duct Stop Screw Install
4 lock
washer
and 4 Nuts
Bottom
Duct
Cover
8 CONNECT ELECTRICAL
Verify that power is turned off at the source.
WARNING: If house wiring is not 2-wire
with a ground wire, a ground must be provided by
the installer. When house wiring is aluminum, be
sure to use UL approved anti-oxidant compound and
aluminum-to-copper connectors.
• Install strain relief onto the knockout of the
junction box cover.
• Insert house wiring through strain relief and
tighten.
• Connect white leads to branch circuit white lead.
• Connect black leads to branch circuit black lead.
• Connect green/yellow leads to branch circuit green
or bare ground lead.
• Secure all connections with wire nuts on each
electrical connector.
• Push wires into junction box and replace cover. Be
sure wires are not pinched.

Upper Charcoal
Filter Slots
Grasp Tab,
Lift and Pull Forward
Installation Instructions
11
9 SLIDE DUCT COVER DOWN,
INSTALL SIDE UTILITY BARS
• Hold the decorative duct cover and remove the
temporary stop screw from the support frame.
Return the screw to the service manual envelope
for future use.
• Slide the lower duct cover down onto the hood.
10 INSTALL FILTERS
• Remove protective film on charcoal filters.
• Tip charcoal filters into the upper (top) slots at the
rear of the opening. Grasp the filter tab, lift and
pull forward until it rests in the front slots.
• Install all 3 charcoal filters.
• Remove protective film from grease filters.
• Tip the grease filter into the lower slots at the rear
of the opening. Lift the filter and pull the knob
forward until the filter rests on the slots.
• Install all 3 grease filters.
• To remove the filters, grasp the knob, push the
filter towards the rear and tilt downwards. Grasp
tabs on charcoal filters, push towards the rear and
tilt downwards.
11 FINALIZE INSTALLATION
• Remove the protective film covering the control
panel on the front face of the hood, and any other
packaging materials.
• Refer to the Owner’s Manual for operating
instructions.
• Install the side utility bars with screws as shown.
Lower Grease
Filter Slots
Upper Charcoal
Filter Slots
Install Charcoal Filters
Install Grease Filters
Lower
Filter Slots
• There are two slots inside the back and front of the
hood. These slots will hold the charcoal filters and
stainless steel grease filters in place.

Note: While performing installations described in this book,
safety glasses or goggles should be worn.
To obtain specific information concerning any
Monogram product or service, call GE Answer Center®
consumer information service at 800.626.2000–any
time, day or night.
For MonogramTM local service in your area, call
1-800-444-1845.
Note: Product improvement is a continuing endeavor at
General Electric. Therefore, materials, appearance and
specifications are subject to change without notice.
Monogram.
®
General Electric Company
Louisville, KY 40225
Pub. No. 49-80045-1
Dwg. No. 164D4290P014
(N.D. 728) 12/00
Printed in Italy
