PerfectView 400L FlatScreen Mount
PerfectView 400L is designed to mount
37"
-to-
60"
fl atscreen televisions to vertical walls. Maximum weight
capacity is
200 lbs.
SAFETY WARNING:
If you don’t understand these
directions, or have doubts about this product’s installation,
please call a qualifi ed contractor or contact Monster Cable
Products, Inc. at
1-877-800-8989.
Before installing, carefully review the instructions
to ensure that no parts are missing or defective.
Improper installation can cause damage or serious injury.
Do not use this product for any purpose not explicitly
specifi ed by Monster. Monster is not liable for damage
or injury caused by incorrect assembly, incorrect mounting
or incorrect use.
All hardware is supplied for the following wall conditions:
Wood stud, brick, solid concrete, and concrete block.
Note:
The supplied hardware
is not for steel stud walls.
If you are uncertain about the nature of your wall
construction, consult an installation contractor.



2

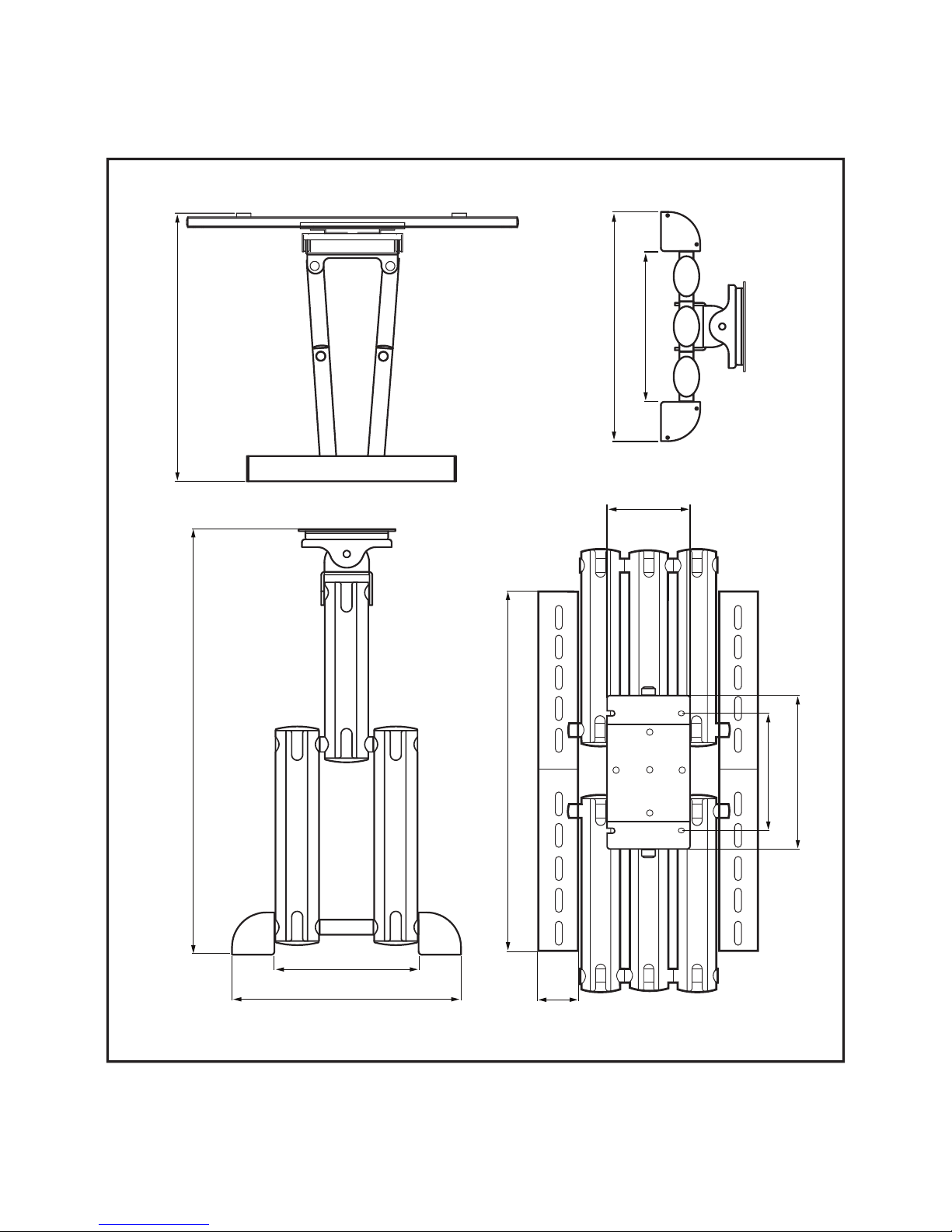

Specifi cations and Notes:











Monster is constantly striving to improve its products.
Specifi cations are subject to change without notice.

3
Required Tools
Wood Stud Mounting:
Electronic stud sensor
Level (included)
Electric hand drill
3/16" drill bit
Phillips screwdriver
Combination wrenches or socket set
Masonry Mounting
(brick, solid concrete, concrete blocks):
Above tools, plus hammer
Replace 3/16" drill bit with 1/2" masonry drill bit
•
•
•
•
•
•
•
•

4
Package Contents

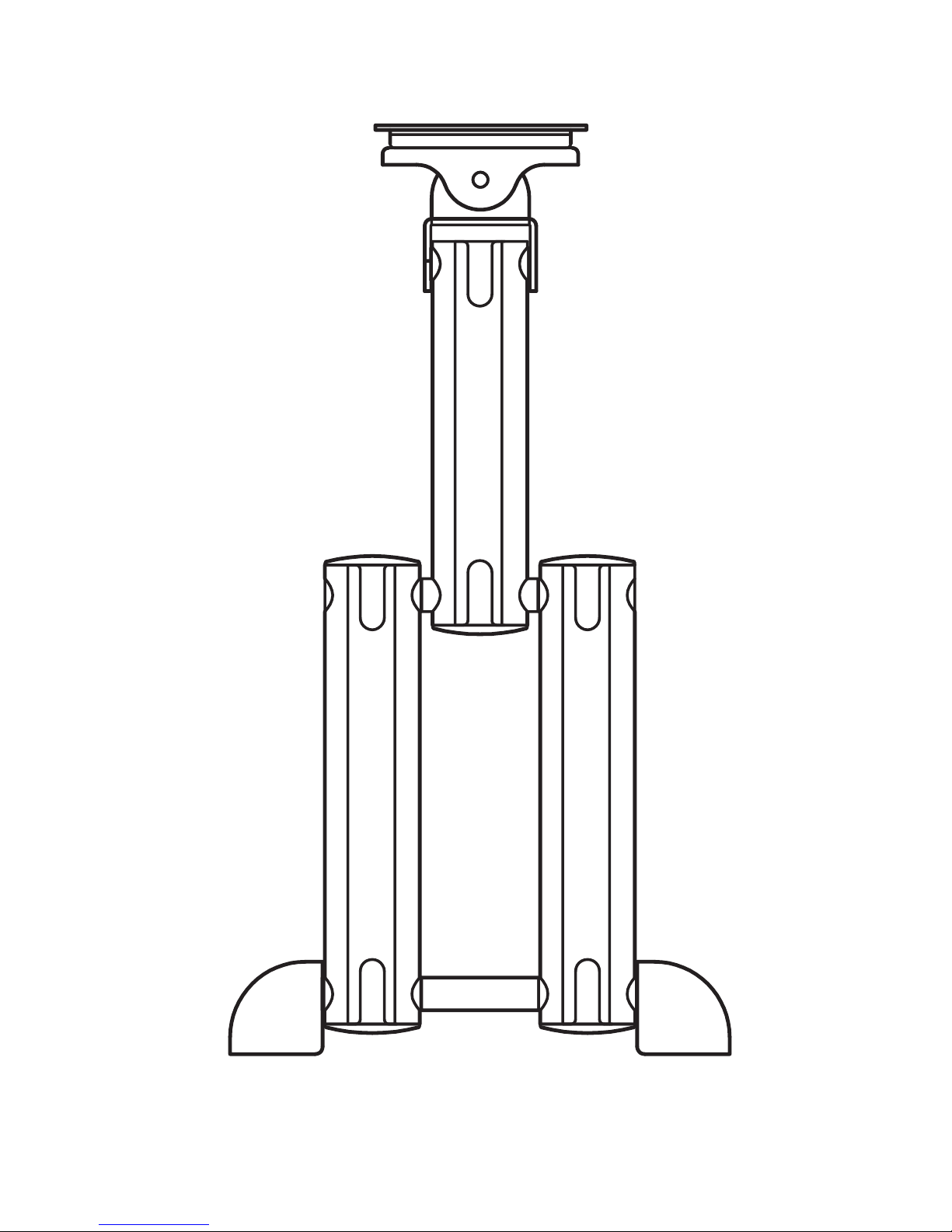

1 Mounting System

5
Allen Wrench 1
Allen Wrench 2
Phillips Screws
4 ea. M4x15
4 ea. M4x35
4 ea. M4x45
4 ea. M5x15
4 ea. M5x35
4 ea. M5x45
4 ea. M6x15
4 ea. M6x35
4 ea. M6x45
6 ea. M8x15
4 ea. M8x35
4 ea. M8x45
4 Washers M10
8 Washers M5
2 Washers M8
4 Lag Bolts
4 Masonry
Anchors
If any parts are missing, please call 800-877-8989.

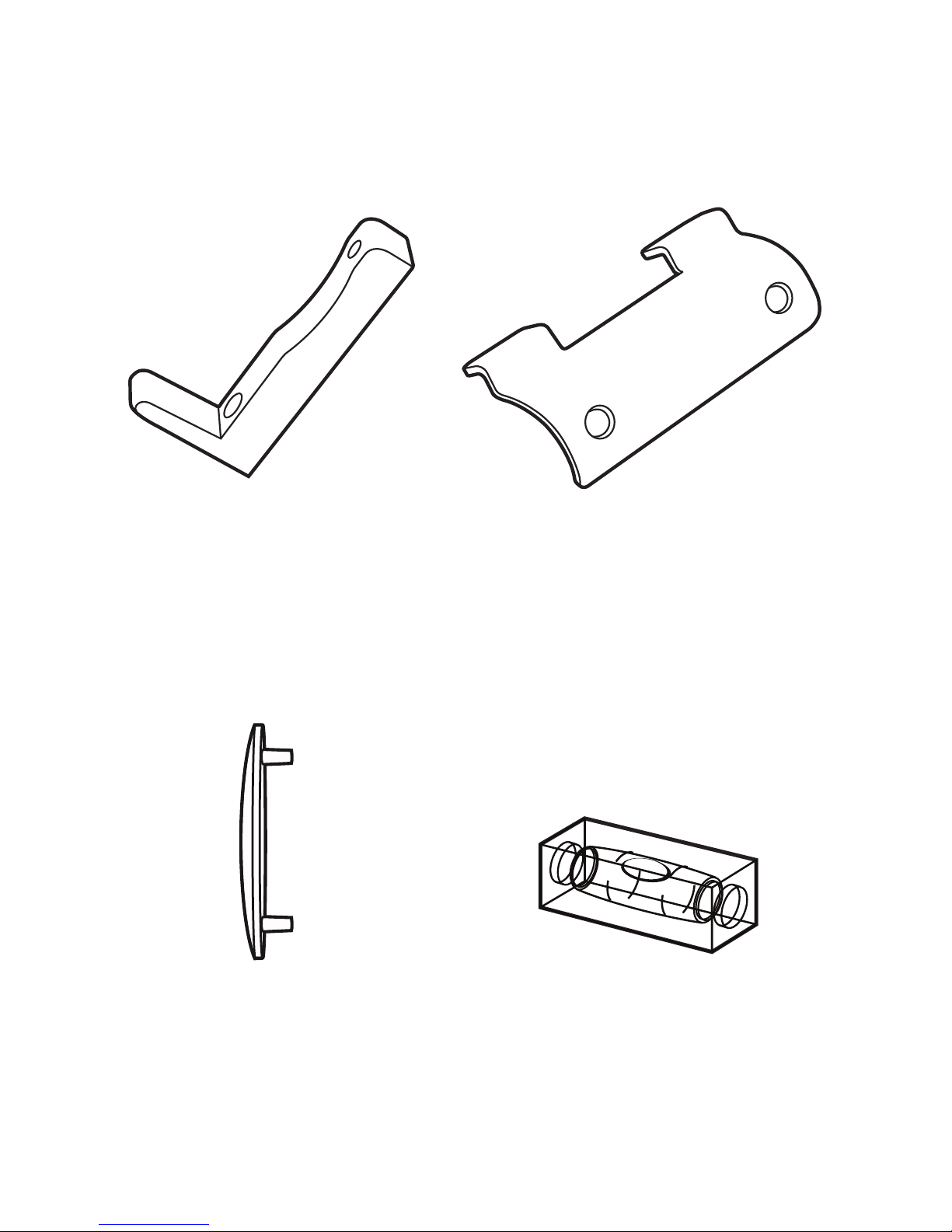

6 Cable
Management Covers

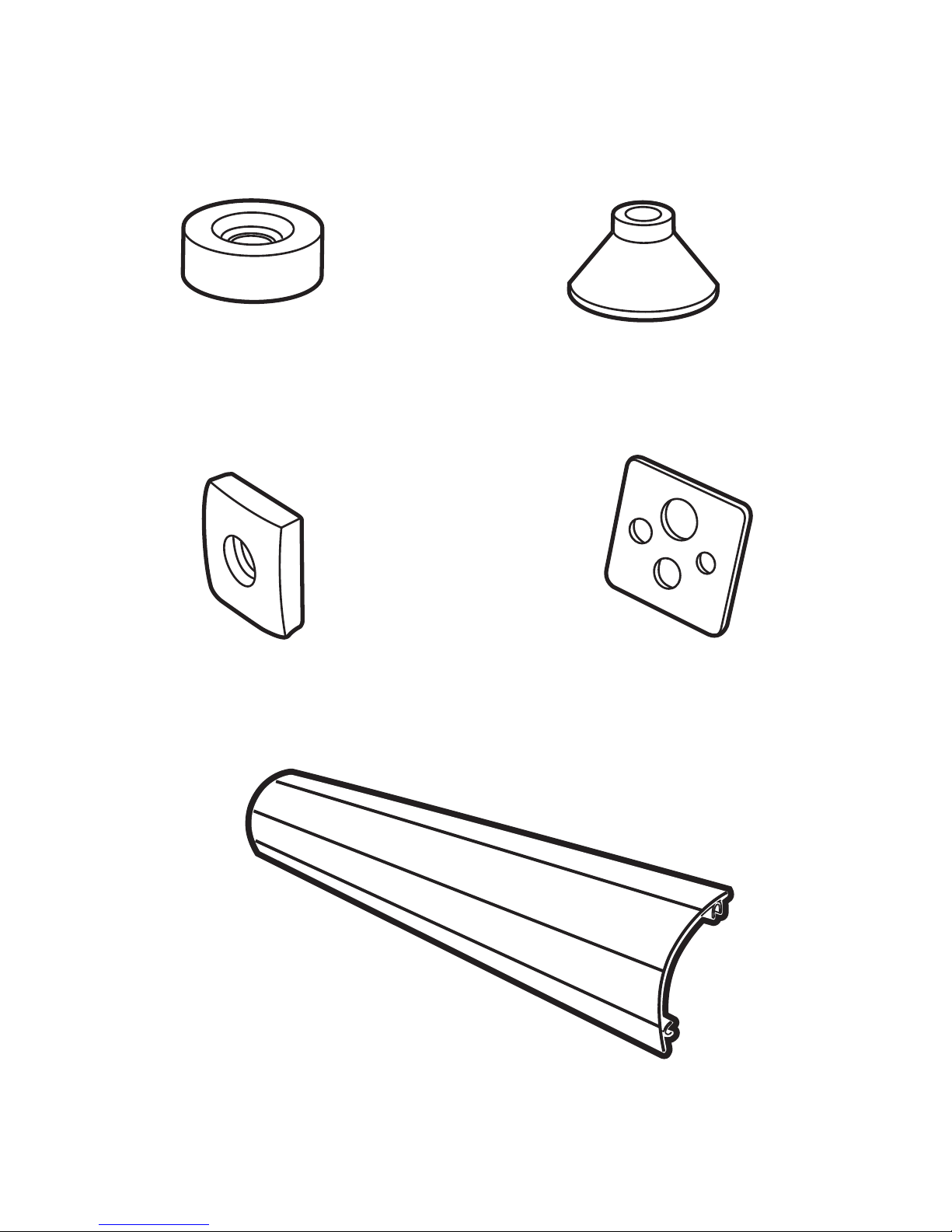

Package Contents
6
4 Spacers #2
4 Spacers #1
2 Quick-Snap
Screw Covers
2 Square Washers
8 Square Nuts

If any parts are missing, please call 800-877-8989.
Parts in supplied hardware kit
are numbered as above.
7
4 Stoppers
S
4 Security Cap
S
Bubble
Level
12 End Caps

8
Warnings
Forbidden Actions:
DO NOT install on a sloping surface. Install
exclusively on a vertical surface.
DO NOT mount to cabinetry made of particleboard.
DO NOT install in a room with excessively high
temperatures or high humidity. Install at least 3 ft.
from all water sources.
DO NOT install near an air conditioner.
DO NOT install in a location where there
is excessive dust, smoke or moisture.
These sources can create a fi re.
DO NOT apply unnecessary stress or load
on the installed unit. Never hang on the unit.
DO NOT install the unit alone. Safe installation
requires at least two people.
DO NOT route your fl atscreen TV’s power cord
in wall. Check local building/electrical codes
for more information.

9
Cautions
To prevent eye fatigue, avoid installing where there
is direct sunlight or excessive light.
When carrying out maintenance, disconnect
the TV’s power supply to avoid electrical shock.
If planning to route AV cable in wall, only use cable
UL-certifi ed for this use.
Pre-Installation Checklist
®
Does your mounting location have at least
two wall studs?
®
Is your view of the mounting location free
of glare or other obstructions?
®
Is the location of your wall stud or masonry surface
suitable for repositioning your display?
®
Is your mounting location near an AC power outlet?
Ideally, the outlet should be behind your TV.
This will conceal your display’s power cord.
®
Is your mounting location at least 3 ft. from
any source of heat or water?

To hide your TV’s power cord, install a Monster
®
In-Wall PowerCenter
™
behind the placement
of your display.

10
Installing the FlatScreen Mount
Choose a mounting location with convenient
access to an AC power outlet.

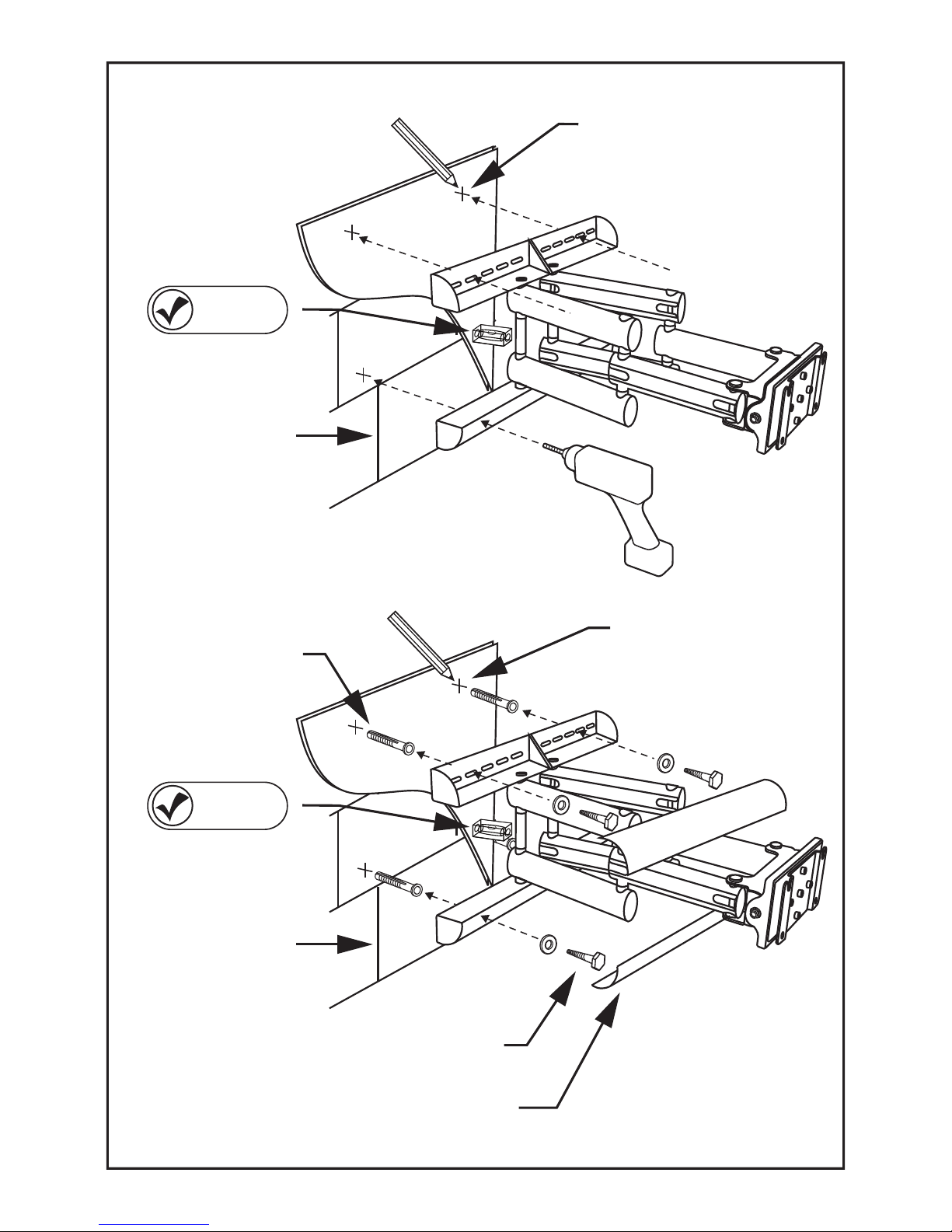

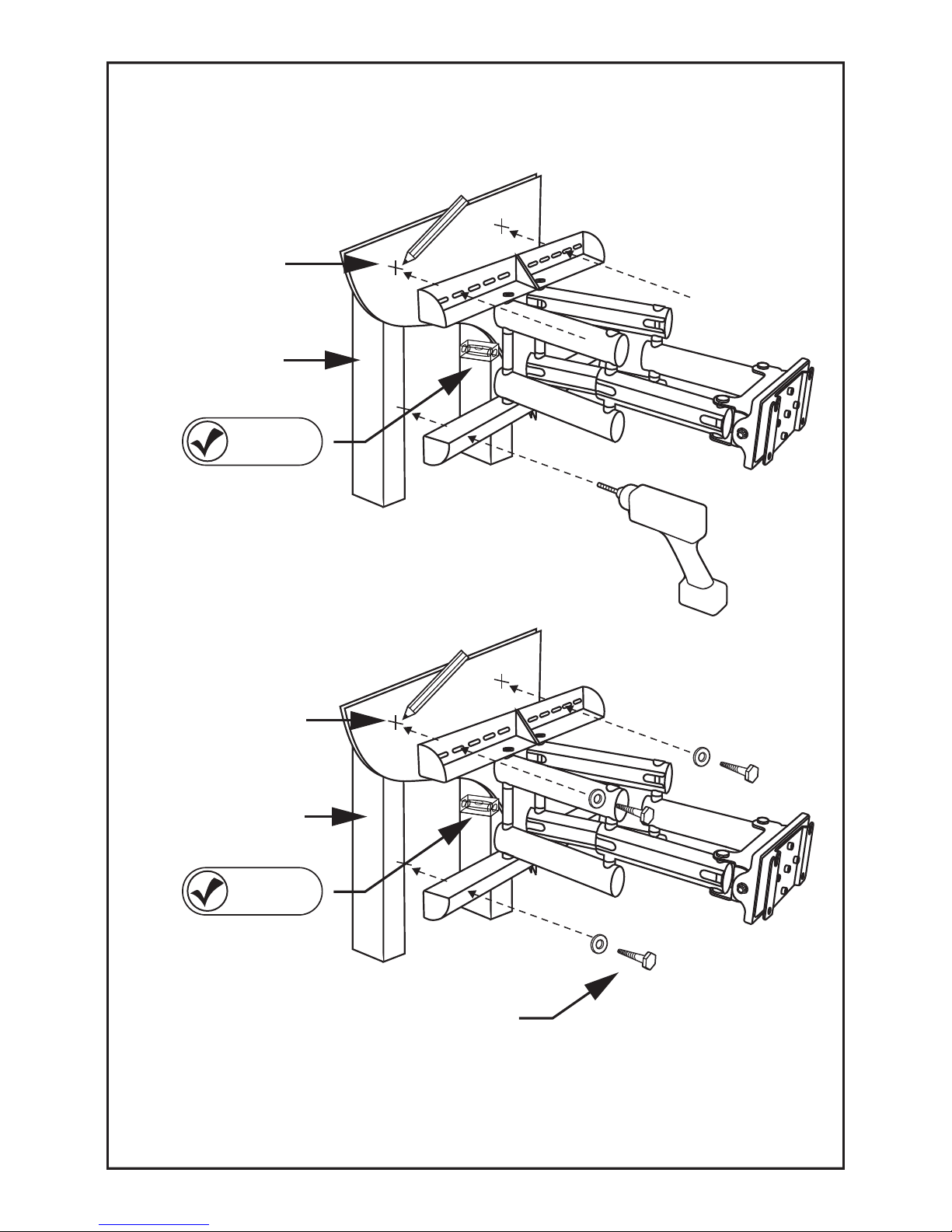

Wood Stud Mounting:
Using an electronic stud sensor, locate two wall studs,
up to 21” apart, at your desired mounting location.


With the help of a friend, position the
mounting system’s two horizontal wall plate arms over
the two wall studs. Using the provided level, confi rm
that the mounting system is level.
Mark the stud centers in two slots in the top and
bottom wall plate arms with a pencil.
With your electrical drill and 3/16" bit, pre-drill a 3"
deep hole at each mark.
Attach the wall plate arms to the wall using the
supplied lag bolts and washers, as shown to the right.
Tighten each bolt with your electric drill or socket
wrench. Turn clockwise until secure.
Attach the wall plate arm’s quick-snap bolt covers
to conceal the installed lag bolts.
DO NOT over tighten bolts. This can damage
the wall plate or the surface of your wall.
1)
2)
3)
4)
5)
6)

11

























12
Installing the FlatScreen Mount
continued
Masonry Mounting
Masonry mounting requires specialized knowledge, skills
and tools. Monster highly recommends that you seek the
help of a professional installer when mounting to masonry.
With the help of a friend, position the mounting plate
in your desired mounting location.


Using the provided level, confi rm that the
mounting system is level.
Mark the centers of two slots in the top and bottom
wall plate arms with a pencil. Be careful not to mark a
mortar joint. With your electrical drill and 1/2" masonry
bit, pre-drill a 3" deep hole at each mark.
Install the supplied plastic anchors in each hole.
Tap into holes until fully seated.
Attach the wall plate arms to the wall using the
supplied lag bolts and round washers, as shown
to the right.
Attach the wall plate arm’s quick-snap bolt covers
to conceal the installed lag bolts.
DO NOT over tighten bolts. This can damage
the wall plate or the surface of your wall.
DO NOT release the wall plate until you
are absolutely sure it is secured to the wall.
1)
2)
3)
4)
5)
6)

13















14
Attaching the TV Mounting Plate
and Hanging the TV on the Mount
DO NOT lay the TV face down when attaching
the TV mounting plate.
The TV should remain unplugged when threading
screws into the back panel.
Your mounting system features 12 sets of screws of varying
diameter and length. Before attempting to attach the TV
mounting plate to your TV, determine which screw set is
the correct choice for your display.
Note the various sets of mounting holes
(round and keyhole) on the sliding self-centering
mounting brackets.
Align two holes on each of the mounting brackets
with four threaded inserts on your TV’s back panel.
This may require you to adjust one of the brackets,
automatically adjusting the other the same distance.
Manually thread the appropriate set of screws and
washers into the four TV inserts.
With a Phillips screwdriver, tighten down the screws
so the TV mounting plate is securely attached to the TV.
DO NOT over tighten bolts. This can damage your TV.
Loosen the two M8x15 screws in the top holes on the
back of the TV mounting plate. This will allow you
to hang the TV mounting plate on the mounting
arm bracket.
1)
2)
3)
4)
5)

15
Once the TV mounting plate is hung on the arm
bracket, thread the remaining two M8x15 screws
and washers found in the hardware bag through
the bottom holes on the arm bracket and TV
mounting plate.
Tighten down all four screws with your Allen wrench.
6)
7)
WARNING
DO NOT OVER TIGHTEN SCREWS.

16
Adjusting the Flexibility
of the Extending Swing Arms
The PerfectView 400L features
Dual Fold
™
heavy-duty
Extending Swing Arms with three independent
arm hinges.
The swing arms extend your display up to 26"
from the wall.
All four arm hinges swivel your TV left or right 180.°*
Each arm hinge has an adjustable tension screw, adjustable
before or after the TV and mounting plate are attached
to the swing arms.
Remove the plastic cap on the bottom
of any arm hinge, as shown to the right,
to access its tension screw.
With an Allen wrench, turn the tension screws
counterclockwise to reduce swivel tension.
Turn the screws clockwise to increase swivel tension.
•
•
1)
2)
3)
* Actual swivel angle depends on the dimensions of TV.
