Monster FlatScreen Cables
™
Ultra slim and fl exible, Monster FlatScreen
Cables ensure a clean, no-clutter hookup
to your thin display. Plus, they feature
advanced Monster Cable
®
technologies, so you
® technologies, so you ®
always get the best possible picture and sound.
Monster FlatScreen PowerProtect
™
and PowerCenters
™
Safeguard your fl atscreen investment
from harmful electrical surges and
“dirty” AC power with exclusive Monster
Power
®
technologies, including Monster
® technologies, including Monster ®
SurgeGuard
™
and Monster
Clean Power
.
™
Monster FlatScreen Clean
™
Our safe LCD and plasma cleaning
solution instantly removes dust, dirt and
fi ngerprints from your fl atscreen
without drips, stains or scratches.
For more details on all our Monster FlatScreen products,
visit us at
MonsterCable.com/FlatScreen
advanced Monster Cable
Monster FlatScreen Clean

1
PerfectView 400S FlatScreen Mount
PerfectView 400S is designed to mount
10"
to
24"
fl atscreen televisions to vertical walls. Maximum weight
capacity is
40 lbs.
SAFETY WARNING:
If you don’t understand these
directions, or have doubts about this product’s installation,
please call a qualifi ed contractor or contact Monster Cable
Products, Inc. at
1-877-800-8989.
Before installing, carefully review the instructions
to ensure that no parts are missing or defective. Improper
installation can cause damage or serious injury. Do not use
this product for any purpose not explicitly specifi ed
by Monster. Monster is not liable for damage or injury
caused by incorrect assembly, incorrect mounting
or incorrect use.
All hardware is supplied for the following wall conditions:
Wood stud, brick, solid concrete, and concrete block.
Note:
The supplied hardware
is not for steel stud walls.
If you are uncertain about the nature of your wall
construction, consult an installation contractor.



2
Specifi cations and Notes:
Monster is constantly striving to improve its products.
Specifi cations are subject to change without notice.









3
Required Tools
Wood Stud Mounting:
Electronic stud sensor
Level (included)
Electric hand drill
3/16" drill bit
Phillips screwdriver
Combination wrenches or socket set
Masonry Mounting
(brick, solid concrete, concrete blocks):
Above tools
Replace 3/16" drill bit with 1/2" masonry drill bit
•
•
•
•
•
•
•
•

4

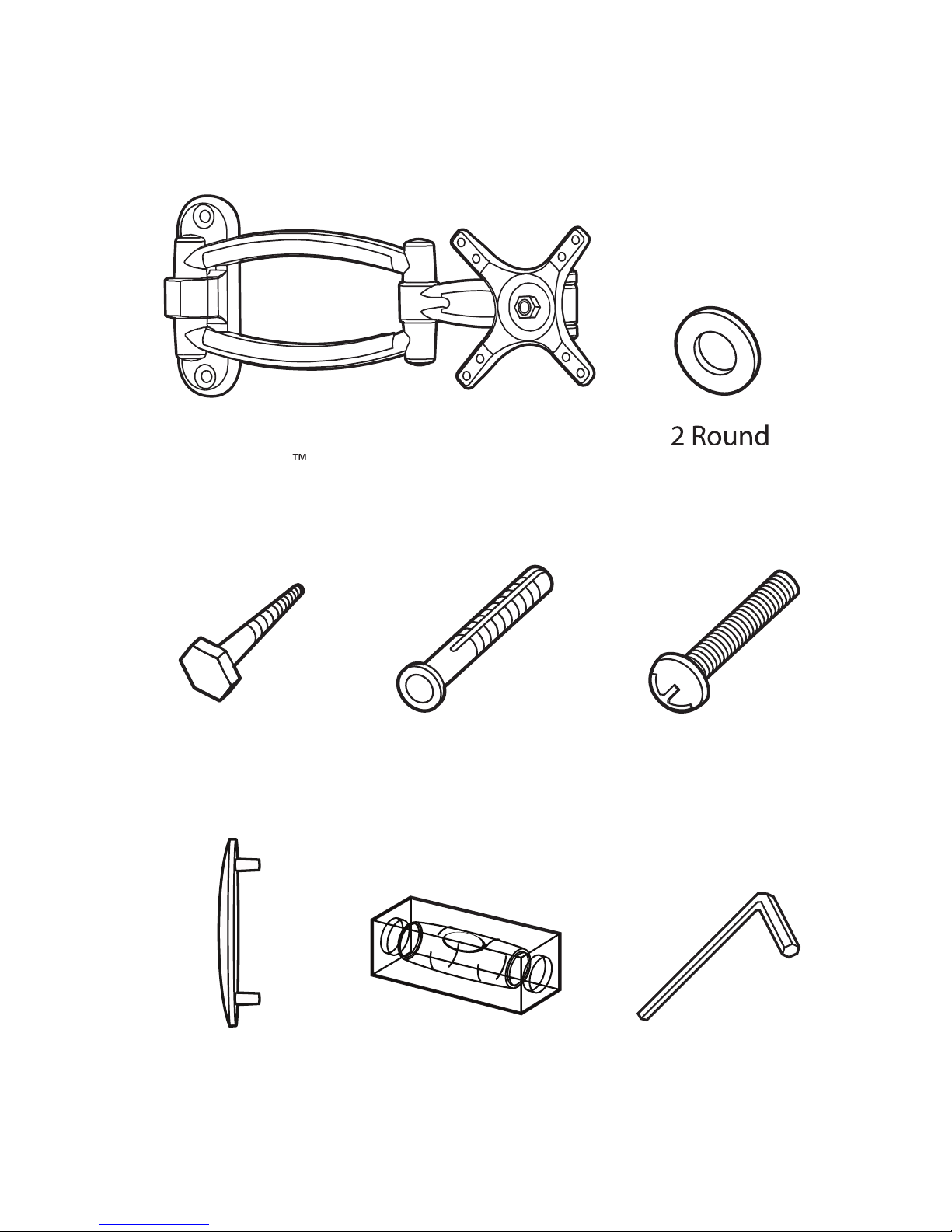

Package Contents
If any parts are missing, please call 800-877-8989.
1 Allen Wrench
1 LCD Mounting System
(VESA
™
75/100-Compliant)
Screws
4 ea. M4x15
4 ea. M5x15
1 Bubble Level
2 Screw Caps
2 Lag Bolts
2 Masonry
Anchors
2 Round
Washers

5
Warnings
Forbidden Actions:
Do not install on a sloping surface. Install
exclusively on a vertical surface.
Do not mount to cabinetry made of particleboard.
Do not install in a room with excessively high
temperatures or high humidity. Install at least 3 ft.
from all water sources.
Do not install near an air conditioner.
Do not install in a location where there is excessive
dust, smoke or moisture. These sources can create
a fi re.
Never apply unnecessary stress or load on
the installed unit. Never hang on the unit.
Do not install unit alone. Safe installation requires
at least two people.
Do not route your fl atscreen TV’s power cord
in wall. Check local building/electrical codes
for more information.

6
Cautions
To prevent eye fatigue, do not install where there
is direct sunlight or excessive light.
When carrying out maintenance, disconnect
the TV’s power supply to avoid electrical shock.
If planning to route AV cable in wall, only use cable
UL-certifi ed for this use.

7
Pre-Installation Checklist
Does your mounting location have at least
one wall stud?
Is your view of the mounting location free
of glare or other obstructions?
Is the location of your wall stud or masonry surface
suitable for repositioning your display?
Is your mounting location near an AC power outlet?
Ideally, the outlet should be behind your TV.
This will conceal your display’s power cord.
Is your mounting location at least 3 ft. from
any source of heat or water?

To hide your TV’s power cord, install a Monster
®
In-Wall PowerCenter
™
behind the placement
of your display.
®
®
®
®
®

8
Installing the FlatScreen Mount
Remove all pieces of the FlatScreen Mount system
to ensure you have all necessary parts.
Be sure to choose a mounting location with easy
access to an AC power outlet.

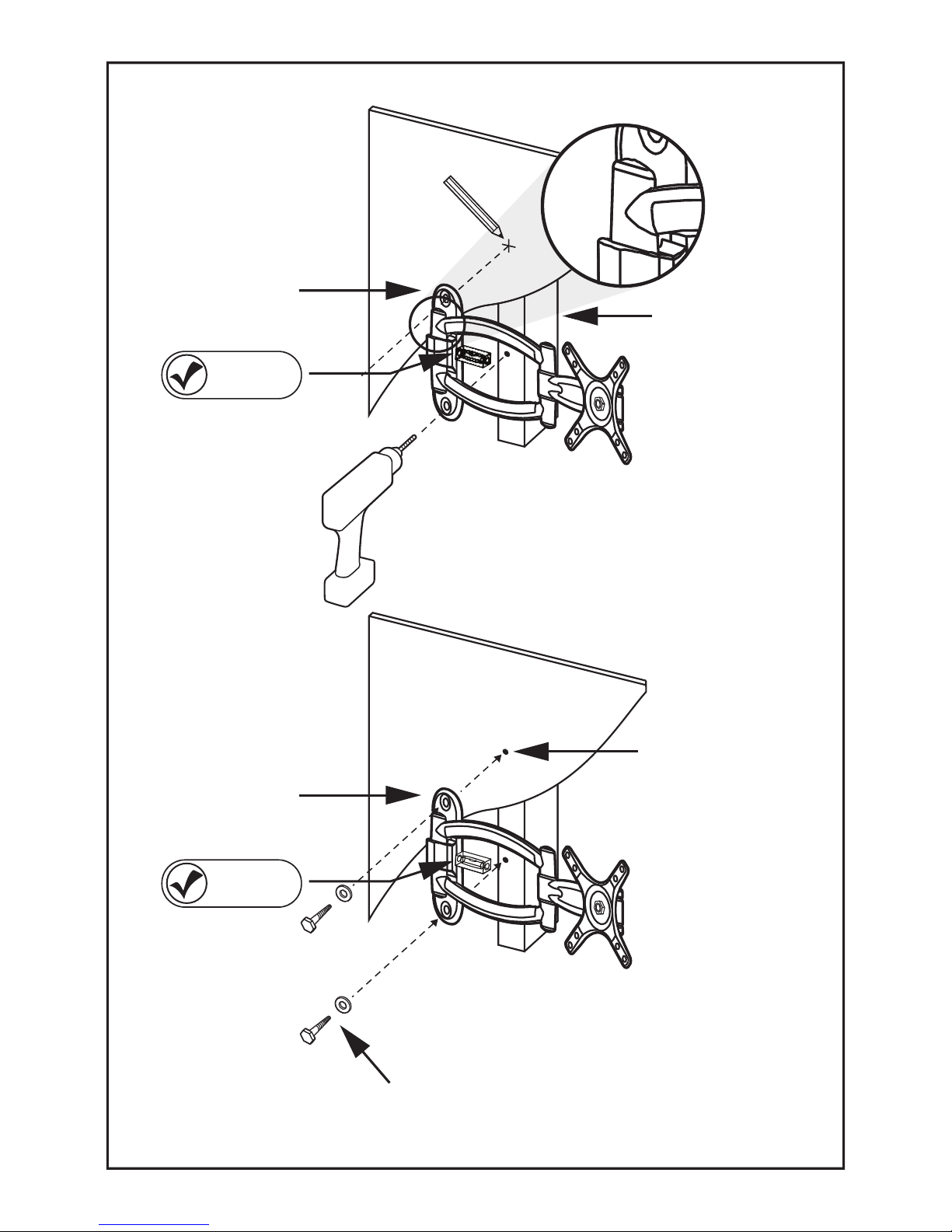

Wood Stud Mounting:
Using an electronic stud sensor, locate a wall stud
at your desired mounting location.


With the help of a friend, position the wall
plate over wall stud. Using the provided level, confi rm
that the wall plate is plumb or vertically straight. For
best results, position the level horizontally with the
narrow end fl ush against the side of the wall plate.
Hold the plate fi rmly in place.
Mark the stud center in the top and bottom mounting
holes with a pencil.
With your electrical drill and 3/16" bit, pre-drill
a 3" deep hole at each mark.

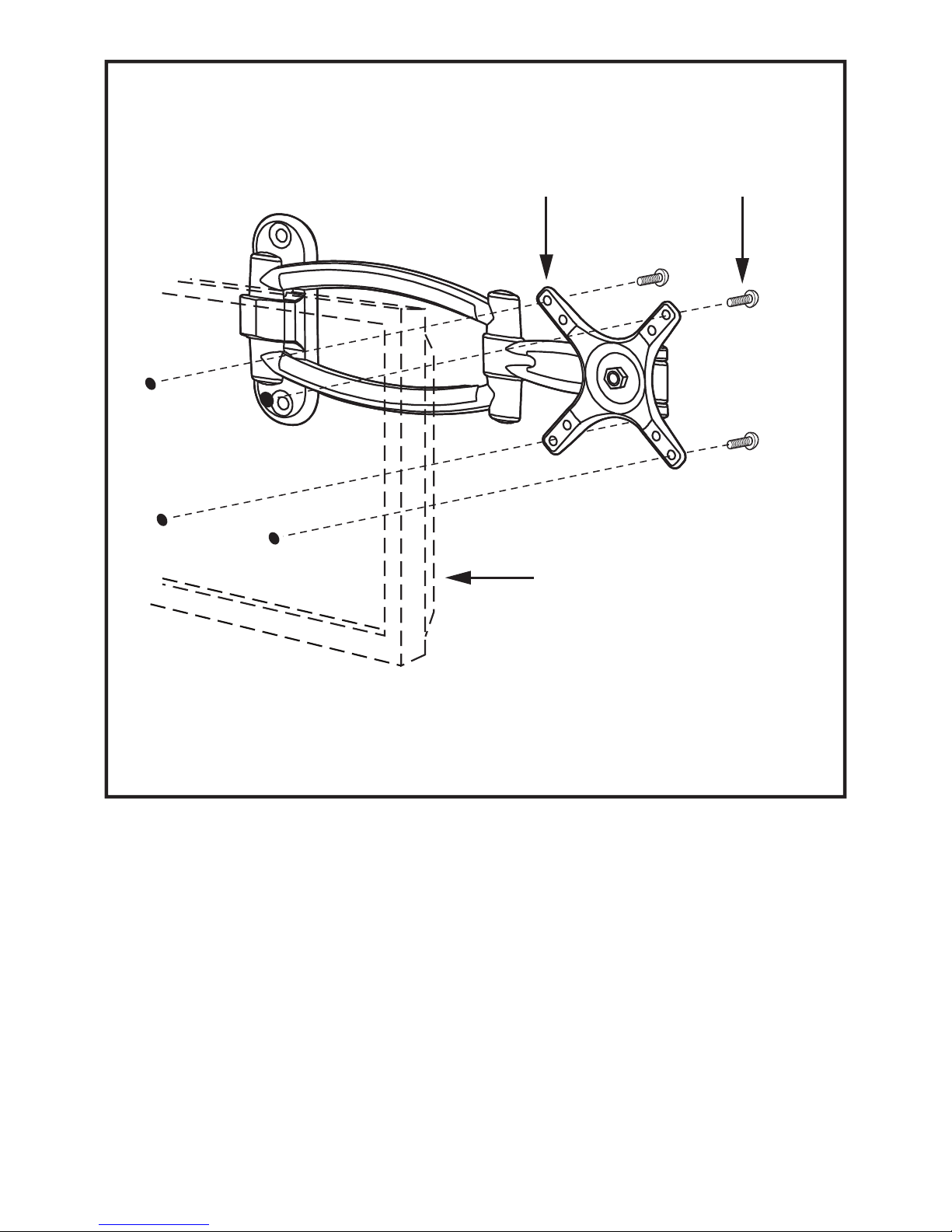

Attach the wall plate to the wall using the supplied
lag bolts and round washers, as shown to the right.
Tighten each bolt with your electric drill or socket
wrench. Turn clockwise until secure.
DO NOT over tighten bolts. This can damage
the wall plate or the surface of your wall.
1)
2)
3)
4)
5)

9















10
Installing the FlatScreen Mount
continued
Masonry Mounting
While masonry materials (bolts and concrete anchors) are
included, masonry mounting requires specialized knowledge,
skills and tools. Monster highly recommends that you seek the
help of a professional installer when mounting to masonry.
DO NOT drill holes in masonry mortar joints.
With the help of a friend, position the mounting plate
in your desired mounting location.


Using the provided level, confi rm that the
wall plate is plumb or vertically straight. Position the
level horizontally with the narrow end fl ush against the
side of the wall plate. Hold the plate fi rmly in place.
Mark the centers of the top and bottom mounting
holes on the wall plate with a pencil. Be careful not to
mark a mortar joint. With your electrical drill and 1/2"
masonry bit, pre-drill a 3" deep hole at each mark.
Install the supplied plastic concrete anchors
in each hole. Tap into hole until fully seated.
Attach the wall plate to the wall using the supplied
lag bolts and round washers, as shown to the right.
DO NOT over tighten bolts. This can damage
the wall plate or the surface of your wall.
1)
2)
3)
4)
5)

11













12
Adjusting Your Mount’s
OmniBall
™
Before Attaching Your TV
The PerfectView 400S features an all-directional
OmniBall
™
for pivoting your screen any direction and rotating it 360°.*
Before attaching your TV to the TV mounting plate, you
can increase or decrease the
OmniBall
pivot action.
OmniBall pivot action.OmniBall
By hand, remove the black plastic cap
in the center of mounting plate, revealing
the
OmniBall
tension nut (13mm).
OmniBall tension nut (13mm).OmniBall
With a socket wrench, turn the tension nut clockwise
to limit pivot and rotation.
Turn the nut counterclockwise to increase pivot
and rotation.
1)
2)
3)
*
Display cannot be rotated 360˚ when AV cable and power cord are installed.

13


WARNING
DO NOT OVER TIGHTEN NUT.

14
Attaching Your TV to the Mount
The television should be unplugged before
threading any screw into the back panel.
Your mounting system features two sets of screws, M4x15
and M5x15. The M5x15 is the thicker of the two.
Locate the threaded inserts on your TV’s back panel.
Note the two sets of mounting holes on the TV
mounting plate. Lift up your TV with the help
of a friend and set it against the mounting plate
to determine which set aligns perfectly with the four
threaded inserts on your TV’s back panel.
While holding the TV securely in place, determine
which set of screws is the correct length for your
TV’s inserts. Test one of the screws to ensure it’s
the correct choice.
Manually, thread the screws through the mounting
plate’s mounting holes into the four TV inserts.
With a Phillips screwdriver, tighten down the screws so
the TV mounting plate is securely attached to the TV.
1)
2)
3)
4)
5)

15






WARNING
DO NOT OVER TIGHTEN SCREWS.

16
Adjusting the Flexibility of the
Z-Fold
™
Extending Swing Arms
The PerfectView 400S features a wide-angel swivel joint
(at its base) and a two-piece
Z-Fold
swing arm with an
Z-Fold swing arm with an Z-Fold
adjustable center hinge.
The swivel joint enables you to turn your display
left or right 180°.*
The
Z-Fold
swing arms enable you to extend
Z-Fold swing arms enable you to extend Z-Fold
and reposition your display off wall.
Your mount’s wide-angle swivel joint and arm hinge also
have adjustable tension screws. They can be adjusted
before or after your TV is attached to the TV mounting plate.
Remove the plastic cap on the top of the swivel joint
or the arm hinge to access their tension screws.
With an Allen wrench, turn the tension screws
counterclockwise to reduce tension of swivel.
Turn the screws clockwise to increase tension of swivel.
•
•
1)
2)
3)
* Dependent on display size.
