1
PerfectView 450M FlatScreen Mount
PerfectView 450M is designed to mount
24"
-to-
37"
fl atscreen televisions to vertical walls. Maximum weight
capacity is
100 lbs.
SAFETY WARNING:
If you don’t understand these
directions, or have doubts about this product’s installation,
please call a qualifi ed contractor or contact Monster Cable
Products, Inc. at
1-877-800-8989.
Before installing, carefully review the instructions
to ensure that no parts are missing or defective. Improper
installation can cause damage or serious injury. Do not use
this product for any purpose not explicitly specifi ed
by Monster. Monster is not liable for damage or injury
caused by incorrect assembly, incorrect mounting
or incorrect use.
All hardware is supplied for the following wall conditions:
Wood stud, brick, solid concrete, and concrete block.
Note:
The supplied hardware
is not for steel stud walls.
If you are uncertain about the nature of your wall
construction, consult an installation contractor.



2
Specifi cations and Notes:







 










Monster is constantly striving to improve its products.
Specifi cations are subject to change without notice.

3
Required Tools
Wood Stud Mounting:
Electronic stud sensor
Level (included)
Electric hand drill
3/16" drill bit
Phillips screwdriver
Combination wrenches or socket set
Masonry Mounting
(brick, solid concrete, concrete blocks):
Above tools, plus hammer
Replace 3/16" drill bit with 1/2" masonry drill bit
•
•
•
•
•
•
•
•





















4
Package Contents

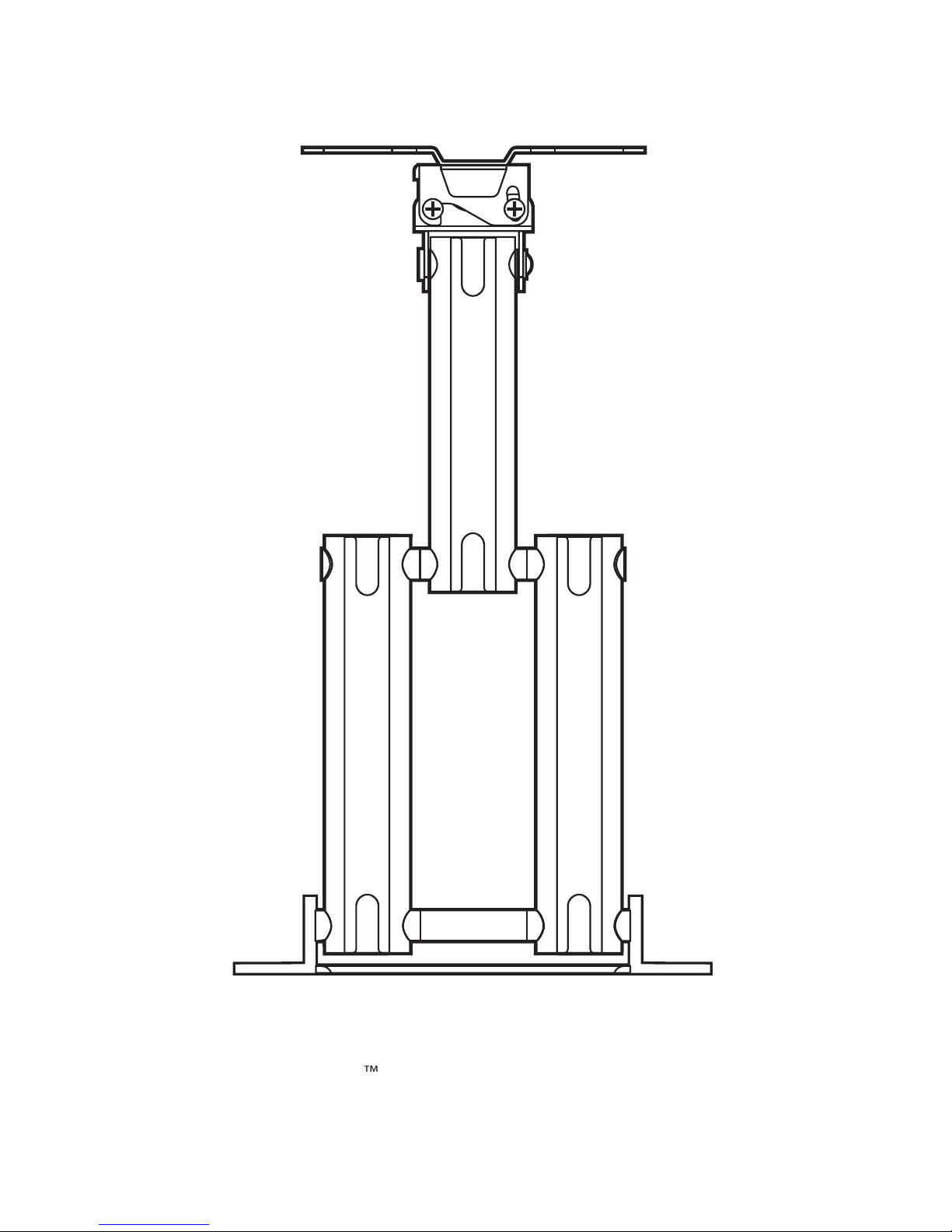

1 Mounting System
(VESA
™
75/100/200, 100x200,
200x200 Compliant)

5
GROUND OK CLEAN POWER
ALIMENTATION
CONDITIONNÉE
MISE À LA
TERRE ADÉQUATE

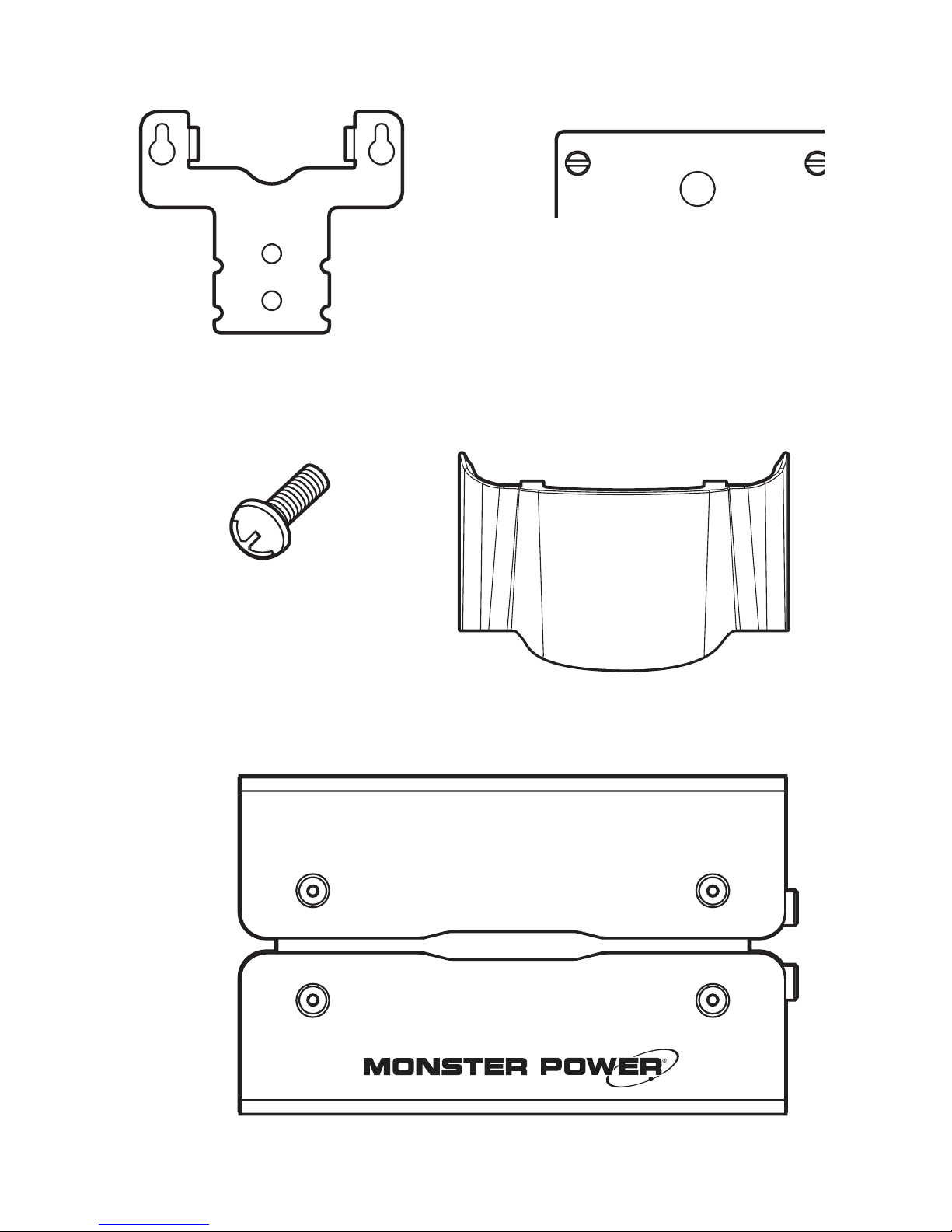

1 Power Unit
1 Power Unit
Mounting Bracket
1 Power Unit
Mounting Plate
1 Quick Snap Screw Cap
2 Phillips Screws

6
2 Allen
Wrenches
Bubble
Level
2 Lag Bolts
J
2 Masonry
Anchors
L
If any parts are missing, please call 800-877-8989.
Parts in supplied hardware kit
are numbered as above.
2 Quick-Snap
Screw Caps
5 End Caps
4 ea. M4x12
A
6 ea. M4x25
B
6 ea. M4x40
C
4 ea. M5x12
D
6 ea. M5x25
E
6 ea. M5x40
F
4 ea. M6x12
G
6 ea. M6x25
H
6 ea. M6x40
I
Phillips Screws
2 Round
Washers
K

7
IMPORTANT SAFETY INFORMATION
for PowerMount Wall Unit
Please read and observe the following safety points
at all times.
WARNING – Power Sources
DO NOT plug the mounting system power unit
into a power outlet that diff ers from the source
indicated for safe use on the unit. If you don’t
know the type of electrical power that is supplied
to your home, consult your local power company
or a qualifi ed electrician.
WARNING – Grounding and Polarization
A. DO NOT force the power unit’s plug into an outlet
that is not designed to accept grounded AC
plugs. This plug is designed to be inserted into a
grounded-type outlet only. If the plug doesn’t fi t
directly into your outlet, do not attempt to force
it into the outlet. Never attempt to dismantle the
plug in any way (or to alter the power cord). If you
have questions about grounding, consult your
local power company or a qualifi ed electrician.
B. If you use rooftop devices such as satellite dishes,
antennae or any other component with wire that
connects to your power unit, be sure the wire(s)
is properly grounded. This protects against
voltage surges and static charges.

8
C. DO NOT place any antenna near overhead power
lines or any other power circuit. DO NOT touch
any power line or power circuit. Doing so may
cause severe physical injury or possibly death.
WARNING – Liquid, Avoiding Electrical Shocks
A. DO NOT operate the power unit if liquid
of any kind is spilled on it or inside it.
B. DO NOT operate the power unit near rain
or water that’s spilled or contained
(e.g., bathtub, kitchen or sink).
WARNING – Power Cord Safety
A. When routing the power unit’s AC power cord,
do not place it near heavy foot traffi c (e.g.,
hallways, doorways and fl oors). Do not create a
trip hazard with the power cord.
B. If the protective jacket on the power unit begins
to rip or fray, exposing the internal wiring,
shielding, etc., disconnect it from the power
source and discontinue use immediately.
See the Warranty Information section of this
owner’s manual for important details.
WARNING – Storm Precautions
In the event of a lightning storm, it’s always a good
idea to disconnect the power unit; there is no need
to disconnect your separate components.

9
WARNING – No User Serviceable Parts Inside
If, for any reason, the power unit is not operating
properly, DO NOT remove any part of the unit
(cover, etc.) for repair. Unplug the unit and consult
the Warranty Information section of this owner’s
manual for important details.
CAUTION – Exposure to Heat
Do not expose your power unit to direct sunlight
or place it near wall heaters, space heaters or any
enclosed space prone to temperature increases.
CAUTION – Proper Cleaning
In general, the only cleaning necessary for the power
unit is a light dusting. Unplug the unit from the wall
before cleaning it. Do not use any type of liquid
or aerosol cleaner.

10
PROPER GROUNDING AND INSTALLATION
for PowerMount Wall Unit
WARNING – Proper Grounding
The power unit requires a properly grounded outlet
for safety and to protect connected equipment.
If you’re not sure if your home’s electrical wiring
is properly grounded, have it checked by
a qualifi ed electrician.
IMPORTANT NOTE – Proper Power and Protection
To completely protect your equipment against
electrical surges, every AC power cable, coaxial
cable, phone line, and Ethernet line in the system
must be connected to the power unit or another
surge protection unit.
IMPORTANT NOTE – Proper Protection and
the Limited Connected Equipment Warranty
The fi ve year, $50,000 Limited Connected
Equipment Warranty becomes invalid if any wire
(AC or coax) leading into the equipment comes
from a component that is not properly protected
by the mounting system power unit. See the
Warranty Information section of this owner’s
manual for important details.

11
Warnings
Forbidden Actions:
DO NOT install on a sloping surface. Install
exclusively on a vertical surface.
DO NOT mount to cabinetry made of particleboard.
DO NOT install in a room with excessively high
temperatures or high humidity. Install at least 3 ft.
from all water sources.
DO NOT install near an air conditioner.
DO NOT install in a location where there
is excessive dust, smoke or moisture.
These sources can create a fi re.
DO NOT apply unnecessary stress or load
on the installed unit. Never hang on the unit.
DO NOT install the unit alone. Safe installation
requires at least two people.
DO NOT route your fl atscreen TV’s power cord
in wall. Check local building/electrical codes
for more information.

12
Cautions
To prevent eye fatigue, DO NOT install where there
is direct sunlight or excessive light.
When carrying out maintenance, disconnect
the TV’s power supply to avoid electrical shock.
If planning to route AV cable in wall, only use cable
UL-certifi ed for this use.

13
Pre-Installation Checklist
®
Does your mounting location have at least
one wall stud?
®
Is your view of the mounting location free
of glare or other obstructions?
®
Is the location of your wall stud or masonry surface
suitable for repositioning your display?
®
Is your mounting location near an AC power outlet?
Ideally, the outlet should be behind your TV.
This will conceal your display’s power cord.
®
Is your mounting location at least 3 ft. from
any source of heat or water?

14
Preparing to Install the FlatScreen Mount
Remove all pieces of the FlatScreen Mount to ensure you
have all the necessary parts.
Remove the mounting system from the mount box.
Remove the No. 5 Allen wrench (the smaller of the two)
from the supplied parts bag.
Locate the bracket connecting the mounting system’s
Z-Fold
™
swing arms to the TV mounting plate.
Note the top and bottom tension screws on each side
of the bracket.

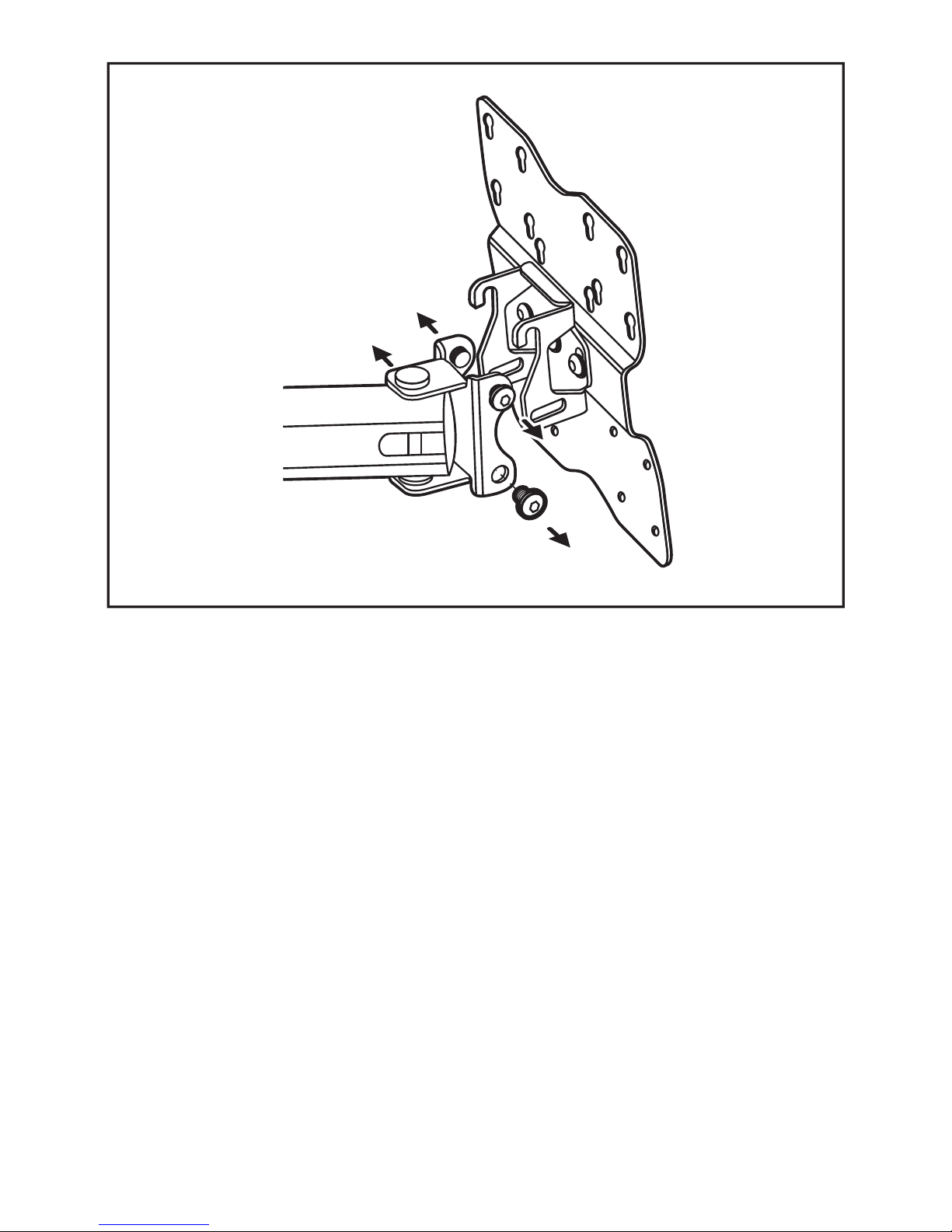

Using the No. 5 Allen wrench, loosen the top tension
screws. Totally remove the bottom tension screws.
Lift the mounting plate up off the swing arm.
1)
2)
3)
4)

15

16
Installing the Mounting System
Remove all pieces of the mounting system to ensure you
have all the necessary parts. Be sure to choose a mounting
location with convenient access to an AC power outlet.
Wood Stud Mounting:
Using an electronic stud sensor, locate a wall stud
at your desired mounting location.


With the help of a friend, vertically position
the mounting system on the wall stud. Using the
provided level, confi rm that the mounting system’s
wall plate is vertically straight. For best results, position
the level horizontally with the narrow end fl ush against
the side of the wall plate.
Mark the stud center in the wall plate’s top
and bottom mounting holes with a pencil.
With your electrical drill and 3/16 in./5 mm bit,
pre-drill a 3 in./76.2 mm deep hole at each mark.
Align the mounting holes with the holes in the wall.
While holding the wall plate fi rmly in place, insert one
of the supplied lag bolts and washers into the wall
plate’s top mounting hole, as shown to the right.
Next, place the power unit mounting plate over
the bottom mounting hole. Secure it with the other
supplied lag bolt and washer.
Tighten each bolt with your electric drill or socket wrench.
1)
2)
3)
4)
5)
6)
7)
8)
