Monster PERFECTVIEW 450M User manual

PerfectView
™
400M
FlatScreen Mount
Support d’écran plat
PerfectView
™
400M
Base PerfectView
™
400M
FlatScreen para
televisores planos

USER GUIDE & WARRANTY
GUIDE ET GARANTIE D’UTILISATEUR
GUÍA DEL USUARIO Y GARANTÍA

A NOTE FROM THE HEAD MONSTER
Dear Enthusiast,
THANK YOU
for purchasing
the Monster
®
PerfectView 400M
® PerfectView 400M ®
FlatScreen Mount. The PerfectView
400M refl ects our passion for
creating the most innovative and
practical AV solutions on the market,
so enthusiasts like yourself always
experience the absolute best
from their high-performance AV components. Monster
FlatScreen Mounts
™
deliver the clean, sophisticated style
you want, plus exclusive adjustment features for the
perfect view in virtually any room. Start enjoying TV on
your terms—when, where, and how you want to watch.
Noel Lee,
The Head Monster

More Great Products
from Monster FlatScreen
™
The Look You Want. The Performance You Need.
Monster FlatScreen Cables
™
Ultra slim and fl exible, Monster FlatScreen
Cables ensure a clean, no-clutter hookup
to your thin display. Plus, they feature
advanced Monster Cable
®
technologies, so you
® technologies, so you ®
always get the best possible picture and sound.
Monster FlatScreen PowerProtect
™
and PowerCenters
™
Safeguard your fl atscreen investment
from harmful electrical surges and
“dirty” AC power with exclusive Monster
Power
®
technologies, including Monster
® technologies, including Monster ®
SurgeGuard
™
and Monster
Clean Power
.
™
Monster FlatScreen Clean
™
Our safe LCD and plasma cleaning
solution instantly removes dust, dirt
and fi ngerprints from your fl atscreen
without drips, stains or scratches.
For more details on all our Monster FlatScreen products,
visit us at
MonsterCable.com/FlatScreen
advanced Monster Cable
always get the best possible picture and sound.
Monster FlatScreen Clean

1
PerfectView 400M FlatScreen Mount
PerfectView 400M is designed to mount
24"
-to-
37"
fl atscreen televisions to vertical walls. Maximum weight
capacity is
100 lbs.
SAFETY WARNING:
If you don’t understand these
directions, or have doubts about this product’s installation,
please call a qualifi ed contractor or contact Monster Cable
Products, Inc. at
1-877-800-8989.
Before installing, carefully review the instructions
to ensure that no parts are missing or defective. Improper
installation can cause damage or serious injury. Do not use
this product for any purpose not explicitly specifi ed
by Monster. Monster is not liable for damage or injury
caused by incorrect assembly, incorrect mounting
or incorrect use.
All hardware is supplied for the following wall conditions:
Wood stud, brick, solid concrete, and concrete block.
Note:
The supplied hardware
is not for steel stud walls.
If you are uncertain about the nature of your wall
construction, consult an installation contractor.



2
Specifi cations and Notes:







 










Monster is constantly striving to improve its products.
Specifi cations are subject to change without notice.

3
Required Tools
Wood Stud Mounting:
Electronic stud sensor
Level (included)
Electric hand drill
3/16" drill bit
Phillips screwdriver
Combination wrenches or socket set
Masonry Mounting
(brick, solid concrete, concrete blocks):
Above tools, plus hammer
Replace 3/16" drill bit with 1/2" masonry drill bit
•
•
•
•
•
•
•
•

4

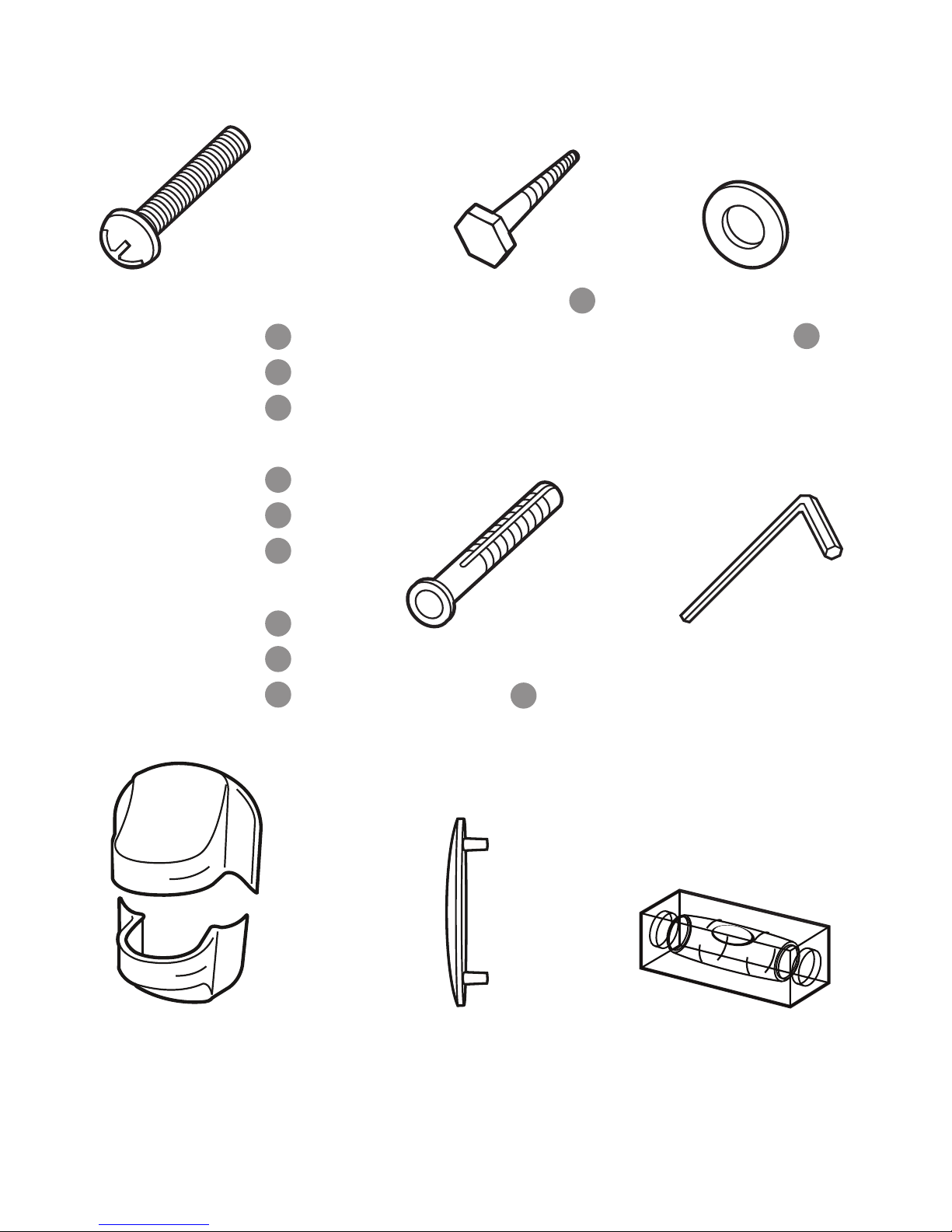

Package Contents
1 Mounting System
(VESA
™
75x75, 100x100, 100x200,
200x200 Compliant)

5
2 Allen
Wrenches
Phillips Screws
4 ea. M4x12
A
6 ea. M4x25
B
6 ea. M4x40
C
4 ea. M5x12
D
6 ea. M5x25
E
6 ea. M5x40
F
4 ea. M6x12
G
6 ea. M6x25
H
6 ea. M6x40
6 ea. M6x40
I
1 Bubble
Level
2 Round
Washers
K
2 Lag Bolts
J
2 Masonry
Anchors
L
If any parts are missing, please call 800-877-8989.
Parts in supplied hardware kit
are numbered as above.
2 Quick-Snap
Screw Caps
5 End Caps

6
Warnings
Forbidden Actions:
DO NOT install on a sloping surface. Install
exclusively on a vertical surface.
DO NOT mount to cabinetry made of particleboard.
DO NOT install in a room with excessively high
temperatures or high humidity. Install at least 3 ft.
from all water sources.
DO NOT install near an air conditioner.
DO NOT install in a location where there
is excessive dust, smoke or moisture.
These sources can create a fi re.
DO NOT apply unnecessary stress or load
on the installed unit. Never hang on the unit.
DO NOT install the unit alone. Safe installation
requires at least two people.
DO NOT route your fl atscreen TV’s power cord
in wall. Check local building/electrical codes
for more information.

7
Cautions
To prevent eye fatigue, DO NOT install where there
is direct sunlight or excessive light.
When carrying out maintenance, disconnect
the TV’s power supply to avoid electrical shock.
If planning to route AV cable in wall, only use cable
UL-certifi ed for this use.
Pre-Installation Checklist
Does your mounting location have at least
one wall stud?
Is your view of the mounting location free
of glare or other obstructions?
Is the location of your wall stud or masonry surface
suitable for repositioning your display?
Is your mounting location near an AC power outlet?
Ideally, the outlet should be behind your TV.
This will conceal your display’s power cord.
Is your mounting location at least 3 ft. from
any source of heat or water?

To hide your TV’s power cord, install a Monster
®
In-Wall PowerCenter
™
behind the placement
of your display.
®
®
®
®
®

8
Preparing to Install the FlatScreen Mount
Remove all pieces of the FlatScreen Mount system
to ensure you have all necessary parts.
Remove the mounting system from the mount box.
Remove the No. 5 Allen wrench (the smaller of the two)
from the supplied parts bag.
Locate the bracket connecting the mounting system’s
Z-Fold
™
swing arms to the TV mounting plate.
Note the top and bottom tension screws on each side
of the bracket.
Using the No. 5 Allen wrench, loosen the top tension
screws. Totally remove the bottom tension screws.
Lift the mounting plate up off the swing arm.
1)
2)
3)
4)

9

10
Installing the FlatScreen Mount
Choose a mounting location with convenient
access to an AC power outlet.

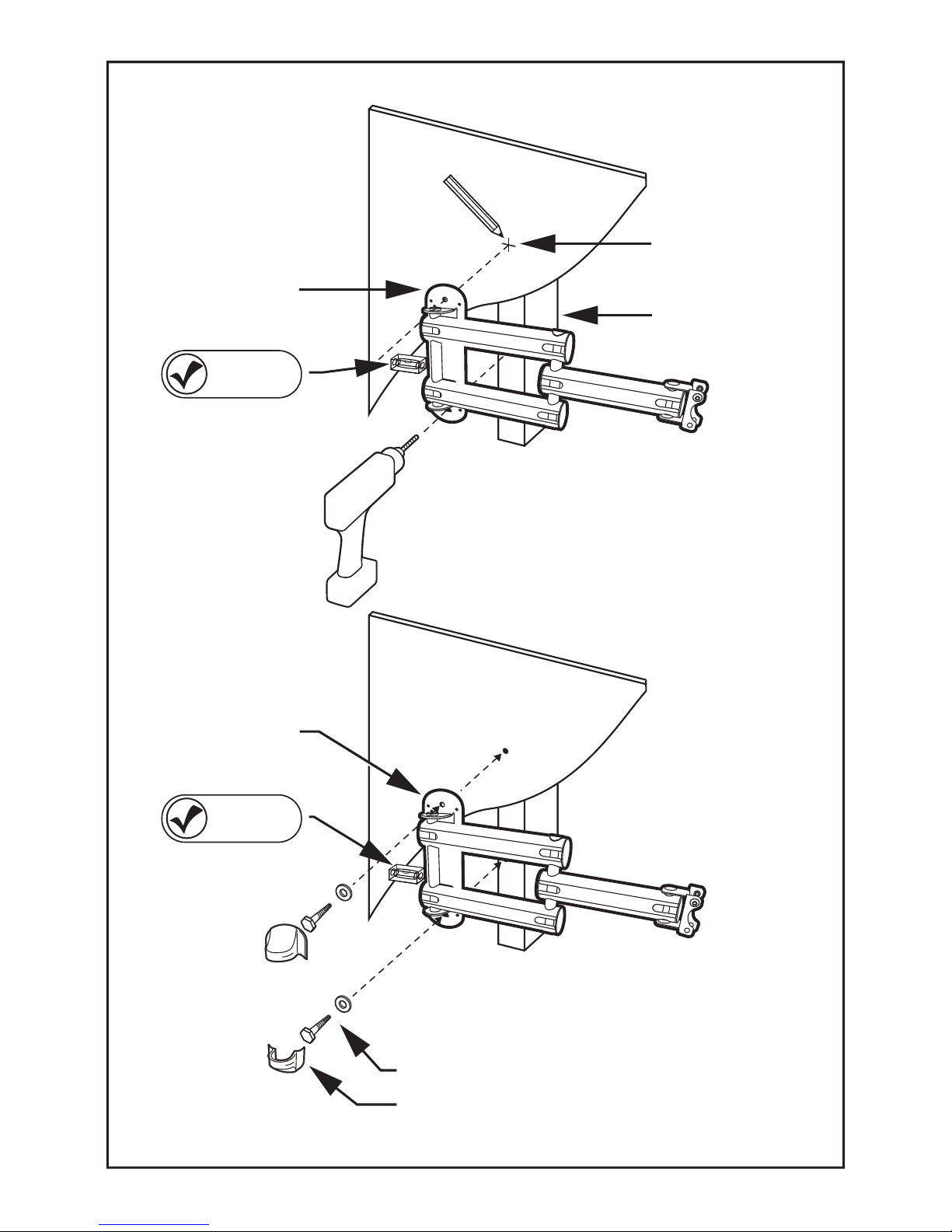

Wood Stud Mounting:
Using an electronic stud sensor, locate a wall stud
at your desired mounting location.


With the help of a friend, position the wall
plate over wall stud. Using the provided level, confi rm
that the wall plate is plumb or vertically straight.
For best results, position the level horizontally with
the narrow end fl ush against the side of the wall plate.
Hold the plate fi rmly in place.
Mark the stud center in the top and bottom mounting
holes with a pencil.
With your electrical drill and 3/16" bit, pre-drill a 3"
deep hole at each mark.
Attach the wall plate to the wall using the supplied
lag bolts and round washers, as shown to the right.
Tighten each bolt with your electric drill or socket
wrench. Turn clockwise until secure.
Attach the wall plate’s Quick-Snap Screw Caps
to conceal the installed lag bolts.
DO NOT over tighten bolts. This can damage
the wall plate or the surface of your wall.
1)
2)
3)
4)
5)
6)

11
















12
Installing the FlatScreen Mount
continued

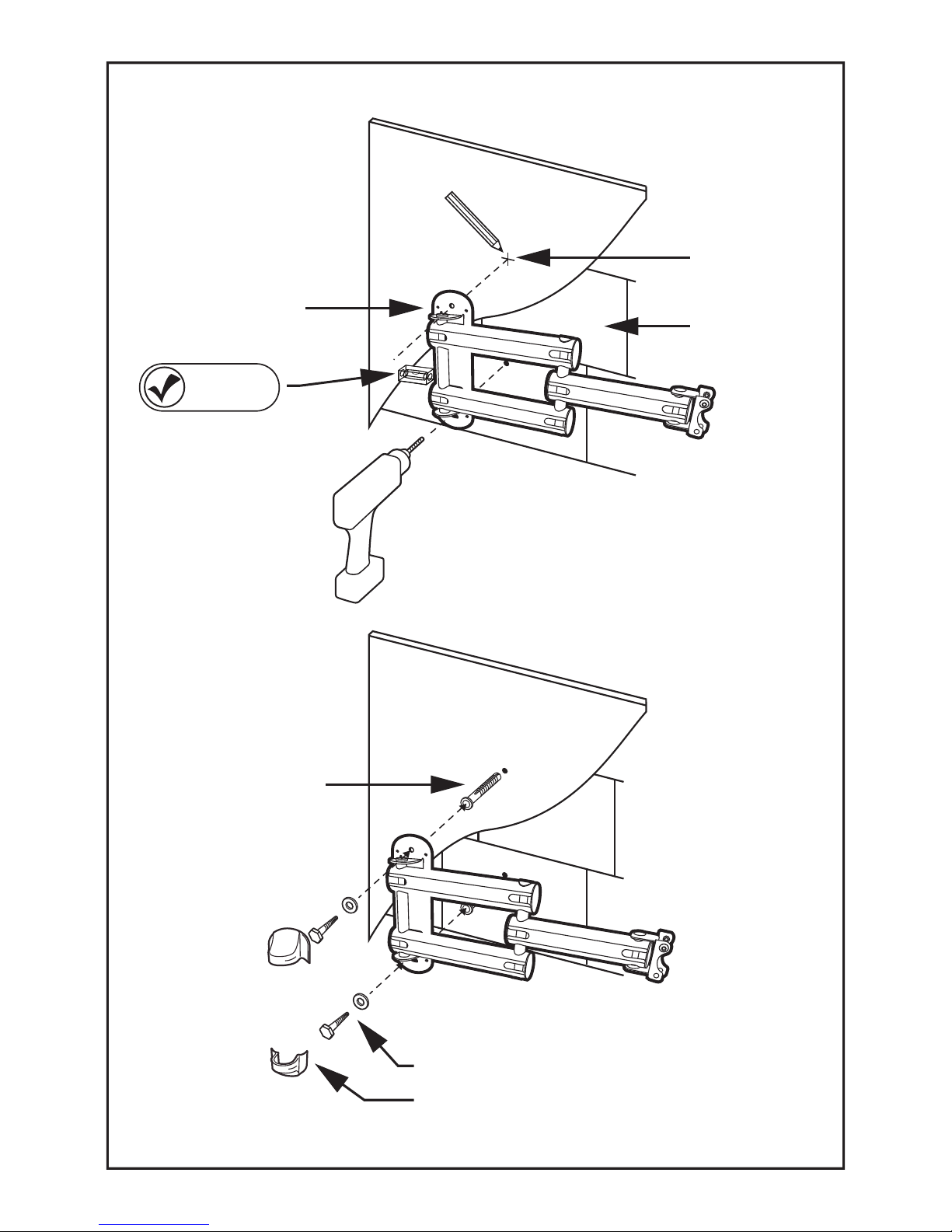

Masonry Mounting
Masonry mounting requires specialized knowledge, skills
and tools. Monster highly recommends that you seek the
help of a professional installer when mounting to masonry.
With the help of a friend, position the mounting plate
in your desired mounting location.


Using the provided level, confi rm that the wall
plate is plumb or vertically straight. Position the level
horizontally with the narrow end fl ush against the side
of the wall plate. Hold the plate fi rmly in place.
Mark the centers of the top and bottom mounting
holes on the wall plate with a pencil. Be careful not to
mark a mortar joint. With your electrical drill and 1/2"
masonry bit, pre-drill a 3" deep hole at each mark.
Install the supplied plastic anchors in each hole.
Tap into hole until fully seated.
Attach the wall plate to the wall using the supplied
lag bolts and round washers, as shown to the right.
Attach the wall plate’s Quick-Snap Screw Caps
to conceal the installed lag bolts.
DO NOT over tighten bolts. This can damage
the wall plate or the surface of your wall.
DO NOT release the wall plate until you
are absolutely sure it is secured to the wall.
1)
2)
3)
4)
5)
6)

13














14
Attaching the Mounting Plate to the TV
and Hanging the TV on the Mount
DO NOT lay the TV face down when attaching
the mounting plate.
The TV should remain unplugged while threading
screws into the back panel.
Your mounting system features nine sets of screws
of varying diameter and length. Before attempting
to attach the mounting plate to your TV, determine
which screw set is the correct choice for your display.
Note the various sets of VESA-compatible mounting
holes (round and keyhole) on the mounting plate.
Align four holes on the mounting plate with four
threaded inserts on your TV’s back panel.
Manually thread the appropriate set of screws though
the mounting plate into the four TV inserts.
With a Phillips screwdriver, tighten down the screws
so the mounting plate is securely attached to the TV.
With the help of a friend, hang the TV and attached
mounting plate onto the swing arm bracket.
While holding the TV fi rmly in place, replace
and tighten the lower tension screws. Tighten
the upper tension screws.
1)
2)
3)
4)
5)
6)

15
WARNING
DO NOT OVER TIGHTEN SCREWS.

16
Adjusting the Flexibility of the
Z-Fold
™
Extending Swing Arms
The PerfectView 400M features heavy-duty
Z-Fold
Extending Swing Arms with three independent
arm hinges.
The
Z-Fold
swing arms extend your display
Z-Fold swing arms extend your display Z-Fold
up to 24" from the wall.
All three arm hinges swivel your TV left or right 180.°*
Each arm hinge has an adjustable tension screw, adjustable
before or after the TV and mounting plate are attached
to the swing arms.
Remove the plastic cap on the bottom
of any arm hinge, as shown to the right,
to access its tension screw.
With an Allen wrench, turn the tension screws
counterclockwise to reduce swivel tension.
Turn the screws clockwise to increase swivel tension.
•
•
1)
2)
3)
* Actual swivel angle depends on the dimensions of TV.
