Monte Carlo Fan Company 5MGR54XXD Series User manual

R
MonteCarloFans.com
5MGR54XXD Series Fan
UL Model No. : AC-552
Total fan weight
with light kit READ AND SAVE
THESE INSTRUCTIONS
To register your fixture, please visit our website:
MonteCarloFans.com
Si necesita asistencia en la instalación,
piezas de repuesto, o tiene preguntas
acerca de nuestra garantía, por favor
llame a nuestro centro de servicio
al cliente:
Si vous avez besoin d'aide pour l'installation,
des pièces de remplacement, ou si vous avez
des questions concernant notre garantie,
veuillez contacter notre service après-vente:
If you need installation
assistance, replacement parts,
or have questions regarding
our warranty, please call our
customer care center:
NEED HELP?
¿NECESITA AYUDA?
AVEZ-VOUS BESOIN D’AIDE?
Please do not return this product to the store.
Por favor no devulva este producto a la tienda.
Prière de ne pas retourner ce produit au magasin.
1-800-519-4092
MonteCarloFans.com
STOP ALTO

1

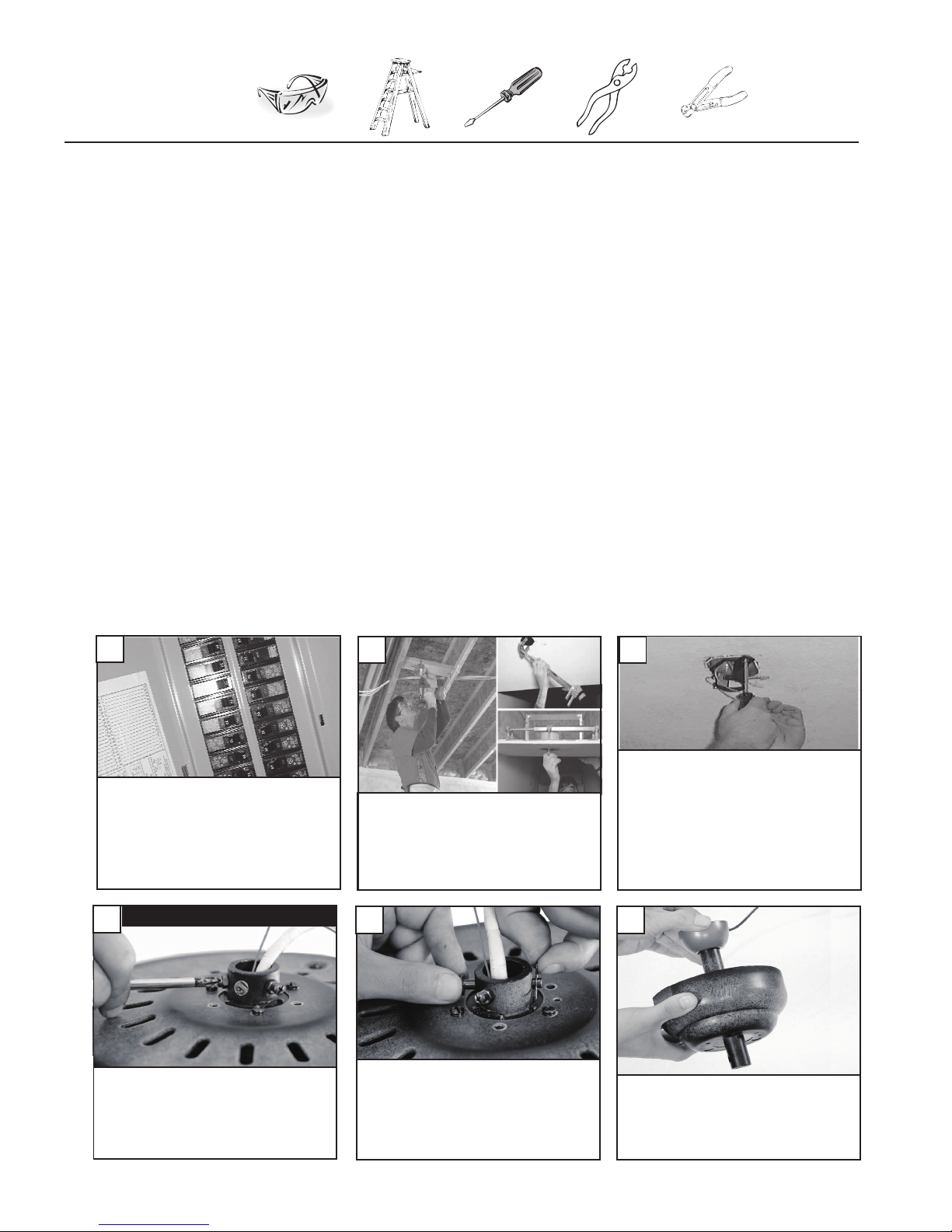

Before you begin installing the fan, Switch
power off at Service panel and lock service
disconnecting means to prevent power
from being switched on accidentally. When
the service disconnecting means cannot
be locked, securely fasten a prominent
warning device, such as a tag, to the
service panel.
2
Before installing this fan make sure the
outlet box is properly installed to the house
structure. To reduce the risk of re, electric
shock, or personal injury, mount to outlet
box or supporting system acceptable for fan
support.
(Mounting must support at least 35 lbs.)
3
Use metal outlet box suitable for fan support
and use only the screws provided with the
outlet box (must support 35 lbs). Before
attaching fan to outlet box, ensure the outlet
box is securely fastened by at least two points
to a structural ceiling member ( a loose box
will cause the fan to wobble). Remove the
two outlet box screws provided with the box,
aligning the holes of the mounting bracket
with the holes of the outlet box. Re-install the
2 outlet box screws securely.
4
Loosen 2 screws on yoke to
allow down rod to slip into
yoke.
5 6
Place canopy over downrod.
Safety instructions
Helpful Tools
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING: READ AND SAVE THESE INSTRUCTIONS
Installation work and electrical wiring must be done by qualied person(s) in accordance with applicable codes and standards (ANSI/NFPA
70-1999), including re-rated construction.
Use this unit only in the manner intended by the manufacturer. If you have any questions contact the manufacturer.
After making the wire connections, the wires should be spread apart with the grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on the other side of the outlet box. The splices, after being made, should be
turned upward and pushed carefully up into the outlet box.
WARNING: Before you begin installing the fan, servicing or cleaning unit, Switch power off at Service panel and lock service
disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such as a tag, to the service panel.
Be cautious! read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
Make sure the installation site you choose allows the fan blades to rotate without any obstructions. Allow a minimum clearance of 7 feet
from the oor to the trailing edge of the blade.
WARNING: To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for fan support” and use
mounting screws provided with the outlet box (Mounting must support at least 35 lbs.)
WARNING: To reduce the risk of personal injury, do not bend blade holders during installation to motor, balancing or during cleaning. Do
not insert foreign object between rotating blades.
Attach the mounting bracket using only the hardware supplied with the outlet box.
WARNING: To reduce the risk of re or electric shock, this fan must be installed with an isolating wall control/switch.
WARNING: To reduce the risk of fire or electric shock, this fan should only be used with fan speed control part no. UC7067RY
manufactured by Rhine Electronic Co., Ltd.
WARNING: To reduce the risk of re or electric shock, do not use this fan with any solid state fan speed control device, or variable speed
control.
If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application.
Never place a switch where it can be reached from a tub or shower.
The combustion airow needed for safe operation of fuel-burning equipment may be affected by this unit’s operation. Follow the heating
equipment manufacturer’s guideline safety standards such as those published by the National Fire Protection Association (NFPA), and the
American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
CAUTION: To Reduce the Risk of Electric Shock, Disconnect the electrical supply circuit to the fan before installing the light kit.
All set screws must be checked and tightened where necessary before installation.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.

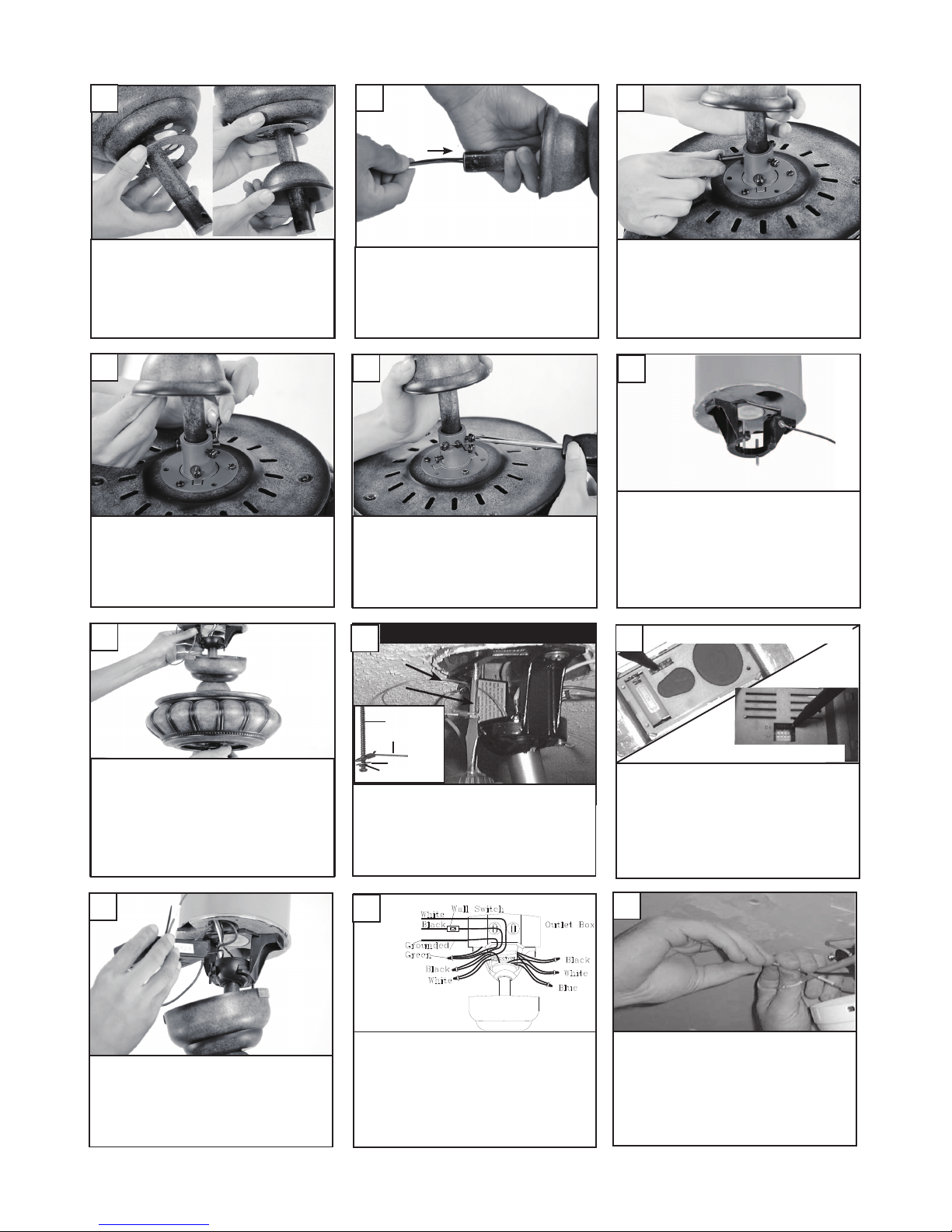

Remove keeper pin and cross
pin from yoke, and save for
later use.
Downrod Mount Installation

8
7
Thread the leadwires and
sa fety ca ble through th e
downrod.
P l a c e c a n o p y r i n g o v e r
downrod then place yoke
cover over downrod as
shown.
9
Insert downrod into the yoke on top
of fan body. Align the hole in the
downrod with the hole in the yoke.
Insert cross pin through yoke and
downrod until point appears on the
other side.
10
Install keeper pin.
11
Tighten the 2 set screws on
the yoke, once the down rod
is in place.
13
Hang assembled fan from the mounting
bracket installed to ceiling in previous
step. Make sure the fan is hanging
straight. Rotate fan until the tab on the
Mounting bracket engages the slot on the
Downrod Ball. This must be done to
prevent the fan body from rotating
when the blades are in motion.
17
Make wiring connections as indicated above.
White from fan to white from remote marked
N. Blue from fan to blue from remote marked
light. Black from fan to Black from remote
marked L. White from house to white from
remote marked AC N . Black from house to
Black from remote marked AC L. Connect all
green ground wires to Grounded wire from
House.
18
Make wire connections to power source using
wire nuts provided. Make sure that no laments
are outside of the wire nut. After making the wire
connections, the wires should be spread apart
with the grounded conductor and the equipment-
grounding conductor on one side of the outlet
box and ungrounded conductor on the other side
of the outlet box. The splices after being made
should be turned upward and pushed carefully up
into the outlet box.
For Canadian installation and for USA fan and light
kit combinations over 35 lbs, in both flush and
downrod mode the safety cable must be installed
into the house structure beams using the 3” lag
screws,washers, and lock washers. provided. Make
sure that when the safety cable is fully extended
the leadwires are longer than the cable and no
stress is placed on the leadwires.
14
Lag screw
Safety cable
Washer
Lock washer
Lag screw
Safety cable
Safety cable installation
12
Make sure the studs
protruding from the bottom
of the Mounting bracket are
installed with threads all the
way through the bracket.
15
Set dip switches on the Remote Transmitter
and Remote Receiver to the same settings.
This must be done so the units will
communicate properly. If you have other fans
you can set to control from one transmitter
by setting both receivers the same as the
transmitter. If you have more than one fan
with remote. You can set the dip switches to
different positiosns to have seperate control.
Remote transmitter dip switch
Remote receiver dip switch
16
Install remote receiver into
the mounting bracket.
Supply
circuit

21
Place the canopy over the yoke
screws aligning the large holes
from the canopy over the remaining
screws of the yoke. Install 3 screws
provided to secure the canopy.
23
Hang fan from mounting
bracket by the hands free
hook into a closed hole on
the edge of the Canopy.
29
Lift fan to mounting bracket,
aligning the “L” shape holes with
the scresws on the mounting
bracket. Turn the fan clockwise
to lock in position. Install the 2
canopy mounting bracket screws
provided.
27
Make wiring connections as indicated above.
White from fan to white from remote marked
N. Blue from fan to blue from remote marked
light. Black from fan to Black from remote
marked L. White from house to white from
remote marked AC N . Black from house to
Black from remote marked AC L. Connect all
green ground wires to Grounded wire from
House.
28
Make wire connections to power source using
wire nuts provided. Make sure that no liments
are outside of the wirenut. After making the wire
connections, the wires should be spread apart
with the grounded conductor and the equipment-
grounding conductor on one side of the outlet
box and ungrounded conductor on the other side
of the outlet box. The splices after being made
should be turned upward and pushed carefully up
into the outlet box.
22
Install 2 of the screws (screws provided
) to the side panel corresponding to the
open slotted holes on the canopy upper
rim. Remove the all thread studs from
the lower part of the mounting bracket.
For Canadian installation and for USA fan and light
kit combinations over 35 lbs, in both flush and
downrod mode the safety cable must be installed
into the house structure beams using the 3” lag
screws,washers, and lock washers. provided. Make
sure that when the safety cable is fully extended the
leadwires are longer than the cable and no stress is
placed on the leadwires.
24
Lag screw
Washer
Lock washer
Safety cable
Lag screw
Safety cable
Safety cable installation 25
Set dip switches on the Remote Transmitter
and Remote Receiver to the same settings.
This must be done so the units will
communcate properly. If you have other fans
you can set to control from one transmitter
by setting both receivers the same as the
transmitter. If you have more than one fan
with remote. You can set the dip switches to
different positiosns to have seperate control.
Remote transmitter dip switch
Remote receiver dip switch
26
Install remote receiver into the
mounting bracket.
Go to step 30 to nish
installation

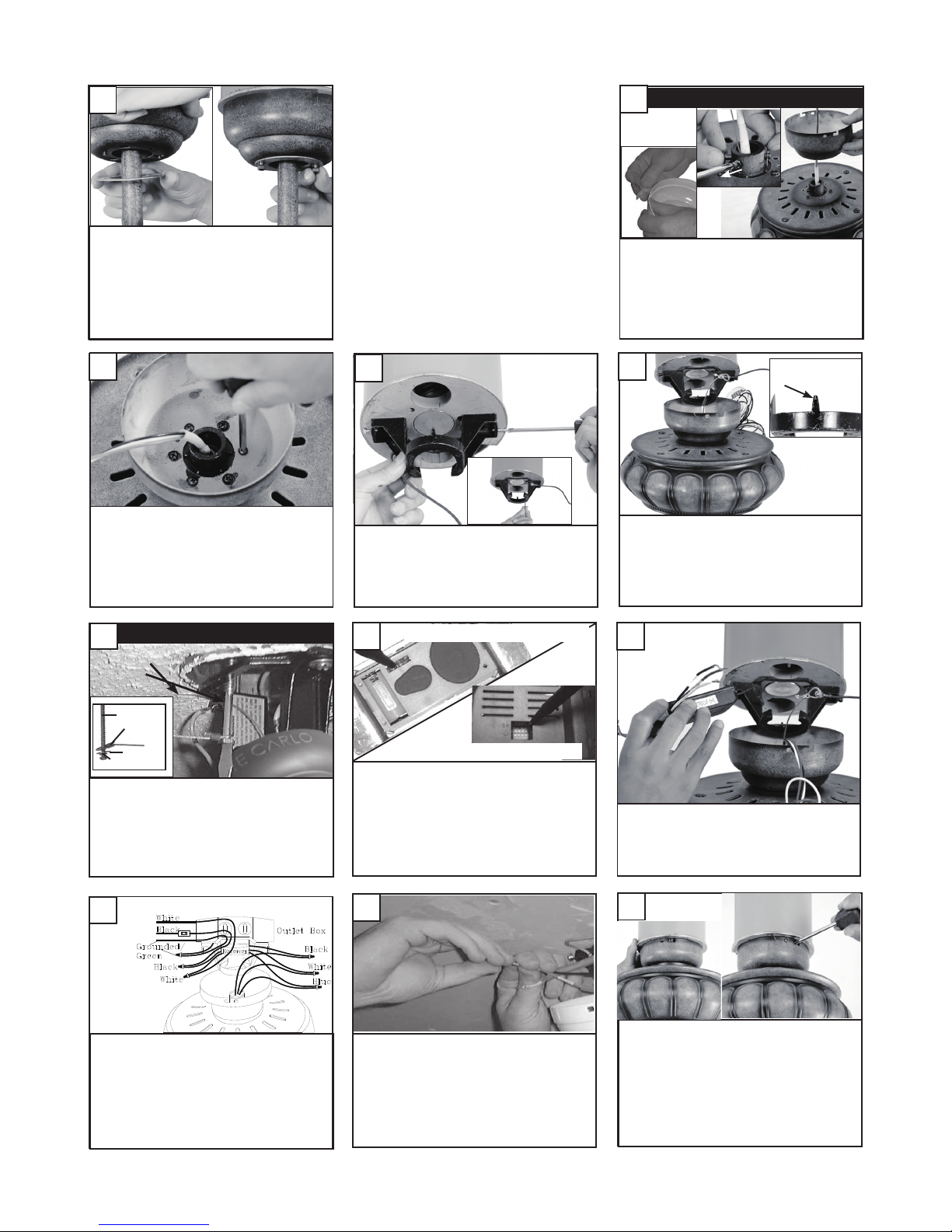

19
Lift Conopy allowing the 2 studs to
protrude through the canopy.
Next lift the cover ring and install
knurled nuts as shown. Tighten the
knurled nuts securely. The canopy
should adjust for any irregularity in
the ceiling or Outlet box.
Hand free
hook
20
Remove side covers from canopy
and then remove set screws and
pins from yoke as inset shown.
Pass leadwires and safety cable
through canopy.
Flushmount Installation
Supply
circuit

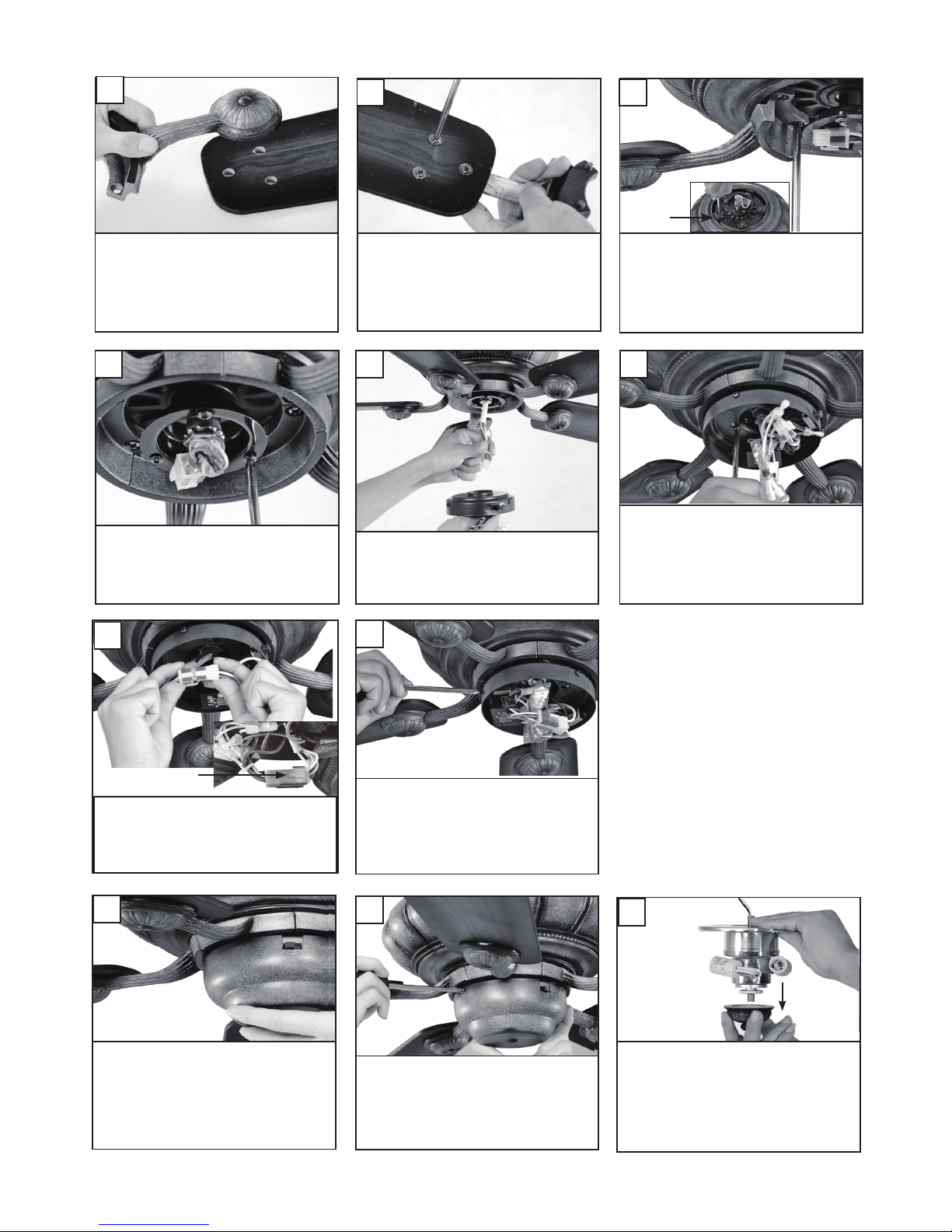

31
Install blade bracket with
blade by 3 blade screws
provided. Tighten securely.
Re p e a t t h i s p r o c e s s fo r
remaining blades.
33
32
L o o s e n 2 a n d r e m o v e 1
preassembled scews from the
plate on motor. Save screw for
later use.
Check motor for shipping stabilizers
and remove if present.Install the
blade assembly to motor using the
screws pre-installed. Tighten screws
securely. Repeat this process for
remaining blade assemblies.
34 35
Place switch housing over wires
from motor.
Attached switch housing on to the
plate on motor, aligning the keyhole
slots with the preassembled screws
on the plate. Twist clockwise till
lock. Install the screw removed in
step 33. Tighten all screws securely.
36
Connect plug from fan to plug
from switch housing. Make sure
the plugs are hooked together.
37
39
38
Remove 3 preassembled
screws from switch housing.
Save screws for later use.
Install switch housing cover
with the screws removed in
step 37.
Attach switch housing cover
onto switch housing by aligning
the long slot on switch housing
cover with the reverse switch
preassembled on switch housing
as shown.
Hook
30
Place b lade bracket onto
blade by aligning the 3 holes
on blade as shown.
For fan without light,
go to step 38.
For fan with light, go
to step 40.
40
Remove finial and screw nut
from light xture.
Shipping
stabilizer

42
Pl ac e l oc k wa sh er a nd h ex
nut over lead wires from light
fixture. Tighten hex nut onto
threaded pipe from the light
xture.
44
Attach switch housing cover onto switch
housing by aligning the long slot on
switch housing cover with the reverse
switch preassembled on switch housing
as shown. Install switch housing cover
with the screws removed in step 37.
Connect white wire from
fan to white wire from light
fixture. Connect blue wire
from fan to black wire from
lighgt xture.
46
Place glass over the threaded
rod and secure it by the screw
nut removed in step 40. Tigthen
securely.
47
Install finial to secure the
glass.
41
Thread lead wires of light kit
through center hole in switch
housing cover. Install switch
housing cover to light xture
by turning clockwise till tight.
45
Install 3 x 40-watt candelabra base
bulbs. Bulbs included.
WARNING: Over lamping the fan
will result in the fan lights shutting
down until the proper wattage of
bulbs are installed.
Reset the lights by turning off,
replace bulbs with the correct
wattage bulbs, turn the power on.
This side up
48
Remove battery cover. Install 12V battery
into wall remote. Duracell MN21 / Eveready
A23 / GP 23A all 12V.Attach cover of remote
by placing over buttons and snap the battery
cover in place.
49
Place face plate over battery compartment
and buttons. Place remote over 2 pins on front
cover. Attach cover of remote by placing over
4 pins and snapping into place.
HAND HELD INSTALL
50
Install wall control unit to outlet box
using machine screws provided.
51
Attach front cover to wall control
with screws provided. Snap battery
cover in place.
WALL MOUNT INSTALL
43

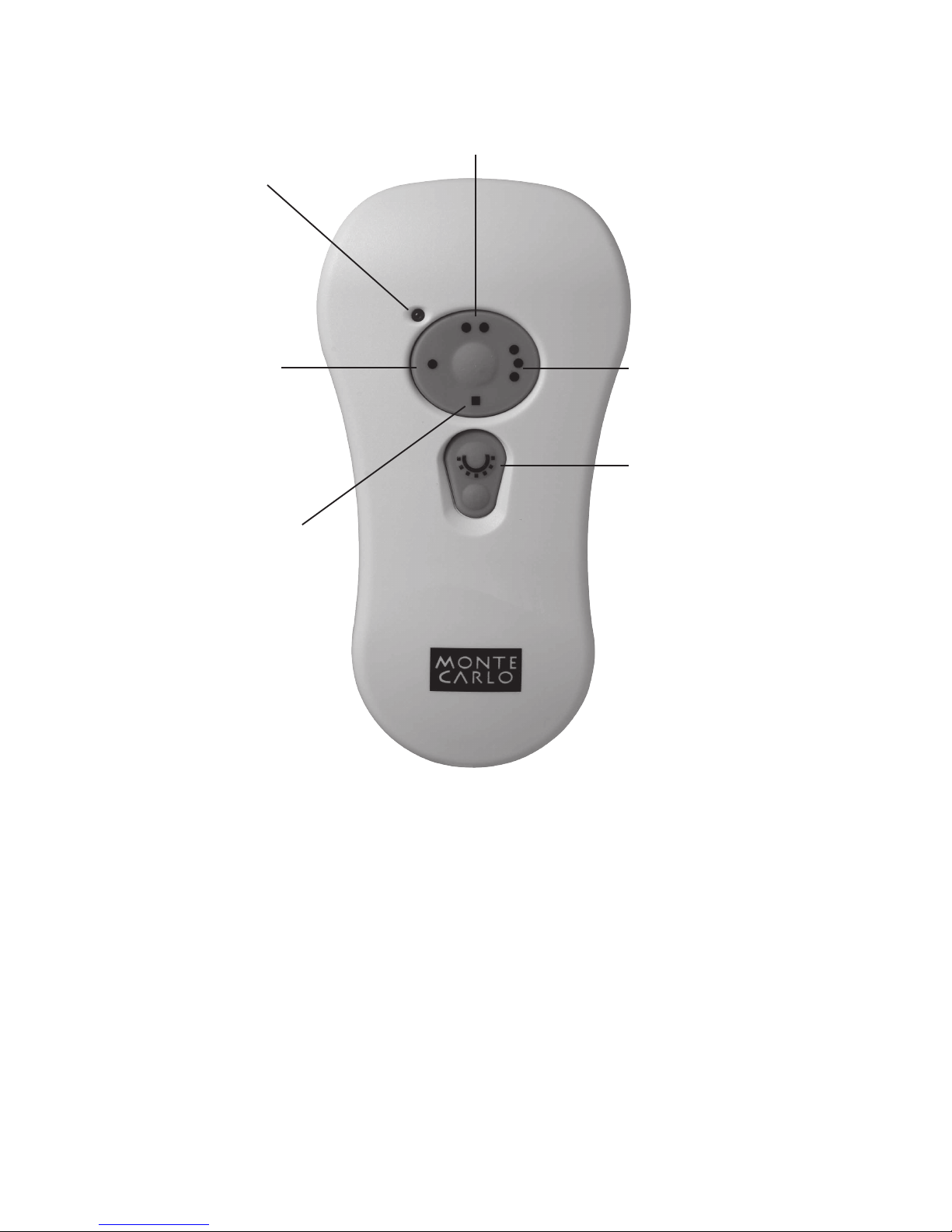

Remote Control Transmitter Features:
LIGHT DIMMER To turn light on, press light dimmer once quickly. To
turn off press once quickly while light is on. To dim light hold down button
“light dimmer”. The light will cycle from bright to dim to bright until
button is released. Light will maintain last setting if turned off.
FAN SPEED Depress “l dot” for low speed, “2 dots” for medium or “3
dots” for high. To turn fan off press square”.
HIGH SPEED
MEDIUM SPEED
LED LIGHT
LOW SPEED
F A N O F F S E TT I N G
(Turns fan off only)
LIGHT ON/OFF SETTING
A N D D I M M E R ( P r e s s
and hold to dim light
innitively)

Trouble Shooting
If you have difculty operating your new ceiling fan, it may be the result of incorrect assembly, installation,
or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults,
please check this Trouble Shooting Chart. If a problem cannot be remedied, or you are experiencing difculty in
installation, please call our Customer Service Center at the
number printed on your parts list insert sheet.
Warning: Before servicing or cleaning unit, Switch power off at Service panel and lock service disconnecting
means to prevent power from being switched on accidentally. When the service disconnecting means cannot be
locked, securely fasten a prominent warning device, such as a tag, to the service panel.
1.Check main and branch circuit fuses or circuit breakers.
2.Check line wire connections to fan and switch wire connections in switch housing.
CAUTION: Make sure main power is turned off.
3.If this fan uses manual forward/reverse switch, make sure the switch is pushed rmly
either way. Fan will not operate when switch is in the middle.
4.If this fan uses remote controller, make sure dip switches are setting properly and make
sure battery is effective.
1.Check to make sure all screws in motor housing are snug (not over tightened).
2.Check to make sure the screws which attach the fan blade holder to the motor are tight.
3.Check to make sure wire nut connectors in switch housing are not rattling against each
other or against the interior wall of the switch housing.
CAUTION: Make sure main power is turned off before entering switch housing.
4.Check to be sure light bulb is tight in socket and not touching the glass shade.
5.Some fan motors are sensitive to signals from Solid State variable speed controls.
6.Allow "break-in" period of 24 hours. Most noises associated with a new fan will disappear
after this period.
1.If this is a downrod mount fan, make sure that the ridge of the canopy engages the
notch in the downrod ball.
2.Make sure that canopy, mounting bracket or mounting plate are tightened securely to
ceiling junction box and junction box is mounted rmly to ceiling joist.
3.Check that all blades are screwed rmly into blade holders.
4.Check that all blade holders are tightened securely to motor.
5.Most fan wobble problems are caused when blade levels are unequal. Check this level by
selecting a point on the ceiling above the tip of one of the blades. Measure this distance
from blade tip to ceilng. Keeping measure within 1/8", rotate the fan until the next blade
is positioned for measurement. Repeat for each blade. If all blade levels are not equal,
you can adjust blade levels by the following procedure. To adjust a blade tip down, insert
a washer (not supplied) between the blade and blade holder at the screw closest to the
motor. To adjust a blade tip up, insert washer (not supplied) between the blade and blade
holder at the two screws farthest from the motor. Reverse the position of the washer if
blades mount from top of blade.
6.If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.
1.Check blue wire from fan to make sure it is connected to hot wire from house.
2.Check for loose or disconnected wires in fan switch housing.
3.Check for loose or disconnected wires in light kit.
4.Check for faulty light bulb and make sure bulb is tight in socket.
5.Remove light kit and check the plug connections if it is connected with plugs.
6.If this fan uses remote controller, make sure dip switches are setting properly and make
sure battery is effective.
CAUTION: Make sure main power is turned off before entering switch housing and/or
canopy.
WARNING: Over lamping the fan will result in the fan lights shutting down until the proper
wattage of bulbs are installed. Reset the lights by turning off, replace bulbs with the correct
wattage bulbs, Turn power on.
2. If fan sounds noisy:
3. If fan wobbles:
4. If light does not work:
1. If fan does not start:
Trouble Suggested Remedy

Jul.2010
