Montigo R520 Instruction Manual

Langley, BC V4W 4A1 |  Ferndale, WA 98248
®
C US
Read and understand this manual. Improper installation, adjustment, alteration,
service or maintenance can cause serious injury, property damage or even death.
For assistance or additional information consult a qualified installer, service
agency or the gas supplier.
DANGER
Glass doors on gas fireplaces are extremely hot while the fireplace is on and
remain hot even after the fireplace has been turned off. Safety screens are
available and can reduce the risks of severe burns. Please keep children away
from the fireplace at all times.
CAUTION
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of
this or any other gas burning appliance. A fire or explosion my occur causing serious
injury, property damage or even death.
WARNING
Installer: Leave this manual with the appliance. Do not remove.
Consumer: Retain this manual for maintenance and future reference. Do not Discard.
NOTICE
IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
DANGER
Irritant
Cutting
Watch your step
Slippery floor
High temperatures
Glass hazard
Danger of suffocation
High voltage
Toxic
Flammable materials
Corrosive
Fork lift trucks
Danger overhead crane
Explosion risk
Oxidising
Danger of death
Biohazard
Laser Radiation
Danger of entrapment
Hot surface
General Warning
Blank
Gas bottles
Watch for
falling objects
Electricity
Danger for cutter
Entrapment hazard
Battery hazard
Rotating parts
Low temperature
Strong magnetic field
Optical radiation
Non ionizing
radiation
Radiation
Hazardous to the
Environment
Danger of harming
your hands
Irritant
Cutting
Watch your step
Slippery floor
High temperatures
Glass hazard
Danger of suffocation
High voltage
Toxic
Flammable materials
Corrosive
Fork lift trucks
Danger overhead crane
Explosion risk
Oxidising
Danger of death
Biohazard
Laser Radiation
Danger of entrapment
Hot surface
General Warning
Blank
Gas bottles
Watch for
falling objects
Electricity
Danger for cutter
Entrapment hazard
Battery hazard
Rotating parts
Low temperature
Strong magnetic field
Optical radiation
Non ionizing
radiation
Radiation
Hazardous to the
Environment
Danger of harming
your hands
Irritant
Cutting
Watch your step
Slippery floor
High temperatures
Glass hazard
Danger of suffocation
High voltage
Toxic
Flammable materials
Corrosive
Fork lift trucks
Danger overhead crane
Explosion risk
Oxidising
Danger of death
Biohazard
Laser Radiation
Danger of entrapment
Hot surface
General Warning
Blank
Gas bottles
Watch for
falling objects
Electricity
Danger for cutter
Entrapment hazard
Battery hazard
Rotating parts
Low temperature
Strong magnetic field
Optical radiation
Non ionizing
radiation
Radiation
Hazardous to the
Environment
Danger of harming
your hands
Irritant
Cutting
Watch your step
Slippery floor
High temperatures
Glass hazard
Danger of suffocation
High voltage
Toxic
Flammable materials
Corrosive
Fork lift trucks
Danger overhead crane
Explosion risk
Oxidising
Danger of death
Biohazard
Laser Radiation
Danger of entrapment
Hot surface
General Warning
Blank
Gas bottles
Watch for
falling objects
Electricity
Danger for cutter
Entrapment hazard
Battery hazard
Rotating parts
XG0771 040513.3
R520
R620
R-Series
Indoor
Resi
dential
Fireplace


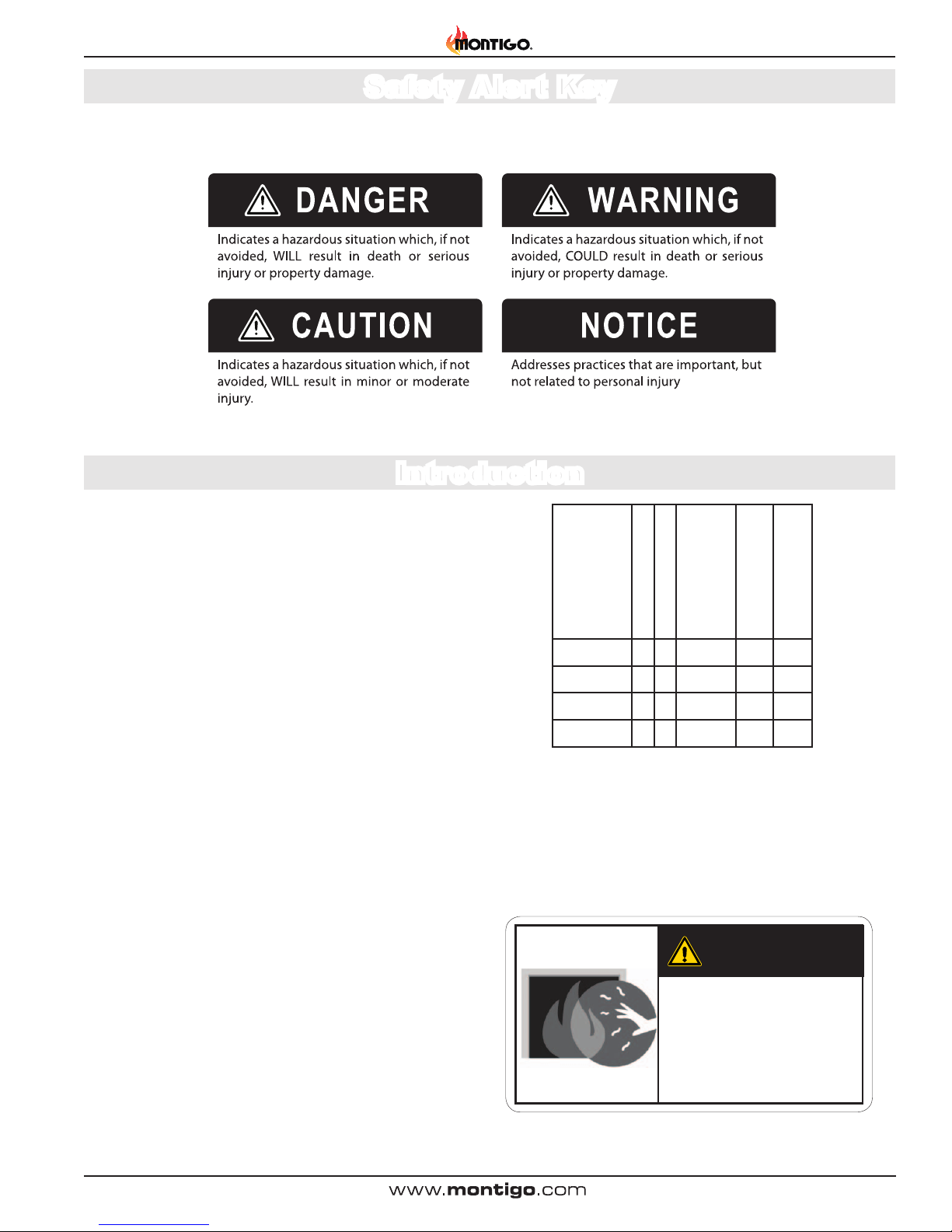

Safety Alert Key ...................................................................................... 3
Introduction .........................................................................................3
Congratulations on your purchase ..............................................................3
Warranty and Installation Information: (See Appendix B) ..........................3
Installation .........................................................................................4
Section A: Before You Begin ...................................................................... 4
Important Message ................................................................................. 4
Before you start .......................................................................................4
Pre-Installation Checklist ........................................................................4
Introduction to R-Series Fireplace .......................................................... 5
Section 1: Product Dimensions ..............................................................6 - 7
R520* dimensions ...................................................................................6
R620* dimensions ...................................................................................7
Section 2: Framing ................................................................................8 - 12
Clearances ......................................................................................8
Raised Installation ...........................................................................9 - 11
Installing the Fireplace .....................................................................10
Installing the Back Frame ................................................................ 11
Recessed Installation ...........................................................................12
Section 3: Venting ...............................................................................13 - 24
Notes for Planning Venting ...................................................................13
Section 3 -1 Converting to Rear Vent .....................................................13
Section 3 -1- 1 Converting the Flue .......................................................13
Section 3-1-2 Converting Pressure Sensing Tub & Air Bafe ..............14
Section 3 -2 Installing a Roof Mounted Vent System ......................15 - 16
Section 3 -2-1 Installing Roof Mounted Power Vent & Rough-in Frame ..
................................................................................17 - 18
Section 3 -3 Installing a Wall Mounted Vent System .......................19 - 20
Section 3 -3-1 Installing Roof Mounted Power Vent & Rough-in Frame ..
................................................................................21 - 22
Section 3 -4 Venting Components ............................................................23
Section 3 -5 Heat Shields ..........................................................................24
Section 4: Wiring ................................................................................25 - 27
Installing the Fireplace Control Box .....................................................25
Installation of Electrical Supply .............................................................25
Installing the Remote Switch ................................................................26
Wiring Diagram .....................................................................................27
Conduit & Wiring Clearances ...............................................................27
Section 5: Installing the Gas Line ...................................................................28
Fuel Consumption .....................................................................................28
Pressure requirements: .............................................................................28
Gas Connection .......................................................................................28
Section 6: Testing the System ........................................................................29
Section 7: Finishing ...............................................................................30 - 33
Installation Of Cement Board ....................................................................30
Installing Gyproc/Drywall ...........................................................................30
Finishing Around the Fireplace ..................................................................31
Mantels & Surrounds .................................................................................31
Section 8: Removing & Installing the Door ...................................................32
Section 9: Installing the Firestones ...............................................................33
Operation .......................................................................................34
Start-up Sequence .......................................................................................34
Maintenance .......................................................................................35
Appendix ................................................................................36 - 39
Appendix A: Power Vent Locations.........................................................36 - 37
Appendix B: Warranty ....................................................................................38
Appendix C: State of Massachusetts ............................................................39
Page 2 XG0771 - 040513.3



Congratulations on your purchase of a Montigo Fireplace.
With over 30 years of experience, Montigo is committed to providing
you with a gas replace that is not only a beautiful addition to your
space, but that is also designed and manufactured to the highest
safety, reliability and engineering standards.
We strongly encourage you to read and carefully follow the instructions
laid out in this Installation, Operation and Maintenance Manual
and retain it for your future reference. Pay special attention to all
cautions, warnings, and notices throughout this manual intended
to ensure your safety.
This manual covers installation, operation and maintenance. Lighting,
operation and care of this replace can be easily performed by the
homeowner. All installation and service work should be performed
by a qualied or licensed installer, plumber or gas tter as certied
by the state, province, region or governing body where the replace
is being installed.
This installation, operation and maintenance manual is applicable
to the models described below. Refer to your rating plate to verify
included options.
Warranty and Installation Information: (See Appendix B)
The Montigo warranty will be voided by, and Montigo disclaims any
responsibility for, the following actions:
► Modication of the replace and/or components including
Direct-Vent assembly or glass doors.
► Use of any component part not manufactured or approved
by Montigo in combination with this Montigo replace system.
► Installation other than as instructed in this manual.
Consult your local Gas Inspection Branch on installation requirements
for factory-built gas replaces. Installation & repairs should be done
by a qualied contractor.
    
    
    
    
 
Hot glass will cause
burns. Do not touch
glass until unit is cooled.
Never allow children to
touch glass.
Irritant
Cutting
Watch your step
Slippery floor
High temperatures
Glass hazard
Danger of suffocation
High voltage
Toxic
Flammable materials
Corrosive
Fork lift trucks
Danger overhead crane
Explosion risk
Oxidising
Danger of death
Biohazard
Laser Radiation
Danger of entrapment
Hot surface
General Warning
Blank
Gas bottles
Watch for
falling objects
Electricity
Danger for cutter
Entrapment hazard
Battery hazard
Rotating parts
Low temperature
Strong magnetic field
Optical radiation
Non ionizing
radiation
Radiation
Hazardous to the
Environment
Danger of harming
your hands
        
Page 3
XG0771 - 040513.3




Installation and repairs should be done by an authorized gas fireplace service technician.
The appliance should be inspected before use and at least annually by a professional. More
frequesnt cleaning may be required due to exessive lint from carpeting, bedding material,
etc. It is imperative that control compartments, burners and circulating air passageways of
the fireplace are kept clean.
NOTICE
IMPORTANT MESSAGE: SAVE THESE INSTRUCTIONS
The R520* & R620* Power Vent replaces must be installed
in accordance with these Instructions. Carefully read all the
instructions in this manual rst. Consult the Local Gas Branch to
determine the need for a permit prior to starting the installation.
It is the responsibility of the installer to ensure this replace is
installed in compliance with the manufacturers instructions and
all applicable codes.
BEFORE YOU START:
Installation Checklist
■ Determine the desired install location of your replace.
■ See Section 1, Dimensions and refer to the Framing
Section 2 for details.
■ Select your type and location of your Power Vent run:
Roof Mounted (EPVRR) or Wall Mounted (EPVRW).
■ Your termination location should be selected to provide
the most efcient vent run.
■ Lay out the Vent run; calculating the required elbows
and straight runs of 5"/10" ex or rigid pipe.
■ Refer to the Section 3, "Venting" for details.
■ Montigo supplies 20' of low voltage wire, which can be
spliced to a maximum of 100' with wire of equal quality.
This wire CANNOT run in conduit with any other wire.
■ Refer to Section 4, for Wiring Details.
■ The gas connection is located on the bottom right side
(pilot burner side) of the replace.
■ Refer to local codes and guidelines for installation
requirements.
■ Refer to Section 5, "Installing the Gas Line" for details.
■ Installation and repairs should be done by a qualied
contractor and must conform to:
• Installations in Canada must conform to the local
codes or in the absence of local codes to the current version
of Natural Gas and Propane Installation Code, CSA B149.
Electrical Installations must conform to the local codes or, in
the absence of local codes, to the current version of Canadian
Electrical Code, CSA C22.1.1
• Installations in the USA must conform to the local
codes or in the absence of local codes to the current version
of National Fuel Gas Code, ANSI Z223.1/NFPA 54. Electrical
Installations must conform to the local codes or, in the absence
of local codes, to the current version of the National Electrical
Code, ANSI/NFPA 70. See Appendix C for installation within
the State of Massachusetts.
Due to high operating temperatures, this appliance should be located out of traffic &
away from furniture and draperies.
Children and adults should be alerted to the hazards of the high surface temperature,
which could cause burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the
appliance.
Clothing or other flammable materials should not be placed on or near the appliance.
CAUTION
When this appliance is installed directly on any combustible material other than wood
flooring, it must be installed on a metal or wood panel extending the full width and
depth of the appliance or a fire will occur causing serious injury, property damage or
even death.
DANGER
Young children should be carefully supervised when they are
in the same room as the applicance. Toddlers, young children
and others may be susceptible to accidental contact burns. A
physical barrier is recommended if there are at risk individuals
in the house. To restrict access to a fireplace or stove, install
an adjustable safety gate to keep toddles, young children and
other at risk individuals out of the room and away from hot
surfaces.
CAUTION

Page 4 XG0771 - 040513.3
Section A: Before You Begin


Introduction to the R-Series Fireplace:
The complete system will require a rebox, a power vent module,
an electrical control panel, and a vent system. The appropriate vent
system will connect the rebox to the power vent module and will be
placed in a vertical or horizontal location. The R-Series replace
is not a heat efcient replace and should not be used with a
thermostat to heat your home. This product is a re feature and
should only be used to enhance the ambiance of the room. Please
review the Installation Checklist on Page 4 for general information on
preparing for a successful installation of your replace.
Install location:
The R-Series replace may be installed in any location that maintains
proper clearances to air conditioning ducts, electrical wiring, and
plumbing. Safety, as well as efciency of operation, must be considered
when selecting the replace location. Try to select a location that does
not interfere with room trafc, has adequate ventilation, and offers
an accessible pathway for Power Vent installation.
Basic Operation:
The gas control components of this replace are located in the bottom
of the rebox below the burner system. All models are supplied with
a Honeywell smart valve gas control and do NOT have a variable
ame control. There are two air switches that control the gas control
system, located in the bottom of the rebox. These gas valves and
pressure switches communicate with the electrical control panel
through a ten conductor cable supplied with the replace.
To operate the replace, Montigo supplies 20' of low voltage wire
from the electrical control panel. Connect the two wire harnesses
to a standard single pole ON/OFF switch to the location of your
choice. You may extend these wires up to 100' in length with a wire
of equal quality.
The  are classified under power vented fireplace systems.
Under no circumstances can thse models be installed without a Power Vent Module.
, use 5”/10” Power Vent Motor EPVRW
with rough-in kit EPVRWF.
, use 5”/10” Power Vent Motor EPVRR
with rough-in kit EPVRRF.


Page 5
XG0771 - 040513.3


Section 1: Product Dimensions
Front View
Side View Top View
Figure 1. R520* Fireplace dimensions (Tolerance ± ⅛").
Side View
61 1/4" OD
9 1/2"
65
9/
1
6
"
36 5
/
16"
72 11/16"
39 1/16
"
18"
9 13/16"
21 3/4"
61 1/8"
5 7/8"
1
8 1/8"
OD
11 3/8"
32 15/16
"
8
3/
1
6
"
4 7/8"
9 7/8"
15 3/16"
5 3/8"
Gas Inlet
Combustion Air Switch
Sensor Line

Page 6 XG0771 - 040513.3


Figure 1a. R620* Fireplace dimensions (Tolerance ± ⅛").
Front View
Side View Top View
73 1/4" OD
77
9/
1
6
"
42 5
/
16"
9 1/2"
84 11
/
16"
18"
39 1/16
"
9 13/16"
73 1/8"
21 3/4"
5 7/16"
18 1/8"
OD
1
1 3/8"
15 3
/
16"
8
3/
1
6
"
32 15/16
"
4 7/8"
9 7/8"
5 3/8"
Gas Inlet
Combustion Air Switch
Sensor Line

Page 7
XG0771 - 040513.3


Frame in the enclosure for the unit with framing materials, see  
NOTE: When constructing the framed opening, please ensure there is
access to install the gas line when the unit is installed. See Figure 16.

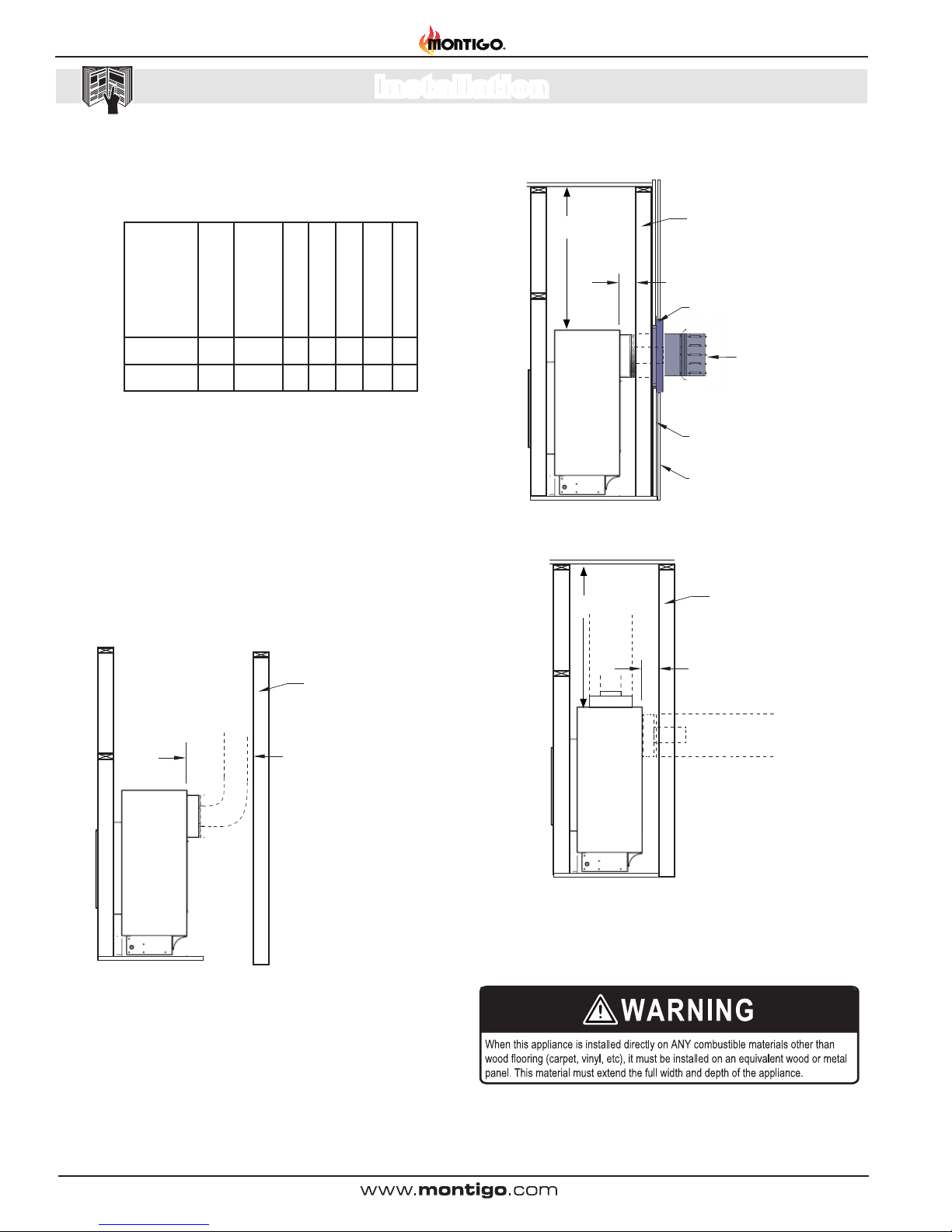

Clearances:
To ensure the replace operates safely, all models must maintain
the following clearances:
       
       
 †
    
†
† Note: Clearance from top of replace to a combustible ceiling
within the replace enclosure.
Unprotected combustible walls which are perpendicular to the replace
opening must maintain 6" clearance, see gure 20.
 Clearances for rear vented installation with elbow.
 Clearances for top or rear vented installation, straight vent run or with
elbow(s).
 Clearances for straight rear vented installation.
Exterior
Sheating
Exterior
Finishing
M
ate
ri
a
l
Exterior wall
framing
Exterior
EPVRW
Power Vent
EPVRWF rough
-in Frame
8” Min.
Venting Clearance Requirements:
Wall framing
14” Min.
Wall framing
2” Min.
24" Min
24" Min

Page 8 XG0771 - 040513.3

Section 2: Framing

. Fireplace installation, (Rough Frame-In dimensions).

Model Q R U
R-Series R520* 77" 45" **23"†
R-Series R620* 89" 45" **23"†
Determine the height of the platform based on where you want the
bottom edge of the glass to be, see gure 1 or 1a for unit dimensions.
Maintain minimum ceiling height shown in table. Build replace frame
as shown in gure 3.
Q (Opening)
R
(Opening)
U
3/4”
Plywood
Drywall
or Equiv.
Platform

† U is 29" for straight out the back vent run installations.
Raised Installation:
Maximum
Platform Height
Minimum Required
Ceiling Height
24" 86"
48" 110"

Page 9
XG0771 - 040513.3


Place the Fireplace on the platform and install the Vent pipe, and Power Vent module. Next, connect the Gas line, and provide a gas service
shut-off valve; according to local gas codes. Before fastening in place Line up the front face of the replace (top and bottom), Figure 3. then
secure in place with 1/4"bolts and washers to the platform.
 Fireplace installation, (Inlet Gas & Power Vent).
Installing the Fireplace:
1/2”
Supply Gas
connection
Intake / Exhaust
Vent Pipe (5”/10”)
2” Clearance
2” Clearance

Page 10 XG0771 - 040513.3


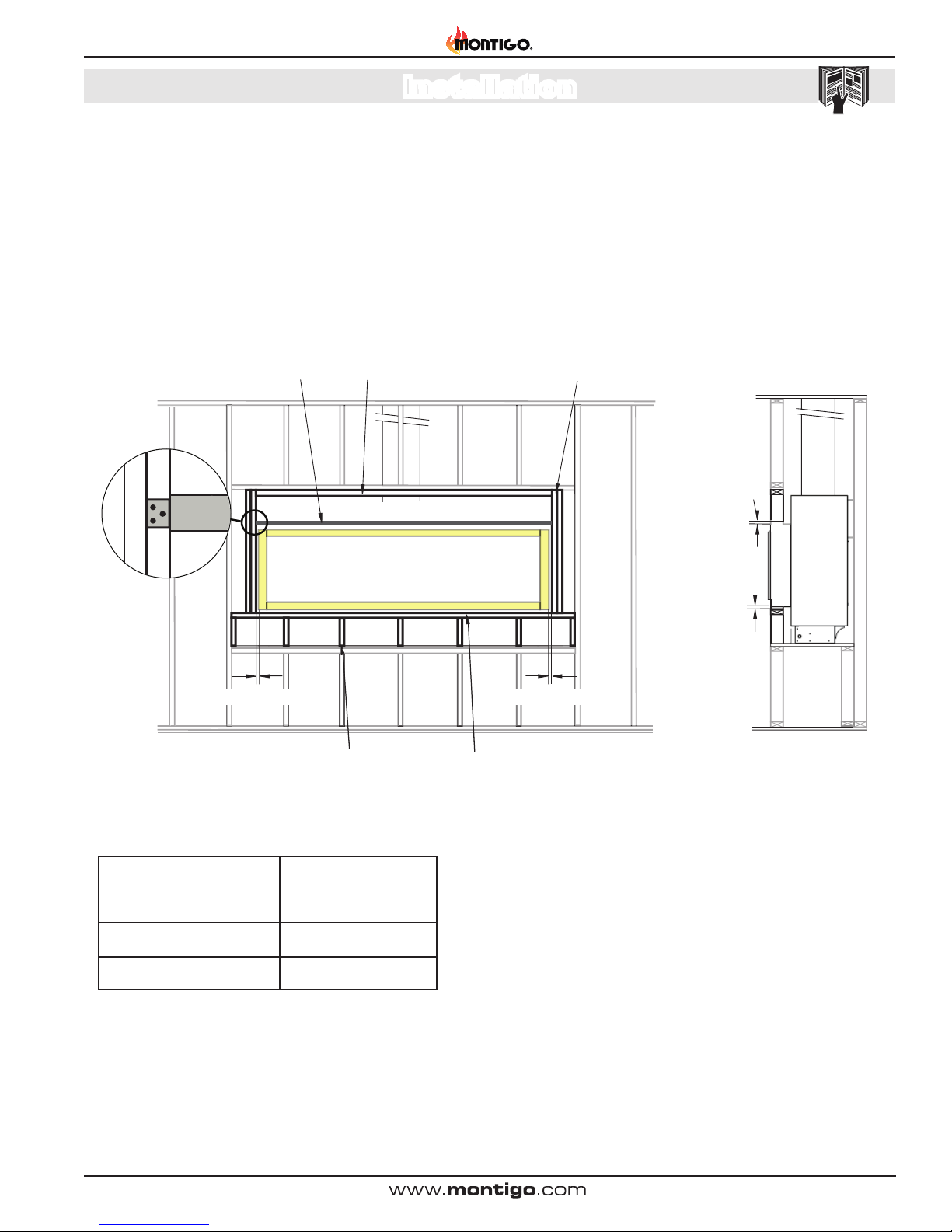

 Fireplace installation
Back framing the Fireplace
NOTE: Maintain a 1" clearance around the throat (projection at the front of the replace that holds the glass door) when installing 2x4s
for back framing.
Step 1). Cut and install one 2x4 to t horizontally under the replace throat.
Step 2). Cut and install required quantity of short ller 2x4's to t vertically under the horizontal piece.
Step 3). Cut and install four vertical 2x4's. Place 2 on each side of the replace throat.
Step 4). Install supplied steel header 1" above the throat. Attach steel header to vertical 2x4's as shown in gure 5.
Step 5). Cut and install one horizontal 2x4 below the top frame.
1” clearance
1” clearance
Model
Supplied Steel
Header
Measurements
R520* 70 1/2" x 3"
R620* 82 3/4" x 3"
Steel header
(supplied by Montigo) 2-pcs 2 x 4 (vertical)
Both Sides Typ.
1” clearance 1” clearance
2
x 4
(horizontal)
2 x 4
(horizontal)
2 x 4
(Vertical)

Page 11
XG0771 - 040513.3


Picture of Non combustible Header

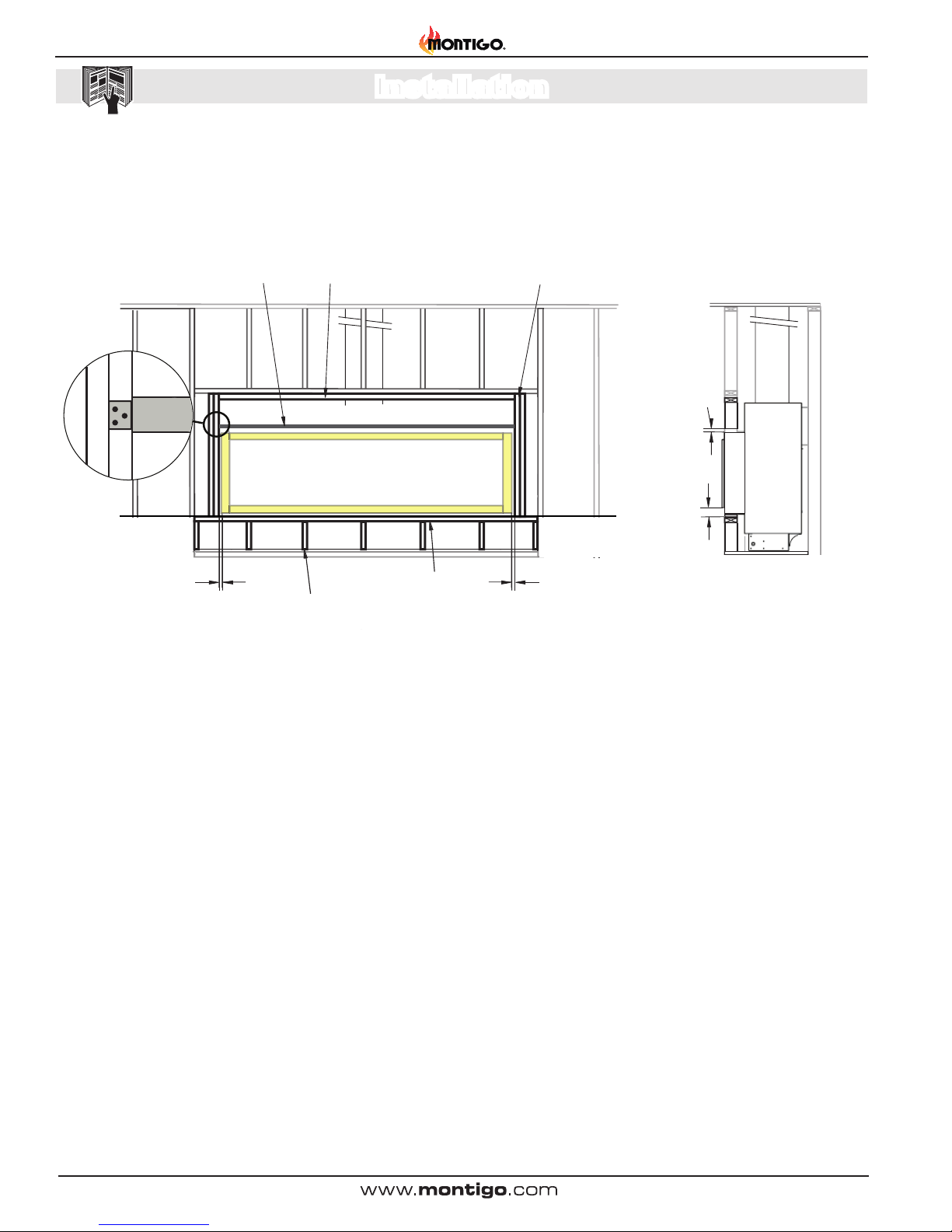

Recessed Installation:
This replace can be recessed into the oor to get the viewing area as low as possible.
Maintain a minimum of 6" clearance from the bottom of glass to completed oor. Minimum clearance can be reduced to 3" for uncarpeted
ooring. Discolouration may occur due to high temperatures.
 Fireplace installation
6” clearance
1” clearance
Recessed Floor
Steel header
(supplied by Montigo) 2-pcs 2 x 4 (vertical)
Both Sides Typ.
1” clearance 1” clearance
2
x
4
(horizontal)
2 x 4
(Vertical)
1” clearance 1” clearance
2 x 4
(horizontal )

Page 12 XG0771 - 040513.3


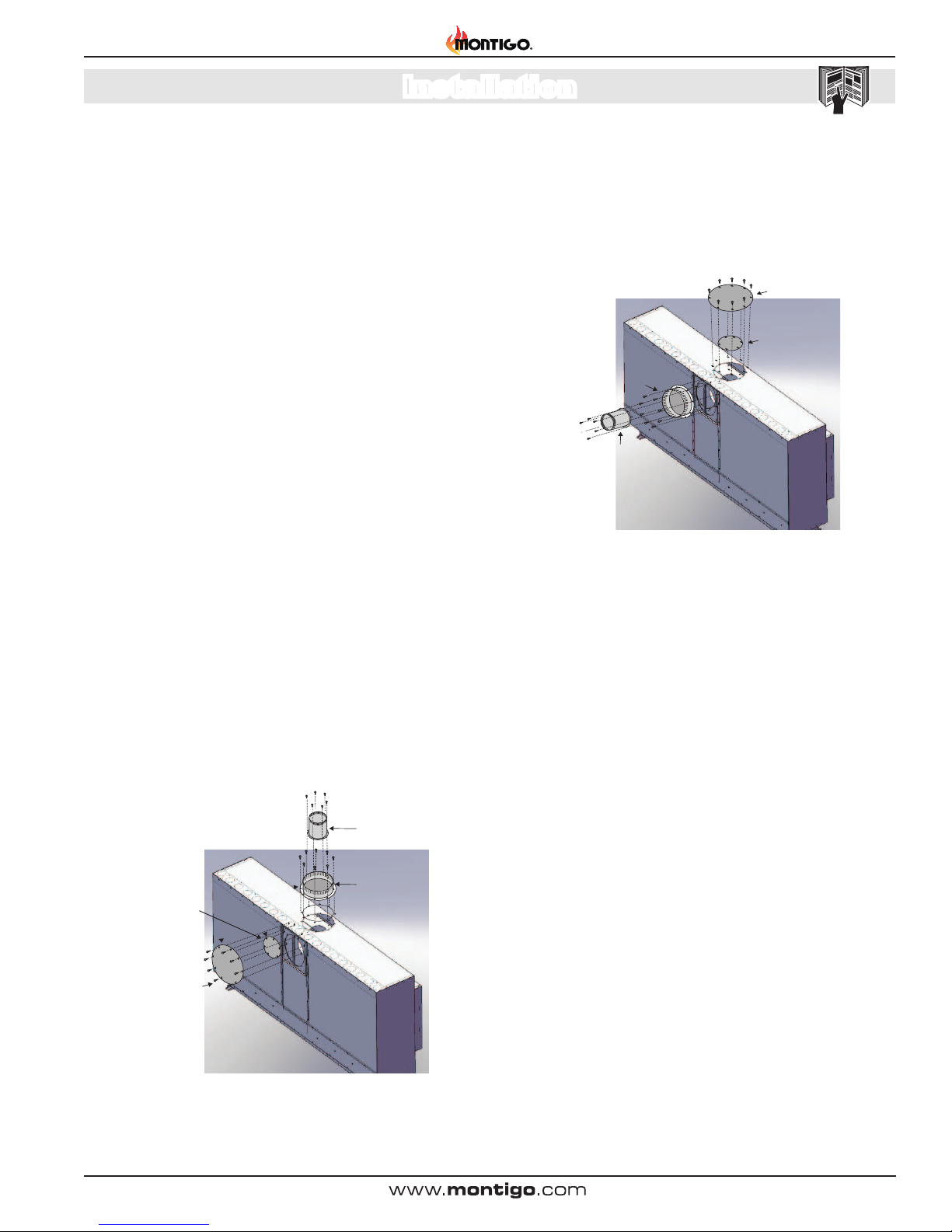

 Flue cover and collar removal, Top Vented replace
 Flue cover and collar installation, Rear Vented replace

Page 13
XG0771 - 040513.3

Section 3: Venting
Montigo supplies a variety of power venting options. The location of
the power vent should be selected and laid out to provide the most
efcient possible run to an external wall or through the roof.

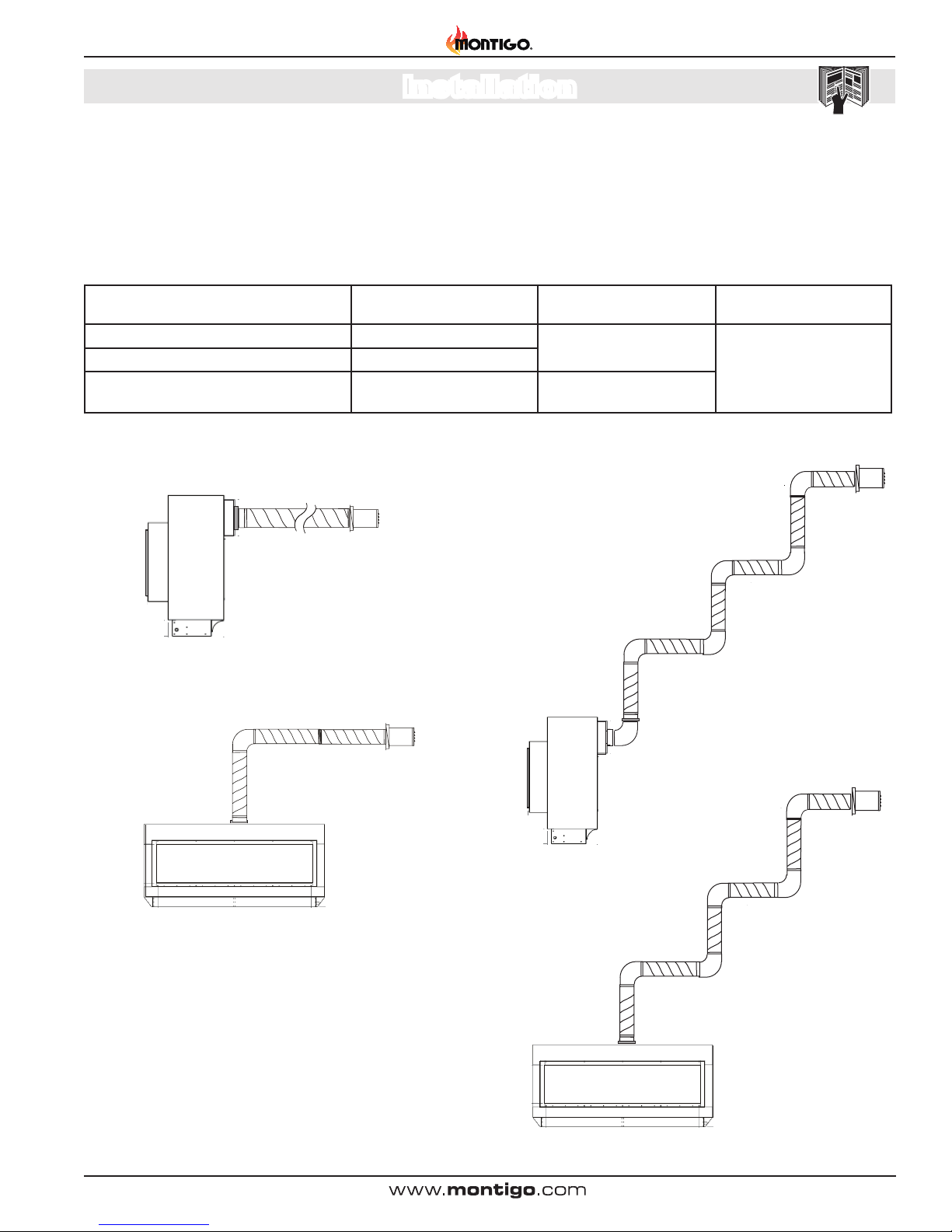

Notes For Planning Venting:
Section 3-1: Converting to Rear Vent
R-Series units are shipped for Top Vent installations. Follow the
instructions to convert unit for Rear Vent installation.
Section 3-1-1: Converting the Flue
1. Remove the Rear ue cover with gasket (5" and 10") on
the ue outlet, as shown in Figure 7. ENSURE YOU DO
NOT DAMAGE THE FIBRE GASKETS.
2. Remove the Top ue collar (5" and 10") on the ue outlet,
as shown in Figure 7. ENSURE YOU DO NOT DAMAGE
THE FIBRE GASKETS.
5” Inner Flue Collar
10” Outer Flue Collar
10” Flue Cover Plate
5” Flue Cover Plate
(with gasket)
(with gasket)
(with gasket)
(with gasket)
10” Flue Cover Plate
5” Flue Cover Plate
5” Inner Flue Collar
10” Outer Flue Collar
(with gasket)
(with gasket)
(with gasket)
(with gasket)
■ R-Series replaces are Power Vent Designated.
■ Venting originates from the top or rear of the unit.
■ Venting can terminate through the roof or exterior wall.
■ For a detailed diagram of allowed termination locations, see
Appendix A.
■ Once the termination location has been established refer to
the appropriate section for installation details.
■ All replaces are shipped Top Vent from the factory.
■ Ensure there is a minimum vent run of 2' of straight vent pipe
before the power vent, except for straight rear vented installs.
■ Follow the chart on page 15 or page 19 for maximum vent run
and maximum elbows.
3. Install the removed Rear ue cover (5" and 10") to the Top
Vent outlet. Fasten the cover with included hardware, as
shown in Figure 7a.
4. Install the collars (5" and 10") to the rear vent outlet using
the included hardware, as shown in Figure 7a.
5. Proceed to Section 3-1-2: Converting Pressure Sensing
Tube and Air Bafe.

 Factory installed Top Vent Pressure Sensing Tube
 Supplied Rear Vent Pressure Sensing Tube
 Removal of Top Vent air bafe and pressure sensing tube.
 Removal of Top Vent air bafe and pressure sensing tube.

Page 14 XG0771 - 040513.3


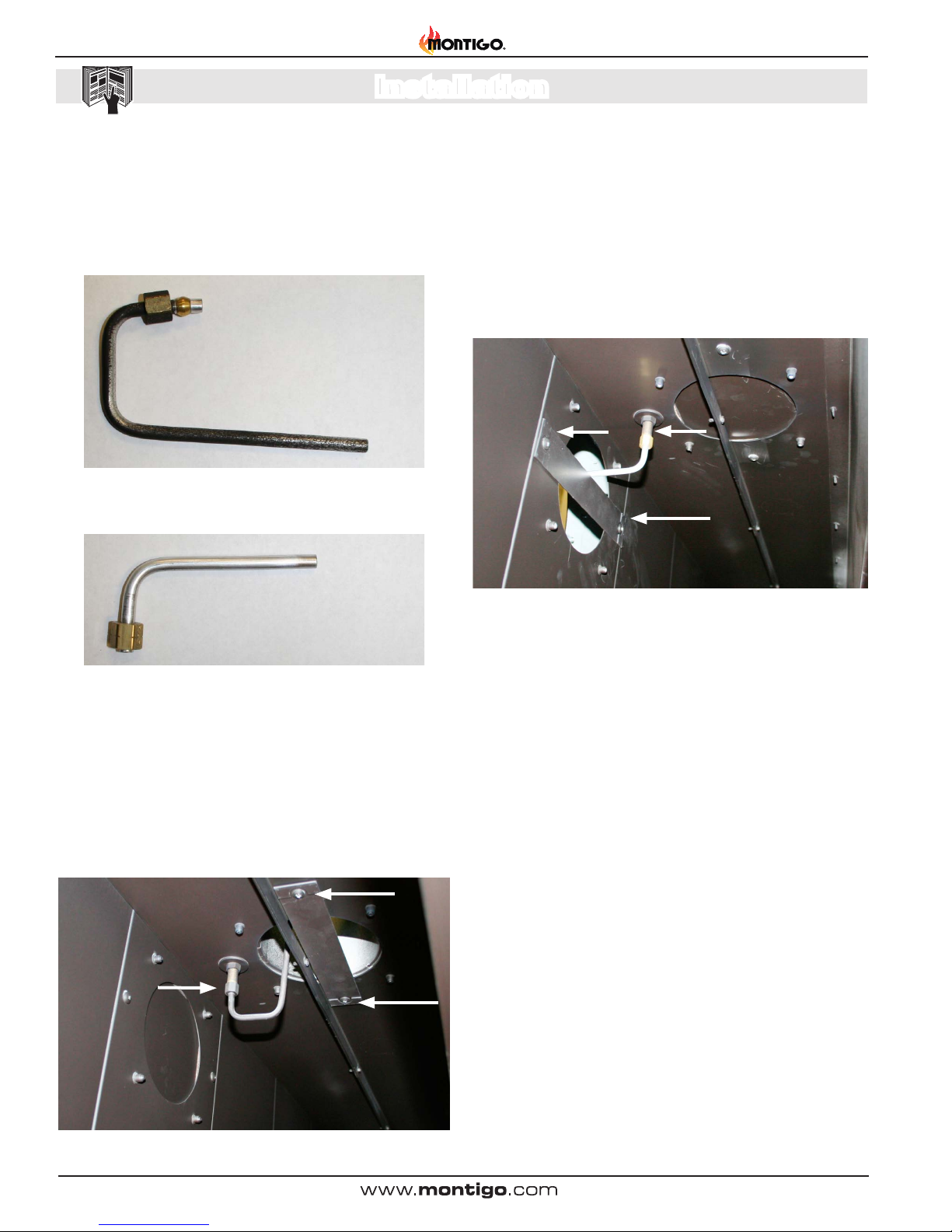

Section 3-1-2: Converting the Pressure Sensing Tube
and Air Bafe
When the R520*/R620* is converted from Top Vent to Rear Vent,
the pressure sensing tube must be removed and replaced with
supplied Rear Vent pressure sensing tube and air bafe must be
relocated as described below.
1. Remove two screws from the air bafe installed over the Top
Vent from inside the rebox. Once air bafe is removed, replace
the two screws back into the same position.
Note: Not all models are equipped with an air bafe. Only convert
if available.
2. Remove Top Vent pressure sensing tube but loosening the
compression nut with a 1/2" wrench.
3. Position the supplied Rear Vent pressure sensing tube as
4. Install air bafe over Rear Vent from inside the rebox with two
screws provided at the Rear Vent.
shown in Figure 9a. Hand tighten the compression nut by
hand and then a half-turn with a wrench.
Do not over tighten.

Straight Vertical, Top or Rear Vent, Roof mounted
power vent.
 Multi-Elbow, Top or Rear Vent, Roof mounted power vent.

Page 15
XG0771 - 040513.3

This section applies to installations where the most efcient vent run
is through the roof. Refer to Appendix A - Power Vent locations,
to ensure the planned Power vent location is acceptable. Refer to
the table below for vent run requirements.
Section 3-2: Installing a Roof Mounted Vent System
Vent Conguration Refer to Figure Maximum Vent Run
(Horizontal + Vertical) Maximum Elbows†
Straight Vertical Top or Rear Vent Figure 10 100 Feet Six 90°
or
equivalent †
Multi-Elbow Top or Rear Vent Figure 10a
Multi-Elbow with 6' downward vent
run Top or Rear Vent
Figure 10b 70 Feet**
† One 90° elbow is equal to two 45° elbows.
** For every additional 1 foot downward vent run subtract 10 feet from the maximum vent run.

 Multi-Elbow with downward vent run, Top or Rear Vent,
Roof mounted power vent.

Page 16 XG0771 - 040513.3

D**
D**

14
19.3
5
2.0
8.46
18.0
18.0
Top View
Front View
Top View
17.8
17.8
Front View
10
14
6.3
14 1/2”
14 1/2”
18”

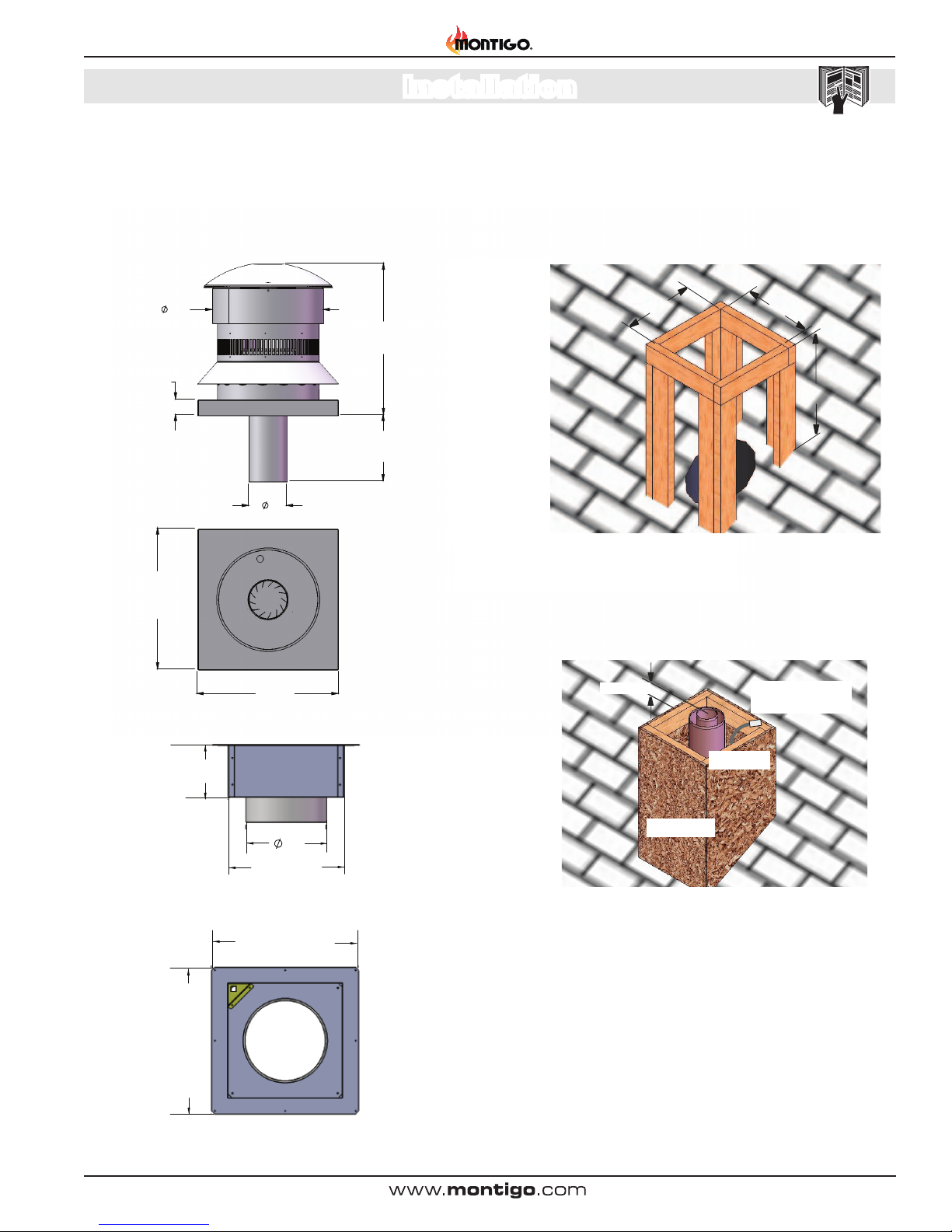

Construct a chase box around the vent penetration with interior
dimensions of 14 1/2" x 14 1/2" x 18" minimum in height, see Figure 11.
 Chase box dimensions.
Vent Pipe
Vent Chase
Electrical Harness
with Connection
2 to 3” MAX
Install the Vent pipe female end up 2" to 3" maximum from the
top of the chase box. Install the electrical harness (EPVH-10-100) that will
communicate with the Power Vent module, see Figure 11a.

Install the Power Vent Rough-in Kit (EPVRRF). Pull wire harness
through the supplied hole in the bottom corner of the rough-in box and snap
into the slot provided, see  inset.

Page 17
XG0771 - 040513.3

Section 3-2-1: Installing Roof Mounted Power Vent (EPVRR)
and Rough-in Frame (EPVRRF)

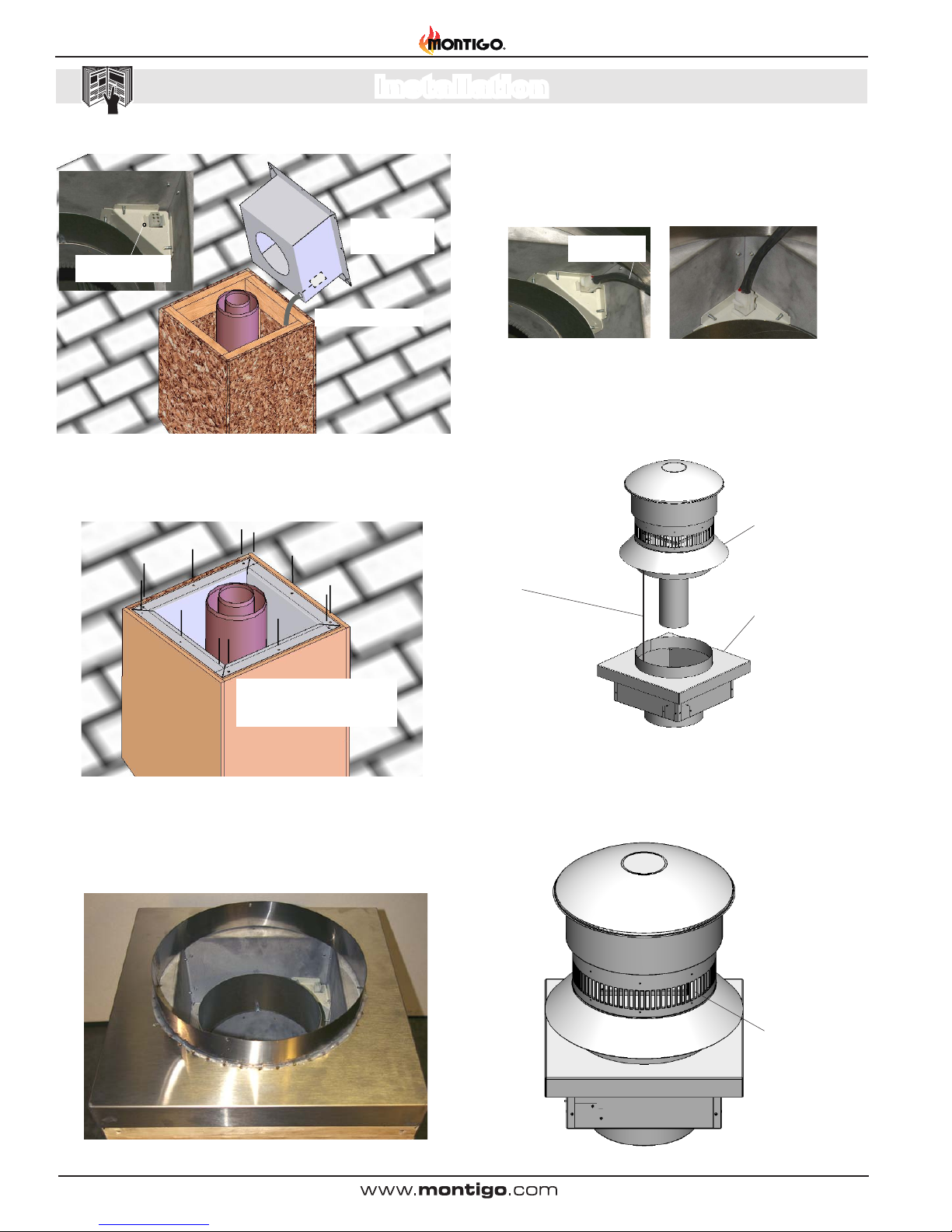

  Install the Power Vent Roof top stainless steel cover over the
installed Rough-in Kit, see Figure 11d. The Electrical connector is located
in the corner, see Figure 11e.
 Installed stainless steel cover.
 Install the Power Vent module power harness. Hold the Power
Vent in close proximity to the assembled chase. With stainless steel cover
attached, plug in the power harness. Note the direction and orientation of
the plug socket, see Figure 11e.
Electrical Harness
from Power Vent
 Installed power harness.
Install Power Vent Module
with Power Harness
Vertical Roof Top
Power Vent
Vertical Roof Top
Power Vent Rough-in
Kit
 Installing Power Vent module.
 Secure the Power Vent module with three stainless steel fasteners
angled at 120°, penetrating through the inner stainless steel vent cover,
see Figure 11g.
Stainless Steel
Fasteners
 Completed Power Vent module installation.
Install screws around perimeter of Rough-in Kit. Drill holes supplied
for ease of installation, see Figure 11c.
Install Fasteners around
perimeter of Rough-in Kit
 Fasten Rough-in Kit to framing
Electrical Harness
Power Vent
Rough-in Kit
Electrical Harness
Connector Location

 Installing the Rough-in Kit.
 Install the Power Vent module. Place the Power Vent module over
the stainless steel cover ange and vent pipe. Align the Power Vent into nal
position. Ensure the power harness is placed down in the rough-in box. The
Power Vent module will sit ush with the stainless steel cover when installed
correctly, see Figure 11f.

Page 18 XG0771 - 040513.3


. Straight Horizontal, Top or Rear Vent, Wall mounted .............
power vent.
 Multi-Elbow, Top or Rear Vent, Wall mounted power vent.

Page 19
XG0771 - 040513.3

This section applies to installations where the shortest possible vent
run is through the wall. Refer to Appendix A - Power Vent locations,
to ensure the planned Power vent location is acceptable. Refer to
the table below for vent run requirements.
Section 3-3: Installing a Wall Mounted Vent System
Vent Conguration Refer to Figure Maximum Vent Run
(Horizontal + Vertical) Maximum Elbows†
Straight Horizontal Top or Rear Vent Figure 12 100 Feet Six 90°
or
equivalent †
Multi-Elbow Top or Rear Vent Figure 12a
Multi-Elbow with 6' downward vent
run Top or Rear Vent
Figure 12b 70 Feet**
† One 90° elbow is equal to two 45° elbows.
** For every additional 1 foot downward vent run subtract 10 feet from the maximum vent run.

D**
 Multi-Elbow with downward vent run, Top or Rear Vent,
Wall mounted power vent.

Page 20 XG0771 - 040513.3

D**
