montpellier MIWM84-1 User manual

Built-In Washing Machine
MIWM84-1
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING

Thank you for choosing this Montpellier appliance.
Our appliances have been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your appliance to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future
reference.
Your appliance is covered by a comprehensive two year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your
appliance, you can rest assured that you are fully protected against the cost of
repairs for the first 24 months . Please note that any claim must be
accompanied by the model reference number, serial number and proof of
purchase.
To activate your guarantee, you will need your product serial number. This can
be found inside your appliance.
NB: Please make sure that you keep a copy of your original sales invoice as this
will be needed if any service call is required.
There are three ways to register your Guarantee:
• Online: Visit the Support page on our website and complete the online
Product Registration form. www.montpellier-appliances.com
•By Post: Simply detach and fill in the form provided, attach a stamp and send
it in the post. Don't forget to include your e-mail address so that we can send
confirmation through to you.
By Phone: Contact our warranty registration department on 0808 1961388
Welcome
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com
•

Carefully read this manual for correct and
safe appliance use and for helpful tips on
efficient maintenance.
Only use the washing machine after
carefully reading these instructions. We
recommend you always keep this manual on
hand and in good condition
for any future
owners.
Each product is identified by a unique 16-
character code, also called the “serial
number”, printed on the sticker.
This can be
found inside the door opening. This code is
a unique code for your product that you will
need to register the product warranty, or if
you need to contact the Customer Service
Centre.
This appliance is marked according to
the European directive 2012/19/EU
on Waste Electrical and Electronic
Equipment (WEEE).
WEEE contains both polluting substances (which
can cause negative consequences for the
environment) and basic components (which can
be re-
used). It is important to have WEEE
subjected to specific treatments, in order to
remove and dispose properly all poll
utants, and
recover and recycle all materials. Individuals can
play an important role in ensuring that WEEE
does not become an environmental issue; it is
essential to follow some basic rules:
!
WEEE should not be treated as household
waste;
!
WEEE should be handed over to the relevant
collection points managed by the municipality or
by registered companies. In many countries, for
large WEEE, home collection could be present.
In many countries, when you buy a new
appliance, the old one may be r
eturned to the
retailer who has to collect it free of charge on a
one-to-
one basis, as long as the equipment is of
equivalent type and has the same functions as
the supplied equipment.
1. GENERAL SAFETY RULES
2. INSTALLATION
3. DETERGENT DRAWER
4. PRACTICAL HINTS
5. CLEANING AND MAINTENANCE
6.QUICK USER GUIDE
7. CONTROLS AND PROGRAMS
8. TROUBLESHOOTING AND WARRANTY
Environmental conditions
Contents
3

1. GENERAL SAFETY
RULES
!This appliance is intended
for domestic household use
only.
! Your Washing machine conforms
to current safety requirements.
Inappropriate use can, however,
lead to personal injury and damage
to property. To avoid the risk of
accidents and damage to your
Washer, read this user guide
carefully before using it for the first
time. It contains important
information on the installation,
safety, use and maintenance of
your Washer. Retain this user
guide for future use and pass it on
to any new owners.
! Any damage to the appliance or
other damage or loss arising
through use that is not consistent
with domestic or household use
(even if located in adomestic or
household environment) shall not
be accepted by the manufacturer to
the fullest extent permitted bylaw.
!This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.
!Children should be supervised
to ensure that they do not play
with the appliance.
!Children of less than 3 years
should be kept away unless
continuously supervised.
!
If the supply cord is damaged, it
must be replaced by a special
cord or assembly available from
the manufacturer or its service
agent.
!Only use the hose-sets
supplied with the appliance for
the water supply connection
(do not reuse old hose-sets).
!
Water pressure must be between
0.05 MPa and 0.8 MPa.
!Make sure carpets or rugs do
not obstruct the base or any of
the ventilation openings.
!After installation, the appliance
must be positioned so that the
plug is accessible.
!The maximum load capacity of
dry clothes depends on the
model used (see control panel).
! To consult the product technical
specification please refer to the
manufacturer website.
4

!The technical details (supply
voltage and power input) are
indicated on the product rating
plate
!Make sure that the electrical
system is earthed, complies
with all applicable law and that
the (electricity) socket is
compatible with the plug of the
appliance. Otherwise, seek
qualified professional assistance.
!The use of converters, multiple
sockets or extension cords is
strongly advised against
!Before cleaning or maintaining
the washing machine, unplug
the appliance and turn off the
water tap.
!Do not pull on the power cord
or appliance to unplug the
machine.
!Make sure there is no water in
the drum before opening the
door.
!Do not expose the washing
machine to rain, direct sunlight
or other weather elements.
Protect from possible freezing.
!When moving, do not lift the
washing machine by the knobs,
door or detergent drawer;
during transport, never rest the
door on the trolley. We
recommend two people lift the
washing machine.
!In the event of fault and/or
malfunction, turn off the
washing machine, close the
water tap and do not tamper
with the appliance. Immediately
contact the Customer
Service Centre and only use
original spare parts. Failure
to observe these
instruction may jeopardise
appliance safety.
Electrical connections and
safety instructions
WARNING:
water may reach very high
temperatures during the
wash cycle.
5

2. INSTALLATION

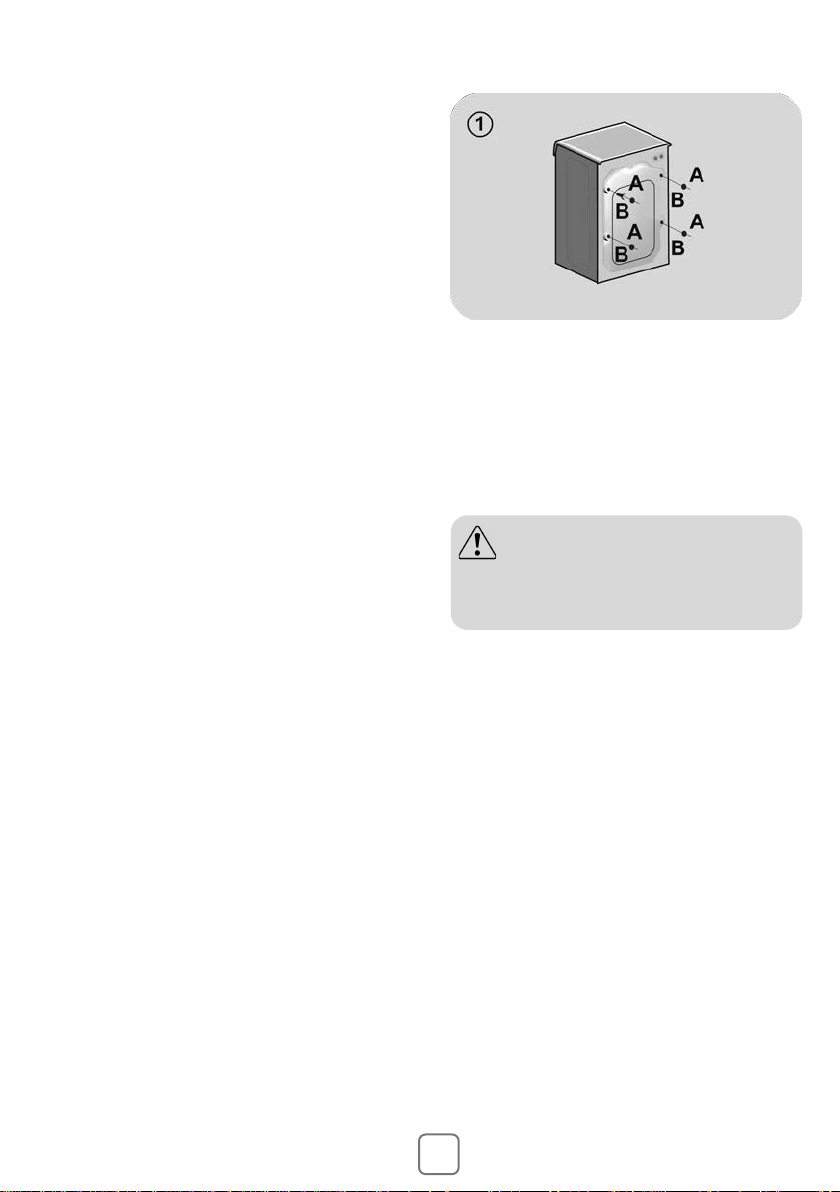

!Remove the 2or 4transportation
bolts (A) on the back and
remove the 2or 4flat washers,
rubber bungs and plastic spacer
tubes (B) as illustrated in figure 1.
!If the washing machine is built-in,
unscrew the 3or 4transportation
bolts (A) and remove the 3or 4
flat washers, rubber bungs and
plastic spacer tubes (B).
!
!
During the removal of the bolts
occasionally spacer tubes fall
inside the product, these can be
remove by tilting the product forward
and recovering them from the floor or
inside the base of the machine.
Cover the open transportation bolt
holes with the 2or 4plastic caps
included in the instruction bag.
6
WARNING:
keep packaging materials
away from children.

7
z

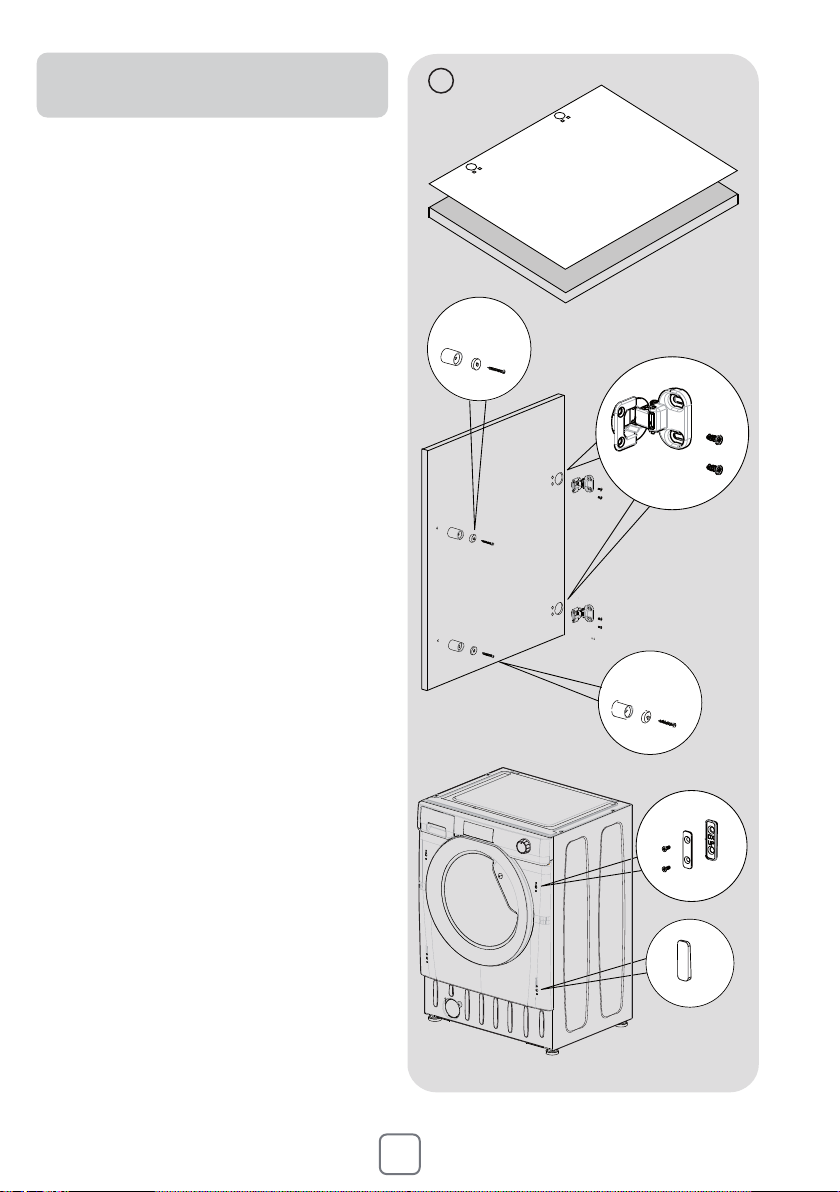

Position the template onto the
reverse of the furniture door. It
is possible to mount the hinges
and closure magnet on the right
or left-hand side dependingon
your requirements. Mark the
screw hole positions, then drill
out these positions.
z
Fix the hinges in place with the
4 screws provided (A).
z Fix the magnet (B) in place
using screw (C).

z
Mount the plate (D) on the right
or left-hand side, dependingon
your installation requirements.
Place the plastic support (E)
under the plate and fix it in
position with screw (F).
Instructions for mounting the
furniture door
D
E
G
F
A
BC
BC
2

8
z

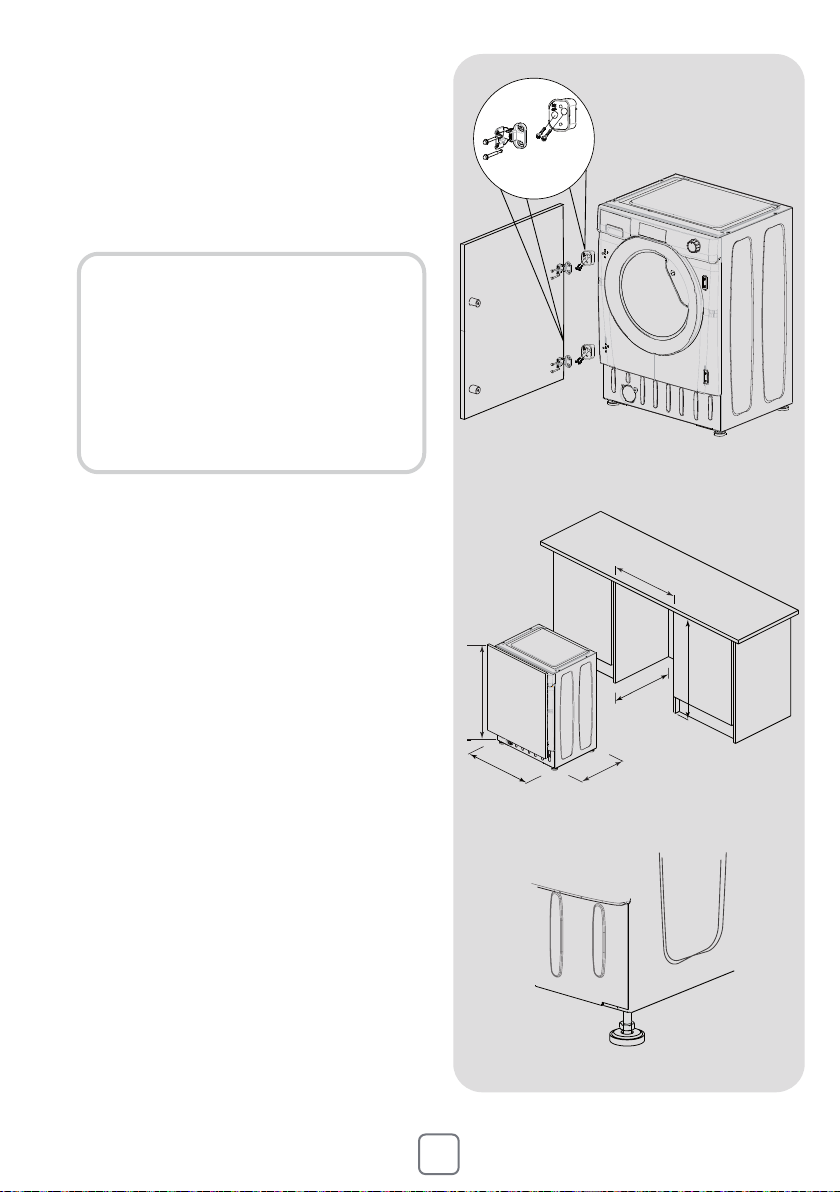

Slide the washer into an
openingof the size indicated in
the diagram opposite. A furniture
plinth may be run across the fron
t
of the appliance, but its height will
be dictated by the height the
washer is set at.
z
The 4 adjustable feet allow the
height of the washer to be
adjusted from 820 mm to a
maximum of 840 mm. To adjust
the height, you should remove
the nuts fitted to each foot and
replace these with the 5 mm
nuts supplied. Raise the feet to
your desired height and then
fully tighten the lock nut to the
base of the washer.
We suggest mounting the
furniture door so that it opens
towards the left, which is the
same direction as the porthole
door. This will leave more
space when you are loading
washing into the appliance.
Mount the furniture door to the
front of the washer using the
hinges. Fix the spacers (I) in
place with the 2 screws (J) and
then fix the hinges with 2 screw
(H).
!
570
596
600
min.
600
820 min.
825 min.
HI
J

!

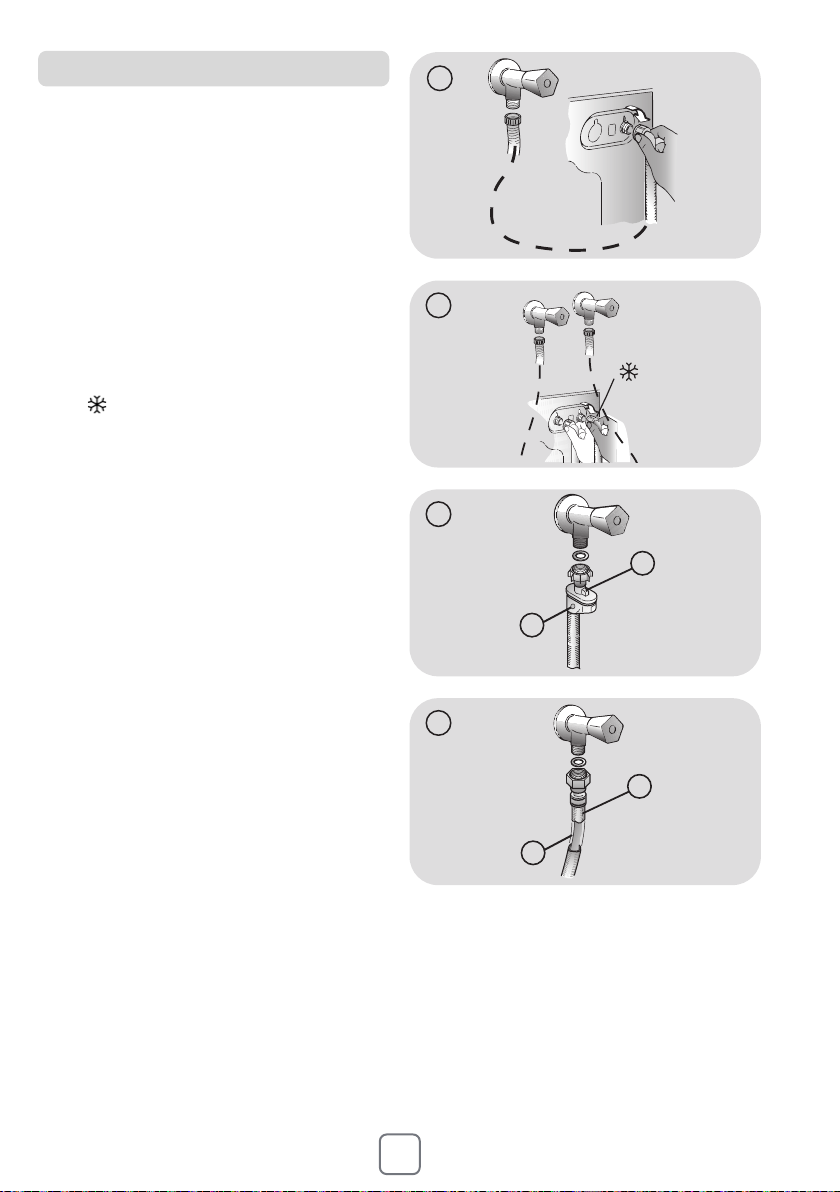

Connect the water hose to the water
supply tap (fig. 3)
only using the hose
supplied with the appliance (do not
reuse old hose-sets).
!SOME MODELS
mayinclude one or
more of the following features:
!HOT&COLD (fig. 4):
water mains connection settings with hot
and cold water for higher energy savings.
Connect the grey tube to the cold water
tap
and the red one to the hot water
tap. The machine can be connected to
the cold water tap only: in this case, s
ome
programs may start a few minutes later.
!AQUASTOP (fig. 5):
a device located on the supply tube that
stops water flow if the tube deteriorates;
in this case, a red mark will appear in the
window “A
” and the tube must be
replaced. To unscrew the nut,
press the
one-way lock device "B".
!AQUAPROTECT –
SUPPLY TUBE WITH
GUARD (fig. 6):
Should water leak from the primary
internal tube "A
", the transparent
containment sheath "B"
will contain water
to permit the washing cycle to complete.
At the end of the cycle, contact the
Customer Service Centre to replace the
supply tube.
3
1
4
B
A
5
B
A
6
Hydraulic connections
9

10
!

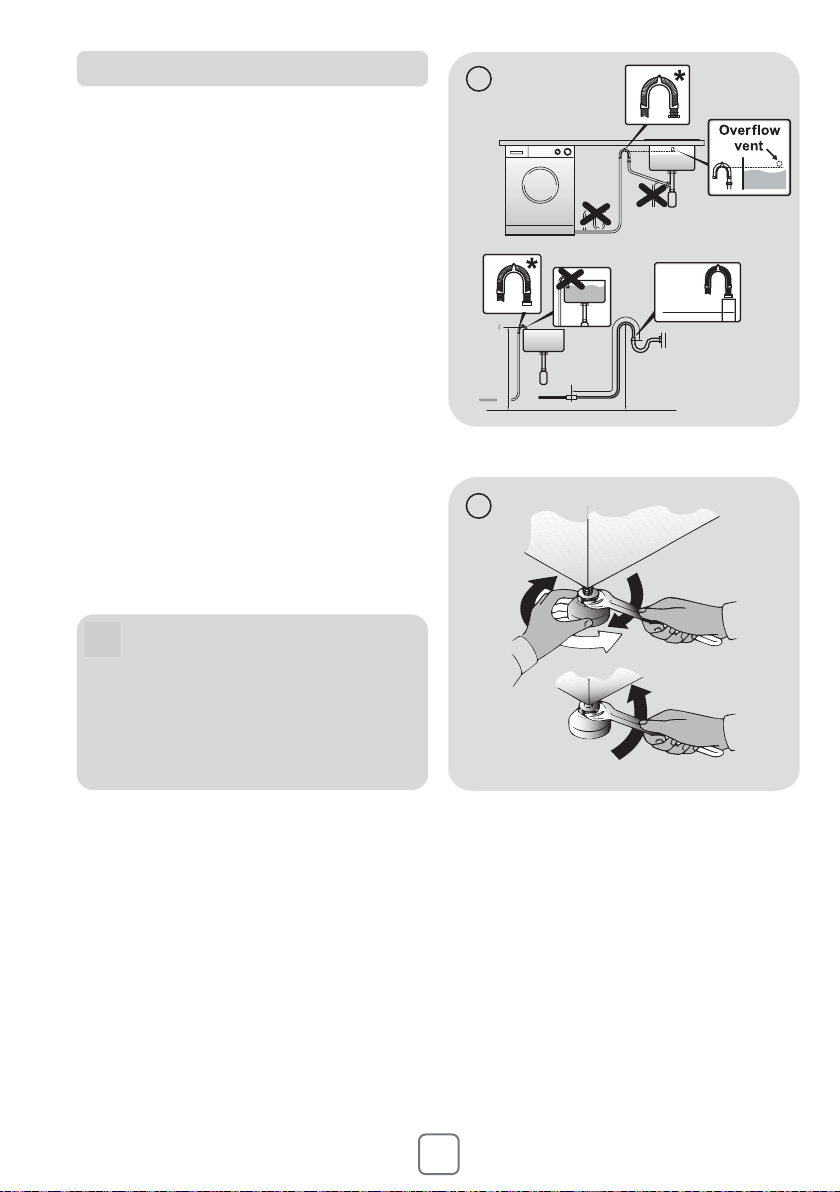

The washing machine should be installed in
its final position such that the water fill hose
is not kinked or trapped. The corrugated
drain hose should be inserted into suitable
drain pipe of between 50 cm and 85 cm
heig
ht above the floor using the curved drain
hose support. If an under sink connection is
used the drain hose must be routed above
the sink overfill opening to prevent back
siphoning. Care must be taken to avoid
kinking or trapping the drain hose (fig. 7).
!L
evel the appliance using the feet as
illustrated in figure 8:
a.
turn the nut clockwise to release the
screw;
b.
rotate the foot to raise or lower it until it
touches to the floor;
c.
lock the foot, screwing in the nut, until it
tightens against
to the bottom of the
washing machine.
!Plug in the appliance.
min 50 cm
max 85 cm
+2,6 mt
max
max 100 cm
min 4 cm
7
*ACCESSORY SOLD SEPARATELY
A
B
C
8
Setting
WARNING:
contact the Customer Service Centre
should the power cord need
replacement.
Installation faults are not covered by
the manufacturers warranty.
