montpellier MW7145 User manual

Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Freestanding Washing Machine
MW7145 - MW8145 - MW9145 - 1400rpm

Thank you for choosing this Montpellier Washing Machine
Our Washing Machineshave been designed to provide you with the best combination of style, reliability and
performance to give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your Washing Machine to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future reference.
Your Washing Machine is covered by a comprehensive two year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your
Washer, you can rest assured that you are fully protected against the cost of
repairs for the first 24 months . Please note that any claim must be
accompanied by the model reference number, serial number and proof of
purchase.
To activate your guarantee, you will need your product serial number. This can
be found inside the door of your washing machine
There are two ways to register your Guarantee:
•
•
Online: Visit the Support page on our website and complete the online Product
Registration form. www.montpellier-appliances.com
By Post: Simply detach and fill in the form provided, attach a stamp and send it
in the post. Don’t forget to include your e-mail address so that we can send
confirmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com

1
CONTENTS
SAFETY INSTRUCTIONS
Safety Instructions..............................................
INSTALLATION
Product Description.............................................
Installation...........................................................
OPERATIONS
Quick Start .........................................................
Before Each Wash..............................................
Detergent Dispenser...........................................
Control Panel......................................................
Programme Options............................................
Function Options.................................................
Programme Guide...............................................
Programme Matrix...............................................
MAINTENANCE
Cleaning And Care .............................................
Trouble Shooting ................................................
Technical Specifications .....................................
Product Fiches ....................................................
2
7
8
11
12
13
14
15
16
18
19
21
24
25
26
Wash Load Table................................................ 20

2
Safety Instructions
For your safety,the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified person
in order to avoid a hazard.
Electric shock!
SAFETY INSTRUCTIONS
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
Warning!
！
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
Caution!
Warning!
！

3
•The new hose supplied with the appliance is to be used and the
old hose/s should be discarded
•Before carrying out any maintenance please ensure that the
appliance is unplugged from the mains supply.
•Always unplug the appliance and turn off the water supply after
use and especially if the appliance is not to be used for a
prolonged period of time.
•To ensure your safety the mains plug must be plugged in to a
suitable 13amp switched wall socket which is properly and reliably
earthed. If you notice any discolouring or damage to the wall
socket this must be replaced by a qualified person straight away.
•Make sure that the appliance is connected by a suitably qualified
technician in accordance with the manufacturers instructions and
local safety regulations.
Risk to children!
from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
•
• Children of less than 3years should be supervised to
ensure that they do not play with appliance.
• Animals and children may climb into the machine. Check the
machine before every operation.
EN countries: the appliance can be used by children aged
SAFETY INSTRUCTIONS

4
•The glass door may become very hot during operation. Keep
children and pets away from the appliance during use.
•Remove all packaging and transit bolts before using the
appliance. Failure to do so could result in serious damage and
invalidate your guarantee. Transport bolts should be retained in
case of the appliance being moved in the future.
•Plug must be accessible after installation.
Risk of explosion!
•Do not wash or dry articles that have been cleaned in, soaked in, or
dabbed with combustible or explosive substances(such as wax,
oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene,
etc.) This may result in fire, explosion or contamination of your
appliance. Before washing any items in the washing machine that
may have come in to contact with such substances make sure
they have been thoroughly rinsed by hand.
•This washing machine is designed for indoor use only.
•It is not intended to be built-in to a housing.
•Do not install on a surface (such as carpet) that would prevent
ventilation at the base of the appliance.
•The washing machine shall not be installed in a bathroom, wet
room or any rooms where moisture, explosive or caustic gases
could be present.
•Washing machines fitted with a single cold inlet valve should be
connected to the cold supply only.
•Plug must be accessible after installation
Installing the product!
SAFETY INSTRUCTIONS
Caution!

5
•Risk of damaging the appliance !
•Remove all packaging and transit bolts before using the appliance
otherwise serious damage may result !
•This washing machine is only for domestic use and is only
designed for the textiles suitable for a domestic washing machine.
•Do not climb or sit on the appliance at all.
•Do not lean against or use excessive force on the door
•Cautions during handling of the machine:
1.Transport bolts shall be carefully reinstalled to the appliance by
a suitably qualified person.
2. Any residual water left in the appliance shall be drained out of
the appliance.
3.The appliance should always be handled with care. Do not
carry, lift or move the appliance with any part protruding from
the appliance. The door should never be used as a handle when
moving the appliance.
4.This appliance is very heavy. Always transport with care and
we strongly recommend that it is moved by a minimum of two
people.
•It is forbidden to wash carpets.
Operating the appliance!
•Before using for the first time it is recommended to run the washer
through one complete wash cycle at a minimum temperature of 40°
without any clothes and use half of your usual amount of detergent.
•Flammable, Explosive or Toxic solvents are forbidden. Gasoline
and alcohol etc should not be used as detergents or cleaning
agents in any way. Please only use the correct detergents suitable
for a domestic automatic washing machine.
SAFETY INSTRUCTIONS

6
•Make sure that all pockets are checked and emptied. Sharp or
rigid items such as coins, jewellery, nails and screws etc may
cause serious damage to the appliance and clothing. This will also
not be covered under your guarantee.
•Please check whether the water inside the drum has drained
away before attempting to open the door. Please do not open or
try to force the door open if any water is visible.
•Do not touch the drain hose or any discharged water during
operation of the appliance as the high temperatures could pose a
burn risk.
•Never refill with water by hand during the washing cycle.
•After the programme has finished please wait for two minutes
before opening the door.
Packaging/Old appliance
SAFETY INSTRUCTIONS
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU.To prevent possible harm to the environment or
human health from uncontrolled waste
disposal,recycle it responsibly to promote the
sustainable reuse of material resources.To return your
used device, please use the collection systems or
contact the retailer where the product was purchased.
They return and can take this product for
environmental safe recycling.

7
Accessories

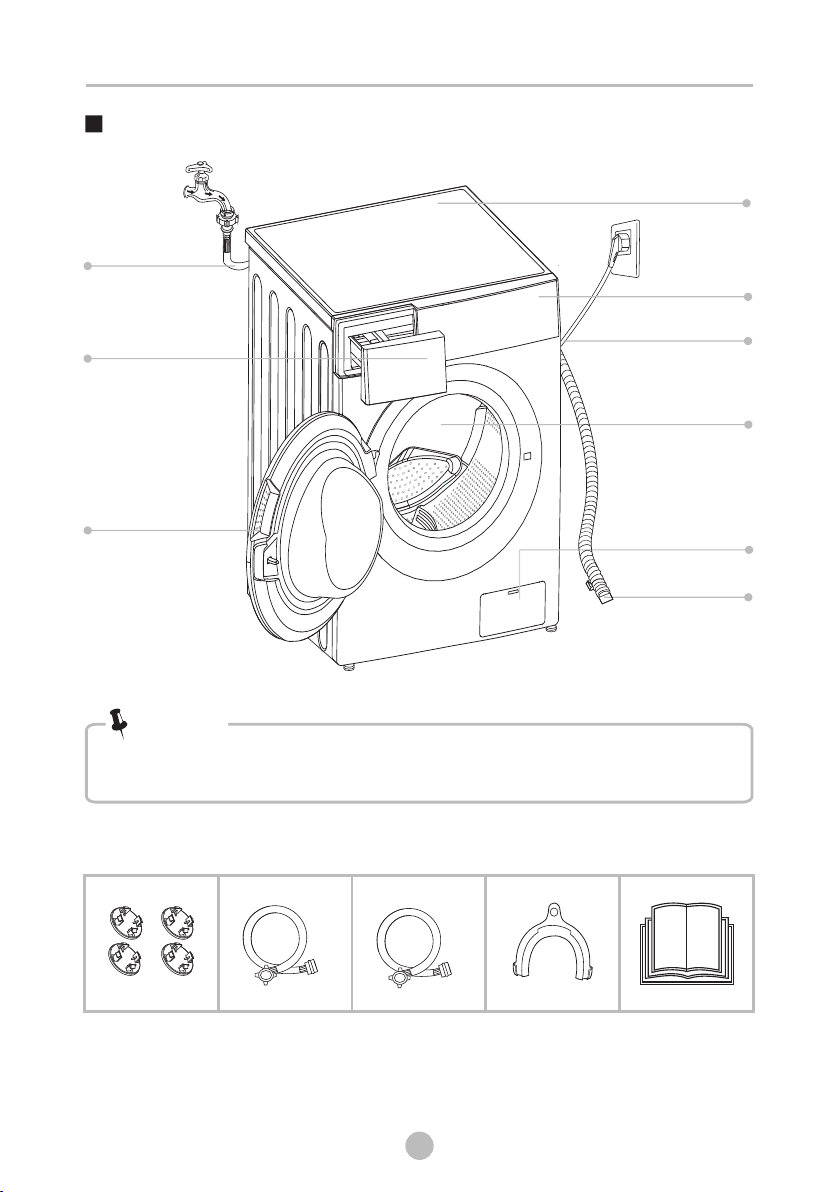

Product Description
Transport
plughole
Supply hose hot
water (optional)
Supply hose
cold water
Drain hose
(optional
support
)
• The product line chart is for reference only, please refer to real product as
standard.
Note!
Drum
Power supply cord
Control panel
Detergent dispenser
Service filter
Door
Water supply hose
Top cover
Drain hose
Owner’s manual
INSTALLATION

8
INSTALLATION
1.Install on a dry, rigid and level surface.
2.Avoid direct sunlight.
3.Make sure the appliance has sufficient ventilation.
4.Room temperature is above 0℃
5.Keep far away from the heat resources such as heating
pipes/radiators
Before installing the appliance ensure that all below
points are adhered to:

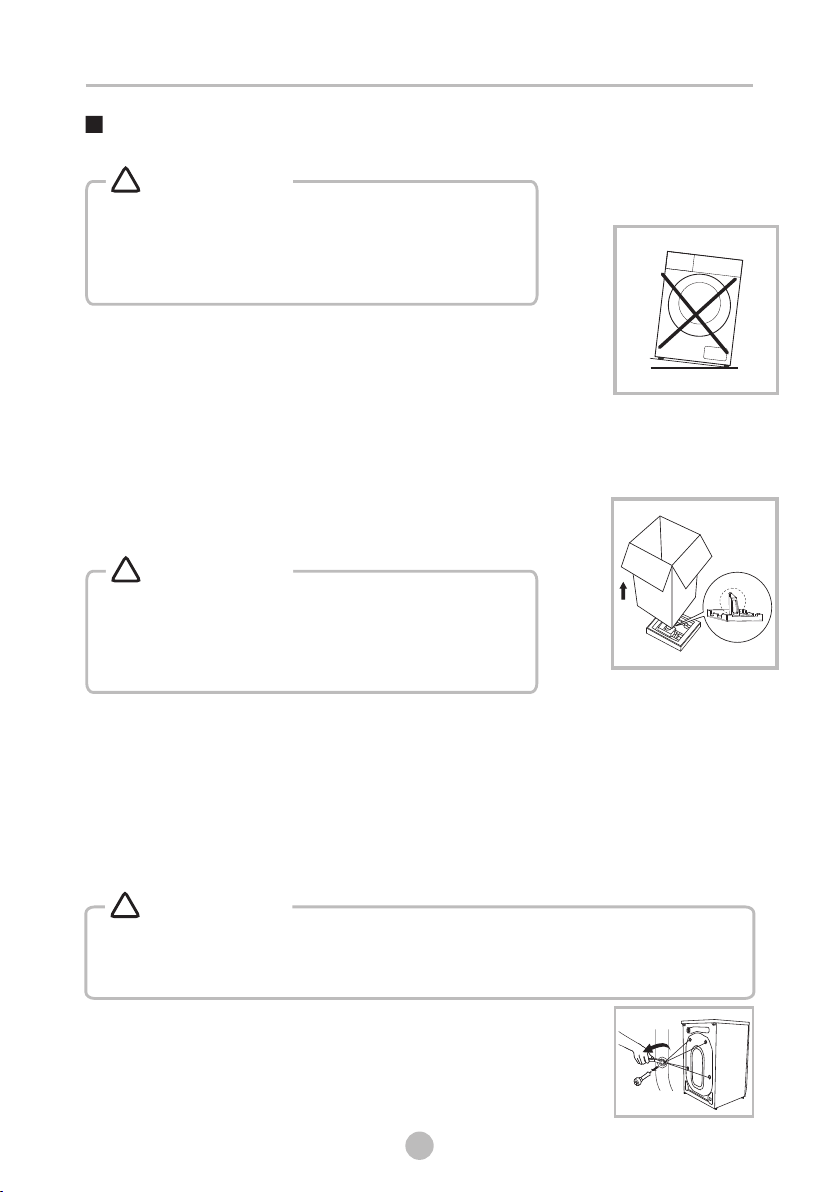

Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Make sure the small triangle
foam is removed with the bottom one together. If not, lay the unit down with side
surface, then remove the small foam from the unit bottom manually.
Please take the following steps to remove the bolts:
1. Loosen 4 bolts with spanner and then remove them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.
Remove transport bolts
•Stability is extremely important for quiet and
vibration free running.
•Make sure the appliance doesn't stand on
the mains cable.
Warning!
！
•
•
Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
！
•
• product
you
You must remove the transport bolts from the backside before using the product.
You’ll need the transport bolts again if you move the , so make sure
keep them in a safe place.
Warning!
！
Installation

9
9
INSTALLATION

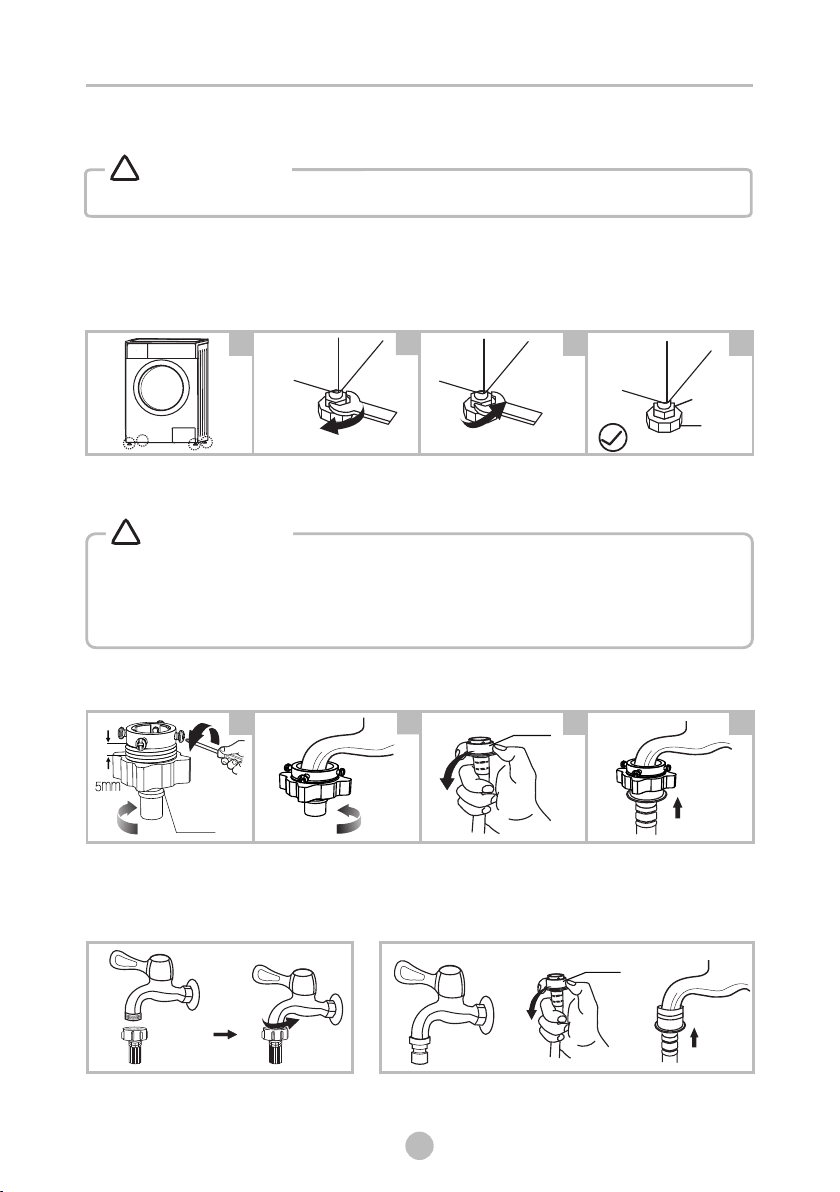

1.Check if the legs are closely attached to the cabinet. If not, please turn them to
their original positions tighten the nuts.
2.Loosen the lock nut turn the feet until it closely contacts with the floor.
3.Adjust the legs and lock them with a spanner, make sure the machine is steady.
Levelling the washing machine
• The lock nuts on all four feet must be screwed tightly against the housing.
Connect Water Supply Hose
Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.
1.Connection between ordinary tap and inlet hose.
• To prevent leakage or water damage, follow the instructions in this chapter
Do not kink, crush, modify or sever .
!
• water inlet hose
• For models fitted with a hot water inlet valve connect to a hot water supply
with a suitable hot water supply hose.
234 1
Raise Lower
Lock nut
foot
Warning!
！
Warning!
！
Loosen clamp nut and
four bolts
Tighten clamp nut Press slide bushing,
insert inlet hose into
connecting base
slide bushing
2341
Connection finished
clamp nut
Tap with threads and inlet hose Special tap for washing machine
2.Connection between screw tap and inlet hose. (Standard UK fitting )
slide bushing

10
10
INSTALLATION
Drain Hose
There are two ways to connect the drain pipe to a water outlet.
1. Connect the drain to a suitable stand pipe or 2. connect to an outlet below a household
sink.....see below.
When the drain hose has been installed check that it is secure and will not move or
become dislodged during discharge of the drain water
If the drain hose is too long do not force it back in to the washing machine as this will
cause damage to the hose/appliance
•
•
Do not kink or extend the drain hose
Position the drain hose correctly to avoid damage which may result in a leak
Trough
Hose Retainer
Bind
Max.100cm
Min.60cm
Min.60cm
Max.100cm
If the machine has • drain hose support, please install it like the following .
Warning!
！Warning! ！
Note!
water supply hose
water Inlet valve
Connect the angled end of the cold water inlet hose to the cold water inlet valve
at the rear of the appliance and tighten securely in a clockwise motion.
60cm
100cm
！！ WaWarrnniinngg!!

10
11
•
•
1. Before Washing
Open tap
Load
Close door
Plug in
Add detergent
Quick Start
•If selecting the pre-wash option a small amount of detergent may be added to
compartment I (see diagram 5 )
1 2 3 4 5
2. Washing
Power On
Select Programme Select function or
default
Start up
1 2 3 4
Note!
Caution!
OPERATIONS
Main
wash
Prewash
Softener
Before using the appliance make sure that it is correctly installed.
Before washing for the first time it is advisable to run the appliance through one
complete wash cycle at a minimum temperature of 40°C without any clothes and
using half your usual amount of detergent.

10
12
Securely fasten all long
ties, zips or buttons
•When washing single items or very small loads this may cause an out-of balance load
which may result in poor spin results or an error, If this happens it is suggested that you
add one or two more items to even out the load.
•Don't wash clothes that have come in to contact with gasoline, alcohol and other
flammable materials.
•The necessary ambient temperature for operation of your washing machine is between
5-40° C. If used below 0°C the inlet valve and draining system may be damaged as well as
the possibility of split hoses. If the ambient temperature is below 0°c then the appliance
would need to be moved to somewhere with a higher temperature to ensure the water
supply and drain hoses are not frozen before using.
•Please check laundry care labels and the correct dosing instructions on your detergent
before use. Only use detergent suitable for a domestic washing machine.
Remove all items from
pockets.
Put small items securely in a
pillow case or laundry bag.
Check the label
Before Each Wash
Turn easy-pilling and
long-pile fabric inside out
Separate different fabric
types and colours
Warning!
！
OPERATIONS
Buzzer beep or “End” on display.
3. After Washing
• 1.
2.
as standard.
If default is selected, step 3 can be skipped.
The function button line chart is for reference only, please refer to real product
Note!

10
13
Programme
Sterlilzation
Cotton
20℃
Mix
Wool
Synthetic
Eco 40-60
Intensive
○Means optional
Means required
Programme
Self Clean
Spin Only
Rinse & Spin
Baby Care
Sport
Duvet
Rapid 45’
Quick 15’

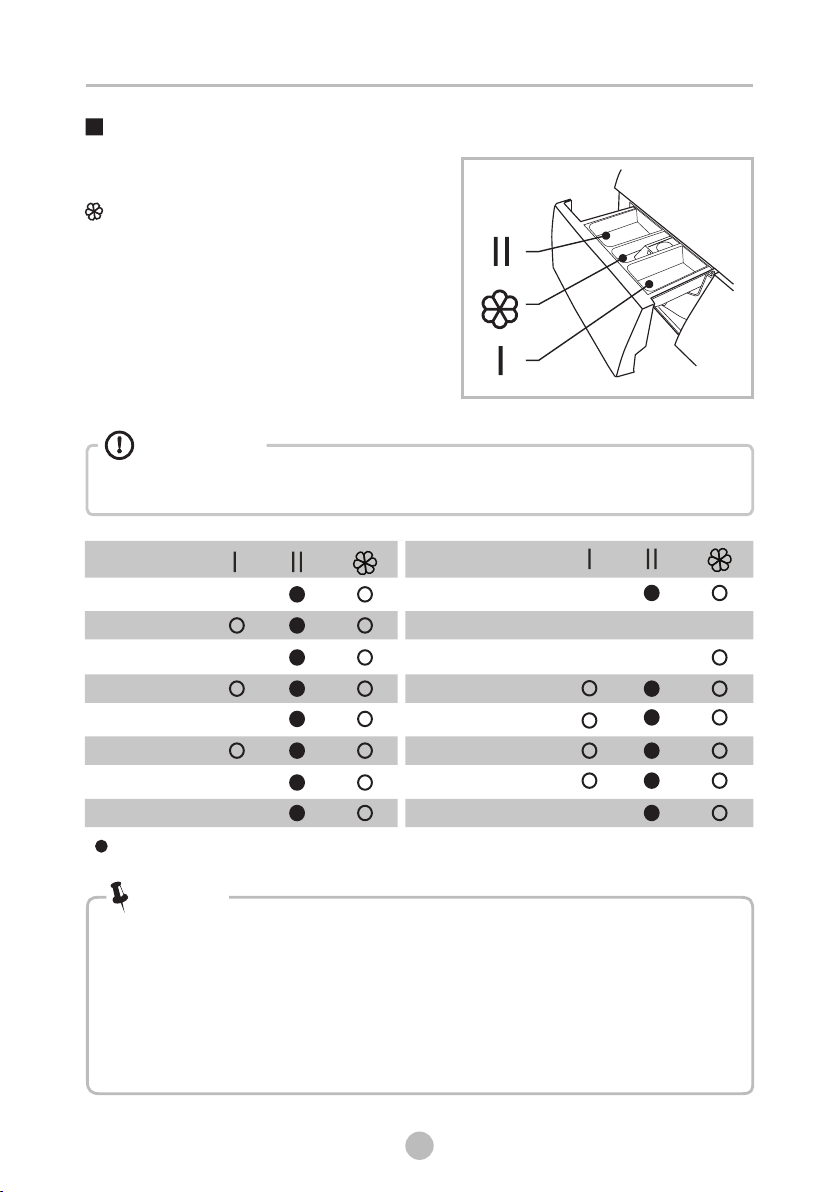

Detergent Dispenser
Pre wash detergent
Main wash detergent
Softener
II
I
Pull out the dispenser
•
•
Thick or concentrated softeners may cause clogging of the soap drawer inlets
so it is advisable to dilute if possible, also excessive use of powder may also
cause clogging. Always use detergents produced for automatic washing
machines and follow the dosing guidelines form the detergent manufacturer.
Please choose the correct type of washing detergent for required temperatures
and clothing to achieve the best performance with less water and energy
consumption.
Note!
Caution!
•Detergent should only be added to the Pre-wash compartment if pre-wash has
been selected as an option
OPERATIONS

Power
Product is on/off.
Start/Pause
Press the button to start or pause the
washing cycle.
Programmes
Available according to the laundry type.
Option
This allows you to select an additional
function and will light when selected.
Note!
The chart is for reference only, Please refer to your machine panel for info.
•
1
1
3
1
2
4
Display
The display shows the settings, estimated time remaining, options, and status messages
for your washer. The display will remain on through the cycle.
5
Control Panel
5312
4
OPERATIONS
Model: MW7145 - MW8145 - MW9145
Child Lock
B
D
Stop Add Go
Display
A
Wash Time Delay Time
Speed Error
End Temp.
A
C
Hygiene Pro
Door Lock
E
10
14
1
1
B
C
DE
F
G
Pre Wash
F
Extra Rinse
G
H
Soil Level
H

Programme Options
OPERATIONS
Press the Temp button to change the required wash temperature if a temperature
other than the default is required (Cold,20,30,40,60,90)
3
Press the speed button to change the required speed if a spin speed other
than the default is required (0,400,600,800,1000,1200,1400)
3
Programme
Sterlilzation
Cotton
20℃
Mix
Wool
Synthetic
Eco 40-60
Intensive
Default Speed(rpm) Programme
Self Clean
Spin Only
Rinse & Spin
Baby Care
Sport
Duvet
Rapid 45’
Quick 15’
Default Speed(rpm)
1200
1400
800
600
800
1400
1000
1400
800
800
1400
800
1000
1000
1000
–
800 800
To set the delay function :
1. Select a programme; 2.Press the Delay button to choose the time(the delaying time is 0-24 H.);
3.Press [Start/Pause] to commence the delay operation
Setting time
Delay
Choose the Programme Start
Canceling the delay function:
Press the (Delay) button until the display shows 0H. This should be done before starting
the programme. If the programme has already been set then switch off the appliance and
restart a new programme.
3
15

Function Options
OPERATIONS
3
Function Use the function button to select the required functions
available with each wash cycle - refer to the programme
guide for the options available.
•7RGHDFWLYDWHWKHFKLOGORFNSUHVVDQGKROGWKH6SHHG'HOD\EXWWRQVIRUVHFRQGV
•7KH&KLOG/RFNZLOOORFNDOOEXWWRQVH[FepWWKH3RZHUEXWWRQ
•,QWKHHYHQWRIWKHSRZHUVXSSO\EHLQJFXWRIIWRWKHPDFKLQHWKH&KLOG/Rck PD\QRW
EHDFWLYHRQFHWKHSRZHUVXSSO\LVUHLQVWDWHG
Caution!
&+,/'/2&.
7KHFKLOGORFNIXQFWLRQDOORZV\RXWRORFNWKHEXWWRQVVRWKDWWKHZDVKF\FOH\RXKDYH
FKRVHQFDQQRWEHFKDQJHGXQLQWHQWLRQDOO\
Start ] Press [Speed] and [
3 sec. till buzzer beep.
Delay
Speed
Choose the Programme
Delay
B
C
Hygiene Pro
If selected the self-clean function will be automatically activated during every wash
cycle.
Hygeine Pro system keeps the laundry always clean, saves time and limits
environmental impact.
D
STOP ADD GO
When you've forgotten to add an item of clothing to your wash,our handy "Stop Add Go"
technology allows you to stop the cycle to open the door and add the item and go.
For safety reasons if the temperature inside the drum exceeds 40°C or the water level
is to high this feature will not be available and give a series of audible beeps to indicate
this is an invalid operation.
Press for 3 seconds Add Clothing Press To Go !
16

Extra Rinse
The laundry will undergo an extra rinse once this option is selected.
Function Options
17
OPERATIONS
Pre Wash
The Pre-wash function allows you to give heavily soiled items a pre-wash before the
main washing programme takes place. When using this function put detergent in
compartment I of the soap drawer.
Pre Wash
Extra Rinse
Soil Level
Select the required soil level according to the degree of soiling of the clothes, the
programme will automatically control the washing time and rhythm of the wash.
Soil Level
F
G
3
E
Door Lock
This will indicate when the cycle starts and the door is locked.
Muting the Buzzer
To reactivate the buzzer repeat the same process as above for 3 seconds.
•Once you have muted the buzzer it will not sound again until you reactivate it.
Caut ion!
Temp.
Press and hold the [Temp] button for 3
seconds to mute the buzzer.
Choose the Programme

Programmes
Quick 15'
Wool
Mix
Cotton Designed for hard wearing textiles,cotton garments or clothes that
require a high agitation wash such as towels and sheets.
Quick wash cycle for up to 2kg of lightly soiled garments
Ideal for a load with mixed fabrics such as cotton and synthetics.
A cold wash using either cold water only or a temperature of 20°C
This cycle maintains a 70°C temperature for 30 minutes during
the cycle to help sterilize your clothes as well as the appliance
Extra quick cycle for those small or single lightly soiled
items you need in a hurry
ECO cycle suitable for fabrics designed to be washed
between 40°C-60°C. Temperature is set at 40°C
Low temperature wash designed for machine washable wool, wool rich
textiles and delicate clothes. Especially gentle wash action and laundry
pauses for longer in the water to avoid damage and shrinkage.
Extra rinse and spin with selectable spin speed
Increased washing time/action to give better results
Specially designed programme for washing active sportswear.
Specially designed programme for washing Duvets
Special programme designed to clean the drum and pipework.
It will do a set 90°C wash cycle to help eliminate bacteria and a
build up of dirt inside the machine. You should not put any
clothes or garments in the appliance during this cycle. For best
results it is advisable to use a powder detergent.
20℃
Spin Only Extra spin with selectable spin speed
Rinse&Spin
Baby Care Intensive wash cycle designed to help remove heavy stains as well as
bacteria and allergens using a higher temperature, followed by several
rinses to make sure as much detergent is removed form the garments
to protect delicate skin.
Sterlilzation
Synthetic Medium agitation wash designed for synthetic fabrics such as
nylon, polyester and acrylic blended items
Rapid 45'
10
18
OPERATIONS
Please refer to your wash care label in all garments and choose the suitable
programme from the list below
Programme Guide
Self Clean
Sport
Duvet
ECO 40-60
Intensive
