montpellier MIWM65 User manual

Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Built-In Washing Machine
MIWM65 - 6kg 1200rpm

Thank you for choosing this Montpellier appliance.
Our appliances have been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your appliance to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future
reference.
Your appliance is covered by a comprehensive two year Parts & Labour
Guarantee. In the unlikely event that you experience a problem with your
appliance, you can rest assured that you are fully protected against the cost of
repairs for the first 24 months . Please note that any claim must be
accompanied by the model reference number, serial number and proof of
purchase.
To activate your guarantee, you will need your product serial number. This can
be found inside your appliance.
NB: Please make sure that you keep a copy of your original sales invoice as this
will be needed if any service call is required.
There are three ways to register your Guarantee:
• Online: Visit the Support page on our website and complete the online
Product Registration form. www.montpellier-appliances.com
•By Post: Simply detach and fill in the form provided, attach a stamp and send
it in the post. Don't forget to include your e-mail address so that we can send
confirmation through to you.
By Phone: Contact our warranty registration department on 0808 1961388
Welcome
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com
•

CONTENTS
SAFETY INSTRUCTIONS
Safety Instructions ..............................................
INSTALLATION
Product Description ............................................
Installation .............................................................
OPERATIONS
Quick Start ..............................................................
Before Each Wash .................................................
Detergent Dispenser ...........................................

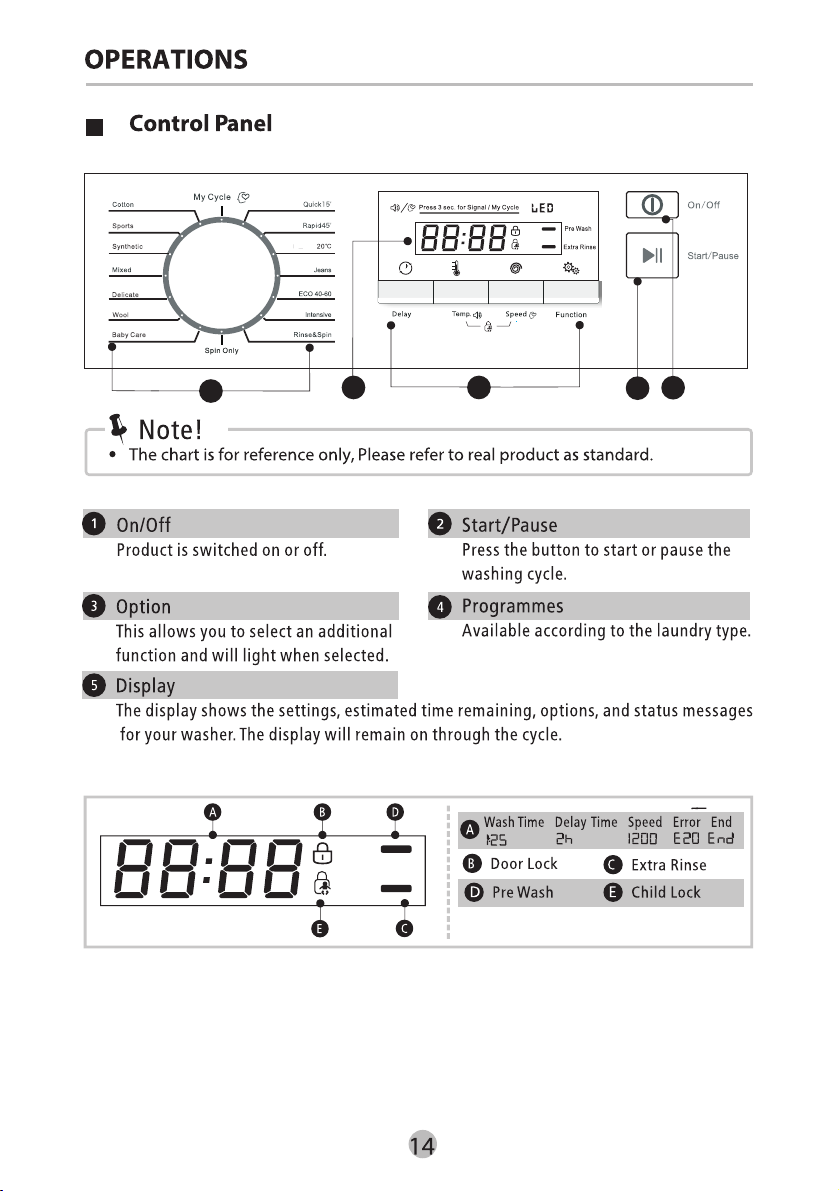

Control Panel ..........................................................
Option........................................................................
Other Functions .....................................................
Programmes............................................................
Washing Programmes Table .............................
MAINTENANCE
Cleaning And Care ................................................
2
7
8
11
12
13
14
15
16
18
19
20
23
24
25
1
TROUBLE SHOOTING........................................
TECHNICAL SPECIFICATION...........................
PRODUCT FICHES...............................................
26
BUILDING IN.........................................................
29
HERE FOR YOU....................................................

•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
•The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
•Before any maintenance the device, unplug the appliance
from the mains.
The electric shock!
2
SAFETY INSTRUCTIONS
Safety Instructions
For your safety,the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
！Warning!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in
slight or minor injuries.
Note!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
Caution!
！Warning!

3
•Always unplug the machine and turn off the water supply
after use, especially if not being used for a prolonged
period of time.
•To ensure your safety, the power plug must be inserted
into an earthed three-pole socket. Check carefully and
make sure that your socket is properly and reliably
earthed.
•Make sure that the water and electrical supply is
connected by a qualified technician in accordance with
the manufacturer's instructions and local safety
regulations.
•Always pull out its plug from the power socket before
cleaning or maintenance.
•Do not use any socket with rated current less than that of
appliance. Never pull out power plug with wet hands.
•Please remember to disconnect water and power supply
immediately after the clothes are washed.
Risk to children!
•EN countries: the appliance can be used by children aged
from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without
supervision.
•Children of less than 3years should be supervised to
ensure that they do not play with appliance.
•Animals and children may climb into the machine. Check
the machine before every operation.
•Children should be supervised at all times so that they do
not play with the appliance.
SAFETY INSTRUCTIONS

•Glass door may be very hot during the operation. Keep kids
and pets far away from the machine during the operation
very wet rooms as well as in the rooms with explosive or
caustic gas.
•Remove all packages and transport bolts before using the
appliance. Otherwise, serious damage may result.
Risk of explosion!
•Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers, dry-
cleaning solvents, kerosene, etc.) This may result in fire or
explosion.
•The washer dryer is not to be used if industrial chemicals
have been used for cleaning.
•The exhaust air must not be discharged into a flue which is
for exhausting fumes from appliances burning gas or other
fuels.
•Before hand thoroughly rinse items of washing by hand.
4
SAFETY INSTRUCTIONS
•This washing machine is designed for indoor use only.
•It is not intended to be built-in to a housing.
•Do not install on a surface (such as carpet) that would prevent
ventilation at the base of the appliance.
•The washing machine shall not be installed in a bathroom, wet
room or any rooms where moisture, explosive or caustic gases
could be present.
•Washing machines fitted with a single cold inlet valve should be
connected to the cold supply only.
•Plug must be accessible after installation
Installing the product!
Caution!

5
Risk of damaging the appliance !
•Remove all packaging and transit bolts before using the
appliance otherwise serious damage may result !
•This washing machine is only for domestic use and is only
designed for the textiles suitable for a domestic washing
machine.
•Do not climb or sit on the appliance at all.
•Do not lean against or use excessive force on the door
•Cautions during handling of the machine:
•Transport bolts shall be carefully reinstalled to the appliance by a
suitably qualified person.
•Any residual water left in the appliance shall be drained out of
the appliance.
•The appliance should always be handled with care. Do not carry,
lift or move the appliance with any part protruding from the
appliance. The door should never be used as a handle when
moving the appliance.
•This appliance is very heavy. Always transport with care and we
strongly recommend that it is moved by a minimum of two
people.
•It is forbidden to wash carpets.
Operating the appliance!
•Before using for the first time it is recommended to run the
washer through one complete wash cycle at a minimum
temperature of 40°without any clothes and use half of your
usual amount of detergent.
•Flammable, Explosive or Toxic solvents are forbidden. Gasoline
and alcohol etc should not be used as detergents or cleaning
agents in any way. Please only use the correct detergents
suitable for a domestic automatic washing machine.
SAFETY INSTRUCTIONS

6
•Make sure that all pockets are checked and emptied. Sharp or
rigid items such as coins, jewellery, nails and screws etc may
cause serious damage to the appliance and clothing. This will
also not be covered under your guarantee.
•Please check whether the water inside the drum has drained
away before attempting to open the door. Please do not open or
try to force the door open if any water is visible.
•Do not touch the drain hose or any discharged water during
operation of the appliance as the high temperatures could pose
a burn risk.
•Never refill with water by hand during the washing cycle.
•After the programme has finished please wait for two minutes
before opening the door.
Packaging/Old appliance
SAFETY INSTRUCTIONS
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU.To prevent possible harm to the environment or
human health from uncontrolled waste
disposal,recycle it responsibly to promote the sustainable
reuse of material resources.To return your used device,
please use the collection systems or contact the retailer
where the product was purchased. They return and can
take this product for environmental safe recycling.

Accessories
Transport
hole plug
Supply hose
cold water
•The product line chart is for reference only, please refer to real product
as standard.
Note!
Owner’s manual
Product Description
INSTALLATION
Door
Detergent Drawer Control Panel
Power Plug
Drain hose
7

INSTALLATION
1.Install on a dry, rigid and level surface.
2.Avoid direct sunlight.
3.Make sure the appliance has sufficient ventilation.
4.Room temperature is above 0℃
5.Keep far away from the heat resources such as heating
pipes/radiators
Before installing the appliance ensure that all below points
are adhered to:
Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Make sure the small triangle of
foam is removed with the bottom one together. If not, lay the unit down with side
surface, then remove the small foam from the unit bottom manually.

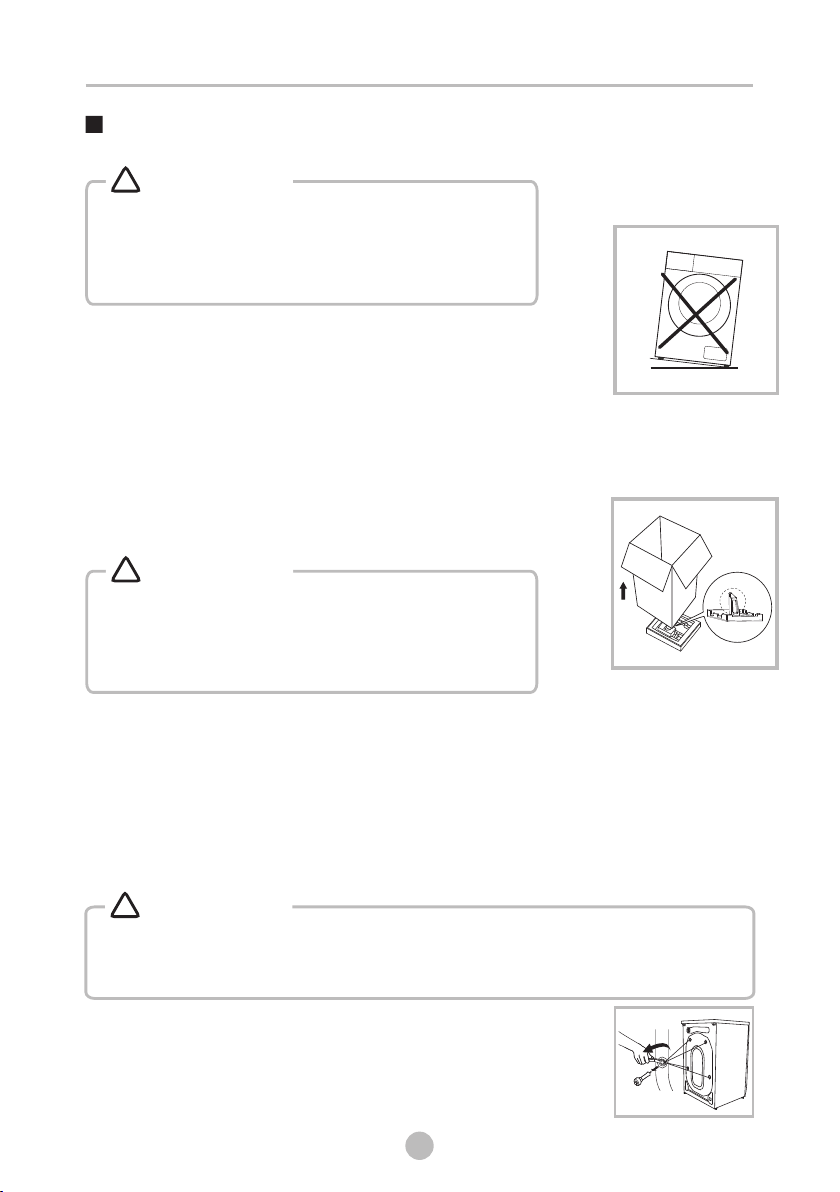

Please take the following steps to remove the bolts:
1. Loosen 4 bolts with spanner and then remove them.
2. Stop the holes with transport hole plugs.
3. Keep the transport bolts properly for future use.
Remove transport bolts
•Stability is extremely important for quiet and
vibration free running.
•Make sure the appliance doesn't stand on the mains
cable.
！Warning!
•
•
Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
There is a risk of suffocation ! Keep all packaging well
away from children.
！Warning!
•
•
You must remove the transport bolts from the backside before using the product.
You’ll need the transport bolts again if you move the product , so make sure you
keep them in a safe place.
！Warning!
Installation
8

INSTALLATION
1. Check if the legs are closely attached to the cabinet. If not, please turn them to
their original positions tighten the nuts.
2. Loosen the lock nut turn the feet until it closely contacts with the floor.
3. Adjust the legs and lock them with a spanner, make sure the machine is steady.
Levelling the washer dryer
•The lock nuts on all four feet must be screwed tightly against the housing.
Connect Water Supply Hose
•To prevent leakage or water damage, follow the instructions in this chapter •
•Make sure that the fill hose is not trapped, kinked or cross-threaded and once
fitted turn on the water supply and check for any leaks.
234 1
Raise Lower
Lock nut
foot
！Warning!
！Warning!
9
1. Connect the angled end of the fill hose to the cold water inlet at the rear of the
washing machine screwing clockwise until hand tight. (see below)
2. Connect the straight end of the fill hose to a 19 mm (3/4”) cold water tap by
screwing clockwise until hand tight. (see below)
If your previous machine had a hot water connection, we
recommend that you check the hot tap on your water supply is closed to
prevent leakage.
Note!

10
INSTALLATION
When the drain hose has been installed check that it is secure and will not move or
become dislodged during discharge of the drain water.
Make sure the drain hose is not trapped, kinked or crushed, do not attempt to extend the
drain hose by adding additional extra sections
If the drain hose is too long do not force it back in to the washing machine as this will
cause damage to the hose/appliance
In either option the
drain hose must be between
0 cm and 80 cm from the
ground.

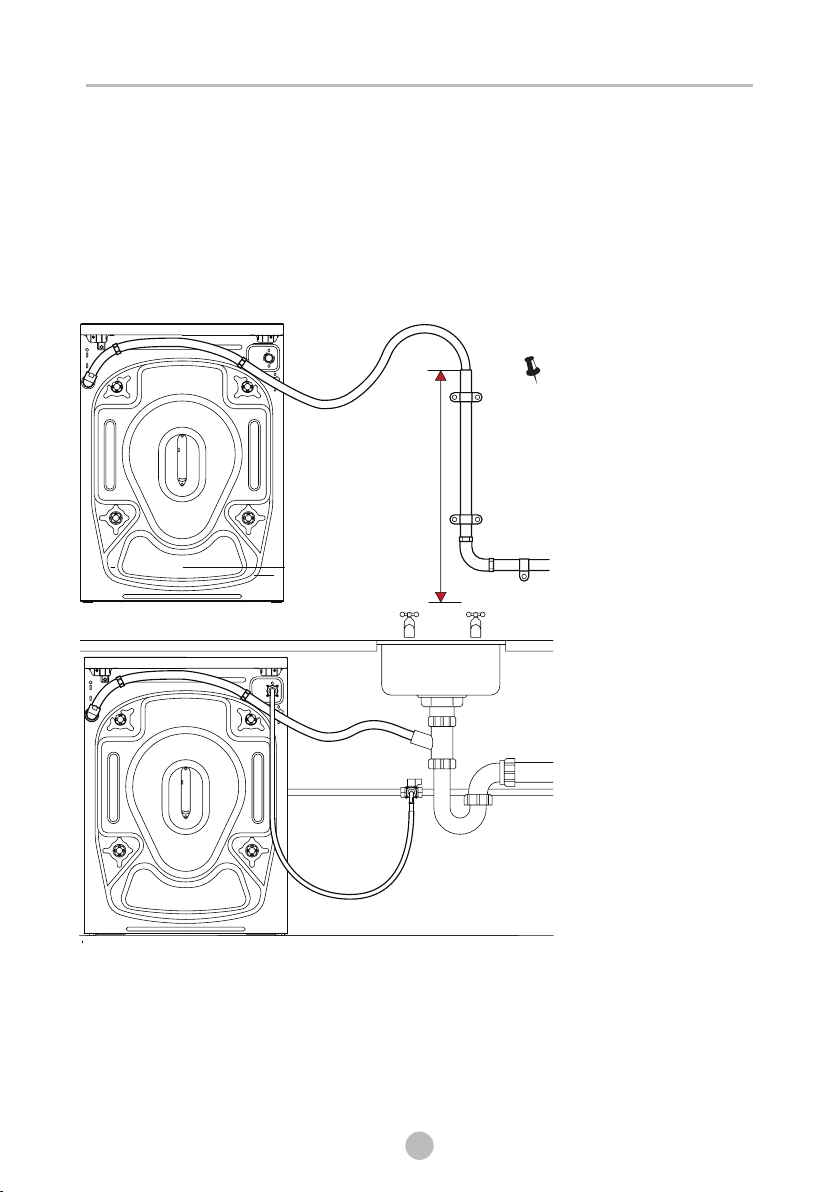

Connect the Drain Hose
Your Washer can be connected to your household drainage system in one of two ways:
1 The drain hose can be connected to a standpipe (see Figure A)
2 The drain hose can be connected to a household sink (see Figure B)
80 cm
Figure B
Figure A
Note!

11
OPERATIONS

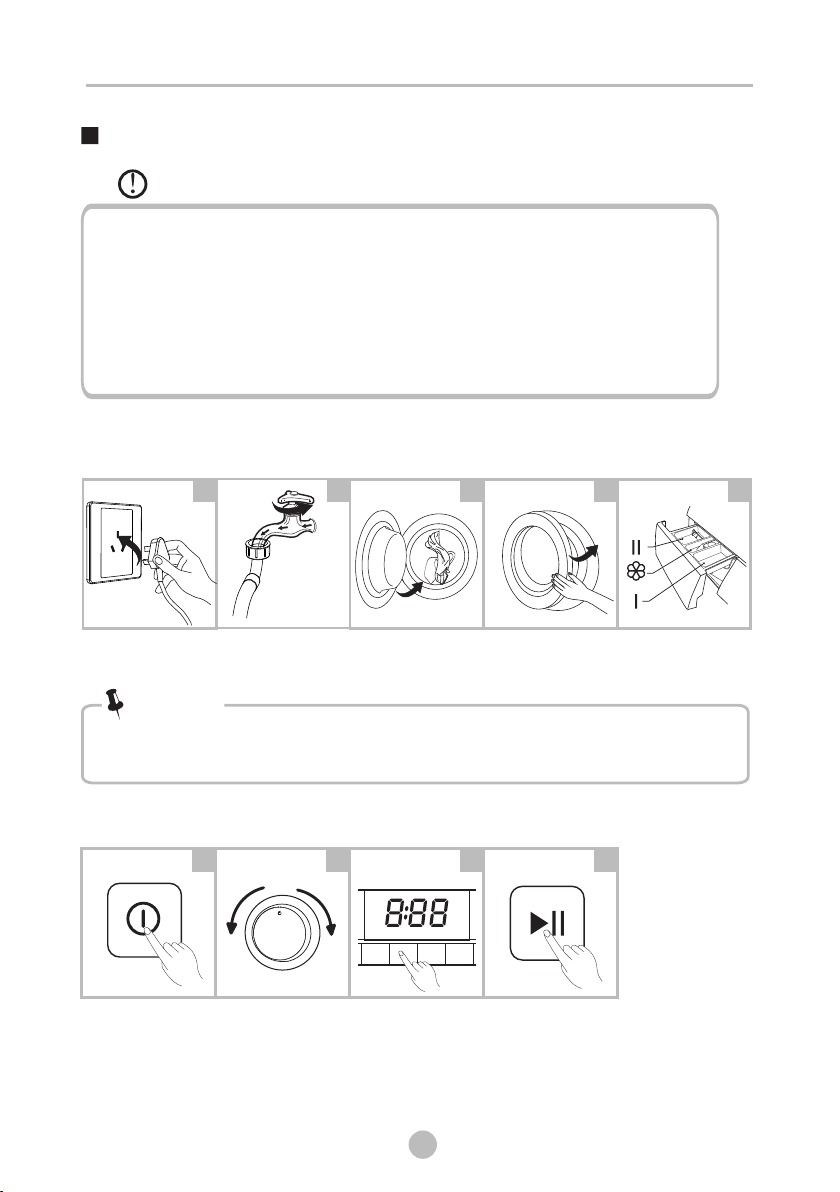

1. Before Washing
Open tap
Load
Close door
Plug in
Add detergent
Quick Start
If selecting the pre-wash option a small amount of detergent may be
added to compartment I (see diagram 5 above)
1 2 3 4 5
2. Washing
Power On
Select Programme Select function or
default
Start up
1 2 3 4
Note!
Caution!
Main
wash
Prewash
Softener
Before using the appliance make sure that it is correctly installed.
Before washing for the first time it is advisable to run the
appliance through one complete wash cycle at a minimum
temperature of 40°C without any clothes and using half your usual
amount of detergent.

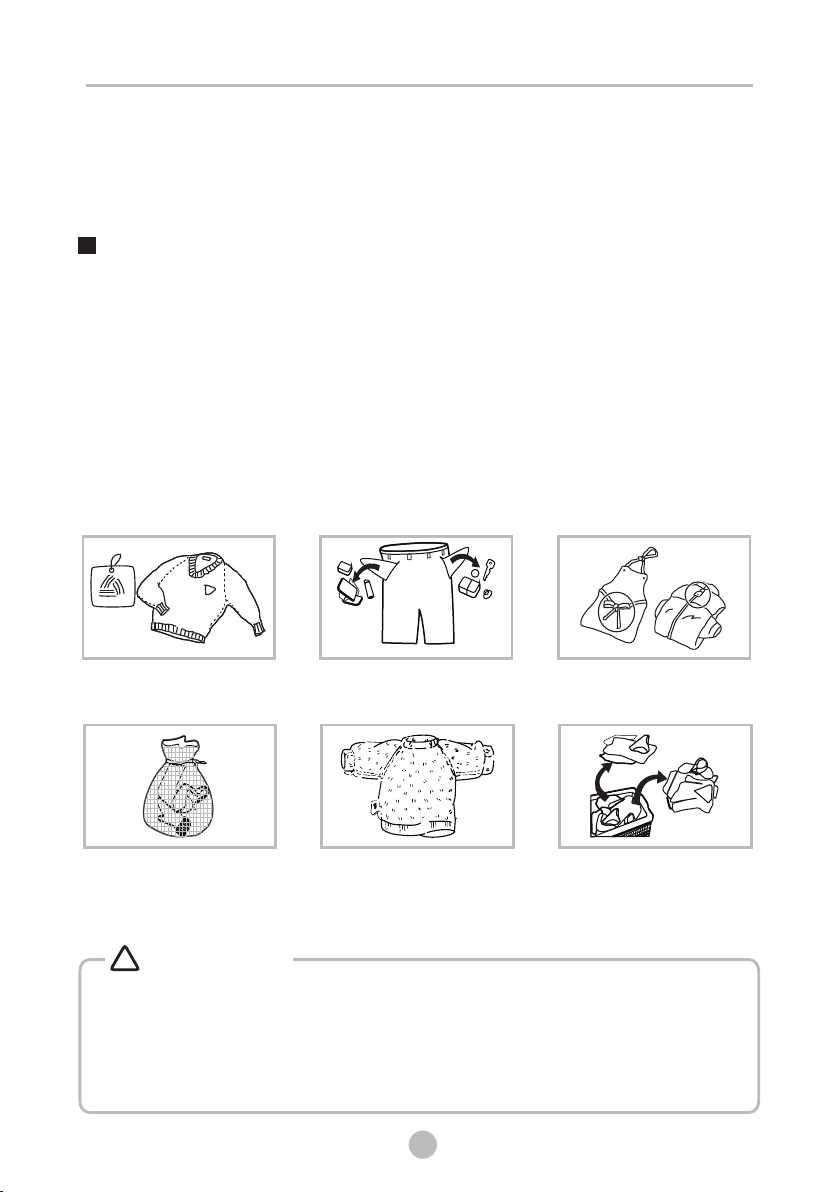

Knot the long strips,zip
or button
•The working condition of the washer should be between 0-40°C. If used
under 0°C,the inlet valve and draining system may be damaged.
•If the machine is placed under condition of 0°C or less, then it should be
transferred to normal ambient temperature to ensure the water supply
hose and drain hose are not frozen before use.
•Please check the labels and the explanation of using detergent before
each wash.
•Use non-foaming or less-foaming detergent suitable for automatic
washing machine use only.
Take out the items out
of the pockets
Put small clothes into
the pillow slip
Check the label
Turn easy-pilling and
long-pile fabric inside
out
Separate clothes
with different
textures
OPERATIONS
3. After Washing
Buzzer will beep or “End” will show on the display.
Before Each Wash
•When washing single items or very small loads this may cause an out-of balance
load which may result in poor spin results or an error, If this happens it is
suggested that you add one or two more items to even out the load.
•Don't wash clothes that have come in to contact with gasoline, alcohol and other
flammable materials.
！Warning!
12

Programme
Quick 15
Rapid 45
20℃
Jeans
Eco 40-60
Intensive
Rinse&Spin
Spin Only
○Means optional
Means must
Programme
Baby Care
Wool
Delicate
Mixed
Synthetic
Sports
Cotton
Pull out the dispenser
Caution!
•Detergent only need to be added in "case I “after selecting pre-washing
for machines with this function.
OPERATIONS
Detergent Dispenser
Pre wash detergent
Main wash detergent
Softener
I
I
I
•Thick or concentrated softeners may cause clogging of the soap
drawer inlets so it is advisable to dilute if possible, also excessive use
of powder may also cause clogging.
•Always use detergents produced for automatic washing machines and
follow the dosing guidelines form the detergent manufacturer.
•Please choose the correct type of washing detergent for required
temperatures and clothing to achieve the best performance with less
water and energy consumption.
Note!
13

1
21
1
1
1
41
51 3

Delay
Programme Option
○Means optional
Quick 15
Rapid 45
20℃
Jeans
Eco 40-60
Intensive
Rinse&Spin
Spin Only
Baby Care
Wool
Delicate
Mixed
Synthetic
Sports
Cotton
Programme Option
Delay
Pre Wash Extra Rinse Pre Wash Extra Rinse
Option
Delay
Set the Delay function:
1. Select a programme
2. Press the Delay button to choose the time(the delaying time is 0-24 H.)
3. Press [Start/Pause] to commence the delay operation
Choose the Programme Start
On/Off Setting time
Delay
Cancel the Delay function:
Press the [Delay] button until the display be 0H.It should be pressed before
starting the programme. If the programme already started, should press the
[On/Off] button to reset the programme.
OPERATIONS
Caution!
•If there is any break in the power supply while the machine is operating,
a special memory stores the selected programme and when the power is
restarted, press the [On/Off]button the program will continues.
Pre Wash
The Prewash function can get an extra wash before main wash.
Pre Wash
Extra Rinse
The laundry will undergo an extra rinse during the rinse cycle.
Extra
Rinse
15

OPERATIONS
• Press the two buttons for 3sec. also to release the function.
• The “Child Lock” will lock all buttons except [On/Off].
•
•
Cut off the power supply , the kid’s protection is to be released.
The child lock will remain effective when the power is resumed for some models.
Caution!
Child Lock
To avoid mis operation by children.
Start/Pause Press [Temp.] and [Speed]
3 sec. till buzzer beep.
On/Off
Temp. Speed
Other Functions
Speed
Press the button to change the spin speed.
Speed
Programme Default Speed(rpm)
Quick 15
Rapid 45
20℃
Jeans
Eco 40-60
Intensive
Rinse&Spin
Spin Only
Programme Default Speed(rpm)
Baby Care
Wool
Delicate
Mixed
Synthetic
Sports
Cotton
1000
1200
800
800
800
1000
1200
1000
1000
800
1200
800
600
600
800
800
800
•When the lights of speed are off means the spin speed is 0.
Caution!
My Cycle
Memorise your frequently used programme.
Press for 3 seconds to memorise your favourite cycle. Default is Cotton.
16

OPERATIONS
Temp.
Press the button to regulate the temperature(Cold,20℃, 30℃, 40℃, 60℃, 90℃)
Mute the buzzer
Temp.
On/Off Start/Pause Temp
Press the Temp button for 3 seconds to deactivate the buzzer
function. If you wish to reinstate the buzzer press the Temp button
again for 3 seconds.
•After Muting the buzzer function, the sounds will not be activated any more.
Caution!
17

Programmes
Quick 15'
Wool
Mixed
Rapid 45'
Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Washing few and not very dirty clothes quickly.
Wash synthetic articles, for example: shirts, coats, blending. While
washing the knitting textiles, detergent quantity shall be reduced
due to its loose string construction and easily forming bubbles.
Washing the baby’s clothes, it can make the baby's wear cleaner.
and make the rinse performance better to protect the baby skin.
Specially for jeans.
Mixed load consisting of textiles made of cotton and synthetics.
Washing brightly colored clothes, it can protect the colors better .
Washing the activewear.
Extra short programme approx, suitable for lightly soiled washing as
a small amounts of laundry.
For delicate, washable textiles, e.g. made of silk, satin, synthetic
fibres or blended fabrics.
Hand or machine-washable wool or richwool textiles.Especially
gentle wash programme to prevent shrinkage, longer programme
pauses (textiles rest in wash liquor).
Extra spin with selectable spin speed.
Extra rinse with spin.
Spin Only
Rinse&Spin
Baby Care
Sports
Synthetic
Jeans
Delicate
20℃
Cotton
Programmes
Programmes are available according to thelaundry type.
OPERATIONS
Eco 40-60 Washing brightly colored clothes, it can protect the colors better.
Default 40℃,not selectable,suitabale for laundry washing at
about 40℃-60℃.
To increase the washing effects, washing time is increased.
Intensive
• Reference to your product to select the programmes.
Note!
18
