montpellier MW6101W User manual

Freestanding Washing Machine
MW6101W - White - 6kg
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Installation and Operating Instructions
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING

Thank you for choosing this Montpellier Washing Machine.
Our Washers have been designed to provide you with the best combination of style, reliability and performance to
give you years of trouble-free use.
You may be familiar with a similar product, but please take time to read these instructions carefully before installing
or using your Washer to ensure you get the most from your purchase.
We recommend that you keep this manual in a safe place for future reference.
Your Washing Machine is covered by a comprehensive two year parts & labour
guarantee. In the unlikely event that you experience a problem with your
Washer, you can rest assured that you are fully protected against the cost of
repairs for the first 24 months . Please note that any claim must be
accompanied by the model reference number, serial number and proof of
purchase.
To activate your guarantee, you will need your product serial number. This can
be found on the rear of the machine.
There are two ways to register your Guarantee:
•
•
Online: Visit the Support page on our website and complete the online Product
Registration form. www.montpellier-appliances.com
By Post: Simply detach and fill in the form provided, attach a stamp and send it
in the post. Don’t forget to include your e-mail address so that we can send
confirmation through to you.
Welcome
Note: We are unable to take registrations over the phone.
ACROSS ALL OUR MODELS
YEAR
GUARANTEE
PA R T S & L A B O U R
www.montpellier-appliances.com

SAFETY INSTRUCTIONS
Safety Instructions ..................................................
INSTALLATION
Product Description ................................................
Installation ...........................................................
OPERATIONS
Quick Start .............................................................
Before Each Washing ..............................................
Detergent Dispenser ...............................................
Control Panel .........................................................
Option....................................................................
Other Functions ......................................................
Programmes............................................................
Washing Programmes Table .....................................
MAINTENANCES
Cleaning And Care .................................................
Trouble Shooting ....................................................
Technical Specifications .........................................
Product Fiches ........................................................
2
7
8
11
12
13
14
15
166
17
19
20
23
24
25
1
CONTENTS

Safety Instructions
For your safety,the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• If the supply cord is damaged, it must be replaced by the
Electric shock!
2
SAFETY INSTRUCTIONS
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
Warning!
！
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
Caution!
Warning!
！

3
• The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
• Before any maintenance the device, unplug the
appliance from the mains.
• Always unplug the machine and turn off the water
supply after use. The max. inlet water pressure, in
pascals. The min. inlet water pressure, in pascals.
• To ensure your safety, power plug must be inserted into
an earthed three-pole socket. Check carefully and make
sure that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must
be connected by a qualified technician in accordance
with the manufacturer's instructions and local safety
regulations.
Risk to children!
from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
•
• Children of less than 3years should be supervised to
ensure that they do not play with appliance.
• Animals and children may climb into the machine. Check
the machine before every operation.
• Kids should be supervised that they do not play with
the appliance.
EN countries: the appliance can be used by children aged
SAFETY INSTRUCTIONS

4
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
• Glass door may be very hot during the operation. Keep
kids and pets far away from the machine during the
operation very wet rooms as well as in the rooms with
explosive or caustic gas.
• Plug must be accessible after installation.
Risk of explosion!
•
•
Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
Before hand thoroughly rinse items of washing by hand.
• This washing machine is for indoor use only.
• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
• Washing machine shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive
or caustic gases.
• The washing machine with single inlet valve only can be
connected to the cold water supply. The product with
double inlet valves should be correctly connected to the
hot water and cold water supply.
• Plug must be accessible after installation.
Installing the product!
SAFETY INSTRUCTIONS
Caution!

5
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
Risk of damaging appliance!
• Your product is only for home use and is only designed
for the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
1.Transport bolts shall be reinstalled to the machine by
a specialized person.
2.The accumulated water shall be drained out of the
machine.
3.Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can
not be used as the handle during the conveyance.
4.This appliance is heavy. Transport with care.
• Please do not close the door with excessive forces. If it
is found difficult to close the door, please check if the
clothes are put in or distributed well.
• It is forbidden to wash carpets.
Operating the appliance!
• Before washing the clothes at first time, the product
shall be operated in one round of the whole procedures
without the clothes inside.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc.Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for drum.
SAFETY INSTRUCTIONS

6
• Make sure that all pockets are emptied. Sharp and rigid
items such as coin,brooch,nail,screw or stone etc. may
cause serious damages to this machine.
• Please check whether the water inside the drum has
been drained before opening its door.Please do not open
the door if there is any water visible.
• Be careful of burning when the product drains hot
washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two
minutes to open the door.
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU.To prevent possible harm to the environment or
human health from uncontrolled waste disposal,recycle
it responsibly to promote the sustainable reuse of
material resources.To return your used device, please use
the collection systems or contact the retailer where the
product was purchased. They return and can take this
product for environmental safe recycling.
Packaging/Old appliance
SAFETY INSTRUCTIONS

7
Accessories

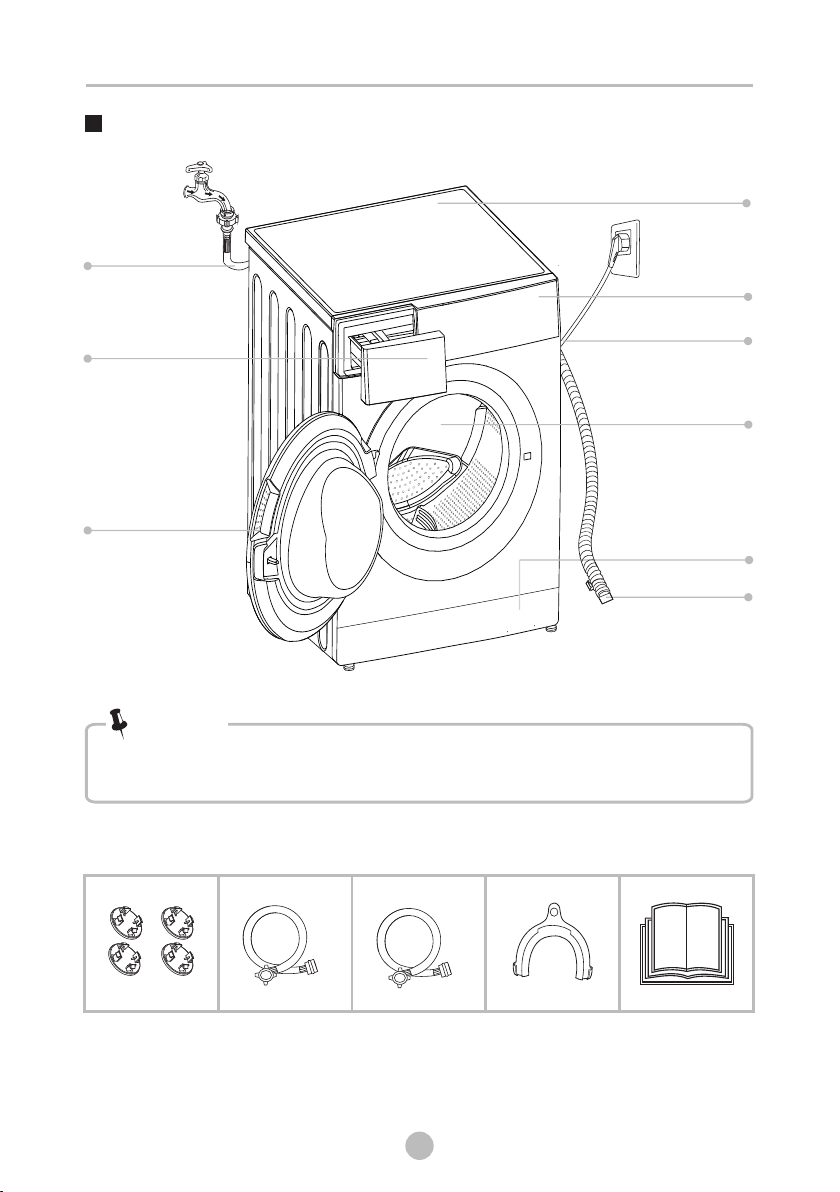

Product Description
Transport
plughole
Supply hose hot
water (optional)
Supply hose
cold water
Drain hose
(optional
support
)
• The product line chart is for reference only, please refer to real product as
standard.
Note!
Drum
Power supply cord
Control panel
Detergent dispenser
Service filter
Door
Water supply hose
Top cover
Drain hose
Owner’s manual
INSTALLATION

8
INSTALLATION
Installation
Before installing the machine, the location characterized
follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0℃
5.Keep far away from the heat resources such as coal or gas.
as
Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Make sure the small triangle
foam is removed with the bottom one together. If not, lay the unit down with side
surface, then remove the small foam from the unit bottom manually.
Please take the following steps to remove the bolts:

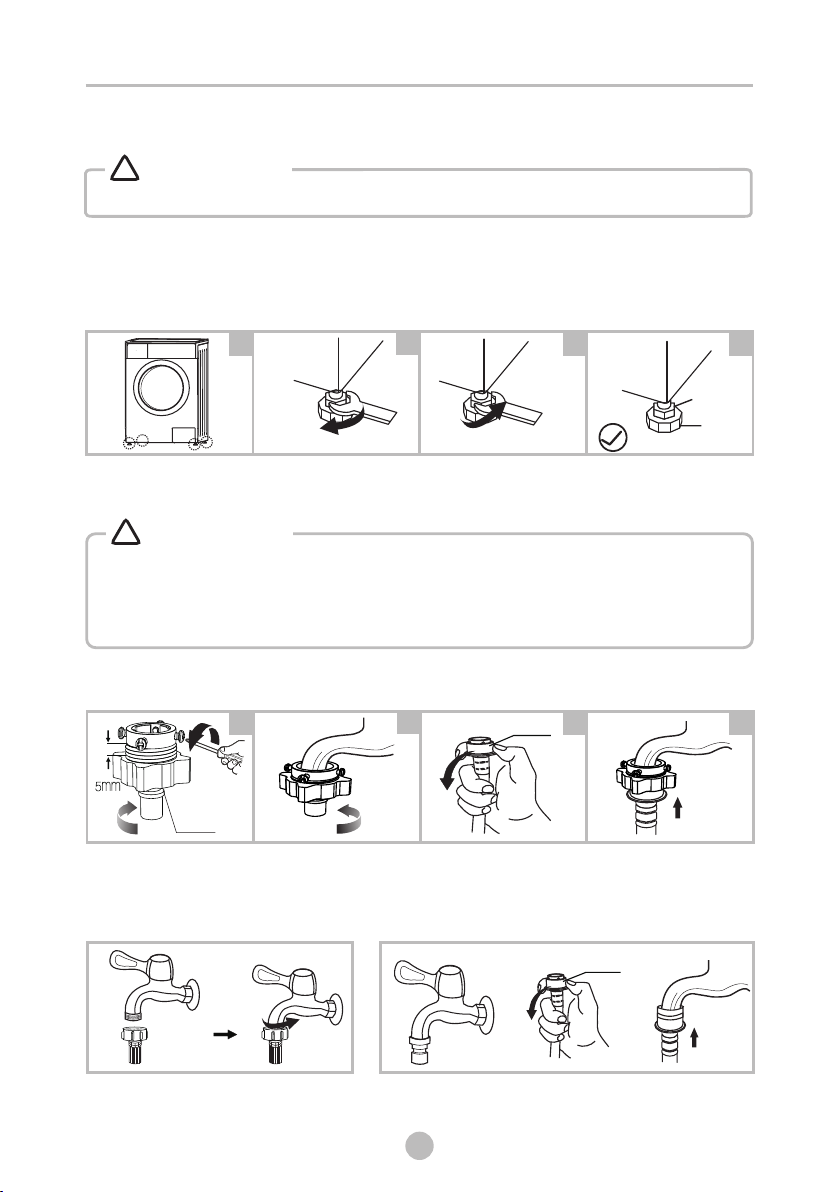

1.Loosen 4 bolts with spanner and then remove them.
2.Stop the holes with transport hole plugs.
3.Keep the transport bolts properly for future use.
Remove transport bolts
•Stability is important to prevent the product
from wandering!
•Make sure that the product is not stood on the
power cord.
Warning!
！
•
•
Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
！
•
• product
you
You must remove the transport bolts from the backside before using the product.
You’ll need the transport bolts again if you move the , so make sure
keep them in a safe place.
Warning!
！
w
w
W> 20mm
Installation area

9
9
INSTALLATION
1.Check if the legs are closely attached to the cabinet. If not, please turn them to
their original positions tighten the nuts.
2.Loosen the lock nut turn the feet until it closely contacts with the floor.
3.Adjust the legs and lock them with a spanner, make sure the machine is steady.
Levelling the washing machine
• The lock nuts on all four feet must be screwed tightly against the housing.
Connect Water Supply Hose
Connect the inlet pipe as indicated, There are two ways to connect the inlet pipe.
1.Connection between ordinary tap and inlet hose.
• To prevent leakage or water damage, follow the instructions in this chapter
Do not kink, crush, modify or sever .
!
• water inlet hose
• For the model equips hot valve,connect it to hot water tap with hot water supply
hose. Energy consumption will decrease automatically for some program.
234 1
Raise Lower
Lock nut
foot
Warning!
！
Warning!
！
Loosen clamp nut and
four bolts
Tighten clamp nut Press slide bushing,
insert inlet hose into
connecting base
slide bushing
2341
Connection finished
clamp nut
Tap with threads and inlet hose Special tap for washing machine
2.Connection between screw tap and inlet hose.
slide bushing

10
10
INSTALLATION
water supply hose
water Inlet valve
Connect the other end of inlet pipe to the inlet valve at the backside of
product and fasten the pipe tightly clockwise.
Water Inlet Hose Connection
3/4”
10 mm
1
3
2
4
1. Your machine may have either a
single water inlet connection (cold)
or double water inlet connection (hot
and cold) depending on the machine
specifications. The white capped hose
should be connected to cold water inlet
and red capped hose to the hot water
inlet (if applicable).
• To prevent water leaks at the joints,
either 1 or 2 nuts (depending on your
machine’s specifications) are supplied
in the packaging with the hose. Fit these
nuts to the end(s) of the water inlet hose
that connect to the water supply.
2. Connectnewwaterinlethosestoa¾˝,
threaded tap.
• Connect the white capped end of the
water inlet hose to the white water inlet
valve on the rear side of the machine
and the red capped end of the hose to
the red water inlet valve (if applicable).
• Hand tighten the connections. If in any
doubt, consult a qualified plumber.
• Water flow with pressure of 0.1-1 Mpa
will allow your machine to operate at
optimum efficiency (pressure of 0.1
Mpa means that more than 8 litres of
water per minute will flow through a fully
opened tap).
3. Once you have made all of the
connections, carefully turn the water
supply on and check for leaks.
4. Ensure that the new water inlet hoses
are not bent, broken, crushed or
resized.
• If your machine has a hot water inlet
connection, the temperature of the hot
water supply should not be higher than
70°C.
NOTE: Your Washing Machine must
only be connected to your water supply
using the supplied new fill hose. Old hoses
must not be reused.
~ 95 cm ~ 140 cm
~ 145 cm ~ 95 cm
0 – max. 100 cm
˜95 cm ˜150 cm

10
11
Before washing, please make sure it’s installed properly.
Before washing at first time, the washing machine shall be operated in one
of the whole procedures without clothes in as follows.
•
•
round
1. Before Washing
“End” on display.
Open tap
Load
Close door
Plug in
Add detergent
Quick Start
3. After Washing
• Detergent need to be added in "case I “after selecting pre-washing for machines
with this function.
1 2 3 4 5
2. Washing
Select Programme Select function
Start up
1 2 3
Note!
Caution!
OPERATIONS
Main
wash
Prewash
Softener

10
12
Knot the long strips,zip or
button
•When washing single items, it may easily cause great eccentricity and may
effect your machine due to unbalance. Therefore, it is suggested to add 1 or 2
more items to be washed together so that spin/draining can be done smoothly.
•Don’t wash items of clothing which have come into contact with kerosene,
gasoline, alcohol and other flammable materials.
• The working condition of the washer should be(0-40)℃.If used under 0℃,the
inlet valve and draining system may be damaged. If the machine is placed under
condition of 0℃or less, then it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose are not frozen
before use.
• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Take out the items out of
the pockets
Put small clothes into the
pillow slip
Check the label
Before Each Wash
Turn easy-pilling and
long-pile fabric inside out
Separate clothes with
different textures
Warning!
！
OPERATIONS

Detergent Dispenser
Prewash detergent
Main wash detergent
Softener
II
I
Pull out the dispenser
Liquid detergent Powder detergent
Caution!
• Detergent only need to be added in "case I “after selecting pre-washing
for machines with this function.
10
13
Dam-board Dam-board
Means must ○Means optional
Programme
Cotton Eco 40 °C
Cotton Eco 60 °C
Cotton
Cotton 20 °C
Cotton 30 °C
Cotton 40 °C
Cotton 60 °C
Cotton 90 °C
Synthetic
Synthetic 40 °C
Synthetic 60 °C
Drum Clean
Programme
Spin Only
Drain Only
Rinse&Spin
Delicate 30 °C
Delicate
Ends in 9H
Ends in 6H
Ends in 3H
Daily Wash 45'
Daily Wash 30'
Daily Wash 15'
OPERATION

Programme
Cotton Eco 40 °C
Cotton Eco 60 °C
Cotton
Cotton 20 °C
Cotton 30 °C
Cotton 40 °C
Cotton 60 °C
Cotton 90 °C
Synthetic
Synthetic 40 °C
Synthetic 60 °C
Drum Clean
Means must ○Means optional
Programme
Spin Only
Drain Only
Rinse&Spin
Delicate 30 °C
Delicate
Mix 60 °C
Mix 40 °C
Mix
Daily Wash 45'
Daily Wash 30'
Daily Wash 15'
10
14
Note!
OPERATION
Press 3 sec. Press 3 sec.
Drum Clean

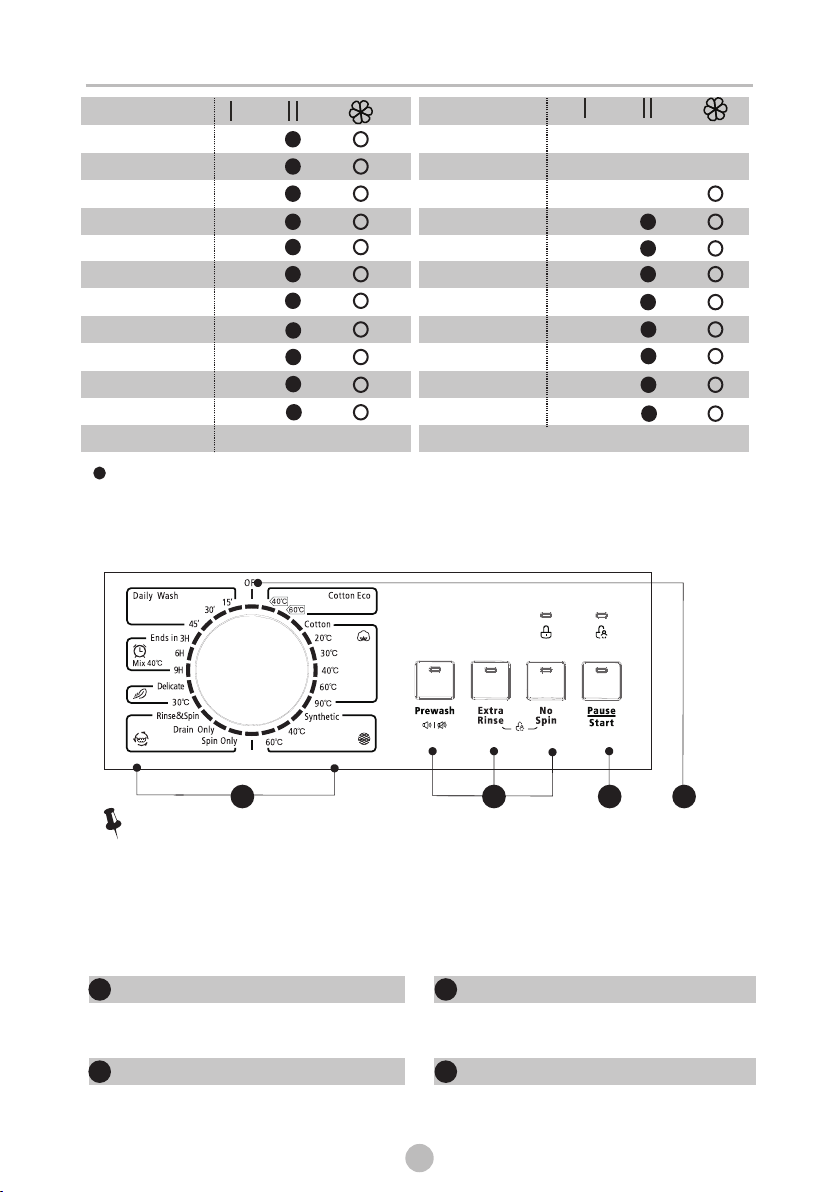

Control Panel
1
1
1
2
Off
Product is switched off.
Start/Pause
Press the button to start or pause the
washing cycle.
Programmes
Available according to the laundry type.
Option
This allows you to select an additional
function and will light when selected.
1
1
3
1
2
4
•If using liquid detergent, before you pour it into the detergent box, it is
suggested to use some water for dilution to prevent the inlets of the
detergent box from being blocked and overflowing whilst filling with water.
•Please choose suitable type of detergent for the various washing
temperature to get the best washing performance with less water and
energy consumption.

Prewash: The Prewash function can get an extra wash before main wash,it is suitable for washing the
dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it.
Extra Rinse: The laundry will undergo extra rinse once after you select it.
No Spin: It will not spin if you choose this function.
Option
Programme Option
Cotton Eco 40 °C
Cotton Eco 60 °C
Cotton/Normal
Cotton/Normal 20 °C
Cotton/Normal 30 °C
Cotton/Normal 40 °C
Cotton/Normal 60 °C
Cotton/Normal 90 °C
Synthetic
Synthetic 40 °C
Synthetic 60 °C
Drum Clean
Programme Option
Drain Only
Rinse&Spin
Delicate 30 °C
Delicate
Ends in 9H
Ends in 6H
Ends in 3H
Daily Wash 45'
Daily Wash 30'
Daily Wash 15'
Prewash Extra Rinse
Prewash Extra Rinse
Delay:
Delay function can be set with this button, the delaying time is 0-24H.
Spin Speed: Adjustable spin speed (programme dependant)
Spin Only
15
○Means optional
Spin Only
OPERATION

○Means optional
Programme Option
Cotton Eco 40 °C
Cotton Eco 60 °C
Cotton
Cotton 20 °C
Cotton 30 °C
Cotton 40 °C
Cotton 60 °C
Cotton 90 °C
Synthetic
Synthetic 40 °C
Synthetic 60 °C
Drum Clean
Programme Option
Drain Only
Rinse&Spin
Delicate 30 °C
Delicate
Mix 60 °C
Mix 40 °C
Mix
Daily Wash 45'
Daily Wash 30'
Daily Wash 15'
Prewash Extra Rinse
Other Functions
Press the [Prewash]/ button for 3sec.the buzzer is mute.[Delay]
Mute the buzzer
Prewash
To activate the buzzer function, press the button again for 3 seconds. The setting will
be kept until the next reset.
Press 3 sec.
Prewash Extra Rinse
Choose the Programme
/
Delay
Press 3 sec.
•After Muting the buzzer function, you should not hear any sounds coming from
the machine panel
Caution!
Spin Only
16
OPERATION

Programme Default Speed(rpm)
Cotton Eco 40 °C
Cotton Eco 60 °C
Cotton/Normal
Cotton/Normal 20 °C
Cotton/Normal 30 °C
Cotton/Normal 40 °C
Cotton/Normal 60 °C
Cotton/Normal 90 °C
Synthetic
Synthetic 40 °C
Synthetic 60 °C
Drum Clean
Programme Default Speed(rpm)
Spin Only
Drain Only
Rinse&Spin
Delicate 30 °C
Delicate
Ends in 9H/Mix 60 °C
Ends in 6H/Mix 40 °C
Ends in 3H/Mix
Daily Wash 45'
Daily Wash 30'
Daily Wash 15'
800 1000
800
800
800
800
800
800
800
800
800
800
800
400
1000
1000
1000
1000
1000
800
800
800
1000
1000
1000
400
1000
-
1000
600
600
1000
1000
1000
800
800
800
1200
1200
1200
1200
1200
1200
1000
1000
1000
400
1200
-
1200
600
600
1000
1000
1000
800
800
800
800
-
800
600
600
800
800
800
800
800
800
800 1000 1200

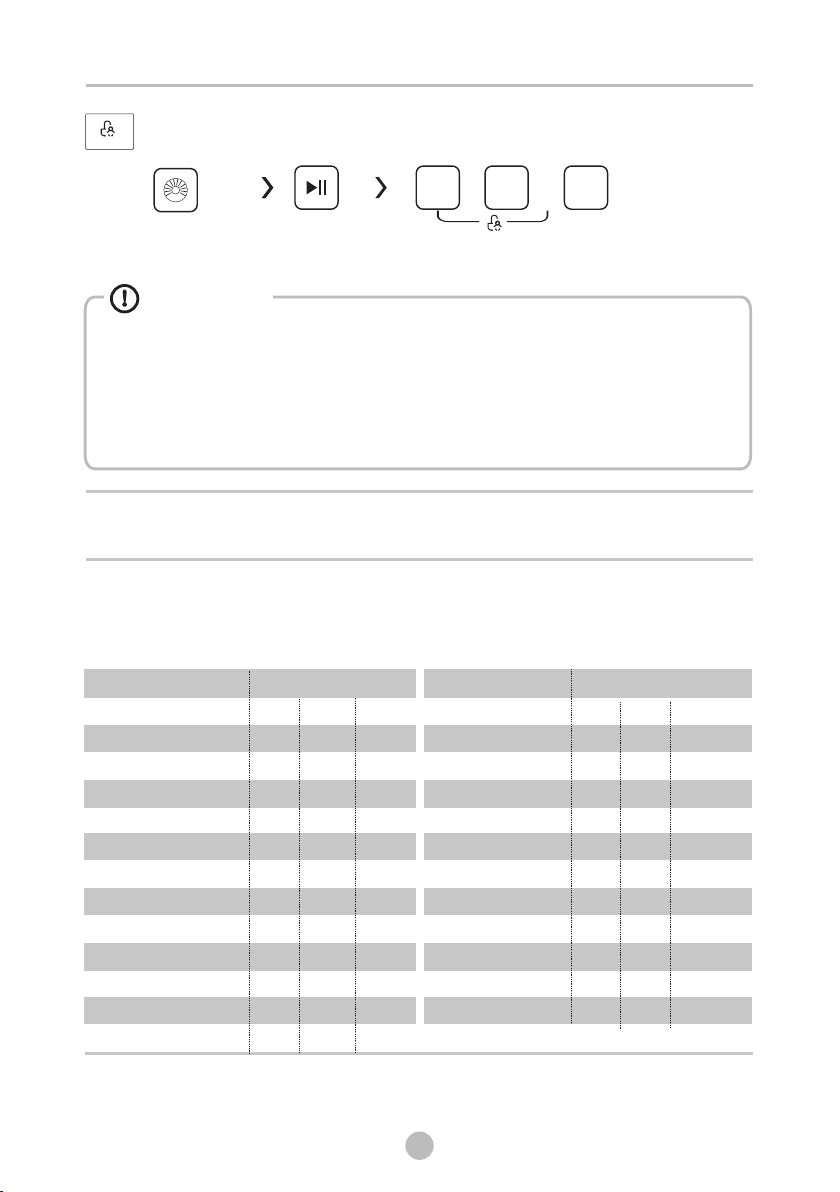

Child Lock
To avoid mis operation by children.
Start Press [Extra Rinse] and [No Spin]/
3 sec. till buzzer beep.[Spin Speed]
Extra
Rinse
No
Spin
Temp.
The temperature range is as follows:Cold,20°C,30°C, 40°C,60°C,90°C
Speed
:The speed is
800: 0-400-600-800 1000: 0-400-600-800-1000 1200: 0-400-600-800-1000-1200
1300: 0-400-600-800-1000-1200-1300
Choose the
Programme
Spin
speed
/
Caution!
17
1200/1300
1200/1300
1200/1300
OPERATION
•Press the two buttons for 3sec to remove the child lock.
•The Child lock will lock all buttons except the power button.
•The Child lock”could remain active if power is lost to the machine.

Programmes
Cotton/ Normal
Synthetic
Daily Wash
Cotton Eco
Ends in
Delicate
Drum Clean
Spin Only
Rinse&Spin
Drain Only
Hard-wearing textiles, heat-resistant textiles made of cotton or
linen.
Wash synthetic articles, for example: shirts, coats, blending.
While washing the knitting textiles, detergent quantity shall be
reduced due to its loose string construction and easily forming
bubbles.
It is suitable for washing few and not very dirty clothes quickly.
To increase the washing performance, washing time is increased.
The function can be set with this programme,the total time
including washing time and delaying time is 3h,6h or 9h.
For delicate, washable textiles, e.g. made of silk, satin, synthetic
fibres or blended fabrics.
Extra spin
Extra rinse with spin.
Drain off the water.
Programmes are available according to the laundry type.
Programmes
Mix
18
OPERATION
Mixed load consisting of textiles made of cotton and synthetics.
Special programme which cleans the drum and tube. It applies 90 °C
high temperature sterilization to keep your appliance clean and efficient.
When this programme is performed, the clothes or other washing cannot
be added. When the correct detergent containing a chlorine bleaching
agent is put in, the barrel cleaning effect will be better. The customer can
use this programme regularly according to their needs.
