montpellier MON-MW7012P User manual

Installation and Operating Instructions
Model: MON-MW7012P
Fully Electronic Automatic
Washing Machine
(Model
shown
for
indicative
purposes
only)
Please
read
these
instructions
carefully
before
attempting
to
install
or
use
this
appliance.
It is advisable to keep these instructions in a safe place for future reference.

Introduction
Thank you for choosing this
montpellier
appliance. It has been
designed to give years of trouble-free use provided it is installed and
maintained correctly.
Please
read
these
instructions
carefully
before
installing
or
using
your
appliance. It is advisable to keep your purchase and installation receipts
with these instructions in a safe place for future reference. Included is
some important safety information in addition to guidelines and
recommendations that will enable you to take full advantage of all the
functionsavailable.
This
quality
appliance
has
been
tested
and
certified
to
meet
all
applicable
UK electrical and safety standards.
This
appliance
must
be
installed
and
connected
in
accordance
with
current regulations by a qualified electrician.
After unpacking the appliance ensure that there is no visible damage. If the
appliance has been damaged during transit, do not use it, contact your
retailerimmediately.

Your 2 year Manufacturer's guarantee
THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS
Your new montpellier appliance carries a free guarantee which protects you against the cost of
repairs during the first 24 months from date of purchase provided that:
Any claim is accompanied by evidence of the model reference, model serial number and proof
of purchase, such as a Sales Receipt, showing that the appliance was purchased within
the 24 months prior to the date of claim.
What is not covered under the Guaran:tee
·Any appliance not correctly installed and operated in accordance with the
manufacturer's instructions.
·Any appliance that is used for anything other than domestic purposes.
·Any defect caused by accident, misuse, unauthorized modification or inexpert repair.
·Cost of Call-out where a fault cannot be found with the appliance.
·Cost of Call-out for work covering routine maintenance, such as, but not
exclusively, cleaning of filters or defrosting.
·Cost of Call-out for work required to correct the alignment of doors following
door reversal procedures carried out by you.
·Use of the appliance by anyone other than the Householder.
·Use in any commercial environment.
·Consumable items, such as, but not exclusively, fuses in plugs, bulbs and
breakable items which require routine replacement.
·Repair costs incurred that have not been authorised by Repairtech.
·Repairs carried out by a non-approved Repairtech engineer.
YOUR GUARANTEE IS VALID ONLY IN THE UK.
To Register your Appliance simply complete the card in your appliance pack
and return it with a stamp affixed or Alternatively you can Register online at
www.repairtechuk.com
SERVICE HELPLINE
Should your appliance develop a fault, please call
the Repairtech Service Helpline on:
01527-888133
Please remember to have all your product details
available, including the serial number, before registering
a fault.
Your service call cannot progress without this information.

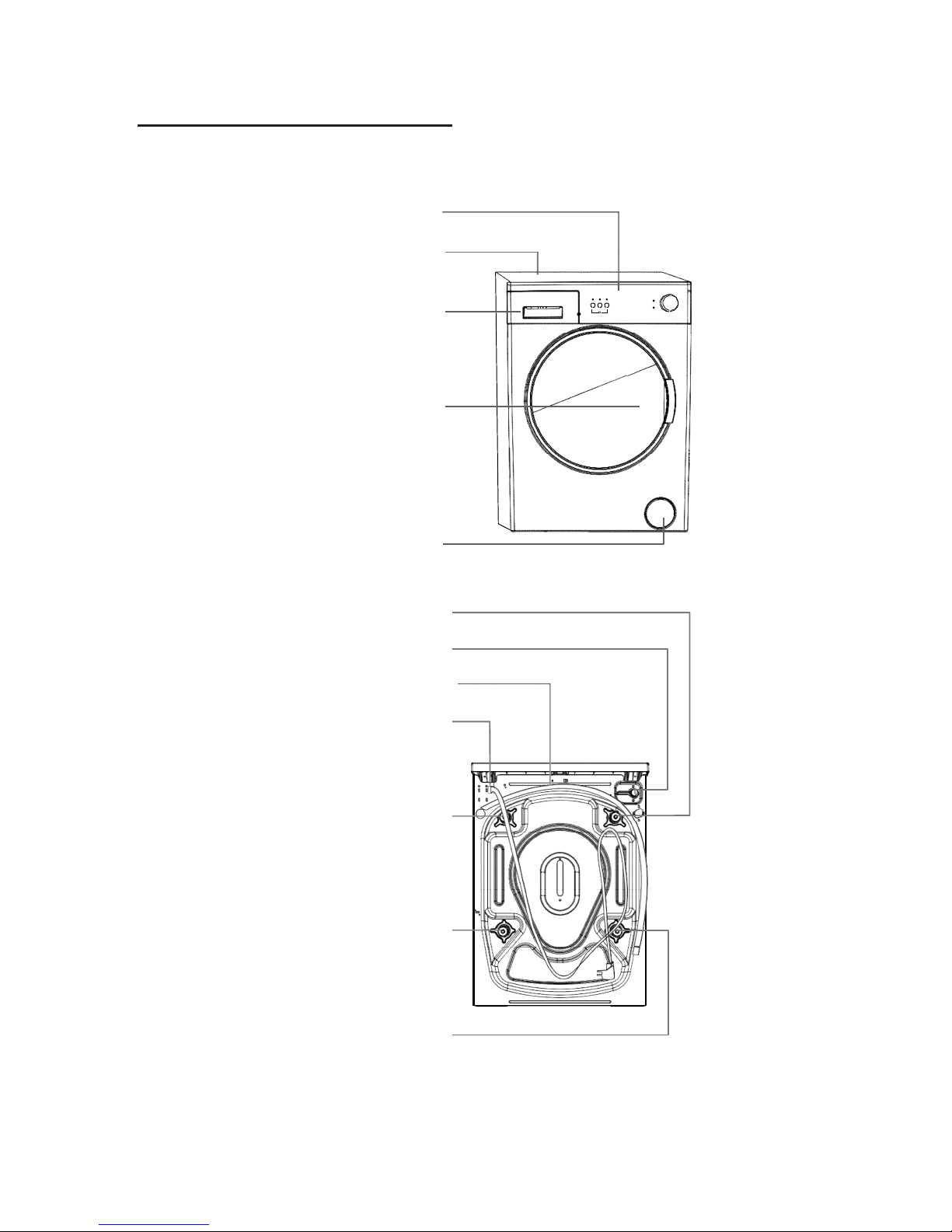

Description
of
the
Appliance
Control Panel
Top
Lid
Detergent Drawer
Door
Pump Filter Cover
TransitBolt
Water Inlet Valve
DischargingHose
PowerCable
TransitBolt
TransitBolt
TransitBolt
BEFORE
OPERATING
YOUR
WASHING
MACHINE
YOU MUST
REMOVE THE TRANSIT BOLTS. FAILURE TO DO SO WILL
INVALIDATE YOUR GUARANTEE.

CONTENTS:
Section 1: Safety Instructions
-Correct Usage
-General Warnings
-Safety Warnings
1
2
3/4
Section 2: Installation
-Removing Transit Bolts

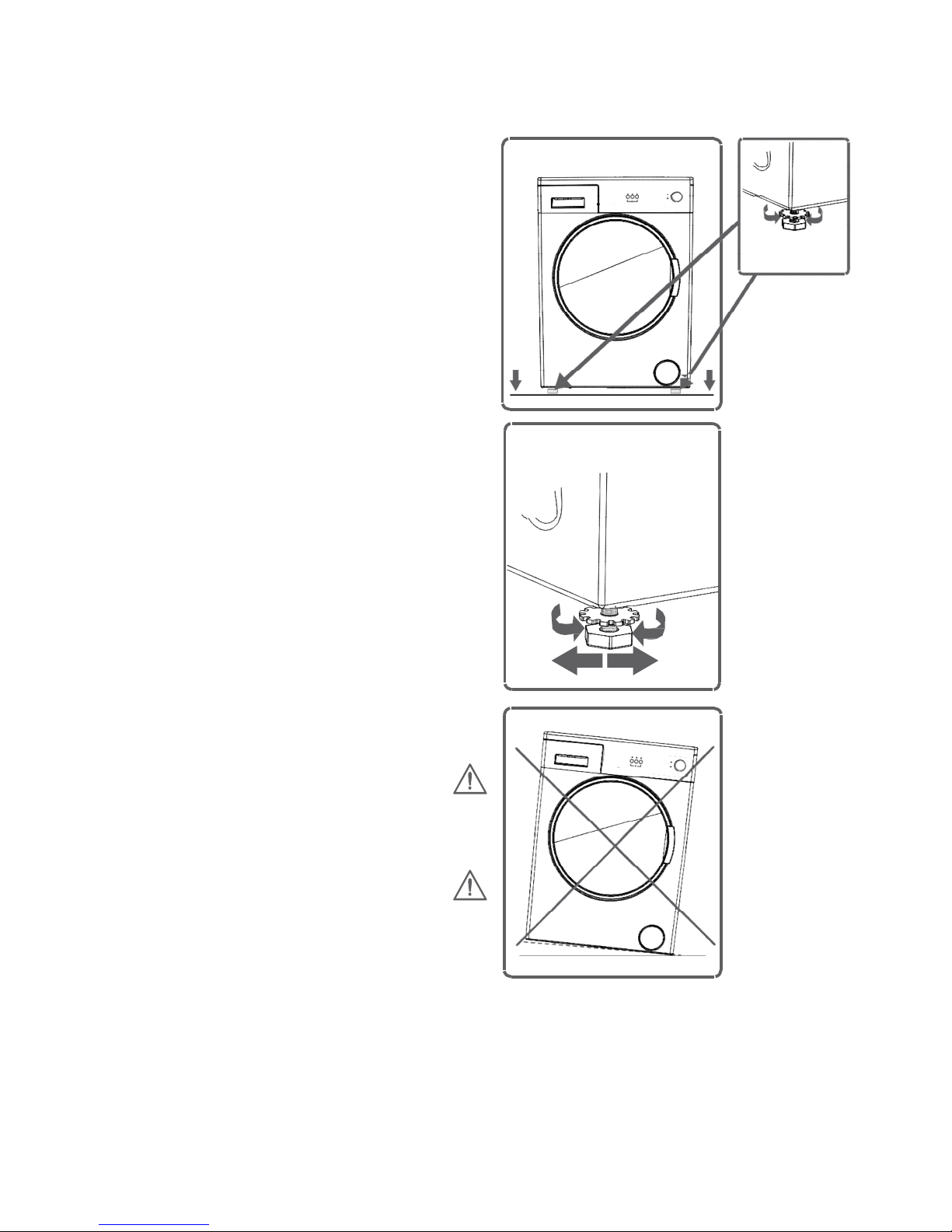

-Adjusting the Feet
-Electrical Connection

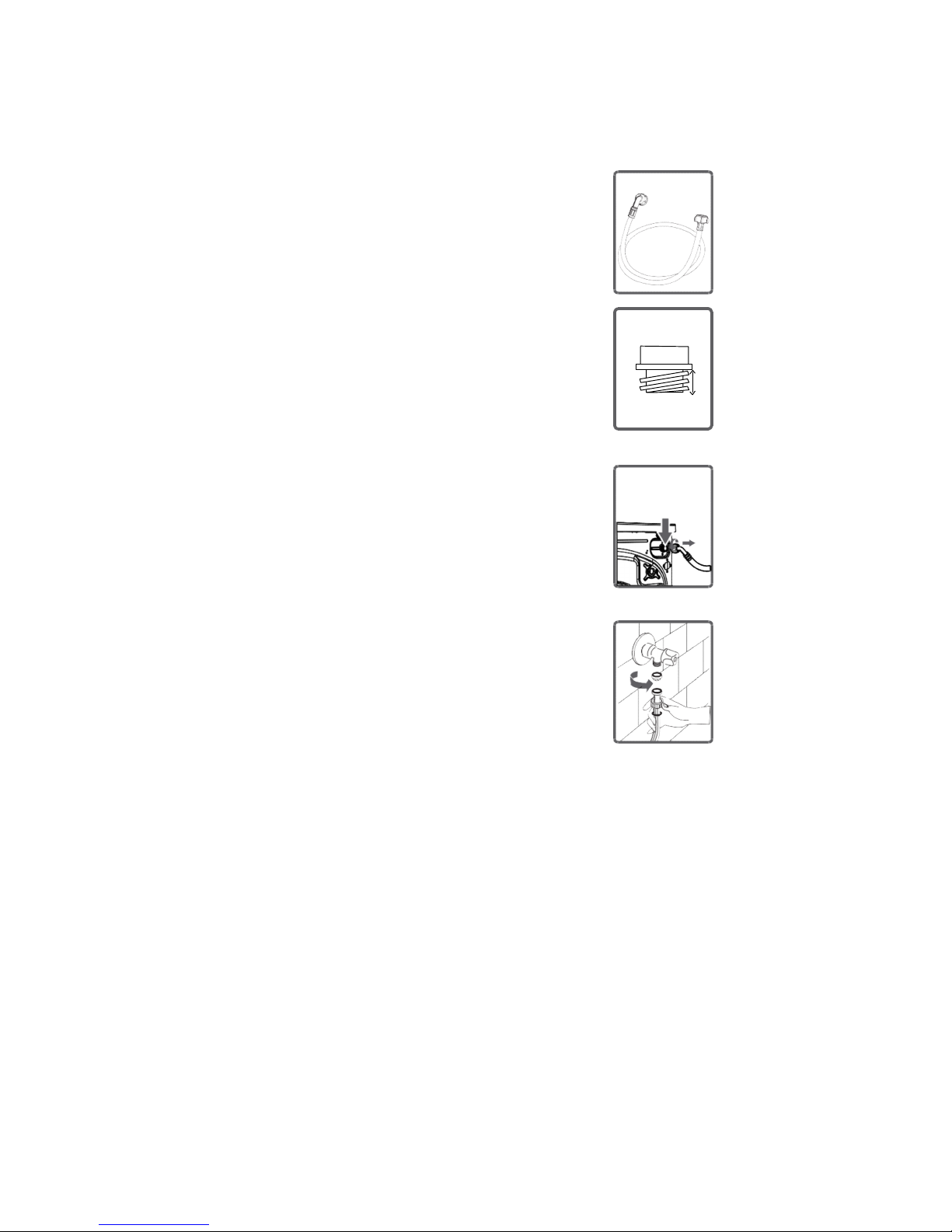

-Water Inlet Hose Connection
-Water Discharge Connection
5
6
7
8
9
Section 3:
Technical
Specifications
10
Section 4: Control Panel
-Control Panel
-Detergent Drawer

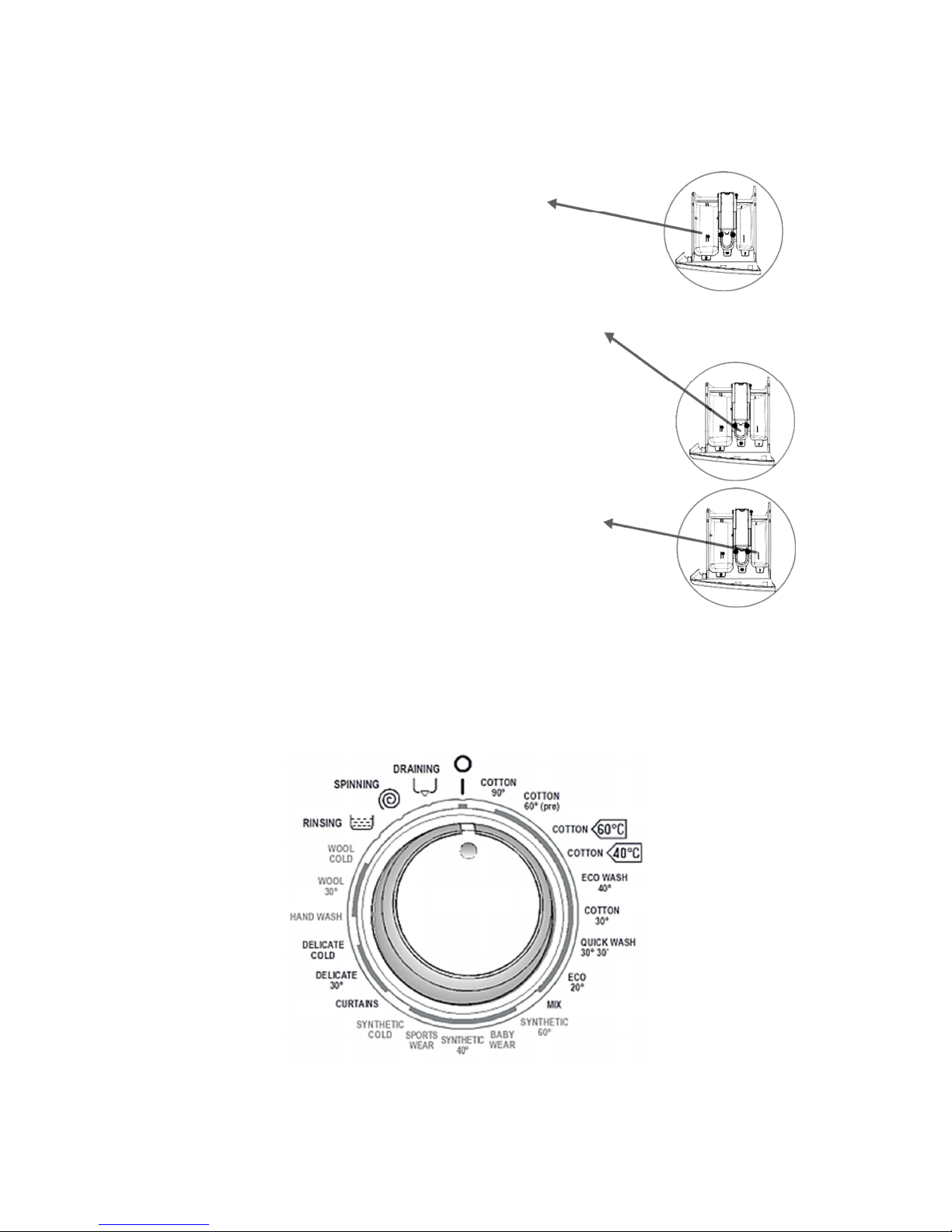

-Program Knob
11
11/12
12
Section 5:
Washing
your Laundry
-Preliminary Preparation of Laundry
-Putting Laundry in the Machine
-Adding Detergent to the Machine
-Operating your Machine
-Auxiliary Functions
-Child Lock
-Cancelling a Program
-Finishing a Program
13/14
15
16
16
17/18
19
19
19
Section 6: Maintenance and Cleaning
-Water Inlet Filters
-Pump Filters
-Detergent Draw
20
21
22
Section 7:
Troubleshooting
23/24/25
Section 8: Fault Codes
26/27
Section 9: Program
Table
28/29/30

S
ection 1. Safety
Advice
1.1 Correct Usage
Read the user instruction manual.
Your
machine is designed to be used
domestically.
Commercial
use will cause your warranty to be invalid.
Keep pets away from your machine.
Please check the packaging of your machine is in good order before
installation, and the
outer surface of the machine after the package is opened. Do not operate damaged
machines.
Have your machine installed only by a qualified person.
Any interference to your machine
by anyone other than a qualified person will invalidate your
warranty.
The appliance in not intended for use by people (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not play
with the appliance.
Use your machine only for laundry that has been specif
ied as suitable for washing by the
manufacturer.
Before operating the washing machine, remove the 4 transit
bolts and rubber spacers from the back of the machine. If the bolts
are not removed, it will cause heavy vibration, noise and product
malfunction (invalidating the guarantee).
-
Your
machine is not covered under warranty for faults caused by any kind of external
factors (pesticides, fire, etc.).
-
Please do not throw away this user manual: keep it for future reference as it
contains full operating instructions as well as the serial number of your machine.
You will need this should you wish to book a service call.
Note: Specifications may vary depending on the product purchased.
1

1.2 General
Warnings
-
The ambient temperature for your
machine’s
ideal operation is 15
-
25ºC.
-
Frozen hoses can tear and explode. In regions where
temperature is below zero, ambient
temperature might endanger the safe operation of the electronic circuit board.
-
Please ensure that the clothes put into your machine do not contain any foreign objects
(nails, needles, coins, lighters, matches, clips, etc.) in pockets. These objects can
damage your machine.
It is recommended that the first washing operation is carried out on a
90º Cotton program but without laundry and using ½ the dose of
detergent in the 2nd compartment of the detergent drawer.
- If a detergent or softener is exposed to air for any time, residue may be caused, be sure
to
only put your detergent or softener in the detergent drawer at the beginning of every wash.
-
It is advised that you unplug your machine and close the water inlet tap if you do not intend
to use the machine for a prolonged period of time.Also, leaving the door of your appliance
open will prevent the formation of bad odours due to humidity.
-
Some water might be left in your machine after factory trials and tests conducted due to
Quality Control procedures.
This is normal and will not damage your machine.
-
Remember the packaging materials of your machine may be dangerous for children. Keep
the packaging materials in a place where children cannot reach them and dispose of them
appropriately.
-
Keep any small parts away from the reach of children and babies.
-
Use Pre
-
wash programs only for very dirty
laundry.
-
Never open the detergent compartment when the appliance is running.
- In case of any breakdown, unplug the appliance first and then turn the
water inlet off. Do not attempt repair by yourself, always contact the
authorised service agent help line.
-
The amount of
laundry you put in your washing machine should not
exceed the maximum amount indicated.
-
Never force the door to open when the machine is running.
-
Do not wash clothes covered in flour or other powders in your machine as
it will cause damage.
-
Please adhere to detergent/fabric
conditioner manufacturer’s advice
regarding the use of fabric conditioner or similar products.
-
Set up your machine in a place where its door can be completely opened.
- Set up your machine in a position where it can be fully ventilated and
has constant air circulation.
2

1.3 Safety
Warnings
You
must take note of these warnings, as this can protect you and
your family.
DANGER OF GETTING
BURNT!
Do not touch the discharge hose or water during the discharge process
as the appliance can reach high temperatures during operation.

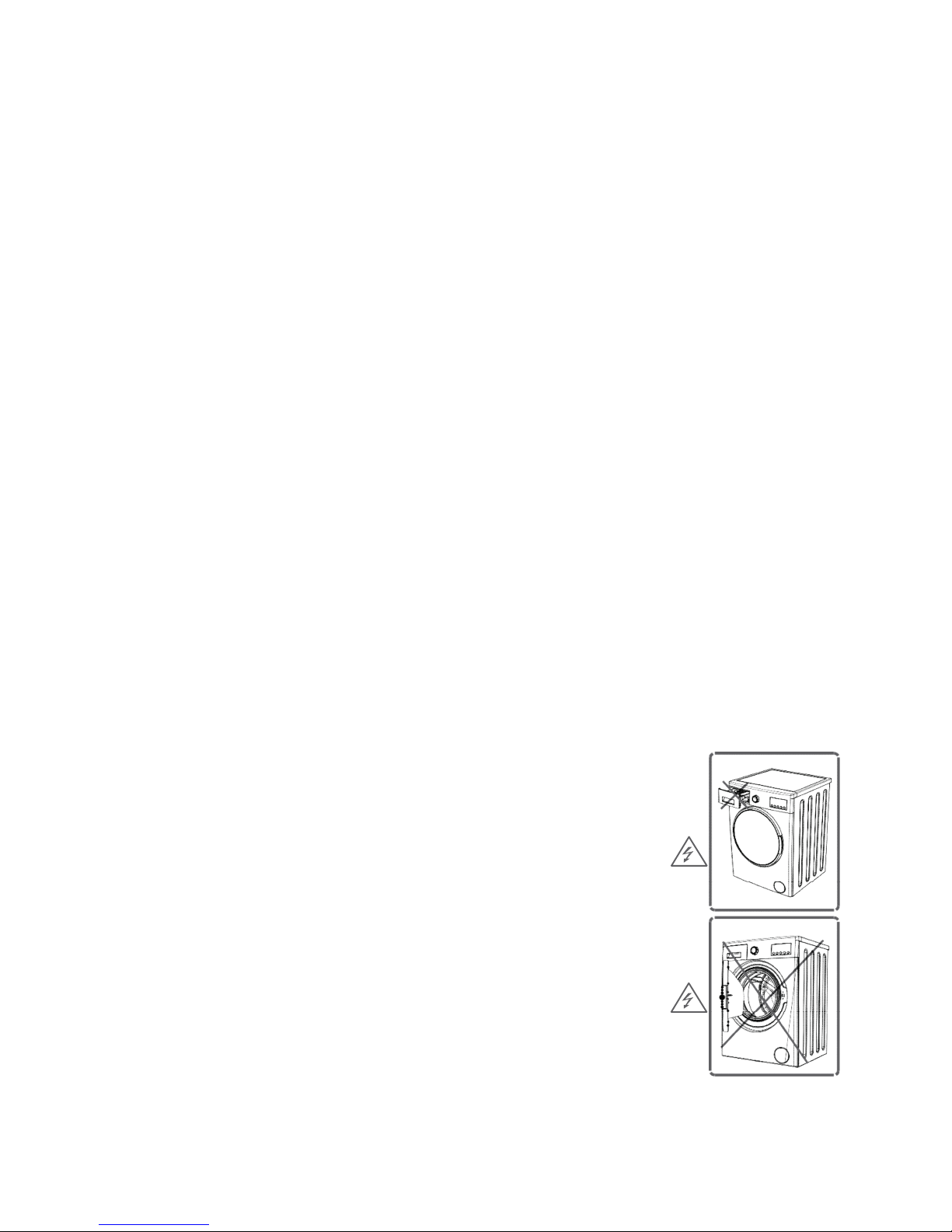

RISK DUE
TO
ELECTRICAL
CURRENT!
l
Do not use multi
-
sockets on an extension lead.
l
Do not plug in
damaged plugs.
l
Never pull the cable when unplugging
-
always grip the plug itself.
l
Do not plug
-
in or remove the plug with wet hands.
l
Never touch the machine with wet hands or feet.
If the mains cable becomes damaged it must be
replaced by an
authorised electrician or service agent.
DANGER OF FIRE!
l
Do not keep flammable liquids near your machine.
l
The sulphur content of paint removers might cause corrosion. For this
reason, never use paint
-
removing materials
in your machine.
l
Never use products that contain solvent material in your machine.
l
Remove all objects from the pockets of your laundry (needles,
paperclips, lighters, matches, etc.) before placing it in your machine.
3

1.3 Safety
Warnings
(continued)
FALL
AND
INJURY
HAZARD!
Do not climb on your machine.
The top lid of your machine may
break and you might get injured.
T
idy
the
hose,
cable
and
packaging
of
your
machine
during
installation, to avoid tripping or falling over.
Do not turn your machine upside down or on its side.
Do not lift your machine by holding it from extruding parts
(detergent
drawer,
door).
These parts might break and cause
you to get injured.
There’s
the risk of tripping and injury if the materials like hoses
and cables are not properly stored after your machine is installed.
Machine must be carried by 2 people.
CHILD SAFETY!
Do not leave children unattended near the machine. Children
might lock themselves inside.
Door glass and surface may get hot while your machine operates.
And as a result of this, touching the machine might damage the
skin, especially that of children.
Keep packaging material away from children.
Danger may occur if detergent or cleaning materials are
consumed, and eyes or the skin might be irritated if contact is
made. Keep the cleaning materials away from the reach of
children.
4

Section 2. Installation
2.1 Removing transit bolts
Before operating the washing machine,
remove the 4 transit bolts and rubber
spacers from the back of the machine.
If the bolts are not removed, it will
cause heavy vibration, noise and
product malfunction, (invalidating the
guarantee).
X
4
4
For this reason, the transit bolts should be
loosened by being rotated counter-
clockwise using an appropriate wrench.
X
4
X
4
The transit bolts are removed by
pulling out.
Fit the plastic transit bolt caps (in the
accessories bag) into the holes left by the
removal of the transit bolts.
The transit bolts should be stored to be
used in case of future transportation.
NOTE:
You
must remove the
transit bolts of your machine
before first use. Faults occurring
to the machine if operated with
transit bolts fitted will be out of
scope of warranty.
5

2.2
Adjusting the feet
Do not install your machine on a carpet or
anything that will prevent ventilation under
the base.
To
ensure silent and vibration
-
free operating
of your machine, it should be sited on a
non-slippy firm floor.
You
can adjust the level of your machine
by the
adjustable feet.
Loosen the plastic adjustment nut.
X
4
Adjust the feet upwards or downward by
rotating them.
After maintaining the level, compress the
plastic adjustment nut upwards again.
Note: The machine must be level.
Never put cardboard, wood or
other materials under your machine
if you are trying to level any
distortion in the floor.
When cleaning the
floor,
on which
your machine stands, be careful not
to disturb the balance of the
machine.
6

2.3 Installation (Electrical Connection)
Your
washing machine is set to 220
-
240V and 50Hz.
The mains cord of your washing machine is equipped with a
specific earthed plug. This plug should always be inserted to an
earthed socket of 13 amps. The rating of the fuse should be 13
amps.
NOTE: Operating your machine below the recommended
voltage will cause the life cycle of your appliance to be
reduced and its performance to be restricted.
7

2.4 Installation
(Water
Inlet Hose Connection)
Your
machine may have either a single inlet (cold) or
double water inlets (c
old/hot) based on its specifications.
A white-
capped hose should be connected to the cold
water inlet and a red-
capped hose to a hot water inlet
(applicable for machines with double water inlets).
To
el
iminate water leakages in the connection points
, 1
or 2 nuts are provided in the hose package (applicable for
machines with double water inlets). Fit these nuts to the
ends of new water inlet hoses on the tap end of the hose.
3/4”
Connect the new water inlet hoses to a 3/4 “, threaded
inlet pipe.
Connect the white
-
elbow end of the
water inlet hoses
to the white filtered water inlet valve on the rear side of
the machine and the red-elbow end to the red-filtered
one (applicable for machines with double water inlets).
Tighten plastic parts of the junctions using your hand. If
you are unsure of this process get the work done by a
qualified plumber.
Flow of water with pressure of 0.1
-
1 Mpa will allow
your machine to operate more efficiently. (0,1 Mpa
pressure means that more than 8 litres of water will flow
per minute).
Ensure that the new water inlet hoses are not bent, broken, crushed or the wrong
size.
If your machine has
a
hot water
connection
, the temperature of the water inlet
should be maximum 70 Degrees Centigrade.
NOTE: Use only the
new water inlet hose supplied with your machine while
making water inlet hose connections. Never use old, used or damaged water
inlet hoses.
8
10 mm

2.5 Installation
(Water
Discharge Connection)
The end of the water discharge hose can
be
fitted to a specific outlet pipe.
Never attempt to extend the water discharge
hose by join
ing two pieces of hose
.
Do not put the discharge hose of your machine
into a bucket or sink.
Make sure that the water discharge hose does
not bend,
buckle, become squashed or stretched.
Please note:
The water drain hose should be mounted at a
height of minimum 60cm, and maximum of
100cm from the ground.
~95cm
~140cm
9
0
–
max.100cm
~145cm
?95 cm
~95cm
?150 cm

Section 3.
Technical
Specification
10
Operating voltage /
frequency (V/Hz)
(220-240)V~/50Hz
Total current (A) 13
Water pressure
Maximum:1 Mpa
Minimum:0.1 Mpa
Total power(W) 2200
Maximum dry laundry
capacity (kg)
7
Spinning revolution
(rev/min)
1200
Program number
23
Dimensions
(HeightxWidthxDepth)(mm)
845x597x527

Section 4. The Control Panel
Start/Pause Light
Function Indicator Lights
Program Ready Light
Program End
Light
Start/Pause Button
Function Buttons
Detergent Drawer
Program Knob
(DIAGRAM
-
1)
(DIAGRAM
-
2)
Detergents may form a sediment in your
detergent drawer or in the housing of the
detergent drawer over time. To clean, pull out
the detergent drawer from time to time as shown
and wash thoroughly.
l
l
l
l
Pull the detergent drawer out as far as possible. (Diagram 1)
Lift the front of the drawer, continue to pull until the drawer is pulled out. (Diagram 2)
Wash with an old toothbrush and water.
After drying the detergent drawer put it back in the housing in the reverse manner
used to remove it.
Liquid
Detergent
Apparatus
Main wash detergent
compartment
Softener
Compartment
Pre-washdetergent
compartment
(*) Specifications may vary depending on the product purchased.
11

4.1
Control Panel continued.
Main wash detergent compartment:
In this compartment, use only detergent (liquid or
powder). Limescale remover can be used.
Fabric
conditioner,
starch, detergent compartment:
Youmay use fabric softener for your laundry (recommended
amount and type by the manufacturer). Sometimes the fabric
conditioners you use for your laundry may remain in this
compartment. The reason for this is that the conditioner is
not viscous. To prevent this situation, more viscous liquid
softeners are recommended to be used or the softener could
be thinned and then used.
Pre
-
wash detergent compartment:
This compartment must only be used when the pre-
wash
feature is selected. The Pre-wash feature is
recommended for very dirty laundry.
Select the program you wish to use with the program knob. Set the program
selection operation by rotating the program knob in either direction. Ensure that the
program knob is exactly on the program you want to use.
(*)
Specifications
may
vary
depending
on
the
product.
12

Section 5.
Washing
your Laundry
5.1 Preliminary Preparation of Laundry
Laundry has product labels on them that state their specifications.
Wash
or dry your laundry according to the specifications on the product label.
Separate your laundry according to their types (cotton, synthetic,
sensitive, wool etc), their temperatures (cold, 30º, 40º, 60º, 90º) and
degree of contamination (slightly stained, stained, highly stained).
Never wash your coloured and white laundry
together.
Wash
your coloured laundry separately in the first washing as colours
may run.
Ensure that there are no metallic materials in your laundry or in pockets.
CAUTION: Faults that emerge due to foreign objects in the
machine will not be included in the scope of warranty.
Zip up and button up clothes.
Remove the metallic or plastic hooks
from
curtains.
Turn
items such as pants,
knitwear,
t
-
shirt and sweat shirts inside out.
Place socks, handkerchiefs and suchlike small laundry in a washing net.
13

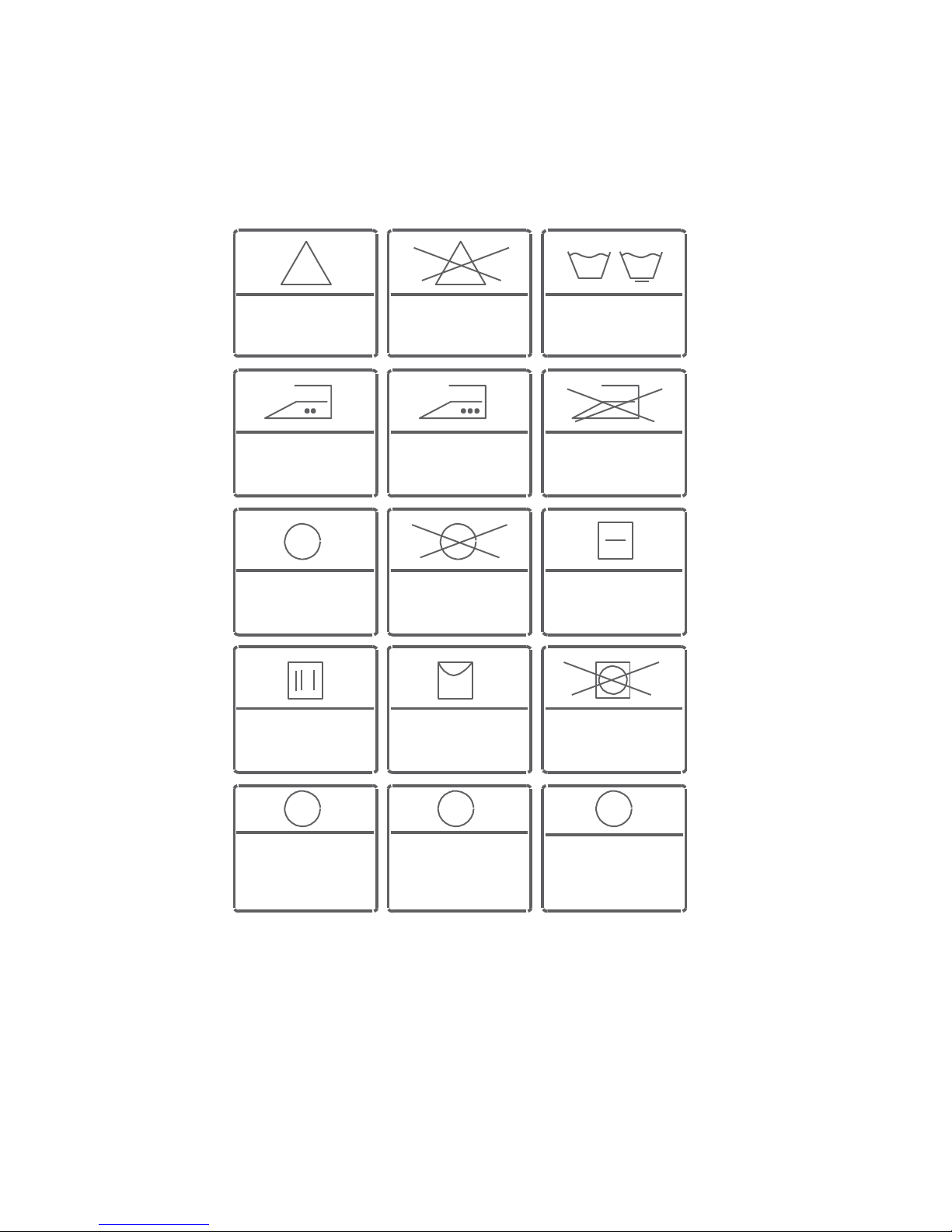

5.1 Preliminary Preparation of Laundry continued.
Whitening
No
whitening
Normal
wash
Ironing temperature
Ironing temperature
No ironing
maximum 200°C
maximum 150°C
Dry cleaning
No dry cleaning
Leave flat
Hang when wet
Dry by hanging
Do not tumble
dry
A
P
Perchloroethylene
R11, R13,
Petroleum
Perchlorinethylene
Dry cleaning in
gas oil, pure
alcohol and
R113 is allowed
14
F

5.2 Putting Laundry in the Machine
l
Open the door of your machine.
l
Spread your laundry in your machine.
NOTE: Maximum loading capacity may vary based
on the laundry type you will wash, degree of
contamination and the program you have
chosen. Do not
exceed maximum dry loading capacity indicated in the
program table for washing programs.
l
Put each item of laundry in
separately.
l
click
Ensure that no laundry is stuck between the
cabinet
and
rubber seal when closing the door of your machine.
l
Push the door of your
machine until you hear the locking
sound.
l
Close the door of your machine
properly,
otherwise the
machine will not start.
15
