Monty e-bike E49 User manual

Instruction Manual
MONTY E49

2
CONTENTS
INTRODUCTION.................................................................................................................................................. 3
1. DISPLAY AND KEY .................................................................................................................................... 5
1.1 Mounting/dismounting of the display ................................................................................................ 5
1.2 Operation of the display and the throttle .......................................................................................... 5
1.3 Display settings ....................................................................................................................................... 6
1.4 Assist function......................................................................................................................................... 9
1.5 Troubleshooting......................................................................................................................................11
2. GEAR LEVER .............................................................................................................................................12
3. ADJUSTMENT OF HANDLEBARS .........................................................................................................12
4. ADJUSTMENT OF SADDLE ....................................................................................................................13
5. BATTERY AND CHARGER......................................................................................................................13
5.1 Mounting and dismounting of the battery........................................................................................13
5.2 Mounting of battery charger................................................................................................................14
5.3 Use of battery charger...........................................................................................................................14
5.4 Charging ...................................................................................................................................................14
5.5 Storage for the winter............................................................................................................................16
5.6 Warning.....................................................................................................................................................16
5.7 Disposal of battery.................................................................................................................................16
8. DRIVING INSTRUCTIONS.......................................................................................................................17
9. EU STANDARDS........................................................................................................................................17
10. DECLARATION OF CONFORMITY........................................................................................................17
12. WARRANTY................................................................................................................................................18
11. TECHNICAL DATA .....................................................................................................................................19
12. CUSTOMER APPLYING FORM...............................................................................................................20
13. MONTY OFFICIAL DISTRIBUTORS AND CONTACTS .......................................................................20

3
INTRODUCTION
WELCOME TO THE MONTY FAMILY
Firstly, we would like to welcome you and thank you for choosing
the Monty brand.
This “User’s Manual” for your new Monty Ebike E49, contains im-
portant information which you will need to keep your bike in good condi-
tion. It has been designed so that you can enjoy your E-Bike safely, mak-
ing the most of your time. Please read this manual carefully before using
your electric bike and save this manual for future reference. If you have
any doubt or questions, please contact your authorized Monty dealer.
The E-49 includes a long-lasting, top-quality engine which is not to re-
quire much maintenance from your side. Its innovative design and safe
construction is to provide you with km and km of satisfaction.
Parents or guardians should explain the contents of this manual to
any minors using the E-Bike to ensure that they have understood its con-
tents. The drawings and images may not correspond exactly to your
model. They are used solely to facilitate your understanding. We apolo-
gize if any part of this manual does not correspond with the precise
characteristics of your E-49.
At Monty, we always strive to improve our products, as such; we
may incorporate other new technical components to its models or
change pieces without prior notice.
The Monty family is constantly innovating to offer its clients a top-
quality product made from the best materials. Our new E-Bikes are a
clear example. They provide a new means of light and fun transport
which is also ecological, silent and does not pollute. For this reason, we
want to thank you for choosing us, a decision which will benefit the envi-
ronment and all of us.
Always give this manual to any future bicycle owner.
Thank you as well for dedicating a few minutes to reading this
manual. We hope that we have succeeded in making a product to your
liking.
For further information about our products, visit the Monty web site:
http://www.monty.es

4
IMPORTANT WARNING
NON-FULFILLMENT OF THE INSTRUCTIONS DETAILED IN
THIS MANUAL MAY LEAD TO MECHANICAL FAILLURES, A
LOSS OF CONTROL AND POSSIBLE FALLS, WITH SERI-
OUS PHYSICAL INJURIES TO THE USER OR OTHERS, IN-
CLUDING EVEN DEATH. INCORRECT USAGE MAY ALSO
RISK YOUR PHYSICAL INTEGRITY AND THAT OF OTHERS.
SAFETY WARNING
DO NOT OPEN OR MANIPULATE THE BATTERY, DOING SO WILL
FORFEIT THE WARRANTY ESTABLISHED IN THIS MANUAL. IF YOU
OPEN OR MANIPULATE THE BATTERY, CHARGER OR ELECTRICAL
CIRCUIT, YOU MAY PROVOKE A SHORT-CIRCUIT AND POSSIBLE IN-
JURIES (SHOCK OR BURNS).
IT IS RECOMMENDED TO USE A HELMET WHILE RIDING.
WARRANTY WARNING
MODIFYING THE TRANSMISSION, FORK OR ANY OTHER COMPONENT
IMPLIES THE E-49 NO LONGER IS TO BE CONFORMED TO THE MONTY
SPECIFICATIONS AND THEREBY ANNULS THE WARRANTY.
MANIPULATING THE ELECTRIC BIKE’S ELECTRICAL COMPONENTS WILL
ALSO FREE MONTY OF ANY POSSIBLE LIABILITY.
THE E-BIKE IS PROVIDED WITH A FRAME NUMBER WHICH CAN BE FOUND
UNDER THE CRANK.
CE (European Conform)

5
1. DISPLAY AND KEY
1.1 Mounting/dismounting of the display
Mount the dis-
play in the center posi-
tioned holder by insert-
ing it at a 45° angle
and then rotate it
clockwise.
Remove the
display by rotating anti-
clockwise. When the
display is inserted, it
activates the electrical
system. In other words the display also functions as a key to the elec-
trical system. After the display is inserted turn on the battery. If the
display is not mounted on the e-bike, the e-bike will works like a con-
ventional bike.
Please note that the display must be removed from the
holder after use as otherwise it will tap the battery power.
1.2 Operation of the display and the throttle

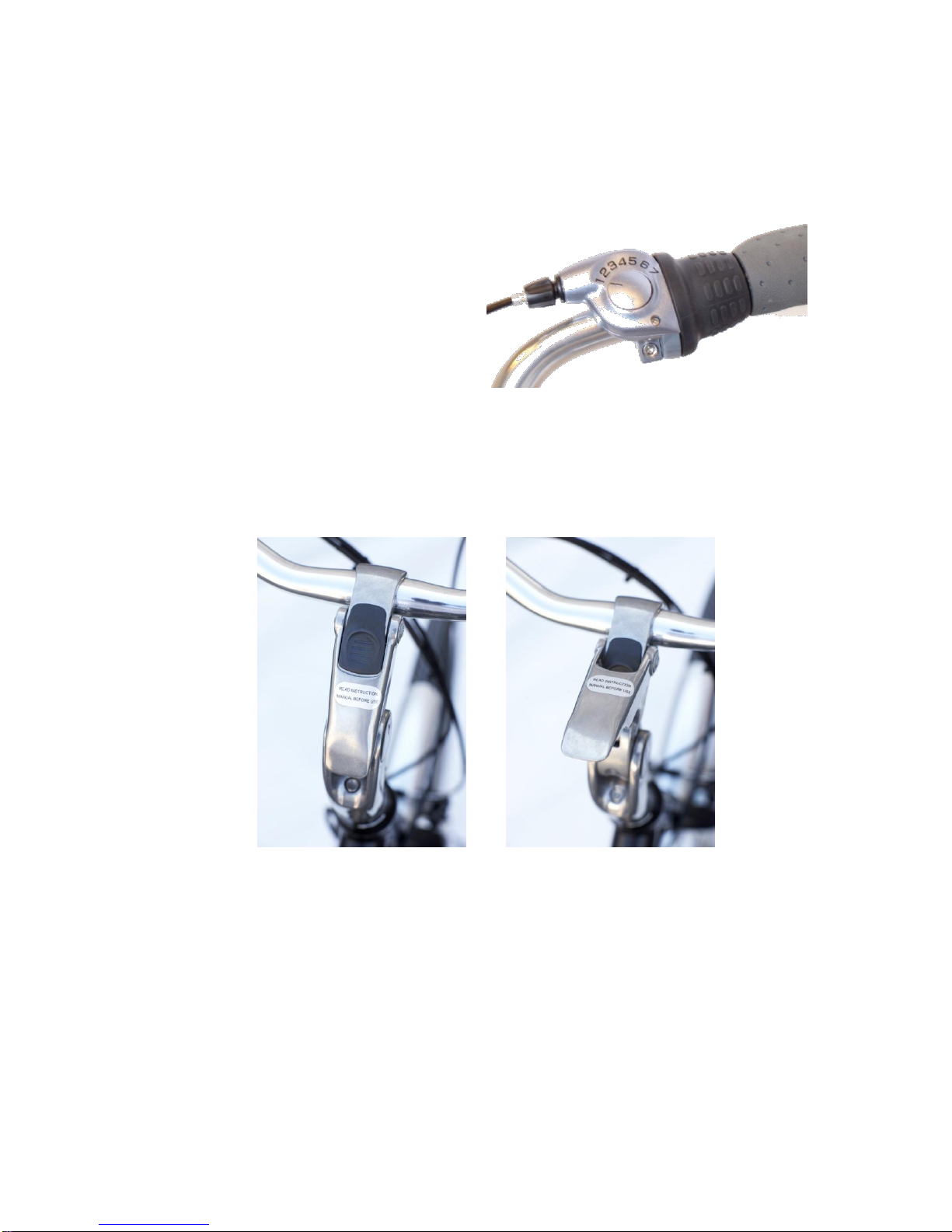

To operate the display, use the 5
setting buttons and the throttle in
the left lever on the handlebars.
To operate the throttle, turn the
lever as shown in the figure to the
right.
For a detailed description of the settings please see Section 1.3
