MORLEY-IAS MI-BSS-XX-N Quick setup guide

MODELS
MI-BSO-XX-N = Sounder Non Isolation
MI-BSO-XX-I = Sounder Isolation
MI-BSS-XX-N = Sounder Strobe Non Isolation
MI-BSS-XX-I Sounder Strobe Isolation
MI-BST-XX-N = Strobe Non Isolation
MI-BST-XX-I = Strobe Isolation
XX = Colour options available
GENERAL
The range of intelligent devices are designed to be connected to analogue addressable
re alarm systems.
These devices must only be connected to control panels that use a compatible proprietary
analogue addressable communication protocol.
These devices receive their power from the loop, and can be controlled via the communication
protocol(s).
The Integrated Detector Base Sounder is designed to accept a Series 200 Advanced detector.
The sounders have three volume levels and 32 tone sets. Models (MI-BSO-XX-I, MI-BSS-XX-I,
MI-BST-XX-I) containing the character ‘I’ prior to the Customer ID code include in built isolation
providing short circuit protection of the loop.
Up to 159 addresses are available. (Consult the panel instructions to conrm compatibility)
These are selected via the two rotary selector switches. The ‘tens’ digits go from 0 to 15 and
the ‘units’ from 0 to 9.
Note: if the control equipment is not capable of taking over 99 module addresses, a
fault condition will be generated for every address over 99.
THIS PRODUCT IS NOT APPROVED TO EN54-23 (VISUAL ALARM DEVICES) AND MUST NOT BE
USED AS A VISUAL ALARM DEVICE OR TO PROVIDE A PRIMARY WARNING NOTIFICATION OF FIRE.
For isolator specication refer to document SP11-2848 available on request.
These model types must not be used as visual alarm devices to provide a primary warning
notication of re.
INSTALLATION INSTRUCTIONS FOR INTEGRATED DETECTOR BASE LOOP
POWERED ADDRESSABLE SOUNDER – SOUNDER STROBE & STROBE
SPECIFICATIONS MI-BSO-XX-N
MI-BSO-XX-I
MI-BSS-XX-N
MI-BSS-XX-I
MI-BST-XX-N
MI-BST-XX-I
Signaling Line Supply Voltage (non isolation) 15 to 29VDC (24VDC typical)
Signaling Line Supply Voltage (isolation) 15 to 29VDC (24VDC typical)
Max current consumption (non isolation) (High Volume
Tone 13 @24V) 4.46mA 8.40mA N/A
Max current consumption (isolation) (High Volume Tone
13 @24V) 4.65mA 8.59mA N/A
Max peak power 148.8mW 243.4mW 99.12mW
Sound Output to EN54-3 (High Volume Tone 13 @24V) 96dB(A) ± 3dB N/A
Beacon ash rate N/A 1Hz 1Hz
Max current consumption @24V (non isolation) MI-BST-
XX-*
N/A N/A 3.94mA
Max current consumption @24V (isolation) MI-BST-XX-* N/A N/A 4.13mA
Quiescent Current 450uA
Operating temperature range -25 to +70oC
Relative humidity up tp 93% (± 3%) - non condensing
Terminal Size 2.5mm2 - maximum

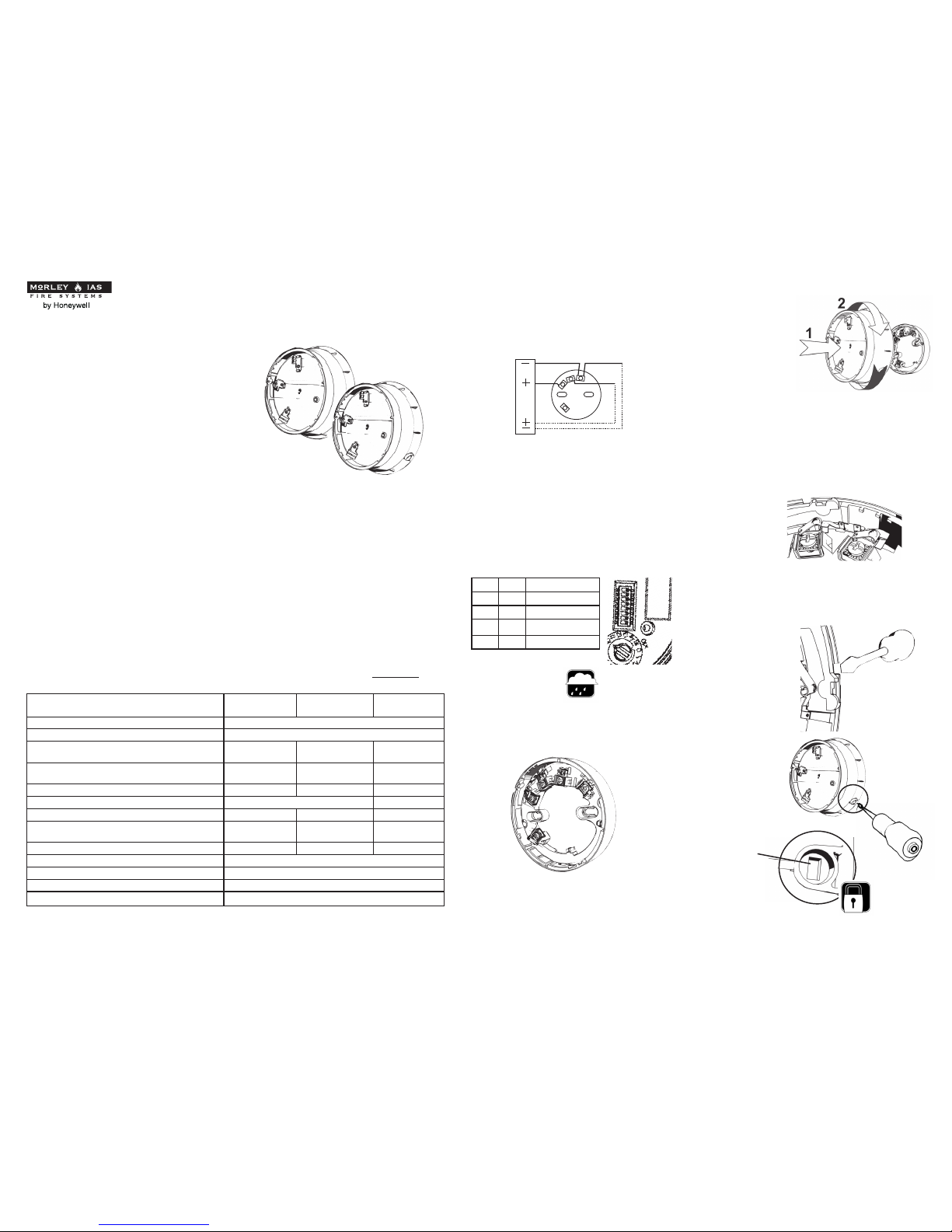

INSTALLATION
Afx B501AP to a
suitably at ceiling.
Terminate the cable
to the appropriate
terminals. For surface
mount wiring the cable can enter the B501AP
via the break outs provided. Select the
appropriate Tone and Volume settings via the
DIP switch.
Locate the main assembly on to the base by
rotating until it locks into place.
CONTINUITY SPRING
The B501AP
incorporates a
continuity spring
between terminals 2
and 4. This allows the
continuity of the eld wiring to be checked
without the need for the device to be present.
Inserting the device will disengage the spring.
Removing the device will close the loop.
ANTI TAMPER LOCK
The B501AP also
includes a tamper
resistant feature that
when activated prevents
removal of the unit
without the use of a
special tool.
This method is
consistent with the
anti tamper feature
across all devices
using this base. This
prevents the device
being turned to
enable its release.
Breakout
TERMINAL
CONNECTIONS
VOLUME SETTINGS
Volume setting is selected by SW6
and SW7 of the 8 way DIP switch. The
appropriate tone set is selected by SW1 to
SW5 of the 8 way DIP switch (see table 1)
The 2nd stage tone (related to the 1st stage
tone) is controlled by the re panel via the
protocol.
BASES/IP RATING
B501AP (IP 21C)
SW6 SW7 Volume Setting
OFF OFF HIGH
OFF ON MEDIUM
ON OFF LOW
ON ON LOW
1
2
3
4
+
_
+
_

D 1006 Issue 8
KAC ALARM COMPANY LIMITED, KAC House, Thornhill Road, Redditch, Worcestershire, England. B98 9ND. www.kac.co.uk
DIP setting Nominal 2nd Stage
O=Off/1=On No Pattern Frequency (BSO-BSS) (BSO-BSS) (BSO-BSS) Switching Frequency Description Market Standard Tone
SW 1,2,3,4,5 High Medium Low
0,0,0,0,0 1
Alternating 525/440 4.19 / 8.13 1.58 / 5.52 0.89 / 4.83 2Hz (100ms/400ms) French Fire Sound AFNOR France NFS 32-001 7
1,0,0,0,0 2
Alternating 800/922 5.56 / 9.50 1.58 / 5.52 1.18 / 5.12 1Hz UK BS5839 Pt1 8
0,1,0,0,0 3
Alternating 800/922 3.27 / 7.21 1.58 / 5.52 1.15 / 5.08 2Hz Alternating tone telecoms UK BS5839 Pt1, FP1063.1 8
1,1,0,0,0 4
Alternating 2400/2900 5.8 / 9.74 3.67 / 7.61 1.72 / 5.66 3Hz Alternating High Frequency 10
0,0,1,0,0 5
Alternating 2500/3100 6.01 / 9.95 3.7 / 7.64 1.72 / 5.66 2Hz Security Alarm 10
1,0,1,0,0 6
Alternating 988/645 3.08 / 7.02 1.49 / 5.43 1.12 / 5.06 2Hz 8
0,1,1,0,0 7
Continuous 630 4.30 / 8.24 1.48 / 5.42 1.02 / 4.96 All clear Sweden 1
1,1,1,0,0 8
Continuous 922 4.21 / 8.15 1.39 / 5.33 1.12 / 5.06 BS 5839 Pt 1 2
0,0,0,1,0 9
Continuous 1200 4.08 / 8.02 1.71 / 5.65 1.27 / 5.21 2
1,0,0,1,0 10
Continuous 2810 4.9 / 8.84 3.29 / 7.23 1.56 / 5.5 HF Continuous 4
0,1,0,1,0 11
Sweep 150-1000 3.74 / 7.68 1.71 / 5.65 1.36 / 5.3
Rising from 150Hz to 1000Hz in
10 seconds, then 40 seconds at
1000Hz, then falling from
1000Hz to 150Hz in 10
seconds, then 20 seconds at
150Hz, then repeating. Total
period 80 seconds.
“Gasalarm” Tone 22
1,1,0,1,0 12 Intermittent 420
4.59 / 8.53 1.69 / 5.63 0.84 / 4.78
0.625s on, 0.625 sec off AS2220 alert tone NZ, Aus AS2220
13
0,0,1,1,0 13 Sweep 500-1200
4.46 / 8.4 2.22 / 6.16 1.48 / 5.42
0.25 sec off, 3.75 sec on AS2220 evacuate tone NZ, Aus AS2220
12
1,0,1,1,0 14
Intermittent 630 3.31 / 7.25 1.38 / 5.32 0.98 / 4.92 3.33Hz 150ms on, 150ms off Swedish alarm tone Sweden 7
0,1,1,1,0 15
Intermittent 922 2.53 / 6.47 1.38 / 5.32 1.12 / 5.06 0.8Hz 0.25s on, 1s off Intermittent Tone UK BS 5839 Pt 1 8
1,1,1,1,0 16
Intermittent 922 2.57 / 6.51 1.39 / 5.33 1.13 / 5.07 0.5Hz 1s on, 1s off Back up alarm LF & BS5839
Pt 1 UK BS5839 Pt 1 8
0,0,0,0,1 17
Intermittent 2810 5.4 / 9.34 2.4 / 6.34 1.59 / 5.53 1Hz Back up alarm HF & BS5839
Pt 1 2nd tone UK BS5839 Pt 1 10
1,0,0,0,1 18
Intermittent 922 2.61 / 6.55 1.4 / 5.34 1.11 / 5.05 1Hz 500ms on, 500ms off LF BS5839 Pt 1 UK BS5839 Pt 1 8
0,1,0,0,1 19
Intermittent 950 3.03 / 6.97 1.51 / 5.45 1.21 / 5.15 0.22Hz (0.5s on, 0.5s off) rptx3,
1.5s off Australia ISO8201 12
1,1,0,0,1 20
Continuous 800 3.29 / 7.23 1.56 / 5.5 1.17 / 5.11 BS 5839 Pt 1 22
0,0,1,0,1 21
Sweep 400-1200 3.85 / 7.79 1.66 / 5.6 1.15 / 5.09 (0.5s on, 0.5s off)*3, 1.5s off Temporal 3 Evacuation tone Australia ISO8201 Temporal 3 12
1,0,1,0,1 22
Sweep 1200 - 500 4.07 / 8.01 2.96 / 6.9 1.4 / 5.34 0.99Hz 1s on, 0.01s off Evacuate, DIN tone & PFEER Germany DIN, PFEER 20
0,1,1,0,1 23
Sweep 2400 - 2850 4.99 / 8.93 3.08 / 7.02 1.72 / 5.66 7Hz Fast sweep VdS Germany VdS 10
1,1,1,0,1 24
Sweep 500 - 1200 4.36 / 8.3 2.04 / 5.98 1.5 / 5.44 (0.5s off, 3.5s on) Slow whoop evacuate
Netherlands Netherlands NEN 2575 8
0,0,0,1,1 25
Sweep 800 - 970 3.06 / 7.0 1.54 / 5.48 1.19 / 5.13 50Hz LF Buzz BS5839 Pt 1 UK BS5839 Pt 1 8
1,0,0,1,1 26
Sweep 800 - 970 2.77 / 6.71 1.59 / 5.53 1.21 / 5.15 7Hz Fast sweep LF BS5839 Pt 1 UK BS5839 Pt 1 8
0,1,0,1,1 27
Sweep 800 - 970 2.97 / 6.91 1.67 / 5.61 1.25 / 5.19 1Hz Medium sweep LF, BS5839 Pt
1, VdS UK, Germany BS5839 Pt 1 VdS 8
1,1,0,1,1 28
Sweep 2400 – 2850 4.93 / 8.87 3.07 / 7.01 1.76 / 4.7 50Hz High frequency buzz 10
0,0,1,1,1 29
Sweep 500 – 1000 2.96 / 6.9 1.45 / 5.39 1.08 / 5.02 7Hz Fast whoop 8
1,0,1,1,1 30
Sweep 500 – 1200 –
500 4.01 / 7.95 1.7 / 5.64 1.29 / 5.23 0.166Hz rise 1s, stable 4s, fall 1s Siren style tone 8
0,1,1,1,1 31
Sweep 800 – 1000 2.49 / 6.43 1.6 / 5.54 1.24 / 5.18 2Hz 8
1,1,1,1,1 32
Sweep 2400 - 2850 5.79 / 9.73 3.26 / 7.2 1.74 / 5.68 1Hz 10
Maximum consumption (mA)
Table 1 - VERSION 8C
DIMENSIONS
All DBS Variants
121mm
51mm
106mm
For Isolated variants add 0.19mA
to high,medium, low values
above.
We reserve the right to amend
the content of this document
without prior notice.
Sounder Output data, in
accordance with EN54-3, is
available on Document Ref:
D 1022.
0832
For CPD Data on all relevant
devices please request D974.
IMPORTANT NOTES:
ADDRESS SETTING
To set one of the 159 available addresses for the device use the two rotary switches located either side of the dip switch unit. The ‘tens’ digits go from 0 to 15 and the ‘units’ from 0 to 9.
Isolated
Non-Isolated
Example A (Address setting 108) Example B (Address setting 98) Isolated
Non-Isolated
