Morphy Richards IB40621 User manual

Your two year guarantee
It is important to retain the retailers receipt
as proof of purchase. Staple your receipt to
this back cover for future reference.
Please quote the following information if
the product develops a fault. These numbers
can be found on the base of the product.
Model no. Serial no.
All Morphy Richards products are
individually tested before leaving the factory.
In the unlikely event of any appliance proving
to be faulty within 28 days of purchase it
should be returned to the place of purchase
for it to be replaced.
If the fault develops after 28 days and
within 24 months of original purchase, you
should contact the Helpline number quoting
Model number and Serial number on the
product, or write to Morphy Richards at the
address shown. You will be asked to return
the product (in secure, adequate packaging)
to the address below along with a copy of
proof of purchase.
Subject to the exclusions set out below
(see Exclusions) the faulty appliance will then
be repaired or replaced and dispatched
usually within 7 working days of receipt.
If for any reason this item is replaced
during the 2 year guarantee period, the
guarantee on the new item will be calculated
from original purchase date. Therefore it is
vital to retain your original till receipt or
invoice to indicate the date of initial
purchase.
To qualify for the 2 year guarantee the
appliance must have been used according to
the manufacturers instructions. For example
kettles should have been regularly descaled.
EXCLUSIONS
Morphy Richards shall not be liable to
replace or repair the goods under the terms
of the guarantee where:
1The fault has been caused or is
attributable to accidental use, misuse,
negligent use or used contrary to the
manufacturers recommendations or where
the fault has been caused by power
surges or damage caused in transit.
2The appliance has been used on a voltage
supply other than that stamped on the
products.
3Repairs have been attempted by persons
other than our service staff (or authorised
dealer).
4Where the appliance has been used for
hire purposes or non domestic use.
5Morphy Richards are not liable to carry
out any type of servicing work, under the
guarantee.
6Plastic filters for all Morphy Richards
kettles and coffee makers are not covered
by the guarantee.
This guarantee does not confer any rights
other than those expressly set out above and
does not cover any claims for consequential
loss or damage. This guarantee is offered as
an additional benefit and does not affect your
statutory rights as a consumer.
• This guarantee is valid in the UK and
Ireland only.
Morphy Richards products are intended for
household use only.
Morphy Richards has a policy of continuous
improvement in product quality and design.
The company, therefore reserves the right
to change the specification of its models at
any time.
Registered address
The After Sales Division
Morphy Richards Ltd, Mexborough
South Yorkshire, England, S64 8AJ
Helpline (office hours)
UK 0870 060 2615
Republic of Ireland 1800 409119
RN40621M UK Rev 1
digital iron RN40621M Rev 1 14/3/03 5:14 AM Page 1

Digital/steam/spray/shot iron
steam/spray/shot
Please read and keep these instructions
www.morphyrichards.co.uk
getting the best from your
digital steam iron...
• Safety first
Caution must be used when handling this appliance as it does get
very hot. Always switch off the unit and allow to cool before
cleaning or storing.
It is always a good idea to begin with ‘cool’ fabrics and work up
to a higher setting as this saves electricity.
• Jet cleaning
Your iron will give the best ironing results and will last longer if you
apply jet cleaning after each period of ironing.
digital iron RN40621M Rev 1 14/3/03 5:14 AM Page 2

Important safety
instructions
The use of any electrical appliance
requires the following common sense safety
rules.
Primarily there is danger of injury or
death and secondly the danger of damage
to the appliance. These are indicated in the
text by the following two conventions:
WARNING: Danger to the person!
IMPORTANT: Damage to the appliance! In
addition we offer the following safety advice.
Location
• Do not use outdoors.
Children
• Children do not understand the dangers
associated with operating electrical
appliances. Never allow children to use
this appliance.
• Close supervision is necessary when any
appliance is used near children.
Personal safety
• Burns can occur from touching hot metal
parts, hot water or steam. Use caution
when you turn a steam iron upside
down, there may be hot water in the
water tank.
• Do not use the vertical steam feature on
clothes that are being worn.
• Do not leave the iron unattended whilst
plugged in or on an ironing board. Never
allow the mains lead to over hang the
work surface.
• The socket should always be off before
plugging or unplugging from the socket.
Never yank the cord to disconnect from
the socket, instead, grasp plug and pull
to disconnect.
• Do not allow the cord to touch hot
surfaces. Let the iron cool completely
before putting away. Loop cord loosely
around the iron before storing.
Other safety considerations
• Use the iron only for its intended use.
• To protect against the risk of electric
shock do not put the appliance in water
or in any other liquid.
• Always disconnect the iron from the
electrical socket when filling with water
or emptying, and when not in use.
• Do not operate the iron with a damaged
cord or if the iron has been dropped or
damaged. To avoid the risk of electric
shock, do not disassemble the iron, but
telephone Morphy Richards for advice.
Incorrect reassembly can cause a risk of
electric shock when the iron is used.
Special instructions
• If your iron does not work, check the
following points:
Has the temperature control been set to
the required temperature? Is the plug in
its socket? Is the plug itself or the socket
faulty? (Check by plugging in another
appliance).
• Warning: when not in use, your iron
should never be placed flat and left on
an ironing board.
•To prevent damage to the textile being
ironed, follow the temperature guide
carefully. (Test the inside of the hem of
the garment).
• When ironing is complete, remove the
plug from the socket, empty any
remaining water from the tank, and allow
to cool before storage.
• If you drop or severely knock your iron
this could cause internal damage even if
the outside appears alright. Have it
checked by a qualified electrician.
• It is recommended that you use up one
beaker of water by operating your iron’s
steam and shot of steam functions
before ironing any clothes as some
dripping may occur while your irons
steam system is activated.
2
digital iron RN40621M Rev 1 14/3/03 5:14 AM Page 3

3
Electrical requirements
Check that the voltage on the rating
plate of your appliance corresponds with
your house electricity supply which must be
A.C. (Alternating current).
If the socket outlets in your home are not
suitable for the plug supplied with this
appliance the plug should be removed and
the appropriate one fitted.
WARNING : The plug removed from
the mains lead, if severed, must be
destroyed as a plug with a bared flexible
cord is hazardous if engaged into a live
socket outlet.
Should the fuse in the 13 amp plug
require changing a 13 amp BS1362 fuse
must be fitted.
WARNING: THIS APPLIANCE MUST
BE EARTHED.
Instructions for use
Temperature guide
Heat settings displayed in the LCD panel of your Morphy Richards iron match those of the
International Textile Care Labelling Code.
Symbol
(120˚C Max) Cool (160˚C Max) Warm (210˚C Max) Hot
Control knob
positions
Do not iron
at all
Fabric Nylon, Acetates
e.g. Acrilan
Courtelle, Orlon
Triacetates, e.g.
Tricel/Polyester
Wool, Polyester
mixtures e.g.
Polyester/Cotton
Cotton, Linen
Rayon, Rayon
mixtures,
e.g. Rayon/Linen
Ironing Iron on wrong side
if moisture required
use damp cloth
(Not Acetate)
Fabrics requiring this
setting usually require
steam pressing for heavy
cotton, denim etc.
With water in tank Dry and spray Steam/spray/shot of steam
Jet clean
Without water in tank Dry ironing
digital iron RN40621M Rev 1 14/3/03 5:14 AM Page 4

4
Components of your iron
⁄ Shot of steam button
¤ Variable steam/boost control
‹ Spray button
› Filling hole with cap
fi Spray nozzle
flSoleplate
‡ Water tank
· Digital LCD display
‚ Function button
„ Filling beaker
Before use
Note: The steam facility should only be
used on garments which are suitable for
ironing at the 2 and 3 dot and MAX setting.
When ironing with the steam facility at the
2 dot setting, the steam output should be set
at the lower end of the steam range (see
variable steam section).
Textiles and clothes are supposed to carry
ironing instructions. If they don’t you should
follow the fabric guide on page 3, but be sure
to test the temperature by ironing the hem of
the garment or similar area first.
If you reduce the temperature from a hot
setting to a cooler setting, wait until the iron
temperature has stabilised before you
continue ironing.
Filling
1Make sure that the iron is not plugged in
and then set the variable steam control ¤
to the ‘0’ position before filling the iron
with water.
2Lift up the fill cap and fill the water through
the filling hole ›into the water tank ‡,
using the beaker provided. AAfter filling
replace the fill cap. In hard water areas the
use of distilled or demineralised water is
recommended.
Never use battery topping up fluid or
water containing any substances like
starch, or sugar, or defrosted water
from a refridgerator.
3Always pour out the remaining water after
use. Warning: When filling your iron
with tap water always use the beaker
provided. Never fill directly under the
tap.
Temperature controls
Plug in the iron and switch on. The
temperature will default to the MAX setting B
and one beep can be heard, but don’t start
ironing immediately. If you wait a few
minutes, the iron will stabilise at the required
setting.
• To indicate that the iron is heating up
arrow above the thermometer symbol
will flash.
⁄
¤
‹
›
fi
fl
‡
·
A
B
„
‚
digital iron RN40621M Rev 1 14/3/03 5:14 AM Page 5

• To indicate that the iron is cooling down
the arrow below the thermometer will
flash. This is perfectly normal as it shows
that the iron is maintaining the heat
setting you have chosen.
• When your iron reaches the correct
temperature for the first time it will beep
twice. The arrow icon will also stop
flashing to show that the iron has
reached the correct temperature.

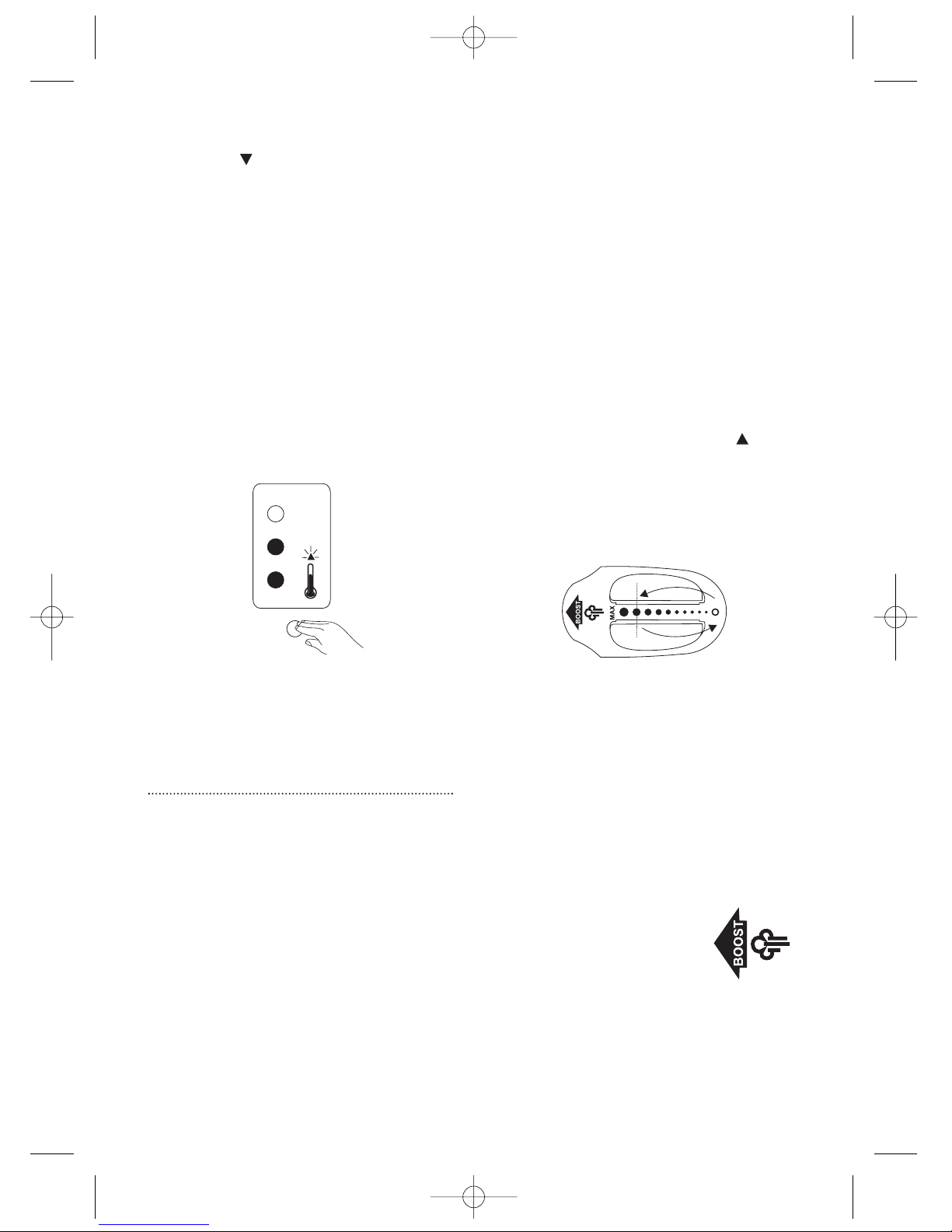

To adjust the temperature setting
depress the FUNCTION button ‚a beep
will be audible every time the function
button is pressed. The temperature will
cycle up and down
(MAX - 3 dot - 2 dot - 1 dot - 2 dot...etc.)
and will be indicated on the LCD display. C
It is always a good idea to begin with
cool fabrics and work up to higher settings.
An iron heats up quicker than it cools
down so you’ll save time and electricity.
Features of your iron
Dry ironing
You can use your iron as a dry iron only.
Make sure the variable steam control ¤is
set to the ‘0’ symbol.
Any temperature setting may be used
depending on the garment. The spray
feature may be used provided there is water
in the tank (see filling section). You do not
need to put any water in the tank when dry
ironing only.
Spray
Press the spray button ‹and aim the
spray of water at stubborn creases. You can
do this whilst dry ironing providing there is
water in the tank. When using the water
spray it may be necessary to push the
button a few times to get the spray pump
primed.
Variable steam
Fill the iron with water as described in
‘Filling’, page 4 and insert the plug into the
electrical socket.
Press the function button ‚ until the
2-dot, 3-dot or MAX setting is displayed (as
required) and rest the iron on it’s heel whilst
it warms up. The heating up arrow icon
will disappear when the iron is at the correct
temperature.
Move the variable steam control ¤ to
give the desired amount of steam. D
The steam facility should only be used
on garments which are suitable for ironing
at 2-dot, 3-dot and MAX setting.
Extra steam boost
When the variable steam slider ¤
reaches the end of its normal travel,
pushing it further forward creates additional
steam sometimes required to remove
difficult creases.
The slider automatically
returns to normal steam when
finger pressure is removed.
Note: For optimum
performance, do not hold the
steam slider in the boost position, release it
immediately at the end of it’s travel.
5
D
higher steam
lower steam
C
digital iron RN40621M Rev 1 14/3/03 5:14 AM Page 6

Shot of steam
Press the shot of steam button ⁄to
obtain a burst of extra steam for ironing out
creases in heavy material such as denim etc.
The shot of steam can be used whilst dry
ironing, provided there is water in the tank,
and the temperature control is set to the
steam position.
Do not use shot of steam at temperatures
below the 2-dot.
Note: For optimum steam quality, do not
operate the shot more than three times in
succession.
Vertical steam
Hold the iron in a vertical position
between 1cm and 2cm away from the item
E. Press the shot of steam button ⁄, this
will create vertical steam. This feature is
especially useful for removing creases from
hanging clothes, curtains, wall hangings, etc.
Drip stop
Your iron is fitted with a no drip system
which is designed to prevent water escaping
from the soleplate when the iron is too cold.
During use, the no drip system may emit a
loud click, particularly during heat-up or
whilst cooling down. This is perfectly normal
and indicates that the system is functioning
correctly.
Auto shut-off
Your iron is equipped with an automatic
shut-off feature which will cut the power to
the iron if left for 30 seconds in the horizontal
(ironing) position or after 8 minutes standing
on its heel.
When this occurs, the auto shut-off icon
will be shown on the LCD display F and a
long beep will be heard.
Life long anti-scale
system
The life long anti-scale system reduces
scale deposits and helps prolong the life of
the iron.
Maintenance
Jet cleaning
Your iron has a built in cleaning system
designed to keep the water valve, steam
chamber and steam vents clear of lint and
loose mineral deposits. The ‘jet clean’ should
be operated after each period of ironing.
To operate, ensure that there is little water
in the tank, place the iron on its heel and set
the temperature to the MAX setting. Wait for
the heating up arrow to go out, then unplug
the iron and hold it about 6’’ (150mm) above
the sink in the ironing position. Press the
shot of steam button about 10 times in
succession.
After this cleaning operation, empty out
any remaining water.
6
E
F
digital iron RN40621M Rev 1 14/3/03 5:14 AM Page 7

7
To clean a stainless steel
or anodised soleplate
(certain models only)
To keep the soleplate of your iron clean
and free of limescale, we recommend that
you use one of the gentle chrome, silver or
stainless steel cleaners that are generally
available. Always follow the manufacturers
instructions. To clean off melted man-made
fibres set the iron at 3 dot position and pass
it over a clean piece of cotton which will draw
the deposit off the surface.
To clean a coated soleplate
(certain models only)
In the unlikely event of any man-made
fibre fusing to the soleplate, set the iron at
the 3 dot position and pass it over a clean
piece of cotton which will draw the deposit
off the surface.
Do not use scouring powder or solution as
this could cause damage to the coating.
To clean the exterior
Allow the iron to cool and wipe over with a
damp cloth and mild detergent, then wipe
with a dry cloth.
Emptying and storing
When you have
finished ironing,
unplug your iron.
Ensure that the
variable steam control
is set at the ‘0’
position, lift up the fill
cap and empty any
remaining water out
of the filling hole.
Do not store in the box, but in an upright
position, so that any drops of water
remaining cannot leak out and discolour the
soleplate.
Important: The flex can be
damaged if wound too tightly
around the iron after use.
Make a loose loop with the
flex and wrap it around the
iron. The iron must be cool
before winding the flex and
storing on its heel.
Helpline
If you have any difficulty with your
appliance, do not hesitate to call us.
We are more likely able to help than the
store from where you bought it.
Please have the following information
ready to enable our staff to deal with your
query quickly.
• Name of the product
• Model number as shown on the underside
of the appliance.
digital iron RN40621M Rev 1 14/3/03 5:14 AM Page 8
