Morphy Richards ESSENTIALS PRECISE STEAM CLEANER - REV 1 User manual

Essentials Precise Steam Cleaner
Please read and keep these instructions
Quick start
1Fill the tank up to a maximum of 1.0 litre of water (using warm water
will reduce the heat-up time). Screw cap on and tighten fully.
2Attach the hose and required accessories.
3Connect to the power supply.
4Press the on/off button to start heat-up. When orange light turns off,
the steam is ready.
5Press the trigger on the handle to release the steam.
6Aim the steam safely: at the start water may be ejected. Hold over a
sink or bucket until excess water has cleared.
Descaling
Descale regularly, do not wait for a problem to occur. In very hard water
areas, we recommend using distilled water.
VC70536 MUK Rev 1
For replacement parts, help with using your Morphy Richards product,
problems and lots more, contact us by phone or through our website.
UUKKHHeellpplliinnee::0088445500777777770000
IIrreellaanndd11880000440099111199
70536 rev1 version2 7/9/07 14:42 Page 1

2
FFoorrAAddvviiccee,,SSppaarreessoorrAAcccceessssoorriieess,,tteell::0088445500777777770000((UUKK))oorr11880000440099111199((IIrreellaanndd))
2
IMPORTANT
SAFETY
INSTRUCTIONS
The use of any electrical
appliance requires the
following common sense
safety rules.
Primarily there is danger of
injury or death and secondly
the danger of damage to the
appliance. These are
indicated in the text by the
following two conventions:
WARNING: Danger to the
person!
IMPORTANT: Damage to the
appliance!
In addition we offer the
following safety advice.
Location
• Do not use or keep this
product outside.
• Do not store the appliance
near hot ovens or heating
appliances.
Children
• Children do not understand
the dangers associated with
operating electrical
appliances. Never allow
children to use this
appliance.
• Children should be
supervised to ensure that
they do not play with the
appliance.
Personal safety
• The plug must be removed
from the wall socket before
cleaning, filling the boiler or
maintaining the appliance.
• To protect against fire,
electric shock and personal
injury do not immerse cord,
plug or cleaner in water or
other liquid.
• Do not discharge the steam
towards people. Danger of
scalding.
• Never touch the plug or
cable with wet hands.
• Never modify the cleaner in
any way.
• When using the machine
always keep it horizontal.
• Steam must not be directed
towards equipment
containing electrical
components, such as the
interior of ovens.
• This appliance is not
intended for use by persons
(including children) with
reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge,
unless they have been given
supervision or instruction
concerning use of the
appliance by a person
responsible for their safety.
Other safety
considerations
• Do not use any chemical
detergents, perfumes,
alcohol etc in the water.
• Repairs to electrical
appliances are only to be
undertaken by trained
personnel. Unprofessional
repairs can be dangerous for
users.
• Use only genuine Morphy
Richards spare parts and
accessories.
• If the electrical cable
becomes damaged the
complete cable assembly
must be replaced. Do not
attempt this task yourself,
contact Morphy Richards
using the replacement parts
number on the front of this
leaflet.
• The appliance must never be
left running when
unsupervised.
• The filling cap must not be
opened during use.
• This steam cleaner is
intended for domestic use
only. Misuse or use for
commercial or any other
purpose will render the
guarantee invalid.
ELECTRICAL
REQUIREMENTS
Check that the voltage on
the rating plate of your unit
corresponds with your house
electricity which must be
A.C. (Alternating Current).
If the socket outlets in your
home are not suitable for the
plug supplied with this
appliance the plug should be
removed and the appropriate
one fitted.
WARNING: The plug
removed from the mains
lead, if severed, must be
destroyed as a plug with
a bared flexible cord is
hazardous if engaged
into a live socket outlet.
WARNING: This appliance
must be earthed.
Should the fuse in the 13
amp plug require changing, a
13 amp BS1362 fuse must
be fitted.
Morphy Richards does not
recommend using this
product outside, but when it
is essential to use this
appliance outdoors, it should
be additionally protected by
a RCCB (Residual Current
Circuit Breaker).
70536 rev1 version2 7/9/07 14:42 Page 2

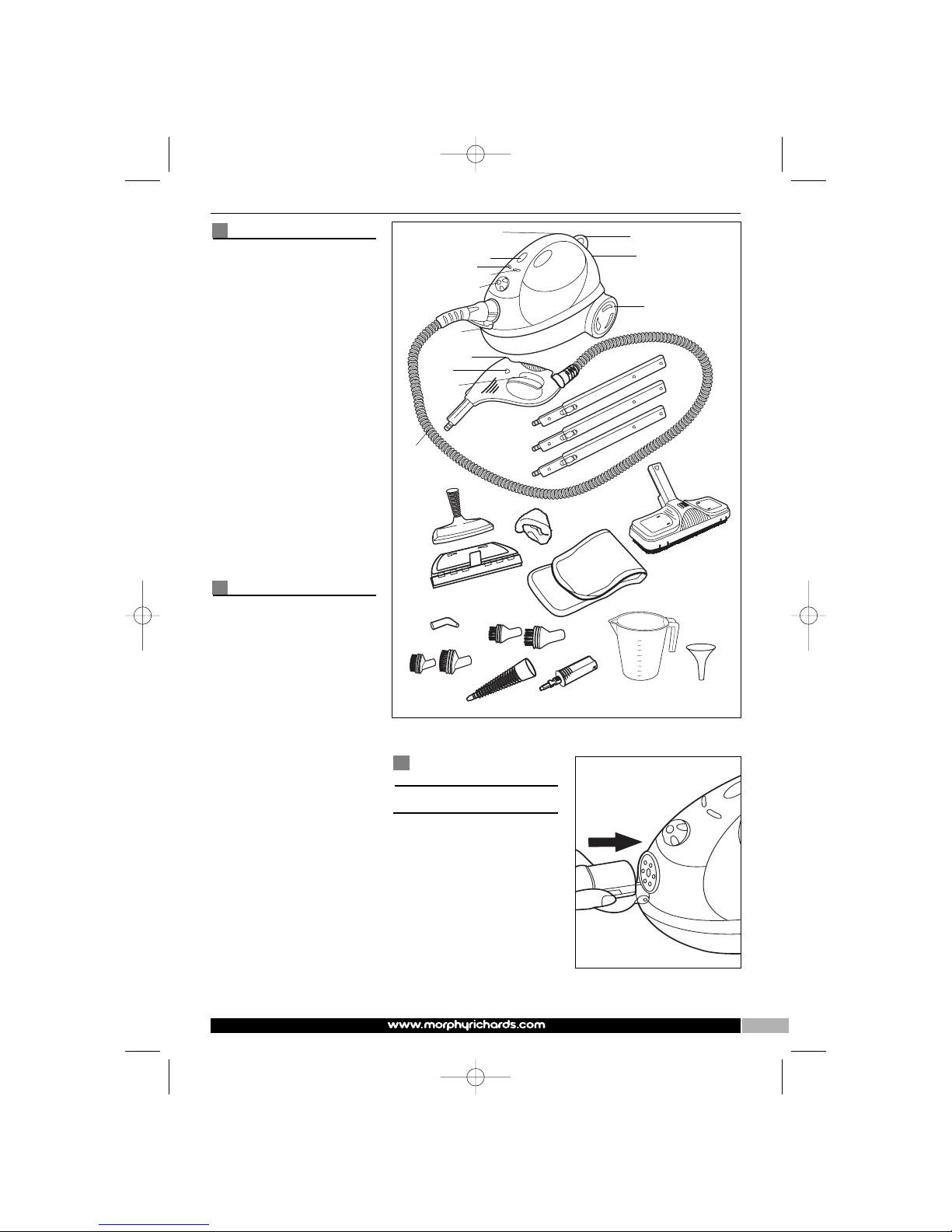

FEATURES
⁄Tool storage cart
¤Wheels
‹Tube park
›Filler cap
fiCarrying handle
flOn/off switch
‡Power light
·Thermostat indicator light
‚Steam adjustment knob
„Hose inlet and flap
‰Hose handle
ÂTrigger lock button
ÊSteam trigger
ÁHose
Accessories
ËExtension tubes x 3
ÈUpholstery nozzle
ÍCloth cap for upholstery
nozzle
ÎWindow squeegee
attachment
ÏElbow attachment (shown
attached to floor nozzle)
ÌFloor nozzle
ÓCotton towel
ÔAngled nozzle
Small and large plastic
brushes
ÒSmall and large brass
brushes
ÚJet nozzle
ÛJet nozzle adaptor
ÙMeasuring jug
ıFunnel
OPERATING THE
APPLIANCE
Fitting the hose
1Pull the hose inlet flap „
down at the front of the
cleaner.
2Line up the locating keyway
on the plug with the socket.
3Push the hose connector
firmly and fully into the
cleaner socket A.
333
fl
„
Â
È
Ê
·
⁄
¤
‹
›
fi
‡
Á
‰
Ë
Í
Î
Ï
Ì
Ó
Ô
‚
ı

Ò
Ú
ÛÙ
A
70536 rev1 version2 7/9/07 14:42 Page 3

E
D
44FFoorrAAddvviiccee,,SSppaarreessoorrAAcccceessssoorriieess,,tteell::0088445500777777770000((UUKK))oorr11880000440099111199((IIrreellaanndd))
Quick accessory
assembly guide B
Please refer to the accessory
assembly section for full
descriptions on how to attach
tubes and nozzles.
Most accessories are stored in the
cart under the steamer C.
Using
IMPORTANT: Please remember
that the steam cleaner operates by
emitting steam at an increased
temperature of 120°C. Never use it
on objects or surfaces which
cannot resist this temperature,
delicate materials, dralon, plastic,
natural fur etc. Where any doubt
exists check carefully on a part of
the material where minor marks
will not matter.
Filling the boiler D
Ensure the steamer is unplugged
from the mains supply before
filling or re-filling.
1Unscrew the filler cap ›by
pressing down and turning anti-
clockwise.
2Fill the boiler with a maximum of
1.0 litres of water by using the jug
and funnel provided. Warm water
may be used which will reduce the
heat-up time. Do not use any
detergent.
3Refit the filler cap and fully tighten
by pressing down and turning
clockwise.
Warning: The filler cap must
never be opened during use.
IMPORTANT: The use of any other
fluids can be dangerous and can
lead to damage of the heating
element.
Switching on
1Insert the plug into the power
socket.
2Switch the cleaner on by pressing
the on/off switch flto ‘on’ E. The
red power indicator light ‡ and
the orange thermostat indicator
light ·will illuminate. It will take
approximately seven minutes to
reach the correct temperature.
3When the correct temperature has
been reached the orange
thermostat indicator light will go
out. The steam cleaner is now
ready to use.
The orange thermostat indicator
light will cycle on-and-off during
operation to show that the
steamer is maintaining the correct
temperature.
Warning: To avoid injury, the
cleaner should be switched
off during breaks or pauses of
work. For extra safety apply
the trigger safety lock.
If you leave the working area,
please switch the cleaner off and
unplug.
Re-filling the boiler
Warning: Always switch off,
unplug from the mains supply
and release all steam before
opening and removing the
filler cap.
1Release the steam pressure by
pressing the steam trigger Êon
the handle until all the steam has
been expelled F. Leave the
steamer to cool down for a few
minutes.
2Fill the boiler as previously.
• Use warm water to reduce the risk
of spitting.
C
B
F
70536 rev1 version2 7/9/07 14:42 Page 4

55
Steam cleaning
1Ensure the safety lock  is off.
Push the lock from the left side to
lock the trigger and push from the
right to release the lock G.
2Press the steam trigger and steam
will be emitted from the nozzle.
Direct the steam at a cloth or into
a bucket or sink until the steam is
emitted evenly.
Warning: At the start, hot
water may be ejected.
Warning: Aim the steam
safely.
3Keep the steam trigger pressed
and direct the steam at the surface
to be cleaned, removing the dirt by
moving the steam jet backwards
and forwards over the area.
4To stop the steam jet, release the
steam trigger.
IMPORTANT: Do not hold the
steam jet concentrated in one
place for too long.
• To control the steam temperature
and the cleaning power move the
handle closer to or further away
from the surface being cleaned.
Steam adjustment
The steam adjustment control ‚
varies the steam output. Turn the
knob fully anti-clockwise for the
maximum amount of steam or
clockwise for decreasing amounts
of steam H.
ACCESSORIES
Warning: Unplug the steamer
and allow to cool before
fitting or changing
attachments as they become
hot during use.
Attach the desired accessory to
the hose handle ‰. Extension
tubes can be attached to the
handle for extra reach.
1Push the extension tubes Ëonto
the handle connection nozzle as
far as they will go until you hear a
click I.
• Some tasks may be easier with
only one tube fitted or none at all.
2To connect the desired accessory
directly to the hose handle, slide
the handle into the accessory head
or tube until it locks in place J.
Floor nozzle Ì
The floor nozzle is used for the
cleaning of large, washable walls
and floor areas. The floor nozzle
can be used with or without the
cotton towel Ó.
• Sensitive surfaces, wood, linoleum
etc. should be used with the cloth.
1Fit the elbow attachment Ïto the
floor nozzle and twist 1/2 a turn K.
2Fit the floor nozzle to the extension
tube or handle L.
3To fit the cloth to the floor nozzle
pull the cloth under the clips on
both sides. Extra cloths can be
ordered through our helpline.
Alternatively any strong,
uncoloured cotton cloths may be
used M.
• The cleaning power of the cloth
can be optimised by turning and
changing the cleaning cloth
regularly.
• To clean very dirty areas, move the
cleaning nozzle over the surface
more slowly in order to increase
the cleaning action of the steam.
IMPORTANT: The cleaner is not
suitable for cleaning unsealed
wooden floors, laminates, soft
plastics or wooden furniture. If in
doubt check with the flooring
manufacturer.
Accessory adaptor
1Push the jet nozzle adaptor Ûas
far as it will go onto the connection
nozzle until you hear it click into
place N.
2The jet nozzle adaptor can be
removed again by pressing the
accessory connection button to
release it.
G
M
I
J
K
L
H
N
70536 rev1 version2 7/9/07 14:42 Page 5

O
P
FFoorrAAddvviiccee,,SSppaarreessoorrAAcccceessssoorriieess,,tteell::0088445500777777770000((UUKK))oorr11880000440099111199((IIrreellaanndd))
66

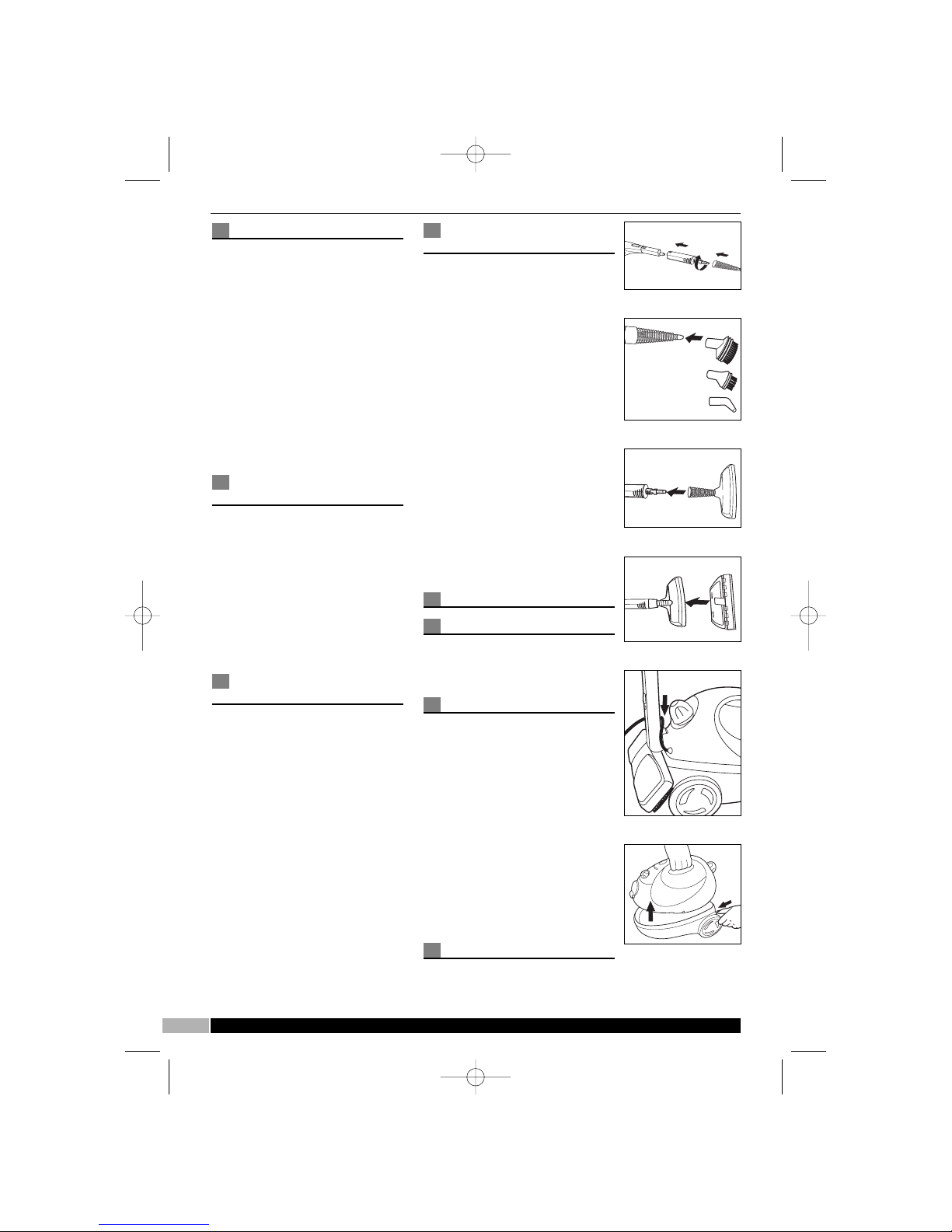

Jet nozzle Ú
1Push the jet nozzle directly onto the
jet nozzle adaptor and turn in a
clockwise direction to lock into
place O.
2It can be used with various fittings,
eg. the angled nozzle and small
and large brush attachments,
depending on the task.
• The jet nozzle can be used with
various fittings for cleaning
inaccessible areas such as corners,
joints, blinds, radiators and toilets
as well as various surfaces such as
stainless steel, windows, mirrors,
enamelled surfaces and also for
stain removal.
Brush attachments
Ò
1Choose the desired plastic or metal
brush attachment for the task P.
2Fit the brush attachment onto the
jet nozzle by pushing on.
3Pull to remove.
IMPORTANT: Do not use the brass
brush on grouting or delicate
surfaces. Always test a hidden area
before using steam on any surface.
Upholstery
attachment È
1Fit the rectangular upholstery
steam nozzle to the jet nozzle
adaptor by pushing on and turning
clockwise to lock Q.
2This nozzle can be used with or
without the cotton cover Í.
3Turn anti-clockwise and pull to
remove.
• This nozzle is ideal for cleaning
cushions, carpets and car seats.
IMPORTANT: Always test on a
hidden area before you start. Steam
cleaning may not be suitable for
certain fabrics such as dralon due
to the high temperature of the
steam.
Window squeegee
attachment Î
1Locate the window squeegee onto
the two tabs at the bottom of the
upholstery nozzle. Then push the
top of the squeegee until the clip
goes over the top of the upholstery
nozzle R.
• This attachment is ideal for cleaning
windows, mirrors, ceramic tiles and
other non porous smooth surfaces.
• Apply the steam evenly to the glass
surface from a distance of 10-15
cm. Then switch the steam off and
wipe the moisture off the glass from
top to bottom using the rubber
squeegee. Wipe the rubber
squeegee and the lower edge of
the window. Dry after every strip.
IMPORTANT: Glass surfaces can
be shattered by the sudden
application of excessive heat. Warm
glass surfaces first from a distance
of 20-25 cm. Continue at a
distance of 10-15 cm.
HINTS AND TIPS
Tube park
• During use the tubes and nozzle
can be stored in the park position
for short breaks whilst cleaning S.
Tool storage cart
The cleaner may be used with or
without the storage cart.
Press the button at the rear of the
cleaner and lift to remove the boiler
from the cart T.
The accessories for your steam
cleaner can be neatly stored in the
cart.
When replacing the steam cleaner
on the cart put hose inlet end „in
first, then with a firm downward
motion push till the button at the
back of the cart goes in then out, a
click will be heard.

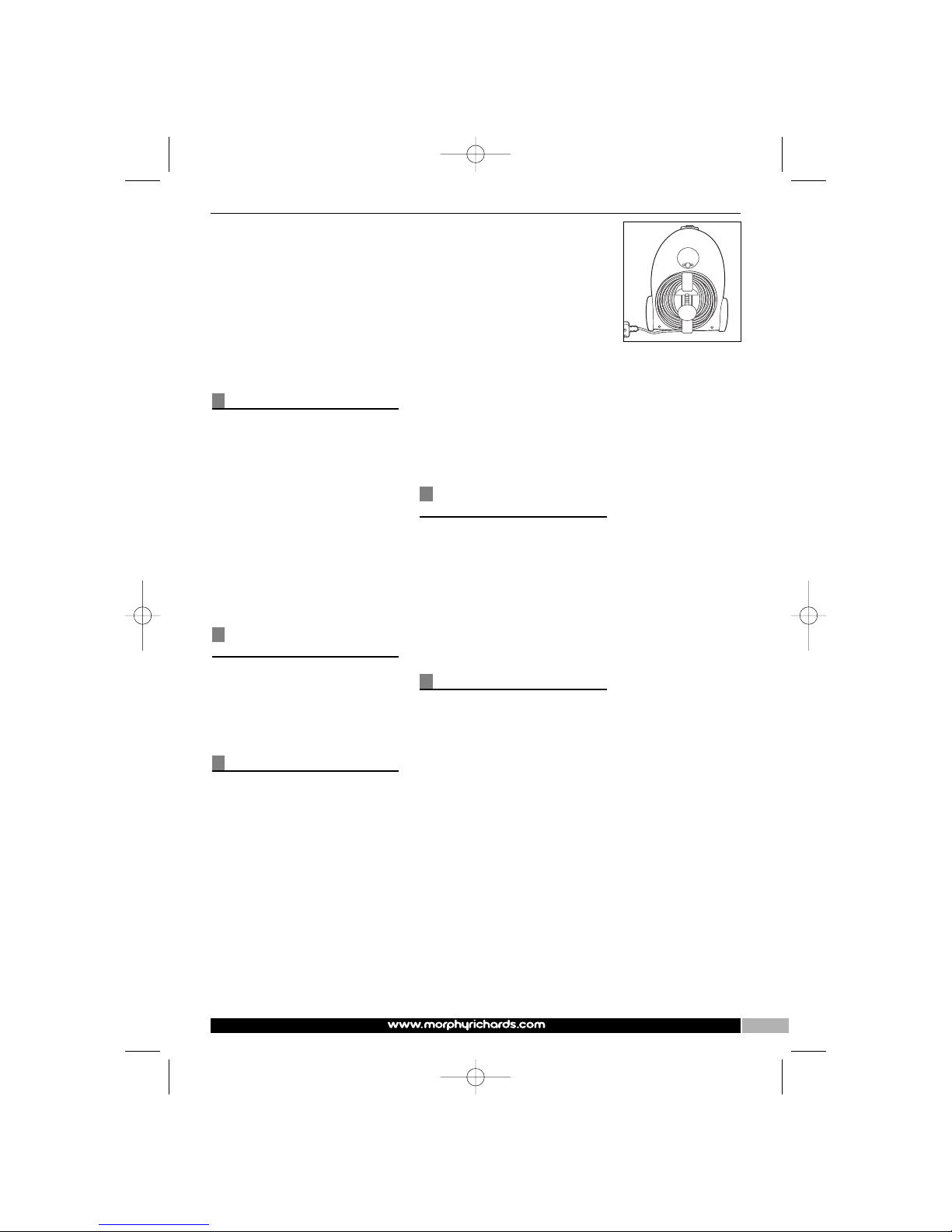

Cord storage
There is a cord storage facility on
the bottom of the cart. With the
cleaner on its heel, pull-out the
Q
R
S
T
70536 rev1 version2 7/9/07 14:42 Page 6

77
lower portion and rotate 1/2 a turn.
Pull the latch in the centre
downwards to let the upper
portion to move out. Wrap the
cable around the two hooks U.
For quick release of the cable
rotate the lower portion back 1/2 a
turn.
• Make certain cord storage is
returned and latched to its original
position before use.
After use
1Switch the cleaner off and unplug
from the socket. Wait until the
cleaner has cooled down
completely.
2Release any steam pressure by
pressing the steam trigger on the
handle.
3Apply the steam safety lock.
4Remove the filler cap.
5Empty the water tank. Allow the
inside of the water tank to dry out
before replacing filler cap.
Rinsing the water
tank
To clean the water tank fill it with
clean water and shake vigorously.
This will release any limescale
deposits that have collected on
the bottom of the tank. Pour the
water out by holding upside down.
Descaling
In order to prolong the life of your
cleaner you should descale the
steam tank at least every 6
months.
1Switch the cleaner off, unplug and
allow to cool.
2Empty any water out of the tank.
3Mix the descaler in the measuring
jug using warm water. We
recommend using 50gm of citric
acid crystals per 1 litre of water.
Citric acid crystals are available
from most pharmacies.
4Pour 1 litre of the descaler solution
into the tank.
5Fit the cap and tighten fully.
6Using the handle, move the steam
cleaner about to swill the solution
around the tank.
7Leave for 30 minutes.
8Empty the solution carefully.
9Rinse the tank with clean warm
water, then empty.
10 Wipe the outside of the cleaner
with a damp cloth to remove all
traces of descaler solution.
Warning: Do not switch on the
heater with the descaling
solution inside.
Cleaning and
maintenance
Unplug from the mains before
cleaning. The vacuum cleaner,
especially the dust compartment
and all accessories can be
cleaned using a damp cloth or a
non-abrasive domestic cleaner
and wiped dry.
To keep the underside of the floor
nozzle clean, vacuum it at regular
intervals using the crevice tool.
HELPLINE
If you have any difficulty with your
appliance, do not hesitate to call
us.
We are more likely to be able to
help than the store from where
you bought it.
Please have the following
information ready to enable our
staff to deal with your query
quickly:
• Name of the product.
• Model number as shown on the
underside of the appliance.
• Serial number as shown on
underside of the appliance.
UK Helpline 0845 077 7700
Ireland Helpline 1800 409 119
77
U
70536 rev1 version2 7/9/07 14:42 Page 7

8
88
Morphy Richards products are intended for household use only.
Morphy Richards has a policy of continuous improvement in product quality and
design. The company, therefore reserves the right to change the specification of
its models at any time.
The After Sales Division
Morphy Richards Ltd
Mexborough, SouthYorkshire,
England, S64 8AJ
Helpline (office hours)
UK 0845 077 7700
Republic of Ireland 1800 409 119
VC70536 MUK Rev 1 08/07
FFoorrddeettaaiillssooffootthheerrpprroodduuccttssiinntthheeMMoorrpphhyyRRiicchhaarrddssrraannggeepplleeaasseesseeeeoouurrwweebbssiittee......
YOUR TWO YEAR
GUARANTEE
It is important to retain
the retailer’s receipt as
proof of purchase. Staple
your receipt to this back
cover for future reference.
Please quote the following
information if the product
develops a fault. These
numbers can be found on
the base of the product.
Model no.
Serial no.
All Morphy Richards
products are individually
tested before leaving the
factory. In the unlikely event
of any appliance proving to
be faulty within 28 days of
purchase it should be
returned to the place of
purchase for it to be
replaced.
If the fault develops after
28 days and within 24
months of original
purchase, you should
contact the Helpline
number quoting Model
number and Serial number
on the product, or write to
Morphy Richards at the
address shown.
You may be asked to return
a copy of proof of
purchase.
Subject to the exclusions
set out below (see
Exclusions) the faulty
appliance will then be
repaired or replaced and
dispatched usually within 7
working days of receipt.
If you suspect a fault,
follow the simple checks
detailed below before
retrying the appliance or
calling the helpline.
• Check the filters for
blockages.
• Check the tools / tubes for
blockages.
• Check the plug is firmly in the
socket.
• Check the socket is working
by trying another appliance.
• Check the fuse in the plug.
If for any reason this item is
replaced during the 2 year
guarantee period, the
guarantee on the new item
will be calculated from
original purchase date.
Therefore it is vital to retain
your original till receipt or
invoice to indicate the date
of initial purchase.
To qualify for the 2 year
guarantee, the appliance
must have been used
according to the
instructions supplied.
EXCLUSIONS
Morphy Richards shall not
be liable to replace or
repair the goods under the
terms of the guarantee
where:
1The fault has been caused
or is attributable to
accidental use, misuse,
negligent use or used
contrary to the
manufacturer’s
recommendations or where
the fault has been caused
by power surges or
damage caused in transit.
2The appliance has been
used on a voltage supply
other than that stamped on
the products.
3Repairs have been
attempted by persons
other than our service staff
(or authorised dealer).
4Where the appliance has
been used for hire
purposes or non domestic
use.
5Morphy Richards are not
liable to carry out any type
of servicing work, under
the guarantee.
6The guarantee excludes
consumables such as bags
and filters.
• This guarantee does not
confer any rights other than
those expressly set out
above and does not cover
any claims for
consequential loss or
damage. This guarantee is
offered as an additional
benefit and does not affect
your statutory rights as a
consumer.
• This guarantee is valid in
the UK and Ireland only.
For electrical products sold within the
European Community. At the end of the
electrical products useful life it should
not be disposed of with household
waste.
Please recycle where facilities exist.
Check with your Local Authority or
retailer for recycling advice in your
country.
70536 rev1 version2 7/9/07 14:42 Page 8
