MODEL 400Z-60
Hydra-Lift, 60”, Manual Lift, Manual Tilt
Contents
Page
Receiving Procedures. . . . . . . . . . . . . . . . . 1
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2
Machine Description. . . . . . . . . . . . . . . . . . . 3 - 4
Assembly Instructions. . . . . . . . . . . . 5
Operating Instructions. . . . . . . . . . . . . . . . . . . 6
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . 7
Parts Lists and Diagrams. . . . . . . . . . . . 8 - 9
In all instances, liability is limited to the purchase price paid or to
repairing or replacing the product. Customer assumes liability for
any modications, unauthorized repairs or parts substitution.
Safety Information
While Morse Manufacturing Co. drum handling equipment
is engineered for safety and efficiency, a high degree of
responsibility must be placed upon the machine operator to
follow safe practices, based primarily on common sense, upon
which true safety depends.
Failure to follow the safety precautions in this manual can
result in personal injury or property damage. Observe the same
precautions as with similar machinery where carelessness
in operating or maintenance is hazardous to personnel.
Carefully read the safety precautions below and throughout
this manual.
Receiving Procedures
Every Morse drum handler is inspected prior to shipping.
However, damage may be incurred during transit.
• Check for visible damage. If you choose to accept damaged
freight, always sign noting the damage on the BILL OF
LADING.
• Document the damage and have the truck driver sign. We
recommend keeping a digital camera at your receiving dock
for this purpose.
• Open packages expeditiously to check the condition of the
goods. There is only a 24 hour window to notify the carrier of
any concealed damage.
• IMMEDIATELY REPORT ALL DAMAGE TO THE SHIPPING
COMPANY! Then you may contact Morse for assistance with
your freight claim.
• Morse Manufacturing will not be held responsible for any
damaged freight that is not signed for as damaged.
Delivery to non-business addresses without a loading dock
result in additional freight charges. Residential delivery fees,
inside delivery fees, re-delivery charges, and lift gate services
will be added by the truck line, and are non-negotiable.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects
in workmanship or materials for TWO YEARS when used
properly within its rated capacity. Warranty does not cover
wear from normal use or damage from accident or abuse.
Motors and other purchased parts carry the warranties of their
manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice. Return
freight must be prepaid.
Operator’s Manual
for Morse Hydra-Lift Drum Karrier
Model 400Z-60
Serial Number 0604 to 0110 (MMYY)

Safety Information (continued)
DANGER - Indicates a situation which, if not avoided, will result in
serious injury or death. This signal word is limited to the most extreme
situations.
WARNING - Indicates a situation which, if not avoided, could result in
serious injury or death.
CAUTION - Indicates a situation which, if not avoided, can result in
damage to the machine.
CAUTION – Do Not Transport with Drum Raised
ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The unit
can become unstable when transporting with a raised load.
DANGER - Stay Clear of Power Lines
KEEP WELL CLEAR OF POWER LINES. Never approach a power line. Current in a high voltage line may
arc some distance from the wire to the steel framed, grounded machine.
WARNING
The Hydra-Lift Karrier is designed to handle one drum of the types listed at the top of page 3, under 2.
Machine Description. DO NOT attempt to handle any other type of drum or object. DO NOT exceed the
weight capacity of 800 Lb.
WARNING - Level Floors Only
For operation only on clean, level oors of suitable bearing capacity. Do not use on sloped surfaces, ramps,
irregular or debris strewn oors.
WARNING - Do Not Modify the Unit
Under no circumstances should any modications be made to the Morse machinery without factory
authorization. Any modications may void the warranty. This machine was designed to perform a specic
job and alterations may result in injury to operator or machine.
WARNING - No Loose Fitting Clothing
Wear close-tting clothing and safety equipment appropriate to the job. Loose tting clothing may become
caught on the machinery and cause severe personal injury.
WARNING - Hydraulic Fluid Under Pressure Can Be Hazardous
Escaping hydraulic uid under pressure can penetrate the skin, causing serious injury. Avoid the hazard
by relieving pressure before disconnecting hydraulic lines. Keep hands and body away from pinholes and
nozzles, which eject uid under high pressure. Use a piece of cardboard to search for leaks. If an accident
occurs, see a doctor immediately and inform them of the nature of the accident.
CAUTION - Wear Safety Shoes
Wear safety shoes with non-slip soles and hard toe protection.
Copyright 2010 - Morse Mfg. Co., Inc. Form PL400Z-60 (0604-0110) (Updated 04/2010) Page 2
Operator’s Manual for Morse Hydra-Lift Drum Karrier Model 400Z-60
Serial Number 0604 to 0110 (MMYY)
The Specialist In Drum Handling Equipment
MODEL 400Z-60
Hydra-Lift, 60”, Manual Lift, Manual Tilt

Copyright 2010 - Morse Mfg. Co., Inc. Form PL400Z-60 (0604-0110) (Updated 04/2010) Page 3
Machine Description
The Model 400Z-60 Hydra-Lift Karrier will pour a drum up to 60” high, measured from the oor to the lowest point of a horizontal
drum. It is designed to lift, transport, and dispense a ribbed 55-gallon steel drum 22.5” in diameter. The maximum full-drum
capacity is 800 Lb. The capacity is derated to 500 Lb. for a half-full drum. The half-full rating is based on the tilt mechanism’s
capacity for handling an unbalanced bottom-heavy drum.
Options
• A smaller diameter drum can be handled with the correct size 55/30 Series Diameter Adaptor installed
(see Diameter Adaptor literature)
• A 55-gallon plastic drum can be handled with either the Adjustable Bracket (Part # 1465-P) or the Top Rim Clamp
(Part # 3540-P). Use the Top Rim Clamp with a plastic drum that has a suitable top rim (see gure 2.1). Use the Adjustable
Bracket for a drum with or without a top rim (see gure 2.2).
Operator’s Manual for Morse Hydra-Lift Drum Karrier Model 400Z-60
Serial Number 0604 to 0110 (MMYY)
The Specialist In Drum Handling Equipment
MODEL 400Z-60
Hydra-Lift, 60”, Manual Lift, Manual Tilt

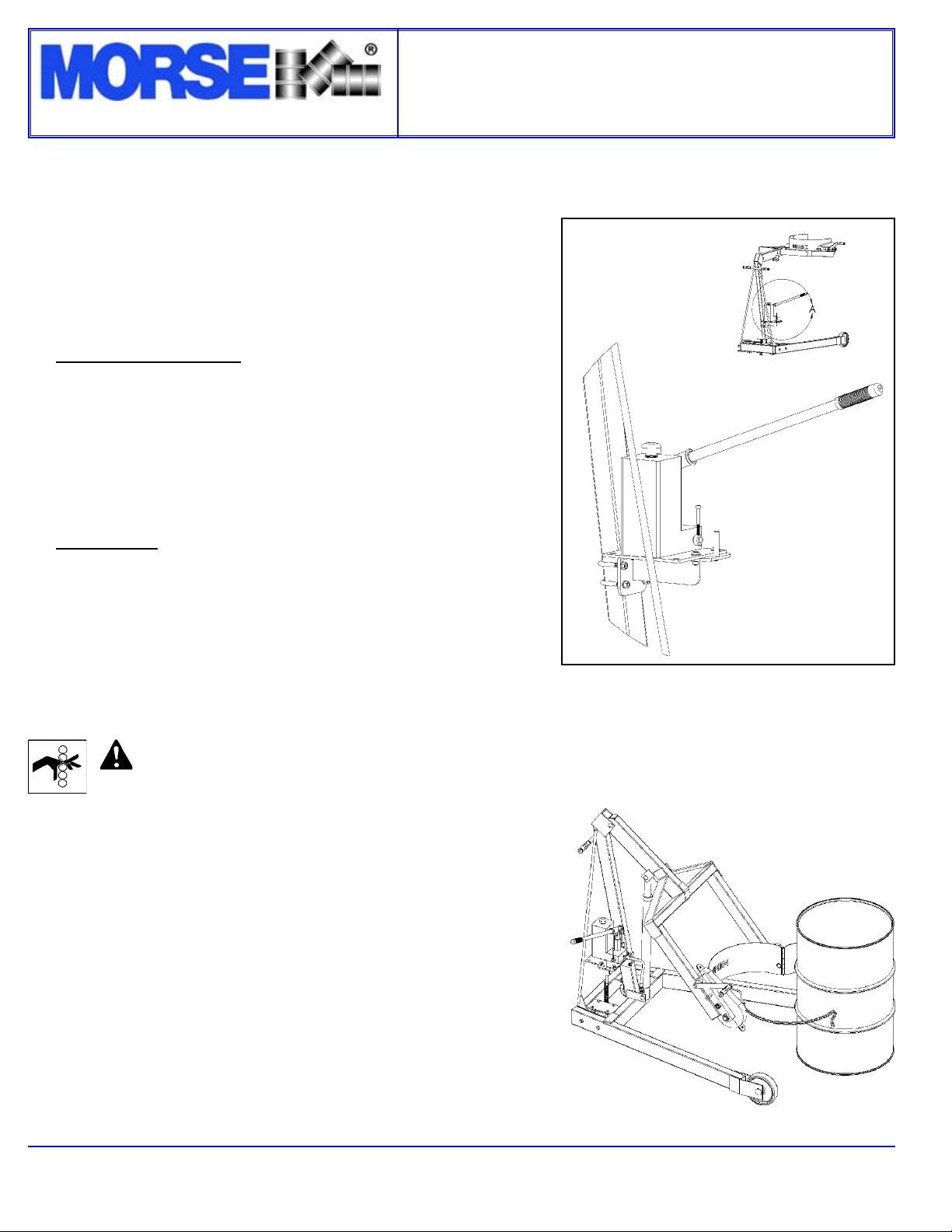

Figure 2.1
Plastic drum being lifted with
part number 3540-P Rim Clamp
Assembly installed.
Figure 2.2
Plastic drum being lifted with part
number 1465-P Bracket Assembly
installed.

Controls
The Morse Hydra-Lift Karrier is manually propelled and steered.
There are two functions for the operator to control (Figure 3):
1. “LIFT” and lower function for vertical positioning of the drum
2. “TILT” function to control the degree of rotation of the drum
1. LIFT and Lower Function
To raise the drum
a. Insert pump lever handle into pump socket.
b. With the release valve closed, begin to pump the lever handle. The
drum will lift.
To lower the drum
a. Open the release valve slowly, a part of a turn. Allow the drum to descend
at a controlled rate. The valve may be reclosed to hold the drum at any
height.
2. TILT Function
To tilt the drum
a. Turn the hand crank (item 90) to turn the drum.
b. Before releasing your grip on the hand crank, pull out the crank stop pin
(item 89) to block the hand crank from spinning freely.
c. If the drum handler is equipped with the MORStop Tilt-Brake,
there is no need to use the stop pin. Braking is immediate and
self-actuating, without additional steps by the operator.
Note: To add the MORStop Tilt-Brake to an existing drum handler, order
part # 3900-P for a eld installation kit.
Copyright 2010 - Morse Mfg. Co., Inc. Form PL400Z-60 (0604-0110) (Updated 04/2010) Page 4
WARNING - Watch Out for Pinch Points
Stay clear of moving parts. Operator should remain behind the push handle during the lift operation.
Floor Lock
The screw-down oor lock is located on the base of the tower (gure 3.1).
Turning the oor lock clockwise until it locks in the down position activates
the oor lock. When the oor lock is activated it prevents unwanted free
wheeling of the unit. Floor conditions determine the effectiveness of the
oor lock. The operator should verify its holding action before depending
on it to hold.
Drum Holder Assembly
The drum holder assembly (or “saddle assembly”) is the component on
the Hydra-Lift Karrier that is intended to hold the drum. The drum holder
assembly is designed to secure a standard ribbed 55-gallon steel drum
around it’s middle using a cinch chain and ratchet tightening system. The
drum holder accepts accessories for handling a 55-gallon plastic drum or a
smaller diameter drum.
Operator’s Manual for Morse Hydra-Lift Drum Karrier Model 400Z-60
Serial Number 0604 to 0110 (MMYY)
The Specialist In Drum Handling Equipment
MODEL 400Z-60
Hydra-Lift, 60”, Manual Lift, Manual Tilt
Figure 3.1
Figure 3.

Copyright 2010 - Morse Mfg. Co., Inc. Form PL400Z-60 (0604-0110) (Updated 04/2010) Page 5
Assembly Instructions for Morse Hydra-Lift Drum Karrier Model 400Z-60
Serial Number 0604 to 0110 (MMYY)
Step #1: Place tower on oor, push-handle down. See gure 1.
Step #2: Attach each leg (item 4) using two 3/8-16x3” grade 5 bolts
(item 2), at washers (item 3), and lock nuts (item 13) as
shown. Wheels should be parallel when assembled properly.
See gures 1 & 2.
Step #6: Remove sealing plug from the top of hydraulic reservoir and ll reservoir with included container of hydraulic uid. Replace sealing plug
with the included breather plug. Your Hydra-Lift Karrier is now ready for service. Please refer to the operating and maintenance instructions
provided.
Step #3: Tip the tower up so it stands on the casters and wheels.
Step #4: Lift overhead assembly into position. A drift pin can help align the holes. Insert a greased clevis pin (item 12) through mast cap and boom.
Install a 5/8” washer (item 9) and 3/16” roll pin (item 8) in the end of the clevis pin. See gure 3.
Step #5: Next, connect the cylinder (item 16) to the overhead assembly: Align ram eye with holes in boom clevis plates and insert a greased clevis pin
(item 12) with four 5/8”washers (item 9). Place another washer (item 9) on outer end of clevis pin and drive a 3/16” roll pin (item 8) into the
hole at the end of clevis pin. See gure 4.
Please unpack and identify the following parts:
1 ea. Tower with hydraulic pump and cylinder, etc.
2 ea. Legs with wheels
1 ea. Overhead assembly with drum holder, etc.
1 ea. Package with hardware
NOTE: The clevis pins and mating surfaces at their joints should be
coated with grease during assembly.
FIGURE 4FIGURE 3
FIGURE 1 FIGURE 2
The Specialist In Drum Handling Equipment
MODEL 400Z-60
Hydra-Lift, 60”, Manual Lift, Manual Tilt

Operating Instructions
1.) Push the Hydra-Lift Karrier to the drum.
2.) Using the “LIFT” control as described in “Machine Description
- Controls” (page 3) , position the drum holder assembly with
the back band at the middle of the drum. (Figure 3.1). With
the ratchet plate swung open and the cinch chain hanging
from the chain hook, push the unit until the back band rests
rmly against the drum. Some adjustment to the tilt angle of
the saddle may be necessary to ensure band ts ush on the
drum.
3.) Attaching the drum:
Drape the chain across the front of the drum and engage a link
into the slot in the ratchet (Figure 3.2). Turn the ratchet clockwise to tighten chain. If ratchet turns until the pawl is beyond the
last ratchet tooth, turn the ratchet back and slide the next link into the ratchet slot and try tightening again. The chain must
be held tightly against the drum with the pawl engaged securely in the ratchet teeth.
4.) Operate the lift function to lift drum clear of oor. Roll to dispensing location. NOTE: Do not allow the drum to impact on oor,
pouring station, etc. or a spill or damage could occur.
CAUTION – Do Not Transport with Drum Raised
ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The unit
can become unstable when transporting with a raised load.
5.) Lift drum to desired pouring height. Operate the tilt control as described in “Machine Description - Controls” (page 3)
to adjust the drum attitude. This is especially important when lifting an open drum. The oor lock should be engaged while
dispensing / draining.
6.) When dispensing is complete, tilt drum back to upright position. Disengage the oor lock and lower the drum to transporting
height; about 6” off the oor.
WARNING - Stay Clear of Raised Drum
NEVER allow anyone to be below any part of a raised drum handler or drum. Remain behind the push handle
while handling a drum.
WARNING – Do NOT Disengage the Cinch Chain When Drum is off the Ground
When the drum is in the upright position, lower the drum to the oor before releasing the cinch chain.
7.) Push the unit to the drum storage area and lower to the oor in an upright position. Release the cinch chain from the
ratchet by applying pressure to the ratchet handle in a clockwise direction with one hand and opening the pawl to free the
ratchet with the other hand. Remove the cinch chain link from the ratchet.
Figure 3.2
Operator’s Manual for Morse Hydra-Lift Drum Karrier Model 400Z-60
Serial Number 0604 to 0110 (MMYY)
Copyright 2010 - Morse Mfg. Co., Inc. Form PL400Z-60 (0604-0110) (Updated 04/2010) Page 6
The Specialist In Drum Handling Equipment
MODEL 400Z-60
Hydra-Lift, 60”, Manual Lift, Manual Tilt

Copyright 2010 - Morse Mfg. Co., Inc. Form PL400Z-60 (0604-0110) (Updated 04/2010) Page 7
Maintenance
Periodic inspection for the general condition of structural and mechanical components is imperative for safe and efcient
operation.
Periodically inspect all moving parts, framework, and contact areas for signs of wear, fatigue, or loosening. Tighten, adjust, or
replace parts as necessary to prevent failure and maintain proper function.
Inspect the hydraulic system for oil drips, hose damage, or other signs of wear. Inspect the level and condition of the hydraulic
uid. Replace any parts that show signs of wear.
Grease wheel bearings periodically. Oil or grease all moving parts including: the three clevis pins and the surfaces of the boom
which contact the inside of the mast cap, the hinge pin, the gears and sprockets in the tilt drive, and the ratchet and pawl.
Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.
Operator’s Manual for Morse Hydra-Lift Drum Karrier Model 400Z-60
Serial Number 0604 to 0110 (MMYY)
The Specialist In Drum Handling Equipment
MODEL 400Z-60
Hydra-Lift, 60”, Manual Lift, Manual Tilt

Copyright 2010 - Morse Mfg. Co., Inc. Form PL400Z-60 (0604-0110) (Updated 04/2010) Page 8
Parts List for Morse Hydra-Lift Drum Karrier Model 400Z-60
Serial Number 0604 to 0110 (MMYY)
The Specialist In Drum Handling Equipment
MODEL 400Z-60
Hydra-Lift, 60”, Manual Lift, Manual Tilt
ITEM QTY. PART # DESCRIPTION
1 1 3676-60-P OVERHEAD ASM, 400Z-60 W/ APS
2 4 1521-P HHCS, 3/8-16 X 3 GR5
3 4 1166-P WASHER, 3/8 USS 1” OD
4 2 134-P LEG WELD, 400A-72, 60
5 2 704-P AXLE, 3/4”, USE WITH PUSH-ON
6 2 705-P CAP, HUB, PUSH-ON, 3/4”
7 * 2 87-P WHEEL, MORTUF, 8”, 3/4” BRG
8 3 64-P ROLL PIN, 3/16 X 1-1/4
9 7 17-P WASHER, 5/8 SAE FL 1-5/16 OD
10 * 2 3308-P CASTER, 4” SWIVEL, DBL RACE
11 12 491-P NUT, 5/16-18 REV HEX LOCK
12 3 138-P CLEVIS PIN 5/8 X 3”
13 4 1169-P NUT, 3/8-16 REV HEX LOCK
14 8 215-P HHCS, 5/16-18 X 5/8 GR2
ITEM QTY. PART # DESCRIPTION
15 1 3610-P HYD FIT, MALE ELBOW, SAE
16 1 781-P CYLINDER, 1.5 X 22.625”, SAE
17 2 136-P GRIP, HANDLE 7/8” X 4-3/4”
18 1 135-P ASM, TOWER, 400A-60, 72
19 1 3679-P KIT, PUMP MOUNT PLATE, ML MT
20 8 1570-P WASHER, 5/16 USS 7/8 OD
21 2 3641-P U-BOLT, 3/8-16, 400 PUMP MOUNT
22 1 3642W-P MOUNT PLATE WELD, MANUAL PUMP
23 4 1474-P WASHER, 3/8 SPLIT LOCK
24 4 149-P NUT, 3/8-16 FIN HEX
25 4 35-P HHCS, 5/16-18 X 1 GR2
26 1 766-P HYD HOSE ASM, 12”
27 1 96MK1939-P PUMP, HYD, HAND STAR
28 1 96CP13-23 HANDLE, LEVER W/ GRIP, STAR
* Recommended spare parts

Copyright 2010 - Morse Mfg. Co., Inc. Form PL400Z-60 (0604-0110) (Updated 04/2010) Page 9

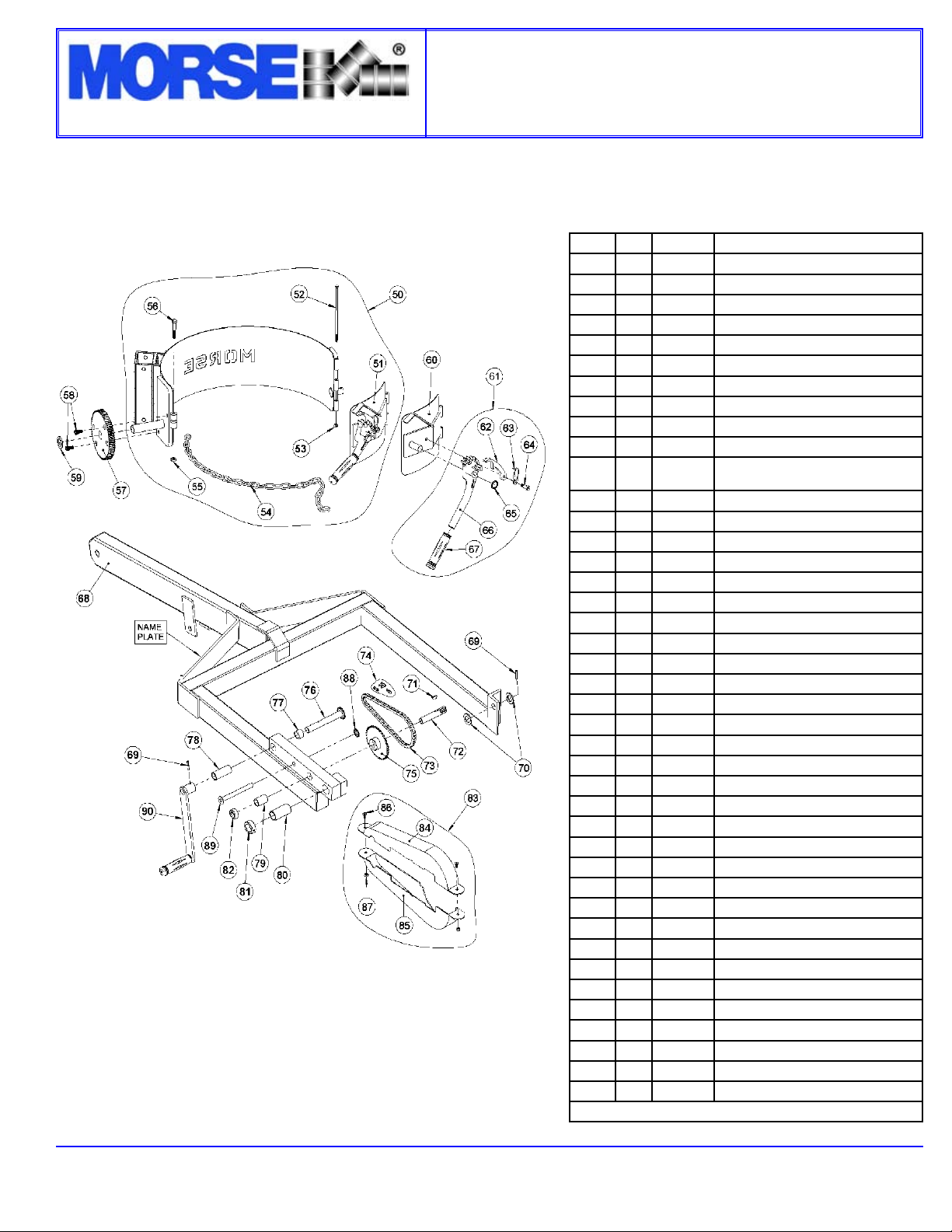

Overhead Assembly (Part Number 3676-60-P)
for Morse Hydra-Lift Drum Karrier Model 400Z-60
Serial Number 0604 to 0110 (MMYY)
The Specialist In Drum Handling Equipment
MODEL 400Z-60
Hydra-Lift, 60”, Manual Lift, Manual Tilt
ITEM PART # DESCRIPTION
50 1 725Z-P SADDLE ASM, W/ APS SOCKET, 285
51* 1 726-P A RATCHET HINGE PLATE CPT 1/4”
52* 1 1296-P HHCS, 1/4-20 X 7-1/2 GR5
53* 1 1297-P NUT, LOCK, 1/4-20 REV HEX
54* 1 180-P CHAIN, CINCH, 3/16 ALLOY 33 LK
55* 1 4081-P NUT, M8 ESNA, 8MM
56* 1 4079-P HHCS, M8 X 60 MM CL8.8, 8MM
57 1 23-P GEAR, SPUR, 72T, 1” HOLE
58 2 22-P SHCS, 3/8-24 X 5/8
59 1 29-P SPACER, SPUR GEAR .15”
60 1 731-P A RATCHET HINGE PLATE ONLY 1/4
(not sold separately)
61 1 165KIT-P KIT, RATCHET CHAIN TIGHTENER
62 1 168-P PAWL, WITH DRILLED HOLE
63 1 169-P PAWL SPRING
64 1 170-P SCREW, SHOULDER, 3/8 DIA X 5/8
65 1 710-P RETAINER, RATCHET PUSH NUT 3/4
66 1 165-P RATCHET, MALLEABLE, FOR SADDLE
67 2 136-P GRIP, HANDLE 7/8” X 4-3/4”
68 1 790-72-P OVERHEAD WELD, 400A-72
69 2 64-P ROLL PIN, 3/16 X 1-1/4
70 2 55-P WASHER, 3/4 SAE FL 1-1/2 OD
71* 1 735-P KEY, WOODRUFF, SIZE 9, ASA606
72* 1 14-P GEAR, PINION, 7 TOOTH
73* 1 12-P CHAIN, ROLLER, #35 W/ M LINK
74 1 795-P LINK, MASTER, #35 CHAIN
75 1 13-P SPROCKET #35 36T, 3/4” BORE
76* 1 1302-P SHAFT W/ 12T SPROCKET, POCKET
77* 1 1411-P SPACER FOR SHAFT W/ 12T
78* 1 19-P BEARING, 3/4” ID X 2-1/2”
79* 1 7-P BEARING, 3/4” ID X 1-1/2”
80* 1 18-P BEARING, 1” ID X 2-1/2”
81 1 16-P COLLAR, 1” ID
82 1 15-P COLLAR, 3/4” ID
83 1 4062-P KIT, POLY COVER, 185, 285, 400
84 1 4060-P COVER HALF, TOP, PLASTIC, A
85 1 4061-P COVER, BOTTOM, PLASTIC, A
86 2 1517-P SCREW, PANHEAD, 1/4-20 X 5/8
87 2 1518-P NUT, LOCK, 1/4-20 NYLON
88* 1 718-P NUT, PUSH, 1/2
89* 1 100-P STOP PIN, HAND CRANK, 1/2 X 5
90* 1 5U-P HAND CRANK, W/ SOCKET TUBE
* Recommended spare parts
