morse 82A-120 User manual

Copyright 2019 - Morse Mfg. Co., Inc. Form PL82A-120 (0212-0213) (Updated 24 May, 2019 11:54 AM) 1
The Specialist In Drum Handling Equipment
Model 82A-120
Mobile-Karrier / Palletizer
with AC Power Lift
CONTENTS
Page
Receiving Procedures. . . . . . . . . . . . . . . . . . . . 1
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2
Machine Description. . . . . . . . . . . . . . . . . . . 3
Operating Instructions. . . . . . . . . . . . . . . . . . . . 4
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . 4
Parts Lists and Diagrams. . . . . . . . . . . . . . . . . . 5 - 6
Operator’s Manual
for Morse Mobile-Karrier / Palletizer
Model 82A-120
Serial Number 0212 to 0213 (MMYY)
Receiving Procedures
Every Morse drum handler is inspected prior to shipping. However,
damage may be incurred during transit.
Check for visible damage. If you choose to accept damaged•
freight, always sign noting the damage on the Bill of
Lading.
Document the damage and have the truck driver sign. We•
recommend keeping a digital camera at your receiving dock
for this purpose.
Open packages expeditiously to check the condition of the•
goods. There is only a 24 hour window to notify the carrier
of any concealed damage.
Immediately• report all damage to the shipping company!
Then you may contact Morse for assistance with your
freight claim.
Morse Manufacturing will not be held responsible for any•
damaged freight that is not signed for as damaged.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects in
workmanship or materials for two years when used properly within
its rated capacity. Warranty does not cover wear from normal use
or damage from accident or abuse. Motors and other purchased
parts carry the warranties of their manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice. Return
freight must be prepaid.
In all instances, liability is limited to the purchase price paid or to
repairing or replacing the product. Customer assumes liability for
anymodications,unauthorizedrepairsorpartssubstitution.
Safety Information
While Morse Manufacturing Co. drum handling equipment is
engineeredforsafetyande󰀩ciency,ahighdegreeofresponsibility
must be placed upon the machine operator to follow safe practices,
based primarily on common sense, upon which true safety
depends.
Failure to follow the safety precautions in this manual can result in
personal injury or property damage. Observe the same precautions
as with similar machinery where carelessness in operating or
maintenance is hazardous to personnel. Carefully read the safety
precautions below and throughout this manual.
Review the Material Safety Data Sheet(s) for the material(s) in
the drum(s) and take all necessary precautions. Safety shoes,
work gloves, hard hat and other personal protective devices are
recommended.
Prior to initial use, inspect all moving parts. Inspect saddle
assembly for proper operation. Perform necessary load test,
inspections, operator training, etc.
[email protected] 103 Kuhn Rd.
Syracuse, NY, 13208 USA
morsedrum.com (315) 437-8475
The Specialist In Drum Handling Equipment
Model 82A-120
Mobile-Karrier / Palletizer
with AC Power Lift
Operator’s Manual for Model 82A-120 Morse Mobile-Karrier / Palletizer
Serial Number 0212 to 0213 (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL82A-120 (0212-0213) (Updated 24 May, 2019 11:54 AM) 2
Safety Information (continued)
DANGER - Indicates a situation which, if not avoided, will result in serious injury or death.
This signal word is limited to the most extreme situations.
WARNING - Indicates a situation which, if not avoided, could result in serious injury or
death.
CAUTION - Indicates a situation which, if not avoided, can result in damage to the machine.
CAUTION – Do Not Transport with Drum Raised. Always lower the drum holder to lowest position
before transporting.
WARNING - The Mobile-Karrier / Palletizer is designed to handle one drum of the types listed at the
top of page 3. Machine Description. DO NOT attempt to handle any other type of drum or object. DO
NOT exceed the weight capacity of 600 Lb. (272 kg)
WARNING - Level Floors Only
Foroperationonlyonclean,leveloorsofsuitablebearingcapacity.Donotuseonslopedsurfaces,
ramps,irregularordebrisstrewnoors.
WARNING -DoNotModifytheUnit.Undernocircumstancesshouldanymodicationsbemadeto
theMorse machinery without factory authorization. Any modications may void thewarranty.This
machine was designed to perform a specic job and alterations may result in injury to operator or
machine.
WARNING -NoLooseFittingClothing.Wearclose-ttingclothingandsafetyequipmentappropriate
tothejob.Loosettingclothingmaybecomecaughtonthemachineryandcauseseverepersonal
injury.
WARNING - Hydraulic Fluid Under Pressure Can Be Hazardous
Escaping hydraulic uid under pressure can penetrate the skin, causing serious injury.  Avoid the
hazard by relieving pressure before disconnecting hydraulic lines. Keep hands and body away from
pinholesandnozzles,whichejectuidunderhighpressure.Useapieceofcardboardtosearchfor
leaks. If an accident occurs, see a doctor immediately and inform them of the nature of the accident.
CAUTION - Wear safety shoes with non-slip soles and hard toe protection.
CAUTION -DONOTallowdrumtoimpactonoor,ground,ordumpingstation,etc.
WARNING: This product can expose you to chemicals including cobalt, titanium dioxide, and 2-methylimidazole,
which are known to the State of California to cause cancer, and bisphenol-A, which is known to the State of
California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
The Specialist In Drum Handling Equipment
Model 82A-120
Mobile-Karrier / Palletizer
with AC Power Lift
Operator’s Manual for Model 82A-120 Morse Mobile-Karrier / Palletizer
Serial Number 0212 to 0213 (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL82A-120 (0212-0213) (Updated 24 May, 2019 11:54 AM) 3
Machine Description
The Mobile-Karrier / Palletizer is designed to lift, transport, and dispense
a ribbed 55-gallon steel drum 22.5” in diameter. The maximum capacity is
600 Lb. (272 kg)
Options
A smaller diameter drum can be handled with the correct size 55/30•
Series Diameter Adaptor installed (see Diameter Adaptor literature).
The• Bracket Assembly (Part # 4556-P) is required to handle a plastic
drumwithoutatoprim(seegure2.1).Itisalsorecommendedtomore
securelyhandleaberdrum.YoucanusetheBracketAssemblywith
a55-gallonplastic,steelorberdrum.Thebraceattopandbottomof
the drum prevent it from slipping lengthways through the drum holder. It
adjusts for a drum 31” to 37” tall.
The• Top Rim Clamp (Part # 4560-P) grips the upper rim of your drum
topreventitfromslippingthroughthedrumholder(seegure2.2).To
handle a 55-gallon plastic drum with top rim, you must install either
theBracketAssemblyortheTopRimClamp.YoucanusetheTopRim
Clampwitha55-gallonplastic,steelorberdrumwithsuitabletoprim
Controls
The Morse Mobile-Karrier
/ Palletizer is manually
propelled and steered. The
drum lift function is powered
by a single phase 115V AC
motor with a momentary
switch.cord and plug.
There are two functions for the operator to control:
“LIFT” and lower function for vertical positioning of the drum1.
“TILT” function to control the degree of rotation of the drum2.
LIFT and Lower Function (Figure 2.3)
To raise the drum
Plug the motor into a standard 115V power supply.•
Turn the motor on by holding the momentary switch in the on position.•
The drum will lift.
Release the momentary switch when the drum is at the desired height.•
Tolowerthedrum:Withthemotoro󰀨,pushintheLOWERhandle.
TILT Function to tilt the drum
Either one of the two spring loaded plunger tilt-locks may be locked to1.
hold the drum upright. It is not necessary to lock both of them.
Position drum at pouring station.2.
Beforeunlockingthetilt-lock(s)topermittiltingthedrum,it3.
is recommended that you steady the drum and be prepared for its
possible tendency to tilt toward its heavier side.
With both tilt-locks unlocked, manually tilt the drum for pouring. The4.
drum pouring angle may be varied or it can be locked in horizontal
position by one of the tilt-locks.
WARNING: Keep hands and ngers clear of tilt lock hole, as a pinch point
will occur when drum rotates.
Figure 2.2
Plastic drum being lifted
with part number 4560-P
Top Rim ClampAssembly
installed.
Figure 2.1
Plastic drum being lifted
with part number 4556-P
BracketAssembly
installed.
Figure 2.3
The Specialist In Drum Handling Equipment
Model 82A-120
Mobile-Karrier / Palletizer
with AC Power Lift
Operator’s Manual for Model 82A-120 Morse Mobile-Karrier / Palletizer
Serial Number 0212 to 0213 (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL82A-120 (0212-0213) (Updated 24 May, 2019 11:54 AM) 4

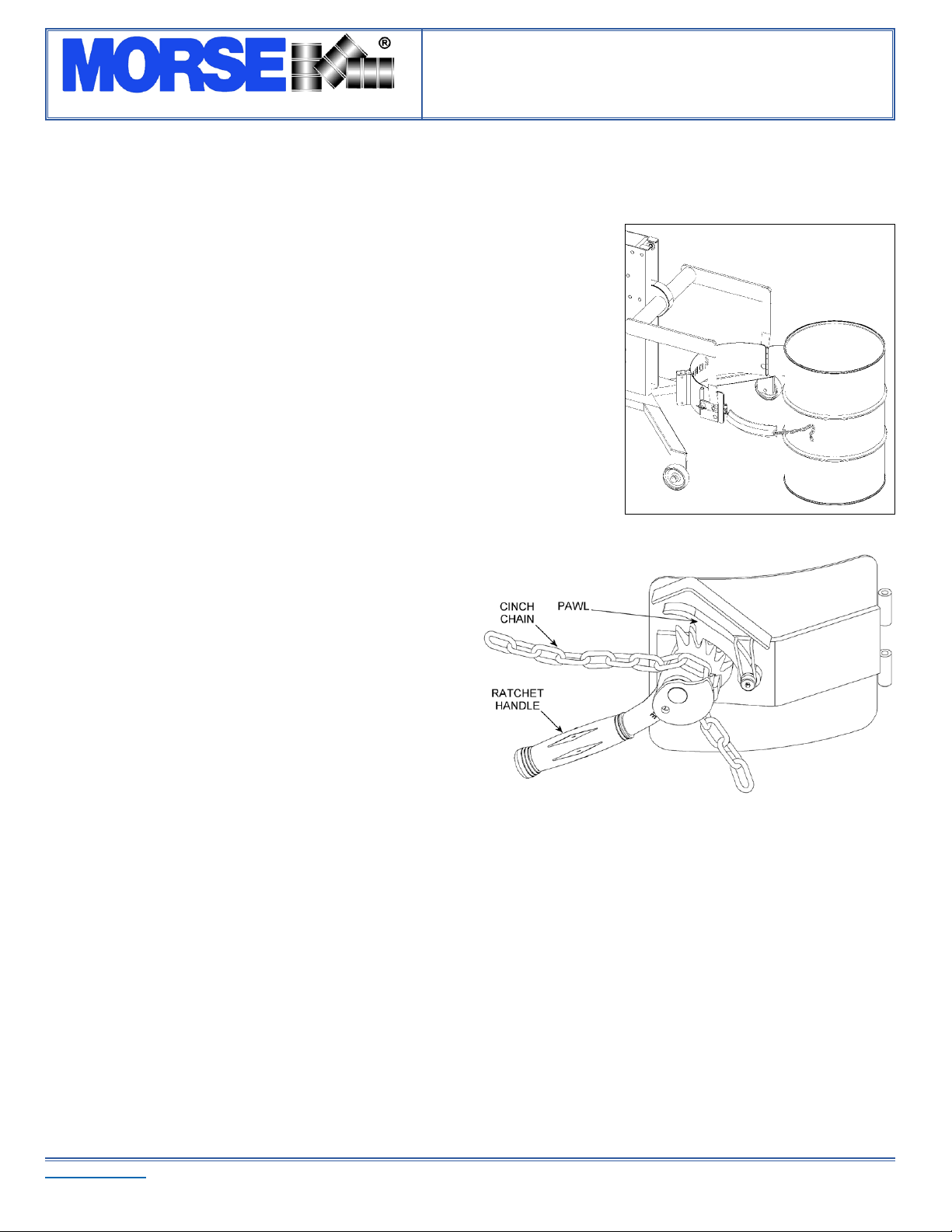

Operating Instructions
Rolldrumliftertodrum.Steerunitsodrumholdermeetsmiddleofdrum.Operatehydraulics1.
as necessary. Roll the unit forward and push drum holder so it slips around the drum.
WARNING: Keep hands and other objects away from top opening of lifting frame.
To secure drum: drape cinch chain across face of drum and engage a link2.
into notch in hub of ratchet. Pull up on ratchet handle to tighten chain. If
ratchet turns to extent that pawl is beyond last ratchet tooth and chain is not
tight, back up and try putting next link in notch. Chain should tighten as ratchet
turns and be held tight by teeth of ratchet & pawl. Firm hand pressure on
ratchet handle should tension chain su󰀩ciently to secure drum. DO NOT use
mechanical aids such as a pipe to extend ratchet handle for extra leverage.
Operateliftfunctiontoraisedrumo󰀨theoor,pushdrumliftertodeliverdrum.Avoid3.
unreasonably rough or non-level surfaces. Move at moderate speed. Carry drum only
highenoughtoavoidcontactwiththeoororobstacles.Pushloadedunitwhenpossible
for transporting. Pulling unit should be limited to maneuvering at short distance.
Either one of the two spring loaded plunger tilt locks may4.
be locked to hold drum upright. Unlocking both will permit
drum to be tilted. Drum pouring angle may be varied or
drum can be locked in horizontal position by inserting one
tilt lock. It is not necessary to lock both tilt locks. Before
unlocking tilt lock it is recommended that you steady drum
and prepare to resist its tendency to tilt toward its heavy end.
WARNING: Keep hands and ngers clear of tilt lock hole,
as a pinch point will occur when drum rotates.
Before unloading drum, release tilt locks and return drum5.
to upright. Lower drum at a controlled rate.
To remove drum: pull ratchet handle clockwise to relieve6.
pressure on ratchet teeth. Lift pawl handle to release teeth
engagement and rotate ratchet counterclockwise to loosen
chain and allow its removal from notch. Pull unit away
and park on level oor, out of tra󰀩c lanes when not in use.
Adjustment for Shorter Drums: The drum holder assembly is factory set in upper position for handling typical 55 gallon drums. For7.
handling shorter drums such as typical 30 gallon drums, relocate drum holder assembly downward as follows: Detach by removing nuts
that hold it to lifting assembly. Reattach at alternate location 6” lower.
Maintenance
Periodicinspectionforthegeneralconditionofstructuralandmechanicalcomponentsisimperativeforsafeande󰀩cientoperation.•
Periodically inspect all moving parts, framework, and contact areas for signs of wear, fatigue, or loosening. Tighten, adjust, or replace•
parts as necessary to prevent failure and maintain proper function.
Inspectthehydraulicsystemforoildrips,hosedamage,orothersignsofwear.Inspectthelevelandconditionofthehydraulicuid.•
Replace any parts that show signs of wear.
Grease wheel bearings periodically. Oil or grease all moving parts including: Tilt locks, fulcrum shafts, the hinge pin, and the ratchet•
and pawl.
Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.•
HydraulicpumpisshippedlledwithNocoPremiumplusautomatictransmissionuidd/m.Materialsafetydatasheet(msds)isavailable•
online. Change oil yearly, sooner depending on dirty conditions or outdoor use. Replace oil with Mobil dte 24 or equivalent for indoor
use (Mobil dte 13 for outdoor use).
The Specialist In Drum Handling Equipment
Model 82A-120
Mobile-Karrier / Palletizer
with AC Power Lift
Operator’s Manual for Model 82A-120 Morse Mobile-Karrier / Palletizer
Serial Number 0212 to 0213 (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL82A-120 (0212-0213) (Updated 24 May, 2019 11:54 AM) 5
ITEM QTY. PART # DESCRIPTION
1* 2 8160-P WHEEL,6”,3/4”BRG,81,82
2* 2 705-P CAP,HUB,PUSH-ON,3/4”
3 2 83-P GRIP, HANDLE, 1-1/4 X 4-1/2
4* 2 3308-P CASTER,4”SWIVEL,DBLRACE
5 8 35-P HHCS, 5/16-18 X 1 GR2
6 8 1570-P WASHER, 5/16 USS 7/8 OD
7 8 1650-P WASHER, 5/16 SPLIT LOCK
8* 4 3194-P BEARING,3/4ID,82,500,600
9 4 166-P SNAP RING, EXTERNAL, 82
10 1 5177-P RISER WELD, 82 SERIES
11 1 3371Z-P OVERHEAD ASM, 82A
12 2 64-P ROLL PIN, 3/16 X 1-1/4
13 4 17-P WASHER, 5/8 SAE FL 1-5/16 OD
14 2 91-P NUT, 1/2-13 FIN HEX
15 2 1644-P WASHER, 1/2 SPLIT LOCK
16 1 3611-P CYLINDER, 1 X 24, SAE 82
ITEM QTY. PART # DESCRIPTION
17 1 8260-P PIN, CLEVIS, CYL, 5/8, 82
18 1 3612-P HYD FIT, SAE ADAPTER
19 2 82-P HHCS, 3/8-16 X 2-1/4 GR2
20 6 1474-P WASHER, 3/8 SPLIT LOCK
21 1 5253-P HYD HOSE ASM, 40”, 82 SERIES
22 1 345-P HYD FIT, MALE FLARE, 456, 82
25 1 M4509-P HYD POWER PACK, -120, -124
26 1 1062-P MOTOR 1HP 1PH TEFC 56C W/ CORD
28 1 3633-P SWITCH, TOGGLE, MOMENTARY, 400
29 4 1572-P HHCS, 3/8-16 X 1 GR2
30 2 62-P WASHER, 3/4 SPRING
31 2 64-P ROLL PIN, 3/16 X 1-1/4
32 2 61-P ROLL PIN, 3/16 X 2-1/2
33 2 59-P PLUNGER, 80, 85
34 2 60-P SPRING, PLUNGER, 80, 85
35 1 101Z-P SADDLE,808285SOCKETTUBE
* Recommended Spare Parts
The Specialist In Drum Handling Equipment
Model 82A-120
Mobile-Karrier / Palletizer
with AC Power Lift
Operator’s Manual for Model 82A-120 Morse Mobile-Karrier / Palletizer
Serial Number 0212 to 0213 (MMYY)
morsedrum.com
Copyright 2019 - Morse Mfg. Co., Inc. Form PL82A-120 (0212-0213) (Updated 24 May, 2019 11:54 AM) 6
ITEM QTY. PART # DESCRIPTION
101* 1 727A-P RATCHETPLATECPTW/TAB1/4”
103* 1 168-P PAWL, WITH DRILLED HOLE
104 1 136-P GRIP, HANDLE 7/8” X 4-3/4”
106* 1 169-P SPRING, PAWL
107* 1 170-P SCREW, 3/8 DIA X 5/8 SHOULDER
109 1 1297-P NUT, 1/4-20 REV HEX LOCK
110 1 1296-P HHCS, 1/4-20 X 7-1/2 GR5
111 1 4079-P HHCS, M8 X 60 MM CL8.8, 8MM
112* 1 5017-P CHAIN, CINCH, 9/32, 38 LINK
113* 1 4414-P COVER, CINCH CHAIN, FLEX PVC
114 1 4710-P PIN,BOWTIECOTTER,MOR
115 1 4081-P NUT, M8 ESNA, 8MM
* Recommended spare parts

Other morse Lifting System manuals

morse 510-120 User manual

morse

morse 510-120 User manual

morse 515M-T-114 User manual

morse

morse 515M-T-114 User manual

morse 400A-96SS-117 User manual

morse

morse 400A-96SS-117 User manual

morse MORSPEED 288-1 User manual

morse

morse MORSPEED 288-1 User manual

morse 525-N-114 User manual

morse

morse 525-N-114 User manual

morse 400AM-60 User manual

morse

morse 400AM-60 User manual

morse 400A-72-115 User manual

morse

morse 400A-72-115 User manual

morse 91 User manual

morse

morse 91 User manual

morse 520 User manual

morse

morse 520 User manual

morse 400AM-72-114 User manual

morse

morse 400AM-72-114 User manual

morse 81 User manual

morse

morse 81 User manual

morse 195AM-A User manual

morse

morse 195AM-A User manual

morse 515-N-120 User manual

morse

morse 515-N-120 User manual

morse 400A-72SS-110 User manual

morse

morse 400A-72SS-110 User manual

morse 525-T-115 User manual

morse

morse 525-T-115 User manual

morse 400A-96-110 User manual

morse

morse 400A-96-110 User manual

morse 410-114 User manual

morse

morse 410-114 User manual

morse 400A-72SS-125 User manual

morse

morse 400A-72SS-125 User manual

morse 400AM-96-114 User manual

morse

morse 400AM-96-114 User manual

morse 400A-72-120 User manual

morse

morse 400A-72-120 User manual

morse 8A-GT-125 User manual

morse

morse 8A-GT-125 User manual

morse 400A-60-114 User manual

morse

morse 400A-60-114 User manual

morse 400A-72-114 User manual

morse

morse 400A-72-114 User manual

morse 195A-A User manual

morse

morse 195A-A User manual

Popular Lifting System manuals by other brands

JLG 3507 Supplemental repair manual

JLG

JLG 3507 Supplemental repair manual

Floe P1200 Assembly instructions

Floe

Floe P1200 Assembly instructions

Snorkel S2646E manual

Snorkel

Snorkel S2646E manual

stellar labs Slider50 owner's manual

stellar labs

stellar labs Slider50 owner's manual

logitrans ELFRRM manual

logitrans

logitrans ELFRRM manual

Snorkel PRO 126 Calibration manual

Snorkel

Snorkel PRO 126 Calibration manual

Grundfos Sololift2 C-3 Installation and operating instructions

Grundfos

Grundfos Sololift2 C-3 Installation and operating instructions

HydroHoist HarborHoist G1.5 owner's manual

HydroHoist

HydroHoist HarborHoist G1.5 owner's manual

Upright ab62 Service manual

Upright

Upright ab62 Service manual

Fenix ELV-150/5 instructions

Fenix

Fenix ELV-150/5 instructions

Bend-Pak HDS-35X Service manual

Bend-Pak

Bend-Pak HDS-35X Service manual

Terrier TVK owner's manual

Terrier

Terrier TVK owner's manual

AJ HTF-U10 operating instructions

AJ

AJ HTF-U10 operating instructions

Shopsmith PowerPro 556191 manual

Shopsmith

Shopsmith PowerPro 556191 manual

AMGO Hydraulics PRO-12SX Installation and service manual

AMGO Hydraulics

AMGO Hydraulics PRO-12SX Installation and service manual

Ravaglioli KPS305HE Translation of the original instructions

Ravaglioli

Ravaglioli KPS305HE Translation of the original instructions

STS STP01-DRU01-EX operating instructions

STS

STS STP01-DRU01-EX operating instructions

Silverline 865628 Original instructions

Silverline

Silverline 865628 Original instructions

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
