morse 400A-96-115 User manual

MORSE Mfg. Co., Inc. •727 West Manlius Street •P.O. Box 518 •East Syracuse, NY 13057-0518
Phone: [phone] •Fax: [phone] •Email: [email protected] •Website: www.MORSEmfgco.com
Copyright 2007 - Morse Mfg. Co., Inc. Form PL400-96-115 (0804-____) (Updated 4/2007) Page 1
The Specialist In Drum Handling Equipment
MODEL 400A-96-115
Hydra-Lift, 96”, DC Power Lift & Tilt
Contents
Page
Receiving Procedures. . . . . . . . . . . . . . . . . 1
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Information. . . . . . . . . . . . . . . . . . . . . 1 - 2
Machine Description. . . . . . . . . . . . . . . . . . . 3 - 4
Operating Instructions. . . . . . . . . . . . . . . . . . . 4 - 5
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . 5

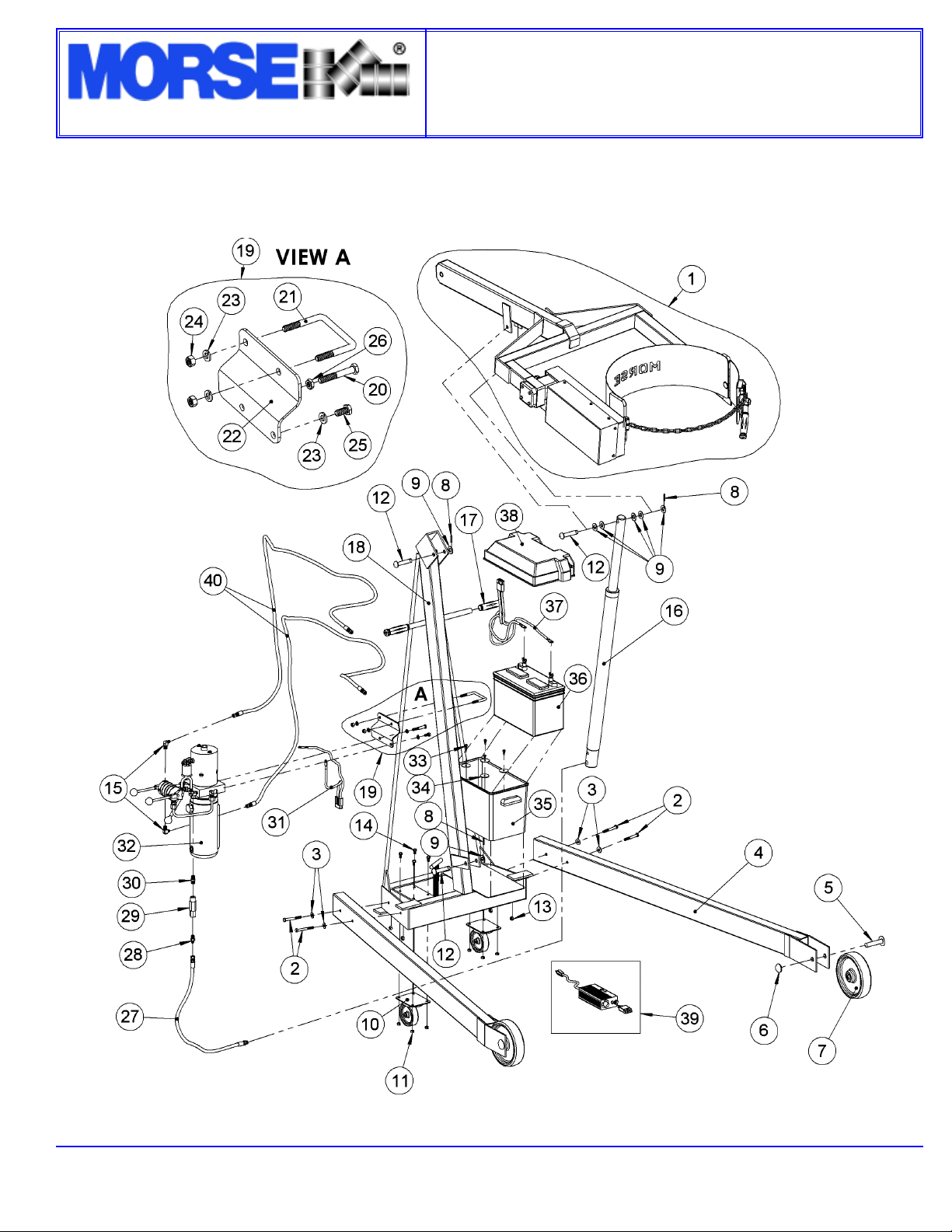

Parts Lists and Diagrams. . . . . . . . . . . . . . . . 6 - 9
Safety Information
While Morse Manufacturing Co. drum handling equipment is
engineered for safety and efficiency, a high degree of
responsibility must be placed upon the machine operator to follow
safe practices, based primarily on common sense, upon which
true safety depends.
Failure to follow the safety precautions in this manual can result
in personal injury or property damage. Observe the same
precautions as with similar machinery where carelessness in
operating or maintenance is hazardous to personnel. Carefully
read the safety precautions below and throughout this manual.
Receiving Procedures
Every Morse drum handler is inspected prior to shipping.
However, damage may be incurred during transit.
• Check for visible damage. If you choose to accept damaged
freight, always sign noting the damage on the BILL OF LADING.
• Document the damage and have the truck driver sign. We
recommend keeping a digital camera at your receiving dock
for this purpose.
• Open packages expeditiously to check the condition of the
goods. There is only a 24 hour window to notify the carrier of
any concealed damage.
• IMMEDIATELY REPORT ALL DAMAGE TO THE SHIPPING
COMPANY! Then you may contact Morse for assistance with
your freight claim.
• Morse Manufacturing will not be held responsible for any
damaged freight that is not signed for as damaged.
Delivery to non-business addresses without a loading dock result
in additional freight charges. Residential delivery fees, inside
delivery fees, re-delivery charges, and lift gate services will be
added by the truck line, and are non-negotiable.
Limited 2 Year Warranty
Morse drum handling equipment is guaranteed against defects
in workmanship or materials for TWO YEARS when used
properly within its rated capacity. Warranty does not cover wear
from normal use or damage from accident or abuse. Motors
and other purchased parts carry the warranties of their
manufacturers.
For warranty claims, contact your Morse Dealer to obtain a
return authorization number, and for return freight advice. Return
freight must be prepaid.
In all instances, liability is limited to the purchase price paid or
to repairing or replacing the product. Customer assumes liability
for any modifications, unauthorized repairs or parts substitution.
Operator’s Manual
for Morse Hydra-Lift Drum Karrier
Model 400A-96-115
Serial Number 0804 to ____ (MMYY)

Safety Information (continued)
DANGER - Indicates a situation which, if not avoided, will result in serious
injury or death. This signal word is limited to the most extreme situations.
WARNING - Indicates a situation which, if not avoided, could result in
serious injury or death.
CAUTION - Indicates a situation which, if not avoided, can result in damage
to the machine.
CAUTION – Do Not Transport with Drum Raised
ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The unit
can become unstable when transporting with a raised load.
DANGER - Stay Clear of Power Lines
KEEP WELL CLEAR OF POWER LINES. Never approach a power line. Current in a high voltage line may
arc some distance from the wire to the steel framed, grounded machine.
WARNING
The Hydra-Lift Karrier is designed to handle one drum of the types listed at the top of page 3, under 2.
Machine Description. DO NOT attempt to handle any other type of drum or object. DO NOT exceed the
weight capacity of 800 Lb.
WARNING - Level Floors Only
For operation only on clean, level floors of suitable bearing capacity. Do not use on sloped surfaces, ramps,
irregular or debris strewn floors.
WARNING - Do Not Modify the Unit
Under no circumstances should any modifications be made to the Morse machinery without factory authorization.
Any modifications may void the warranty. This machine was designed to perform a specific job and alterations
may result in injury to operator or machine.
WARNING - No Loose Fitting Clothing
Wear close-fitting clothing and safety equipment appropriate to the job. Loose fitting clothing may become
caught on the machinery and cause severe personal injury.
WARNING - Hydraulic Fluid Under Pressure Can Be Hazardous
Escaping hydraulic fluid under pressure can penetrate the skin, causing serious injury. Avoid the hazard by
relieving pressure before disconnecting hydraulic lines. Keep hands and body away from pinholes and
nozzles, which eject fluid under high pressure. Use a piece of cardboard to search for leaks. If an accident
occurs, see a doctor immediately and inform them of the nature of the accident.
CAUTION - Wear Safety Shoes
Wear safety shoes with non-slip soles and hard toe protection.
Copyright 2007 - Morse Mfg. Co., Inc. Form PL400-96-115 (0804-____) (Updated 4/2007) Page 2
Operator’s Manual for Morse Hydra-Lift Drum Karrier Model 400A-96-115
Serial Number 0804 to ____ (MMYY)
The Specialist In Drum Handling Equipment
MODEL 400A-96-115
Hydra-Lift, 96”, DC Power Lift & Tilt

Copyright 2007 - Morse Mfg. Co., Inc. Form PL400-96-115 (0804-____) (Updated 4/2007) Page 3
Machine Description
The Model 400A-96-115 Hydra-Lift Karrier will pour a drum up to 96” high, measured from the floor to the lowest point of a
horizontal drum. It is designed to lift, transport, and dispense a ribbed 55-gallon steel drum 22.5” in diameter.
• Asmaller diameter drum can be handled with the correct size 55/30 Series Diameter Adaptor installed
(see Diameter Adaptor literature)
• A55-gallon plastic drum can be handled if the unit is equipped with an Adjustable Bracket (Option HDPS) or Top Rim Clamp
(Option HDRC)
(see plastic drum option manual).
The maximum full-drum capacity is 800 Lb. The capacity is derated to 500 Lb. for a half-full drum. The half-full rating is based on
the tilt mechanism’s capacity for handling an unbalanced bottom-
heavy drum.
Controls
The Morse Hydra-Lift Karrier is manually propelled and steered.
The drum lift and tilt controls are powered by a 12V DC motor
with a momentary switch.

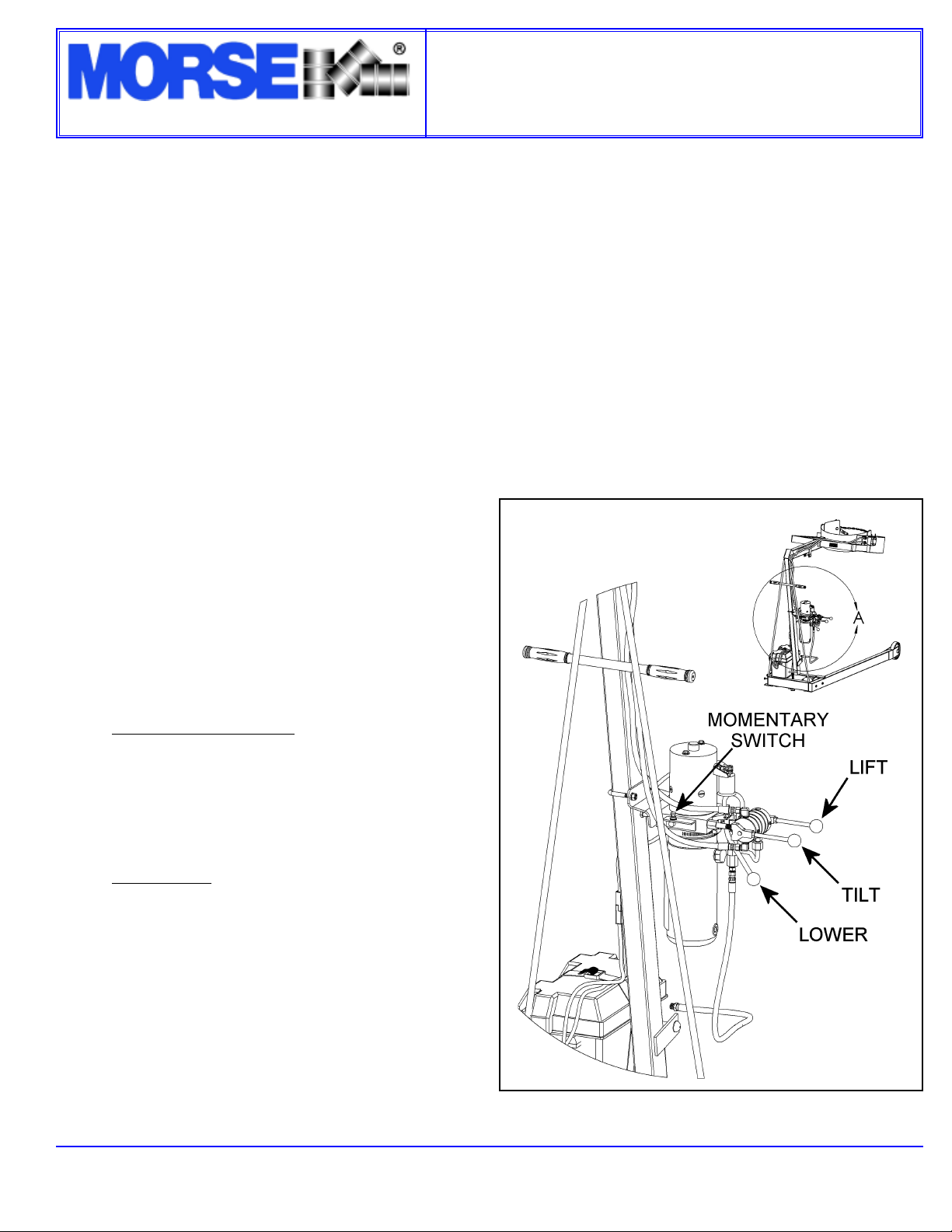

There are two functions for the operator to control (Figure 2.1):
1. “LIFT” and lower function for vertical positioning of the drum
2. “TILT” function to control the degree of rotation of the drum
1. LIFT and Lower Function
To raise the drum
a. Turn the motor on by holding the momentary switch
in the on position.
b. With the motor on, raise the LIFT handle.
To lower the drum
a. With the motor off, push in the LOWER handle.
2. TILT Function
To tilt the drum forward for pouring
a. Turn on the motor by holding momentary switch in
the on position.
b. With the motor on, raise the tilt handle.
To return the drum to vertical position
a. Turn on the motor by holding momentary switch in
the on position.
b. Push the tilt handle down.
Operator’s Manual for Morse Hydra-Lift Drum Karrier Model 400A-96-115
Serial Number 0804 to ____ (MMYY)
The Specialist In Drum Handling Equipment
MODEL 400A-96-115
Hydra-Lift, 96”, DC Power Lift & Tilt
Figure 2.1

Copyright 2007 - Morse Mfg. Co., Inc. Form PL400-96-115 (0804-____) (Updated 4/2007) Page 4
WARNING - Watch Out for Pinch Points
Stay clear of moving parts. Operator should remain behind the push handle during the lift operation.
Figure 3.2
Floor Lock
The screw-down floor lock is located on the base of the tower
(figure 3.1). Turning the floor lock clockwise until it locks in the
down position activates the floor lock. When the floor lock is
activated it prevents unwanted free wheeling of the unit. Floor
conditions determine the effectiveness of the floor lock. The
operator should verify its holding action before depending on it
to hold.

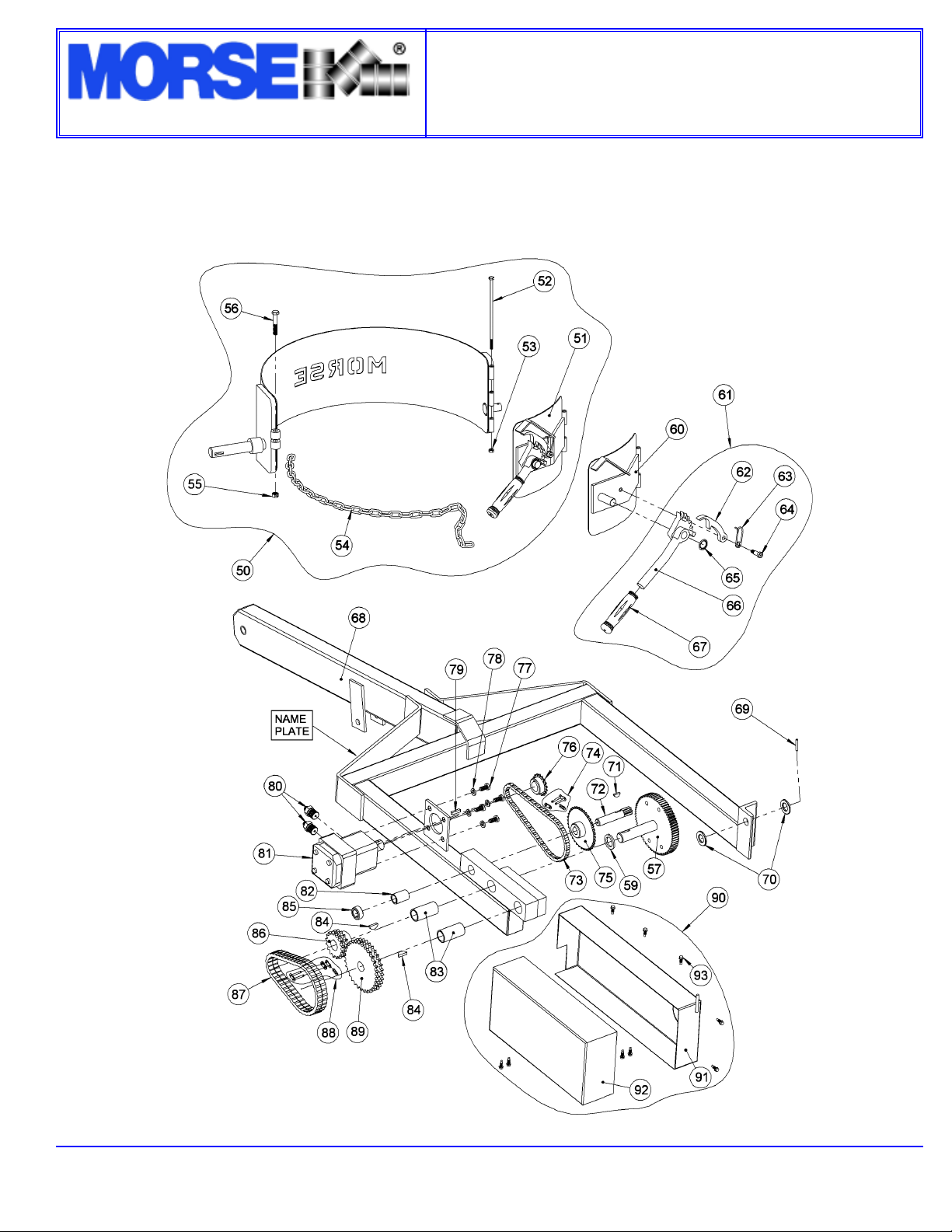

Drum Holder Assembly
The drum holder assembly (or “saddle assembly”) is the
component on the Hydra-Lift Karrier that is intended to hold the
drum. The drum holder assembly is designed to secure a
standard ribbed 55-gallon steel drum around it’s middle using a
cinch chain and ratchet tightening system. The drum holder
accepts accessories for handling smaller diameter drums.
Operating Instructions
1.) Push the Hydra-Lift Karrier to the drum.
2.) Using the “LIFT” control as described in “Machine
Description - Controls” (page 3) , position the drum holder
assembly with the back band at the middle of the drum.
(Figure 3.1). With the ratchet plate swung open and the
cinch chain hanging from the chain hook, push the unit until
the back band rests firmly against the drum. Some
adjustment to the tilt angle of the saddle may be necessary
to ensure band fits flush on the drum.
3.) Attaching the drum:
Drape the chain across the front of the drum and engage a
link into the slot in the ratchet (Figure 3.2). Turn the ratchet
clockwise to tighten chain. If ratchet turns until the pawl is
beyond the last ratchet tooth, turn the ratchet back and slide
the next link into the ratchet slot and try tightening again.
The chain must be held tightly against the drum with the pawl
engaged securely in the ratchet teeth.
4.) Operate the lift function to lift drum clear of floor. Roll to
dispensing location. NOTE: Do not allow the drum to impact
on floor, pouring station, etc. or a spill or damage could
occur.
Figure 3.1
Operator’s Manual for Morse Hydra-Lift Drum Karrier Model 400A-96-115
Serial Number 0804 to ____ (MMYY)
The Specialist In Drum Handling Equipment
MODEL 400A-96-115
Hydra-Lift, 96”, DC Power Lift & Tilt

Copyright 2007 - Morse Mfg. Co., Inc. Form PL400-96-115 (0804-____) (Updated 4/2007) Page 5
CAUTION – Do Not Transport with Drum Raised
ALWAYS LOWER THE DRUM HOLDER TO LOWEST POSITION BEFORE TRANSPORTING. The unit
can become unstable when transporting with a raised load.
5.) Lift drum to desired pouring height. Operate the tilt control as described in “Machine Description - Controls” (page 3) to
adjust the drum attitude. This is especially important when lifting an open drum. The floor lock should be engaged while
dispensing / draining.
6.) When dispensing is complete, tilt drum back to upright position. Disengage the floor lock and lower the drum to transporting
height; about 6” off the floor.
WARNING - Stay Clear of Raised Drum
NEVER allow anyone to be below any part of a raised drum handler or drum. Remain behind the push handle
while handling a drum.
WARNING – Do NOT Disengage the Cinch Chain When Drum is off the Ground
When the drum is in the upright position, lower the drum to the floor before releasing the cinch chain.
7.) Push the unit to the drum storage area and lower to the floor in an upright position. Release the cinch chain from the ratchet
by applying pressure to the ratchet handle in a clockwise direction with one hand and opening the pawl to free the ratchet
with the other hand. Remove the cinch chain link from the ratchet.
Maintenance
Periodic inspection for the general condition of structural and mechanical components is imperative for safe and efficient operation.
Periodically inspect all moving parts, framework, and contact areas for signs of wear, fatigue, or loosening. Tighten, adjust, or
replace parts as necessary to prevent failure and maintain proper function.
Inspect the hydraulic system for oil drips, hose damage, or other signs of wear. Inspect the level and condition of the hydraulic
fluid. Replace any parts that show signs of wear.
Grease wheel bearings periodically. Oil or grease all moving parts including: the three clevis pins and the surfaces of the boom
which contact the inside of the mast cap, the hinge pin, the gears and sprockets in the tilt drive, and the ratchet and pawl.
Worn or damaged parts must be properly replaced with the correct, genuine Morse parts.
Hydraulic pump is shipped filled with Noco Premium plus automatic transmission fluid d/m. Material safety data sheet (msds) is
available online. Change oil yearly, sooner depending on dirty conditions or outdoor use. Replace oil with Mobil dte 24 or
equivalent for indoor use (Mobil dte 13 for outdoor use).
Operator’s Manual for Morse Hydra-Lift Drum Karrier Model 400A-96-115
Serial Number 0804 to ____ (MMYY)
The Specialist In Drum Handling Equipment
MODEL 400A-96-115
Hydra-Lift, 96”, DC Power Lift & Tilt

Copyright 2007 - Morse Mfg. Co., Inc. Form PL400-96-115 (0804-____) (Updated 4/2007) Page 6
Parts List for Morse Hydra-Lift Drum Karrier Model 400A-96-115
Serial Number 0804 to ____ (MMYY)
The Specialist In Drum Handling Equipment
MODEL 400A-96-115
Hydra-Lift, 96”, DC Power Lift & Tilt
ITEM # QTY. PART # DESCRIPTION
1 1 3998-P OVERHEAD ASM, 96" PT
2 4 1521-P HHCS, 3/8-16 X 3 GR5
3 4 1166-P WASHER, 3/8 USS 1" OD
4 2 134-84-P LEG WELD, 400A-84, 96, 405
5 2 704-P AXLE, 3/4", USE WITH PUSH-ON
6 2 705-P CAP, HUB, PUSH-ON, 3/4"
7 * 2 87-P WHEEL, MORTUF, 8", 3/4" BRG
8 3 64-P ROLL PIN, 3/16 X 1-1/4
9 7 17-P WASHER, 5/8 SAE FL 1-5/16 OD
10 * 2 3308-P CASTER, 4" SWIVEL, DBL RACE
11 8 491-P NUT, LOCK, 5/16-18 REV HEX
12 3 138-P CLEVIS PIN 5/8 X 3"
13 4 1169-P NUT, LOCK, 3/8-16 REV HEX
14 8 215-P HHCS, 5/16-18 X 5/8 GR2
15 2 765-P HYD FIT, MALE ELBOW, FLARE 400
16 1 3006-P CYLINDER, 1.5 X 29 510 515 611
17 2 136-P GRIP, HANDLE 7/8" X 4-3/4"
18 1 3999DC-P TOWER WELD, DC, 400A-96
19 1 3680-P KIT, PUMP MOUNT PLATE, PL
20 1 155-P HHCS, 3/8-16 X 2-1/2 GR2
21 1 3641-P U-BOLT, 3/8-16, 400 PUMP MOUNT
22 1 3643-P MOUNT PLATE, POWER PUMP
23 7 1474-P WASHER, 3/8 SPLIT LOCK
24 2 149-P NUT, FIN, 3/8-16 HEX
25 1 1657-P HHCS, 3/8-16 X 3/4 GR2
26 1 1165-P NUT, JAM, 3/8-16
27 1 3690-P HYD HOSE ASM, 22"
28 1 345-P HYD FIT, MALE FLARE, 456, 82
29 1 3177-P VALVE, P.C. FLOW CONT .75 GPM
30 1 1108-P HYD FIT, PIPE NIPPLE, 1/4"
31 1 404-P CABLE HARNESS 20", 20" -125
32 1 M3500-P HYD POWER PACK, -115
33 1 193-P SCREW, TEK, 12-14 X 3/4, 3 PT
34 1 4168-P WASHER, 7/32, 1-1/2 OD, FENDER
35 1 1729-P BOTTOM, BATTERY BOX, 400
36 1 388-P BATTERY, 12V DC
37 1 403-P BATTERY CABLE HARNESS 20", 30"
38 1 1728-P TOP, BATTERY BOX, 400, 285A-BP
39 1 389-P CHARGER, BATTERY, 110V TO 12V
40 2 1765-P HYD HOSE ASM, 96 PT, 101"
* Recommended spare parts.

Copyright 2007 - Morse Mfg. Co., Inc. Form PL400-96-115 (0804-____) (Updated 4/2007) Page 7
Parts Diagram for Morse Hydra-Lift Drum Karrier Model 400A-96-115
Serial Number 0804 to ____ (MMYY)
The Specialist In Drum Handling Equipment
MODEL 400A-96-115
Hydra-Lift, 96”, DC Power Lift & Tilt

Copyright 2007 - Morse Mfg. Co., Inc. Form PL400-96-115 (0804-____) (Updated 4/2007) Page 8
Overhead Assembly (Part Number 3998-P)
for Morse Hydra-Lift Drum Karrier Model 400A-96-115
Serial Number 0804 to ____ (MMYY)
The Specialist In Drum Handling Equipment
MODEL 400A-96-115
Hydra-Lift, 96”, DC Power Lift & Tilt
ITEM # QTY. PART # DESCRIPTION
50 1 745A-P SADDLE ASM, A-HD, '88
51 1 726-P * A RATCHET HINGE PLATE CPT 1/4"
52 1 1296-P * HHCS, 1/4-20 X 7-1/2 GR5
53 1 1297-P * NUT, LOCK, 1/4-20 REV HEX
54 1 180-P * CHAIN, CINCH, 3/16 ALLOY 33 LK
55 1 4081-P * NUT, ESNA, M8, 8MM
56 1 4079-P * HHCS, M8 X 60 MM GR5, 8MM
57 1 27-P * SPUR GEAR W/ 1" SHAFT, HD TYPE
59 1 29-P SPACER, SPUR GEAR .15"
60 1 731-P A RATCHET HINGE PLATE ONLY 1/4 (NOT SOLD SEPARATELY)
61 1 165KIT-P KIT, RATCHET CHAIN TIGHTENER
62 1 168-P PAWL, WITH DRILLED HOLE
63 1 169-P PAWL SPRING
64 1 170-P SCREW, SHOULDER, 3/8 DIA X 5/8
65 1 710-P RETAINER, RATCHET PUSH NUT 3/4
66 1 165-P RATCHET, MALLEABLE, FOR SADDLE
67 1 136-P GRIP, HANDLE 7/8" X 4-3/4"
68 1 3997-P OVERHEAD WELD, 96" PT
69 1 64-P ROLL PIN, 3/16 X 1-1/4
70 2 55-P WASHER, 3/4 SAE FL 1-1/2 OD
71 1 735-P * KEY, WOODRUFF, SIZE 9, ASA606
72 1 14-P * GEAR, PINION, 7 TOOTH
73 1 12-P * CHAIN, ROLLER, #35 W/ M LINK
74 1 795-P LINK, MASTER, #35 CHAIN
75 1 13-P * SPROCKET #35 36T, 3/4" BORE
76 1 1116-P * SPROCKET #35 17T, 1" BORE
77 4 1657-P HHCS, 3/8-16 X 3/4 GR2
78 4 1474-P WASHER, 3/8 SPLIT LOCK
79 1 2656-P * KEY, SQUARE, 1/4 X 1"
80 2 2120-P HYD FIT, MALE CONNECTOR, 400
81 1 351-P MOTOR, HYDRAULIC HYD, 400, 456
82 1 7-P * BEARING, 3/4" ID X 1-1/2"
83 2 18-P * BEARING, 1" ID X 2-1/2"
84 2 736-P * KEY, WOODRUFF, SIZE 15, ASA808
85 1 15-P COLLAR, 3/4" ID
86 1 30-P * SPROCKET #40D 16T, 1" BORE
87 1 31-P * CHAIN, ROLLER, #40D W/ M. LINK
88 1 796-P LINK, MASTER, #40D CHAIN
89 1 32-P * SPROCKET #40D 32T, 1" BORE
90 1 1049-P KIT, SQ COVER, 400 PT
91 1 1772-P COVER HALF SQ, 1 HOLE, 400 PT
92 1 1755-P COVER HALF SQ, NO HOLES 400 PT
93 9 193-P * SCREW, TEK, 12-14 X 3/4, 3 PT
* Recommended spare parts.

Copyright 2007 - Morse Mfg. Co., Inc. Form PL400-96-115 (0804-____) (Updated 4/2007) Page 9
Overhead Assembly (Part Number 3998-P)
for Morse Hydra-Lift Drum Karrier Model 400A-96-115
Serial Number 0804 to ____ (MMYY)
The Specialist In Drum Handling Equipment
MODEL 400A-96-115
Hydra-Lift, 96”, DC Power Lift & Tilt
